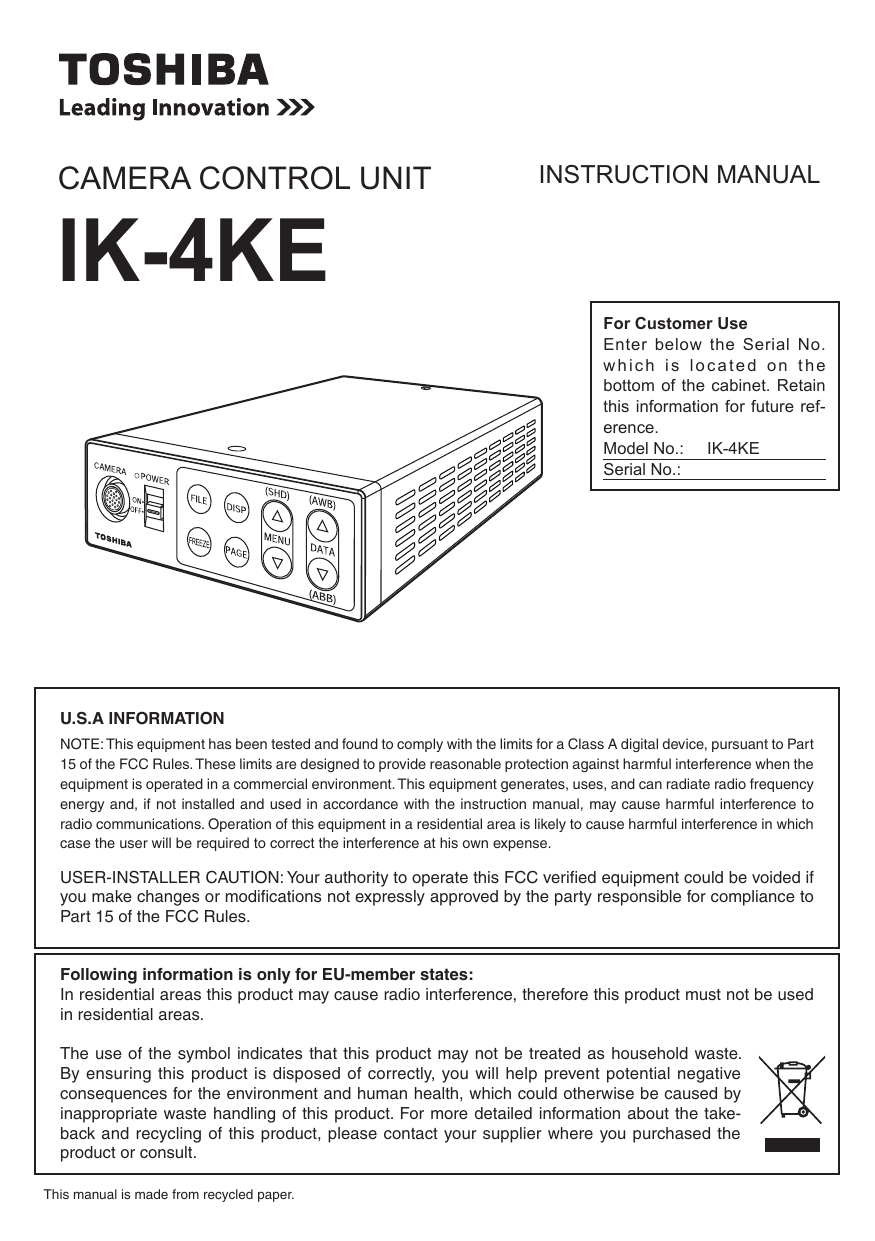

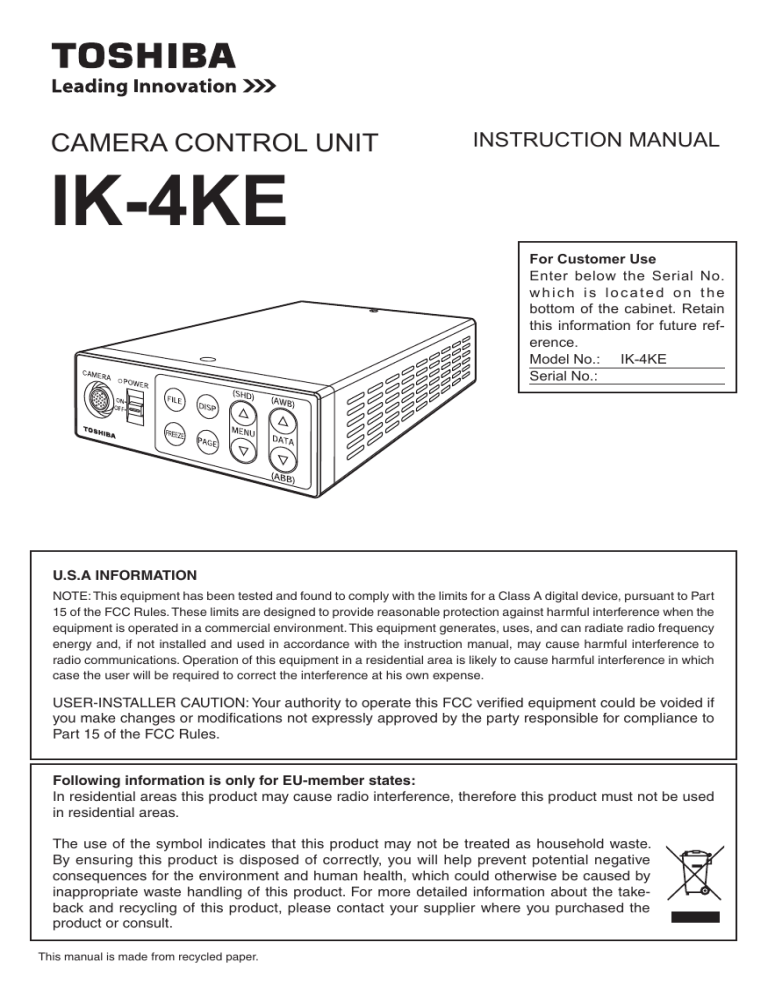

Toshiba IK-4KE

CAMERA CONTROL UNIT

IK-4KE

INSTRUCTION MANUAL

For Customer Use

Enter below the Serial No. which is located on the bottom of the cabinet. Retain this information for future reference.

Model No.: IK-4KE

Serial No.:

U.S.A INFORMATION

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

USER-INSTALLER CAUTION: Your authority to operate this FCC verified equipment could be voided if you make changes or modifications not expressly approved by the party responsible for compliance to

Part 15 of the FCC Rules.

Following information is only for EU-member states:

In residential areas this product may cause radio interference, therefore this product must not be used in residential areas.

The use of the symbol indicates that this product may not be treated as household waste.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about the takeback and recycling of this product, please contact your supplier where you purchased the product or consult.

This manual is made from recycled paper.

SAFETY PRECAUTIONS

Safety icons

This manual contains safety instructions that must be observed in order to avoid potential hazards that could result in personal injuries, damage to your equipment, or loss of data.

These safety cautions have been classified according to the seriousness of the risk, and the icons highlight these instructions as follows:

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Indicates a potentially hazardous situation which, if not avoided, may result in property damage.

Stop operation immediately if any abnormality or defect occurs.

Use during an abnormal condition; such as emitting smoke, burning odors, damage from dropping, invasion of foreign objects, etc. may result in fire and/or electric shock. Immediately disconnect the power source and contact your dealer.

Avoid installing in a shower room or a bathroom.

This may result in fire and/or electric shock.

Do not operate in places where the product may get wet.

This may result in fire and/or electric shock.

Do not repair, disassemble and/or modify by yourself.

This may result in fire and/or electric shock. Be always sure to contact your dealer for internal repair, inspection and cleaning of the product.

Use the specified power supply.

Otherwise, fire or electrical shock may occur.

Do not place anything on top of the unit.

Introducing foreign materials, such as metals or liquids into the product may result in fire and/or electrical shock.

Do not put the product on an unstable, slanted or vibrating surface.

If this product is dropped or falls, it may cause serious injury.

Do not touch the product or any connection cables during a thunderstorm.

This may result in electrical shock.

Note the following instructions when installing.

• Do not cover the product with any material.

• Do not place the product on any confined Inflammable material such as a carpet or blanket.

• Do not place the product in a narrow space, as this may cause heat to buildup inside the product.

Failure to follow the above cautions may result in fire.

Do not place the product in direct sunshine and/or high temperature.

Temperature build up inside the product may result in fire.

Avoid placing in humid, smoky, vaporized or dusty places.

This may result in fire and/or electric shock.

Do not block the air vents.

Temperature build up inside the product may result in fire.

Ask your dealer to perform a periodical check and internal cleaning

(approx. once every five years).

Dust inside the product may result in fire. For inspection and cleaning cost, please consult your dealer.

The following description is for when an IK-4KH camera head is connected to this camera control unit.

Do not point the lens directly at the sun and/or intense light such as direct sunlight, etc.

Focusing of the light may cause eye injury and/or fire.

Disclaimer

We disclaim any responsibility and shall not be responsible for any damages or losses incurred by the user in any of the following cases:

1. Fire, earthquake or any other act of God; acts by third parties; misuse by the user, whether intentional or accidental; use under extreme operating conditions.

2. Malfunction or non-function resulting in indirect, additional or consequential damages, including but not limited to loss of expected income and suspension of business activities.

3. Incorrect use not in compliance with instructions in this instruction manual.

4. Malfunctions resulting from misconnection to other equipment.

5. Repairs or modifications made by the user or caused to be made by the user and carried out by an unauthorized third party.

Notwithstanding the foregoing, Toshiba America Information Systems, Inc.’s (Toshiba's) liabilities shall not, in any circumstances, exceed the purchase price of the product.

Copyright and Right of Portrait

There may be a conflict with the Copyright Law and other laws when, you, the customer, uses, displays, distributes, or exhibits an image picked up by the camera without permission from the copyright holder. Please also note that transfer of an image or file covered by copyright is restricted to use within the scope permitted by the Copyright Law. You are solely responsible for complying with all applicable copyright laws.

Protection of Personal Information

Images taken by the camera that reveal the likeness of an individual person may be considered personal information. To disclose, exhibit or transmit those images over the internet or otherwise, consent from such individual person may be required. You are solely responsible to obtain such consent.

Limitation of Usage

The product is not designed for any “critical applications.” “Critical applications” means life support systems, exhaust or smoke extraction applications, medical applications, commercial aviation, mass transit applications, military applications, homeland security applications, nuclear facilities or systems or any other applications where product failure could lead to injury to persons or loss of life or catastrophic property damages. Accordingly, Toshiba disclaims any and all liability arising out of the use of the product in any critical applications.

1. CAUTIONS ON USE AND INSTALLATION ...............................................................................................6

2. COMPONENTS ..........................................................................................................................................6

3. ITEMS CONTROLLED BY THE SCREEN DISPLAY .................................................................................7

4. NAMES AND FUNCTIONS ........................................................................................................................9

5. CONNECTION..........................................................................................................................................10

5. 1 Standard Connection .......................................................................................................................10

5.1.1 4K mode ................................................................................................................................10

5.1.2 1080 i/p mode .......................................................................................................................11

5. 2 Cautions on Connection ...................................................................................................................11

5. 3 Connector Pin Assignments .............................................................................................................12

6. OPERATION .............................................................................................................................................13

6. 1 Automatic Black Balance .................................................................................................................13

6. 2 White Balance ..................................................................................................................................13

6. 3 Scene File ........................................................................................................................................15

6. 4 Gain .................................................................................................................................................15

6. 5 Shading Correction ..........................................................................................................................16

6. 6 Switching of Video Signal Output .....................................................................................................17

6. 7 Freeze operation ..............................................................................................................................17

7. MODE SETTING BY ON SCREEN DISPLAY ..........................................................................................18

7. 1 Using the Menus ..............................................................................................................................18

7. 2 Menus ..............................................................................................................................................19

( 1 ) SHUTTER (Electronic shutter).........................................................................................................19

(1. 1) Changing the setting in AUTO mode .....................................................................................20

(1. 2) Changing the setting in MANUAL mode ................................................................................22

(1. 3) Changing the setting in SS (Synchro. Scan) mode ................................................................22

( 2 ) GAIN (Video gain)............................................................................................................................23

(2. 1) Changing the setting in AUTO (AGC: Automatic gain control) mode .....................................23

(2. 2) Changing gain in MANUAL mode ..........................................................................................23

( 3 ) WHT BAL (White balance) ...............................................................................................................24

(3. 1) Changing the setting in AWB (Automatic White Balance) mode ...........................................24

(3. 2) Changing gain in MANUAL mode ..........................................................................................25

( 4 ) PROCESS1 .....................................................................................................................................26

(4. 1) Changing gamma correction ON/OFF ...................................................................................26

(4. 2) Changing gamma correction level .........................................................................................26

(4. 3) Changing black gamma correction level ................................................................................27

(4. 4) Changing the knee correction point .......................................................................................27

(4. 5) Changing the knee correction slope ......................................................................................27

(4. 6) Changing pedestal .................................................................................................................28

(4. 7) Change of white clip ..............................................................................................................28

( 5 ) PROCESS2 .....................................................................................................................................29

(5. 1) Changing detail (outline) gain ................................................................................................29

(5. 2) Change of detail boost frequency ..........................................................................................29

(5. 3) Change of horizontal and vertical detail balance ...................................................................29

( 6 ) PROCESS3 .....................................................................................................................................30

(6. 1) Changing matrix color correction ON/OFF ...........................................................................30

(6. 2) Selection of color for correction .............................................................................................30

(6. 3) Changing HUE and GAIN of selected color ...........................................................................30

(6. 4) Changing the total Chroma gain (simultaneously for all colors in the matrix) ........................30

( 7 ) SYNC ...............................................................................................................................................31

(7. 1) INT screen .............................................................................................................................31

(7. 2) Changing EXT. setting ...........................................................................................................31

( 8 ) OPTION ...........................................................................................................................................32

(8. 1) Changing shading correction mode .......................................................................................32

(8. 2) Changing manual shading correction mode ..........................................................................32

(8. 3) Changing detail signal output ................................................................................................32

(8. 4) Change of vertical inversion setting .......................................................................................33

(8. 5) Change of horizontal inversion setting ...................................................................................33

(8. 6) Switching of inversion mode display ......................................................................................33

(8. 7) Changing the freeze display ..................................................................................................33

(8. 8) Changing 4K OSD (On Screen Display) output .....................................................................34

(8. 9) Changing the output mode ....................................................................................................34

(8. 10) Changing RS-232C baud rate .............................................................................................34

( 9 ) Setting USER area ..........................................................................................................................35

( 10 ) Returning to factory settings ..........................................................................................................36

7. 3 External Sync ...................................................................................................................................36

( 1 ) External sync signal input conditions ...............................................................................................36

( 2 ) External sync frequency range ........................................................................................................36

( 3 ) Using the unit with external sync signal ...........................................................................................36

7. 4 Synchro. Scan Operation .................................................................................................................36

( 1 ) Setting by 1H ...................................................................................................................................36

8. BEFORE MAKING SERVICE CALL ........................................................................................................37

9. SPECIFICATIONS ....................................................................................................................................38

10. EXTERNAL APPEARANCE DIAGRAM ................................................................................................39

1. CAUTIONS ON USE AND INSTALLATION

• Handling the unit.

Do not drop, jolt, or vibrate, as this may result in damage to the unit and may cause problems. Treat the camera cables carefully to prevent cable problems, such as breaks in the cable and loose connections.

• Install the camera in a location free from noise.

If the camera or the cables are located near power utility lines or a TV, etc. undesirable noise may appear on the screen. In such a case, try to change the location of the camera or the cable wiring.

• Operating ambient temperature and humidity.

Do not use the camera in places where temperature and humidity exceed the specifications. Picture quality will deteriorate and internal parts may be damaged.

Be particularly careful when using in places exposed to direct sunlight. When shooting in hot environments, depending on the conditions of the object and the camera (for example when the gain is increased), noise in the form of vertical strips or white dots may occur. This is not a malfunction.

• When not using the camera for extended periods of time.

Switch the control unit off and disconnect the power supply.

• Avoid using or storing the camera in the following places:

Places filled with highly flammable and corrosive gas.

Places near gasoline, benzene, or paint thinner.

Places subject to strong vibration.

Places containing chemicals (such as pesticides), rubber or vinyl products for extended periods of time.

• This product is for indoor use only.

The following descriptions are for a camera head “IK-

4KH” connected to this camera control unit.

• Do not shoot intense light.

If a strong light is imaged, vertical stripes or traverse bands may appear on the screen but this is not a failure.

• Moire

A moire pattern is an interference pattern generated when two repetitive line patterns overlap. This is not a malfunction. Eliminating the repetitive line patterns, or aligning the two patterns, will eliminate the moire.

• Handling of the camera head and protection cap.

Keep the camera head and protection cap away from children as they may pose a choking hazard.

The protection cap protects the image sensing plane when the lens is removed from the camera head, do not discard the protection cap.

• When cleaning the camera.

Unplug the power source before cleaning. Clean with a soft dry cloth only. Do not use chemicals or chemically treated cloths. Chemicals may damage coatings and printed letters. When cleaning the lens, use lens cleaning paper.

• Installation without a tripod.

Before installing the camera head, make sure that the location can withstand the total weight of the camera head.

If this is not the case, reinforce the area to prevent the unit from dropping, which may result in damage to the unit or personal injury.

2. COMPONENTS

(1) Camera Control Unit ...................................................................................................................... 1

(2) Accessories

(a) Instruction manual .................................................................................................................. 1

3. ITEMS CONTROLLED BY THE SCREEN DISPLAY

MODE

AUTO level

AUTO exposure metering

AUTO peak/average

AUTO response speed

Maximum AUTO shutter speed

Syncro. scan

MODE

AUTO maximum gain

AUTO minimum gain

MANUAL gain

MODE

Color temperature

AWB R PAINT

AWB B PAINT

MANUAL R GAIN

MANUAL B GAIN

Gamma correction

Gamma correction level

Black gamma correction level

Knee correction point

Knee correction slope

Master pedestal

Red pedestal

Blue pedestal

White clip

Detail gain

Item

AUTO area

MANUAL shutter speed

AWB area

Detail boost frequency

HV balance

Correction ON/OFF

Vertical inversion

Horizontal inversion

Inversion mode display switch

Available selections

AUTO, MANUAL, SS

-100 – 0 – 100

PEAK/AVE, MEDIAN

00 : 10 – 10 : 00

1 – 10 – 20

PRESET A, PRESET B, PRESET C, PRESET D, PRESET E,

USER (USER area is possible to set in 64 zones)

1/200s, 1/250s, 1/300s, 1/350s, 1/400s, 1/450s, 1/500s,

1/550s, 1/600s, 1/700s, 1/800s, 1/900s, 1/1000s,

1/1200s, 1/1500s, 1/2000s, 1/4000s, OFF

OFF, 1/100s, 1/125s, 1/250s, 1/500s, 1/1000s, 1/2000s,

1/3000s, 1/4000s, 1/5000s, 1/10000s

1/1125H – 1124/1125H, OFF

AUTO, MANUAL, OFF

0dB to 24dB

-6dB to 0dB

-6dB to 24dB

AWB, MANUAL

3200K, 5600K

-10 – 0 – 10

PRESET A, PRESET B, PRESET C, PRESET D, PRESET E,

USER (USER area is possible to set in 64 zones)

-100 – 0 – 100

ON, OFF

-10 – 0 – 10

LOW, NORMAL, HIGH

70%, 75%, 80%, 85%, 90%, 95%, 100%

1 – 8 – 16

-200 – 0 – 200

-100 – 0 – 100

100% − 109%

0 − 10 − 31

Preset value

(Factory setting)

MANUAL

PEAK/AVE

00 : 10

PRESET A

OFF

24dB

-6dB

0dB

AWB

3200K

PRESET A

1 − 10 − 16

8/16 − 16/16 − 24/16 (ratio of V/H)

ON, OFF

Selection of correction color R, R-Ye, Ye, Ye-G, G, G-Cy, Cy, Cy-B, B, B-Mg, Mg, Mg-R

Phase -15 – 0 – 15

Gain

Chroma gain

-15 – 0 – 15

-31 − 0 − 31

Ext. Sync H phase adjustment

Shading correction mode

Manual shading correction

Detail signal output

-650 – 0 – 650

SET, MANUAL, OFF

-128 – 0 – 127

ON, OFF

NORMAL

85%

109%

16 (4K mode)

10 (1080p mode)

(1080i mode)

16/16

OFF

Item

Changing the FREEZE display

4K OSD output

Output mode

RS-232C baud rate

Available selections

ON, OFF

A, B, C, D

4K, 1080p, 1080i

9600bps, 19200bps

Preset value

(Factory setting)

9600bps

4. NAMES AND FUNCTIONS

FILE button

POWER switch

POWER LED

Camera cable for “IK-4KH” terminal

FREEZE

FREEZE button

[Front]

DC IN 12V terminal

⑬ REMOTE terminal

KEY LOCK switch

FORMAT switch

SYNC switch

DC IN 12V

REMOTE

1 2 3 4 5

6 7 8 9

A B

3G/HD-SDI

KEY LOCK

FORMAT SYNC

50 IN

OFF 59.94

OUT

SYNC IN/OUT

[Rear]

DISP button

MENU UP

(SHD) button

DATA UP

(AWB) button

DATA DOWN

(ABB) button

MENU DOWN button

PAGE button

3G/HD-SDI A, B, C, D terminal

SYNC IN/OUT terminal

POWER LED

POWER switch

FILE button

FREEZE button

DISP button

PAGE button

MENU UP (SHD) button

MENU DOWN button

DATA UP (AWB) button

DATA DOWN (ABB) button

Where the camera cable for “IK-4KH” is connected.

Illuminates to indicate the unit is powered on.

Turns power on or off.

To switch the scene files.

To freeze the display.

Changes the display mode.

To switch and select menus.

To select the function to be confirmed or changed on the menu.

(Also used when performing auto shading correction.)

To select the function to be confirmed or changed on the menu.

To change the value of the function selected by the MENU (UP/DOWN) button.

(Also used when performing an AWB.)

To change the value of the function selected by the MENU (UP/DOWN) button.

(Also used when performing an ABB.)

DC IN 12V terminal

REMOTE terminal

SYNC IN/OUT terminal

Accepts a DC power input (12V).

To connect to a RS-232C device for remote control function.

Used when the camera output signal is synchronized to an external signal or when a synchronized signal is output. (BNC connector)

3G/HD-SDI A, B, C, D terminal Image signal output terminal for 3G/HD-SDI formats. (BNC connector)

KEY LOCK switch

Enables/disables buttons 4

11 .

FORMAT switch

Switches between 59.94Hz and 50Hz.

SYNC switch

Switches between input and output of synchronized signals from

SYNC IN/OUT terminals in

5. CONNECTION

5. 1 Standard Connection

5. 1. 1 In case output mode is 4K

Lens

(commercial product)

Camera

Head

IK-4KH

(option)

Camera Cable for IK-4KE

（ option）

IK-4KE

Camera

Control unit

3G/HD-SDI x 4

DC IN 12V

DC power supply

(option)

Coaxial cable × 4, 75Ω

(commercial

product)

4K monitor

3G-SDI × 4 TV input

(commercial product)

* 3G/HD-SDI A, B, C, D terminals and screen positioning are shown below.

DC IN 12V

REMOTE

1 2 3 4 5

6 7 8 9

A B

3G/HD-SDI

KEY LOCK

FORMAT

SYNC

OFF 59.94

OUT

SYNC IN/OUT

Upper left Upper right

Lower left Lower right

レンズ

（市販品）

カメラ

ヘッド

IK-4KH

（別売品）

専用カメラ

ケーブル

（別売品）

IK-4KE

カメラコントロール

ユニット

3G-SDI×4

DC IN 12V

DC電源（別売品）

4Kモニターテレビ

3G-SDI×4入力対応

（市販品）

5. 1. 2 In case output mode is 1080p or 1080i

Lens

(commercial product)

Camera

Head

IK-4KH

(option)

Camera Cable for IK-4KE

(option)

IK-4KE

Camera

Control unit

3G/HD-SDI

DC IN 12V

* 3G/HD-SDI A, B, C, D terminal s output the same signal.

DC power supply

(option)

Coaxial cable, 75Ω

(commercial

product)

SDI monitor

3G/HD-SDI TV

(commercial product)

5. 2 Cautions on Connection

• When connecting the camera cables, be sure to turn off the camera control unit and any other equipment connected to it.

• For DC power supply connecting to DC IN 12V terminal, use class II DC power supply approved according to EN60950-1 in Europe. or use UL listed and/or CSA approved ungrounded type AC adaptor with the specifications described below in U.S.A. or Canada.

Power supply voltage : 12V DC ±10%

Current rating : More than 1.5A

Ripple voltage

Connector

: Less than 50 mV (p–p)

: HR10A–7P–4S by HIROSE electronics Co. Ltd

Pins 1, 2 : +12V

Pins 3, 4 : GND

• If the securing screw on the connector of the camera cable loosens, noise may appear on the screen. Be sure to tighten the connector completely.

• Only use the specific optional camera heads with this camera controller.

The use of any other camera heads may cause damage to the control unit and camera head.

• The video signal output of this camera control unit has no function for automatically selecting output according to the monitor TV. Therefore, be sure to switch the output mode of this camera control unit according to the monitor as no image will be displayed on the monitor if the camera output mode and the monitor input mode do not match. For switching, refer to the item 6.6 “Switching of Video Signal Output”.

• SDI interface

The SDI (serial digital interface) is a high-speed serial interface standard used mainly in commercial video equipment. This unit supports both HD-SDI and 3G-SDI.

When image output is “4K” or “1080p”, 3G-SDI output is used. When image output is “1080i”, HD-SDI output is used.

Use a 3G/HD-SDI compatible cable to connect to the 3G/HD-SDI terminal.

Note:

The image may not appear on the monitor's screen immediately, depending on the conditions and the type of monitor.

5. 3 Connector Pin Assignments

The rear panel of the camera control unit has the following connectors:

DC IN 12V; REMOTE; SYNC IN/OUT and 3G/HD-SDI A, B, C, D terminals. Use the appropriate cables to connect with these connectors.

3G/HD-SDI

C D

DC IN 12V

REMOTE

1 2 3 4 5

6 7 8 9

KEY LOCK

FORMAT SYNC

50 IN

OFF 59.94

OUT

SYNC IN/OUT

DC IN 12V terminal

+12V

GND

REMOTE terminal

TXD

RXD

GND

6. OPERATION

A camera head needs to be connected to this camera control unit from this section on.

Refer to the item “5. CONNECTION”, connect the equipment correctly.

Turn on the connected equipment and the camera.

When using the camera for the first time and when replacing the camera head, be sure to perform the ABB adjustment, refer to the item “6.1 Automatic Black Balance”.

Aim the lens at the object, adjust the lens iris adjustment, focus adjustment, etc.

Refer to the item “6.2 White Balance”, make the adjustment.

Refer to the items “6.3 Scene File, 6.4 Gain, 7. MODE SETTING BY THE ON SCREEN DISPLAY”, select the necessary items.

6. 1 Automatic Black Balance

Black balance adjustment is necessary to get the correct black picture level.

• Close the lens iris.

• If the color bar pattern is displayed on the screen or if the index menu/menu is displayed, press the [DISP] button to disable the color bar pattern or the character display.

• Hold the [DATA DOWN] button for approx. 1 second.

• When the black balance adjustment operation starts, the character ABB blinks on the screen.

• When the black balance adjustment operation finishes, the character ABB stops blinking and the result appears for approx. 1 second.

Display

ABB OK

ABB NG

CLOSE LENS

ABB NG

Meaning

Automatic black balance adjustment finished correctly.

Automatic black balance adjustment cannot be performed because the lens iris is open. Close the lens iris.

Automatic black balance adjustment cannot be performed.

Operate the automatic black balance again.

6. 2 White Balance

For white balance adjustment of this unit, AWB (Automatic White Balance) and MANUAL (Manual white balance) adjustments are provided. Refer to the items “7.2 (3) WHT BAL (White balance), 7. MODE SETTING BY ON SCREEN

DISPLAY”, select the desired mode.

Outline Adjust white balance by displaying a white object inside the area set by AWB menu and hold the

[DATA UP] button for approx. 1 second.

Adjust the white balance manually using the WHT

BAL menu while shooting a white object.

Features Automatically adjusts red and blue balance based on green for the object in the designated area.

White balance can be set manually.

Note

AWB

(Automatic White Balance)

MANUAL

(Manual White Balance)

When no white object exits in the designated area or lighting is too blight or too dark, AWB NG is displayed and automatic white balance adjustment can not be performed.

Adjustment is performed by confirming with a monitor etc.

AWB (Automatic white balance)

• Set the MODE to AWB on the WHT BAL menu.

Change the C.TEMP (color temperature conversion) setting, if necessary.

(Refer to the item “7.2 (3) WHT BAL (White balance)”.)

3200K : Appropriate for indoor shooting.

5600K : Appropriate for outdoor shooting.

• If the color bar pattern is displayed on the screen or if the index menu/menu is displayed, press the [DISP] button to disable the color bar pattern or the character display on the monitor.

• Shoot a known white object entirely in the area set by the AWB menu (refer to the item “7.2 (3) (3.1) (d)

Changing the contents of the zone area selected by AWB” ) and push [DATA UP] button for approx. 1 second.

• The character AWB blinks on the screen when the AWB starts.

• The character AWB stops blinking when the AWB finishes, and the result is displayed for approx. 1 second.

Display

AWB OK

AWB NG

LEVEL LOW

AWB NG

LEVEL HIGH

AWB NG

C. TEMP LOW

AWB NG

C. TEMP HIGH

AWB NG

Meaning

Automatic white balance adjustment finished correctly.

Automatic white balance adjustment cannot be performed because the video level is too low.

Adjust the video level by increasing the illumination or opening the lens iris.

Automatic white balance adjustment cannot be performed because the video level is too high.

Adjust the video level by decreasing the illumination or closing the lens iris.

Automatic white balance adjustment cannot be performed because the color temperature is too low.

If the C.TEMP is set to 5600K, set to 3200K.

If the message appears with the C.TEMP set to 3200K, change the illumination or use a color temperature conversion filter.

Automatic white balance adjustment cannot be performed because the color temperature is too high.

If the C.TEMP is set to 3200K, set to 5600K.

If the message appears with the C.TEMP set to 5600K, change the illumination or use the color temperature conversion filter.

Automatic white balance adjustment cannot be performed for other reasons, such as no white area is included in an object, etc.

MANUAL (Manual white balance)

• Set the MODE to MANUAL on the WHT BAL menu.

(Refer to the item “7.2 (3) WHT BAL (White balance)”.)

• Shoot a known white object, set the white balance by adjusting the levels of R GAIN and B GAIN on the menu, confirming with a monitor or a vector scope.

(Refer to the item “7.2 (3) (3.2) Changing gain in MANUAL mode”.)

6. 3 Scene File

Five scene files (A, B, C, D, E) are available as user memories for this unit. These are chosen depending on shooting conditions. By using the [FILE] button, the camera operation is changed immediately from the currently selected

Scene File to the next. (Refer to the item “7. MODE SETTING BY ON SCREEN DISPLAY”.)

• While any menu is displayed, pressing the [FILE] button will display the menu settings for the next Scene File:

FILE A → FILE B → FILE C → FILE D → FILE E

• If the color bar pattern is displayed on the screen, press the [DISP] button to switch to the video signal screen.

• When the [FILE] button is pressed while the video signal screen is displayed, the current scene file selection at that time is displayed for approx. 3 seconds in the upper right corner of the screen. If the [FILE] button is pressed again while the position is displayed, the scene file cycles as described above.

Note:

The scene file does not include the data set in “OUTPUT MODE” “BAUD RATE” within the “OPTION” menu.

Refer to the item “7.2 (8) OPTION” for the contents that can be set in OPTION.

6. 4 Gain

When the image is dark even if the lens iris is open, change the gain (video gain) to get the desired video level.

For gain adjustment of the unit, AUTO (Automatic gain control), MANUAL (Manual gain control), OFF (0 dB) modes are provided. Select the mode on the GAIN menu. (Refer to the item “7.2 (2) GAIN (Video gain)”.)

AUTO (Automatic gain control)

When the output is low, gain is automatically adjusted to a suitable video level.

You can set a value for the maximum gain from 0 dB to 24 dB in 1 dB increments. You can set a value for the minimum gain from -6 dB to 0 dB in 1 dB increments. (Refer to 7.2 (2) (2.1) "Changing the setting in AUTO (AGC:

Automatic gain control) mode.")

Video level (LEVEL), exposure metering (PHOTOMETRY), peak average value ratio (PEAK/AVE), measurement light area (AREA), and response speed (SPEED) are linked to the setting on the automatic shutter. (Refer to the item “7.2 (1) (1.1) Changing the setting in AUTO mode”.)

MANUAL (Manual gain)

Gain adjustment is performed on the GAIN menu. The adjustment range is from -6 to 24dB in 1dB steps.

(Refer to the item “7.2 (2) (2.2) Changing gain in MANUAL mode”.)

OFF

Gain is fixed at 0 dB.

Note:

White, red, green, or blue dots may occur when the gain is increased. This is not a malfunction, just certain characteristics of the CMOS sensor becoming more visible.

6. 5 Shading Correction

Due to the lens used or the environmental condition, color shading may occur at the upper and lower edge of the screen. If this happens, the shading correction function can be used to decrease the amount of color shading. For shading correction of the unit, SET (Automatic shading correction), MANUAL (Manual shading correction), and OFF

(no shading correction) modes are provided. Select the mode on the OPTION menu. (Refer to the item “7.2 (8) (8.1)

Changing shading correction mode”.)

SET (Auto shading)

• If the color bar pattern is displayed on the screen or if the index menu/menu is displayed, press the [DISP] button to remove them from the screen.

• Push the [MENU UP] button for approx. 1 second.

• When the automatic shading correction operation starts, the character SHD blinks on the screen.

• When the automatic shading correction operation terminates, the character SHD ends blinking and the result is displayed for approx. 1 second.

Display

SHD OK

LIMIT

SHD NG

LEVEL LOW

SHD NG

LEVEL HIGH

Meaning

Automatic shading correction operation finished correctly.

Automatic shading correction operation finished, however, the correction necessary exceeds the camera’s range so the maximum possible value is applied.

Automatic shading correction cannot be performed because the video level is too low. Adjust the video level by increasing the illumination or opening the lens iris.

Automatic shading correction cannot be performed because the video level is too high. Adjust the video level by decreasing the illumination or closing the lens iris.

MANUAL (Manual shading)

Perform the correction on the OPTION menu, confirming with a monitor or a vector scope.

(Refer to the “7.2 (8) (8.2) Changing manual shading correction mode”.)

OFF

No shading correction is performed.

* Shading correction is only effective when the lens iris and zoom ratio is fixed. Use the unit with SHADING OFF for variable lens conditions.

Note:

Implement shading correction after white balance adjustment by shooting a white object that fills the screen in the proper video level.

6. 6 Switching of Video Signal Output

Switching of OUTPUT modes

The image output can be changed between “4K”, “1080p”, or “1080i” by turning on the controller while pushing the

[MENU DOWN], [DATA UP], or [DATA DOWN] button.

• Turn on the controller while pushing the [MENU DOWN] button. The image output becomes “4K”, and “4K” is displayed on the monitor screen.

• Turn on the controller while pushing the [DATA UP] button. The image output becomes “1080p”, and “1080p” is displayed on the monitor screen.

• Turn on the controller while pushing the [DATA DOWN] button. The image output becomes “1080i”, and “1080i” is displayed on the monitor screen.

Note:

The image may not appear on the monitor's screen immediately after switching the output mode.

Switching of vertical frequency

Adjust the FORMAT switch to the “59.94” position for switching to “59.94Hz”.

Adjust the FORMAT switch to the “50” position for switching to “50Hz”.

(Refer to the item “4. NAMES AND FUNCTIONS,

FORMAT switch”.)

6. 7 Freeze Operation

• The display can be frozen in the case of a video signal only on a normal screen. The display cannot be frozen in the case of the color bar pattern, or index menu/menu.

• Each press of the [FREEZE] button toggles between freeze display and normal display.

• If ON is selected for the FREEZE DISP setting on the OPTION menu, “FREEZE” is displayed while the display is frozen. (Refer to (7.2 (8) (8.7) “Changing the FREEZE display.”)

• The following keys are disabled while the display is frozen: [FILE], [DISP], [PAGE], [MENU UP], [MENU DOWN],

[DATA UP], and [DATA DOWN].

7. MODE SETTING BY ON SCREEN DISPLAY

Various settings can be controlled on the unit by using the on screen menu displayed on the monitor. The contents once set are memorized in the scene files (A, B, C, D, E) selected, so if the power turns off, it is unnecessary to set again when using the unit next time. When the setting is performed, select the menu of the item to be set.

Note

• Displayed texts while pressing the on screen menu, auto white balance (AWB) or other menus are present on the output video. These texts on the video are not removable after the video is recorded. Therefore, be aware

when you operate the on screen menu, AWB and other menus.

• In the 4K output mode, you can change the position of text displayed during operation of screen menus,

AWB (auto white balance), etc. Refer to (7.2 (8) (8.8) "Changing 4K OSD (On Screen Display) output." In the

1080p and 1080i modes, text is displayed over the entire screen, you cannot change the position of the text.

7. 1 Using the Menus

When the power turns on, the normal screen showing only the video signal appears. Change the output to each screen (video signal output, color bar screen, Index menu, menus, and area menu) by using the [DISP], [PAGE],

[MENU UP], and [MENU DOWN] buttons.

* A menu is selected when pushing the [PAGE] button after moving the “ ” on the screen by the [MENU UP], [MENU

DOWN] button while the Index menu is displayed.

Video signal output Color bar screen

Index menu

MANUAL MANUAL

Menus

MANUAL

4.PROCESS 1 5.PROCESS 2 6.PROCESS 3

MATRIX

OFF

7.SYNC

8.OPTION

SHADING

OFF

SET

MANUAL

The screen is changed to the area screen by selecting AUTO in the 1.SHUTTER menu and

AWB in the 3.WHT BAL menu in the setting screen For more details, refer to the item "7.2

Menus".

Area menu

7. 2 Menus

Select the menu to change the setting by referring to the item “7.1 Using the Menus”.

When the [MENU UP], [MENU DOWN] buttons are pushed, the “ ” on the screen moves up and down.

Move the “ ” to the item whose setting you wish to change.

Use the [DATA UP], [DATA DOWN] buttons to make changes.

( 1 ) SHUTTER (Electronic shutter)

The electronic shutter has three modes; AUTO, MANUAL, SS (Synchro. Scan).

Press the “Page” button to enter the Shutter Page. Use the “Data Up/Down” buttons to select the Shutter Mode.

AUTO MANUAL SS

AUTO : The exposure time is controlled automatically to obtain the optimum video level.

MANUAL : It is possible to select the exposure time from eleven speed settings; OFF (at 1/60s: 59.94Hz setting and 1/50s: 50Hz setting), 1/100s, 1/125s, 1/250s, 1/500s, 1/1000s, 1/2000s, 1/3000s, 1/4000s,

1/5000s, 1/10000s.

SS : Shutter speed can be set by the horizontal scanning time (1H) unit.

Notes:

• If the shutter speed is increased, the sensitivity is decreased according to the speed. Flicker may occur under

discharge lamp lighting such as fluorescent tubes.

• If a fast-moving object is shot, its image may be distorted or blurred. Horizontal light-and-dark stripes may appear on the screen under discharge lamp lighting such as fluorescent tubes. A light and dark difference may appear on the screen according to the light emitting timing of flash or strobe. These phenomena are due to rolling shutter system, not failures.

• When the shutter speed is set to high, the hue may change according to the shooting conditions and the object.

(1. 1) Changing the setting in AUTO mode

Move up and down by pushing

MENU UP, DOWN

Select the desired value by pushing

DATA UP, DOWN

-- 1 SHUTTER -- (FILE A)

MODE

LEVEL

AUTO

PHOTOMETRY PEAK/AVE

PEAK/AVE

SPEED

AREA

00 10

PRESET A

AREA DISPLAY OFF

MAX SHUT OFF

Shutter mode AUTO, MANUAL, SS

Video level adjustment -100 to 100

Exposure metering PEAK/AVE, MEDIAN

Peak and average ratio adjustment 00 10 to 10 00

Automatic shutter response speed adjustment 1 to 20

Automatic shutter area selection

PRESET A, PRESET B, PRESET C, PRESET D, PRESET E,

USER

Automatic shutter area display selection

Automatic shutter maximum speed setting

1/200s, 1/250s, 1/300s, 1/350s, 1/400s, 1/450s,

1/500s, 1/550s, 1/600s, 1/700s, 1/800s, 1/900s,

1/1000s, 1/1200s, 1/1500s, 1/2000s, 1/4000s, OFF

(a) Changing the video level in the automatic shutter mode

Move the “ ” to LEVEL by pushing the [MENU UP], [MENU DOWN] buttons.

Select the video level by pushing the [DATA UP], [DATA DOWN] buttons.

-100

The value decreases by pushing

[DATA UP]

[DATA DOWN]

The value increases by pushing

100

(b) Changing the exposure metering of the automatic shutter

Move the “ ” to PHOTOMETRY by pushing the [MENU UP], [MENU DOWN] buttons.

Select PEAK/AVE or MEDIAN by pushing the [DATA UP], [DATA DOWN] buttons.

If PEAK/AVE is selected, the exposure is a ratio of the peak and average values shown in PEAK/AVE.

If MEDIAN is selected, there is less variation in the brightness than when PEAK/AVE is selected, such as for scenes with large changes in background brightness.

(c) Changing the automatic shutter detection (ratio between peak and average value)

Move the “ ” to PEAK/AVE by pushing the [MENU UP], [MENU DOWN] buttons.

Select the ratio between peak and average value by pushing the [DATA UP], [DATA DOWN] buttons.

(Peak: Average) The peak value increases by pushing [DATA UP]

00:10

The peak value decreases by pushing

05:05

[DATA DOWN]

10:00

*If MEDIAN is selected for PHOTOMETRY, the PEAK/AVE display disappears, so it cannot be changed.

(d) Changing the automatic shutter response speed

Move the “ ” to SPEED by pushing the [MENU UP], [MENU DOWN] buttons.

Select the response speed by pushing the [DATA UP], [DATA DOWN] buttons.

The response speed becomes slower by pushing

[DATA UP]

The response speed becomes faster by pushing

[DATA DOWN]

(e) Changing the automatic shutter zone area

Move the “ ” to AREA by pushing the [MENU UP], [MENU DOWN] buttons.

Select the measurement light area by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP]

PRESET A PRESET B PRESET C PRESET D PRESET E USER

[DATA DOWN]

The dark squares indicate the effective region of the image, which is divided into an 8 x 8 grid.

PRESET A PRESET B PRESET C PRESET D

Custom

Selection

PRESET E USER

(f) Confirming the contents of the measurement light area selected by the automatic shutter

Move the “ ” to AREA DISPLAY by pushing the [MENU UP], [MENU DOWN] buttons.

Area screen appears by pushing the [DATA UP], [DATA DOWN] buttons.

When AREA is set to USER, the setting can be changed on the area menu. When changing the area, refer to the item “7.2 (9) Setting USER area”.

Push the [DISP] button to return to the menu.

(g) Setting of maximum auto shutter speed

Move the “ ” to MAX SHUT by pushing the [MENU UP], [MENU DOWN] buttons.

Select the shutter speed by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP]

1/200s 1/250s 1/300s 1/350s 1/400s 1/450s 1/500s 1/550s 1/600s 1/700s 1/800s 1/900s 1/1000s 1/1200s 1/1500s 1/2000s 1/4000s OFF

[DATA DOWN]

(1. 2) Changing the setting in MANUAL mode

Move up and down by pushing

MENU UP, DOWN

Select the desired value by pushing

DATA UP, DOWN

-- 1 SHUTTER -- (FILE A)

MODE

MANUAL

OFF

Shutter mode AUTO, MANUAL, SS

Shutter speed setting

OFF, 1/100s, 1/125s, 1/250s, 1/500s, 1/1000s,

1/2000s, 1/3000s, 1/4000s, 1/5000s, 1/10000s

(a) Changing the shutter speed

Move the “ ” to MANUAL by pushing the [MENU UP], [MENU DOWN] buttons.

Select the shutter speed by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP]

OFF 1/100s 1/125s 1/250s 1/500s 1/1000s 1/2000s 1/3000s 1/4000s 1/5000s 1/10000s

[DATA DOWN]

(1. 3) Changing the setting in SS (Synchro. Scan) mode

Move up and down by pushing

MENU UP, DOWN

Select the desired value by pushing

DATA UP, DOWN

-- 1 SHUTTER -- (FILE A)

MODE SS

SYNCHRO SCAN OFF

Shutter mode AUTO, MANUAL, SS

Synchro. scan setting

1/1125H to 1124/1125H, OFF

(a) Changing the Synchro. Scan setting

Move the “ ” to SYNCHRO SCAN by pushing the [MENU UP], [MENU DOWN] buttons.

Select the Synchro. Scan by pushing the [DATA UP], [DATA DOWN] buttons.

1/1125H

[DATA UP]

1124/1125H

[DATA DOWN]

OFF

( 2 ) GAIN (Video gain)

GAIN has three modes; AUTO, MANUAL, OFF.

Move the “ ” to MODE, push the [DATA UP], [DATA DOWN], and select one of the three modes: AUTO, MANUAL,

OFF. In the OFF mode, gain is fixed to 0dB.

(2. 1) Changing the setting in AUTO (AGC: Automatic gain control) mode

Move up and down by pushing

MENU UP, DOWN

Select the desired value by pushing

DATA UP, DOWN

-- 2 GAIN -- (FILE A)

MODE AUTO

MAX GAIN

MIN GAIN

24dB

-6dB

Gain mode AUTO, MANUAL, OFF

AGC maximum gain setting

0dB to 24dB (1dB step)

AGC minimum gain setting

-6dB to 0dB (1dB step)

(a) Changing the maximum gain

Move the “ ” to MAX GAIN by pushing the [MENU UP], [MENU DOWN] buttons.

Select the desired value of AGC maximum gain by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP]

0dB 24dB

[DATA DOWN]

(b) Changing the minimum gain

Move the “ ” to MIN GAIN by pushing the [MENU UP], [MENU DOWN] buttons.

Select the desired value of AGC minimum gain by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP]

-6dB 0dB

[DATA DOWN]

(2. 2) Changing gain in MANUAL mode

Move up and down by pushing

MENU UP, DOWN

Select the desired value by pushing

DATA UP, DOWN

-- 2 GAIN -- (FILE A)

MODE

MANUAL

0dB

Gain mode AUTO, MANUAL, OFF

Manual gain setting

-6dB to 24dB (1dB step)

Move the “ ” to MANUAL by pushing the [MENU UP], [MENU DOWN] buttons.

Select the desired value of manual gain by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP]

-6dB 24dB

[DATA DOWN]

( 3 ) WHT BAL (White balance)

The WHT BAL has two modes; AWB, MANUAL.

Move the “ ” to MODE, push the [DATA UP], [DATA DOWN], and select one of the two modes: AWB, MANUAL.

(3. 1) Changing the setting in AWB (Automatic White Balance) mode

Move up and down by pushing

MENU UP, DOWN

Select the desired value by pushing

DATA UP, DOWN

White balance mode setting AWB, MANUAL

R PAINT adjustment -10 to 10

-- 3 WHT BAL -- (FILE A)

MODE AWB

R PAINT 0

B PAINT 0

C TEMP 3200K

AREA PRESET A

AREA DISPLAY OFF

B PAINT adjustment -10 to 10

Color temperature setting 3200K, 5600K

AWB area selection

PRESET A, PRESET B, PRESET C, PRESET D, PRESET E,

USER

AWB area display selection

(a) Changing color temperature setting

Move the “ ” to C.TEMP by pushing the [MENU UP], [MENU DOWN] buttons.

Select either 3200K or 5600K by pushing the [DATA UP], [DATA DOWN] buttons.

(b) Changing R PAINT

Move the “ ” to R PAINT by pushing the [MENU UP], [MENU DOWN] buttons.

Select the desired value of red paint by pushing the [DATA UP], [DATA DOWN] buttons.

-10

Red is decreased.

[DATA UP]

[DATA DOWN]

Red is increased.

(c) Changing B PAINT

Move the “ ” to B PAINT by pushing the [MENU UP], [MENU DOWN] buttons.

Select the desired value of blue paint by pushing the [DATA UP], [DATA DOWN] buttons.

-10

Blue is decreased.

[DATA UP]

[DATA DOWN]

Blue is increased.

(d) Changing the contents of the zone area selected by AWB

Move the “ ” to AREA DISP by pushing the [MENU UP], [MENU DOWN] buttons.

Select the desired area by pushing the [DATA UP], [DATA DOWN] buttons.

The dark squares indicate the effective region of the image, which is divided into an 8 x 8 grid.

PRESET A PRESET B PRESET C PRESET D

Custom

Selection

PRESET E USER

(e) Confirming the contents of the zone area selected by AWB

Move the “ ” to AREA DISP by pushing the [MENU UP], [MENU DOWN] buttons.

Area screen appears by pushing the [DATA UP], [DATA DOWN] buttons.

When AREA is set to USER, the setting can be changed on the area menu. When changing the area, refer to the item “7.2 (9) Setting USER area”.

Push the [DISP] button to return to the menu.

(3. 2) Changing gain in MANUAL mode

Move up and down by pushing

MENU UP, DOWN

Select the desired value by pushing

DATA UP, DOWN

-- 3 WHT BAL -- (FILE A)

MODE

R GAIN

B GAIN

C TEMP

MANUAL

3200K

White balance mode AWB, MANUAL

Red gain adjustment -100 to 100

Blue gain adjustment -100 to 100

Color temperature setting 3200K, 5600K

(a) Changing the red gain

Move the “ ” to R GAIN by pushing the [MENU UP], [MENU DOWN] buttons.

Select the desired value of red gain by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP] Red is increased.

-100

Red is decreased.

[DATA DOWN]

100

(b) Changing the blue gain

Move the “ ” to B GAIN by pushing the [MENU UP], [MENU DOWN] buttons.

Select the desired value of blue gain by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP] Blue is increased.

-100 0 100

Blue is decreased. [DATA DOWN]

( 4 ) PROCESS1

Move up and down by pushing MENU UP, DOWN

Select the desired value by pushing DATA UP, DOWN

-- 4 PROCESS1 -- (FILE A)

GAMMA ON/OFF ON

GAMMA 0

BLACK GAMMA NORMAL

KNEE POINT 85%

KNEE SLOPE 8

M PED

R PED

B PED

WHT CLIP

109%

Gamma correction ON, OFF

Gamma correction level setting -10 to 10

Black gamma correction setting LOW, NORMAL, HIGH

Knee correction point 70 to 100%

Knee correction slope 1 to 16

Master pedestal setting -200 to 200

Red pedestal setting -100 to 100

Blue pedestal setting -100 to 100

White clip 100 to 109%

(4. 1) Changing gamma correction ON/OFF

Move the “ ” to GAMMA ON/OFF by pushing the [MENU UP], [MENU DOWN] buttons.

Select either ON or OFF by pushing the [DATA UP], [DATA DOWN] buttons.

When ON is selected, menu will show the GAMMA, BLACK GAMMA,、KNEE POINT and KNEE SLOPE selections.

When OFF is selected, GAMMA, BLACK GAMMA,、KNEE POINT and KNEE SLOPE are not displayed, so the setting for GAMMA, BLACK GAMMA,、KNEE POINT and KNEE SLOPE cannot be made.

Move up and down by pushing MENU UP, DOWN

Select the desired value by pushing DATA UP, DOWN

-- 4 PROCESS1 -- (FILE A)

GAMMA ON/OFF OFF

M PED 0

R PED 0

B PED 0

WHT CLIP 109%

Gamma correction ON, OFF

Master pedestal setting -200 to 200

Red pedestal setting -100 to 100

Blue pedestal setting -100 to 100

White clip 100 to 109%

Menu when GAMMA OFF is selected.

(4. 2) Changing gamma correction level

Move the “ ” to GAMMA by pushing the [MENU UP], [MENU DOWN] buttons.

Select the desired value of gamma correction level by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP] Correction amount becomes larger.

-10

Correction amount becomes smaller.

[DATA DOWN]

* When OFF is selected in GAMMA ON/OFF selection line, the GAMMA display disappears, so it cannot be changed.

(4. 3) Changing black gamma correction level

Move the “ ” to BLACK GAMMA by pushing the [MENU UP], [MENU DOWN] buttons.

Select black gamma correction by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP]

LOW NORMAL HIGH

[DATA DOWN]

* When OFF is selected in GAMMA ON/OFF selection line, the display BLACK GAMMA turns off automatically, so the black gamma correction level cannot be changed.

(4. 4) Changing the knee correction point

Move the “ ” to KNEE POINT by pushing the [MENU UP], [MENU DOWN] buttons.

Select the knee correction point by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP]

70% 75% 80% 85% 90% 95% 100%

[DATA DOWN]

* When OFF is selected for GAMMA ON/OFF, the KNEE POINT display disappears, so it cannot be changed.

(4. 5) Changing the knee correction slope

Move the “ ” to KNEE SLOPE by pushing the [MENU UP], [MENU DOWN] buttons.

Select the knee correction slope by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP]

1 8 16

[DATA DOWN]

* When OFF is selected in GAMMA ON/OFF the KNEE SLOPE display disappears, so it cannot be changed.

(4. 6) Changing pedestal

(a) Changing master pedestal

Move the “ ” to M. PED by pushing the [MENU UP], [MENU DOWN] buttons.

Select the desired value of the master pedestal by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP] M. PED rises

-200 0 200

M. PED decreases [DATA DOWN]

(b) Changing R. PED (red pedestal)

Move the “ ” to R. PED by pushing the [MENU UP], [MENU DOWN] buttons.

Select the desired value of red pedestal by pushing the [DATA UP], [DATA DOWN] buttons.

-100

R. PED decreases

[DATA UP]

[DATA DOWN]

R. PED rises

100

(c) Changing B. PED (blue pedestal)

Move the “ ” to B. PED by pushing the [MENU UP], [MENU DOWN] buttons.

Select the desired value of blue pedestal by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP] B. PED rises

-100

B. PED decreases

[DATA DOWN]

100

(4. 7) Change of white clip

Move the “ ” to WHT CLIP by pushing the [MENU UP], [MENU DOWN] buttons.

Select the white clip level by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP]

100%

[DATA DOWN]

109%

( 5 ) PROCESS2

Move up and down by pushing MENU UP, DOWN

Select the desired value by pushing DATA UP, DOWN

-- 5 PROCESS2 -- (FILE A)

DTL GAIN

DTL FREQ

HV BALANCE

16/16

Detail gain setting 0 to 31

Detail boost frequency 1 to 16

Ratio of vertical detail quantity to horizontal one

8/16 to 24/16

(5. 1) Changing detail (outline) gain

Move the “ ” to DTL GAIN by pushing the [MENU UP], [MENU DOWN] buttons.

Select the desired value of the detail gain by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP] The detail increases.

The detail decreases.

[DATA DOWN]

Note:

Settings can be configured for each output mode. (1080p and 1080i settings are shared.)

(5. 2) Change of detail boost frequency

This is the item for setting the screen outline thickness.

Move the “ ” to DTL FREQ by pushing the [MENU UP], [MENU DOWN] buttons.

Select the detail boost frequency by pushing the [DATA UP], [DATA DOWN] buttons.

Thick outline

[DATA UP]

[DATA DOWN]

Thin outline

Note:

Settings can be configured for each output mode. (1080p and 1080i settings are shared.)

(5. 3) Change of horizontal and vertical detail balance

This is the item for changing the ratio of the vertical detail quantity to the horizontal one.

Move the “ ” to HV BALANCE by pushing the [MENU UP], [MENU DOWN] buttons.

Select the vertical detail quantity by pushing the [DATA UP], [DATA DOWN] buttons.

8/16

The vertical detail becomes smaller

[DATA UP]

16/16

[DATA DOWN]

The vertical detail becomes larger

24/16

Note:

Settings can be configured for each output mode. (1080p and 1080i settings are shared.)

( 6 ) PROCESS3

Move up and down by pushing MENU UP, DOWN

Select the desired value by pushing DATA UP, DOWN

-- 6 PROCESS3 -- (FILE A)

MATRIX

COLOR

HUE

GAIN

CHROMA

Matrix color correction ON, OFF

Selection of correction color R, R-Ye, Ye, Ye-G, G, G-Cy,

C, Cy-, B, B-Mg, Mg, Mg-R

Phase setting -15 to 15

Gain setting -15 to 15

Chroma gain setting -31 to 31

(6. 1) Changing matrix color correction ON/OFF

Move the “ ” to MATRIX by pushing the [MENU UP], [MENU DOWN] buttons.

Select either ON or OFF by pushing the [DATA UP], [DATA DOWN] buttons.

(6. 2) Selection of color for correction

Move the “ ” to COLOR by pushing the [MENU UP], [MENU DOWN] buttons.

Select the correction color by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP]

R R-Ye Ye Ye-G G G-Cy Cy Cy-B B B-Mg Mg Mg-R

[DATA DOWN]

* If the matrix color correction is OFF, correction color cannot be selected.

(6. 3) Changing HUE and GAIN of selected color

Move the “ ” to the desired item by pushing the [MENU UP], [MENU DOWN] buttons.

Select the desired value of color by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP]

-15 0

[DATA DOWN]

* If the matrix color correction is OFF, correction color cannot be selected.

(6. 4) Changing the total Chroma gain (simultaneously for all colors in the matrix)

Move the “ ” to CHROMA by pushing the [MENU UP], [MENU DOWN] buttons.

Change the chroma gain by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP]

-31 0 31

[DATA DOWN]

( 7 ) SYNC

When an external sync signal is input, the display changes from INT (internal sync) to EXT. (external sync) automatically.

INT EXT

(7. 1) INT screen

-- 7 SYNC -- (FILE A)

MODE INT

Sync system display

(7. 2) Changing EXT. setting

Move up and down by pushing

MENU UP, DOWN

Select the desired value by pushing

DATA UP, DOWN

-- 7 SYNC -- (FILE A)

MODE

H PHASE

EXT

Sync system display

H PHASE -650 to 650

(a) Adjusting horizontal phase

When in EXT mode, the “ ” will be at H PHASE.

Select the desired value of horizontal phase by pushing the [DATA UP], [DATA DOWN] buttons.

-650

[DATA UP]

[DATA DOWN]

650

* If the phase difference is big, keep pressing [DATA UP]/[DATA DOWN] button for a while.

This will make the setting change by increments of ten.

( 8 ) OPTION

Move up and down by pushing MENU UP, DOWN

Select the desired value by pushing DATA UP, DOWN

-- 8 OPTION -- (FILE A)

SHADING

DTL OUT

FLIP

MIRROR

STATUS DISP

FREEZE DISP

OSD OUTPUT

OUTPUT MODE

BAUD RATE

OFF

9600bps

SHADING MODE OFF, SET, MANUAL

Detail signal output ON, OFF

Vertical inversion ON, OFF

Horizontal inversion ON, OFF

Inversion mode switching ON, OFF

FREEZE display switching ON, OFF

4K OSD output A, B, C, D

Output mode 4K, 1080p, 1080i

RS-232C baud rate 9600 bps, 19200 bps

(8. 1) Changing shading correction mode

Move the “ ” to SHADING by pushing the [MENU UP], [MENU DOWN] buttons.

Select SET, MANUAL or OFF by pushing the [DATA UP], [DATA DOWN] buttons.

(8. 2) Changing manual shading correction mode

Move the “ ” to MANUAL by pushing the [MENU UP], [MENU DOWN] buttons.

Select the desired value of manual shading correction by pushing the [DATA UP], [DATA DOWN] buttons.

[DATA UP]

-128 0

[DATA DOWN]

127

* When the shading correction mode is set to anything other than MANUAL, the display turns off, and the setting cannot be adjusted.

Move up and down by pushing MENU UP, DOWN

Select the desired value by pushing DATA UP, DOWN

-- 8 OPTION -- (FILE A)

SHADING MANUAL

MANUAL

DTL OUT

FLIP

MIRROR

STATUS DISP

OFF

FREEZE DISP

OSD OUTPUT

OUTPUT MODE

BAUD RATE

9600bps

Menu when SHADING MANUAL is selected

SHADING MODE OFF, SET, MANUAL

Manual shading correction -128 to 127

Detail signal output ON, OFF

Vertical inversion ON, OFF

Horizontal inversion ON, OFF

Inversion mode switching ON, OFF

FREEZE display switching ON, OFF

4K OSD output A, B, C, D

Output mode 4K, 1080p, 1080i

RS-232C baud rate 9600 bps, 19200 bps

(8. 3) Changing detail signal output

Move the “ ” to DTL OUT by pushing the [MENU UP], [MENU DOWN] buttons.

Select either ON (detail signal only is output) or OFF (video signal) by pushing the [DATA UP], [DATA DOWN] buttons.

(8. 4) Change of vertical inversion setting

Move the “ ” to FLIP by pushing the [MENU UP], [MENU DOWN] buttons.

Select ON (Vertical inversion image appears.) or OFF by pushing the [DATA UP], [DATA DOWN] buttons.

(8. 5) Change of horizontal inversion setting

Move the “ ” to MIRROR by pushing the [MENU UP], [MENU DOWN] buttons.

Select ON (Horizontal inversion image appears.) or OFF by pushing the [DATA UP], [DATA DOWN] buttons.

(8. 6) Switching of inversion mode display

Move the “ ” to STATUS DISP by pushing the [MENU UP], [MENU DOWN] buttons.

Select ON or OFF by pushing the [DATA UP]-[DATA DOWN] buttons.

When ON is set, the setting status of vertical/horizontal inversion is displayed.

F···Vertical inversion is effective.

M···Horizontal inversion is effective.

F M

Note:

In the 4K mode, you can change the display position of setting status. (The position cannot be changed while the display is frozen.) (Refer to 7.2 (8) (8.8) “Changing 4K OSD (On Screen Display) output”.)

(8. 7) Changing the FREEZE display

Use the [MENU UP] and [MENU DOWN] buttons to move “ ” to FREEZE DISP.

Use the [DATA UP] and [DATA DOWN] buttons to select ON or OFF.

If ON is selected "FREEZE" is displayed while the display is frozen.

FREEZE

Note:

In the 4K mode, you can change the display position of “FREEZE”. (The position cannot be changed while the display is frozen.) (Refer to 7.2 (8) (8.8) “Changing 4K OSD (On Screen Display) output”.)

(8. 8) Changing 4K OSD (On Screen Display) output

Use the [MENU UP] and [MENU DOWN] buttons to move “ ” to OSD OUTPUT.

Use the [DATA UP] and [DATA DOWN] buttons to select a letter from A to D.

［DATA UP］

B C

［DATA DOWN］

• If you select A, the image appears in the upper left corner of the monitor.

• If you select B, the image appears in the upper right corner of the monitor.

• If you select C, the image appears in the lower left corner of the monitor.

• If you select D, the image appears in the lower right corner of the monitor.

-- 8 OPTION -- (FILE A)

SHADING

MIRROR

STATUS DISP

FREEZE DISP

OSD OUTPUT

OFF

OUTPUT MODE 4K

BAUD RATE 9600bps

↓ F → M

Example screen when OSD OUTPUT A is selected

* If OUTPUT MODE is 1080p or 1080i, OSD OUTPUT disappears from the screen and the setting cannot be configured.

(8. 9) Changing the output mode

Use the [MENU UP] and [MENU DOWN] buttons to move “→” to OUTPUT MODE.

Use the [DATA UP] and [DATA DOWN] buttons to select 4K, 1080p, or 1080i.

［DATA UP］

1080p 1080i

［DATA DOWN］

Note:

An image will not appear on a monitor that is not supported by the currently selected mode. If this happens, refer to 6.6

“Switching of OUTPUT modes” to return to the previous mode.

(8. 10) Changing RS-232C baud rate

Move the “ ” to BAUD RATE by pushing the [MENU UP], [MENU DOWN] buttons.

Select either 9600bps or 19200bps by pushing the [DATA UP], [DATA DOWN] buttons.

( 9 ) Setting USER area

• When USER is selected for the AREA of the automatic shutter or for AWB, the light measurement zones can be changed.

• The USER area is composed of 64 zones with 8 (vertical) x 8 (horizontal) areas, and each area can be set to ON/

OFF.

Set the output to area menu.

Set the output to the area menu by referring to the item “7.2 (1) (1.1) (f) Confirming the contents of the measurement light area selected by automatic shutter” and “7.2 (3) (3.1) (e) Confirming the contents of the zone area selected by AWB”.

Cursor

Move the cursor to the zone to be modified.

The cursor moves up, down, right and left by pushing the [MENU UP], [MENU DOWN], [DATA UP], [DATA DOWN] buttons.

Move to up

[MENU UP]

Move to left [DATA DOWN] [DATA UP] Move to right

[MENU DOWN]

Move to down

Select ON/OFF for the zone.

Select ON (effective) or OFF (ineffective) by pushing the [PAGE] button

When ON is selected, the selected area will be displayed brightly, and when OFF is selected, it will be dimmed.

Push [DISP] button to return to the menu.

Note:

OFF cannot be selected for all 64 zones because the automatic shutter function and AWB function will not perform correctly. (“AREA NG NOT AVAILABLE” displays.)

( 10 ) Returning to factory settings

The contents set of each scene file can be returned to the factory default status (preset status).

(1) Select a scene file to set to the factory default status by pressing the [FILE] button.

(2) If the color bar pattern or characters are displayed on the screen, press the [DISP] button to disable the color bar pattern and character display.

(3) Push [MENU DOWN] and [DATA DOWN] buttons simultaneously for approx. 1 second.

(4) The preset operation starts. When the preset operation finishes, the character PRESET OK is displayed for approx. 1 second.

* Only the scene files selected presently are set at the time of shipment from the factory. If you wish to have all the scene files set as the factory shipment setting, perform the above operation for each scene file.

7. 3 External Sync

When using the unit with an external sync signal, switch the SYNC switch to the IN side on the rear panel and then input the external sync signal to the SYNC IN/OUT terminal.

When the external sync signal is input, the camera automatically switches its sync from the internal sync to the external sync.

( 1 ) External sync signal input conditions

Tri-Level Sync 0.6V(p-p) 75Ω unbalanced

( 2 ) External sync frequency range

4K/59.94Hz Setting : H : 67.433 kHz ± 35 ppm

: V : 59.94 Hz ± 35 ppm

4K/50Hz Setting : H : 56.250 kHz ± 35 ppm

: V : 50 Hz ± 35 ppm

1080p/59.94Hz Setting : H : 67.433 kHz ± 35 ppm

1080p/50Hz Setting

: V : 59.94 Hz ± 35 ppm

: H : 56.250 kHz ± 35 ppm

: V : 50 Hz ± 35 ppm

1080i/59.94Hz Setting : H : 33.716 kHz ± 35 ppm

: V : 59.94 Hz ± 35 ppm

1080i/50Hz Setting : H : 28.125 kHz ± 35 ppm

: V : 50 Hz ± 35 ppm

( 3 ) Using the unit with external sync signal

Adjust H (Horizontal) phase if necessary to match the output of multiple cameras.

When adjusting H (Horizontal) phase, refer to the item “7.2 (7) SYNC”.

Note:

This unit cannot use external sync input and sync signal output at the same time.

7. 4 Synchro. Scan Operation

The shutter speed can be set by the horizontal scanning period (1H).

( 1 ) Setting by 1H

1/1125H to 1124/1125H - lets you set a shutter speed to any fraction of the horizontal scanning period from 1/1125H to 1124/1125H in increments of 1.

8. BEFORE MAKING SERVICE CALL

Symptom

No image

Items to be checked

• Is power supplied correctly?

• Is the power switch on, and the power LED illuminated?

• Is the lens iris adjusted correctly?

• Are the camera and video cables connected correctly?

• Is the shutter mode set correctly?

• Is the monitor on, and in working condition?

• Is the image signal output mode set correctly?

Poor color

• Is the monitor adjusted correctly?

• Is the white balance of the camera adjusted correctly?

• Are the matrix color correction and chroma gain set correctly?

• Is the illumination sufficient?

Noise appears • Is the camera cable connected securely?

"HEAD

COMPATIBILITY

ERROR" is displayed

• Is the camera head that is connected compatible with the unit?

9. SPECIFICATIONS

* These conditions are only satisfied when the camera control unit is connected to camera head model # IK-4KH.

Power supply

Power consumption

Pickup system

Image sensor

Effective pixels

Output pixels

Scanning system

Scan frequency

Sync system

Horizontal resolution

Vertical resolution

Sensitivity

Minimum illumination

SN ratio

Ambient temperature

Ambient humidity

Weight

External dimension

DC 12 V ± 10 %

Approx. 13.8W (including the camera head) (with the power supply voltage of 12V)

RGB, 3CMOS, Micro prism system

1/2.9 inch CMOS

Horizontal: 1944 pixels, vertical: 1104 pixels

Horizontal: 3840pixels, vertical: 2160 pixels (4K)

Horizontal: 1920 pixels, vertical: 1080 pixels (1080p or 1080i)

Progressive (4K or 1080p) / Interlace (1080i)

Horizontal: 67.433kHz, vertical: 59.94Hz (at setting of 4K/59.94Hz, Square Division)

Horizontal: 56.250kHz, vertical: 50Hz (at setting of 4K/50Hz, Square Division)

Horizontal: 67.433kHz, vertical: 59.94Hz (at setting of 1080p/59.94Hz)

Horizontal: 56.250kHz, vertical: 50Hz (at setting of 1080p/50Hz)

Horizontal: 33.716kHz, vertical: 59.94Hz (at setting of 1080i/59.94Hz)

Horizontal: 28.125kHz, vertical: 50Hz (at setting of 1080i/50Hz)

Internal/External (Automatic switching)

1600TV lines standard (4K)

1000TV lines or more (1080p or 1080i)

1600TV lines standard (4K)

1000TV lines or more (1080p or 1080i)

F5.6 standard (2000 lx, 3000K at 59.94Hz setting)

F6.1 standard (2000 lx, 3000K at 50Hz setting)

19.5 lx (at 59.94Hz setting, F2.2, GAIN +24dB)

16.2 lx (at 50Hz setting, F2.2, GAIN +24dB)

58 dB standard (GAIN : 0dB, DTL GAIN : 0, GAMMA : OFF, MATRIX : OFF,

5000K, during light elimination)

0°C to 40°C (32°F to 104°F)

Less than 90% (non condensing)

Approx. 800 g (1.76 lbs)

110(W) × 40(H) × 196(D) mm (4.33”(W) × 1.57”(H) × 7.72”(D))

(excluding protrusions)

Scene file (user memories) A, B, C, D, E

White balance AWB (Automatic white balance), MANUAL

Gain

Output signal

External sync input

Sync signal output

Interface

Optional parts

AUTO (Automatic gain control), MANUAL, OFF (0dB)

3G-SDI/HD-SDI output x 4

3G-SDI (SMPTE 424M compliant, SMPTE 425M Level A), 0.8 V (p-p) 75Ω unbalanced, BNC connector

4K/59.94p Square Division

, 4K/50p Square Division, 1080/59.94p,

1080/50p

HD-SDI (SMPTE 292M compliant) 0.8 V (p-p), 75Ω unbalanced, BNC connector

1080/59.94i, 1080/50i

Tri-Level Sync 0.6V(p-p) 75Ω unbalanced BNC connector

Horizontal: 67.433kHz ±35ppm, vertical 59.94Hz ±35ppm (at 4K/59.94Hz setting)

Horizontal: 56.250kHz ±35ppm, vertical 50Hz ±35ppm (at 4K/50Hz setting)

Horizontal: 67.433kHz ±35ppm, vertical 59.94Hz ±35ppm (at 1080p/59.94Hz setting)

Horizontal: 56.250kHz ±35ppm, vertical 50Hz ±35ppm (at 1080p/50Hz setting)

Horizontal: 33.716kHz ±35ppm, vertical 59.94Hz ±35ppm (at 1080i/59.94Hz setting)

Horizontal: 28.125kHz ±35ppm, vertical 50Hz ±35ppm (at 1080i/50Hz setting)

Tri-Level Sync 0.6V(p-p) 75Ω unbalanced BNC connector

Horizontal: 67.433kHz ±35ppm, vertical 59.94Hz ±35ppm (at 4K/59.94Hz setting)

Horizontal: 56.250kHz ±35ppm, vertical 50Hz ±35ppm (at 4K/50Hz setting)

Horizontal: 67.433kHz ±35ppm, vertical 59.94Hz ±35ppm (at 1080p/59.94Hz setting)

Horizontal: 56.250kHz ±35ppm, vertical 50Hz ±35ppm (at 1080p/50Hz setting)

Horizontal: 33.716kHz ±35ppm, vertical 59.94Hz ±35ppm (at 1080i/59.94Hz setting)

Horizontal: 28.125kHz ±35ppm, vertical 50Hz ±35ppm (at 1080i/50Hz setting)

Serial data interface (compliant with RS-232C)

IK-4KH (1/2.9 inch 3CMOS camera head)

EXC-3HD03 (Approx. 3 m (118”) Camera cable), EXC-3HD06 (Approx. 6 m (236”) Camera cable)

EXC-3HD10 (Approx. 10 m (394”) Camera cable), EXC-3HD15 (Approx. 15 m (1181”) Camera cable)

Design and specifications are subject to change without notice.

10. EXTERNAL APPEARANCE DIAGRAM

Unit : mm [inch]

196 [7.72]

12.5 [0.49]

FREEZE

[Front]

DC IN 12V

REMOTE

A B

3G/HD-SDI

KEY LOCK

FORMAT

SYNC

OFF 59.94

OUT

SYNC IN/OUT

[Rear]

[1.06]

139 ± 0.15 [5.47 ± 0.006]

4-M3 BD

Limited Warranty – TOSHIBA Camera Control Unit

The Imaging Systems Division of Toshiba America Information Systems, Inc. ("ISD") makes the following limited warranty with regard to this Camera Control Unit ("Product"). These limited warranties apply to the Original End-User "You(r)".

One (1) Year Limited Warranty of Labor and Parts

ISD warrants that this Product will perform in accordance with specifications for a period of one (1) year from the date of purchase by the Original End-User. During this one (1) year period, ISD will repair or replace the Product, if it does not perform as warranted. In order to take advantage of this Limited Warranty, You must: (a) deliver the Product to an ISD

Authorized Service Provider ("ASP"); and (b) pay all transportation and insurance charges for shipment of the Product to the

ASP. ISD reserves the right to substitute factory refurbished parts in place of those in need of repair.

Instruction Manual (Owner’s Manual):

You should read the Instruction Manual (Owner’s Manual) thoroughly before operating this Product. Before seeking warranty service, you should check the troubleshooting guide in the Instruction Manual (Owner’s Manual) and follow the instructions to correct the problem.

Warranty service under this Limited Warranty is subject to the following conditions and procedures:

1. All warranty servicing of the Product must be made by an ASP (Authorized Service Provider).

2. You must notify an ASP within thirty (30) days after You discover that the Product does not perform in accordance with specifications during the Limited Warranty period.

3. You must securely pack the Product in its original carton using the original packing material.

4. You must insert the original carton containing the Product, a letter explaining the problem AND a copy of the bill of sale or proof of purchase into another carton with additional packing material before shipping the Product to an ASP.

5. You must prepay all transportation and insurance costs.

DISCLAIMERS:

ALL OTHER EXPRESS OR IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED. SOME STATES DO

NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY

LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE, YOUR SOLE AND EXCLUSIVE

REMEDY SHALL BE THE REPAIR OR REPLACEMENT OF THE PRODUCT. IN NO EVENT WILL ISD OR ITS PARENT

COMPANY OR ANY ASP BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY DAMAGES IN EXCESS OF THE

PURCHASE PRICE OF THE PRODUCT. THIS LIMITATION APPLIES TO DAMAGES OF ANY KIND, INCLUDING ANY

DIRECT OR INDIRECT DAMAGES, LOST PROFITS, LOST SAVINGS OR OTHER SPECIAL, INCIDENTAL, EXEMPLARY

OR CONSEQUENTIAL DAMAGES, WHETHER FOR BREACH OF CONTRACT, TORT OR OTHERWISE, OR WHETHER

ARISING OUT OF THE USE OF OR INABILITY TO USE SUCH PRODUCT, EVEN IF ISD, ITS PARENT COMPANY, OR

AN ASP HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR OF ANY CLAIM BY ANY OTHER PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES

FOR SOME PRODUCTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH MAY VARY FROM STATE TO STATE.

THIS LIMITED WARRANTY SHALL BE VOID IF THE PRODUCT OR PARTS HAVE BEEN SUBJECTED TO MISUSE,

ABUSE, ACCIDENT, IMPROPER INSTALLATION, IMPROPER MAINTENANCE, OR USE IN VIOLATION OF ISD’S

WRITTEN INSTRUCTIONS, OR WHERE THE PRODUCT HAS BEEN ALTERED OR MODIFIED WITHOUT ISD’S PRIOR

AUTHORIZATION, OR UPON THE REMOVAL OR ALTERATION OF ISD’S FACTORY SERIAL NUMBER. LABOR

SERVICE CHARGES FOR PRODUCT INSTALLATION, SET UP AND ADJUSTMENT OF CONTROLS ARE NOT

COVERED BY THIS LIMITED WARRANTY.

Questions? If you have any questions, including information on Authorized Service Providers and current e-mail for contact support, please check ISD's Web Site for current information:

Web Site: http://www.toshibacameras.com/

No person, agent, distributor, dealer, authorized service provider, or company is authorized to change, modify, or extend the terms of this Limited Warranty in any manner whatsoever. The time within which an action must be commenced to enforce any obligation of ISD arising under this Limited Warranty or under any statute, or law of the United States or any state thereof, is hereby limited to one (1) year from the end of the Limited Warranty period. This limitation does not apply to implied warranties arising under state law. Some states do not permit limitation of the time within which You may bring an action beyond the limits provided by state law, so the above provision may not apply to You. This Limited Warranty gives You specific legal rights and You may also have other rights which vary from state to state.

TOSHIBA AMERICA INFORMATION SYSTEMS, INC.

Imaging Systems Division

9740 Irvine Boulevard, Irvine, CA 92618-1697

This manual is made from recycled paper.

Thank you for your participation!
