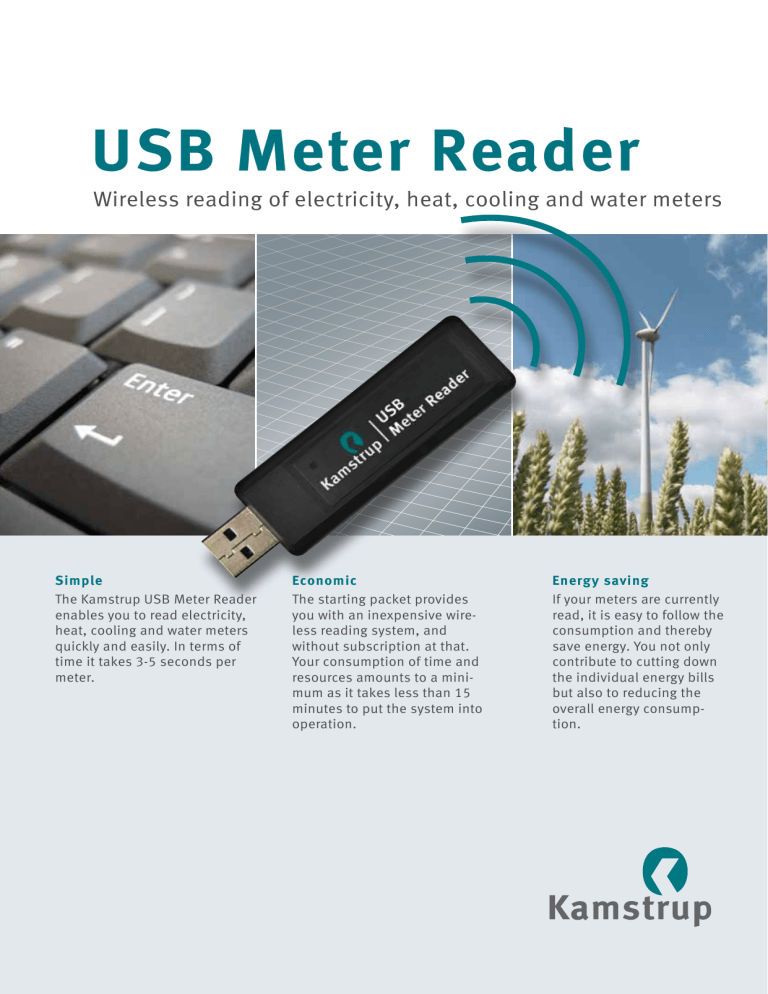

USB Meter Reader
USB Meter Reader
Wireless reading of electricity, heat, cooling and water meters
Simple
The Kamstrup USB Meter Reader
enables you to read electricity,
heat, cooling and water meters
quickly and easily. In terms of
time it takes 3-5 seconds per
meter.
Economic
The starting packet provides
you with an inexpensive wireless reading system, and
without subscription at that.
Your consumption of time and
resources amounts to a minimum as it takes less than 15
minutes to put the system into
operation.
Energy saving
If your meters are currently
read, it is easy to follow the
consumption and thereby
save energy. You not only
contribute to cutting down
the individual energy bills
but also to reducing the
overall energy consumption.
I n d u s t r i v e j 2 8 , S t i l l i n g · 8 6 6 0 S ka n d e r b o r g · T E L : 8 9 9 3 1 0 0 0 · F A X : 8 9 9 3 1 0 0 1 · i n f o @ ka m s t r u p . d k · w w w. ka m s t r u p . d k
USB Meter Reader
– simple, secure and precise data reading
How to use the USB Meter Reader
The Kamstrup USB Meter Reader reads all Kamstrup electricity, heat, cooling and
water meters which are fitted with a radio module with EU frequency.
You create the individual meters entering meter number and possible installation address in the user-friendly PC program. If the system in question includes many meters
or you have more than one USB Reader, the meters can be grouped and linked to a
specific USB Reader.
When you have transferred a meter list to the USB Reader you connect it to a Power
Pack (power supply). In the reading area you switch on current by pressing a button
once and the reading starts automatically.
In order to save current USB Reader has a built in movement sensor, which switches
off current if you are not moving and when all meters have been read.
How to read your meters
A green and an orange light emitting diode inform you about the current reading
status. When the reading is finished you move the USB Reader from the Power Pack to
the PC’s USB connector. All reading data will now be automatically transferred to the
USB Meter Reader program. The program also automatically informs you of missing
meter readings, if any.
If you use more than one USB Reader it will be an advantage to have one USB Reader
permanently mounted in the PC. In this way meter lists and reading data will be wirelessly exchanged between each USB Reader and the USB Meter Reader program. The
wireless data exchange is carried out fast and automatically.
How to export your meter data
In the USB Meter Reader program you choose to view the data of each individual
meter or the data of all meters in a total overview.
You can export data in XLS format to spreadsheet programs, in CSV format to billing
programs or to a file in pdf format.
Finally you can send data to a printer.
Technical data
• Operating system: Windows® XP and from 2010 Windows® 7
• Capacity per USB Reader: 200 meters
• Total capacity of the system: 800 meters
• Power Pack: 3,000 mAh lithium polymer
• Operating temperature range: ÷ 10 - + 60°C
Top flexibility
– you choose, how to read your meters
1. You can either read the meter using a USB Reader with Power Pack
and transfer the data to the PC program by moving the USB Reader
from the Power Pack to the PC.
USB
Kamstrup Meter Reader
USB
Kamstrup Meter Reader
PC
USB Reader & Power Pack
Meter
2. O
r you can read the meter using a USB Reader with Power Pack
and transfer the data from the USB Reader with Power Pack to the
PC program via another USB Reader which is permanently mounted in the PC.
Data processing
in other programs
USB
Kamstrup Meter Reader
USB
Kamstrup Meter Reader
• Analysis
USB
Kamstrup Meter Reader
• Energy optimization
USB Reader
Meter
• Billing
PC
USB Reader & Power Pack
• Spreadsheet
3. Finally, you can in one work routine read the meter and transfer the data
to the PC program by means of a USB Reader mounted in a portable
computer.
USB
Kamstrup Meter Reader
USB
Kamstrup Meter Reader
USB Reader
Meter
PC
Order your initial packet today and get started at once
The initial packet consists of
Charging cable for
Power Pack
USB Reader
USB
Kamstrup Meter Reader
Quick Guide
Quick Guide
Power Pack
Software and manual
via internet
Kamstrup is the world's leading producer of energy meters and
system solutions for consumption measurement.
Our core areas are measurement of heat, cooling, water, electricity
and gas. Furthermore, in co-operation with you we develop AMR and
service solutions that are customized to your company.
We are represented in more than 60 countries worldwide by
Kamstrup sales and subsidiary offices or by our distributors.
All employees work hard to offer your company the very best service
and to respond to global market information provided by our trusted
partners.
In this way we maintain a strong mutual co-operation.
The Kamstrup brand
– when you demand quality, reliability, innovation and partnership.
Industrivej 28, Stilling · 8660 Skanderborg · Denmark · TEL: +45 89 93 10 00 · FAX: +45 89 93 10 01 · [email protected] · www.kamstrup.com
5811701_B1_GB10.2009
Kamstrup
– your guarantee for an always better solution
