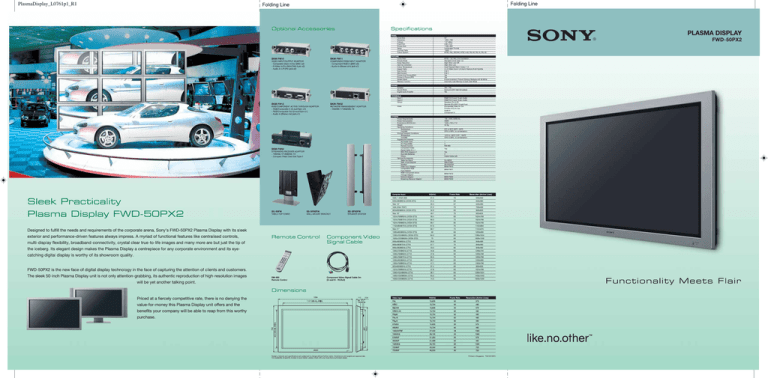

PlasmaDisplay_L0761p1_R1 Folding Line
|
Optional Accessories
BKM-FW10 BKM-FW11
VIDEO INPUT/OUTPUT ADAPTOR COMPONENT/RGB INPUT ADAPTOR
- Composite Video In/Out (BNC x2) - Component RGB In (BNC x5)
- $ Video In/Out (Mini DIM 4-pin x2) - Audio In (Stereo mini jack x1)
- Audio In L/R (Pin jack x2)
BKM-FW12 BKM-FW32
RGB/COMPONENT ACTIVE THROUGH ADAPTOR NETWORK MANAGEMENT ADAPTOR
- RGB/Composite In (D-sub15pin x1) - 10BASE-T/100BASE-TX
- RGB/Composite Out (D-sub15pin x1)
- Audio In (Stereo mini jack x1)
BKM-FW50
STREAMING RECEIVER ADAPTOR
- 10BASE-T/100BASE-TX
- Compact Flash Card Slot Туре ||
1
Sleek Practicality |
— | E] SG an = [I S D | ay e AVI D) = =H 0) PX — ENEE STAND WALL-MOUNT BRACKET SPEAKER SYSTEM
Designed to fulfill the needs and requirements of the corporate arena, Sony’s FWD-50PX2 Plasma Display with its sleek
exterior and performance-driven features always impress. A myriad of functional features like centralised controls, Remote Control Component Video
multi-display flexibility, broadband-connectivity, crystal clear true-to-life images and many more are but just the tip of Signal Cable
the iceberg. Its elegant design makes the Plasma Display a centrepiece for any corporate environment and its eye-
catching digital display is worthy of its showroom quality.
FWD-50PX2 is the new face of digital display technology in the face of capturing the attention of clients and customers.
The sleek 50-inch Plasma Display unit is not only attention-grabbing, its authentic reproduction of high-resolution images RM-980 Component Video Signal Cable 3m
will be yet another talking point. remote Gent C0 5500
Dimensions
Priced at a fiercely competitive rate, there is no denying the < — — 12.298
value-for-money this Plasma Display unit offers and the Г 1 Tr
benefits your company will be able to reap from this worthy T 1
purchase. |
5
= 2 © 9
fA
a 1
Designs, features and specifications are subjected to change without further notice. Dimensions and weights are approximate.
For availability of specific models in local market, please check with your local Sony authorised dealer.
| +
®
Specifications
S-Video (Y/C) In/ Out
Audio In
BKM-FW11
BKM-FW12
Folding Line
|
SONY. O FWD-s0pxa
Computer Input fH(kHz) Frame Rate Resolution (Active Lines)
VGA-1 (VGA 350) 31.5 70 640x350
[email protected] (VESA STD) 31.5 60 640x480
Mac 13” 35.0 67 640x480
VGA (VGA TEXT) 31.5 70 720x400
[email protected] (VESA STD) 34.9 60 800x600
Mac 16” 49.7 75 832x624
[email protected] (VESA STD) 48.4 60 1024x768
[email protected] (VESA STD) 60.0 75 1024x768
[email protected] (VESA STD) 68.7 85 1024x768
[email protected] (VESA STD) 67.5 75 1152x864
Mac 21” 68.7 75 1152x870
[email protected] (VESA STD) 60 60 1280x960
[email protected] (VESA STD) 64.0 60 1280x1024
[email protected] (VESA STD) 75 60 1600x1200
[email protected] (CTV) 29.8 60 848x480
[email protected] (CTV) 37.7 75 848x480
[email protected] (CTV) 43.0 85 848x480
[email protected] (CTV) 44.8 60 1280x720
[email protected] (CTV) 47.8 60 1280x768
[email protected] (CTV) 60.3 75 1280x768
[email protected] (CTV) 59.7 60 1280x960
[email protected] (CTV) 47.7 60 1360x768
[email protected] (CTV) 37.4 60 800x600
[email protected] (CTV) 47.8 60 1024x768
[email protected] (CTV) 36.7 60 1280x1024
[email protected] (CTV) 65.3 60 1400x1050
[email protected] (CTV) 74.5 60 1600x1200
Functionality Meets Flair
NAT NT fH(kHz) Frame Rate Resolution (Active Lines)
PAL 15.625 50 575
NTSC 15.734 60 480
SECAM 15.625 50 575
NTSC4.43 15.734 60 480
РАГ60 15.734 60 480
PAL-M 15.734 60 480
PAL-N 15.734 60 480
575/50! 15.625 50 575
480/60! 15.734 60 480
1080/24PSF 27.000 48 1080
1080/501 28.125 50 1080 N ™
576/50P 31.250 50 576
= = ; = like.no.other
1080/601 33.750 60 1080
720/60P 45.000 60 720
720/50P 45.000 50 720
Printed in Singapore TV010510972
PlasmaDisplay_L0761p2
li
„=
Network Content Streaming
The optional BKM-FW50 is an IP addressable Streaming Receiver Adaptor for Sony Public Display FWD series with the common interface
of the Option Slots. While current BKM-FW32 controls the display remotely via the network, the BKM-FW50 provides two additional
advanced features of
- Local and remote play of movie and still pictures (“Local Stored Contents Play” and “Streaming Contents Play”)
- Presentation output from the PC on network.
Having the BKM-FW50, it is possible to provide an “Easy Digital Signage” solution with low TCO (Total Cost of Ownership).
You can control and change the monitor settings via the network. BKM-FW50 allows you to access, control and monitor a network of
FWD-50PX2 Plasma Displays from a central PC that's connected to LAN, WAN or the Internet.
= Contents on = Contents on E =
Hub/Router
WEB Server WEB Server
cz
Sony Original Motion Picture Engine
NE
NU
NE
\
This exclusive Sony technology uses advanced digital processing to enhance the quality of images from almost any source.
Combining several integrated processes, it delivers extremely sharp and accurate picture reproduction. These include:
Decoder Conversion Scaling Video
(Resolution Signal
Conversion) Processing
Folding Line
High Contrast Ratio and Wide Angle of View
The new Plasma panel has the highest specifications around today with a high contrast ratio of 10,000:1. Velvety black images are
reproducible and the graduation of image has improved by leaps and bounds. FWD-50PX2 provides a wide angle of view
which allows for easy placement of the Display unit, in any location in your office.
Wide Range of Acceptable Signals
From VGA to UXGA, a wide range of signals and most DTV
formats are acceptable by FWD-50PX2 Plasma unit.
Input Setting
Found in the Custom Setup menu, this menu determines if
the input selector buttons on your remote control can act as
toggles or as fixed selectors. Each input selectable function
on the remote control toggles between two input types with
every press of the button; while a currently selected input
will remain fixed to the current setting. This flexibility will
come in useful when a more complicated use of your Plasma
unit is required during a presentation.
Over Scan
Once the RGB mode is selected in ‘DTV’ mode, the chosen
image can be displayed in over scan or under scan; this
flexibility will come in handy when a more complex usage of
your Plasma unit is required.
Auto Wide Function
This intelligent function automatically enlarges the video screen
to fill up the 16:9 screen. You can also change the aspect ratio
to follow its native format if you want to display content other than
16:9 format.
FULL
(RESTORE)
SUBTITLES
with subtitles | with subtitles
NORMAL
(4:3)
WIDE ZOOM
(EXPANDED 4:3)
ZOOM
(LETTERBOX)
Folding Line
Sleek Modern Design
Designed with sleek sophistication, the new FWD-50PX2 is perfectly suited for stylish modern retail shops, offices, public areas and
even homes.
Brillant, Ultra-Large Display
Its advanced WXGA screen offers exceptional brightness and superb contrast — ideal for enhancing the colour and richness of your
images. The ultra-large screen with a resolution of 1280 x 768 pixels is optimised for moving images and videos.
Variable Viewing Ratios
Experience optimal display and viewing of your images, regardless of whether your image is in normal, widescreen or letterbox mode.
The FWD-50PX2 adjusts the image proportionate to its screen, minimising picture distortion and enhancing your viewing pleasure.
Burn-in Prevention System
To enhance its durability and minimise residual images, the FWD-50PX2 is equipped with the latest screen-saving features.
These new technologies include an All White Mode, Gray Background for 4:3 picture, and Auto Brightness Saver, which helps reduce
power usage while increasing the lifespan
of the display. The Plasma Display also includes
standard screen-saving features, such as
Picture Orbit, which automatically moves
the image around the screen to prevent
“burning” the image onto one spot,
and Picture Inversion, which reverses the
colour tones of the image.
Picture Orbiting Picture Inversion
Automatically moves the image around on Reverses the colour tone
the screen of the image
