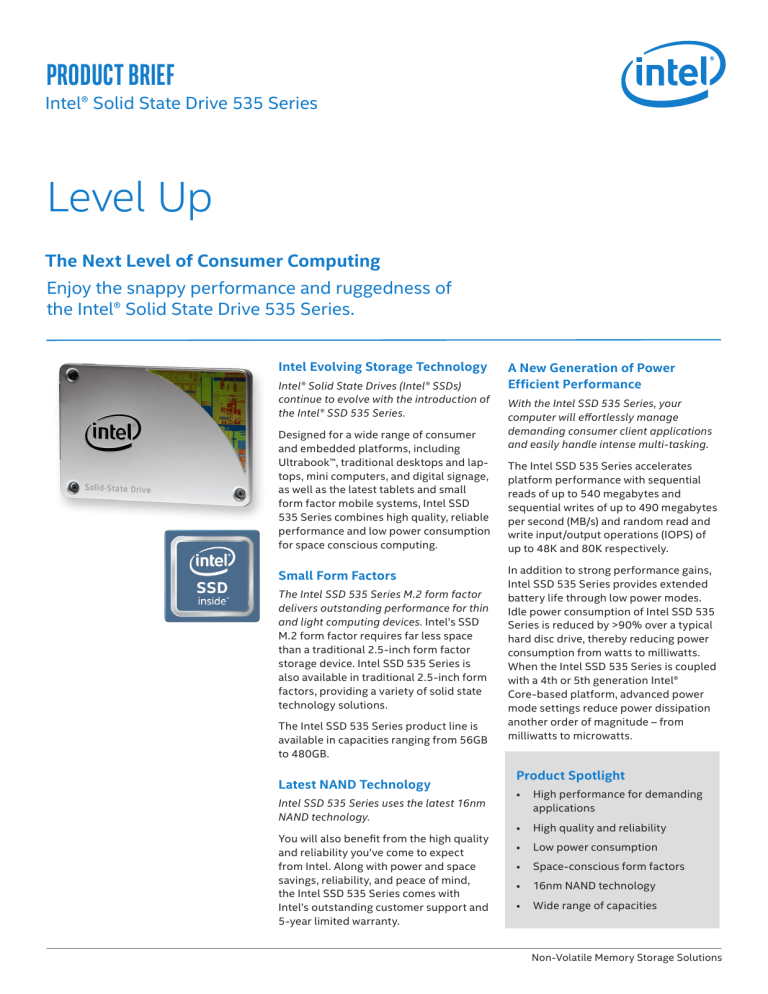

product brief
Intel® Solid State Drive 535 Series
Level Up
The Next Level of Consumer Computing
Enjoy the snappy performance and ruggedness of
the Intel® Solid State Drive 535 Series.
Intel Evolving Storage Technology
Intel® Solid State Drives (Intel® SSDs)
continue to evolve with the introduction of
the Intel® SSD 535 Series.
Designed for a wide range of consumer
and embedded platforms, including
Ultrabook™, traditional desktops and laptops, mini computers, and digital signage,
as well as the latest tablets and small
form factor mobile systems, Intel SSD
535 Series combines high quality, reliable
performance and low power consumption
for space conscious computing.
Small Form Factors
The Intel SSD 535 Series M.2 form factor
delivers outstanding performance for thin
and light computing devices. Intel’s SSD
M.2 form factor requires far less space
than a traditional 2.5-inch form factor
storage device. Intel SSD 535 Series is
also available in traditional 2.5-inch form
factors, providing a variety of solid state
technology solutions.
The Intel SSD 535 Series product line is
available in capacities ranging from 56GB
to 480GB.
Latest NAND Technology
Intel SSD 535 Series uses the latest 16nm
NAND technology.
You will also benefit from the high quality
and reliability you’ve come to expect
from Intel. Along with power and space
savings, reliability, and peace of mind,
the Intel SSD 535 Series comes with
Intel’s outstanding customer support and
5-year limited warranty.
A New Generation of Power
Efficient Performance
With the Intel SSD 535 Series, your
computer will effortlessly manage
demanding consumer client applications
and easily handle intense multi-tasking.
The Intel SSD 535 Series accelerates
platform performance with sequential
reads of up to 540 megabytes and
sequential writes of up to 490 megabytes
per second (MB/s) and random read and
write input/output operations (IOPS) of
up to 48K and 80K respectively.
In addition to strong performance gains,
Intel SSD 535 Series provides extended
battery life through low power modes.
Idle power consumption of Intel SSD 535
Series is reduced by >90% over a typical
hard disc drive, thereby reducing power
consumption from watts to milliwatts.
When the Intel SSD 535 Series is coupled
with a 4th or 5th generation Intel®
Core-based platform, advanced power
mode settings reduce power dissipation
another order of magnitude – from
milliwatts to microwatts.
Product Spotlight
• High performance for demanding
applications
• High quality and reliability
• Low power consumption
• Space-conscious form factors
• 16nm NAND technology
• Wide range of capacities
Non-Volatile Memory Storage Solutions
Intel® Solid State Drive 535 Series
TECHNICAL SPECIFICATIONS1
Model Name
Intel Solid State Drive 535 Series
Capacity (GB)
M.2 - 120, 180, 240, 360
2.5-inch - 56, 120, 180, 240, 360, 480
NAND Flash Memory
16nm NAND Flash Memory Multi-Level Cell (MLC)
2
Bandwidth2,3,4
Interface
Form Factor, Height and
Weight
Form Factor
Capacity Point
Sequential
Read (up to)
Sequential
Write (up to)
Random
Read (up to)
Random
Write (up to)
M.2
120GB, 180GB, 240GB
360GB
540 MB/s
490 MB/s
48K IOPs
80K IOPs
2.5-inch
56GB, 120GB, 180GB, 240GB,
360GB, 480GB
540 MB/s
490 MB/s
48K IOPs
80K IOPs
SATA 6Gb/s, compatible with SATA 3Gb/s
Form Factor
Height/Weight
M.2 (80mm)
Up to 3.58mm / up to 10 grams
2.5-inch
Up to 7mm / up to 78 grams
Life Expectancy5
1.2 million hours Mean Time Between Failures (MTBF)
Power Consumption M.2
Active: 140 mW Typical6
Idle: 55 mW Typical7
DevSleep: 200µW
Power Consumption 2.5-inch
Active: 165 mW Typical6
Idle: 55 mW Typical7
DevSleep: 5mW
Operating Temperature
0̊ C to 70̊ C
RoHS Compliance
Meets the requirements of European Union (EU) RoHS Compliance Directives
Software Tools
Intel® Solid State Drive Toolbox with Intel® SSD Optimizer at www.intel.com/go/ssdtoolbox
Intel® Data Migration Software at www.intel.com/go/ssdinstallation
Solid State Drive Computing Starts with Intel Inside®.
For more information, visit www.intel.com/ssd
Based on the Intel SSD 535 Series Product Specifications: http://www.intel.com/content/www/us/en/solid-state-drives/ssd-535-spec.html and http://www.intel.com/content/www/us/en/solid-state-drives/
ssd-535-m2-spec.html
1
All capacities and form factors will not be available at launch.
2
Performance varies by capacity and is measured by Intel using IOMeter* with Queue Depth 32.
3
Performance measured by Intel using IOMeter 1.1.0 with Queue Depth 32. Measurements are performed on 8GB of logical block address (LBA) range on a full SSD.
4
All documented endurance test results are obtained in compliance with JESD218 Standards. See www.jedec.org for detailed definitions of JESD218 Standards.
5
Active power measured during execution of MobileMark* 2007 Workload with SATA Link Power Management (LPM) enabled.
6
Idle power defined as SSD at idle with SATA Link Power Management (LPM) enabled.
7
Tests document performance of components on a particular test, in specific systems. Differences in hardware, software, or configuration will affect actual performance. Consult other sources of information to
evaluate performance as you consider your purchase.
IOMeter* Test and System Configurations: Intel® Core™ i5-2400S (6MB L3 Cache, 2.5GHz), Intel Desktop Board DH67CF, Intel HD Graphics driver 9.17.10.2875, BIOS: BLH6710H.84A.0160.2012.1204.1156, Chipset:
Intel INF 9.2.0.1016, Memory: 4GB (2X2GB) Kingston DDR3-1333, Intel RST driver 12.9, Microsoft Windows 7 Enterprise 64-bit with SP1.
For more complete information about performance and benchmark results, visit http://www.intel.com/performance
The products described in this document may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on
request. Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order. Copies of documents which have an order number and are referenced in
this document, or other Intel literature, may be obtained by calling 1-800-548-4725, or by visiting Intel’s Web site at www.intel.com.
Copyright © 2014 Intel Corporation. All rights reserved. Intel, the Intel logo, and Intel Inside are trademarks of Intel Corporation in the U.S. and other countries.
*Other names and brands may be claimed as the property of others.
Printed in the USA 201512102/jm/ra
331852-003US
