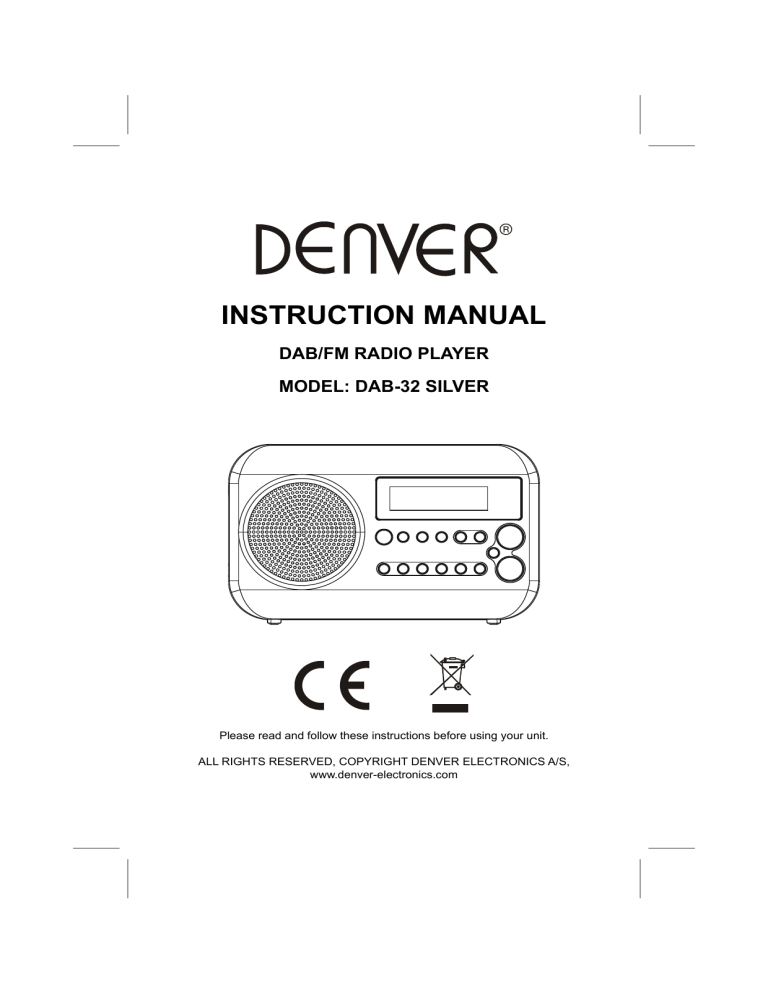

INSTRUCTION MANUAL
INSTRUCTION MANUAL
DAB/FM RADIO PLAYER
MODEL: DAB-32 SILVER
Please read and follow these instructions before using your unit.
ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S,
www.denver-electronics.com
8 9 10 11 12 13 14
15
1
2
3
4
56 7
16
17
LOCATION OF CONTROLS
1. PHONE JACK
2. DC IN JACK
3. SPEAKER
4. NUMERIC BUTTONS
5. SHIFT BUTTON
6. SEL BUTTON
7. TUN- BUTTON
8. STANDBY BUTTON
9. LCD DISPLAY
10. BAND BUTTON
11. MENU BUTTON
12. INFO BUTTON
13. VOL- BUTTON
14. VOL+ BUTTON
15. TUN+ BUTTON
16. DAB/FM TELESCOPIC ANTENNA
17. BATTERY COMPARTMENT
GB-1
Getting Started
Before using your Radio for DAB or FM, fully extend the TELESCOPIC ANTENNA and position
for the best reception.
Before connecting the power, check that the mains voltage on the rating plate of the AC adaptor
is same as the voltage in your area.
 Plug the DC cord from the AC adaptor into the DC jack on the side of the unit.
 Plug the AC adaptor into the wall socket and switch the mains power on.
Battery Operation
1. Remove the Battery Compartment Cover by gently pushing the clips downward and outwards.
2. Install 4 x 'AA' size batteries (UM-3 or equivalent) and take care that the correct polarities are
observed.
3. Replace the battery compartment cover.
NOTE:
 The DC line cord must be removed for battery operation.
 To avoid damage which may result from leaking batteries, remove the batteries when they
become exhausted or when the unit is not to be used for a long period of time.
Power Control
button on the front panel to turn the radio on. The display will light and the radio will
Press the
switch on.
button on the front panel again to turn the radio off.
Press the
When your radio is switched on for the first time the scanning will be processed automatically.
The radio scans all usable stations (full scan) and stores them alphanumerically. The initial scan
will take a few minutes. After the scan, the clock will be set and the radio will display the name of
the first station in the sequence. Press the TUN+ or TUN- button repeatedly to browse through
the station list. When you find a station you want to play, press the SEL button.
Note: If not any signals received in TWO hours during playback, the unit will be switched off. If the
unit is powered off automatically, it is necessary to press the STANDBY button on the unit again.
Selecting a Source
You can choose to DAB radio or FM radio. Press the BAND button repeatedly to scroll through
the available sources.
Adjusting the Volume
Press VOL+ or VOL- button to increase or decrease the volume level.
DAB Scanning
You can re-scan the band at any time if you move to a different area or just to refresh the stored
list of available stations.
 Press the BAND button to select the DAB mode.
 Press the MENU button to select FULL SCAN
DAB Display modes
The bottom line of the display can be switched to show different items of information that maybe
transmitted with a DAB station.
Press the INFO button repeatedly to change the information display while play a DAB radio
station.
The full range of display options are shown below. Some stations may not broadcast all of these
options.
GB-2
 DLS (Dynamic Label Segment): This is scrolling message giving real-time information – song
titles, news headlines, etc.
 Signal Strength: This setting will display a signal strength bar graph. The longer the bar graph,
the stronger the signal. Setting the display to show signal strength is useful when setting up the
aerial for the strongest signal.
 Programme Type: This describes the style of the programme being broadcast.
 Multiplex name: DAB Digital radio stations are broadcast in multiplex. Each multiplex is a
bundle of radio stations transmitted in a single frequency. These are national and local
multiplex; local ones contain stations specific to your area. This option displays the name of the
multiplex name that contains the station you are listening to.
 Multiplex Number/Freq: This option will display the multiplex number and frequency that
contains the station you are listening to.
 Signal Error Rate: This option will display the level of signal errors in the current broadcast. The
lower the number, the better quality of the signal.
 Bit Rate: DAB allows broadcasters to vary the BIT RATE (or the amount by which an audio
signal can be compressed) depending on the type of broadcast. This enables the amount of
stations on a multiplex to be maximized. Speech and News are often broadcast at a lower Bit
Rate; music needs a higher Bit Rate for good fidelity.
 Time and Date: time and date are updated by broadcasted information.
DAB Setting Menu
Your radio has some additional features and options that maybe reached through the Setting
Menu.
 Full Scan: Select Full Scan to re-scan the entire DAB band and refresh the station list.
 Manual Tune: Manual tuning enables you to search the band manually, stepping through the
multiplex numbers to check if any have usable signal strength.
 DRC: DRC is Dynamic Range Compression. Enabling DRC may improve the sound of DAB
radio when listening in a noisy room.
 Prune: If your station list includes stations that you can no longer receiver (you may have
moved to a different area), you can select the Prune option to remove any station that can no
longer be received from the Station List.
System
 Equaliser: This option enables to select different mode (My EQ, Normal, Classic, Jazz, Pop,
Rock, and Speech) you want.
 Time: This option enables the clock to be set manually if there is no available DAB
transmission.
 Language: This option enables display different language.
 Factory Reset: This option will restore all settings to “Factory Original”. All clock and station list
and any stored preset stations will be cleared. After factory reset the radio will automatically
re-scan the DAB band when first used.
 SW version: This option will display the version number of the control software currently
installed in your radio.
Listening to FM Radio
Your radio can also receive FM band radio stations and display RDS data (where broadcast)
To change to the FM band
 Press the BAND button to select FM mode.
To auto-tune to FM stations
 Press and hold the TUN+ button to search for the next station in the band.
To manually tune to FM stations
 Press the TUN+ button to tune the band in 50kHz steps.
GB-3
Station Presets
Your radio can store up to 10 of your favourite stations as presets on both the DAB and FM bands
for quick call.
To store station presets
 Tune to the station you want to store as a preset.
 Press and hold 1-5 NUMBER buttons.
 Press and hold 6-10 NUMBER buttons and the SHIFT button at the same time.
To recall any station presets
 Press one of the NUMBER buttons.
 Press 6-10 NUMBER buttons and the SHIFT button at the same time.
FM Settings MENU
There are also some menu settings that are specific to FM radio operation. These settings may
be changed through the Setting Menu.
To enter the FM Setting Menu
 Press BAND button to set to FM mode
 Press the MENU button
More Detail of the FM Setting Menu Option
Scan setting
With this menu option you can set the scanning sensitivity of the FM radio to two different levels
“Strong stations only” or “All stations”. Setting to “Strong stations only” will exclude weaker
stations resulting in a quicker scan. If you set to “All stations” the scan will stop at every station
detected, even if the signal is weak.
Audio setting
This option enables you to set the radio to receive FM in “Stereo allowed” mode and “Forced
mono” mode. This maybe useful if the signal is weak and the broadcast is noisy.
System
Refer to the DAB part.
FM Display Modes
The bottom line of the display can be switched to show different items of information that maybe
transmitted with an FM station.
To Change the display mode
Press the INFO button on the front panel repeatedly to change the information displayed while
playing an FM radio station.
The full range of display options are show below. Some station may not broadcast all of these
options.
- RDS RADIOTEXT
- PROGRAMME TYPE
- STATION NAME
- STEREO/MONO
- TIME
- DATE
GB-4
IMPORTANT SAFETY INSTRUCTIONS
 The apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus.
 When the AC/DC adapter is used as the disconnect device, the disconnect device shall remain
readily operable. To be completely disconnected the power input, the AC/DC adapter shall be
disconnected from the mains completely.
 No naked flame sources, such as lighted candles, should be placed on the apparatus.
 Minimum distances 2.0cm around the apparatus for sufficient ventilation. The ventilation should
not be impeded by covering the ventilation openings with items, such as newspapers,
table-cloths, curtains, etc.
 The use of apparatus is in tropical and/or moderate climates.
 Attention should be drawn to the environmental aspects of battery disposal.
 CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
 Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
 The marking plate is located at the back of the apparatus.
