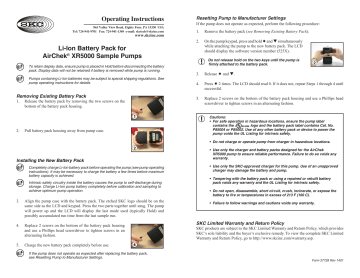

Li-Ion Battery Pack for AirChek® XR5000 Sample Pumps

Li-Ion Battery Pack for AirChek® XR5000 Sample Pumps
Operating Instructions
863 Valley View Road, Eighty Four, PA 15330 USA
Tel: 724-941-9701 Fax: 724-941-1369 e-mail: [email protected]
www.skcinc.com
Resetting Pump to Manufacturer Settings
If the pump does not operate as expected, perform the following procedure:
1.
Remove the battery pack (see Removing Existing Battery Pack).
2.
On the pump keypad, press and hold  and  simultaneously
while attaching the pump to the new battery pack. The LCD
should display the software version number (525X).
Li-Ion Battery Pack for
AirChek® XR5000 Sample Pumps
To retain display data, ensure pump is placed in Hold before disconnecting the battery
pack. Display data will not be retained if battery is removed while pump is running.
Pumps containing Li-Ion batteries may be subject to special shipping regulations. See
pump operating instructions for details.
Removing Existing Battery Pack
1.
Release the battery pack by removing the two screws on the
bottom of the battery pack housing.
1
2.
Pull battery pack housing away from pump case.
Do not release hold on the two keys until the pump is
firmly attached to the battery pack.
3.
Release  and .
4.
Press  2 times. The LCD should read 0. If it does not, repeat Steps 1 through 4 until
successful.
5.
Replace 2 screws on the bottom of the battery pack housing and use a Phillips head
screwdriver to tighten screws in an alternating fashion.
Cautions:
• For safe operation in hazardous locations, ensure the pump label
contains the
logo and the battery pack label contains Cat. No.
P85004 or P85002. Use of any other battery pack or device to power the
pump voids the UL Listing for intrinsic safety.
• Do not charge or operate pump from charger in hazardous locations.
• Use only the charger and battery packs designed for the AirChek
XR5000 pump to ensure reliable performance. Failure to do so voids any
warranty.
Installing the New Battery Pack
Completely charge Li-Ion battery pack before operating the pump (see pump operating
instructions). It may be necessary to charge the battery a few times before maximum
battery capacity is achieved.
Intrinsic safety circuitry inside the battery causes the pump to self-discharge during
storage. Charge Li-Ion pump battery completely before calibration and sampling to
achieve optimum pump operation.
3.
Align the pump case with the battery pack. The etched SKC logo should be on the
same side as the LCD and keypad. Press the two parts together until snug. The pump
will power up and the LCD will display the last mode used (typically Hold) and
possibly accumulated run time from the last sample run.
4.
Replace 2 screws on the bottom of the battery pack housing
and use a Phillips head screwdriver to tighten screws in an
alternating fashion.
5.
Charge the new battery pack completely before use.
• Use only the SKC-approved charger for this pump. Use of an unapproved
charger may damage the battery and pump.
• Tampering with the battery pack or using a repaired or rebuilt battery
pack voids any warranty and the UL Listing for intrinsic safety.
• Do not open, disassemble, short circuit, crush, incinerate, or expose the
battery to fire or temperatures in excess of 213 F (100 C).
• Failure to follow warnings and cautions voids any warranty.
SKC Limited Warranty and Return Policy
SKC products are subject to the SKC Limited Warranty and Return Policy, which provides
SKC’s sole liability and the buyer’s exclusive remedy. To view the complete SKC Limited
Warranty and Return Policy, go to http://www.skcinc.com/warranty.asp.
4
If the pump does not operate as expected after replacing the battery pack,
see Resetting Pump to Manufacturer Settings.
Form 37728 Rev 1401
