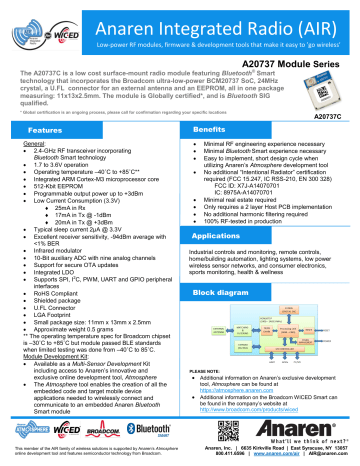

Anaren Integrated Radio (AIR)
Low-power RF modules, firmware & development tools that make it easy to ’go wireless’
A20737 Module Series
The A20737C is a low cost surface-mount radio module featuring Bluetooth® Smart
technology that incorporates the Broadcom ultra-low-power BCM20737 SoC, 24MHz
crystal, a U.FL connector for an external antenna and an EEPROM, all in one package
measuring: 11x13x2.5mm. The module is Globally certified*, and is Bluetooth SIG
qualified.
* Global certification is an ongoing process, please call for confirmation regarding your specific locations
Features
General:
 2.4-GHz RF transceiver incorporating
Bluetooth Smart technology
 1.7 to 3.6V operation
 Operating temperature –40˚C to +85˚C**
 Integrated ARM Cortex-M3 microprocessor core
 512-Kbit EEPROM
 Programmable output power up to +3dBm
 Low Current Consumption (3.3V)
 25mA in Rx
 17mA in Tx @ -1dBm
 20mA in Tx @ +3dBm
 Typical sleep current 2µA @ 3.3V
 Excellent receiver sensitivity, -94dBm average with
<1% BER
 Infrared modulator
 10-Bit auxiliary ADC with nine analog channels
 Support for secure OTA updates
 Integrated LDO
 Supports SPI, I2C, PWM, UART and GPIO peripheral
interfaces
 RoHS Compliant
 Shielded package
 U.FL Connector
 LGA Footprint
 Small package size: 11mm x 13mm x 2.5mm
 Approximate weight 0.5 grams
** The operating temperature spec for Broadcom chipset
is –30˚C to +85˚C but module passed BLE standards
when limited testing was done from –40˚C to 85˚C.
Module Development Kit:
 Available as a Multi-Sensor Development Kit
including access to Anaren’s innovative and
exclusive online development tool, Atmosphere
 The Atmosphere tool enables the creation of all the
embedded code and target mobile device
applications needed to wirelessly connect and
communicate to an embedded Anaren Bluetooth
Smart module
This member of the AIR family of wireless solutions is supported by Anaren’s Atmosphere
online development tool and features semiconductor technology from Broadcom.
A20737C
Benefits








Minimal RF engineering experience necessary
Minimal Bluetooth Smart experience necessary
Easy to implement, short design cycle when
utilizing Anaren’s Atmosphere development tool
No additional “Intentional Radiator” certification
required (FCC 15.247, IC RSS-210, EN 300 328)
FCC ID: X7J-A14070701
IC: 8975A-A14070701
Minimal real estate required
Only requires a 2 layer Host PCB implementation
No additional harmonic filtering required
100% RF-tested in production
Applications
Industrial controls and monitoring, remote controls,
home/building automation, lighting systems, low power
wireless sensor networks, and consumer electronics,
sports monitoring, health & wellness
Block diagram
PLEASE NOTE:
 Additional information on Anaren’s exclusive development

tool, Atmosphere can be found at
https://atmosphere.anaren.com
Additional information on the Broadcom WICED Smart can
be found in the company’s website at
http://www.broadcom.com/products/wiced
Anaren, Inc. | 6635 Kirkville Road | East Syracuse, NY 13057
800.411.6596 | www.anaren.com/air | [email protected]
Anaren Integrated Radio (AIR)
Low-power RF modules, firmware & development tools that make it easy to ’go wireless’
Product overview
Layout information
The A20737C is a high-performance, FCC & IC certified and
ETSI-compliant module featuring Bluetooth® Smart technology
that incorporates the Broadcom BCM20737 SOC in one of the
industry’s smallest packages (11 x 13 x 2.5 mm). The module
incorporates an EEPROM, 24MHz crystal and the required RF
matching and filtering for regulatory compliance. The modules
operate in the global unlicensed 2.4GHz ISM/SRD frequency
band. These radio modules are ideal for achieving low power
wireless connectivity without having to deal with extensive
protocol, RF design and regulatory compliance, allowing quick
time to market. The modules are 100% RF-tested to provide
consistent performance.
The A20737C has a RoHS-compliant ENIG finish and is
packaged in 36-piece matrix trays or on 500-piece tape & reel for
high-volume automated manufacturing.
Footprint (PWB) all measurements are in millimeters
Pin diagram
See product User’s Manual for detailed information.
Viewed from top side
Nomenclature
Where applicable:
NC = “NO Connection”
Pin is NOT connected internally.
DNC = “Do Not Connect”
Pin reserved for internal use,
ensure mating footprint pads are
isolated.
GND = “Ground”
Connect the maximum number
possible (minimum one for
proper operation).
A
1
2
3
4
Manufacturer
Chip series
Form factor
Application
Packaging
Anaren
20737
A = Internal Antenna, C = Connector
G = General
R = Reel, M = Matrix Tray
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Anaren Inc. is under license.
Other trademarks and trade names are those of their respective owners.
Caution! ESD sensitive device.
Precautions should be used when
handling the device in order to
prevent permanent damage.
This product is not to be used in any implantable medical device or external
medical device intended to regulate or monitor biological functions, including but
not limited to devices such as pacemakers, defibrillators, cardiac
resynchronization devices, pressure sensors, biochemical stimulators and
neurostimulators. ANAREN MAKES NO WARRANTY OF FITNESS OR
MERCHANTABILITY OF THIS PRODUCT FOR ANY USE OF THIS TYPE.
Anaren shall not be responsible for any consequential damages arising from the
sale or use of this product for any use of this type. The ultimate user of the
product assumes all risk of personal injury or death arising from a prohibited use.
1536a
This member of the AIR family of wireless solutions is supported by Anaren’s Atmosphere
online development tool and features semiconductor technology from Broadcom.
Anaren, Inc. | 6635 Kirkville Road | East Syracuse, NY 13057
800.411.6596 | www.anaren.com/air | [email protected]
