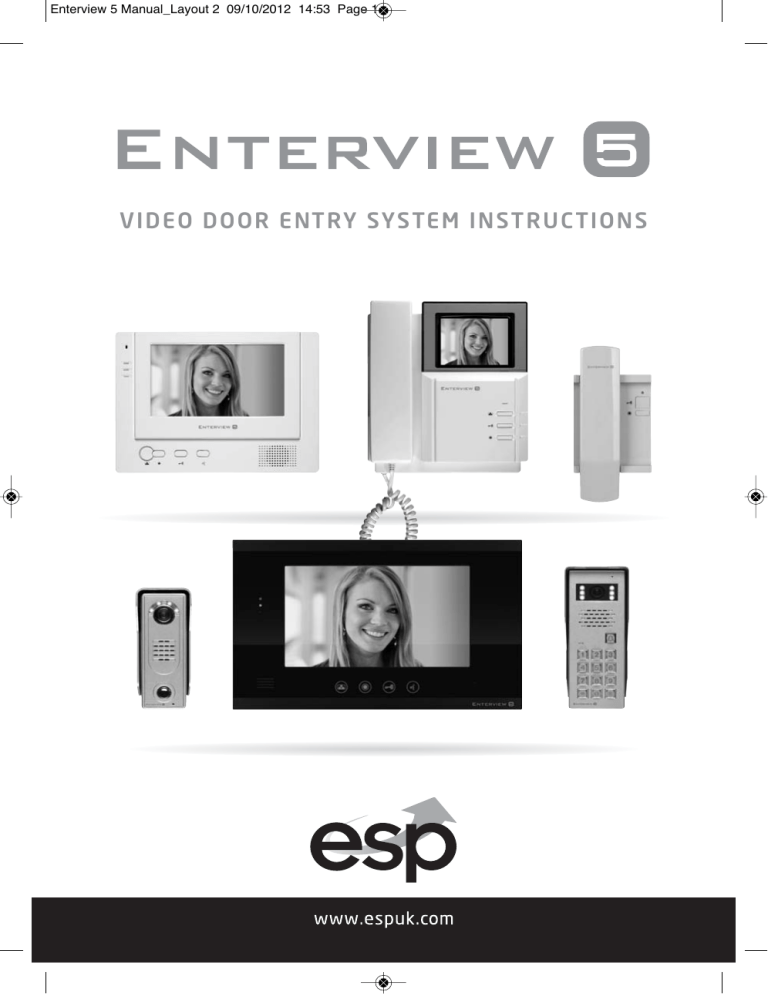

Enterview 5 Manual_Layout 2 09/10/2012 14:53 Page 1

VIDEO DOOR ENTRY SYSTEM INSTRUCTIONS

Enterview 5 Manual_Layout 2 09/10/2012 14:53 Page 2

Table of contents

Enterview 5 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Wiring Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2 Door Wiring Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Maximum Wiring Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Additional Keypad and Magnetic Lock Wiring . . . . . . . . . . . . . . . . . . . . . . . . . 7

Additional Keypad and Yale-release Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Keypad Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Additional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2

Enterview 5 Manual_Layout 2 09/10/2012 14:53 Page 3

Enterview 5 Overview

I

4 Handsets maximum per-system

I

2 Audio-Only handsets maximum per-system

I

Each handset requires supplied PSU (1 PSU per handset required)

I

Keypad Camera requires suppIied PSU

I

Standard Camera requires EVBPS for door release facility

I

For a voltage-free contact: Keypad Camera requires a12VDC relay (not supplied)

CAT5e cable speci fied for maximum distances

I

100 Meters maximum distance between outdoor station and furthest handset

I

10 Meters maximum distance between handset and supplied PSU - Note: 2 pairs of

CAT5e must be used to achieve this distance

EVHF10B / EVHF10W EVH5AO Keypad Camera

2

3

1

2

3

1 3 2 4

EVH5C-HF

1 3 2 4

1 – Opens Camera Channel

2 – Door Release

3 – Call Transfer

4 – Opens 2-way Audio

EVH5

1

2

3

Standard Camera

1

2

3

1 – Camera

2 – Speaker

3 – Call Button

3

Enterview 5 Manual_Layout 2 09/10/2012 14:53 Page 4

Wiring Configuration

Standard Camera

AC240

Handset PSUs provided

AC240

LOCK

1

5

6

2

3

4

Keypad Camera

See additional wiring instructions for Keypad

AC240

Handset PSUs provided

AC240

LOCK

4

AC240 Keypad PSU provided

Enterview 5 Manual_Layout 2 09/10/2012 14:53 Page 5

2 Door Wiring Configuration

AC240

Handset PSUs provided

AC240

LOCK

1

2

3

4

5

6

AC240

LOCK

AC240

See additional wiring instructions for keypad

Handset Connections

Keypad PSU provided

NOTE:

J1 AND J2 – DO NOT REMOVE

J3 – ONLY REMOVE FOR MULTIWAY

OUTDOOR STATION CONNECTION

5

Enterview 5 Manual_Layout 2 09/10/2012 14:53 Page 6

Maximum

Wiring

Configuration

6

Enterview 5 Manual_Layout 2 09/10/2012 14:53 Page 7

Additional Keypad and Magnetic Lock Wiring

EMERGENCY

BREAK

GLASS

+

MAGLOCK

Back of Keypad camera

EGR Ov COM

N.C

EXIT

BUTTON

AC240

Keypad PSU provided

*For a voltage-free contact: Keypad requires and additional 12VDC relay (not supplied)

7

Enterview 5 Manual_Layout 2 09/10/2012 14:53 Page 8

Additional Keypad and Yale-release Wiring

+

Yale Release

Back of Keypad camera

EGR Ov

N.O

COM

EXIT

BUTTON

AC240

Keypad PSU provided

*For a voltage-free contact: Keypad requires and additional 12VDC relay (not supplied)

8

Enterview 5 Manual_Layout 2 09/10/2012 14:53 Page 9

Keypad Commands

Default master code: 1234

Entering Programming mode

1 Press * then 4 digit master code

2 If successful three tones will sound and the LED will flash

Adding user codes

1 Enter programming mode

2 lnput the code group O1-31 for normal operation, 32-40 for latching mode.

3 Enter the 4 digit code, if successful three tones sound if not 2 tones sound.

4 Press* to exit

Deleting a user code

1 Enter programming mode

2 Enter group code O1-40

3 Press # to delete code

4 If successful three tones will sound

5 Press * to exit

Deleting a code from an unknown group

1 Enter programming mode

2 Press # two tones will sound

3 lnput 4 digit code to be deleted

4 Three tones will sound if successful

5 Press * to exit

Deleting all codes

1 Enter programming mode

2 Press # two tones will sound

3 Press # again to hear a further two tones

4 Press # seven times to default all codes and settings (the master code will remain)

5 The system will resume after five seconds

Changing the master code

1 Down powerthe unit

2 Hold * and power up the unit, a long tone will sound

3 When the tone stops, a short tone will sound and input the new 4 digit programming code

Set the lock time

1 Enter programming

2 Enter O0

3 Enter the lock/delay operation time (O1-99 seconds)

4 Press * to exit

9

Enterview 5 Manual_Layout 2 09/10/2012 14:53 Page 10

Installation Guide

EVH5

EVH5C

EVH5C-HF / EVHF10W / EVHF10B

10

Enterview 5 Manual_Layout 2 09/10/2012 14:53 Page 11

Installation Guide

EV5 CAM

EV5 CCAM

EV5KPCAM

EV5CKPCAM

*Recommended installation height 150cm

11

Enterview 5 Manual_Layout 2 09/10/2012 14:53 Page 12

Technical Speci cation

Enterview 5

Power

Video Output

Operating Temp.

Consumption

Dimensions (mm)

14.5 DC

1-1VP-P 750hm B/W PAL

-10/55ºC

800ma

205x220x50

Enterview 5C

Power

Video Output

Operating Temp.

Consumption

Dimensions (mm)

14.5 DC

1-1VP 750hm PAL

-10/55ºC

800ma

205x220x50

Enterview 5C-HF

Power

Video Output

Operating Temp.

Consumption

Dimensions (mm)

14.5 DC

1-1VP 750hm PAL

-10/55ºC

800ma

240x175x38

EVHF10B / EVHF10W

Power

Video Output

Operating Temp.

Consumption

Dimensions (mm)

14.5 DC

1-1VP 750hm PAL

-10/55ºC

800ma

340x210x38

Enterview 5 CAM

Power

Video Output

Min. Illumination

Operating Temp.

Consumption

Dimensions (mm)

14.5 DC

1-1VP-P 750hm B/W PAL

1 Lux

-10/55ºC

150ma

55x130x40

Enterview 5 C-CAM

Power

Video Output

Min. Illumination

Operating Temp.

Consumption

Dimensions (mm)

14.5 DC

1-1VP-P 750hm PAL

1 Lux

-10/55ºC

150ma

55x130x40

Enterview 5 KP

Power

Video Output

Min. Illumination

Operating Temp.

Consumption

Dimensions (mm)

Enterview 5 CKP

Power

Video Output

Min. Illumination

Operating Temp.

Consumption

Dimensions (mm)

14.5 DC

1-1VP-P 750hm B/W PAL

1 Lux

-10/55ºC

150ma

75x190x45

14.5 DC

1-1VP-P 750hm PAL

1 Lux

-10/55ºC

150ma

75x190x45

Additional Accessories

EV-BPS – 12VDC 2 amp Multi output boxed power supply

EV-EBG – Emergency break glass

EV-EXIT – Push to exit button

EV-ML-250 – Electromagnetic lock

Elite Security Products

Unit 7, Target Park, Shawbank Rd

Lakeside, Redditch B98 8YN

Telephone: 01527 515150 email: [email protected]
