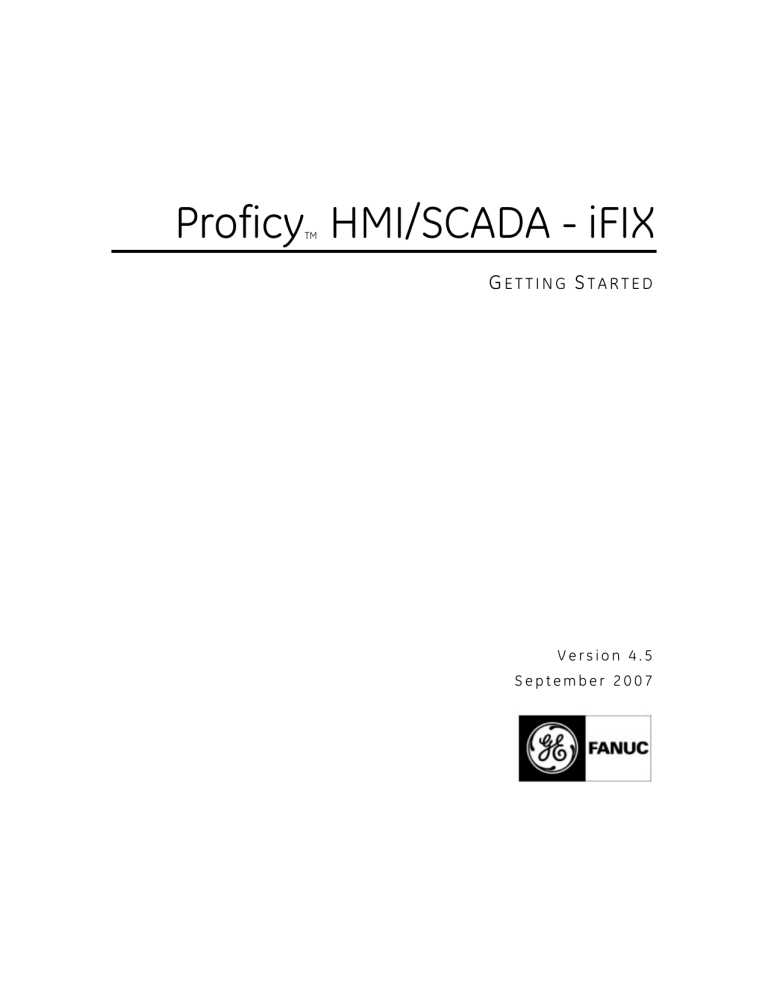

Proficy

TM

HMI/SCADA - iFIX

G

E T T I N G

S

T A R T E D

V e r s i o n 4 . 5

S e p t e m b e r 2 0 0 7

All rights reserved. No part of this publication may be reproduced in any form or by any electronic or mechanical means, including photocopying and recording, without permission in writing from GE Fanuc Automation.

Disclaimer of Warranties and Liability

The information contained in this manual is believed to be accurate and reliable. However, GE Fanuc Automation assumes no responsibilities for any errors, omissions or inaccuracies whatsoever. Without limiting the foregoing, GE Fanuc Automation disclaims any and all warranties, expressed or implied, including the warranty of merchantability and fitness for a particular purpose, with respect to the information contained in this manual and the equipment or software described herein. The entire risk as to the quality and performance of such information, equipment and software, is upon the buyer or user. GE Fanuc Automation shall not be liable for any damages, including special or consequential damages, arising out of the user of such information, equipment and software, even if

GE Fanuc Automation has been advised in advance of the possibility of such damages. The user of the information contained in the manual and the software described herein is subject to the GE Fanuc Automation standard license agreement, which must be executed by the buyer or user before the use of such information, equipment or software.

Notice

GE Fanuc Automation reserves the right to make improvements to the products described in this publication at any time and without notice.

 2007 GE Fanuc Automation. All rights reserved. Microsoft is a registered trademark of Microsoft Corporation. Any other trademarks herein are used solely for purposes of identifying compatibility with the products of GE Fanuc Automation.

We want to hear from you. If you have comments, questions, or suggestions about our documentation, send them to the following email address: [email protected]

Table Of Contents

About This Guide ..............................................................................................................................1

General Installation Information........................................................................................................1

Set-up Overview ...........................................................................................................................2

Hardware Requirements...............................................................................................................2

Recommended Computers.......................................................................................................3

Memory Requirements .............................................................................................................4

Disk Space Requirements ........................................................................................................4

The Hardware Key........................................................................................................................5

Installing the Hardware Key......................................................................................................5

License and Key Checking .......................................................................................................6

Troubleshooting Hardware Key Installation..............................................................................7

Replacing Defective Hardware Keys ........................................................................................8

Common Questions About Hardware Keys..............................................................................8

Software Requirements ................................................................................................................9

Third-Party Software Installed During the iFIX Install.............................................................10

Supported Regional Settings..................................................................................................10

Video Drivers ..........................................................................................................................11

Using Third-party Video Drivers .............................................................................................11

Optimizing Virtual Memory .....................................................................................................12

Running iFIX as a Service ......................................................................................................13

OPC Certification ........................................................................................................................15

Installing the iFIX Software .........................................................................................................16

Installing the FIX Desktop Software ...........................................................................................18

Online Registration .....................................................................................................................19

Using iFIX and FIX on the Same Computer ...............................................................................19

General Notes on Installing FIX and iFIX on the Same Computer.........................................19

Installing iFIX on a FIX 7.0 Node............................................................................................19

Uninstalling iFIX and FIX 7.0 ..................................................................................................19

Starting up FIX 7.0 After Installing iFIX ..................................................................................20

Installing iFIX after Uninstalling iVisualize ..................................................................................20

Using iFIX with Microsoft Office..................................................................................................20

Backup Files ...............................................................................................................................21

Proficy Change Management and iFIX ......................................................................................21

Optional Hardware......................................................................................................................22

iii

Getting Started

Uninstalling iFIX..........................................................................................................................22

Upgrading from an Earlier Version of iFIX......................................................................................22

The Database and the Upgrade .............................................................................................22

Before You Upgrade ...............................................................................................................22

Steps to Upgrade from an Earlier Version of iFIX ..................................................................23

Upgrading the iFIX License ........................................................................................................24

Upgrading from iFIX 2.6 or Later ............................................................................................25

Upgrading from iFIX 2.5 and Earlier .......................................................................................26

Preserving Settings when Upgrading .........................................................................................26

Notes on Database Dynamos and Custom Programs that Run with iFIX Startup .................26

SCU Files and the Upgrade........................................................................................................26

Title Bar in iFIX WorkSpace .......................................................................................................28

Programs that Run as a Service with iFIX..................................................................................28

Toolbars......................................................................................................................................28

Standard vs. Classic Window Styles ..........................................................................................28

Changing Permissions for PlugAndSolve and User Globals......................................................29

Advanced Historian Not Supported ............................................................................................29

Compatibility of iFIX 4.5 Pictures................................................................................................29

Resolving iFIX Displays ..........................................................................................................29

Converting Pictures from FIX 7.x to iFIX ................................................................................30

Running Pictures Created in an Older Version of iFIX ...........................................................30

Using Code Written for Pictures in iFIX 2.1 ............................................................................30

Database Dynamos ....................................................................................................................31

iFIX Dynamo Sets.......................................................................................................................31

Deleting Temp Directory Contents if iFIX Installation Fails ........................................................32

Alarm Summary Objects and Picture Translation ......................................................................32

Upgrading from FIX 7.x ..................................................................................................................33

Preparing for the Upgrade to iFIX with FIX Desktop ..................................................................34

Preparing the Recipe Files for the Upgrade ...........................................................................34

Preparing the I/O Drivers for the Upgrade..............................................................................35

Checking the Environmental Protection Settings ...................................................................36

Backing Up FIX Files ..............................................................................................................36

Exporting a Report of the Security Configuration ...................................................................38

Adding Passwords to the .RPT File........................................................................................39

Generating a System Configuration Report ...........................................................................40

Overview of Steps to Upgrade from FIX 7.x...............................................................................40

Update Database Dynamos .......................................................................................................41

iv

Table of Contents

Install the Newest Drivers and iFIX Product SIMs......................................................................41

Copy the Backed Up Files into the New Product Folder ............................................................42

Import the FIX I/O Driver Configuration Information...................................................................44

Verify the I/O Driver and Database Migration.............................................................................45

Import the Recipes Files .............................................................................................................46

Import the Security Configuration ...............................................................................................46

Reconfigure the Application Features and Passwords for Each User .......................................47

Identical Application Features in FIX32 and iFIX with FIX Desktop .......................................48

FIX32 Application Feature Names That Are Different After the Upgrade ..............................49

FIX32 Application Features No Longer Available After the Upgrade .....................................51

New Application Features Available for iFIX Users................................................................52

Redefine SCADA Failover Settings ............................................................................................53

Understanding Failover Options After Upgrading...................................................................54

Example of Failover Option One ............................................................................................54

Steps To Configure Failover Option One ...............................................................................55

Example of Failover Option Two ............................................................................................56

Steps To Configure Failover Option Two ...............................................................................56

Enable Environmental Protection ...............................................................................................57

Understanding Environment Protection in iFIX ......................................................................58

Steps to Enable Environment Protection................................................................................59

Understanding Environment Protection..................................................................................60

Setup the Report Generator .......................................................................................................61

Setting up for Remote OPC Server Access ...................................................................................62

Setting Up the Windows XP or Vista Firewall for Use with Remote OPC Servers ....................62

Setting Up DCOM for Use with Remote OPC Servers...............................................................69

DCOM Settings.......................................................................................................................69

System-wide COM/DCOM Limits Settings .............................................................................70

OPC Server-specific DCOM Settings .....................................................................................71

iFIX and Windows Vista..................................................................................................................76

Windows Vista and Security .......................................................................................................77

Running iFIX as a Service with Other Services......................................................................78

Examples: Using GrantUserFixServiceRights ........................................................................79

Windows Vista and Mapped Network Drives .............................................................................79

EDA Applications and Windows Vista ........................................................................................79

Other iFIX Installation Considerations ............................................................................................81

Supported Drivers.......................................................................................................................81

Special Keyboard Buttons ..........................................................................................................82

v

Getting Started

Networking......................................................................................................................................82

Supported Networking Protocol..................................................................................................82

Supported File Servers ...............................................................................................................82

Handling Time Zones when Using Networked FIX 6.15 and iFIX Nodes...................................83

Networking with Other iFIX and FIX Nodes................................................................................83

Index ...............................................................................................................................................85

vi

About This Guide

Welcome to iFIX

®! Thank you for taking the time to install and use iFIX.

Before you begin installing our product, please take some time to review this Getting Started guide.

The guide includes information about the following:



Installing iFIX





Upgrading from earlier versions of iFIX

Supported networking components

Reference Documents

For more information on the System Configuration Utility, troubleshooting your set-up, working with the Proficy iFIX WorkSpace, or setting up a process database or SCADA system after you install iFIX, please refer to the following electronic books:



Setting Up the Environment





Understanding iFIX

Building a SCADA System

General Installation Information

This chapter provides general information you need in order to install iFIX including:



Hardware requirements, including required computer hardware, recommended computers, required memory, and required hard disk space.







Installing the hardware key and replacing defective keys.

Installing iFIX, or iFIX with FIX Desktop. iFIX software requirements, including operating systems, supported regional settings, video drivers, optimizing virtual memory, and running iFIX as a service.







Optional installation features, including online registration, and installing optional hardware.

Installing iFIX with other applications including FIX Desktop, Microsoft

® Office, and

Proficy Change Management.

1

Getting Started

Set-up Overview

When you are ready to begin setting up your iFIX environment, use the following steps to set up your nodes.

To set up your nodes:

1. Set up each computer you require. Use the section Hardware Requirements as a guide and refer to the user manual that accompanies each computer for detailed setup information.

2.

3.

Install and optimize Microsoft Windows on each computer as needed. Also make sure you create a login account with administrator rights so you can install iFIX later. For instructions on optimizing Windows, refer to the Optimizing Virtual Memory section.

Set up the network adapters and network software required for each computer. Refer to the

Networking iFIX Nodes and Advanced Topics chapters of the Setting Up the Environment manual for more information.

4.

5.

Install iFIX and any other hardware you may have purchased. Refer to the Installing the iFIX

Software section for instructions on installing iFIX and your hardware key. For information on installing other hardware, refer to the that product's documentation.

Configure iFIX on each computer. Make sure that the user installing iFIX is a member of the

Administrators Windows group. Refer to the Configuring iFIX Using the SCU chapter of the

Setting Up the Environment manual for more information on configuring iFIX.

Hardware Requirements

The minimum iFIX hardware requirements are:



A minimum Pentium 3-based 733 MHz computer. For optimum performance, GE Fanuc recommends a Pentium 4-based 1 GHz computer. For a list of machines tested by GE Fanuc, refer to the Recommended Computers section.



A minimum of 128 MB RAM for SCADA servers and iClients. Refer to the Memory

Requirements section for more information.



A minimum of 300 MB of free hard drive space to install a typical iFIX system, including pictures, databases, alarm files, and other data files. iFIX alarm and historical data files grow dynamically. If you plan to perform extensive alarm or data collection on a node, you may need more disk space on that particular node.

Other GE Fanuc products, such as Proficy Plant Applications, Proficy Historian, and Proficy Real-

Time Information Portal, impose additional requirements. Refer to the Important Product Information

(IPI) topic in the product's electronic books for specific system requirements. Click the System Req. tab in that product's IPI for details.



A CD-ROM drive.

2



TCP/IP-compatible network interface adapter for network communication and certain I/O drivers.

NOTE: iFIX no longer supports NetBIOS.



One parallel port or free direct-connect USB port. Some touch screens, pointing devices, and

I/O drivers require a serial port. Additional ports for I/O hardware should be ordered with the computer.



SVGA or better color graphics monitor and a 100% IBM-compatible, 24-bit graphics card capable of 800x600 resolution and at least 65,535 colors.





Two-button mouse or compatible pointing device (such as a touch screen).



























Recommended Computers

iFIX has been tested by GE Fanuc on the following machines that were running Microsoft

®

Windows

® 2000, Windows XP, Windows Server 2003, or Windows Vista™:



Compaq Deskpro



Compaq EVO D500 (Desktop 500 Minitower)

Dell Dimension

Dell Optiplex GX110

Dell Optiplex GX200

Dell Optiplex GX270

Dell Optiplex GX620

Dell Optiplex 745

Dell Precision 340

Dell Precision 470 Dual Xeon

Dell Precision 530 Dual Xeon

Dell Precision 690 Dual Xeon

Dell Precision Workstation 420MT

IBM NetVista

Electrovaya Scribbler SC 2100 Tablet PC (Microsoft Windows XP Tablet Edition or

3

Getting Started

Windows Vista, iClient Only)

While GE Fanuc cannot guarantee the integrity of any computer, our testing has shown a higher potential for problems with the economy lines of computers on the market. Because of these problems,

GE Fanuc does not recommend the use of value or economy type computers with iFIX. Instead, GE

Fanuc recommends you invest in the higher end (premier) line of computers when purchasing computer hardware.

Memory Requirements

iClients and SCADA nodes require at least 128MB RAM. This configuration provides enough memory to run iFIX applications.

NOTE: As more applications run simultaneously on a SCADA server, performance decreases.

Whenever possible, run additional applications on different computers.

If the size of your process database is over 1MB, add 1 megabyte of memory for each megabyte of database size. For example, if your database is 2MB in size, your SCADA server requires 130MB minimum (128+2=130).

If your picture cache size increases, your memory requirements should increase:





2 to 3 times the file size for each picture that does not include bitmaps and controls.

3 to 4 times the file size for each picture that includes bitmaps and controls.

For example, a 2 megabyte file that does not include bitmaps and controls requires a 4 to 6 megabyte increase in memory. A 2 megabyte file that includes bitmaps and controls requires an increase in the memory of 6 to 8 megabytes.

Disk Space Requirements

The Proficy iFIX WorkSpace checks to make sure you have at least 10 MB of disk space when you save a picture or a schedule. If there is insufficient disk space, the WorkSpace may react unpredictably and you may lose your work.

To help minimize this problem, the WorkSpace warns you if you have less than 10 MB of disk space available. Although you can continue loading the software, we recommend that you stop iFIX, free some disk space, then restart. Otherwise, the WorkSpace may become unstable.

The WorkSpace examines the iFIX Picture path and the Windows TEMP path when it starts. If you change either path so that they reference different drives, for example, D:\Program Files\GE

Fanuc\Proficy iFIX and C:\Temp, the WorkSpace requires 10 MB on each drive.

You may find that 10MB is not enough space to protect against instability during file save operations.

You can increase this threshold by changing the FreeDiskSpace parameter in the

FixUserPreferences.ini file. This parameter sets the minimum amount of space that the WorkSpace requires in bytes. By default, the parameter is set as follows:

[AppRunPreferences]

FreeDiskSpace=10000000

To change FreeDiskSpace parameter:

1. Shut down the WorkSpace.

4

2.

3.

Locate the FixUserPreferences.ini file in the Local path.

Open the file with a text editor, and change the FreeDiskSpace parameter to the amount you want.

4.



Save the .INI file and restart the WorkSpace.

The Hardware Key

Two types of hardware key are currently offered: one that supports parallel port configurations, and a key that supports USB port configurations. The hardware key you use to run iFIX:





Controls and enables software options available to your installation.

Uses a utility to electronically reprogram options you choose to upgrade or change (for HASP

M1 or M4 keys only). iFIX runs in demo mode for two hours if the key is not installed or found. Hardware keys from version

2.5 and older will not work with the current version of iFIX. The iFIX 2.6 SuperPro keys also do not work with iFIX 4.5. iFIX 4.5 only supports HASP M1 and M4 keys.

NOTES:

 In some cases, an electronic file update is not available for reprogramming your key.

 If you want to upgrade an earlier version of iFIX that came with a Rainbow SuperPro or

C++ key, you will need to exchange your key for new one. Typically, this includes SuperPro keys from iFIX 2.6, and any 2.5 or earlier release.

 Additionally, if you want to upgrade iFIX to run with other Proficy products, such as Proficy

Change Management or Proficy Plant Applications, you will also be required to exchange your hardware key for a new M4 key.

 You can exchange the older key by contacting your iFIX sales representative.

Be sure to file your hardware key packing slip in a safe location. The codes on this slip are necessary for GE Fanuc to quickly duplicate the key in case it is damaged or misplaced. You can verify that your serial number matches the serial number on the hardware key packing slip by using the iKeyDiag or the Proficy License Viewer utility to detect and display your hardware key settings. For more information, see the License and Key Checking section.

Installing the Hardware Key

A hardware key is included with your iFIX software. You must install your hardware key in order to access all the components of the iFIX software you purchased.

Typically, you install your hardware key as you install the iFIX product. Refer to the Installing the iFIX Software section for more details. If you are upgrading from a previous version, you usually run the electronic licensing update file for your key before installing the newer version of iFIX.

If you insert the key after you install iFIX, it should be detected automatically when iFIX starts. It is recommended that you shutdown your computer before plugging in a new hardware key.

5

Getting Started

IMPORTANT: Do not remove the hardware key from your node while iFIX is running. If you do, iFIX features will shut down and you will need to restart iFIX. You may also damage the hardware key if you remove it while iFIX is running.

GE Fanuc supports the installation of the USB port hardware key only on systems running Windows

2000, Windows XP, Windows Server 2003, or Windows Vista. At this time, GE Fanuc does not support USB keys connected through an external USB hub.

On new installs on Windows XP SP1, GE Fanuc recommends that you insert your USB key after you run the iFIX install.

License and Key Checking

To use iFIX and other GE Fanuc products, you must purchase the product with the desired options from GE Fanuc. Depending on the options you buy, you may need to replace your current key or run an update program on your existing key to enable the options. If you are upgrading from an earlier version of iFIX, you will also need to update or replace your key.

If you want to determine the options that are enabled on the computer you are currently working on:



For older keys (M1 HASP keys), use the GE Fanuc iKeyDiag utility to view the options enabled.



For newer keys (M4 HASP keys), use the Proficy License Viewer to view the options enabled.

NOTE: If you try to run iKeyDiag and a newer key is installed, an error message appears. Similarly, if you try to run the Proficy License Viewer when an older key is installed, an error message appears.

Should an error message appear, try starting the other utility to view the enabled options.

TIP: Both the iKeyDiag or the Proficy License Viewer programs can be used to provide technical support personnel with information about your iFIX hardware key.

To use iKeyDiag to determine the enabled options:

1. Click the Start button and then point to Run. The Run dialog box appears.

2. In the Open field, enter iKeyDiag.

3. Click OK. The iKeyDiag utility appears.

IMPORTANT: If you run iKeyDiag while running the Sample System, the information displayed will reflect settings on a demo key, rather than the actual settings of your hardware key. To see your hardware key settings, close the Sample System before running iKeyDiag.

4. Click the iFIX tab to view the installed product options.

 For information on upgrading your key to include other options, contact GE Fanuc. You may need to use the iKeyUpdate utility to update your key, or obtain a new key to add options or work with other Proficy products.

NOTE: The key_report.txt file generated by iKeyDiag is used only by GE Fanuc Technical

Support; in localized versions, its content remains in English.

6

To use the Proficy License Viewer to determine the enabled options:

1. From the Start menu, point to Programs, Proficy Common, and then License Viewer. The

License Viewer appears.

2. In the Proficy Products list, select the iFIX product. The License and Key Diagnostics area should now display the iFIX options.

For information on upgrading your key to add other options, contact GE Fanuc. GE Fanuc will provide the steps for upgrading your Proficy license file when you purchase new options or products.

Troubleshooting Hardware Key Installation

If the hardware key does not install properly, you may find that even though you have followed the installation directions for your hardware key, you see the following message at iFIX startup:

Message when No Key is Detected

First, check to see that your hardware key is firmly attached. Next, uninstall and reinstall the driver for the hardware key. If this driver has been incorrectly uninstalled, it may behave unpredictably.

Troubleshooting the Aladdin HASP USB Key...

If the Aladdin HASP USB key does not appear to be working, you can reinstall the licensing to recover from the improper install. When the Aladdin HASP key is not communicating correctly, you will notice that the indicator light at the end of the key is off.

NOTE: iFIX 4.5 supports two types of HASP keys: the M1 and M4 keys. If you upgrade an iFIX 3.5 computer with a HASP key, the HASP key is typically an M1 key. However, if you want to run iFIX with other Proficy products, such as Proficy Change Management, you will need to upgrade to an M4 key. For new iFIX 4.5 installs, the HASP key is typically the M4 key.

To reinstall the GE Fanuc Proficy Licensing if you have an M1 key:

1. Reinstall the licensing by clicking the M1Licensing.exe file in the License folder on the iFIX product installation CD.

2. Click Finish when the licensing install completes.

7

Getting Started

To reinstall the GE Fanuc Proficy Licensing if you have an M4 key:

1. Reinstall the licensing by clicking the ProficyClientInstaller.exe file in the License folder on the iFIX product installation CD.

2.



Click Finish when the licensing install completes.

Replacing Defective Hardware Keys

A defective hardware key causes your Proficy product to run in Demo mode. In iFIX, that means you will only be able run in iFIX in DEMO mode.

Be sure to check that the key is firmly attached to your USB or parallel port before assuming it is defective. Additionally, for USB keys, if the indicator light at the end of the key is off, then the key is not communicating correctly.

You can also use the License Viewer (for M4 keys) or iKeyDiag (for M1 keys) to determine if the hardware key is defective. If your hardware key is defective, the License Viewer or iKeydiag does not display the proper enabled options. Or, an error message stating that a hardware key is required to view the enabled options may appear. For more information on using the License Viewer or iKeyDiag, refer to the License and Key Checking section.

GE Fanuc replaces defective keys as quickly as possible. To obtain a replacement hardware key:



Call your local GE Fanuc technical support representative. The support representative will instruct you to FAX a completed copy of a Merchandise Return Authorization form. On receipt of the form, GE Fanuc can program a new hardware key and send it to you overnight.





When you receive the hardware key, you must return the old one along with a copy of the form sent with the new hardware key. GE Fanuc reserves the right to invoice you for defective hardware keys that are not returned.

Common Questions About Hardware Keys

This section describes some frequently asked questions about iFIX hardware keys.

What's the Difference Between the HASP and SuperPro Keys?

The Aladdin HASP (M1 or M4) key is the newer hardware key that is provided with the iFIX 4.0 and iFIX 4.5 products. iFIX 2.6 first released with the SuperPro key, but later offered the HASP M1 key in

2002. All iFIX releases after 2.6 include support for the M1 key. iFIX 4.0 is the first iFIX release to offer the M4 key. iFIX 4.5 supports only the M1 and M4 keys.

The Rainbow SuperPro (Sentinel) USB Key was first offered in iFIX 2.6. It was also supported in iFIX

3.0 and 3.5. If you are upgrading from one of these releases, you may have a SuperPro key. These keys must be exchanged for newer keys if you want to upgrade to iFIX 4.5. The SuperPro USB key is a lighter purple than the newer keys.

The version and type of key you have should appear imprinted on the outside of the key. If you do not know the type of key you have, read the label on the physical key.

8

What Does the Light At the End of the USB Key Indicate?

For the Aladdin HASP USB Key, the light indicates that the key and the software are communicating.

If this light is off, it indicates a problem with the key.

For the Rainbow SuperPro USB Key, the light simply means that it is plugged in. It does not indicate if it is running correctly. This key is not supported in iFIX 4.5.

If I Move the USB Key To Another Port Is It Automatically Detected?

Yes. The USB key is automatically detected when moved to another USB port. There are no additional screens requesting software to be installed for the Aladdin HASP USB key.

Software Requirements

The minimum iFIX with FIX Desktop software requirements are:



One of the following operating systems:



Microsoft

® Windows® XP Professional, Service Pack 2 or greater. Since Windows

XP has continuous updates, you should run the Windows update feature to get the latest software.





Microsoft

® Windows® 2000, Professional or Advanced Server Edition, with at least

Service Pack 4 required.

Microsoft

® Windows® Server 2003, Standard or Enterprise Edition. Since Windows

Server 2003 has continuous updates, you should run the Windows update feature to get the latest software.







Microsoft

® Windows® Vista, Business, Enterprise, or Ultimate Edition. Since

Windows Vista has continuous updates, you should run the Windows update feature to get the latest software.

Microsoft

® Windows® Vista Ultimate Edition running on a Tablet PC, iClient Only.

Microsoft

® Windows® XP Tablet Edition, iClient Only.





Network interface software for TCP/IP network communication and certain I/O drivers.

An I/O driver for SCADA servers. GE Fanuc supplies I/O drivers for many programmable controllers or you may purchase a driver separately. Be certain that the I/O driver you purchase is compatible with your hardware. Contact your GE Fanuc Sales Representative or visit the GE Fanuc web site at http://www.gefanuc.com for the latest list of drivers and supported hardware.



Internet Explorer 6 or 7.

9

Getting Started



One of the following relational database applications, if relational database software is used with iFIX:





Microsoft

® SQL Server 2000 (SP4 and higher).

Microsoft

® SQL Server 2005 (SP2 and higher).







NOTE: If you plan to use SQL Server in Windows Vista, you must use Microsoft

® SQL

Server 2005. Microsoft Windows Vista does not support SQL Server 2000.

Oracle

® 9i.

Oracle

® 10g.

Microsoft

® Access 2000 (or higher). Microsoft Access is supported for local installs only.

Third-Party Software Installed During the iFIX Install

Please note that the following third-party software is automatically installed with iFIX:





Microsoft

Microsoft

® VBA 6.4

® Data Access Components (MDAC) 2.8 – on Windows 2000 computers only

NOTE: Microsoft Windows XP, Windows Server 2003, and Windows Vista already include MDAC, so

MDAC is not installed with iFIX in these scenarios. You can use the Windows Update Service to update the version of MDAC on these operating systems.

If the versions of MDAC or VBA on the iFIX CD are newer than the versions on your computer, then the iFIX install updates the ones on your computer, with the exception of MDAC on a Microsoft

Windows XP, Windows Server 2003, or Windows Vista computer. In this case, no MDAC updates occur. You must obtain the latest service pack to update your version of MDAC.

If the versions of MDAC or VBA on your computer are newer, then the iFIX install does not update them. iFIX uses the most recent versions already on your computer instead.

Supported Regional Settings





 iFIX supports the following regional settings available in the Windows Control Panel:





Decimal symbol - one character

Digit grouping symbol

List separator - one character

Time style

Time separator

10





Short date style

Date separator

NOTE: The decimal symbol and the digit grouping symbol cannot be the same character. Also, the time separator and the date separator cannot be the same character.













Formatting the Time and Date

Avoid changing the time style or short date style in regional settings to values that are outside of the standard styles provided. Changing these values to non-standard styles may result in improperly formatting times and dates in some parts of iFIX. iFIX supports the following short date formats, some of which may not be available in certain language versions of Windows: dd/mm/yy, or dd/mm/yyyy dd/yy/mm, or dd/yyyy/mm mm/dd/yy, or mm/dd/yyyy mm/yy/dd, or mm/yyyy/dd yy/dd/mm, or yyyy/dd/mm yy/mm/dd, or yyyy/mm/dd

Formatting the Regional Language Setting

Avoid changing the language setting once a timer has been used in a schedule. If changed, the date always reverts to 30/12/99, regardless of what you set the start time to be.

Setting the System Default Locale

The selected locale must be set as the system default.

Video Drivers

After much testing, GE Fanuc has found that some video drivers have unique problems that are apparent only when using these drivers. Additionally, GE Fanuc has found that many problems with video drivers occur in both iFIX applications and common applications, such as Excel and Word.

If you are experiencing problems with your video driver, try using it in a different mode to find out if the problem is unique to a specific configuration.

Using Third-party Video Drivers

If you need to use a third-party driver, please use the following guidelines to resolve any problems you may experience:



Contact the manufacturer to ensure you have the latest version of the video driver. GE Fanuc

11

Getting Started

has found that the latest version of third-party video drivers can fix some problems.



If the latest version of the video driver does not fix the problem, notify the video driver manufacturer to see if they are aware of the problem.





If all else fails to resolve the problem, contact GE Fanuc Technical Support.

Optimizing Virtual Memory

Through the use of paging files, Windows allocates space on your hard drive for use as if it were actually memory. This space is known as virtual memory. The following steps describe how to optimize virtual memory in Windows to achieve maximum performance from iFIX.

To optimize the virtual memory paging file for iFIX in Windows:

1. From the Windows Control Panel, open the System Properties dialog box:



In Windows Vista, click the System and Maintenance link, the System link, and then, in the Task list, click the Advanced System Settings link.



In all other versions of Windows, in the Control Panel, open the System item.

Open the Performance Options:



In Windows Vista, in the System Properties dialog box, click the Advanced tab, and in the Performance Options area, click Settings. The Performance Options dialog box appear.



In Windows XP, in the System Properties dialog box, click the Advanced tab, then in the Performance group box, select Settings. In the Performance Options dialog box, click the Advanced Tab.



In Windows 2000, in the System Properties dialog box, click the Advanced tab, then select Performance Options.



In Windows Server 2003, in the System Properties dialog box, click the Advanced tab, then select Performance Options.

3. In the Virtual Memory group box, select Change.

4.

5.

In the Initial Size field, enter a value equal to three times your physical memory.

In the Maximum Size field, enter a value equal to three times your physical memory.

6.

7.

Select Set.

Click OK to save the changes and exit the dialog box.

12

NOTE: If the paging file is set to grow dynamically, your system may experience severe performance problems during runtime. To ensure optimal performance, be sure that the

Initial Size and Maximum Size of the paging file are the same so that the paging file does not grow dynamically.

Running iFIX as a Service

If you are running iFIX as a service, please take note of the following information.

Windows Services

In the Windows Services control panel, do not stop the iFIX service or make changes to the iFIX configuration. This applies to iFIX running on any operating system.

Enabling iFIX to Run as a Service

To enable iFIX to run as a service:

1. Shut down iFIX.

2. Ensure that you are logged in as a user in the Administrators group. If not, log in as an

Administrator now.

3.

4.

On the Start menu, point to Programs, Proficy HMI SCADA - iFIX, and then System

Configuration. The System Configuration Utility (SCU) window appears.

On the Configure menu, click Local Startup. The Local Startup Definition dialog box appears.

5. In the Service area, select the Continue running after logoff check box, as illustrated in the following figure. This configures iFIX to run as a service when you start iFIX.

6.

NOTE: The check boxes in the Service area of this dialog box are unavailable while iFIX is running. You need to shut down iFIX, as you did in step 1, to update them.

Additionally, if you want to start iFIX whenever you start Windows, select the Start iFIX at

system boot check box.

13

Getting Started

7.

8.

 The Start iFIX at system boot option is available only when the Continue running after Logoff option is selected.

9.

Click OK.

Exit the SCU.

Restart iFIX.

Disabling iFIX as a Service

6.

7.

4.

5.

To disable iFIX from running as a service:

1. Shut down iFIX.

2.

3.

Ensure that you are logged in as a user in the Administrators group. If not, log in as an

Administrator now.

On the Start menu, point to Programs, Proficy HMI SCADA - iFIX, and then System

Configuration. The System Configuration Utility (SCU) window appears.

8.

9.

On the Configure menu, click Local Startup. The Local Startup Definition dialog box appears.

In the Service area of dialog box, clear the Continue running after logoff check box.

Click OK.

On the File menu, click Save to save the SCU file.

Exit the SCU.

Restart iFIX.

iFIX Paths

Windows does not map network drives until a user logs in. Therefore, if you are running iFIX as a service under Windows, all iFIX paths must be set to a local drive.

Required Application Feature

You must assign the Enable Ctrl+Alt+Del application feature to the user that is logged in when iFIX is running as a service. Otherwise if a user logs out of the operating system while iFIX is running as a service, no one will be able to log back in to the operating system.

Running iFIX with Terminal Services

You must configure the Default Service SCU in the Startup Profile Manager if you want to run iFIX as a service on the Terminal Server. For more information, refer to the Configuring the Default Profile section in the Using Terminal Server electronic book.

14

Starting the Proficy iFIX WorkSpace

You should not have the WORKSPACE.EXE file listed as a configured task in the Task Configuration dialog box of the SCU. Instead, you should start the Proficy iFIX WorkSpace from the Startup group for the user, or have the user start the Proficy iFIX WorkSpace manually.

NOTE: If you do configure iFIX to run as a service, and the WORKSPACE.EXE is listed as a configured task in the Task Configuration dialog box of the SCU, make sure you configure

WORKSPACE.EXE to run as a foreground task. To do this, on the SCU's Configure menu, click Task

List. Select the WORKSPACE.EXE task, and in the Startup Mode area click Normal.

Running iFIX with Other Programs

By default, iFIX uses the local System account when running as a service. However, you cannot use the System account with certain applications, such as the Proficy Historian.

To configure a different user account for iFIX running as a service:

1. From Control Panel, open the Administrative Tools, then Services.

2.

3.

In the Services folder, right-click Proficy HMI/SCADA iFIX server and select Properties.

In the Log On tab, set the user name and password for This Account to the user account you want to log in when iFIX is running as a service.

Fast User Switching Not Supported

Fast user switching is not supported with iFIX, even if you are running iFIX as a service.

Running the OPC Client Driver and iFIX as a Service

If you want to run the OPC Client driver as a service, iFIX must also run as a service. Likewise, if you want to run iFIX as a service, the OPC Client driver must run as a service. You cannot run one as a service, without the other also running as a service.

OPC Certification

Based on Microsoft's OLE (Object Linking and Embedding) technology, OPC (OLE for Process

Control) provides greater interoperability between control applications, field systems and devices, and front office/backoffice applications. OPC servers, such as DCSs, PLCs, smart field devices, and analyzers provide real-time information and can communicate directly with the Proficy HMI/SCADA - iFIX product.

The iFIX 4.5 product is an OPC 2.05a DA enabled client, which lets iFIX retrieve data from any OPC

1.x or 2.x (up to version 2.05a) compliant data server. To access local or remote data from a third party

OPC Server, use the iFIX OPC Client version 7.4x, which is also in included with iFIX. iFIX also has an iFIX OPC Server (OPC20iFIX.exe) that serves out data via OPC from the iFIX

Database.

Be aware that Proficy iFIX currently includes two OPC servers:



OPC20iFIX.exe (Intellution.OPCiFIX)

– an OPC 2.05a (out of process) Data Server

15

Getting Started

 iFixOPCAESrv.exe

– an OPC 1.10 Alarm and Events (A&E) Server

Both OPC Servers included with iFIX are in compliance with the OPC Foundation

’s "Self Tested" specifications. In iFIX 4.5, GE Fanuc ran a series of OPC tests to verify compliance for the versions listed above.

You can find more information about OPC on GE Fanuc's Support web site at: http://support.gefanuc.com.

Installing the iFIX Software

The steps that follow outline how to install the iFIX software from the product install CD-ROM.

To install iFIX software:

1. Log in to Windows with Administrator privileges. Ensure that there are no iFIX, FIX, or GE

Fanuc processes running, and close any other programs that are running.

2. Insert the iFIX CD into your CD-ROM drive. The iFIX installation screen appears.

4.

5.

3.

NOTE: If this screen does not automatically appear, double-click the InstallFrontEnd.exe file on the CD to display it. A message may appear with a security warning, click Run to proceed.

Click the "Install iFIX" link. A message box appears asking you to confirm the install.

Click Yes to proceed. The install program starts and the Welcome screen appears.

Click Next to continue. The license agreement screen appears.

6. Click "I accept the terms of the license agreement" if you want to continue, and then click

Next.

IMPORTANT: If a previous version of iFIX is detected, you can choose to upgrade iFIX. For iFIX versions before 4.0, you have the choice to upgrade or install iFIX to a completely new folder, without upgrading. If you want to upgrade, it is suggested that you do so using the install at this point in time.

 The Setup Type screen appears.

7. Select an option and click Next:



Complete

– Installs all iFIX components, including options such as FIX Desktop, the Sample System, the Electronic books (e-books), and the My-T-Soft virtual (on screen) keyboard.





Custom

– Installs iFIX and the options that you choose. You are prompted to enter your options after you select an install path.

Typical

– Installs iFIX, the Electronic books (e-books), the Sample System, and the

16

My-T-Soft virtual (on screen) keyboard. FIX Desktop is not installed with this option.

 The Choose Destination Location screen appears.

8. Leave the default C:\Program Files\GE Fanuc\Proficy iFIX path or click Browse to select a folder.

NOTES:

 If you are upgrading from FIX32, make sure that you choose a location other than the

folder that contains your FIX32 software, if it is installed on the same computer. Do

not install over a current FIX32 installation.

 If you enter a custom install path, be aware that the path can be no greater than 100

characters long.

 If you want to use 6.x drivers, the iFIX compressed install path must be no greater

than 64 characters long. iFIX uses the Microsoft compression algorithm to try to fit longer paths within this boundary. Some paths are not compressible to the 64 character maximum length. Please be aware of this. In addition, make sure that the registry key,

HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\FileSystem\NtfsDisabl e8dot3NameCreation, is not enabled (is set to 0) when the install folder is created.

When set to 1, the compression algorithm is disabled. Refer to Microsoft help for more information on the GetShortPathName() compression algorithm.

 After installing a 6x driver, the driver is listed in the SCU in the Drivers Available

dialog box (which can be accessed from the I/O Driver Name browse button in the

SCADA Configuration dialog box). You need to manually add the driver to the

Configured I/O Drivers list in the SCADA Configuration dialog box.

Click Next to continue. 9.

NOTE: If you selected a Custom install, instead of Complete, the Select Features screen appears. Select the features you want to install, and click Next.

 The Ready to Install Program screen appears.

10. Click Install. The progress of the installation displays on screen as the files are copied. After a few minutes, when the install finishes copying the files, the Proficy iFIX Configure Wizard dialog box appears.

11. Enter the Node Name, Node Type, and Connectivity Type, if applicable, and then click OK.

A few more files are installed, and after a few moments, a message box appears asking if you would like to review the release notes.

12. Click Yes to view the release notes. Close the release notes after you finish reviewing them to resume the install. The Setup Complete dialog box appears.

13. Click Finish.

14. After the install completes:

17

Getting Started



If you have a new key, power off the computer and insert your USB or parallel port key into the appropriate port.



If you have an older key that you are updating, use the update file and follow the instructions from GE Fanuc to update your key.

15. Restart the computer. As the computer restarts, log in to Windows with the same user name

(with Administrator rights).

IMPORTANT: If upgrading from FIX v7 to iFIX with FIX Desktop, do not start iFIX yet.

Refer to the Overview of Steps to Upgrade from FIX 7.x section for information on how to proceed.

Installing the FIX Desktop Software

FIX Desktop is provided as a custom option in your iFIX product install. To install FIX Desktop option when installing iFIX, select the Custom option and then select the FIX Desktop check box from the list of features. If you install iFIX without FIX Desktop, you can later install it by running the iFIX install program again.

NOTE: Be aware that the changes to support 15 digits of precision in iFIX 4.5 are not supported in

FIX Desktop applications, such as Draw and View. If you try to use this feature in FIX Desktop applications, you will get unexpected results.

The steps that follow explain how to install the FIX Desktop software from the product install CD-

ROM, after you already installed iFIX.

To install FIX Desktop software after installing iFIX:

1. Ensure that there are no iFIX, FIX, or GE Fanuc processes running, and close any other programs that are running.

2.

3.

Log in to Windows with Administrator privileges.

Insert the iFIX CD into your CD-ROM drive. The iFIX installation screen appears.

4.

NOTE: If this screen does not automatically appear, double-click the InstallFrontEnd.exe file on the CD to display it.

Click the "Install iFIX" link. A message box appears asking you to confirm the install.

5.

6.

Click Yes to continue. The install program starts and the Welcome screen appears.

Click the Modify option, and then click Next to continue. The Select Features screen appears.

7. Select the FIX Desktop check box and click Next. The install begins.

NOTE: FIX Desktop applications are installed into the iFIX product folder. If you installed iFIX to the default location, this folder is C:\Program Files\GE Fanuc\Proficy iFIX.

 When the install completes a Maintenance Complete message box appears.

18

8.

9.

Click Finish.

Restart your computer.

IMPORTANT: If upgrading from FIX v7, do not start iFIX yet. Refer to the Overview of

Steps to Upgrade from FIX 7.x section for information on how to proceed.

Online Registration

You can register iFIX online after you have installed the product.

To register iFIX online:

1. From the WorkSpace's Help menu, point to Proficy iFIX WorkSpace Help, and then GE

Fanuc Automation On the Web, and click Register Online.

2. Enter the appropriate fields on the registration form, and click Next until all pages are completed.

Using iFIX and FIX on the Same Computer

Although you can run iFIX and FIX Desktop applications at the same time, you cannot run iFIX and

FIX 7.0 at the same time on a single computer. You can have iFIX and FIX 7.0 installed on the same computer, however. The following sections address issues that occur when installing iFIX and FIX 7.0 on the same computer.

NOTE: Because the hardware key for iFIX with FIX Desktop is different from the FIX hardware key, remember to remove the iFIX hardware key and insert a FIX hardware key before installing or running FIX 7.0.

General Notes on Installing FIX and iFIX on the Same Computer

When installing FIX 7.0 on a computer that already has iFIX installed (or vice versa) do not elect to use the current SCU configuration when prompted during the install. If you select to use the current

SCU, both FIX and iFIX will launch with errors when you try to run either program after the install.

Installing iFIX on a FIX 7.0 Node

If you install iFIX on a node that has FIX installed and you have at least one version 7.0 driver installed, the registry paths for FIX 7.0 are changed to iFIX paths. Therefore, when you run a FIX 7.0 application, such as the System Configuration Utility, you will receive errors.

To avoid these errors, install iFIX without I/O drivers. This preserves your FIX 7.0 paths in the registry.

Uninstalling iFIX and FIX 7.0

You can install iFIX and FIX 7.0 on the same computer. If you subsequently uninstall iFIX, you must re-install FIX 7.0.

19

Getting Started

Starting up FIX 7.0 After Installing iFIX

An application error occurs when you start up FIX 7.0 as a service under Windows after you install iFIX. The error occurs because both FIX 7.0 and iFIX 4.5 use the same key name (FIX) under the

Services key in the registry. Therefore, when you install iFIX 4.5, it overwrites the entry for FIX 7.0.

Each product needs to have its own Services key. FIX 7.0 runs correctly if it is not run as a service.

The workaround for this problem is to edit the registry so that the Services key points to the service executable in the correct path. The key is located in

HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\Fix. Set the ImagePath value to the correct path for fixsrv.exe.

Installing iFIX after Uninstalling iVisualize

If you have uninstalled iVisualize

®, you must modify the FixUserPreferences.ini file before installing iFIX 4.5. This file is located in the C:\Program Files\GE Fanuc\Proficy iFIX\Local folder.

The section [AppConfigPicturePreferences] contains the following lines:

TotalConfigPicturePath=1

PicturePath#0=*C:\Program Files\GE Fanuc\Proficy iFIX\PDB\PanelStart.ivs

Change TotalConfigPicturePath=1 to TotalConfigPicturePath=0 and delete the line that reads

PicturePath#0=*C:\Program Files\GE Fanuc\Proficy iFIX\PDB\PanelStart.ivs.

You will then be able to install iFIX 4.5.

Using iFIX with Microsoft Office

You can use the Microsoft Office family of products and iFIX on the same computer. However, to ensure that VBA works correctly, install Microsoft Office products before installing iFIX.

Use the following table as a guide for installing and removing either product.

If you have... And you want to... Then...

Installed iFIX Install Microsoft

Office Products

Remove iFIX, install Microsoft

Office products, and re-install iFIX.

Installed Microsoft Office

Products

Started the iFIX WorkSpace for the first time, and this message appears:

Run time error "48": Error in loading dll.

Remove Microsoft

Office Products

Use iFIX and

Microsoft Office harmoniously

Remove iFIX, remove Microsoft

Office products, and re-install iFIX.

Uninstall iFIX, uninstall Microsoft

Office, re-install Microsoft Office, and re-install iFIX.

20

Backup Files

When you save one of the following files, iFIX creates a backup file:



*.PDB

– backed up as *.^DB









*.SCU

– backed up as *.^CU

Profiles.cfg

– backed up as Profiles.cfg.^AK

DISPLAY.DOV

– backed up as DISPLAY.^OV

NODENAME.DOV

– backed up as NODENAME.^OV iFIX also creates these backup files after you start iFIX for the first time after an upgrade. These backup files are helpful in disaster recovery of the individual files.

For new iFIX installs, be aware that you can also use the Factory Default Backup for disaster recovery

– performing a clean restore of your entire iFIX system. A clean restore includes the files listed above along with other Factory Default files. For more information, refer to the Using and Creating Factory

Default Files section in the Understanding iFIX electronic book.

For upgrades, be aware that you can perform a Custom Backup to backup the files listed above before the upgrade. After the upgrade, you can restore these files with the Backup and Restore wizard. Refer to the Overview of the Backup Process section in the Understanding iFIX electronic book for more information.

IMPORTANT: Do not use a Full Backup from a previous release of iFIX to update the files in the currently installed iFIX folder. Issues can occur with upgrade paths, and possibly other files.

Optionally, after you upgrade your system with the Custom Backup, you can create a new Factory

Default Backup, that you can use for disaster recovery in replace of the original Factory Default

Backup file. This information is described in the Using and Creating Factory Default Files and Sample

BackupRestore.ini sections.

Proficy Change Management and iFIX

If you plan to use Proficy Change Management with iFIX, to help you manage your iFIX project files, and track changes to these files, install iFIX first. After you install iFIX, you can install Proficy

Change Management 5.6 with SIM 8 or higher, or Proficy Change Management 5.7.

Additionally, you need to configure a few items on both iFIX and the Change Management Server, as described in the Setting up iFIX for Use with Change Management topic in the Change Management and iFIX e-book.

NOTE: If you want to run iFIX with other Proficy products, such as Proficy Change Management, you will need to upgrade to an M4 key. For more information, refer to the The Hardware Key section.

If you are upgrading an iFIX 4.0 computer with the Proficy Change Management 5.6 Client installed, and want to continue running 5.6, install SIM 8 on the client computer before upgrading to iFIX 4.5.

This will allow SIMs to be installed easily in the future.

21

Getting Started

Optional Hardware

iFIX supports the following optional hardware. You may want to purchase one or more of these items to enhance your iFIX system.





A Microsoft-supported touch screen or other pointing device.

A DigiBoard

™ to provide your computer with up to 9 serial ports. If you are using multiple

I/O drivers or multiple ports for one I/O driver, you may require the use of a DigiBoard. GE

Fanuc has tested and supports the Digichannel PC/8E.



Uninstalling iFIX

To uninstall iFIX, from the Control Panel, in the Add or Remove Programs dialog box, click the

Remove button next to the "Proficy HMI SCADA - iFIX 4.5" entry. This action launches the install program allowing you to remove the iFIX product.

If you want to uninstall other items that install along with iFIX, such as the iFIX OPC Client, M1

Licensing, the Proficy Change Management Client API, M4 Common Licensing, Proficy Discovery and Auto-Assembly Component, you need to uninstall these items separately.

IMPORTANT: For the Proficy Discovery and Auto-Assembly Component (DAC), it is recommended that you uninstall it before you uninstall the iFIX product. If you wait until after you uninstall iFIX, the

DAC uninstall will display error messages.

Upgrading from an Earlier Version of iFIX

This chapter contains information about issues concerning upgrading to iFIX 4.5. Issues specific to upgrading from iFIX 2.5 and earlier are clearly marked.

The Database and the Upgrade

Be aware that when you upgrade to iFIX 4.5, the file size of your process database file will increase.

Also, when you upgrade your database, the high and low engineering units (EGU) fields are converted from single precision to double precision floats. What that means, is that the degree of accuracy (the

Epsilon value) changes from +/_0.00000012 to +/_0.00000000000000022. If you are using extreme ranges (very large or very low values) for your EGU limits, you may possibly experience issues after an upgrade. To resolve these issues, open the Database Manager, export your database and then reimport it. This procedure resets the block values.

Before You Upgrade

Before you upgrade your version of iFIX make sure you:



If you are upgrading an iFIX 4.0 computer with the Proficy Change Management 5.6 Client installed, and want to continue running 5.6, install SIM 8 on the client computer before

22

















 upgrading to iFIX 4.5. This will allow SIMs to be installed easily in the future.

Shut down the DEP (Data Execution Protection) feature. One way to do this is from the

Control Panel, access the System Properties. Select the Advanced tab, and click the Settings button in the Performance area. On the Data Execution Protection tab, select the "Turn on

DEP for essential Windows programs and services only" check box.

Shut down all Proficy applications. It is important that no Proficy products are running when you run the iFIX installation program.

Save copies of your existing .INI files with your application preferences and any custom files you create. Customized files, such as *Res.dll files, and some *.INI files may be overwritten during an upgrade. As such, you may need to integrate your custom changes into the newer versions of these files after you upgrade.

Back up your existing iFIX projects. This includes the files in your LOCAL, Config Files

Backup, PIC, and PDB folders.

It is also recommended that you create a backup copy of your Alarm ODBC configuration file(s).

Export a report of your system configuration (SCU), for reference. (In the SCU, on the File menu, click Report. Refer to the Generating a System Configuration Report section for detailed steps.)

Export a report of your security configuration, for reference. (In the Security Configuration application, on the File menu, click Export. Refer to the Exporting a Report of the Security

Configuration section for detailed steps.)

If you have an application created by an Integration Toolkit, Database Dynamo Toolkit, or

System Extension Toolkit from iFIX 2.5 or earlier, and you want to use this application with iFIX 4.5, do not uninstall iFIX. You must install iFIX 4.5 over your existing iFIX configuration. Your toolkit application will not run if you uninstall your previous version of iFIX.

Be sure to obtain any toolkit updates that you need, prior to installing iFIX. For instance, if you have previously installed the iFIX Productivity Pack for Allen Bradley, you must get the updated version prior to upgrading to iFIX 4.5.

Steps to Upgrade from an Earlier Version of iFIX

To upgrade from earlier versions of iFIX

1. Update your license and/or hardware key. For steps refer to the Upgrading the iFIX License section.

2.

3.

Log in to Windows with Administrator privileges.

Ensure that there are no iFIX, FIX, or GE Fanuc processes running, and close any other programs that are running.

23

Getting Started

6.

7.

4. Insert the iFIX CD into your CD-ROM drive. The iFIX installation screen appears.

5.

NOTE: If this screen does not automatically appear, double-click the InstallFrontEnd.exe file on the CD to display it.

Click the "Install iFIX" link. A message box appears asking you to confirm the install.

Click Yes to continue. The install program starts and the Welcome screen appears.

Click Next to continue. The license agreement screen appears.

8. Click "I accept the terms of the license agreement" if you want to continue, and then click

Next.

 A message box appears indicating that a previous version of iFIX has been detected.

9. Click Yes to upgrade.

CAUTION: If you select No to this message, you can no longer run the older version of iFIX.

By default, iFIX installs to the C:\Program Files\GE Fanuc\Proficy iFIX folder instead. THIS

IS NO LONGER AN UPGRADE. Use caution in copying files from your previous iFIX release, into your new iFIX install folder.

 The Setup Type screen appears.

10. Select Complete and then click Next. If you selected Custom instead, you will be prompted later to select your install features, such as iFIX with FIX Desktop. The Ready to Install

Program screen appears.

11. Click Install. The progress of the installation displays on screen as the files are copied. After a few moments, a message box appears asking if you would like to review the release notes.

12. Click Yes to view the release notes. Close the release notes after you finish reviewing them to resume the install. The Setup Complete dialog box appears.

13. Click Yes to restart your computer now, or No to do it later.

14. Click Finish.

NOTE: Be sure to restart your computer before starting iFIX. As the computer restarts, log in to Windows with the same user name (with Administrator rights).

Upgrading the iFIX License

The instructions for upgrading your iFIX license depend on the key you have and the enabled options you want. You may need to run an update program, or you may need to exchange your key for a newer one. iFIX 4.5 only supports HASP M1 or M4 keys.

The version and type of key you have should appear imprinted on the outside of the key. If you do not know what type of key you have, check the label on the physical key. If you are still unsure whether

24

you need to exchange your key for a new one, contact your iFIX sales representative.

Upgrading from iFIX 2.6 or Later

When you upgrade to iFIX 4.5 from iFIX 2.6 or later, you are required to update the license on each iFIX machine. If you have an M1 or M4 key, GE Fanuc provides utilities to help you perform this task.

For an M1 key, use the iKeyUpdate application to update your license. For an M4 key (the newest key), use the Proficy License Viewer to update your license. To perform a key update:



For iKeyUpdate, you will need to obtain an iLicense update file with specific information about your key.



For the Proficy License Viewer, you will need to obtain a .plic update file with specific information about your key.

For information about obtaining the iLicense or .plic file, contact your sales representative. You will receive the new licensing file by disk or by e-mail.

If you have other new Proficy products installed you may be required to update to an M4 key. This requires you to physically remove the M1 key and insert the new hardware key. You cannot use both an M1 and M4 key on the same computer. For steps on how to install a hardware key, refer to the

Installing the Hardware Key section.

If you have a Rainbow SuperPro (Sentinel) key, which was offered for iFIX 2.6 (before 2002), this key must be exchanged for a newer key, if you want to upgrade to iFIX 4.5.

To update the license with the iLicense file:

1. Double-click on the iLicense filename. The iKeyUpdate dialog box opens.

The full path to your iLicense file should appear in the Update File text box. If it doesn't appear, browse to it.

2. Click Update Now to update your hardware key.

3.

4.

Click OK to confirm that you want to update your key. A message appears telling you that the key was successfully updated.

If you want, you can run iKeyDiag to review the update to your hardware key.

NOTE: Do not install iFIX 4.5 if you do not have the iLicense file. iFIX 4.5 will function in demo mode only on a system that does not have an updated key.

To update the license with the .plic file:

1. Save the .plic file to a directory of your choice.

2.

3.

Double-click the file. The Key Update utility appears. The full path to your .plic file should appear in the Update File text box. If it does not appear, browse to it.

Click Update Now to update your hardware key.

25

Getting Started

 The utility validates your current license. If the validation is successful, the utility updates the license; if the validation is not successful, the upgrade is halted.

Upgrading from iFIX 2.5 and Earlier

When you upgrade to iFIX 4.5 from iFIX 2.5 and earlier, you are required to replace your existing hardware key and license with a new hardware key and license. You should return your old key to GE

Fanuc. For information about obtaining a new hardware key and license, or returning your old key, contact your iFIX sales representative.

For more information about the new hardware key, see The Hardware Key section of this manual.

Preserving Settings when Upgrading

When iFIX is installed, all previously existing configuration files in the iFIX Local folder, with the exception of the *Res.dll files, are backed up to the C:\Dynamics\Config Files Backup folder. To preserve these settings, after the install, copy your customized changes from these backup files into each current file located in the Local folder. Do not copy and paste the entire file into the Local folder because it would overwrite any new settings installed with iFIX 4.5.

Notes on Database Dynamos and Custom Programs that Run with iFIX

Startup

When you install the newest release of iFIX, the product install program places a new version of the startup control file, FIX.INI, into your iFIX Local directory. The previous version of this file is copied to the iFIX Config Files Backup folder, along with the other configuration files.

If you configured Database Dynamos, also known as loadable blocks, or other custom programs to run as part of iFIX startup, you should compare the new FIX.INI file in the Local folder against the

FIX.INI file stored in the Config Files Backup folder. If you find any changes between the two files, add the necessary lines to the new FIX.INI stored in the Local path. Do not copy the old FIX.INI over the new FIX.INI file.

NOTE: Paths with embedded path spaces in the FIX.ini require quotes. For example:

RUN="%E:\PROGRAM FILES\GE FANUC\PROFICY IFIX\SysAlertQMgr.exe" /F /NSysAlertViewer

SCU Files and the Upgrade

If a previous version of iFIX already resides on your computer when you try to install iFIX 4.5, a message box appears during the installation suggesting that you upgrade your existing iFIX install. It is recommended that you elect to upgrade iFIX when this message appears. By following the upgrade process, iFIX 4.5 installs to same folder where your previous version existed. For example, if you have iFIX 3.5 installed to the C:\Dynamics folder, when you upgrade, iFIX 4.5 installs to the C:\Dynamics folder. After the iFIX 4.5 install completes and you restart iFIX, your SCU file is upgraded automatically, and the original file is backed up with a .^CU extension.

If you choose not to upgrade and install iFIX to another path, such as the default: C:\Program Files\GE

Fanuc\Proficy iFIX, there are a few extra steps you need to perform before you can start the older version SCU file in iFIX 4.5. First, you must rename the older version SCU file, so that the name is different than the default iFIX 4.5 SCU file. For instance, if you try to start an iFIX 4.0 SCU file in iFIX 4.5 when the names of both SCU files are the same, an error message appears instead. So, be sure to rename your iFIX 4.0 SCU file to something other than the startup default file name before opening it in the iFIX 4.5 System Configuration Utility. After launching the SCU application, open the older

26

SCU file. Now you can manually update the information in it, as described in the steps below.

Be aware that if you have a Custom Backup available of your node with the previous version installed, you also can use that file to upgrade your SCU. During the restore, make sure you select the Use SCU

File from Archive check box. If the SCU file name you are upgrading is the same as the iFIX 4.5 default SCU file name, you need to change the path configuration at this point. Click on the View

Project Path Configuration button to check the current paths. In the Project Path edit box, enter the iFIX 4.5 install path. This upgrades your SCU file automatically, however you still have to manually update other SCU information in the System Configuration Utility, as described in the steps below. For more information on the restore process, refer to the Overview of the Restore Process section.

IMPORTANT:

 You do not need to use a Full Backup from a previous release of iFIX if you are just

upgrading the SCU file. Instead, use a Custom Backup. Make sure that you back up the SCU only in the .fbk file and restore it only in iFIX 4.5. If you do a Custom Backup, click

“NO TO

ALL

” other files when restoring just the SCU file. Do not use a Full Backup between iFIX versions. Issues can occur with upgrade paths, and possibly other files.

 During a restore, use caution in restoring other configuration files. For instance, if you

overwrite the .INI files in your iFIX Local folder, you lose all of iFIX 4.5 .INI settings. After that is done, there may be issues that cause iFIX or certain features not to work properly. For instance, if you overwrite the 4.5 FIX.ini file with a 3.5 one, you need to remove or comment out the RUN=REGISTERHELPFILES line in order to start iFIX 4.5 with this file.

To update the SCU information manually:

NOTE: The following steps describe how to modify an SCU file with a path outside the install path, so that you run it in iFIX.

1. Shut down iFIX.

2. On the Start menu, point to Programs, Proficy HMI SCADA - iFIX, and then System

Configuration to open the SCU.

From the SCU Configure menu, click Paths. 3.

4. In the Path Configuration dialog box, change the base path and NLS path to point to the local install path. Change the project path to point to the project destination folder, if it does not already do so.

5.

6.

From the SCU Configure menu, click Tasks.

In the Task Configuration dialog box, change the path of the configured tasks to the local install path, make sure that you include the same command line options.

From the SCU Configure menu, click Network. 7.

8. In the Network Configuration dialog box, confirm the information is correct and make changes if necessary.

9. From the SCU Configure menu, click SQL, and then click Configure SQL Tasks.

10. In the SQL Task Configuration dialog box, make sure that the Primary and Backup paths are

27

Getting Started

correct, if used.

11. From the SCU Configure menu, click Local Startup Paths.

12. In the Local Startup Definition dialog box, change the path to the folder you copied the project to with the get command.

13. From the SCU File menu, click Save. Save it as the default startup SCU file name or indicate that this is the SCU you want to use on startup.

14. Restart iFIX.

Title Bar in iFIX WorkSpace

iFIX 3.0 and later provides a new title bar in the WorkSpace, which reads "Proficy iFIX WorkSpace."

If you have any custom applications that use the FindWindow Microsoft API call, you will need to update these applications to reflect the new title bar.

Programs that Run as a Service with iFIX

When you start iFIX as a service, programs in the startup task list also start as services. If you upgrade from a previous version of iFIX, be aware that programs listed in the SCU's Task Configuration dialog box will continue to run as services if iFIX remains running as a service.

However, if you previously started the iFIX OPC A&E Server with this command: iFixOPCAESrv.exe -service

The -service option is no longer needed to run the iFIX OPC A&E Server as a service. You should go into the Task Configuration dialog box and remove the -service command from the startup task list.

Be aware that you can only run programs such as the iFIX OPC A&E Server as a service if iFIX is configured to run as a service.

If you want to run the OPC Client driver as a service, iFIX must also run as a service. Likewise, if you want to run iFIX as a service, the OPC Client driver must run as a service. You cannot run one as a service, without the other also running as a service.

Toolbars

If your Proficy iFIX WorkSpace contains additional standard toolbars from other iFIX versions, such as the Proficy Historian toolbar, these toolbars will appear in the iFIX WorkSpace system tree, in the

Project Toolbar Files > Toolbars folder. Double-click a toolbar to display it in the WorkSpace.

Standard vs. Classic Window Styles

Because the standard window styles now include larger title bars and menu bars, such as those in

Windows XP, scroll bars may appear in iFIX pictures (that you created in earlier versions of Windows) when you open them.

28

To resolve this issue, GE Fanuc recommends that you change the Appearance Scheme in the Windows

Display Properties dialog box to Windows Classic.

Changing Permissions for PlugAndSolve and User Globals

If you upgrade from iFIX 2.6, you may need to change the security properties of the user.fxg and plugandsolve.fxg files. To change the permissions on these files, you must be logged in as an

Administrator. Use the following steps.

To change permissions on a file:

1. Open the File Explorer.

2. Right-click the PlugandSolve.fxg or user.fxg file in your iFIX PIC folder, and select

Properties. The Properties dialog box appears.

3.

NOTE: If the Security tab does not appear in Windows XP, open Windows Explorer. From the

Tools menu, choose Folder Options. The Folder Options dialog box appears. Click the View tab. Clear the Use simple file sharing (Recommended) check box and click OK.

Select the Security tab.

4.

5.

Click the Advanced button. The Advanced Security Settings for file name dialog box appears, where file name refers to the name of the file you selected in step 2.

On the Permissions tab, for the specified user, check the Inherit from parent the permission entries that apply to child objects. Include these with entries explicitly defined here.

6.



Repeat steps 1-5 for the other file.

Advanced Historian Not Supported

Advanced Historian is not supported in iFIX 2.6 and greater. So, you cannot use Advanced Historian with iFIX 4.5. If you have Advanced Historian installed, contact your local iFIX sales representative about upgrading to Proficy Historian, GE Fanuc's historian product.

Compatibility of iFIX 4.5 Pictures

iFIX 4.5 supports pictures created, saved, or built in previous versions of iFIX. However, pictures created, saved, or built in iFIX 4.5 are not compatible and cannot be opened in older versions of iFIX.

Resolving iFIX Displays

When you upgrade your iFIX system, or add or delete tags from your database, it is important that you run resolve on all pictures and schedules. This will ensure that you are getting maximum performance

29

Getting Started

from your iFIX system.

Converting Pictures from FIX 7.x to iFIX

When converting pictures from FIX v7 to iFIX, we recommend that you load the corresponding database in Database Manager before converting a picture. If you do not load the current database, you will need to manually reset each animation. For more information, see the Using the Picture Converter

Utility section of the Creating Pictures manual.

Running Pictures Created in an Older Version of iFIX

If you performed your original picture development on an earlier version of iFIX and have not upgraded to iFIX 2.2 or later, you may experience color mapping errors when upgrading to iFIX 4.5.

To avoid color mapping problems, perform the following steps before saving and resolving any pictures in iFIX 4.5.

To avoid color mapping problems:

1. Copy and save the tables.lst file from the older version of iFIX.

2.

3.

4.

Install the iFIX upgrade or switch to the upgraded machine.

Shut down the WorkSpace.

Delete the tableconversion.lst file from the iFIX directory (C:\Program Files\GE

Fanuc\Proficy iFIX).

5.

6.

Copy the original tables.lst file to the iFIX directory.

Restart the WorkSpace.

Using Code Written for Pictures in iFIX 2.1

Code written to position or size a picture using the ActiveWindow object in iFIX 2.1 may produce different results in an iFIX 4.5 system using multiple monitors with autoscale disabled. The incorrect positioning and sizing occurs because the ActiveWindow object in 2.1 does not account for the disabled autoscale in 4.5.

You can access the ActiveWindow object directly from the documents collection or by calling the

OpenPicture subroutine.

To correct the sizing and positioning, multiply the parameters in the 2.1 script by the number of monitors.

For example:

In iFIX 2.1, you opened a picture on the second monitor of a dual monitor system by issuing the following command: openpicture "picture.grf",,0,50

In iFIX 2.6 and later, open a picture on the second monitor of a dual monitor system by issuing the following command:

30

openpicture "picture.grf",,0,100

Database Dynamos

Database Dynamos, also known as loadable blocks, will require updates to work with iFIX 4.5. If you have old Database Dynamos on your system, the iFIX install program will detect them, and generate a warning message. This includes any Database Dynamos that you downloaded from the GE Fanuc web site, or installed from the Allen-Bradley Productivity Pack CD before you installed iFIX 3.x.

The GE Fanuc web site contains updated versions of the database dynamos supplied by GE Fanuc. To obtain updated version of other dynamos, contact the vendor of that dynamo. To obtain the current version of the Database Dynamo Toolkit, contact your local iFIX sales representative.

iFIX Dynamo Sets





















When you upgrade iFIX, or install a Software Improvement Module (SIM) that updates any iFIX

Dynamo sets, the newer Dynamo sets overwrite the older ones. To avoid losing any modifications made to the older files, you can rename them or move them to a folder located outside the iFIX picture path. Dynamo set files have an .fds extension and are located in the C:\Program Files\GE

Fanuc\Proficy iFIX\PIC folder, by default.

Be aware that when you upgrade iFIX, the Dynamos in pre-built Dynamo sets and the Dynamos created before iFIX 4.5 are not considered Dynamo objects. This means you cannot use the Quick

Dynamo Updater, the Dynamo Updater Wizard, and the Cross Reference Tool (available in iFIX 4.5) to update instances of these Dynamos within existing pictures. Only Dynamo objects created in the newer version of iFIX can be updated with these tools.

Pre-built Dynamos include the following Dynamo sets:

Historical.fds

Miscellaneous.fds

Motors.fds

Pipes.fds

PipesAnim.fds

Pumps.fds

PumpsAnim.fds

Tanks.fds

TanksAnim1.fds

TanksAnim2.fds

31

Getting Started





Valves.fds

ValvesAnim.fds

Deleting Temp Directory Contents if iFIX Installation Fails

When upgrading to iFIX, in some cases the installation will run too quickly, taking only a few seconds, or hang and not complete the process. In both cases, the product will not successfully install.

If this happens, delete the contents of the Temp directory and run the installation again.

Alarm Summary Objects and Picture Translation

For each picture created in a previous release that uses the picture translation feature and includes an

Alarm Summary object(s), you must export the language file again after you upgrade. This step updates your language files to include the Alarm Summary object information.

Next, using a text editor, you must provide translations for each of these new fields in the exported language (.csv) file(s). This step is required because the iFIX language translation file originally did not include the Alarm Summary object.

NOTES:

 iFIX 4.5 now supports translation of the Alarm Summary object information through the

picture object, or through the Alarm Summary object. You may also want to create new pictures which take advantage of the SwitchLanguage Method on the Alarm Summary object itself. For more information on how to use this feature, refer to the SwitchLanguage Method

Example in the iFIX Automation Reference.

 In iFIX 4.5, you can also change the font of the Column Headers and the Status Bar in the

Alarm Summary object for translation display purposes. This Font changing feature is new in iFIX 4.5 and can be accessed from the General tab of the Alarm Summary object in configure mode. You may want to update your pictures to use this feature, as well. For more information on how to use this feature, refer to the Configuring Fonts for the Column

Headings and Status Bar in the Creating Pictures electronic book.

4.

5.

6.

To export a single language file:

1. In the WorkSpace configuration mode, open the picture you want to export a language file for.

2.

3.

On the WorkSpace menu, click User Preferences.

Click the Picture Preferences tab and make sure the Translate Picture On Open check box is cleared. If it is selected, the LanguageDesired and TranslateOnOpen properties in the

Properties window cannot be changed.

Click OK to close the User Preferences dialog box.

Right-click in the picture and choose Property Window. The Properties window appears.

From the LanguageDesired list, select the appropriate language.

32

7.

8.

9.

From the TranslateOnOpen list, select Yes.

On the Translation toolbar, click the Export language file button. A message appears letting you know the language file was successfully exported.

You can now open the language file in a text editor and translate the text strings for the picture.

5.

6.

7.

To export multiple language files:

1. In the iFIX WorkSpace, on the Translation toolbar, click the Export multiple language files button. The Language File Exporter dialog box appears.

2.

3.

In the Select pictures list, select the check box for each picture you want to export a language file for.

If applicable, select the Show Tag Status pictures check box to display and select tag status pictures in the Select pictures list.

4. If applicable, select the Always overwrite existing export files check box. If you are exporting a language file for a picture that already has a language file for the selected language, the existing language file will be automatically overwritten. If you clear this check box, you will be prompted to replace the existing language file. Click Yes to replace it and No to keep it.

From the Select language list, choose the language that you want to provide translations for.

Click Export. A separate language file is created for each picture you selected.

You can now open each language file in a text editor and translate the text strings for the pictures.

Upgrading from FIX 7.x

If you want to upgrade from FIX 7.x to iFIX 4.5, but continue to use your FIX 7.x pictures, you must install iFIX with the FIX Desktop option. FIX Desktop is provided as a custom option in your iFIX product install. To install FIX Desktop option when installing iFIX, select the Custom install option, and then select the FIX Desktop check box from the list of features.

After you upgrade to iFIX with FIX Desktop, you can run FIX Desktop Draw, View, and HTD applications alongside the Proficy iFIX WorkSpace. All applications use the iFIX security, database, and system configuration information.

This chapter describes how to upgrade the FIX 7.x product to iFIX 4.5 with FIX Desktop. After you upgrade, you can continue to use your FIX32 pictures in FIX Desktop Draw and View applications, or you can migrate and create new pictures in the Proficy iFIX WorkSpace.

Before you upgrade, you need to follow the steps outlined in the Preparing for the Upgrade to iFIX with FIX Desktop section. The actual upgrade steps are outlined in the Overview of Steps to Upgrade from FIX 7.x section.

33

Getting Started

Preparing for the Upgrade to iFIX with FIX Desktop

The following sections describe the steps you need to take to prepare your computer for upgrading to iFIX with FIX Desktop. These sections are presented in the order that you should proceed with each task. These tasks are also outlined in the list below.

6.

7.

4.

5.

To prepare for the upgrade:

1. Convert recipes to the required format by Preparing the Recipe Files for the Upgrade.

2. Export I/O driver information by Preparing the I/O Drivers for the Upgrade.

3. Record the enabled environmental protection options by Checking the Environmental

Protection Settings.

Be sure to save all required files by Backing Up FIX Files.

Compile a list of user accounts by Exporting a Report of the Security Configuration.

Edit the user accounts in the report file by Adding Passwords to the .RPT File.

Finish by Generating a System Configuration Report.

Preparing the Recipe Files for the Upgrade

If any of your current FIX32 projects uses recipes, you will need to convert these recipes to .rcx

(Master text) and .rcy (Control text) files before you upgrade to iFIX with FIX Desktop. These recipes are located in the FIX32 RCM and RCC folders. This step is necessary so that you can import your recipes after installing iFIX with FIX Desktop.

To convert your recipes to .rcx and .rcy files:

1. Start FIX32.

2. If security is enabled, log in using a user account with Administrator rights.

3.

4.

Start the FIX32 Recipe Manager, RCP.EXE.

Save each master recipe as a .rcx file: a. Open the master recipe (.RCM file). b. On the File menu, click Save As. The Recipe Mod Log dialog box appears. c. Click Save As. The recipe Save As dialog box appears. d. From the Save File As Type drop-down list, select Master text (*.rcx). e. Confirm that the location is the RCM folder and the file name is the same as the original file.

34

5.

6. f. Click OK.

Save each control recipe as a .rcy file: a. Open the control recipe (.rcc file). b. On the File menu, click Save As. The Recipe Mod Log dialog box appears. c. Click Save As. The recipe Save As dialog box appears. d. From the Save File As Type drop-down list, select Control text (*.rcy). e. Confirm that the location is the RCC folder and file name is the same as the original file. f. Click OK.

Verify that you saved all recipes by inspecting the FIX32\RCC and FIX32\RCM folders.

Preparing the I/O Drivers for the Upgrade

Before you upgrade to iFIX with FIX Desktop, GE Fanuc recommends that you use the driver configuration program to export the driver information into .CSV files. By default, these files are saved to the FIX32/PDB folder. You use these .CSV files later to import the driver information into the upgraded system.

Later in the install process, after importing the driver files, you can verify the driver migration and convert the process database for use with iFIX and FIX Desktop.

To export the driver configuration:

1. Start the current installation of FIX (if it is not already running).

2.

3.

If security is enabled, log in using a user account with Administrator rights.

Start the System Configuration Utility (SCU).

4.

5.

On the Configure menu, click SCADA. The SCADA Configuration dialog box appears.

Select an installed driver (other than SIM or DDE), and click the Configure button. The

Driver Configurator program starts.

8.

9.

6.

7.

Select the first channel, CHANNEL1, in the browser on the left side of the window.

On the File menu, click Save As. The Save As dialog box appears.

Leave the default location of FIX32\PDB, and enter a name for the file in the File Name field.

From the Save as Type drop-down list, select Text Files (*.CSV).

10. Click Save.

35

Getting Started

11. Repeat steps 6-10 for each channel of the driver that is currently installed. Note the file names and their location for later use.

12. Repeat steps 5-11 for each I/O driver installed on your system.

13. Exit the SCU.

Checking the Environmental Protection Settings

Before the upgrade to iFIX with FIX Desktop, you should open the Environment Protection dialog in the Draw application and record these settings. After the upgrade, you cannot access this dialog box from Draw. Instead, you configure all environmental protection options in the Proficy iFIX

WorkSpace.

To record your current environment protection settings:

1. Start FIX.

2.

3.

4.

Open the Draw application.

On the Edit menu, click Environment. The Environment Protection dialog box appears.

Inspect and record the enabled options.

Backing Up FIX Files

After you create the support files for your recipe and I/O driver upgrades, you can proceed to back up your FIX 7.x files. Create a new folder on your computer, separate from the FIX 7.x (FIX32) folder, for the files you want to save.

After you back up the FIX files, you may also want to copy this new folder to another location, such as a network drive or a removable media, as a safeguard until the migration is complete.

The following table lists the files and folders that you must back up.

Files or Folder to

Copy

Location Description of FIX32 Component

*.PDB, *.CSV, *.GDB, all driver configuration files

FIX32\PDB Process database and driver configuration files.

*.ODF

*.ODT

FIX32\PIC

FIX32\PIC

Picture files.

Template files for pictures.

36

Files or Folder to

Copy

*.TGE

*.KMX

*.LYT

*.SBL

*.RCX

*.RCY

Location Description of FIX32 Component

FIX32\PIC

FIX32\PIC

FIX32\PIC

FIX32\PIC

FIX32\RCM

Tag Group Editor files.

Key Macro Editor files.

Layout files.

Custom Dynamos.

Master recipe files, in text format.

NOTE: These files do not appear unless you followed the steps in the Preparing the Recipe

Files for the Upgrade section.

FIX32\RCC Control recipe files, in text format.

NOTE: These files do not appear unless you followed the steps in the Preparing the Recipe

Files for the Upgrade section.

FIX32\LOCAL Initialization settings for the Draw and View applications, and report files.

FIX32\HTRDATA Collected historical data.

Draw.ini, View.ini,

*.RPT

Entire HTRDATA folder

Entire HTR folder

Entire ALM folder

Entire APP folder

FIX32\HTR

FIX32\ALM

FIX32\APP

Historical collection preferences.

Alarm file and event log.

Custom data and configuration files for your iFIX applications.

To back up the required files:

1. Create a new folder on your computer, separate from the FIX32 folder, for the files you want to save.

2. Copy the entire PDB folder into this new folder. The PDB folder includes the process database and driver configuration files (*.PDB, *.CSV, *.GDB, all driver configuration files).

37

Getting Started

4.

5.

6.

3. Copy the entire PIC folder, which includes all displays, display templates, tag groups, key macros, layouts, and custom Dynamos (*.ODF, *.ODT, *.ODT, *.TGE, *.KMX, *.LYT, and

*.SBL files).

Copy the converted master recipe files (*.RCX) in the RCM folder.

Copy the converted control recipe files (*.RCY) in the RCC folder.

Copy the initialization settings for the Draw and View applications and report files (Draw.ini,

View.ini, *.RPT) from the LOCAL folder.

7.

8.

Copy the entire HTRDATA folder, which includes all collected historical data.

Copy the entire HTR folder, which includes your historical collection preferences.

9. Copy the entire ALM folder, which includes all alarm files and event logs.

10. Copy the entire APP folder, which includes any custom data and configuration files for your iFIX applications.

11. After you copy all of these files, you may want to back up these files to another location, such as a network drive or a removable media, as a safeguard until the migration is complete.



Exporting a Report of the Security Configuration

Before you upgrade to iFIX with FIX Desktop, you need to export a report from the FIX Security

Configuration application. This report includes a list of iFIX users along with the application features configured for each user in your FIX applications. Save this file along with the other FIX files and folders that you backed up.

IMPORTANT: Passwords are not exported with the security configuration report; you must re-enter the passwords manually. See the Adding Passwords to the .RPT File section for details. This policy is for security purposes.

After you install iFIX and FIX Desktop (in the same language as the original install), you can import this report file into your new security configuration to recreate the user accounts on the upgraded system. You can also use this printed report as a cross reference when you reassign the new application features to each user.

To export a list of user accounts:

1. Start the current installation of FIX (if it is not already running).

2.

3.

4.

If security is enabled, log in using a user account with Administrator rights.

Start the System Configuration Utility (SCU).

On the Configure menu, click Security to enter the Security Configuration.

38

5.

6.

7.

8.

9.

On the File menu, click Export. The Select File dialog box appears.

Browse to the folder that you want to save the file to. By default, this folder is the

FIX32\Local folder. Most likely you will want to save this file to the location where you backed up the other FIX files.

Use the default name for the .RPT file, which is Security.RPT.

Click Save.

Open this report in a text editor such as Notepad or Wordpad and print a copy.

Adding Passwords to the .RPT File

The report file that you export from the Security Configuration application does not include user passwords. This is done to protect your system.

If you later try to import this file into the Security Configuration application without the passwords, none of the iFIX user accounts will require passwords. In this case, you would need to re-enter each password manually. You can avoid this step entirely by editing each account in the report file from a text editor before the migration.

To add passwords to your exported file with the security configuration:

1. Open the Security.RPT file in a text editor such as Notepad or WordPad. By default this file is located in the Local folder, on the FIX32 node.

2. Search the file for the first instance of the word User: in the report. For example:

3.

4.

5.

User: GUEST

Login-name: GUEST

Timeout: 00:00:00

Feature: View

Insert the text Password: after the user's login name.

Type the user's password after the colon. An example of what this might look like is as follows:

User: GUEST

Login-name: GUEST

Password: GUEST

Timeout: 00:00:00

Feature: View

Scroll down through the report and repeat steps 3 and 4 for each user in the report.

39

Getting Started

Generating a System Configuration Report

Before you migrate to iFIX with FIX Desktop, it's a good idea to create a system configuration report.

This report includes information that you may need later when you are configuring your SCU. It is also helpful if you want to verify your system after the migration. This report includes:



General node configuration information, such as the node and setup file name, as well as

SCADA, network, NLS, and security options.







System path locations for base, local, language, database, pictures, and so on.

SCADA configuration such as the name and number of I/O drivers.

Alarm configuration information such as default message format, application message routing, remote alarm areas, alarm network service, alarm summary, and alarm history service settings.







List of startup tasks.

SQL configuration.

Auto Alarm Manager configuration to send and receive alarms.

This report contains valuable reference information on your current FIX system before the upgrade.

Steps to Generate a System Configuration Report

4.

5.

6.

To generate a system configuration report:

1. Start the current installation of FIX32 (if it is not already running).

2.

3.

If security is enabled, log in using a user account with Administrator rights.

Start the System Configuration Utility (SCU).

7.

On the File menu, click Report. The Select Report Name dialog box appears.

In the File Name field, leave the default name. The default name is the node name.

Click Save. A report named NodeName.RPT is saved to the Local folder. A message appears when the save is complete.

NOTE: NodeName is the name from step 5.

Click OK to continue.

Overview of Steps to Upgrade from FIX 7.x

After you complete the steps described in the Preparing for the Upgrade to iFIX with FIX Desktop

40

section, you can proceed to the actual product upgrade.

3.

4.

5.

To upgrade from FIX 7.x:

1. Complete the steps for Installing the iFIX Software.

2. Follow the steps for Installing the FIX Desktop Software.

Update the Database Dynamos.

Install the Newest Drivers and iFIX Product SIMs.

Copy the Backed Up Files into the New Product Folder.

6.

7.

8.

Import the FIX I/O Driver Configuration Information.

Verify the I/O Driver and Database Migration.

Import the Recipes Files.

9. Import the Security Configuration.

10. Reconfigure the Application Features and Passwords for Each User.

11. Redefine SCADA Failover Settings.

12. Enable Environmental Protection.

13. Setup the Report Generator.

Update Database Dynamos

To use FIX 7.x Database Dynamos in iFIX with FIX Desktop, you must recompile them with the iFIX

Database Dynamo Toolkit. Follow the steps outlined in the iFIX Database Dynamo Toolkit and the

Database Converter will update your Database Dynamos. The Database Converter runs whenever iFIX is started.

For information on the Database Dynamo toolkit, contact GE Fanuc.

Install the Newest Drivers and iFIX Product SIMs

You must install the most current drivers before you migrate the Process Database (PDB) from FIX32 to iFIX with FIX Desktop. This is necessary so that your FIX32 applications can migrate properly to iFIX with FIX Desktop.

You can install the newest drivers from the most current Driver CD, or by obtaining the driver file from the Proficy GlobalCare Support web site, http://support.gefanuc.com.

To install the driver, follow the instructions that came with your driver CD, or with your download. If you install a driver from the web, the process generally entails extracting files from a .EXE and

41

Getting Started

running a simple install program or manually copying files. Refer to the driver documentation for information on the install process.

After obtaining and installing the latest drivers, GE Fanuc recommends checking for the latest patches for the iFIX product. Obtain all applicable iFIX SIMs and add-ons from the Proficy GlobalCare

Support web site, http://support.gefanuc.com. Install these SIMs on top of the current iFIX installation.

To install the newest drivers and iFIX product SIMs:

IMPORTANT: You must install the most current drivers before you migrate the Process Database

(PDB) files from FIX32 to iFIX. This step is necessary so that your FIX32 applications can migrate properly to iFIX.

1. Obtain the latest the most current Driver CD or the driver update from the GlobalCare

Support web site, http://support.gefanuc.com.

2.

3.

Follow the instructions that came with your driver CD, or the information included with the driver download.

Check for the latest patches for the iFIX product. Obtain all applicable iFIX SIMs and addons from the GlobalCare Support web site, http://support.gefanuc.com.

Install these SIMs on top of the installed iFIX product. 4.

5. Do not start iFIX.

Copy the Backed Up Files into the New Product Folder

After iFIX with FIX Desktop is installed, along with the drivers, appropriate SIMs, and hardware key, you can copy your previous FIX32 files into the new iFIX with FIX Desktop install location. As you remember, you backed up these files before beginning the iFIX with FIX Desktop installation. The default iFIX install folder is: C:\Program Files\GE Fanuc\Proficy iFIX.

The following table lists the files to copy from your backup folder, and the location to copy them to

(assuming you used the default iFIX directory).

Files to Copy Location to Copy in iFIX Folder

*.PDB, *.CSV, *.GDB all driver configuration files PDB

*.ODF

*.ODT

*.TGE

PIC

PIC

PIC

42

Files to Copy

*.KMX

*.LYT

*.SBL

*.RCX

*.RCY

Draw.ini, View.ini, *.RPT

HTRDATA/*.*

HTR/*.*

ALM/*.*

APP/*.*

Location to Copy in iFIX Folder

PIC

PIC

PIC

RCM

RCY

LOCAL

HTRDATA

HTR

ALM

APP

To copy the backed up files into the appropriate Proficy iFIX product folders:

1. Copy the *.PDB, *.CSV, and *.GDB files from the FIX32 PDB folder into the iFIX PDB folder.

NOTE: If you installed iFIX to the default location, the iFIX folders are located in this path:

C:\Program Files\GE Fanuc\Proficy iFIX.

Copy the contents of the FIX32 PIC folder into the iFIX PIC folder. 2.

3. Copy the *.RCX files into the iFIX RCM folder.

Copy the *.RCY files into the iFIX RCC folder. 4.

5. Copy the Draw.ini, View.ini, *.RPT files for FI32X into the iFIX Local folder.

Copy the contents of the FIX32 HTRDATA folder into the iFIX HTRDATA folder. 6.

7.

8.

Copy the contents of the FIX32 HTR folder into the iFIX HTR folder.

Copy the contents of the FIX32 ALM folder into the iFIX ALM folder.

43

Getting Started

9. Copy the contents of the FIX32 APP folder into the iFIX APP folder.

Import the FIX I/O Driver Configuration Information

After you copy the backed up FIX files into your new iFIX with FIX Desktop folder, you are ready to import the I/O driver configuration information.

4.

5.

6.



7.

To import the I/O driver configuration information:

1. Start the iFIX SCU, by clicking the Start button, pointing to Programs, Proficy HMI SCADA

- iFIX, and then System Configuration.

2.

3.

Verify that the Node name that appears on the main screen is correct. Refer to the

NodeName.RPT report described in the Generating a System Configuration Report section if you are unsure of the name.

Double-click the Database Name to enter the database name you want to use. The Database

Definition dialog box appears. Ensure it is the same name as the previous project.

Click OK. A prompt appears stating that the database does not exist.

Select Yes, and use the database anyway.

On the Configure menu, click SCADA. The SCADA Configuration dialog box appears.

Verify that the required drivers appear in the Configured I/O Drivers list. If required, add the

SIM, DDE, and any other required driver to the Configured I/O Drivers list.

8.

9.

Click OK, and then Yes when prompted.

On the File menu, click Save.

10. Close the SCU.

11. Click Start and point to Programs, Proficy HMI SCADA - iFIX 4.5, and then iFIX 4.5 to launch the iFIX Startup dialog box.

12. Make sure the local node name is correct, and click the button in this dialog box to start iFIX.

13. When iFIX is running, start the SCU again.

14. On the Configure menu, click SCADA. The SCADA Configuration dialog box appears.

15. Verify each driver configuration is correct by selecting the driver and then clicking the

Configure button. The Driver Configurator opens.

If the driver configuration is correct, you can close the Driver Configurator and proceed to step 24.

44

If you need to make changes, you can make the necessary changes, save the file, and proceed to step

24. Otherwise, import the driver configuration by following steps 16-22.

16. Select the first channel, CHANNEL1, in the browser on the left side of the window.

17. On the File menu, click Open. The Open dialog box appears.

18. From the Save as Type drop-down list, select Text Files (*.CSV).

19. Select the .CSV file for the channel.

20. Click Open.

21. Repeat steps 16-20 for each channel of the driver that is currently displayed.

22. Repeat steps 15-21 for each I/O driver installed on your system.

23. When you finish these tasks for all drivers, on the File menu, click Save and exit the Driver

Configurator.

24. Save and Exit the SCU.

Verify the I/O Driver and Database Migration

After configuring the SCU, complete the following procedure to verify the migration of the I/O drivers and to convert the Process Database.

To verify the migration:

1. Start iFIX.

2.

3.

Start Mission Control from the Proficy iFIX WorkSpace. You can find the button to launch

Mission Control in the WorkSpace tree.

Examine the information on the I/O Control tab. Ensure that data is being polled. If data is present, advance to Step 6.

4. If there is no data present, ensure that the driver is loaded and is running. Exit Mission

Control and select System Configuration to start the SCU.

On the Configure menu, click SCADA. The SCADA Configuration dialog box appears. 5.

6.

7.

Select the I/O driver and verify that the Poll Records are present. If they are not present, repeat the steps in the Import the FIX I/O Driver Configuration Information section.

Maximize the Proficy iFIX WorkSpace and then: a. Start Database Manager from the WorkSpace System Tree.

45

Getting Started

b. Verify that the I/O addresses for your data blocks are correct.

8. Save and exit Database Manager.

 Errors that occur during the database conversion are written to the error log file (dbcvt.err).

You can open this file in any text editor. Use this log file to identify the individual tags causing the problems. Consult the online help or contact GE Fanuc for more details on how to troubleshoot database conversion errors.

Import the Recipes Files

After converting and successfully running the I/O Drivers and Process Database, you can import the recipes that you previously saved as .rcx and .rcy files.

To import recipe files:

1. From the Proficy iFIX WorkSpace, select the FIX Recipes folder in the system tree.

2.

3.

Double-click the New Recipe icon. The Recipe Development utility appears.

Open each .rcx file in the iFIX RCM folder and save each file as a .rcm file.

4.

5.

Open each .rcy file in the iFIX RCC folder and save each file as a .rcc file.

When you are finished, exit the Recipe Development utility.

Import the Security Configuration

When you import the security configuration file that you created before the install, all your FIX 32 users are re-added to the iFIX with FIX Desktop software. Later you will need to re-enter passwords for these users and redefine the application features assigned to each user, since the iFIX with FIX

Desktop software includes new and reassigned application features. However, before you can do that, you need to import the list of users from the security configuration.

3.

4.

5.

To import the list of users from the security configuration:

1. Start the current installation of FIX (if it is not already running).

2. From the Proficy HMI SCADA - iFIX program group, start the System Configuration application. The SCU opens.

On the Configure menu, click Security. The Security Configuration application appears.

On the File menu, click Import. The Select File dialog box appears.

Browse to the folder that you copied the original .RPT file to. By default, this folder is the

C:\Program Files\GE Fanuc\Proficy iFIX\Local folder.

46

6. Select the file and click Open. A message box appears warning you that the imported user accounts will not contain passwords.

7.

IMPORTANT: Be aware that you cannot import a security file exported from another language.

Click Yes to continue. Another message box appears requesting that you replace or add this file to the existing configuration.

8. Click Replace.

9.

IMPORTANT: Do not shut down the SCU before moving on to the next set of steps. If you did not add passwords to the user accounts before you migrated, as described in the Adding

Passwords to the .RPT File section, you could possibly lock yourself out, if security is enabled.

Continue by following the steps in the Reconfigure the Application Features and Passwords for Each User section.

Reconfigure the Application Features and Passwords for Each

User







After you import the security configuration (.RPT) file, you can proceed to reconfigure the features available for each user and reassign new passwords, if you did not already do so.

Use the Security Configuration program to open each group profile and user profile, assign application features, and create a new password (if a password is required). Use the printout that you created in the

Exporting a Report of the Security Configuration as a reference when reassigning the application features to users on the upgraded system. This printout lists the original application features available for each user.

Refer to the following sections when comparing this printed list of features with the features that appear in the Application Features Selection dialog box.



Identical Application Features in FIX32 and iFIX with FIX Desktop

FIX32 Application Feature Names That Are Different After the Upgrade

FIX32 Application Features No Longer Available After the Upgrade

New Application Features Available for iFIX Users

To assign the application features and a password to each user:

NOTE: The SCU should still be open from the previous set of steps in the Import the Security

Configuration section.

1. On the Configure menu, click Security. The Security Configuration application appears.

2. On the Edit menu, click User Accounts.

47

Getting Started

3.

4.

5.

6.

Select a user and click Modify. The User Profile dialog box appears.

In the Password field, enter a new password if you want to assign a password.

Click the Modify button beneath the Application feature list (the list on the right-side of the window). The Application Feature selection dialog box appears.

Add the required features. Click Add All if you want to allow this user to use all application features.

See the sections that follow for information on the names used with each feature and the new features available.

7. Click OK.

8.

9.

Click OK to exit the User Profile dialog box.

Repeat steps 3-8 for each user listed in the User Accounts dialog box.

10. Click OK to exit the User Accounts dialog box.

11. On the Edit menu, click Group Accounts. The Group Accounts dialog box appears.

12. Select a group and click Modify. The Group Profile dialog box appears.

13. In the Application Features area, click Modify. The Application Feature selection dialog box appears.

14. Add the required features. Click Add All if you want to allow this group to use all application features.

15. Click OK.

16. Click OK to exit the Group Profile dialog box.

17. Repeat steps 12-16 for each group listed in the Group Accounts dialog box.

18. On the File menu, click Save to save the security configuration.

19. On the File menu in the Security Configuration program, click Exit to return to the SCU.

20. Save and exit the SCU.

Identical Application Features in FIX32 and iFIX with FIX Desktop

After you import your security configuration, the following application features are automatically imported for each user. You do not need to assign these features again after the upgrade since the same names are used for FIX32 and iFIX with FIX Desktop:



Background Task Exit

48

























Database Reload

Database Save

Historical Trend Assign

Historical Trend Collection

Historical Trend Export

Recipe Load

Recipe Save

Security Configuration

System Configuration

System User Login

System User Logout

Tag Group Editor

NOTE: While the Tag Group Editor applications may be different executables for Draw and the

Proficy iFIX WorkSpace, they both use the same application feature.

FIX32 Application Feature Names That Are Different After the Upgrade

After you upgrade to iFIX with FIX Desktop, you will notice that some of the FIX32 features correspond to different names in iFIX with FIX Desktop. These features do not automatically appear in the user's application feature list. You need to add these again.

For instance, to allow a user to access Draw, you need to add the WorkSpace Configure feature to the user's application feature list. By doing this, the user has the same access to both Draw and the Proficy iFIX WorkSpace in configure mode.

Similarly, to allow access to the View application, you need to add the WorkSpace Runtime feature to the user's application feature list. By doing this, the user has access to both View and the Proficy iFIX

WorkSpace in run mode.

The application feature names are different because they take into account changes to support the iFIX system. As another example, since the FIX32 Database Builder is replaced with the iFIX Database

Manager, you need to add the Database Manager to the user's feature list since the supported application actually changed with the upgrade.

When re-assigning these features for each user, use the following table to locate the FIX32 feature name and determine the corresponding name in iFIX with FIX Desktop.

49

Getting Started

Feature Name for FIX32

Database Builder,

Database Create

Draw

View

Report Creator

Key Macro Editor

Operating System Window

FIX - System Shutdown

Alarm Summary Display

Historical Trend Display

Run a Task from View

Report Generator

Historical Display Configuration

Exit from View

Database Block Add/Delete

GUI Recipe Builder Operations Window

GUI Recipe Builder Development Window

GUI Recipe Save

GUI Recipe Download

Feature Name for iFIX with FIX Desktop

Database Manager

WorkSpace Configure

WorkSpace Runtime

Fix32 - Report Creator

Fix32 - Key Macro Editor

Fix32 - Operating System Window iFIX - System Shutdown

Fix32 - Alarm Summary Display

Fix32 - Historical Trend Display

Fix32 - Run a Task from View

Fix32 - Report Generator

Fix32 - Historical Display Configuration

WorkSpace Runtime Exit

Database Block Add-Delete

Recipe Builder Operations Window

Recipe Builder Development Window

Recipe Save from Recipe Builder

Recipe Download from Recipe Builder

50

Feature Name for FIX32

GUI Recipe Upload

GUI Recipe Text Output

GUI TASK Switching

GUI System Reboot

Historical Trend Display View Only

CDA Feature 1 - 54

Feature Name for iFIX with FIX Desktop

Recipe Upload from Recipe Builder

Recipe Text Output from Recipe Builder

Enable Task Switching

Enable Ctrl-Alt-Del

Fix32 - Historical Trend Display View Only

EDA Feature 1 - 54

FIX32 Application Features No Longer Available After the Upgrade









In iFIX with FIX Desktop, it is no longer applicable to include security for these features, many of which are FIX BOS related or discontinued:





















All features that begin with the word: Batch

Data Transfer Utility

Dial Manager for Modem Support

Ingredient Manager

Inventory Manager

Procedure Monitor

Procedure Monitor - Hold/Resume Control

Procedure Monitor - Modify Parameters

Procedure Monitor - Run/Skip Control

Procedure Monitor - Stop Procedure

Quality Test Manager

Recipe Handler

Recipe Manager

Recipe Manager - Authorize

51

Getting Started









Recipe Manager - Remove

Report Manager

Scheduler

Scheduler Configuration

New Application Features Available for iFIX Users

By upgrading to iFIX with FIX Desktop, you also obtain some new features that you can assign to your iFIX users. The features that you can choose from include:































Application Validator - Creation of Baselines

Application Validator - Run-time Access

Change Management

Electronic Signature - Bypass

Electronic Signature - Perform By

Electronic Signature - Verify By

GE Fanuc OEM Reserved 1-12

Manual Failover

Project Backup-Restore

Recipe Text Output from Recipe Builder

Runtime Visual Basic Editor Access

Security Synchronizer

Startup Profile Manager

VisiconX Writes

A group of Proficy Batch Execution product features available if you have this product installed (each feature starts with the word: Batch Execution)

For more detailed information on using these features with your iFIX pictures, refer to the iFIX

Electronic Books.

NOTE: iFIX does not include a separate Key Macro Editor application feature. For iFIX, the Key

Macro Editor (FDKeyMacros.exe) does not run outside of the Proficy iFIX WorkSpace. So, security for this feature is set at the WorkSpace-level by allowing access to the WorkSpace Configure feature.

For FIX32, the Key Macro Editor (KME.exe) can run alone without Draw running. This is why the

Key Macro Editor appears as a separate entry for FIX32 for use with FIX Desktop.

52

Redefine SCADA Failover Settings

If your FIX32 applications used the failover feature prior to the iFIX with FIX Desktop upgrade, you need to set up failover again. Be aware that, if you want to use failover, all nodes (primary, backup, and view nodes) must be upgraded to iFIX with FIX Desktop. FIX32 failover is incompatible with iFIX.

One of the biggest changes required for iFIX failover is that you include a logical node name in your configuration. Failover in iFIX follows a different paradigm. In iFIX with FIX Desktop, the applications on the iClient communicate to the logical node name, and iFIX substitutes the physical node name at run time based on which SCADA server is available. The combination of the logical node name, and physical primary and backup SCADA server names, is referred to as the primary and backup grouping. You configure the primary and backup grouping in the SCU of the iClient and of each SCADA server.

In other words, after you upgrade, you need to start the SCU and do the following:



Define the local node name and local logical name in the Local Startup Definition dialog box on the primary and backup SCADA nodes.



Define the remote node name, as well as the primary and backup server pair in the Network

Configuration dialog box on the primary, backup, and view nodes.



Define the partner SCADA in the SCADA Configuration dialog box on the primary and backup nodes.

You have two different options for the combination of Local, Logical, Primary, and Backup node names that you use in these dialog boxes after you upgrade. These options are detailed in the

Understanding Failover Options After Upgrading section.

The following figure shows an example of these steps and the dialog boxes that you use from the SCU.

Overview of Failover Steps

The sections that follow detail how to configure these dialog boxes for either failover option you select:



Steps To Configure Failover Option One

53

Getting Started



Steps To Configure Failover Option Two

NOTE: For more detailed information on failover and LAN redundancy, refer to the Mastering iFIX manual in the iFIX Electronic Books.

Understanding Failover Options After Upgrading

To use failover and iFIX with FIX Desktop, you have two options for your current failover configuration. These options are described as follows.

Failover Configuration Option One

With this option, you first define a logical node name. You use the same primary and backup node names that you used in your FIX 7.x application. This configuration has the advantage of requiring no changes to pictures on the SCADA nodes, but the disadvantage is that all iClient pictures and tag group files will have to be updated to connect to the logical node name rather than primary node name, as in

FIX32. This could be a significant effort depending upon the number of files you need to inspect. See the Steps To Configure Failover Option One section for more details.

Failover Configuration Option Two

With this option, you use the name of the primary SCADA server from your FIX 7.x application as your logical name. Since the logical node name and primary node name cannot be the same, you then must then rename the node name for the primary SCADA. The backup node name remains the same.

This configuration has the advantage of requiring no changes to pictures on the remote nodes, but anything which directly references the primary SCADA node, such as NSD tags, must be updated. See the Steps To Configure Failover Option Two section for more details.

Example of Failover Option One

The following graphic shows an example of how the failover settings for FIX32 differ from the iFIX failover settings when you use Option One.

Example of Failover Option One

In this example, notice that the iFIX settings includes a logical node name, SCADA. This logical node name is a new name, not used in the FIX32 failover settings. The names for your iFIX primary server

SCADA1, and backup server SCADA2, remain the same as the FIX32 names.

See the Steps To Configure Failover Option One section for more details on how to set this configuration up in your SCU.

54

Steps To Configure Failover Option One

To define a new logical name and configure the backup and primary grouping using the same names as

FIX 7.x, follow the steps below.

6.

7.

4.

5.

To configure failover option one:

1. Click the Start button and point to Programs, and then Proficy HMI SCADA - iFIX, and click

System Configuration to open the SCU.

2.

3.

On the Configure menu, click Local Startup. The Local Startup Definition dialog box appears.

In the Logical Node Name field, enter a name. Be sure that this name is different than the local node name.

Leave the name in the Local Node Name field unchanged.

Click OK.

On the Configure menu, click Network. The Network Configuration dialog box appears.

Select TCP/IP as the network type.

NOTE: The automatic failover option requires a TCP/IP network.

In the Remote Node Name field, enter the logical node name from step 3. 8.

9. Click Add. The logical name appears in the Configured Remote Nodes list box.

10. Select the node that you just added, and click Configure. The Remote Node Configuration dialog box appears.

11. Select the Enable Logical Node Names check box.

12. In the Primary Node field, enter the primary node that you used in your FIX 7.x configuration.

13. In the Backup Node field, enter the backup node that you used in your FIX 7.x configuration.

NOTE: If you do not remember the Primary or Backup names, refer to the Nodename.rpt file

that you created in the Generating a System Configuration Report section. This report lists the node name and its partner node. The Primary and Backup names must be different than the logical node name.

14. Click OK.

15. On the Configure menu, click SCADA. The SCADA Configuration dialog box appears.

16. Enter the name of the SCADA server with which this node is paired. For the primary server, this is the name of the backup node name that you used in FIX 7.x. For the backup server, this is the name of the primary server. Refer to the names you entered in steps 12 and 13.

55

Getting Started

17. Repeat steps 1-16 on the backup SCADA server. Use the same logical, primary, and backup node names that you used for the primary node. The Local Node Name field (in step 4), as well as Partner node name field (in step 16), should be different, however.

NOTE: For failover to work, the logical node name, primary node name, and backup node name should be the same on all SCADA nodes.

18. Repeat steps 6-14 for each View node.

Example of Failover Option Two

The following graphic shows an example of how the failover settings for FIX32 differ from iFIX when you use Option Two.

Example of Failover Option Two

In this example, notice that the iFIX settings includes a logical node name, SCADA1. The logical node name is the same name that you assigned to the primary server in FIX32. The iFIX primary server uses a new name, SCADAP. The backup server name, SCADA2, remains the same.

See the Steps To Configure Failover Option Two section for more details on how to set this configuration up in your SCU.

Steps To Configure Failover Option Two

To define a logical name (using your primary SCADA name from FIX 7.x) and reconfigure the backup and primary grouping, follow the steps below.

To configure failover option two:

1. Click the Start button and point to Programs, and then Proficy HMI SCADA - iFIX, and click

System Configuration to open the SCU.

2.

3.

On the Configure menu, click Local Startup. The Local Startup Definition dialog box appears.

In the Logical Node Name field, enter the name that you used for the primary node name on your FIX 7.x system.

If you do not remember this name, refer to the Nodename.rpt file that you created in the Generating a

56

System Configuration Report section. This report lists the node name and it's partner node. In this step you are basically moving the Local Node Name field to the Logical Node Name field.

4. In the Local Node Name field, enter a new name.

5.

6.

7.

Click OK.

On the Configure menu, click Network. The Network Configuration dialog box appears.

Select TCP/IP as the network type.

NOTE: The automatic failover option requires a TCP/IP network.

In the Remote Node Name field, enter the logical node name from step 3. 8.

9. Click Add. The logical name appears in the Configured Remote Nodes list box.

10. Select the node that you just added, and click Configure. The Remote Node Configuration dialog box appears.

11. Select the Enable Logical Node Names check box.

12. In the Primary Node field, enter the new node name from step 4.

13. In the Backup Node field, enter the backup node name that you used in FIX 7.x.

If you refer back the Nodename.rpt file again, this node is referenced in the SCADA configuration as the partner node.

14. Click OK.

15. On the Configure menu, click SCADA. The SCADA Configuration dialog box appears.

16. Enter the name of the SCADA server with which this node is paired. For the primary server, this is the name of the backup node name that you used in FIX 7.x. For the backup server, this is the name of the primary server. Refer to the names you entered steps 12 and 13.

17. Repeat steps 1-16 on the backup SCADA server. Use the same logical, primary, and backup node names that you used for the primary node. The Local Node Name field (in step 4), as well as Partner node name field (in step 16), should be different, however.

NOTE: For failover to work, the logical node name, primary node name, and backup node name should be the same on all SCADA nodes.

18. Repeat steps 6-14 for each View node.

Enable Environmental Protection

If your FIX applications used the environment protection feature prior to the iFIX with FIX Desktop upgrade, you need to enable it again. To enable this feature for iFIX and FIX Desktop, use the

57

Getting Started

Environment Protection tab of the User Preferences dialog box of the Proficy iFIX WorkSpace, as shown in the following figure.

Environment Protection Options in the Proficy iFIX WorkSpace

From this dialog box, you can enable the options that your applications require. When re-entering these settings, be sure to refer back to the settings that you recorded in the Checking the Environmental

Protection Settings section, when you prepared for the iFIX with FIX Desktop upgrade.

Important Note About Using Environment Protection

When you use environmental protection for iFIX with FIX Desktop, be aware that some limitations apply to these options when View is running and the Proficy iFIX WorkSpace is in run mode:



Disable <Ctrl><Alt><Del>



Disable Task Switching

If you exit the WorkSpace or View, either by shutting down one application or by switching the

WorkSpace to configure mode while View is still running, these environmental protection settings no longer apply to the application still running.

Understanding Environment Protection in iFIX

When you upgrade to iFIX with FIX desktop, there are environmental protection settings that apply to both iFIX and View. There is also a FIX32 environmental protection setting that is unavailable after the upgrade. However, with the upgrade, there are also new settings now available in the Proficy iFIX

WorkSpace. The sections that follow describe these changes.

58

Settings that Apply to Both the Proficy iFIX WorkSpace and View

From the Environment Protection tab of the User Preferences dialog box, the following settings apply to both View and WorkSpace in run mode:









Disable Title Bar and Menu Bar

Disable Menu Bar

Disable <Ctrl><Alt><Del>

Disable Task Switching

FIX32 Setting Still Available After the Upgrade

The only environmental protection setting that does not appear in the Environment Protection tab of the User Preferences dialog box is as follows:

Disable Pop-up Menu

This setting is still available for FIX Desktop View, however, you must enable this setting through the

FixUserPreferences.INI file.

New Settings for the Proficy iFIX WorkSpace

The remaining environmental protection options are new for the Proficy iFIX WorkSpace:











Disable "WorkSpace" Menu Pulldown

Disable VBE Access

Disable "WorkSpace" File Menu Accelerators

Disable Open Accelerator

Disable Print Accelerator

For more details on these settings, refer to the table in the Understanding Environment Protection section.

Steps to Enable Environment Protection

The steps below explain how to enable environment protection feature after you upgrade.

To enable the environment protection feature after you upgrade:

1. Start iFIX.

2. Shut down View and the WorkSpace if either is running.

3. If you want to use the Disable Pop-up Menu option, open the FixUserPreferences.ini file in

59

Getting Started

5.

6.

7. the C:\Program Files\GE Fanuc\Proficy iFIX\Local folder. In the [AppRunPreferences] section, make the following change:

PopUpMenu=0

When the PopUpMenu=1, then the right-click pop-up menu is not available. When this value is set to

0, the pop-up menu is available in View.

4. To set the other environment settings, open the Proficy iFIX WorkSpace.

8.

On the WorkSpace menu, click User Preferences. The User Preferences dialog box appears.

Select the Environment Protection tab.

Select the Enable Run Time Environment Protection check box. After you enable this setting, the check boxes below become available.

Select the options that you want to enable. Use the table in the Understanding Environment

Protection section as a guide when assigning these options.

NOTE: After you enable the environment protection feature in WorkSpace, you must shutdown View (if it is still running) and restart it for the environmental protection settings to apply.

Understanding Environment Protection

The following table outlines common tasks you may want to restrict operators from doing in the runtime environment, and the environmental option associated with each task.

To restrict an operator from... Select this check box...

Closing the current picture displaying in

View or the Proficy iFIX WorkSpace (in run mode).

Disable Title Bar and Menu Bar.

NOTE: Be sure to also select the Full Screen in Run mode check box from the General tab and clear the

Title bar and Resizeable check boxes from the Picture

Preferences tab.

Switching from View or the Proficy iFIX WorkSpace (in run mode) to another application that may be running.

Disable Task Switching

Restarting the computer using

Ctrl+Alt+Del or logging out of Windows when running View or the Proficy iFIX

WorkSpace (in run mode).

Disable <Ctrl><Alt><Del>

Using the Proficy iFIX WorkSpace menu or switching to the configuration

Disable "WorkSpace" Menu Pulldown

60

To restrict an operator from...

environment (while in run mode).

Accessing the Visual Basic Editor from the Proficy iFIX WorkSpace (while in run mode).

Using the Ctrl+O or Ctrl+P shortcuts in the Proficy iFIX WorkSpace (while in run mode).

Select this check box...

Disable VBE Access.

Disable "WorkSpace" File Menu Accelerators

Using the Ctrl+O shortcut in the Proficy iFIX WorkSpace (while in run mode).

Disable Open Accelerator

Using the Ctrl+P shortcut in the Proficy iFIX WorkSpace (while in run mode).

Disable Print Accelerator

Setup the Report Generator

If you used the Report Generator prior to upgrading to iFIX with FIX Desktop, and want to use the

Report Generator on the upgraded system with Office 2000 or later, be sure to obtain and install SIM

(software improvement module) number WAAE2371.

You can obtain more information on this SIM and the files associated with it from the Proficy

GlobalCare Support web site, http://support.gefanuc.com. This SIM is available in FIX32 product download area.

If you are unsure if this SIM was installed before the upgrade, you can reinstall it.

To install the files associated with this SIM:

1. Copy the new file VDA2000.XLA to the directory in which your current Report Generator files exist.

2. Copy the REPRTLNK.XLA, HIST_OPN.XLA and GEN.XLA files to the directory in which your current Report Generator files exist. REPRTLNK.XLA and GEN.XLA replace the existing Report Generator files which shipped with iFIX 4.0.

3. Copy the STARTUP.XLA file to the directory in which your Excel Startup Directory exists.

STARTUP.XLA replaces the existing Report Generator files.

See the Proficy GlobalCare Support web site for more details.

61

Setting up for Remote OPC Server Access

Before you can access remote OPC servers in iFIX, such as through the Discovery and Auto-Assembly

Component (DAC) and the OPC Client driver, you must make sure that your firewall settings are correct (if you are using Windows XP or Windows Vista), and that the DCOM settings for your operating system are correct.

You may not be able to access remote OPC servers if these settings are not correctly set. For more detailed information on configuring these settings, refer to the following topics:





Setting Up the Windows XP or Vista Firewall for Use with Remote OPC Servers

Setting Up DCOM for Use with Remote OPC Servers

Setting Up the Windows XP or Vista Firewall for Use with

Remote OPC Servers

If Firewall security is enabled on Windows XP or Windows Vista, you may need to modify or add items to the Exceptions list.

GE Fanuc recommends that you enter these settings on the local machine running iFIX, as well as on the remote machine that has the OPC server you want to use.

To modify Windows Firewall settings:

1. Log into the Windows operating system with an Administrator account.

2.

3.

Open the Control Panel and double-click Windows Firewall. The Windows Firewall dialog box appears. For the Windows Vista operating system, you also need to click the "Allow a program through Windows firewall" option.

Click the Exceptions tab and make sure that the File and Printer Sharing check box is selected. The following figure shows an example of this dialog box in Microsoft Windows

XP.

62

4. Click the Add Port button. The Add a Port dialog box appears. The following figure shows an example of this dialog box in Microsoft Windows XP.

63

Getting Started

5.

6.

In the Name field, enter a name for the port.

In the Port Number field enter 135.

7. Select the TCP option.

8. Click OK to save your changes.

 The port name you entered is now listed with its check box selected.

9. Select the Add Program button. The Add a Program dialog box appears. The following figure shows an example of this dialog box in Microsoft Windows XP.

64

10. Click the Browse button. A Browse dialog box appears.

65

Getting Started

11. Navigate to the System32 folder. This folder is found under the operating system folder

(usually Windows or WINNT).

12. In the System32 folder, select the OPCENUM.exe file, and then click the Open button.

 In the Add a Program dialog box the path field displays the full path to, and including, the

OPCENUM.exe file.

66

13. Click OK.

 OPCENUM.exe should now be listed in the Exceptions list with its check box selected.

67

Getting Started

14. Complete steps 9-13 for each OPC server that you want to access.

NOTES:

 If any OPC server that you want to use is a dll surrogate (an in-process dll and not an .exe),

you must add \system32\dllhost.exe into the Exceptions list.

 You must also add the GE Fanuc OPC Client driver by adding the file OPCDrv.exe into the

Exceptions list.

 OPCENUM must reside on the remote machine with the OPC server. While most OPC Server

applications install and register this file, some do not. You can download this file from www.opcfoundation.org. Currently it is contained within the OPC Core Components 2.00

Redistributable 2.30.msi file. After you download OPCENUM, run the .msi file.

68

Setting Up DCOM for Use with Remote OPC Servers

iFIX supports DCOM (Distributed Component Object Model) to browse remote OPC Servers. If you want to grant only certain users permission to launch or access the remote OPC servers, you can use the Windows utility, DCOMCNFG.EXE for configuring DCOM applications. DCOMCNFG.EXE is usually located in your operating system

’s \system32 folder.

When OPC Servers register, they set up initial custom DCOM security settings to enable users on the network to access and launch the Server. On large networks, it is recommended that you modify these settings to avoid confusion and inadvertent changes to a running OPC Server.

If Firewall security is enabled on Windows XP or Vista, you must also modify or add items to the

Exceptions list. Refer to Setting Up the Windows XP or Vista Firewall for Use with Remote OPC

Servers.

IMPORTANT NOTES:

1. GE Fanuc recommends that all users that need to access remote OPC Servers be members of the Administrators group. To facilitate this, GE Fanuc recommends creating a users group to contain individual users that need to access remote OPC servers.

For example, for the Discovery and Auto-Assembly Component, create a group named

“DAC” and add those users who will log into the operating systems and access remote OPC servers.

Add the users Tom, Denise, and Harry into the DAC group. Each of these users will also be added into the Administrators group. This DAC group should also contain the following builtin security principals: INTERACTIVE; NETWORK; SYSTEM.

2. To make any OPC Client / OPC Server application work via DCOM, changes need to be made on both sides, especially if you intend to use Asynchronous I/O communications.

3. OPCENUM must reside on the remote machine with the OPC server. While most OPC Server applications install and register this file, some do not. You can download this file from www.opcfoundation.org. Currently it is contained within the OPC Core Components 2.00

Redistributable 2.30.msi file. After you download OPCENUM, run the .msi file.

4. This section applies to OPC servers that need to use DCOM communications, regardless of whether the OPC server uses Serial or Ethernet devices.

5. If OPC communications is confined to a single machine (that is, using COM, but not DCOM), it continues to work properly without making changes to DCOM settings.

6. If you do not plan to use iFIX to connect remotely to OPC servers, then you may not need to change your DCOM settings.

7. If this is the first time you are connecting to (or allowing connections from) other machines on the network, you must run the Windows Network Wizard (from Start > Control Panel) to set up your computer to run on your network. This allows you to share resources on your computer with other computers on your network. It is recommended that you run the Network

Setup Wizard before modifying the DCOM settings.

DCOM Settings

The following procedures provide general guidelines for configuring DCOM settings. Differences between Windows 2000, Windows 2003, Windows XP, and Windows Vista are noted.

69

Getting Started

To launch the DCOM configurator:

1. From the Start menu, select or type Run. The Run dialog box appears.

2. Type dcomcnfg and click OK.

 In Windows 2000, the Distributed COM Configuration Properties dialog box appears.

 In Windows Server 2003, Windows XP, and Windows Vista the Component Services dialog box appears.

System-wide COM/DCOM Limits Settings

This procedure modifies the system-wide DCOM settings for the computer on Windows XP and

Windows Vista operating systems. When these steps are implemented, they apply to all programs that use COM/DCOM communications on the computer.

IMPORTANT: Be careful when making any system-wide security changes. Any inadvertent changes may affect the entire system and may cause some or all programs to stop working.

For Windows XP and Windows Vista:

To update system-wide COM/DCOM limits settings:

1. On the Component Services dialog box, expand Component Services, then expand the

Computers item.

2. Right-click My Computer and choose Properties. The My Computer Properties dialog box appears.

3. Click the COM Security tab. There are four permissions on this dialog box.

 You may need to make changes to the Edit Limits… for Access Permissions and Launch and

Activation Permissions.

 Do not change the Edit Default… settings, since this will change the default settings for all programs and applications running on the computer.

4. Click Access Permissions > Edit Limits

… The Access Permission dialog box appears. i. Select the user labeled ANONYMOUS LOGON, and then select the Allow check box for Remote Access. ii.

NOTE: This setting is necessary for applications that use OPCenum.exe to function and also for some OPC Servers and OPC Clients that set their DCOM

‘Authentication

Level

’ to ’None’ to allow anonymous connections. If you do not use such applications, you may not need to enable remote access for anonymous logon users.

Select the user labeled Everyone, and then select the Allow check box for Remote

Access.

70

IMPORTANT: Since

“Everyone” includes all authenticated users, it is recommended to add these permissions to a smaller subset of users. One way of doing this is to create a Group named

“OPC” and add all user accounts to this Group that will access any

OPC server. Then substitute

“OPC” everywhere that “Everyone” appears in the entire

DCOM configuration dialogs.

5. iii. Click OK to close the Access Permissions dialog box and return to the My Computer

Properties dialog box.

Click Launch and Activation Permissions > Edit Limits

… The Launch Permission dialog box appears.



For each user or group (preferably add the

“OPC” group) that needs to launch or activate the

OPC server, or participates in OPC / DCOM communications, make sure that the Local Launch,

Remote Launch, Local Activation, and Remote Activation check boxes are selected.

6. Click OK to save your changes, then click OK again to save and close the My Computer

Properties dialog box.

OPC Server-specific DCOM Settings

The following procedures detail the OPC server-specific COM/DCOM settings on all supported

Windows operating systems. You must change the OPC server settings so remote users can access the

OPC server as an OPC Data Access Server. This procedure is also necessary for the GE Fanuc OPC

Client driver to connect to, launch, configure, and start the remote OPC servers.

GE Fanuc recommends that all users requiring access to remote OPC servers be members of the

Administrators group.

IMPORTANT: Since the

“Everyone” group includes all authenticated users, it is recommended to add these permissions to a smaller subset of users.

GE Fanuc recommends creating a group to contain individual users that need to access remote OPC servers. GE Fanuc also recommends that all users who require access to remote OPC Servers be members of the Administrators group.

For example, for Discovery and Auto-Assembly Component, create a group named

“DAC” and add those users who will log into the operating systems and access remote OPC servers. Add the users

Tom, Denise, and Harry into the DAC group. Each of these users will also be added into the

Administrators group. This DAC group should also contain the following built-in security principals:

INTERACTIVE; NETWORK; SYSTEM. Then substitute

“DAC” everywhere that “Everyone” appears in the entire DCOM configuration dialogs.

To modify driver-specific DCOM settings:

In Windows 2000

1. Access the DCOM configurator (dcomcnfg.exe). The Distributed COM Configuration

Properties dialog box appears.

2. Click the Applications tab. A list of applications displays.

71

Getting Started



3.

4.

Select the OPC server you want to modify and click the Properties button. The <Selected

OPC Server> Properties dialog box appears.

Click the General tab. The Authentication Level should be left as

“Default”. This uses the default authentication rules that are set in the system-wide DCOM settings.

5.

6.

Click the Location tab and make sure that the Run Application on this computer check box is selected.

Click the Security tab and select the Use Custom option for each of the permissions in this dialog box and edit as described in the following steps.

7. In the Use custom access permissions area, click Edit. The Registry Value Permissions for

Access Permission dialog box appears.

Click the Add button. The Add Users and Groups dialog box appears. 8.

9. From the Names list, select the OPC group and click the Add button. The OPC group displays in the Add Names list.

10. Set Type of Access to Allow Access, then click OK to return to the Registry Value

Permissions dialog box. The OPC group is now displayed.

11. Click OK.

12. In the Use custom launch permissions area, click Edit. The Registry Value Permissions for

Launch Permission dialog box appears.

13. Click the Add button. The Add Users and Groups dialog box appears.

14. From the Names list, select the OPC group and click the Add button. The OPC group displays in the Add Names list.

15. Set Type of Access to Allow Launch, then click OK to return to the Registry Value

Permissions dialog box. The OPC group is now displayed.

16. Click OK.

17. In the Use custom configuration permissions area, click Edit. The Registry Value Permissions for <selected OPC server> dialog box appears.

18. Click the Add button. The Add Users and Groups dialog box appears.

19. From the Names list, select the OPC group and click the Add button. The OPC group displays in the Add Names list.

20. Set Type of Access to Full Control, then click OK to return to the Registry Value Permissions dialog box. The OPC group is now displayed.

72

21. Click OK.

22. In the <Selected OPC Server> Properties dialog box, click OK.

23. Repeat steps 2 through 22 for each OPC server you need to access remotely.

24. When you are done, click OK to close the Distributed COM Configuration Properties dialog box.

In Windows 2003

1. Access the DCOM configurator (dcomcnfg.exe). The Component Services dialog box appears.

2. Expand the Component Services item, then expand the Computers item, and then expand the

My Computer item.

Select the DCOM Config object. A list of applications displays. 3.

4.

5.

Right-click the OPC server you want to modify and choose Properties. The <Selected OPC

Server> Properties dialog box appears.

Click the General tab. The Authentication Level should be left as

“Default”. This uses the default authentication rules that are set in the system-wide DCOM settings.

6.

7.

8.

9.

Click the Location tab and make sure that the Run Application on this computer check box is selected.

Click the Security tab and select the Customize option for each of the permissions in this dialog box and edit them as described in the following steps.

In the Launch Permissions area, click Edit. The Launch Permissions dialog box appears.

Click the Add button. The Select Users and Groups dialog box appears.

10. Click the Advanced Button. The Select Users and Groups dialog box appears.

11. Click the Find Now button. In the search results, select the OPC group and click OK. The

Select Users and Groups dialog box displays the OPC group.

12. Click OK to return to the Launch Permission dialog box. The OPC group is displayed in the

Group or user names list.

13. Select the OPC group and select the Allow check box for Launch Permission.

14. Click OK to return to the <Selected OPC Server> Properties dialog box.

15. In the Access Permissions area, click Edit. The Access Permission dialog box appears.

16. Click the Add button. The Select Users and Groups dialog box appears.

73

Getting Started

17. Click the Advanced Button. The Select Users and Groups dialog box appears.

18. Click the Find Now button. In the search results, select the OPC group and click OK. The

Select Users and Groups dialog box displays the OPC group.

19. Click OK to return to the Access Permission dialog box. The OPC group is displayed in the

Group or user names list.

20. Select the OPC group and select the Allow check box for Access Permission.

21. Click OK to return to the <Selected OPC Server> Properties dialog box.

22. In the Configuration Permissions area, click Edit. The Change Configuration Permission dialog box appears.

23. Click the Add button. The Select Users and Groups dialog box appears.

24. Click the Advanced Button. The Select Users and Groups dialog box appears.

25. Click the Find Now button. In the search results, select the OPC group and click OK. The

Select Users and Groups dialog box displays the OPC group.

26. Click OK to return to the Change Configuration Permission dialog box.

27. Select the OPC group and select the Allow check boxes for Full Control and Read,

28. Click OK to return to the <Selected OPC Server> Properties dialog box.

29. Click OK.

30. Repeat steps 2 through 29 for each OPC server you need to access remotely.

31. When you are done, close the Component Services dialog box.

In Windows XP and Windows Vista

1. Access the DCOM configurator (dcomcnfg.exe). The Component Services dialog box appears.

2. Expand the Component Services item, then expand the Computers item, and then expand the

My Computer item.

Select the DCOM Config object. A list of applications displays. 3.

4.

5.

Right-click the OPC server you want to modify and choose Properties. The <Selected OPC

Server> Properties dialog box appears.

Click the General tab. The Authentication Level should be set to

“Default,” if it is not already.

This uses the default authentication rules that are set in the system-wide DCOM settings.

74

6.

7.

Click the Location tab and make sure that the "Run Application on this computer" check box is selected.

Click the Security tab and select the Customize option for each of the permissions in this dialog box and edit them as described in the following steps.

8. In the Launch and Activation Permissions area, click Edit. The Launch Permission dialog box appears for Windows XP, or the Launch and Activation Permission dialog box appears for

Windows Vista.

9. Click the Add button. The Select Users or Groups dialog box appears.

10. Click the Advanced Button. Another Select Users or Groups dialog box appears.

11. Click the Find Now button. In the search results, select the OPC group and click OK. The

Select Users or Groups dialog box displays the OPC group.

12. Click OK to return to the Launch Permission dialog box. The OPC group is displayed in the

Group or user names list.

13. Select the OPC group and then select the Allow check boxes for Local Launch, Remote

Launch, Local Activation, and Remote Activation permissions.

14. Click OK to return to the <Selected OPC Server> Properties dialog box.

15. In the Access Permissions area, click Edit. The Access Permission dialog box appears.

16. Click the Add button. The Select Users or Groups dialog box appears.

17. Click the Advanced Button. Another Select Users or Groups dialog box appears.

18. Click the Find Now button. In the search results, select the OPC group and click OK. The

Select Users or Groups dialog box displays the OPC group.

19. Click OK to return to the Access Permission dialog box. The OPC group is displayed in the

Group or user names list.

20. Select the OPC group and then select the Allow check boxes for Local Access and Remote

Access permissions.

21. Click OK to return to the <Selected OPC Server> Properties dialog box.

22. In the Configuration Permissions area, click Edit. The Change Configuration Permission dialog box appears.

23. Click the Add button. The Select Users or Groups dialog box appears.

24. Click the Advanced Button. Another Select Users or Groups dialog box appears.

25. Click the Find Now button. In the search results, select the OPC group and click OK. The

75

Getting Started

Select Users or Groups dialog box displays the OPC group.



26. Click OK to return to the Change Configuration Permission dialog box. The OPC group is displayed in the Group or user names list.

27. Select the OPC group and then select the Allow check boxes for Full Control and Read permissions.

28. Click OK to return to the <Selected OPC Server> Properties dialog box.

29. Click OK.

30. Repeat steps 2 through 29 for each OPC server you need to access remotely.

31. When you are done, close the Component Services dialog box.

iFIX and Windows Vista

iFIX 4.5 supports Microsoft

® Windows® Vista, Business, Enterprise, and Ultimate Editions.

Additionally, for iClients, iFIX supports Microsoft

® Windows® Vista Ultimate Edition. If you are upgrading your iFIX install, be aware that Microsoft does not recommend upgrading Windows XP or

2003 to Windows Vista.

When using iFIX in Windows Vista, be aware of the following limitations when working with these products:



GE Fanuc OPC Client Driver

– If you want to run the OPC Client driver as a service, iFIX must also run as a service. Likewise, if you want to run iFIX as a service, the OPC Client driver must run as a service. You cannot run one as a service, without the other also running as a service.



If you want to run the OPC Client driver on the Microsoft Windows Vista operating system, be sure to check with the vendor of your OPC Server software to see if your OPC Server supports

Vista.





Third-Party OPC Servers

– Be aware that at the time of the iFIX 4.5 release there were a limited number of OPC Servers supported on Windows Vista. iFIX was tested with the

OPC20iFIX.exe (Intellution.OPCiFIX) Server

– an OPC 2.05a (out of process) Data Server.

DDE Driver

– The DDE driver is not supported on Window Vista when iFIX is configured to run as a service."





Proficy Historian

– You cannot install or use the Proficy Historian on Windows Vista. In other words, you cannot collect iFIX data with Proficy Historian or chart against Proficy

Historian tags in Windows Vista.

Proficy Change Management

– Running the Proficy Change Management (PCM) Server or

76











 the Client/Scheduler on iFIX 4.5 nodes is not supported on Microsoft Windows Vista, since

Proficy Change Management 5.6 and 5.7 do not support Windows Vista.

NetDDE

– NetDDE (NetDDE.exe) is not supported on Windows Vista for security reasons.

Windows Vista cannot serve out DDE shares.

Terminal Server

– iFIX does not support running a Terminal Server on Windows Vista, or an upgraded server running Remote Desktop Protocol (RDP) 6.0. However, iClients installed on Windows Vista using RDP 6.0 can connect to a server node running Windows 2000

Server, Windows 2000 Advanced Server, or Windows Server 2003, with RDP 5.0, 5.1, or 5.2.

Drivers and DAC

– If you want to run a driver on the Microsoft Windows Vista operating system, be sure to check with the vendor of your driver software to see if your driver supports

Vista. Your driver must support Vista to interface with the Discovery and Auto-Assembly

Component (DAC) on Windows Vista.

Biometric Toolkit

– The iFIX Biometric Toolkit is supported in Windows Vista only if you have a biometric solution that is Windows Vista compatible.

VisiconX

Make sure that your data sources use UNC pathing, rather than mapped network drives. For example, use a path like this: \\myserver\users\\mydb.mdb, instead of this: d:\myserver\users\mydb.mdb for your data source. Otherwise, you may experience connection errors.

PMON

The GE Fanuc diagnostic utility PMON.exe does not work when iFIX is running as a service in Windows Vista.

Additionally, be aware of the following differences when working with iFIX in Windows Vista, as opposed to other operating systems:



Security

Microsoft Windows Vista includes many new security enhancements. Due to these enhancements, there may be changes you need to make for the users who run iFIX. For more information, refer to the Windows Vista and Security section.





Drive Mapping

Security and data protection enhancements in Windows Vista may require you to use data sources with UNC pathing, as opposed to mapped network drives. For more information, refer to the Windows Vista and Mapped Network Drives section.

Sleep Mode

Be aware that an iFIX View node running on Window Vista will lose its connection to the iFIX network when going into "Sleep" mode.

Windows Vista and Security

In Windows Vista, the basic user groups changed. There are three main types: Administrators, Users, and Guests. In Windows Vista, the Power Users group can exist; however, it is a modified version of the standard Users group. Like Power Users, the standard Users group allows for some of the rights granted to Administrators, but not all.

As an Administrator, you have all of the rights you need to operate a SCADA node (start and stop iFIX), as well as run iFIX as a service. However, if you want to allow a user in the Power Users group

77

Getting Started

to operate an iFIX SCADA node or run iFIX as a service, you need to make some adjustments to the user rights.

To allow a Power User to operate an iFIX SCADA node, you need to add the individual user or group to the "Create Global Objects" policy. If you want the user or group to run iFIX as a service, then you need to run the GrantUserFixServiceRights command for the user or group. A user must be a Power

User or greater to run a SCADA node on Windows Vista.

NOTE: The DDE driver is not supported on Vista when iFIX is configured to run as a service.

6.

7.

8.

To allow a user who is not an Administrator to operate an iFIX SCADA node:

1. In Windows Vista, log in as an Administrator.

2.

3.

Click the Start button, and in the Search box, type secpol.msc and press Enter. The Local

Security Policy window appears.

In the tree, double-click Security Settings, and then Local Policies, to view the contents of the

Local Policies folder.

Click the User Rights Assignment item to view the policies. 4.

5. Double-click the Create Global Objects policy. The Create Global Object Properties dialog box appears.

Click Add User or Group. The Select Users or Groups dialog box appears.

Enter an individual user name, or group name, such as "Power Users."

Click OK to add the user.

To allow a user who is not an Administrator to run iFIX as a service:

1. In Windows Vista, click the Start button, and in the Search box, type Command Prompt and press Enter. If the Command Prompt does not appear immediately, double-click the

Command Prompt from the list of results.

2. In the Command Prompt window, type:

GrantUserFixServiceRights GRANT FIX USERNAME where FIX is the name of the service (iFIX) that you want to grant rights to, and USERNAME is the name of the user or group that you want to grant rights to.

Running iFIX as a Service with Other Services

If you plan to run iFIX as a service on Windows Vista along with other services such as the iFIX scheduler, the OPC A&E Server, and the OPC DA Server, make sure that your user has the rights to start/stop/pause all of those services. A user who is a member of the Administrators group usually has all these privileges. (This can be verified by opening the Windows service control panel and checking if the Start/Stop setting is enabled.) To grant a user who is a standard user (Power User) rights to start/stop/pause these services, log in to Windows as an Administrator and run the following

78

commands:

GrantUserFixServiceRights GRANT IFIXSCHEDULER username

GrantUserFixServiceRights GRANT IFIXOPCAESRV username

GrantUserFixServiceRights GRANT IFIXOPCDA username

Examples: Using GrantUserFixServiceRights

If you want to allow a Power User named QA1 to run iFIX as a service, type:

GrantUserFixServiceRights GRANT FIX QA1

If you want to allow all Power Users to run iFIX as a service, type:

GrantUserFixServiceRights GRANT FIX "Power Users"

If you later need to revoke the right to run iFIX as a service, use the following command:

GrantUserFixServiceRights REVOKE FIX USERNAME where SERVICENAME is the name of the service that you want to revoke rights from, and

USERNAME is the name of the user or group that you want to revoke rights from.

Windows Vista and Mapped Network Drives

In Windows Vista, when you elevate an application and it runs under a different context, the application may or may not be related to the user who is logged in. As a result, drive mappings are not available in an elevated session unless you specifically map them while it is being elevated.

To resolve this issue, make sure that your system data sources use UNC pathing, rather than mapped network drives. For example, use a path like this: \\myserver\users\\mydb.mdb, instead of this: d:\myserver\users\mydb.mdb for your data source. Otherwise, you may experience connection errors.

Be sure to select the "Remember my password" check box in the Connection dialog box when setting up your UNC pathing. By doing this, the next time you log in, your connection will succeed without failing.

For example, you add a system data source (ODBC) with a mapped network drive for use with

VisiconX. When you configure a VisiconX data control and select a data source on the Database tab, an error appears (error number -2147467259 indicates that you do have a vaild path). To resolve this issue, configure your data source with UNC pathing instead.

EDA Applications and Windows Vista

When running an iFIX Easy Database Access (EDA) application on Windows Vista, you may experience errors due to inadequate permissions. For instance, the logged in user may not have enough permissions to create the necessary global memory that the application requires, or the user may not be running an application with the fullest permissions (running elevated).

The "Allocation of Shareable Memory Failed" message is one of the messages that can appear in this scenario. To resolve these types of issues, elevate the application to the fullest privileges.

79

Getting Started

To mark an application for elevation using an external manifest:

1. Create a text file named yourappname.exe.manifest, where yourappname is the name of the application you want to elevate.

2.

3.

In a text editor such as Notepad, yourappname.exe.manifest.

Paste the following lines of code into the text file:

4.

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>

<assembly xmlns="urn:schemas-microsoft-com:asm.v1" manifestVersion="1.0">

<assemblyIdentity version="1.0.0.0"

processorArchitecture="X86"

name="yourappname"

type="win32"/>

<description>Description of your application</description>

<!-- Identify the application security requirements. -->

<trustInfo xmlns="urn:schemas-microsoft-com:asm.v2">

<security>

<requestedPrivileges>

<requestedExecutionLevel

level="highestAvailable"

uiAccess="false"/>

</requestedPrivileges>

</security>

</trustInfo>

</assembly>

Save the file in the same folder as the yourappname.exe, where yourappname is the name of the application you want to elevate.

TIP: If yourappname.exe was built with an internal manifest, yourappname.exe will ignore the external manifest created in the above manner. Instead, you need rebuild the application with the new elevation information.

IMPORTANT: If you have run the executable before performing the above steps and it failed to work, see this link for information on adding a manifest after the fact: http://blogs.msdn.com/vistacompatteam/archive/2006/11/13/manifest-and-the-fusioncache.aspx.

80

To mark an application for elevation with an internal manifest:



Build your application's executable (.exe) file with the elevation information built into it. Be aware of issues with fusion cache when you use an external manifest file. For more information, refer to the MSDN web site: http://blogs.msdn.com/vistacompatteam/archive/2006/11/13/manifest-and-the-fusioncache.aspx.

 For more information on User Account Control (UAC), refer to the Microsoft web site: http://www.microsoft.com/downloads/details.aspx?familyid=ba73b169-a648-49af-bc5ea2eebb74c16b&displaylang=en.

To elevate a third party application that you do not own the source code for:



Microsoft recommends writing a wrapper to invoke the application's executable (.exe) file in an elevated manner. If this is not feasible, GE Fanuc suggests the following:



Create a shortcut (.lnk) to the yourappname.exe, where yourappname is the name of the application you want to elevate.



Right-click the shortcut and select Properties. Configure the shortcut to run as an

Administrator.

Other iFIX Installation Considerations

This chapter provides information you need to consider when using databases or drivers and iFIX.

This information includes:





Supported Drivers

Special Keyboard Buttons

Supported Drivers

iFIX supports the following drivers:



Version 6.x



Version 7.1 or higher

NOTE: Version 7.01 drivers have known issues with iFIX and are not supported.

If you want to run a driver on the Microsoft Windows Vista operating system, be sure to check with the vendor of your driver software to see if your driver supports Vista.

81

Getting Started

Special Keyboard Buttons

Some computer keyboards have special buttons for e-mail launch, internet launch, search, and other functions. These keyboard buttons may disable certain key macros or allow users to circumvent iFIX security measures.

GE Fanuc recommends that you reprogram or disable the software that operates such special buttons.

Refer to your computer's documentation for instructions on disabling these buttons.

Networking

This chapter provides general information about the iFIX supported network protocol, supported network software, supported file servers, and installing network cards with Windows. Refer to the following sections for more information:





Supported Networking Protocol

Supported File Servers





Handling Time Zones when Using Networked FIX 6.15 and iFIX Nodes

Networking with Other iFIX and FIX Nodes

Supported Networking Protocol

If you decide to implement a networked iFIX system, make sure that all nodes are using compatible network configurations. iFIX supports TCP/IP interfaces for peer-to-peer communication. NetBIOS is no longer supported.

GE Fanuc has tested and recommends 3COM plug-in boards and built-in network adapters from

Compaq, Dell, and Gateway.

If you have difficulty networking your computer, refer to the Troubleshooting chapter of the Setting

Up the Environment manual to pinpoint and resolve your problems.

Supported File Servers

GE Fanuc supports using a file server to store System Configuration Utility, alarm area database, security, historical, and recipe data files and file server-based iClients. iFIX does not require a file server.

The following operating systems for file servers are recommended:



Microsoft Windows 2000 Server/Advanced Server.





Microsoft Windows Server 2003.

Novell NetWare. If you use a NetWare file server, GE Fanuc recommends that you use

82

Microsoft's Client Service for NetWare on your iFIX node.

Refer to your file server documentation for installation and configuration instructions.

If a file server becomes unavailable and an iFIX node attempts to access a file, you may experience no response, slow response, or time-outs. These conditions are a result of continuously polling all available drives while it waits for a response from the file server. It is recommended that you store a backup copy of the files you need on the local node. GE Fanuc does not recommend using the file server for files if it is susceptible to failure.

Handling Time Zones when Using Networked FIX 6.15 and iFIX

Nodes

In FIX 6.15, time zones are ignored when passing alarms over the network. For example, if a FIX 6.15 node in Boston (Eastern Standard Time), generates an alarm at 4:00 PM, then a FIX 6.15 node in

Chicago (Central Standard Time) displays that alarm with a time stamp of 4:00 PM.

By comparison, iFIX uses time zones and adjusts the time stamp accordingly. For example, if an iFIX node in Boston generates an alarm at 4:00 PM, another iFIX node in Chicago displays the alarm with a time stamp of 3:00 PM.

When FIX 6.15 and iFIX transfer alarms over the network, the time zone handling is similar to FIX

6.15 as the following table shows.

When... Then...

A FIX 6.15 node in Boston generates an alarm at 4:00 PM

An iFIX node in Chicago displays the alarm with a time stamp of 4:00 PM.

An iFIX node in Boston generates an alarm at 4:00 PM

A FIX 6.15 node in Chicago displays the alarm with a time stamp of 4:00 PM.

Networking with Other iFIX and FIX Nodes

iFIX 4.5 can share data and alarms with previous versions of iFIX, as well as with FIX32 6.15 and FIX v7.0. FIX32 view nodes will only receive alarms from alarm areas A-P.

IMPORTANT: You cannot run iFIX and FIX v7 at the same time on a single computer.

83

Getting Started

84

Index

.

.CSV files .........................................................35

.RCX file ..........................................................34

.RCX files.........................................................46

.RCY file ..........................................................34

.RCY files.........................................................46

.RPT File ..........................................................39

A

ActiveWindow object.......................................30 adding passwords to .RPT file..........................39

Advanced Historian, not supported with iFIX ..............................................................29

B

backing up FIX files .........................................36 backup, file server files.....................................82 buttons, special keyboard .................................82

C

color mapping errors.........................................30 computers, recommended for iFIX.....................3

D

Database Dynamos iFIX installation............................................31 updating ........................................................31

Database Dynamos ...........................................31 database migration............................................45 date format, supported ......................................10 demo mode troubleshooting ...............................7 disabling iFIX as a service ...............................13 disk space requirements......................................4 driver configuration, exporting.........................35

E

environment protection.....................................36 exporting driver configuration ..................................... 35 security configuration report........................ 38

F

failover after upgrading to iFIX with FIX Desktop .. 53 understanding............................................... 54 failover configuration option one described .................................... 54 option one example...................................... 54 option one steps ........................................... 55 option two described.................................... 54 option two example ..................................... 56 option two steps ........................................... 56 file server backup files.................................................. 82 recommended types ..................................... 82

FIX files, restoring after upgrade ........................ 42

I/O driver configuration ............................... 44

FIX 6.15, time zone considerations ................. 83

FIX 7.0,starting after installing iFIX ............... 19

FIX 7.x drivers .......................................................... 19 using with iFIX ............................................ 19

FIX Desktop .................................................... 33

FixUserPreferences.ini ...................................... 4 format, time and date ....................................... 10

FreeDiskSpace parameter .................................. 4 functionality conversion, Database Dynamos.. 41

G

getting started, iFIX ........................................... 1

GrantUserFixServiceRights ............................. 77

85

Getting Started

hardware optional.........................................................22 requirements for iFIX .....................................2

H

hardware key described.........................................................5 installing .........................................................5 parallel port.....................................................5 recovery for improper installation ..................5 replacing defective..........................................8 serial number ..................................................5 troubleshooting ...............................................7 upgrading......................................................24

USB port.........................................................5 hardware requirements memory...........................................................4 recommended computers ................................3

HASP..................................................................8

I

I/O drivers preparing for upgrade ...................................35 verifying upgrade and database migration....45 iFIX installation failure .........................................32 memory requirements .....................................4 new title bar ..................................................28 online registration .........................................19 optional hardware .........................................22 paths .............................................................13 picture compatibility.....................................29 previous version compatibility .....................30 recommended computers ................................3 recommended file servers .............................82 recommended video drivers..........................11 regional settings............................................10 resolving displays .........................................29 software requirements ....................................9 iFIX (cont.) supported drivers ......................................... 81 supported file servers ................................... 82 supported network protocol ......................... 82 upgrading from iFIX 2.5 and earlier ............ 24 using with FIX ............................................. 19 using with Microsoft Office......................... 20 iFIX 2.5, upgrading from................................. 24 iFIX environment, iFIX nodes........................... 2 iFIX installation

Dynamo sets ................................................ 31 overview ........................................................ 2 iFIX installation................................................. 2 iFIX SIMs ........................................................ 41 iLicense file ..................................................... 24 importing recipe files ................................................... 46 security configuration .................................. 46 installing iFIX after uninstalling iVisualize ......................... 20 newest drivers .............................................. 41 product hardware key .................................... 5 with FIX v7.................................................. 19 insufficient disk space ....................................... 4

K

keyboard, special buttons................................. 82

L

limitations ........................................................ 76

M

mappings.......................................................... 79 memory optimizing.................................................... 12 requirements .................................................. 4

Microsoft Office and iFIX ............................... 20

N

networked FIX 6.15 and iFIX nodes ............... 83

86

networks supported in iFIX..........................................82 new user..............................................................1

O

Office 2000.......................................................61 optimizing virtual memory ...............................12 optional hardware for iFIX ...............................22 overview iFIX installation..............................................2 upgrading from iFIX to FIX Desktop ...........40

P

parallel port hardware key ..................................5 passwords in .RPT file ...................................................39 reconfiguring ................................................47

PDB folder........................................................35 pictures compatibility in earlier versions of iFIX ......29 converting from FIX to iFIX ........................30 created in an older version of iFIX ...............30 from iFIX 2.1................................................30 preparing for iFIX with FIX Desktop upgrade .........................................................34 preserving settings when upgrading .................26

Process Database ..............................................41

Proficy GlobalCare Support web site ...............41

Proficy Historian and iFIX ...............................28

R

RCC folder .......................................................34

RCM folder.......................................................34

Recipe Builder ..................................................46 recipe files ........................................................34 reconfiguring passwords after upgrade to

FIX Desktop .................................................47 recovery, improper USB key install ...................5 registration for iFIX..........................................19

Report Generator ..............................................61 reports security configuration .................................. 38 system configuration.................................... 40 requirements iFIX hardware................................................ 2 iFIX software ................................................. 9 memory.......................................................... 4 resolving iFIX displays.................................... 29 restoring backed up files.................................. 42 running iFIX as a service iFIX paths .................................................... 13 required application feature ......................... 13

Terminal Server ........................................... 13

Windows Services ....................................... 13 running iFIX as a service ................................. 13

S

SCADA failover settings ................................. 53 security configuration exporting...................................................... 38 importing ..................................................... 46

Security.RPT ................................................... 39
