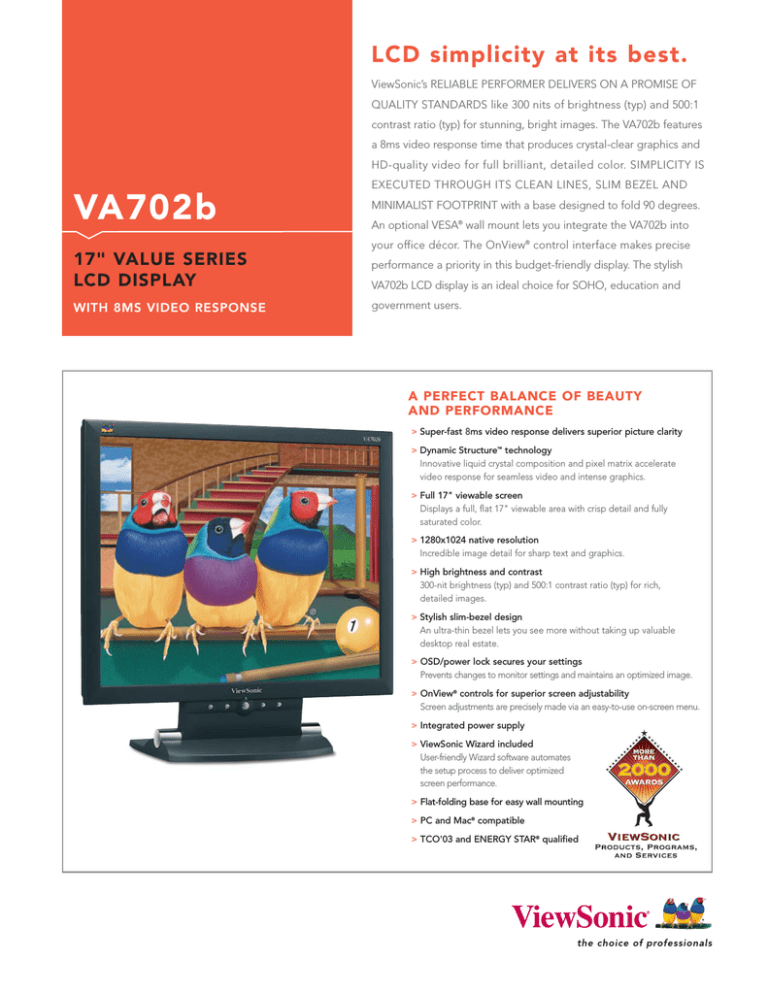

LCD simplicity at its best.
ViewSonic’s RELIABLE PERFORMER DELIVERS ON A PROMISE OF
QUALITY STANDARDS like 300 nits of brightness (typ) and 500:1
contrast ratio (typ) for stunning, bright images. The VA702b features
a 8ms video response time that produces crystal-clear graphics and
HD-quality video for full brilliant, detailed color. SIMPLICITY IS
EXECUTED THROUGH ITS CLEAN LINES, SLIM BEZEL AND
VA702b
MINIMALIST FOOTPRINT with a base designed to fold 90 degrees.
An optional VESA® wall mount lets you integrate the VA702b into
your office décor. The OnView® control interface makes precise
17" VALUE SERIES
LCD DISPLAY
performance a priority in this budget-friendly display. The stylish
WITH 8MS VIDEO RESPONSE
government users.
VA702b LCD display is an ideal choice for SOHO, education and
A PERFECT BALANCE OF BEAUTY
AND PERFORMANCE
> Super-fast 8ms video response delivers superior picture clarity
> Dynamic Structure™ technology
Innovative liquid crystal composition and pixel matrix accelerate
video response for seamless video and intense graphics.
> Full 17" viewable screen
Displays a full, flat 17" viewable area with crisp detail and fully
saturated color.
> 1280x1024 native resolution
Incredible image detail for sharp text and graphics.
> High brightness and contrast
300-nit brightness (typ) and 500:1 contrast ratio (typ) for rich,
detailed images.
> Stylish slim-bezel design
An ultra-thin bezel lets you see more without taking up valuable
desktop real estate.
> OSD/power lock secures your settings
Prevents changes to monitor settings and maintains an optimized image.
> OnView® controls for superior screen adjustability
Screen adjustments are precisely made via an easy-to-use on-screen menu.
> Integrated power supply
> ViewSonic Wizard included
User-friendly Wizard software automates
the setup process to deliver optimized
screen performance.
> Flat-folding base for easy wall mounting
> PC and Mac® compatible
> TCO'03 and ENERGY STAR® qualified
VA702b
1 7 " VA L U E S E R I E S L C D D I S P L AY W I T H 8 M S V I D E O R E S P O N S E
LCD
Type
17" color TFT active matrix SXGA LCD
Display Area
13.3" horizontal x 10.6" vertical; 17.0" diagonal
Optimum Resolution 1280x1024
VIDEO INPUT
Contrast Ratio
500:1 (typ)
Viewing Angles
160° horizontal, 160° vertical @ contrast ratio > 5:1
Response Time
8ms (typ)
Light Source
Long life, 50,000 hrs. (typ)
Brightness
300 cd/m2 (typ)
Panel Surface
Anti-glare
Analog
RGB analog (75 ohms, 0.7 Vp-p)
Frequency
Fh: 30~82kHz, Fv: 50~85Hz
H/V separated (TTL)
Sync
COMPATIBILITY
CONNECTOR
POWER
CONTROLS
PC
VGA up to 1024x768 non-interlaced
Mac®*
Power Mac™ G3/G4/G5 up to 1280x1024
Analog
15-pin mini D-sub
Power
3-pin AC plug (CEE22)
Voltage
AC 100–240V (universal), 50/60Hz (auto switch)
Consumption
35W (typ)
Basic
Power, 1, down, up, 2
OnView®
Auto image adjust, contrast, brightness, ViewMatch® color
adjust (sRGB, 9300K, 6500K – default 5400K, RGB), information (resolution, H-freq, V-freq, pixel clock, model number,
serial number, web site), manuel image adjust (H. size, H.
position, V. position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD
background), memory recall
OPERATING
Temperature
32–104°F (0–40°C)
CONDITIONS
Humidity
10–90% (non-condensing)
DIMENSIONS
Physical (mm)
378mm x 374mm x 196mm
(W x H x D)
Physical (in.)
14.9" x 14.7" x 7.7"
WEIGHT
Net
9.9 lb. (4.5 kg)
Gross
13.6 lb. (6.2 kg)
REGULATIONS
UL, cUL, FCC-B, CB report, CE, NOM, TUV/G5, TUV/GS
(covers ISO13406-2), TCO'03, GOST-R, PCBC, TUV-S EMI/B,
VCCI, SASO, BSMI, CCC, ENERGY STAR,® PSB, C-TICK,
ENERGY, IRAM, ICES-B, RoHS
POWER MANAGEMENT
Meets TCO'03 and ENERGY STAR® standards
PACKAGE CONTENTS
LCD display, video cable, power cable, Quick Start Guide,
WARRANTY
Three-year limited warranty on parts, labor and backlight
ViewSonic Wizard
ViewSonic Corporation’s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Customer Service and Technical Support: (800) 688-6688 • Sales: (888) 881-8781 • [email protected] • ViewSonic.com
*Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details.
Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2006 ViewSonic Corporation. All rights reserved. [12918-01B-06/06] VA702b-1
