jtag_tms jtag_tck jtag_tdi jtag_tdo jtag_trst gnd 3v3

jtag_tms jtag_tck jtag_tdi jtag_tdo jtag_trst gnd 3v3

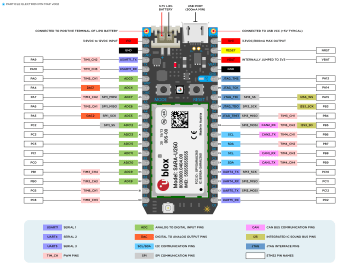

PARTICLE ELECTRON PIN MAP v002
3.7V LiPo
BATTERY
USB PORT
(500mA MIN)
CONNECTED TO POSITIVE TERMINAL OF LIPO BATTERY
CONNECTED TO USB VCC (+5V TYPICAL)
VUSB
3.9VDC to 12VDC INPUT
VIN
3V3
GND
RESET
+
3.3VDC/800mA MAX OUTPUT
NRST
PA9
TIM1_CH2
USART1_TX
PA10
TIM1_CH3
USART1_RX
PA0
TIM5_CH1
ADC0
D7
JTAG_TMS
PA13
PA4
DAC1
ADC4
D6
JTAG_TCK
PA14
PA7
TIM3_CH2
SPI1_MOSI
ADC7
A5
D5
JTAG_TDI
SPI3_SS
I2S3_WS
PA15
PA6
TIM3_CH1
SPI1_MISO
ADC6
A4
D4
JTAG_TDO
SPI3_SCK
I2S3_SCK
PB3
PA5
DAC2
SPI1_SCK
ADC5
A3
D3
JTAG_TRST SPI3_MISO
SPI1_SS
ADC12
A2
D2
SPI3_MOSI
PC3
ADC13
A1
D1
SCL
PC5
ADC15
A0
D0
SDA
PC1
ADC11
B5
C5
SCL
PC0
ADC10
B4
C4
SDA
PC2
VBAT
VBAT
INTERNALLY JUMPED TO 3V3
GND
TIM3_CH1
PB4
CAN2_RX
TIM3_CH2
CAN2_TX
TIM4_CH1
PB6
TIM4_CH2
PB7
CAN1_RX
TIM4_CH3
PB8
CAN1_TX
TIM4_CH4
PB9
I2S3_SD
PB5
PB1
TIM3_CH4
ADC9
B3
C3
UART4_TX
SPI3_SCK
PC10
PB0
TIM3_CH3
ADC8
B2
C2
UART4_RX
SPI3_MISO
PC11
PC6
TIM8_CH1
B1
C1
UART5_TX
SPI3_MOSI
PC12
PC8
TIM8_CH3
B0
C0
UART5_RX
USART1
SERIAL 1
ADC
ANALOG TO DIGITAL INPUT PINS
UART4
SERIAL 2
DAC
DIGITAL TO ANALOG OUTPUT PINS
UART5
SERIAL 3
SCL/SDA
I2C COMMUNICATION PINS
TIM_CH
PWM PINS
SPI
SPI COMMUNICATION PINS
PD2
CAN
CAN BUS COMMUNICATION PINS
I2S
INTEGRATED IC SOUND BUS PINS
JTAG
JTAG INTERFACE PINS
STM32 PIN NAMES
