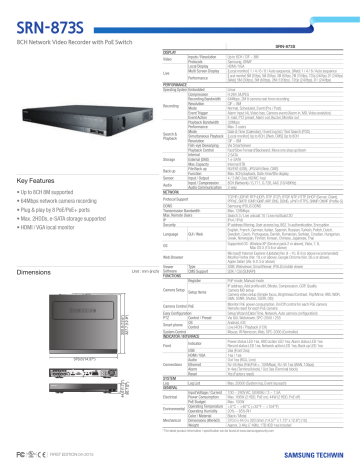

SRN-873S
8CH Network Video Recorder with PoE Switch
SRN-873S
Display
Video
Live
Inputs / Resolution
Protocols
Local Display
Multi Screen Display
Performance
Performance
Operating System Embedded
Compression
Recording Bandwidth
Resolution
Recording
Mode
Event Trigger
Event Action
Playback Bandwidth
Performance
Mode
Search &
Simultaneous Playback
Playback
Resolution
Fish-eye Dewarping
Playback Control
Internal
External (DAS)
Storage
Max.Capacity
File Back up
Back up
Function
Sensor
Input / Output
Input / Compression
Audio
Audio Communication
Network
Key Features
• Up to 8CH 8M supported
• 64Mbps network camera recording
• Plug & play by 8 PoE/PoE+ ports
• Max. 2HDDs, e-SATA storage supported
• HDMI / VGA local monitor
Protocol Support
DDNS
Transmission Bandwidth
Max. Remote Users
IP
Security
Language
GUI / Web
OS
Web Browser
Dimensions
Unit : mm (inch)
Viewer
Software
Functions
Camera Setup
Type
CMS Support
Register
Setup Items
320.0
(12.6")
320.0
(12.6")
327.7
(12.9")
327.7
(12.9")
Camera Control PoE
Easy Configuration
PTZ
Control / Preset
OS
Smart phone
Control
System Control
Indicator / Interface
Front
370.0(14.57")
(14.57")
370.0
44.0 (1.73")
(1.73")
44.0
50.7 (2")
50.7
(2")
Connections
System
Log
General
Linux
H.264, MJPEG
64Mbps, 2M 8 camera real-time recording
CIF ~ 8M
Normal, Scheduled, Event (Pre / Post)
Alarm input (4), Video loss, Camera event (Alarm in, MD, Video analytics)
E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
32Mbps
Max. 3 users
Date & Time (Calendar) / Event log list / Text Search (POS)
[Local monitor] Up to 8CH, [Web, CMS] Up to 8CH
CIF ~ 8M
Via Smartviewer
Fast/Slow Forward/Backward, Move one step up/down
2 SATA
1 e-SATA
Internal 8TB
BU/EXE (USB), JPG/AVI (Web, CMS)
Max. 8CH playback, Date-time/title display
4 / 3 (NO 2ea, NO/NC 1ea)
8CH (Network) / G.711, G.726, AAC (16/48KHz)
2-way
TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client),
PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S)
Samsung iPOLiS DDNS
Max. 128Mbps
Search 3 / Live unicast 10 / Live multicast 20
IPv4 / IPv6
IP address filtering, User access log, 802.1x authentication, Encryption
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch,
Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian,
Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
Supported OS : Window XP (Service pack 2 or above), Vista, 7, 8,
Mac OS X (10.6 or above)
Microsoft Internet Explorer (Updated Ver. 8 ~10, IE 9 or above recommended)
Mozilla Firefox (Ver. 19.x or above), Google Chrome (Ver. 26.x or above),
Apple Safari (Ver. 6.0.3 or above)
SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
SDK / CGI (SUNAPI)
PnP mode, Manual mode
IP address, Add profile edit, Bitrate, Compression, GOP, Quality
Camera MD setup
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR,
D&N, SSNR, Shutter, SSDR, DIS)
Monitor PoE power consumption, On/Off control for each PoE camera
Remote reset for each PoE camera
Setup Wizard (Date/Time, Network, Auto camera configuration)
Via GUI, Webviewer, SPC-2000 / 255
Android, iOS
Live (4CH) / Playback (1CH)
Mouse, IR Remocon, Web, SPC-2000 (Controller)
USB
HDMI / VGA
Audio
Ethernet
Alarm
Reset
Power status LED 1ea, HDD action LED 1ea, Alarm status LED 1ea
Record status LED 1ea, Network action LED 1ea, Back up LED 1ea
2ea (Front 2ea)
1ea / 1ea
Out 1ea (RCA, Line)
RJ-45 8ea (PoE/PoE+, 100Mbps), RJ-45 1ea (WAN, 1Gbps)
In 4ea (Terminal block) / Out 3ea (Terminal block)
Yes (Factory reset)
Log List
Max. 20000 (System log, Event log each)
Indicator
Input Voltage / Current
Power Consumption
PoE Budget
Operating Temperature
Environmental
Operating Humidity
Color / Material
Mechanical
Dimensions (WxHxD)
Weight
Electrical
Up to 8CH / CIF ~ 8M
Samsung, ONVIF
HDMI / VGA
[Local monitor] 1 / 4 / 6 / 8 / Auto sequence, [Web] 1 / 4 / 8 / Auto sequence
[Local monitor] 8M (20fps), 5M (30fps), 3M (50fps), 2M (150fps), 720p (240fps), D1 (240fps)
[Web] 5M (30fps), 3M (60fps), 2M (120fps), 720p (240fps), D1 (240fps)
100 ~ 240V AC, 50/60Hz / 3 ~ 1.5A
Max. 166W (2 HDD, PoE on), 44W (2 HDD, PoE off)
Max. 100W
+0°C ~ +40°C (+32°F ~ +104°F)
20% ~ 85% RH
Black / Metal
370.0 x 44.0 x 320.0mm (14.57" x 1.73" x 12.6") (1U)
Approx. 3.4Kg (7.49lb), 1TB HDD 1ea included
* The latest product information / specification can be found at www.samsungsecurity.com
FIRST EDITION 04-2015
