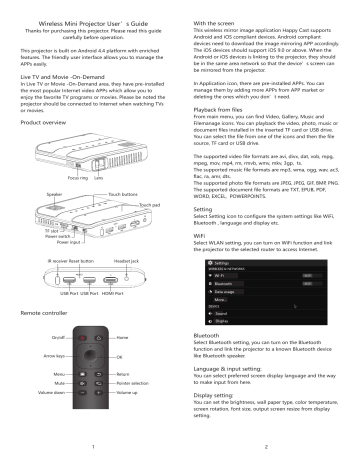

Wireless Mini Projector User’s Guide
Thanks for purchasing this projector. Please read this guide
carefully before operation.
This projector is built on Android 4.4 platform with enriched
features. The friendly user interface allows you to manage the
APPs easily.
With the screen
This wireless mirror image application Happy Cast supports
Android and iOS compliant devices. Android compliant
devices need to download the image mirroring APP accordingly.
The iOS devices should support iOS 9.0 or above. When the
Android or iOS devices is linking to the projector, they should
be in the same area network so that the device’s screen can
be mirrored from the projector.
Live TV and Movie -On-Demand
In Live TV or Movie -On-Demand area, they have pre-installed
the most popular Internet video APPs which allow you to
enjoy the favorite TV programs or movies. Please be noted the
projector should be connected to Internet when watching TVs
or movies.
In Application icon, there are pre-installed APPs. You can
manage them by adding more APPs from APP market or
deleting the ones which you don’t need.
Playback from files
From main menu, you can find Video, Gallery, Music and
Filemanage icons. You can playback the video, photo, music or
document files installed in the inserted TF card or USB drive.
You can select the file from one of the icons and then the file
source, TF card or USB drive.
Product overview
Focus ring
The supported video file formats are avi, divx, dat, vob, mpg,
mpeg, mov, mp4, rm, rmvb, wmv, mkv, 3gp, ts.
The supported music file formats are mp3, wma, ogg, wav, ac3,
flac, ra, amr, dts.
The supported photo file formats are JPEG, JPEG, GIF, BMP, PNG.
Lens
Speaker
The supported document file formats are TXT, EPUB, PDF,
WORD, EXCEL, POWERPOINTS.
Touch buttons
Touch pad
Setting
Select Setting icon to configure the system settings like WiFi,
Bluetooth , language and display etc.
TF slot
Power switch
WiFi
Power input
Select WLAN setting, you can turn on WiFi function and link
the projector to the selected router to access Internet.
IR receiver Reset button
Headset jack
Settings
WIRELESS & NETWORKS
Wi-Fi
Bluetooth
USB Port USB Port HDMI Port
Data usage
More...
DEVICE
Remote controller
Sound
Display
On/off
Home
Arrow keys
OK
Menu
Return
Mute
Pointer selection
Volume up
Volume down
Bluetooth
Select Bluetooth setting, you can turn on the Bluetooth
function and link the projector to a known Bluetooth device
like Bluetooth speaker.
Language & input setting:
You can select preferred screen display language and the way
to make input from here.
Display setting:
You can set the brightness, wall paper type, color temperature,
screen rotation, font size, output screen resize from display
setting.
1
2
About Projector
From here you can find the detailed projector system
information like CPU type, system version and make system
upgraded.
About Projector
Intelligent Upgrade
Status
network, and other information
Legal information
Model number
atm7039s
Android version
Kernel version
Accessories included
1. AC Power adapter (ACl00-240V.50-60HZ DC5V/2.5A) x 1
2. Remote controller x 1
3. HDMI cable x 1
4. Tripod x 1
Warning
This projector is a Class A electronic product. In the using
environment, please note fire, water, dust protection.
The product itself has a cooling function, during operation,
please do not block the cooling air outlet. When the product is
faulty, do not attempt to open the cabinet for maintenance.
Contact your dealer for professional service.
Specifications
Display Technology
Ti DLP Technology
Resolution
854 * 480 (WVGA)
Contrast Ratio
1000 : 1
Focus
Manual
Brightness
80 Lm
Aspect ratio
16 : 9
HDMI port x 1
Input/Out port
Audio out ( Φ3.5mm) x 1
Micro SD slot x 1
USB-Type A port x 2
Embedded battery
4000mAh rechargable battery
Operation system
Android 4.4 Lollipop
Embedded memory
4GB
Wireless image
mirroring technology
AirPlay、Miracast、DLNA supported(by APP)
WiFi/Bluetooth
IEEE 802.11ac/b/g/n and Bluetooth 4.0 supported
Speaker
2W
Remote control
By IR remote controller
Power input
DC 5V 2.5A ( Micro USB port)
Dimension & weight
110(L) x 110(W) x 23.5(H) mm ; 240g
3
