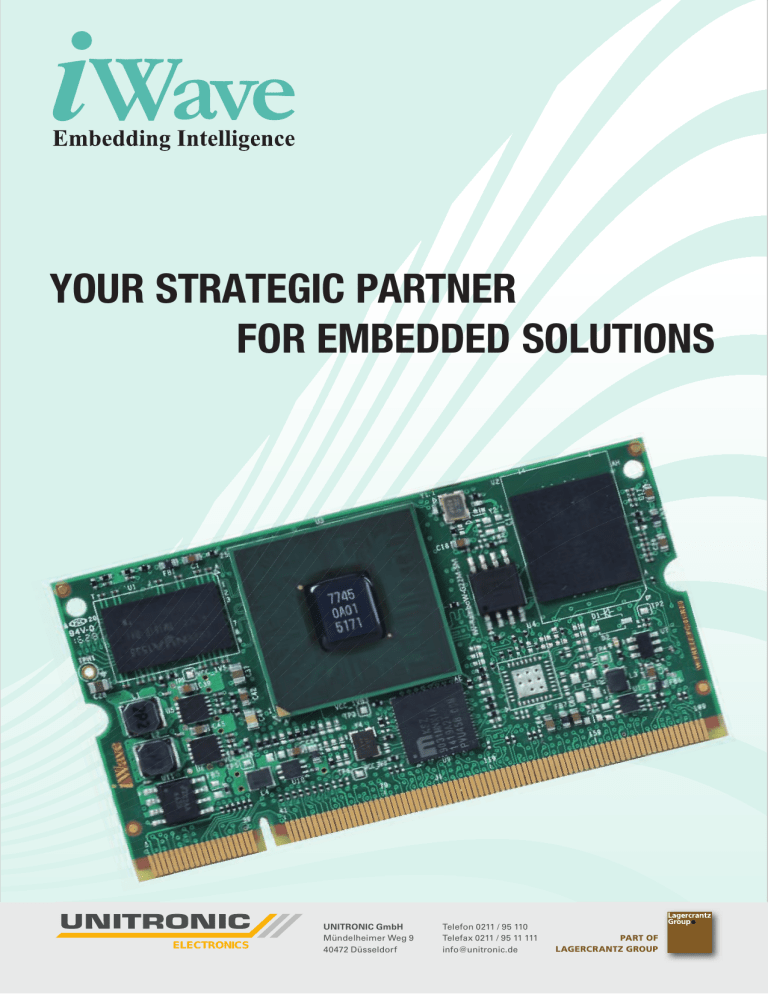

YOUR STRATEGIC PARTNER

FOR EMBEDDED SOLUTIONS

ELECTRONICS

UNITRONIC GmbH

Mündelheimer Weg 9

40472 Düsseldorf

Telefon 0211 / 95 110

Telefax 0211 / 95 11 111 [email protected]

PART OF

LAGERCRANTZ GROUP

e best in class specification. The registered trademarks are proprietary of respective owners. For the latest in formation please check the website: www.iwavesystems.com

Phone

, 26786245

iW-Product-Catalog-BR-R1.8

1

Content

1. About Us

2. Engineering Design Services

3. FPGA IP Cores

4. Microcontroller Expertise

5. Linux Expertise

6. Windows Embedded Compact 7 Expertise

7. Vx Works Expertise

8. Comparison of SODIMM SOM Modules

9. RZ/G1E SODIMM System On Module

10. RZ/G1E SODIMM Development Kit

11. i.MX6 SODIMM System On Module

12. i.MX6 SODIMM Development Kit

13. i.MX6UL SODIMM System On Module

14. i.MX6UL SODIMM Development Kit

15. Comparison chart for Q7 SOM’s

16. RZ/G1M,G1N Q7 System On Module

17. RZ/G1M Q7 Development Kit

18. i.MX6 Q7 System On Module

19. i.MX6 Q7 Development Kit

20. Cyclone V SOC Q7 System On Module

21. Cyclone V SOC Q7 Development Kit

22. DM 8168 Q7 System On Module

23.

DM 8168 Q7 Development Kit

24. i.MX6 MXM System On Module

25. i.MX6 MXM Development Kit

26. RZ/G1E Pico ITX Single Board Computer

27. i.MX6 Pico ITX Single Board Computer

28. Arria 10 SoC System On Module

INDEX

Page No.

16

18

20

10

12

14

22

24

26

28

30

32

34

36

38

40

42

44

46

48

2

3

4

5

6

7

8

9

ABOUT US

iWave looks back with pride at a decade and half of technological experience absorbing and resolving technical complexities that enables large corporations to focus on its core competencies and succeed by shortening their product development life cycle. iWave is a midsized, well-co-ordinated company located in Bangalore with 180 passionate staff. The company renders its expertise in diverse yet focused domains which include industrial, automotive and medical.

iWave boasts of numerous IP's few of which can be licensed. Hardware IP's include System on Module

(SOM) and Single Board Computer (SBC). Software IP's include Board Support Package (BSP) and NDIS drivers. Processor Cores, Peripheral Cores, Interface Cores, Storage Cores and Video Interface Cores are some of the FPGA IP core categories including legacy cores like x86 IP core.

iWave's business model is flexible and strives to adapt to customer requirements. iWave recognized the opportunity in embedded industry to have a proven set of well-tested electronic sub-systems that could be reused across multiple products and industry segments. This realization led to the design of System on

Modules (SOM). These well tested and proven industry standard modules helped our clients reduce the development cycle by almost 50% and cut down on the time to market.

In terms of hardware design all the intricate electronics are integrated on to the SOM, which helps customers to focus only on application specific hardware design. Unlike our competitors, iWave provides customized BSP's (Board support packages) for Linux, Android and Windows Embedded Compact 7 platforms, which are developed in-house. This enables iWave to support its clients with the BSP's for various OS platforms in unison with the hardware. iWave is proud to be one of the few companies to pioneer solutions on the Qseven form factor.

In a nutshell, iWave has the right set of experience, hardware, software, FGPA skills and business strategy to be a dependable technology partner. In addition to these compelling factors, iWave pursues on the path of continual quality improvement which constitutes to successful business.

Domain Focus

2

Engineering Design Services

Design Services Offered

Hardware:

Board Design services based on

Embedded Controllers/Processors/DSP that includes Low and High Speed Design, inhouse

Multilayer PCB Design, Signal integrity & other required analysis and Testing.

Our Strengths:

With Very minimal / Zero Cuts and

Straps in prototyping incorporating Design for

Manufacturing (DFM) and Design for Testability

(DFT).

PRODUCT

CUSTOMER

MARKET CONCEPT

PRODUCTION

CERTIFICATION

DESIGN

QUALITY

ENGINEERING

SAMPLES

·

Processors:

Wide experiencing in providing

solutions using SOC’s like NXP, Renesas, TI, ARM,

Altera, Xilinx, Microsemi and Windows Embedded.

Concept to Market

i.MX6x, i.MX6UL, i.MX6 POP, Vybrid, MPC864x, i.MX27, i.MX257, i.MX258, i.MX233,

i.MX50, i.MX51,i.MX53, PowerPC 860, 8260, 750/755 from Freescale/NXP

·

Keystone II, DM355/64xx, DSP TMS320C6455, OMAP 3530, AM4377x, DM8168, Cc2541,

OMAP 850 from TI

·

ARMDA/PXA610, MC200, PXA255, PXA270 from Marvell, Atom Z5xx from Intel, AT91RM9200 from Atmel and RZ/G1M, SH4 from Renesas

Software and Wi-Fi :

Streaming

GUI Frame

TCP/IP

APIs

Application

Protocol

Wi-Fi station

Wi-Fi Stack

Wi-Fi Features Security Features

Open

WEP 64/128Bit

SoftAP (Hotspot)

Wi-Fi Direct

WPA2 AES/TKIP

WPA AES/TKIP

Displays

Video

Drivers

Camera

Bootloader

Storage

Wi-Fi

Others

3

FPGA IP Cores

FPGA IP Cores:

Processor Cores:

80186XL Processor

80188XL Processor

80188EB Processor

80186EC Processor

Peripheral Cores:

8237 DMA Controller

8259A Interrupt Controller

8254 Programmable Timer

8251 Serial Controller

8530 Multi-Protocol Controller

Storage Cores:

SATA Host Controller

SDXC Host Controller

SD / SDIO / MMC Host Controller

SD Memory Slave Controller

SDIO Slave Controller

NAND Flash Controller

ATAPI Host Controller

Interface Cores:

PCIe-ISA Bridge

PCIe to UART Bridge

PCI Controller

Serial FPDP (sFPDP)

DMA Core for PCIe Hard IP

PCIe to SD-MMC Bridge

SDIO to UART Controller

Video Interface Cores:

ARINC 818-2

Color Space Conversion

Camera/HDMI Video Input Interface

LCD/HDMI Video Output Interface

Alpha Blender

Video Encoder Interface

Video Decoder Interface

Video DeInterlacer

Video Scaler

Chroma Resampler iWave Systems is a leading FPGA design house with a wide range of FPGA IPs. iWave has catered to multiple customers across the globe by customizing and integrating the IPs, thereby reducing the effort, time to market and cost factors. iWave has a bundle of well tested and proven FPGA IP cores, which include Intel

80186 compatible Processor & peripheral cores, bus interfaces cores, video/multimedia cores and storage cores. All the FPGA IP cores provide standard and simple user interface for ease of use.

Our FPGA services include Design/Development,

Testing/Verification, Test suite development and RTL coding. We provide turnkey development services in

FPGA for High Speed Bus interfaces, protocols and transceivers, Integration of modules, Multi-million gates

FPGA Design Service Case Studies:

High resolution display controller

Health care terminal

Signalling control system

Radio board development

I-chart application

Rear view camera

Router Platform

OC 48 Reference platform

4

5

Microcontroller Expertise

---------------------------------------------------

PlC18F85J11 based project

LED, GPIO, ADC, I2C, Reset

In-Style Programming

Flash Programming

Custom protocol between

PlC & i.MX6

--------------------------------

------

-----------------------------

Vybrid VF5xx/VF6xx SOM

------

ARM Cortex M4 + ARM

Cortex A5 MCU

MQX RTOS & Linux

USB 2.0, LCD, ADC, DAC

256 Mb DDR3 RAM

256 Mb NAND Flash

-----------------------------

----------------------------------------------------

88MC200 based M2M

Communication Device

ARM Cortex M3

512 KB SRAM

512 KB EPROM

Flash up to 1 Mb

----------------------------------

------

------

----- -----

-----

-----

--------------------------------

ARM7 TDMI based

Reference platform

LCD / Touch screen

FPGA based logic

Mp3 decoding, ADPCM

CF and SD memory I/F

c Linux with micro-

windows /PIM support

--------------------------------

----------------------------------------------------

Renesas Synergy based

Healthcare IoT

Synergy SK-S7G2

Healthcare Sensors

MQTT, IoT protocol for cloud

Ethernet Wi-Fi connectivity

----------------------------------

----------

--------------------------------

CC 2541 based BLE sensor module

---------

BLE 4.0 support

50Mb RAM

256Mb Flash

SP02 sensor via SPI

--------------------------------

Linux Expertise

Streaming

TCP/IP

Linux Application

Protocol

GUI Frame

APIs

Linux Kernel Versions

Linux 2.6.19/3.0.35/3.10.14/3.10.53/3.10.61

Linux Drivers

Audio

Touch

I2C eMMC

DPRAM

SPI

RTC

LVDS/

LCD

CAN

DDR3

QSPI

NOR

SATA

HDD

Power Management

Character

LCD

Wi-Fi

USB Full speed/

High speed

GPIO

NAND

Flash

CSI/

MIPI

SD

Ethernet

UART

Bootloader

Boot Medias

MiniSD, MicroSD, Ethernet, QSPI NOR, NAND, USB and eMMC

Processor Based Hardware Platform

Developed

Ported

6

7

Windows Embedded Compact Expertise

Silverlight GUI

Apps

WEC Application

Win32/MFC

Applicaton

WEC Device Drivers

Test Application

Audio

Touch

I2C

CSI/

MIPI eMMC

DPRAM

SPI

SD

RTC

LVDS/

LCD

GPIO

Ethernet

DDR3

QSPI

NOR

SATA

HDD

UART

Power Management

Character

LCD

Wi-Fi

USB Full speed/

High speed

CAN

NAND

Flash

E-Boot / U-Boot Loader

Boot Medias

SD,MicroSD,Ethernet,QSPI NOR,NAND and eMMC

Windows Embedded Compact Versions

NXP i.MX27

WEC5.0/6.0/6.0R3/7.0/2013

Processor Based Hardware Platform

NXP i.MX51

NXP i.MX53

NXP i.MX6x

Altera

Cyclone

V SoC

Developed

Ported

VxWorks Expertise

VxWorks Application

Test Application

RTP Windml

Audio Out

Touch

Compact

Flash(CF)

SRAM

I2C

SWITCH

SPI

SD

Boot from SD

EEPROM

LVDS LCD

GPIO

VxWorks OS

RTC

USB Full Speed/High

Speed

VME Shared Memory

Network Driver

HDLC Frame

Protocol

GPMC

QSPI NOR

LED

Ethernet

UART

Seven

Segment LED

PRUICSS

Ethernet

VxWorks Boot Loader

Ethernet

Boot from QSPI

NOR Flash

VxWorks Version

VxWorks 6.9

VxWorks 6.6

Hardware

VxWorks 5.51

Ti’s

AM4337

NXP’s i.MX272

Motorola’s

5110

Motorola’s

MPC740

Developed Ported

8

Comparison of SODIMM SOM Modules

Features/SODIMM SOM

CPU i.MX6 Quad /Dual

SODIMM SOM

i.MX6 Quad/Dual core Cortex

A9 CPU @up to 1GHz

i.MX6 DL/Solo

SODIMM SOM

i.MX6 Dual Lite/Solo core Cortex

A9 CPU @up to 1GHz

RZ/GIE SODIMM

SOM

Renesas RZ/G1E Dual core

Cortex A7 CPU @1GHz

HDMI 1.4

LVDS

USB 2.0 Host

USB 2.0 OTG

CSI 8-bit Camera

Port

24 Bit RGB LCD IF

12S Audio

SD

Debug UART

Data UART

CAN

SPI

I2C

PWM

GPIOs

JTAG

Power Input

Operating

Temperature

Form Factor

PMIC

Graphics Core

Hardware Codecs

RAM

Flash Storage

NOR Flash

Micro SD*

NXP PF0100

OpenGL ES3.0,OpenVG1.1

H.264 1080p encode and decode H.264 1080p encode and decode H.264 1080p encode and decode

1GB DDR3 RAM (expandable)

4GB eMMC Flash(Expandable)

1GB DDR3 for DL CPU &512MB

for solo CPU (expandable)

4GB eMMC Flash(Expandable)

512MB DDR3 RAM (expandable)

4GB eMMC Flash(Expandable)

2MB SPI NOR (expandable)

-

2MB SPI NOR (expandable)

-

2MB SPI NOR (expandable)

On-Module Micro SD Slot

SODIMM edge connector Interfaces

PCIe Ports

SATA Ports

PCIe Gen2.0 x 1 Port

1 Port

Ethernet

10/100/1000 Mbps-1 Port

1 Port

1 Port

1 Port

1 Port

1 Port

1 Port

1 Port

1 Port

NXP PF0100

OpenGL ES2.0,OpenVG1.1

PCIe Gen2.0 x 1 Port

-

10/100/1000 Mbps-1 Port

1 Port

1 Port

1 Port

1 Port

1 Port

1 Port

1 Port

1 Port

Discrete power regulators

Power VR [email protected]

-

-

10/100/1000 Mbps-1 Port

10/100 Mbps-1 Port

-

-

1 Port

1 Port

1 Port (Optional)

1 Port

1 Port

1 Port

3 Ports

2 Ports

2 Ports

4 Ports

3.3V, 2.5A Typical

-40 C to +85 C

0 C to +70 C

Indstrial

Commercial

67.6mmx37mm SODIMM

3 Ports

2 Ports

2 Ports

4 Ports

3.3V, 2A Typical

-40 C to +85 C

0 C to +70 C

Indstrial

Commercial

67.6mmx37mm SODIMM

Up to 6 Ports

2 Ports

2 Ports

3 Ports

3.3V, 2A Typical

-40 C to +85 C

Indstrial

67.6mmx37mm SODIMM

OS Support

Linux 3.14.38, WEC7*,

Android Lollipop 5.0.0

Linux 3.14.38, WEC7*,

Android Lollipop 5.0.0

Linux 3.10.31,

Android Kitkat 4.4.2*

i.MX6UL SODIMM

SOM

i.MX6 Ultra Lite Cortex

A7 CPU @528MHz

NXP PF3001

-

-

256MB DDR3 (expandable)

256MB NAND flash(expandable)

Optional eMMC Flash

QSPI Flash (Optional)

On-Module Micro SD Slot*

-

-

10/100 Mbps-2 Port

-

-

-

2 Ports

1 Port

1 Port

1 Port

1 Port

3 Ports

2 Ports

1 Port

2 Ports

3.3V, 1A Typical

-40 C to +85 C

0 C to +70 C

Indstrial

Commercial

67.6mmx29mm

Linux 3.14.38

9

Note: * Optional features are not supported by default

System On Module iW-RainboW-G22M-SM

RZ/G1E SODIMM Module

iWave’s RZ/G1E based SODIMM system on module integrates power efficient ARM Cortex A7 Dual core operating @ 1GHz speed. The SOM packed with rich set of features and IO peripherals. It integrates HD hardware codecs, 3D graphics acceleration, DDR3 RAM, eMMC flash,

Micro SD slot, Gigabit and 10/100 Ethernet PHY. The SOM is ideally suitable for low power cost effective general embedded, industrial and video intensive applications.

APPLICATIONS:

HMI & Access Control, Digital Signage,

Industrial Control, IOT gateway, Healthcare devices, Point of sale, Network & high vision camera, Home & Office automation and White goods & applicances.

iW-RainboW-G22M-SM

HIGHLIGHTS

Dual Core ARM Cortex-A7 @ 1GHz

Dual channel HD encode & decode

Built in SGX540 3D Graphic acceleration

Dual On-SOM Ethernet PHY

Industrial temperature support available

Compact SODIMM form factor

Quick time to market

Technical & Quick customization support

Long term support: 10+ years

SPECIFICATIONS

CPU

Renesas’s RZ/G1E CPU @ 1GHz

Dual Core ARM Cortex A7

SGX540 Graphic Core @ 260MHz

Memory

512MB DDR3 (Expandable to 2GB )

1

4GB eMMC Flash (Expandable )

1

2MB SPI NOR Flash (boot code)

Micro SD slot (Optional)

Communication

Gigabit Ethernet PHY - 1 Port

10/100 Ethernet PHY - 1 Port

2

SODIMM Edge Interfaces

Debug USRT - 1 Port

10/100/1000 Ethernet - 1 Port

10/100 Ethernet - 1 Port

2

24bpp RGB display - 1 Port

8-bit CMOS Camera - 1 Port

2

SD(4-bit) - 1 Port

USB2.0 host - 1 Port

USB2.0 device - 1 Port

DATA UART - up to 6 Ports

CAN - 2 Ports

I2S audio - 1 Port

PWM - 2 Nos

I2C - 2 Ports

SPI - up to 2 Ports

PWM & GPIOs

JTAG Port

Temperature

-40°C to +85°C Industrial

Form Factor

67.6mm x 37mm SODIMM

Power Input

3.3V @ 2A through SODIMM Edge

Operating Systems :

Linux 3.10.31

Note1: By default 512MB DDR3 and 4GB eMMC only supported. Contact iWave systems for memory expansion support.

Note2: 10/100 Ethernet RMII and 8-bit camera interface is multiplexed in the CPU. At a time anyone can be used. By

default 8-bit camera interface is supported in the SOM.

10

RZ/G1E SODIMM SOM BLOCK DIAGRAM

Micro SD

Connector

DDR3 - 512MB

(Upgradable) eMMC - 4GB

(Upgradable)

SPI Flash - 2MB

(Upgradable)

SD (4bit)

RTC Controller

DDR3 (32bit)

MMC

QSPI

I2C3

VRTC

DBSC

MMC

QSPI

SDHI1

CPU

RZ/G1E

EtherAVB

GMII x 1

EtherMAC/

VI1

RMII x 1

USB0

USB1

SDHI0

DU 0

CAN0, CAN1

HSCIF1,

HSCIF2

SCIF1, SCIF2

SCIF3, SCIF5

SCIF4

MSIOF1,

MSIOF2

I2C3, I2C5

TPU0, TPU2,

TPU3

GPIOs

JTAG

JTAG

100/1000Mbps

Ethernet PHY

100/1000Mbps

Ethernet

VI 1

1,2

100Mbps

Ethernet PHY

(Optional)

USB OTG x 1

100Mbps

Ethernet

1

USB Host x 1

SD (4bit) x 1

RGB LCD (24bpp) x 1

I2S x 1

CAN x 2

SODIMM

PCB Edge

Connector

(200 Pin)

UART (with CTS & RTS) x 2

UART x 4

Debug UART

SPI x 2

2

I2C x 2

PWM x 3

GPIOs

Voltage Level

Translator

VRTC

Power to

Peripherals

1 Since EtherMAC and VI1 multiplexed in CPU, either one only can be used at a time. By default VI1is supported.

2 Since VI1 and MSIOF1 are shared the same SODIMM Edge pins, either one only can be used at a time. By default VI1is supported.

On - Board

Regulators

3.3V

OS SUPPORT

Linux 3.10.31

DELIVERABLES

RZ/G1E SODIMM Module

Board Support Packages

User Manual

OPTIONAL /MODULES

RZ/G1E Development Kit

Camera Module

CUSTOM DEVELOPMENT

BSP Development/OS Porting

Custom SOM/Carrier Development

Custom Application/GUI Development

Design Review and Support

11

Development platform iW-RainboW-G22D-SODIMM

RZ/G1E SODIMM platform

iWave’s RZ/G1E SODIMM development kit incorporates RZ/G1E

SODIMM SOM which is based on Renesas power efficient Dual core ARM Cortex A7 CPU cores operating @1GHz speed. The development board can be used for quick prototyping of various applications targeted by the RZ/G1E processor. With the 100mm x 72 mm Pico ITX size, the kit is highly packed with all the necessary on-board connectors to validate the RZ/G1E CPU features.

APPLICATIONS:

HMI & Access Control, Digital Signage,

Industrial Control, IOT gateway, Healthcare devices, Point of sale, Network & high vision camera, Home & Office automation and White goods & appliances.

iW-RainboW-G22D-SODIMM

HIGHLIGHTS

Dual Core ARM Cortex-A7 @

1GHz

Hardware HD encode & decode

Built in SGX540 3D Graphic acceleration

4.3” display kit with resistive touch screen

Ultra-compact form size

100mm x 72mm

SPECIFICATIONS

RZ/G1E SODIMM SOM:

Renesas’s RZ/G1E CPU @ 1GHz

SGX540 Graphics core @ 260MHz

512 MB DDR3

4GB eMMC Flash

10/100/1000 Ethernet PHY

Micro SD Slot

SODIMM Carrier board:

Gigabit Ethernet - 1 Port

USB 2.0 host - 2 Ports

USB2.0 device - 1 Port

SD Slot - 1 Port

8-bit CSI Camera - 1 Port

Audio Codec, In/Out Jack

RGB display - 1 Port

Resistive touch controller

Data UART - 1 Port

CAN PHY - 1 Port

Serial console on USB Port

IO expansion headers

JTAG header

Power Supply:

[email protected] DC Input

Operating Temperature:

0 C to 60 C

OS Support:

Linux 3.10.31

Form Factor: 100mm x 72mm

12

RZ/G1E SODIMM Development Board Block Diagram

JTAG Header

Micro SD

Connector

6Pin CAN Header

UART Header

RJ

45 Mag Jack1

USB TypeA

Connector1

USB TypeA

Connector2

USB Micro AB

Connector

RTC Battery

Control

Switches

JTAG

SDHI x 4bit

CAN

Transceiver

UART x 1

100/1000Mbps

CAN0

CAN0

HSCIF1

EtherAVB

2 Port

USB HUB

USB1

USB1

10/100Mbps

USB Device

SODIMM

PCB Edge Connector

(200pin)

RTC

3.3V

Power IN

SCIF4

RESET

SSI3/SSI4

JTAG

SDHI0

I2C5

EtherMAC

1

USB0

DU 0

TPUTO3

1

VI1/MSIOF1

2

HSCIF2,

SCIF1,SCIF5

CAN1

TPUTO0

GPIO’s

MSIOF2

UART

To On-Board Power

Circuit & Peripherals

3.3V Power

Regulator

UART to USB

Bridge

I2S

I2S Audio

Codec

I2C5

Resistive Touch

Controller

18bpp RGB

PWM

UART x 3

CAN X 1

PWM

GPIOs

I2C5

VI 1

MSIOF1

Power Jack

(5V)

Debug

USB Micro AB

Connector

Audio In/Out

Connector

Resistive TP

Connector

4.3” RGB

LCD Connector

8bit Camera

Connector

(OV7725/OV5640)

20Pin

Expansion

Header

20Pin

GPIO Header

1 Since EtherMAC and VI1 are multiplexed in RZ/G1E CPU, either one interface only can be supported in the RZ/G1E SOM.

2 Since VI1 and MSIOF1 are shared the same SODIMM Edge pins, either one interface only can be connected to the SODIMM Edge in the RZ/G1E SOM.

OS SUPPORT

Linux 3.10.31

DELIVERABLES

RZ/G1E SODIMM Development kit

Board Support Package

User Manual

OPTIONAL KITS/MODULES

4.3” RGB display Kit

Camera Module

CUSTOM DEVELOPMENT

BSP Development/OS Porting

Custom SOM/Carrier Development

Custom Application/GUI Development

13

System On Module iW-RainboW-G15M-SODIMM

i.MX6 SODIMM Module

iWave's new i.MX6 Quad/Dual/Dual Lite/Solo ARM Cortex A9 cpu based SODIMM module integrates all standard interfaces into a single board with ultra compact yet highly integrated platform that can be utilized across multiple embedded PC, system and industrial designs. It has got all the necessary functions that the embedded world demands.

APPLICATIONS :

Intelligent Industrial Control Systems,

Industrial Human-Machine interface, Ultra Portable Devices,

Home Energy Management Systems, Portable Medical

Devices.

iW-RainboW-G15M-SODIMM

HIGHLIGHTS

ARM Cortex A9 @ 1GHz/800MHz

Quad/Dual/Dual Lite/Solo core

Modular & Compact SODIMM form factor- 67.6mm X 37mm

HD 1080p encode and decode

2D/3D Hardware Graphics Acceleration

Technical and quick customization support

10+ years, long term support

CPU:

i.MX6 Q/D/DL/S @1GHz/800MHz ARM-Cortex-A9

PMIC:

MMPF0100

RAM:

1GB DDR3 for Q/D/DL (Expandable)

512MB DDR3 for Solo (Expandable)

2MB SPI NOR Flash (Expandable)

4GB eMMC Flash (Expandable)

Communication:

10/100/1000 Ethernet PHY

Power Input:

3.3V , 3.5A input through SODIMM edge

Operating Temperature:

-40°C to +85°C Industrial

0°C to +70°C Commerical

Form Factor:

67.6mm X 37mm SODIMM Form Factor

SODIMM Edge Connector Interfaces:

PCIe x 1

UART x 3

10/100/1000Mbps Ethernet

HDMI x 1

SATA x 1 *

USB Host 2.0 x 1

USB OTG 2.0 x 1

SD (4bit) x 1

I2S Audio x 1

LVDS Display x 1

24bpp RGB Display x 1

8bit Camera x 1

I2C X 2

GPIOs

PWM x 4

Debug UART Port

JTAG Port

Operating Systems:

Linux 3.14.38, Android Lollipop5.0, WEC 7*

Note: SATA support not available in i.MX6 DL/S

Note: * Denotes Optional Features.

[email protected]

14

i.MX6 SODIMM Module BLOCK DIAGRAM

DDR3 RAM

(512MB/1GB)

SPI Flash

(2 MB) eMMC

(4GB)

DDR3(64 bit)

SPI

MMC (8 bit) eSDHC4

CPU i.MX6Q

UART1

UART4

UART5

DISP0

LVDS

CSI0

HDMI1.4

eSDHC3

AUDMUX4

I2C1, I2C2

PCIe Bus

SATA II

PWM 1-4

UART2

SJC

GPIOs

Gigabit

Ethernet PHY

10/100/1000

Ethernet

UART x 3

RGB LCD (24bpp)

LVDS

Camera (8bit)

HDMI

SD (4bit)

I2S x 1

I2C x 2

PCIe x 1

SATA x 1

PWM x 4

Debug

JTAG

Status & Control Signals

Power to

Peripherals

On-board

PMIC

3.3V

SODIMM

PCB Edge

Connector

(200Pin)

OS SUPPORT

Linux 3.14.38

Android Lollipop 5.0

WEC 7*

DELIVERABLES

i.MX6 SODIMM Module

Board Support Packages

User Manual

OPTIONAL /MODULES

i.MX6 Development Kit

4.3” LCD Display Kit

Heat Spreader

Camera Module

CUSTOM DEVELOPMENT

BSP Development/OS Porting

Custom SOM/Carrier Development

Custom Application/GUI Development

Design Review and Support

15 www.iwavesystems.com

Development Platform iW-RainboW-G15D-SODIMM

i.MX6 SODIMM Development Kit

iWave's i.MX6 SODIMM development board incorporates i.MX6

SODIMM SOM Which is based on NXP's high performance i.MX6

Quad ARM Cortex A9 processor and the carrier board with optional

4.3” resistive display kit. The development board can be used for quick prototyping of various applications targeted by the i.MX6 processors. With the 100mm x72 mm Pico ITX size, the kit is highly packed with all the necessary on-board connectors to validate the i.MX6 CPU features.

APPLICATIONS:

Industrial HMI and Access Control, Industrial

Control and Automation, Medical and Healthcare Equipment,

Infotainment and Digital Signage, Portable Embedded Devices,

White Goods and Smart Appliances.

iW-RainboW-G15D-SODIMM

HIGHLIGHTS

High Performance Quad Cortex -

A9 CPU @ 1GHz

Gigabit Ethernet, PCIe, SATA,

LVDS, HDMI High Speed Interface

Support

4.3" Display Kit with Resistive touch screen

i.MX6Q SODIMM SOM:

i.MX6Q Cortex A9 CPU @ 1GHz

PF0100 PMIC

1GB DDR3

4GB eMMC Flash

10/100/1000 Ethernet PHY

SODIMM Carrier Board:

HDMI - 1 Port

SATA - 1 Port

Gigabit Ethernet - 1 Port

Half Mini PCIe - 1 Port

LVDS Display - 1 Port

USB 2.0 Host - 2 Ports

1

U l t r a C o m p a c t f o r m s i z e

1

100mm X 72mm

4.3" RGB LCD Display

2

Resistive Touch Controller

Audio Codec, In / Out Jack

8 - Bit CSI Camera Port

Serial Console on USB Port

Data UART - 1 Port

CAN PHY - 1 Port

IO Expansion Headers

JTAG Header

OS Support:

Linux 3.14.38

Android Lollipop 5.0.0

Power Input:

5V @ 2A DC Input

Operating Temperature:

0°C to +60°C

Form Factor: Pico ITX : 100mm x 72mm

nd

Note1: 2 USB Host Port and USB OTG Port is Multiplexed. Anyone can be used at a time.

Note2: 4.3" Display Kit is Optional Feature.

Compatible with Cortex A7 i.MX6UL SODIMM SOM

[email protected]

16

i.MX6 SODIMM Development Board Block Diagram

RTC Controller*

I2C1

JTAG Header

22 Pin SATA

Connector

Micro SD

Connector

RTC Battery*

Control

Switches

JTAG

SATA

SDHC x 4 bit

CAN1

CAN Header

UART

Header

RJ45 Mag

Jack1

USB Type A

Connector1

Mini PCle

Connector

CAN

Transceiver

UART0

10/100/1000 Mbps

RJ45 Mag

Jack2

USB Type A

Connector2

USB Micro AB

Connector

Note: * Denotes Optional Features.

2 Port

USB HUB

PCle x 1

10/100/1000 Mbps

USB Host /

USB OTG2

USB Switch

USB OTG1

CAN1

UART0

Ethernet1

USB Host /

USB OTG2

PCle x 1

Ethernet2

USB OTG1

SODIMM

PCB Edge Connector

(200 Pin)

RTC

Boot Mode,

USB Select,

ONOFF, RST

JTAG

SATA

SDHC

3.3V Power IN

Debug UART

I2S

Camera

LVDS

PWM1

I2C1

18bpp RGB

PWM3

I2C2

HDMI

UART1,

UART2

CAN2

SPI

PWM2

GPIO’S

UART

I2S

To On -Board Power

Circuits &Peripherals

3.3V Power

Regulator

UART to USB

Bridge

I2S Audio

Codec

Camera x 8 bit

I2C1

LVDS

PWM1

I2C1 Resistive Touch

Controller

18bpp RGB

I2C1

I2C2

HDMI

Data UART1,Data UART2

CAN2

SPI

PWM2

GPIO’S

Power Jack

(5V)

Debug USB Micro

AB Connector

Audio IN/OUT

Connector

OV7725 Camera

Connector

LVDS LCD

Connector and BKLT Conn

Resistive TP

Connector

Generic RGB

LCD Connector

Capacitive TP

Connector*

HDMI

Connector

Expansion

Header

GPIO Header

OS SUPPORT

Linux 3.14.38

Android Lollipop 5.0.0

WEC 7 *

DELIVERABLES

i.MX 6Q SODIMM Development Kit

Support Board Package

Hardware & Software User Manuels

OPTIONAL KITS/MODULES

4.3" RGB LCD Display Kit

Camera Modules

CUSTOM DEVELOPMENT

BSP Development/OS Porting

Custom SOM /Carrier development

Custom application /GUI development

Design review and support

17 www.iwavesystems.com

System On Module iW-RainboW-G18M-SM

i.MX6UL SODIMM Module

iWave's i.MX6UL based SODIMM CPU module integrates power efficient high performance ARM Cortex A7 CPU core operating up to 528MHz speed. The SOM is ultra-compact in size and integrated with on-board PMIC, Flash, DDR3 and dual Ethernet PHY. The SOM is ideally suitable for the cost & power optimized general embedded and industrial applications.

APPLICATIONS:

Industrial HMI, Access Control,

Mobile POS, Secure e-commerce, Energy Management,

IOT gateway, Industrial control & automation, Medical &

Healthcare equipment, White goods and Smart appliances

iW-RainboW-G18M-SM

HIGHLIGHTS

Power efficient Cortex-A7 @

528MHz

Compatible with Cortex A9 i.MX6Q/D/S SODIMM SOM

Ultra Compact form factor

67.6mm X 29mm

Advanced hardware enabled security

PMIC with DVFS support

Industrial temperature support available

Technical and quick customization support

10+ years, long term support

CPU:

i.MX6UL1/2/3 @ 528MHz

ARM Cortex A7 Core

PMIC:

PF 3001

RAM:

256MB DDR3 (Expandable)

256MB NAND Flash (Expandable)

Micro SD Slot (Optional)

1

1

eMMC Flash (Optional)

QSPI Flash (Optional

)

1

Power Input:

3.3V @ 1A through SODIMM Edge

Operating Temperature:

0°C to +70°C Commercial

-40°C to +85°C Industrial

Form Factor:

67.6mm x 29mm

SODIMM Edge Interfaces:

Debug UART

Data UART - 2 Ports

CAN - 2 Ports

SD(4-Bit) - 1 Port

10/100 Ethernet - Up to 2 Ports

2

USB OTG - 2 Ports

24bpp RGB display port

8Bit Parallel Camera Port

I2S Audio or JTAG

I2C Port

PWM - 2 Ports

GPIOs

Boot mode signals

Operating System:

Linux 3.14.38

Note1: At a time either NAND Flash or eMMC & QSPI flash or µSD & QSPI flash can be used in the SOM. By default NAND Flash is supported.

Note2: Applicable only to UL2, UL3 SOMs.If 2nd Ethernet (ENET2) not used, it can be used as additional 3 UARTs or Key pad 4x4 or RMII interface.

[email protected]

18

i.MX6UL SODIMM Module BLOCK DIAGRAM

DDR3 RAM

(256MB)

NAND Flash

1

(256MB)

QSPI

1

(Optional) eMMC

1

(Optional)

µSD Connector

(Optional)

1

DDR3 (16bit)

NAND (8bit)

MMDC

RAWNAND/

µSDHC2/

QSPI_A

QSPI (4bit)

MMC (8bit)

SD (4bit)

1 At a time either NAND Flash or eMMC & QSPI flash or µSD &

QSPI flash can be used in the SOM.By default NAND Flash is supported.

2 Applicable only to UL2, UL3 SOMs.If 2nd Ethernet (ENET2) not used,

it can be used as additional 3 UARTs or Key pad 4x4 or RMII interface.

ENET1

ENET2

RMII

10/100Mbps

Ethernet PHY

10/100Mbps

Ethernet

RMII

10/100Mbps

Ethernet PHY

10/100Mbps

Ethernet

2

RMII/DATA UART x 3/Keypad (4x4)

2

CPU i.MX6UL

USB OTG1

HS PHY

USB OTG2

HS PHY

SAI2/

JTAG

USB OTG1

USB OTG2

I2S

JTAG

LCDIF

CSIO

µSDHC1

FLEXCAN1,

FLEXCAN2

UART1

UART2, 3, 5

I2C1

PWM4,

PWM5

Tamper/

GPIOs

RGB LCD (24bpp)

Camera (8bit)/eCSPI x 2

SD (4bit)

CAN x 2

Debug UART

DATA UART x 3 (with CTS & RTS)

I2C x 1

PWM x 2

Tamper/GPIOs

3.3V

Power to

Peripherals

On-board

PMIC

SODIMM

PCB Edge

Connector

(200Pin)

Linux 3.14.38

i.MX6UL SODIMM Module

Board Support Packages

User Manual

OPTIONAL /MODULES

i.MX6UL Development Kit

4.3" LCD Display Kit

Camera Module

BSP Development/OS Porting

Custom SOM/Carrier Development

Custom Application/GUI Development

Design Review and Support

19

Development Platform iW-RainboW-G18D

i.MX6UL SODIMM Development Board

iWave's i.MX6UL development board incorporates i.MX6UL SODIMM SOM which is based on power efficient i.MX6UL ARM Cortex A7 processor and the carrier board with optional 4.3" resistive display kit. The development board can be used for quick prototyping of various applications targeted by the i.MX6UL processor. With the 100mm x 72mm Pico ITX size, and the kit is highly packed with all the necessary on-board connectors to validate the iMX6UL CPU features..

APPLICATIONS:

Industrial HMI & Access Control, Mobile POS &

Secure e-commerce, Energy Management & IOT gateway, Industrial control & automation, Medical & Healthcare equipment and White goods and Smart appliances.

iW-RainboW-G18D-SODIMM

HIGHLIGHTS

Power efficient Cortex-A7 @ 528MHz

Advanced hardware enabled security

PMIC with DVFS support

CPU:

NXP’s i.MX6UL2/3 @ 528MHz

ARM Cortex A7 Core

PMIC:

PF 3001

Memory:

256MB DDR3

256MB NAND Flash

Power Input:

5V @ 1A DC Input

Operating Temperature:

0°C to +60°C

Form Factor:

100mm x 72mm

IO Ports Support:

USB 2.0 Host - 2 Ports

USB 2.0 device - 1 Port

10/100 Ethernet - 2 Ports

Resistive touch controller

Micro SD Slot

Audio Codec, In/Out Jack

8Bit CSI Camera Port

3

Serial Console on USB Port

CAN PHY - 1 Port

JTAG Header

RTC Coin Cell

Boot mode Switch

ON/OFF, Reset Switch

Expansion Header:

UART x 2, CAN2, SPI

3

Operating System:

Linux 3.14.38

Note1: 4.3" Display kit is optional feature.

Note2: JTAG is multiplexed with Audio. By default audio is supported.

Note3: Since CSI and SPI are multiplexed in CPU, either one interface only can be used at a time.

20

i.MX6UL SODIMM DEVELOPMENT BOARD BLOCK DIAGRAM

Micro SD

Connector

CAN Header

Debug

USB Micro AB

Connector

UART Header

20Pin

Expansion

Header

20Pin GPIO

Header

RTC Controller

(Optional)

RTC Battery

Holder

Control

Switches

SDHC x 4bit

CAN

Transceiver

UART to USB

Bridge

Data UART

Data UART

CAN2

SPI

GPIOs

I2C1

i.MX6UL SODIMM

PCB Edge Connector

RTC

(200Pin)

3.3V

Power IN

Boot Mode,

ONOFF,RST

SAI2/JTAG

I2S

To On-Board Power

Circuit & Peripherals

3.3V Power

Regulator

I2S Audio

Codec

JTAG

1

µSDHC1

Camera x 8Bit

CAN1

Camera

CAN1

Debug

UART

UART1

UART5

UART2

CAN2

SPI

I2C1

18bpp RGB

PWM4

Ethernet1

USB OTG2

I2C1

Resistive Touch

Controller

18bpp RGB

DISP_BL

10/100Mbps

2 Port

USB HUB

USB_HUBP1

USB_HUBP2

GPIO’S

Ethernet2

USB OTG1

10/100Mbps

USB Device

Power Jack

(5V)

Audio In/Out

Connector

JTAG Header

(Optional)

OV7725 Camera

Connector

Capacitive TP

Connector(Optional)

RGB

LCD Connector

RJ45 MagJack1

USB Type A

Connector1

USB Type A

Connector2

RJ45 MagJack2

USB Micro AB

Connector

Note1: JTAG is multiplexed with Audio. By default audio is supported.

Linux 3.14.38

i.MX6UL SODIMM Development Kit

Board Support Packages

User Manual

OPTIONAL KITS/MODULES

4.3" RGB LCD Display Kit

Camera Module

BSP Development/OS Porting

Custom SOM/Carrier Development

Custom Application/GUI Development

Design Review and Support

21

Comparison of Q7 SOM Modules

Feature/Q7 SOM RZ/G1M

RZ/G1N

CPU

Graphics Core

Hardware Codecs

RAM

Flash Storage

NOR Flash

Renesas’s RZ/G1M CPU @1.5

GHz, Dual Core ARM Cortex A15

SGX544MP2 Graphic

Core @ 520MHz

H.264 [email protected] 60 decode,

H.264 1080p 60 encode

1GB DDR3 RAM

(Expandable to 4GB *)

4GB eMMC

(Expandable *)

2MB SPI Flash

(For Boot Code)

On-Module Micro SD Slot

Micro SD*

Qseven Edge Connector Interfaces

PCIe Ports

PCIe 2.0 x 1 Lane

SATA Ports

Muxed with PCIe Port

Ethernet

HDMI

LVDS

USB 3.0 Host

USB 2.0 Host

USB 2.0 OTG

Audio

SD/MMC

PWM

Debug UART

Data UART

CAN

SPI

I2C

GPIOs X 8

10/100/1000 Ethernet

No

1 Port

1 Port

2 Ports

1 Port

I2S Audio

1 Port

2 Ports

2 Ports

Expansion Connector Interfaces *

CSI Camera Port

MIPI CSI

MIPI DSI

24 Bit RGB LCD IF

Gigabit Ethernet

UART

16 Bit Memory Bus

Key Matrix

SSI/I2/SPDIF

ESAI

MLB

SPI

I2C

CAN

PWM

GPIO

Power Input

Operating Temperature

Form Factor

OS Support

Up to 3 Ports

No

No

No

2 Ports

No

I2Sx1 Port

No

No

1 Port

No

1 Port

2 Ports

5V, 2.5A Typical

-40 C to +85 C

70mmx70mm Qseven

R2.0 Compatible

Linux 3.10.31,

Android KitKat 4.4.2 *

Renesas’s RZ/G1N CPU @1.5

GHz, Dual Core ARM Cortex A15

SGX544MP2 Graphic

Core @ 312MHz

H.264 [email protected] 60 decode,

H.264 1080p 60 encode

512GB DDR3 RAM

(Expandable to 2GB *)

4GB eMMC

(Expandable *)

2MB SPI Flash

(For Boot Code)

On-Module Micro SD Slot

Muxed with USB3.0 Port

Muxed with USB3.0 Port

10/100/1000 Ethernet

No

1 Port

1 Port

2 Ports

1 Port

I2S Audio

1 Port

2 Ports

2 Ports

Up to 3 Ports

No

No

No

2 Ports

No

I2Sx1 Port

No

No

1 Port

No

1 Port

2 Ports

5V, 2A Typical

-40 C to +85 C

70mmx70mm Qseven

R2.0 Compatible

Linux 3.10.31,

Android KitKat 4.4.2 *

i.MX6 QP/DP

NXP i.MX6 Quad Plus/Dual

Plus ARM Cortex A9 @1GHz

OpenGL ES3.0,

OpenVG1.1

H.264 [email protected] 60 decode,

H.264 1080p 30 BP encode

1GB DDR3 RAM

(Expandable to 4GB *)

4GB eMMC

(Expandable *)

2MB SPI Flash

(For Boot Code)

On-Module Micro SD Slot

i.MX6 Quad/Dual

NXP i.MX6 Quad/Dual

ARM Cortex A9 @1GHz

OpenGL ES3.0,

OpenVG1.1

H.264 [email protected] 60 decode,

H.264 1080p 30 BP encode

1GB DDR3 RAM

(Expandable to 4GB *)

4GB eMMC

(Expandable *)

2MB SPI Flash

(For Boot Code)

On-Module Micro SD Slot

PCIe 2.0 x 1 Lane

SATA 2.0 x 1 Port

10/100/1000 Ethernet

1 Port

2 Ports

No

4 Ports

1 Port

AC97/I2S Audio

1 Port

2 Ports

2 Ports

2 Ports

No

3 Ports

3x3 Matrix

SPDIFx1 Port

No

1 Port

No

1 Port

5V, 2.5A Typical

-40 C to +85 C

70mmx70mm Qseven

R2.0 Compatible

Linux 3.14.28,Android

5.0 Lollipop, WEC7*

PCIe 2.0 x 1 Lane

SATA 2.0 x 1 Port

10/100/1000 Ethernet

1 Port

2 Ports

No

4 Ports

1 Port

AC97/I2S Audio

1 Port

2 Ports

2 Ports

2 Ports

No

3 Ports

3x3 Matrix

SPDIFx1 Port

No

1 Port

No

1 Port

5V, 2A Typical

-40 C to +85 C & 0 C to + 70 C

70mmx70mm Qseven

R2.0 Compatible

Linux 3.14.28,Android

5.0 Lollipop, WEC7

22

i.MX6 Dual Lite i.MX6 Solo

NXP i.MX6 Dual Lite ARM

Cortex A9 @ 1GHz

NXP i.MX6 Solo ARM

Cortex A9 @1GHz

OpenGL ES2.0, OpenVG1.1

OpenGL ES2.0, OpenVG1.1

H.264 [email protected] 30 + D1

decode,H.264 1080p

30 BP encode

1GB DDR3 RAM

(Expandable to 4GB *)

4GB eMMC (Expandable *)

H.264 [email protected] 30 + D1

decode,H.264 1080p

30 BP encode

512GB DDR3 RAM

(Expandable to 2GB *)

4GB eMMC (Expandable *)

Cyclone V SOC DM 8168

Cyclone V SoC, Dual ARM Cortex-

A9 HPS + FPGA up to 110K LEs

No

TI DM8168 ARM Cortex-A8 CPU

@1.2 GHz + C674x DSP @1GHz

OpenGL ES2.0, OpenVG1.1

No

H.264 [email protected] 60

decode & encode

512GB DDR3 with ECC HPS,

256MB DDR3 for FPGA

1GB DDR3 SDRAM

16MB QSPI Flash* (Expandable) 128MB NAND Flash (Expandable*)

2MB SPI Flash (For Boot Code)

2MB SPI Flash (For Boot Code)

EPCQ/QSPI Flash * for FPGA

On-Module Micro SD Slot

(default boot)

No

On-Module Micro SD Slot

(default boot)

On-Module Micro SD Slot On-Module Micro SD Slot

Qseven Edge Connector Interfaces

PCIe 2.0 x 1 Lane

No

10/100/1000 Ethernet

1 Port

2 Ports

No

4 Ports

1 Port

AC97/I2S Audio

1 Port

2 Ports

PCIe 2.0 x 1 Lane

No

10/100/1000 Ethernet

1 Port

2 Ports

No

4 Ports

1 Port

AC97/I2S Audio

1 Port

2 Ports

PCIe Gen1 x 4 Lane

SATA2.0 X 1 Port

10/100/1000 Ethernet

No

2 Ports

No

4 Ports

No

AC97/I2S Audio

1 Port

2 Ports

PCIe 2.0 x 2 Lane

SATA 2.0 x 2 Port

10/100/1000 Ethernet

1 Port

1 Port

No

4 Ports

1 Port

No

1 Port

2 Ports

2 Ports 2 Ports 2 Ports

No

No

2 Ports

Expansion Connector Interfaces *

2 Ports 2 Ports

No

3 Ports

3x3 Matrix

SPDIFx1 Port

No

3 Ports

3x3 Matrix

SPDIFx1 Port

No

1 Port

No

1 Port

No

1 Port

No

1 Port

5V, 1A Typical 5V, 1A Typical

-40 C to +85 C & 0 C to + 70 C -40 C to +85 C & 0 C to + 70 C

70mmx70mm Qseven

R2.0 Compatible

Linux 3.14.28,Android

5.0 Lollipop, WEC7

70mmx70mm Qseven

R2.0 Compatible

Linux 3.14.28,Android

5.0 Lollipop, WEC7

Note: * Optional features are not supported by default

No

No

No

No

No

No

No

No

No

No

No

No

1 Port

No

No

LVDS &SE IOs

5V, 2A Typical

-40 C to +85 C

70mmx70mm Qseven

R2.0 Compatible

Linux 3.10

2 Ports

No

No

No

1 Port

2 Ports

No

4x4 Matrix

I2Sx2 Ports

No

No

No

No

No

No

5V, 2A Typical

0 C to +70 C

70mmx70mm Qseven

R2.0 Compatible

Linux 2.6.37

i.MX51

Freescale i.MX51 ARM

Cortex A8 @800MHz

OpenGL ES2.0, OpenVG1.1

H.264 [email protected] 30 decode

& H.264 D1 @ 30 encode

128MB DDR2 RAM

(Expandable up to 512 MB *)

128MB +NAND Flash

Expandable up to 2GB

No

On-Module Micro SD Slot

No

No

10/100 Ethernet

No

1 Port

No

4 Ports

1 Port

AC 97 Audio

1 Port

2 Ports

No

2 Ports

1 Port

No

No

No

No

2 Ports

4x4 Matrix

I2Sx2 Ports

No

No

No

No

No

No

5V, 1A Typical

-40 C to +85 C

70mmx70mm Qseven

R2.0 Compatible

Linux 2.6.31, WinCE 6.0

23

System On Module

iW-RainboW-G20M-Q7

RZ/G1M,G1N Qseven Module

iWave’s RZ/G1M,G1N based Qseven CPU module integrates high performance ARM Cortex A15 Dual CPU core operating up to 1.5 GHz speed. The SOM is packed with rich set of features and IO peripherals. It integrates HD Hardware codecs, graphic acceleration, on-board PMIC, eMMC flash, DDR3 RAM, Micro SD slot, USB Hub and Gigabit Ethernet

PHY. The SOM is ideally suitable for high performance general embedded, industrial and video intensive applications.

APPLICATIONS:

HMI & Access Control, Video Surveillance, Digital

Signage, Entertainment, Industrial control, Point of sale & ATM, Vehicle infotainment & Navigation, Real time image recognition, Network & high vision camera, Home & office automation, White goods and Smart appliances.

iW-RainboW-G20M-Qseven

HIGHLIGHTS

Dual core ARM Cortex A15 @ 1.5GHz

Qseven R2.0 Compatible

Dual channel HD encode & decode

Built in HW Graphic acceleration

Three channel video input

USB3.0 support

Industrial temperature support available

Technical and quick customization support

10+ years, long term support

CPU:

Renesas’s RZ/G1M,G1N CPU @ 1.5GHz

SGX544MP2 Graphic core @ 520MHz

1

M emory:

1GB DDR3 (Expandable)

2

2MB SPI NOR Flash (For boot code)

4GB eMMC Flash (Expandable)

2

Micro SD Slot (Optional)

Qseven Edge Interfaces:

PCIe - 1 Port

1

USB3.0 host - 1 Port

USB2.0 host - 2 Ports

USB2.0 device - 1 Port

LVDS Display - 1 Port

Gigabit Ethernet - 1 Port

SDHC - 1 Port

I2S Audio - 1 Port

I2C-2 Ports, SPI, CAN

UART, PWM-2 Ports, GPIOs

JTAG or UART console

Expansion Connector Interfaces:

24bpp RGB LCD or 16bit camera I/F

24bit camera or dual 8bit camera IF

8bit camera interface

UART - 2 Ports

Memory bus interface

SPI/UART & CAN

SSI/I2S Audio

PWM-2 Ports, GPIOs

Communication:

Gigabit Ethernet PHY - 1 Port

2 Port USB HUB

OS Support :

Linux 3.10.31, Android KitKat 4.4.2*

Power Input:

5V @ 2A through Qseven Edge

Operating Temperature:

-40°C to +85°C Industrial

Form Factor:

70mm x 70mm, Qseven R2.0 compatible

Note1: For RZ/G1N module configuration, Graphic core speed is 312MHz and PCIe support is not available by default.

Note 2: By default 1GB DDR3 and 4GB eMMC only supported. Contact iWave for memory expansion support.

24

RZ/G1M,G1N Qseven SOM BLOCK DIAGRAM

DDR3L - 1GB

(Upgradable)

DDR3 (32bit)

DDR3 (32bit)

SPI

Programming

Header

(Op onal)

Micro SD Connector

Expansion

Connector1

(80Pin header)

SPI Flash - 2MB

(Upgradable) eMMC - 4GB

(Upgradable)

SPI

MMC (8bit)

RTC Controller

I2C2

VRTC

SD (4bit)

LCD(24bpp) x 1 & Camera(8bit) x 1

(or) Camera (16bit) x 1

Camera(16/24bit) x 1 (or)

Camera (8bit) x 2

UART x 1

Expansion

Connector2

(80Pin header)

Memory Bus (16bit Sync/Async)

CAN x 1

SSI/I2S x 1

SPI x 1

UART x 2

PWM x 1

1 PCIe is supported by default. SATA1 is not supported by default.

2 USB3.0 is supported by default. SATA0 is not supported by default.

3 SCIF4 cannot be supported if VI1 16bit camera is used.

4 HSCIF1’s ow control signals and MSIOF1 are multiplexed and either one

only can be used at a time.

Note: Green Font blocks are not supported in RZ/G1N CPU

DBSC3-CH0

DBSC3-CH1

QSPI

MMC/SDHI3

SDHIO

DU1,VI1

VI0,VI2

SCIF4

3

LBSC

CAN1

SSI3/SSI4

4

MSIOF1

SCIF1/

HSCIF1

4

PWM1

CPU

RZ/G1M,

RZ/G1N

PCIe/SATA1

USB3.0/SATA0

USB1

USB0

LVDS-DU0

PWM3,PWM5

SSI0/SSI1

USB OTG

••

USB2.0 HUB

(2 Ports)

USB2.0 OTG x 1

LVDS x 1

SATA x 1

1

USB3.0 x 1

2

USB Host x 2

PWM x 2

I2S x 1

Gigabit

Ethernet

EtherAVB

GMII x 1

Gigabit

Ethernet PHY

SDHI2

SDHC (4bit) x 1

I2C x 2

I2C2,I2C5

SPI x 1 (2 Chip selects)

MSIOF2

CAN x 1

CAN0

UART (with CTS & RTS) x 1

SCIFB1

GPIOs

SCIF0

JTAG

QSEVEN

PCB Edge

Connector

(230Pin)

8 GPIOs, Status & Control Signals

UART x 1

Dual SPDT

Switch IC

(Op onal)

Debug

VRTC

JTAG

JTAG (Op onal)

(20 Pin Header)

Power to

Peripherals

On-Board

Regulators

5V

2Pin Power In

(Op onal)

Linux 3.10.31

Android KitKat 4.4.2*

RZ/G1M,G1N Qseven Module

Board Support Packages

User Manual

/MODULES

RZ/G1M,G1N Qseven Development Kit

25

Development Platform

iW-RainboW-G20D-QSeven

RZ/G1M Q7 Development Kit

iWave's RZ/G1M development board incorporates RZ/G1M QSeven SOM which is based on Renesas high performance RZ/G1M Dual ARM Cortex

A15 MPU and the carrier board with optional 7" capacitive Display Kit.

The development board can be used for quick prototyping of various applications targeted by the RZ/G1M processor. With the 120mm x

120mm Nano ITX size, the kit is highly packed with all the necessary onboard connectors to validate the RZ/G1M MPU features.

APPLICATIONS:

Industrial HMI and Access Control , Industrial Control and Automation, Infotainment & Digital Signage, Video Surveillance &

Security, Real Time Image Recognition, Home & Office Automation, White

Goods and Smart Appliances.

iW-RainboW-G20D-QSeven

HIGHLIGHTS

High Performance Dual Cortex -

A15 MPU @ 1.5 GHz

SGX544MP2 3D Graphic Core @

520MHz

Multi - Channel Video input, HD

Encode & Decode

USB3.0, Gigabit Ethernet, PCIe,

SATA, LVDS IOs

7" Display Kit with Capacitive

Touch Screen

RZ/G1M QSeven SOM:

RZ/G1M Cortex A15 MPU @ 1.5GHz

1GB DDR3 RAM

2MB SPI NOR Flash

4GB eMMC Flash

10/100/1000 Ethernet PHY

QSeven Carrier Board:

SATA - 1 Port

1

PCIe - 1 Port

1

Gigabit Ethernet - 1 Port

LVDS Display - 1 Port

USB 3.0 Host - 1 Port

USB 2.0 Host - 2 Ports

USB 2.0 OTG - 1 Port

SD Slot - 1 Port

7" Display with CAP Touch

2

Audio Codec, In / Out Jack

Serial Console on USB Port

Data UART - 1 Port

CAN PHY - 1 Port

IO Expansion Connectors

12V, 2A DC Input

Nano ITX Size: 120mm x120mm

16-Bit Camera - 1 Port

4

8-Bit Camera - 1 Port

Analog Video Input - 1 Port

HDMI Display - 1 Port

4

OS Support:

Linux 3.10.31, Android KitKat 4.4.2 *

Operating Temperature:

0°C to +60°C

Note1: SATA and PCIe are Multiplexed in the RZ/G1M MPU. Only one be supported at a time. PCIe is supported in default configuration.

Note2: 7" Capacitive Display Kit is optional feature.

Note3: Camera Daughter board is optional feature.

Note4: 16-Bit Camera and RGB interfaces are Multiplexed. HDMI Port is supported by default.

26

RZ/G1M Qseven Carrier Board - BLOCK DIAGRAM

Debug MicroAB

Conn.

JTAG Header

2

UART Header

(6Pin)

Ethernet(Top)

RJ45 & USB Stack

USB 2.0

(Bottom)

OTG µUSB

Port port2(Top)

Dual USB 3.0 Port

Port1(Bottom)

Mini PCIe

Conn.

PCIe x 4 Slot

SD/MMC Conn.

CAN Header

(6Pin)

22-Pin Conn.

USB to UART

Converter

SCIF0/JTAG

SCIFB1

UART0

EtherAVB

100/1000

ENET

USB1_HUB_1

USB_P0

USB0

USB_P1

RZ/G1M SOM Carrier

Qseven MXM Connector

MFG

To On Board

Peripherals

+5V

On Board

Regulators

VCC-5V

GP0_I2C

I2C2

LVDS0

LVDS-DU0

LVDS_BLEN

LVDS Receiver

Controller

ON/OFF

Switch

12V DC

To Other Peripherals

LCD Backlight

RGB -24bit

I2C2

I2S/HDA

VCC-RTC

I2S

+3V

I2S CODEC

SPI

MSIOF2(CS0#)

SPI Flash

Input Control Signals (RST_BTN#)

Input Power Jack

Capacitive TP Conn.

7” RGB Capacitive

LCD Conn.

7”LCD Backlight Conn.

Audio OUT Jack

Audio IN Jack

RTC Battery Holder

Push Button

Control

Signals

Output Control Signals (SUS_STAT#,SUS_S3#,SUS_S5#,THRMTRIP#)

LED’s

USB1_HUB_2

USB3.0_RX

USB3.0_TX

USB_P2

USB_P6

USB_P7

FAN

Control

PWM5 x 1

FAN Header

To connect

Add On Module

PCIe Clock

Buffer

PCIe

Switch

PCIe

I2C5

SDHI2

CAN1

CAN Transceiver

SATA0/SATA1

SMBUS/GP1_I2C

SDIO

CAN0

SATA

1

RSVD

Reserved Pins

MSIOF2 (CS1#)

I2C2

I2C5

RST_BTN#

Q7_GPIOs

80 Pin Carrier

Expansion

Connector - 3

Control Signals

80 Pin SOM Expansion

Connector - 1

VIN0(8bit/16bit/24bit), VIN1(8bit/16bit)/

DU1(24bpp), VIN2(8bit), SCIF4

CAN1, SSI3 & SSI4, MSIOF1, HSCIF1,

SCIF1, PWM1, LBSC/GPIOs

80 Pin SOM Expansion

Connector - 2

80 Pin Carrier

Expansion

Connector - 1

80 Pin Carrier

Expansion

Connector - 2

1 SATA connector is supported in carrier board but RZ/G1M/G1N SOM doesn’t support SATA in edge connector by default.

2 JTAG connector is supported in carrier board but RZ/G1M/G1N SOM doesn’t support JTAG in edge connector by default.

Note: Green Font blocks are not supported in RZ/G1N CPU

Linux 3.10.31

Android KitKat 4.4.2 *

RZ/G1M QSeven Development Kit

Board Support Package

Hardware & Software User Manuals

OPTIONAL KITS/MODULES

7"LCD Display Kit with

Cap Touch Screen

Camera Daughter Board

BSP Development/OS Porting

Custom SOM/Carrier Development

Custom Application/GUI Development

Design Review and Support

27

System On Module iW-RainboW-G15M-Q7

i.MX6 Qseven Module

iWave Systems offers high performance Qseven SOM module based on NXP's i.MX6 ARM Cortex-A9 processor for faster and multimedia focused applications. With extreme peripheral integration, the CPU supports industry latest high-performance interfaces, such as PCIe Gen2, Gigabit Ethernet,

SATA 3.0, HDMI 1.4, SDXC, MIPI CSI/DSI and 64-Bit DDR3 interfaces.

The module is compatible to Qseven R2.0 ARM specification and features

1GHz ARM Cortex A9 Quad Plus/Dual Plus/Quad/Dual/Dual Lite/Solo core CPU, on-board 1GB DDR3 RAM, eMMC Flash, Micro SD slot and JTAG headers.

APPLICATIONS :

Industrial HMI, Automotive IVI, Video & Navigation,

Graphical Instrument Clusters, Portable Medical Devices, Intelligent Industrial

Control Systems and Home Energy Management Systems

iW-RainboW-G15M-Q7

HIGHLIGHTS

ARM Cortex A9 @1GHz/800MHz

Quad Plus/Dual Plus/Quad/Dual/

Dual Lite/Solo core

64-bit DDR3-1066 support

OpenGL® ES 2.0 3D, OpenVG™ 1.1 graphics accelerators

Multi format HD1080p HW decode and encode

Four simultaneous display support

Technical and quick customization support

10+ years, long term support

SPECIFICATIONS

CPU

i.MX6 1GHz/800MHz ARM Cortex A9 QP/DP/Q/D/DL/S

PMIC

NXP PF0100 PMIC

RAM

1GB DDR3 for Q/D/DL (Expandable up to 4GB )

512MB DDR3 for Solo (Expandable up to 2GB )

Storage

On-board Micro SD Slot

Qseven Edge Connector

PCIe v2.0 x 1 lane

HDMI 1.4

SATA 3.0 x 1

3

Gigabit Ethernet

Dual LVDS

USB2.0 Host x4

USB2.0 OTG

AC97 Audio

8-bit SD/MMC

CAN1

SPI, I2C

Debug UART x1

Data UART x 1

PWM

GPIOs

Expansion Connector

Camera CSIx2 (8-bit)

MIPI CSI, DSI

24-Bit RGB LCD IF

Dual UART

3x3 Key, Memory Bus

ESAI, SPDIF

MLB

I2C3, PWM, GPIO

Temperature

-40°C to 85°C

2

Board Form Factor

Qseven R2.0 Compatible

Power Input

5V, 1A Typical

Operating Systems

Linux 3.14.38

Android 5.0 Lollipop

Windows Embedded Compact7

Debug Support

Onboard JTAG Header

1

1 Contact iWave for memory expansion support.

2 Not populated in mass production SOM.

3 Support available only for i.MX6 Quad and Dual SOMs.

28

i.MX6 Qseven MODULE BLOCK DIAGRAM

Micro SD

Connector

Expansion

Connector1

(80Pin header)

Expansion

SPI NOR Flash

SD (4 bit)

DDR3(64 bit)

MIPI-CSI x 1

UART x 1

Keypad 3x3

SPI

MMC (8 bit)

LCD(24 bpp) x 1, MIPI-DSI x 1

Camera1 (8bit) x 1

UART (with CTS & RTS) x 2

ESAI x 1, SPDIF x 1

Memory Bus (Address/Data Muxed)

Camera2 (8bit) x 1

MMDC eCSPI1 eSDHC4 eSDHC3

DISPO,

MIPI DSI

CSIO

UART1,

UART3

ESAI, SPDIF

EIM

CSI 1

MIPI CSI

UART4

KPP

CPU i.MX6

QP/DP

Q/D/DL/S

PCIe Bus

SATA II

3.0 Gbps

USB OTG

HS PHY

USB HOST1

HS PHY

LVDSO,

LVDS1,PWM

HDMI 1.4

AUDMUX4

10/100/1000

ENET

PCIex1

SATA x 1

USBOTG x 1

USBHost x 1 USB 2.0 Hub

(4 Port)

USBHost x 4

LVDS x 2, PWM x 1

HDMI x 1

Audio x 1

RGMII x 1

Gigabit

Ethernet PHY

Ethernet eSDHC1

I2C1, I2C2 eCSPI2

CAN1/UART5

WDOG1

Nand Flash*

SD/MMC(8bit) x 1

RTC Controller*

I2C x 2

SPI x 1 (Chip selects)

CAN x 1 , Data UART x 1

WDOG

8 GPIOs, Status & Control Singles

GPIOs

JTAG

Dual SPDT

Switch IC*

Debug

MLB x 1

MLB

SJC

QSEVEN

PCB Edge

Connector

(230 Pin)

JTAG (20Pin Header)*

I2C3 x1

I2C3

UART2

UART x 1

RS232

Transceiver*

3Pin Header*

Power to

Peripherals

PMIC

5V

2Pin Power In*

Note: MLB is supported only in automotive part

*Optional items not included in the standard deliverables.

OS SUPPORT

Linux 3.14.38

Android 5.0 Lollipop

WEC7

DELIVERABLES

i.MX6 Qseven SOM Module

Board Support Packages

User Manual

OPTIONAL /MODULES

iW-RainboW-G15D-Q7

(i.MX6 Development Kit) iW-RainboW-G15D-Q7 Heat Spreader

CUSTOM DEVELOPMENT

BSP Development/OS Porting

Custom SOM/Carrier Development

Custom Application/GUI Development

Design Review and Support

29

Development Platform iW-RainboW-G15D-Q7

i.MX6 Qseven Development Kit

The Development Platform incorporates Qseven compatible i.MX6

SOM which is based on NXP's i.MX6 Series multimedia focused processor and Generic Qseven compatible Development Board. This platform can be used for quick prototyping of any high end applications in verticals like Automotive, Industrial & Medical. Being a nano ITX form factor with 120mmx120mm size, the board is highly packed with all necessary onboard connectors to validate complete i.MX6 CPU features.

APPLICATIONS:

Industrial HMI, Automotive IVI, Video &

Navigation, Graphical Instrument Clusters, Portable Medical Devices,

Intelligent Industrial Control Systems and Home Energy Management

Systems.

iW-RainboW-G15D-Q7

HIGHLIGHTS

Ideal for Quick Proof of concept

(POC) development.

Shortens 60% of the new product development life cycle i.MX6 QP/DP/Q/D/DL/S support

Quick customization services in a very shorter period

SPECIFICATIONS

i.MX6 CPU Module:

i.MX6 Quad Plus/Dual Plus/Quad/Dual/Dual Lite/Solo

ARM®Cortex™-A9 core @1GHz/800MHz

RAM

1GB DDR3 for QP/DP/Q/D/DL (Expandable up to 4GB*)

512MB DDR3 for Solo (Expandable up to 2GB*)

Storage

4GB eMMC Flash (Expandable*)

2MB SPI Flash (Expandable*)

On-board Micro SD Slot

Carrier Board:

Storage

SATA 3.0 - 1Port

Standard SD/MMC

Communication Interfaces

Gigabit Ethernet - 1 Port

USB 2.0 Host - 2 Ports

USB 2.0 OTG - 1 Port

USB Debug Port (Serial to USB conversion)

UART - 2 Ports

4 Wire Resistive Touch Connector*

CAN - 2 Ports

PCIe x 1 Slot

Mini PCIe Slot*

- PCIe Interface

- USB Host Interface

- SIM Interface

- SMB Interface

Power Input:12V @2A DC Input

*Optional items are not included in the standard deliverables

Sensors

3-Axis Accelerometer

Digital e-Compass

Ambient Light Sensor

Altimeter/Barometer

Audio and Video

AC’97 codec- Audio IN/OUT Jacks

TV-IN RCA Jack (NTSC/PAL Input)*

Parallel Camera ZIF Connector- CSI1 (8Bit)

MIPI Camera Connector

LVDS1 - 7" 800x480 Display with Cap Touch

Backlight PWM Control

HDMI v1.4 - Port

LVDS 2 Connector

On-Board Headers

10 Pin JTAG Header*

SPI Header

4x4 Keypad Interface Header

RTC Coin Cell Holder

120 Pin Expansion Connector Interface

24bpp RGB LCDIF

ESAI

MIPI-DSI

MIPI-CSI

CSI2 (8 Bit)

Memory Interface (Address/Data Muxed)

MLB (Supported only in Automotive CPU)

Form Factor: Nano ITX 120mmx120mm

30

i.MX6 Qseven DEVELOPMENT BOARD BLOCK DIAGRAM

22-Pin Conn

1

20-Pin Conn

RGB LCD Conn

7" EDT LCD Conn

20-Pin LVDS

AudioIN/OUT

SD Conn (8 bit)

Header

Resistive TP*

Capacitive TP

HDMI Conn

Digital e-Compass

Altimeter

Light Sensor

Accelerometer

120 pin

Expansion

Connector

LVDS

Receiver

Ac’97 CODEC

Touch

Controller*

i.MX6_Q7_MXM Connector

(230 pin Connector)

SATA-II

LVDS0

VDD_SNVS_IN

+5V Input

+5V Standby Input

Power Jack

+12V DC Input MAIN

LVDS1

AUDMUX4 eSDHC1 eCSPI2

I2C1

HDMI 1.4

I2C2

PCIe Bus

PCIe x 1

USB 2.0

Hub

USB OTG PHY

Gigabit Ethernet

JTAG/UART-2

UART-5

CAN1

i.MX6_Expansion Connector-1

MIPI.DSI

CAN2

DISP0

ESAI

UART-3

CSI0

i.MX6_Expansion Connector-2

MLB

KPP

MIPICSI

EMI

CSI1

Serial to USB

RS232 Transciever

CAN Transciever

CAN Transciever

RS232 Transciever

Video Decoder*

RTC Battery

Reset Button

PCIe x1 Slot

Mini PCIe Slot

Dual USB2.0 Slot

USB OTG Slot

RJ45 MagJack

JTAG Header

Debug Port

(Micro USB)

DB9 Conn

CAN Header

UART Header

TV - IN*

4x4 Keypad

Header

Camera (8 bit)

Conn

1. Support available only for i.MX6 Quad and Dual CPUs

*Optional items not included in the standard deliverables.

OS SUPPORT

Linux 3.14.38

Android 5.0 Lollipop

WEC7

DELIVERABLES

iW-RainboW-G15D-Q7 Platform

Board Support Packages

Power Adapter

User Manual

OPTIONAL KITS/MODULES

Camera Add On Module

24BPP LCD Add On Module

Wi-Fi Module

3G and GPS Module

CUSTOM DEVELOPMENT

Custom SOM/ Carrier Card Development

BSP Development/ OS Porting

Design Review & Support

31

System On Module iW-RainboW-G17M-Q7

Cyclone V SoC Qseven Module

iWave Systems launched world’s first Altera Cyclone V SX SoC FPGA based

Qseven compatible module for the increased system performance requirements. The dual ARM Cortex A9 core with the FPGA allows greater flexibility for the system designers and helps to lower the system cost and power consumption. The improved logic integration with integrated high speed transceivers and hard memory controllers provides increased bandwidth capacity which is ideal for cost-sensitive high end applications.

APPLICATIONS:

Industrial Automation, Smart Energy Systems, Video

Surveillance, Defense & Aerospace.

iW-RainboW-G17M-Q7

HIGHLIGHTS

ARM Cortex A9 Dual core CPU integrated with FPGA with up to

110K Les

Enhanced with integrated transceivers and hard memory controller

Readily available FPGA IP Cores for integration

R2.0 Qseven Compatible module

SPECIFICATIONS

CPU:

Altera’s Cyclone V SX SoC FPGA

Hard Processor System(HPS)

FPGA with upto 110K LEs

Memory:

16MB QSPI Flash

1

On-SOM Micro SD Connector

2

256MB DDR3 for FPGA

EPCQ Flash/QSPI Flash for FPGA

1

EEPROM

On Board Peripherals Support:

JTAG Header for FPGA

JTAG Header for HPS

1

80 Pin Expansion Connector:

FPGA IOs (Up to 45 Single Ended IOs - SE IOs):

9 TX LVDS Pairs/18 SE IOs

11 RX LVDS Pairs/22 SE IOs

5 Single Ended IOs

FPGA Dedicated Clock IOs:

General Purpose Clock Inputs (2 LVDS/2 SE)

General Purpose Clock Outputs (1 LVDS/2 SE)

Others:

SMBUS/2 SE IOs

FPGA JTAG

Qseven PCB Edge Connector Interfaces:

From HPS:

Gigabit Ethernet - 1 Port (On-SOM PHY)

USB 2.0 Host - 4 Ports (On-SOM HUB)

CAN - 1 Port

2

SD/MMC (8 bit)

WDOG - 1 Port

I2C - 2 Ports

SPI - 1 Port

Debug UART - 1 Port

2nd UART - 1 Port

Other Control IOs - Through HPS

From FPGA:

LVDS LCD - 2 Ports (FPGA Soft IP)/23 SE IOs

AC97/I2S Audio (FPGA Soft IP)/5 SE IOs

PWM

FPGA IOs - 8 SE IOs

From FPGA High Speed Transceivers:

PCIe Gen1 x 4 Lane

3

SATA (FPGA Soft IP)

Form Factor:

70mm x 70mm Qseven Specification 2.0

Power Input:

5V DC

Operating Temperature:

o

Operating System:

Linux 3.10, WEC7

1 Optional featured. Not supported by default.

2 On-SOM Micro SD Connector and Qseven Edge SD/MMC are sharing the same interface

3 If the FPGA interfaces available in the Qseven edge are not used for Qseven compliance requirement, same interface pins can be used for custom Industrial/networking interface requirements.

32

CYCLONE V SoC Qseven SOM BLOCK DIAGRAM

DDR3 RAM (512MB)

DDR3 for ECC (256MB)

QSPI Flash (16MB)

EEPROM*

RTC Controller

DDR3 ECC (8 bit)

I2C

I2C

Hard Processor System

(Dual-core

ARM® Cortex™-A9

MP Core processor)

SDRAM

Controller

QSPI

I2C0

I2C0

SD/MMC

SPIM0

I2C0, I2C1

UART0

UART1

CAN1

GPIO

EMAC1

JTAG

Micro SD Connector

1

SD/MMC (8bit)

1

CAN

WDOG

5V

HPS JTAG*

FPGA AS Header*

FPGA JTAG

80 Pin

Expansion

Connector

EPCQ Flash*

QSPI Flash (64MB)*

AS Interface

General Purpose Clock I/Ps (2 LVDS/2 SE)

General Purpose Clock O/Ps (1 LVDS/2 SE)

9 TX LVDS Pairs/18 DE IOs

11 RX LVDS Pairs/22 SE IOs

5 Single Ended IOs

SMBUS/2 SE IOs

Cyclone V SX

SoC FPGA

FPGA

Active Serial

USB1

(Soft IP)

JTAG

FPGA Dedicated

Clock IOs

(2.5V Differential /

2.5V Single Ended)

FPGA IOs

(2.5V Differential /

2.5V Single Ended)

SMBUS (Soft IP)

3.3V Single Ended

High Speed Tr

CH0

CH1

CH2

CH3

CH5

CH6

PCIe

Hard IP

SATA

Soft IP

AC97/I2S(Soft IP)

3.3V Single Ended

FPGA IOs

(3.3V Single

Ended)

LCD (Soft IP)

2.5V Differential

DDR3 (16bit)

DDR3 RAM

(256MB)

PCIe x 4 Port

SATA x 1 Port

AC97/I2S x 1 Port

8 Single Ended IOs/LPC Interface

PWM

LVDS LCD (24bpp) x 2 Port

* Optional featured. Not supported by default.

1 On-SOM Micro SD Connector and Qseven Edge SD/MMC are sharing the same interface

OS SUPPORT

Linux 3.10

WEC7

DELIVERABLES

Cyclone V SoC Qseven Module

Board Support Package

User Manual

OPTIONAL /MODULES

Cyclone V SOC Qseven Development Kit

Heat Spreader

CUSTOM DEVELOPMENT

BSP Development/OS Porting

Custom RTL Logic Development

Custom SOM/Carrier Development

Custom Application/GUI Development

Design Review and Support

33

Development Platform iW-RainboW-G17D-Q7

Cyclone V SoC Qseven Development Board

iWave Systems launched Cyclone V SoC Development Kit – iW-RainboW-

G17D equipped with Cyclone V SoC based Qseven SOM and generic Qseven carrier card for the increased system performance requirements. The Dual

ARM Cortex A9 core with the FPGA allows greater flexibility for the system designers and helps to lower the system cost and power consumption. The improved logic integration with integrated high speed transceivers and hard memory controllers provides increased bandwidth capacity which is ideal for cost-sensitive high end applications.

APPLICATIONS :

Industrial Automation, Smart Energy Systems,

Video Surveillance, Defence & Aerospace, Mobile, Ultra Mobile, Automotive

- Telematics, Medical Instrumentation.

iW-RainboW-G17D-Q7

HIGHLIGHTS

ARM Cortex A9 Dual core CPU integrated with FPGA with up to

110K LEs

Enhanced with integrated transceivers and hard memory controller

Readily available FPGA IP cores for integration

SPECIFICATIONS

Cyclone V SoC Qseven SOM

Cyclone V SoC 5CSXFC6

512MB HPS DDR3 RAM

256MB FPGA DDR3 RAM

10/100/1000 Ethernet PHY

4 Port USB2.0 HUB

On SOM µSD Slot 1

JTAG Header for FPGA

RTC Controller

OS: Linux 3.10 ,WEC 7

Qseven Carrier Board

Standard SD/MMC - 1 Port (Boot & OS Storage)

SATA 3.0 - 1 Port

2

Debug Console through Micro USB

Data UART - 1 Port

CAN – 1 Port

USB 2.0 Host - 3 Ports

10/100/1000 Ethernet - 1 Port

PCIe x1 Slot

AC'97 codec- Audio IN/OUT Jacks

2

LVDS – 2 Ports

7" TFT Display (800x480) with Capacitive Touch

2nd LVDS Connector

PWM

JTAG Header

1

Form Factor: Nano-ITX (120mmx120mm)

Power Input: 12V Ideal for Quick Proof of concept

(POC) development

Shortens 60% of the new product development life cycle

Quick customization services

1 Optional items are not supported by default

2 Only Hardware support is provided by default

34

Cyclone V SoC Qseven DEVELOPMENT BOARD BLOCK DIAGRAM

22-Pin Conn

7-Pin Conn

20-Pin LVDS

7" RGB LCD Conn

7" EDT LCD Conn

20-Pin LVDS

AudioIN/OUT

SD Conn (8 bit)

Header

Resistive TP

Capacitive TP

Digital e-Compass

Altimeter

Light Sensor

Accelerometer

LVDS

Receiver

AC’97 CODEC

Touch

Controller

120 pin

Expansion

Connector

Cyclone V SoC SOM

Qseven MXM Connector

(230 pin Connector)

SATA 0*

SATA 1*

LVDSO

RTC Controller

PCIe

Power to

SOM and

Peripherals

Power Regulators

LVDS1

SSI/AC’97*

SD/MMC

SPI

Four Port

USB HUB

I2C1

I2C2

Gigabit

Ethernet

UART0

UART1

CAN1

CAN1

Cyclone V SoC SOM

Expansion Connector (80 Pin)

FPGA Dedicated

Clock Inputs

(2DE/2SE)

FPGA Dedicated

Clock Inputs

(1DE/2SE)

FPGA TX LVDS Pairs

(9DE/18SE)

FPGA RX LVDS Pairs

(4DE/8SE)

Serial to USB

RS232 Transciever

CAN Transciever

Power Jack

+12V IN

RTC Battery

Reset Button

PCIe x1 Slot

Mini PCIe Slot

Dual USB2.0 Slot

RJ45 MagJack

Debug Port

(Micro USB)

DB9 Conn

Header

OS SUPPORT

Linux 3.10

WEC 7

DELIVERABLES

iW-RainboW-G17D-Q7 Platform

Board Support Packages

Power Adapter

User Manual

OPTIONAL KITS/MODULES

iW-RainboW-G17M-Q7

(Cyclone V SoC Qseven SOM)

CUSTOM DEVELOPMENT

Custom SOM/ Carrier Card Development

BSP Development/ OS Porting

Design Review & Support

35

System On Module iW-RainboW-G12M-Q7

DM 816x Qseven SOM

iWave's DM816x SOM is based on TI's DaVinci DM8168x ARM

Cortex-A8+C674x DSP Microprocessor for faster and more robust applications. With extreme system and peripheral integration, the

DSP+ARM MPUs provide multiple high-performance interfaces, such as PCIe Gen2, HDMI 1.3, SATA2.0, Gigabit Ethernet and

DDR3 interfaces.

The module is compatible to Qseven R1.20 ARM specification and features 1.2 GHz CPU, on-board DDR3 RAM, Nand Flash, Micro SD slot and JTAG header.

APPLICATIONS :

Industrial Automation, Medical, HMI,

Interactive POS, Single Board Computing, Network &

Communication Processing, Video Surveillance Systems.

iW-RainboW-G12M-Q7

HIGHLIGHTS

C674x 1 GHz DSP+ARM Cortex A8

@ 1.2 GHz

Integrated high bandwidth connectivity peripherals

SGX530 3D Graphics Engine for rich user interfaces

Dual simultaneous 1080p display engine

More complex Graphical User

Interfaces (GUIs)

SPECIFICATIONS

Processor

TI DM816x ARM Cortex A8 @ 1.2 GHz

C674x DSP @ 1 GHz

Memory

1GB DDR3 SDRAM

128MB Nand Flash (expandable*)

On-board Micro SD Slot (default boot)

Qseven Edge Connector

PCIe 2.0 x 2 Lanes

HDMI 1.3

SATA 2.0 x 2

LVDS, I2S Port

USB2.0 Host x 4

USB2.0 Device

SD/SDIO

SPI, I2C

Audio McASP Port

* Optional items are not supported by default

Technical & Quick customization support

Debug UART

Expansion Connectors

Gigabit Ethernet GMII x 1

HD Video IN x 2 Ports

Analog HD & SD Video OUT

Audio McASP x 2 Ports

UART x 2 Ports

GPIOs

JTAG Header

Temperature

Operating 0°C to +70°C

Board Form factor

Qseven R1.20 Compatible (70mm x 70mm)

Power Input

5V, 2A

Operating Systems

Linux 2.6.37

36

DM816x Qseven SOM BLOCK DIAGRAM

Micro SD

128MB

NAND FLASH

1GB DDR3

JTAG

Header

Expansion

Connectors

Audio Ports x 2

Giga Ethernet MAC x 1

Video IN x 2

Video OUT

UART x 2

GPIOs

TI DM816x CPU

USB2.0 Host

RGB IF

SDIO x 1

SATA2.0 x 2

Audio Port x 1

I2C x 1

HDMI 1.3 x 1

PCIe2.0 x 2

USB2.0 Device

SPI x 1

Debug UART

USBHUB

RGB-LVDS

USB2.0 Hostx4

LVDS

* Optional featured. Not supported by default

OS SUPPORT

Linux 2.6.37

DELIVERABLES

DM816x Qseven SOM module

Board Support Packages

User manual

OPTIONAL /MODULES

iW-RainboW-G7D

(ARM Qseven generic carrier board)

Heat Spreader

CUSTOM DEVELOPMENT

BSP Development/OS Porting

Custom SOM/Carrier card development

Custom application/GUI development

Design review and support

37

Development Platform iW-RainboW-G12D-Q7

DM

816x Qseven Development Kit

The Development Platform incorporates Qseven compatible DM816x

SOM which is based on TI's DSP+ARM Cortex-A8 based DaVinci

Processor operating up to 1.2GHz and Generic Qseven compatible Carrier

Board. This platform can be used for quick prototyping of any high end applications in verticals like Industrial, Medical and Networking. Being a nano ITX form factor with 120mmx120mm size, the board is highly packed with all necessary onboard connectors to validate complete

DM8168 CPU features.

APPLICATIONS:

Single-Board Computing, Network and

Communications Processing, Industrial Automation, Human Machine

Interface, Interactive Point-of-Service Kiosks.

iW-RainboW-G12D-Q7

HIGHLIGHTS

TI DM8168 ARM Cortex-A8 @ 1.2

GHz + C674x DSP @ 1 GHz

Ideal for Quick Proof of concept

(POC) development.

Shortens 60% of the new product development life cycle

Quick customization services in a very shorter period

Suitable for Wide Range of

Applications

SPECIFICATIONS

CPU:

TI DM816x Cortex A8 CPU @1.2 GHz

C674x DSP @ 1 GHz

RAM

:

1GB DDR3 RAM

Storage:

128MB NAND Flash (Expandable)

Micro SD slot (default boot device)

Standard SD slot-1 Port

SATA 2.0 - 2 Ports

Communication Interfaces:

Gigabit Ethernet - 1 Port

(through expansion card)

USB 2.0 Host - 1 Port/3 Ports

USB 2.0 device - 1 Port

1

PCIe 2.0 x 2 Lane - 1 Port

RS232 Debug Console - 1 Port

1 Optional items are not supported by default

2 Foot prints only

Video OUT:

7"LCD with 4 Resistive Touch

HDMI 1.3 - 1 Port

Connectivity:

Mini PCIe Connector

GMII Interface, FF UART, GPIOs,

Multichannel Audio Interface

2

Miscellaneous Headers :

UART Header

SPI Header

Analog HD & SD Video Out Headers

Temperature:

0 to 60 C

Form Factor:

Nano ITX 120x120mm

Power Input: 12V @ 2A DC Input

38

39

DM816x Qseven DEVELOPMENT BOARD BLOCK DIAGRAM

22-Pin Conn

7-Pin Conn

40-Pin Res TP

RGB LCD Conn

Resistive TP

Conn

Capacitive TP*

HDMI Conn

HDMI

SATA Port 0

SATA Port 1

RGB-24bit

LVDS

Receiver

Touch

Controller

LVDS0

I2C

SD Conn (4bit)*

Header

SD

SPI

TV IN

1

Expansion

Connector

(120-Pin header)

Video Decoder

1

D[7:0]

McASP0, PWM,

UART0, GPIOs, Video In D[15:0]

McASP1

GMII Interface

Qseven_MXM Connector

(230 pin Connector)

SATA II-

3.0Gbps

SATA II-

3.0Gbps

LVDS0

I2C1

HDMI 1.3

SD/SDIO*

SPI

+5V Input

+5V Standby Input

Power Jack

Reset Button

Power Button

RTC

VCC_RTC

PCIe 2.0

port x 2 lane

USB Host x 1/

USB 2.0

Hub

(4Port)

USB Device

PCIe x1 lane

USB Port 3*

USB Port 4*

USB Port 0

USB Port 2*

USB Port 1

UART2

UART2

RS232

TxRx

80 pin Expansion Connector-1

Video In 0

McASP0,

PWM,

GPIOs,

UART0

UART 1,2

80 pin Expansion Connector-2

McASP1

EMAC1

HD Video Out

SD Video Out

Video In1

UART 2

UART 1

RS232

TxRx

HD Video Out

SD Video Out

Camera Interface-8bit

+12V DC Input MAIN

Push Button

Push Button*

RTC Battery

PCIe x1 Slot

Connector

Mini PCIe

Connector

USB A-Type

Conn

Dual USB

Stack Conn

USB OTG

Mico/mini AB

DB9 Conn

UART

Header

Header

1

Header

1

Camera Conn

1

* Optional featured. Not supported by default

1 Foot prints only

OS SUPPORT

Linux 2.6.37

DELIVERABLES

iW-RainboW-G12D Platform

Gigabit Ethernet Expansion Card

Board Support Packages

Power Adapter, User Manual

OPTIONAL KITS/MODULES

Wi-Fi Module

CUSTOM DEVELOPMENT

Custom SOM/Carrier Card Development

BSP Development/OS Porting

Design Review & Support

System On Module iW-RainboW-G15M-MXM

i.MX6 MXM Module

The i.MX6 MXM SOM is based on i.MX6 Series Quad/Dual/Dual

Lite/Solo core processor. A single ruggedized MXM edge connector provides the carrier board interface to carry all the I/O signals to and from the MXM module. With 1080p HD decoding and encoding and

2D/3D graphics an enhanced and optimized user experience is achieved.

The MXM connector pinouts are fully compatible with iWave i.MX53

MXM SOM. The i.MX6 MXM SOM has an additional expansion connector to bring out the special/extra features of i.MX6

Quad/Dual/Dual Lite/Solo core processor. The i.MX6 MXM SOM is simple and low cost yet rugged.

APPLICATIONS :

Automotive Infotainment, Advanced HMI,

Telematics, Digital Signage, Healthcare and Medical Equipments.

iW-RainboW-G15M-MXM

HIGHLIGHTS

ARM Cortex A9 @1GHz/800MHz

Quad/Dual/ Dual Lite/Solo core

64-bit DDR3-1066 support

OpenGL® ES 2.0 3D, OpenVG™

1.1 graphics accelerators

Multi format HD1080p HW decode and encode

Four simultaneous display support

Targeted for rugged automotive applications

Technical and quick customization support

10+ years, long term support

i.MX6 CPU Module:

i.MX6 Quad/Dual/Dual Lite/Solo

ARM®Cortex™-A9 core @1GHz/800MHz

RAM

Storage

On-board Micro SD Slot

NAND Flash*

Expansion Connector - 100 Pins

MIPI CSI & MIPI DSI

SATA 3.0 X 1 Port

3

Debug Support

Onboard JTAG header

2

85mmx85mm MXM3 compatible

Temperature:

Power Input:

1 Optional features are not supported by default

2 Not populated in mass production SOM

3 Support available only for i.MX6 Quad and Dual CPUs

Note: device drivers provided are for specific interface chipsets which are used in iWave's carrier board

40

i.MX6 MXM Module BLOCK DIAGRAM

Micro SD

Connector

DDR3 RAM

(1GB/512MB)

SPI Flash - 2 MB

NAND Flash* eMMC - 4GB

MMDF (8 bit)

SD (4 bit)

2

1

RGMII X 1

3

MIPI-DSI x 1 Expansion

Connector1

(100 Pin Header)*

10/100/1000

ENET

MLB

MIPI DSI

HDMI Tx1-4

JTAG

(20pin Header)

2 Pin Power In*

5V Onboard

Regulators

1 NAND Flash is optional & these signals are also routed to MXM connector & some of the signals are shared with eMMC

2 eSDHC3 port will be share uSD and MXM connector

3 RGMII signals are shared with on board Gigabit Eth PHY & expansion connector

* Optional featured. Not supported by default

I2S Audio x (1/3)

Gigabit

Ethernet PHY

SD/MMC (4 Bit) X 2

2

CSIO

Camera (8bit) x 2

UART x (3/5)

Memory Bus*

5V

MXM3.0

RVS PCB Edge

Connector

(314 Pion)

Linux 3.14.38

Android 5.0 Lollipop

OPTIONAL /MODULES

i.MX6 MXM Development Kit

Heat Spreader

41

Development Platform iW-RainboW-G15D-MXM

i.MX6 MXM Development Kit

iW-RainboW-G15D is a multipurpose platform powered by automotive grade i.MX6 MXM SOM which is based on Freescale’s i.MX6 Series multimedia focused processor. This platform can be used for quick prototyping of any high end applications in verticals like Automotive,

Industrial & Medical. Being a nano ITX form factor with 120mmx120mm size, the board is highly packed with all necessary onboard connectors to validate complete i.MX6 CPU features.

APPLICATIONS:

Automotive Infotainment, Advanced HMI,

Telematics, Digital Signage, Healthcare and Medical Equipments.

iW-RainboW-G15D-MXM

HIGHLIGHTS

Ideal for Quick Proof of concept

(POC) development

Shortens 60% of the new product development life cycle

Quad Display Support

Quick customization services in a very shorter period

Compact (NanoITX 120mm X

120mm) form factor

Suitable for Wide Range of

Applications

SPECIFICATIONS

i.MX6 CPU Module:

i.MX6 Quad/Dual/Dual Lite/Solo

ARM®Cortex™-A9 core @1GHz/800MHz

RAM

1GB DDR3 for Q/D/DL (Expandable up to 4GB*)

512MB DDR3 for Solo (Expandable up to 2GB*)

Storage

4GB eMMC Flash (Expandable*)

2MB SPI Flash (Expandable*)

On-board Micro SD Slot

Carrier Board:

Storage:

SATA 3.0 - 1Port

Standard SD/MMC -1 Port

Sensors*:

3-Axis Accelerometer

Digital e-Compass

Ambient Light Sensor

Audio and Video:

On-board Audio Codec

Audio IN/OUT Jacks

TV-IN RCA Jack - 1 Port*

Parallel Camera - 1 Port

800x480 - RGB 7" LCD

HDMI 1.4 - 1Port

Audio Amplifier*

Communication Interfaces:

Gigabit Ethernet - 1 Port

USB 2.0 Host - 3 Ports

USB 2.0 OTG - 1 Port

RS232 Debug Console - 1Port

CAN - 2 Ports (DB9, Header)

Mini PCIe 2.0 - 1 Port

PCIe X 1 Slot*

Wi-Fi Module (Shared with Micro SD)*

On-Board Headers:

UART Headers

ESAI Header

MLB Header

RTC Coin cell Holder

Carrier Expansion Connector-1*:

Memory Bus,UART,I2C

MLB(3 pin), SSI,GPIOs,12V

Carrier Expansion Connector-2*:

i.MX6 RGMII,ENET Interface*

MIPI CSI, MIPI CSI,MLB-6pin,12V

Operating Temperature:

Power Input:

12V @2A DC Input

Form Factor:

Nano ITX 120mmx120mm

*Optional features are not supported by default

Note: device drivers provided are for specific interface chipsets which are used in iWave's carrier board

42

i.MX6 MXM DEVELOPMENT BOARD BLOCK DIAGRAM

22-Pin Conn

*

7-Pin Conn

#

RJ45 MagJack

Audio Jack

(In&Out)

MIC/SPKR*

Camera Conn-2

Camera Conn-1*

TV-In RCA Conn*

SD Conn

SD Wi-Fi*

20-Pin LVDS

Conn x2*

Resistive TP

Conn

Header x2*

40-Pin Res TP

RGB LCD Conn

HDMI Conn

Carrier

Expansion

Conn-2

120-Pin*

I2S CODEC

SATA Port 0

Gigabit Ethernet

I2S

Audio

Amp*

CSI-1

CSI-0

Video Decoder*

Touch

Controller

SD/SDIO-1

SD/SDIO-2

LVDS x2

12C-1

MLB & EASI

RGB-24bit

HDMI

Tx*

3-Axis

Accelerator*

I2C-2

HDMI

RGMII

MLB

MIPI CSI & DSI

+12V DC 2.5A

RFU Signals

iMX6 MXM SOM

(MXM-3 RVS

314-Pin Connector)

+5V Input

Reset Button

Power Button

RTC

I2C-1 & 2

PCI e0

USB Hub

4 Port

USB OTG

100 pin CPU

Expansion

Connector - 1

60 pin CPU Expansion

Connector - 2*

CAN 1

CAN 0

UART 1

UART3&4&5

CAN TxRx

RS 232 TxRx

RS 232 TxRx

UART 2

CAN TxRx

I2C-1

RS 232 TxRx

Digital e-Compass*

Ambient Light

Sensor*

EIM,SSI,UART2,I2C-1-3,MLB,GPIOs

RFU Signals

+12V DC 2.5A

On Board

Power

Regulators

Power Jack

Port-1

Port-3 & 4

Port-2

Push Button

Push Button

RTC Battery

Header

PCIe x 1 Slot

Connector*

Mini PCIe

Connector

USB A-Type

Conn(Dual)

USB A-Type

Conn

USB OTG

Micro AB Conn

Header

DB9 Conn

(Dual)

Headers x 3*

2G Module*

Header

Carrier

Expansion

Conn-1

120-Pin*

+12V DC 2.5A

#

Support available only for i.MX6 Quad and Dual CPUs

OS SUPPORT

Linux 3.0.35

Android Lollipop 5.0

DELIVERABLES

RainboW-G15D-MXM Platform

Board Support Packages

Power Adapter

User Manual

OPTIONAL KITS/MODULES

Camera Module

7"Capacitive Touch Module

3G Module

Wi-Fi Module

CUSTOM DEVELOPMENT

Custom SOM/ Carrier Card Development

BSP Development/ OS Porting

Design Review & Support

43

Single Board Computer iW-RainboW-G22S

RZ/G1E Pico-ITX SBC

iWave’s RZ/G1E SBC which is based on Renesas power efficient

Dual core ARM Cortex A7 CPU cores operating @1GHz speed.

The board can be used for quick prototyping of various applications targeted by the RZ/G1E processor. With the

100mm x 72 mm Pico ITX size, the kit is highly packed with all the necessary on-board connectors to validate the RZ/G1E CPU features.

APPLICATIONS:

HMI & Access Control, Digital Signage,

Industrial Control, IOT gateway, Healthcare devices, Point of sale, Network & high vision camera, Home & Office automation and White goods & appliances.

iW-RainboW-G22S

HIGHLIGHTS

SPECIFICATIONS

Dual Core ARM Cortex-A7 @ 1GHz

Hardware HD encode & decode

Built in SGX540 3D Graphic acceleration

Ultra-compact form size 100mm x 72mm

CPU:

Renesas’s RZ/G1E CPU @ 1GHz

SGX540 Graphics core @ 260MHz

512 MB DDR3

4GB eMMC Flash

100/1000 Ethernet PHY

10/100 Ethernet PHY

1

Micro SD Slot

SODIMM Carrier board:

Gigabit Ethernet - 1 Port

USB 2.0 host - 2 Ports

USB2.0 device - 1 Port

SD Slot - 1 Port

8-bit CSI Camera - 1 Port

1

Audio Codec, In/Out Jack

RGB display - 1 Port

Resistive touch controller

By default 8-bit camera interface is supported in the board.

Note2 : HDMI Daughter Board is a optional feature.

Data UART - 1 Port

CAN PHY - 1 Port

Serial console on USB Port

IO expansion headers

JTAG header

Power Supply:

[email protected] DC Input

Operating Temperature:

0 C to 60 C

OS Support:

Linux 3.10.31

Form Factor: 100mm x 72mm

HDMI Daughter Board :

ADV7511 HDMI Transmitter

HDMI Output - 1 Port

RS 232 - 3 Ports

44

RZ/G1E Pico - ITX SBC - BLOCK DIAGRAM

Micro SD

Connector

CAN Header

Debug

USB Micro AB

Connector

UART Header

20Pin

Expansion

Header

20Pin GPIO

Header

RTC Controller

(Optional)

RTC Battery

Holder

Control

Switches

SDHC x 4bit

CAN

Transceiver

UART to USB

Bridge

Data UART

Data UART

CAN2

SPI

GPIOs

I2C1

CAN1

Debug

UART

RTC

RZ/G1E SODIMM SOM

3.3V

Power IN

Boot Mode,

ONOFF,RST

SAI2/JTAG

µSDHC1

CAN1

Camera

RZ/G1E CPU

512MB RAM + 4GB eMMC

UART1

I2C1

UART5

18bpp RGB

PWM4

Ethernet1

UART2

CAN2

SPI

USB OTG2

GPIO’S

Ethernet2

USB OTG1

To On-Board Power

Circuit & Peripherals

3.3V Power

Regulator

Power Jack

(5V)

I2S

I2S Audio

Codec

JTAG

Audio In/Out

Connector

JTAG Header

(Optional)

Camera x 8Bit

1

OV7725 Camera

Connector

I2C1

Resistive Touch

Controller

18bpp RGB

DISP_BL

100/1000Mbps

RGB

LCD Connector

2 Port

USB HUB

10/100Mbps

1

USB Device

USB_HUBP1

USB_HUBP2

RJ45 MagJack1

USB Type A

Connector1

USB Type A

Connector2

RJ45 MagJack2

USB Micro AB

Connector

By default 8-bit camera interface is supported in the board.

OS SUPPORT

Linux 3.10.31

DELIVERABLES

RZ/G1E Pico-ITX SBC

Board Support Package

User Manual

OPTIONAL /MODULES

4.3” RGB display Kit

Camera Module

HDMI Daughter Board

CUSTOM DEVELOPMENT

BSP Development/OS Porting

Custom SOM/Carrier Development

Custom Application/GUI Development

Design Review and Support

45

Single Board Computer iW-RainboW-G15S

i.MX6 Pico-ITX SBC

iWave's new i.MX6 Quad/Dual/Dual Lite/Solo based Pico-ITX SBC integrates all standard interfaces into a single board with ultra compact yet highly integrated platform that can be utilized across multiple embedded PC, system and industrial designs. It has got all the necessary functions that the embedded world demands on a single board. It also provides an expansion header through which interfaces can be used according to their applications. Measuring just 100mm x 72mm, the Pico-ITX is currently the smallest complete ARM Cortex A9 main board in the industry, smaller than all existing ATX, BTX and ITX form factors.

APPLICATIONS:

Intelligent Industrial Control Systems,

Industrial Human-Machine interface, Ultra Portable Devices, Home

Energy Management Systems, Portable Medical Devices.

iW-RainboW-G15S

HIGHLIGHTS

ARM Cortex A9 @ 1GHz/800MHz

Quad/Dual/Dual Lite/Solo core

100mmx72mm Pico-ITX form-factor

Single Board Computer

HD 1080p encode and decode

3D video playback in high definition

Technical and quick customization support

10+ years, long term support

SPECIFICATIONS

CPU:

i.MX6 Q/D/DL/S @1GHz/800MHz ARM-Cortex-A9

PMIC:

MMPF0100

RAM:

1GB DDR3 for Q/D/DL (Expandable up to 4GB*)

512MB DDR3 for Solo (Expandable up to 2GB*)

Storage:

On-board Micro SD Slot

Standard SD/SDIO Slot

SPI Flash 16Mbit

4GB eMMC Flash

Optional SATA 7 Pin Connector*

Communication Interfaces:

10/100/1000 Mbps Ethernet

Half mini PCIe card Connector

Dual USB Host Connector

Micro USB OTG Connector

CAN Transceiver - 1 Port

Audio & Video Interfaces:

AC97 Audio Codec with Audio Out Jack &

Audio In Header

HDMI Port

LVDS Connector with Backlight Support [LVDS0]

4 Wire Resistive Touch Controller

8 Bit CMOS Camera Connector [CSI1]

2 Lanes MIPI Camera Connector

Debug & Status Indication Support:

Micro USB Debug Port

JTAG Header

4 Pos User Dip Switch & Status LEDs

Expansion Header-84 Pin:

MIPI DSI

SPI Interface-1No

CSI0 Camera interface

CAN2 Interface

UART- 3 Nos

I2C- 3 Nos

GPIOs

LVDS1 Interface

Optional MLB interface*

Miscellaneous:

RTC Controller*

Operating Temperature:

O

Power Input:

5V, 2A

Form Factor:

Pico-ITX (100mmx72mm)

Operating Systems:

Linux 3.14.38

Android 5.0 Lollipop

WEC7

*Optional features are not supported by default

46

47

i.MX6 PICO-ITX SBC BLOCK DIAGRAM

Audio Out

Jack

Audio In

Header

DDR3 RAM (1GB/512MB) eMMC (4GB)

SPI Flash (16MB) eCSPI1 eCSPI1

i.MX6 Q/D/DL/S

I2C1

I2C1

User Dip

JTAG

RTC Controller*

I2C

I2C

JTAG

MLB

+

I2C 1,2,3

LVDS1

I2C x 3

7 pin SATA

Connector*

5V

84pin

Expansion

Header

OS SUPPORT

Linux 3.14.38

Android 5.0 Lollipop

WEC 7

DELIVERABLES

i.MX6 Pico-ITX SBC

Board Support Packages

5V @2A Power Adapter

User Manual

OPTIONAL/MODULES

Advanced Learning Platform

Pico ITX Enclosure

Wi-Fi modules

CUSTOM DEVELOPMENT

BSP Development/OS Porting

Custom Application/GUI Development

Design Review and Support

Coming

Soon

System On Module

iW-RainboW-G24M

Arria 10 SoC Module

iWave’s Arria 10 SoC System on Module is based on the Arria 10 SX family device with F34 package. The module is equipped with 32bit DDR4 memory support for HPS with optional ECC and 64-bit

DDR4 support for FPGA. All the IOs and high speed transceiver blocks will be available on the SOM board to board connector.

APPLICATIONS:

Test and measurement equipment, Control and intelligence equipment, Diagnostic medical imaging equipment, Wireless infrastructure equipment, Compute and storage equipment, Broadcast and distribution equipment.

iW-RainboW-G24M

HIGHLIGHTS

Arria10 SoC & FPGA device compatibility

SX270, SX320, SX480, SX570, Sx660

Gx270, GX320, GX480, GX570, Gx660

24 high speed transceivers @ 17.4Gbps

Up to 76LVDS/152SE FPGA IOs

64 - Bit DDR4 support for FPGA

Variable IO voltage support

Industrial Grade operation

SPECIFICATIONS

SOC: Arria10 SoC

Dual Core, Cortex-A9 CPU @ 1.5GHz

SX270 (10AS027) FPGA Fabric

35mm x 35mm F34 Package

Memory:

1GB DDR4 with optional ECC for HPS

1GB SLC NAND Flash for HPS

Optional 64-bit DDR4 for FPGA

QSPI Flash for FPGA (Optional)

Communication:

10/100/100 Ethernet PHY For HPS

USB2.0 transceiver for HPS UTMI

Power Supply:

5V through SOM B2B connectors

Temperature support:

-40°C to +85°C Industrial

Dual 240 Pin Board to Board Connector:

Arria10 SoC HPS IO interfaces:

Gigabit Ethernet x 1 Port

USB 2.0 OTG x 1 Port

SD (4bit) x 1 Port

SPI x 1 Port, I2C x 1 Port

Full Function UART x 1 Port

Console UART, GPIOs –4 Nos

Arria10 SoC FPGA IO interfaces:

24 high-speed transceivers

76LVDS/152SE FPGA IOs

8LVDS/8SE General purpose clock outputs

7LVDS/7SE General purpose clock inputs

Headers: HPS/FPGA JTAG, FPGA AS headers

OS Support: Linux 4.1.22

Form Factor: 95mm x 75mm

48

Arria 10 SoC SOM - BLOCK DIAGRAM

Hard Processor System

DDR4 1GB

(Upgradable)

DDR4 (ECC)

(Op onal)

NAND-1GB

(Upgradable)

DDR4 (32bit)

DDR4 ECC (8bit)

SDRAM

Controller

(Bank 2J & 2k)

NAND

NAND

USB1

EMAC1

SDMMC

SPIM0

UART0

UART1

I2C1

GPIOs

Power to

Peripherals

Power

Regulators

5V

UTMI

RGMII

USB2.0

PHY

Ethernet

PHY

USB OTG

Gigabit

Ethernet

SD (4bits)

SPI

Debug UART

UART (with CTS & RTS)

I2C

GPIO x 4nos

Power IN

(Op onal)

SOM

Expansion

High Speed

Connector2

(240pin)

SOM

Expansion

High Speed

Connector1

(240pin)

High Speed Transceiver (6 Channels)

High Speed Transceiver (6 Channels)

High Speed Transceiver (6 Channels)

FPGA IOs(46SE)

FPGA IOs(46SE)

Bank 1C

Bank 1D

Bank 1E

Arria 10 SX / GX

FPGA

Transceiver PHY

Bank 1F

Bank 3B

Bank 2A

Bank 3A

FPGA IOs

Bank 3C

Bank 3D,

3E,3F

High Speed Transceiver (6 Channels)

FPGA IOs(24LVDS/48SE)

FPGA IOs(24LVDS/48SE)

DDR4 (64bit)

DDR4 RAM

(Op onal)

FPGA AS

Header

(Op onal)

AS Interface

Ac ve Serial JTAG

JTAG

5V

QSPI Flash

(Op onal)

Note:

HPS (Hard Processing System) is supported only in Arria10 SX device.

All IOs in SOM Expansion connectors are 1.8V tolerant IOs. Optionally, Bank 2A and Bank 3A supports variable IO level setting (1.8V, 1.5V, 1.35V, 1.2V).

Each FPGA IO Bank (2A,3A,3B,3C) which goes to SOM Expansion connectors support two General Purpose Clock Input & two General Purpose Clock Output (LVDS/SE).

Since 3D,3E & 3F banks are available only in some version of Arria10 parts, FPGA DDR4 (64bit) can be supported only where these banks supported devices are used.

FPGA/HPS

JTAG Header

FAN Header

(Optional)

OS SUPPORT

Linux 4.1.22

DELIVERABLES

Arria 10 SoC SOM

Board Support Package

User Manual

OPTIONAL/MODULES

Arria 10 SoC Development Kit

CUSTOM DEVELOPMENT

BSP Development/OS Porting

Custom SOM/Carrier Development

Custom Application/GUI Development

Design Review and Support

49

-----------------------

-----------------

-----------------

APQ 8096 Q7 SOM

Arria10 SoC SOM

i.MX8 Q7 SOM

Feature Rich & performance

Renesas RZ/G1M, G1N Q7 SOM

Cyclone Q7 SOM

i.MX6x SOM SBC

ARM Cortex A8+ DSP

TI DM8168 Q7 SOM

-----------------------

i.MX53x SOM i.MX50x SBC

ARM Dual Cortex A7

RZ/G1E SODIMM SOM

i.MX6UL SODIMM SOM

Vybrid SOM

Cost & power Optimized i.MX51x SOM

i.MX27 SOM & SBC intel Atom SOM

---------------------------------------------------------------

---------------------------------------------------------------

Marvell PXA 270 SBC

GNS-GmbH reserves all rights to this document and the information contained herein.

Products, names and logos described herein may in whole or in part be subject to intellectual property rights.

Contact:

UNITRONIC AG

No warranty of any kind is made in relation to the content of this document.

This document may be revised by GNS-GmbH at any time.

Copyright © 2014, GNS-GmbH, Adenauerstr. 18, 52146 Würselen, Germany

Room 303, 3/F, St. George´s Building

2 Ice House Street, Central

Hong Kong

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
