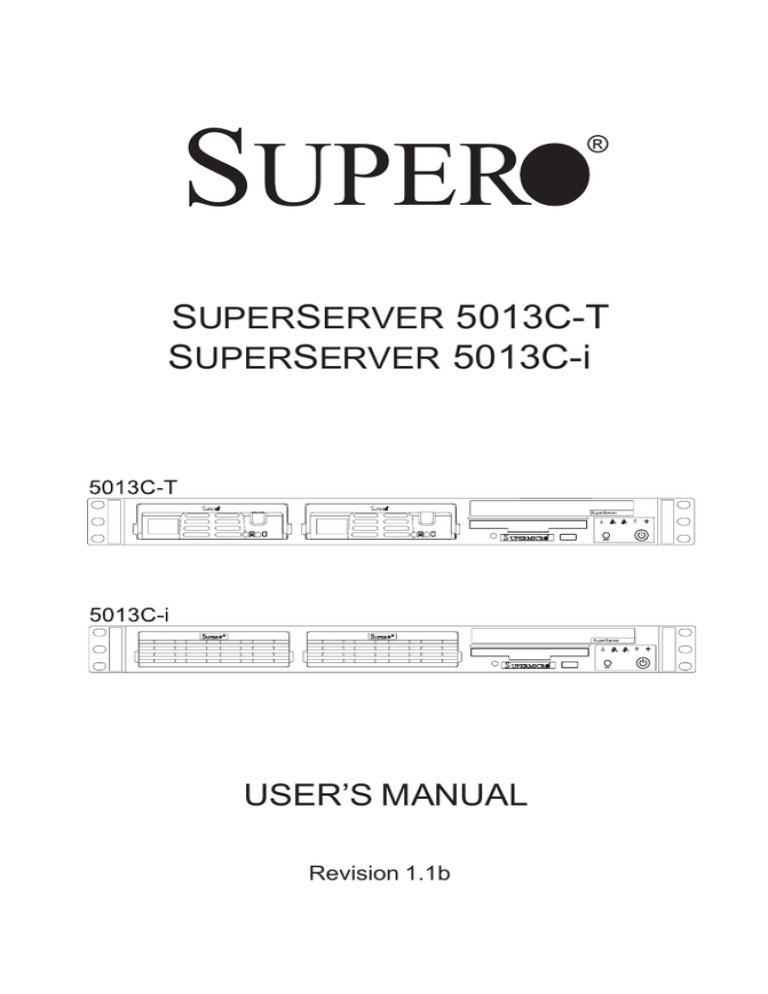

SUPER
®
SUPERSERVER 5013C-T
SUPERSERVER 5013C-i
USER’S MANUAL
Revision 1.1b
The information in this User’s Manual has been carefully reviewed and is believed to be
accurate. The vendor assumes no responsibility for any inaccuracies that may be
contained in this document, makes no commitment to update or to keep current the
information in this manual, or to notify any person or organization of the updates. Please
Note: For the most up-to-date version of this manual, please see our
web site at www.supermicro.com.
SUPERMICRO COMPUTER reserves the right to make changes to the product described in
this manual at any time and without notice. This product, including software, if any, and
documentation may not, in whole or in part, be copied, photocopied, reproduced, translated
or reduced to any medium or machine without prior written consent.
IN NO EVENT WILL SUPERMICRO COMPUTER BE LIABLE FOR DIRECT, INDIRECT,
SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM
THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, THE VENDOR
SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED
OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING,
INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR
DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of
Santa Clara County in the State of California, USA. The State of California, County of
Santa Clara shall be the exclusive venue for the resolution of any such disputes.
Supermicro's total liability for all claims will not exceed the price paid for the hardware
product.
Unless you request and receive written permission from SUPER MICRO COMPUTER, you
may not copy any part of this document.
Information in this document is subject to change without notice. Other products and
companies referred to herein are trademarks or registered trademarks of their respective
companies or mark holders.
Copyright © 2005 by SUPER MICRO COMPUTER INC.
All rights reserved.
Printed in the United States of America
Preface
Preface
About This Manual
This manual is written for professional system integrators and PC technicians.
It provides information for the installation and use of the SuperServer 5013C-T/
5013C-i. Installation and maintainance should be performed by experienced
technicians only.
The SuperServer 5013C-T/5013C-i is a high-end single processor 1U rackmount
server based on the SC811T-250/SC811i-250 1U rackmount server chassis and
the Super P4SCE motherboard. The P4SCE supports single Intel ® Pentium ® 4
processors of up to 3.40 GHz with a 2 MB integrated Advanced Transfer Cache
and hyper-threading technology and single Intel ® Celeron ® processors of up to
2.40 GHz with a 128KB integrated Advanced Transfer Cache in 478-pin microPGA
sockets.
Manual Organization
Chapter 1: Introduction
The first chapter provides a checklist of the main components included with the
server system and describes the main features of the Super P4SCE motherboard
and the SC811 chassis.
Chapter 2: Server Installation
This chapter describes the steps necessary to install the SuperServer
5013C-T/5013C-i into a rack and check out the server configuration prior to
powering up the system. If your server was ordered without the processor and memory components, this chapter will refer you to the appropriate
sections of the manual for their installation.
Chapter 3: System Interface
Refer to this chapter for details on the system interface, which includes the
functions and information provided by the control panel on the chassis as
well as other LEDs located throughout the system.
iii
SUPERSERVER 5013C-T/5013C-i User's Manual
Chapter 4: System Safety
You should thoroughly familiarize yourself with this chapter for a general
overview of safety precautions that should be followed when installing and
servicing the SuperServer 5013C-T/5013C-i.
Chapter 5: Advanced Motherboard Setup
Chapter 5 provides detailed information on the P4SCE motherboard, including the locations and functions of connectors, headers and jumpers. Refer
to this chapter when adding or removing processors or main memory and
when reconfiguring the motherboard.
Chapter 6: Advanced Chassis Setup
Refer to Chapter 6 for detailed information on the SC811 1U rackmount
server chassis. You should follow the procedures given in this chapter
when installing, removing or reconfiguring Serial ATA or peripheral drives
and when replacing system power supply units and cooling fans.
Chapter 7: BIOS
The BIOS chapter includes an introduction to BIOS and provides detailed
information on running the CMOS Setup Utility.
Appendix A: BIOS Error Beep Codes and Messages
Appendix B: POST Diagnostic Error Messages
Appendix C: Software Installation
Appendix D: System Specifications
iv
Preface
Notes
v
SUPERSERVER 5013C-T/5013C-i User's Manual
Table of Contents
Preface
About This Manual ....................................................................................................... iii
Manual Organization .................................................................................................... iii
Chapter 1: Introduction
1-1
Overview ............................................................................................................ 1-1
1-2
Motherboard Features ..................................................................................... 1-2
1-3
Server Chassis Features ................................................................................ 1-5
1-4
Contacting Supermicro ................................................................................... 1-7
Chapter 2: Server Installation
2-1
Overview ............................................................................................................ 2-1
2-2
Unpacking the SuperServer 5013C-T/5013C-i ............................................... 2-1
2-3
Preparing for Setup ......................................................................................... 2-1
Choosing a Setup Location ...................................................................... 2-2
Rack Precautions ...................................................................................... 2-2
Server Precautions .................................................................................... 2-2
2-4
Installing the SuperServer 5013C-T/5013C-i into a Rack ............................ 2-4
Identifying the Sections of the Rack Rails ............................................ 2-4
Installing the Chassis Rails ..................................................................... 2-5
Installing the Rack Rails .......................................................................... 2-5
Installing the Server into the Rack ......................................................... 2-6
Installing the Server into a Telco Rack .................................................. 2-7
2-5
Checking the Motherboard Setup .................................................................. 2-8
2-6
Checking the Drive Bay Setup ..................................................................... 2-10
Chapter 3: System Interface
3-1
Overview ............................................................................................................ 3-1
3-2
Control Panel Buttons ..................................................................................... 3-1
Reset .......................................................................................................... 3-1
Power ......................................................................................................... 3-1
3-3
Control Panel LEDs ......................................................................................... 3-2
Overheat ..................................................................................................... 3-2
NIC2 ............................................................................................................ 3-2
NIC1 ............................................................................................................ 3-2
HDD ............................................................................................................ 3-2
Power ......................................................................................................... 3-3
vi
Table of Contents
3-4
Serial ATA Drive Carrier LEDs (5013C-T) ..................................................... 3-3
Chapter 4: System Safety
4-1
Electrical Safety Precautions ......................................................................... 4-1
4-2
General Safety Precautions ........................................................................... 4-2
4-3
ESD Precautions ............................................................................................. 4-3
4-4
Operating Precautions .................................................................................... 4-4
Chapter 5: Advanced Motherboard Setup
5-1
Handling the P4SCE Motherboard ................................................................. 5-1
5-2
Motherboard Installation .................................................................................. 5-2
5-3
Connecting Cables .......................................................................................... 5-3
Connecting Data Cables .......................................................................... 5-3
Connecting Power Cables ........................................................................ 5-3
Connecting the Control Panel ................................................................. 5-3
5-4
I/O Ports ........................................................................................................... 5-4
5-5
Installing Processors ...................................................................................... 5-5
5-6
Installing Memory ............................................................................................ 5-7
5-7
Adding PCI Cards ............................................................................................ 5-8
5-8
Motherboard Details ........................................................................................ 5-9
P4SCE Layout ........................................................................................... 5-9
P4SCE Quick Reference ........................................................................ 5-10
5-9
Connector Definitions .................................................................................... 5-11
Power Supply Connectors ...................................................................... 5-11
IR Connector ............................................................................................ 5-11
PWR_ON Connnector ............................................................................. 5-12
Reset Connector ..................................................................................... 5-12
Overheat LED (OH) ................................................................................. 5-12
GLAN1/GLAN2 LED ................................................................................ 5-12
IDE LED ................................................................................................... 5-13
Power_LED Connector ........................................................................... 5-13
Serial Ports ............................................................................................. 5-13
Fan Headers ............................................................................................ 5-13
Chassis Intrusion .................................................................................... 5-14
ATX PS/2 Keyboard and PS/2 Mouse Ports ....................................... 5-14
Universal Serial Bus ............................................................................... 5-14
Wake-On-LAN .......................................................................................... 5-15
Wake-On-Ring ......................................................................................... 5-15
SATA LED ............................................................................................... 5-15
vii
SUPERSERVER 5013C-T/5013C-i User's Manual
5-10 Jumper Settings ............................................................................................. 5-16
Explanation of Jumpers .......................................................................... 5-16
CMOS Clear ............................................................................................ 5-16
Front Side Bus Speed ............................................................................ 5-16
USB Wake-Up ......................................................................................... 5-17
Watch Dog Enable/Disable .................................................................... 5-17
Speaker Jumper ...................................................................................... 5-17
Keyboard Wake-Up ................................................................................. 5-18
GLAN1 Enable/Disable ........................................................................... 5-18
GLAN2 Enable/Disable ........................................................................... 5-18
Keylock Enable/Disable ......................................................................... 5-18
5-11 Parallel Port/Floppy and Hard Drive Connections ...................................... 5-19
Parallel Port ............................................................................................. 5-19
Floppy Connector .................................................................................... 5-20
IDE Connectors ....................................................................................... 5-20
Chapter 6: Advanced Chassis Setup
6-1
Static-Sensitive Devices ................................................................................. 6-1
6-2
Control Panel ................................................................................................... 6-2
6-3
System Fans .................................................................................................... 6-3
System Fan Failure .................................................................................. 6-3
6-4
Drive Bay Installation/Removal ....................................................................... 6-3
Accessing the Drive Bays ....................................................................... 6-3
Serial ATA Drive Installation (5013C-T) .................................................. 6-4
CD-ROM and Floppy Drive Installation ................................................... 6-6
IDE Drive Installation (5013C-i) ................................................................ 6-7
6-5
Power Supply ................................................................................................... 6-8
Power Supply Failure ............................................................................... 6-8
Replacing the Power Supply ................................................................... 6-8
Chapter 7: BIOS
7-1
Introduction ....................................................................................................... 7-1
7-2
Running Setup ................................................................................................. 7-2
7-3
Main BIOS Setup ............................................................................................ 7-2
The Main BIOS Setup Menu .................................................................... 7-3
7-4
Advanced BIOS Setup .................................................................................... 7-5
7-4.1 Advanced BIOS Features ............................................................. 7-5
7-4.2 Advanced Chipset Control ............................................................ 7-7
7-4.3 I/O Device Configuration ............................................................... 7-8
7-4.4 PnP Configuration ........................................................................ 7-11
viii
Table of Contents
7-4.5 Hardware Monitors ....................................................................... 7-12
7-4.6 Processor and Clock Options .................................................... 7-12
7-5
Security .......................................................................................................... 7-14
7-6
Boot ................................................................................................................. 7-15
7-7
Exit .................................................................................................................. 7-16
Appendices:
Appendix A: BIOS POST Messages ....................................................................... A-1
Appendix B: BIOS POST Codes ............................................................................. B-1
Appendix C: Software Installation ........................................................................... C-1
Appendix D: System Specifications ....................................................................... D-1
ix
SUPERSERVER 5013C-T/5013C-i User's Manual
Notes
x
Chapter 1: Introduction
Chapter 1
Introduction
1-1
Overview
The Supermicro SuperServer 5013C-T/5013C-i is a high-end single processor, 1U
rackmount server with state-of-the-art features. The 5013C-T/5013C-i is comprised of two main subsystems: the SC811T-250/SC811i-250 1U rackmount chassis and the P4SCE motherboard. Please refer to our web site for information on
operating systems that have been certified for use with the 5013C-T/5013C-i
(www.supermicro.com).
In addition to the mainboard and chassis, various hardware components may
have been included with the 5013C-T/5013C-i, as listed below.
One CPU heatsink (SNK-P0002)
One CPU retention module (SKT-0115)
One (1) 3.5" floppy drive (FPD-PNSC-02)
One (1) slim CD-ROM drive (CDM-TEAC-24(B))
Two (2) 10-cm blower fans (FAN-0038)
Serial ATA (SATA) Accessories (5013C-T only):
One (1) internal SATA backplane (CSE-SATA-810)
Two (2) SATA cables (CBL-0061)
One (1) SATA LED cable (CBL-0056)
Two (2) SATA drive carriers (CSE-PT10 (B))
One (1) 5V 32-bit, 33 MHz PCI slot riser card (CSE-RR32-1U)
Rackmount hardware with screws (CSE-PT8):
Two (2) rack rail assemblies
Six (6) brackets for mounting the rack rails in a rack/telco rack
One (1) CD containing drivers and utilities
SuperServer 5013C-T/5013C-i User's Manual
Note: "B" indicates black.
1-1
SUPERSERVER 5013C-T/5013C-i User's Manual
1-2
Motherboard Features
At the heart of the SuperServer 5013C-T/5013C-i lies the P4SCE, a single
processor motherboard designed to provide maximum performance. Below
are the main features of the P4SCE.
Chipset Overview
The P4SCE is based on Intel’s E7210 chipset. See Figure 1-1 for a block
diagram of the chipset. The E7210 chipset is made up of two main components:
The Memory Controller Hub (MCH)
The I/O Controller Hub (ICH5R)
Memory Controller Hub (MCH)
The MCH includes the host (CPU) interface, memory interface, ICH5R interface, CSA interface and AGP interface. It contains advanced power management logic and supports dual-channel (interleaved) DDR memory, providing bandwidth of up to 6.4 GB/s using DDR-400 SDRAM. The AGP interface
supports 8x data transfers and operates at a peak bandwidth of 2.1 GB/s.
The CSA (Communications Streaming Architecture) interface connects the
MCH to a Gigabit Ethernet controller.
I/O Controller Hub (ICH5R)
The ICH5R I/O controller hub integrates an Ultra ATA 100 controller, two Serial
ATA host controllers, one EHCI host controller and and four UHCI host controllers
to support up to eight external USB 2.0 ports. The ICH5R also integrates an LPC
interface controller, a flash BIOS interface controller, a PCI interface controller,
an AC ’97 digital controller, an integrated LAN controller, an ASF controller and
a hub interface for communication with the MCH. The ICH5R provides data
buffering and interface arbitration to offer efficient communication between
system interfaces operate and to provide high bandwidth for peak performance.
The ICH5R supports Serial ATA with Intel® RAID Technology.
1-2
Chapter 1: Introduction
Processors
The P4SCE supports single Intel ® Pentium ® 4 processors of up to 3.40 GHz
with a 2 MB integrated Advanced Transfer Cache and hyper-threading technology and single Intel ® Celeron ® processors of up to 2.40 GHz with a
128KB integrated Advanced Transfer Cache in 478-pin microPGA sockets.
Please refer to the support section of our web site for a complete listing of
supported processors (http://www.supermicro.com/support/).
Memory
The P4SCE has four (4) 184-pin DIMM sockets that can support up to 4 GB
of ECC or non-ECC unbuffered DDR-400/333/266 SDRAM modules. Lowprofile memory modules are required for use in the 1U form factor of the
5013C-T/5013C-i. Module sizes of 256 MB, 512 MB and 1 GB may be used
to populate the DIMM slots. All memory modules must be the same size and
speed.
Serial ATA (5013C-T)
A Serial ATA controller is incorporated into the E7210 chipset to provide a
two-port Serial ATA subsystem, which is RAID 0 and RAID 1 supported.
The Serial ATA drives are hot-swappable units.
Note: The operating system you use must have RAID support to enable the
hot-swap capability and RAID function of the Serial ATA drives.
PCI Expansion Slots
The P4SCE has five 32-bit, 33 MHz PCI slots available. One riser card is
included with the system for use with 32-bit PCI cards.
Ethernet Ports
The P4SCE has an onboard controller that supports two Gigabit LAN ports.
Onboard Controllers/Ports
An onboard IDE controller supports one floppy drive and up to four Ultra
ATA 100 hard drives or ATAPI devices. Onboard I/O backpanel ports include one COM port, one parallel port, two USB ports, PS/2 mouse and
keyboard ports and two GLAN (NIC) ports.
1-3
SUPERSERVER 5013C-T/5013C-i User's Manual
Other Features
Other onboard features that promote system health include eight voltage
monitors, a chassis intrusion header, auto-switching voltage regulators,
chassis and CPU overheat sensors, virus protection and BIOS rescue.
CTLR
DATA
ADDR
Processor 0
Dual-Channel DIMMs (4)
(DDR400/333/266)
DIMM
CSA Gb Ethernet
Controller (66MHz)
MCH
3.2 GB/s
DIMM
Hub A
USB Ports
(4)
USB 2.0
UDMA
100
ATA/100
Ports (2)
64-bit/66 MHz
ICH5R
32-bit/33 MHz
LPC Bus
FWH
PCI-X
U320 SCSI
Cntr
PCI
Gb Ethernet
Cntr
ATI
VGA
LPC I/O
KB/Mouse
FDD
Serial Port
Printer
H/W Monitor
Figure 1-1 . Intel E7210 Chipset:
System Block Diagram
Note: This is a general block diagram. Please see Chapter 5 for details.
1-4
Chapter 1: Introduction
1-3
Server Chassis Features
The SuperServer 5013C-T/5013C-i is a 1U rackmount server platform designed
with some of today's most state-of-the-art features. The following is a general
outline of the main features of the SC811 chassis. (The 5013C-T uses the
SC811T-250 modification and the 5013C-i uses the SC811i-250 modification of
the same SC811 chassis.)
System Power
When configured as a SuperServer 5013C-T/5013C-i, the SC811 chassis includes a single 250W power supply.
Serial ATA Subsystem (5013C-T)
For the 5013C-T, the SC811T chassis was designed to support two Serial ATA
hard drives. The Serial ATA drives are hot-swappable units. ATA/100 IDE drives
are also supported.
Note: The operating system you use must have RAID support to enable the hotswap capability of the Serial ATA drives.
Control Panel
The SC811's control panel provides important system monitoring and control
information. LEDs indicate power on, network activity, hard disk drive activity
and system overheat conditions. The control panel also includes a main power
button and a system reset button.
1-5
SUPERSERVER 5013C-T/5013C-i User's Manual
Rear I/O Panel
The SC811 is a 1U rackmount chassis. Its I/O panel provides one motherboard
expansion slot, one COM port (another is internal), two USB ports, PS/2 mouse
and keyboard ports, a graphics port and two Gb Ethernet ports. (See Figure 12.)
Figure 1-2.
Rear I/O Panel
Cooling System
The SC811 chassis has an innovative cooling design that features two 10-cm
blower system cooling fans. The blower fans plug into a chassis fan header on
the motherboard and operate at full rpm continuously.
1-6
Chapter 1: Introduction
1-4
Contacting Supermicro
Headquarters
Address:
Tel:
Fax:
Email:
Web Site:
SuperMicro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
+1 (408) 503-8000
+1 (408) 503-8008
[email protected] (General Information)
[email protected] (Technical Support)
www.supermicro.com
Europe
Address:
Tel:
Fax:
Email:
SuperMicro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
+31 (0) 73-6400390
+31 (0) 73-6416525
[email protected] (General Information)
[email protected] (Technical Support)
[email protected] (Customer Support)
Asia-Pacific
Address:
SuperMicro, Taiwan
4F, No. 232-1, Liancheng Rd.
Chung-Ho 235, Taipei County
Taiwan, R.O.C.
Tel:
+886-(2) 8226-3990
Fax:
+886-(2) 8226-3991
Web Site:
www.supermicro.com.tw
Technical Support:
Email:
[email protected]
Tel:
886-2-8228-1366, ext.132 or 139
1-7
SUPERSERVER 5013C-T/5013C-i User's Manual
Notes
1-8
Chapter 2: Server Installation
Chapter 2
Server Installation
2-1 Overview
This chapter provides a quick setup checklist to get your SuperServer
5013C-T/5013C-i up and running. Following the steps in the order given
should enable you to have the system operational within a minimal amount
of time. This quick setup assumes that your 5013C-T/5013C-i system has
come to you with the processor and memory preinstalled. If your system is
not already fully integrated with a motherboard, processor, system memory
etc., please turn to the chapter or section noted in each step for details on
installing specific components.
2-2
Unpacking the SuperServer 5013C-T/5013C-i
You should inspect the box the SuperServer 5013C-T/5013C-i was shipped
in and note if it was damaged in any way. If the server itself shows
damage, you should file a damage claim with the carrier who delivered it.
Decide on a suitable location for the rack unit that will hold
5013C-T/5013C-i. It should be situated in a clean, dust-free
ventilated. Avoid areas where heat, electrical noise and
fields are generated. You will also need it placed near a
outlet. Read the Rack and Server Precautions in the next
2-3
the SuperServer
area that is well
electromagnetic
grounded power
section.
Preparing for Setup
The box the SuperServer 5013C-T/5013C-i was shipped in should include
two sets of rail assemblies, two rail mounting brackets and the mounting
screws you will need to install the system into the rack. Follow the steps
in the order given to complete the installation process in a minimal amount of
time. Please read this section in its entirety before you begin the installation
procedure outlined in the sections that follow.
2-1
SUPERSERVER 5013C-T/5013C-i User's Manual
Choosing a Setup Location
- Leave enough clearance in front of the rack to enable you to open
the front door completely (~25 inches).
- Leave approximately 30 inches of clearance in the back of the rack
to allow for sufficient airflow and ease in servicing.
- This product is for installation only in a Restricted Access Location
(dedicated equipment rooms, service closets, etc.).
!
Warnings and Precautions!
!
Rack Precautions
- Ensure that the leveling jacks on the bottom of the rack are fully
extended to the floor with the full weight of the rack resting on them.
- In a single rack installation, stabilizers should be attached to the rack.
- In multiple rack installations, the racks should be coupled together.
- Always make sure the rack is stable before extending a component
from the rack.
- You should extend only one component at a time - extending two or
more simultaneously may cause the rack to become unstable.
Server Precautions
- Review the electrical and general safety precautions in Chapter 4.
- Determine the placement of each component in the rack before you
install the rails.
- Install the heaviest server components on the bottom of the rack
first, and then work up.
- Use a regulating uninterruptible power supply (UPS) to protect the
server from power surges, voltage spikes and to keep your
system operating in case of a power failure.
- Allow the power supply units and hot plug Serial ATA drives to
cool before touching them.
- Always keep the rack's front door and all panels and components on
the servers closed when not servicing to maintain proper cooling.
2-2
Chapter 2: Server Installation
Rack Mounting Considerations
Ambient Operating Temperature
If installed in a closed or multi-unit rack assembly, the ambient operating
temperature of the rack environment may be greater than the ambient
temperature of the room. Therefore, consideration should be given to
installing the equipment in an environment compatible with the manufacturer’s
maximum rated ambient temperature (Tmra).
Reduced Airflow
Equipment should be mounted into a rack so that the amount of airflow
required for safe operation is not compromised.
Mechanical Loading
Equipment should be mounted into a rack so that a hazardous condition does
not arise due to uneven mechanical loading.
Circuit Overloading
Consideration should be given to the connection of the equipment to the power
supply circuitry and the effect that any possible overloading of circuits might have
on overcurrent protection and power supply wiring. Appropriate consideration of
equipment nameplate ratings should be used when addressing this concern.
Reliable Ground
A reliable ground must be maintained at all times. To ensure this, the rack itself
should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (i.e. the use of
power strips, etc.).
2-3
SUPERSERVER 5013C-T/5013C-i User's Manual
2-4
Installing the 5013C-T/5013C-i into a Rack
This section provides information on installing the SuperServer 5013C-T/
5013C-i into a rack unit. If the system has already been mounted into a
rack, you can skip ahead to Sections 2-5 and 2-6. There are a variety of
rack units on the market, which may mean the assembly procedure will
differ slightly. The following is a guideline for installing the unit into a rack
with the rack rails provided with the system. You should also refer to the
installation instructions that came with the rack unit you are using.
Identifying the Sections of the Rack Rails
You should have received two rack rail assemblies with the SuperServer
5013C-T/5013C-i. Each of these assemblies consist of two sections: an
inner fixed chassis rail that secures to the unit (A) and an outer fixed rack
rail that secures directly to the rack itself (B). A sliding rail guide sandwiched between the two should remain attached to the fixed rack rail (see
Figure 2-1). The A and B rails must be detached from each other to install.
To remove the fixed chassis rail (A), pull it out as far as possible - you
should hear a "click" sound as a locking tab emerges from inside the rail
assembly and locks the inner rail. Then depress the locking tab to pull the
inner rail completely out. Do this for both the left and right side rack rail
assemblies.
Mounting Holes
B
Locking Tab
A
Figure 2-1.
Identifying the Sections of the Rack Rails
2-4
Chapter 2: Server Installation
Installing the Chassis Rails
Position the fixed chassis rail sections you just removed along the side of
the chassis making sure the five screw holes line up. Note that these two
rails are left/right specific. Screw the rail securely to the side of the
chassis (see Figure 2-2). Repeat this procedure for the other rail on the
other side of the chassis. You will also need to attach the rail brackets
when installing into a telco rack.
Locking Tabs: As you have seen, both chassis rails have a locking tab,
which serves two functions.
The first is to lock the server into place
when installed and pushed fully into the rack, which is its normal position.
Secondly, these tabs also lock the server in place when fully extended
from the rack. This prevents the server from coming completely out of
the rack when you pull it out for servicing.
Figure 2-2.
Installing Chassis Rails
Installing the Rack Rails
Determine where you want to place the SuperServer 5013C-T/5013C-i in
the rack (see Rack and Server Precautions in Section 2-3). Position the
fixed rack rail/sliding rail guide assemblies at the desired location in the
rack, keeping the sliding rail guide facing the inside of the rack. Screw the
assembly securely to the rack using the brackets provided. Attach the
2-5
SUPERSERVER 5013C-T/5013C-i User's Manual
other assembly to the other side of the rack, making sure that both are at
the exact same height and with the rail guides facing inward.
Installing the Server into the Rack
You should now have rails attached to both the chassis and the rack
unit.
The next step is to install the server into the rack.
Do this by
lining up the rear of the chassis rails with the front of the rack rails.
Slide the chassis rails into the rack rails, keeping the pressure even on
both sides (you may have to depress the locking tabs when inserting).
See Figure 2-3.
When the server has been pushed completely into the rack, you should
hear the locking tabs "click". Finish by inserting and tightening the
thumbscrews that hold the front of the server to the rack.
Figure 2-3.
Installing the Server into a Rack
2-6
Chapter 2: Server Installation
Installing the Server into a Telco Rack
If you are installing the SuperServer 5013C-T/5013C-i into a Telco type rack,
follow the directions given on the previous pages for rack installation. The
only difference in the installation procedure will be the positioning of the
rack brackets to the rack. They should be spaced apart just enough to
accomodate the width of the telco rack.
Figure 2-4.
Installing the Server into a Telco Rack
2-7
SUPERSERVER 5013C-T/5013C-i User's Manual
2-5
Checking the Motherboard Setup
After you install the 5013C-T/5013C-i in the rack, you will need to open the
unit to make sure the motherboard is properly installed and all the connections have been made.
1. Accessing the inside of the 5013C-T/5013C-i (Figure 2-5)
First, release the retention screws that secure the unit to the rack.
Grasp the two handles on either side and pull the unit straight out until it
locks (you will hear a "click"). Next, depress the two buttons on the top
of the chassis to release the top cover. There is a large rectangular
recess in the middle front of the top cover to help you push the cover
away from you until it stops. You can then lift the top cover from the
chassis to gain full access to the inside of the server.
2. Check the CPU (processor)
You should have one processor already installed into the system
board. Each processor should have its own heatsink attached. See
Chapter 5 for instructions on processor installation.
3. Check the system memory
Your 5013C-T/5013C-i server system may have come with system
memory already installed. Make sure all DIMMs are fully seated in their
slots. For details on adding system memory, refer to Chapter 5.
4. Installing add-on cards
If desired, you can install an add-on card to the system. See Chapter 5
for details on installing a PCI add-on card.
5. Check all cable connections and airflow
Make sure all power and data cables are properly connected and not
blocking the airflow. See Chapter 5 for details on cable connections.
Also, check the air seals for damage. The air seals are located under
the blower fan and beneath the frame cross section that separates the
drive bay area from the motherboard area of the chassis.
Note: Make sure that the air seals are properly installed.
2-8
Chapter 2: Server Installation
Figure 2-5.
Accessing the Inside of the SuperServer 5013C-T/5013C-i
(with drives removed)
2-9
SUPERSERVER 5013C-T/5013C-i User's Manual
2-6
Checking the Drive Bay Setup
Next, you should check to make sure the peripheral drives and the Serial
ATA drives and Serial ATA backplane (5013C-T only) have been properly
installed and all essential connections have been made.
1. Accessing the drive bays
All drives can be accessed from the front of the server. For servicing
the CD-ROM and floppy drives, you will need to remove the top chassis
cover. The Serial ATA disk drives can be installed and removed from the
front of the chassis without removing the top chassis cover.
2. Installing a CD-ROM and floppy disk drives
Refer to Chapter 6 if you need to reinstall a CD-ROM and/or floppy disk
drive to the system.
3. Check the Serial ATA disk drives (5013C-T)
Depending upon your system's configuration, your system may have one
or two Serial ATA drives already installed. If you need to install Serial
ATA drives, please refer to the appropriate section in Chapter 6.
4. Check the airflow
Airflow is provided by two 10-cm input fans. The system component
layout was carefully designed to promote sufficient airflow through the
small 1U rackmount space. Also note that all power and data cables
have been routed in such a way that they do not block the airflow
generated by the fans.
5. Supplying power to the system
The last thing you must do is to provide input power to the system. Plug
the power cord from the power supply unit into a high-quality power
strip that offers protection from electrical noise and power surges. It is
recommended that you use an uninterruptible power supply (UPS).
2-10
Chapter 3: System Interface
Chapter 3
System Interface
3-1
Overview
There are several LEDs on the control panel as well as others on the Serial
ATA drive carriers to keep you constantly informed of the overall status of
the system as well as the activity and health of specific components. There
are also two buttons on the chassis control panel and an on/off switch on
the power supply. This chapter explains the meanings of all LED indicators
and the appropriate response you may need to take.
3-2
Control Panel Buttons
There are two push-button buttons located on the front of the chassis.
These are (in order from left to right) a reset button and a power on/off
button.
RESET
RESET: The reset switch reboots the system.
POWER: This is the main power switch, which is used to apply or
turn off the main system power. Turning off system power with this button
removes the main power but keeps standby power supplied to the system.
3-1
SUPERSERVER 5013C-T/5013C-i User's Manual
3-3
Control Panel LEDs
The control panel located on the front of the SC811 chassis has five LEDs.
These LEDs provide you with critical information related to different parts of
the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.
OVERHEAT: Indicates an overheat condition in the chassis. This may
be caused by cables obstructing the airflow in the system, or the ambient
room temperature being too warm. You should also check to make sure
that the chassis cover is installed and that all fans are present and operating normally. Finally, check the air seals for damage. The air seals are
located under the blower fan and beneath the frame cross section that
separates the drive bay area from the motherboard area of the chassis.
NIC2
NIC2:
Indicates network activity on GLAN2 when flashing .
NIC1
NIC1:
Indicates network activity on GLAN1 when flashing.
HDD: Channel activity for all HDDs. This light indicates CD-ROM and
HDD (SATA drive activity on the 5013C-T) activity when flashing.
3-2
Chapter 3: System Interface
Power: Indicates power is being supplied to the system's power
supply units. This LED should normally be illuminated when the system is
operating.
3-4
Serial ATA Drive Carrier LED (5013C-T)
Each Serial ATA drive carrier has a green LED. When illuminated, this
green LED (on the front of the Serial ATA drive carrier) indicates drive
activity. A connection to the Serial ATA backplane enables this LED to blink
on and off when that particular drive is being accessed.
3-3
SUPERSERVER 5013C-T/5013C-i User's Manual
Notes
3-4
Chapter 4: System Safety
Chapter 4
System Safety
4-1
Electrical Safety Precautions
!
Basic electrical safety precautions should be followed to protect
yourself from harm and the SuperServer 5013C-T/5013C-i from damage:
Be aware of the locations of the power on/off switch on the chassis
as well as the room's emergency power-off switch, disconnection
switch or electrical outlet. If an electrical accident occurs, you can
then quickly remove power from the system.
Do not work alone when working with high voltage components.
Power should always be disconnected from the system when removing
or installing main system components, such as the motherboard,
memory modules and floppy drives. When disconnecting power, you
should first power down the system with the operating system first
and then unplug the power cords of all the power supply units in the
system.
When working around exposed electrical circuits, another person who
is familiar with the power-off controls should be nearby to switch off
the power if necessary.
Use only one hand when working with powered-on electrical
equipment. This is to avoid making a complete circuit, which will
cause electrical shock. Use extreme caution when using metal tools,
which can easily damage any electrical components or circuit boards
they come into contact with.
Do not use mats designed to decrease static electrical discharge as
protection from electrical shock. Instead, use rubber mats that have
been specifically designed as electrical insulators.
The power supply power cords must include a grounding plug and must
be plugged into grounded electrical outlets.
4-1
SUPERSERVER 5013C-T/5013C-i User's Manual
Motherboard Battery: CAUTION - There is a danger of explosion if the
onboard battery is installed upside down, which will reverse its
polarites. This battery must be replaced only with the same or an
equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer's instructions. See Figure
4-1.
CD-ROM Laser: CAUTION - this server may have come equipped with
a CD-ROM drive. To prevent direct exposure to the laser beam and
hazardous radiation exposure, do not open the enclosure or use the
unit in any unconventional way.
4-2
General Safety Precautions
!
Follow these rules to ensure general safety:
Keep the area around the SuperServer 5013C-T/5013C-i clean and free
of clutter.
The SuperServer 5013C-T/5013C-i weighs approximately 34 lbs (~15.5
kg) when fully loaded. When lifting the system, two people at either
end should lift slowly with their feet spread out to distribute the
weight. Always keep your back straight and lift with your legs.
Place the chassis top cover and any system components that have been
removed away from the system or on a table so that they won't
accidentally be stepped on.
While working on the system, do not wear loose clothing such as
neckties and unbuttoned shirt sleeves, which can come into contact
with electrical circuits or be pulled into a cooling fan.
Remove any jewelry or metal objects from your body, which are
excellent metal conductors that can create short circuits and harm you
if they come into contact with printed circuit boards or areas where
power is present.
After accessing the inside of the system, close the system back up
and secure it to the rack unit with the retention screws after ensuring
that all connections have been made.
4-2
Chapter 4: System Safety
4-3
ESD Precautions
!
Electrostatic discharge (ESD) is generated by two objects with different
electrical charges coming into contact with each other. An electrical
discharge is created to neutralize this difference, which can damage
electronic components and printed circuit boards. The following
measures are generally sufficient to neutralize this difference before
contact is made to protect your equipment from ESD:
Use a grounded wrist strap designed to prevent static discharge.
Keep all components and printed circuit boards (PCBs) in their
antistatic bags until ready for use.
Touch a grounded metal object before removing the board from the
antistatic bag.
Do not let components or PCBs come into contact with your clothing,
which may retain a charge even if you are wearing a wrist strap.
Handle a board by its edges only; do not touch its components,
peripheral chips, memory modules or contacts.
When handling chips or modules, avoid touching their pins.
Put the motherboard and peripherals back into their antistatic bags
when not in use.
For grounding purposes, make sure your computer chassis provides
excellent conductivity between the power supply, the case, the mounting
fasteners and the motherboard.
4-3
SUPERSERVER 5013C-T/5013C-i User's Manual
4-4
Operating Precautions
!
Care must be taken to assure that the chassis cover is in place when
the 5013C-T/5013C-i is operating to assure proper cooling. Out of
warranty damage to the 5013C-T/5013C-i system can occur if this
practice is not strictly followed.
Figure 4-1. Installing the Onboard Battery
LITHIUM BATTERY
LITHIUM BATTERY
OR
BATTERY HOLDER
BATTERY HOLDER
4-4
Chapter 5: Advanced Motherboard Setup
Chapter 5
Advanced Motherboard Setup
This chapter covers the steps required to install the P4SCE motherboard
into the SC811 chassis, connect the data and power cables and install addon cards. All motherboard jumpers and connections are also described. A
layout and quick reference chart are included in this chapter for your reference. Remember to completely close the chassis when you have finished
working with the motherboard to better cool and protect the system.
5-1
Handling the P4SCE Motherboard
Electric-static discharge (ESD) can damage electronic components. To prevent damage to any printed circuit boards (PCBs), it is important to handle
them very carefully (see previous chapter). To prevent the P4SCE motherboard from bending, keep one hand under the center of the board to support it when handling. The following measures are generally sufficient to
protect your equipment from electric static discharge.
Precautions
• Use a grounded wrist strap designed to prevent Electric Static Discharge
(ESD).
• Touch a grounded metal object before removing any board from its antistatic bag.
• Handle a board by its edges only; do not touch its components, peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the motherboard, add-on cards and peripherals back into their antistatic bags when not in use.
• For grounding purposes, make sure your computer chassis provides excellent conductivity between the power supply, the case, the mounting
fasteners and the motherboard.
5-1
SUPERSERVER 5013C-T/5013C-i User's Manual
Unpacking
The motherboard is shipped in antistatic packaging to avoid electrical static
discharge. When unpacking the board, make sure the person handling it is
static protected.
5-2
Motherboard Installation
This section explains the first step of physically mounting the P4SCE into
the SC811 chassis. Following the steps in the order given will eliminate the
most common problems encountered in such an installation. To remove the
motherboard, follow the procedure in reverse order.
1.
Accessing the inside of the 5013C-T/5013C-i (see Figure 2-5)
Two release buttons are located on the top cover of the chassis.
Depressing both of these buttons while pushing the cover away from
you until it stops. You can then lift the top cover from the chassis to
gain full access to the inside of the server. (If already installed in a
rack, you must first release the retention screws that secure the unit
to the rack. Then grasp the two handles on either side and pull the unit
straight out until the rails lock into place.)
2.
Check compatibility of motherboard ports and I/O shield:
The P4SCE requires a chassis big enough to support a 12" x 9.5"
motherboard, such as Supermicro's SC811 1U rackmount. Make sure
that the I/O ports on the motherboard align properly with their respective holes in the I/O shield at the back of the chassis.
3.
Mounting the motherboard onto the motherboard tray:
Carefully mount the motherboard to the motherboard tray by aligning
the board holes with the raised metal standoffs that are visible on the
bottom of the chassis. Insert screws into all the mounting holes on
your motherboard that line up with the standoffs and tighten until snug
(if you screw them in too tight, you might strip the threads). Metal
screws provide an electrical contact to the motherboard ground to
provide a continuous ground for the system.
5-2
Chapter 5: Advanced Motherboard Setup
5-3
Connecting Cables
Now that the motherboard is installed, the next step is to connect the cables to
the board. These include the data (ribbon) cables for the peripherals and control
panel and the power cables.
Connecting Data Cables
The ribbon cables used to transfer data from the peripheral devices have
been carefully routed to prevent them from blocking the flow of cooling air
that moves through the system from front to back. If you need to disconnect any of these cables, you should take care to keep them routed as they
were originally after reconnecting them (make sure the red wires connect
to the pin 1 locations). The following data cables should be connected. (See the
layout on page 5-9 for connector locations.)
IDE Device Cables (J2, 5013C-i only)
CD-ROM Drive Cable (J5)
Floppy Drive Cable (J7)
Serial ATA Device Cables (J3 and J4, 5013C-T only)
Serial ATA LED cable (J37, 5013C-T only)
Control Panel Cable (JF1)
Connecting Power Cables
The P4SCE has a 24-pin primary power supply connector ("ATX Power") at
J20 for connection to the ATX power supply. See Chapter 5 for power connector
pin definitions.
Connecting the Control Panel
JF1 contains header pins for various front control panel connectors. See Figure
5-1 for the pin locations of the various front control panel buttons and LED
indicators.
All JF1 wires have been bundled into a single ribbon cable to simplify this
connection. Make sure the red wire plugs into pin 1 as marked on the
board. The other end connects to the Control Panel PCB board, located just
behind the system status LEDs on the chassis. See Chapter 5 for details.
5-3
SUPERSERVER 5013C-T/5013C-i User's Manual
Figure 5-1. Control Panel Header Pins
20
19
NMI
Ground
X
X
Power LED
Vcc
IDE LED
Vcc
LAN1 LED
Vcc
LAN2 LED
Vcc
Overheat LED
Vcc
X
X
Ground
Ground
2
Reset
Reset Button
Pwr
Power Button
1
JF1
5-4
I/O Ports
The I/O ports are color coded in conformance with the PC 99 specification.
See Figure 5-2 below for the colors and locations of the various I/O ports.
Mouse (Green)
Keyboard
Parallel Port (Burgundy)
USB 0/1 Ports COM1 Port (Turquoise)
VGA Port (Blue)
GLAN1
GLAN2
(Purple)
Note: The COM2 port is a header on the motherboard, located near the
ATX power connector.
5-4
Chapter 5: Advanced Motherboard Setup
5-5
!
Installing Processors
Avoid placing direct pressure to the top of the processor
package. Always remove the power cord first before adding, removing or changing any hardware components.
Processor Support
The P4SCE has a single 478-pin microPGA socket, which supports Intel
Pentium 4 and Intel Celeron processors.
1. Lift the lever on the CPU socket.
2. Install the CPU in the socket. Make sure
that Pin 1 of the CPU is seated on Pin 1 of
the socket (both corners are marked with a
triangle).
3. Press the lever down until
you hear it *click* into the
locked position.
4. Place the heatsink on top of the CPU aligning
its holes with those on the retention mechanism. Screw in two diagonal screws (ie. the #1
and #2 screws) until just snug, then do the same
with the remaining two screws. Finish by fully
tightening all four screws (see Figure 5-4 on
next page).
5-5
SUPERSERVER 5013C-T/5013C-i User's Manual
Figure 5-3.
478-pin Socket: Empty and with Processor Installed
Figure 5-4.
Heatsink Installation
5-6
Chapter 5: Advanced Motherboard Setup
5-6
Installing Memory
!
CAUTION! Exercise extreme care when installing or removing DIMM modules to prevent any possible damage.
1.
Memory support
The P4SCE supports dual-channel, ECC or non-ECC unbuffered DDR-400/
333/266 SDRAM. Populating DIMM0A and DIMM1A and/or DIMM0B and
DIMM1B with the same size/same type of memory modules will result in
dual channel (two-way interleaved) operation, which is faster than single
channel operation.
2.
Installing memory modules
Insert each memory module vertically. Pay attention to the notch along the
bottom of the module to prevent inserting it incorrectly. Gently press down
on the DIMM module until it snaps into place in the slot (see Figure 5-5).
Memory Speeds
Host Clock
(MHz)
FSB (MHz)
100
400
133
533
200
800
DRAM Data Shown during
(MT/s)
POST
266
333
400
266
333
400
266
333
400
DDR266
DDR266
DDR266
DDR266
DDR333
DDR333
DDR266
DDR320*
DDR400
* The BIOS displays DDR320 due to a chipset limitation.
Figure 5-5. DIMM Installation
To Install: Insert module vertically and press down until it snaps into place. Pay
attention to the bottom notch.
To Remove: Use your thumbs to gently push each release tab outward to free the
DIMM from the slot.
5-7
SUPERSERVER 5013C-T/5013C-i User's Manual
5-7
1.
Adding PCI Cards
32-bit PCI slot
The P4SCE has six 32-bit, 33 MHz 5V PCI slots. A riser card designed
specifically for use in the 811 1U rackmount chassis is included with your
system. This riser card allows an installed PCI card to sit at a 90 degree
angle so it can fit inside the chassis. This riser card accommodates 32-bit,
33 MHz 5V PCI cards (see Figure 5-6).
Figure 5-6. 32-bit, 33 MHz 5V Riser Card
2.
PCI card installation
Before installing a PCI add-on card, locate the PCI riser card mentioned in
Step 1. Begin by depressing the release latch to remove the shield for the
PCI slot. Next, fully seat the PCI card into the riser card and screw it into
the metal retention rail. Then, insert the riser card into the PCI slot on the
motherboard, pushing down with your thumbs evenly on both sides of the
card. Finish by securing the card with the release latch. The PCI slot shield
protects the motherboard and its components from EMI and promotes proper
ventilation, so make sure the shield covers the PCI slot if no add-on card is
to be installed.
5-8
Chapter 5: Advanced Motherboard Setup
5-8
Motherboard Details
Figure 5-7. P4SCE Layout
(not drawn to scale)
JPWAKE
JPUSB
Keyboard/
Mouse
COM2
J10
J17 (PWR LED)
J20
J38
WOR
+12V Power Connector
COM1 J9
Super I/O
USB1/2
J21
ATX Power Connector
J11
+12V Power Connector
JP3
JP20
JP8 (WD)
JF1
J33
Parallel Port
CPU
478 mPGA
J8
RAGE XL
MCH
JP2
OHFAN
JP1
VGA
GLAN1
GLAN2
DIMM0A
BANK0
CPU FAN
DIMM0B
CH FAN1
CH FAN2
DIMM1A
BANK1
DIMM1B
JL1
PCI 1
J4
J16 (IR)
J3
ICH5R
PCI 2
SATA2
J34
J5
J2
IDE #2
PCI 3
IDE #1
WOL
SATA1
LE2
CH FAN3
SUPER
PCI 4
J35
FLOPPY
®
P4SCE
J7
BATTERY
J18 (Speaker)
BIOS
USB3/4
PCI 5
J37
J36
USB5/6
USB7/8
Jumpers not indicated are for test purposes only.
5-9
JBT1
SATA LED
CH FAN4
SUPERSERVER 5013C-T/5013C-i User's Manual
P4SCE Quick Reference
Jumpers
J18
J33
J34/J35
J36
JBT1
JP1, JP2
JP3
JP8
JP20
JPUSB
JPWAKE
Description
Speaker
VGA Enable/Disable
GLAN1/2
Keylock Enable/Disable
CMOS Clear
CPU Clock Speed
OH Fan Force On
Watch Dog Reset/NMI
Power Force On
USB1/2 Wake Up
Keyboard Wake-up
Connector
COM1/COM2
DIMM0A/0B/1A/1B
Fan 1/2/4
GLAN1/GLAN2
J2, J5
J3/J4
J7
J8
J9, J10
J11
J16
J17
J20
J21
J38
JF1
JL1
LE2
OH FAN
USB 1/2
USB 3/4/5/6/7/8
WOL
WOR
Description
COM Port 1/Port2
Memory (DIMM) Slots (1 through 4)
Fan Headers
Gigabit LAN (Ethernet Ports)
IDE Ports (J2: IDE1, J5:IDE2)
Serial ATA 1/Serial ATA 2 Connectors
Floppy Disk Drive Connector
Parallel Printer Port
COM1 (J9), COM2 (J10)
Keyboard/Mouse Connector
Infrared Connector
Power LED
ATX Power Connector
12V Power Connector
4-Pin Power Connector
Front Control Panel
Chassis Intrusion Header
Standby Power LED
Overheat Fan
Universal Serial Ports 1/2
Universal Serial Port Headers
Wake-On-LAN
Wake-On-Ring
5-10
Default Setting
Pins 3-4 (Internal)
Pins 1-2 (Enabled)
Pins 1-2 (Enabled)
Open (Disabled)
See Section 5-9
Pins 1-2 (Auto)
Closed (On)
Pins 1-2 (WD Reset)
Open (Disabled)
Pins 1-2 (Disabled)
Pins 1-2 (Disabled)
Chapter 5: Advanced Motherboard Setup
5-9
Connector
Definitions
ATX Power Supply 24-pin Connector
Pin Definitions
Power Supply Connectors
The primary power supply connector on the P4SCE meets the SSI
(Superset ATX) 24-pin specification. Refer to the table on the right
for the pin definitions of the ATX
24-pin power connector. You
must also connect the 4-pin J21
power connector to your power
supply. Refer to the table below
right for the J24 (12V) connector.
If J21 is not accessible, another
12V power connector (J38) is
available, which is located nect to
the COM2 port.
Important: you must use connect
either J21 or J38 to your power
supply to meet the ATX safety requirements.
Pin Number
13
14
15
16
17
18
19
20
21
22
23
24
The infrared connector is located
on J16. See the table on the right
for pin definitions. See the Technical Support section of our web
page for information on the infrared devices you can connect to
the system.
5-11
Pin Number Definition
1
+3.3V
2
+3.3V
3
COM
4
+5V
5
COM
6
+5V
7
COM
8
PW R_OK
9
5VSB
10
+12V
11
+12V
12
+3.3V
+12V 4-pin PWR
Connector
(J21)
Required
Connection
Pins # Definition
1 & 2 Ground
3&4
+12 V
+12V 4-pin PWR
Connector
(J38)
Additional
Connection
IR Connector
Definition
+3.3V
-12V
COM
PS_ON#
COM
COM
COM
Res(NC)
+5V
+5V
+5V
COM
Pins # Definition
1
+12V
2 & 3 Ground
4
NC
Infrared Pin
Definitions
(J16)
Pin
Number Definition
1
+5V
2
CIRRX
3
IRRX
4
Ground
5
IRTX
6
NC
SUPERSERVER 5013C-T/5013C-i User's Manual
PW_ON Connector
PW_ON
Pin Definitions
(JF1)
The PW_ON connector is located
on pins 1 and 2 of JF1. This
header should be connected to
the chassis power button, which
you may also configure to put the
system into suspend mode (see
the Power Button Mode setting in
BIOS). To turn off the power
when the suspend mode is enabled, depress the power button
for at least 4 seconds. See the
table on the right for pin definitions.
Pin
Number Definition
1
PW_ON
2
+3V
Reset Pin
Definitions
(JF1)
Reset Connector
The reset connector is located on
pins 3 and 4 of JF1 and attaches
to the reset switch on the computer chassis. See the table on
the right for pin definitions.
Overheat LED (OH)
Pin
Number Definition
3
Reset
4
Ground
Overheat (OH) LED
Pin Definitions
(JF1)
Connect an LED to the OH connection on pins 7 and 8 of JF1 to provide advanced warning of chassis
overheating. Refer to the table on
the right for pin definitions.
GLAN1/GLAN2 LED
The GLAN1 and GLAN2 LED connections for the Ethernet ports are
located on pins 9 and 10 (GLAN2)
and 11 and 12 (GLAN1) of JF2.
Attach LAN LED cables to display
network activity. See the table on
the right for pin definitions.
5-12
Pin
Number Definition
7
Vcc
8
GND
GLAN1/GLAN2 LED
Pin Definitions
(JF1)
Pin
Number Definition
9,10
Vcc
11,12
GND
Chapter 5: Advanced Motherboard Setup
IDE LED
Hard Drive Activity
LED Pin Definitions
(JF1)
The IDE LED is located on pins 13
and 14 of JF1. This LED is used to
display all IDE and SATA activity
on all drives. See the table on the
right for pin definitions.
Pin
Number Definition
13
+5V
14
HD Activity
Power_LED Connector
The Power LED connector is located on pins 15 and 16 of JF1.
This connection is used to provide
LED indication of power being supplied to the system. See the table
on the right for pin definitions.
Serial Ports
PWR_LED Pin Definitions
(JF1)
Pin
Number
Definition
15
Vcc
16
Control
Serial Port Pin Definitions
(COM1, COM2)
Two serial ports are included on
the motherboard: COM1 is a port
located beside the mouse/keyboard ports and COM2 is a header
located on the motherboard near
the J20 power connector. See the
table on the right for pin definitions.
Pin Number
1
2
3
4
5
Definition
CD
RD
TD
DTR
Ground
Pin Number
6
7
8
9
10
Definition
DSR
RTS
CTS
RI
NC
Note: Pin 10 is included on the header but not on
the port. NC indicates no connection.
Fan Header Pin Definitions
(CPU, Chassis and Overheat)
Fan Headers
There are six fans on the P4SCE,
which are designated CPU Fan,
Chassis Fan 1, Chassis Fan 2,
Chassis Fan 3, Chassis Fan 4 and
Overheat Fan. (Chassis Fan 3 and
Chassis Fan 4 are not monitored by
BIOS.) Connect the fan on your CPU
heatsink to the CPU Fan header.
See the table on the right for pin
definitions.
5-13
Pin
Number
1
2
3
Definition
Ground (black)
+12V (red)
Tachometer
Caution: These fan headers are DC power.
SUPERSERVER 5013C-T/5013C-i User's Manual
Chassis Intrusion
The Chassis Intrusion header is
designated JL1. See the board
layout in Chapter 1 for the location
of JL1 and the table on the right
for pin definitions.
Chassis Intrusion
Pin Definitions (JL1)
Pin
Number
Definition
1
Intrusion Input
2
Ground
PS/2 Keyboard
and Mouse Port
Pin Definitions
(J11)
ATX PS/2 Keyboard and
PS/2 Mouse Ports
Pin
Number Definition
1
Data
2
NC
3
Ground
4
VCC
5
Clock
6
NC
The ATX PS/2 keyboard and the
PS/2 mouse are located on J11.
The mouse port is above the keyboard port. See the table on the
right for pin definitions.
Universal Serial Bus (USB)
There are two Universal Serial
Bus ports located on the I/O panel
and an additional six USB headers are located on the motherboard.
These headers, labeled
USB3 through USB8, can be used
to provide front side chassis access (cables not included). See
the tables on the right for pin definitions.
5-14
USB1/2 Pin Definitions
Pin# Definition
1
+5V
2
P03
P0+
4 Ground
Pin
Number
1
3
5
7
USB3/4/5/6/7/8 Pin
Definitions
Pin
Definition
Number Definition
+5V
+5V
2
POPO4
PO+
PO+
6
Ground
Ground
8
Ground
10
Chapter 5: Advanced Motherboard Setup
Wake-On-LAN
W ake-On-LAN Pin
Definitions (W OL)
The Wake-On-LAN header is designated WOL on the motherboard.
See the table on the right for pin
definitions. You must enable the
LAN Wake-Up setting in BIOS to
use this function. (You must also
have a LAN card with a Wake-OnLAN connector and cable to use
this feature.)
Pin
Number
1
2
3
Definition
+5V Standby
Ground
W ake-up
Wake-On-Ring
The Wake-On-Ring header is designated WOR. This function allows your
computer to receive and be "awakened" by an incoming call when in the
suspend state. See the table on the
right for pin definitions. You must also
have a WOR card and cable to use this
feature.
SATA LED
Wake-On-Ring Pin Definitions
(WOR)
Pin
Number
1
2
Definition
Ground
Wake-up
SATA LED
Pin Definitions
(J37)
The SATA LED header is located
on J37. This header is used to
display all SATA activities. See
the table on the right for pin definitions.
5-15
Pin
Number Definition
SATA1
1
SATA2
2
NC
3
NC
4
NC
5
SUPERSERVER 5013C-T/5013C-i User's Manual
5-10 Jumper Settings
Explanation of
Jumpers
To modify the operation of the motherboard, jumpers can be used to
choose between optional settings.
Jumpers create shorts between two
pins to change the function of the
connector. Pin 1 is identified with a
square solder pad on the printed circuit board. See the motherboard
layout pages for jumper locations.
Note: On a two-pin jumper, "Closed"
means the jumper is on both pins
and "Open" means the jumper is either on only one pin or completely
Connector
Pins
3
2
1
3
2
1
Jumper
Cap
Setting
Pin 1-2 short
removed.
CMOS Clear
JBT1 is used to clear CMOS (which will also clear any passwords). Instead of
pins, this jumper consists of contact pads to prevent accidentally clearing the
contents of CMOS.
To clear CMOS, 1) First unplug the power cord(s) 2) With the power disconnected,
short the CMOS pads with a metal object such as a small screwdriver 3) Remove
the screwdriver (or shorting device) 4) Reconnect the power cord(s) and power on the
system.
Note: Do not use the PW_ON connector to clear CMOS.
Front Side Bus Speed
Front Side Bus Speed
(JP1, JP2)
JP1 and JP2 are used to set the
system (front side) bus speed for
the processors. It is best to keep
these jumpers set to Auto. This
jumper is used together with the
CPU Clock setting in BIOS. See the
table on the right for jumper settings.
5-16
JP1
Pins 1-2
Pins 2-3
NC
NC
Pins 2-3
JP2
Pins 1-2
Pins 2-3
Pins 2-3
NC
NC
FSB Speed
Auto
100 MHz (x4)
133 MHz (x4)
Reserved
200 MHz (x4)
Note: NC stands for "No Connection".
Chapter 5: Advanced Motherboard Setup
USB Wake-Up
Use JPUSB to enable or disable
USB Wake-Up, which allows you
to wakeup the system by depressing a key on the keyboard or
by clicking the mouse when either
is connected to the USB1 or USB2
port. Enable the jumper to allow
the system to be woken up from
an S1 or S3 state in Windows OS.
See the table on the right for
jumper settings. This feature
works with the USB1 and USB2
ports only.
USB Wake-Up
Jumper Settings
(JPUSB)
Jumper
Position
1-2
2-3
Definition
Disabled
Enabled
Watch Dog Enable/Disable
JP8 enables controls the Watch
Dog function, a system monitor
that takes action when a software
application freezes the system.
Pins 1-2 will have WD reset the
system if a program freezes. Pins
2-3 will generate a non-maskable
interrupt for the program that has
frozen. See the table on the right
for jumper settings. Watch Dog
Watch Dog
Jumper Settings (JP8)
Jumper
Position
Pins 1-2
Pins 2-3
Open
Definition
WD to Reset
WD to NMI
Disabled
Note: when Watch Dog is enabled, the user must
write their own application software to disable
the Watch Dog Timer.
must also be enabled in BIOS.
Speaker Jumper
Speaker
Jumper Settings (J18)
The speaker jumper is located on
J18 and allows you to choose between using the internal or external speakers. For the internal
speaker, jump pins 3 and 4. To
use an external speaker, place the
speaker cable's header on all four
pins See the table on the right.
5-17
Pins
Definition
1 through 4 External Spkr
3 and 4 Internal Spkr
SUPERSERVER 5013C-T/5013C-i User's Manual
Keyboard Wake-Up
The JPWAKE jumper is used to allow the system to be woken up by
depressing a key on the keyboard
from an S1 or S3 state in Windows OS. See the table on the
right for jumper settings. Your
power supply must meet ATX
specification 2.01 or higher and
supply 720 mA of standby power
to use this feature.
Keyboard Wake-Up
Jumper Settings
(JPWAKE)
Jumper
Position
1-2
2-3
Definition
Disabled
Enabled
GLAN1 (NIC)
Enable/Disable
Jumper Settings
(J34)
GLAN1 Enable/Disable
Change the setting of jumper J34 to
enable or disable the onboard
GLAN1 or NIC (Network Interface
Card) on the motherboard. See
the table on the right for jumper
settings. The default setting is Enabled.
Jumper
Position
Pins 1-2
Pins 2-3
Definition
Enabled
Disabled
GLAN2 (NIC)
Enable/Disable
Jumper Settings
(J35)
GLAN2 Enable/Disable
Change the setting of jumper J35 to
enable or disable the onboard
GLAN2 or NIC on the motherboard.
See the table on the right for jumper
settings. The default setting is Enabled.
Keylock Enable/Disable
The Keylock header is located at
J36. Close the jumper to enable the
Keylock function and leave the
jumper open (off) to disable it. The
default setting is open. See the
table on the right for jumper settings.
5-18
Jumper
Position
Pins 1-2
Pins 2-3
Definition
Enabled
Disabled
Keylock
Enable/Disable
Jumper Settings
(J36)
Jumper
Position
On
Off
Definition
Enabled
Disabled
Chapter 5: Advanced Motherboard Setup
5-11 Parallel Port, Floppy and Hard Drive Connections
Use the following information to connect the floppy and hard disk drive
cables.
• The floppy disk drive cable has seven twisted wires.
• A red mark on a wire typically designates the location of pin 1.
• A single floppy disk drive ribbon cable has 34 wires and two connectors
to provide for two floppy disk drives. The connector with twisted wires
always connects to drive A, and the connector that does not have
twisted wires always connects to drive B.
• The 80-wire ATA100/66 IDE hard disk drive cable that came with your
system has two connectors to support two drives. This special cable
should be used to take advantage of the speed this new technology
offers. The blue connector connects to the onboard IDE connector interface and the other connector(s) to your hard drive(s). Consult the documentation that came with your disk drive for details on actual jumper
locations and settings for the hard disk drive.
Parallel Port Connector
Parallel (Printer) Port Pin Definitions
(J8)
The parallel port is located on J8.
See the table on the right for pin
definitions.
5-19
Pin Number
1
3
5
7
9
11
13
15
17
19
21
23
25
Function Pin Number Function
Strobe2
Auto FeedData Bit 0
4
ErrorData Bit 1
6
InitData Bit 2
8
SLCT INData Bit 3
10
GND
Data Bit 4
12
GND
Data Bit 5
14
GND
Data Bit 6
16
GND
Data Bit 7
18
GND
ACK
20
GND
BUSY
22
GND
PE
24
GND
SLCT
26
NC
SUPERSERVER 5013C-T/5013C-i User's Manual
Floppy Connector
The floppy connector is located
on J7. See the table on the right
for pin definitions.
Floppy Connector Pin Definitions (J7)
Pin Number
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
Function Pin Number
GND
2
GND
4
Key
6
GND
8
GND
10
GND
12
GND
14
GND
16
GND
18
GND
20
GND
22
GND
24
GND
26
GND
28
GND
30
GND
32
GND
34
Function
FDHDIN
Reserved
FDEDIN
IndexMotor Enable
Drive Select BDrive Select AMotor Enable
DIRSTEPWrite DataWrite GateTrack 00Write ProtectRead DataSide 1 SelectDiskette
IDE Connectors
There are no jumpers to configure the onboard IDE interfaces
J2 and J5. See the table on the
right for pin definitions. You
must use the ATA100/66 cable
included with your system to
benefit from the ATA100/66
technology.
IDE Connector Pin Definitions
(J2, J5)
Pin Number
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
5-20
Function
Pin Number
Function
Reset IDE
2
GND
Host Data 7
4
Host Data 8
Host Data 6
6
Host Data 9
Host Data 5
8
Host Data 10
Host Data 4
10
Host Data 11
Host Data 3
12
Host Data 12
Host Data 2
14
Host Data 13
Host Data 1
16
Host Data 14
Host Data 0
18
Host Data 15
GND
20
Key
DRQ3
22
GND
I/O Write24
GND
I/O Read26
GND
IOCHRDY
28
BALE
DACK330
GND
IRQ14
32
IOCS16Addr 1
34
GND
Addr 0
36
Addr 2
Chip Select 0
38
Chip Select 1Activity
40
GND
Chapter 6: Advanced Chassis Setup
Chapter 6
Advanced Chassis Setup
This chapter covers the steps required to install components and perform maintenance on the SC811T-250/SC811i-250 (5013C-T/5013C-i) chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the
step that follows.
Tools Required
The only tool you will need to install components and perform maintainance
is a Philips screwdriver.
6-1
Static-Sensitive Devices
Electric Static Discharge (ESD) can damage electronic components. To
prevent damage to any printed circuit boards (PCBs), it is important to
handle them very carefully. The following measures are generally sufficient to protect your equipment from ESD discharge.
Precautions
Use a grounded wrist strap designed to prevent static discharge.
Touch a grounded metal object before removing any board from its antistatic bag.
Handle a board by its edges only; do not touch its components, peripheral chips, memory modules or gold contacts.
When handling chips or modules, avoid touching their pins.
Put the motherboard, add-on cards and peripherals back into their antistatic bags when not in use.
For grounding purposes, make sure your computer chassis provides excellent conductivity between the power supply, the case, the mounting
fasteners and the motherboard.
Unpacking
The motherboard is shipped in antistatic packaging to avoid static damage.
When unpacking the board, make sure the person handling it is static protected.
6-1
SUPERSERVER 5013C-T/5013C-i User's Manual
Figure 6-1.
Chassis Front View (5013C-i shown)
Figure 6-2.
6-2
Chassis Rear View
Control Panel
The control panel (located on the front of the chassis) must be connected
to the JF1 connector on the motherboard to provide you with system control
buttons and status indicators. These wires have been bundled together in
a ribbon cable to simplify the connection. Connect the cable from JF1 on
the motherboard to JP4 on the Control Panel PCB (printed circuit board).
Make sure the red wire plugs into pin 1 on both JF1 and JP4. Pull all excess
6-2
Chapter 6: Advanced Chassis Setup
cabling out of the airflow path. The LEDs inform you of system status. See
Chapter 3 for details on the LEDs and the control panel buttons. Details on
JF1 can be found in Chapter 5.
6-3
System Fans
Two 10-cm blower fans provide the cooling for the SuperServer 5013C-T/
5013C-i. The chassis includes air seals under the blower fans and at the
chassis cross section, which separates the drive bay area from the motherboard area of the chassis to promote better airflow. It is highly important
that the air seal is properly installed and making a good seal in order for the
cooling air to circulate properly through the chassis.
System Fan Failure
The blower fans run at a full 100% rpm. If a fan fails, you will need to have
it replaced with the same type. Contact your vendor or Supermicro for
information on replacement fans.
6-4
Drive Bay Installation/Removal
Accessing the Drive Bays
Serial ATA Drives: Because of their hotswap capability, you do not need to
access the inside of the chassis or power down the system to install or
replace Serial ATA drives. Proceed to the next step for instructions.
CD-ROM/Floppy Disk Drives: For installing/removing a CD-ROM or floppy disk
drive, you will need to gain access to the inside of the 5013C-T/5013C-i by
removing the top cover of the chassis. Proceed to the "CD-ROM and Floppy
Drive Installation" section later in this chapter for instructions.
Note: Only a "slim" CD-ROM drive will fit into the 5013C-T/5013C-i.
6-3
SUPERSERVER 5013C-T/5013C-i User's Manual
Serial ATA Drive Installation (5013C-T)
1.
Mounting a Serial ATA drive in a drive carrier
The Serial ATA drives are mounted in drive carriers to simplify their
installation and removal from the chassis. These carriers also help
promote proper airflow for the Serial ATA drive bays. For this reason,
even empty carriers without Serial ATA drives installed must remain in the
chassis. To add a new Serial ATA drive, install a drive into the carrier
with the printed circuit board side toward the carrier so that the mounting
holes align with those in the carrier. Secure the drive to the carrier with
four screws, as shown in Figure 6-3.
Figure 6-3. Mounting a Drive in a Carrier
!
!
Use caution when working around the Serial ATA
backplane. Do not touch the backplane with any metal
objects and make sure no ribbon cables touch the
backplane or obstruct the holes, which aid in proper
airflow.
Important: Regardless of how many Serial ATA hard
drives are installed, both drive carriers must remain in
the drive bays to maintain proper airflow.
6-4
Chapter 6: Advanced Chassis Setup
2.
Installing/removing hot-swap Serial ATA drives
Two Serial ATA drive bays are located in the front of the chassis, making
them easily accessible for installation and removal. These drives are hotswappable, meaning they can be installed and removed without powering
down the system. To remove, first push the release button located
beside the drive LEDs, then swing the colored handle fully out and use it
to pull the unit straight out (see Figure 6-4).
Figure 6-4.
!
Removing/Installing Serial ATA Drives
Important: Regardless of how many Serial ATA drives
are installed, both drive carriers must remain in the
drive bays to maintain proper airflow.
6-5
SUPERSERVER 5013C-T/5013C-i User's Manual
Serial ATA Power Cables
Serial ATA power cables should be routed so that they do not block the
airflow through the chassis. See the motherboard layout diagram for the
location of the cable connections.
Serial ATA Backplane
The Serial ATA drives plug into a backplane that provides power, drive ID
and bus termination. A RAID controller can be used with the backplane to
provide data security. The operating system you use must have RAID
support to enable the hot-swap capability of the Serial ATA drives. The
backplane is already preconfigured, so there are no jumpers or switches
present on it.
CD-ROM and Floppy Drive Installation
The top cover of the chassis must be opened to gain full access to the CDROM and floppy drive bays. The CD-ROM drive must have a "slim" profile to
fit into the 5013C-T/5013C-i.
First, release the retention screws that secure the unit to the rack. Grasp
the two handles on either side and pull the unit straight out until it locks (you
will hear a "click"). Next, depress the two buttons on the top of the chassis
to release the top cover and at the same time, push the cover away from
you until it stops. You can then lift the top cover from the chassis to gain
full access to the inside of the server. You must power down the system
before installing or removing a CD-ROM or floppy drive.
Drives mount on rails and should "click" into place to be correctly and fully
installed in their bays.
• The floppy disk drive cable has seven twisted wires.
• A red mark on a wire typically designates the location of pin 1.
• A single floppy disk drive ribbon cable has 34 wires and two connectors
to provide for two floppy disk drives. The connector with twisted wires
always connects to drive A, and the connector that does not have
twisted wires always connects to drive B.
6-6
Chapter 6: Advanced Chassis Setup
IDE Drive Installation (5013C-i only)
1.
Mounting an IDE drive in a drive carrier
Like SATA drives, IDE drives are also mounted in drive carriers to simplify
their installation and removal from the chassis. These carriers also help
promote proper airflow. For this reason, even empty carriers without IDE
drives installed must remain in the chassis. To add a new IDE drive,
install a drive into the carrier with the printed circuit board side toward
the carrier so that the mounting holes align with those in the carrier.
Secure the drive to the carrier with the four screws (see Figure 6-5).
2.
Installing/removing IDE drives
The two IDE drive bays are located in the front of the chassis, making
them easily accessible for installation and removal. The IDE drives are
not hot-swap units, meaning system power must be turned off before
installing and/or removing them. To install or remove a drive, first power
down the system and then remove the top cover of the chassis. Unscrew the retention screw at the top center of the drive, then push the
drive carrier out from the back until you can grasp and pull it out through
the front of the chassis (see Figure 6-5). Reverse this procedure when
installing a drive carrier, making sure you screw in the retention screw.
Replace the top cover when finished.
Figure 6-5.
Removing/Installing IDE Drives
6-7
SUPERSERVER 5013C-T/5013C-i User's Manual
6-5
Power Supply
The SuperServer 5013C-T/5013C-i has a single 250 watt power supply. This
power supply has the capability of operating at 100 or 240 input volts. Depress
the main power button on the front of the chassis and then unplug the AC power
cord to completely remove power from the system before removing the power
supply.
Power Supply Failure
If the power supply unit fails, the system will shut down and you will need to
replace the power supply unit. Replacement units can be ordered directly from
Supermicro (PWS-021 - see contact infomation in Chapter 1).
Replacing the Power Supply
1.
Accessing the inside of the SuperServer 5013C-T/5013C-i
To replace a power supply, you must first remove the top chassis cover.
To do so, first release the retention screws that secure the unit to the
rack. Grasp the two handles on either side and pull the unit straight out
until it locks (you will hear a "click"). Next, depress the two buttons on
the top of the chassis to release the top cover and push it away from
you. You can then lift the top cover from the chassis to gain full access
to the inside of the server.
2.
Removing the power supply
First unplug the power cord from the system. To remove the failed
power unit, remove the two screws on the back of the power supply,
which secure it to the chassis. You can then lift the unit straight out of
the chassis. (The power cord should have already been removed.)
3.
Installing a new power supply
Replace the failed unit with another unit of the same wattage. It is highly
recommended to replace it with the exact same power supply. Carefully
insert the new unit into position in the chassis and secure it with the two
screws at the rear of the unit. Before reconnecting the power cord,
make sure the power switch on the power supply is in the off position.
Then reconnect the power cord, replace the chassis top cover and push
the unit back into the rack. Finish by turning the power switch on the
power supply on, and then depress the power button on the front of the
system.
6-8
Chapter 7: BIOS
Chapter 7
BIOS
7-1
Introduction
This chapter describes the AwardBIOS for the P4SCE. The Award ROM
BIOS is stored in a Flash chip and can be easily upgraded using a floppy
disk-based program.
Note: Due to periodic changes to the BIOS, some settings may have been
added or deleted and might not yet be recorded in this manual. Refer to the
Manual Download area of our web site for any changes to BIOS that are
not reflected in this manual.
System BIOS
The BIOS is the Basic Input Output System used in all IBM® PC, XT™, AT® ,
and PS/2® compatible computers. The AwardBIOS Flash chip stores the
system parameters, such as amount of memory, type of disk drives and
video displays, etc. CMOS requires very little power. When the computer
is turned off, a back-up battery provides power to the BIOS Flash chip,
enabling it to retain the system parameters. Each time the computer is powered-on, the computer is then configured with the values stored in the BIOS
ROM by the system BIOS, which gains control when the computer is powered on.
How To Change the Configuration Data
The CMOS information that determines the system parameters may be
changed by entering the BIOS Setup utility. This Setup utility can be accessed by pressing <Del> at the appropriate time during system boot.
Starting the Setup Utility
Normally, the only visible POST (Power On Self Test) routine is the memory
test. As the memory is being tested, press the <Delete> key to enter the
main menu of the BIOS Setup utility. From the main menu, you can access
the other setup screens, such as the Chipset and Power menus. Section 43 gives detailed descriptions of each parameter setting in the Setup utility.
7-1
SUPERSERVER 5013C-T/5013C-i User's Manual
7-2
Running Setup
*Optimal default settings are in bold text unless otherwise noted.
The BIOS setup options described in this section are selected by choosing
the appropriate text from the Main BIOS Setup screen. All displayed text is
described in this section, although the screen display is often all you need
to understand how to set the options (see on next page).
When you first power on the computer, the AwardBIOS™ is immediately
activated.
While the BIOS is in control, the Setup program can be activated in one of two
ways:
1.
2.
By pressing <Del> immediately after turning the system on, or
When the following message appears briefly at the bottom of the screen
during the POST (Power On Self-Test), press the <Del> key to activate
the Main Setup Menu.
Press DEL to enter SETUP
7-3
Main BIOS Setup
All Main Setup options are described in this section. The Main BIOS Setup screen
is displayed below.
Use the <Up> <Down> arrow keys or the <Tab> key to move among the different
settings in the above menu.
Press the <Esc> key to exit the CMOS Setup Menu and use the <Left> <Right>
arrow keys to enter the other categories of BIOS settings. The next section is
described in detail to illustrate how to navigate through the menus.
7-2
Chapter 7: BIOS
Main BIOS Setup Menu
Date/Time
Set the system date and time. Key in the correct information in the "mm", "dd"
and "yy" fields. Press the "Enter" key to save the data.
Legacy Diskette A
This setting allows the user to set the type of floppy disk drive installed as
diskette A. The options are None, 360Kb 5.25 in, 1.2MB 5.25 in, 720Kb 3.5
in, 1.44/1.25MB, 3.5 in and 2.88MB 3.5 in.
Legacy Diskette B
This setting allows the user to set the type of floppy disk drive installed as
diskette B. The options are None, 360Kb 5.25 in, 1.2MB 5.25 in, 720Kb 3.5
in, 1.44/1.25MB, 3.5 in and 2.88MB 3.5 in.
X IDE Channel 0 Master/Slave, IDE Channel 1 Master/Slave
These settings allow the user to set the parameters of the IDE Channel 0 Master/
Slave and IDE Channel 1 Master/Slave slots. Hit <Enter> to activate the
following sub-menu screen for detailed options of these items. Set the correct
configurations accordingly. The items included in the sub-menu are:
7-3
SUPERSERVER 5013C-T/5013C-i User's Manual
IDE HDD Auto-Detection
This option allows the user to determine the manner in which the
AwardBIOS sets the settings for the IDE Primary Master Device. The
options are "None", "Auto" and "Manual."
IDE Primary Master
Press the <Auto> key to activate the 'IDE HDD Auto-Detection"
function, which will allow BIOS to automatically detect the status of
the IDE HDD installed in the system, such as the size, the number of
cylinders, the configurations of items such as Head, Precomp, Landing
Zone and Sector. The options are "None", "Auto", and "Manual."
Access Mode
This item determines the location through which the AwardBIOS
accesses the IDE Primary Master Device. The settings are "CHS",
"LBA", "Large", and "Auto".
Base Memory/Extended Memory/Total Memory
These are displays that inform you how much of each type of memory is
recognized as being present in the system.
7-4
Chapter 7: BIOS
7-4
Advanced BIOS Setup
Choose Advanced BIOS Setup from the Award BIOS main menu with the Left/
Right arrow keys. You should see the following display. Select one of the
items in the left frame of the screen to go to the sub screen for that item.
Advanced BIOS Setup options are displayed by highlighting the option using the
arrow keys. All Advanced BIOS Setup options are described in this section.
7-4.1
Advanced BIOS Features
When the item of Advanced BIOS Features is highlighted, press the <Enter>
key to activate the screen below:
7-5
SUPERSERVER 5013C-T/5013C-i User's Manual
Quick Boot
If enabled, this feature allows the system to skip certain tests while booting.
This will decrease the time needed to boot the system. The settings are
"Enabled" and "Disabled".
Quiet Boot
This feature allows the user to activate the function of "Quiet Boot".
"Enabled" and "Disabled".
ACPI Function
Select "Enabled" to activate the function of BIOS Support for Advanced
Configuration and Power Interface features. The settings are "Enabled" or
"Disabled".
ACPI Suspend Type
If enabled, the option allows the user to determine the ACPI Suspend type.
The options are S1(POS), S3(STR), S1&S3.
APIC Mode
This setting allows you to Enable or Disable APIC. APIC is used to assign
interrupt signals to a specific processor on multi-processor system and
provides IRQs beyond the conventional 16 under Windows 2000 or XP. It
has no effect on single processor systems.
MPS Version Control
This setting allows you to state the MPS version for your operating system.
Options are "1.1" and "1.4".
PWRON After PWR-Fail
This setting allows the user to specify how the system will respond when
power is reapplied after the system has gone down due to a power failure.
The options are "Off", "On" and "Former-Sts".
7-6
Chapter 7: BIOS
7-4.2 Advanced Chipset Control
ECC Configuration
This setting allows you to enable or disable ECC (Error Correction and
Checking). The options are ECC and Non-ECC.
SATA Mode
This setting allows you to set the SATA Mode RAID via BIOS. The options are
RAID and IDE.
On-Chip Serial ATA
This setting allows you to configure the On-Chip SATA. Select "Disabled" to
disable the SATA controller. If "Auto" is selected, BIOS will automatically
configure the SATA controller settings. Select "Combined Mode" to combine
the functionality of Parallel ATA (PATA) and SATA ( with a maximum of two
IDE drives available for each channel). If "Enhanced Mode" is selected, both
SATA and PATA are supported (with a maximum of 6 IDE drives available).
If "SATA Only" is selected, SATA will operate in Legacy Mode. The options
are Disabled, Auto, Combined Mode, Enhanced Mode and SATA only.
Serial ATA Port0/1 mode
This setting allows you to configure Serial ATA Port0/1 modes.The options
are Primary Master, Primary Slave, Secondary Master, Secondary Slave,
SATA0 Master and SATA1 Master.
7-7
SUPERSERVER 5013C-T/5013C-i User's Manual
USB Controller
This setting allows you to enable or disable the USB Controller. The
options are Enabled, and Disabled.
USB 2.0 Controller
This setting allows you to enable or disable USB 2.0 (EHCI) Controller.
The options are Enabled, and Disabled.
USB Legacy Support
This setting allows you to enable or disable the functions of USB,
Keyboard/Mouse under POST and DOS. The options are Disabled, and
Enabled.
CPU THRM-Throttling
THRM throttling is used to lower power consumption and reduce the heat
generated by the CPU. The options for this setting are "87.5%", "75%",
"62.5%", "50%", "37.5%", "25%' and "12.5%'.
7-4.3 I/O Device Configuration
7-8
Chapter 7: BIOS
Keyboard Input Clock
This setting allows to you set the speed of the keyboard. The options are 6
MHz, 8 MHz, 12 MHz, and 16 MHz.
Onboard Serial Port1/Onboard Serial Port2
This setting allows the user to set the address and the corresponding IRQ
for the Serial Port1 and Serial Port 2. The options are "Disabled" , "3F8/
IRQ4", "2F8/IRQ3", "3E8/IRQ4", "2E8/IRQ3", and "Auto". The default setting
for Serial Port1 is "3F8/IRQ4" and the default for Port 2 is "2F8/IRQ3".
UART Mode Select
This setting allows the user to select the UART mode for the BIOS. The
options are "IrDA", "ASKIR" and "Normal".
RxD, TxD Active
This allows the user to change the settings for the "RxD, TxD Active"
function. The options are "Hi, Hi", "Hi, Lo", "Lo, Hi", and "Lo, Lo".
IR Transmission Delay
If "Enabled", the transmission of IR (infrared) signals will be delayed. The
options are "Enabled" and "Disabled".
UR2 Duplex Mode
This setting sets the UR2 Duplex Mode. Options are "Full" and "Half".
Use IR Pins
This item sets the usage of the IR pins. The options are "RxD2, TxD2" and
"IR-Rx2Tx2".
Onboard Parallel Port
This setting allows the user to set the address and the corresponding IRQ
for the onboard parallel port. The options are "Disabled", "378/IRQ7", "278/
IRQ5" and "3BC/IRQ7".
7-9
SUPERSERVER 5013C-T/5013C-i User's Manual
Parallel Port Mode
This setting sets the mode for the onboard Parallel port. The options are
"SPP," "EPP", "ECP" "ECP+EPP" and "Normal".
EPP Mode Select
This setting allows the user to select the EPP port type. The options are
"EPP 1.9" and "EPP 1.7".
ECP Mode Use DMA
This setting allows the user to select the DMA channel for the ECP mode
(port) to use. The options are "1" and "3".
Watch Dog Timer Select
This setting allows you to select the setting for the Watch Dog Timer. The
Options are "Disabled", "10 Sec", "20 Sec", "30 Sec", "40 Sec", "I min", "2
min",and "Enabled".
Power On Function
This setting allows the user to decide which method to use to power on the
system. The options are "Password", "Hot Key", "Mouse Left", "Mouse
Right", "Any Key", and "Button Only".
KB Power On Password
This setting allows the user to enter the Password when the system is
powered on via keyboard.
Hot Key Power On
This setting allows the user to decide which hot-keys to use in order to
power on the system. The options are "Ctrl-F1", "Ctrl-F2, Ctrl-F3", "CtrlF4", "Ctrl-F5", "Ctrl-F6", "Ctrl-F7", and "Ctrl-F8".
7-10
Chapter 7: BIOS
7-4.4 PnP Configuration
Choose PCI/PnP Configurations from the Award BIOS main menu with the
Left/Right arrow keys. You should see the following display:
PnP OS Install
Enter "Yes" if are you are using an OS that is PnP (Plug and Play) compatible. Enter "No" if your OS does not support PnP.
Reset Configuration Data
Enabling this setting resets the extended system configuration data when
you exit setup. Do this when you have installed a new add-on and the
system reconfiguration has caused such a serious conflict that the OS
cannot reboot the system. The options are "Enabled" and "Disabled".
Resources Controlled By
This setting allows BIOS to automatically configure all boot and Plug and
Play compatible devices. If you choose Auto, you cannot select the IRQ,
DMA and memory base address fields, because BIOS automatically assigns
them. The options are "Auto <ESCD>" and "Manual".
Onboard LAN Boot ROM
Select "Enabled" to enable the Boot ROM embedded in the Onboard LAN
Chip. The options are "Enabled", "LAN 1", "LAN 2" and "Disabled".
7-11
SUPERSERVER 5013C-T/5013C-i User's Manual
7-4.5
Hardware Monitors
There are only three settings on this menu (below). The rest of this menu
shows various temperatures and voltage levels as indicated.
CPU Warning Temperature
This allows you to set the CPU warning temperature. If the CPU temperature
reaches this threshold, an alarm will activate and a warning message will
be displayed onscreen. The options are "Disabled", "60 0 C/140 0F", "65 0 C/
149 0F", "70 0C/158 0F", "75 0C/167 0F", "80 0C/176 0F" and "85 0C/185 0F".
7-12
Chapter 7: BIOS
7-4.6 Processor & Clock Options
Hyper-Threading Technology
Select "Enabled" to activate the hyper-threading function of the CPUs to make
each CPU appear as if there were two CPUs to any programs that support it (you
must have OS support also). The settings are "Disabled" and "Enabled."
CPU Clock Ration
Key in a number between 12x to 16x to set the clock ratio of the processor. The
default setting is 16x.
Auto Detect PCI Clk
Set this option to "Enabled" to enable the BIOS to automatically detect the PCI
Clock. The settings are "Disabled" and "Enabled."
CPU Clock
Key in a number between 200 and 233 to set the CPU clock (MHz). Supermicro
does not recommend or make any guarantees with CPU overclocking.
7-13
SUPERSERVER 5013C-T/5013C-i User's Manual
7-5
Security
Choose Security from the Award BIOS main menu with the Left/Right arrow
keys. You should see the following display:
Set Supervisor Password
When the item "Set Supervisor Password" is highlighted on the above
screen, press the <Enter> key. When prompted, type the Supervisor
Password in the dialogue box to set or to change the Supervisor
Password.
Set User Password
When the item "Set User Password" is highlighted on the above screen,
press the <Enter> key. When prompted, type the User Password in the
dialogue box to set or to change the User Password.
Password Check
This setting allows the user to determine if the password is required every
time when the system boots up or if the password is required only when
you enter the CMOS setup. The options are "System" and "Setup".
Fixed Disk Boot Sector
This setting allows the user to configure the Fixed Disk Boot Sector.
default setting is "Protected".
7-14
The
Chapter 7: BIOS
7-6
Boot
Choose Boot from the Award BIOS main menu with the Left/Right arrow
keys. You should see the following display:
Hard Disk Boot Priority
This item allows the user to select the Boot Priority of Hard Disk Devices.
Boot ROM Order
This item allows the user to specify the order of ROM (Read Only Memory) the
system scans first during bootup. The options are "SATA RAID" and "PCI Card".
First Boot Device
This item allows the user to set the first boot-up device. The options are
"Floppy", "LS120", "HDD", "CDROM", "ZIP100", "USB-FDD", "USB-ZIP",
"USB-CDROM", "USB-HDD", "LAN" and "Disabled".
Second Boot Device
This item allows the user to set the second boot-up device. The options
are "Floppy", "LS120", "HDD", "CDROM", "ZIP100", "USB-FDD", "USB-ZIP",
"USB-CDROM", "USB-HDD", "LAN" and "Disabled".
7-15
SUPERSERVER 5013C-T/5013C-i User's Manual
Third Boot Device
This item allows the user to set the third boot-up device. The options are
"Floppy", "LS120", "HDD", "SCSI", "CDROM", "ZIP100", "USB-FDD", "USBZIP", "USB-CDROM", "USB-HDD", "LAN" and "Disabled".
Boot Other Device
If enabled, this option enables the BIOS to load the OS from another device
rather than the ones that have been specified as the first, second and third
boot up devices. The settings are "Enabled" and "Disabled".
7-7
Exit
Choose Exit from the Award BIOS main menu with the Left/Right arrow
keys. You should see the following display:
7-16
Chapter 7: BIOS
Save & Exit Setup
When the item "Save & Exit Setup" is highlighted, press <Enter> to save the
changes you've made in the BIOS program (CMOS) and exit. Your system
should, then, continue with the boot-up procedure.
Exit without Saving
When the item "Exit without Saving" is highlighted, press <Enter> to exit the
Setup routine without saving any changes you may have made. Your system should then continue with the boot-up procedure.
Load Fail-Safe Defaults
Highlight this item and hit <Enter> to load the default settings for all items in the
BIOS Setup. These are the safest settings to use.
Load Optimized Defaults
Highlight this item and hit <Enter> to load the optimized settings for all items
in the BIOS Setup. These settings provide you with optimal system
performance.
Discard Changes
When the item "Discard Changes" is highlighted, press <Enter> to discard
any changes you made to the BIOS settings and to stay in BIOS Setup.
Your system should then continue with the boot-up procedure.
7-17
SUPERSERVER 5013C-T/5013C-i User's Manual
Notes
7-18
Appendix A: BIOS POST Messages
Appendix A
BIOS POST Messages
During the Power-On Self-Test (POST), the BIOS will check for problems. If a problem
is found, the BIOS will activate an alarm or display a message. The following is a list
of such BIOS messages.
Beeps
Error Message
1 long beep
1 long beep+2 short beeps
Memory Modules Errors
VGA Errors
A-1
SUPERSERVER 5013C-T/5013C-i User's Manual
Notes
A-2
Appendix B: BIOS POST Codes
Appendix B
BIOS POST Codes
This section lists the POST (Power On Self Testing) Codes for the Award BIOS.
C1h
C3h
C5h
0h1
02h
03h
04h
05h
06h
07h
08h
09h
0Ah
0Bh
0Ch
0Dh
0Eh
Description
Test CMOS R/W functionality.
Early chipset initialization:
-Disable shadow RAM
-Disable L2 cache (socket 7 or below)
-Program basic chipset registers
Detect memory
-Auto-detection of DRAM size, type and ECC.
-Auto-detection of L2 cache (socket 7 or below)
Expand compressed BIOS code to DRAM
Call chipset hook to copy BIOS back to E000 & F000 shadow
RAM.
Expand the Xgroup codes locating in physical address 1000:0
Reserved
Initial Superio_Early_Init switch.
Reserved
1. Blank out screen
2. Clear CMOS error flag
Reserved
1. Clear 8042 interface
2. Initialize 8042 self-test
1. Test special keyboard controller for Winbond 977 series Super
I/O chips.
2. Enable keyboard interface.
Reserved
Disable PS/2 mouse interface (optional).
Auto detect ports for keyboard & mouse followed by a port & interface swap
(optional).
Reset keyboard for Winbond 977 series Super I/O chips.
Reserved
Reserved
Reserved
Test F000h segment shadow to see whether it is R/W-able or not. If
test fails, keep beeping the speaker.
APPENDIX A
POST (hex)
CFh
C0h
B-1
SUPERSERVER 5013C-T/5013C-i User's Manual
POST (hex)
0Fh
10h
11h
12h
13h
14h
15h
16h
17h
18h
19h
1Ah
1Bh
1Ch
1Dh
1Eh
1Fh
20h
21h
22h
23h
APPENDIX A
24h
25h
26h
27h
28h
29h
2Ah
2Bh
2Ch
Description
Reserved
Auto detect flash type to load appropriate flash R/W codes into the
run time area in F000 for ESCD & DMI support.
Reserved
Use walking 1’s algorithm to check out interface in CMOS
circuitry. Also set real-time clock power status, and then check for
override.
Reserved
Program chipset default values into chipset. Chipset default
values are MODBINable by OEM customers.
Reserved
Initial Early_Init_Onboard_Generator switch.
Reserved
Detect CPU information including brand, SMI type (Cyrix or
Intel) and CPU level (586 or 686).
Reserved
Reserved
Initial interrupts vector table. If no special specified, all H/W
interrupts are directed to SPURIOUS_INT_HDLR & S/W
interrupts to SPURIOUS_soft_HDLR.
Reserved
Initial EARLY_PM_INIT switch.
Reserved
Load keyboard matrix (notebook platform)
Reserved
HPM initialization (notebook platform)
Reserved
1. Check validity of RTC value:
e.g. a value of 5Ah is an invalid value for RTC minute.
2. Load CMOS settings into BIOS stack. If CMOS checksum fails, use default
value instead.
3. Prepare BIOS resource map for PCI & PnP use. If ESCD is valid, take into
consideration of the ESCD’s legacy information.
4. Onboard clock generator initialization. Disable respective clock resource to
empty PCI & DIMM slots.
5. Early PCI initialization:
-Enumerate PCI bus number
-Assign memory & I/O resource
-Search for a valid VGA device & VGA BIOS, and put it
into C000:0.
Reserved
Reserved
Reserved
Initialize INT 09 buffer
Reserved
Program CPU internal MTRR (P6 & PII) for 0-640K memory address.
Initialize the APIC for Pentium class CPU.
Program early chipset according to CMOS setup. Example: onboard IDE
controller.
Measure CPU speed.
Invoke video BIOS.
Reserved
Reserved
Reserved
B-2
Appendix B: BIOS POST Codes
2Eh
2Fh
30h
31h
32h
33h
34h
35h
36h
37h
38h
39h
3Ah
3Bh
3Ch
3Dh
3Eh
3Fh
40h
41h
42h
43h
44h
45h
46h
47h
48h
49h
4Ah
4Bh
4Ch
4Dh
4Eh
4Fh
50h
51h
52h
53h
54h
55h
56h
57h
Description
1. Initialize multi-language
2. Put information on screen display, including Award title, CPU type, CPU
speed ….
Reserved
Reserved
Reserved
Reserved
Reserved
Reset keyboard except Winbond 977 series Super I/O chips.
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Test 8254
Reserved
Test 8259 interrupt mask bits for channel 1.
Reserved
Test 8259 interrupt mask bits for channel 2.
Reserved
Reserved
Test 8259 functionality.
Reserved
Reserved
Reserved
Initialize EISA slot
Reserved
1. Calculate total memory by testing the last double word of each 64K page.
2. Program writes allocation for AMD K5 CPU.
Reserved
Reserved
Reserved
Reserved
1. Program MTRR of M1 CPU
2. Initialize L2 cache for P6 class CPU & program CPU with proper cacheable
range.
3. Initialize the APIC for P6 class CPU.
4. On MP platform, adjust the cacheable range to smaller one in case the
cacheable ranges between each CPU are not identical.
Reserved
Initialize USB
Reserved
Test all memory (clear all extended memory to 0)
Reserved
Reserved
Display number of processors (multi-processor platform)
Reserved
1. Display PnP logo
2. Early ISA PnP initialization
-Assign CSN to every ISA PnP device.
B-3
APPENDIX A
POST (hex)
2Dh
SUPERSERVER 5013C-T/5013C-i User's Manual
POST (hex)
58h
59h
5Ah
5Bh
5Ch
5Dh
5Eh
5Fh
60h
61h
62h
63h
64h
65h
66h
67h
68h
69h
6Ah
6Bh
6Ch
6Dh
6Eh
6Fh
70h
71h
72h
73h
APPENDIX A
74h
75h
76h
77h
78h
79h
7Ah
7Bh
7Ch
7Dh
7Eh
7Fh
Description
Reserved
Initialize the combined Trend Anti-Virus code.
Reserved
(Optional Feature)
Show message for entering AWDFLASH.EXE from FDD (optional)
Reserved
1. Initialize Init_Onboard_Super_IO switch.
2. Initialize Init_Onboard_AUDIO switch.
Reserved
Reserved
Okay to enter Setup utility; i.e. not until this POST stage can users
enter the CMOS setup utility.
Reserved
Reserved
Reserved
Reserved
Initialize PS/2 Mouse
Reserved
Prepare memory size information for function call:
INT 15h ax=E820h
Reserved
Turn on L2 cache
Reserved
Program chipset registers according to items described in Setup &
Auto-configuration table.
Reserved
1. Assign resources to all ISA PnP devices.
2. Auto assign ports to onboard COM ports if the corresponding item in Setup is
set to “AUTO”.
Reserved
1. Initialize floppy controller
2. Set up floppy related fields in 40:hardware.
Reserved
Reserved
Reserved
(Optional Feature)
Enter AWDFLASH.EXE if :
-AWDFLASH is found in floppy drive.
-ALT+F2 is pressed
Reserved
Detect & install all IDE devices: HDD, LS120, ZIP, CDROM…..
Reserved
Detect serial ports & parallel ports.
Reserved
Reserved
Detect & install co-processor
Reserved
Reserved
Reserved
Reserved
1. Switch back to text mode if full screen logo is supported.
-If errors occur, report errors & wait for keys
-If no errors occur or F1 key is pressed to continue:
Clear EPA or customization logo.
B-4
Appendix B: BIOS POST Codes
80h
81h
82h
83h
84h
85h
86h
87h
88h
89h
90h
91h
92h
93h
94h
95h
96h
FFh
Description
Reserved
Reserved
1. Call chipset power management hook.
2. Recover the text font used by EPA logo (not for full screen logo)
3. If password is set, ask for password.
Save all data in stack back to CMOS
Initialize ISA PnP boot devices
1. USB final Initialization
2. NET PC: Build SYSID structure
3. Switch screen back to text mode
4. Set up ACPI table at top of memory.
5. Invoke ISA adapter ROMs
6. Assign IRQs to PCI devices
7. Initialize APM
8. Clear noise of IRQs.
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Read HDD boot sector information for Trend Anti-Virus code
1. Enable L2 cache
2. Program boot up speed
3. Chipset final initialization.
4. Power management final initialization
5. Clear screen & display summary table
6. Program K6 write allocation
7. Program P6 class write combining
1. Program daylight saving
2. Update keyboard LED & typematic rate
1. Build MP table
2. Build & update ESCD
3. Set CMOS century to 20h or 19h
4. Load CMOS time into DOS timer tick
5. Build MSIRQ routing table.
Boot attempt (INT 19h)
APPENDIX A
POST (hex)
B-5
SUPERSERVER 5013C-T/5013C-i User's Manual
Notes
APPENDIX A
B-6
Appendix C: Software Installation
Appendix C
Software Installation
C-1
Supero Doctor III
The Supero Doctor III program is a Web-based management tool that supports
remote management capability and includes both Remote and Local Management tools. The local management is called the SD III Client. The Supero Doctor
III program included on the CD-ROM that came with your motherboard allows you
to monitor the environment and operations of your system. Supero Doctor III
displays crucial system information such as CPU temperature, system voltages
and fan status.
Install Supero Doctor III after the operating system has been installed.
Key Features
For Windows XP, NT4, 2000 and 2003 Operating Systems
Super Doctor III supports the following features:
Web-based remote management
Graphical Mode Console Redirection
System Information (WMI)
Performance Monitoring
Remote Control
Graceful power shutdown and reboot
Hard power shutdown and reset without notice
System Management
Allows you to easily manage your entire network
Reports
System Information
Health Log
Administration
System Management
C-1
SUPERSERVER 5013C-T/5013C-i Manual
Linux Support
The SD III Client and Supero Doctor II for Linux support the following features:*
Applications for local management
Pager and E-mail alerts
SNMP support
Health Monitoring
CPU and system temperatures
System voltages
CPU and chassis fans
Chassis intrusion
Redundant power failure (hardware dependant)
Note: For Linux operating systems, please refer to the Supero Doctor II information posted on our website at ftp://ftp.supermicro.com/utility/Supero_Doctor_II/
Linux/ .
The figures below display two of the key features of SDIII.
Figure C-1. Supero Doctor III Health Information Screen
C-2
Appendix C: Software Installation
Figure C-2. Supero Doctor III Remote Power/Reset Control Screen
Note: SD III software can be downloaded from our website at ftp://
ftp.supermicro.com/utility/Supero_Doctor_III/. You can also download the SDIII
User's Guide at http://www.supermicro.com/PRODUCT/Manuals/SDIII/
UserGuide.pdf. For Linux, we recommend the use of Supero Doctor II. Please
refer to our Supero Doctor II information posted at ftp://ftp.supermicro.com/utility/
Supero_Doctor_II/Linux/.
C-3
SUPERSERVER 5013C-T/5013C-i Manual
C-2 Installing the Intel ICH5R SATA RAID Utility
After all hardware has been installed, you must first install the RAID level
that you require in the Intel ICH5R SATA RAID Utility program before you
install a Windows operating system and other software drivers. The
necessary drivers are all included on the Supermicro CDs that came
packaged with your motherboard. (Note: the current version of the ICH5R
SATA RAID Utility can only support Windows XP/2000 Operating System.)
Serial ATA (SATA)
Serial ATA (SATA) is a physical storage interface. It uses a single cable with
a minimum of four wires to create a point-to-point connection between devices. It is a serial link that supports SATA transfer rates of up to 150MBps.
Because the serial cables used in SATA are thinner than the traditional cables
used in Parallel ATA (PATA), SATA systems facilitate better airflow and can
be installed in smaller chassis than can PATA. In addition, PATA cables are
limited to 40cm in length, while SATA cables can reach up to one meter.
Overall, SATA provides better functionalities than PATA.
Introduction to Intel ICH5R Serial RAID
Located in the South Bridge of the E7210 chipset, the ICH5R (I/O Controller
Hub) provides the I/O subsystem with access to the rest of the system. It
supports a dual-channel Ultra ATA/100 Bus Master IDE controller (PATA) and
two SATA Host controllers, which can support up to two SATA ports and up
to two RAID drives. The ICH5R supports the following PATA and SATA device
configurations:
ATA Operating Modes
You can select from either Legacy or Native mode.
Legacy Mode:
In this mode, system BIOS assigns the traditional 14 and 15 IRQs for HDD use.
Up to four ATA devices are support by this mode.
The following three modes are supported in Legacy Mode:
*Non-Combined Mode: Parallel ATA only with a maximum of four devices.
*Non-Combined Mode: Serial ATA only with a maximum of two devices.
*Combined Mode: Both SATA and PATA devices with support for two devices
each (total of four devices maximum).
refer to the table below.
C-4
For IDE/SATA configurations, please
Appendix C: Software Installation
Primary Master(=PM)
Yes Yes No
No
No
No
Primary Slave(=PS)
Yes No
Yes No
No
No
Secondary Master(=SM) Yes No
No
Yes No
No
Secondary Slave(=SS)
Yes No
No
No
Yes No
SATA Port0
No
SM
SM
PM
PM
PM
SATA Port1
No
SS
SS
PS
PS
PS
*Note: (No=Not Present, Yes=Present) Also, if Logical Primary is
selected, the IDE channels are no longer available.
Native Mode:
In this mode, system BIOS will automatically search all available IRQs for HDD use.
For newer operating systems that support switching to Native Mode such as Windows XP and Windows 2003, you can set SATA and PATA to Native Mode. These
newer operating systems can accommodate both Legacy and Native modes and
support up to six ATA devices. (To select Legacy or Native Mode, please go to the
"BIOS Setup" section in System BIOS.)
Configuring BIOS settings for SATA RAID (Native Mode)
1.Press the <Del> key during system bootup to enter the BIOS Setup Utility.
Note: If it is the first time powering on the system, we recommend you load the
Optimized Default Settings. If you have already done so, please skip to Step 3.
2. Use the arrow keys to select the "Exit" Settings. Once in the "Exit" settings,
scroll down to select the item "Load Optimized Default Settings" and press the
<Enter> key. Type "Y" for "Yes" to confirm the selection, then press the <Enter>
key to load the default settings for the BIOS.
3. Use the arrow keys to select the "Advanced" settings in the BIOS.
4. Scroll down to "Advanced Chipset Control" and press the <Enter> key to
select this option.
5. Select "Manual" for the item "On Chip Serial ATA" and press the <Enter> key
to select this option.
6. Select "Tertiary Master" for the item "Serial ATA Port0" and press the <Enter>
key to select this option.
7. Select "Quaternary Master" for the item "Serial ATA Port1" and press the
<Enter> key to select this option.
8. Select "Enabled" for the item "RAID Function" and press the <Enter> key to
select this option.
C-5
SUPERSERVER 5013C-T/5013C-i Manual
9. Tap "Esc" and scroll dwon to "Exit". Select "Save and Exit" from the "Exit"
menu. Press the <Enter> key to save the changes and exit the BIOS.
10. Once you've exited the BIOS Utility, the system will reboot.
Using the Intel ICH5R SATA RAID Utility Program
1. Creating, Deleting and Reseting RAID Volumes
a. After the system exits from the BIOS Setup Utility, it will automatically reboot.
The following screen appears after the Power-On Self Test.
b. When you see the above screen, press the <Ctrl> and the <i> keys simultaneously to display the main menu of the SATA RAID Utility:
C-6
Appendix C: Software Installation
Creating RAID Volume
a. Select item #1 "Create RAID Volume" from the main menu and press the
<Enter> key. The following screen will appear:
b. Specify a RAID Volume Name and press the <Tab> key or the <Enter> key
to go to the next field. (Note: You can use the <Esc> key to reselect the previous
menu.)
c.Use the <Tab>, <Up Arrow>, <Down Arrow> and <Enter> keys to enter the
appropriate values for the items selected and to go to the next field.
C-7
SUPERSERVER 5013C-T/5013C-i Manual
d. When asked "Are you sure you want to create this volume (Y/N)", press "Y"
to confirm the selection or type "N" to change the RAID volume. Then press the
<Enter> key to enter the value and return to the main menu.
e. You will return to the main menu with DISK/VOLUME INFORMATION updated
as shown in the following screen:
f. Once the above screen appears, use the <Down Arrow> key to select item #4
"Exit" and press the <Enter> key. The following screen will appear:
C-8
Appendix C: Software Installation
g. When asked "Are you sure you want to exit? (Y/N):", type "Y" to confirm the
selections and exit the "Create RAID Volume" menu. Press the <Enter> key to
return to the main menu.
Deleting RAID Volume
a. In the main menu, use the <Down Arrow> and the <Up Arrow> keys to select
item #2 "Delete RAID Volume" in the main menu.
b. With item #2 highlighted, press the <Enter> key to select the item "Delete
RAID Volume". The following screen will appear:
C-9
SUPERSERVER 5013C-T/5013C-i Manual
c. Select the volume and press the <Delete> key to delete the RAID volume. The
following screen will appear:
d. When asked "Are you sure you want to delete this volume?", type "Y" to
confirm the deletion and press the <Enter> key to return to the main menu.
(Note: the <Esc> key is used to reselect the previous menu.)
Reset Disks to Non-RAID
a. In the main menu, use the <Down Arrow> and the <Up Arrow> keys to select
item# 3 "Reset Disks to Non-RAID" in the main menu.
b When item# 3 is highlighted, press the <Enter> key to select the item "Reset
Disks to Non-RAID". The following screen will appear:
C-10
Appendix C: Software Installation
c. When asked "Are you sure you want to reset all RAID data (Y/N):", type "Y"
to confirm the selection and press the <Enter> key to return to the main menu.
(Press the <Esc> key to reselect the previous menu.)
2. Exiting the ICH5R SATA RAID Configuration Utility Program
a. In the main menu, use the <Down Arrow> and the <Up Arrow> keys to select
item #4 "Exit" in the main menu.
b. With item# 4 "Exit" highlighted, press the <Enter> key.
c. When asked "Are you sure you want to exit? (Y/N):", type "Y" to confirm the
selection, and press the <Enter> key to exit the ICH5R SATA RAID Configuration
Utility Program. The system will then reboot.
C-11
SUPERSERVER 5013C-T/5013C-i Manual
C-3 Installing the Operating System and Software
New Operating System: Windows XP/2000 Installation
a. Insert the Microsoft Windows XP/2000 Setup CD in the CD Driver. The system
will start booting up from the CD.
b. Press the <F6> key when the message "Press F6 if you need to install a third
party SCSI or RAID driver" is displayed.
c. When the Windows XP/2000 Setup screen appears, press "S" to specify
additional device(s).
d. Insert the driver diskette labeled "Intel AA RAID XP/2000 Driver for ICH5R" into
Drive A and press the <Enter> key.
e. Choose Intel(R)82801ER SATA RAID Controller from the list indicated in the
XP/2000 Setup Screen and press the <Enter> key.
f. Press the <Enter> key to continue the installation process. (If you need to
specify any additional devices to be installed, do it at this time.) Once all devices
are specified, press the <Enter> key to continue with the installation.
g. From the Windows XP/2000 Setup screen, press the <Enter> key. The XP/
2000 Setup will automatically load all device files and then continue the Windows
XP/2000 installation.
(Note: the current version of the ICH5R SATA RAID Utility can only support the
Windows XP/2000 Operating System.)
h. After the Windows XP/2000 installation is completed, the system will automatically reboot.
i. Insert the Supermicro CD that came with the system into the CD-ROM drive
during the system reboot, and the following screen will appear:
C-12
Appendix C: Software Installation
Figure C-3. Driver/Tool Installation Display Screen
Click the icons showing a hand writing on paper to view the readme files for each
item. Click the computer icons to the right of these items to install each item
(from top to the bottom) one at a time. After installing each item, you must
reboot the system before moving on to the next item on the list. You
should install everything here except for the SUPER Doctor utility, Intel LDCM
and the LAN/SCSI driver diskettes, which are optional. The bottom icon with a
CD on it allows you to view the entire contents of the CD.
C-13
SUPERSERVER 5013C-T/5013C-i Manual
Installing the Intel Application Accelerator Utility
a. When the above screen appears, click on the icon marked "Application Accelerator RAID Edition", and the following screen will appear:
b. When the above screen appears, click on the icon marked "Next" on
the screen, and the following screen will appear:
C-14
Appendix C: Software Installation
c. After reading the License Agreement, click on the icon marked "Yes"
on the screen, and the screen below will appear.
d. Specify the folder that you want the program to be installed in and
then, click on the icon marked "Next" to begin the installation process.
e. Specify a program folder where you want Setup to add the program as
shown in the following screen and click on "Next".
C-15
SUPERSERVER 5013C-T/5013C-i Manual
f. The following screen will appear to display the status of the installation.
g. Once the Application Accelerator RAID Edition installation is completed, the following screen will appear and the system will start to reboot.
(*Note: Once the XP/2000 Operating System is installed, please read the
"Readme text files" for the instructions to use the SATA RAID Utility in
the Windows XP/2000 OS environment.)
C-16
Appendix C: Software Installation
Intel Application Accelerator Utility Workaround for Windows
2003
The Windows 2003 operating system is currently not supported by the Intel
Application Accelerator Software. Please follow the instructions listed below to
workaround this issue.
1. Click "Start" and select "Programs" from the desktop.
2. Click "Intel(R) Application Accelerator RAID Edition" and select "Intel Application Accelerator".
3. Right click on "Intel Application Accelerator" and select "Properties" from the
popup menu as shown below:
Next select the Compatibility tab in the properties as above.
C-17
SUPERSERVER 5013C-T/5013C-i Manual
4. Select the Compatibility Tab from the Intel Application Accelerator Properties
menu as shown below:
C-18
Appendix C: Software Installation
5. Select the checkbox beside the item "Run this program in compatibility mode
for:" as shown below:
C-19
SUPERSERVER 5013C-T/5013C-i Manual
6. Select the correct OS type for your system from the pull-down menu.
7. Click "Apply" and "OK" to complete your selection as shown below:
C-20
Appendix C: Software Installation
C-4 Rebuilding SATA RAID1
Procedures to Rebuild RAID1
If necessary, please download documentation from Intel's website at: Intel®
Application Accelerator RAID Edition.
1. Once a hard drive disk has failed, a pop-up message will appear to alert you that
the RAID Volume has been degraded and the following screen will appear:
2. Double click the Intel AARE (SATARAID Controller) menu, and it will show you
what is missing or not working as on the screen below:
C-21
SUPERSERVER 5013C-T/5013C-i Manual
3. Unplug the bad HDD and replace it with a new one.
4. After you have replaced the bad HDD, go to "Disk Management" in your system.
The following screen will appear:
C-22
Appendix C: Software Installation
6. Once the disk manager detects the new disk that you've installed, it will show
an “Unknown” disk as indicated in the following screen:
7. When the above screen appears, right click on the new disk and It will bring
up a manual for the new disk. Select the item“Write Signature” to the new disk
as shown below.
8. After you finished writing the signature to the new disk, Open the Intel AARE
application again. Note: Do not reboot the system as prompted to avoid losing
data!!
C-23
SUPERSERVER 5013C-T/5013C-i Manual
9. This time it should detect that a new disk is available.
10. Right click on the new disk and select “Rebuild to disk” as shown on the following
screen:
11. Once you've made your selection, you can go to the “RAID Volume” setting to
see the RAID1 rebuilding process in progress. The following screen will appear:
C-24
Appendix D: System Specifications
Appendix D
System Specifications
Processors
Single Intel® Pentium® 4 processors of up to 3.40 GHz with a 2 MB integrated
Advanced Transfer Cache and hyper-threading technology or single Intel®
Celeron® processors of up to 2.40 GHz with a 128KB integrated Advanced
Transfer Cache in 478-pin microPGA sockets at a 800/533/400 MHz front side
bus speed
Chipset
Intel E7210
Memory Capacity
Four (4) DIMM slots to support a maximum of 4 GB unbuffered, ECC/
non-ECC DDR-400/333/266 low-profile SDRAM
DIMM Sizes
256 MB / 512 MB / 1 GB 184-pin modules supported
Serial ATA Controller
ICH5R I/O controller hub incorporated into chipset
Serial ATA Backplane (5013C-T only)
SATA backplane (CSE-SATA-810) for two (2) hot-swap SATA drives
Main Drive Bays
5013C-T: Two (2) drive bays to house two (2) standard 1" 80-pin
SATA drives
5013C-i: Two (2) drive bays to house two (2) 3.5 x 1" IDE disk drives
Peripheral Bays
One (1) 3.5" floppy drive
One (1) slim CD-ROM drive
PCI Expansion Slots
One (1) 32-bit 33 MHz (5V) PCI slot (bundled with a 32-bit, 33 MHz 5V
riser card)
D-1
SUPERSERVER 5013C-T/5013C-i Manual
Motherboard
Model: P4SCE (ATX Form Factor)
Dimensions: 12 x 9.5 in (305 x 241 mm)
Chassis
Model: SC811T-250 (5013C-T) or SC811i-250 (5013C-i): (1U Rackmount)
Dimensions: (WxHxD) 16.7 x 1.7 x 22 in. (424 x 43 x 559 mm)
Weight
Net (Bare Bone): 28 lbs. (12.7 kg.)
Net (Gross): 34 lbs. (15.5 kg.)
System Cooling
Two (2) 10-cm ball bearing blower fans
System Input Requirements
AC Input Voltage: 100-240 VAC
Rated Input Current: 4A (115V) to 2A (230V)
Rated Input Frequency: 50 to 60 Hz
Power Supply
Rated Output Power: 250W (Model# EFA250, Part# PWS-021)
Rated Output Voltages: +3.3V (20A), +5V (25A), +12V (13A), -12V
(.8A), +5Vsb (2A)
BTU Rating
1545 BTUs/hr (for rated output power of 250W)
Operating Environment
Operating Temperature: 10º to 35º C (50º to 90º F)
Non-operating Temperature: -40º to 70º C (-40º to 158º F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5 to 95% (non-condensing)
D-2
Appendix D: System Specifications
Regulatory Compliance
Electromagnetic Emissions:
FCC Class B, EN 55022 Class B, EN 61000-3-2/-3-3, CISPR 22 Class B
Electromagnetic Immunity:
EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11)
Safety:
EN 60950/IEC 60950-Compliant
UL Listed (USA)
CUL Listed (Canada)
TUV Certified (Germany)
CE Marking (Europe)
D-3
SUPERSERVER 5013C-T/5013C-i Manual
Notes
D-4

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
