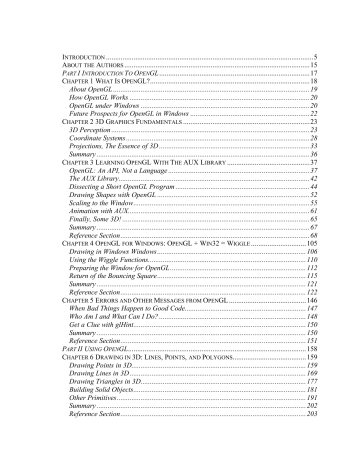

I

NTRODUCTION

.................................................................................................................5

A

BOUT THE

A

UTHORS

.....................................................................................................15

P

ART

I I

NTRODUCTION

T

O

O

PEN

GL ..................................................................................17

C

HAPTER

1 W

HAT

I

S

O

PEN

GL?.......................................................................................18

About OpenGL ...........................................................................................................19

How OpenGL Works ..................................................................................................20

OpenGL under Windows ............................................................................................20

Future Prospects for OpenGL in Windows .................................................................22

C

HAPTER

2 3D G

RAPHICS

F

UNDAMENTALS

.....................................................................23

3D Perception ............................................................................................................23

Coordinate Systems ....................................................................................................28

Projections, The Essence of 3D ..................................................................................33

Summary ....................................................................................................................36

C

HAPTER

3 L

EARNING

O

PEN

GL W

ITH

T

HE

AUX L

IBRARY

.............................................37

OpenGL: An API, Not a Language .............................................................................37

The AUX Library........................................................................................................42

Dissecting a Short OpenGL Program .........................................................................44

Drawing Shapes with OpenGL ...................................................................................52

Scaling to the Window ................................................................................................55

Animation with AUX...................................................................................................61

Finally, Some 3D! ......................................................................................................65

Summary ....................................................................................................................67

Reference Section .......................................................................................................68

C

HAPTER

4 O

PEN

GL

FOR

W

INDOWS

: O

PEN

GL + W

IN

32 = W

IGGLE

.............................. 105

Drawing in Windows Windows ................................................................................. 106

Using the Wiggle Functions...................................................................................... 110

Preparing the Window for OpenGL .......................................................................... 112

Return of the Bouncing Square ................................................................................. 115

Summary .................................................................................................................. 121

Reference Section ..................................................................................................... 122

C

HAPTER

5 E

RRORS AND

O

THER

M

ESSAGES FROM

O

PEN

GL .......................................... 146

When Bad Things Happen to Good Code.................................................................. 147

Who Am I and What Can I Do? ................................................................................ 148

Get a Clue with glHint.............................................................................................. 150

Summary .................................................................................................................. 150

Reference Section ..................................................................................................... 151

P

ART

II U

SING

O

PEN

GL................................................................................................. 158

C

HAPTER

6 D

RAWING IN

3D: L

INES

, P

OINTS

,

AND

P

OLYGONS

........................................ 159

Drawing Points in 3D............................................................................................... 159

Drawing Lines in 3D ................................................................................................ 169

Drawing Triangles in 3D.......................................................................................... 177

Building Solid Objects.............................................................................................. 181

Other Primitives ....................................................................................................... 191

Summary .................................................................................................................. 202

Reference Section ..................................................................................................... 203

Page

2

OpenGL Super Bible!

C

HAPTER

7 M

ANIPULATING

3D S

PACE

: C

OORDINATE

T

RANSFORMATIONS

..................... 221

Is This the Dreaded Math Chapter?.......................................................................... 221

Understanding Transformations ............................................................................... 222

Matrix Munching...................................................................................................... 228

Using Projections..................................................................................................... 240

Advanced Matrix Manipulation ................................................................................ 249

Summary .................................................................................................................. 251

Reference Section ..................................................................................................... 252

C

HAPTER

8 C

OLOR AND

S

HADING

................................................................................. 266

What Is a Color? ...................................................................................................... 266

PC Color Hardware ................................................................................................. 270

PC Display Modes.................................................................................................... 272

Selecting a Color...................................................................................................... 274

Windows Palettes ..................................................................................................... 280

Creating a Palette .................................................................................................... 285

Color Index Mode .................................................................................................... 291

Summary .................................................................................................................. 295

Reference Section ..................................................................................................... 296

C

HAPTER

9 L

IGHTING AND

L

AMPS

................................................................................. 305

Light in the Real World ............................................................................................ 306

Materials in the Real World ..................................................................................... 309

Adding Light to a Scene............................................................................................ 311

Using a Light Source................................................................................................ 316

Lighting Effects ........................................................................................................ 326

Spotlights ................................................................................................................. 335

Shadows ................................................................................................................... 339

Lighting and Color Index Mode................................................................................ 345

Summary .................................................................................................................. 346

Reference Section ..................................................................................................... 347

C

HAPTER

10 3D M

ODELING AND

O

BJECT

C

OMPOSITION

............................................... 361

Defining the Task ..................................................................................................... 361

Constructing a Model, One Piece at a Time.............................................................. 364

A Makeshift Benchmark............................................................................................ 378

Improving Performance............................................................................................ 381

Summary .................................................................................................................. 385

Reference Section ..................................................................................................... 386

C

HAPTER

11 R

ASTER

G

RAPHICS IN

O

PEN

GL ................................................................. 397

Drawing Bitmaps ..................................................................................................... 397

Pixmaps: Bitmaps with Color ................................................................................... 404

A Bitmap File Viewer ............................................................................................... 413

Summary .................................................................................................................. 424

Reference Section ..................................................................................................... 425

C

HAPTER

12 T

EXTURE

M

APPING

................................................................................... 437

The Basics of Texture Mapping ................................................................................ 437

Defining Texture Images .......................................................................................... 439

OpenGL Super Bible! Page

3

Drawing Textured Polygons ..................................................................................... 443

Mipmapped Textures ................................................................................................ 445

A Terrain Viewing Program ..................................................................................... 447

Summary .................................................................................................................. 454

Reference Section ..................................................................................................... 483

C

HAPTER

13 Q

UADRICS

: S

PHERES

, C

YLINDERS

,

AND

D

ISKS

........................................... 493

Creating a Quadric .................................................................................................. 493

Changing the Way Quadrics Are Drawn................................................................... 493

Drawing Cylinders ................................................................................................... 495

Drawing Disks ......................................................................................................... 496

Drawing Spheres...................................................................................................... 497

Drawing a Pencil ..................................................................................................... 498

Summary .................................................................................................................. 500

Reference Section ..................................................................................................... 511

P

ART

III A

DVANCED

T

OPICS AND

S

PECIAL

E

FFECTS

......................................................... 522

C

HAPTER

14 T

HE

O

PEN

GL S

TATE

M

ACHINE

................................................................. 523

Basic OpenGL State Functions................................................................................. 523

Saving and Restoring States ..................................................................................... 524

Reference Section ..................................................................................................... 531

C

HAPTER

15 B

UFFERS

: N

OT

J

UST FOR

A

NIMATION

........................................................ 537

What Are Buffers? .................................................................................................... 537

The Color Buffer ...................................................................................................... 542

The Depth Buffer...................................................................................................... 544

The Stencil Buffer..................................................................................................... 554

The Accumulation Buffer .......................................................................................... 560

Reference Section ..................................................................................................... 566

C

HAPTER

16 V

ISUAL

E

FFECTS

: B

LENDING AND

F

OG

...................................................... 575

Blending................................................................................................................... 575

Fog .......................................................................................................................... 590

Revisiting the Terrain Viewing Program .................................................................. 595

Summary .................................................................................................................. 601

Reference Section ..................................................................................................... 602

C

HAPTER

17 C

URVES AND

S

URFACES

: W

HAT THE

#%@!&* A

RE

NURBS? ................... 604

Curves and Surfaces................................................................................................. 605

Evaluators................................................................................................................ 607

NURBS..................................................................................................................... 616

Summary .................................................................................................................. 623

Reference Section ..................................................................................................... 624

C

HAPTER

18 P

OLYGON

T

ESSELLATION

.......................................................................... 656

Complex Polygons.................................................................................................... 656

Drawing Concave Polygons ..................................................................................... 657

Drawing Complex Polygons ..................................................................................... 658

Callback Functions .................................................................................................. 663

Summary .................................................................................................................. 664

Reference Section ..................................................................................................... 665

Page

4

OpenGL Super Bible!

C

HAPTER

19 I

NTERACTIVE

G

RAPHICS

............................................................................ 672

Selection................................................................................................................... 673

Feedback.................................................................................................................. 683

An Example.............................................................................................................. 685

Summary .................................................................................................................. 690

Reference Section ..................................................................................................... 691

C

HAPTER

20 O

PEN

GL O

N

T

HE

'N

ET

: VRML................................................................. 705

When Worlds Collide................................................................................................ 705

WebSpace................................................................................................................. 707

Open Inventor and VRML......................................................................................... 711

Summary .................................................................................................................. 712

P

ART

IV O

PEN

GL

WITH

. . .............................................................................................. 713

C

HAPTER

21 MFC-B

ASED

O

PEN

GL P

ROGRAMMING

...................................................... 714

Isolate Your OpenGL Code ...................................................................................... 715

Starting with AppWizard .......................................................................................... 716

Get CView Ready for OpenGL.................................................................................. 718

Pixel Format and Rendering Context........................................................................ 719

Handling Window Resizing....................................................................................... 721

Rendering the Scene ................................................................................................. 721

CPalette Handling.................................................................................................... 722

Summary .................................................................................................................. 726

C

HAPTER

22 OWL-B

ASED

O

PEN

GL P

ROGRAMMING

..................................................... 727

Isolate Your OpenGL Code ...................................................................................... 728

Starting with AppExpert ........................................................................................... 729

Fleshing Out the Shell .............................................................................................. 732

Pixel Format and Rendering Context........................................................................ 733

Handling Window Resizing....................................................................................... 735

Rendering the Scene ................................................................................................. 735

TPalette Handling .................................................................................................... 738

Summary .................................................................................................................. 742

C

HAPTER

23 V

ISUAL

B

ASIC AND

4GL-B

ASED

O

PEN

GL P

ROGRAMMING

......................... 743

Low-Level Access Required ...................................................................................... 743

The Magic of Objects ............................................................................................... 744

Use and Operation of WaiteGL.OCX........................................................................ 745

Installing and Using WaiteGL from VB 4.0 .............................................................. 746

Installing the OCX in Delphi 2.0 .............................................................................. 749

Some Notes About the Source ................................................................................... 753

Summary .................................................................................................................. 754

C

HAPTER

24 T

HE

F

UTURE OF

O

PEN

GL

AND

W

INDOWS

.................................................. 755

Conclusion ............................................................................................................... 758

A

PPENDIX

A P

ERFORMANCE

-T

UNING

O

PEN

GL

FOR

W

INDOWS

...................................... 760

A

PPENDIX

B F

URTHER

R

EADING

................................................................................... 763

A

PPENDIX

C O

PEN

GL V

ERSION

1.1............................................................................... 765

A

PPENDIX

D G

LOSSARY

................................................................................................ 766

OpenGL Super Bible! Page

5

Introduction

Welcome to OpenGL SuperBible! The first time I ever heard of OpenGL was at the 1992

Win32 Developers Conference in San Francisco. Windows NT 3.1 was in early beta (or late alpha) and many vendors were present, pledging their future support for this exciting new platform. Among them was a company called Silicon Graphics, Inc. (SGI). They were showing off their graphics workstations and playing video demos of special effects from some popular movies. NT was running on MIPS processors— now owned by SGI— but their primary purpose in this booth was to promote a new 3D graphics standard called OpenGL. It was based on SGI’s proprietary IRIS GL and was fresh out of the box as a graphics standard. Significantly, Microsoft was pledging future support for OpenGL in Windows NT.

I had to wait until the beta release of NT 3.5 before I got my first personal taste of OpenGL.

Those first OpenGL-based screensavers only scratched the surface of what was possible with this graphics API. Like many other people, I struggled through the Microsoft help files and bought a copy of the OpenGL Programming Guide (now called simply “The Red Book” by most). The Red Book avoids platform issues and uses for all its examples the Auxiliary

(AUX) library, a platform-independent program framework for OpenGL graphics.

At that time, the Red Book was the only book available for learning OpenGL. Though quite thorough in its coverage of OpenGL functions, it is lacking in two important respects. First, it is not a primer. Whatever the intent of the authors, the book assumes a substantial working knowledge of 3D graphics concepts in general. The Red Book’s second drawback is its platform independence. As a Windows developer, I needed answers to some important questions, such as how to use a .BMP file as a texture, how to create an OpenGL-usable palette for an 8-bit display device, and how to use all those “wiggle” functions Microsoft threw in.

OpenGL SuperBible fills in those gaps. I wanted to provide a 3D graphics introduction and an OpenGL tutorial rolled into one. In addition, I approached the whole subject within the context of the single most popular desktop operating system of all time, Microsoft Windows.

And I added a Reference Section of thorough function definitions at the end of each chapter, making this book a good complement to the Waite Group line of bible reference books.

Who This Book Is For

This book will suit a wide audience of OpenGL and Windows programmers. Windows programmers wanting to learn about 3D graphics and how to implement them using

OpenGL will find what they need. So will experienced Windows and 3D graphics programmers wanting to learn more about the industry standard OpenGL. This book will also be of value to seasoned OpenGL programmers who have a workstation background but need some assistance porting their applications and experience to the Microsoft Windows platforms.

Page

6

OpenGL Super Bible!

System Requirements for OpenGL

OpenGL is not available on the 16-bit versions of Microsoft Windows (3.1, 3.11, and so forth) from Microsoft. Microsoft added OpenGL to Windows NT 3.5, and to Windows 95 via a separate distribution of some DLLs. (These DLLs are available via Microsoft’s FTP and Web sites and are included on this book’s CD, in the \Windows95 subdirectory.)

OpenGL SuperBible does not attempt to cover any third-party OpenGL or OpenGL-like libraries for the 32- or 16-bit environments. Programmatically, OpenGL used under

Windows 95 is the same as OpenGL used under Windows NT. The first set of DLLs shipped by Microsoft for Windows NT supports all of the OpenGL 1.0 functions that are also available under Windows NT 3.5 and 3.51. OpenGL 1.1 functions are being added to

Windows NT 4.0, and a new set of DLLs should be ready for Windows 95 by the time this book ships. See the readme.txt file on the CD for any late-breaking information.

All of the samples in the book should run fine on a fast 486 (that’s a “real” 486, mind you, which means a built-in math coprocessor!) with at least 8MB of RAM. Most programming environments will require at least this much horsepower, anyway. If you’re interested, all the code in the book and on the CD was developed and found to run acceptably on a 90MHz

Pentium with 32MB of RAM and a 16/24-bit color display card. You will need a display card capable of at least 256 colors (an 8-bit color card). There is significant improvement in

OpenGL’s speed and appearance when you give it a good color depth to work with. If you can run in a mode that gives you 65,000 or more colors, your results will be even better.

Language

With the exception of two chapters that specifically deal with C++ frameworks, all the source code in this book is written in C. The choice between C and C++ can become an almost religious crusade between two warring camps. It is reasonable to expect that any competent C++ programmer can also follow well-structured C code, but the converse is not always true. There is a popular C++ library for OpenGL called Open Inventor; any attempt here to build a C++ class library around OpenGL would be a duplication of an already fine effort and is beyond the scope and purpose of this book anyway. This brings us to our choice of tools.

Compilers

All of the sample code was originally developed using Microsoft’s Visual C++ 4.0. (Yes, you can compile C with it!) With each sample you will find Visual C++ project files. Since all samples are in C and make no use of vendor-specific libraries, you shouldn’t have any trouble building the projects with any other 32-bit compiler. I will assume that you are familiar with your environment of choice and know how to add libraries and header files to your projects.

OpenGL Super Bible! Page

7

For programmers who prefer C++ application frameworks such as MFC or OWL, chapters are included that deal with these two in particular. In addition, many of the C samples are also provided in an MFC (Visual C++) version and an OWL (Borland C++) version.These samples can be found in the \MFC and \OWL subdirectories on the CD. Project files for the

Borland Compiler are also provided for these samples, prepared using Borland C++ 5.0.

Another special consideration has been made for users of Borland tools: the CD contains a

Borland-specific version of the OpenGL Auxiliary library. This library isn’t part of the official OpenGL specification, but it is usually implemented on the same various platforms as OpenGL. For reasons unknown, Borland includes a header file for this library but not the library itself, and the version of the AUX library that ships with Microsoft tools is incompatible with Borland C++. For additional notes on using Borland C++ with this book, see the \Borland subdirectory on the CD.

What’s in This Book

OpenGL SuperBible is divided into four sections. Part I is an introduction to OpenGL and the fundamentals of using it from within Microsoft Windows. In Part II we cover the basics of programming with OpenGL. This includes primitives, viewing and modeling transformations, lighting, and texture mapping. In Part III we dig into some of the more advanced topics and functionality within OpenGL— the OpenGL State Machine, special visual effects, more detail on the OpenGL buffers, advanced surface generation, and some interactive graphics. For Part IV, we’ve added supplementary information on using OpenGL from different programming environments (MFC, OWL, and Visual Basic). Finally, there’s a discussion of the future of OpenGL under Windows.

Part I: Introduction to OpenGL

Chapter 1 - What Is OpenGL?

In this chapter, we provide you with a working knowledge of what OpenGL is, where it came from, and where it is going. We also discuss at a high level the differences between and compatibilities of OpenGL and the Microsoft Windows graphics system.

Chapter 2 - 3D Graphics Fundamentals

This chapter is for newcomers to 3D graphics. It introduces fundamental concepts and some common vocabulary.

Page

8

OpenGL Super Bible!

Chapter 3 - Learning OpenGL with the AUX Library

In this chapter, you will begin writing programs that use OpenGL. For starters, we’ll make things simple by using the AUX library. This common toolkit library is platform- and windowing system-independent. We also cover OpenGL function and variable naming conventions, as well as the DLLs and libraries that contain the OpenGL functionality.

Chapter 4 - OpenGL for Windows: OpenGL + Win32 = Wiggle

Here you’ll begin writing real Windows (message-based) programs that use OpenGL. You’ll learn about Microsoft’s “wiggle” functions that glue OpenGL rendering code to Windows device contexts. We’ll also talk about which Windows messages should be responded to and how.

Chapter 5 - Errors and Other Message from OpenGL

We’ll explore OpenGL’s method of reporting errors, and how it provides information about its version and vendor.

Part II: Using OpenGL

Chapter 6 - Drawing in 3D: Lines, Points, and Polygons

Here you’ll learn how all 3D objects are created by assembling 2D primitives. All the

OpenGL primitives are covered, as well as how to hide surfaces within your scenes.

Chapter 7 - Manipulating 3D Space: Coordinate Transformations

In this chapter you’ll learn about moving your objects or view within your scenes. You’ll learn how to rotate, translate, and scale. We take a simplified approach to our study of matrix transformations, so you will understand how to use them even if youdon’t know the first thing about matrices.

Chapter 8 - Color and Shading

Here you’ll learn how to liven up your objects by adding color. Shading objects smoothly from one color to another will be child’s play after you’ve completed this chapter. We also show you how and why you need to construct a 3-3-2 palette for OpenGL when your code runs on a 256-color video card.

OpenGL Super Bible! Page

9

Chapter 9 - Lighting and Lamps

OpenGL supports up to eight independent light sources per scene. You’ll learn how to use these lamps, how to set lighting parameters and properties, and how they interact with reflective material properties that you can assign to your objects.

Chapter 10 - 3D Modeling and Object Composition

For this chapter, we show you how to build complex 3D objects out of smaller, less complex

3D objects. We also introduce OpenGL display lists as a method of breaking down your objects and improving performance, as well.

Chapter 11 - Raster Graphics in OpenGL

In this chapter you’ll learn how to manipulate bitmap graphics from within OpenGL. This includes reading in a Windows .BMP file and displaying it in an OpenGL scene.

Chapter 12 - Texture Mapping

Texture mapping is one of the most useful features of any 3D graphics toolkit. You’ll learn how to wrap bitmaps onto polygons, and how to use automatic texture coordinate generation.

Chapter 13 - Quadrics: Spheres, Cylinders, and Disks

This chapter covers the OpenGL Utility library (glu) functions for quickly constructing some common shapes.

Part III: Advanced Topics and Special Effects

Chapter 14 - The OpenGL State Machine

Many global OpenGL parameters and settings are maintained via the OpenGL State

Machine. In this chapter you’ll learn about this mechanism, as well as some generalized functions for setting and accessing the various parameters.

Chapter 15 - Buffers: Not Just for Animation

This chapter goes into more depth about the various OpenGL buffers. As you’ll see, they’re not just for doing screen flipping.

Page

10

OpenGL Super Bible!

Chapter 16 - Visual Effects, Blending, and Fog

Some other visual special effects are covered in this chapter. These include alpha blending and fog effects for transparency and depth cues.

Chapter 17 - Curves and Surfaces: What the #%@!&* Are NURBS?

This chapter explores the utility functions that evaluate Bázier and NURBS curves and surfaces. You can use these functions to create complex shapes with a small amount of code.

Chapter 18 - Polygon Tessellation

Here you’ll learn how to break down complex or concave polygons into smaller, more manageable pieces.

Chapter 19 - Interactive Graphics

This chapter explains two OpenGL features: selection and feedback. These groups of functions make it possible for the user to interact with objects in the scene. You can also get rendering details about any single object in the scene.

Chapter 20 - OpenGL on the ‘Net: VRML

This chapter introduces VRML (Virtual Reality Modeling Language) and its history with

OpenGL. Open Inventor is discussed, as well, and its relationship to OpenGL and VRML.

Part IV: OpenGL with...

Chapter 21 - MFC-Based OpenGL Programming

This chapter is for C++ programmers using Microsoft’s MFC class library. We’ll show you how to use OpenGL from an MFC-based application, and how to add rendering capabilities to any CWnd window.

Chapter 22 - OWL-Based OpenGL Programming

This chapter is for C++ programmers using Borland C++ and the OWL application framework. You’ll learn how to add OpenGL rendering capabilities to any OWL TWindowderived window.

OpenGL Super Bible!

Chapter 23 - OpenGL Programming from Visual Basic and 4GL

Page

11

In this chapter we give you an OCX that wraps most of the OpenGL functions and commands. This allows easy OpenGL programming from Visual Basic (4.0 or later) or any

32-bit environment that supports OCXs. Examples are given for both Visual Basic 4.0 and

Delphi 2.0.

Chapter 24 - The Future of OpenGL and Windows

This chapter looks at the future of 3D graphics and OpenGL in Windows. We discuss the implications of the Microsoft DirectX API, which includes Direct Draw, Direct Sound,

Direct Play, Direct Input, and Direct 3D, and will ultimately incorporate the Reality Labs 3D

API.

Appendixes

Appendix A - Performance-Tuning OpenGL for Windows

Here we will provide some general-purpose performance-tuning tips for using OpenGL under Windows NT and Windows 95.

Appendix B - Further Reading

A list of additional reading materials is provided for more in-depth research on any of the topics covered by this book.

Appendix C - OpenGL Version 1.1

OpenGL 1.1 was finalized during development of this book. The new functions and capabilities are not covered here, but Appendix C gives you a high-level overview of the new version’s additions. The CD also contains more up-to-date and complete documentation on the new functions and capabilities being added for Windows NT 4.0, as well as some example programs.

Appendix D - Glossary

A glossary of common 3D graphics and OpenGL terms.

Page

12

About the Companion CD

OpenGL Super Bible!

OpenGL SuperBible comes with a CD-ROM that’s jam-packed with samples and other

OpenGL goodies. A directory called Book, off the root directory of the CD, contains all the source code from the book. In addition, there are many examples demonstrating the concepts presented from each chapter that may not have been described in the text of the book.

Each chapter of the book has its own subdirectory in the Book directory. Within each chapter subdirectory is another subdirectory for each example on the disk. For instance, the bouncing square program from Chapter 3 is located in the X:\Book\Chapt3\bounce subdirectory (where X is your CD-ROM drive).

Some of the chapter directories have a subdirectory called \Tank. This is a roving tank/robot simulation program that we observe as we progress through the book. Though it’s not analyzed chapter by chapter, the simulation becomes more complex as we gradually add more of the functions and features of OpenGL. See the readme.txt file for details on the construction of this example program.

Some of the sample programs from each chapter will also be written in C++ using MFC or

OWL. These sample programs are under X:\MFC\ or X:\OWL\. Again, within the MFC and

OWL subdirectories there is an additional directory for each chapter.

The two final major subdirectories in the CD root are \Borland and \OpenGL11. The

\Borland subdirectory contains a Borland-specific version of the AUX library. See the readme.txt file in that directory for details on the library’s functionality and use.The

\OpenGL11directory contains a document describing the OpenGL 1.1 additions that

Microsoft is incorporating for Windows NT 4.0. In addition, you’ll also find several example programs that demonstrate these new capabilities.

Be sure to consult the file readme.txt in the root directory for any late-breaking news or additions to the content of the CD. This file also contains a complete listing of all the files and programs on the CD ROM.

OpenGL Super Bible! Page

13

Engage!

If you are learning OpenGL or 3D graphics for the first time, then I sincerely envy you.

Nothing is more satisfying and just plain fun than learning a new technology or tool for the first time. Although OpenGL has its roots in scientific modeling and simulation, you don’t need to be a rocket scientist to master it. The step-by-step approach taken throughout this book will guide you to new levels of programming skill. Learning OpenGL is comparable to learning SQL for database programming. Before I knew SQL, I could not quite imagine the new power I would wield as a database developer. If you have been tinkering with 3D graphics or are just wanting to get started, you are only just beginning to glimpse the new power and capabilities that OpenGL will afford you!

Richard S. Wright, Jr.

Page

14

Foreword

OpenGL Super Bible!

Due to its enormous processing and hardware requirements, three-dimensional computer graphics had until recently been available only on specialized workstations, even though the technology has been around for decades. Today, personal computers have become so powerful that interactive 3D graphics is no longer out of reach of such systems. A PC today performs as well as a graphics workstation from a few years ago, but at a small fraction of the cost.

OpenGL is an industry effort that brings traditional workstation graphics technology to the

PC. Microsoft has been an active advocate of this technology since it was first developed. It has worked with many hardware vendors to enable high performance3D graphics hardware on PCs.

The Windows platform now offers OpenGL applications ranging from VRML browsers to

CAD/CAM and animation packages. It will also be the platform with which to release an

OpenGL 1.1 implementation well ahead of all other platforms!

Richard Wright has long been an advocate of Win32 and OpenGL technology. He is an active participant in the comp.graphics.api.opengl newsgroup, and has helped resolve many programmers’ problems. Richard and I regularly exchange notes and ideas in e-mail. I am glad that he is sharing his years of knowledge with others in OpenGL SuperBible from

Waite Group Press, and I’m confident you will benefit from his insight and knowledge in developing your OpenGL applications for Windows.

Hock San Lee

OpenGL Development Manager

Microsoft Corporation

June 1996

OpenGL Super Bible! Page

15

About the Authors

Richard S. Wright, Jr. works for Visteon Corporation in Maitland, Florida, developing

Windows-based applications for the healthcare industry. Richard first learned to program in the eighth grade in 1978 on a paper terminal. At age 16, his parents let him buy a computer instead of a car, and he sold his first computer program less than a year later. When he graduated from high school, his first job was teaching programming and computer literacy for a local consumer education company. He studied electrical engineering and computer science at the University of Louisville’s Speed Scientific School and made it to his senior year before his career got the best of him. A native of Louisville, Kentucky, he now lives with his wife and three children in sunny Lake Mary, Florida. When not programming or dodging hurricanes, Richard is an amateur astronomer, a beach bum, and Sunday School teacher.

Michael Sweet works at the Chesapeake Test Range at Patuxent River, Maryland, and is coowner of Easy Software Products, a small software firm specializing in computer graphics on Silicon Graphics workstations. He first started using a computer terminalat the age of six and sold his first program at 12. Michael was hired as a consultant doing computer graphics while finishing his bachelors degree in computer science at the SUNY Institute of

Technology in Utica/Rome, New York. He moved to Maryland shortly after graduating.

When he has free time, he enjoys cycling, photography, and playing the trumpet.

Dedications

Dedicated to the memory of Richard S. Wright, Sr. I Thessalonians 4:16

Richard S. Wright, Jr.

To my folks for putting a computer terminal in front of me at age six, and to my girlfriend,

Sandra, for putting up with me while I worked on this book.

Michael Sweet

Page

16

Acknowledgments

OpenGL Super Bible!

There are many people who provided inspiration, technical assistance, ideas, and just lots of really strong iced tea when I badly needed it. Most of all, I wish to acknowledge my own family’s sacrifice: Thank you to LeeAnne, my wife, who gave up countless nights, weekends, and quiet evenings, not to mention taking on many extra responsibilities at home so her husband could “get famous.” Many thanks to my three children (Sara, Stephen, and

Alex), who missed not a few bedtime stories, trips to the park, and bike rides, or who just got grumped at for no reason other than that Daddy hadn’t slept in a week. No career achievement would have been worth losing them. I know how fortunate I am that at the end of this I can still have my cake and eat it, too.

Many thanks go out to all the people at Waite Group Press, who really brought the book together. Special thanks to John Crudo for getting my foot in the door a few years ago, and for recommending me for my first writing assignment before my first “real”book. Thanks to

Harry Henderson for keeping me on track and encouraging me whenever I started feeling sorry for myself. Thank you to Kurt Stephan for seeing me through, and for being flexible but firm with the schedule whenever disaster struck, or whenI decided to suddenly change the fabric of the universe (usually over a weekend before a deadline). Lest I forget, thanks to

Jill Pisoni and Joanne Miller, who got the book rolling in the first place— Jill for pulling teeth at one particular software company, and Joanne for sticking through four or five title changes, countless proposal revisions, three revisions of a sample chapter, and a hurricane before this thing took off. Finally, thank you to Mitch Waite himself for helping me shape the first “prototype” chapter, not to mention introducing me to the game Mech Warrior 2.

Credit and thanks also go out to Mike Sweet, author of Chapters 11 through 16 and 18, who jumped in at the last minute and bailed me out when my first co-author fell through. Thanks to Jeff Bankston for checking all the samples and for pointing out the important fact that not everyone has a 24-bit graphics card.

I also would like to thank everyone in the OpenGL community at large. I spent a lot of time in the OpenGL newsgroup asking and answering questions, and from there much of the content of the book was shaped. Special thanks to Hock San Lee at Microsoft, who answered many questions on and off line, and provided me with advance material on the new OpenGL features in NT 4.0. John Schimpf at SGI and Robert Weideman at Template graphics were also very helpful.

Richard S. Wright, Jr.

Many thanks to Harry Henderson, Jeff Bankston, and, of course, Kurt Stephan for making this book come together so quickly.

Michael Sweet

OpenGL Super Bible! Page

17

Part I

Introduction To OpenGL

Part I of this book introduces you to 3D graphics and programming with OpenGL. We start with a brief discussion of OpenGL, its background, purpose, and how it works. Then, before getting into any code, we’ll talk generally about 3D graphics on computers, including how and why we “think” we see 3D, and how an object’s position and orientation in 3D space is specified. You’ll get the fundamental background and terminology you need to get the best out of this book.

In Chapter 3 you’ll start writing your first OpenGL programs. You’ll learn about the various libraries and headers that are needed, and how OpenGL functions and data types are called and named. Initially we’ll cover the AUX library, a toolkit for learning OpenGL independently of any particular platform. Then we’ll “wiggle” our way into writing programs that use OpenGL under Windows 95 and Windows NT, in Chapter 4. We’ll cover the extensions to the Windows GDI (graphical device interface) to support OpenGL under

Windows and describe how they must be used.

In Chapter 5 you’ll get some essential information on OpenGL’s handling and reporting of error conditions. We’ll tell you how you can ask the AUX library to identify itself and who makes it, and how to give performance “hints” to the library. With this knowledge in hand, you’ll be ready to tackle the meatier issues of OpenGL in Part II, where the examples will get a lot better!

Page

18

OpenGL Super Bible!

Chapter 1

What Is OpenGL?

OpenGL is strictly defined as “a software interface to graphics hardware.” In essence, it is a

3D graphics and modeling library that is extremely portable and very fast. Using OpenGL, you can create elegant and beautiful 3D graphics with nearly the visual quality of a raytracer. The greatest advantage to using OpenGL is that it is orders of magnitude faster than a ray-tracer. It uses algorithms carefully developed and optimized by Silicon Graphics, Inc.

(SGI), an acknowledged world leader in computer graphics and animation.

OpenGL is intended for use with computer hardware that is designed and optimized for the display and manipulation of 3D graphics. Software-only, “generic” implementations of

OpenGL are also possible, and the Microsoft Windows NT and Windows 95 implementations fall into this category. Soon this may not strictly be the case, because more and more PC graphics hardware vendors are adding 3D acceleration to their products.

Although this is mostly driven by the market for 3D games, it closely parallels the evolution of 2D Windows-based graphics accelerators that optimize operations such as line drawing and bitmap filling and manipulation. Just as today no one would consider using an ordinary

VGA card to run Windows on a new machine, soon 3D accelerated graphics cards will become commonplace.

The Windows Graphics APIs

First there was GDI (Graphics Device Interface), which made it possible to write hardwareindependent graphics— but at the cost of speed. Then graphics card makers began writing optimized GDI drivers to considerably speed up GDI. Then Microsoft introduced WinG to lure game developers. WinG consisted of little more than a few functions that got bitmaps to the display much faster, but it was still too slow. Microsoft next created the Direct Draw API for really low-level access to the hardware. This became rolled in with a whole set of

DirectX APIs for writing directly to hardware, making games easier to write and improving their performance. Finally, 3DDI (a part of DirectX) gives high-performance 3D games a much needed shot in the arm. In Chapter 24 we talk more about the evolution and relationship of Windows and 3D graphics acceleration.

OpenGL is used for a variety of purposes, from CAD engineering and architectural applications to computer-generated dinosaurs in blockbuster movies. The introduction of an industry standard 3D API to a mass-market operating system such as Microsoft Windows has some exciting repercussions. With hardware acceleration and fast PC microprocessors becoming commonplace, 3D graphics will soon be typical components of consumer and business applications, not just of games and scientific applications.

Who remembers when spreadsheets had only 2D graphics and charting capabilities? If you think adding 3D to ordinary applications is extravagant, take a look at the bottom line of the

OpenGL Super Bible! Page

19

companies that first exploited this idea. Quattro Pro, one of the first to simplify 3D charting, nearly captured the entire spreadsheet market. Today it takes far more than flat, twodimensional pie charts to guarantee long-term success for spreadsheet applications.

This isn’t to say that everyone will be using OpenGL to do pie and bar charts for business applications. Nevertheless, appearances count for a lot. The success or failure of products with otherwise roughly equivalent features often depends on “sex appeal.” And you can add a lot of sex appeal with good 3D graphics!

About OpenGL

Let’s take a look at OpenGL’s origins, who’s “in charge” of OpenGL, and where OpenGL is going. We’ll also examine the principles of OpenGL implementation.

A History of OpenGL

OpenGL is a relatively new industry standard that in only a few years has gained an enormous following. The forerunner of OpenGL was GL from Silicon Graphics. “IRIS GL” was the 3D programming API for that company’s high-end IRIS graphics workstations.

These computers were more than just general-purpose computers; they had specialized hardware optimized for the display of sophisticated graphics. This hardware provided ultrafast matrix transformations (a prerequisite for 3D graphics), hardware support for depth buffering, and other features. When SGI tried porting IRIS GL to other hardware platforms, however, problems occurred.

OpenGL is the result of SGI’s efforts to improve IRIS GL’s portability. The new language would offer the power of GL but would be “Open,” allowing for easier adaptability to other hardware platforms and operating systems. (SGI still maintains IRIS GL, but no enhancements or features other than bug fixes are being made.)

On July 1, 1992, Version 1.0 of the OpenGL specification was introduced. Just five days later, at the very first Win32 developers conference, SGI demonstrated OpenGL running on their IRIS Indigo hardware. Video clips from films such as Terminator Two: Judgment Day, and medical imaging applications were popular attractions in the vendor exhibit hall.

Already, SGI and Microsoft were working together to bring OpenGL to a future version of

Windows NT.

Further Developments in OpenGL

An open standard is not really open if only one vendor controls it. Thus, all enhancements to

OpenGL are decided by the OpenGL Architecture Review Board (ARB), whose founding members are SGI, Digital Equipment Corporation, IBM, Intel, and Microsoft. The OpenGL

ARB meets twice a year.

Page

20

OpenGL Super Bible!

These meetings are open to the public, and nonmember companies may participate in discussions (although they can’t vote). Permission to attend must be requested in advance, and meetings are kept small to improve productivity. Members of the ARB frequently participate in the Internet newsgroup comp.graphics.api.opengl. Questions and recommendations can also be aired there.

In December 1995 the ARB ratified the final specification for Version 1.1 of OpenGL.

Many of the additions and changes from Version 1.0 were for performance reasons and are summarized in Appendix A.

How OpenGL Works

OpenGL is a procedural rather than a descriptive graphics language. Instead of describing the scene and how it should appear, the programmer actually describes the steps necessary to achieve a certain appearance or effect. These “steps” involve calls to a highly portable API that includes approximately 120 commands and functions. These are used to draw graphics primitives such as points, lines, and polygons in three dimensions. In addition, OpenGL supports lighting and shading, texture mapping, animation, and other special effects.

OpenGL does not include any functions for window management, user interaction, or file

I/O. Each host environment (such as Microsoft Windows) has its own functions for this purpose and is responsible for implementing some means of handing over to OpenGL the drawing control of a window or bitmap.

OpenGL under Windows

OpenGL made its debut in the release of Windows NT 3.5. A set of DLLs was also made available to add support for OpenGL to Windows 95 shortly after its release. This book, in fact, is specifically about Microsoft’s generic implementation of OpenGL. We will guide you, the developer, through the fundamentals of 3D graphics first, and then show you how to compile and link some OpenGL programs under Windows NT or Windows 95. Moving on, we’ll cover the “wiggle” functions provided by Microsoft— the glue that enables the

OpenGL graphics API to work with Microsoft’s GDI. From there we will cover the entire

OpenGL API, using the context of Microsoft Windows NT and/or Windows95.

Graphics Architecture: Software versus Hardware

Using OpenGL is not at all like using GDI for drawing in windows. In fact, the current selection of pens, brushes, fonts, and other GDI objects will have no effect on OpenGL. Just as GDI uses the device context to control drawing in a window, OpenGL uses a rendering context. A rendering context is associated with a device context, which in turn is associated with a window, and voilà— OpenGL is rendering in a window. Chapter 4 discusses all the mechanics associated with this process.

OpenGL Super Bible! Page

21

As we said earlier, OpenGL was meant to run on systems with hardware acceleration. PC graphics vendors are adding OpenGL support for their cards. Properly written OpenGL applications should not know the difference between hardware accelerated rendering and the purely software rendering of the generic implementation. The user will notice, however, that performance is significantly enhanced when hardware acceleration is present.

Figure 1-1 illustrates hardware acceleration under Windows, including normal GDI acceleration and Direct Draw acceleration, as well as OpenGL acceleration. On the far left you can see how an application makes normal GDI calls that are routed down through

WINSRV.DLL to the Win32 Device Driver Interface. The Win32 DDI then communicates directly with the graphics card device driver, where the GDI acceleration is performed.

Figure 1-1 Overview of how Windows graphics acceleration works

Direct Draw is optimized for direct access to graphics hardware. It bypasses the GDI completely and talks directly to the graphics hardware with perhaps only a thin hardware abstraction layer in between, and some software emulation for unsupported features. Direct

Page

22

OpenGL Super Bible!

Draw is typically used for games and allows direct manipulation of graphics memory for ultrafast 2D graphics and animation.

On the far right of Figure 1-1 you see OpenGL and other 3D API calls routed through a 3D device driver interface. 3DDI is specifically designed to allow hardware manufacturers to accelerate OpenGL and gaming 3D APIs such as the Reality Labs API. (For a discussion of

OpenGL and the Reality Labs API, see Chapter 24. In addition, hardware vendors with specific hardware acceleration for OpenGL (such as the GLINT chipset) may install their own OpenGL client drivers along with specialized device-driver interfaces.

Limitations of the Generic Implementation

Unless specifically supported by hardware, Microsoft’s generic implementation of OpenGL has some limitations. There is no direct support for printing OpenGL graphics to a monochrome printer or to a color printer with less than 4-bit planes of color (16 colors).

Hardware palettes for various windows are not supported. Instead, Windows has a single hardware palette that must be arbitrated among multiple running applications.

Finally, some OpenGL features are not implemented, including stereoscopic images, auxiliary buffers, and alpha bit planes. These features may or may not be implemented in hardware, however. Your application should check for their availability before making use of them (see Chapter 5).

Future Prospects for OpenGL in Windows

The introduction of OpenGL into the Windows family of operating systems opens up some exciting possibilities. As millions of PCs become OpenGL-enabled, Windows may well become the most popular platform for OpenGL-based applications. Initially this implementation may be for scientific and engineering modeling and visualization applications, but commonplace hardware will make high-performance games and other consumer applications possible before long.

Even for vendors producing OpenGL based applications on other platforms, Microsoft

Windows implementations could prove to be a substantial source of secondary revenue.

Windows-based workstations are an attractive alternative to high-cost specialty workstations, with the added bonus of being able to run some of today’s best business and productivity applications.

Chapter 2

3D Graphics Fundamentals

OpenGL Super Bible! Page

23

What you’ll learn in this chapter:

How the eyes perceive three dimensions

How a 2D image can have the appearance of 3D

How Cartesian coordinates specify object positions

What a clipping volume is

How viewports affect image dimensions

How 3D objects are built from 2D primitives

How to work with orthographic and perspective projections

Before getting into the specifics of using OpenGL to create 3D graphics, we’ll take some time out to establish some 3D vocabulary. In doing so, we will orient you to the fundamental concepts of 3D graphics and coordinate systems. You’ll find out why we can get away with calling 2D images on a flat computer screen 3D graphics. Readers experienced in 3D graphics who are ready to get started using OpenGL may want to just skim this chapter.

3D Perception

“3D computer graphics” are actually two-dimensional images on a flat computer screen that provide an illusion of depth, or a third “dimension.” In order to truly see in 3D, you need to actually view the object with both eyes, or supply each eye with separate and unique images of the object. Take a look at Figure 2-1. Each eye receives a two-dimensional image that is much like a temporary photograph on the retina (the back part of your eye). These two images are slightly different because they are received at two different angles (your eyes are spaced apart on purpose). The brain then combines these slightly different images to produce a single, composite 3D picture in your head, as shown in Figure 2-1.

Page

24

OpenGL Super Bible!

Figure 2-1 How the eyes “see” three dimensions

In Figure 2-1, the angle [theta] between the images gets smaller as the object goes farther away. This 3D effect can be amplified by increasing the angle between the two images.

Viewmasters (those hand-held stereoscopic viewers you probably had as a kid) and 3D movies capitalize on this effect by placing each of your eyes on a separate lens, or by providing color-filtered glasses that separate two superimposed images. These images are overenhanced for dramatic or cinematic purposes.

So what happens when you cover one eye? You may think you are still seeing in 3D, but try this experiment: Place a glass or some other object just out of arm’s reach, off to your left side. Cover your right eye with your right hand and reach for the glass. (Maybe you should use an empty plastic one!) Notice that you have a more difficult time estimating how much farther you need to reach (if at all) before you touch the glass. Now uncover your right eye and reach for the glass, and you can easily discern how far you need to lean to reach the glass. This is why people who have lost one eye often have difficulty with distance perception.

2D + Perspective = 3D

The reason the world doesn’t become suddenly flat when you cover one eye is that many of a 3D world’s effects are also present in a 2D world. This is just enough to trigger your brain’s ability to discern depth. The most obvious cue is that nearby objects appear larger than distant objects. This effect is called perspective. And perspective plus color changes, textures, lighting, shading, and variations of color intensities (due to lighting) together add up to our perception of a three-dimensional image.

OpenGL Super Bible! Page

25

Perspective alone is enough to lend the appearance of three dimensions. Figure 2-2 presents a simple wireframe cube. Even without coloring or shading, the cube still has the appearance of a three-dimensional object. Stare at the cube for long enough, however, and the front and back of the cube will switch places. This is because your brain is confused by the lack of any surface in the drawing.

Figure 2-2 This simple wireframe cube demonstrates perspective

Hidden Line Removal

Figure 2-2 contains just enough information to lend the appearance of three dimensions, but not enough to let you discern the front of the cube from the back. When viewing a real object, how do you tell the front from the back? Simple— the back is obscured by the front.

If the cube in Figure 2-2 were a solid, you wouldn’t be able to see the corners in the back of the cube, and thus you wouldn’t confuse them for the corners in the front of the cube. Even if the cube were made of wire, parts of the wires in front would obscure parts of the wires in the back. To simulate this in a two-dimensional drawing, lines that would be obscured by surfaces in front of them must be removed. This is called hidden line removal and it has been done to the cube in Figure 2-3.

Page

26

OpenGL Super Bible!

Figure 2-3 The cube after hidden lines are removed

Colors and Shading

Figure 2-3 still doesn’t look much like a real-world object. The faces of the cube are exactly the same color as the background, and all you can see are the front edges of the object. A real cube would have some color and/or texture; in a wooden cube, for example, the color and grain of the wood would show. On a computer (or on paper), if all we did was color the cube and draw it in two dimensions, we would have something similar to Figure 2-4.

Figure 2-4 The cube with color, but no shading

Now we are back to an object that appears two-dimensional, and unless we specifically draw the edges in a different color, there is no perception of three dimensions at all. In order to regain our perspective of a solid object (without drawing the edges a different color), we need to either make each of the three visible sides a different color, or make them the same

OpenGL Super Bible! Page

27

color with shading to produce the illusion of lighting. In Figure 2-5, the faces of the cube all have a different color or shade.

Figure 2-5 The cube with its visible faces in three different shades

Lights and Shadows

One last element we must not neglect is lighting. Lighting has two important effects on objects viewed in three dimensions. First, it causes a surface of a uniform color to appear shaded when viewed or illuminated from an angle. Second, objects that do not transmit light

(most solid objects) cast a shadow when they obstruct the path of a ray of light. See Figure

2-6.

Figure 2-6 A solid cube illuminated by a single light

Two sources of light can influence our three-dimensional objects. Ambient light, which is undirected light, is simply a uniform illumination that can cause shading effects on objects

Page

28

OpenGL Super Bible!

of a solid color; ambient light causes distant edges to appear dimmer. Another source of light is from a light source, called a lamp. Lamps can be used to change the shading of solid objects and for shadow effects.

Coordinate Systems

Now that you know how the eye can perceive three dimensions on a two-dimensional surface (the computer screen), let’s consider how to draw these objects on the screen. When you draw points, lines, or other shapes on the computer screen, you usually specify a position in terms of a row and column. For example, on a standard VGA screen there are

640 pixels from left to right, and 480 pixels from top to bottom. To specify a point in the middle of the screen, you specify that a point should be plotted at (320,240)— that is, 320 pixels from the left of the screen and 240 pixels down from the top of the screen.

In OpenGL, when you create a window to draw in, you must also specify the coordinate

system you wish to use, and how to map the specified coordinates into physical screen pixels. Let’s first see how this applies to two-dimensional drawing, and then extend the principle to three dimensions.

2D Cartesian Coordinates

The most common coordinate system for two-dimensional plotting is the Cartesian coordinate system. Cartesian coordinates are specified by an x coordinate and a y coordinate. The x coordinate is a measure of position in the horizontal direction and y is a measure of position in the vertical direction.

The origin of the Cartesian system is at x=0, y=0. Cartesian coordinates are written as coordinate pairs, in parentheses, with the x coordinate first and the y coordinate second, separated by a comma. For example, the origin would be written as (0,0). Figure 2-7 depicts the Cartesian coordinate system in two dimensions. The x and y lines with tick marks are called the axes and can extend from negative to positive infinity. Note that this figure represents the true Cartesian coordinate system pretty much as you used it in grade school.

Today, differing Windows mapping modes can cause the coordinates you specify when drawing to be interpreted differently. Later in the book, you’ll see how to map this true coordinate space to window coordinates in different ways.

OpenGL Super Bible! Page

29

Figure 2-7 The Cartesian plane

The x-axis and y-axis are perpendicular (intersecting at a right angle) and together define the xy plane. A plane is, most simply put, a flat surface. In any coordinate system, two axes that intersect at right angles define a plane. In a system with only two axes, there is naturally only one plane to draw on.

Coordinate Clipping

A window is measured physically in terms of pixels. Before you can start plotting points, lines, and shapes in a window, you must tell OpenGL how to translate specified coordinate pairs into screen coordinates. This is done by specifying the region of Cartesian space that occupies the window; this region is known as the clipping area. In two-dimensional space, the clipping area is the minimum and maximum x and y values that are inside the window.

Another way of looking at this is specifying the origin’s location in relation to the window.

Figure 2-8 shows two common clipping areas.

Page

30

OpenGL Super Bible!

Figure 2-8 Two clipping areas

In the first example, on the left of Figure 2-8, x coordinates in the window range left to right from 0 to +150, and y coordinates range bottom to top from 0 to +100. A point in the middle of the screen would be represented as (75,50). The second example shows a clipping area with x coordinates ranging left to right from –75 to +75, and y coordinates ranging bottom to top from –50 to +50. In this example, a point in the middle of the screen would be at the origin (0,0). It is also possible using OpenGL functions (or ordinary Windows functions for

GDI drawing) to turn the coordinate system upside-down or flip it right to left. In fact, the default mapping for Windows windows is for positive y to move down from the top to the bottom of the window. Although useful when drawing text from top to bottom, this default mapping is not as convenient for drawing graphics.

Viewports, Your Window to 3D

Rarely will your clipping area width and height exactly match the width and height of the window in pixels. The coordinate system must therefore be mapped from logical Cartesian coordinates to physical screen pixel coordinates. This mapping is specified by a setting known as the viewport. The viewport is the region within the window’s client area that will be used for drawing the clipping area . The viewport simply maps the clipping area to a region of the window. Usually the viewport is defined as the entire window, but this is not strictly necessary— for instance, you might only want to draw in the lower half of the window.

Figure 2-9 shows a large window measuring 300 x 200 pixels with the viewport defined as the entire client area. If the clipping area for this window were set to be 0 to 150 along the xaxis and 0 to 100 along the y-axis, then the logical coordinates would be mapped to a larger screen coordinate system in the viewing window. Each increment in the logical coordinate

OpenGL Super Bible! Page

31

system would be matched by two increments in the physical coordinate system (pixels) of the window.

Figure 2-9 A viewport defined as twice the size of the clipping area

In contrast, Figure 2-10 shows a viewport that matches the clipping area. The viewing window is still 300 x 200 pixels, however, and this causes the viewing area to occupy the lower-left side of the window.

Figure 2-10 A viewport defined as the same dimensions as the clipping area

Page

32

OpenGL Super Bible!

You can use viewports to shrink or enlarge the image inside the window, and to display only a portion of the clipping area by setting the viewport to be larger than the window’s client area.

Drawing Primitives

In both 2D and 3D, when you draw an object you will actually compose it with several smaller shapes called primitives. Primitives are two-dimensional surfaces such as points, lines, and polygons (a flat, multisided shape) that are assembled in 3D space to create 3D objects. For example, a three-dimensional cube like the one in Figure 2-5 is made up of six two-dimensional squares, each placed on a separate face. Each corner of the square (or of any primitive) is called a vertex. These vertices are then specified to occupy a particular coordinate in 2D or 3D space. You’ll learn about all the OpenGL primitives and how to use them in Chapter 6.

3D Cartesian Coordinates

Now we’ll extend our two-dimensional coordinate system into the third dimension and add a depth component. Figure 2-11 shows the Cartesian coordinate system with a new axis, z.

The z-axis is perpendicular to both the x- and y-axes. It represents a line drawn perpendicularly from the center of the screen heading toward the viewer. (We have rotated our view of the coordinate system from Figure 2-7 to the left with respect to the y-axis, and down and back with respect to the x-axis. If we hadn’t, the z-axis would come straight out at you and you wouldn’t see it.) Now we specify a position in three-dimensional space with three coordinates— x, y, and z. Figure 2-11 shows the point (–4, 4, 4) for clarification.

OpenGL Super Bible! Page

33

Figure 2-11 Cartesian coordinates in three dimensions

Projections, The Essence of 3D

You’ve seen how to specify a position in 3D space using Cartesian coordinates. No matter how we might convince your eye, however, pixels on a screen have only two dimensions.

How does OpenGL translate these Cartesian coordinates into two-dimensional coordinates that can be plotted on a screen? The short answer is “trigonometry and simple matrix manipulation.” Simple? Well, not really— we could actually go on for many pages and lose most of our readers who didn’t take or don’t remember their linear algebra from college explaining this “simple” technique. You’ll learn more about it in Chapter 7, and for a deeper discussion you can check out the references in Appendix B. Fortunately, you don’t need to understand the math in order to use OpenGL to create graphics.

All you really need to understand to get the most from this book is a concept called

projection. The 3D coordinates are projected onto a 2D surface (the window background).

It’s like tracing the outlines of some object behind a piece of glass with a black marker.

When the object is gone or you move the glass, you can still see the outline of the object with its angular edges. In Figure 2-12 a house in the background is traced onto a flat piece of glass. By specifying the projection, you specify the clipping volume (remember clipping areas?) that you want displayed in your window, and how it should be translated.

Page

34

OpenGL Super Bible!

Figure 2-12 A 3D image projected onto a 2D surface

Orthographic Projections

You will mostly be concerned with two main types of projections in OpenGL. The first is called an orthographic or parallel projection. You use this projection by specifying a square or rectangular clipping volume. Anything outside this clipping area is not drawn.

Furthermore, all objects that have the same dimensions appear the same size, regardless of whether they are far away or nearby. This type of projection (shown in Figure 2-13) is most often used in architectural design or CAD (computer aided design).

Figure 2-13 The clipping volume for an orthographic projection

OpenGL Super Bible! Page

35

You specify the clipping volume in an orthographic projection by specifying the far, near, left, right, top, and bottom clipping planes. Objects and figures that you place within this viewing volume are then projected (taking into account their orientation) to a 2D image that appears on your screen.

Perspective Projections

A second and more common projection is the perspective projection. This projection adds the effect that distant objects appear smaller than nearby objects. The viewing volume

(Figure 2-14) is something like a pyramid with the top shaved off. This shaved off part is called the frustum. Objects nearer to the front of the viewing volume appear close to their original size, while objects near the back of the volume shrink as they are projected to the front of the volume. This type of projection gives the most realism for simulation and 3D animation.

Figure 2-14 The clipping volume for a perspective projection

Page

36

Summary

OpenGL Super Bible!

In this chapter we have introduced the very basics of 3D graphics. You’ve seen why you actually need two images of an object from different angles in order to perceive true threedimensional space. You’ve also seen the illusion of depth created in a 2D drawing by means of perspective, hidden line removal, and coloring, shading, and lighting techniques. The

Cartesian coordinate system was introduced for 2D and 3D drawing, and you learned about two methods used by OpenGL to project three-dimensional drawings onto a twodimensional screen.

We purposely left out the details of how these effects are actually created by OpenGL. In the chapters that follow, you will find out how to employ these techniques and take maximum advantage of OpenGL’s power. On the Companion CD you’ll find one program for Chapter

2 (CUBE) that demonstrates the concepts covered in the first section of this chapter. In

CUBE, pressing the spacebar will advance you from a wireframe cube to a fully lit cube complete with shadow. You won’t understand the code at this point, but it makes a powerful demonstration of what is to come. By the time you finish this book, you will be able to revisit this example and even be able to write it from scratch yourself.

OpenGL Super Bible!

Chapter 3

Learning OpenGL With The AUX Library

What you’ll learn in this chapter:

Page

37

Which headers and libraries are used with OpenGL

How the AUX library provides basic windowing functions on just about any platform

How to use OpenGL to create a window and draw in it

How to use the OpenGL default coordinate system

How to create composite colors using the RGB (red, green, blue) components

How viewports affect image dimensions

How to scale your drawing to fit any size window

How to perform simple animation using double buffering

How to draw predefined objects

Now that you’ve been introduced to OpenGL and the principles of 3D graphics, it’s time to set our hands to writing some OpenGL code. This chapter starts with an overview of how

OpenGL works with your compiler, and you’ll learn some conventions for naming variables and functions. If you have already written some OpenGL programs, you may have

“discovered” many of these details for yourself. If that is the case, you may just want to skim through the first section and jump right into using the AUX library.

OpenGL: An API, Not a Language

OpenGL is not a programming language; it is an API (Application Programming Interface).

Whenever we say that a program is OpenGL-based or an OpenGL application, we mean that it was written in some programming language (such as C or C++) that makes calls to one or more of the OpenGL libraries. We are not saying that the program uses OpenGL exclusively to do drawing. It may combine the best features of two different graphics packages. Or it may use OpenGL for only a few specific tasks, and environment-specific graphics (such as the Windows GDI) for others.

As an API, the OpenGL library follows the C calling convention. This means programs in C can easily call functions in the API either because the functions are themselves written in C or because a set of intermediate C functions is provided that calls functions written in assembler or some other language. In this book, our programs will be written in either C or

C++ and designed to run under Windows NT and Windows95. C++ programs can easily access C functions and APIs in the same manner as C, with only some minor considerations.

Page

38

OpenGL Super Bible!

Other programming languages— such as so-called 4GLs (“fourth-generation languages”) like Visual Basic— that can call functions in C libraries can also make use of OpenGL.

Chapter 23 discusses this in more detail.

Calling C Functions from C++

Except for the chapters that deal specifically with C++ application frameworks or 4GLs, all of the chapter examples are written in C. On the accompanying CD, many of these samples have also been provided in C++ using two popular application frameworks (MFC and

OWL). You can examine these examples and see how we made use of preprocessor macros to keep most of our OpenGL drawing code in C.

The OpenGL Division of Labor

The OpenGL API is divided into three distinct libraries. See Table 3-1 for a breakdown.

The first, covered in this chapter, is the Auxiliary or AUX library (sometimes referred to as the “toolkit” library), glaux.lib. The declarations for this library are contained in the file glaux.h. The functions contained in this library are not really a part of the OpenGL specification, but rather a toolkit that provides a platformindependent framework for calling OpenGL functions. If your compiler vendor did not supply these files, they can be obtained from the Microsoft Win32 SDK. All functions from this library begin with the prefix aux.

The functions that actually define OpenGL as specified by the OpenGL

Architecture Review Board are contained in the library opengl32.dll, and its header gl.h. Functions from this library are prefixed with gl.

Finally, there is an OpenGL utility library glu32.dll and its header glu.h. This library contains utility functions that make everyday tasks easier, such as drawing spheres, disks, and cylinders. The utility library is actually written using OpenGL commands, and thus is guaranteed to be available on all platforms that support the

OpenGL specification. These functions are all prefixed with glu.

All of the functions in the opengl32.dll and glu32.dll libraries are available for use when using the AUX library for your program’s framework, which is what most of this chapter focuses on. Along the way, you’ll learn the basics of OpenGL, and a few of the commands from the gl library.

OpenGL Super Bible! Page

39

Table 3-1 OpenGL libraries and headers

Library Filename Library Filename Header File Function Prefix

Auxiliary or Toolkit glaux.lib

OpenGL or gl opengl32.dll

Utility library or glu glu32.dll glaux.h gl.h glu.h aux gl glu

A Note About the Libraries

You may have noticed that the AUX library is actually a library that is linked into your application. The other OpenGL libraries, however, are actually implemented as DLLs. The import libraries that you will need to link to are opengl32.lib and glu32.lib. Typically they are provided by your compiler vendor, or you may obtain them via the Win32 SDK from

Microsoft. If you are using Borland C++, you will need to build your own import libraries with Borland’s implib.exe utility.

OpenGL Data Types

To make it easier to port OpenGL code from one platform to another, OpenGL defines its own data types. These data types map to normal C data types that you can use instead, if desired. The various compilers and environments, however, have their own rules for the size and memory layout of various C variables. By using the OpenGL defined variable types, you can insulate your code from these types of changes.

Table 3-2 lists the OpenGL data types, their corresponding C data types under the 32-bit

Windows environments (Win32), and the appropriate suffix for literals. In this book we will use the suffixes for all literal values. You will see later that these suffixes are also used in many OpenGL function names.

Page

40

OpenGL Super Bible!

Table 3-2 OpenGL variable types and corresponding C data types

OpenGL Data Type

Internal

Representation

Defined as C Type

GLbyte

GLshort

GLint, GLsizei

GLfloat, GLclampf

GLdouble, GLclampd

8-bit integer

16-bit integer

32-bit integer

Signed char

Short

Long

32-bit floating point Float

64-bit floating point Double

GLubyte, GLboolean 8-bit unsigned integer Unsigned char

GLushort 16-bit unsigned integer Unsigned short

GLuint, GLenum, GLbitfield 32-bit unsigned integer Unsigned long

All data types start with a GL to denote OpenGL. Most are followed by their corresponding

C data types (byte, short, int, float, etc.). Some have a u first to denote an unsigned data type, such as ubyte to denote an unsigned byte. For some uses a more descriptive name is given, such as size to denote a value of length or depth. For example, GLsizei is an OpenGL variable denoting a size parameter that is represented by an integer. The clamp is used for color composition and stands for color amplitude. This data type is found with both f and d suffixes to denote float and double data types. The GLboolean variables are used to indicate

True and False conditions, GLenum for enumerated variables, and GLbitfield for variables that contain binary bit fields.

Pointers and arrays are not give any special consideration. An array of ten GLshort variables would simply be declared as

GLshort shorts[10]; and an array of ten pointers to GLdouble variables would be declared with

GLdouble *doubles[10];

Some other pointer object types are used for NURBS and Quadrics. They take more explanation and will be covered in later chapters.

C Literal Suffix

b s

I f d ub us ui

OpenGL Super Bible! Page

41

Function Naming Conventions

OpenGL functions all follow a naming convention that tells you which library the function is from, and often how many and what type of arguments the function takes. All functions have a root that represents the function’s corresponding OpenGL command. For example, the glColor3f() function has the root Color. The gl prefix represents the gl library (see Table

3-1), and the 3f suffix means the function takes three floating point arguments. All OpenGL functions take the following format:

<Library prefix><Root command><Optional argument count><Optional argument type>

Figure 3-1 illustrates the parts of an OpenGL function. This sample function with the suffix

3f takes three floating point arguments. Other variations take three integers (glColor3i()), three doubles (glColor3d()), and so forth. This convention of adding the number and type of arguments (see Table 3-1) to the end of OpenGL functions makes it very easy to remember the argument list without having to look it up. Some versions of glColor take four arguments to specify an alpha component, as well.

Figure 3-1 Dissected OpenGL Function

In the reference sections of this book, these “families” of functions are listed by their library prefix and root. Thus all the variations of glColor (glColor3f, glColor4f, glColor3i, etc.) will be listed under a single entry— glColor.

Page

42

OpenGL Super Bible!

Clean Code

Many C/C++ compilers for Windows assume that any floating-point literal value is of type

double unless explicitly told otherwise via the suffix mechanism. When using literals for floating point arguments, if you don’t specify that these arguments are of type float instead of double, the compiler will issue a warning while compiling because it detects that you are passing a double to a function defined to accept only floats, resulting in a possible loss of precision. As our OpenGL programs grow, these warnings will quickly number in the hundreds and will make it difficult to find any real syntax errors. You can turn these warnings off using the appropriate compiler options— but we advise against this. It’s better to write clean, portable code the first time. So clean up those warning messages by cleaning up the code (in this case, by explicitly using the float type)— not by disabling potentially useful warnings.

Additionally, you may be tempted to use the functions that accept double-precision floating point arguments, rather than go to all the bother of specifying your literals as floats.

However, OpenGL uses floats internally, and using anything other than the single-precision floating point functions will add a performance bottleneck, as the values are converted to floats anyway before being processed by OpenGL.

The AUX Library

For the remainder of this chapter, you will learn to use the Auxiliary (AUX) library as a way to learn OpenGL. The AUX library was created to facilitate the learning and writing of

OpenGL programs without being distracted by the minutiae of your particular environment, be it UNIX, Windows, or whatever. You don’t write “final” code when using AUX; it is more of a preliminary staging ground for testing your ideas. A lack of basic GUI features limits the library’s use for building useful applications.

A set of core AUX functions is available on nearly every implementation of OpenGL. These functions handle window creation and manipulation, as well as user input. Other functions draw some complete 3D figures as wireframe or solid objects. By using the AUX library to create and manage the window and user interaction, and OpenGL to do the drawing, it is possible to write programs that create fairly complex renderings. You can move these programs to different environments with a recompile.

In addition to the core functions, each environment that implements an AUX library also implements some other helper functions to enable system-specific operations such as buffer swapping and image loading. The more your code relies on these additional AUX library functions, the less portable your code will be. On the other hand, by making full use of these functions you can create fantastic scenes that will amaze your friends and even the family dog— without having to learn all the gritty details of Windows programming.

OpenGL Super Bible! Page

43

Unfortunately, it’s unlikely that all of the functionality of a useful application will be embodied entirely in the code used to draw in 3D, so you can’t rely entirely on the AUX library for everything. Nevertheless, the AUX library excels in its role for learning and demonstration exercises. And for some applications, you may be able to employ the AUX library to iron out your 3D graphics code before integrating it into a complete application.

Platform Independence

OpenGL is a powerful and sophisticated API for creating 3D graphics, with over 300 commands that cover everything from setting material colors and reflective properties to doing rotations and complex coordinate transformations. You may be surprised that

OpenGL has not a single function or command relating to window or screen management. In addition, there are no functions for keyboard input or mouse interaction. Consider, however, that one of the primary goals of the OpenGL designers was platform independence. Creating and opening a window is done differently under the various platforms. Even if OpenGL did have a command for opening a window, would you use it or would you use the operating system’s own built-in API call?

Another platform issue is the handling of keyboard and mouse input events under the different operating systems and environments. If every environment handled these the same, we would have only one environment to worry about and thus no need for an “open” API.

This is not the case, however, and it probably won’t be within our brief lifetimes! So

OpenGL’s platform independence comes at the cost of OS and GUI functions.

AUX = Platform I/O, the Easy Way

The AUX library was initially created as a toolkit to enable learning OpenGL without getting mired in the details of any particular operating system or user interface. To accomplish this, AUX provides rudimentary functions for creating a window and for reading mouse and keyboard activity. Internally, the AUX library makes use of the native environment’s APIs for these functions. The functions exposed by the AUX library then remain the same on all platforms.

The AUX library contains only a handful of functions for window management and the handling of input events, but saves you the trouble of managing these in pure C or C++ through the Windows API. The library also contains functions for drawing some relatively simple 3D objects such as a sphere, cube, torus (doughnut), and even a teapot. With very little effort, you can use the AUX library to display a window and perform some OpenGL commands. Though AUX is not really part of the OpenGL specification, it seems to follow that spec around to every platform to which OpenGL is ported. Windows is no exception, and the source code for the AUX library is even included free in the Win32 SDK from

Microsoft.

Page

44

OpenGL Super Bible!

Dissecting a Short OpenGL Program

In order to understand the AUX library better, let’s take a look at possibly the world’s shortest OpenGL program, which was written using the AUX library. Listing 3-1 presents the shortest.c program. Its output is shown in Figure 3-2.

Figure 3-2 Output from shortest.c

Listing 3-1 Shortest OpenGL program in the world

// shortest.c

// The shortest OpenGL program possible

#include <windows.h> // Standard Window header required for all programs

#include <conio.h> // Console I/O functions

#include <gl\gl.h> // OpenGL functions

#include <gl\glaux.h> // AUX Library functions void main(void)

{

// These are the AUX functions to set up the win dow

auxInitDisplayMode(AUX_SINGLE | AUX_RGBA);

auxInitPosition(100,100,250,250);

auxInitWindow("My first OpenGL Program");

OpenGL Super Bible! Page

45

// These are the OpenGL functions that do something in the window

glClearColor(0.0f, 0.0f, 1 .0f, 1.0f);

glClear(GL_COLOR_BUFFER_BIT);

glFlush();

// Stop and wait for a keypress

cprintf("Press any key to close the Window \n");

getch();

}

Console Modes

A console-mode application is a Win32 program that runs in a text mode window. This is very much like running a DOS program under Windows NT or Windows 95, except the program is a true 32-bit application and has access to the entire Win32 API. Console-mode programs are not limited to text mode. They can in fact create GUI windows for auxiliary output (try calling MessageBox() with a NULL window handle from the above program), and GUI-based applications can even create console windows if needed. The AUX library allows you to easily write a console-based program with only a main() function that can create an auxiliary GUI window for OpenGL output.

To build this program, you need to set your compiler and link options to build a Win32 console (or text-based) application. You will need to link to the AUX library glaux.lib and the OpenGL import library opengl32.lib. See your compiler’s documentation for individual instructions on building console applications.

The shortest.c program doesn’t do very much. When run from the command line, it creates a standard GUI window with the caption “My first OpenGL Program” and a clear blue background. It then prints the message “Press any key to close the window” in the console window. The GUI window will not respond to any mouse or keyboard activity, and the console window waits for you to press a key before terminating (you will have to switch focus back to the console window first to do this). It doesn’t even behave very well— you can’t move or resize the OpenGL window, and the window doesn’t even repaint. If you obscure the window with another window and then uncover it, the client area goes black.

This simple program contains three AUX library functions (prefixed with aux) and three

“real” OpenGL functions (prefixed with gl). Let’s examine the program line by line, after which we’ll introduce some more functions and substantially improve on our first example.

Page

46

The Includes

Here are the include files:

#include <windows.h>

#include <conio.h>

#include <gl\gl.h>

#include <gl\glaux.h>

OpenGL Super Bible!

These includes define the function prototypes used by the program. The windows.h header file is required by all Windows GUI applications; even though this is a console-mode program, the AUX library creates a GUI window to draw in. The file conio.h is for console

I/O. It’s included because we use cprintf() to print a message, and getch() to terminate the program when a key is pressed. The file gl.h defines the OpenGL functions that are prefixed with gl; and glaux.h contains all the functions necessary for the AUX library.

The Body

Next comes the main body of the program: void main(void)

{

Console mode C and C++ programs always start execution with the function main(). If you are an experienced Windows nerd, you may wonder where WinMain() is in this example.

It’s not there because we start with a console-mode application, so we don’t have to start with window creation and a message loop. It is possible with Win32 to create graphical windows from console applications, just as it is possible to create console windows from

GUI applications. These details are buried within the AUX library (remember, the AUX library is designed to hide these platform details).

Display Mode: Single-Buffered

The next line of code auxInitDisplayMode(AUX_SINGLE | AUX_RGBA); tells the AUX library what type of display mode to use when creating the window. The flags here tell it to use a single-buffered window (AUX_SINGLE) and to use RGBA color mode

(AUX_RGBA). A single-buffered window means that all drawing commands are performed on the window displayed. An alternative is a double-buffered window, where the drawing commands are actually executed to create a scene off screen, then quickly swapped into view on the window. This is often used to produce animation effects and will be demonstrated later in this chapter. RGBA color mode means that you specify colors by supplying separate intensities of red, green, and blue components (more on color modes in

Chapter 8).

OpenGL Super Bible! Page

47

Position the Window

After setting the display mode, you need to tell the AUX library where to put the window and how big to make it. The next line of code does this: auxInitPosition(100,100,250,250);

The parameters represent the upper-left corner of the window and its width and height.

Specifically, this line tells the program to place the upper-left corner at coordinates

(100,100), and to make the window 250 pixels wide and 250 pixels high. On a screen of standard VGA resolution (640 x 480), this window will take up a large portion of the display. At SuperVGA resolutions (800 x 600 and above), the window will take less space even though the number of pixels remains the same (250 x 250).

Here is the prototype for this function: auxInitPosition(GLint x, GLint y, GLsizei width, GLsizei height);

The GLint and GLsizei data types are defined as integers (as described in the earlier section about data types). The x parameter is the number of screen pixels counted from the left side of the screen, and y is the number of pixels counted down from the top of the screen. This is how Windows converts desktop screen coordinates to a physical location by default.

OpenGL’s default method for counting the x coordinate is the same; however, it counts the y coordinate from bottom to top— just the opposite of Windows. See Figures 3-3 and 3-4.

Figure 3-3 Default Windows screen coordinate mapping

Page

48

OpenGL Super Bible!

Figure 3-4 Default OpenGL window coordinate mapping

Porting Note

Although Windows maps desktop coordinates as shown in Figure 3-3, the X Window

System maps desktop coordinates the same way that OpenGL does in Figure 3-4. If you are porting an AUX library program from another environment, you may need to change the call to auxInitPosition() to account for this.

Create the OpenGL Window

The last call to the AUX library actually creates the window on the screen. The code auxInitWindow("My first OpenGL Program"); creates the window and sets the caption to “My first OpenGL Program.” Obviously, the single argument to auxInitWindow is the caption for the window title bar. If you stopped here, the program would create an empty window (black background is the default) with the caption specified, and then terminate, closing the OpenGL window immediately. The addition of our last getch() prevents the window from disappearing, but still nothing of interest happens in the window.

OpenGL Super Bible! Page

49

Clear a Window (Erase with a Color)

The three lines of code we’ve looked at so far from the AUX library are sufficient to initialize and create a window that OpenGL will draw in. From this point on, all OpenGL commands and function calls will operate on this window.

The next line of code glClearColor(0.0f, 0.0f, 1.0f, 0.0f); is your first real OpenGL function call. This function sets the color used when clearing the window. The prototype for this function is void glClearColor(GLclampf red, GLclampf green, GLclampf blue, GLcl ampf alpha);

GLclampf is defined as a float under most implementations of OpenGL. In OpenGL, a single color is represented as a mixture of red, green, and blue components. The range for each component can vary from 0.0 to 1.0. This is similar to the Windows specification of colors using the RGB macro to create a COLORREF value. (See the Windows95 API Bible from Waite Group Press for details.) The difference is that in Windows each color component in a COLORREF can range from 0 to 255, giving a total of 256 x 256 x 256— or over 16 million colors. With OpenGL, the values for each component can be any valid floating-point value between 0 and 1, thus yielding a theoretically infinite number of potential colors. Practically speaking, OpenGL represents colors internally as 32-bit values, yielding a true maximum of 4,294,967,296 colors (called true color on some hardware).

Thus the effective range for each component is from 0.0 to 1.0, in steps of approximately

.00006.

Naturally, both Windows and OpenGL take this color value and convert it internally to the nearest possible exact match with the available video hardware and palette. We’ll explore this more closely in Chapter 8.

Table 3-3 lists some common colors and their component values. These values can be used with any of the OpenGL color-related functions.

Page

50

OpenGL Super Bible!

Table 3-3 Some common composite colors

Composite Color

Black

Red

Green

Yellow

Blue

Magenta

Cyan

Dark gray

Light gray

Brown

Pumpkin orange

Pastel pink

Barney purple

White

Red Component Green Component Blue Component

0.0

0.25

0.75

0.60

0.98

0.0

1.0

0.0

1.0

0.0

1.0

0.98

0.60

1.0

0.0

0.0

1.0

1.0

0.0

0.0

1.0

0.25

0.75

0.40

0.625

.04

0.40

1.0

The last argument to glClearColor() is the alpha component. The alpha component is used for blending and special effects such as translucence. Translucence refers to an object’s ability to allow light to pass through it. Suppose you are representing a piece of red stained glass, but a blue light is shining behind it. The blue light will affect the appearance of the red in the glass (blue + red = purple). You can use the alpha component value to make a blue color that is semitransparent; so it works like a sheet of water— an object behind it shows through. There is more to this type of effect than the alpha value, and in Chapter 16 we will write an example program that demonstrates it; until then you should leave this value as 1.

1.0

0.25

0.75

0.12

0.12

0.0

0.0

0.0

0.0

1.0

1.0

0.7

0.70

1.0

OpenGL Super Bible! Page

51

Actually Clear

Now that we have told OpenGL what color to use for clearing, we need an instruction to do the actual clearing. This accomplished by the line glClear(GL_COLOR_BUFFER_BIT);

The glClear() function clears a particular buffer or combination of buffers. A buffer is a storage area for image information. The red, green, and blue components of a drawing actually have separate buffers, but they are usually collectively referred to as the color

buffer.

Buffers are a powerful feature of OpenGL and will be covered in detail in Chapter 15. For the next several chapters, all you really need to understand is that the color buffer is where the displayed image is stored internally, and that clearing the buffer with glClear removes the drawing from the window.

Flush That Queue

Our final OpenGL function call comes next: glFlush();

This line causes any unexecuted OpenGL commands to be executed— we have two at this point: glClearColor() and glClear().

Internally, OpenGL uses a rendering pipeline that processes commands sequentially.

OpenGL commands and statements often are queued up until the OpenGL server processes several “requests” at once. This improves performance, especially when constructing complex objects. Drawing is accelerated because the slower graphics hardware is accessed less often for a given set of drawing instructions. (When Win32 was first introduced, this same concept was added to the Windows GDI to improve graphics performance under

Windows NT.) In our short program, the glFlush() function simply tells OpenGL that it should proceed with the drawing instructions supplied thus far before waiting for any more drawing commands.

The last bit of code for this example

// Stop and wait for a keypress cprintf("Press any key to close the Window \n"); getch();

} displays a message in the console window and stops the program until you press a key, at which point the program is terminated and the window is destroyed.

Page

52

OpenGL Super Bible!

It may not be the most interesting OpenGL program in existence, but shortest.c demonstrates the very basics of getting a window up using the AUX library and it shows you how to specify a color and clear the window. Next we want to spruce up our program by adding some more AUX library and OpenGL functions.

Drawing Shapes with OpenGL

The shortest.c program made an empty window with a blue background. Let’s do some drawing in the window. In addition, we want to be able to move and resize the window so that it behaves more like a Windows window. We will also dispense with using getch() to determine when to terminate the program. In Listing 3-2 you can see the modifications.

The first change you’ll notice is in the headers. The conio.h file is no longer included because we aren’t using getch() or cprintf() anymore.

Listing 3-2 A friendlier OpenGL program

// friendly.c

// A friendlier OpenGL program

#include <windows.h> // Standard header for Windows

#include <gl\gl.h> // OpenGL library

#include <gl\glaux.h> // AUX library

// Called by AUX library to draw scene void CALLBACK RenderScene(void)

{

// Set clear color to blue

glClearColor(0.0f, 0.0f, 1.0f, 1.0f);

// Clear the window

glClear(GL_COLOR_BUFFER_BIT);

// Set current drawing color to red

// R G B

glColor3f(1.0f, 0.0f, 0.0f);

// Draw a filled rectangle with current color

glRectf(100.0f, 150.0f, 150.0f, 100.0f);

glFlush();

} void main(void)

{

// AUX library window and mode setup

auxInitDisplayMode(AUX_SINGLE | AUX_RGBA);

auxInitPosition(100,100,250,250);

auxInitWindow("My second OpenGL Program");

// Set function to call when window needs updating

auxMainLoop(RenderScene);

}

OpenGL Super Bible!

The Rendering Function

Next, you’ll see we have created the function RenderScene().

// Called by AUX library to draw scene void CALLBACK RenderScene(void)

{

...}

Page

53

This is where we have moved all code that does the actual drawing in the window. The process of drawing with OpenGL is often referred to as rendering, so we used that descriptive name. In later examples we’ll be putting most of our drawing code in this function.

Make note of the CALLBACK statement in the function declaration. This is required because we’re going to tell the AUX library to call this function whenever the window needs updating. Callback functions are simply functions that you write, which the AUX library will be calling in your behalf. You’ll see how this works later.

Drawing a Rectangle

Previously, all our program did was clear the screen. We’ve added the following two lines of drawing code:

// Set current drawing color to red

// R G B glColor3f(1.0f, 0.0f, 0.0f);

// Draw a filled rectangle with current color glRectf(100.0f, 150.0f, 150.0f, 100.0f);

These lines set the color used for future drawing operations (lines and filling) with the call to glColor3f(). Then glRectf() draws a filled rectangle.

The glColor3f() function selects a color in the same manner as glClearColor(), but no alpha translucency component needs to be specified: void glColor3f(GLfloat red, GLfloat green, GLfloat blue);

The glRectf () function takes floating point arguments, as denoted by the trailing f. The number of arguments is not used in the function name because all glRect variations take four arguments. The four arguments of glRectf(), void glRectf(GLfloat x1, GLfloat y1, GLfloat x2, GLfloat y2);

Page

54

OpenGL Super Bible!

represent two coordinate pairs— (x1, y1) and (x2, y2). The first pair represents the upper-left corner of the rectangle, and the second pair represents the lower-right corner. See Figure 3-4 if you need a review of OpenGL coordinate mapping.

Initialization

The main body of friendly.c starts the same way as our first example: void main(void)

{

// AUX library window and mode se tup

auxInitDisplayMode(AUX_SINGLE | AUX_RGBA);

auxInitPosition(100,100,250,250);

auxInitWindow("My second OpenGL Program");

// Set function to call when window needs updating

auxMainLoop(RenderScene);

}

As before, the three auxInitxxx calls set up and display the window in which we’ll be drawing. In the final line, auxMainLoop() takes the name of the function that does the drawing, RenderScene(). The AUX library’s auxMainLoop() function simply keeps the program going until it’s terminated by closing the window. This function’s single argument is a pointer to another function it should call whenever the window needs updating. This callback function will be called when the window is first displayed, when the window is moved or resized, and when the window is uncovered by some other window.

// Called by AUX library to draw scene void CALLBACK RenderScene(void)

{

// Set clear color to Blue

glClearColor(0.0f, 0.0f, 1.0f, 1.0f);

// Clear the window

glClear(GL_COLOR_BUFFER_BIT);

// Set current drawing color to red

// R G B

glColor3f(1.0f, 0.0f, 0.0f);

// Draw a filled rectangle with current color

glRectf(100.0f , 150.0f, 150.0f, 100.0f);

glFlush();

}

At this point, the program will display a red square in the middle of a blue window, because we used fixed locations for the square. If you make the window larger, the square will remain in the lower-left corner of the window. When you make the window smaller, the square may no longer fit in the client area. This is because as you resize the window, the

OpenGL Super Bible! Page

55

screen extents of the window change; however, the drawing code continues to place the rectangle at (100, 150, 150, 100). In the original window this was directly in the center; in a larger window these coordinates are located in the lower-left corner. See Figure 3-5.

Figure 3-5 Effects of changing window size

Scaling to the Window

In nearly all windowing environments, the user may at any time change the size and dimensions of the window. When this happens, the window usually responds by redrawing its contents, taking into consideration the window’s new dimensions. Sometimes you may wish to simply clip the drawing for smaller windows, or display the entire drawing at its original size in a larger window. For our purposes, we usually will want to scale the drawing to fit within the window, regardless of the size of the drawing or window. Thus a very small window would have a complete but very small drawing, and a larger window would have a similar but larger drawing. You see this in most drawing programs when you stretch a window as opposed to enlarging the drawing. Stretching a window usually doesn’t change the drawing size, but magnifying the image will make it grow.

Setting the Viewport and Clipping Volume

In Chapter 2 we discussed how viewports and clipping volumes affect the coordinate range and scaling of 2D and 3D drawings in a 2D window on the computer screen. Now we will examine the setting of viewport and clipping volume coordinates in OpenGL. When we created our window with the function call

auxInitPosition(100,100,250,250);

Page

56

OpenGL Super Bible!

the AUX library by default created a viewport that matched the window size exactly (0, 0,

250, 250). The clipping volume by default was set to be the first quadrant of Cartesian space, with the x- and y-axis extending the length and height of the window. The z-axis extends perpendicular to the viewer, giving a flat 2D appearance to objects drawn in the xy plane. Figure 3-6 illustrates this graphically.

Figure 3-6 The viewport and clipping volume for friendly.c

Although our drawing is a 2D flat rectangle, we are actually drawing in a 3D coordinate space. The glRectf() function draws the rectangle in the xy plane at z = 0. Your perspective is down along the positive z-axis to see the square rectangle at z = 0.

Whenever the window size changes, the viewport and clipping volume must be redefined for the new window dimensions. Otherwise, you’ll see the effect shown in Figure 3-5, where the mapping of the coordinate system to screen coordinates stays the same regardless of window size.

Because window size changes are detected and handled differently under various environments, the AUX library provides the function auxReshapeFunc(), which registers a callback that the AUX library will call whenever the window dimensions change. The function you pass to auxReshapeFunc() is prototyped like this: void CALLBACK ChangeSize(GLsizei w, GLsizei h);

OpenGL Super Bible! Page

57

We have chosen ChangeSize as a descriptive name for this function and will use that name for our future examples.

The ChangeSize() function will receive the new width and height whenever the window size changes. We can use this information to modify the mapping of our desired coordinate system to real screen coordinates, with the help of two OpenGL functions: glViewport() and glOrtho(). Listing 3-3 shows our previous example modified to account for various window sizes and dimensions. Only the changed main() function and our new ChangeSize() function are shown.

Listing 3-3 Scaling in OpenGL

// Scale.c

// Scaling an OpenGL Window.

// Called by AUX Library when the window has changed size void CALLBACK ChangeSize(GLsizei w, GLsizei h)

{

// Prevent a divide by zero

if(h == 0)

h = 1;

// Set Viewport to window dimensions

glViewport(0, 0, w, h);

// Reset coordinate system

glLoadIdentity();

// Establish clipping volum e (left, right, bottom, top, near, far)

if (w <= h)

glOrtho (0.0f, 250.0f, 0.0f, 250.0f*h/w, 1.0, -1.0);

else

glOrtho (0.0f, 250.0f*w/h, 0.0f, 250.0f, 1.0, -1.0);

} void main(void)

{

// Set up and initialize AUX window

auxInitDisplayMode(AUX_SINGLE | AUX_RGBA);

auxInitPosition(100,100,250,250);

auxInitWindow("Scaling Window");

// Set function to call when window changes size

auxReshapeFunc(Chang eSize);

// Set function to call when window needs updating

auxMainLoop(RenderScene);

}

Now, when you change the size or dimensions of the window, the square will change size as well. A much larger window will have a much larger square and a much smaller window will have a much smaller square. If you make the window long horizontally, the square will

Page

58

OpenGL Super Bible!

be centered vertically, far left of center. If you make the window tall vertically, the square will be centered horizontally, closer to the bottom of the window. Note that the rectangle always remains square. To see a square scaled as the window resizes, see Figure 3-7a and

Figure 3-7b.

Figure 3-7a Image scaled to match window size

Figure 3-7b Square scaled as the window resizes

Defining the Viewport

To understand how the viewport definition is achieved, let’s look more carefully at the

ChangeSize() function. It first calls glViewport() with the new width and height of the window. The glViewport function is defined as void glViewport(GLint x, GLint y, GLsizei width, GLsizei height);

The x and y parameters specify the lower-right corner of the viewport within the window, and the width and height parameters specify these dimensions in pixels. Usually x and y will both be zero, but you can use viewports to render more than one drawing in different areas of a window. The viewport defines the area within the window in actual screen coordinates that OpenGL can use to draw in (see Figure 3-8). The current clipping volume is then mapped to the new viewport. If you specify a viewport that is smaller than the window coordinates, the rendering will be scaled smaller, as you see in Figure 3-8.

OpenGL Super Bible! Page

59

Figure 3-8 Viewport-to-window mapping

Defining the Clipping Volume

The last requirement of our ChangeSize() function is to redefine the clipping volume so that the aspect ratio remains square. The aspect ratio is the ratio of the number of pixels along a unit of length in the vertical direction to the number of pixels along the same unit of length in the horizontal direction. An aspect ratio of 1.0 would define a square aspect ratio. An aspect ratio of 0.5 would specify that for every two pixels in the horizontal direction for a unit of length, there is one pixel in the vertical direction for the same unit of length.

If a viewport is specified that is not square and it is mapped to a square clipping volume, that will cause images to be distorted. For example, a viewport matching the window size and dimensions but mapped to a square clipping volume would cause images to appear tall and thin in tall and thin windows, and wide and short in wide and short windows. In this case, our square would only appear square when the window was sized to be a square.

In our example, an orthographic projection is used for the clipping volume (see Chapter 2).

The OpenGL command to create this projection is glOrtho(): void glOrtho(GLdouble left, GLdouble right, GLdouble bottom, GLdouble top,

GLdouble near, GLdouble far );

In 3D Cartesian space, the left and right values specify the minimum and maximum coordinate value displayed along the x-axis; bottom and top are for the y-axis. The near and far parameters are for the z-axis, generally with negative values extending away from the viewer (see Figure 3-9).

Page

60

OpenGL Super Bible!

Figure 3-9 Cartesian space

Just before the code using glOrtho(), you’ll notice a single call to glLoadIdentity(). This is needed because glOrtho() doesn’t really establish the clipping volume, but rather modifies the existing clipping volume. It multiplies the matrix that describes the current clipping volume by the matrix that describes the clipping volume described in its arguments. The discussion of matrix manipulations and coordinate transformations is in Chapter 7. For now, you just need to know that glLoadIdentity() serves to “reset” the coordinate system to unity before any matrix manipulations are performed. Without this “reset” every time glOrtho() is called, each successive call to glOrtho() could result in a further corruption of our intended clipping volume, which may not even display our rectangle.

Keeping a Square Square

The following code does the actual work of keeping our “square” square. if (w <= h)

glOrtho (0, 250, 0, 250*h/w, 1.0, -1.0); else

glOrtho (0, 25 0*w/h, 0, 250, 1.0, -1.0);

Our clipping volume (visible coordinate space) is modified so that the left-hand side is always at x = 0. The right-hand side extends to 250 unless the window is wider than it is tall.

In that case, the right-hand side is extended by the aspect ratio of the window. The bottom is

OpenGL Super Bible! Page

61

always at y = 0, and extends upward to 250 unless the window is taller than it is wide. In that case the upper coordinate is extended by the aspect ratio. This serves to keep a square coordinate region 250 x 250 available regardless of the shape of the window. Figure 3-10 shows how this works.

Figure 3-10 Clipping region for three different windows

Animation with AUX

Thus far, we’ve discussed the basics of using the AUX library for creating a window and using OpenGL commands for the actual drawing. You will often want to move or rotate your images and scenes, creating an animated effect. Let’s take the previous example, which draws a square, and make the square bounce off the sides of the window. You could create a loop that continually changes your object’s coordinates before calling the RenderScene() function. This would cause the square to appear to move around within the window.

The AUX library provides a function that makes it much easier to set up a simple animated sequence. This function, auxIdleFunc(), takes the name of a function to call continually while your program sits idle. The function to perform your idle processing is prototyped like this: void CALLBACK IdleFunction(void);

This function is then called repeatedly by the AUX library unless the window is being moved or resized.

If we change the hard-coded values for the location of our rectangle to variables, and then constantly modify those variables in the IdleFunction(), the rectangle will appear to move across the window. Let’s look at an example of this kind of animation. In Listing 3-4, we’ll modify Listing 3-3 to bounce the square around off the inside borders of the window. We’ll need to keep track of the position and size of the rectangle as we go along, and account for any changes in window size.

Page

62

OpenGL Super Bible!

Listing 3-4 Animated bouncing square

// bounce.c

// Bouncing square

#include <windows.h> // Standard windows include

#include <gl\gl.h> // OpenGL library

#include <gl\glaux.h> // AUX library

// Initial square position and size

GLfloat x1 = 100.0f;

GLfloat y1 = 150.0f;

GLsizei rsize = 50;

// Step size in x and y directions

// (number of pixels to move each time)

GLfloat xstep = 1.0f;

GLfloat ystep = 1.0f;

// Keep track of window’s c hanging width and height

GLfloat windowWidth;

GLfloat windowHeight;

// Called by AUX library when the window has changed size void CALLBACK ChangeSize(GLsizei w, GLsizei h)

{

// Prevent a divide by zero, when window is too short

// (you can’t make a window of zero width)

if(h == 0)

h = 1;

// Set the viewport to be the entire window

glViewport(0, 0, w, h);

// Reset the coordinate system before modifying

glLoadIdentity();

// Keep the square square, this time, save calculated

// width and height for later use

if (w <= h)

{

windowHeight = 250.0f*h/w;

windowWidth = 250.0f;

}

else

{

windowWidth = 250.0f*w/h;

windowHeight = 250.0f;

}

// Set the clipping volume

glOrtho(0.0f, windowWidth, 0.0f, windowHeight, 1.0f, -1.0f);

}

// Called by AUX library to u pdate window

OpenGL Super Bible!

void CALLBACK RenderScene(void)

{

// Set background clearing color to blue

glClearColor(0.0f, 0.0f, 1.0f, 1.0f);

// Clear the window with current clearing color

glClear(GL_COLOR_BUFFER_BIT);

// Set drawing color to red, and draw rectangle at

// current position.

glColor3f(1.0f, 0.0f, 0.0f);

glRectf(x1, y1, x1+rsize, y1+rsize);

glFlush();

}

// Called by AUX library when idle (window not being

// resized or moved) void CALLBACK IdleFunction(void)

{

// Reverse direction when you reach left or right edge

if(x1 > windowWidth -rsize || x1 < 0)

xstep = -xstep;

// Reverse direction when you reach top or bottom edge

if(y1 > windowHeight -rsize || y1 < 0)

ystep = -ystep;

// Check bounds. This is in case the window is made

// smaller and the rectangle is outside the new

// clipping volume

if(x1 > windowWidth -rsize)

x1 = windowWidth -rsize-1;

if(y1 > windowHeight -rsize)

y1 = windowHeight -rsize-1;

// Actually move the square

x1 += xstep;

y1 += ystep;

// Redraw the scene with new coordinates

RenderScene();

}

// Main body of program void main(void)

{

// AUX window setup and initialization

auxInitDisplayMode(AUX_SINGLE | AUX_RGBA);

auxInitPosition(100,100,250,250);

auxInitWindow("Simple 2D An imation");

// Set function to call when window is resized

auxReshapeFunc(ChangeSize);

Page

63

Page

64

OpenGL Super Bible!

// Set function to call when program is idle

auxIdleFunc(IdleFunction);

// Start main loop

auxMainLoop(RenderScene);

}

The animation produced by this example is very poor, even on very fast hardware. Because the window is being cleared each time before drawing the square, it flickers the entire time it’s moving about, and you can easily see the square actually being drawn as two triangles.

To produce smoother animation, you need to employ a feature known as double buffering.

Double Buffering

One of the most important features of any graphics packages is support for double buffering.

This feature allows you to execute your drawing code while rendering to an off-screen buffer. Then a swap command places your drawing on screen instantly.

Double buffering can serve two purposes. The first is that some complex drawings may take a long time to draw and you may not want each step of the image composition to be visible.

Using double buffering, you can compose an image and display it only after it is complete.

The user never sees a partial image; only after the entire image is ready is it blasted to the screen.

A second use for double buffering is for animation. Each frame is drawn in the off-screen buffer and then swapped quickly to the screen when ready. The AUX library supports double-buffered windows. We need to make only two changes to the bounce.c program to produce a much smoother animation. First, change the line in main() that initializes the display mode to indicate that it should use double buffering:

auxInitDisplayMode(AUX_DOUBLE | AUX_RGBA);

This will cause all the drawing code to render in an off-screen buffer.

Next, add a single line to the end of the Render() function:

auxSwapBuffers();

The auxSwapBuffers() function causes the off-screen buffer used for drawing to be swapped to the screen. (The complete code for this is in the BOUNCE2 example on the CD.) This produces a very smooth animation of the red square bouncing around inside the window.

See Figure 3-11.

OpenGL Super Bible! Page

65

Figure 3-11 Bouncing square

Finally, Some 3D!

Thus far, all our samples have been simple rectangles in the middle of the window; they either scaled to the new window size or bounced around off the walls. By now you may be bouncing off some walls of your own, waiting anxiously to see something in 3D. Wait no more!

As mentioned earlier, we have been drawing in 3D all along, but our view of the rectangle has been perpendicular to the clipping volume. If we could just rotate the clipping volume with respect to the viewer, we might actually see something with a little depth. However, we aren’t going to get into coordinate transformations and rotations until Chapter 7. And even if we started that work now, a flat rectangle isn’t very interesting, even when viewed from an angle.

To see some depth, we need to draw an object that is not flat. The AUX library contains nearly a dozen 3D objects— from a sphere to a teapot— that can be created with a single function call. These called functions are of the form auxSolidxxxx() or auxWirexxxx(), where

xxxx names the solid or wireframe object that is created. For example, the following command draws a wireframe teapot of approximately 50.0 units in diameter: auxWireTeapot(50.0f);

If we define a clipping volume that extends from -100 to 100 along all three axes, we’ll get the wireframe teapot shown in Figure 3-12. The teapot is probably the best example at this point because the other objects still look two-dimensional when viewed from a parallel

Page

66

OpenGL Super Bible!

projection. The program that produced this image is found in this chapter’s subdirectory on the CD in teapot.c.

Figure 3-12 A wireframe teapot

If you change the wire teapot to a solid teapot with the command auxSolidTeapot(50.0f); you’ll see only a red outline of the teapot. In order to see relief in a solid-colored object, you will need to incorporate shading and lighting with other OpenGL commands that you’ll learn about in Chapter 9 and later.

For further study of the AUX library objects, see the samples AUXWIRE and AUXSOLID on the CD in this chapter’s subdirectory. These samples make use of the glRotatef() function

(explained in Chapter 7), which spins the objects around all three axes of the viewing volume. Some of these objects make use of the utility library, so be sure that you link with glu32.lib when using these objects yourself.

OpenGL Super Bible! Page

67

Summary

In this chapter we have introduced the AUX library toolkit and presented the fundamentals of writing a program that uses OpenGL. We have used this library to show the easiest possible way to create a window and draw in it using OpenGL commands. You have learned to use the AUX library to create windows that can be resized, as well as to create simple animation. You have also been introduced to the process of using OpenGL to do drawing— composing and selecting colors, clearing the screen, drawing a rectangle, and setting the viewport and clipping volume to scale images to match the window size. We’ve also discussed the various OpenGL data types, and the headers and libraries required to build programs that use OpenGL.

The Auxiliary library contains many other functions to handle keyboard and mouse input as well. Microsoft’s implementation of the Aux library contains Windows-specific functions that enable access to window handles and device contexts. You are encouraged to explore the upcoming reference section of this chapter to discover other uses and features of the

AUX library. You’ll also want to examine and run the other Chapter 3 samples on the CD.

Page

68

Reference Section

OpenGL Super Bible!

auxIdleFunc

Purpose

Establishes a callback function for idle processing.

Include File

<glaux.h>

Syntax void auxIdleFunc(AUXIDLEPROC func);

Description

Specifies the idle function func() to be called when no other activity is pending.

Typically used for animation. When not busy rendering the current scene, the idle function changes some parameters used by the rendering function to produce the next scene.

Parameters

func

This function is prototyped as void CALLBACK IdleFunc(void);

This is the user-defined function used for idle processing. Passing NULL as this function name will disable idle processing.

Returns

None.

Example

See BOUNCE and BOUNCE2 examples from this chapter.

See Also auxSwapBuffers, auxMainLoop, auxReshapeFunc

OpenGL Super Bible! Page

69

auxInitDisplayMode

Purpose

Initializes the display mode of the AUX library OpenGL window.

Include File

<glaux.h>

Syntax void auxInitDisplayMode(GLbitfield mask);

Description

This is the first function that must be called by an AUX library-based program to set up the OpenGL window. This function sets the characteristics of the window that

OpenGL will use for drawing operations.

Parameters

mask

GLbitfield: A mask or bitwise combination of masks from Table 3-4. These mask values may be combined with a bitwise OR. For example, to create a window that uses double buffering and color index mode, call

auxInitDisplayMode(AUX_DOUBLE | AUX_INDEX)

Returns

None.

Example

See any example program from this chapter.

See Also auxInitPosition, auxInitWindow

Table 3-4 Mask values for window characteristics

Mask Value Meaning

AUX_SINGLE

AUX_DOUBLE

AUX_RGBA

AUX_INDEX

AUX_DEPTH

AUX_DEPTH16

AUX_STENCIL

AUX_ACCUM

Specifies a single-buffered window

Specifies a double-buffered window

Specifies an RGBA-mode window

Specifies a color-index mode window

Specifies a 32-bit depth buffer

Specifies a 16-bit depth buffer

Specifies a stencil buffer

Specifies an accumulation buffer

Page

70

OpenGL Super Bible!

AUX_ALPHA Specifies an ALPHA buffer

AUX_FIXED_332_PAL Specifies a fixed 3-3-2 palette for the window

auxInitPosition

Purpose

Sets the window position used by auxInitWindow().

Include File

<glaux.h>

Syntax void auxInitPosition(GLint x, GLint y, GLsizei width, GLsizei height);

Description

This function tells the AUX library where to place the main graphics window when it is created.

Parameters

x

GLint: The position measured in pixels of the top left corner of the window from the left side of the screen.

y

GLint: The position measured in pixels of the top left corner of the window from the top of the screen.

width

GLsizei: The initial width of the client area of the window in screen pixels.

height

GLsizei: The initial height of the client area of the window in screen pixels.

Returns

None.

Example

See any example from this chapter.

See Also auxInitDisplayMode, auxInitWindow

OpenGL Super Bible! Page

71

auxInitWindow

Purpose

Initializes and displays the OpenGL rendering window.

Include File

<glaux.h>

Syntax void auxInitWindow(GLBYTE *titleString);

Description

This function opens the window that will be used by OpenGL for drawing operations.

The window characteristics must first be set by auxInitDisplayMode() and auxInitPosition().

Parameters

titleString

GLBYTE: A pointer to a character string that will be used for the window caption.

Returns

None.

Example

See any example from this chapter.

See Also auxInitDisplayMode, auxInitPosition

Page

72

OpenGL Super Bible!

auxKeyFunc

Purpose

Associates a callback function with a particular keystroke.

Include File

<glaux.h>

Syntax void auxKeyFunc(GLint key, void(*function(void));

Description

Sets a callback function function that the AUX library calls when the key indicated by key is pressed. The window is also redrawn after the processing of this keystroke.

Parameters

key

GLint: Specifies the key with which to associate the given function. This can be one of the values in Table 3-5.

function

This callback function is prototyped as void CALLBACK KeyFunc(void);

This function is called by the AUX library when the specified key is pressed. Passing

NULL as this parameter disables a previous key function setting.

Returns

None.

Example

See the KEYMOVE supplementary example from this chapter’s subdirectory on the

CD.

See Also auxMouseFunc

Table 3-5 Auxiliary Library Key Definitions.

Key Value Description

AUX_ESCAPE

AUX_SPACE

AUX_RETURN

AUX_LEFT

AUX_RIGHT

AUX_UP

The Escape key

The Spacebar key

The Return or Enter key

The Left Arrow key

The Right Arrow key

The Up Arrow key

OpenGL Super Bible! Page

73

AUX_DOWN The Down Arrow key

AUX_A through AUX_Z The keys A through Z (uppercase)

AUX_a through AUX_z The keys a through z (lowercase)

AUX_0 through AUX_9 The number keys 0 through 9

auxMainLoop

Purpose

Specifies the function that should be used to update the OpenGL window.

Include File

<glaux.h>

Syntax void auxMainLoop(AUXMAINPROC func);

Description

This function is used to specify the function to be called whenever the OpenGL window needs to be refreshed. This function does not return until the OpenGL window is closed.

Parameters

func

This function is prototyped as void CALLBACK MainFunc(void);

This is the function to be used for updating the window by actually performing the drawing commands.

Returns

None.

Example

See any example from this chapter.

See Also auxIdleFunc, auxReshapeFunc

Page

74

OpenGL Super Bible!

auxMouseFunc

Purpose

Associates callback functions with mouse button activity.

Include File

<glaux.h>

Syntax void auxMouseFunc(int button, int mode, AUXMOUSEPROC func);

Description

Sets the function func to be called when a mouse button is pressed or released. The specified mouse button is set to one of the values listed below. The button action can denote whether the button is pressed or released.

Parameters

button int: The button with which to associate the callback function; may be one of the following values: AUX_LEFTBUTTON, AUX_MIDDLEBUTTON, or

AUX_RIGHTBUTTON.

mode int: The action of the button specified above to associate with the callback function.

May be either AUX_MOUSEDOWN or AUX_MOUSEUP.

func

The callback function is prototyped as void CALLBACK MouseFunc(AUX_EVENTREC *event);

The event structure contains the mouse position at the time of the event.

typedef struct _AUX_EVENTREC {

GLint event;

GLint data[4];

} AUX_EVENTREC;

event GLint: Specifies the event that took place (AUX_MOUSEUP, or AUX_MOUSEDOWN)

data[4] GLint: contains specific data about this event. data[AUX_MOUSEX] = mouse position in x direction. data[AUX_MOUSEY] = mouse position in y direction. data[MOUSE_STATUS] = mouse button (from button).

Returns

None.

Example

See the MBOUNCE supplementary example on the CD subdirectory for this chapter.

See Also auxKeyFunc

OpenGL Super Bible! Page

75

auxReshapeFunc

Purpose

Establishes a callback function to handle window dimension and size changes.

Include File

<glaux.h>

Syntax void auxReshapeFunc(AUXRESHAPEPROC func)

Description

This function is called to establish a callback function that the AUX library will call whenever the window size or shape changes. Typically this function modifies the viewport and clipping volume to perform image scaling.

Parameters

func

This callback function is prototyped as void CALLBACK Reshape(GLsizei width, GLsizei height)

This function receives the new width and height of the window.

Returns

None.

Example

See the SCALE example from this chapter.

See Also auxIdleFunc, auxMainLoop

Page

76

OpenGL Super Bible!

auxSetOneColor

Purpose

Sets a single color in the color-index mode color palette.

Include File

<glaux.h>

Syntax void auxSetOneColor(int index, float red, float green, float blue);

Description

This function is used in color index mode. In this mode, rather than specifying colors with RGB values, a palette of colors is created. Object colors are designated by specifying an index into this palette. This functions sets the RGB values for the color that is represented by a particular palette index.

Parameters

index int: The index into the color palette.

red float: The red component of the desired color.

green float: The green component of the desired color.

blue float: The blue component of the desired color.

Returns

None.

Example

See the COLORDX supplementary sample on the CD subdirectory for this chapter.

Note that this sample requires operation on a palletized device (most 256-color cards, but not more than 8 bits of color).

See Also getColorMapSize, auxSetRGBMap

OpenGL Super Bible! Page

77

auxSolidBox

Purpose

Draws a solid box.

Include File

<glaux.h>

Syntax void auxSolidBox(GLdouble width, GLdouble height, GLdouble depth );

Description

Draws a solid box centered at (0,0,0). An alternative form of auxSolidCube.

Generally used for demonstration purposes.

Parameters

width

The width of the box.

height

The height of the box.

depth

The depth of the box.

Returns

None.

Example

See the AUXSOLID supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s solid objects.

See Also auxWireBox, auxSolidCube

Page

78

OpenGL Super Bible!

auxSolidCone

Purpose

Draws a solid cone.

Include File

<glaux.h>

Syntax void auxSolidCone(GLdouble radius, GLdouble height);

Description

Draws a solid cone centered at (0,0,0). Generally used for demonstration purposes.

Parameters

radius

The radius of the bottom of the cone.

height

The height of the cone.

Returns

None.

Example

See the AUXSOLID supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s solid objects.

See Also auxWireCone

OpenGL Super Bible! Page

79

auxSolidCube

Purpose

Draws a solid cube.

Include File

<glaux.h>

Syntax void auxSolidCube(GLdouble width);

Description

Draws a solid cube centered at (0,0,0). An alternative form of AuxSolidBox.

Generally used for demonstration purposes.

Parameters

width

The width of the cube.

Returns

None.

Example

See the AUXSOLID supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s solid objects.

See Also auxWireCube, auxSolidBox

Page

80

OpenGL Super Bible!

auxSolidCylinder

Purpose

Draws a solid cylinder.

Include File

<glaux.h>

Syntax void auxSolidCylinder(GLdouble radius, GLdouble height);

Description

Draws a solid cylinder centered at (0,0,0). Generally used for demonstration purposes.

Parameters

radius

The radius of the cylinder.

height

The height of the cylinder.

Returns

None.

Example

See the AUXSOLID supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s solid objects.

See Also auxWireCylinder

OpenGL Super Bible! Page

81

auxSolidDodecahedron

Purpose

Draws a solid dodecahedron.

Include File

<glaux.h>

Syntax void auxSolidDodecahedron(GLdouble radius);

Description

Draws a solid dodecahedron centered at (0,0,0). A dodecahedron is a 12-sided object with pentagon sides. Generally used for demonstration purposes.

Parameters

radius

The radius of the dodecahedron.

Returns

None.

Example

See the AUXSOLID supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s solid objects.

See Also auxWireDodecahedron.

Page

82

OpenGL Super Bible!

auxSolidIcosahedron

Purpose

Draws a solid icosahedron.

Include File

<glaux.h>

Syntax void auxSolidIcosahedron(GLdouble radius);

Description

Draws a solid icosahedron centered at (0,0,0). An icosahedron is a 20-sided object with each side a triangle. Generally used for demonstration purposes.

Parameters

radius

The radius of the icosahedron.

Returns

None.

Example

See the AUXSOLID supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s solid objects.

See Also auxWireIcosahedron

OpenGL Super Bible! Page

83

auxSolidOctahedron

Purpose

Draws a solid octahedron.

Include File

<glaux.h>

Syntax void auxSolidOctahedron(GLdouble radius);

Description

Draws a solid octahedron centered at (0,0,0). An octahedron is an 8-sided object with triangular sides. Generally used for demonstration purposes.

Parameters

radius

The radius of the octahedron.

Returns

None.

Example

See the AUXSOLID supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s solid objects.

See Also auxWireOctahedron

Page

84

OpenGL Super Bible!

auxSolidSphere

Purpose

Draws a solid sphere.

Include File

<glaux.h>

Syntax void auxSolidSphere(GLdouble radius);

Description

Draws a solid sphere centered at (0,0,0). Generally used for demonstration purposes.

Parameters

radius

The radius of the sphere.

Returns

None.

Example

See the AUXSOLID supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s solid objects.

See Also auxWireSphere

OpenGL Super Bible! Page

85

auxSolidTeapot

Purpose

Draws a solid teapot.

Include File

<glaux.h>

Syntax void auxSolidTeapot(GLdouble size);

Description

Draws a solid teapot centered at (0,0,0). Generally used for demonstration purposes.

Parameters

size

The size of the teapot (approximate diameter).

Returns

None.

Example

See the AUXSOLID supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s solid objects.

See Also auxWireTeapot

Page

86

OpenGL Super Bible!

auxSolidTetrahedron

Purpose

Draws a solid tetrahedron.

Include File

<glaux.h>

Syntax void auxSolidTetrahedron(GLdouble radius);

Description

Draws a solid tetrahedron centered at (0,0,0). A tetrahedron is a 4-sided object with triangular sides. Generally used for demonstration purposes.

Parameters

radius

The radius of the tetrahedron.

Returns

None.

Example

See the AUXSOLID supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s solid objects.

See Also auxWireTetrahedron

OpenGL Super Bible! Page

87

auxSolidTorus

Purpose

Draws a solid torus (doughnut shape).

Include File

<glaux.h>

Syntax void auxSolidTorus(GLdouble innerRadius, GLdouble outerRadius);

Description

Draws a solid torus centered at (0,0,0). A torus is a doughnut-shaped object. The inner radius is the radius of the tube and the outer radius is the radius of the center hole. Generally used for demonstration purposes.

Parameters

innerRadius

The radius of the inside of the torus.

outerRadius

The inner radius of the ring.

Returns

None.

Example

See the AUXSOLID supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s solid objects.

See Also auxSolidTorus

Page

88

OpenGL Super Bible!

auxSwapBuffers

Purpose

Switches drawing buffer to screen during double-buffered drawing.

Include File

<glaux.h>

Syntax void auxSwapBuffers(void);

Description

This function is used with doubled-buffered drawing and animation. Calling this function causes the hidden scene to be quickly swapped to screen.

Returns

None.

Example

See the BOUNCE2 example from this chapter.

See Also auxInitDisplayMode, auxIdleFunc

OpenGL Super Bible! Page

89

auxWireBox

Purpose

Draws a wireframe box.

Include File

<glaux.h>

Syntax void auxWireBox(GLdouble width, GLdouble height, GLdouble depth );

Description

Draws a wireframe box centered at (0,0,0). An alternative form of auxWireCube.Generally used for demonstration purposes.

Parameters

width

The width of the box.

height

The height of the box.

depth

The depth of the box.

Returns

None.

Example

See the AUXWIRE supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s wireframe objects.

See Also auxSolidBox, auxWireCube

Page

90

OpenGL Super Bible!

auxWireCone

Purpose

Draws a wireframe cone.

Include File

<glaux.h>

Syntax void auxWireCone(GLdouble radius, GLdouble height);

Description

Draws a wireframe cone centered at (0,0,0). Generally used for demonstration purposes.

Parameters

radius

The radius of the bottom of the cone.

height

The height of the cone.

Returns

None.

Example

See the AUXWIRE supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s wireframe objects.

See Also auxSolidCone

OpenGL Super Bible! Page

91

auxWireCube

Purpose

Draws a wireframe cube.

Include File

<glaux.h>

Syntax void auxWireCube(GLdouble width);

Description

Draws a wireframe cube centered at (0,0,0). An alternative form of

AuxWireCube.Generally used for demonstration purposes.

Parameters

width

The width of the cube.

Returns

None.

Example

See the AUXWIRE supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s wireframe objects.

See Also auxSolidCube, auxWireBox

Page

92

OpenGL Super Bible!

auxWireCylinder

Purpose

Draws a wireframe cylinder.

Include File

<glaux.h>

Syntax void auxWireCylinder(GLdouble radius, GLdouble height);

Description

Draws a wireframe cylinder centered at (0,0,0). Generally used for demonstration purposes.

Parameters

radius

The radius of the cylinder.

height

The height of the cylinder.

Returns

None.

Example

See the AUXWIRE supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s wireframe objects.

See Also auxSolidCylinder

OpenGL Super Bible! Page

93

auxWireDodecahedron

Purpose

Draws a wireframe dodecahedron.

Include File

<glaux.h>

Syntax void auxWireDodecahedron(GLdouble radius);

Description

Draws a wireframe dodecahedron centered at (0,0,0). A dodecahedron is a 12-sided object with pentagon sides. Generally used for demonstration purposes.

Parameters

radius

The radius of the dodecahedron.

Returns

None.

Example

See the AUXWIRE supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s wireframe objects.

See Also auxSolidDodecahedron.

Page

94

OpenGL Super Bible!

auxWireIcosahedron

Purpose

Draws a wireframe icosahedron.

Include File

<glaux.h>

Syntax void auxWireIcosahedron(GLdouble radius);

Description

Draws a wireframe icosahedron centered at (0,0,0). An icosahedron is a 20-sided object with each side a triangle. Generally used for demonstration purposes.

Parameters

radius

The radius of the icosahedron.

Returns

None.

Example

See the AUXWIRE supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s wireframe objects.

See Also auxSolidIcosahedron

OpenGL Super Bible! Page

95

auxWireOctahedron

Purpose

Draws a wireframe octahedron.

Include File

<glaux.h>

Syntax void auxWireOctahedron(GLdouble radius);

Description

Draws a wireframe octahedron centered at (0,0,0). An octahedron is an 8-sided object with triangular sides. Generally used for demonstration purposes.

Parameters

radius

The radius of the octahedron.

Returns

None.

Example

See the AUXWIRE supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s wireframe objects.

See Also auxSolidOctahedron

Page

96

OpenGL Super Bible!

auxWireSphere

Purpose

Draws a wireframe sphere.

Include File

<glaux.h>

Syntax void auxWireSphere(GLdouble radius);

Description

Draws a wireframe sphere centered at (0,0,0). Generally used for demonstration purposes.

Parameters

radius

The radius of the sphere.

Returns

None.

Example

See the AUXWIRE supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s wireframe objects.

See Also auxSolidSphere

OpenGL Super Bible! Page

97

auxWireTeapot

Purpose

Draws a wireframe teapot.

Include File

<glaux.h>

Syntax void auxWireTeapot(GLdouble size);

Description

Draws a wireframe teapot centered at (0,0,0). Generally used for demonstration purposes.

Parameters

size

The size of the teapot (approximate diameter).

Returns

None.

Example

See the AUXWIRE supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s wireframe objects.

See Also auxSolidTeapot

Page

98

OpenGL Super Bible!

auxWireTetrahedron

Purpose

Draws a wireframe tetrahedron.

Include File

<glaux.h>

Syntax void auxWireTetrahedron(GLdouble radius);

Description

Draws a wireframe tetrahedron centered at (0,0,0). A tetrahedron is a 4-sided object with triangular sides. Generally used for demonstration purposes.

Parameters

radius

The radius of the tetrahedron.

Returns

None.

Example

See the AUXWIRE supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s wireframe objects.

See Also auxSolidTetrahedron

OpenGL Super Bible! Page

99

auxWireTorus

Purpose

Draws a wireframe torus (doughnut shape).

Include File

<glaux.h>

Syntax void auxWireTorus(GLdouble innerRadius, GLdouble outerRadius);

Description

Draws a wireframe torus centered at (0,0,0). A torus is a doughnut-shaped object.

The inner radius is the radius of the tube and the outer radius is the radius of the center hole. Generally used for demonstration purposes.

Parameters

innerRadius

The radius of the inside of the torus.

outerRadius

The inner radius of the ring.

Returns

None.

Example

See the AUXWIRE supplementary sample on the CD subdirectory for this chapter.

This program exercises all of the AUX library’s wireframe objects.

See Also auxSolidTorus

Page

100

OpenGL Super Bible!

glClearColor

Purpose

Sets the color and alpha values to use for clearing the color buffers.

Include File

<gl.h>

Syntax void glClearColor(GLclampf red, GLclampf green, GLclampf blue, GLclampf alpha);

Description

Sets the fill values to be used when clearing the red, green, blue, and alpha buffers

(jointly called the color buffer). The values specified are clamped to the range [0.0f,

1.0f].

Parameters

red

GLclampf: The red component of the fill value.

green

GLclampf: The green component of the fill value.

blue

GLclampf: The blue component of the fill value.

alpha

GLclampf: The alpha component of the fill value.

Returns

None.

Example

See the SHORTEST example from this chapter.

OpenGL Super Bible! Page

101

glFlush

Purpose

Flushes OpenGL command queues and buffers.

Include File

<gl.h>

Syntax void glFlush(void);

Description

OpenGL commands are often queued and executed in batches to optimize performance. This can vary among hardware, drivers, and OpenGL implementations.

The glFlush command causes any waiting commands to be executed.

Returns

None.

Example

See any example from this chapter.

Page

102

OpenGL Super Bible!

glOrtho

Purpose

Sets or modifies the clipping volume extents.

Include File

<gl.h>

Syntax void glOrtho(GLdouble left, GLdouble right, GLdouble bottom, GLdouble top,

GLdouble near, GLdouble far);

Description

This function describes a parallel clipping volume. This projection means that objects far from the viewer do not appear smaller (in contrast to a perspective projection). Think of the clipping volume in terms of 3D Cartesian coordinates, in which case left and right would be the minimum and maximum x values, top and bottom the minimum and maximum y values, and near and far the minimum and maximum z values.

Parameters

left

GLdouble: The leftmost coordinate of the clipping volume.

right

GLdouble: The rightmost coordinate of the clipping volume.

bottom

GLdouble: The bottommost coordinate of the clipping volume.

top

GLdouble: The topmost coordinate of the clipping volume.

near

GLdouble: The maximum distance from the origin to the viewer.

far

GLdouble: The maximum distance from the origin away from the viewer.

Returns

None.

Example

See the SCALE example from this chapter.

See Also glViewport

OpenGL Super Bible! Page

103

glViewport

Purpose

Sets the portion of a window that can be drawn in by OpenGL.

Include File

<gl.h>

Syntax void glViewport(GLint x, GLint y, GLsizei width, GLsizei height);

Description

Sets the region within a window that is used for mapping the clipping volume coordinates to physical window coordinates.

Parameters

x

GLint: The number of pixels from the left-hand side of the window to start the viewport.

y

GLint: The number of pixels from the bottom of the window to start the viewport.

width

height

GLsizei: The width in pixels of the viewport.

GLsizei: The height in pixels of the viewport.

Returns

None.

Example

See the SCALE example from this chapter.

See Also glOrtho

Page

104

OpenGL Super Bible!

glRect

Purpose

Draws a flat rectangle.

Include File

<gl.h>

Variations void glRectd(GLdouble x1, GLdouble y1, GLdouble x2, GLdouble y2); void glRectf(GLfloat x1, GLfloat y1, GLfloat x2, GLfloat y2); void glRecti(GLint x1, GLint y1, GLint x2, GLint y2); void glRects(GLshort x1, GLshort y1, GLshort x1, GLshort y2); void glRectdv(const GLdouble *v1, const GLdouble *v2); void glRectfv(const GLfloat *v1, const GLfloat *v2); void glRectiv(const GLint *v1, const GLint *v2); void glRectsv(const GLshort *v1, const GLshort *v2);

Description

This function is an efficient method of specifying a rectangle as two corner points.

The rectangle is drawn in the xy plane at z = 0.

Parameters

x1, y1

Specifies the upper-left corner of the rectangle.

x2, y2

Specifies the lower-right corner of the rectangle.

*v1

An array of two values specifying the upper-left corner of the rectangle. Could also be described as v1[2].

*v2

An array of two values specifying the lower-right corner of the rectangle. Could also be described as v2[2].

Returns

None.

Example

See the FRIENDLY sample from this chapter.

OpenGL Super Bible! Page

105

Chapter 4

OpenGL for Windows: OpenGL + Win32 = Wiggle

What you’ll learn in this chapter:

OpenGL Tasks in a Window Without the

AUX Library Functions You’ll Use

Create and use rendering contexts

Request and select a pixel format

Respond to window messages

Use double buffering in Windows wglCreateContext, wglDeleteContext, wglMakeCurrent

ChoosePixelFormat, SetPixelFormat

WM_PAINT, WM_CREATE,

WM_DESTROY, WM_SIZE

SwapBuffers

OpenGL is purely a graphics API, with user interaction and the screen/window handled by the host environment. To facilitate this partnership, each environment usually has some extensions that “glue” OpenGL to its own window management and user interface functions.

This glue is code that associates OpenGL drawing commands to a particular window. It is also necessary to provide functions for setting buffer modes, color depths, and other drawing characteristics.

For Microsoft Windows, the glue code is embodied in six new wiggle functions added to

OpenGL (called wiggle because they are prefixed with wgl rather than gl), and five new

Win32 functions added to the Windows NT and 95 GDI. These gluing functions are explained in this chapter, where we will dispense with using the AUX library for our

OpenGL framework.

In Chapter 3 we used the AUX library as a learning tool to introduce the fundamentals of

OpenGL programming in C. You have learned how to draw some 2D and 3D objects and how to specify a coordinate system and viewing perspective, without having to consider

Windows programming details. Now it is time to break from our “Windowless” examination of OpenGL and see how it works in the Windows environment. Unless you are content with a single window, no menus, no printing ability, no dialogs, and few of the other features of a modern user interface, you need to learn how to use OpenGL in your Win32 applications.

Starting with this chapter, we will build full-fledged Windows applications that can take advantage of all the operating system’s features. You will see what characteristics a

Windows window must have in order to support OpenGL graphics. You will learn which messages a well-behaved OpenGL window should handle, and how. The concepts of this

Page

106

OpenGL Super Bible!

chapter are introduced gradually, as we use C to build a model OpenGL program that will provide the initial framework for all future examples.

Thus far in this book, you’ve needed no prior knowledge of 3D graphics and only a rudimentary knowledge of C programming. From this point on, however, we assume you have at least an entry-level knowledge of Windows programming. (Otherwise, we’d have wound up writing a book twice the size of this one, and we’d have had to spend more time on the details of Windows programming and less on OpenGL programming.) If you are new to Windows, or if you cut your teeth on one of the Application Frameworks and aren’t all that familiar with Windows procedures, message routing, and so forth, you’ll want to check out some of the recommended reading in Appendix B, Further Reading, before going too much further in this text.

Drawing in Windows Windows

With the AUX library we had only one window, and OpenGL always knew that we wanted to draw in that window (where else would we go?). Your own Windows applications, however, will often have more than one window. In fact, dialog boxes, controls, and even menus are actually windows at a fundamental level; it’s nearly impossible to have a useful program that contains only one window. So how does OpenGL know where to draw when you execute your rendering code? Before we try to answer this question, let’s first review how we normally draw in a window without using OpenGL.

GDI Device Contexts

To draw in a window without using OpenGL, you use the Windows GDI (Graphical Device

Interface) functions. Each window has a device context that actually receives the graphics output, and each GDI function takes a device context as an argument to indicate which window you want the function to affect. You can have multiple device contexts, but only one for each window.

The example program WINRECT on the Companion CD draws an ordinary window with a blue background and a red square in the center. The output from this program, shown in

Figure 4-1, will look familiar to you. This is the same image produced by our second

OpenGL program in Chapter 3, friendly.c. Unlike that earlier example, however, the

WINRECT program is done entirely with the Windows API. WINRECT’s code is pretty generic as far as Windows programming goes. There is a WinMain that gets things started and keeps the message pump going, and a WndProc to handle messages for the main window.

OpenGL Super Bible! Page

107

Figure 4-1 Windows version of friendly.c, the OpenGL sample from Chapter 3

Your familiarity with Windows programming should extend to the details of creating and displaying a window, so we’ll cover only the code from this example that is responsible for the drawing of the background and square.

First we must create a blue and a red brush for filling and painting. The handles for these brushes are declared globally.

// Handles to GDI brushes we will use for drawing

HBRUSH hBlueBrush,hRedBrush;

Then the brushes are created in the WinMain function, using the RGB macro to create solid red and blue brushes.

// Create a blue and red brush for drawing and filling

// operations. // Red, green, blue hBlueBrush = CreateSolidBrush(RGB( 0, 0, 255)); hRedBrush = CreateSolidBrush(RGB( 255, 0, 0));

When the window style is being specified, the background is set to use the blue brush in the window class structure. wc.hbrBackground = hBlueBrush; // Use blue brush for background

Window size and position (previously set with auxInitPosition) are set when the window is created.

Page

108

OpenGL Super Bible!

// Create the main application window hWnd = CreateWindow(

lpszAppName,

lpszAppName,

WS_OVERLAPPEDWINDOW,

100, 100, // Size and dimensions of window

250, 250,

NULL,

NULL,

hInstance,

NULL);

Finally, the actual painting of the window interior is handled by the WM_PAINT message handler in the WndProc function.

case WM_PAINT:

{

PAINTSTRUCT ps;

HBRUSH hOldBrush;

// Start painting

BeginPaint(hWnd,&ps);

// Select and use the red brush

hOldBrush = SelectObject(ps.hdc,hRedBrush);

// Draw a rectangle filled with the currently

// selected brush

Rectangle(ps.hdc,100,100,150,150);

// Deselect the brush

SelectObject(ps.hdc,hOldBrush);

// End painting

EndPaint(hWnd,&ps);

}

break;

The call to BeginPaint prepares the window for painting, and sets the hdc member of the

PAINTSTRUCT structure to the device context to be used for drawing in this window. This handle to the device context is used as the first parameter to all GDI functions, identifying which window they should operate on. This code then selects the red brush for painting operations and draws a filled rectangle at the coordinates (100,100,150,150). Then the brush is deselected, and EndPaint cleans up the painting operation for you.

Before you jump to the conclusion that OpenGL should work in a similar way, remember that the GDI is Windows-specific. Other environments do not have device contexts, window handles, and the like. OpenGL, on the other hand, was designed to be completely portable among environments and hardware platforms. Adding a device context parameter to the

OpenGL Super Bible! Page

109

OpenGL functions would render your OpenGL code useless in any environment other than

Windows.

OpenGL Rendering Contexts

In order to accomplish the portability of the core OpenGL functions, each environment must implement some means of specifying a current rendering window before executing any

OpenGL commands. In Windows, the OpenGL environment is embodied in what is known as the rendering context. Just as a device context remembers settings about drawing modes and commands for the GDI, the rendering context remembers OpenGL settings and commands.

You may have more than one rendering context in your application— for instance, two windows that are using different drawing modes, perspectives, and so on. However, in order for OpenGL commands to know which window they are operating on, only one rendering context may be current at any one time per thread. When a rendering context is made current, it is also associated with a device context and thus with a particular window. Now

OpenGL knows which window into which to render. Figure 4-2 illustrates this concept, as

OpenGL commands are routed to the window indirectly associated with the current rendering context.

Figure 4-2 How OpenGL commands find their window

Page

110

OpenGL Super Bible!

Performance Tip:

The OpenGL library is thread-safe, meaning you can have multiple threads rendering their own windows or bitmaps simultaneously. This has obvious performance benefits for multiprocessor systems. Threads can also be beneficial on single-processor systems, as in having one thread render while another thread handles the user interface. You can also have multiple threads rendering objects within the same rendering context. In this chapter’s subdirectory on the CD, the supplementary example program GLTHREAD is an example of using threads with OpenGL.

Using the Wiggle Functions

The rendering context is not a strictly OpenGL concept, but rather an addition to the

Windows API to support OpenGL. In fact, the new wiggle functions were added to the

Win32 API specifically to add windowing support for OpenGL. The three most used functions with regard to the rendering context are

HGLRC wglCreateContext(HDC hDC);

BOOL wglDeleteContext(HGLRC hrc);

BOOL wglMakeCurrent(HDC hDC, HGLRC hrc);

Creating and Selecting a Rendering Context

Notice first the new data type HGLRC, which represents a handle to a rendering context.

The wglCreateContext function takes a handle to a windows GDI device context and returns a handle to an OpenGL rendering context. Like a GDI device context, a rendering context must be deleted when you are through with it. The wglDeleteContext function does this for you, taking as its only parameter the handle of the rendering context to be deleted.

When a rendering context is created for a given device context, it is said to be suitable for drawing on that device context. When the rendering context is made current with wglMakeCurrent, it is not strictly necessary that the device context specified be the one used to create the rendering context in the first place. However, the device context used when a rendering context is made current must have the same characteristics as the device context used to create the rendering context. These characteristics include color depth, buffer definitions, and so forth, and are embodied in what is known as the pixel format.

To make a rendering context current for a device context different from that used to create it, they must both have the same pixel format. You may deselect the current rendering context either by making another rendering context current, or by calling wglMakeCurrent with

NULL for the rendering context. (Selecting and setting the pixel format for the device context will be covered shortly.)

OpenGL Super Bible! Page

111

Painting with OpenGL

If you haven’t done much GDI programming, keeping track of both the device context and the rendering context may seem bewildering, but it’s actually very simple to do after you’ve seen it done once. In the old days of 16-bit Windows programming, you needed to retrieve a device context, process it quickly, and release it as soon as you were done with it— because

Windows could only remember five device contexts at a time. In the new era of 32-bit

Windows, these internal resource limitations are all but gone. This does not give us permission to be careless, but it does mean that there are fewer implications to creating a window with its own private device context (window style WS_OWNDC), getting the window, and hanging on until we are done with it. Furthermore, since most of our examples will be animated, we can avoid repeated (and expensive) calls to GetDC every time we need to make the rendering context current. Another time-saver for us is to make the rendering context current once it is created, and keep it current. If only one window per thread uses

OpenGL, this will never be a problem, and it will save the time of repeated calls to wglMakeCurrent.

Only two window messages require any code that handles the creating and deleting of a rendering context: WM_CREATE and WM_DESTROY. Naturally, the rendering context is created in the WM_CREATE message, and it is deleted in the WM_DESTROY message.

The following skeleton section from a window procedure of a window that uses OpenGL graphics shows the creation and deleting of a rendering context:

LRESULT CALLBACK WndProc(HWND hWnd, …

{

static HGLRC hRC; // Save the rendering context between calls

static HDC hDC; // Save the device context between calls

switch(msg)

{

case WM_CREATE:

hDeviceContext = GetDC(hWnd)

hRenderContext = wglC reateContext(hDC);

wglMakeCurrent(hDC,hRC);

break;

case WM_DESTROY:

wglMakeCurrent(hDC,NULL);

wglDeleteContext(hRC);

PostQuitMessa ge(0);

break;

}

}

The painting and drawing of the window is still handled by the WM_PAINT message, only now it will contain your OpenGL drawing commands. In this message, you can dispense

Page

112

OpenGL Super Bible!

with the BeginPaint/EndPaint sequence. (These functions cleared the window, hid the caret for drawing operations, and validated the window region after painting.) With OpenGL, you only need to validate the window client area in order to keep a constant stream of

WM_PAINT messages from being posted to the window. Here is a skeletal WM_PAINT handler: case WM_PAINT:

{

// OpenGL drawing code or your Render function called here.

RenderScene();

ValidateRect(hWnd,NULL);

} break;

Programming Trick:

You can still use the device context with GDI commands to draw in the window after the

OpenGL scene is drawn. The Microsoft documentation states that this is fully supported except in double-buffered windows. You can, however, use GDI calls in double-buffered windows— as long as you make your calls after the buffer swap. What’s actually not supported are GDI calls to the back buffer of a double-buffered window. It’s best to avoid such calls, anyway, since one of the primary reasons for using double buffering is to provide flicker-free and instantaneous screen updates.

Preparing the Window for OpenGL

At this point you may be chomping at the bit to write a quick-and-dirty windows program using the foregoing code and a render function from a previous chapter in the WM_PAINT handler. But don’t start cobbling together code just yet. There are still two important preparatory steps we need to take before creating the rendering context.

Window Styles

In order for OpenGL to draw in a window, the window must be created with the

WS_CLIPCHILDREN and WS_CLIPSIBLINGS styles set, and it must not contain the

CS_PARENTDC style. This is because the rendering context is only suitable for drawing in the window for which it was created (as specified by the device context in the wglCreateContext function), or in a window with exactly the same pixel format. The

WS_CLIPCHILDREN and WS_CLIPSIBLINGS styles keep the paint function from trying to update any child windows. CS_PARENTDC (which causes a window to inherit its parent’s device context) is forbidden because a rendering context can be associated with only one device context and window. If these styles are not specified you will not be able to set a pixel format for the window— the last detail before we begin our first Windows

OpenGL program.

OpenGL Super Bible! Page

113

Pixel Formats

Drawing in a window with OpenGL also requires that you select a pixel format. Like the rendering context, the pixel format is not really a part of OpenGL per se. It is an extension to the Win32 API (specifically, to the GDI) to support OpenGL functionality. The pixel format sets a device context’s OpenGL properties, such as color and buffer depth, and whether the window is double-buffered. You must set the pixel format for a device context before it can be used to create a rendering context. Here are the two functions you will need to use: int ChoosePixelFormat(HDC hDC, PIXELFORMATDESCRIPTOR *ppfd)

BOOL SetPixelFormat(HDC hDC, int iPixelFormat, IXELFORMATDESCRIPTOR *ppfd)

Setting the pixel format is a three-step process. First, you fill out the

PIXELFORMATDESCRIPTOR structure according to the characteristics and behavior you want the window to possess (we’ll examine these fields shortly). You then pass this structure to the ChoosePixelFormat function. The ChoosePixelFormat function returns an integer index to an available pixel format for the specified device context. This index is then passed to the SetPixelFormat function. The sequence looks something like this:

PIXELFORMATDESCRIPTOR pixelFormat; int nFormatIndex;

HDC hDC;

// initialize pixelFormat structure

….

…. nFormatIndex = ChoosePixelFormat(hDC, &pixelFormat);

SetPixelFormat(hDC, nPixelFormat, &pixelFormat);

ChoosePixelFormat attempts to match a supported pixel format to the information requested in the PIXELFORMATDESCRIPTOR structure. The returned index is the identifier for this pixel format. For instance, you may request a pixel format that has 16 million colors on screen, but the hardware may only support 256 simultaneous colors. In this case, the returned pixel format will be as close an approximation as possible— for this example, a

256-color pixel format. This index is passed to SetPixelFormat.

You’ll find a detailed explanation of the PIXELFORMATDESCRIPTOR structure in the

Reference Section under the function DescribePixelFormat. Listing 4-1 shows a function from the GLRECT sample program that establishes the PIXELFORMATDESCRIPTOR structure and sets the pixel format for a device context.

Listing 4-1 A high-level function that sets up the pixel format for a device context

/ Select the pixel format for a given device context void SetDCPixelFormat(HDC hDC)

{

Page

114

OpenGL Super Bible!

int nPixelFormat;

static PIXELFORMATDESCRIPTOR pfd = {

sizeof(PIXELFORMATDESCRIPTOR), // Size of this structure

1, // Version of this

structure

PFD_DRAW_TO_WINDOW | // Draw to window

(not bitmap)

PFD_SUPPORT_OPENGL | // Support OpenGL calls

PFD_DOUBLEBUFFER, // Double -buffered mode

PFD_TYPE_RGBA, // RGBA Color mode

24, / / Want 24bit color

0,0,0,0,0,0, // Not used to select mode

0,0, // Not used to select mode

0,0,0,0,0, // Not used to select mode

32, // Size of depth buffer

0, // Not used to select mode

0, // Not used to select mode

PFD_MAIN_PLANE, // Draw in main plane

0, // Not used to select mode

0,0,0 }; // Not used to select mode

// Choose a pixel format that best matches that described in pfd

nPixelFormat = ChoosePixelFormat(hDC, &pfd);

// Set the pixel format for the device context

SetPixelFormat(hDC, nPixelFormat, &pfd);

}

As you can see in this example, not all the members of the PIXELFORMATDESCRIPTOR structure are used when requesting a pixel format. Table 4-1 lists the members that are set in

Listing 4-1. The rest of the data elements can be set to zero for now.

Table 4-1 Members of PIXELFORMATDESCRIPTOR used when requesting a pixel format

Member

nSize nVersion dwFlags

Description

The size of the structure, set to sizeof(PIXELFORMATDESCRIPTOR).

The version of this data structure, set to 1.

Flags that specify the properties of the pixel buffer, set to

(PFD_DRAW_TO_WINDOW | PFD_SUPPORT_OPENGL |

PFD_DOUBLEBUFFER). These indicate the device context is not a bitmap context, that OpenGL will be used for drawing,

OpenGL Super Bible! Page

115

iPixelType cColorBits cDepthBits and that the window should be double buffered.

The type of pixel data. Actually, tells OpenGL to use RGBA mode or color index mode. Set to PFD_TYPE_RGBA for

RGBA mode.

The number of color bitplanes, in this case 24-bit color. If hardware does not support 24-bit color, the maximum number of color bitplanes supported by the hardware will be selected.

The depth of the depth (z-axis) buffer. Set to 32 for maximum accuracy, but 16 is often sufficient (see Reference Section).

The type of layer. Only PFD_MAIN_PLANE is valid for the

Windows implementation of OpenGL. iLayerType

Return of the Bouncing Square

At last we have enough information to create a Windows window that uses OpenGL, without using the AUX library. The program shown in Listing 4-2 contains the necessary

Windows code along with the rendering function from Chapter 3’s BOUNCE2 example program. You can see by the length of this code that the AUX library saves you a lot of effort.

The RenderScene, ChangeSize, and IdleFunction functions are virtually unchanged from the

Chapter 3 example and are thus omitted here. These functions, along with the function in

Listing 4-1, make up the sample program GLRECT. Figure 4-3 shows the familiar bouncing rectangle. Listing 4-2 shows the WinMain function that creates the window and services messages for the program and the WndProc function for the window that handles the individual messages.

Figure 4-3 Windows version of the bouncing square

Page

116

OpenGL Super Bible!

Listing 4-2 Animated square program, without the AUX library

// Entry point of all Windows programs int APIENTRY WinMain( HINSTANCE hInstance,

HI NSTANCE hPrevInstance,

LPSTR lpCmdLine,

int nCmdShow)

{

MSG msg; // Windows message structure

WNDCLASS wc; // Windows class structure

HWND hWnd; // Storage for window handle

// Register Window style

wc.style = CS_HREDRAW | CS_VREDRAW;

wc.lpfnWndProc = (WNDPROC) WndProc;

wc.cbClsExtra = 0;

wc.cbWndExtra = 0;

wc.hInstance = hInstance;

wc.hIcon = NULL;

wc.hCursor = LoadCursor(NULL, IDC_ARROW);

// No need for background brush for OpenGL window

wc.hbrBackground = NULL;

wc.lpszMenuName = NULL;

wc.lpszClassName = lpszAppName;

// Register the window class

if(RegisterClass(&wc) == 0)

return FALSE;

// Create the ma in application window

hWnd = CreateWindow(

lpszAppName,

lpszAppName,

// OpenGL requires WS_CLIPCHILDREN and

WS_CLIPSIBLINGS

WS_OVER LAPPEDWINDOW | WS_CLIPCHILDREN

| WS_CLIPSIBLINGS,

// Window position and size

100, 100,

250, 250,

NULL,

NULL,

hInstance,

NULL);

// If window was not created, quit

if(hWnd == NULL)

return FALSE;

// Display the window

OpenGL Super Bible! Page

117

ShowWindow(hWnd,SW_SHOW);

UpdateWindow(hWnd);

// Process application messages until the application closes

while( GetMessage(&msg, NULL, 0, 0))

{

TranslateMessage(&msg);

DispatchMessage(&msg);

}

return msg.wParam;

}

// Window procedure, handles all messages for this program

LRESULT CALLBACK WndProc( HWND hWnd,

UINT message,

WPARAM wParam,

LPARAM lParam)

{

static HGLRC hRC; // Permanent Rendering context

static HDC hDC; // Private GDI Device context

switch (message)

{

// Window creation, setup for OpenGL

case WM_CREATE:

// Store the device context

hDC = GetDC(hWnd);

// Select the pixel format

SetDCPixelFormat(hDC);

// Create the rendering context

and make it current

hRC = wglCreateContext(hDC);

wglMakeCurrent(hDC, hRC);

// Create a timer that fir es every millisecond

SetTimer(hWnd,101,1,NULL);

break;

// Window is being destroyed, cleanup

case WM_DESTROY:

// Kill the timer that we created

KillTimer(h Wnd,101);

// Deselect the current rendering

context and delete it

wglMakeCurrent(hDC,NULL);

wglDeleteContext(hRC);

// Tell the application to terminate

after the window

Page

118

OpenGL Super Bible!

// is gone.

PostQuitMessage(0);

break;

// Window is resized.

case WM_SIZE:

// Call our function which modifies the clipping

// volume and viewport

ChangeSize(LOWORD(lParam), HIWORD(lParam));

break;

// Timer, moves and bounces the rectangle, simply calls

// our previous OnIdle function, then invalidates the

// window so it will be redrawn.

case WM_TIMER:

{

IdleFunction();

InvalidateRect(hWnd,NULL,FALSE);

}

break;

// The painting function. This message sent by Windows

// whenever the screen ne eds updating.

case WM_PAINT:

{

// Call OpenGL drawing code

RenderScene();

// Call function to swap the buffers

SwapBuffers(hDC);

// Validate the newly p ainted client area

ValidateRect(hWnd,NULL);

}

break;

default: // Passes it on if unproccessed

return (DefWindowProc(hWnd, message, wParam, lParam));

} return (0L);

}

The code for the Windows version of the bouncing square will be quite understandable to you if you’ve been following our discussion. Let’s look at a few points that may be of special interest.

Scaling to the Window

In our AUX library-based example in Chapter 3, the AUX library called the registered function ChangeSize whenever the window dimension changed. For our new example, we

OpenGL Super Bible! Page

119

need to trap the WM_SIZE message sent by Windows when the call to ChangeSize occurs.

Now we call ChangeSize ourselves, passing the LOWORD of lParam, which represents the new width of the window, and the HIWORD of lParam, which contains the new height of the window.

// Window is resized. case WM_SIZE:

// Call our function which modifies the clipping

// volume and viewport

ChangeSize(LOWORD(lParam), HIWORD(lParam));

break;

Ticktock, the Idle Clock

Also handled graciously for us by the AUX library was a call to our function IdleFunction.

This function was called whenever the program didn’t have anything better to do (such as draw the scene). We can easily simulate this activity by setting up a Windows timer for our window. The following code:

// Create a timer that fires every millisecond

SetTimer(hWnd,101,1,NULL); which is called when the window is created, sets up a Windows timer for the window. A

WM_TIMER message is sent every millisecond by Windows to the OpenGL window.

Actually, this happens as often as Windows can send the messages— no less than a millisecond apart— and only when there are no other messages in the applications message queue. (See the Windows API Bible, by James L. Conger, published by Waite Group Press for more information on Windows timers.) When the WndProc function receives a

WM_TIMER message, this code is executed: case WM_TIMER:

{

IdleFunction();

InvalidateRect(hWnd,NULL,FALSE);

}

break;

The IdleFunction is identical to the version in BOUNCE2 except that now it doesn’t contain a call to RenderScene(). Instead, the window is repainted by calling InvalidateRect, which causes Windows to post a WM_PAINT message.

Lights, Camera, Action!

Everything else is in place, and now it’s time for action. The OpenGL code to render the scene is placed within the WM_PAINT message handler. This code calls RenderScene

(again, stolen from the BOUNCE2 example), swaps the buffers, and validates the window

(to keep further WM_PAINT messages from coming).

Page

120

OpenGL Super Bible!

case WM_PAINT:

{

// Call OpenGL drawing code

RenderScene();

// Call function to swap the buf fers

SwapBuffers(hDC);

// Validate the newly painted client area

ValidateRect(hWnd,NULL);

}

break;

Here we also find a new function for the Windows GDI, SwapBuffers. This function serves the same purpose the auxSwapBuffers— to move the back buffer of a double-buffered window to the front. The only parameter is the device context. Note that this device context must have a pixel format with the PFD_DOUBLEBUFFER flag set; otherwise, the function fails.

That’s it! You now have a code skeleton into which you can drop any OpenGL rendering procedure you want. It will be neatly maintained in a window that has all the usual Windows properties (moving, resizing, and so on). Furthermore, you can of course use this code to create an OpenGL window as part of a full-fledged application that includes other windows, menus, and so on.

Missing Palette Code

If you compare the code from the GLRECT program listing here with the one on the CD, you will notice two other windows messages that are handled by that code but not by the code listed here. These two messages, WM_QUERYNEWPALETTE and

WM_PALETTECHANGED, handle Windows palette mapping. Another function,

GetOpenGLPalette, creates the palette for us. Palettes are a necessary evil when using a graphics card that supports only 256 or fewer colors. Without this code, we could not get the colors we asked for with glColor, nor even a close approximation when using these particular cards. Palettes and color under Windows constitute a significant topic that is covered in

Chapter 8, where we give it the attention it deserves. This is yet another dirty detail that the

AUX library hid from us!

OpenGL Super Bible! Page

121

Summary

In this chapter you should have gained an appreciation for all the work that goes on behind the scenes when you use the AUX library for your program and window framework. You’ve seen how the concept of rendering contexts was introduced to the Windows GDI so that

OpenGL would know which window into which it was allowed to render. You have also learned how selecting and setting a pixel format prepares the device context before a rendering context can be created for it. In addition, you have seen which Windows messages should be processed to provide the functionality of the AUX library helper functions for window resizing and idle-time animation.

The following Reference Section contains some additional functions not covered in this chapter’s discussion because their use requires some concepts and functionality not yet introduced. You’ll find examples of these functions on the CD, demonstrating all the functions in our References. You are encouraged to explore and modify these examples.

Page

122

Reference Section

OpenGL Super Bible!

ChoosePixelFormat

Purpose

Selects the pixel format closest to that specified by the

PIXELFORMATDESCRIPTOR, and that can be supported by the given device context.

Include File

<wingdi.h>

Syntax int ChoosePixelFormat(HDC hDC, CONST PIXELFORMATDESCRIPTOR *ppfd);

Description

This function is used to determine the best available pixel format for a given device context based on the desired characteristics described in the

PIXELFORMATDESCRIPTOR structure. This returned format index is then used in the SetPixelFormat function.

Parameters

hDC

HDC: The device context for which this function seeks a best-match pixel format.

ppfd

PIXELFORMATDESCRIPTOR: Pointer to a structure that describes the ideal pixel format that is being sought. The entire contents of this structure are not pertinent to its future use. For a complete description of the PIXELFORMATDESCRIPTOR structure, see the DescribePixelFormat function. Here are the relevant members for this function:

nSize WORD: The size of the structure, usually set to sizeof(PIXELFORMATDESCRIPTOR).

nVersion WORD: The version number of this structure, set to 1.

dwFlag

iPixelType

DWORD: A set of flags that specify properties of the pixel buffer.

BYTE: The color mode (RGBA or color index) type.

cColorBits

cAlphaBits

cAccumBits

cDepthBits

cStencilBits

cAuxBuffers

BYTE: The depth of the color buffer.

BYTE: The depth of the alpha buffer.

BYTE: The depth of the accumulation buffer.

BYTE: The depth of the depth buffer.

BYTE: The depth of the stencil buffer.

BYTE: The number of auxiliary buffers (not supported by Microsoft).

OpenGL Super Bible! Page

123

iLayerType BYTE: The layer type (not supported by Microsoft).

Returns

The index of the nearest matching pixel format for the logical format specified, or zero if no suitable pixel format can be found.

Example

This code from the GLRECT example code in this chapter demonstrates a pixel format being selected:

int nPixelFormat;

static PIXELFORMATDESCRIPTOR pfd = {

sizeof(PIXELFORMATDESCRIPTOR), // Size of this structure

1,

};

// Choose a pixel for mat that best matches that described in pfd

nPixelFormat = ChoosePixelFormat(hDC, &pfd);

// Set the pixel format for the device context

SetPixelFormat(hDC, nPixelFormat, &pfd);

See Also

DescribePixelFormat, GetPixelFormat, SetPixelFormat

Page

124

OpenGL Super Bible!

DescribePixelFormat

Purpose

Obtains detailed information about a pixel format.

Include File

<wingdi.h>

Syntax int DescribePixelFormat(HDC hDC, int iPixelFormat, UINT nBytes,

LPPIXELFORMATDESCRIPTOR ppfd);

Description

This function fills the PIXELFORMATDESCRIPTOR structure with information about the pixel format specified for the given device context. It also returns the maximum available pixel format for the device context. If ppfd is NULL, the function still returns the maximum valid pixel format for the device context. Some fields of the PIXELFORMATDESCRIPTOR are not supported by the Microsoft generic implementation of OpenGL, but these values may be supported by individual hardware manufacturers.

Parameters

hDC

HDC: The device context containing the pixel format of interest.

iPixelFormat int: The pixel format of interest for the specified device context.

nBytes

UINT: The size of the structure pointed to by ppfd. If this value is zero, no data will be copied to the buffer. This should be set to sizeof(PIXELFORMATDESCRIPTOR).

ppfd

LPPIXELFORMATDESCRIPTOR: A pointer to the

PIXELFORMATDESCRIPTOR that on return will contain the detailed information about the pixel format of interest. The PIXELFORMATDESCRIPTOR structure is defined as follows:

typedef struct tagPIXELFORMATDESCRIPTOR {

WORD nSize;

WORD nVersion;

DWORD dwFlags;

BYTE iPixelType;

BYTE cColorBits;

BYTE cRedBits;

BYTE cRedShift;

BYTE cGreenBits;

BYTE cGreenShift;

BYTE cBlueBits;

BYTE cBlueShift;

BYTE cAlphaBits;

OpenGL Super Bible! Page

125

BYTE cAlphaShift;

BYTE cAccumBits;

BYTE cAccumRedBits;

BYTE cAccumGreenBits;

BYTE cAccumBlueBits;

BYTE cAccumAlphaBits;

BYTE cDepthBits;

BYTE cStencilBits;

BYTE cAuxBuffers;

BYTE iLayerType;

BYTE bReserved;

DWORD dwLayerMask;

DWORD dwVisibleMask;

DWORD dwDamageMask;

} PIXELFORMATDESCRIPTOR;

nSize contains the size of the structure. It should always be set to sizeof(PIXELFORMATDESCRIPTOR).

nVersion holds the version number of this structure. It should always be set to 1.

dwFlags contains a set of bit flags (Table 4-2) that describe properties of the pixel format.

Except as noted, these flags are not mutually exclusive.

Table 4-2 Flags for the dwFlags member of PIXELFORMATDESCRIPTOR

Flag

PFD_DRAW_TO_WINDOW

PFD_DRAW_TO_BITMAP

PFD_SUPPORT_GDI

PFD_SUPPORT_OPENGL

PFD_GENERIC_FORMAT

PFD_NEED_PALETTE

Description

The buffer is used to draw to a window or device surface such as a printer.

The buffer is used to draw to a memory bitmap.

The buffer supporting GDI drawing. This flag is mutually exclusive with

PFD_DOUBLEBUFFER.

The buffer supporting OpenGL drawing.

The pixel format is a generic implementation

(supported by GDI emulation). If this flag is not set, the pixel format is supported by hardware or a device driver.

The pixel format requires the use of logical palettes.

Used for nongeneric implementations that

Page

126

OpenGL Super Bible!

PFD_DOUBLEBUFFER support only one hardware palette. This function forces the hardware palette to a one-to-one mapping to the logical palette.

The pixel format is double buffered. This flag is mutually exclusive with PFD_SUPPORT_GDI.

PFD_STEREO

The buffer is stereoscopic. This is analogous to front and back buffers in double buffering, only there are left and right buffers. Not supported by

Microsoft’s generic implementation of OpenGL.

When choosing a pixel format, the format may

PFD_DOUBLE_BUFFER_DONTCARE be either single- or double-buffered, without preference.

PFD_STEREO_DONTCARE

When choosing a pixel format, the view may be either stereoscopic or monoscopic, without preference.

iPixelType specifies the type of pixel data. More specifically, it specifies the color selection mode. It may be one of the values in Table 4-3.

Table 4-3 Flag values for iPixelType

Flag Description

PFD_TYPE_RGBA

RGBA color mode. Each pixel color is selected by specifiying the red, blue, green, and alpha components.

PFD_TYPE_COLORINDEX

Color index mode. Each pixel color is selected by an index into a palette (color table).

cColorBits specifies the number of color bitplanes used by the color buffer, excluding the alpha bitplanes in RGBA color mode. In color index mode, it specifies the size of the color buffer.

cRedBits specifies the number of red bitplanes in each RGBA color buffer.

OpenGL Super Bible!

cRedShift specifies the shift count for red bitplanes in each RGBA color buffer. *

Page

127

cGreenBits specifies the number of green bitplanes in each RGBA colorbuffer.

cGreenShift specifies the shift count for green bitplanes in each RGBA color buffer. *

cBlueBits specifies the number of blue bitplanes in each RGBA color buffer.

cBlueShift specifies the shift count for blue bitplanes in each RGBA color buffer. *

cAlphaBits specifies the number of alpha bitplanes in each RGBA color buffer. This is not supported by the Microsoft implementation.

cAlphaShift specifies the shift count for alpha bitplanes in each RGBA color buffer. This is not supported by the Microsoft implementation.

cAccumBits is the total number of bitplanes in the accumulation buffer. See Chapter 15.

cAccumRedBits is the total number of red bitplanes in the accumulation buffer.

cAccumGreenBits is the total number of green bitplanes in the accumulation buffer.

cAccumBlueBits is the total number of blue bitplanes in the accumulation buffer.

cAccumAlphaBits is the total number of alpha bitplanes in the accumulation buffer.

cDepthBits specifies the depth of the depth buffer. See Chapter 15.

cStencilBits specifies the depth of the stencil buffer. See Chapter 15.

cAuxBuffers specifies the number of auxiliary buffers. This is not supported by the

Microsoft implementation.

iLayerType specifies the type of layer. Table 4-4 lists the values defined for this member, but only the PFD_MAIN_PLANE value is supported by the Microsoft implementation.

Page

128

OpenGL Super Bible!

Table 4-4 Flag values for iLayerType

Flag Description

PFD_MAIN_PLANE Layer is the main plane.

PFD_OVERLAY_PLANE Layer is the overlay plane.

PFD_UNDERLAY_PLANE Layer is the underlay plane.

bReserved is reserved and should not be modified.

dwLayerMask is used in conjunction with dwVisibleMask to determine if one layer overlays another. Layers are not supported by the current Microsoft implementation.

dwVisibleMask is used in conjunction with the dwLayerMask to determine if one layer overlays another. Layers are not supported by the current Microsoft implementation.

dwDamageMask indicates when more than one pixel format shares the same frame buffer. If the bitwise AND of the dwDamageMask members of two pixel formats is non-zero, then they share the same frame buffer.

* Chapter 8 explains how this applies to devices with palettes.

Returns

The maximum pixel format supported by the specified device context, or zero on failure.

Example

This example is from the GLRECT sample program on the CD. It queries the pixel format to see if the device context needs a color palette defined.

PIXELFORMATDESCRIPTOR pfd; // Pixel Format Descriptor

int nPixelFormat; // Pixel format index

// Get the pixel format index and retrieve

the pixel format description

nPixelFormat = GetPixelFormat(hDC);

DescribePixelFormat(hDC, nPixelFormat,

OpenGL Super Bible!

sizeof(PIXELFORMATDESCRIPTOR), &pfd);

// Does this pixel format require a palette?

If not, do not create a

// palette and just return NULL

if(!(pfd.dwFlags & PFD_NEED_PALETTE))

retur n NULL;

// Go on to create the palette

See Also

ChoosePixelFormat, GetPixelFormat, SetPixelFormat

Page

129

Page

130

OpenGL Super Bible!

GetPixelFormat

Purpose

Retrieves the index of the pixel format currently selected for the given device context.

Include File

<wingdi.h>

Syntax int GetPixelFormat(HDC hDC);

Description

This function retrieves the selected pixel format for the device context specified. The pixel format index is a 1-based positive value.

Parameters

hDC

HDC: The device context of interest.

Returns

The index of the currently selected pixel format for the given device, or zero on failure.

Example

See the example given for DescribePixelFormat.

See Also

DescribePixelFormat, ChoosePixelFormat, SetPixelFormat

OpenGL Super Bible! Page

131

SetPixelFormat

Purpose

Sets a device context’s pixel format.

Include File

<wingdi.h>

Syntax

BOOL SetPixelFormat(HDC hDC, int nPixelFormat, CONST

PIXELFORMATDESCRIPTOR * ppfd);

Description

This function actually sets the pixel format for a device context. Once the pixel format has been selected for a given device, it cannot be changed. This function must be called before creating an OpenGL rendering context for the device.

Parameters

hDC

HDC: The device context whose pixel format is to be set.

nPixelFormat int: Index of the pixel format to be set.

ppfd

LPPIXELFORMATDESCRIPTOR: A pointer to a PIXELFORMATDESCRIPTOR that contains the logical pixel format descriptor. This structure is used internally to record the logical pixel format specification. Its value does not influence the operation of this function.

Returns

True if the specified pixel format was set for the given device context. False if an error occurs.

Example

See the example given for ChoosePixelFormat.

See Also

DescribePixelFormat, GetPixelFormat, ChoosePixelFormat

Page

132

OpenGL Super Bible!

SwapBuffers

Purpose

Quickly copies the contents of the back buffer of a window to the front buffer

(foreground).

Include File

<wingdi.h>

Syntax

BOOL SwapBuffers(HDC hDC);

Description

When a double-buffered pixel format is chosen, a window has a front (displayed) and back (hidden) image buffer. Drawing commands are sent to the back buffer. This function is used to copy the contents of the hidden back buffer to the displayed front buffer, to support smooth drawing or animation. Note that the buffers are not really swapped. After this command is executed, the contents of the back buffer are undefined.

Parameters

hDC

HDC: Specifies the device context of the window containing the off-screen and onscreen buffers.

Returns

True if the buffers were swapped.

Example

The following sample shows the typical code for a WM_PAINT message. This is where the rendering code is called, and if in double buffered mode, the back buffer is brought forward.

You can see this code in the GLRECT example program from this chapter.

// The painting function. This message sent by Windows

// whenever the screen needs updating.

case WM_PAINT:

{

// Call OpenGL drawing code

RenderScene();

// Call function to swap the buffer s

SwapBuffers(hDC);

// Validate the newly painted client area

ValidateRect(hWnd,NULL);

}

break;

See Also glDrawBuffer

OpenGL Super Bible! Page

133

wglCreateContext

Purpose

Creates a rendering context suitable for drawing on the specified device context.

Include File

<wingdi.h>

Syntax

HGLRC wglCreateContext(HDC hDC);

Description

Creates an OpenGL rendering context suitable for the given Windows device context. The pixel format for the device context should be set before the creation of the rendering context. When an application is finished with the rendering context, it should call wglDeleteContext.

Parameters

hDC

HDC: The device context that will be drawn on by the new rendering context.

Returns

The handle to the new rendering context, or NULL if an error occurs.

Example

The code below shows the beginning of a WM_CREATE message handler. Here, the device context is retrieved for the current window, a pixel format is selected, then the rendering context is created and made current.

case WM_CREATE:

// Store the device context

hDC = GetDC(hWnd);

// Select the pixel format

SetDCPixelFormat(hDC);

// Create the rendering context and make it current

hRC = wglCreateContext(hDC);

wglMakeCurrent(hDC, hRC);

See Also wglDeleteContext, wglGetCurrentContext, wglMakeCurrent

Page

134

OpenGL Super Bible!

wglDeleteContext

Purpose

Deletes a rendering context after it is no longer needed by the application.

Include File

<wingdi.h>

Syntax

BOOL wglDeleteContext(HGLRC hglrc);

Description

Deletes an OpenGL rendering context. This frees any memory and resources held by the context.

Parameters

hglrc

HGLRC: The handle of the rendering context to be deleted.

Returns

True if the rendering context is deleted; false if an error occurs. It is an error for one thread to delete a rendering context that is the current context of another thread.

Example

Example shows the message handler for the destruction of a window. Assuming the rendering context was created when the window was created, this is where you would delete the rendering context. Before you can delete the context, it must be made noncurrent.

// Window is being d estroyed, clean up

case WM_DESTROY:

// Deselect the current rendering context and delete it

wglMakeCurrent(hDC,NULL);

wglDeleteContext(hRC);

// Tell the application to terminate after the window

// is gone.

PostQuitMessage(0);

break;

See Also wglCreateContext, wglGetCurrentContext, wglMakeCurrent

OpenGL Super Bible! Page

135

wglGetCurrentContext

Purpose

Retrieves a handle to the current thread’s OpenGL rendering context.

Include File

<wingdi.h>

Syntax

HGLRC wglGetCurrentContext(void);

Description

Each thread of an application can have its own current OpenGL rendering context.

This function can be used to determine which rendering context is currently active for the calling thread.

Returns

If the calling thread has a current rendering context, this function returns its handle.

If not, the function returns NULL.

Example

See the supplementary example program GLTHREAD in this chapter’s subdirectory on the CD.

See Also wglCreateContext, wglDeleteContext, wglMakeCurrent, wglGetCurrentDC

Page

136

OpenGL Super Bible!

wglGetCurrentDC

Purpose

Gets the Windows device context associated with the current OpenGL rendering context.

Include File

<wingdi.h>

Syntax

HDC wglGetCurrentDC(void);

Description

This function is used to acquire the Windows device context of the window that is associated with the current OpenGL rendering context. Typically used to obtain a

Windows device context to combine OpenGL and GDI drawing functions in a single window.

Returns

If the current thread has a current OpenGL rendering context, this function returns the handle to the Windows device context associated with it. Otherwise, the return value is NULL.

Example

See the supplementary example program GLTHREAD in this chapter’s subdirectory on the CD.

See Also wglGetCurrentContext

OpenGL Super Bible! Page

137

wglGetProcAddress

Purpose

Returns the address of an OpenGL extension function for use with the current rendering context.

Include File

<wingdi.h>

Syntax

PROC wglGetProcAddress(LPCSTR lpszProc);

Description

Extension functions are functions that either are not yet part of the OpenGL standard or are proprietary to a specific vendor implementation of OpenGL, usually adding some platform-specific performance feature. Many extensions are supported by more than one vendor. To use these functions, you must call wglGetProcAddress and specify the name of the extension function exactly. In this way you can also test for the presence of a particular extension. The exact address can vary for different pixel formats, so be careful not to store the address returned and try to use it across rendering contexts, unless you can be certain that the pixel format of both will be the same. You can call glString(GL_EXTENSION) to receive a space-delimited string containing any extensions that may be present (see Chapter 5 for more details).

Parameters

lpszProc

LPCSTR: The name of the extension function. The case and spelling must exactly match that of the desired extension function.

Returns

If the extension function does not exist, the return value is NULL; otherwise, the return is the address of the specified extension function.

Example

The following code segment retrieves the address of the Windows-specific extension function glAddSwapHintRectWIN. This extension allows you to accelerate buffer swapping by telling OpenGL that only certain regions of the window actually need to be copied. This feature is demonstrated in the supplementary example program SWAPHINT in the GL_EXT subdirectory.

// Find out if a particular extensio n is handled

char *szBuffer;

szBuffer = (char *)glString(GL_EXTENSION);

// If it is handled, get the new function's address and call it.

if(strcmp(szBuffer,”GL_WIN_swap_hint”) == 0)

{

Page

138

OpenGL Super Bible!

PROC pSwapHint;

pSwapHint = wglGet CurrentDC(“glAddSwapHintRectWIN”);

// Call the function

pSwapHint(40.0f, 40.0f, 50.0f, 50.2f);

}

else

{

// If not supported, handle some other way…

….

….

}

See Also glGetString

OpenGL Super Bible! Page

139

wglMakeCurrent

Purpose

Makes a given OpenGL rendering context current for the calling thread and associates it with the specified device context.

Include File

<wingdi.h>

Syntax

BOOL wglMakeCurrent(HDC hdc, HGLRC hglrc);

Description

This function makes the specified rendering context the current rendering context for the calling thread. This rendering context is associated with the given Windows device context. The device context need not be the same as that used in the call to wglCreateContext, as long as the pixel format is the same for both and they both exist on the same physical device (not, say, the screen and a printer). Any outstanding OpenGL commands for the previous rendering context are flushed before the new rendering context is made current. This function can also be used to make no rendering context active, by calling it with NULL for the hglrc parameter.

Parameters

hdc

HDC: The device context that will be used for all OpenGL drawing operations performed by the calling thread.

hglrc

HGLRC: The rendering context to make current for the calling thread.

Returns

True on success, or False if an error occurs. If an error occurs, no rendering context will remain current for the calling thread.

Example

See the example for wglCreateContext.

See Also wglCreateContext, wglDeleteContext, wglGetCurrentContext, wglGetCurrentDC

Page

140

OpenGL Super Bible!

wglShareLists

Purpose

Allows multiple rendering contexts to share display lists.

Include File

<wingdi.h>

Syntax

BOOL wglShareLists(HGLRC hRC1, HGLRC hRC2);

Description

A display list is a list of “precompiled” OpenGL commands and functions (see

Chapter 10). Memory is allocated for the storage of display lists within each rendering context. As display lists are created within that rendering context, it has access to its own display list memory. This function allows multiple rendering contexts to share this memory. This is particularly useful when large display lists are used by multiple rendering contexts or threads to save memory. Any number of rendering contexts may share the same memory for display lists. This memory will not be freed until the last rendering context using that space is deleted. When using a shared display list space between threads, display list creation and usage should be synchronized.

Parameters

hRC1

HGLRC: Specifies the rendering context with which to share display list memory.

hRC2

HGLRC: Specifies the rendering context that will share the display list memory with hRC1. No display lists for hRC2 should be created until after its display list memory is shared.

Returns

True if the display list space is shared; False if they are not.

Example

See the tank/robot simulator directory (\TANK) from Chapter 10’s subdirectory on the CD. This program uses multiple windows to produce various views of the same scene simultaneously. To save memory, the rendering contexts for these windows all share the same display list memory space, by using this function.

See Also glIsList, glNewList, glCallList, glCallLists, glListBase, glDeleteLists, glEndList, glGenLists

OpenGL Super Bible! Page

141

wglUseFontBitmaps

Purpose

Creates a set of OpenGL display list bitmaps for the currently selected GDI font.

Include File

<wingdi.h>

Syntax

BOOL wglUseFontBitmaps(HDC hDC, DWORD dwFirst, DWORD dwCount,

DWORD dwListBase);

Description

This function takes the font currently selected in the device context specified by hDC, and creates a bitmap display list for each character, starting at dwFirst and running for dwCount characters. The display lists are created in the currently selected rendering context and are identified by numbers starting at dwListBase.

Typically this is used to draw text into an OpenGL double-buffered scene, since the

Windows GDI will not allow operations to the back buffer of a double-buffered window. This function is also used to label OpenGL objects on screen.

Parameters

hDC

HDC: The Windows GDI device context from which the font definition is to be derived. The font used can be changed by creating and selecting the desired font into the device context.

dwFirst

DWORD: The ASCII value of the first character in the font to use for building the display lists.

dwCount

DWORD: The consecutive number of characters in the font to use succeeding the character specified by dwFirst.

dwListBase

DWORD: The display list base value to use for the first display list character.

Returns

True if the display lists could be created, False otherwise.

Example

The code below shows how to create a set of display lists for the ASCII character set. It is then used to display the text “OpenGL” at the current raster position.

// Create the font outlines based on the font for this device

// context

//

wglUseFontBitmaps(hDC, // Device Context

0, // First character

Page

142

OpenGL Super Bible!

255, // Last character

1000); // Display list base number

// Draw the string

glListBase(1000);

glPushMatrix();

glCallLists (3, GL_UNSIGNED_BYTE, "OpenGL");

glPopMatrix();

See Also wglUseFontOutlines, glIsList, glNewList, glCallList, glCallLists, glListBase, glDeleteLists, glEndList, glGenLists

OpenGL Super Bible! Page

143

wglUseFontOutlines

Purpose

Creates a set of OpenGL 3D display lists for the currently selected GDI font.

Include File

<wingdi.h>

Syntax

BOOL wglUseFontOutlines( HDC hdc, DWORD first, DWORD count, DWORD listBase, FLOAT deviation, FLOAT extrusion, int format,

LPGLYPHMETRICSFLOAT lpgmf );

Description

This function takes the TrueType font currently selected into the GDI device context

hDC, and creates a 3D outline for count characters starting at first. The display lists are numbered starting at the value listBase. The outline may be composed of line segments or polygons as specified by the format parameter. The character cell used for the font extends 1.0 unit length along the x- and y-axis. The parameter extrusion supplies the length along the negative z-axis on which the character is extruded. The

deviation is an amount 0 or greater that determines the chordal deviation from the original font outline. This function will only work with TrueType fonts. Additional character data is supplied in the lpgmf array of GLYPHMETRICSFLOAT structures.

Parameters

hc

HDC: Device context of the font.

first

DWORD: First character in the font to be turned into a display list.

count

DWORD: Number of characters in the font to be turned into display lists.

listBase

DWORD: The display list base value to use for the first display list character.

deviation

FLOAT: The maximum chordal deviation from the true outlines.

extrusion

FLOAT: Extrusion value in the negative z direction.

format int: Specifies whether the characters should be composed of line segments or polygons in the display lists. May be one of the following values:

WGL_FONT_LINES Use line segments to compose character.

WGL_FONT_POLYGONS Use polygons to compose character.

lpgmf

Page

144

OpenGL Super Bible!

LPGLYPHMETRICSFLOAT: Address of an array to receive glyphs metric data.

Each array element is filled with data pertaining to its character’s display list. Each is defined as follows:

typedef struct _GLYPHMETRICSFLOAT { // gmf

FLOAT gmfBlackBoxX;

FLOAT gmfBlackBoxY;

POINTFLOAT gmfptGlyphOrigin;

FLOAT gmfCellIncX;

FLOAT gmfCellIncY;

} GLYPHMETRICSFLOAT;

Members

gmfBlackBoxX

Width of the smallest rectangle that completely encloses the character.

gmfBlackBoxY

Height of the smallest rectangle that completely encloses the character.

gmfptGlyphOrigin

The x and y coordinates of the upper-left corner of the rectangle that completely encloses the character. The POINTFLOAT structure is defined as typedef struct _POINTFLOAT { // ptf

FLOAT x; // The horizontal coordinate of a point

FLOAT y; // The vertical coordinate of a point

} POINTFLOAT;

gmfCellIncX

The horizontal distance from the origin of the current character cell to the origin of the next character cell.

gmfCellIncY

The vertical distance from the origin of the current character cell to the origin of the next character cell.

Returns

True if the display lists could be created; False otherwise.

Example

The following code can be found in glcode.c in either the MFCGL example program in

Chapter 21, or glcode.c in the OWLGL example program in Chapter 22. These examples show how a font defined in a LOGFONT structure is created and selected into the device context, where it is then used to create a set of display lists that represent the entire ASCII character set for that font.

hDC = (HDC)pData;

hFont = CreateFontIndirect(&logfont);

SelectObject (hDC, hFont);

// create display lists for glyphs 0 through 255 with 0.1

// extrusion and default deviation. The display list numbering

// starts at 1000 (it could be any number).

wglUseFontOutlines(hDC, 0, 255, 1000, 0.0f, 0.3f,

WGL_FONT_POLYGONS, agmf);

OpenGL Super Bible!

DeleteObject(hFont);

See Also wglUseFontBitmaps, glIsList, glNewList, glCallList, glCallLists, glListBase, glDeleteLists, glEndList, glGenLists

Page

145

Page

146

OpenGL Super Bible!

Chapter 5

Errors and Other Messages from OpenGL

What you’ll learn in this chapter:

How To… Functions You’ll Use

Get the error code of the last OpenGL error glGetError

Convert an error code into a textual description of the problem gluErrorString

Get version and vendor information from OpenGL glGetString, gluGetString

Make implementation-dependent performance hints glHint

In any project, we want to write robust and well-behaved programs that respond politely to their users and have some amount of flexibility. Graphical programs that use OpenGL are no exception. Now we don’t want to turn this chapter into a course on software engineering and quality assurance, but if you want your programs to run smoothly, you need to account for errors and unexpected circumstances. OpenGL provides you with two different methods of performing an occasional sanity check in your code.

The first of OpenGL’s control mechanisms is error detection. If an error occurs, you need to be able to stop and say “Hey, an error occurred, and this is what it was.” This is the only way in code that will let you know your rendering of the Space Station Freedom is now the

Space Station Melted Crayola.

The second OpenGL sanity check is a simple solution to a common problem— something of which every programmer, good and bad, is sometimes guilty. Let’s say you know that

Microsoft’s implementation of the Generic GDI version of OpenGL lets you get away with drawing in a double-buffered window using GDI, as long as you draw in the front buffer.

Then you buy one of those fancy, warp drive accelerator cards, and the vendor throws in a new rendering engine. Worse, suppose your customer buys one of these cards. Will your code still work? Will it eat your image and spit out psychedelic rainbows? You may have a good reason for using such optimization tricks; it’s certainly faster to use TextOut than to call wglUseFontBitmaps. (Of course, if you do have this fancy-dancy video card, TextOut may not be the fastest road to Rome anymore anyhow.) The simple way to guard against this type of catastrophe is to check the version and vendor of your OpenGL library. If your implementation is the generic Microsoft, cheat to your heart’s content; otherwise, better stick to the documented way of doing things.

In summary, if you want to take advantage of vendor or version specific behavior, you should check in your code to make sure that the vendor and version are the same as that you

OpenGL Super Bible! Page

147

designed for. Later, we’ll discuss OpenGL Hints, which allow you to instruct the rendering engine to make tradeoffs for the sake of speed, or image quality. This would be the preferred means of using vendor specific optimizations.

When Bad Things Happen to Good Code

Internally, OpenGL maintains a set of six error status flags. Each flag represents a different type of error. Whenever one of these errors occurs, the corresponding flag is set. To see if any of these flags is set, call glGetError:

GLenum glGetError(void);

The glGetError function returns one of the values listed in Table 5-1, located in the

Reference Section under glGetError. The GLU library defines three errors of its own, but these errors map exactly to two flags already present. If more than one of these flags is set, glGetError still returns only one distinct value. This value is then cleared when glGetError is called, and recalling glGetError will return either another error flag or GL_NO_ERROR.

Usually, you will want to call glGetError in a loop that continues checking for error flags until the return value is GL_NO_ERROR.

Listing 5-1 is a section of code from the GLTELL example that loops, checking for error messages until there are none. Notice that the error string is placed in a control in a dialog box. You can see this in the output from the GLTELL program in Figure 5-1.

Figure 5-1 An About box describing the GL and GLU libraries, along with any recent errors

Page

148

OpenGL Super Bible!

Listing 5-1 Code sample that retrieves errors until there are no more errors

// Display any recent error messages

i = 0;

do {

glError = glGetError();

SetDlgItemText(hDlg,IDC_ERROR1+i,gluErrorString(glError));

i++;

}

while(i < 6 && glError != GL_NO_ERROR);

You can use another function in the GLU library, gluErrorString, to get a string describing the error flag: const GLubyte* gluErrorString(GLenum errorCode);

This function takes as its only argument the error flag (returned from glGetError, or handcoded), and returns a static string describing that error. For example, the error flag

GL_INVALID_ENUM returns the string invalid enumerant

You can take some peace of mind from the assurance that if an error is caused by an invalid call to an OpenGL function or command, that function or command is ignored. OpenGL may not behave as you intended, but it will continue to run. The only exception to this is

GL_OUT_OF_MEMORY (or GLU_OUT_OF_MEMORY, which has the same value anyway). When this error occurs, the state of OpenGL is undefined— indeed, the state of your program may be undefined! With this error, it’s best to clean up as gracefully as possible and terminate the program.

Who Am I and What Can I Do?

As mentioned in the introduction of this section, there are times when you want to take advantage of a known behavior in a particular implementation. If you know for a fact that you are using Microsoft’s rendering engine, and the version number is the same as what you tested your program with, it’s not unusual that you’ll want to try some trick to enhance your program’s performance. To be sure that the functionality you’re exploiting exists on the machine running your program, you need a way to query OpenGL for the vendor and version number of the rendering engine. Both the GL library and GLU library can return version and vendor specific information about themselves.

For the GL library, you can call glGetString: const GLubyte *glGetString(GLenu m name);

OpenGL Super Bible! Page

149

This function returns a static string describing the requested aspect of the GL library. The valid parameter values are listed under glGetString in the Reference Section, along with the aspect of the GL library they represent.

The GLU library has a corresponding function, gluGetString: const GLubyte *gluGetString(GLenum name);

It returns a string describing the requested aspect of the GLU library. The valid parameters are listed under gluGetString in the Reference Section, along with the aspect of the GLU library they represent.

Listing 5-2 is a section of code from the GLTELL sample program, a modified version of our faithful bouncing square. This time we’ve added a menu and an About box. The About box, shown earlier in Figure 5-1, displays information about the vendor and version of both the GL and GLU libraries. In addition, we’ve added an error to the code to produce a listing of error messages.

Listing 5-2 Example usage of glGetString an gluGetString

// glGetString demo

SetDlgItemText( hDlg,IDC_OPENGL_VENDOR,glGetString(GL_VENDOR));

SetDlgItemText(hDlg,IDC_OPENGL_RENDERER,glGetString(GL_RENDERER));

SetDlgItemText(hDlg,IDC_OPENGL_VERSION,glGetString(GL_VERSION));

SetDlgItemText(hDlg,IDC_OPENGL_EXTENSIONS,glGetString(GL_EXTENSIONS ));

// gluGetString demo

SetDlgItemText(hDlg,IDC_GLU_VERSION,gluGetString(GLU_VERSION));

SetDlgItemText(hDlg,IDC_GLU_EXTENSIONS,gluGetString(GLU_EXTENSIONS));

Extensions to OpenGL

Take special note of the GL_EXTENSIONS and/or GLU_EXTENSIONS flags. Some vendors (including Microsoft, with the latest versions of OpenGL) may add extensions to

OpenGL that offer vendor-specific optimizations, or popular OpenGL extensions that aren’t yet part of the standard. These features can enhance your performance considerably. If you make use of these extension functions, however, you must test for the presence of the extensions (using GL_EXTENSIONS); and if they are not present, you must implement the feature by some other means.

The list of extensions returned will contain spaces between each entry. You will have to parse the string yourself to test for the presence of a particular extension library. For more information on OpenGL extensions, see the wglGetProcAddress function (Chapter 4), or

Page

150

OpenGL Super Bible!

your specific vendor’s documentation. The Microsoft extensions are discussed and demonstrated in Appendix A.

Get a Clue with glHint

We have mentioned taking advantage of known anomalies in the OpenGL libraries. You can exploit other vendor-specific behaviors, as well. For one thing, you may want to perform renderings as quickly as possible on a generic implementation, but switch to a more accurate view for hardware-assisted implementations. Even without the vendor dependencies, you may simply want OpenGL to be a little less picky for the sake of speed— or to be more fastidious and produce a better image, no matter how long it takes.

The function glHint allows you to specify certain preferences of quality or speed for different types of operations. The function is defined as follows: void glHint(GLenum target, GLenum mode );

The target parameter allows you to specify types of behavior you want to modify. These values, listed under glHint in the Reference Section, include hints for fog and anti-aliasing accuracy. The mode parameter tells OpenGL what you care most about— fastest render time and nicest output, for instance— or that you don’t care. An example use might be rendering into a small preview window with lower accuracy to get a faster preview image, saving the higher accuracy and qualities for final output. Enumerated values for mode are also listed under glHint in the Reference Section.

For a demonstration of these settings on various images, see the supplementary sample program WINHINT in this chapter’s subdirectory on the CD.

Bear in mind that not all implementations are required to support glHint, other than accepting input and not generating an error. This means your version of OpenGL may ignore any or all of these requests.

Summary

Even in an imperfect world, we can at least check for error conditions and possibly take action based on them. We can also determine vender and version information so that we can take advantage of known capabilities or watch out for known deficiencies. This chapter has shown you how to marshal your forces against these problems. You’ve also seen how you can ask OpenGL to prefer speed or quality in some types of operations. Again, this depends on the vendor and implementation details of your version of OpenGL.

OpenGL Super Bible! Page

151

Reference Section glGetError

Purpose

Returns information about the current error state.

Include File

<gl.h>

Syntax

GLenum glGetError(void);

Description

OpenGL maintains five error flags, listed in Table 5-1. When an error flag is set, it remains set until glGetError is called, at which time it will be set to

GL_NO_ERROR. Multiple flags may be set simultaneously, in which case glGetError must be called again to clear any remaining errors. Generally, it is a good idea to call glGetError in a loop to ensure that all error flags have been cleared. If glGetError is called between glBegin and glEnd statements, the

GL_INVALID_OPERATION flag is set.

Returns

One of the error flags in Table 5-1. In all cases except GL_OUT_OF_MEMORY, the offending command is ignored and the condition of the OpenGL state variables, buffers, etc., is not affected. In the case of GL_OUT_OF_MEMORY, the state of

OpenGL is undefined.

Example

See the GLTELL sample from Listing 5-1.

See Also gluErrorString

Table 5-1 Valid error return codes from glGetError

Value Meaning

GL_NO_ERROR

GL_INVALID_ENUM

No errors have occurred.

GLU_INVALID_ENUM

An invalid value was specified for an enumerated argument.

GL_INVALID_VALUE

GLU_INVALID_VALUE A numeric argument was out of range.

GL_INVALID_OPERATION

An operation was attempted that is not allowed in the current state.

GL_STACK_OVERFLOW

A command was attempted that would have resulted in a stack overflow.

Page

152

OpenGL Super Bible!

GL_STACK_UNDERFLOW

A command was attempted that would have resulted in a stack underflow.

GL_OUT_OF_MEMORY

GLU_OUT_OF_MEMORY

There is insufficient memory to execute the requested command.

OpenGL Super Bible! Page

153

glGetString

Purpose

Returns a string describing some aspect of the OpenGL implementation.

Include File

<gl.h>

Syntax const GLubyte *glGetString(GLenum name);

Description

This function returns a string describing some aspect of the current OpenGL implementation. This string is statically defined, and the return address cannot be modified.

Parameters

name

GLenum: Identifies the aspect of the OpenGL implementation to describe. This may be one of the following values:

GL_VENDOR

Returns the name of the company responsible for this implementation.

GL_RENDERER

GL_VERSION

Returns the name of the renderer. This can vary with specific hardware configurations. GDI Generic specifies unassisted software emulation of OpenGL.

Returns the version number of this implementation.

GL_EXTENSIONS

Returns a list of supported extensions for this version and implementation. Each entry in the list is separated by a space.

Returns

A character string describing the requested aspect, or NULL if an invalid identifier is used.

Example

See the GLTELL sample from Listing 5-2.

See Also gluGetString

Page

154

OpenGL Super Bible!

glHint

Purpose

Allows the programmer to specify implementation-dependent performance hints.

Include File

<gl.h>

Syntax void glHint(GLenum target, GLenum mode);

Description

Certain aspects of OpenGL behavior are open to interpretation on some implementations. This function allows some aspects to be controlled with performance hints that request optimization for speed or fidelity. There is no requirement that the glHint has any effect, and may be ignored for some implementations.

Parameters

target

GLenum: Indicates the behavior to be controlled. This may be any of the following values:

GL_FOG_HINT

Influences accuracy of fog calculations

GL_LINE_SMOOTH_HINT

Influences quality of anti-aliased lines.

GL_PERSPECTIVE_CORRECTION_HINT

Influences quality of color and texture interpolation.

GL_POINT_SMOOTH_HINT

Influences quality of anti-aliased points.

GL_POLYGON_SMOOTH_HINT

Influences quality of anti-aliased polygons.

mode

GLenum: Indicates the desired optimized behavior. This may be any of the following values:

GL_FASTEST The most efficient or quickest method should be used.

GL_NICEST

The most accurate or highest quality method should be used.

GL_DONT_CARE No preference on the method used.

Returns

None.

Example

OpenGL Super Bible! Page

155

The following code is found in the WINHINT supplementary sample program. It tells OpenGL that it should render anti-aliased lines as quickly as possible, even if it has to sacrifice the image quality.

glHint(GL_LINE_SMOOTH_HINT, GL_FASTEST);

Page

156

OpenGL Super Bible!

gluErrorString

Purpose

Retrieves a string that describes a particular error code.

Include File

<glu.h>

Syntax const GLubyte* gluErrorString(GLenum errorCode);

Description

This function returns a string describing error code specified. This string is statically defined, and the return address cannot be modified. The returned string is ANSI. To return ANSI or UNICODE depending on the environment, call the macro glErrorStringWIN.

Parameters

errorCode

GLenum: The error code to be described in the return string. Any of the codes in

Table5-1 may be used.

Returns

A string describing the error code specified.

Example

See the GLTELL sample from Listing 5-2.

See Also glGetError

OpenGL Super Bible! Page

157

gluGetString

Purpose

Returns the version and extension information about the GLU library.

Include File

<glu.h>

Syntax const GLubyte *gluGetString(GLenum name);

Description

This function returns a string describing either the version or extension information about the GLU library. This string is statically defined, and the return address cannot be modified.

Parameters

name

GLenum: Identifies the aspect of the GLU library to describe. This may be one of the following values:

GLU_VERSION

Returns the version information for the GLU Library.

The format of the return string is:

<version number><space><vendor information>

GLU_EXTENSIONS

Returns a list of supported extensions for this version of the GLU Library. Each entry in the list is separated by a space.

Returns

A character string describing the requested aspect, or NULL if an invalid identifier is used.

Example

See the GLTELL sample from Listing 5-2.

See Also glGetString

Page

158

OpenGL Super Bible!

Part II

Using OpenGL

It seems that every programming language class in college started with that same goofy

“How many miles per gallon did you get on the way to New York” example program. First you needed to learn to use the terminal, then the editor, compiler, and linker, how the programs were structured, and finally some language syntax. Unfortunately, we must all learn to crawl before we can walk, and learning OpenGL is no exception.

Part I of this book introduced OpenGL, the hows and whys of 3D, and the format of

OpenGL functions. Then we started gluing this to the Windows API, building Windowsbased programs that used OpenGL to paint in the client area. We learned how to look for errors, how to interpret them, and how to make sure we don’t take advantage of features that don’t exist!

Now it’s time to graduate from our baby walkers and start stumbling across the room. First, in Chapter 6, we’ll cover all the OpenGL drawing primitives. You’ll use these building blocks to make larger and more complex objects. Next you’ll find out about all the things you can do in 3D space with your newfound object-building tools: translation, rotation, and other coordinate transformation goodies. Walking with more confidence, you’ll be ready for

Chapters 8 and 9, which give you color, shading, and lighting for photo-realistic effects. The remaining chapters offer advanced object-manipulation tools, techniques for juggling images and texture maps with ease, and some more specialized 3D object primitives.

When you’re done with Part II, you’ll be ready for your first 100-yard dash! By the end of the book, the Olympics!

Be sure and follow along with the tank/robot simulation development that starts in this section of the book. This special sample program won’t be discussed in the chapters ahead, and can only be found on the CD, where the simulation will be enhanced with that chapter’s techniques and functions. The readme.txt file for each step discusses the enhancements along the way.

Anybody else tired of bouncing squares? Read on! Now we’re into the good stuff!

OpenGL Super Bible!

Chapter 6

Drawing in 3D: Lines, Points, and Polygons

What you’ll learn in this chapter:

How To… Functions You’ll Use

Page

159

Draw points, lines, and shapes

Set shape outlines to wireframe or solid objects

Set point sizes for drawing

Set line drawing width

Perform hidden surface removal

Set patterns for broken lines

Set polygon fill patterns glBegin/glEnd/glVertex glPolygonMode glPointSize glLineWidth glCullFace glLineStipple glPolygonStipple

If you’ve ever had a chemistry class (and probably even if you haven’t), you know that all matter is made up of atoms, and that all atoms consist of only three things: protons, neutrons, and electrons. All the materials and substances you have ever come into contact with— from the petals of a rose to the sand on the beach— are just different arrangements of these three fundamental building blocks. Although this is a little oversimplified for most anyone beyond the third or fourth grade, it demonstrates a powerful principle: With just a few simple building blocks, you can create highly complex and beautiful structures.

The connection is fairly obvious. Objects and scenes that you create with OpenGL are also made up of smaller, simpler shapes, arranged and combined in various and unique ways. In this chapter we will explore these building blocks of 3D objects, called primitives. All primitives in OpenGL are one- or two-dimensional objects, ranging from single points to lines and complex polygons. In this chapter you will learn everything you need to know in order to draw objects in three dimensions from these simpler shapes.

Drawing Points in 3D

When you first learned to draw any kind of graphics on any computer system, you usually started with pixels. A pixel is the smallest element on your computer monitor, and on color systems that pixel can be any one of many available colors. This is computer graphics at its simplest: Draw a point somewhere on the screen, and make it a specific color. Then build on this simple concept, using your favorite computer language to produce lines, polygons, circles, and other shapes and graphics. Perhaps even a GUI…

Page

160

OpenGL Super Bible!

With OpenGL, however, drawing on the computer screen is fundamentally different. You’re not concerned with physical screen coordinates and pixels, but rather positional coordinates in your viewing volume. You let OpenGL worry about how to get your points, lines, and everything else translated from your established 3D space to the 2D image made by your computer screen.

This chapter and the next cover the most fundamental concepts of OpenGL or any 3D graphics toolkit. In the upcoming chapter, we’ll go into substantial detail about how this transformation from 3D space to the 2D landscape of your computer monitor takes place, as well as how to manipulate (rotate, translate, and scale) your objects. For now, we shall take this ability for granted in order to focus on plotting and drawing in a 3D coordinate system.

This may seem backwards, but if you first know how to draw something, and then worry about all the ways to manipulate your drawings, the material coming up in Chapter 7 will be more interesting and easier to learn. Once you have a solid understanding of graphics primitives and coordinate transformations, you will be able to quickly master any 3D graphics language or API.

Setting Up a 3D Canvas

Figure 6-1 shows a simple viewing volume that we will use for the examples in this chapter.

The area enclosed by this volume is a Cartesian coordinate space that ranges from –100 to

+100 on all three axes, x, y, and z. (For a review of Cartesian coordinates, see Chapter 2.)

Think of this viewing volume as your three-dimensional canvas on which you will be drawing with OpenGL commands and functions.

Figure 6-1 Cartesian viewing volume measuring 100 x 100 x 100

OpenGL Super Bible! Page

161

We established this volume with a call to glOrtho(), much as we did for others in the previous chapters. Listing 6-1 shows the code for our ChangeSize() function that gets called when the window is sized (including when it is first created). This code looks a little different from that in previous chapters, and you’ll notice some unfamiliar functions

(glMatrixMode, glLoadIdentity). We’ll spend more time on these in Chapter 7, exploring their operation in more detail.

Listing 6-1 Code to establish the viewing volume in Figure 6-1

// Change viewing volume and viewport. Called when window is resized void ChangeSize(GLsizei w, GLsizei h)

{

GLfloat nRange = 100.0f;

// Prevent a divide by zero

if(h == 0)

h = 1;

// Set Viewport to window dimensions

glViewport(0, 0, w, h);

// Reset projection matrix stack

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

// Establish clipping vo lume (left, right, bottom, top, near, far)

if (w <= h)

glOrtho ( -nRange, nRange, -nRange*h/w, nRange*h/w,

-nRange,nRange);

else

glOrtho ( -nRange*w/h, nRange*w/h, -nRange, nRange,

-nRange,nRange);

// Reset Model view matrix stack

glMatrixMode(GL_MODELVIEW);

glLoadIdentity();

}

Why the Cart Before the Horse

Look at any of the source code of this chapter, and you’ll notice some new functions in the

RenderScene() functions: glRotate(), glPushMatrix(), and glPopMatrix(). Though they’re covered in more detail in Chapter 7, we’re introducing them now. That’s because they implement some important features that we wanted you to have as soon as possible. These functions let you plot and draw in 3D, and help you easily visualize your drawing from different angles. All of this chapter’s sample programs employ the arrow keys for rotating the drawing around the x- and y-axes. Look at any 3D drawing dead-on (straight down the zaxis) and it may still look two-dimensional. But when you can spin the drawings around in space, it’s much easier to see the effects of what you’re drawing.

There is a lot to learn about drawing in 3D, and in this chapter we want you to focus on that.

By changing only the drawing code for any of the examples that follow, you can start experimenting right away with 3D drawing and still get interesting results. Later, you’ll learn how to manipulate drawings using the other functions.

Page

162

A 3D Point: The Vertex

OpenGL Super Bible!

To specify a drawing point in this 3D “palette,” we use the OpenGL function glVertex— without a doubt the most used function in all of the OpenGL API. This is the “lowest common denominator” of all the OpenGL primitives: a single point in space. The glVertex function can take from two to four parameters of any numerical type, from bytes to doubles, subject to the naming conventions discussed in Chapter 3.

The following single line of code specifies a point in our coordinate system located 50 units along the x-axis, 50 units along the y-axis, and 0 units out the z-axis: glVertex3f(50.0f, 50.0f, 0.0f);

This point is illustrated in Figure 6-2. Here we chose to represent the coordinates as floating point values, as we shall do for the remainder of the book. Also, the form of glVertex() that we have used takes three arguments for the x, y, and z coordinate values, respectively.

Figure 6-2 The point (50,50,0) as specified by glVertex3f(50.0f, 50.0f, 0.0f)

Two other forms of glVertex take two and four arguments, respectively. We could represent the same point in Figure 6-2 with this code: glVertex2f(50.0f, 50.0f);

This form of glVertex takes only two arguments that specify the x and y values, and assumes the z coordinate to be 0.0 always. The form of glVertex taking four arguments, glVertex4, uses a fourth coordinate value w, which is used for scaling purposes. You will learn more about this in Chapter 7 when we spend more time exploring coordinate transformations.

OpenGL Super Bible! Page

163

Draw Something!

Now we have a way of specifying a point in space to OpenGL. What can we make of it, and how do we tell OpenGL what to do with it? Is this vertex a point that should just be plotted?

Is it the endpoint of a line, or the corner of a cube? The geometric definition of a vertex is not just a point in space, but rather the point at which an intersection of two lines or curves

occurs. This is the essence of primitives.

A primitive is simply the interpretation of a set or list of vertices into some shape drawn on the screen. There are ten primitives in OpenGL, from a simple point drawn in space to a closed polygon of any number of sides. You use the glBegin command to tell OpenGL to begin interpreting a list of vertices as a particular primitive. You then end the list of vertices for that primitive with the glEnd command. Kind of intuitive, don’t you think?

Drawing Points

Let’s begin with the first and simplest of primitives: points. Look at the following code: glBegin(GL_POINTS); // Se lect points as the primitive

glVertex3f(0.0f, 0.0f, 0.0f); // Specify a point

glVertex3f(50.0f, 50.0f, 50.0f); // Specify another point glEnd(); // Done drawing points

The argument to glBegin, GL_POINTS, tells OpenGL that the following vertices are to be interpreted and drawn as points. Two vertices are listed here, which translates to two specific points, both of which would be drawn.

This brings up an important point about glBegin and glEnd: You can list multiple primitives between calls as long as they are for the same primitive type. In this way, with a single glBegin/glEnd sequence you can include as many primitives as you like.

This next code segment is very wasteful and will execute more slowly than the preceding code: glBegin(GL_POINTS); // Specify point drawing

glVertex3f(0.0f, 0.0f, 0.0f); glEnd(); glBegin(GL_POINTS); // Specify another point

glVertex3f(50.0f, 50.0f, 50.0f); glEnd();

Page

164

OpenGL Super Bible!

Indenting Your Code

In the foregoing examples, did you notice the indenting style used for the calls to glVertex()?

This convention is used by most OpenGL programmers to make the code easier to read. It is not required, but it does make it easier to find where primitives start and stop.

Our First Example

The code shown in Listing 6-2 draws some points in our 3D environment. It uses some simple trigonometry to draw a series of points that form a corkscrew path up the z-axis. This code is from the POINTS program, which is on the CD in the subdirectory for this chapter.

All of the example programs use the framework we established in Chapters 4 and 5. Notice that in the SetupRC() function we are setting the current drawing color to green.

Listing 6-2 Rendering code to produce a spring-shaped path of points

// Define a constant for the value of PI

#define GL_PI 3.1415f

// This function does any needed initialization on the rendering

// context. void SetupRC()

{

// Black background

glClearColor(0.0f, 0.0f, 0 .0f, 1.0f );

// Set drawing color to green

glColor3f(0.0f, 1.0f, 0.0f);

}

// Called to draw scene void RenderScene(void)

{

GLfloat x,y,z,angle; // Storage for coordinates and angles

// Clear the window wit h current clearing color

glClear(GL_COLOR_BUFFER_BIT);

// Save matrix state and do the rotation

glPushMatrix();

glRotatef(xRot, 1.0f, 0.0f, 0.0f);

glRotatef(yRot, 0.0f, 1.0f, 0.0f);

// Call only once for al l remaining points

glBegin(GL_POINTS);

z = -50.0f;

for(angle = 0.0f; angle <= (2.0f*GL_PI)*3.0f; angle += 0.1f)

OpenGL Super Bible! Page

{

x = 50.0f*sin(angle);

y = 50.0f*cos(angle);

// Spe cify the point and move the Z value up a little

glVertex3f(x, y, z);

z += 0.5f;

}

// Done drawing points

glEnd();

// Restore transformations

glPopMatrix();

// Flush drawing commands

glFlush();

}

165

Only the code between calls to glBegin and glEnd is important for our purpose in this and the other examples for this chapter. This code calculates the x and y coordinates for an angle that spins between 0º and 360º three times. (We express this programmatically in radians rather than degrees; if you don’t know trigonometry, you can take our word for it. If you’re interested, see the box, “The Trigonometry of Radians/Degrees.” Each time a point is drawn, the z value is increased slightly. When this program is run, all you will see is a circle of points, because you are initially looking directly down the z-axis. To better see the effect, use the arrow keys to spin the drawing around the x- and y-axes. This is illustrated in Figure

6-3.

Figure 6-3 Output from the POINTS sample program

Page

166

OpenGL Super Bible!

One Thing at a Time

Again, don’t get too distracted by the functions in this sample that we haven’t covered yet

(glPushMatrix, glPopMatrix, and glRotate). These functions are used to rotate the image around so you can better see the positioning of the points as they are drawn in 3D space. We will be covering these in some detail in Chapter 7. If we hadn’t used these features now, you wouldn’t be able to see the effects of your 3D drawings, and this and the following sample programs wouldn’t be very interesting to look at. For the rest of the sample code in this chapter, we will only be showing the code that includes the glBegin and glEnd statements.

The Trigonometry of Radians/Degrees

The figure in this box shows a circle drawn in the xy plane. A line segment from the origin

(0,0) to any point on the circle will make an angle (a) with the x-axis. For any given angle, the trigonometric functions Sine and Cosine will return the x and y values of the point on the circle. By stepping a variable that represents the angle all the way around the origin, we can calculate all the points on the circle. Note that the C runtime functions sin() and cos() accept angle values measured in radians instead of degrees. There are 2*PI radians in a circle, where

PI is a nonrational number that is approximately 3.1415 (nonrational means there are an infinite number of values past the decimal point).

OpenGL Super Bible! Page

167

Setting the Point Size

When you draw a single point, the size of the point is one pixel by default. You can change this with the function glPointSize. void glPointSize(GLfloat size);

The glPointSize function takes a single parameter that specifies the approximate diameter in pixels of the point drawn. Not all point sizes are supported, however, and you should check to make sure the point size you specify is available. Use the following code to get the range of point sizes, and the smallest interval between them:

GLfloat sizes[2]; // Store supp orted point size range

GLfloat step; // Store supported point size increments

// Get supported point size range and step size glGetFloatv(GL_POINT_SIZE_RANGE,sizes); glGetFloatv(GL_POINT_SIZE_GRANULARITY,&step);

Here the sizes array will contain two elements that contain the smallest and the largest valid value for glPointsize. In addition, the variable step will hold the smallest step size allowable between the point sizes. The OpenGL specification only requires that one point size, 1.0, be supported. The Microsoft implementation of OpenGL allows for point sizes from 0.5 to

10.0, with 0.125 the smallest step size. Specifying a size out of range will not be interpreted as an error. Instead, the largest or smallest supported size will be used, whichever is closest to the value specified.

OpenGL State Variables

OpenGL maintains the state of many of its internal variables and settings. This collection of settings is called the OpenGL State Machine. The State Machine can be queried to determine the state of any of its variables and settings. Any feature or capability you enable or disable with glEnable/glDisable, as well as numeric settings set with glSet, can be queried with the many variations of glGet. Chapter 14 explores the OpenGL State Machine more completely.

Let’s look at a sample that makes use of these new functions. The code shown in Listing 6-3 produces the same spiral shape as our first example, but this time the point sizes are gradually increased from the smallest valid size to the largest valid size. This example is from the program POINTSZ in the CD subdirectory for this chapter. The output from

POINTSZ is shown in Figure 6-4.

Page

168

OpenGL Super Bible!

Figure 6-4 Output from POINTSZ program

Listing 6-3 Code from POINTSZ that produces a spiral with gradually increasing point sizes

// Define a constant for the value of PI

#define GL_PI 3.1415f

// Called to draw scene void RenderScene(void)

{

GLfloat x,y,z,angle; // Storage for coordinates and angles

GLfloat sizes[2]; // Stor e supported point size range

GLfloat step; // Store supported point size increments

GLfloat curSize; // Store current point size

// Get supported point size range and step size

glGetFloatv (GL_POINT_SIZE_RANGE,sizes);

glGetFloatv(GL_POINT_SIZE_GRANULARITY,&step);

// Set the initial point size

curSize = sizes[0];

// Set beginning z coordinate

z = -50.0f;

// Loop around in a circle three tim es

for(angle = 0.0f; angle <= (2.0f*GL_PI)*3.0f; angle += 0.1f)

{

// Calculate x and y values on the circle

x = 50.0f*sin(angle);

OpenGL Super Bible!

y = 50.0f*cos(angle);

// Specify th e point size before the primitive is specified

glPointSize(curSize);

// Draw the point

glBegin(GL_POINTS);

glVertex3f(x, y, z);

glEnd();

// Bump up th e z value and the point size

z += 0.5f;

curSize += step;

}

}

Page

169

This example demonstrates a couple of important things. For starters, notice that glPointSize must be called outside the glBegin/glEnd statements. Not all OpenGL functions are valid between these function calls. Though glPointSize affects all points drawn after it, you don’t begin drawing points until you call glBegin(GL_POINTS). For a complete list of valid functions that you can call within a glBegin/glEnd sequence, see the Reference Section.

The most obvious thing you probably noticed about the POINTSZ excerpt is that the larger point sizes are represented simply by larger squares. This is the default behavior, but it typically is undesirable for many applications. Also, you may be wondering why you can increase the point size by a value less than one. If a value of 1.0 represents one pixel, how do you draw less than a pixel or, say, 2.5 pixels?

The answer is that the point size specified in glPointSize isn’t the exact point size in pixels, but the approximate diameter of a circle containing all the pixels that will be used to draw the point. You can get OpenGL to draw the points as better points (that is, small filled circles) by enabling point smoothing, with a call to glEnable(GL_POINT_SMOOTH);

Other functions affect how points and lines are smoothed, but this falls under the larger topic of anti-aliasing (Chapter 16). Anti-aliasing is a technique used to smooth out jagged edges and round out corners. We mention it now only in case you want to play with this on your own, and to whet your appetite for the rest of the book!

Drawing Lines in 3D

The GL_POINTS primitive we have been using thus far is pretty straightforward; for each vertex specified, it draws a point. The next logical step is to specify two vertices and draw a

Page

170

OpenGL Super Bible!

line between them. This is exactly what the next primitive, GL_LINES, does. The following short section of code draws a single line between two points (0,0,0) and (50, 50, 50): glBegin(GL_LINES);

glVertex3f(0.0f, 0.0f, 0.0f);

glVertex3f(50.0f, 50.0f, 50.0f); glEnd();

Note here that two vertices are used to specify a single primitive. For every two vertices specified, a single line is drawn. If you specify an odd number of vertices for GL_LINES, the last vertex is just ignored. Listing 6-4, from the LINES sample program on the CD, shows a more complex sample that draws a series of lines fanned around in a circle. The output from this program is shown in Figure 6-5.

Figure 6-5 Output from the LINES sample program

Listing 6-4 Code from the sample program LINES that displays a series of lines fanned in a circle

// Call only once for all remaining points

glBegin(GL_LINES);

// All lines lie in the xy plane.

z = 0.0f;

for(angle = 0.0f; angle <= GL_PI*3.0f; angle += 0.5f)

{

// Top half of the circle

x = 50.0f*sin(angle);

y = 50.0f*cos(angle) ;

glVertex3f(x, y, z); // First end point of line

OpenGL Super Bible! Page

// Bottom half of the circle

x = 50.0f*sin(angle+3.1415f);

y = 50.0f*cos(angle+3.1415f);

glVertex3f(x, y, z); // Second end point of line

}

// Done drawing points glEnd();

171

Line Strips and Loops

The next two OpenGL primitives build on GL_LINES by allowing you to specify a list of vertices through which a line is drawn. When you specify GL_LINE_STRIP, a line is drawn from one vertex to the next in a continuous segment. The following code draws two lines in the xy plane that are specified by three vertices. Figure 6-6 shows an example. glBegin(GL_LINE_STRIP);

glVertex3f(0 .0f, 0.0f, 0.0f); // V0

glVertex3f(50.0f, 50.0f, 0.0f); // V1

glVertex3f(50.0f, 100.0f, 0.0f); // V2 glEnd();

Figure 6-6 An example of a GL_LINE_STRIP specified by three vertices

The last line-based primitive is the GL_LINE_LOOP. This primitive behaves just like a

GL_LINE_STRIP, but one final line is drawn between the last vertex specified and the first one specified. This is an easy way to draw a closed-line figure. Figure 6-7 shows a

GL_LINE_LOOP drawn using the same vertices as for the GL_LINE_STRIP in Figure 6-6.

Page

172

OpenGL Super Bible!

Figure 6-7 The same vertices from Figure 6-6, used by a GL_LINE_LOOP primitive

Approximating Curves with Straight Lines

The POINTS example program, shown earlier in Figure 6-3, showed you how to plot points along a spring-shaped path. You may have been tempted to push the points closer and closer together (by setting smaller values for the angle increment) to create a smooth spring-shaped curve instead of the broken points that only approximated the shape. This is a perfectly valid operation, but it can be quite slow for larger and more complex curves with thousands of points.

A better way of approximating a curve is to use a GL_LINE_STRIP to play connect-thedots. As the dots move closer together, a smoother curve materializes, without your having to specify all those points. Listing 6-5 shows the code from Listing 6-2, with the

GL_POINTS replaced by GL_LINE_STRIP. The output from this new program, LSTRIPS, is shown in Figure 6-8. As you can see, the approximation of the curve is quite good. You will find this handy technique almost ubiquitous among OpenGL programs.

Figure 6-8 Output from the LSTRIPS program approximating a smooth curve

OpenGL Super Bible!

Listing 6-5 Code from the sample program LSTRIPS, demonstrating Line Strips

Page

173

// Call only once for all remaining points

glBegin(GL_LINE_STRIP);

z = -50.0f;

for(angle = 0.0f; angle <= (2.0f*GL_PI)*3.0f; angle += 0.1f)

{

x = 50.0f*sin(angle);

y = 50 .0f*cos(angle);

// Specify the point and move the Z value up a little

glVertex3f(x, y, z);

z += 0.5f;

}

// Done drawing points

glEnd();

Setting the Line Width

Just as you can set different point sizes, you can also specify various line widths when drawing lines. This is done with the glLineWidth function: void glLineWidth(GLfloat width);

The glLineWidth function takes a single parameter that specifies the approximate width, in pixels, of the line drawn. Just like point sizes, not all line widths are supported, and you should check to make sure the line width you want to specify is available. Use the following code to get the range of line widths, and the smallest interval between them:

GLfloat sizes[2]; // Store supported line width range

GLfloat step; // Store supported line width increments

// Get supported line width range and step size glGetFloatv(GL_LINE_WIDTH_RANGE,sizes); glGetFloatv(GL_LINE_WID TH_GRANULARITY,&step);

Here the sizes array will contain two elements that contain the smallest and the largest valid value for glLineWidth. In addition, the variable step will hold the smallest step size allowable between the line widths. The OpenGL specification only requires that one line width, 1.0, be supported. The Microsoft implementation of OpenGL allows for line widths from 0.5 to 10.0, with 0.125 the smallest step size.

Listing 6-6 shows code for a more substantial example of glLineWidth. It’s from the program LINESW and draws ten lines of varying widths. It starts at the bottom of the window at –90 on the y-axis and climbs the y-axis 20 units for each new line. Every time it draws a new line, it increases the line width by 1. Figure 6-9 shows the output for this program.

Page

174

OpenGL Super Bible!

Figure 6-9 Demonstration of glLineWidth from LINESW program

Listing 6-6 Drawing lines of various widths

// Called to draw scene void RenderScene(void)

{

GLfloat y; // Storage for varying Y coordinate

GLfloat fSizes[2]; // Line width range metrics

GLfloat fCurrSize; // Save current size

// Get line size metrics and save the smallest value

glGetFloatv(GL_LINE_WIDTH_RANGE,fSizes);

fCurrSize = fSizes[0];

// Step up Y axis 20 units at a time

for(y = -90.0f; y < 90.0f; y += 20.0f)

{

// Set the line width

glLineWidth(fCurrSize);

// Draw the line

glBegin(GL_LINES);

glVertex2f( -80.0f, y);

glVertex2f(80.0f, y);

glEnd();

// Increase the line width

fCurrSize += 1.0f;

}

}

OpenGL Super Bible! Page

175

Notice that we used glVertex2f() this time instead of glVertex3f() to specify the coordinates for our lines. As mentioned, this is only a convenience because we are drawing in the xy plane, with a z value of zero. To see that you are still drawing lines in three dimensions, simply use the arrow keys to spin your lines around. You will see easily that all the lines lie on a single plane.

Line Stippling

In addition to changing line widths, you can create lines with a dotted or dashed pattern, called stippling. To use line stippling, you must first enable stippling with a call to glEnable(GL_LINE_STIPPLE);

Then the function glLineStipple establishes the pattern that the lines will use for drawing. void glLineStipple(GLint factor, GLushort pattern);

Reminder

Any feature or ability that is enabled by a call to glEnable() can be disabled by a call to glDisable().

The pattern parameter is a 16-bit value that specifies a pattern to use when drawing the lines. Each bit represents a section of the line segment that is either on or off. By default, each bit corresponds to a single pixel, but the factor parameter serves as a multiplier to increase the width of the pattern. For example, setting factor to 5 would cause each bit in the pattern to represent five pixels in a row that would be either on or off. Furthermore, bit 0

(the least significant bit) of the pattern is used first to specify the line. Figure 6-10 illustrates a sample bit pattern applied to a line segment.

Figure 6-10 Stipple pattern is used to construct a line segment

Page

176

OpenGL Super Bible!

Why Are These Patterns Backward?

You might wonder why the bit pattern used for stippling is used in reverse when drawing the line. Internally, it’s much faster for OpenGL to shift this pattern to the left one place, each time it needs to get the next mask value. For high-performance applications, reversing this pattern internally (to make it easier for humans to understand) can take up precious processor time.

Listing 6-7 shows a sample of using a stippling pattern that is just a series of alternating On and Off bits (0101010101010101). This program draws ten lines from the bottom of the window up the y-axis to the top. Each line is stippled with the pattern 0x5555, but for each new line the pattern multiplier is increased by 1. You can clearly see the effects of the widened stipple pattern in Figure 6-11.

Figure 6-11 Output from the LSTIPPLE program

Listing 6-7 Code from LSTIPPLE that demonstrates the effect of factor on the bit pattern

// Called to draw scene void RenderScene(void)

{

GLfloat y; // Storage for varying Y coordinate

GLint factor = 1; // Stippling factor

GLushort pattern = 0x5555; // Stipple pattern

OpenGL Super Bible!

// Enable Stipp ling

glEnable(GL_LINE_STIPPLE);

// Step up Y axis 20 units at a time

for(y = -90.0f; y < 90.0f; y += 20.0f)

{

// Reset the repeat factor and pattern

glLineStipple(factor,pattern);

// Draw the line

glBegin(GL_LINES);

glVertex2f( -80.0f, y);

glVertex2f(80.0f, y);

glEnd();

factor++;

}

}

Page

177

Drawing Triangles in 3D

You’ve seen how to draw points and lines, and even how to draw some enclosed polygons with GL_LINE_LOOP. With just these primitives, you could easily draw any shape possible in three dimensions. You could, for example, draw six squares and arrange them so they form the sides of a cube.

You may have noticed, however, that any shapes you create with these primitives are not filled with any color— after all, you are only drawing lines. In fact, all the previous example draws is a wireframe cube, not a solid cube. To draw a solid surface, you need more than just points and lines; you need polygons. A polygon is a closed shape that may or may not be filled with the currently selected color, and it is the basis of all solid-object composition in OpenGL.

Triangles: Your First Polygon

The simplest polygon possible is the triangle, with only three sides. The GL_TRIANGLES primitive is used to draw triangles, and it does so by connecting three vertices together. The following code draws two triangles using three vertices each, as shown in Figure 6-12:

Page

178

OpenGL Super Bible!

Figure 6-12 Two triangles drawn using GL_TRIANGLES glBegin(GL_TRIANGLES);

glVertex2f(0.0f, 0.0f); // V0

glVertex2f(25.0f, 25.0f); // V1

glVertex2f(50.0f, 0.0f); // V2

glVertex2f( -50.0f, 0.0f); // V3

glVertex2f( -75.0f, 50.0f); // V4

glVertex2f( -25.0f, 0.0f); // V5 glEnd();

Note that the triangles will be filled with the currently selected drawing color. If you don’t specify a drawing color at some point, you can’t be certain of the result (there is no default drawing color).

Choose the Fastest Primitives for Performance Tip

The triangle is the primitive of choice for the OpenGL programmer. You will find that, with a little work, any polygonal shape can be composed of one or more triangles placed carefully together. Most 3D accelerated hardware is highly optimized for the drawing of triangles. In fact, you will see many 3D benchmarks measured in triangles per second.

Winding

An important characteristic of any polygonal primitive is illustrated in Figure 6-12. Notice the arrows on the lines that connect the vertices. When the first triangle is drawn, the lines are drawn from V0 to V1, then to V2, and finally back to V0 to close the triangle. This path is in the order that the vertices are specified, and for this example, that order is clockwise

OpenGL Super Bible! Page

179

from your point of view. The same directional characteristic is present for the second triangle, as well.

The combination of order and direction in which the vertices are specified is called winding.

The triangles in Figure 6-12 are said to have clockwise winding because they are literally wound in the clockwise direction. If we reverse the positions of V4 and V5 on the triangle on the left, we get counterclockwise winding as shown in Figure 6-13.

Figure 6-13 Two triangles with different windings

OpenGL by default considers polygons that have counterclockwise winding to be front

facing. This means that the triangle on the left in Figure 6-13 is showing us the front of the triangle, and the one on the right is showing the back side of the triangle.

Why is this important? As you will soon see, you will often want to give the front and back of a polygon different physical characteristics. You can hide the back of a polygon altogether, or give it a different color and reflective property as well (see Chapter 9). It’s very important to keep the winding of all polygons in a scene consistent, using front-facing polygons to draw the outside surface of any solid objects. In the upcoming section on solid objects, we will demonstrate this principle using some models that are more complex.

If you need to reverse the default behavior of OpenGL, you can do so by calling the function glFrontFace(GL_CW);

The GL_CW parameter tells OpenGL that clockwise-wound polygons are to be considered front facing. To change back to counterclockwise winding for the front face, use GL_CCW.

Page

180

Triangle Strips

OpenGL Super Bible!

For many surfaces and shapes, you will need to draw several connected triangles. You can save a lot of time by drawing a strip of connected triangles with the

GL_TRIANGLE_STRIP primitive. Figure 6-14 shows the progression of a strip of three triangles specified by a set of five vertices numbered V0 through V4. Here you see the vertices are not necessarily traversed in the same order they were specified. The reason for this is to preserve the winding (counterclockwise) of each triangle.

Figure 6-14 The progression of a GL_TRIANGLE_STRIP

(By the way, for the rest of our discussion of polygonal primitives, we won’t be showing you any more code fragments to demonstrate the vertices and the glBegin statements. You should have the swing of things by now. Later, when we have a real sample program to work with, we’ll resume the examples.)

There are two advantages to using a strip of triangles instead of just specifying each triangle separately. First, after specifying the first three vertices for the initial triangle, you only need to specify a single point for each additional triangle. This saves a lot of time (as well as data space) when you have many triangles to draw. The second advantage is that it’s a good idea, as mentioned previously, to compose an object or surface out of triangles rather than some of the other primitives.

Another advantage to composing large flat surfaces out of several smaller triangles is that when lighting effects are applied to the scene, the simulated effects can be better reproduced by OpenGL. You’ll learn to apply this technique in Chapter 9.

OpenGL Super Bible! Page

181

Triangle Fans

In addition to triangle strips, you can use GL_TRIANGLE_FAN to produce a group of connected triangles that fan around a central point. Figure 6-15 shows a fan of three triangles produced by specifying four vertices. The first vertex, V0, forms the origin of the fan. After the first three vertices are used to draw the initial triangle, all subsequent vertices are used with the origin (V0) and the vertex immediately preceding it (Vn-1) to form the next triangle. Notice that the vertices are traversed in a clockwise direction, rather than counterclockwise.

Figure 6-15 The progression of GL_TRIANGLE_FAN

Building Solid Objects

Composing a solid object out of triangles (or any other polygon) involves more than just assembling a series of vertices in a 3D coordinate space. Let’s examine the example program TRIANGLE, which uses two triangle fans to create a cone in our viewing volume.

The first fan produces the cone shape, using the first vertex as the point of the cone and the remaining vertices as points along a circle further down the z-axis. The second fan forms a circle and lies entirely in the xy plane, making up the bottom surface of the cone.

The output from TRIANGLE is shown in Figure 6-16. Here you are looking directly down the z-axis and can only see a circle composed of a fan of triangles. The individual triangles are emphasized by coloring them alternately green and red.

Page

182

OpenGL Super Bible!

Figure 6-16 Initial output from the TRIANGLE sample program

The code for the SetupRC and RenderScene functions is shown in Listing 6-8. (You will see some unfamiliar variables and specifiers that will be explained shortly.) This program demonstrates several aspects of composing 3D objects. Notice the Effects menu item; this will be used to enable and disable some 3D drawing features so we can explore some of the characteristics of 3D object creation.

Listing 6-8 Pertinent code for the TRIANGLE sample program

// This function does any needed initialization on the rendering

// context. void SetupRC()

{

// Black background

glClearColor(0.0f, 0.0f, 0.0f, 1.0f );

// Set drawing color to green

glColor3f(0.0f, 1.0f, 0.0f);

// Set color shading model to flat

glShadeModel(GL_FLAT);

// Clockwi se-wound polygons are front facing; this is reversed

// because we are using triangle fans

glFrontFace(GL_CW);

}

OpenGL Super Bible! Page

// Called to draw scene void RenderScene(void)

{

GLfloat x,y,angle; // Storage for coordinates and angles

int iPivot = 1; // Used to flag alternating colors

// Clear the window and the depth buffer

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

// Turn culling on if flag is set

if(bCull)

glEnable(GL_CULL_FACE);

else

glDisable(GL_CULL_FACE);

// Enable depth testing if flag is set

if(bDepth)

glEnable(GL_DEPTH_TEST);

else

glDisable(GL_DEPTH_TEST);

// Draw the bac k side as a polygon only, if flag is set

if(bOutline)

glPolygonMode(GL_BACK,GL_LINE);

else

glPolygonMode(GL_BACK,GL_FILL);

// Save matrix state and do the rotation

glPushMatrix();

glRotatef( xRot, 1.0f, 0.0f, 0.0f);

glRotatef(yRot, 0.0f, 1.0f, 0.0f);

// Begin a triangle fan

glBegin(GL_TRIANGLE_FAN);

// Pinnacle of cone is shared vertex for fan, moved up z -axis

// to produce a cone instead of a circle

glVertex3f(0.0f, 0.0f, 75.0f);

// Loop around in a circle and specify even points

along the circle

// as the vertices of the triangle fan

for(angle = 0.0f; angle < (2.0f*GL_PI); angle += (GL_PI/8.0f))

{

// Calculate x and y position of the next vertex

x = 50.0f*sin(angle);

y = 50.0f*cos(angle);

// Alternate color between red and green

if((iPivot %2) == 0)

glColor3f(0.0f, 1 .0f, 0.0f);

else

glColor3f(1.0f, 0.0f, 0.0f);

// Increment pivot to change color next time

iPivot++;

// Specify the next vertex for the triangle fan

183

Page

184

OpenGL Super Bible!

glVertex2f(x, y) ;

}

// Done drawing fan for cone

glEnd();

// Begin a new triangle fan to cover the bottom

glBegin(GL_TRIANGLE_FAN);

// Center of fan is at the origin

glVertex2f(0.0f, 0.0f);

for(angle = 0. 0f; angle < (2.0f*GL_PI); angle += (GL_PI/8.0f))

{

// Calculate x and y position of the next vertex

x = 50.0f*sin(angle);

y = 50.0f*cos(angle);

// Alternate color between red a nd green

if((iPivot %2) == 0)

glColor3f(0.0f, 1.0f, 0.0f);

else

glColor3f(1.0f, 0.0f, 0.0f);

// Increment pivot to change color next time

iPivot++;

// Specify the next vertex for the triangle fan

glVertex2f(x, y);

}

// Done drawing the fan that covers the bottom

glEnd();

// Restore transformations

glPopMatrix();

// Flush drawing commands

glFlush();

}

Setting Polygon Colors

Until now, we have set the current color only once and drawn only a single shape. Now, with multiple polygons, things get slightly more interesting. We want to use different colors so we can see our work more easily. Colors are actually specified per vertex, not per polygon. The shading model affects whether the polygon is then solidly colored (using the current color selected when the last vertex was specified), or smoothly shaded between the colors specified for each vertex.

The line glShadeModel(GL_FLAT); tells OpenGL to fill the polygons with the solid color that was current when the polygon’s last vertex was specified. This is why we can simply change the current color to red or green before specifying the next vertex in our triangle fan.

On the other hand, the line glShadeModel(GL_SMOOTH); would tell OpenGL to shade the triangles smoothly from each vertex, attempting to interpolate the colors between those

OpenGL Super Bible! Page

185

specified for each vertex. You’ll be learning much more about color and shading in Chapter

8.

Hidden Surface Removal

Hold down one of the arrow keys to spin the cone around, and don’t select anything from the Effects menu yet. You’ll notice something unsettling: The cone appears to be swinging back and forth plus and minus 180º, with the bottom of the cone always facing you, but not rotating a full 360º. Figure 6-17 shows this more clearly.

Figure 6-17 The rotating cone appears to be wobbling back and forth

This is occurring because the bottom of the cone is being drawn after the sides of the cone are drawn. This means, no matter how the cone is oriented, the bottom is then drawn on top of it, producing the “wobbling” illusion. This effect is not limited to just the various sides and parts of an object. If more than one object is drawn and one is in front of the other (from the viewer’s perspective), the last object drawn will still appear over the previously drawn object.

You can correct this peculiarity with a simple technique called hidden surface removal, and

OpenGL has functions that will do this for you behind the scenes. The concept is simple:

When a pixel is drawn, it is assigned a value (called the z value) that denotes its distance from the viewer’s perspective. Later, when another pixel needs to be drawn to that screen location, the new pixel’s z value is compared to that of the pixel that is already stored there.

If the new pixel’s z value is higher, then it is closer to the viewer and thus in front of the previous pixel, so the previous pixel will be obscured by the new pixel. If the new pixel’s z value is lower, then it must be behind the existing pixel and thus would not be obscured.

This maneuver is accomplished internally by a depth buffer, which will be discussed in

Chapter 15.

Page

186

To enable depth testing, simply call

OpenGL Super Bible!

glEnable(GL_DEPTH_TEST);

This is done in Listing 6-8 when the bDepth variable is set to True, and depth testing is disabled if bDepth is False.

// Enable depth testing if flag is set if(bDepth)

glEnable(GL_DEPTH_TEST); else

glDisable(GL_DEPTH_TEST);

The bDepth variable is set when Depth Test is selected from the Effects menu. In addition, the depth buffer must be cleared each time the scene is rendered. The depth buffer is analogous to the color buffer in that it contains information about the distance of the pixels from the observer. This is used to determine if any pixels are hidden by pixels closer to the observer.

// Clear the window and the depth buffer glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

Figure 6-18 shows the Effects menu with depth testing enabled. It also shows the cone with the bottom correctly hidden behind the sides. You can see that depth testing is practically a prerequisite to creation of 3D objects out of solid polygons.

Figure 6-18 The bottom of the cone is now correctly placed behind the sides for this orientation

OpenGL Super Bible!

Culling: Hiding Surfaces for Performance

Page

187

You can see that there are obvious visual advantages to not drawing a surface that is obstructed by another. Even so, you pay some performance overhead because every pixel drawn must be compared with the previous pixel’s z value. Sometimes, however, you know that a surface will never be drawn anyway, so why specify it? The answer is that you may not wish to draw the back sides of the surface.

In our working example, the cone is a closed surface and we never see the inside. OpenGL is actually (internally) drawing the back sides of the far side of the cone, and then the front sides of the polygons facing us. Then, by a comparison of z buffer values, the far side of the cone is eliminated. Figures 6-19a and 6-19b show our cone at a particular orientation with depth testing turned on (a) and off (b). Notice that the green and red triangles that make up the cone sides change when depth testing is enabled. Without depth testing, the sides of the triangles at the far side of the cone show through.

Figure 6-19a With depth testing

Page

188

OpenGL Super Bible!

Figure 6-19b Without depth testing

Earlier in the chapter we explained how OpenGL uses winding to determine the front and back sides of polygons, and that it is important to keep the polygons that define the outside of your objects wound in a consistent direction. This consistency is what allows us to tell

OpenGL to render only the front, only the back, or both sides of polygons. By eliminating the back sides of the polygons, we can drastically reduce the amount of necessary processing to render the image. Even though depth testing will eliminate the appearance of the inside of objects, internally OpenGL must take them into account unless we explicitly tell it not to.

The elimination of the front or back of polygons is called culling. Culling is enabled or disabled for our program by the following code fragment from Listing 6-8:

// Clockwise-wound polygons are front facing; this is reversed

// because we are using triangle fans glFrontFace(GL_CW);

// Turn culling on if flag is set if(bCull)

glEnable(GL_CULL_FACE); else

glDisable(GL_CULL_FACE);

OpenGL Super Bible! Page

189

Note that we first changed the definition of front-facing polygons to be those with clockwise winding (because our triangle fans are all wound clockwise).

Figure 6-20 demonstrates that the bottom of the cone is gone when culling is enabled. This is because we didn’t follow our own rule about all the surface polygons having the same winding. The triangle fan that makes up the bottom of the cone is wound clockwise, like the fan that makes up the sides of the cone, but the front side of the cone’s bottom section is facing the inside. See Figure 6-21.

Figure 6-20 The bottom of the cone is culled because the front-facing triangles are inside

Page

190

OpenGL Super Bible!

Figure 6-21 How the cone was assembled from two triangle fans

We could have corrected this by changing the winding rule, by calling glFrontFace(GL_CCW); just before we drew the second triangle fan. But in this example we wanted to make it easy for you to see culling in action, as well as get set up for our next demonstration of polygon tweaking.

Polygon Modes

Polygons don’t have to be filled with the current color. By default, polygons are drawn solid, but you can change this behavior by specifying that polygons are to be drawn as outlines or just points (only the vertices are plotted). The function glPolygonMode() allows polygons to be rendered filled, as outlines, or as points only. In addition, this rendering mode can be applied to both sides of the polygons or to just the front or back. The following code from Listing 6-8 shows the polygon mode being set to outlines or solid, depending on the state of the Boolean variable bOutline:

// Draw back side as a polygon only, if flag is set if(bOutline)

glPolygonMode(GL_BACK,GL_LINE); else

glPolygonMode(GL_BACK,GL_FILL);

Figure 6-22 shows the back sides of all polygons rendered as outlines. (We had to disable culling to produce this image; otherwise, the inside would be eliminated and you’d get no outlines.) Notice that the bottom of the cone is now wireframe instead of solid, and you can see up inside the cone where the inside walls are also drawn as wireframe triangles.

OpenGL Super Bible! Page

191

Figure 6-22 Using glPolygonMode() to render one side of the triangles as outlines

Other Primitives

Triangles are the preferred primitive for object composition since most OpenGL hardware specifically accelerates triangles, but they are not the only primitives available. Some hardware will provide for acceleration of other shapes as well, and programmatically it may be simpler to use a general-purpose graphics primitive. The remaining OpenGL primitives provide for rapid specification of a quadrilateral or quadrilateral strip, as well as a generalpurpose polygon. If you know your code is going to be run in an environment that accelerates general-purpose polygons, these may be your best bet in terms of performance.

Four-Sided Polygons: Quads

The next most complex shape from a triangle is a quadrilateral, or a four-sided figure.

OpenGL’s GL_QUADS primitive draws a four-sided polygon. In Figure 6-23 a quad is drawn from four vertices. Note also that quads have clockwise winding.

Page

192

OpenGL Super Bible!

Figure 6-23 An example of GL_QUAD

Quad Strips

Just as you can for triangles, you can specify a strip of connected quadrilaterals with the

GL_QUAD_STRIP primitive. Figure 6-24 shows the progression of a quad strip specified by six vertices. Quad strips, like single GL_QUADS, maintain a clockwise winding.

Figure 6-24 Progression of GL_QUAD_STRIP

General Polygons

The final OpenGL primitive is the GL_POLYGON, which can be used to draw a polygon having any number of sides. Figure 6-25 shows a polygon consisting of five vertices.

Polygons created with GL_POLYGON have clockwise winding, as well.

OpenGL Super Bible! Page

193

Figure 6-25 Progression of GL_POLYGON

What About Rectangles?

All ten of the OpenGL primitives are used with glBegin/glEnd to draw general-purpose polygonal shapes. One shape is so common, it has a special function instead of being a primitive; that shape is the rectangle. It was actually the first shape you learned to draw back in Chapter 3. The function glRect() provides an easy and convenient mechanism for specifying rectangles without having to resort to GL_QUAD.

Filling Polygons, or Stippling Revisited

There are two methods of applying a pattern to solid polygons. The customary method is texture mapping, where a bitmap is mapped to the surface of a polygon, and this is covered in Chapter 11. Another way is to specify a stippling pattern, as we did for lines. A polygon stipple pattern is nothing more than a 32 x 32 monochrome bitmap that is used for the fill pattern.

To enable polygon stippling, call glEnable(GL_POLYGON_STIPPLE); and then call glPolygonStipple(pBitmap); where pBitmap is a pointer to a data area containing the stipple pattern. Hereafter, all polygons will be filled using the pattern specified by pBitmap (GLubyte *). This pattern is similar to that used by line stippling, except the buffer is large enough to hold a 32 x 32-bit pattern. Also, the bits are read with the MSB (Most Significant Bit) first, which is just the

Page

194

OpenGL Super Bible!

opposite of line stipple patterns. Figure 6-26 shows a bit pattern for a campfire that we will use for a stipple pattern.

Figure 6-26 Building a polygon stipple pattern

Pixel Storage

As you will learn in Chapter 11, you can modify the way pixels for stipple patterns are interpreted, with the glPixelStore() function. For now, though, we will stick to simple polygon stippling.

To construct a mask to represent this pattern, we store one row at a time from the bottom up.

Fortunately, unlike line-stipple patterns, the data is by default interpreted just as it is stored, with the most significant bit read first. Each byte can then be read from left to right and stored in an array of GLubyte large enough to hold 32 rows of 4 bytes apiece.

Listing 6-9 shows the code used to store this pattern. Each row of the array represents a row from Figure 6-26. The first row in the array is the last row of the figure, and so on, up to the last row of the array and the first row of the figure.

OpenGL Super Bible!

Listing 6-9 The mask definition for the campfire in Figure 6-26

// Bitmap of camp f ire

GLubyte fire[] = { 0x00, 0x00, 0x00, 0x00,

0x00, 0x00, 0x00, 0x00,

0x00, 0x00, 0x00, 0x00,

0x00, 0x00, 0x00, 0x00,

0x00, 0x00, 0x00, 0x00,

0x00, 0x00, 0x00, 0x00,

0x00, 0x00, 0x00, 0xc0,

0x00, 0x00, 0x01, 0xf0,

0x00, 0x00, 0x07, 0xf0,

0x0f, 0x00, 0x1f, 0xe0,

0x1f, 0x80, 0x1f, 0xc0,

0x0f, 0xc0, 0x3f, 0x80,

0x07, 0xe0, 0x7e, 0x00,

0x03, 0xf0, 0xff, 0x80,

0x03, 0xf5, 0xff, 0xe0,

0x07, 0xfd, 0xff, 0xf8,

0x1f, 0xfc, 0xff, 0xe8,

0xff, 0xe3, 0xbf, 0x70,

0xde, 0x80, 0xb7, 0x00,

0x71, 0x10, 0x4a, 0x80,

0x03, 0x10, 0x4e, 0x40,

0x02, 0x88, 0x8c, 0x20,

0x05, 0x05, 0x04, 0x40,

0x02, 0x82, 0x14, 0x40,

0 x02, 0x40, 0x10, 0x80,

0x02, 0x64, 0x1a, 0x80,

0x00, 0x92, 0x29, 0x00,

0x00, 0xb0, 0x48, 0x00,

0x00, 0xc8, 0x90, 0x00,

0x00, 0x85, 0x10, 0x00,

0x00, 0x03, 0x00, 0x00,

0x00, 0x00, 0x10, 0x00};

Page

Suggestion: Come Back Later

If you are still uncertain about how this campfire bitmap is stored and interpreted, we suggest you come back and reread this material after you’ve finished Chapter 11, “Raster Graphics in

OpenGL.”

195

To make use of this stipple pattern, we must first enable polygon stippling and then specify this pattern as the stipple pattern. The PSTIPPLE example program does this, and then draws a hexagon (stop sign) using the stipple pattern. Listing 6-10 is the pertinent code, and

Figure 6-27 shows the output from PSTIPPLE.

Page

196

OpenGL Super Bible!

Listing 6-10 Code from PSTIPPLE that draws a stippled hexagon

// This function does any needed initialization on the rendering

// context. void SetupRC()

{

// Black background

glClearColor(0.0f, 0.0f, 0.0f, 1.0f );

// Set drawing c olor to red

glColor3f(1.0f, 0.0f, 0.0f);

// Enable polygon stippling

glEnable(GL_POLYGON_STIPPLE);

// Specify a specific stipple pattern

glPolygonStipple(fire);

}

// Called to draw scene void RenderScene(v oid)

{

// Clear the window

glClear(GL_COLOR_BUFFER_BIT);

// Begin the stop sign shape,

// use a standard polygon for simplicity

glBegin(GL_POLYGON);

glVertex2f( -20.0f, 50.0f);

glVertex2f(20.0f, 50.0f);

glVertex2f(50.0f, 20.0f);

glVertex2f(50.0f, -20.0f);

glVertex2f(20.0f, -50.0f);

glVertex2f( -20.0f, -50.0f);

glVertex2f( -50.0f, -20.0f);

glVertex2f( -50.0f, 20.0f);

glEnd();

// Flush drawing commands

glFlush();

}

OpenGL Super Bible! Page

197

Figure 6-27 Output from the PSTIPPLE program

Figure 6-28 shows the hexagon rotated somewhat. You’ll notice that the stipple pattern is still used, but the pattern is not rotated with the polygon. That’s because the stipple pattern is only used for simple polygon filling on screen. If you need to map a bitmap to a polygon so that it mimics the polygon’s surface, you will have to use texture mapping (Chapter 12).

Figure 6-28 PSTIPPLE output with the polygon rotated, showing that the stipple pattern is not rotated

Page

198

Polygon Construction Rules

OpenGL Super Bible!

When you are using many polygons to construct a complex surface, you’ll need to remember two important rules.

The first rule is that all polygons must be planar. That is, all the vertices of the polygon must lie in a single plane, as illustrated in Figure 6-29. The polygon cannot twist or bend in space.

Figure 6-29 Planar vs. nonplanar polygons

Here is yet another good reason to use triangles. No triangle can ever be twisted so that all three points do not line up in a plane, because mathematically it only takes three points to define a plane. (So if you can plot an invalid triangle, aside from winding it in the wrong direction, the Nobel Prize committee may just be looking for you!)

The second rule of polygon construction is that the polygon’s edges must not intersect, and the polygon must be convex. A polygon intersects itself if any two of its lines cross.

“Convex” means that the polygon cannot have any indentions. A more rigorous test of a convex polygon is to draw some lines through it. If any given line enters and leaves the polygon more than once, then the polygon is not convex. Figure 6-30 gives examples of good and bad polygons.

Figure 6-30 Some valid and invalid primitive polygons

OpenGL Super Bible!

Why the Limitations on Polygons?

You may be wondering why OpenGL places the restrictions on polygon construction.

Handling polygons can become quite complex, and OpenGL’s restrictions allow it to use very fast algorithms for the rendering of these polygons. We predict that you’ll not find these restrictions burdensome, and that you’ll be able to build any shapes or objects you need using the existing primitives. (And you can use GL_LINES to draw an otherwise illegal shape, too.)

Page

199

Subdivision and Edges

Even though OpenGL can only draw convex polygons, there’s still a way to create a nonconvex polygon— by arranging two or more convex polygons together. For example, let’s take a four-point star as shown in Figure 6-31. This shape is obviously not convex and thus violates OpenGL’s rules for simple polygon construction. However, the star on the right is composed of six separate triangles, which are legal polygons.

Figure 6-31 A nonconvex four-point star made up of six triangles

When the polygons are filled, you won’t be able to see any edges and the figure will seem to be a single shape on screen. However, if you use glPolygonMode to switch to an outline drawing, it would be distracting to see all those little triangles making up some larger surface area.

OpenGL provides a special flag called an edge flag for this purpose. By setting and clearing the edge flag as you specify a list of vertices, you inform OpenGL which line segments are considered border lines (lines that go around the border of your shape), and which ones are not (internal lines that shouldn’t be visible). The glEdgeFlag() function takes a single parameter that sets the edge flag to True or False. When set to True, any vertices that follow mark the beginning of a boundary line segment. Listing 6-11 shows an example of this from the STAR example program on the CD.

Page

200

OpenGL Super Bible!

Listing 6-11 Example usage of glEdgeFlag from the STAR program

// Begin the triangles

GlBegin(GL_TRIANGLES);

glEdgeFlag(bEdgeFlag);

glVertex2f( -20.0f, 0.0f);

glEdgeFlag(TRUE);

glVertex2f(20.0f, 0.0f);

glVertex2f(0.0f, 40.0f);

glVertex2f( -20.0f,0.0f);

glVertex2f( -60.0f,-20.0f);

glEdgeFlag(bEdgeFlag);

glVertex2f( -20.0f,-40.0f);

glEdgeFlag(TRUE);

glVertex2f( -20.0f,-40.0f);

glVertex2f(0.0f, -80.0f);

glEdgeFlag(bEdgeFlag);

glVertex2f(20.0f, -40.0f);

glEdgeFlag(TRUE);

glVertex2f(20.0f, -40.0f);

glVertex2f(60.0f, -20.0f);

glEdgeFlag( bEdgeFlag);

glVertex2f(20.0f, 0.0f);

glEdgeFlag(TRUE);

// Center square as two triangles

glEdgeFlag(bEdgeFlag);

glVertex2f( -20.0f, 0.0f);

glVertex2f( -20.0f,-40.0f);

glVertex2f(20.0f, 0.0f);

glVertex2f( -20.0f,-40.0f);

glVertex2f(20.0f, -40.0f);

glVertex2f(20.0f, 0.0f);

glEdgeFlag(TRUE);

// Done drawing Triangles

glEnd();

The Boolean variable bEdgeFlag is toggled on and off by a menu option to make the edges appear and disappear. If this flag is True, then all edges are considered boundary edges and will appear when the polygon mode is set to GL_LINES. In Figures 6-32a and 6-32b you can see the output from STAR, showing the wireframe star with and without edges.

OpenGL Super Bible! Page

201

Figure 6-32a STAR program with edges enabled

Figure 6-32b STAR program without edges enabled

Page

202

Summary

OpenGL Super Bible!

We’ve covered a lot of ground in this chapter. At this point you can create your 3D space for rendering, and you know how to draw everything from points and lines to complex polygons. We’ve also shown you how to assemble these two dimensional primitives as the surface of three-dimensional objects.

We encourage you to experiment with what you have learned in this chapter. Use your imagination and create some of your own 3D objects before moving on to the rest of the book. You’ll then have some personal samples to work with and enhance as you learn and explore new techniques throughout the book.

Here Comes the Tank/Robot Simulation

Beginning with this chapter, we will begin constructing a tank and robot simulator as a supplementary example (found on the CD). The goal of this simulation is to have both the tank and robot roam around in a virtual landscape, allowing for viewpoints from the tank’s or robot’s perspective. The tank/robot simulator is not explained as part of the text, but the simulation will be gradually enhanced using the techniques presented in each chapter. You can start now and view some of the objects that will exist in the virtual world of our tank and robot. Observe and study how these objects are composed entirely of the primitives from this chapter.

OpenGL Super Bible! Page

203

Reference Section glBegin

Purpose

Used to denote the beginning of a group of vertices that define one or more primitives.

Include File

<gl.h>

Syntax void glBegin(GLenum mode);

Description

This function is used in conjunction with glEnd to delimit the vertices of an OpenGL primitive. Multiple vertices sets may be included within a single glBegin/glEnd pair, as long as they are for the same primitive type. Other settings may also be made with additional OpenGL commands that affect the vertices following them. Only these

OpenGL functions may be called within a glBegin/glEnd sequence: glVertex, glColor, glIndex, glNormal, glEvalCoord, glCallList, glCallLists, glTexCoord, glEdgeFlag, and glMaterial.

Parameters

mode

GLenum: This value specifies the primitive to be constructed. It may be any of the values in Table 6-1.

Returns

None.

Example

You can find this ubiquitous function in literally every example and supplementary sample in this chapter. The following code shows a single point being drawn at the origin of the x,y,z coordinate system.

glBegin(GL_POINTS)

glVertex3f(0.0f, 0.0f, 0.0f); //plots point at origin

glEnd();

See Also glEnd, glVertex

Table 6-1 OpenGL Primitives Supported by glBegin()

Mode Primitive Type

Page

204

OpenGL Super Bible!

GL_POINTS

GL_LINES

GL_LINE_STRIP

GL_LINE_LOOP

GL_TRIANGLES

The specified vertices are used to create a single point each.

The specified vertices are used to create line segments. Every two vertices specify a single and separate line segment. If the number of vertices is odd, the last one is ignored.

The specified vertices are used to create a line strip. After the first vertex, each subsequent vertex specifies the next point to which the line is extended.

Behaves as GL_LINE_STRIP, except a final line segment is drawn between the last and the first vertex specified. This is typically used to draw closed regions that may violate the rules regarding GL_POLYGON usage.

The specified vertices are used to construct triangles. Every three vertices specify a new triangle. If the number of vertices is not evenly divisible by three, the extra vertices are ignored.

GL_TRIANGLE_STRIP

The specified vertices are used to create a strip of triangles.

After the first three vertices are specified, each of any subsequent vertices is used with the two preceding ones to construct the next triangle. Each triplet of vertices (after the initial set) is automatically rearranged to ensure consistent winding of the triangles.

GL_TRIANGLE_FAN

GL_QUADS

GL_QUAD_STRIP

GL_POLYGON

The specified vertices are used to construct a triangle fan. The first vertex serves as an origin, and each vertex after the third is combined with the foregoing one and the origin. Any number of triangles may be fanned in this manner.

Each set of four vertices is used to construct a quadrilateral (a four-sided polygon). If the number of vertices is not evenly divisible by four, the remaining ones are ignored.

The specified vertices are used to construct a strip of quadrilaterals. One quadrilateral is defined for each pair of vertices after the first pair. Unlike the vertex ordering for

GL_QUADS, each pair of vertices is used in the reverse order specified, to ensure consistent winding.

The specified vertices are used to construct a convex polygon.

The polygon edges must not intersect. The last vertex is automatically connected to the first vertex to insure the polygon is closed.

OpenGL Super Bible! Page

205

glCullFace

Purpose

Specifies whether the front or back of polygons should be eliminated from drawing.

Include File

<gl.h>

Syntax void glCullFace(GLenum mode);

Description

This function disables lighting, shading, and color calculations and operations on either the front or back of a polygon. Eliminates unnecessary rendering computations because the back side of polygons will never be visible regardless of rotation or translation of the objects. Culling is enabled or disabled by calling glEnable and glDisable with the GL_CULL_FACE parameter. The front and back of the polygon are defined by use of glFrontFace() and by the order in which the vertices are specified (clockwise or counterclockwise winding).

Parameters

mode

GLenum: Specifies which face of polygons should be culled. May be either

GL_FRONT or GL_BACK.

Returns

None.

Example

The following code (from the TRIANGLE example in this chapter) shows how the color and drawing operations are disabled for the inside of the cone when the Boolean variable bCull is set to True.

// Clockwise-wound polygons are front facing; this is reversed

// because we are using triangle fans

glFrontFace(GL_CW);

// Turn culling on if flag is set

if(bCull)

glEnable(GL_CULL_FACE);

else

glDisable(GL_CULL_FACE);

See Also glFrontFace, glLightModel

Page

206

OpenGL Super Bible!

glEdgeFlag

Purpose

Flags polygon edges as either boundary or nonboundary edges. This can be used to determine whether interior surface lines are visible.

Include File

<gl.h>

Variations void glEdgeFlag(GLboolean flag); void glEdgeFlagv(const GLboolean *flag);

Description

When two or more polygons are joined to form a larger region, the edges on the outside define the boundary of the newly formed region. This function flags inside edges as nonboundary. This is used only when the polygon mode is set to either

GL_LINE or GL_POINT.

Parameters

flag

GLboolean: Sets the edge flag to this value, True or False.

*flag const GLboolean *: A pointer to a value that is used for the edge flag.

Returns

None.

Example

The following code from the STAR program in this chapter sets the edge flag to False for triangle borders inside the region of the star. It draws the star either as a solid, an outline, or just the vertices.

// Draw back side as a polygon only, if flag is set

if(iMode == MODE_LINE)

glPolygonMode(GL_FRONT_AND_BACK,GL_LINE);

if(iMode == MODE_P OINT)

glPolygonMode(GL_FRONT_AND_BACK,GL_POINT);

if(iMode == MODE_SOLID)

glPolygonMode(GL_FRONT_AND_BACK,GL_FILL);

// Begin the triangles

glBegin(GL_TRIANGLES);

glEdgeFlag(bEdgeFlag);

glV ertex2f(-20.0f, 0.0f);

glEdgeFlag(TRUE);

glVertex2f(20.0f, 0.0f);

OpenGL Super Bible!

glVertex2f(0.0f, 40.0f);

glVertex2f( -20.0f,0.0f);

glVertex2f( -60.0f,-20.0f);

glEdgeFlag(bEdgeFlag);

glVertex2f( -20.0f,-40.0f);

glEdgeFlag(TRUE);

glVertex2f( -20.0f,-40.0f);

glVertex2f(0.0f, -80.0f);

glEdgeFlag(bEdgeFlag);

glVertex2f(20.0f, -40.0f);

glEdgeFlag(TRUE);

glVertex2f(20.0f, -40.0f);

glVertex2f(60.0f, -20.0f);

glEdgeFlag(bEdgeFlag);

glVertex2f(20.0f, 0.0f);

glEdgeFlag(TRUE);

// Center square as two tri angles

glEdgeFlag(bEdgeFlag);

glVertex2f( -20.0f, 0.0f);

glVertex2f( -20.0f,-40.0f);

glVertex2f(20.0f, 0.0f);

glVertex2f( -20.0f,-40.0f);

glVertex2f(20.0f, -40.0f);

glVertex2f(20.0f, 0.0f);

glEdgeFlag(TRUE);

// Done drawing Triangles glEnd();

See Also glBegin, glPolygonMode.

Page

207

Page

208

OpenGL Super Bible!

glEnd

Purpose

Terminates a list of vertices that specify a primitive initiated by glBegin.

Include File

<gl.h>

Syntax void glEnd();

Description

This function is used in conjunction with glBegin to delimit the vertices of an

OpenGL primitive. Multiple vertices sets may be included within a single glBegin/glEnd pair, as long as they are for the same primitive type. Other settings may also be made with additional OpenGL commands that affect the vertices following them. Only these OpenGL functions may be called within a glBegin/glEnd sequence: glVertex, glColor, glIndex, glNormal, glEvalCoord, glCallList, glCallLists, glTexCoord, glEdgeFlag, and glMaterial.

Returns

None.

Example

You can find this ubiquitous function in literally every example and supplementary sample in this chapter. The following code shows a single point being drawn at the origin of the x,y,z coordinate system. glBegin(GL_POINTS)

glVertex3f(0.0f, 0.0f, 0.0f); glEnd();

See Also glBegin, glVertex

OpenGL Super Bible! Page

209

glFrontFace

Purpose

Defines which side of a polygon is the front or back.

Include File

<gl.h>

Syntax void glFrontFace(GLenum mode);

Description

When a scene comprises objects that are closed (you cannot see the inside), color or lighting calculations on the inside of the object are unnecessary. The glCullFace function turns off such calculations for either the front or back of polygons. The glFrontFace function determines which side of the polygons is considered the front.

If the vertices of a polygon as viewed from the front are specified so that they travel clockwise around the polygon, the polygon is said have clockwise winding. If the vertices travel counterclockwise, the polygon is said to have counterclockwise winding. This function allows you to specify either the clockwise or counterclockwise wound face to be the front of the polygon.

Parameters

mode

GLenum: Specifies the orientation of front-facing polygons: clockwise (GL_CW) or counterclockwise (GL_CCW).

Returns

None.

Example

The following code from the TRIANGLE example in this chapter shows how the color and drawing operations are disabled for the inside of the cone. It is also necessary to indicate which side of the triangles are the outside by specifying clockwise winding.

// Clockwise wound polygons are front facing, this is reversed

// because we are using triangle fans

glFrontFace(GL_CW);

// Turn culling on if flag is set

if(bCull)

glEnable(GL_CULL_FACE);

else

glDisable(GL_CULL_FACE);

See Also glCullFace, glLightModel

Page

210

OpenGL Super Bible!

glGetPolygonStipple

Purpose

Returns the current polygon stipple pattern.

Include File

<gl.h>

Syntax void glGetPolygonStipple(GLubyte *mask);

Description

This function returns a 32 x 32-bit pattern that represents the polygon stipple pattern.

The pattern is copied to the memory location pointed to by mask. The packing of the pixels is affected by the last call to glPixelStore.

Parameters

*mask

GLubyte: A pointer to the polygon stipple pattern.

Returns

None.

Example

The following code segment retrieves the current stipple pattern:

GLubyte mask[32*4];

// 4 bytes = 32bits per row X 32 rows

glGetPolygonStipple(mask);

See Also glPolygonStipple, glLineStipple, glPixelStore

OpenGL Super Bible! Page

211

glLineStipple

Purpose

Specifies a line stipple pattern for line-based primitivesGL_LINES,

GL_LINE_STRIP, and GL_LINE_LOOP.

Include File

<gl.h>

Syntax void glLineStipple(GLint factor, GLushort pattern);

Description

This function uses the bit pattern to draw stippled (dotted and dashed) lines. The bit pattern begins with bit 0 (the rightmost bit), so the actual drawing pattern is the reverse of what is actually specified. The factor parameter is used to widen the number of pixels drawn or not drawn along the line specified by each bit in pattern.

By default, each bit in pattern specifies one pixel. To use line stippling, you must first enable stippling by calling

glEnable(GL_LINE_STIPPLE);

Line stippling is disabled by default. If you are drawing multiple line segments, the pattern is reset for each new segment. That is, if a line segment is drawn such that it is terminated halfway through pattern, the next line segment specified is unaffected.

Parameters

factor

GLint: Specifies a multiplier that determines how many pixels will be affected by each bit in the pattern parameter. Thus the pattern width is multiplied by this value.

The default value is 1 and the maximum value is clamped to 255.

pattern

GLushort: Sets the 16-bit stippling pattern. The least significant bit (bit 0) is used first for the stippling pattern. The default pattern is all 1’s.

Returns

None.

Example

The following code from the LSTIPPLE example program show a series of lines drawn using a stipple pattern of 0x5555 (01010101), which draws a dotted line. The repeat factor is increased for each line drawn to demonstrate the widening of the dot pattern.

// Called to draw scene void RenderScene(void)

{

GLfloat y; // Storage for varying Y coordinate

GLint factor = 1; // Stippling factor

GLushort pattern = 0x5555; // Stipple pattern

Page

212

OpenGL Super Bible!

// Enable Stippling

glEnable(GL_LINE_STIPPLE);

// Step up Y axis 20 units at a time

for(y = -90.0f; y < 90.0f; y += 20.0f)

{

// Reset the repeat factor and pattern

glLineStipple(factor,pat tern);

// Draw the line

glBegin(GL_LINES);

glVertex2f( -80.0f, y);

glVertex2f(80.0f, y);

glEnd();

factor++;

}

}

See Also glPolygonStipple

OpenGL Super Bible! Page

213

glLineWidth

Purpose

Sets the width of lines drawn with GL_LINES, GL_LINE_STRIP, or

GL_LINE_LOOP.

Include File

<gl.h>

Syntax void glLineWidth(GLfloat width );

Description

This function sets the width in pixels of lines drawn with any of the line-based primitives.

You can get the current line width setting by calling

GLfloat fSize;

glGetFloatv(GL_LINE_WIDTH, &fSize);

The current line-width setting will be returned in fSize. In addition, the minimum and maximum supported line widths can be found by calling

GLfloat fSizes[2];

glGetFloatv(GL_LINE_WIDTH_RANGE,fSizes);

In this instance, the minimum supported line width will be returned in fSizes[0], and the maximum supported width will be stored in fSizes[1]. Finally, the smallest supported increment between line widths can be found by calling

GLfloat fStepSize;

glGetFloatv(GL_LINE_WIDTH_GRANULARITY,&fStepSize);

For any implementation of OpenGL, the only line width guaranteed to be supported is 1.0. For the Microsoft Windows generic implementation, the supported line widths range from 0.5 to 10.0, with a granularity of 0.125.

Parameters

width

GLfloat: Sets the width of lines that are drawn with the line primitives. The default value is 1.0.

Returns

None.

Example

The following code from the LINESW example program demonstrates drawing lines of various widths.

void RenderScene(void)

{

Page

214

OpenGL Super Bible!

GLfloat y; // Storage for varying Y coordinate

GLfloat fSizes[2]; // Line width range metrics

GLfloat fCurrSize; // Save current size

// Get line size metrics and save the smallest value

glGetFloatv(GL_LINE_WIDTH_RAN GE,fSizes);

fCurrSize = fSizes[0];

// Step up Y axis 20 units at a time

for(y = -90.0f; y < 90.0f; y += 20.0f)

{

// Set the line width

glLineWidth(fCurrSize);

// Draw the line

glBegin(GL_LINES);

glVertex2f( -80.0f, y);

glVertex2f(80.0f, y);

glEnd();

// Increase the line width

fCurrSize += 1.0f;

}

}

See Also glPointSize

OpenGL Super Bible! Page

215

glPointSize

Purpose

Sets the point size of points drawn with GL_POINTS.

Include File

<gl.h>

Syntax void glPointSize(GLfloat size);

Description

This function sets the diameter in pixels of points drawn with the GL_POINTS primitive. You can get the current pixel size setting by calling

GLfloat fSize;

glGetFloatv(GL_POINT_SIZE, &fSize);

The current pixel size setting will be returned in fSize. In addition, the minimum and maximum supported pixel sizes can be found by calling

GLfloat fSizes[2];

… glGetFloatv(GL_POINT_SIZE_RANGE,fSizes);

In this instance, the minimum supported point size will be returned in fSizes[0], and the maximum supported size will be stored in fSizes[1]. Finally, the smallest supported increment between pixel sizes can be found by calling

GLfloat fStepSize;

glGetFloatv(GL_POINT_SIZE_GRANULARITY,&fStepSize);

For any implementation of OpenGL, the only point size guaranteed to be supported is 1.0. For the Microsoft Windows generic implementation, the point sizes range from 0.5 to 10.0, with a granularity of 0.125.

Parameters

size

GLfloat: Sets the diameter of drawn points. The default value is 1.0.

Returns

None.

Example

The following code from the POINTSZ sample program from this chapter gets the point size range and granularity and uses them to gradually increase the size of points used to plot a spiral pattern.

GLfloat x,y,z,angle; // Storage for coordinates and angles

GLfloat sizes[2]; // Store supported point size range

GLfloat step; // Store supported point size increments

GLfloat curSize; // Store current size

Page

216

OpenGL Super Bible!

// Get supported point size range and step size

glGetFloatv(GL_POINT_SIZE_RANGE,sizes);

glGetFloatv(GL_POINT_SIZE_GRANULARITY,&step);

// Set the initial point size

curSize = sizes[0];

// Set beginning z coordinate

z = -50.0f;

// Loop around in a circle three times

for(angle = 0.0f; angle <= (2.0f*3.1415f)*3.0f; angle += 0.1f)

{

// Calculate x and y values on the circle

x = 50.0f*sin(angle);

y = 50.0f*cos(angle);

// Specify the p oint size before the primitive

glPointSize(curSize);

// Draw the point

glBegin(GL_POINTS);

glVertex3f(x, y, z);

glEnd();

// Bump up the z value and the point size

z += 0.5f;

curSize += step;

}

See Also glLineWidth

OpenGL Super Bible! Page

217

glPolygonMode

Purpose

Sets the rasterization mode used to draw polygons.

Include File

<gl.h>

Syntax void glPolygonMode(GLenum face, GLenum mode);

Description

This function allows you to change how polygons are rendered. By default, polygons are filled or shaded with the current color or material properties. However, you may also specify that only the outlines or only the vertices are drawn. Furthermore, you may apply this specification to the front, back, or both sides of polygons.

Parameters

face

GLenum: Specifies which face of polygons is affected by the mode change:

GL_FRONT, GL_BACK, or GL_FRONT_AND_BACK.

mode

GLenum: Specifies the new drawing mode. GL_FILL is the default, producing filled polygons. GL_LINE produces polygon outlines, and GL_POINT only plots the points of the vertices. The lines and points drawn by GL_LINE and GL_POINT are affected by the edge flag set by glEdgeFlag.

Returns

None.

Example

The following code from the TRIANGLE example of this chapter sets the back side of polygons to be drawn as outlines or filled regions, depending on the value of the Boolean variable bOutline.

// Draw back side as a polygon only, if flag is set

if(bOutline)

glPolygonMode(GL_BACK,GL_LINE);

else

glPolygonMode(GL_BACK,GL_FILL);

See Also glEdgeFlag, glLineStipple, glLineWidth, glPointSize,glPolygonStipple

Page

218

OpenGL Super Bible!

glPolygonStipple

Purpose

Sets the pattern used for polygon stippling.

Include File

<gl.h>

Syntax void glPolygonStipple(const GLubyte *mask );

Description

A 32 x 32-bit stipple pattern may be used for filled polygons by using this function and enabling polygon stippling by calling glEnable(GL_POLYGON_STIPPLE). The

1’s in the stipple pattern are filled with the current color, and 0’s are not drawn.

Parameters

*mask const GLubyte: Points to a 32 x 32-bit storage area that contains the stipple pattern.

The packing of bits within this storage area is affected by glPixelStore. By default, the MSB (Most Significant Bit) is read first when determining the pattern.

Returns

None.

Example

The following code from the PSTIPPLE program on the CD in this chapter’s subdirectory enables polygon stippling, establishes a stipple pattern, and then draws a polygon in the shape of a hexagon (a stop sign).

See Also glLineStipple, glGetPolygonStipple, glPixelStore

OpenGL Super Bible! Page

219

glVertex

Purpose

Specifies the 3D coordinates of a vertex.

Include File

<gl.h>

Variations void glVertex2d(GLdouble x, GLdouble y); void glVertex2f(GLfloat x, GLfloat y); void glVertex2i(GLint x, GLint y); void glVertex2s(GLshort x, GLshort y); void glVertex3d(GLdouble x, GLdouble y, GLdouble z); void glVertex3f(GLfloat x, GLfloat y, GLfloat z); void glVertex3i(GLint x, GLint y, GLint z); void glVertex3s(GLshort x, GLshort y, GLshort z); void glVertex4d(GLdouble x, GLdouble y, GLdouble z, GLdouble w); void glVertex4f(GLfloat x, GLfloat y, GLfloat z, GLfloat w); void glVertex4i(GLint x, GLint y, GLint z, GLint w); void glVertex4s(GLshort x, GLshort y, GLshort z, GLshort w); void glVertex2dv(const GLdouble *v); void glVertex2fv(const GLfloat *v); void glVertex2iv(const GLint *v); void glVertex2sv(const GLshort *v); void glVertex3dv(const GLdouble *v); void glVertex3fv(const GLfloat *v); void glVertex3iv(const GLint *v); void glVertex3sv(const GLshort *v); void glVertex4dv(const GLdouble *v); void glVertex4fv(const GLfloat *v); void glVertex4iv(const GLint *v); void glVertex4sv(const GLshort *v);

Description

This function is used to specify the vertex coordinates of the points, lines, and polygons specified by a previous call to glBegin. This function may not be called outside the scope of a glBegin/glEnd pair.

Parameters

x, y, z

The x, y, and z coordinates of the vertex. When z is not specified, the default value is

0.0.

w

Page

220

OpenGL Super Bible!

The w coordinate of the vertex. This coordinate is used for scaling purposes and by default is set to 1.0. Scaling occurs by dividing the other three coordinates by this value.

*v

An array of values that contain the 2, 3, or 4 values needed to specify the vertex.

Returns

None.

Example

You can find this ubiquitous function in literally every example and supplementary sample in this chapter. The following code shows a single point being drawn at the origin of the x,y,z coordinate system.

glBegin(GL_POINTS)

glVertex3f(0.0f, 0.0f, 0.0f);

glEnd();

See Also glBegin, glEnd

OpenGL Super Bible! Page

221

Chapter 7

Manipulating 3D Space: Coordinate Transformations

What you’ll learn in this chapter:

How to... Functions You’ll Use

Establish your position in the scene

Position objects within the scene

Scale objects gluLookAt/glTranslate/glRotate glTranslate/glRotate glScale

Establish a perspective transformation gluPerspective

Perform your own matrix transformations glLoadMatrix/glMultMatrix

In Chapter 6, you learned how to draw points, lines, and various primitives in 3D. To turn a collection of shapes into a coherent scene, you must arrange them in relation to one another and to the viewer. In this chapter, you’ll start moving shapes and objects around in your coordinate system. (Actually, you don’t move the objects, but rather shift the coordinate

system to create the view you want.) The ability to place and orient your objects in a scene is a crucial tool for any 3D graphics programmer. As you will see, it is actually very convenient to describe your objects’ dimensions around the origin, and then translate and rotate the objects into the desired position.

Is This the Dreaded Math Chapter?

Yes, this is the dreaded math chapter. However, you can relax— we are going to take a more moderate approach to these principles than some texts.

The keys to object and coordinate transformations are two modeling matrices maintained by

OpenGL. To familiarize you with these matrices, this chapter strikes a compromise between two extremes in computer graphics philosophy. On the one hand, we could warn you,

“Please review a textbook on linear algebra before reading this chapter.” On the other hand, we could perpetuate the deceptive reassurance that you can “learn to do 3D graphics without all those complex mathematical formulas.” But we don’t agree with either camp.

In reality, yes, you can get along just fine without understanding the finer mathematics of

3D graphics, just as you can drive your car every day without having to know anything at all about automotive mechanics and the internal combustion engine. But you’d better know enough about your car to realize that you need an oil change every so often, that you have to fill the tank with gas regularly and change the tires when they get bald. This makes you a

Page

222

OpenGL Super Bible!

responsible (and safe!) automobile owner. If you want to be a responsible and capable

OpenGL programmer, the same standards apply. You want to understand at least the basics, so you know what can be done and what tools will best suit the job.

So, even if you don’t have the ability to multiply two matrices in your head, you need to know what matrices are and that they are the means to OpenGL’s 3D magic. But before you go dusting off that old linear algebra textbook (doesn’t everyone have one?), have no fear—

OpenGL will do all the math for you. Think of it as using a calculator to do long division when you don’t know how to do it on paper. Though you don’t have to do it yourself, you still know what it is and how to apply it. See— you can have your cake and eat it too!

Understanding Transformations

Transformations make possible the projection of 3D coordinates onto a 2D screen.

Transformations also allow you to rotate objects around, move them about, and even stretch, shrink, and wrap them. Rather than modifying your object directly, a transformation modifies the coordinate system. Once a transformation rotates the coordinate system, then the object will appear rotated when it is drawn. There are three types of transformations that occur between the time you specify your vertices and the time they appear on the screen: viewing, modeling, and projection. In this section we will examine the principles of each type of transformation, which you will find summarized in Table 7-1.

Table 7-1 Summary of the OpenGL Transformations

Transformation Use

Viewing

Modeling

Modelview

Projection

Viewport

Specifies the location of the viewer or camera

Moves objects around scene

Describes the duality of viewing and modeling transformations

Clips and sizes the viewing volume

Scales final output to the window

Eye Coordinates

An important concept throughout this chapter is that of eye coordinates. Eye coordinates are from the viewpoint of the observer, regardless of any transformations that may occur— think of them as “absolute” screen coordinates. Thus, eye coordinates are not real coordinates, but

OpenGL Super Bible! Page

223

rather represent a virtual fixed coordinate system that is used as a common frame of reference. All of the transformations discussed in this chapter are described in terms of their effects relative to the eye coordinate system.

Figure 7-1 shows the eye coordinate system from two viewpoints. On the left (a), the eye coordinates are represented as seen by the observer of the scene (that is, perpendicular to the monitor). On the right (b), the eye coordinate system is rotated slightly so you can better see the relation of the z-axis. Positive x and y are pointed right and up, respectively, from the viewer’s perspective. Positive z travels away from the origin toward the user, and negative z values travel farther away from the viewpoint into the screen.

Figure 7-1 Two perspectives of eye coordinates

When you draw in 3D with OpenGL, you use the Cartesian coordinate system. In the absence of any transformations, the system in use would be identical to the eye coordinate system. All of the various transformations change the current coordinate system with respect to the eye coordinates. This, in essence, is how you move and rotate objects in your scene— by moving and rotating the coordinate system with respect to eye coordinates. Figure 7-2 gives a two-dimensional example of the coordinate system rotated 45º clockwise by eye coordinates. A square plotted on this rotated coordinate system would also appear rotated.

Page

224

OpenGL Super Bible!

Figure 7-2 A coordinate system rotated with respect to eye coordinates

In this chapter you’ll study the methods by which you modify the current coordinate system before drawing your objects. You can even save the state of the current system, do some transformations and drawing, and then restore the state and start over again. By chaining these events, you will be able to place objects all about the scene and in various orientations.

Viewing Transformations

The viewing transformation is the first to be applied to your scene. It is used to determine the vantage point of the scene. By default, the point of observation is at the origin (0,0,0) looking down the negative z-axis (“into” the monitor screen). This point of observation is moved relative to the eye coordinate system to provide a specific vantage point. When the point of observation is located at the origin, then objects drawn with positive z values would be behind the observer.

The viewing transformation allows you to place the point of observation anywhere you want, and looking in any direction. Determining the viewing transformation is like placing and pointing a camera at the scene.

In the scheme of things, the viewing transformation must be specified before any other transformations. This is because it moves the currently working coordinate system in respect to the eye coordinate system. All subsequent transformations then occur based on the newly modified coordinate system. Later you’ll see more easily how this works, when we actually start looking at how to make these transformations.

Modeling Transformations

Modeling transformations are used to manipulate your model and the particular objects within it. This transformation moves objects into place, rotates them, and scales them.

Figure 7-3 illustrates three modeling transformations that you will apply to your objects.

OpenGL Super Bible! Page

225

Figure 7-3a shows translation, where an object is moved along a given axis. Figure 7-3b shows a rotation, where an object is rotated about one of the axes. Finally, Figure 7-3c shows the effects of scaling, where the dimensions of the object are increased or decreased by a specified amount. Scaling can occur nonuniformly (the various dimensions can be scaled by different amounts), and this can be used to stretch and shrink objects.

Figure 7-3 The modeling transformation

The final appearance of your scene or object can depend greatly on the order in which the modeling transformations are applied. This is particularly true of translation and rotation.

Figure 7-4a shows the progression of a square rotated first about the z-axis and then translated down the newly transformed x-axis. In Figure 7-4b, the same square is first translated down the x-axis and then rotated around the z-axis. The difference in the final dispositions of the square occurs because each transformation is performed with respect to the last transformation performed. In Figure 7-4a, the square is rotated with respect to the origin first. In 7-4b, after the square is translated, the rotation is then performed around the newly translated origin.

Page

226

OpenGL Super Bible!

Figure 7-4 Modeling transforms: rotation/translation and translation/rotation

The Modelview Duality

The viewing and the modeling transformations are, in fact, the same in terms of their internal effects as well as the final appearance of the scene. The distinction between the two is made purely as a convenience for the programmer. There is no real difference between moving an object backward, and moving the reference system forward— as shown in Figure

7-5, the net effect is the same. (You experience this firsthand when you’re sitting in your car at an intersection and you see the car next to you roll forward; it may seem to you that your own car is rolling backwards.). The term “modelview” is used here to indicate that you can think of this transformation either as the modeling transformation, or the viewing transformation, but in fact there is no distinction— thus, it is the modelview transformation.

OpenGL Super Bible! Page

227

Figure 7-5 Two ways of viewing the viewing transformation

The viewing transformation, therefore, is essentially nothing but a modeling transformation that you apply to a virtual object (the viewer) before drawing objects. As you will soon see, new transformations are repeatedly specified as you place more and more objects in the scene. The initial transformation provides a reference from which all other transformations are based.

Projection Transformations

The projection transformation is applied to your final Modelview orientation. This projection actually defines the viewing volume and establishes clipping planes. More specifically, the projection transformation specifies how a finished scene (after all the modeling is done) is translated to the final image on the screen. You will learn about two types of projections in this chapter: orthographic and perspective.

In an orthographic projection, all the polygons are drawn on screen with exactly the relative dimensions specified. This is typically used for CAD, or blueprint images where the precise dimensions are being rendered realistically.

A perspective projection shows objects and scenes more as they would appear in real life than in a blueprint. The trademark of perspective projections is foreshortening, which makes distant objects appear smaller than nearby objects of the same size. And parallel lines will not always be drawn parallel. In a railroad track, for instance, the rails are parallel, but with perspective projection they appear to converge at some distant point. We call this point the

vanishing point.

The benefit of perspective projection is that you don’t have to figure out where lines converge, or how much smaller distant objects are. All you need to do is specify the scene using the Modelview transformations, and then apply the perspective projection. It will work all the magic for you.

Page

228

OpenGL Super Bible!

Figure 7-6 compares orthographic and perspective projections on two different scenes.

Figure 7-6 Two examples of orthographic vs. perspective projections

In general, you should use orthographic projections when you are modeling simple objects that are unaffected by the position and distance of the viewer. Orthographic views usually occur naturally when the ratio of the object’s size to its distance from the viewer is quite small (say, a large object that’s far away). Thus, an automobile viewed on a showroom floor can be modeled orthographically, but if you are standing directly in front of the car and looking down the length of it, perspective would come into play. Perspective projections are used for rendering scenes that contain many objects spaced apart, for walk-through or flying scenes, or for modeling any large objects that may appear distorted depending on the viewer’s location. For the most part, perspective projections will be the most typical.

Viewport Transformations

When all is said and done, you end up with a two-dimensional projection of your scene that will be mapped to a window somewhere on your screen. This mapping to physical window coordinates is the last transformation that is done, and it is called the viewport

transformation. The viewport was discussed briefly in Chapter 3, where you used it to stretch an image or keep a scene squarely placed in a rectangular window.

Matrix Munching

Now that you’re armed with some basic vocabulary and definitions of transformations, you’re ready for some simple matrix mathematics. Let’s examine how OpenGL performs these transformations and get to know the functions you will call to achieve your desired effects.

The mathematics behind these transformations are greatly simplified by the mathematical notation of the matrix. Each of the transformations we have discussed can be achieved by multiplying a matrix that contains the vertices, by a matrix that describes the transformation.

OpenGL Super Bible! Page

229

Thus all the transformations achievable with OpenGL can be described as a multiplication of two or more matrices.

What Is a Matrix?

A matrix is nothing more than a set of numbers arranged in uniform rows and columns— in programming terms, a two-dimensional array. A matrix doesn’t have to be square, but each row or column must have the same number of elements as every other row or column in the matrix. Figure 7-7 presents some examples of matrices. (These don’t represent anything in particular but only serve to demonstrate matrix structure.) Note that a matrix can have but a single column.

Figure 7-7 Examples of matrices

Our purpose here is not to go into the details of matrix mathematics and manipulation. If you want to know more about manipulating matrices and hand-coding some special transformations, see Appendix B for some good references.

The Transformation Pipeline

To effect the types of transformations described in this chapter, you will modify two matrices in particular: the Modelview matrix, and the Projection matrix. Don’t worry,

OpenGL gives you some high-level functions that you can call for these transformations.

Only if you want to do something unusual do you need to call the lower-level functions that actually set the values contained in the matrices.

The road from raw vertex data to screen coordinates is a long one. Figure 7-8 is a flowchart of this process. First, your vertex is converted to a 1 x 4 matrix in which the first three values are the x, y, and z coordinates. The fourth number is a scaling factor that you can apply manually by using the vertex functions that take four values. This is the w coordinate, usually 1.0 by default. You will seldom modify this value directly but will apply one of the scaling functions to the Modelview matrix instead.

Page

230

OpenGL Super Bible!

Figure 7-8 The vertex transformation pipeline

The vertex is then multiplied by the Modelview matrix, which yields the transformed eye coordinates. The eye coordinates are then multiplied by the Projection matrix to yield clip coordinates. This effectively eliminates all data outside the viewing volume. The clip coordinates are then divided by the w coordinate to yield normalized device coordinates.

The w value may have been modified by the Projection matrix or the Modelview matrix, depending on the transformations that may have occurred. Again, OpenGL and the highlevel matrix functions will hide all this from you.

Finally, your coordinate triplet is mapped to a 2D plane by the viewport transformation. This is also represented by a matrix, but not one that you will specify or modify directly. OpenGL will set it up internally depending on the values you specified to glViewport.

The Modelview Matrix

The Modelview matrix is a 4 x 4 matrix that represents the transformed coordinate system you are using to place and orient your objects. The vertices you provide for your primitives are used as a single-column matrix and multiplied by the Modelview matrix to yield new transformed coordinates in relation to the eye coordinate system.

In Figure 7-9, a matrix containing data for a single vertex is multiplied by the Modelview matrix to yield new eye coordinates. The vertex data is actually four elements, with an extra value w, that represents a scaling factor. This value is set by default to 1.0, and rarely will you change this yourself.

OpenGL Super Bible! Page

231

Figure 7-9 Matrix equation that applies the Modelview transformation to a single vertex

Translation

Let’s take an example that modifies the Modelview matrix. Say you wanted to draw a cube using the AUX library’s auxWireCube() function. You would simply call auxWireCube(10.0f); and you would have a cube centered at the origin that measures 10 units on a side. To move the cube up the y-axis by 10 units before drawing it, you would multiply the Modelview matrix by a matrix that describes a translation of 10 units up the y-axis, and then do your drawing. In skeleton form, the code looks like this:

// Construct a translation matrix for positive 10 Y

...

// Multiply it by the Mode lview matrix

...

// Draw the cube auxWireCube(10.0f);

Actually, such a matrix is fairly easy to construct, but it would require quite a few lines of code. Fortunately, a high-level function is provided that does this for you: void glTranslatef(GLfloat x, GLfloat y, GLfloat z);

This function takes as parameters the amount to translate along the x, y, and z directions. It then constructs an appropriate matrix and does the multiplication. Now the pseudocode from above looks like the following, and the effect is illustrated in Figure 7-10.

// Translate up the y -axis 10 units glTranslatef(0.0f, 10.0f, 0.0f);

// Draw the cube auxWireCube(10.0f);

Page

232

OpenGL Super Bible!

Figure 7-10 A cube translated 10 units in the positive y direction

Rotation

To rotate an object about one of the three axes, you would have to devise a Rotation matrix to be multiplied by the Modelview matrix. Again, a high-level function comes to the rescue: glRotatef((GLfloat angle, GLfloat x, GLfloat y, GLfloat z);

Here we are performing a rotation around the vector specified by the x, y, and z arguments.

The angle of rotation is in the counterclockwise direction measured in degrees and specified by the argument angle. In the simplest of cases, the rotation is around one of the axes, so only that value needs to be specified.

You can also perform a rotation around an arbitrary axis by specifying x, y, and z values for that vector. To see the axis of rotation, you can just draw a line from the origin to the point represented by (x,y,z). The following code rotates the cube by 45º around an arbitrary axis specified by (1,1,1), as illustrated in Figure 7-11.

// Perform the transformation glRotatef(90.0f, 1.0f, 1.0f, 1.0f);

// Draw the cube auxWireCube(10.0f);

OpenGL Super Bible! Page

233

Figure 7-11 A cube rotated about an arbitrary axis

Scaling

A scaling transformation increases the size of your object by expanding all the vertices along the three axes by the factors specified. The function glScalef(GLfloat x, GLfloat y, GLfloat z); multiplies the x, y, and z values by the scaling factors specified.

Scaling does not have to be uniform. You can use it to stretch or squeeze objects, as well.

For example, the following code will produce a cube that is twice as large along the x- and z-axis as the cubes discussed in the previous examples, but still the same along the y-axis.

The result is shown in Figure 7-12.

// Perform the scaling transformation glScalef(2.0f, 1.0f, 2.0f);

// Draw the cube auxWireCube(10.0f);

Page

234

OpenGL Super Bible!

Figure 7-12 A nonuniform scaling of a cube

The Identity Matrix

You may be wondering about now why we had to bother with all this matrix stuff in the first place. Can’t we just call these transformation functions to move our objects around and be done with it? Do we really need to know that it is the Modelview matrix that is being modified?

The answer is yes and no, but only if you are drawing a single object in your scene. This is because the effects of these functions are cumulative. Each time you call one, the appropriate matrix is constructed and multiplied by the current Modelview matrix. The new matrix then becomes the current Modelview matrix, which is then multiplied by the next transformation, and so on.

Suppose you want to draw two spheres— one 10 units up the positive y-axis, and one 10 units out the positive x-axis, as shown in Figure 7-13. You might be tempted to write code that looks something like this:

// Go 10 units up the y -axis glTranslatef(0.0f, 10.0f, 0.0f);

// Draw the first sphere auxSolidSphere(1.0f);

// Go 10 units out the x -axis glTranslatef(10.0f, 0.0f, 0.0f);

// Draw the second sphere auxSolidSphere(1.0f);

OpenGL Super Bible! Page

235

Figure 7-13 Two spheres drawn on the y- and x-axis

Consider, however, that each call to glTranslate is cumulative on the Modelview matrix, so the second call would translate 10 units in the positive x direction from the previous translation in the y direction. This would yield the results shown in Figure 7-14.

Figure 7-14 The result of two consecutive translations

You could make an extra call to glTranslate to back down the y-axis 10 units in the negative direction, but this would make some complex scenes very difficult to code and debug. A simpler method would be to reset the Modelview matrix to a known state— in this case, centered at the origin of our eye coordinate system.

This is done by loading the Modelview matrix with the Identity matrix. The Identity matrix specifies that no transformation is to occur, in effect saying that all the coordinates you specify when drawing are in eye coordinates. An Identity matrix contains all 0’s with the

Page

236

OpenGL Super Bible!

exception of a diagonal row of ones. When this matrix is multiplied by any vertex matrix, the result is that the vertex matrix is unchanged. Figure 7-15 shows this equation.

Figure 7-15 Multiplying a vertex matrix by the identity matrix yields the same vertex matrix

As we’ve already stated, the details of performing matrix multiplication are outside the scope of this book. For now, just remember this: Loading the Identity matrix means that no

transformations are performed on the vertices. In essence, you are resetting the Modelview matrix back to the origin.

The following two lines load the identity matrix into the Modelview matrix: glMatrixMode(GL_MODELVIEW); glLoadIdentity();

The first line specifies that the current operating matrix is the Modelview matrix. Once you set the current operating matrix (the matrix that your matrix functions are affecting), it remains the active matrix until you change it. The second line loads the current matrix (in this case, the Modelview matrix) with the identity matrix.

Now the following code will produce results as shown in Figure 7-13:

// Set current matrix to Modelview and reset glMatrixMode(GL_MODELVIEW); glLoadIdentity();

// Go 10 units up the y -axis glTranslatef(0.0f, 10.0f, 0.0f);

// Draw the first sphere auxSolidSphere(1.0f);

// Reset Modelview matrix again glLoadIdentity();

// Go 10 units out the x -axis glTranslatef(10.0f, 0.0f, 0.0f);

// Draw the second sphere auxSolidSphere(1.0f);

OpenGL Super Bible! Page

237

The Matrix Stacks

It is not always desirable to reset the Modelview matrix to Identity before placing every object. Often you will want to save the current transformation state and then restore it after some objects have been placed. This is most convenient when you have initially transformed the Modelview matrix as your viewing transformation (and thus are no longer located at the origin).

To facilitate this, OpenGL maintains a matrix stack for both the Modelview and Projection matrices. A matrix stack works just like an ordinary program stack. You can push the current matrix onto the stack to save it, then make your changes to the current matrix.

Popping the matrix off the stack then restores it. Figure 7-16 shows the stack principle in action.

Figure 7-16 The matrix stack in action

Texture Matrix Stack:

The texture stack is another matrix stack available to the programmer. This is used for the transformation of texture coordinates. Chapter 12 examines texture mapping and texture coordinates and contains a discussion of the texture matrix stack.

The stack depth can reach a maximum value that can be retrieved with a call to either glGet(GL_MAX_MODELVIEW_STACK_DEPTH); or glGet(GL_MAX_PROJECTION_STACK_DEPTH);

Page

238

OpenGL Super Bible!

If you exceed the stack depth, you’ll get a GL_STACK_OVERFLOW; if you try to pop a matrix value off the stack when there is none, you will generate a

GL_STACK_UNDERFLOW. The stack depth is implementation dependent. For the

Microsoft software implementation these values are 32 for the Modelview and 2 for the

Projection stack.

A Nuclear Example

Let’s put to use what we have learned. In the next example, we will build a crude, animated model of an atom. This atom will have a single sphere at the center to represent the nucleus, and three electrons in orbit about the atom. Here we’ll use an orthographic projection, as we have previously in this book. (Some other interesting projections are covered in the upcoming section, “Using Projections.”)

Our ATOM program uses a timer to move the electrons four times a second (undoubtedly much slower than any real electrons!). Each time the Render function is called, the angle of revolution about the nucleus is incremented. Also, each electron lies in a different plane.

Listing 7-1 shows the Render function for this example, and the output from the ATOM program is shown in Figure 7-17.

Figure 7-17 Output from the ATOM example program

Listing 7-1 Render function from ATOM example program

// Called to draw scene void RenderScene(void)

{

// Angle of revolution around the nucleus

static float fElect1 = 0.0f;

OpenGL Super Bible!

// Clear the window with current clearing color

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

// Reset the modelview matrix

glMatrixMode(GL_MODELVIEW);

glLoadIdentity();

// Translate the whole scene out and into vi ew

// This is the initial viewing transformation

glTranslatef(0.0f, 0.0f, -100.0f);

// Red Nucleus

glRGB(255, 0, 0);

auxSolidSphere(10.0f);

// Yellow Electrons

glRGB(255,255,0);

// First El ectron Orbit

// Save viewing transformation

glPushMatrix();

// Rotate by angle of revolution

glRotatef(fElect1, 0.0f, 1.0f, 0.0f);

// Translate out from origin to orbit distance

glTranslatef(90.0f, 0.0f, 0. 0f);

// Draw the electron

auxSolidSphere(6.0f);

// Restore the viewing transformation

glPopMatrix();

// Second Electron Orbit

glPushMatrix();

glRotatef(45.0f, 0.0f, 0.0f, 1.0f);

glRotatef(f Elect1, 0.0f, 1.0f, 0.0f);

glTranslatef( -70.0f, 0.0f, 0.0f);

auxSolidSphere(6.0f);

glPopMatrix();

// Third Electron Orbit

glPushMatrix();

glRotatef(360.0f, -45.0f, 0.0f, 0.0f, 1.0f);

glRotatef(fElect 1, 0.0f, 1.0f, 0.0f);

glTranslatef(0.0f, 0.0f, 60.0f);

auxSolidSphere(6.0f);

glPopMatrix();

// Increment the angle of revolution

fElect1 += 10.0f;

if(fElect1 > 360.0f)

fElect1 = 0.0f;

Page

239

Page

240

OpenGL Super Bible!

// Flush drawing commands

glFlush();

}

Let’s examine the code for placing one of the electrons, a couple of lines at a time. The first line saves the current Modelview matrix by pushing the current transformation on the stack:

// First Electron Orbit

// Save viewing transformation glPushMatrix();

Now the coordinate system is rotated around the y axis by an angle fElect1:

// Rotate by angle of revolution glRotatef(fElect1, 0.0f, 1.0f, 0.0f);

Now the electron is drawn by translating down the newly rotated coordinate system:

// Translate out from origin to orbit distance glTranslatef(90.0f, 0.0f, 0.0f);

Then the electron is drawn (as a solid sphere), and we restore the Modelview matrix by popping it off the matrix stack:

// Draw the electron auxSolidSphere(6.0f);

// Restore the viewing transformation glPopMatrix();

The other electrons are placed similarly.

Using Projections

In our examples so far we have used the Modelview matrix to position our vantage point of the viewing volume and to place our objects therein. The Projection matrix actually specifies the size and shape of our viewing volume.

Thus far in this book, we have created a simple parallel viewing volume using the function glOrtho, setting the near and far, left and right, and top and bottom clipping coordinates.

When the Projection matrix is loaded with the Identity matrix, the diagonal line of 1’s specifies that the clipping planes extend from the origin to positive 1 in all directions. The projection matrix does no scaling or perspective adjustments. As you will soon see, there are some alternatives to this approach.

OpenGL Super Bible! Page

241

Orthographic Projections

An orthographic projection, used for most of this book thus far, is square on all sides. The logical width is equal at the front, back, top, bottom, left, and right sides. This produces a parallel projection, which is useful for drawings of specific objects that do not have any foreshortening when viewed from a distance. This is good for CAD or architectural drawings, for which you want to represent the exact dimensions and measurements on screen.

Figure 7-18 shows the output from the example program ORTHO on the CD in this chapter’s subdirectory. To produce this hollow, tube-like box, we used an orthographic projection just as we did for all our previous examples. Figure 7-19 shows the same box rotated more to the side so you can see how long it actually is.

Figure 7-18 A hollow square tube shown with an orthographic projection

Page

242

OpenGL Super Bible!

Figure 7-19 A side view showing the length of the square tube

In Figure 7-20, you’re looking directly down the barrel of the tube. Because the tube does not converge in the distance, this is not an entirely accurate view of how such a tube would appear in real life. To add some perspective, we use a perspective projection.

Figure 7-20 Looking down the barrel of the tube

OpenGL Super Bible! Page

243

Perspective Projections

A perspective projection performs perspective division to shorten and shrink objects that are farther away from the viewer. The width of the back of the viewing volume does not have the same measurements as the front of the viewing volume. Thus an object of the same logical dimensions will appear larger at the front of the viewing volume than if it were drawn at the back of the viewing volume.

The picture in our next example is of a geometric shape called a frustum. A frustum is a section of a pyramid viewed from the narrow end to the broad end. Figure 7-21 shows the frustum, with the observer in place.

Figure 7-21 A perspective projection defined by a frustum

You can define a frustum with the function glFrustum. Its parameters are the coordinates and distances between the front and back clipping planes. However, glFrustum is not very intuitive about setting up your projection to get the desired effects. The utility function gluPerspective is easier to use and somewhat more intuitive: void gluPerspective(GLdouble fovy, GLdouble aspect, GLdouble zNear,

GLdouble zFar);

Parameters for the gluPerspective function are a field-of-view angle in the vertical direction; the aspect ratio of the height to width; and the distances to the near and far clipping planes.

See Figure 7-22. The aspect ratio is then found by dividing the width (w) by the height (h) of the front clipping plane.

Page

244

OpenGL Super Bible!

Figure 7-22 The frustum as defined by gluPerspective

Listing 7-2 shows how we change our orthographic projection from the previous examples to use a perspective projection. Foreshortening adds realism to our earlier orthographic projections of the square tube, as shown in Figures 7-23, 7-24, and 7-25. The only substantial change we made for our typical projection code in Listing 7-2 is the added call to gluPerspective.

Figure 7-23 The square tube with a perspective projection

OpenGL Super Bible! Page

245

Figure 7-24 Side view with foreshortening

Figure 7-25 Looking down the barrel of the tube with perspective added

Page

246

OpenGL Super Bible!

Listing 7-2 Setting up the perspective projection for the PERSPECT example program

// Change viewing volume and viewport. Called when window is resized void ChangeSize(GLsizei w, GLsizei h)

{

GLfloat fAspect;

// Prevent a divide by zero

if(h == 0)

h = 1;

// Set Viewport to window dimensions

glViewport(0, 0, w, h);

fAspect = (GLfloat)w/(GLfloat)h;

// Reset coordinate system

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

// Produce the perspective projection

gluPerspective(60.0f, fAspect, 1.0, 400.0);

glMatrixMode(GL_MODELVIEW);

glLoadIdentity();

}

A Far-Out Example

For a complete example showing Modelview manipulation and perspective projections, we have modeled the Sun and the Earth/Moon system in revolution. We have enabled some lighting and shading for drama, so you can more easily see the effects of our operations.

You’ll be learning about shading and lighting in the next two chapters.

In our model, we have the Earth moving around the Sun, and the Moon revolving around the

Earth. A light source is placed behind the observer to illuminate the Sun sphere. The light is then moved to the center of the Sun in order to light the Earth and Moon from the direction of the Sun, thus producing phases. This is a dramatic example of how easy it is to produce realistic effects with OpenGL.

Listing 7-3 shows the code that sets up our projection, and the rendering code that keeps the system in motion. A timer elsewhere in the program invalidates the window four times a second to keep the Render function in action. Notice in Figures 7-26 and 7-27 that when the

Earth appears larger, it’s on the near side of the Sun; on the far side, it appears smaller.

OpenGL Super Bible! Page

247

Figure 7-26 The Sun/Earth/Moon system with the Earth on the near side

Figure 7-27 The Sun/Earth/Moon system with the Earth on the far side

Page

248

OpenGL Super Bible!

Listing 7-3 Code that produces the Sun/Earth/Moon System

// Change viewing volume and viewport. Called when window is resized void ChangeSize(GLsizei w, GLsizei h)

{

GLfloat fAspect;

// Prevent a divide by zero

if(h == 0)

h = 1;

// Set Viewpor t to window dimensions

glViewport(0, 0, w, h);

// Calculate aspect ratio of the window

fAspect = (GLfloat)w/(GLfloat)h;

// Set the perspective coordinate system

glMatrixMode(GL_PROJECTION);

glLoadIdentity() ;

// Field of view of 45 degrees, near and far planes 1.0 and 425

gluPerspective(45.0f, fAspect, 1.0, 425.0);

// Modelview matrix reset

glMatrixMode(GL_MODELVIEW);

glLoadIdentity();

}

// Called to draw sc ene void RenderScene(void)

{

// Earth and Moon angle of revolution

static float fMoonRot = 0.0f;

static float fEarthRot = 0.0f;

// Clear the window with current clearing color

glClear(GL_COLOR_BUFFER_BIT | G L_DEPTH_BUFFER_BIT);

// Save the matrix state and do the rotations

glMatrixMode(GL_MODELVIEW);

glPushMatrix();

// Set light position before viewing transformation

glLightfv(GL_LIGHT0,GL_POSITION,lightPos);

// Translate the whole scene out and into view

glTranslatef(0.0f, 0.0f, -300.0f);

// Set material color, Red

// Sun

glRGB(255, 255, 0);

auxSolidSphere(15.0f);

// Move the light after we draw the sun!

OpenGL Super Bible!

glLightfv(GL_LIGHT0,GL_POSITION,lightPos);

// Rotate coordinate system

glRotatef(fEarthRot, 0.0f, 1.0f, 0.0f);

// Draw the Earth

glRGB(0,0,255);

glTranslatef(105.0f,0.0f,0.0f);

auxSolidSphere(15.0f);

// Rotate from Earth -based coordinates and draw Moon

glRGB(200,200,200);

glRotatef(fMoonRot,0.0f, 1.0f, 0.0f);

glTranslatef(30.0f, 0.0f, 0.0f);

fMoonRot+= 15.0f;

if(fMoonRot > 360.0f)

fMoonRot = 0.0f;

auxSolidSphere(6.0f);

// Restore the matrix state

glPopMatrix();// Modelview matrix

// Step earth orbit 5 degrees

fEarthRot += 5.0f;

if(fEarthRot > 360.0f)

fEarthRot = 0.0f;

// Flush drawing commands

glFlush();

}

Page

249

Advanced Matrix Manipulation

You don’t have to use the high-level functions to produce your transformations. We recommend that you do, however, because those functions often are highly optimized for their particular purpose, whereas the low-level functions are designed for general use. Two of these high-level functions make it possible for you to load your own matrix and multiply it into either the Modelview or Projection matrix stacks.

Loading a Matrix

You can load an arbitrary matrix into the Projection, Modelview, or Texture matrix stacks.

First, declare an array to hold the 16 values of a 4 x 4 matrix. Make the desired matrix stack the current one, and call glLoadMatrix.

The matrix is stored in column-major order, which simply means that each column is traversed first from top to bottom. Figure 7-28 shows the matrix elements in numbered order. The following code shows an array being loaded with the Identity matrix, then being loaded into the Modelview matrix stack. This is equivalent to calling glLoadIdentity using the higher-level functions.

Page

250

OpenGL Super Bible!

// Equivalent, but more flexible glFloat m[] = { 1.0f, 0.0f, 0.0f, 0.0f,

0.0f, 1.0f, 0.0f, 0.0f,

0.0f, 0.0f, 1.0f, 0.0f,

0.0f, 0.0f, 0.0f, 1.0f }; glMatrixMode(GL_MODELVIEW); glLoadMatrixf(m);

Figure 7-28 Column-major matrix ordering

Performing Your Own Transformations

You can load an array with an arbitrary matrix if you want, and multiply it, too, into one of the three matrix stacks. The following code shows a Transformation matrix that translates 10 units along the x-axis. This matrix is then multiplied into the Modelview matrix. You can also achieve this affect by calling glTranslatef.

// Define the Translation matrix

glFloat m[] = { 1.0f, 0.0f, 0.0f, 10.0f,

0.0f, 1.0f, 0.0f, 0.0f,

0.0f, 0.0f, 1.0f, 0.0f,

0.0f, 0.0f, 0.0f, 1.0f };

// Multiply the translation matr ix by the current modelview

// matrix. The new matrix becomes the modelview matrix

glMatrixMode(GL_MODELVIEW);

glMultMatrixf(m);

Other Transformations

There’s no particular advantage in duplicating the functionality of gLoadIdentity or glTranslatef by specifying a matrix. The real reason for allowing manipulation of arbitrary matrices is to allow for complex matrix transformations. One such use is for drawing shadows, and you’ll see that in action in Chapter 9. Some other uses are wrapping one object around another object, and certain lens effects. For information on these advanced uses, see

Appendix B.

OpenGL Super Bible! Page

251

Summary

In this chapter, you’ve learned concepts crucial to using OpenGL for creation of 3D scenes.

Even if you can’t juggle matrices in your head, you now know what matrices are and how they are used to perform the various transformations. You’ve also learned how to manipulate the Modelview and Projection matrix stacks to place your objects in the scene and to determine how they are viewed on screen.

Finally, we also showed you the functions needed to perform your own matrix magic if you are so inclined. These functions allow you to create your own matrices and load them into the matrix stack, or multiply them by the current matrix first.

The tank/robot simulation at this point in the book will now allow you to move around in a three-dimensional world and explore objects placed all around. If you study the simulation code thus far, you will find excellent use of perspective projections, as well as the gluLookAt utility function that provides a simple way to specify your viewing transformation. Your 3D world is made of wire for now, but that will be changing very soon.

Page

252

Reference Section

OpenGL Super Bible!

glFrustum

Purpose

Multiplies the current matrix by a Perspective matrix.

Include File

<gl.h>

Syntax void glFrustum(GLdouble left, GLdouble right, GLdouble bottom, GLdouble top,

GLdouble near, GLdouble far);

Description

This function creates a Perspective matrix that produces a perspective projection.

The eye is assumed to be located at (0,0,0), with -far being the location of the far clipping plane, and -near specifying the location of the near clipping plane. This function can adversely affect the precision of the depth buffer if the ratio of far to near (far/near) is large.

Parameters

left, right

GLdouble: Coordinates for the left and right clipping planes.

bottom, top

GLdouble: Coordinates for the bottom and top clipping planes.

near, far

GLdouble: Distance to the near and far clipping planes. Both of these values must be positive.

Returns

None.

Example

The code below sets up a Perspective matrix that defines a viewing volume from 0 to –100 on the z-axis. The x and y extents are 100 units in the positive and negative directions.

glLoadMatrix(G L_PROJECTION);

glLoadIdentify();

glFrustum(-100.0f, 100.0f, -100.0f, 100.0f, 0.0f, 100.0f);

See Also glOrtho, glMatrixMode, glMultMatrix, glViewport

OpenGL Super Bible! Page

253

glLoadIdentity

Purpose

Sets the current matrix to Identity.

Include File

<gl.h>

Syntax void glLoadIdentity(void);

Description

This function replaces the current Transformation matrix with the Identity matrix.

This essentially resets the coordinate system to eye coordinates.

Returns

None.

Example

The following code shows the Modelview matrix being set to identity:

glMatrixMode(GL_MODELVIEW);

glLoadIdentity();

See Also glLoadMatrix, glMatrixMode, glMultMatrix, glPushMatrix

Page

254

OpenGL Super Bible!

glLoadMatrix

Purpose

Sets the current matrix to the one specified.

Include File

<gl.h>

Variations void glLoadMatrixd(const GLdouble *m); void glLoadMatrixf(const GLfloat *m);

Description

Replaces the current Transformation matrix with an arbitrary matrix supplied. It may be more efficient to use some of the other matrix manipulation functions such as glLoadIdentity, glRotate, glTranslate, and glScale.

Parameters

*m

GLdouble or GLfloat: This array represents a 4 x 4 matrix that will be used for the current Transformation matrix. The array is stored in column-major order as 16 consecutive values.

Returns

None.

Example

The following two segments of code are equivalent. They both load the Modelview matrix with the Identity matrix.

// Efficient way

glMatrixMode(GL_MODELVIEW);

glLoadIdentity();

// Equivalent, but more flexible

glFloat m[] = { 1.0f, 0.0f, 0.0f, 0.0f,

0.0f, 1.0f, 0.0f, 0.0f,

0.0f, 0.0f, 1.0f, 0.0f,

0.0f, 0.0f, 0.0f, 1.0f };

glMatrixMode(GL_MODELVIEW);

glLoadMatrixf(m);

See Also glLoadIdentity, glMatrixMode, glMultMatrix, glPushMatrix

OpenGL Super Bible! Page

255

glMatrixMode

Purpose

Specifies the current matrix (PROJECTION, MODELVIEW, TEXTURE).

Include File

<gl.h>

Syntax void glMatrixMode(GLenum mode );

Description

This function is used to determine which matrix stack (GL_MODELVIEW,

GL_PROJECTION, or GL_TEXTURE) will be used for matrix operations.

Parameters

mode

GLenum: Identifies which matrix stack will be used for subsequent matrix operations. Any of the values in Table 7-2 are accepted.

Returns

None.

Example

The following common two lines of code select the Modelview matrix stack for matrix operations, then loads the Identity matrix.

glMatrixMode(GL_MODELVIEW);

glLoadMatrixf(m);

See Also glLoadMatrix, glPushMatrix

Table 7-2 Valid Matrix Mode Identifiers for glMatrixMode()

Mode Matrix Stack

GL_MODELVIEW

GL_PROJECTION

GL_TEXTURE

Matrix operations affect the Modelview matrix stack. (Used to move objects around scene.)

Matrix operations affect the Projection matrix stack. (Used to define clipping volume.)

Matrix operations affect the Texture matrix stack. (Manipulates texture coordinates.)

Page

256

OpenGL Super Bible!

glMultMatrix

Purpose

Multiplies the current matrix by the one specified.

Include File

<gl.h>

Variations void glMultMatrixd(const GLdouble *m); void glMultMatrixf(const GLfloat *m);

Description

This function multiplies the currently selected matrix stack with the one specified.

The resulting matrix is then stored as the current matrix at the top of the matrix stack.

Parameters

*m

GLdouble or GLfloat: This array represents a 4 x 4 matrix that will be multiplied by the current matrix. The array is stored in column-major order as 16 consecutive values.

Returns

None.

Example

The following code creates a Translation matrix and multiplies it by the current Modelview matrix. The newly created matrix replaces the values in the Modelview matrix. The multiplication shown here could also have been accomplished by calling glTranslate(10.0f,

0.0f, 0.0f);.

// Define the Translation matrix

glFloat m[] = { 1.0f, 0.0f, 0.0f, 10.0f,

0.0f, 1.0f, 0.0f, 0.0f,

0.0f, 0.0f, 1.0f, 0.0f,

0.0f, 0.0f, 0.0f, 1.0f };

// Multiply the Translation matrix by the current Modelview

// matrix. The new matrix becomes the Modelview matrix

glMatrixMode(GL_MODELVIEW);

glMultMatrixf(m);

See Also glMatrixMode, glLoadIdentity, glLoadMatrix, glPushMatrix

OpenGL Super Bible! Page

257

glPopMatrix

Purpose

Pops the current matrix off the matrix stack.

Include File

<gl.h>

Syntax void glPopMatrix(void);

Description

This function is used to pop the last (topmost) matrix off the current matrix stack.

This is most often used to restore the previous condition of the current

Transformation matrix if it was saved with a call to glPushMatrix.

Returns

None.

Example

The code below is from the ATOM example program for this chapter. This section saves the

Modelview matrix state with a call to glPushMatrix (which is centered in the atom). Then the coordinate system is rotated and translated appropriately to place the electron, which is represented by a small sphere. The coordinate system is then restored by a call to glPopMatrix before the next electron is drawn.

// First Electron Orbit

glPushMatrix();

glRotatef(fElect1, 0.0f, 1.0f, 0.0f);

glTranslatef(90.0f, 0.0f, 0.0f);

auxSolidSphere(6.0f);

glPopMatrix();

See Also glPushMatrix

Page

258

OpenGL Super Bible!

glPushMatrix

Purpose

Pushes the current matrix onto the matrix stack.

Include File

<gl.h>

Syntax void glPushMatrix(void);

Description

This function is used to push the current matrix onto the current matrix stack. This is most often used to save the current Transformation matrix so that it can be restored later with a call to glPopMatrix.

Returns

None.

Example

See glPopMatrix.

See Also glPopMatrix

OpenGL Super Bible! Page

259

glRotate

Purpose

Rotates the current matrix by a Rotation matrix.

Include File

<gl.h>

Variations void glRotated(GLdouble angle, GLdouble x, GLdouble y, GLdouble z); void

glRotatef(GLfloat angle, GLfloat x, GLfloat y, GLfloat z);

Description

This function multiplies the current matrix by a Rotation matrix that performs a counterclockwise rotation around a directional vector that passes from the origin through the point (x,y,z). The newly rotated matrix becomes the current

Transformation matrix.

Parameters

angle

GLdouble or GLfloat: The angle of rotation in degrees. The angle produces a counterclockwise rotation.

x,y,z

GLdouble or GLfloat: A direction vector from the origin that is used as the axis of rotation.

Returns

None.

Example

The code below from the SOLAR example program places the Moon in orbit around the earth. The current Modelview matrix stack is centered at the Earth’s position, when it is rotated by the current revolution of the Moon, then translated out to its position away from the Earth.

// Moon

glRGB(200,200,200);

glRotatef(fMoonRot,0.0f, 1.0f, 0.0f);

glTranslatef(30.0f, 0.0f, 0.0f);

fMoonRot+= 15.0f;

if(fMoonRot > 360.0)

fMoonRot = 15.0f;

auxSolidSphere(6.0f);

See Also glScale, glTranslate

Page

260

OpenGL Super Bible!

glScale

Purpose

Multiplies the current matrix by a Scaling matrix.

Include File

<gl.h>

Variations void glScaled(GLdouble x, GLdouble y, GLdouble z); void glScalef(GLfloat x,

GLfloat y, GLfloat z);

Description

This function multiplies the current matrix by a Scaling matrix. The newly scaled matrix becomes the current Transformation matrix.

Parameters

x,y,z

GLdouble or GLfloat: Scale factors along the x, y, and z axes.

Returns

None.

Example

The following code modifies the Modelview matrix to produce flattened-out objects. The vertices of all subsequent primitives willbe reduced by half in the y direction.

glMatrixMode(GL_MODELVIEW);

glLoadIdentity();

glScalef(1.0f, 0.5f, 1.0f);

See Also glRotate, glTranslate

OpenGL Super Bible! Page

261

glTranslate

Purpose

Multiplies the current matrix by a Translation matrix.

Include File

<gl.h>

Variations void glTranslated(GLdouble x, GLdouble y, GLdouble z); void

glTranslatef(GLfloat x, GLfloat y, GLfloat z);

Description

This function multiplies the current matrix by a Translation matrix. The newly translated matrix becomes the current Transformation matrix.

Parameters

x,y,z

GLdouble or GLfloat: The x, y, and z coordinates of a translation vector.

Returns

None.

Example

The following code is from the example program SOLAR. It places a blue sphere 105 units along the positive x-axis away from the origin.

// Earth

glColor3f(0.0f,0.0f,1.0f);

glTranslatef(105.0f,0.0f,0.0f);

auxSolidSphere(15.0f);

See Also glRotate, glScale

Page

262

OpenGL Super Bible!

gluLookAt

Purpose

Defines a viewing transformation.

Include File

<glu.h>

Syntax void gluLookAt(GLdouble eyex, GLdouble eyey, GLdouble eyez, GLdouble centerx, GLdouble centery, GLdouble centerz, GLdouble upx, GLdouble upy,

GLdouble upz );

Description

Defines a viewing transformation based on the position of the eye, the position of the center of the scene, and a vector pointing up from the viewer’s perspective.

Parameters

eyex,eyey,eyz

GLdouble: x, y, and z coordinates of the eye point.

centerx, centery,

centerz

GLdouble: x, y, and z coordinates of the center of the scene being looked at.

upx,upy,upz

GLdouble: x, y, and z coordinates that specifies the up vector.

Returns

None.

Example

The following code is from the TANK example program. It shows how the viewing transformation is changed every time the tank or robot changes position.

// Reset the Modelview matrix

glMatrixMode(GL_MODELVIEW);

glLoadIdentity();

// Set viewing transformation based on position and direction.

gluLookAt(locX, locY, locZ, dirX, dirY, dirZ, 0.0f, 1.0f, 0.0f);

Here locX through locY specify the location of the tank or robot (the observer’s point of view), and dirX through dirZ represent the direction in which the tank is pointed. The last three values specify the direction pointed up, which for this simulation will always be in the positive y direction.

See Also glFrustum, gluPerspective

OpenGL Super Bible! Page

263

gluOrtho2D

Purpose

Defines a two-dimensional orthographic projection.

Include File

<glu.h>

Syntax void gluOrtho2D(GLdouble left, GLdouble right, GLdouble bottom, GLdouble top);

Description

This function defines a 2D orthographic projection matrix. This projection matrix is equivalent to calling glOrtho with near and far set to 0 and 1, respectively.

Parameters

left, right

GLdouble: Specifies the far-left and -right clipping planes.

bottom, top

GLdouble: Specifies the top and bottom clipping planes.

Returns

None.

Example

The following line of code sets up a 2D viewing volume that allows drawing in the xy plane from –100 to +100 along the x- and y-axis. Positive y will be up, and positive x will be to the right.

gluOrtho2D(-100.0, 100.0, -100.0, 100.0);

See Also glOrtho, gluPerspective

Page

264

OpenGL Super Bible!

gluPerspective

Purpose

Defines a viewing perspective Projection matrix.

Include File

<glu.h>

Syntax void gluPerspective(GLdouble fovy, GLdouble aspect, GLdouble zNear, GLdouble zFar);

Description

This function creates a matrix that describes a viewing frustum in world coordinates.

The aspect ratio should match the aspect ratio of the viewport (specified with glViewport). The perspective division is based on the field-of-view angle and the distance to the near and far clipping planes.

Parameters

fovy

GLdouble: The field of view in degrees, in the y direction.

aspect

GLdouble: The aspect ratio. This is used to determine the field of view in the x direction. The aspect ratio is x/y.

zNear, zFar

GLdouble: The distance from the viewer to the near and far clipping plane. These values are always positive.

Returns

None.

Example

The following code is from the example program SOLAR. It creates a Perspective projection that makes planets on the far side of the Sun appear smaller than when on the near side.

// Change viewing volume and viewport.

// Called when window is resized

void ChangeSize(GLsizei w, GLsizei h)

{

GLfloat fAspect;

// Prevent a divide by zero

if(h == 0)

h = 1;

// Set Viewport to window dimensions

glViewport(0, 0, w, h);

OpenGL Super Bible!

// Calculate aspect ratio of the window

Aspect = (GLfloat)w/(GLfloat)h;

// Reset coordinate system

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

gluPerspectiv e(45.0f, fAspect, 1.0, 425.0);

// Modelview matrix reset

glMatrixMode(GL_MODELVIEW);

glLoadIdentity();

}

See Also glFrustum, gluOrtho2D

Page

265

Page

266

OpenGL Super Bible!

Chapter 8

Color and Shading

What you’ll learn in this chapter:

How to… Functions You’ll Use

Specify a color in terms of RGB components

Set the shading model

Create a 3-3-2 palette

Make use of a palette glColor glShadeModel

CreatePalette

RealizePalette, SelectPalette,

UpdateColors

At last we are going to talk about color! This is perhaps the single most important aspect of any graphics library— even above animation support. You must remember one thing as you develop graphics applications: In this case, the old adage isn’t true; looks ARE everything!

Don’t let anyone tell you otherwise. Yes, it’s true that features, performance, price, and reliability are important factors when you’re selecting and working with a graphics application, but let’s face it— on the scales of product evaluation, looks have the largest impact most of the time.

If you want to make a living in this field, you cannot develop just for the intellectual few who may think as you do. Go for the masses! Consider this: Black-and-white TVs were cheaper to make than color sets. Black-and-white video cameras, too, were cheaper and more efficient to make and use— and for a long time they were more reliable. But look around at our society today and draw your own conclusions. Of course, black-and-white has its place, but color is now paramount. (Then again, we wish they hadn’t colorized all those

Shirley Temple movies… )

What Is a Color?

First let’s talk a little bit about color itself. How is a color made in nature, and how do we see colors? Understanding color theory and how the human eye sees a color scene will lend some insight into how you create a color programmatically. (If color theory is old hat to you, you can probably skip this section.)

OpenGL Super Bible! Page

267

Light as a Wave

Color is simply a wavelength of light that is visible to the human eye. If you had any physics classes in school, you may remember something about light being both a wave and a particle. It is modeled as a wave that travels through space much as a ripple through a pond; and it is modeled as a particle, such as a raindrop falling to the ground. If this seems confusing, you know why most people don’t study quantum mechanics!

The light you see from nearly any given source is actually a mixture of many different kinds of light. These kinds of light are identified by their wavelengths. The wavelength of light is measured as the distance between the peaks of the light wave, as illustrated in Figure 8-1.

Figure 8-1 How a wavelength of light is measured

Wavelengths of visible light range from 390 nanometers (one billionth of a meter) for violet light, to 720 nanometers for red light; this range is commonly called the spectrum. You’ve undoubtedly heard the terms ultraviolet and infrared; these represent light not visible to the naked eye, lying beyond the ends of the spectrum You will recognize the spectrum as containing all the colors of the rainbow. See Figure 8-2.

Figure 8-2 The spectrum of visible light

Light as a Particle

“OK, Mr. Smart Brain,” you may ask, “If color is a wavelength of light and the only visible light is in this 'rainbow’ thing, where is the brown for my Fig Newtons or the black for my coffee, or even the white of this page?” We’ll begin answering that question by telling you that black is not a color; nor is white. Actually, black is the absence of color, and white is an

even combination of all the colors at once. That is, a white object reflects all wavelengths of colors evenly, and a black object absorbs all wavelengths evenly.

Page

268

OpenGL Super Bible!

As for the brown of those fig bars and the many other colors that you see, they are indeed colors. Actually, at the physical level they are composite colors. They are made of varying amounts of the “pure” colors found in the spectrum. To understand how this works, think of light as a particle. Any given object when illuminated by a light source is struck by “billions and billions” (my apologies to Carl Sagan) of photons, or tiny light particles. Remembering our physics mumbo jumbo, each of these photons is also a wave, which has a wavelength, and thus a specific color in the spectrum.

All physical objects are made up of atoms. The reflection of photons from an object depends on the kinds of atoms, the amount of each kind, and the arrangement of atoms in the object.

Some photons will be reflected and some will be absorbed (the absorbed photons are usually converted to heat), and any given material or mixture of materials (such as your fig bar) will reflect more of some wavelengths than others. Figure 8-3 illustrates this principle.

Figure 8-3 An object reflects some photons and absorbs others

Your Personal Photon Detector

The reflected light from your fig bar, when seen by your eye, is interpreted as color. The billions of photons enter your eye and are focused onto the back of your eye, where your retina acts as sort of a photographic plate. The retina’s millions of cone cells are excited when struck by the photons, and this causes neural energy to travel to your brain, which interprets the information as light and color. The more photons that strike the cone cells, the more excited they get. This level of excitation is interpreted by your brain as the brightness of the light, which makes sense— the brighter the light, the more photons there are to strike the cone cells.

OpenGL Super Bible! Page

269

The eye has three kinds of cone cells. All of them respond to photons, but each kind responds most to a particular wavelength. One is more excited by photons that have reddish wavelengths, one by green wavelengths, and one by blue wavelengths. Thus light that is composed mostly of red wavelengths will excite red-sensitive cone cells more than the other cells, and your brain receives the signal that the light you are seeing is mostly reddish. You do the math— a combination of different wavelengths of various intensities will, of course, yield a mix of colors. All wavelengths equally represented thus is perceived as white, and no light of any wavelength is black.

You can see that any “color” that your eye perceives is actually made up of light all over the visible spectrum. The “hardware” in your eye detects what it sees in terms of the relative concentrations and strengths of red, green, and blue light. Figure 8 -4 shows how brown comprises a photon mix of 60% red photons, 40% green photons, and 10% blue photons.

Figure 8-4 How the “color” brown is perceived by the eye

The Computer as a Photon Generator

It makes sense that when we wish to generate a color with a computer, we do so by specifying separate intensities for red, green, and blue components of the light. It so happens that color computer monitors are designed to produce three kinds of light (can you guess which three?), each with varying degrees of intensity. In the back of your computer monitor is an electron gun that shoots electrons at the back of the screen you view. This screen contains phosphors that emit red, green, and blue light when struck by the electrons. The intensity of the light emitted varies with the intensity of the electron beam. These three color phosphors are then packed closely together to make up a single physical dot on the screen.

See Figure 8-5.

Page

270

OpenGL Super Bible!

Figure 8-5 How a computer monitor generates colors

You may recall that in Chapter 3 we explained how OpenGL defines a color exactly as intensities of red, green, and blue, with the glColor command. Here we will cover more thoroughly the two color modes supported by OpenGL.

RGBA color mode is what we have been using all along for the examples in this book. When drawing in this mode, you set a color precisely by specifying it in terms of the three color components (Red, Green, and Blue).

With color index mode, you choose a color while drawing by specifying an index into an array of available colors called a palette. Within this palette, you specify the exact color you want by setting the intensities of the red, green, and blue components.

PC Color Hardware

There once was a time when state-of-the-art PC graphics hardware meant the Hercules graphics card. This card could produce bitmapped images with a resolution of 720 × 348.

The drawback was that each pixel had only two states: on and off. At that time, bitmapped graphics of any kind on a PC was a big deal, and you could produce some great monochrome graphics. Your author even did some 3D graphics on a Hercules card back in college.

Actually predating the Hercules card was the CGA card, the Color Graphics Adapter.

Introduced with the first IBM PC, this card could support resolutions of 320 ×200 pixels and

OpenGL Super Bible! Page

271

could place any four of 16 colors on the screen at once. A higher resolution (640 ×200) with two colors was also possible, but wasn’t as effective or cost conscious as the Hercules card

(color monitors = $$$). CGA was puny by today’s standards— it was even outmatched then by the graphics capabilities of a $200 Commodore 64 or Atari home computer. Lacking adequate resolution for business graphics or even modest modeling, CGA was used primarily for simple PC games or business applications that could benefit from colored text.

Generally though, it was hard to make a good business justification for this more expensive hardware.

The next big breakthrough for PC graphics came when IBM introduced the Enhanced

Graphics Adapter (EGA) card. This one could do more than 25 lines of colored text in new text modes, and for graphics could support 640 ×350-pixel bitmapped graphics in 16 colors!

Other technical improvements eliminated some flickering problems of the CGA ancestor and provided for better and smoother animation. Now arcade-style games, real business graphics, and even 3D graphics became not only possible but even reasonable on the PC.

This advance was a giant move beyond CGA, but still PC graphics were in their infancy.

The last mainstream PC graphics standard set by IBM was the VGA card (which stood for

Vector Graphics Array rather than the commonly held Video Graphics Adapter). This card was significantly faster than the EGA, could support 16 colors at a higher resolution (640

×480) and 256 colors at a lower resolution of 320 ×200. These 256 colors were selected from a palette of over 16 million possible colors. That’s when the floodgates opened for PC graphics. Near photo-realistic graphics become possible on PCs. Ray tracers, 3D games, and photo-editing software began to pop up in the PC market.

IBM, as well, had a high-end graphics card— the 8514— for their “workstations.” This card could do 1024 ×768 graphics at 256 colors. IBM thought this card would only be used by

CAD and scientific applications! But one thing is certain about the consumer market: They always want more. It was this short-sightedness that cost IBM its role as standard-setter in the PC graphics market. Other vendors began to ship “Super-VGA” cards that could display higher and higher resolutions, with more and more colors. First 800 ×600, then 1024 ×768 and even higher, with first 256 colors, then 32,000, to 65,000. Today 24-bit color cards can display 16 million colors at resolutions up to 1024 ×768. Inexpensive PC hardware can support full color at VGA resolutions, or 8 00 ×600 Super-VGA resolutions. Most Windows

PCs sold today can support at least 65,000 colors at resolutions of 1024 ×768.

All this power makes for some really cool possibilities— photo-realistic 3D graphics to name just one. When Microsoft ported OpenGL to the Windows platform, that enabled creation of high-end graphics applications for PCs. Today’s Pentium and Pentium Pro P Cs are still no match for modern SGI Workstations. But combine them with 3D-graphics accelerated graphics cards, and you can get the kind of performance possible only a few years ago on

$100,000 graphics workstations— at a Wal-Mart Christmas special! In the very near future, typical home machines will be capable of very sophisticated simulations, games, and more.

Our children will laugh at the term “virtual reality” in the same way we smile at those old

Buck Rogers rocket ships.

Page

272

PC Display Modes

OpenGL Super Bible!

Microsoft Windows revolutionized the world of PC graphics in two respects. First, it created a mainstream graphical operating environment that was adopted by the business world at large and, soon thereafter, the consumer market. Second, it made PC graphics significantly easier for programmers to do. With Windows, the hardware was “virtualized” by Windows display device drivers. Instead of having to write instructions directly to the video hardware, programmers today can write to a single API, and Windows handles the specifics of talking to the hardware. Typically, Microsoft provides in the Windows base package (usually with vendor assistance) drivers for the more popular graphics cards. Hardware vendors with later hardware and software revisions ship their cards with Windows drivers and often provide updates to these drivers on BBSs or on the Internet.

There was a time when Windows shipped with drivers for the Hercules monochrome cards, and standard CGA, and EGA video adapters. Not anymore. Standard VGA is now considered the bottom of the barrel. New PCs sold today are capable of at least 640 ×480 resolution with 16 colors, and the choices of resolution and color depth go up from there.

Screen Resolution

Screen resolution for today’s PCs can vary from 640 ×480 pixels up to 1280 ×1024 or more.

Screen resolution, however, is not usually a prime limiting factor in writing graphics applications. The lower resolution of 640 ×480 is considered adequate for most graphics display tasks. More important is the size of the window, and this is taken into account easily with clipping volume and viewport settings (see Chapter 3). By scaling the size of the drawing to the size of the window, you can easily account for the various resolutions and window size combinations that can occur. Well-written graphics applications will display the same approximate image regardless of screen resolution. The user should automatically be able to see more and sharper details as the resolution increases.

Color Depth

If an increase in screen resolution or in the number of available drawing pixels in turn increases the detail and sharpness of the image, so too should an increase in available colors improve the clarity of the resulting image. An image displayed on a computer that can display millions of colors should look remarkably better than the same image displayed with only 16 colors. In programming, there are really only three color depths that you need to worry about: 4-bit, 8-bit, and 24-bit.

4-Bit Color

On the low end, your program may be run in a video mode that only supports 16 colors— called 4-bit mode because there are 4 bits devoted to color information for each pixel. These

4 bits represent a value from 0 to 15 that provides an index into a set of 16 predefined colors. With only 16 colors at your disposal, , there is little you can do to improve the clarity

OpenGL Super Bible! Page

273

and sharpness of your image. It is generally accepted that most serious graphics applications can ignore the 16-color mode.

8-Bit Color

The 8-bit mode supports up to 256 colors on the screen. This is a substantial improvement, and when combined with dithering (explained later in this chapter) can produce satisfactory results for many applications. There are 8 bits devoted to each pixel, which are used to hold a value from 0 to 255 that references an index into a color table called the palette. The colors in this color table can be selected from over 16 million possible colors. If you need 256 shades of red, the hardware will support it.

Each color in the palette is selected by specifying 8 bits each for separate intensities of red, green, and blue, which means the intensity of each component can range from 0 to 255. This effectively yields a choice of over 16 million different colors for the palette. By selecting these colors carefully, near-photographic quality can be achieved on the PC screen.

24-Bit Color

The best quality image production available today on PCs is 24-bit color mode. In this mode, a full 24 bits are devoted to each pixel to hold eight bits of color data for each of the red, green, and blue color components (8 + 8 + 8 = 24). You have the capability to put any of over 16 million possible colors in every pixel on the screen. The most obvious drawback to this mode is the amount of memory required for high-resolution screens (over 2MB for a

1024 ×768 screen). Also indirectly, it is much slower to move larger chunks of memory around when doing animation, or just drawing on the screen. Fortunately, today’s accelerated graphics adapters are optimized for these types of operations.

Other Color Depths

For saving memory or improving performance, many display cards also support various other color modes.

In the area of performance improvement, some cards support a 32-bit color mode sometimes called true color mode. Actually, the 32-bit color mode cannot display any more colors than the 24-bit mode, but it improves performance by aligning the data for each pixel on a 32-bit address boundary. Unfortunately, this results in a wasted 8-bits (1 byte) per pixel. On today’s 32-bit Intel PCs, a memory address evenly divisible by 32 results in much faster memory access.

Two other popular display modes are sometimes supported to use memory more efficiently.

The first is 15-bit color mode, which uses 5 bits each for storing red, green, and blue components. Each pixel can display any of 32,768 different colors. And in 16-bit mode, an additional bit is added for one of the color components (usually green), allowing one of

65,536 possible colors for each pixel. This last mode, especially, is practically as effective as

Page

274

OpenGL Super Bible!

24-bit for photographic image reproduction. It is difficult to tell the difference between 16bit and 24-bit color modes for most photographic images, although some banding may be observed on smoothly shaded surfaces with only 16 bits of color.

Programmatically, a color in the 15- or 16-bit color mode is set in the same way as for the

24-bit color modes— that is, as a set of three 8-bit intensities. The hardware or device driver takes this 24-bit color value and scales it to the nearest matching 15- or 16-bit color value before setting the pixel color.

Selecting a Color

You now know that OpenGL specifies an exact color as separate intensities of red, green, and blue components. You also know that Windows-supported PC hardware may be able to display nearly all of these combinations, or only a very few. How, then, do we specify a desired color in terms of these red, green, and blue components? And how will Windows fulfill this request using the colors it has available?

The Color Cube

Since a color is specified by three positive color values, we can model the available colors as a volume that we shall call the RGB color space. Figure 8-6 shows what this color space looks like at the origin with red, green, and blue as the axes. The red, green, and blue coordinates are specified just like x, y, and z coordinates. At the origin (0,0,0), the relative intensities of all the components is zero, and the resulting color is black. The maximum available on the PC for storage information is 24 bits, so with 8 bits for each component, let’s say that a value of 255 along the axis would represent full saturation of that component.

We would then end up with a cube measuring 255 on each side. The corner directly opposite black, where the concentrations are (0,0,0), is white with relative concentrations of

(255,255,255). At full saturation (255) from the origin along each axis would lie the pure colors of red, green, and blue, respectively.

OpenGL Super Bible! Page

275

Figure 8-6 The origin of RGB color space

This “color cube” (Figure 8-7) then contains all the possible colors, either on the surface of the cube or within the interior of the cube. For example, all possible shades of gray between black and white lie internally on the diagonal line between the corner (0,0,0) and

(255,255,255).

Figure 8-7 The RGB color space

Page

276

OpenGL Super Bible!

Figure 8-8 is a screenshot of the smoothly shaded color cube produced by a sample program from this chapter, CCUBE. The surface of this cube shows the color variations from black on one corner to white on the opposite corner. Red, green, and blue are present on their corners 255 units from black. Additionally, the colors yellow, cyan, and magenta have corners showing the combination of the other three primary colors. This program will do an adequate job of rendering the color cube, even in a 16-color Windows display mode, and you’ll learn how this is done later in this chapter. You can also spin the color cube around to examine all of its sides, by pressing the arrow keys.

Figure 8-8 Output from CCUBE is this color cube

Setting the Drawing Color

Let’s briefly review the glColor() function. It is prototyped as follows: void glColor<x><t>(red, green, blue, alpha);

In the function name, the <x> represents the number of arguments; it may be 3 for three arguments of red, green, and blue, or 4 for four arguments to include the alpha component.

(The alpha component specifies the translucency of the color and will be covered in more detail in (Chapter 15.) For the time being, just use a three-argument version of the function.

The <t> in the function name specifies the argument’s data type and can be b, d, f, i, s, ub, ui, us, for byte, double, float, integer, short, unsigned byte, unsigned integer, and unsigned short data types, respectively. Another version of the function has a v appended to the end; this version takes an array that contains the arguments (the v stands for vectored). In the

Reference Section you will find an entry with more details on the glColor() function.

OpenGL Super Bible! Page

277

Most OpenGL programs that you’ll see will use glColor3f and will specify the intensity of each component as 0.0 for none or 1.0 for full intensity. However, it may be easier, if you have Windows programming experience, to use the glColor3ub version of the function. This version takes three unsigned bytes, from 0 to 255, to specify the intensities of red, green, and blue. Using this version of the function is like using the Windows RGB macro to specify a color:

glColor3ub(0,255,128) = RGB(0,255,128)

In fact, this may make it easier for you to match your OpenGL colors to existing RGB colors used by your program for other non-OpenGL drawing tasks.

Remember that the RGB macro specifies a color to Windows but does not itself set the current drawing color, as glColor does. To do this, you’d use the RGB macro in conjunction with the creation of a GDI pen or brush.

Shading

Our previous working definition for glColor was that this function set the current drawing color, and all objects drawn after this command would have the last color specified. Now that we have discussed the OpenGL drawing primitives (Chapter 6), we can expand this definition to this: The glColor function sets the current color that is used for all vertices drawn after the command. So far, all of our examples have drawn wireframe objects, or solid objects with each face a different but solid color. If we specify a different color for each vertex of a primitive (either point, line, or polygon), what color is the interior?

Let’s answer this question first regarding points. A point has only one vertex, and whatever color you specify for that vertex will be the resulting color for that point.

A line, however, has two vertices and each can be set to a different color. The color of the line depends on the shading model. Shading is simply defined as the smooth transition from one color to the next. Any two points in our RGB color space (Figure 8-7) can be connected by a straight line.

Smooth shading causes the colors along the line to vary as they do through the color cube from one color point to the other. In Figure 8-9, the color cube is shown with the black and white corners pointed out. Below it is a line with two vertices, one black and one white. The colors selected along the length of the line match the colors along the straight line in the color cube, from the black to the white corners. This results in a line that progresses from black through lighter and lighter shades of gray and eventually to white.

Page

278

OpenGL Super Bible!

Figure 8-9 How a line is shaded from black to white

You can do shading mathematically by finding the equation of the line connecting two points in the three-dimensional RGB color space. Then simply loop through from one end of the line to the other, retrieving coordinates along the way to provide the color of each pixel on the screen. Many good books on computer graphics will explain the algorithm to accomplish this and scale your color line to the physical line on the screen, etc. Fortunately,

OpenGL will do all this for you!

The shading exercise becomes slightly more complex for polygons. A triangle, for instance, can also be represented as a plane within the color cube. Figure 8-10 shows a triangle with each vertex at full saturation for the red, green, and blue color components. The code to display this triangle is in Listing 8-1, and in the example program TRIANGLES on the CD.

OpenGL Super Bible! Page

279

Figure 8-10 A triangle in RGB color space

Listing 8-1 Drawing a smooth-shaded triangle with red, green, and blue corners

// Enable smooth shading

glShadeModel(GL_SMOOTH);

// Draw the triangle

glBegin(GL_TRIANGLES);

// Red Apex

glColor3ub((GLubyte)255,(GLubyte)0,(GLubyte)0);

glVertex3f(0.0f,200.0f,0.0f);

// Green on the right bottom corner

glColor3ub((GLubyte)0,(GLubyte)255,(GLubyte)0);

glVertex3f(200.0 f,-70.0f,0.0f);

// Blue on the left bottom corner

glColor3ub((GLubyte)0,(GLubyte)0,(GLubyte)255);

glVertex3f( -200.0f, -70.0f, 0.0f); glEnd();

Setting the Shading Model

The first line of Listing 8-1 actually sets the shading model OpenGL uses to do smooth shading— the model we have been discussing. This is the default shading model, but it’s a good idea to call this function anyway to ensure that your program is operating the way you intended.

(The other shading model that can be specified with glShadeModel is GL_FLAT for flat

shading. Flat shading means that no shading calculations are performed on the interior of primitives. Generally, with flat shading the color of the primitive’s interior is the color that

Page

280

OpenGL Super Bible!

was specified for the last vertex. The only exception is for a GL_POLYGON primitive, in which case the color is that of the first vertex.)

Then the code in Listing 8-1 sets the top of the triangle to be pure red, the lower-right corner to be green, and the remaining bottom-left corner to be blue. Because smooth shading is specified, the interior of the triangle is shaded to provide a smooth transition between each corner.

The output from the TRIANGLE program is shown in Figure 8-11. This represents the plane shown graphically in Figure 8-10.

Figure 8-11 Output from the TRIANGLES program

Polygons, more complex than triangles, can also have different colors specified for each vertex. In these instances, the underlying logic for shading can become more intricate.

Fortunately, you never have to worry about it with OpenGL. No matter how complex your polygon, OpenGL will successfully shade the interior points between each vertex.

Note that you will rarely wish to do this type of shading yourself, anyway. This is primarily used to produce lighting effects, and OpenGL once again comes to the rescue. We’ll cover lighting in the Chapter 9.

Windows Palettes

The TRIANGLE and CCUBE example programs work reasonably well regardless of how many colors are available. If you can change the color depth of your system, try running these programs at the various color depths, starting at 16 colors and going up to 16 million if possible. You’ll notice that the colors make a smooth transition regardless of color depth, but the higher color depths provide a smoother and more appealing image. Figures 8-12a and 8-12b show the output of the TRIANGLES sample with 16 colors and 16 million colors, respectively. Even though these pictures are not in color, you can see how much smoother the second triangle appears.

OpenGL Super Bible! Page

281

Figure 8-12a Output of the TRIANGLES sample with 16 colors

Figure 8-12b With 16 million colors the triangle is much smoother

Color Matching

What happens when you try to draw a pixel of a particular color using the RGB values we have discussed? Internally, Windows defines a color using 8 bits each for the red, green, and blue components using the RGB macro, and you can use glColor3ub to duplicate this functionality within OpenGL.

Page

282

OpenGL Super Bible!

If the PC graphics card is in 24-bit color mode, then each pixel is displayed precisely in the color specified by the 24-bit value (three 8-bit intensities). In the 15- and 16-bit color modes,

Windows passes the 24-bit color value to the display driver, which converts the color to a

15- or 16-bit color value before displaying it. In 24-bit color mode, the RGB color cube measured 255 (or 8 bits) per side. In 15- or 16-bit color mode, the color cube measures 32 (5 bits) or 64 (6 bits) on a side. The device driver then matches the 24-bit color value to the nearest color match in the 15 or 16-bit color cube.

Figure 8-13 shows how an 8-bit red value might be mapped to a 5-bit red value.

Figure 8-13 A medium-intensity red being mapped from an 8-bit value to a 5-bit value

At the low end of the scale, 4-bit color mode can only display 16 colors. These colors are fixed and cannot be modified. Internally, Windows still represents each color with a 24-bit

RGB value. When you specify a color to use for drawing operations using the RGB macro or glColor3ub, Windows uses the nearest color of the 16 available to fulfill the request. If the color is being used for fill operations, the color is approximated by dithering the available colors.

Dithering

Having only 16 colors to work with makes the 4-bit color modes poorly suited for graphics.

One thing the Windows GDI will do to help is to perform dithering on solid shapes and objects in this mode. Dithering is a means of placing different colors close together to produce the illusion of another composite color. For example, if you place yellow and blue squares together in a checkerboard pattern, the pattern will take on a greenish appearance.

Without actually mixing the colors, the green would have a grainy appearance. By changing the proportion of yellow to green squares, you are effectively changing the intensities of yellow and green.

OpenGL Super Bible! Page

283

Windows uses dithering to produce colors not available in the current palette. In 16-color mode, image quality is typically very poor for more complex scenes. Figure 8-12 is a vivid demonstration of Windows dithering; we attempted to produce the RGB triangle on a system with only 16 colors. Generally, Windows does not perform dithering for OpenGL.

OpenGL can also do its own dithering, providing the command glEnable(GL_DITHER);

This can sometimes improve image quality substantially in 8- and 15-bit color modes. You can see dithering in action in the example program DITHER from this chapter’s subdirectory on the CD. This program draws a cube with sides of various colors and allows dithering to be enabled or disabled from the menu. When run in 8-bit color mode or better, dithering has little effect, but in the 4-bit, 16-color mode the dithered scene is remarkably different.

Advantages of a Palette in 8-Bit Mode

The 8-bit color modes can display 256 colors, and this results in a remarkable improvement for color graphics. When Windows is running in a color mode that supports 256 colors, it would make sense if those colors were evenly distributed across RGB color space. Then all applications would have a relatively wide choice of colors, and when a color was selected, the nearest available color would be used. Unfortunately, this is not very practical in the real world.

Since the 256 colors in the palette for the device can be selected from over 16 million different colors, an application can substantially improve the quality of its graphics by carefully selecting those colors— and many do. For example, to produce a seascape, additional shades of blue will be needed. CAD and modeling applications modify the palette to produce smooth shading of a surface of a particular single color. For example, the scene may require as many as 200 shades of gray to accurately render the image of a pipe’s cross section. Thus, applications for the PC typically change this palette to meet their needs, resulting in near-photographic quality for many images and scenes. For 256 color bitmaps, the Windows .bmp format even has an array that’s 256 entries long, containing 24-bit RGB values specifying the palette for the stored image.

An application can create a palette with the CreatePalette function, identifying the palette by a handle of type HPALETTE. This function takes a logical palette structure

(LOGPALETTE) that contains 256 entries, each specifying 8-bit values for red, green, and blue components. But before we examine palette creation, let’s take a look at how multitasked applications can share the single system palette in 8-bit color mode.

Page

284

Palette Arbitration

OpenGL Super Bible!

Windows multitasking allows many applications to be on screen at once. The hardware supports only 256 colors on screen at once, however, so all applications must share the same

system palette. If one application changes the system palette, images in the other windows may have scrambled colors, producing some undesired psychedelic effects. To arbitrate palette usage among applications, Windows sends a set of messages. Applications are notified when another application has changed the system palette, and they are notified when their window has received focus and palette modification is possible.

When an application receives keyboard or mouse input focus, Windows sends a

WM_QUERYNEWPALETTE message to the main window of the application. This message asks the application if it wants to realize a new palette. Realizing a palette means the application copies the palette entries from its private palette to the system palette. To do this, the application must first select the palette into the device context for the window being updated, and then call RealizePalette. Listing 8-2 presents the code for this message handler; it will be in all subsequent examples from this book.

Listing 8-2 Typical palette-arbitration code for Windows-based applications

static HPALETTE hPalette = NULL; // Permenant palette handle

// Palette is created and referenced by hPalette

// Windows is telling the application that it may modify

// the system palette. This message in essance asks the

// application for a new palette.

case WM_QUERYNEWPALE TTE:

// If the palette was created.

if(hPalette)

{

int nRet;

// Selects the palette into the current device context

SelectPalette(hDC, hPalette, FALS E);

// Map entries from the currently selected palette to

// the system palette. The return value is the number

// of palette entries modified.

nRet = RealizePalette(hDC);

// Repaint, forces remap of palette in current window

InvalidateRect(hWnd,NULL,FALSE);

return nRet;

}

break;

OpenGL Super Bible! Page

// This window may set the palette, even though i t is not the

// currently active window.

case WM_PALETTECHANGED:

// Don't do anything if the palette does not exist, or if

// this is the window that changed the palette.

if((hPalette != NULL) && ((HWND)wPar am != hWnd))

{

// Select the palette into the device context

SelectPalette(hDC,hPalette,FALSE);

// Map entries to system palette

RealizePalette(hDC);

// Remap the current colors to the newly realized

palette

UpdateColors(hDC);

return 0;

}

break;

285

Another message sent by Windows for palette realization is WM_PALETTECHANGED.

This message is sent to windows that can realize their palette but may not have the current focus. When this message is sent, you must also check the value of wParam. If wParam contains the handle to the current window receiving the message, then

WM_QUERYNEWPALETTE has already been processed, and the palette does not need to be realized again.

Note also in Listing 8-2 that the value of hPalette is checked against NULL before either of these palette-realization messages is processed. If the application is not running in 8-bit color mode, then no palette needs to be created or realized by these functions. Structuring your code in this way makes it useful for displays that don’t use palettes as well as those that do.

Creating a Palette

Unfortunately, palette considerations are a necessary evil if your application is to run on the

8-bit hardware that’s still in use in some environments. So what do you do if your code is executing on a machine that only supports 256 colors?

For image reproduction, we recommend selecting a range of colors that closely match the original colors. For OpenGL rendering under most circumstances, however, you want the widest possible range of colors for general-purpose use. The trick is to select the palette colors so that they’re evenly distributed throughout the color cube. Then, whenever a color is specified that is not already in the palette, Windows will select the nearest color in the color cube. As mentioned earlier, this is not ideal for some applications, but for OpenGL rendered scenes it is the best we can do. Unless there is substantial texture mapping in the scene with a wide variety of colors, results are usually acceptable.

Page

286

Do You Need a Palette?

OpenGL Super Bible!

To determine if your application needs a palette, you can call DescribePixelFormat() after you have set the pixel format. Test the dwFlags member of the

PIXELFORMATDECRIPTOR returned by DescribePixelFormat(), for the bit value

PFD_NEED_PALETTE. If this bit is set, you will need to create a palette for use by your application. Listing 8-3 shows the necessary code for this test.

Listing 8-3 Testing to see if an application needs a palette

PIXELFORMATDESCRIPTOR pfd; // Pixel Format Descriptor

int nPixelFormat;

// Pixel format index

// Get the pixel format index and retrieve the pixel format

description

nPixelFormat = GetPixelFormat(hDC);

DescribePixelFormat(hDC, nPixelFormat, sizeof(PIXELFORMATDESCRIPTOR),

&pfd);

// Does this pixel format require a palette?

if(!(pfd.dwFlags & PFD_NEED_PALETTE))

return NULL;// Does not need a palette

// Palette creation code

The Palette’s Structure

To create a palette, you must first allocate memory for a LOGPALETTE structure. This structure is filled with the information that describes the palette, and then is passed to the

Win32 function CreatePalette(). The LOGPALETTE structure is defined as follows:

typedef struct tagLOGPALETTE { // lgpl

WORD palVersion;

WORD palNumEntries;

PALETTEENTRY palPalEntry[1];

} LOGPALETTE;

The first two members are the palette header and contain the palette version (always set to

0x300) and the number of color entries (256 for 8-bit modes). Each entry is then defined as a

PALETTEENTRY structure that contains the RGB components of the color entry.

The following code allocates space for the logical palette:

LOGPALETTE *pPal; // Pointer to memory for logical palette

// Allocate space for a logical palette structure plus all the palette

OpenGL Super Bible!

// entries pPal = (LOGPALETTE*)malloc(sizeof(LOGPALETTE) + nColors*sizeof(PALETTEENTRY));

Page

287

Here, nColors specifies the number of colors to place in the palette, which for our purposes is always 256.

Each entry in the palette then is a PALETTEENTRY structure, which is defined as follows:

typedef struct tagPALETTEENTRY { // pe

BYTE peRed;

BYTE peGreen;

BYTE peBlue;

BYTE peFlags;

} PALETTEENTRY;

The peRed, peGreen, and peBlue members specify an 8-bit value that represents the relative intensities of each color component. In this way, each of the 256 palette entries contains a

24-color definition. The peFlags member describes advanced usage of the palette entries.

For OpenGL purposes you can just set this to NULL.

In addition to the 3-3-2 palette, Windows can support other 8-bit palettes for doing things such as specifying 200 shades of gray.

The 3-3-2 Palette

Now comes the tricky part. Not only must our 256 palette entries be spread evenly throughout the RGB color cube, but they must be in a certain order. It is this order that enables OpenGL to find the color it needs, or the closest available color in the palette.

Remember that in an 8-bit color mode you have 3 bits each for red and green, and 2 bits for blue. This is commonly referred to as a 3-3-2 palette. So our RGB color cube measures 8 by

8 by 3 along the red, green, and blue axes, respectively.

To find the color needed in the palette, an 8-8-8 color reference (the 24-bit color mode setup) is scaled to a 3-3-2 reference. This 8-bit value is then the index into our palette array.

The red intensities of 0–7 in the 3-3-2 palette must correspond to the intensities 0–255 in the

8-8-8 palette. Figure 8-14 illustrates how the red, green, and blue components are combined to make the palette index.

When we build the palette, we loop through all values from 0 to 255. We then decompose the index into the red, green, and blue intensities represented by these values (in terms of the

3-3-2 palette). Each component is multiplied by 255 and divided by the maximum value represented, which has the effect of smoothly stepping the intensities from 0 to 7 for red and green, and from 0 to 3 for the blue. Table 8-1 shows some sample palette entries, to demonstrate component calculation.

Page

288

OpenGL Super Bible!

Palette

Entry

0

1

2

3

9

10

137

138

255

Table 8-1 A Few Sample Palette Entries for a 3-3-2 Palette

Binary (B G R)

Blue Component Green Component

Red

Component

000 000 000000

00 000 001

00 000 010

00 000 011

00 001 001

00 001 010

10 001 001

10 001 010

11 111 111

0

0

0

0

0

0

2*255/3

2*255/7

3*255/3

0

0

0

0

1*255/7

1*255/7

1*255/7

1*255/7

7*255/7

0

1*255/7

2*255/7

3*255/7

1*255/7

2*255/7

1*255/7

2*255/3

7*255/7

Building the Palette

Unfortunately, at this time OpenGL for Windows will only support 3-3-2 palettes in RGBA color mode. This is actually specified in the PIXELFORMATDESCRIPTOR returned by

DescribePixelFormat(). The members cRedBits, cGreenBits, and cBluebits specify 3, 3, and

2, respectively, for the number of bits that can represent each component. Furthermore, the cRedShift, cGreenShift, and cBlueShift values specify how much to shift the respective component value to the left (in this case, 0, 3, and 6 for red, green, and blue shifts). These sets of values compose the palette index (Figure 8-14).

Figure 8-14 3-3-2 palette packing

The code in Listing 8-4 creates a palette if needed and returns its handle. This function makes use of the component bit counts and shift information in the

PIXELFORMATDESCRIPTOR to accommodate any subsequent palette requirements, such as a 2-2-2 palette .

OpenGL Super Bible!

Listing 8-4 Function to create a palette for OpenGL

Page

289

// If necessary, creates a 3 -3-2 palette for the device context listed.

HPALETTE GetOpenGLPalette(HDC hDC)

{

HPALETTE hRetPal = NULL; // Handle to palette to be created

PIXELFORMATDESCRIPTOR pfd; // Pixel Format Descriptor

LOGPALETTE *pPal; // Pointer to memory for logica l palette

int nPixelFormat; // Pixel format index

int nColors; // Number of entries in palette

int i; // Counting variable

BYTE RedRange,GreenRange,BlueRange;

// R ange for each color entry (7,7,and 3)

// Get the pixel format index and retrieve the pixel format description

nPixelFormat = GetPixelFormat(hDC);

DescribePixelFormat(hDC, nPixelFormat, sizeof(PIXELFORMATDESCRIPTOR),

&pfd);

// Does this p ixel format require a palette? If not, do not create a

// palette and just return NULL

if(!(pfd.dwFlags & PFD_NEED_PALETTE))

return NULL;

// Number of entries in palette. 8 bits yields 256 entries

nColors = 1 << pfd.cColorBits;

// Allocate space for a logical palette structure plus all the palette

// entries

pPal = (LOGPALETTE*)malloc(sizeof(LOGPALETTE) +

nColors*sizeof(PALETTEENTRY));

// Fill in palette header

pPal->palVersion = 0x300;// Windows 3.0

pPal->palNumEntries = nColors; // table size

// Build mask of all 1's. This creates a number represented by having

// the low order ×bits set, where ×= pfd.cRedBits, pfd.cGreenBits,and

// pfd.cBlueBits.

RedRange = (1 << pfd.cRedBits) -1; // 7 for 3-3-2 palettes

GreenRange = (1 << pfd.cGreenBits) - 1; // 7 for 3-3-2 palettes

BlueRange = (1 << pfd.cBlueBits) -1; // 3 for 3 -3-2 palettes

// Loop through all the palette entries

for(i = 0; i < nColors; i++)

{

// Fill in the 8 -bit equivalents for each component

pPal->palPalEntry[i].peRed = (i >> pfd.cRedShift) & RedRange;

pPal->palPalEntry[i].peRed = (unsigned char)(

(double) pPal ->palPalEntry[i].peRed * 255.0

/ RedRange);

pPal->palPalEntry[i].peGreen = (i >> pfd.cGreenShift)

& GreenRange;

pPal->palPalEntry[i].peGreen = (unsigned char)(

Page

290

OpenGL Super Bible!

(double)pPal ->palPalEntry[i].peGreen * 255.0

/GreenRange);

pPal->palPalEntry[i].peBlue = (i >> pfd.cBlueShift)

& BlueRange;

pPal->palPalEntry[i].peBlue = (unsigned char)(

(double)pPal ->palPalEntry[i].peBlue * 255.0

/ BlueRange);

pPal->palPalEntry[i].peFlags = (unsigned char) NULL;

}

// Create the palette

hRetPal = CreatePalette(pPal);

// Go ahead and select and realize the palette for this device context

SelectPalette(hDC,hRetPal,FALSE);

RealizePalette(hDC);

// Free the memory used fo r the logical palette structure

free(pPal);

// Return the handle to the new palette

return hRetPal;

}

Palette Creation and Disposal

The palette should be created and realized before the rendering context is created or made current. The function in Listing 8-4 requires only the device context, once the pixel format has been set. It will then return a handle to a palette if one is needed. Listing 8-5 shows the sequence of operations when the window is created and destroyed. This is similar to code presented previously for the creation and destruction of the rendering context, only now it also takes into account the possible existence of a palette.

Listing 8-5 A palette is created and destroyed

// Window creation, setup for OpenGL

case WM_CREATE:

// Store the device context

hDC = GetDC(hWnd);

// Select the pixel format

SetDCPixelFormat(hDC);

// Create the palette if needed

hPalette = GetOpenGLPalette(hDC);

// Create the rendering context and make it current

hRC = wglCreateContext(hDC);

wglMakeCurrent(hDC, hRC);

break;

OpenGL Super Bible!

// Window is being destroyed, cleanup

case WM_DESTROY:

// Deselect t he current rendering context and delete it

wglMakeCurrent(hDC,NULL);

wglDeleteContext(hRC);

// If a palette was created, destroy it here

if(hPalette != NULL)

DeleteObject(hPalette);

// Tell the application to terminate after the window

// is gone.

PostQuitMessage(0);

break;

Page

291

Some Restrictions Apply

Not all of your 256 palette entries will actually be mapped to the system palette. Windows reserves 20 entries for static system colors that include the standard 16 VGA/EGA colors.

This protects the standard windows components (title bars, buttons, etc.) from alteration whenever an application changes the system palette. When your application realizes its palette, these 20 colors will not be overwritten. Fortunately, some of these colors already exist or are closely matched in the 3-3-2 palette. Those that don’t are closely enough matched that you shouldn’t be able to tell the difference.

Color Index Mode

OpenGL also supports the alternative color index mode. In this mode, you specify a color for drawing operations by specifying an index into an array of colors, rather than as an RGB triplet.

You cannot use color index mode and RGBA color mode together. This means if you use color index mode on a true-color device (or near true-color, such as a 16-bit color card), you won’t have access to all the available colors. Under some implementations, the color index palette can be up to 4,096 entries long. The Microsoft implementation however, only supports 256 entries.

You can use color index mode to do contour mapping in which some function of the surface returns an index into the palette. It is somewhat faster than RGBA, and the limitations of the

3-3-2 palette do not exist. For example, if you need 200 shades of gray, you can have them.

However, some of the lighting effects discussed in the next chapter are not available under color index mode either.

Why Use Color Index Mode?

There are really very few good reasons to use color index mode. Typically, this mode is used to get more control over the palette. You can also do palette animation, but only on

Page

292

OpenGL Super Bible!

devices that support palettes (8-bit display cards). This doesn’t mean you can’t use color index mode on these devices; it only means there is no corresponding hardware palette with which you can perform animation. Palette animation occurs when you change the entries in the palette, which causes a corresponding change in all screen pixels having that palette index. This can produce color cycling for some special effects.

Another reason to use color index mode is for applications that use color to indicate a third dimension— to indicate the pressure at certain spatialregions, for instance. You can also use this mode for false color images that do not require an organized palette. Finally, color index mode can be somewhat faster in 8-bit color modes because only one color channel (as opposed to three, one each for red, green, and blue) needs to be manipulated instead of three.

In addition to limiting the color selection, color index mode does not support some of

OpenGL’s other special effects— including many lighting effects and shading, fog, antialiasing, and alpha blending. Generally, it is better to use RGBA mode.

As mentioned, the most significant advantage of using color index mode is for more palette control on 8-bit display devices. The 3-3-2 palette limits your color choices, and if you want

200 shades of red to do really smooth shading on an 8-bit display, you are out of luck. In color index mode, however, the palette entries range from darkest to lightest colors. You can separate the palette into as many or as few bands as you like. The INDEX sample program displays a triangle shaded from black to bright red (see Figure 8-15). This shading is not possible in 8-bit color mode using at 3-3-2 palette.

Figure 8-15 Output from INDEX showing over 200 shades of red for smooth shading

OpenGL Super Bible! Page

293

Using Color Index Mode

To specify color index mode, all you need to do is set the iPixelType member of the

PIXELFORMATDESCRIPTOR to PFD_TYPE_COLORINDEX. First, though, you need to create a palette. With color index mode, the palette is specific to the application. For our

INDEX sample program, we want a palette consisting only of shades of red to do very smooth shading in an 8-bit color mode. Listing 8-6 is the code to create this palette.

Listing 8-6 Code to create a palette consisting only of shades of red

// Creates a color ramp from black to bright red

HPALETTE GetRedPalette(HDC hDC)

{

HPALETTE hRetPal = NULL; // Handle to palette to be created

LOGPALETTE *pPal; // Pointer to memory for logical palette

int i; // Counting variable

// Allocate space for a logical palette structur e plus all the palette

// entries pPal =

{LOGPALETTE*)malloc(sizeof(LOGPALETTE)+256*sizeof(PALETTEENTRY));

// Fill in palette header pPal->palVersion = 0x300;// Windows 3.0 pPal->palNumEntries = 256;// table size

// Loop through all the palette en tries, creating a graduated red

// palette containing only shades of red for(i = 10; i < 246; i++)

{

pPal->palPalEntry[i].peRed = i;// Red intensity from 0 to 255

pPal->palPalEntry[i].peGreen = 0;

pPal->palPalEntry[i].peBlue = 0;

pPal->palPalEntry[i].peFlags = (unsigned char) NULL;

}

// Create the palette hRetPal = CreatePalette(pPal);

// Go ahead and select and realize the palette for this device context

SelectPalette(hDC,hRetPal,FALSE);

RealizePalette(hDC);

// Free the memory used for the logical palette structure free(pPal);

// Return the handle to the new palette return hRetPal;

}

Page

294

OpenGL Super Bible!

Notice that this code always returns a palette. No check is made to see if the pixel format required a palette. This is because you can use color index mode even in the high-color modes. All of the other code concerning palette realization remains unaffected.

Show the Triangle

Now the code to render the triangle sets the color of the triangle’s apex to color index 0, which is the darkest entry in the palette with 0 intensity (black). The color for the bottom two corners is set to palette index 255, the brightest shade of red. With smooth shading enabled, this code (Listing 8-7) produces the triangle seen in Figure 8-15.

Listing 8-7 Code to render the shaded triangle in the INDEX program void RenderScene(void)

{

// Clear the window with current clearing color

glClear(GL_COLOR_BUFFER_BIT);

// Enable smooth shading

glShadeModel(GL_SMOOTH);

// Draw the triangle

glBegin(GL_TRIANGLES);

// Darkest Red Apex (black)

glIndexi(0);

glVertex3f(0.0f,200.0f,0.0f);

// Brightest red bottom corners

glIndexi(255);

glVertex3f(200.0f, -70.0f,0.0f);

glVertex3f( -200.0f, -70.0f, 0.0f);

glEnd();

// Flush drawing commands

glFlush();

}

OpenGL Super Bible! Page

295

Summary

This chapter covers one of the most important features supported by a graphics package: color. You have seen how to specify a color in terms of its RGB components, and how these components relate to one another in the RGB color cube. Your understanding of glColor has been expanded to include the coloring of vertices, and you have seen how this affects shading. We explained OpenGL’s selection of colors in 4-, 8-, 16-, and 24-bit Windows color modes. We demonstrated the building of a 3-3-2 palette for use by OpenGL in 8-bit color modes. Finally, we took a brief look at color index mode and its utilization to gain better palette control in 8-bit color modes.

Good use of color and shading is a prerequisite for good 3D graphics. The upcoming chapter explains how OpenGL uses shading to produce lighting effects. You’ll learn how to specify material colors and lighting conditions and allow OpenGL to select the drawing colors.

Page

296

Reference Section

OpenGL Super Bible!

glClearIndex

Purpose

Sets the clear value for the color index buffers.

Include File

<gl.h>

Syntax void glClearIndex(GLfloat color);

Description

This function specifies the color index to use in color index mode to clear the color buffers. This has the net effect of clearing the window and setting the background color to the color in the index specified by the color parameter.

Parameters

color

GLfloat: The value to use when the color index buffers are cleared with glClear. The default is 0.

Returns

None.

Example

See the sample program INDEX in this chapter.

See Also glClear, glGet

OpenGL Super Bible! Page

297

glColor

Purpose

Sets the current color when in RGBA color mode.

Include File

<gl.h>

Variations void glColor3b(GLbyte red,GLbyte green, GLbyte blue); void glColor3d(GLdouble red, GLdouble green, GLdouble blue); void glColor3f(GLfloat red, GLfloat green, GLfloat blue); void glColor3i(GLint red, GLint green, GLint blue); void glColor3s(GLshort red, GLshort green, GLshort blue); void glColor3ub(GLubyte red, GLubyte green, GLubyte blue); void glColor3ui(GLuint red, GLuint green, GLuint blue); void glColor3us(GLushort red, GLushort green, GLushort blue); void glColor4b(GLbyte red, GLbyte green, GLbyte blue, GLbyte alpha); void glColor4d(GLdouble red, GLdouble green, GLdouble blue, GLdouble alpha); void glColor4f(GLfloat red, GLfloat green, GLfloat blue, GLfloat alpha); void glColor4i(GLint red, GLint green, GLint blue, GLint alpha); void glColor4s(GLshort red, GLshort green, GLshort blue, GLshort alpha); void glColor4ub(GLubyte red, GLubyte green, GLubyte blue, GLubyte alpha); void glColor4ui(GLuint red, GLuint green, GLuint blue, GLuint alpha); void glColor4us(GLushort red, GLushort green, GLushort blue, GLushort alpha); void glColor3bv(const GLbyte *v); void glColor3dv(const GLdouble *v); void glColor3fv(const GLfloat *v); void glColor3iv(const GLint *v); void glColor3sv(const GLshort *v); void glColor3ubv(const GLubyte *v); void glColor3uiv(const GLuint *v); void glColor3usv(const GLushort *v); void glColor4bv(const GLbyte *v); void glColor4dv(const GLdouble *v); void glColor4fv(const GLfloat *v); void glColor4iv(const GLint *v); void glColor4sv(const GLshort *v); void glColor4ubv(const GLubyte *v); void glColor4uiv(const GLuint *v); void glColor4usv(const GLushort *v);

Description

This function sets the current color by specifying separate red, green, and blue components of the color. Some functions also accept an alpha component. Each component represents the range of intensity from zero (0.0) to full intensity (1.0).

Functions with the v suffix take a pointer to an array that specifies the components.

Page

298

OpenGL Super Bible!

Each element in the array must be of the same type. When the alpha component is not specified, it is implicitly set to 1.0. When non-floating point types are specified, the range from zero to the largest value represented by that type is mapped to the floating point range 0.0 to 1.0.

Parameters

red

Specifies the red component of the color.

green

Specifies the green component of the color.

blue

Specifies the blue component of the color.

alpha

Specifies the alpha component of the color. Used only in variations that take four arguments.

*v

A pointer to an array of red, green, blue, and possibly alpha values.

Returns

None.

Example

The following code from the CCUBE example in this chapter sets one of the corners of the color cube to white.

// Front face

glBegin(GL_POLYGON);

// White

glColor3ub((GLubyte) 255, (GLubyte)255, (GLubyte)255);

glVertex3f(50.0f,50.0f,50.0f);

See Also glIndex

OpenGL Super Bible! Page

299

glColorMask

Purpose

Enables or disables modification of color components in the color buffers.

Include File

<gl.h>

Syntax void glColorMask(GLboolean bRed, GLboolean bGreen, GLboolean bBlue,

GLboolean bAlpha);

Description

This function allows changes to individual color components in the color buffer to be disabled or enabled (all are enabled by default). For example, setting the bAlpha argument to GL_FALSE disallows changes to the alpha color component.

Parameters

bRed

GLboolean: Specifies whether the red component may be modified.

bGreen

GLboolean: Specifies whether the green component may be modified.

bBlue

GLboolean: Specifies whether the blue component may be modified.

bAlpha

GLboolean: Specifies whether the alpha component may be modified.

Returns

None.

Example

See the sample program MASK on the CD for this chapter.

See Also glColor, glIndex, glIndexMask, glDepthMask, glStencilMask

Page

300

OpenGL Super Bible!

glIndex

Purpose

Sets the current color index to be used for color operations.

Include File

<gl.h>

Variations void glIndexd(GLdouble c); void glIndexf(GLfloat c); void glIndexi(GLint c); void glIndexs(GLshort c); void glIndexdv(const GLdouble *c); void glIndexfv(const GLfloat *c); void glIndexiv(const GLint *c); void glIndexsv(const GLshort *c);

Description

This function changes the current color index to the one specified by c. This indexvalue is maintained internally as a floating point number.

Parameters

c

The new color index to use for all subsequent operations.

*cA pointer to the new color index to use for all subsequent operations.

Returns

None.

Example

The following code from the sample program INDEX draws a smoothly shaded triangle.

The top of the triangle is set to color index 0 which has been set to zero, and the bottom corners to color index 255 which has been set to bright red.

// Draw the triangle

glBegin(GL_TRIANGLES);

// Darkest Red Apex (black)

glIndexi(0);

glVertex3f(0.0f,200.0f,0.0f);

// Brightest red bottom corners

glIndexi(255);

glVertex3f(200.0f, -70.0f,0.0f);

glVertex3f( -200.0f, -70.0f, 0.0f);

glEnd();

See Also glColor

OpenGL Super Bible! Page

301

glIndexMask

Purpose

Protects individual bits in the color index buffer from being set.

Include File

<gl.h>

Syntax void glIndexMask(GLuint mask );

Description

This function allows masking of individual bits in the color index buffer. Where the mask bit is set, the bits are writeable; where they are zero, they are write-protected from pixel operations. This function only applies to color index mode.

Parameters

mask

GLuint: Specifies the binary bit mask to enable or disable writing to individual bits in the color index buffer.

Returns

None.

Example

See the sample program MASK on the CD for this chapter.

See Also glIndex, glDepthMask, glStencilMask

Page

302

OpenGL Super Bible!

glLogicOp

Purpose

Sets the logical pixel operation for color index mode.

Include File

<gl.h>

Syntax void glLogicOp(GLenum opcode);

Description

The logical pixel operation defines the combination of pixel values. When a new color index value is specified for a pixel location, it is combined logically with the current color index value for that pixel. To enable logical pixel operations, call glEnable(GL_LOGIC_OP), to disable call glDisable(GL_LOGIC_OP). When logical pixel operations are enabled, incoming pixel values are combined with existing pixel values in the manner specified by opcode. When logical operations are not enabled, the net effect of pixel operations is as if GL_COPY were specified.

Logical pixel operations are not supported in RGBA color mode.

Parameters

opcode

GLEnum: Specifies the logical pixel mode to use. Any of the values listed in Table

8-2 are valid. This table lists the logical operation and the result of the operation, with s representing the source color index value, and d representing the destination color index value.

Returns

None.

Example

See the FLASHER example program from the CD. This example uses GL_XOR to produce smooth animation without double buffering.

See Also glGet, glIsEnabled, glEnable, glDisable

Table 8-2 Valid Pixel Copy Operations

Opcode% Resulting Value

GL_CLEAR

GL_SET

GL_COPY

GL_COPY_INVERTED!

0

1 s

!s

GL_NOOP

GL_INVERT

GL_AND

GL_NAND

GL_OR

GL_NOR

GL_XOR

GL_EQUIV

GL_AND_REVERSE

GL_AND_INVERTED

GL_OR_REVERSE

GL_OR_INVERTED

OpenGL Super Bible!

d

!d s & d

!(s & d) s | d

!(s | d) s ^ d

!(s ^ d) s & !d

!s & d s | !d

!s | d

Page

303

Page

304

glShadeModel

OpenGL Super Bible!

Purpose

Sets default shading to flat or smooth.

Include File

<gl.h>

Syntax void glShadeModel(GLenum mode );

Description

OpenGL primitives are always shaded, but the shading model may be flat

(GL_FLAT) or smooth (GL_SMOOTH). In the simplest of scenarios, one color is set with glColor() before a primitive is drawn. This primitive is solid and flat (does not vary) throughout, regardless of the shading. If a different color is specified for each vertex, then the resulting image will vary with the shading model. With smooth shading, the color of the polygon’s interior points are interpolated from the colors specified at the vertices. This means the color will vary from one color to the next between two vertices. The color variation follows a line through the color cube between the two colors. If lighting is enabled, OpenGL will do other calculations to determine the correct colors (see Chapter 9). In flat shading, the color specified for the last vertex is used throughout the region of the primitive. The only exception is for GL_POLYGON, in which case the color used throughout the region is the one specified for the first vertex.

Parameters

mode

Specifies the shading model to use, either GL_FLAT or GL_SMOOTH. The default is GL_SMOOTH.

Returns

None.

Example

See the TRIANGLE and CCUBE examples from Chapter 8’s subdirectory on the

CD.

See Also glColor, glLight, glLightModel

OpenGL Super Bible! Page

305

Chapter 9

Lighting and Lamps

What you’ll learn in this chapter:

How to… Functions You’ll Use

Set the lighting model

Set lighting parameters

Set material reflective properties

Use surface normals glLightModel glLight glColorMaterial, glMaterial glNormal

This chapter discusses lighting: in our opinion, the honey spot of OpenGL. You’ve been learning OpenGL from the ground up— how to put programs together, then how to assemble objects from primitives and manipulate them in 3D space. In Chapter 8 we showed you how to add color to your objects and do smooth shading. All well and good, but let’s face it— any good summer co-op student with a good book on computer graphics could have put this much together themselves building only on the Windows GDI. To recoin a phrase, “Where’s

the Beef?

To put it succinctly, the beef starts here. For most of the rest of this book, science takes a back seat and magic rules. According to Arthur C. Clarke, “Any sufficiently advanced technology is indistinguishable from magic.” Of course there is no real magic involved in lighting, but it sure can seem that way at times. (If you want to dig into the mathematics, see

Appendix B.)

Another name for this chapter might be “Adding Realism to Your Scenes.” You see, there is more to an object’s color in the real world than what we explained in Chapter 8. In addition to having a color, objects can appear shiny or dull or may even glow with their own light.

An object’s apparent color will vary with bright or dim lighting, and even the color of the light hitting an object will make a difference. An illuminated object can even be shaded across its surface when lit or viewed from an angle.

Most of the rest of Parts II and III are concerned with techniques that allow you to add more and more realism to your scenes. So put away your calculators (if you want), bring out your wizard’s cap, and take a deep breath… The magic show starts here!

Page

306

Light in the Real World

OpenGL Super Bible!

Real objects don’t appear in a solid or shaded color based solely on their RGB value. Figure

9-1 shows the output from the program JET from the CD. It’s a simple jet airplane, hand plotted with triangles using only the methods covered so far in this book. As usual, JET and the other programs in this chapter allow you to spin the object around by using the arrow keys to better see the effects.

Figure 9-1 A simple jet built by setting a different color for each triangle

The selection of colors is meant to highlight the three-dimensional structure of the jet. Aside from the crude assemblage of triangles, however, you can see that it looks hardly anything like a real object. Suppose you constructed a model of this airplane and painted each flat surface the colors represented. The model would still appear glossy or flat depending on the kind of paint used, and the color of each flat surface would vary with the angle of your view and any sources of light.

OpenGL does a very good job of approximating the real world in terms of lighting conditions. Unless an object emits its own light, it is illuminated by three different kinds of light: ambient, diffuse, and specular.

Ambient Light

Ambient light is light that doesn’t come from any particular direction. It has a source, but the rays of light have bounced around the room or scene and become directionless. Objects illuminated by ambient light are evenly lit on all surfaces in all directions. You can think of all previous examples in this book as being lit by a bright ambient light, because the objects were always visible and evenly colored (or shaded) regardless of their rotation or viewing angle. Figure 9-2 shows an object illuminated by ambient light.

OpenGL Super Bible! Page

307

Figure 9-2 An object illuminated purely by ambient light

Diffuse Light

Diffuse light comes from a particular direction but is reflected evenly off a surface. Even though the light is reflected evenly, the object surface is brighter if the light is pointed directly at the surface than if the light grazes the surface from an angle. A good example of a diffuse light source is fluorescent lighting, or sunlight streaming in a side window at noon.

In Figure 9-3 the object is illuminated by a diffuse light source.

Figure 9-3 An object illuminated by a purely diffuse light source

Specular Light

Like diffuse light, specular light is directional, but it is reflected sharply and in a particular direction. A highly specular light tends to cause a bright spot on the surface it shines upon,

Page

308

OpenGL Super Bible!

which is called the specular highlight. A spotlight and the Sun are examples of specular light. Figure 9-4 shows an object illuminated by a purely specular light source.

Figure 9-4 An object illuminated by a purely specular light source

Put It All Together

No single light source is composed entirely of any of the three types of light just described.

Rather, it is made up of varying intensities of each. For example, a red laser beam in a lab is composed of almost a pure-red specular component. However, smoke or dust particles scatter the beam, so it can be seen traveling across the room. This scattering represents the diffuse component of the light. If the beam is bright and no other light sources are present, you’d notice objects in the room taking on a red hue. This would be a very small ambient component of that light.

Thus a light source in a scene is said to be composed of three lighting components: ambient, diffuse, and specular. Just like the components of a color, each lighting component is defined with an RGBA value that describes the relative intensities of red, green, and blue light that make up that component. (We will ignore the alpha component until Chapter 15.)

For example, our red laser light might be described by the component values in Table 9-1.

Table 9-1 Color and Light Distribution for a Red Laser Light Source

Red Green Blue Alpha

Specular

Diffuse

Ambient

0.99

0.10

0.05

0.0

0.0

0.0

0.0

0.0

0.0

1.0

1.0

1.0

OpenGL Super Bible! Page

309

Note that the red laser beam has no green or blue light. Also, note that specular, diffuse, and ambient light can each range in intensity from 0.0 to 1.0. You could interpret this table as saying that the red laser light in some scenes has a very high specular component, a small diffuse component, and a very small ambient component. Wherever it shines, you are probably going to see a reddish spot. Also, because of conditions (smoke, dust, etc.) in the room, the diffuse component will allow the beam to be seen traveling through the air.

Finally, the ambient component— likely due to smoke or dust particles, as well— will scatter a tiny bit of light all about the room. Ambient and diffuse components of light are frequently combined because they are so similar in nature.

Materials in the Real World

Light is only part of the equation, though. In the real world, objects do have a color of their own. In Chapter 8, we described the color of an object as being defined by its reflected wavelengths of light. A blue ball reflects mostly blue photons and absorbs most others. This assumes that the light shining on the ball has blue photons in it to be reflected and detected by the observer. Generally, most scenes in the real world are illuminated by a white light containing an even mixture of all the colors. Under white light, therefore, most objects appear in their proper or “natural” colors. However, this is not always so; put the blue ball in a dark room with only a yellow light, and the ball would appear black to the viewer, because all the yellow light would be absorbed and there would be no blue to be reflected.

Material Properties

When we use lighting, we do not describe polygons as having a particular color, but rather as being made up of materials that have certain reflective properties. Instead of saying that a polygon is red, we say that the polygon is made of a material that reflects mostly red light.

We are still saying that the surface is red, but now we must also specify the material’s reflective properties for ambient, diffuse, and specular light sources. A material may be shiny and reflect specular light very well, while absorbing most of the ambient or diffuse light. Conversely, a flat colored object may absorb all specular light and won’t be shiny under any circumstances. Another property to be specified is the emission property for objects that emit their own light, such as taillights or glow-in-the-dark watches.

Adding Light to Materials

Setting lighting and material properties to achieve the desired effect takes some practice.

There are no color cubes or rules of thumb to give you quick and easy answers. This is where analysis gives way to art, and science yields to magic. The CD subdirectory for this chapter contains a supplementary sample program called MATLIGHT (for Materials and

Lighting Studio). This program allows you to change material and lighting properties on the fly for a scene composed of some simple objects. You can use MATLIGHT to get a feel for the various lighting and material property settings. In addition, because the source is included, you can also substitute your own objects in MATLIGHT and work out the lighting and material details before committing your scene to code.

Page

310

OpenGL Super Bible!

When drawing an object, OpenGL decides which color to use for each pixel in the object.

That object has reflective “colors,” and the light source has “colors” of its own. How does

OpenGL determine which colors to use? Understanding this is not difficult, but it does take some simple grade-school multiplication. (See, that teacher told you you’d need it one day!)

Each vertex of your primitives is assigned an RGB color value based on the net effect of the ambient, diffuse, and specular illumination multiplied by the ambient, diffuse, and specular reflectance of the material properties. By making use of smooth shading between the vertices, the illusion of illumination is achieved!

Calculating Ambient Light Effects

First you need to put away the notion of color and instead think only in terms of red, green, and blue intensities. For an ambient light source of half-intensity red, green, and blue components, you’d have an RGB value for that source of (0.5, 0.5, 0.5). If this ambient light illuminates an object with ambient reflective properties specified in RGB terms of (.50, 1.0,

.50), then the net “color” component from the ambient light would be

(0.50 * .50, 0.5 * 1.0, 0.50 * .50) = (0.25, 0.5, 0.25) which would be the result of multiplying each of the ambient light source terms by each of the ambient material property terms. See Figure 9-5.

Figure 9-5 Calculating the ambient color component of an object

Thus, the material color components actually determine the percentage of incident light that is reflected. In our example, the ambient light had a red component that was at one-half intensity, and the material ambient property of .5 specified that one-half of that half-intensity light was reflected. Half of a half is a fourth, or 0.25.

OpenGL Super Bible! Page

311

Diffuse and Specular Effects

For ambient light, this is as simple as it gets. Diffuse light, too, has RGB intensities that interact in the same way with material properties. However, diffuse light is directional, and the intensity at the surface of the object will vary depending on the angle between the surface and the light source. The same goes for specular light sources and intensities. The net effect in terms of RGB values is figured the same way as for ambient light, with the intensity of the light source (adjusted for the angle of incidence) being multiplied by the material reflectance. Finally, all three RGB terms are added to yield a final color for the object. If any single color component is above 1.0, it is clamped to that value (you can’t get more intense than full intensity!).

Generally, the ambient and diffuse components of light sources and materials are the same and have the greatest effect in determining the color of the object. Specular light and material properties tend to be light gray or white. The specular component depends significantly on the angle of incidence, and specular highlights on an object are usually white.

Adding Light to a Scene

This may seem like a lot of theory to digest all of a sudden. So let’s slow down and start exploring some examples of the OpenGL code needed for lighting; this will also help reinforce what you’ve just learned. We will also be demonstrating some additional features and requirements of lighting in OpenGL. The next few examples build on our JET program.

The initial version contains no lighting code and just draws triangles with hidden surface elimination enabled. But when we’re done, the jet’s metallic surface will glisten in the sunlight as you rotate it with the arrow keys.

Enable the Lighting

To tell OpenGL to use lighting calculations, call glEnable() with the GL_LIGHTING parameter, like this: glEnable(GL_LIGHTING);

This alone tells OpenGL to use material properties and lighting parameters in determining the color for each vertex in your scene. However, without any specified material properties or lighting parameters, your object will remain dark and unlit as shown in Figure 9-6. Look at the code for any of the JET-based example programs, and you’ll see that we have called a function SetupRC() right after creating the rendering context. This is where we will do any initialization of lighting parameters.

Page

312

OpenGL Super Bible!

Figure 9-6 Jet with lighting enabled, but no light or material properties defined

Set Up the Lighting Model

After enabling lighting calculations, the first thing you need to do is set up the lighting model. The three parameters that affect the lighting model are set with the glLightModel() function.

The first lighting parameter used in our next example is GL_LIGHT_MODEL_AMBIENT.

This allows a global ambient light to be specified that illuminates all objects evenly from all sides. The following code specifies that a bright white light is to be used:

// Bright white light - full intensity RGB values

GLfloat ambientLight[] = { 1.0f, 1.0f, 1.0f, 1.0f };

// Enable lighting glEnable(GL_LIGHTING);

// Set light model to use ambient light specif ied by ambientLight[] glLightModelfv(GL_LIGHT_MODEL_AMBIENT,ambientLight);

The variation of glLightModel shown here, glLightModelfv, takes as its first parameter the lighting model parameter being modified or set, and then an array of the RGBA values that make up the light. The default RGBA values of this global ambient light are (0.2, 0.2, 0.2,

1.0), which is fairly dim. Other lighting model parameters allow you to determine if the front, back, or both sides of polygons are illuminated, and the calculation of specular lighting angles. See the Reference Section for more information on these parameters.

OpenGL Super Bible! Page

313

Set Material Properties

Now that we have an ambient light source, we need to set some material properties so that our polygons reflect light and we can see our jet. There are two ways to set material properties. The first is to use the function glMaterial before specifying each polygon or set of polygons. Examine the following code fragment:

Glfloat gray[] = { 0.75f, 0.75f, 0.75f, 1.0f };

… glMaterialfv(GL_FRONT, GL_AMBIENT_AND_DIFFUSE, gray); glBegin(GL_TRIANGLES);

glVertex3f( -15.0f,0.0f,30.0f);

glVertex3f(0.0f, 15.0f, 30.0f);

glVertex3f(0.0f, 0.0f, -56.0f); glEnd();

The first parameter to glMaterialfv specifies whether the front, back, or both (GL_FRONT,

GL_BACK, or GL_FRONT_AND_BACK) take on the material properties specified. The second parameter tells which properties are being set; in this instance both the ambient and diffuse reflectances are being set to the same values. The final parameter is an array containing the RGBA values that make up these properties. All primitives specified after the glMaterial call are affected by the last values set, until another call to glMaterial is made.

Under most circumstances, the ambient and diffuse components are the same, and unless you want specular highlights (sparkling, shiny spots), you don’t need to define specular reflective properties. Even so, it would still be quite tedious if we had to define an array for every color in our object and call glMaterial() before each polygon or group of polygons.

This leads us to the second and preferred way of setting material properties, called color

tracking. With color tracking you can tell OpenGL to set material properties by only calling glColor. To enable color tracking, call glEnable() with the GL_COLOR_MATERIAL parameter: glEnable(GL_COLOR_MATERIAL);

Then the function glColorMaterial specifies the material parameters that will follow the values set by glColor.

For example, to set the ambient and diffuse properties of the fronts of polygons to track the colors set by glColor, call glColorMaterial(GL_FRONT,GL_AMBIENT_AND_DIFFUSE);

Page

314

OpenGL Super Bible!

The earlier code fragment setting material properties would then be as follows. This looks like more code, but it will actually save many lines of code and execute faster as the number of polygons grows.

// Enable color tracking glEnable(GL_COLOR_MATERIAL);

// Front material ambient and diffuse colors track glColor glColorMaterial(GL_FRONT,GL_AMBIENT_AND_DIFFUSE); glMaterialfv(GL_FRONT, GL_AMBIENT_AND_DIFFUSE, gray);

… glcolor3f(0.75f, 0.75f, 0.75f); glBegin(GL_TRIANGLES);

glVertex3f( -15.0f,0.0f,30.0f);

glVertex3f(0.0f, 15.0f, 30.0f);

glVertex3f(0.0f, 0.0f, -56.0f); glEnd();

Listing 9-1 contains the code we add with the SetupRC function to our JET example, to set up a bright ambient light source, and to set the material properties that allow the object to reflect light and be seen. We have also changed the colors of the jet so that each section is a different color rather than each polygon. Notice in the final output (Figure 9-7) that it’s not much different from the image before we had lighting. However, if we reduce the ambient light by half, we get the image shown in Figure 9-8. This is accomplished by setting the ambient light RGBA values to the following:

GLfloat ambientLight[] = { 0.5f, 0.5f, 0.5f, 1.0f };

Figure 9-7 Output from completed AMBIENT example program

OpenGL Super Bible! Page

315

Figure 9-8 Output from AMBIENT when the light source is cut in half

You can see how we might reduce the ambient light in a scene to produce a dimmer image.

This is useful for simulations in which dusk approaches gradually or when a more direct light source is blocked, as when an object is in the shadow of another, larger object.

Listing 9-1 Set up for ambient lighting conditions

// This function does any needed initialization on the rendering

// context. Here it sets up and initializes the lighting for

// the scene. void SetupRC()

{

// Light values

// Bright white light

GLfloat ambientLight[] = { 1.0f, 1.0f, 1.0f, 1.0f };

glEnable(GL_DEPTH_TEST); // Hidden surface removal

glEnable(GL_CULL_FACE); // Do not calculate inside of jet

glFrontFace(GL_CCW); // Co unter clock-wise polygons face out

// Lighting stuff

glEnable(GL_LIGHTING); // Enable lighting

// Set light model to use ambient light specified by ambientLight[]

glLightModelfv(GL_LIGHT_MODEL_AMBIENT,ambientLight) ;

glEnable(GL_COLOR_MATERIAL); // Enable Material color tracking

// Front material ambient and diffuse colors track glColor

glColorMaterial(GL_FRONT,GL_AMBIENT_AND_DIFFUSE);

Page

316

OpenGL Super Bible!

// Nice light blue background

glClearColor(0.0f, 0.0f, 05.f,1.0f);

}

Using a Light Source

Manipulating the ambient light has its uses, but for most applications attempting to model the real world, one or more specific sources of light must be specified. In addition to their intensities and colors, these sources will have a location and a direction. The placement of these lights can dramatically affect the appearance of your scene.

OpenGL supports up to eight independent light sources located anywhere in your scene or out of the viewing volume. You can locate a light source an infinite distance away and make its light rays parallel, or make it a nearby light source radiating outward. You can also specify a spotlight with a specific cone of light radiating from it, as well as manipulate its characteristics.

Which Way Is Up?

When you specify a light source, you tell OpenGL where it is and in which direction it’s shining. Often the light source will be shining in all directions, or it may be directional.

Either way, for any object you draw, the rays of light from any source (other than a pure ambient source) will strike the surface of the polygons that make up the object at an angle.

Of course, in the case of a directional light, the surface of all polygons may not necessarily be illuminated. To calculate the shading effects across the surface of the polygons, OpenGL must be able to calculate this angle.

In Figure 9-9, a polygon (a square) is being struck by a ray of light from some source. The ray makes an angle (A) with the plane as it strikes the surface. The light is then reflected at an angle (B) toward the viewer (or you wouldn’t see it). These angles are used in conjunction with the lighting and material properties we have discussed thus far to calculate the apparent color of that location. It happens by design that the locations used by OpenGL are the vertices of the polygon. By calculating the apparent colors for each vertex and then doing smooth shading between them (explained in Chapter 8), the illusion of lighting is created. Magic!

OpenGL Super Bible! Page

317

Figure 9-9 Light is reflected off objects at specific angles

From a programming standpoint, this presents a slight conceptual difficulty. Each polygon is created as a set of vertices, which are nothing more than points. Each vertex is then struck by a ray of light at some angle. How then do you (or OpenGL) calculate the angle between a point and a line (the ray of light)? Of course you can’t geometrically find the angle between a single point and a line in 3D space, because there are an infinite number of possibilities.

Therefore, you must associate with each vertex some piece of information that denotes a direction upward from the vertex and away from the surface of the primitive.

Surface Normals

A line from the vertex in this upward direction would then start in some imaginary plane (or your polygon) at a right angle. This line is called a normal vector. That word vector may sound like something the Star Trek crew members toss around, but it just means a line perpendicular to a real or imaginary surface. A vector is a line pointed in some direction, and the word normal is just another way for eggheads to say perpendicular (intersecting at a

90º angle). As if the word perpendicular weren’t bad enough! Therefore, a normal vector is a line pointed in a direction that is at a 90º angle to the surface of your polygon. Figure 9-10 presents examples of 2D and 3D normal vectors.

Figure 9-10 A 2D and a 3D normal vector

Page

318

OpenGL Super Bible!

You may already be asking why we must specify a normal vector for each vertex. Why can’t we just specify a single normal for a polygon and use it for each vertex? We can— and for our first few examples, we will. However, there are times when you don’t want each normal to be exactly perpendicular to the surface of the polygon. You may have noticed that many surfaces are not flat! You can approximate these surfaces with flat, polygonal sections, but you will end up with a jagged or multifaceted surface. Later we’ll discuss a technique to produce the illusion of smooth curves with straight lines by “tweaking” your surface normals (more magic!). But first things first.

Specifying a Normal

To see how we specify a normal for a vertex, let’s take a look at Figure 9-11— a plane floating above the xz plane in 3D space. We’ve made this simple to demonstrate the concept. Notice the line through the vertex (1,1,0) that is perpendicular to the plane. If we select any point on this line, say (1,10,0), then the line from the first point (1,1,0) to the second point (1,10,0) is our normal vector. The second point specified actually indicates that the direction from the vertex is up in the y direction. This is also used to indicate the front and back sides of polygons, as the vector travels up and away from the front surface.

Figure 9-11 A normal vector traveling perpendicular from the surface

You can see that this second point is the number of units in the x, y, and z directions for some point on the normal vector away from the vertex. Rather than specifying two points for each normal vector, we can subtract the vertex from the second point on the normal, yielding a single coordinate triplet that indicates the x, y, and z steps away from the vertex. For our example this would be

(1,10,0) - (1,1,0) = (1-1, 10-1, 0) = (0, 9, 0)

OpenGL Super Bible! Page

319

Another way of looking at this is, if the vertex were translated to the origin, the point specified by subtracting the two original points would still specify the direction pointing away and at a 90º angle from the surface. Figure 9-12 shows the newly translated normal vector.

Figure 9-12 The newly translated normal vector

The vector is a directional quantity that tells OpenGL which direction the vertices (or polygon) face. This next code segment shows a normal vector being specified for one of the triangles in the JET example program: glBegin(GL_TRIANGLES);

glNormal3f(0.0f, -1.0f, 0.0f);

glVertex3f(0.0f, 0.0f, 60.0f);

glVertex3f( -15.0f, 0.0f, 30.0f);

glVertex3f(15.0f,0.0f,30.0f); glEnd();

The function glNormal3f takes the coordinate triplet that specifies a normal vector pointing in the direction perpendicular to the surface of this triangle. In this example, the normals for all three vertices have the same direction, which is down the negative y axis. This is a very simple example because the triangle is lying flat in the xz plane, and it actually represents a bottom section of the jet.

The prospect of specifying a normal for every vertex or polygon in your drawing may seem daunting, especially since very few surfaces will lie cleanly in one of the major planes.

Never fear, we will shortly present a reusable function that you can call again and again to calculate your normals for you.

Page

320

OpenGL Super Bible!

Polygon Winding:

Take special note of the order of the vertices in the jet’s triangle. If you viewed this triangle being drawn from the direction in which the normal vector points, the corners would appear counterclockwise around the triangle. This is called polygon winding. By default, the front of a polygon is defined as the side from which the vertices appear to be wound in a counterclockwise fashion.

Unit Normals

As OpenGL does its magic, all surface normals must eventually be converted to unit

normals. A unit normal is just a normal vector that has a length of 1. The normal in Figure

9-12 has a length of 9. You can find the length of any normal by squaring each component, adding them together, and taking the square root. Divide each component of the normal by the length and you get a vector pointed in exactly the same direction, but only 1 unit long. In this case, our new normal vector would be specified as (0,1,0). This is called normalization.

Thus, for lighting calculations, all normal vectors must be normalized. Talk about jargon!

You can tell OpenGL to convert your normals to unit normals automatically, by enabling normalization with glEnable and a parameter of GL_NORMALIZE:

glEnable(GL_NORMALIZE);

This does, however, have performance penalties. It’s far better to calculate your normals ahead of time as unit normals instead of relying on OpenGL to do this for you.

Given any normal vector specified by a coordinate triplet that indicates the direction from the origin, you can easily find the equivalent unit normal vector with the function in Listing

9-2.

Listing 9-2 A function that reduces any normal vector to a unit normal vector

// Reduces a normal vector specified as a set of three coordinates,

// to a unit normal vector of length 1. void ReduceToUnit(float vector[3])

{

float length;

// Calculate the length of the vector

length = (float)sqrt((vector[0]*vector[0]) +

(vector[1]*vector[1]) +

(vector[2]*vector[2]));

// Keep the program from blowing up by providing an acceptable

OpenGL Super Bible! Page

321

// value for vectors whose length may be calculated too close to

zero.

if(length == 0.0f)

length = 1.0f;

// Dividing each element by the length will result in a

// unit normal vector.

vector[0] /= length;

vector[1] / = length;

vector[2] /= length;

}

Finding a Normal

Figure 9-13 presents another polygon that is not simply lying in one of the axis planes. The normal vector pointing away from this surface is more difficult to guess, so we need an easy way to calculate the normal for any arbitrary polygon in 3D coordinates.

Figure 9-13 A nontrivial normal problem

You can easily calculate the normal vector for any polygon consisting of at least three points that lie in a single plane (a flat polygon). Figure 9-14 shows three points, P1, P2, and P3, that you can use to define two vectors: vector V1 from P1 to P2, and vector V2 from P1 to

P2. Mathematically, two vectors in three-dimensional space define a plane (your original polygon lies in this plane). If you take the cross product of those two vectors (written mathematically as V1 X V2, the resulting vector is perpendicular to that plane (or normal).

Figure 9-15 shows the vector V3 derived by taking the cross product of V1 and V2.

Page

322

OpenGL Super Bible!

Figure 9-14 Two vectors defined by three points on a plane

Figure 9-15 A normal vector as cross product of two vectors

Don’t worry if you don’t know how to take the cross product of two vectors; all you need is the function in Listing 9-3. To use this function, pass it an array containing any three vertices from your polygon (specify in counterclockwise winding order), and an array that will contain the normal vector on return. The constant values x, y, and z are provided for your benefit if you want to see how the function works.

Listing 9-3 Function to calculate a normal vector with any three vertices from a polygon

// Points p1, p2, & p3 specified in counterclockwise order void calcNormal(float v[3][3], float out[3])

{

float v1[3],v2[3];

static con st int x = 0;

static const int y = 1;

OpenGL Super Bible!

static const int z = 2;

// Calculate two vectors from the three points

v1[x] = v[0][x] - v[1][x];

v1[y] = v[0][y] - v[1][y];

v1[z] = v[0][z] - v[1][z];

v2[x] = v[1][x] - v[2][x];

v2[y] = v[1][y] - v[2][y];

v2[z] = v[1][z] - v[2][z];

// Take the cross product of the two vectors to get

// the normal vector which will be stored in out[]

out[x] = v1[y]*v2[z] - v1[z]*v2[y];

out[y] = v1[z]*v2[x] - v1[x]*v2[z];

out[z] = v1[x]*v2[y] - v1[y]*v2[x];

// Normalize the vector (shorten length to one)

ReduceToUnit(out);

}

Page

323

Setting Up a Source

Now that you understand the requirements of setting up your polygons to receive and interact with a light source, it’s time to turn on the lights! Listing 9-4 shows the SetupRC() function from the example program LITJET. Part of the setup process for this sample program creates a light source and places it to the upper-left, slightly behind the viewer. The light source GL_LIGHT0 has its ambient and diffuse components set to the intensities specified by the arrays ambientLight[], and diffuseLight[].This results in a moderate white light source.

GLfloat ambientLi ght[] = { 0.3f, 0.3f, 0.3f, 1.0f };

GLfloat diffuseLight[] = { 0.7f, 0.7f, 0.7f, 1.0f };

// Setup and enable light 0 glLightfv(GL_LIGHT0,GL_AMBIENT,ambientLight); glLightfv(GL_LIGHT0,GL_DIFFUSE,diffuseLight);

The light is positioned by this code:

GLfloat lightPos[] = { -50.f, 50.0f, 100.0f, 1.0f };

… glLightfv(GL_LIGHT0,GL_POSITION,lightPos);

Here lightPos[] contains the position of the light. The last value in this array is 1.0, which specifies that the designated coordinates are the position of the light source. If the last value in the array is 0.0, it indicates that the light is an infinite distance away along the vector specified by this array. We’ll touch more on this later.

Page

324

OpenGL Super Bible!

Finally, the light source GL_LIGHT0 is enabled: glEnable(GL_LIGHT0);

Listing 9-4 Light and rendering context setup for LITJET

// This function does any needed initialization on the rendering

// context. Here it sets up and initializes the lighting for

// the scene. void SetupRC()

{

// Light values and coord inates

GLfloat ambientLight[] = { 0.3f, 0.3f, 0.3f, 1.0f };

GLfloat diffuseLight[] = { 0.7f, 0.7f, 0.7f, 1.0f };

Glfloat lightPos[] = { -50.f, 50.0f, 100.0f, 1.0f };

glEnable(GL_DEPTH_TEST); // Hidden surface removal

glFrontFace(GL_CCW); // Counter clock -wise polygons face out

glEnable(GL_CULL_FACE); // Do not calculate inside of jet

// Enable lighting

glEnable(GL_LIGHTING);

// Setup and enable light 0

glLightfv (GL_LIGHT0,GL_AMBIENT,ambientLight);

glLightfv(GL_LIGHT0,GL_DIFFUSE,diffuseLight);

glLightfv(GL_LIGHT0,GL_POSITION,lightPos);

glEnable(GL_LIGHT0);

// Enable color tracking

glEnable(GL_COLOR_MATERIAL);

// Set Material properties to follow glColor values

glColorMaterial(GL_FRONT, GL_AMBIENT_AND_DIFFUSE);

// Light blue background

glClearColor(0.0f, 0.0f, 1.0f, 1.0f );

}

Setting the Material Properties

Notice in Listing 9-4 that color tracking is enabled, and the properties to be tracked are the ambient and diffuse reflective properties for the front surface of the polygons. This is just as it was defined in the AMBIENT sample program:

// Enable color tracking glEnable(GL_COLOR_M ATERIAL);

// Set Material properties to follow glColor values glColorMaterial(GL_FRONT, GL_AMBIENT_AND_DIFFUSE);

OpenGL Super Bible! Page

325

Specifying the Polygons

The rendering code from the first two JET samples changes considerably now, to support the new lighting model. Listing 9-5 is taken from the RenderScene() function from LITJET.

Listing 9-5 Code sample that sets color, calculates and specifies normals and polygons

float normal[3]; // Storage for calculated surface normal

// Set mat erial color

glRGB(0, 255, 0);

glBegin(GL_TRIANGLES);

glNormal3f(0.0f, -1.0f, 0.0f);

glVertex3f(0.0f, 0.0f, 60.0f);

glVertex3f( -15.0f, 0.0f, 30.0f);

glVertex3f(15.0f,0.0f,30.0f) ;

//glEnd();

{

// Vertices for this triangle

float v[3][3] = {{ 15.0f, 0.0f, 30.0f},

{ 0.0f, 15.0f, 30.0f},

{ 0.0f, 0.0f, 60.0f}};

// Calculate the normal for the pl ane

calcNormal(v,normal);

// Draw the triangle using the plane normal

// for all the vertices

//glBegin(GL_TRIANGLES);

glNormal3fv(normal);

glVertex3fv(v[0]);

glVertex3f v(v[1]);

glVertex3fv(v[2]);

//glEnd();

}

You’ll notice that we are calculating the normal vector using our code in Listing 9-3. Also, the material properties are now following the colors set by glColor (which is wrapped by our glRGB macro). One other thing you’ll notice is that not every triangle is blocked by glBegin()/glEnd() functions. You can specify once that you are drawing triangles, and every three vertices will be used for a new triangle until you specify otherwise with glEnd(). For

Page

326

OpenGL Super Bible!

very large numbers of polygons, this can considerably boost performance by eliminating many unnecessary function calls.

Figure 9-16 shows the output from the completed LITJET example program. By rotating the jet around with the arrow keys, you can see the dramatic shading effects as the surface of the jet moves in the light.

Figure 9-16 Output from LITJET sample

Performance Tip:

The most obvious way to improve the performance of this code would be to calculate all the normal vectors ahead of time and store them for use in the Render function. Before you pursue this, read Chapter 10’s material on display lists. Display lists provide a means of storing calculated values not only for the normal vectors, but for the polygon data as well.

Remember, these examples are meant to demonstrate the concepts. They are not necessarily the most efficient code possible.

Lighting Effects

The ambient and diffuse light from the LITJET example are sufficient to provide the illusion of lighting. The surface of the jet appears shaded according to the angle of the incident light.

As the jet rotates, these angles change and you can see the lighting effects changing in such a way that you can easily guess where the light is coming from.

We ignored the specular component of the light source, however, as well as the specular reflectivity of the material properties on the jet. Although the lighting effects are pronounced, the surface of the jet is rather flatly colored. Ambient and diffuse lighting and

OpenGL Super Bible! Page

327

material properties are all you need if you are modeling clay, wood, cardboard, cloth, or some other flatly colored object. But for metallic surfaces like the skin of an airplane, some shine is often necessary.

Specular Highlights

Specular lighting and material properties add needed gloss to the surface of your objects.

This shininess has a whitening effect on an object’s color and can produce specular

highlights when the angle of incident light is sharp in relation to the viewer. A specular highlight is what occurs when nearly all the light striking the surface of an object is reflected away. The white sparkle on a shiny red ball in the sunlight is good example of a specular highlight.

Specular Light

Adding a specular component to a light source is very easily done. The following code shows the light source setup for the LITJET program, modified to add a specular component to the light.

// Light values and coordinates

// Light values and coordinates

GLfloat ambientLight[] = { 0.3f, 0.3f, 0.3f, 1.0f };

GLfloat diffuseLight[] = { 0.7f, 0.7f, 0.7f, 1.0f };

GLfloat specular[] = { 1.0f, 1.0f, 1.0f, 1.0f};

Glfloat lightPos[] = { 0.0f, 150.0f, 150.0f, 1.0f };

// Enable lighting glEnable(GL_LIGHTING);

// Setup and enable light 0 glLightfv(GL_LIGHT0,GL_AMBIENT, ambientLight); glLightfv(GL_LIGHT0,GL_DIFFUSE,diffuseLight); glLightfv(GL_LIGHT0,GL_SPECULAR,specular); glLightfv(GL_LIGHT0,GL_POSITION,lightPos); glEnable(GL_LIGHT0);

The specular[] array specifies a very bright white light source for the specular component of the light. Our purpose here is to model bright sunlight. The line glLightfv(GL_LIGHT0,GL_SPECULAR,specular); simply adds this specular component to the light source GL_LIGHT0.

If this were the only change you made to LITJET, you wouldn’t see any difference in the jet’s appearance. This is because we haven’t yet defined any specular reflectance properties for the material properties.

Page

328

Specular Reflectance

OpenGL Super Bible!

Adding specular reflectance to material properties is just as easy as adding the specular component to the light source. This next code segment shows the code from LITJET, again modified to add specular reflectance to the material properties.

// Light values and coordinates

GLfloat specref[] = { 1.0f, 1.0f, 1.0f, 1.0f };

// Enable color tracki ng glEnable(GL_COLOR_MATERIAL);

// Set Material properties to follow glColor values glColorMaterial(GL_FRONT, GL_AMBIENT_AND_DIFFUSE);

// All materials hereafter have full specular reflectivity

// with a high shine glMaterialfv(GL_FRONT, GL_SPECULAR,spec ref); glMateriali(GL_FRONT,GL_SHININESS,128);

As before, we enable color tracking so that the ambient and diffuse reflectance of the materials follow the current color set by the glColor() functions. (Of course, we don’t want the specular reflectance to track glColor, because we are specifying it separately and it doesn’t change.)

Now we’ve added an array specref[] that contains the RGBA values for our specular reflectance. This array of all 1’s will produce a surface that reflects nearly all incident specular light. The line glMaterialfv(GL_FRONT, GL_SPECULAR,specref); sets the material properties for all subsequent polygons to have this reflectance. Since we do not call glMaterial again with the GL_SPECULAR property, all materials will have this property. We did this on purpose because we want the entire jet to appear made of metal or very shiny composites.

What we have done here in our setup routine is important: We have specified that the ambient and diffuse reflective material properties of all future polygons (until we say otherwise with another call to glMaterial or glColorMaterial) will change as the current color changes, but that the specular reflective properties will remain the same.

Specular Exponent

As stated earlier, high specular light and reflectivity brighten the colors of the object. For this example, the present extremely high specular light (full intensity) and specular reflectivity (full reflectivity) will result in a jet that appears almost totally white or gray

OpenGL Super Bible! Page

329

except where the surface points away from the light source (in which case it would be black and unlit). To temper this effect, we use the next line of code after the specular component is specified, as follows: glMateriali(GL_FRONT,GL_SHININESS,128);

The GL_SHININES property sets the specular exponent of the material, which specifies how small and focused the specular highlight is. A value of 0 specifies an unfocused specular highlight, which is actually what is producing the brightening of the colors evenly across the entire polygon. If you set this value, you reduce the size and increase the focus of the specular highlight, causing a shiny spot to appear. The larger the value, the more shiny and pronounced the surface. The range of this parameter is 1–128 for all implementations of

OpenGL.

Listing 9-6 shows the new SetupRC code in the sample program SHINYJET. This is the only code that changed from LITJET (other than the title of the window) to produce a very shiny and glistening jet. Figure 9-17 shows the output from this program, but to fully appreciate the effect, you should run the program and hold down one of the arrow keys to spin the jet about in the sunlight.

Figure 9-17 Output from the SHINYJET program

Page

330

OpenGL Super Bible!

Listing 9-6 Setup from SHINYJET to produce specular highlights on the jet

// This function does any needed initialization on the rendering

// context. Here it sets up and initializes the lighting for

// the scene. void SetupRC()

{

// Light values and coordinates

GLfloat ambientLight[] = { 0.3f, 0.3f, 0.3f, 1.0f };

GLfloat diffuseLight[] = { 0.7f, 0.7f, 0.7f, 1.0f };

GLfloat specular[] = { 1.0f, 1.0f, 1.0f, 1.0f};

Glfloat lightPos[] = { 0.0f, 150.0f, 150.0f, 1.0f };

GLfloat specref[] = { 1.0f, 1.0f, 1.0f, 1.0f };

glEnable(GL_DEPTH_TEST); // Hidden surface removal

glFrontFace(GL_CCW); // Counterclockwise polygons face out

glEnable(GL_CULL_FACE); // Do not calculate inside of jet

// Enable lighting

glEnable(GL_L IGHTING);

// Set up and enable light 0

glLightfv(GL_LIGHT0,GL_AMBIENT,ambientLight);

glLightfv(GL_LIGHT0,GL_DIFFUSE,diffuseLight);

glLightfv(GL_LIGHT0,GL_SPECULAR,specular);

glLightfv(GL_LIGHT0,GL_POSITION,lightPos) ;

glEnable(GL_LIGHT0);

// Enable color tracking

glEnable(GL_COLOR_MATERIAL);

// Set Material properties to follow glColor values

glColorMaterial(GL_FRONT, GL_AMBIENT_AND_DIFFUSE);

// All materials hereafte r have full specular reflectivity

// with a high shine

glMaterialfv(GL_FRONT, GL_SPECULAR,specref);

glMateriali(GL_FRONT,GL_SHININESS,128);

// Light blue background

glClearColor(0.0f, 0.0f, 1.0f, 1.0f );

}

Normal Averaging

Earlier we mentioned that by “tweaking” your normals you can produce smooth surfaces with straight lines. This technique, known as normal averaging, produces some interesting optical illusions. Say you have a surface like that shown in Figure 9-18, with the usual surface normals.

OpenGL Super Bible! Page

331

Figure 9-18 Jagged surface with the usual surface normals

Although the normals are shown in between the corners, they are actually specified for each vertex. If you take into account that each vertex actually boarders another surface, you can specify the normal for that vertex as the average of the two normals at that point for each surface. Figure 9-19 shows that for two adjoining surfaces, their common corner would have a different normal specified as each surface is drawn. If we take the average of these two normals and use it when we specify each surface, the joining of the two surfaces will appear less sharp after OpenGL does its surface shading.

Figure 9-19 Averaging the normals will make sharp corners appear softer

Listing 9-7 shows the rendering function that creates the surface shown in Figure 9-18. (This code is from the example program WAVEY in the CD subdirectory for this chapter.) The surface is created by stepping from left to right for the x coordinates, and alternating up and down in the y coordinate direction. The z coordinates are constant, with –50 being the front of the image and 50 being at the back.

Page

332

OpenGL Super Bible!

Listing 9-7 The rendering function from the WAVEY example program

// Called to draw scene void RenderScene(void)

{

float normal[3]; // Storage for calculate normal

float v[4][3]; // Storage for rectangle coordinates

float lastY; // Left -hand side of rectangle

float nextY; // Right -hand side of rectangle

float temp; // Temporary storage for swapping

float x; // X coordinate storage

// Menu state specifies if wireframe or not

if(iState == WIRE)

glPolygonMode(GL_FRONT_AND_BACK,G L_LINE);

else

glPolygonMode(GL_FRONT_AND_BACK,GL_FILL);

// Menu state specifies if smooth or flat shading

if(iState == SMOOTH || iState == AVERAGE)

glShadeModel(GL_SMOOTH);

else

glShadeModel(GL_FLAT);

// Clear the window with current clearing color

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

// Reset viewing volume and viewport

ChangeSize(lastWidth,lastHeight);

// Rotate the im age according to accumulated angle set

// by the arrow key handlers

glRotatef(xRot, 1.0f, 0.0f, 0.0f);

glRotatef(yRot, 0.0f, 1.0f, 0.0f);

// Set surface color to blue

glRGB(0,0,255);

// Initialize the y ste ppings

lastY = 0.0f;

nextY = 10.0f;

// Loop through x coordinate from left to right, build

// a rectangle with alternating slopes upward and downward

for(x = -60.0f; x < 60.0f; x+= 20.0f)

{

// 1st Vertices

v[0][0] = x; // X coord for left

v[0][1] = lastY;

v[0][2] = 50.0f; // Z coord for back

// 2nd vertices

v[1][0] = x; // X coord for left

v[1][1] = lastY;

v[1][2] = -50.0f; // Z coord for front

OpenGL Super Bible! Page

333

// 3rd Vertices

v[2][0] = x + 20.0f; // X coord for right

v[2][1] = nextY;

v[2][2] = -50.0f; // Z coord for front

// 4th Vertices

v[3][0] = x + 20.0f; // X coord for right

v[3][1] = nextY;

v[3][2] = 50.0f; // Z coord for back

// Begin the polygon

glBe gin(GL_POLYGON);

if(iState != AVERAGE)

{

// Calculate and set the normal vector,

unless

// averaging selecte d from the menu.

calcNormal(v,normal);

glNormal3fv(normal);

}

else // Average normals. Here we cheat because we

know

// the normal points either up or down

{

// Normal points straight up

if(nextY == 10)

glNormal3f(0.0f,1.0f, 0.0f);

else

// Normal points straight down

glNormal3f(0.0f, -1.0f, 0.0f);

}

// Specify the left two verticies

glVertex3fv(v[0]);

glVertex3fv(v[1]);

// Do the same, but the normal on the other side

points

// the other direction

if(iState == AVERAGE)

{

if(nextY == 10)

glNormal3f(0.0f, -1.0f, 0.0f);

// points down

else

glNormal3f(0.0f,1.0f, 0.0f);

// points up

}

// Specify the right t wo vertices

glVertex3fv(v[2]);

glVertex3fv(v[3]);

glEnd();

Page

334

OpenGL Super Bible!

// Swap the y coordinate positions

temp = lastY;

lastY = nextY;

next Y = temp;

}

// Flush drawing commands

glFlush();

}

The WAVEY program has menu options to render just a wireframe image, do flat or smooth shading, and finally do the normal averaging. Figure 9-20 shows this folding image using flat shading, and Figure 9-21 is the same object with the normals averaged. You can see that the second image appears to have a smooth rippling effect across its surface.

Figure 9-20 Bent surface with regular surface normals

Figure 9-21 Bent surface with surface normals averaged together

OpenGL Super Bible!

Spotlights

So far, we have been specifying a light’s position with glLight as follows:

// Array to specify position

GLfloat lightPos[] = { 0.0f, 150.0f, 150.0f, 1.0f };

// Set the light positio n glLightfv(GL_LIGHT0,GL_POSITION,lightPos);

Page

335

The array lightPos[] contains the x, y, and z values that specify either the light’s actual position in the scene, or the direction from which the light is coming. The last value, a 1.0 in this case, indicates that the light is actually present at this location. By default, the light will radiate equally in all directions from this location— but this can be changed to make a spotlight effect.

To make a light source an infinite distance away and coming from the direction specified by this vector, you would place a 0.0 in this last lightPos[] array element. A directional light

source, as this is called, strikes the surface of your objects evenly. That is, all the light rays are parallel. In a positional light source on the other hand, the light rays diverge from the light source. The specular highlights achieved in the SHINYJET example would not be possible with a directional light source. Rather than the glistening spot, the entire face of the triangles that make up the jet would be white when they faced the light source dead on (the light rays strike the surface at a 90º angle).

Creating a Spotlight

Creating a spotlight is no different from creating any other directional light source. The code in Listing 9-8 shows the SetupRC() function from the SPOT example program. This program places a blue sphere in the center of the window. A spotlight is created that can be moved vertically with the up and down arrow keys, and horizontally with the left and right arrow keys. As the spotlight moves over the surface of the sphere, a specular highlight follows it on the surface.

Listing 9-8 Lighting setup for the SPOT sample program

// Light values and coordinates

GLfloat lightPos[] = { 0.0f, 0.0f, 75.0f, 1.0f };

GLfloat specular[] = { 1.0f, 1.0f, 1.0f, 1.0f};

GLfloat specref[] = { 1.0f, 1.0f, 1.0f, 1.0f };

GLfloat ambientLight[] = { 0.5f, 0.5f, 0.5f, 1.0f};

GLfloat spotDir[] = { 0.0f, 0.0f, -1.0f };

// This function does any needed initialization on the rendering

// context. Here it sets up and initializes the lighting for

Page

336

OpenGL Super Bible!

// the scene. void SetupRC()

{

glEnable(GL_DEPTH_TEST); // Hidden surface removal

glFrontFace(GL_CCW); // Counterclockwise polygons face out

glEnable(GL_CULL_FACE); // Do not try to display the back sides

// Enable lighting

glEnable(GL_LIGHTING);

// Set up and enable light 0

// Supply a slight ambient light so the objects can be seen

glLightModelfv(GL_LIGHT_MODEL_AMBIENT, ambientLight);

// The light is composed of just diffuse and specular components

glLightfv(GL_LIGHT0,GL_DIFFUSE,ambientLight);

glLightfv(GL_LIGHT0,GL_SPECULAR,specular);

glLightfv(GL_LIGHT0,GL_POSITION,lightPos);

// Specific spot effects

// Cut off angle is 60 degrees

glLightf(GL_LIGHT0,GL_SPOT_CUTOFF,60.0f);

// Fairly shiny spot

glLightf(GL_LIGHT0,GL_SPOT_EXPONENT,100.0f);

// Enable this light in particular

glEnable( GL_LIGHT0);

// Enable color tracking

glEnable(GL_COLOR_MATERIAL);

// Set Material properties to follow glColor values

glColorMaterial(GL_FRONT, GL_AMBIENT_AND_DIFFUSE);

// All materials hereafter have full specula r reflectivity

// with a high shine

glMaterialfv(GL_FRONT, GL_SPECULAR,specref);

glMateriali(GL_FRONT, GL_SHININESS,128);

// Black background

glClearColor(0.0f, 0.0f, 0.0f, 1.0f );

}

The following lines are actually what make a positional light source into a spotlight:

// Specific spot effects

// Cut off angle is 60 degrees glLightf(GL_LIGHT0,GL_SPOT_CUTOFF,60.0f);

// Fairly shiny spot glLightf(GL_LIGHT0,GL_SPOT_EXPONENT,100.0f);

OpenGL Super Bible! Page

337

The GL_SPOT_CUTOFF value specifies the radial angle of the cone of light emanating from the spotlight. For a normal positional light, this is 180º so that the light is not confined to a cone. Spotlights emit a cone of light, and objects outside this cone are not illuminated.

Figure 9-22 shows how this angle translates to the cone width.

Figure 9-22 The angle of the spotlight’s cone

Drawing a Spotlight

When you place a spotlight in a scene, the light must come from somewhere. Just because you have a source of light at some location doesn’t mean that you will see a bright spot there. For our SPOT example program, we placed a red cone at the spotlight source to show where the light was coming from. Inside the end of this cone, we placed a bright yellow sphere to simulate a light bulb. Listing 9-9 shows the complete code to render the scene.

Make special note of the statement glPushAttrib(GL_LIGHTING_BIT);

Just following this statement, we disable lighting and render a bright yellow sphere. Then we make a call to glPopAttrib();

The first statement saves the state of all the lighting state variables. Then we can just disable lighting long enough to draw a yellow light bulb and put the lighting system back the way it was. See the Chapter 14 Reference Section entries for glPushAttrib and glPopAttrib for more information on saving and restoring state variables. A sample screen from our SPOT example program is shown in Figure 9-23.

Page

338

OpenGL Super Bible!

Figure 9-23 Output of the SPOT program demonstrating spotlights

Listing 9-9 The rendering function for SPOT, showing how the spotlight is moved

// Called to draw scene void RenderScene(void)

{

// Clear the window with current clearing color

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

// Set material color and draw a sph ere in the middle

glRGB(0, 0, 255);

auxSolidSphere(30.0f);

// Now place the light

// Save the coordinate transformation glPushMatrix();

// Rotate coordinate system

glRotatef(yRot, 0.0f, 1.0f, 0.0f);

glRotatef(xRot, 1.0f, 0.0f, 0.0f);

// Specify new position and direction in rotated coords.

glLightfv(GL_LIGHT0,GL_POSITION,lightPos);

glLightfv(GL_LIGHT0,GL_SPOT_DIRECTION,spotDir);

// Draw a red cone to enclose the light source

glRGB(255,0,0);

// Translate origin to move the cone out to where the light

// is positioned.

glTranslatef(lightPos[0],lightPos[1],lightPos[2]);

auxSolidCone(4.0f,6.0f);

// Draw a smaller displaced sphere to denot e the light bulb

OpenGL Super Bible! Page

// Save the lighting state variables

glPushAttrib(GL_LIGHTING_BIT);

// Turn off lighting and specify a bright yellow sphere

glDisable(GL_LIGHTING);

glRGB(255,255,0);

auxSolidSphere(3.0f);

// Restore lighting state variables

glPopAttrib();

// Restore coordinate transformations glPopMatrix();

// Flush drawing commands glFlush();

}

339

Shadows

A chapter on lighting naturally begs the topic of shadows. Adding shadows to your scenes can greatly improve their realism and visual effectiveness. In Figures 9-24a and 9-24b you see two views of a lighted cube, one without and one with a shadow (this is the example program from Chapter 2). The cube in Figure 9-24b with a shadow looks much more believable.

Figure 9-24a Lighted cube without a shadow

Page

340

OpenGL Super Bible!

Figure 9-24b Lighted cube with a shadow

What Is a Shadow?

Conceptually, drawing a shadow is quite simple. A shadow is produced when an object keeps light from a light source from striking some object or surface behind the object casting the shadow. The area on the shadowed object’s surface, outlined by the object casting the shadow, appears dark. We can produce a shadow programmatically by flattening the original object into the plane of the surface in which the object lies. The object is then drawn in black or some dark color, perhaps with some translucence (see the shadow sample in Chapter 16).

Figure 9-25 illustrates this flattening.

Figure 9-25 Flattening an object to create a shadow

OpenGL Super Bible! Page

341

The process of squishing an object against another surface is accomplished using some of those advanced matrix manipulations we explored in Chapter 7. Here we will boil it down to make it as simple as possible.

Squish Code

We need to flatten the Modelview projection matrix so that any and all objects drawn into it are now in this flattened two-dimensional world. No matter how the object is oriented, it will be squished into the plane in which the shadow lies. The second consideration is the distance and direction of the light source. The direction of the light source determines the shape of the shadow, and influences the size. If you’ve ever seen your shadow in the late or early morning hours, you know how long and warped your shadow can appear depending on the position of the Sun.

The function in Listing 9-10 takes three points that lie in the plane in which you want the shadow to appear, the position of the light source, and finally a pointer to a transformation matrix that this function will construct. Without delving too much into linear algebra, what this function does is deduce the coefficients of the equation of the plane in which the shadow will appear, and use it along with the lighting position to build a Transformation matrix. If you multiply this matrix by the current Modelview matrix, all further drawing will be flattened into this plane.

Listing 9-10 Function to make a shadow transformation matrix

// Creates a shadow projection matrix out of the plane equation

// coefficients and the position of the light. The return value is stored

// in destMat[][] void MakeShadowMatrix(GLfloat points[3][3], GLfloat lightPos[4],

GLfloat destMat[4][4])

{

GLfloat planeCoeff[4];

GLfloat dot;

// Find the plane equation coefficients

// Find the first three coefficients the same way we

// find a normal.

calcNormal(points,planeCoeff);

// Find the last coefficient by back substitutions

planeCoeff[3] = - (

(planeCoeff[0]*points[2][0]) +

(planeCoeff[1]*points[2][1]) +

(planeCoeff[2]*points[2][2]));

// Dot product of plane and light position

dot = planeCoeff[0] * lightPos[0] +

planeCoeff[1] * lightPos[1] +

planeCoeff[2] * lightPos[2] +

planeCoeff[3] * lightPos[3];

Page

342

OpenGL Super Bible!

// Now do the projection

// First column

destMat[0][0] = dot - lightPos[0] * planeCoeff[0];

destMat[1][0] = 0.0f - lightPos[0] * planeCoeff[1];

destMat[2][0] = 0.0f - lightPos[0] * planeCoeff[2];

destMat[3][0] = 0.0f - lightPos[0] * planeCoeff[3];

// Second column

destMat[0][1] = 0.0f - lightPos[1] * plane Coeff[0];

destMat[1][1] = dot - lightPos[1] * planeCoeff[1];

destMat[2][1] = 0.0f - lightPos[1] * planeCoeff[2];

destMat[3][1] = 0.0f - lightPos[1] * planeCoeff[3];

// Third Column

destMat[0][2] = 0.0f - lightPos[2] * planeCoeff[0];

destMat[1][2] = 0.0f - lightPos[2] * planeCoeff[1];

destMat[2][2] = dot - lightPos[2] * planeCoeff[2];

destMat[3][2] = 0.0f - lightPos[2] * planeCoeff[3];

// Fourth Column

destMat[0][3] = 0.0f - lightPos[3] * planeCoeff[0];

destMat[1][3] = 0.0f - lightPos[3] * planeCoeff[1];

destMat[2][3] = 0.0f - lightPos[3] * planeCoeff[2];

destMat[3][3] = dot - lightPos[3] * planeCoeff[3];

}

A Shadow Example

To demonstrate the use of the function in Listing 9-10, we will suspend our jet in air high above the ground. We’ll place the light source directly above and a bit to the left of the jet.

As you use the arrow keys to spin the jet around, the shadow cast by the jet will appear flattened on the ground below. The output from this SHADOW example program is shown in Figure 9-26.

Figure 9-26 Output from the SHADOW example program

OpenGL Super Bible! Page

343

The code in Listing 9-11 shows how the shadow projection matrix was created for this example. Note that we create the matrix once in SetupRC() and save it in a global variable.

Listing 9-11 Setting up the shadow projection matrix

GLfloat lightPos[] = { -75.0f, 150.0f, -50.0f, 0.0f };

// Transformation matrix to project shadow

GLfloat shadowMat[4][4];

// This function does any needed initialization on the rendering

// context. Here it sets up and initializes the lighting for

// the scene. void SetupRC()

{

// Any three points on the ground (counterclockwise order)

GLfloat points[3][3] = {{ -30.0f, -149.0f, -20.0f },

{ -30.0f, -149.0f, 20.0f },

{40.0f, -149.0f, 20.0f }};

glEnable(GL_DEPTH_TEST); // Hidden surface removal

glFrontFace(GL_CCW); // Counterclockwise polygons

face out

glEnable(GL_CULL_FACE); // Do not calculate inside of jet

// Enable lighting

glEnable(GL_LIGHTING);

// Code to setup lighting, etc.

// Light blue background

glClearColor(0.0f, 0.0f, 1.0f, 1.0f );

// Calculate projection matrix to draw shadow on the ground

MakeShadowMatri x(points, lightPos, shadowMat);

}

Listing 9-12 shows the rendering code for the SHADOW example. We first draw the jet as we normally would; then we restore the Modelview matrix and multiply it by the shadow matrix. This creates our squish Projection matrix. Then we draw the jet again (we’ve modified our code to accept a flag telling the DrawJet function to render in color or black).

After restoring the Modelview matrix once again, we draw a small yellow sphere to approximate the position of the light, and then draw a plane below the jet to indicate the ground. This rectangle lies in the same plane in which our shadow will be drawn.

Page

344

OpenGL Super Bible!

Listing 9-12 Render the jet and its shadow

// Called to draw scene void RenderScene(void)

{

// Clear the window with current clearing color

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

// Save the matrix state and do the rotations

glPushMatrix();

// Draw jet at new orientation, put light in correct position

// before rotating the jet

glLightfv(GL_LIGHT0,GL_POSITION,lightPos);

glRotatef(xRot, 1.0f, 0.0f, 0.0f);

glRotatef(yRot, 0.0f, 1.0f, 0.0f);

DrawJet(FALSE);

// Restore original matrix state

glPopMatrix() ;

// Get ready to draw the shadow and the ground

// First disable lighting and save the projection state

glPushAttrib(GL_LIGHTING_BIT);

glDisable(GL_LIGHTING);

glPushMatrix();

// Multiply by shadow project ion matrix

glMultMatrixf((GLfloat *)shadowMat);

// Now rotate the jet around in the new flattened space

glRotatef(xRot, 1.0f, 0.0f, 0.0f);

glRotatef(yRot, 0.0f, 1.0f, 0.0f);

// Pass true to indicate drawing shadow

DrawJet(TRUE);

// Restore the projection to normal

glPopMatrix();

// Draw the light source

glPushMatrix();

glTranslatef(lightPos[0],lightPos[1], lightPos[2]);

glRGB(255,255,0);

auxSolidSpher e(5.0f);

glPopMatrix();

// Draw the ground; we do manual shading to a darker green

// in the background to give the illusion of depth

glBegin(GL_QUADS);

glRGB(0,128,0);

glVertex3f(400.0f, -150.0f, -200.0f);

glVertex3f( -400.0f, -150.0f, -200.0f);

OpenGL Super Bible!

glRGB(0,255,0);

glVertex3f( -400.0f, -150.0f, 200.0f);

glVertex3f(400.0f, -150.0f, 200.0f);

glEnd();

// Restore lighting state variables

glPopAttrib();

// Flush drawing commands

glFlush();

}

Page

345

Lighting and Color Index Mode

In Chapter 8, you learned that in color index mode, color is specified as an index into a palette rather than as components of red, green, and blue light. This has some obvious implications for lighting effects. Most of the lighting functions expect light and material properties to be specified in terms of these RGBA components.

Some consideration is made for color index mode by OpenGL, but in color index mode your lights may only contain diffuse and specular components. Material properties can include shininess, ambient, diffuse, and specular light, and although this may be enough to do some lighting, it is questionable whether it’s actually worth the effort.

In order to do lighting, your palette must contain three color ramps for ambient, diffuse, and specular colorings. To achieve satisfactory results, your ramps will usually progress from black to shades of a single color and finally to white. It’s possible to define these such that you produce a smoothly shaded object in a single color, but this has few if any practical applications.

Generally, most recognized OpenGL texts recommend that you avoid color index mode for lighting effects. Still, if you must use it, the CD contains a supplementary example called

ILIGHT that shows how to use color index mode to illuminate a scene with some objects.

However, all these objects are the same color!

Page

346

Summary

OpenGL Super Bible!

In this chapter you have been introduced to some of the more magical and powerful capabilities of OpenGL. You’ve seen how to specify one or more light sources and define their lighting characteristics in terms of ambient, diffuse, and specular components. We explained how the corresponding material properties interact with these light sources, and demonstrated some special effects such as adding specular highlights and softening sharp edges.

Also covered were lighting positions, and creation and manipulation of spotlights. The highlevel matrix munching function presented here will make shadow generation as easy as it gets. Finally, we explained why you should avoid color index mode for lighting effects. The demonstration programs in this chapter are fairly simple, but you’ll find more samples on the CD in the subdirectory for this chapter. The programs on the CD further demonstrate all of these effects, including scenes with more than one light source.

OpenGL Super Bible! Page

347

Reference Section glColorMaterial

Purpose

Allows material colors to track the current color as set by glColor.

Include File

<gl.h>

Syntax void glColorMaterial(GLenum face, GLenum mode);

Description

This function allows material properties to be set without having to call glMaterial directly. By using this function, certain material properties can be set to follow the current color as specified by glColor. By default, color tracking is disabled; to enable it, you must also call glEnable(GL_COLOR_MATERIAL). To disable color tracking again, call glDisable(GL_COLOR_MATERIAL).

Parameters

face

GLenum: Specifies if the front (GL_FRONT), back (GL_BACK), or both

(GL_FRONT_AND_BACK) should follow the current color.

mode

GLenum: Specifies which material property should be following the current color.

This can be GL_EMISSION, GL_AMBIENT, GL_DIFFUSE, GL_SPECULAR, or

GL_AMBIENT_AND_DIFFUSE.

Returns

None.

Example

The following code from the AMBIENT example program enables color tracking, then sets the front material parameters for ambient and diffuse reflectivity to follow the colors specified by glColor.

glEnable(GL_COLOR_MATERIAL); // Enable Material color tracking

// Front material ambient and diffuse colors track glColor

glColorMaterial(GL_FRONT,GL_AMBIENT_AND_DIFFUSE);

See Also glColor, glMaterial, glLight, glLightModel

Page

348

OpenGL Super Bible!

glCullFace

Purpose

Specifies whether the front or back of polygons should be eliminated from drawing.

Include File

<gl.h>

Syntax void glCullFace(GLenum mode);

Description

This function disables lighting, shading, and color calculations and operations on either the front or back of a polygon. If, for instance, an object is closed in so that the back side of the polygons will never be visible regardless of rotation or translation, this will eliminate unnecessary computations in the display of the scene. Culling is enabled or disabled by calling glEnable and glDisable with the GL_CULL_FACE parameter. The front and back of the polygon are defined by use of the glFrontFace function and the order in which the vertices are specified (clockwise or counterclockwise winding).

Parameters

mode

GLenum: Specifies which face of polygons should be culled. May be either

GL_FRONT, or GL_BACK.

Returns

None.

Example

The following code from the AMBIENT example from this chapter shows how the color and drawing operations are disabled for the inside of the jet. It is also necessary to indicate which side of the polygon is the outside by specifying clockwise or counterclockwise winding.

glEnable(GL_CULL_FACE); // Do not calculate inside of jet

glFrontFace(GL_C CW); // Counterclockwise polygons face out

See Also glFrontFace, glLightModel

OpenGL Super Bible! Page

349

glFrontFace

Purpose

Defines which side of a polygon is the front or back.

Include File

<gl.h>

Syntax void glFrontFace(GLenum mode);

Description

When a scene is made up of objects that are closed (you cannot see the inside), there is no need to do color or lighting calculations on the inside of the object. The glCullFace function will turn off such calculations for either the front or back of polygons. The glFrontFace function determines which side of the polygons is considered the front. If the vertices of a polygon are specified such that they travel around the polygon in a clockwise fashion, the polygon is said to have clockwise winding. If the vertices travel counterclockwise, the polygon is said to have counterclockwise winding. This function allows either the clockwise or counterclockwise wound face to be considered the front of the polygon.

Parameters

mode

GLenum: Specifies the orientation of front facing polygons, clockwise (GL_CW) or counterclockwise (GL_CCW).

Returns

None.

Example

The following code from the AMBEINT example from this chapter shows how the color and drawing operations are disabled for the inside of the jet. It is also necessary to indicate which side of the polygon is the outside by specifying clockwise or counterclockwise winding.

glEnable(GL_CULL_FACE); // Do not calculate inside of jet

glFrontFace(GL_CCW); // Counterclockwise polygons face out

See Also glCullFace, glLightModel

Page

350

OpenGL Super Bible!

glGetMaterial

Purpose

Returns the current material property settings.

Include File

<gl.h>

Variations void glGetMaterialfv(GLenum face, GLenum pname, GLfloat *params); void glGetMaterialiv(GLenum face, GLenum pname, GLint *params);

Description

Use this function to query the current front or back material properties. The return values are stored at the address pointed to by params. For most properties this is an array of four values containing the RGBA components of the property specified.

Parameters

face

GLenum: Specifies whether the front (GL_FRONT), or back (GL_BACK) material properties are being sought.

pname

GLenum: Specifies which material property is being queried. Valid values are:

GL_AMBIENT, GL_DIFFUSE, GL_SPECULAR, GL_EMISSION,

GL_SHININESS, and GL_COLOR_INDEXES.

params

GLint* or GLfloat*: An array of integer or floating point values representing the return values. For GL_AMBIENT, GL_DIFFUSE, GL_SPECULAR, and

GL_EMISSION this is a four-element array containing the RGBA values of the property specified. For GL_SHININESS a single value representing the specular exponent of the material is returned. GL_COLOR_INDEXES returns an array of three elements containing the ambient, diffuse, and specular components in the form of color indexes. GL_COLOR_INDEXES is only used for color index lighting.

Returns

None.

Example

The following code shows how all the current material properties are read and stored.

// Storage for all the material properties

GLfloat mbientMat[4],diffuseMat[4],sp ecularMat[4],emissionMat[4];

GLfloat shine;

// Read all the material properties

glGetMaterialfv(GL_FRONT,GL_AMBIENT,ambientMat);

glGetMaterialfv(GL_FRONT,GL_DIFFUSE,diffuseMat);

OpenGL Super Bible!

glGetMaterialfv(GL_FRONT,GL_SPECULAR,specularMat);

glGetMaterialfv(GL_FRONT,GL_EMISSION,emissionMat);

glGetMaterialfv(GL_FRONT,GL_SHININESS,&shine);

See Also glMaterial

Page

351

Page

352

OpenGL Super Bible!

glGetLight

Purpose

Returns information about the current light source settings.

Include File

<gl.h>

Variations void glGetLightfv(GLenum light, GLenum pname, GLfloat *params);void

glGetLightiv(GLenum light, GLenum pname, GLint *params);

Description

Use this function to query the current settings for one of the eight supported light sources. The return values are stored at the address pointed to by params. For most properties this is an array of four values containing the RGBA components of the properties specified.

Parameters

light

pname

GLenum: The light source for which information is being requested. This will range from 0 to GL_MAX_LIGHTS (8 for Windows NT and Windows 95). Constant light values are enumerated from GL_LIGHT0 to GL_LIGHT7.

GLenum: Specifies which property of the light source is being queried. Any of the following values are valid: GL_AMBIENT, GL_DIFFUSE, GL_SPECULAR,

GL_POSITION, GL_SPOT_DIRECTION, GL_SPOT_EXPONENT,

GL_SPOT_CUTOFF, GL_CONSTANT_ATTENUATION,

GL_LINEAR_ATTENUATION , and GL_QUADRATIC_ATTENUATION.

params

GLfloat* or GLint*: An array of integer or floating point values representing the return values. These return values will be in the form of an array of four, three, or a single value. Table 9-2 shows the return value meanings for each property.

Returns

None.

Example

The following code shows how all the lighting properties for the light source GL_LIGHT0 are retrieved and stored.

// Storage for the light properties

GLfloat ambientComp[4],diffuseComp[4],specularComp[4]

// Read the light components

glGetLightfv(GL_LIGHT0,GL_AMBIENT,ambientComp);

OpenGL Super Bible! Page

353

glGetLightfv(GL_FR ONT,GL_DIFFUSE,diffuseComp);

glGetLightfv(GL_FRONT,GL_SPECULAR,specularComp);

See Also glLight

Table 9-2 Valid Lighting Parameters for glGetLight

Property Meaning of Return Values

GL_AMBIENT

GL_DIFFUSE

Four RGBA components.

Four RGBA components.

GL_SPECULAR

GL_POSITION

GL_SPOT_DIRECTION

Four RGBA components.

Four elements that specify the position of the light source. The first three elements specify the position of the light. The fourth, if 1.0, specifies that the light is at this position. Otherwise, the light source is directional and all rays are parallel.

Three elements specifying the direction of the spotlight. This vector will not be normalized, and will be in eye coordinates.

A single value representing the spot exponent. GL_SPOT_EXPONENT

GL_SPOT_CUTOFF A single value representing the cutoff angle of the spot source.

GL_CONSTANT_ATTENUATION A single value representing the constant attenuation of the light.

GL_LINEAR_ATTENUATION A single value representing the linear attenuation of the light.

GL_QUADRATIC_ATTENUATION A single value representing the quadratic attenuation of the light.

Page

354

OpenGL Super Bible!

glLight

Purpose

Sets light source parameters for one of the eight available light sources.

Include File

<gl.h>

Variations void glLightf(GLenum light, GLenum pname, GLfloat param ); void glLighti(GLenum light, GLenum pname, GLint param ); void glLightfv(GLenum light, GLenum pname, const GLfloat *params ); void glLightiv(GLenum light, GLenum pname, const GLint *params );

Description

Use this function to set the lighting parameters for one of the eight supported light sources. The first two variations of this function require only a single parameter value to set one of the following properties: GL_SPOT_EXPONENT,

GL_SPOT_CUTOFF, GL_CONSTANT_ATTENUATION,

GL_LINEAR_ATTENUATION, and GL_QUADRATIC_ATTENUATION. The second two variations are used for lighting parameters that require an array of multiple values. These include: GL_AMBIENT, GL_DIFFUSE, GL_SPECULAR,

GL_POSITION, and GL_SPOT_DIRECTION. These variations may also be used with single valued parameters by specifying a single element array for *params.

Parameters

light

pname

GLenum: Specifies which light source is being modified. This will range from 0 to

GL_MAX_LIGHTS (8 for Windows NT and Windows 95). Constant light values are enumerated from GL_LIGHT0 to GL_LIGHT7.

param

GLenum: Specifies which lighting parameter is being set by this function call. See

Table 9-2 for a complete listing and the meaning of these parameters.

GLfloat, or GLint: For parameters that are specified by a single value, this specifies that value. These parameters are: GL_SPOT_EXPONENT, GL_SPOT_CUTOFF,

GL_CONSTANT_ATTENUATION, GL_LINEAR_ATTENUATION, and

GL_QUADRATIC_ATTENUATION. These parameters only have meaning for spot lights.

params

GLfloat*, or GLint*: An array of values that fully describe the parameters being set.

See Table 9-2 for a listing and the meaning of these parameters.

Returns

None.

Example

OpenGL Super Bible! Page

355

The following code from the LITJET example program sets up a single light source to the upper-left behind the viewer. The light source is composed only of moderate ambient and diffuse components.

// Light values and coordinates

GLfloat whiteLight[] = { 0.5f, 0.5f, 0.5f, 1.0f };

GLfloat lightPos[] = { -50.f, 50.0f, -100.0f, 0.0f };

// Enable lighting

glEnable(GL_LIGHTING);

// Set up and enable light 0

glLightfv(GL_LIGHT0,GL_AMBIENT_AND_DIFFUSE,whiteLight);

glLightfv(GL_LIGHT0,GL_POSITION,lightP os);

glEnable(GL_LIGHT0);

See Also glGetLight

Page

356

OpenGL Super Bible!

glLightModel

Purpose

Sets the lighting model parameters used by OpenGL.

Include File

<gl.h>

Variations void glLightModelf(GLenum pname, GLfloat param) void glLightModeli(GLenum pname, GLint param); void glLightModelfv(GLenum pname, const GLfloat *params); void glLightModeliv(GLenum pname, const GLint *params);

Description

This function is used to set the lighting model parameters used by OpenGL. Any or all of three lighting model parameters may be set. GL_LIGHT_MODEL_AMBIENT is used to set a default ambient illumination for a scene. By default, this light has an

RGBA value of (0.2, 0.2, 0.2, 1.0). Only the last two variations may be used to set this lighting model because they take pointers to an array that can contain the RGBA values. The GL_LIGHT_MODEL_TWO_SIDE parameter is specified to indicate whether both sides of polygons are illuminated. By default, only the front (defined by winding) of polygons is illuminated, using the front material properties as specified by glMaterial(). Finally, specifying a lighting model parameter of

GL_LIGHT_MODEL_LOCAL_VIEWER modifies calculation of specular reflection angles, whether the view is down along the –z axis or from the origin of the eye coordinate system (see Chapter 6).

Parameters

pname

GLenum: Specifies a lighting model parameter. GL_LIGHT_MODEL_AMBIENT,

param

GL_LIGHT_MODEL_LOCAL_VIEWER, and GL_LIGHT_MODEL_TWO_SIDE are accepted.

GLfloat or GLint: For GL_LIGHT_MODEL_LOCAL_VIEWER, a value of 0.0 indicates that specular lighting angles take the view direction to be parallel to and in the direction of the –z axis. Any other value indicates that the view is from the origin of eye coordinate system. For GL_LIGHT_MODEL_TWO_SIDE, a value of 0.0 indicates that only the fronts of polygons are to be included in illumination calculations. Any other value indicates that both the front and back are included.

This parameter has no effect on points, lines, or bitmaps.

params

GLfloat* or GLint*: For GL_LIGHT_MODEL_AMBIENT or

GL_LIGHT_MODEL_LOCAL_VIEWER this points to an array of integers or floating point values, only the first element of which is used to set the parameter

OpenGL Super Bible! Page

357

value. For GL_LIGHT_MODEL_AMBIENT this array points to four values that indicate the RGBA components of the ambient light.

Returns

None.

Example

The following code from this chapter’s AMBIENT example sets up a global ambient light source consisting of a full-intensity white light.

// Bright white light

GLfloat ambientLight[] = { 1.0f, 1.0f, 1.0f, 1.0f };

glEnable(GL_DEPTH_TEST); // Hidden surface removal

glEnable(GL_CULL_FACE); // Do not calculate inside of jet

glFrontFace(GL_CCW); // Counterclockwise polygons face out

// Enable lighting

glEnable(GL_LIGHTIN G);

// Set light model to use ambient light specified by ambientLight

glLightModelfv(GL_LIGHT_MODEL_AMBIENT,ambientLight);

See Also glLight, glMaterial

Page

358

OpenGL Super Bible!

glMaterial

Purpose

Sets material parameters for use by the lighting model.

Include File

<gl.h>

Variations void glMaterialf(GLenum face, GLenum pname, GLfloat param); void glMateriali(GLenum face,GLenum pname,GLint param); void glMaterialfv(GLenum face, GLenum pname, const GLfloat *params) void glMaterialiv(GLenum face, GLenum pname, const GLint *params);

Description

This function is used to set the material reflectance properties of polygons. The

GL_AMBIENT, GL_DIFFUSE, and GL_SPECULAR properties affect how these components of incident light are reflected. GL_EMISSION is used for materials that appear to give off their own light. GL_SHININESS can vary from 0 to 128, with the higher values producing a larger specular highlight on the material surface. Finally,

GL_COLOR_INDEXES is used for material reflectance properties in color Index mode.

Parameters

face

GLenum: Specifies whether the front, back, or both material properties of the polygons are being set by this function. May be either GL_FRONT, GL_BACK, or

GL_FRONT_AND_BACK.

pname

GLenum: For the first two variations, this specifies the single-valued material parameter being set. Currently, the only single-valued material parameter is

GL_SHININESS. The second two variations, which take arrays for their parameters, may set the following material properties: GL_AMBIENT, GL_DIFFUSE,

GL_SPECULAR, GL_EMISSION, GL_SHININESS,

GL_AMBIENT_AND_DIFFUSE, or GL_COLOR_INDEXES.

param

GLfloat or GLint: Specifies the value to which the parameter specified by pname

(GL_SHININESS) will be set.

params

GLfloat* or GLint*: An array of floats or integers that contain the components of the property being set.

Returns None.

Example

See the LITJET sample program from this chapter.

See Also glGetMaterial, glColorMaterial, glLight, glLightModel

OpenGL Super Bible! Page

359

glNormal

Purpose

Defines a surface normal for the next vertex or set of vertices specified.

Include File

<gl.h>

Variations void glNormal3b(GLbyte nx, GLbyte ny, GLbyte nz); void glNormal3d(GLdouble nx, GLdouble ny, GLdouble nz); void glNormal3f(GLfloat nx, GLfloat ny, GLfloat nz); void glNormal3i(GLint nx, GLint ny, GLint nz); void glNormal3s(GLshort nx, GLshort ny, GLshort nz); void glNormal3bv(const GLbyte *v); void glNormal3dv(const GLdouble *v); void glNormal3fv(const GLfloat *v); void glNormal3iv(const GLint *v); void glNormal3sv(const GLshort *v);

Description

The normal vector specifies which direction is up and perpendicular to the surface of the polygon. This is used for lighting and shading calculations. Specifying a unit vector of length 1 will improve rendering speed. OpenGL will automatically convert your normals to unit normals if you enable this with glEnable(GL_NORMALIZE);

Parameters

nx

Specifies the x magnitude of the normal vector.

ny

Specifies the y magnitude of the normal vector.

nz

Specifies the z magnitude of the normal vector.

v

Specifies an array of three elements containing the x, y, and z magnitudes of the normal vector.

Returns

None.

Example

The following code from the LITJET sample program from this chapter demonstrates setting a normal vector for each polygon before it is rendered.

// Vertices for this panel

float normal[3];

Page

360

OpenGL Super Bible!

float v[3][3] = {{ 15.0f, 0.0f, 30.0f},

{ 0.0f, 15.0f, 30.0f},

{ 0.0f, 0.0f, 60.0f}};

// Calculate the normal for the pla ne

calcNormal(v,normal);

// Draw the triangle using the plane normal

// for all the vertices

glBegin(GL_TRIANGLES);

glNormal3fv(normal);

glVertex3fv(v[0]);

glVertex3fv(v[1]);

glVertex3fv(v[2] );

glEnd();

See Also glTexCoord, glVertex

OpenGL Super Bible! Page

361

Chapter 10

3D Modeling and Object Composition

What you’ll learn in this chapter:

How to… Functions You’ll Use

Assemble polygons to create 3D objects

Optimize object display with display lists glBegin/glEnd/glVertex glNewList/glEndList/glCallList

Your quiver is quite full of OpenGL arrows by now and it’s time to go hunting. Unlike previous chapters, this is going to be a project chapter, where you can put some of this stuff to practical use. We are going to define a problem or goal and pursue it to its logical end: a finished program. Along the way, you’ll gain some insight in how to break your objects and scenes into smaller, more manageable pieces. We’ll compose a complex object out of smaller, simpler objects, which in turn are composed of just the OpenGL primitives.

As a finishing touch we’ll show you why and how to apply display lists. One of the biggest reasons for using display lists is speed, so for the icing on the cake, we’ll even give you a crude but effective means of benchmarking your code.

Defining the Task

To demonstrate building a figure out of smaller simpler figures, we will use an interesting, yet simple example that creates a model of a metallic bolt (like those holding your disk drive together). Although this particular bolt may not exist in any hardware store, it will have the essential features. We shall make the bolt as simple as possible while still retaining the flavor of our task.

The bolt will have a six-sided head and a threaded shaft, like many typical steel bolts. Since this is a learning exercise, we’ll simplify the threads by making them raised on the surface of the bolt shaft rather than carved out of the shaft.

Figure 10-1 is a rough sketch of what we’re aiming for. We will build the three major components of this bolt— the head, the shaft, and the threads— individually and then put them together to form the final object.

Page

362

OpenGL Super Bible!

Figure 10-1 The hex bolt to be modeled in this chapter

Choosing a Projection

Before we start constructing, we need a projection, a frame of reference for placing the objects. For an example like this, an orthogonal projection is the best choice. This is a typical choice for applications such as CAD, in which an object is being modeled and measured exactly. This bolt has a specific width, height, and number of threads and is comparatively small. Using a perspective projection would make sense if we were modeling something larger such as a landscape, where the effect would be more apparent.

Listing 10-1 is the code that creates the viewing volume. It creates an orthogonal projection and represents a coordinate system that reaches 100 units along the x- and y-axis. An extra

100 units is supplied along the z-axis where the viewer will be located.

Listing 10-1 Setting up the orthogonal projection for this chapter’s examples

// Change viewing volume and viewport. Called when window is resized void ChangeSize(GLsizei w, GLsizei h)

{

GLfloat nRange = 100.0f;

// Prevent a divide b y zero

if(h == 0)

h = 1;

// Set Viewport to window dimensions

glViewport(0, 0, w, h);

OpenGL Super Bible! Page

363

// Reset coordinate system

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

// Establish clippin g volume (left, right, bottom, top, near, far)

if (w <= h)

glOrtho ( -nRange, nRange, -nRange*h/w, nRange*h/w,

-nRange*2.0f, nRange*2.0f);

else

glOrtho ( -nRange*w/h, nRange*w/h, -nRange, nRange,

-nRange*2.0f, nRange*2.0f);

glMatrixMode(GL_MODELVIEW);

glLoadIdentity();

}

Choosing the Lighting and Material Properties

With the projection chosen, the next step is to select a lighting model for our view of the bolt. Listing 10-2 is the code to set up the rendering context including the lighting and material properties. We make sure the ambient light is bright enough to see all the features, and include a specular component to make it glisten just as a real metal bolt would. The single light source is positioned to the upper-left of the viewer.

Listing 10-2 Setting up the rendering context and lighting conditions

// This function does any needed initialization on the rendering

// context. Here it sets up and initializes the lighting for

// the scene. void SetupRC()

{

// Light values and coordinates

GLfloat ambientLight[] = {0.4f, 0.4f, 0.4f, 1.0f };

GLfloat diffuseLight[] = {0.7f, 0.7f, 0.7f, 1.0f };

GLfloat specular[] = { 0.9f, 0.9f, 0.9f, 1.0f};

Glfloat lightPos[] = { -50.0f, 200.0f, 200.0f, 1.0f };

GLfloat specref[] = { 0.6f, 0.6f, 0.6f, 1.0f };

glEnable(GL_DEPTH_TEST); // Hidden surface removal

glEnable(GL_ CULL_FACE);// Do not calculate inside of solid object

// Enable lighting

glEnable(GL_LIGHTING);

// Set up light 0

glLightModelfv(GL_LIGHT_MODEL_AMBIENT,ambientLight);

glLightfv(GL_LIGHT0,GL_AMBIENT,ambientLight);

glLightfv(GL_LIGHT0,GL_DIFFUSE,diffuseLight);

glLightfv(GL_LIGHT0,GL_SPECULAR,specular);

// Position and turn on the light

glLightfv(GL_LIGHT0,GL_POSITION,lightPos);

glEnable(GL_LIGHT0);

Page

364

OpenGL Super Bible!

// Enable color track ing

glEnable(GL_COLOR_MATERIAL);

// Set material properties to follow glColor values

glColorMaterial(GL_FRONT, GL_AMBIENT_AND_DIFFUSE);

// All materials hereafter have full specular reflectivity

// with a moderate shine

glMaterialfv(GL_FRONT, GL_SPECULAR,specref);

glMateriali(GL_FRONT,GL_SHININESS,64);

// Black background

glClearColor(0.0f, 0.0f, 0.0f, 1.0f );

}

Displaying the Results

Once we have determined the viewing, lighting, and material parameters, all that remains is to render the scene. Listing 10-3 shows the code outline used to display our bolt and bolt pieces. The SomeFunc() line is just a placeholder for function calls to render the head, shaft, and threads individually. We save the matrix state, perform any rotations (defined by the keyboard activity, as in all this book’s previous examples), and call a function that renders some specific object or part of an object.

Listing 10-3 Rendering the object, allowing for rotated views

// Called to draw scene void RenderScene(void)

{

// Clear the window with current clearing color

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

// Save the matrix state

glMatrixMode(GL_MODELVIEW );

glPushMatrix();

// Rotate about x and y axes

glRotatef(xRot, 1.0f, 0.0f, 0.0f);

glRotatef(yRot, 0.0f, 1.0f, 0.0f);

// Specific code to draw the object …

… SomeFunc(); // Place Holder

glPopMatrix();

// Flush drawing commands

glFlush();

}

Constructing a Model, One Piece at a Time

OpenGL Super Bible! Page

365

Any given programming task can be separated into smaller, more manageable tasks. This makes the smaller pieces easier to handle and code, and introduces some reusability into our code base, as well. Three-dimensional modeling is no exception, you will create large complex systems out of many smaller and more manageable pieces.

We have decided to break the bolt down into three pieces: head, shaft, and thread. Certainly this makes it much simpler for us to consider each section graphically, but it also give us three objects that we can reuse. In more complex modeling applications, this reusability is of crucial importance. In a CAD-type application, for example, you would probably have many different bolts to model— with various lengths, thickness, and thread density. Instead of the

RenderHead() function that draws the head of the bolt in this example, you might want to write a function that takes parameters specifying the number of sides, thickness, and diameter of the bolt head.

Another thing we will do is model each piece of our bolt in coordinates that are most convenient for describing the object. Most often, objects are modeled around the origin and then translated and rotated into place. Later, when composing the final object, we can translate the components, rotate them, and even scale them if necessary to assemble our composite object.

The Head

The head of our bolt has six smooth sides and is smooth on top and bottom, as well. We can construct this solid object with two hexagons that represent the top and bottom of the head, and a series of quadrilaterals around the edges to represent the sides. We could use

GL_QUAD and GL_POLYGON to draw this with a minimum number of vertices; however, as we’ve mentioned previously, you should always use triangles whenever possible. For any accelerated OpenGL hardware (and even some software routines), it may actually be faster to draw two triangles arranged together rather than a single quadrilateral.

Figure 10-2 illustrates how the bolt head will be constructed with triangles. We use a triangle fan with six triangles for the top and bottom sections of the head. Then each face of the side of the bolt is composed of two triangles.

Figure 10-2 Triangle outline of bolt head

Page

366

OpenGL Super Bible!

A total of 24 triangles are used to draw the head of the bolt: 6 each on the top and bottom, and 12 more to compose the sides of the bolt head. Listing 10-4 is the function that renders the head of the bolt. Figure 10-3 shows the output of this program, HEAD, in this chapter’s subdirectory on the CD. Notice that this code contains no functions that we haven’t yet covered, but it’s more substantial than any of the simpler chapter examples.

Figure 10-3 Output from the HEAD program

Listing 10-4 Rendering the head of the bolt

// Creates the head of the bolt void RenderHead(void)

{

float x,y,angle; // Calculated positions

float height = 25.0 f; // Thickness of the head

float diameter = 30.0f; // Diameter of the head

float normal[3],corners[4][3]; // Storage of vertices and normals

float step = (3.1415f/3.0f); // step = 1/6th of a circle =

hexagon

// Set material color for head of bolt glColor3f(0.0f, 0.0f, 0.7f);

// Clockwise polygons face out, set for fans glFrontFace(GL_CW);

// Begin a new triangle fan to cover the top glBegin(GL_TRIANGLE_FAN);

// All the normals for the top of the bolt point straight up

// the z axis.

glNormal3f(0.0f, 0.0f, 1.0f);

OpenGL Super Bible! Page

// Center of fan is at the origin

glVertex3f(0.0f, 0.0f, 0.0f);

// Divide the circle up into 6 sections and start dropping

// points to specify the fan

for(angle = 0.0f; angle < (2.0f*3.1415f); angle += step)

{

// Calculate x and y position of the next vertex

x = diameter*(float)sin(angle);

y = diameter*(float)cos(angle);

// Specify the next vertex for the triangle fan

glVertex3f(x, y, 0.0f);

}

// Last vertex closes the fan

glVertex3f(0.0f, diameter, 0.0f);

// Done drawing t he fan that covers the bottom glEnd();

// Now draw the bottom of the bolt head. Switch to

// clockwise polygons facing out. glFrontFace(GL_CCW);

// Begin a new triangle fan to cover the bottom glBegin(GL_TRIANGLE_FAN);

// Normal for bottom point s straight down the negative z axis

glNormal3f(0.0f, 0.0f, -1.0f);

// Center of fan is at the origin

glVertex3f(0.0f, 0.0f, -height);

// Divide the circle up into 6 sections and start dropping

// points to specify the fan

for(angle = 0.0f; angle < (2.0f*3.1415f); angle += step)

{

// Calculate x and y position of the next vertex

x = diameter*(float)sin(angle);

y = diameter*(float)cos(angle);

// Specify the next vertex for the triangle fan

glVertex3f(x, y, -height);

}

// Last vertex, used to close the fan

glVertex3f(0.0f, diameter, -height);

// Done drawing th e fan that covers the bottom

glEnd();

// Build the sides out of triangles (two each). Each face

// will consist of two triangles arranged to form a

// quadrilateral

367

Page

368

OpenGL Super Bible!

glBegin(GL_TRIANGLES);

// Go ar ound and draw the sides

for(angle = 0.0f; angle < (2.0f*3.1415f); angle += step)

{

// Calculate x and y position of the next hex point

x = diameter*(float)sin(angle);

y = diameter*(float)cos(angle);

// start at bottom of head

corners[0][0] = x;

corners[0][1] = y;

corners[0][2] = -height;

// extrude to top of head

corners[1][0] = x;

corners[1][1] = y;

corners[1][2] = 0.0f;

// Calculate the next hex point

x = di ameter*(float)sin(angle+step);

y = diameter*(float)cos(angle+step);

// Make sure we aren't done before proceeding

if(angle+step < 3.1415*2.0)

{

// If we are done, just close the fan at a

// known coordinate.

corners[2][0] = x;

corners[2][1] = y;

c orners[2][2] = 0.0f;

corners[3][0] = x;

corners[3][1] = y;

corners[3][2] = -height;

}

else

{

// We aren't done, the points at the top

and bottom

// of the head.

corners[2][0] = 0.0f;

corners[2][1] = diameter;

corners[2][2] = 0.0f;

corners[3][0] = 0.0f;

corners[3][1] = diameter;

corners[3][2] = -height;

}

// The normal vectors for the entire face will

// all point the same direction

calcNormal(corners, normal);

glNorm al3fv(normal);

OpenGL Super Bible! Page

// Specify each triangle separately to lie next

// to each other.

glVertex3fv(corners[0]);

glVertex3fv(corners[1]);

glVe rtex3fv(corners[2]);

glVertex3fv(corners[0]);

glVertex3fv(corners[2]);

glVertex3fv(corners[3]);

} glEnd();

}

369

The Shaft

The shaft of the bolt is nothing more than a cylinder with a bottom on it. We compose a cylinder by plotting xy values around in a circle, and then take two z values at these points and get polygons that approximate the wall of a cylinder. Once again, however, we will compose this wall entirely out of triangles. Figure 10-4 shows the outline of the cylinder.

Figure 10-4 Triangle outline of the bolt shaft

We also create the bottom of the shaft with a triangle fan. Notice that the smaller the step size is around the circle, the smaller the flat facets that make up the cylinder wall and the more closely the wall will approximate a smooth curve.

Listing 10-5 is the code to produce this cylinder. Notice that the normals are not calculated for the triangles using the vertices of the triangles. We usually set the normal to be the same for all vertices, but here we’ll break with this tradition to specify a new normal for each vertex. Since we are simulating a curved surface, the normal specified for each vertex would be normal to the actual curve.

Listing 10-5 Rendering the shaft of the bolt

// Creates the shaft of the bolt as a cylinder with one end

// closed. void RenderShaft(void)

{

float x,y,angle; // Used to calculate cylinder

wall

float height = 75.0f; // Height of the cylinder

float diameter = 20.0f; // Diameter of the cylinder

Page

370

OpenGL Super Bible!

float normal[3],corners[4][3]; // Storage for vertices

calculations

float step = (3.1415f/50.0f); // Approximate the cylinder

wall with

// 100 flat segments.

// Set material color for head of screw

glColor3f(0.0f, 0.0f, 0.7f);

// counterclockwise polygons face out (the default for triangles)

glFrontFace(GL_CCW);

// First assemble the wall as 100 quadrilaterals formed by

// placing adjoining triangles together

glBegin(GL_TRIANGLES);

// Go around and draw the sides

for(angle = 0.0f; angle < (2.0f*3.1415f); angle += step)

{

// Calculate x and y position of the next vertex

x = diameter*(float)sin (angle);

y = diameter*(float)cos(angle);

// Get the coordinate for this point and extrude the

// length of the cylinder.

corners[0][0] = x;

corners[0][1] = y;

corne rs[0][2] = -height;

corners[1][0] = x;

corners[1][1] = y;

corners[1][2] = 0.0f;

// Get the next point and do the same

x = diameter*(float)sin(angle+step);

y = diame ter*(float)cos(angle+step);

// If finished, use known starting point to close the

surface

if(angle+step < 3.1415*2.0) // Not Finished

{

corners[2][0] = x;

corners[2][1] = y;

corners[2][2] = 0.0f;

corners[3][0] = x;

corners[3][1] = y;

corners[3][2] = -height;

}

else

{

// Finished, use the starting point

corners[2][0] = 0.0f;

corners[2][1] = diameter;

OpenGL Super Bible! Page

371

corners[2][2] = 0.0f;

corners[3 ][0] = 0.0f;

corners[3][1] = diameter;

corners[3][2] = -height;

}

// Instead of using real normal to actual flat section,

// use what the normal would be if the surface were really

// curved. Since the cylinder goes up the z axis, the normal

// points from the z axis out directly through each vertex.

// Therefore we can use the vertex as the normal, as long as

// we reduce it to unit length first.

// First Triangle ////////////////////////////////////////

// Fill the normal vector with the coordinate points

normal[0] = corners[0][0];

normal[ 1] = corners[0][1];

normal[2] = corners[0][2];

// Reduce to length of one and specify for this point

ReduceToUnit(normal);

glNormal3fv(normal);

glVertex3fv(corners[0]);

// Get vertex, calculate unit normal and go

normal[0] = corners[1][0];

normal[1] = corners[1][1];

normal[2] = corners[1][2];

ReduceToUnit(normal);

glNormal3fv(normal);

glVertex3fv(corners[1]);

// Get vertex, calculate unit normal and go

normal[0] = corners[2][0];

normal[1] = corners[2][1];

normal[2] = corners[2][2];

ReduceToUnit(normal);

glNormal3fv(normal);

glVertex3fv(corners[2]);

// Second Triangle ////////////////////////////////////////

// Get vertex, calculate unit normal and go

normal[0] = corners[2][0];

normal[1] = corners[2][1];

normal[2] = corners[2][2];

ReduceToUnit(normal);

glNormal3fv(normal);

glVertex3fv(corners[2]);

// Get vertex, calculate unit normal and go

Page

372

OpenGL Super Bible!

normal[0] = corners[3][0];

normal[1] = corners[3][1];

normal[2] = corners[3][2];

ReduceToUnit(normal);

glNormal3fv(normal);

glVertex3fv(corners[3]);

// Get vertex, calculate unit normal and go

normal[0] = corners[0][0];

normal[1] = corners[0][1];

normal[2] = corners[0][2];

ReduceToUnit(normal);

glNormal3fv(normal);

glVertex3fv(corners[0]);

}

glEnd(); // Done with cylinder sides

// Begin a new triangle fan to cover the bottom

glBegin(GL_TRIANGLE_FAN);

// Normal points down the z axis

glNormal3f(0.0f, 0. 0f, -1.0f);

// Center of fan is at the origin

glVertex3f(0.0f, 0.0f, -height);

// Spin around, matching step size of cylinder wall

for(angle = 0.0f; angle < (2.0f*3.1415f); angle += step)

{

// Calculate x and y position of the next vertex

x = diameter*(float)sin(angle);

y = diameter*(float)cos(angle);

// Specify the next vertex for the triangle fan

glVertex3f(x, y, -height);

}

// Close the fan

glVertex3f(0.0f, diameter, -height);

glEnd();

}

Fortunately, the cylinder is wrapped symmetrically around the z-axis. Thus, the normal for each vertex can be found by normalizing (reducing to length 1) the vertex itself. Figure 10-5 shows the output from the SHAFT program.

OpenGL Super Bible! Page

373

Figure 10-5 Output from the SHAFT program

The Thread

The thread is the most complex part of the bolt. It’s composed of two planes arranged in a V shape that follows a corkscrew pattern up the length of the shaft. It is created as two flat segments arranged in a V pattern. Figure 10-6 illustrates the triangle outline of this shape and Listing 10-6 is the OpenGL code used to produce this shape.

Figure 10-6 Progression of triangle outline of thread

Page

374

OpenGL Super Bible!

Listing 10-6 Rendering the thread of the bolt

// Creates the thread of the bolt void RenderThread(void)

{

float x,y,z,angle; // Calculate coordinates and step

angle

float height = 75.0f; // Height of the threading

float diameter = 20.0f; // Diameter of the threading

float normal[3],corners[4][3]; // Storage for normal and corners

float step = (3.1415f/32.0f); // One revolution

float revolutions = 7.0f; // How many times around the shaft

float threadWidth = 2.0f; // How wide is the thread

float threadThick = 3.0f; // How thick is the thread

float zstep = .125f; // How much does the thread move up

// the z axis each time a new

segment

// is drawn.

// 360 degrees in radians

#define PI2 (2.0f*3.1415f)

// Set material color for thread

glColor3f(0.0f, 0.0f, 0.4f);

z = -height+2;// Starting spot almost to the end

// Go around and draw the sides until finished spinning up

for(angle = 0.0f; an gle < PI2*revolutions; angle += step)

{

// Calculate x and y position of the next vertex

x = diameter*(float)sin(angle);

y = diameter*(float)cos(angle);

// Store the next vert ex next to the shaft

corners[0][0] = x;

corners[0][1] = y;

corners[0][2] = z;

// Calculate the position away from the shaft

x = (diameter+threadWidth)*(float)sin(angle);

y = (diameter+threadWidth)*(float)cos(angle);

corners[1][0] = x;

corners[1][1] = y;

corners[1][2] = z;

// Calculate the next position away from the shaft

x = (diam eter+threadWidth)*(float)sin(angle+step);

y = (diameter+threadWidth)*(float)cos(angle+step);

corners[2][0] = x;

corners[2][1] = y;

corners[2][2] = z + zstep;

OpenGL Super Bible! Page

375

// Calculate the next position along the shaft

x = (diameter)*(float)sin(angle+step);

y = (diameter)*(float)cos(angle+step);

corners[3][0] = x;

corners[3][1] = y;

corners[3][2] = z+ zstep;

// We'll be using triangles, so make

// counterclockwise polygons face out

glFrontFace(GL_CCW);

glBegin(GL_TRIANGLES);// Start the top section of thread

// Calculate t he normal for this segment

calcNormal(corners, normal);

glNormal3fv(normal);

// Draw two triangles to cover area

glVertex3fv(corners[0]);

glVertex3fv(corners[1]);

glVertex3fv(corners[2]);

glVertex3fv(corners[2]);

glVertex3fv(corners[3]);

glVertex3fv(corners[0]);

glEnd();

// Move the edge along the shaft slightly up the z axis

// to represent the bottom of the thread

corners[0][2] += threadThick;

corners[3][2] += threadThick;

// Recalculate the nor mal since points have changed. This

// time it points in the opposite direction, so reverse it

calcNormal(corners, normal);

normal[0] = -normal[0];

normal[1] = -normal[1];

norm al[2] = -normal[2];

// Switch to clockwise facing out for underside of the

// thread.

glFrontFace(GL_CW);

// Draw the two triangles

glBegin(GL_TRIANGLES);

glNormal3fv(normal);

glVertex3fv(corners[0]);

glVertex3fv(corners[1]);

glVertex3fv(corners[2]);

glVertex3fv(corners[2]);

glVertex 3fv(corners[3]);

glVertex3fv(corners[0]);

Page

376

OpenGL Super Bible!

glEnd();

// Creep up the z axis

z += zstep;

}

}

Figure 10-7 shows the output of the THREAD program.

Figure 10-7 Output from the THREAD program

Putting the Model Together

The bolt is assembled by drawing all three sections in their appropriate location. All sections are translated appropriately up the z-axis. The shaft and threads are translated the same amount because essentially they occupy the same location. All that needs to be done is to put the pieces in the appropriate locations, and hidden surface removal will automatically eliminate hidden surfaces for us.

Listing 10-7 is the rendering code that manipulates and renders the three bolt components.

Figure 10-8 shows the final output of the BOLT program.

Listing 10-7 Rendering code to draw the completed bolt

// Called to draw the entire bolt void RenderScene(void)

{

// Clear the window with current clearing color

glClear(GL_COLO R_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

OpenGL Super Bible!

// Save the matrix state and do the rotations

glMatrixMode(GL_MODELVIEW);

// Rotate and translate, then render the bolt head

glPushMatrix();

glRotatef(xRot, 1.0f, 0.0f, 0.0f);

glRotatef(yRot, 0.0f, 1.0f, 0.0f);

glTranslatef(0.0f, 0.0f, 55.0f);

RenderHead();

glPopMatrix();

// Save matrix state, rotate, translate and draw the

// shaft and thread toget her

glPushMatrix();

glRotatef(xRot, 1.0f, 0.0f, 0.0f);

glRotatef(yRot, 0.0f, 1.0f, 0.0f);

glTranslatef(0.0f, 0.0f, 40.0f);

// Render just the hexagonal head of the nut

RenderShaft();

RenderThread();

glPopMatrix();

// Flush drawing commands

glFlush();

Page

377

Figure 10-8 Output from the BOLT program

Page

378

A Makeshift Benchmark

OpenGL Super Bible!

Our final program produces a fairly good representation of the metal bolt we set out to model. Consisting of over 1,700 triangles, this is the most complex example in this book so far. Comparatively speaking, however, this number of triangles isn’t anywhere close to the largest number of polygons you’ll encounter when composing larger scenes and more complex objects. In fact, the latest 3D accelerated graphics cards are rated at hundreds of thousands of triangles per second, and that’s for the cheap ones! One of the goals of this chapter is to introduce you to using display lists to optimize rendering speed. Before we can get into a comparison of rendering speeds, however, we will need a way to measure this— a benchmark.

When we get into the subject of display lists, we want you to be able to see that there is a performance difference rather than just take our word for it. So let’s modify our BOLT program slightly. Rather than spinning the object about its axes when arrow keys are pressed, we’ll have it spin repeatedly around just the y-axis in particular. As you might imagine, this turns the program into a continual triangle-generator that we can use to more easily see differences in performance. Listing 10-8 is the changed RenderScene() function used for SPINBOLT.

Listing 10-8 New RenderScene() function to spin bolt around the y-axis

// Called to draw the entire bolt void RenderScene(void)

{

// Clear the window with current clearing color

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

// Make sure we have the correct matrix mode

glMatrixMode(GL_MODELVIEW);

// Rotate and translate the coordinate system

glRotatef(5.0f, 0.0f, 1.0f, 0.0f);

// Translate and render the head

glTranslatef(0.0f, 0.0f, 55.0f);

RenderHead();

// Translate back some and render the shaft and thread

glTranslatef(0.0f, 0.0f, -15.0f);

RenderShaft();

RenderThread();

// Translate back some again for next pass

glTranslatef(0.0f, 0.0f, -40.0f);

// Flush drawing commands

gl Flush();

}

OpenGL Super Bible! Page

379

This new rendering function does not save or restore the matrix state. We use glTranslate to manually restore the translation state of the matrix before leaving the function, but the effects of glRotate are cumulative. This causes the bolt to be rotated around its y-axis by 5º every time the bolt is rendered.

One simple animation technique would be to create a timer, and when the WM_TIMER message is received, invalidate the window causing a redraw. In this manner we can speed up and slow down the animation as desired. Our goal is not simple animation, however, but to get a feel for the rate of the rotations. A reasonable criterion is the amount of time required to spin the bolt completely around the y-axis (360º).

Using WM_TIMER messages would be a poor choice for benchmarking for two reasons.

First, your window is not guaranteed to receive all the WM_TIMER messages (the OS could be too busy). And second, if you specify the time intervals, what good does it do to then measure those intervals with any confidence that they truly indicate performance?

What we really want to do is time the interval between the starting and stopping of rendering. This could provide a value that is too small for practical use, so we can just time the interval between a given number of renderings. By repeatedly rendering the scene a number of times and measuring the time it takes to perform these renderings, we have a fairly good benchmark.

Caution: This Is Only an Approximation!

This benchmark is very informal and uses a method of timing computer programs that’s not accurate enough for publishing important results. We only use it here to demonstrate an easily detectable performance gain when using display lists. To compare your real programs

(as well as the two presented here), you should at least have the rest of your system idle when running the test. Many factors can increase or decrease the values you get, but as long as conditions are more or less equal, you will see a time difference between the two boltspinning programs.

You might be tempted to just stack together a bunch of calls to RenderScene and obtain the time before and after to calculate the elapsed time. This would work, but closing the application would be very difficult because it would not have the chance to service any other messages (such as WM_CLOSE). The best way to get a Windows program to repeatedly paint its client area is to omit validation of the client area when the WM_PAINT handler is finished. If the client area is still invalid, Windows will just keep posting WM_PAINT messages to your application forever. In the midst of these WM_PAINT messages, other messages such as WM_CLOSE will still appear and be processed.

Page

380

OpenGL Super Bible!

Listing 10-9 is the WM_PAINT handler for our new program, SPINBOLT.

Listing 10-9 WM_PAINT message handler for SPINBOLT

// Storage for timing values

static unsigned long ulStart = 0L;

static unsigned long ulFinish = 0L;

static double dTime = 0.0;

// Storage for performance statistics

char cBuffer[80];

RECT cRect;

// The painting function. This message sent by Windows

// whenever the screen needs updating.

case WM_PAINT:

{

// Count how many times rendered

static iRenderCount = 0;

// Get time at beginning of spin

if(iRenderCount == 0)

ulStart = ulGetProfileTime();

// Call OpenGL drawing code

RenderScene();

// Bring image to front

SwapBuffers(hDC);

// Increment count. If 71 or over get the finish

time

iRenderCount++;

if(iRenderCount > 71)

{

iRenderCount = 0;

ulFinish = ulGetProfileTime();

// Calculate the time in seconds

dTime = ulFinish - ulStart;

dTime /= 1000.0;

}

// Display time (be s ure and set background colors)

sprintf(cBuffer,"%3.1f Seconds for 360 degrees.",

dTime);

GetClientRect(hWnd,&cRect);

OpenGL Super Bible! Page

381

SetBkColor(hDC,RGB(0,0,255));

SetTextColor(hDC,RGB(255,255,0));

TextOut(hDC,0,cRect.bottom -20,cBuffer,strlen

(cBuffer));

// Do not validate, forcing a continuous repaint

}

break;

This message handler gets the current system time and counts the number of times it is called. After 71 times, it gets the new time, subtracts the difference, and displays the lapsed time. Remember that our bolt is rotating 5º each time it is rendered, so this technique effectively measures the amount of time it takes to spin the bolt 360º.

The function ulGetProfileTime simply gets the system time in clock ticks and converts it to thousandths of a second. (You can examine this yourself in the source listing if you want, but its operation is not germane to our discussion here.) SPINBOLT’s output is shown in

Figure 10-9. The time to spin the bolt around in this example was just under 15 seconds (on a 90MHz Pentium with no hardware 3D acceleration).

Figure 10-9 Output from the SPINBOLT program

Improving Performance

You may have spotted a glaring performance problem with the WM_PAINT technique, however. Each time the bolt is drawn, a large number of calculations must be performed to redraw the thread, the shaft, and the bolt head. Among these calculations are some pretty expensive calls to sin() and cos().

Page

382

OpenGL Super Bible!

What we need is a way of storing all these vertices and normals as they are calculated, so we can reuse them rather than go back through all that trigonometry to calculate spiral paths and such. OpenGL has just what we need: display lists. With a display list, you can record

OpenGL function calls (and their results) and play them back at a later time. Display lists are faster than just reexecuting the same OpenGL functions singly. Further, non-OpenGL calls such as our trigonometry and normal calculations are not stored, but their results, which are passed to the OpenGL functions, are. You should be getting an inkling of why display lists are such a good idea.

Human Beings and Computer Performance

A good rule of thumb in any type of software engineering is to work first on improvements that yield at least a 20% increase in performance. It is universally accepted that human beings, for the most part, have difficulty “detecting” an increase in software performance that is less than 20%. For OpenGL, this 20% value can often be attained quickly by using display lists when the number of polygons is high. It’s a good idea to get in the habit of using them.

Creating a Display List

Creating a display list is a very straightforward process. Just as you delimit an OpenGL primitive with glBegin/glEnd, you delimit a display list with glNewList/glEndList. A display list, however, is named with an integer value that you supply. The following code represents a typical example of display list creation: glNewList(1,GL_COMPILE);

// Some OpenGL Code

… glEndList();

As the second parameter to glNewList, you can specify GL_COMPILE or

GL_COMPILE_AND_EXECUTE. This tells OpenGL whether to compile and store the

OpenGL commands, or to compile, store, and execute the commands as they occur. Later, when you need to execute the display list, simply call glCallList(1);

The identifier you supply is the same as that supplied in the corresponding call to glNewList.

Listing 10-10 is the code for our new example, SLSTBOLT, which makes use of display lists to produce the spinning bolt. Notice that you can nest calls to display lists. The maximum number of nested calls is 64 to prevent infinite recursion. In this code, we create a

OpenGL Super Bible! Page

383

display list for each part of the bolt, and then one display list that does all the coordinate transformations and calls the lists to create the completed bolt.

Listing 10-10 New spinning bolt code using display lists

#define HEAD_LIST 1

#define SHAFT_LIST 2

#define THREAD_LIST 3

#define BOLT_LIST 4

// This function does any needed initialization on the rendering

// context. Here it sets up and initializes the lighting for

// the scene, and creates display lists used later void SetupRC()

{

// Create display list for Bolt head

glNewList(HEAD_LIST,GL_COMPILE);

RenderHead();

glEndList();

// Create display list for shaft

glNewList(SHAFT_LIST,GL_COMPILE);

RenderShaft();

glEndList();

// Create display list for thread

glNewList(THREAD_LIST,GL_CO MPILE);

RenderThread();

glEndList();

// Create nested display list for entire bolt

glNewList(BOLT_LIST,GL_COMPILE);

// Clear the window with current clearing color

glClear(GL_COLOR_B UFFER_BIT | GL_DEPTH_BUFFER_BIT);

// Make sure we have the correct matrix mode

glMatrixMode(GL_MODELVIEW);

// Rotate and translate the coordinate system

// Note this will be cumulative

glRotatef(5.0f, 0.0f, 1.0f, 0.0f);

// Translate and render the head

glTranslatef(0.0f, 0.0f, 55.0f);

glCallList(HEAD_LIST);

// Translate back some and render the shaft and thread

together

glTranslatef(0.0f, 0.0f, -15.0f);

Page

384

OpenGL Super Bible!

glCallList(SHAFT_LIST);

glCallList(THREAD_LIST);

// Translate back again for next pass

glTranslatef(0.0f, 0.0f, -40.0f);

// End Bolt list

glEndList();

}

// Called to draw the entire bolt void RenderScene(void)

{

glCallList(BOLT_LIST);

// Flush drawing commands

glFlush();

}

You’ll see that we defined some macros to identify the display lists more easily. These macros simply map to the numeric value that identifies the display list. Figure 10-10 shows the output from this new and improved spinning bolt program. The elapsed time for the example using display lists was just over 13 seconds, about a 2-second improvement. This may not seem like much, but wait a few chapters and come back and try it again with special effects such as texture mapping or NURBS surfaces. As mentioned earlier, 1,700 triangles is really a very small portion of what some larger and more complex scenes will consist of.

Figure 10-10 Output from SLSTBOLT using display lists

OpenGL Super Bible!

The Tank Simulator

Try the tank simulator as it stood after the last chapter, and compare it to the one for this chapter. This version, which makes heavy use of display lists, consists of many thousands of triangles, and you won’t need any benchmarking program or stopwatch to know that the performance has been enhanced!

Page

385

Summary

We used this chapter to slow down somewhat and just talk about how to build a threedimensional object, starting with using the OpenGL primitives to create simple 3D pieces, and then assembling them into a larger and more complex object. Learning the API is the easy part, but your level of experience in assembling 3D objects and scenes will be what differentiates you from your peers. Once an object or scene is broken down into small and potentially reusable components, you can save building time by using display lists. You’ll find many more functions for utilizing and managing display lists in the Reference Section.

You also learned a simple way to benchmark your OpenGL programs so you can get firsthand experience of the effects of optimizing your code.

Page

386

Reference Section

OpenGL Super Bible!

glCallList

Purpose

Executes a display list.

Include File

<gl.h>

Syntax void glCallList(GLuint list);

Description

Executes the display list identified by list. The OpenGL State Machine is not restored after this function is called, so it is a good idea to call glPushMatrix beforehand and glPopMatrix afterwards. Calls to glCallList may be nested. The function glGet with the argument GL_MAX_LIST_NESTING returns the maximum number of allowable nests. For Microsoft Windows, this value is 64.

Parameters

list

GLuint: Identifies the display list to be executed.

Returns

None.

Example

The following code saves the matrix state before calling a display list. It then restores the state afterwards. This code is from the BOLTL example program from this chapter’s subdirectory on the CD.

// Save the current transform state

glPushMatrix();

// Draw the bolt including nested display lists

glCallList(BOLT_HEAD);

// Restore state

glPopMatrix();

See Also glCallLists, glDeleteLists, glGenLists, glNewList

OpenGL Super Bible! Page

387

glCallLists

Purpose

Executes a list of display lists.

Include File

<gl.h>

Syntax void glCallLists(GLsizei n, GLenum type, const GLvoid *lists);

Description

This function calls the display lists listed in the *lists array sequentially. This array can be of nearly any data type. The result is converted or clamped to the nearest integer value to determine the actual index of the display list. Optionally, the list values can be offset by a value specified by the function glListBase.

Parameters

n

GLsizei: Number of elements in the array of display lists.

type

GLenum: Specifies the datatype of the array stored at *lists. This can be any one of the following values: GL_BYTE, GL_UNSIGNED_BYTE, GL_SHORT,

GL_UNSIGNED_SHORT, GL_INT, GL_UNSIGNED_INT, GL_FLOAT,

GL_2_BYTES, GL_3_BYTES, and GL_4_BYTES.

*lists

GLvoid: An array of elements of the type specified in type. The data type is void to allow any of the above data types to be used.

Returns

None.

Example

The following code shows how to call a list of display lists with a single call:

// Storage for the display list identifiers

int lists[50];

int i;

// Create list names

for(i = 0; i < 50; i++)

lists[i] = i+1;

// Build some fifty display lists //////////

// First list

glNewList(lists[0],GL_COMPILE);

Page

388

OpenGL Super Bible!

glEndList();

// Second list

glNewList(lists[1],GL_COMPILE);

glEndList();

// And so on …

// Call all fifty lists wit h a single call

glCallLists(50, GL_INT, lists);

See Also glCallList, glDeleteLists, glGenLists, glListBase, glNewList

OpenGL Super Bible! Page

389

glDeleteLists

Purpose

Deletes a continuous range of display lists.

Include File

<gl.h>

Syntax void glDeleteLists(GLuint list, GLsizei range);

Description

This function deletes a range of display lists. The range goes from an initial value and proceeds until the number of lists deleted as specified by range is completed.

Deleting unused display lists can save considerable memory. Unused display lists in the range of those specified are ignored and do not cause an error.

Parameters

list

GLuint: The integer name of the first display list to delete.

range

GLsizei: The number of display lists to be deleted following the initially specified list.

Returns

None.

Example

The following single line of code shows any and all display lists with identifiers between 1 and 50 being deleted:

glDeleteLists(1, 50);

See Also glCallList, glCallLists, glGenLists, glIsList, glNewList

Page

390

OpenGL Super Bible!

glEndList

Purpose

Delimits the end of a display list.

Include File

<gl.h>

Syntax void glEndList( void);

Description

Display lists are created by first calling glNewList. Thereafter, all OpenGL commands are compiled and placed in the display list. The glEndList function terminates the creation of this display list.

Returns

None.

Example

The following example code shows an example of a display list being delimited by glNewList and glEndList. This particular display list is composed by nesting two other display lists within it.

// Begin delimit of list

glNewList(BOLT_LIST,GL_COMPILE);

// Display list calls two previously defined display lists

glCallList(SHAFT_LIST);

glCallList(THREAD_LIST);

// End this displa y list

glEndList();

See Also glCallList, glCallLists, glDeleteLists, glGenLists, glIsList

OpenGL Super Bible! Page

391

glGenLists

Purpose

Generates a continuous range of empty display lists.

Include File

<gl.h>

Syntax

GLuint glGenLists(GLsizei range);

Description

This function creates a range of empty display lists. The number of lists generated depends on the value specified in range. The return value is then the first display list in this range of empty display lists. The purpose of this function is to reserve a range of display list values for future use.

Parameters

range

GLsizei: The number of empty display lists requested.

Returns

The first display list of the range requested. The display list values following the return value up to range -1 are created empty.

Example

The following code allocates an array of 25 integers that will be used to store 25 display lists. Each element in the array must be assigned a valid display list name that can be used later.

int lists[25]; // Space for 25 display lists

int first; // Index of the first display list name

available

int x; // Looping variable

// Get the first display list identifier

first = glGenLists(25);

// Loop and assign each element in the array with a valid display

list

for(x = 0; x < 25; x++)

lists[25] = first + x + 1;

See Also glCallList, glCallLists, glDeleteLists, glNewList

Page

392

OpenGL Super Bible!

glIsList

Purpose

Tests for the existence of a display list.

Include File

<gl.h>

Syntax

GLboolean glIsList(GLuint list );

Description

This function is used to find out if a display list exists for a given identifier. You can use this function to test display list values before using them.

Parameters

list

GLuint: The value of a potential display list. This function tests this value to see if a display list is defined for it.

Returns

GL_TRUE if the display list exists, otherwise GL_FALSE.

Example

The following code loops through an array that should contain valid display lists. The display list identifier is tested for validity, and if valid it is called

int lists[25]; // Array of display lists

int x; // Looping variable

for(x = 0; x < 25; x++)

if(glIsList(lists[x])

glCallList();

See Also glCallList, glCallLists, glDeleteLists, glGenLists, glNewList

OpenGL Super Bible! Page

393

glListBase

Purpose

Specifies an offset to be added to the list values specified in a call to glCallLists.

Include File

<gl.h>

Syntax void glListBase(GLuint base );

Description

The function glCallLists calls a series of display lists listed in an array. This function sets an offset value that can be added to each display list name for this function. By default this is zero. You can retrieve the current value by calling glGet(GL_LIST_BASE).

Parameters

base

GLuint: Sets an integer offset value that will be added to display list names specified in calls to glCallLists. This value is zero by default.

Returns

None.

Example

The following code fragment creates 20 display lists numbered 0 through 19. An array of display list names (listA) is created that contains the numbers 0 through 9. Then glCallLists is used to execute all the display lists named in the listA array. Then, rather than reload the array with the next 10 display lists names, an offset value is specified with a call to glListBase. When glCallLists is called using the listA array, each element in listA will be offset by the value specified (10).

int listA[10];

int i;

for(i = 0; i < 10 ; i++)

listA[i] = i;

// Build display Lists 1 - 20

glNewList(1,GL_COMPILE);

glEndList();

// Second list

glNewList(2,GL_COMPILE);

Page

394

OpenGL Super Bible!

glEndList();

// And so on …

// Call first ten lists

glCallLists(10,GL_INT,listA);

// Call next ten lists, using the same array

glListBase(10);

glCallIsts(10,GL_INT,listA);

See Also glCallLists

OpenGL Super Bible! Page

395

glNewList

Purpose

Begins the creation or replacement of a display list.

Include File

<gl.h>

Syntax void glNewList(GLuint list, GLenum mode);

Description

A display list is a group of OpenGL commands that are stored for execution on command. You can use display lists to speed up drawings that are computationally intensive or that require data to be read from a disk. The glNewList function begins a display list with an identifier specified by the integer list parameter. The display list identifier is used by glCallList and glCallLists to refer to the display list. If it’s not unique, a previous display list may be overwritten. You can use glGenLists to reserve a range of display list names, and glIsList to test a display list identifier before using it. Display lists can be compiled only, or compiled and executed. After glNewList is called, all OpenGL commands are stored in the display list in the order they were issued until glEndList is called. The following commands are executed when called and are never stored in the display list itself: glIsList, glGenLists, glDeleteLists, glFeedbackBuffer, glSelectBuffer, glRenderMode, glReadPixels, glPixelStore, glFlush, glFinish, glIsEnabled, and glGet.

Parameters

list

GLuint: The numerical name of the display list. If the display list already exists, it is replaced by the new display list.

mode

GLenum: Display lists may be compiled and executed later, or compiled and executed simultaneously. Specify GL_COMPILE to only compile the display list, or

GL_COMPILE_AND_EXECUTE to execute the display list as it is being compiled.

Returns

None.

Example

The following is an example of a display list being delimited by glNewList and glEndList.

This particular display list is composed by nesting two other display lists within it.

// Begin delimit of list

glNewList(BOLT_LIST, GL_COMPILE);

// Display list calls two previously defined display lists

glCallList(SHAFT_LIST);

Page

396

OpenGL Super Bible!

glCallList(THREAD_LIST);

// End this display listglEndList();

See Also glCallList, glCallLists, glDeleteLists, glGenLists, glIsList

OpenGL Super Bible! Page

397

Chapter 11

Raster Graphics in OpenGL

What you’ll learn in this chapter:

How to…

Draw bitmap images

Use bitmap fonts

Draw color images

Read and copy color images on the screen

Read and write Windows bitmap files

Functions You’ll Use

glBitmap/glRasterPos wglUseFontBitmaps/glGenLists/glCallLists glDrawPixels glCopyPixels/glReadPixels

LoadDIBitmap/SaveDIBitmap

You’ve probably heard a lot of sales hype lately about how much better it is to work with

3D graphics than with those old 2D graphics from years ago. While this is true for the most part, ultimately those 3D graphics are drawn in two dimensions on your screen. Raster

graphics are two-dimensional arrays of colors and are used not only for displaying 3D graphics on the screen but also for printing images on raster printers or motion-picture film

In addition to the vector and polygon functions we’ve examined so far, OpenGL provides several functions that directly manage 2D bitmaps and images. Those functions are the subject of this chapter.

Drawing Bitmaps

Bitmaps in OpenGL are two-color images that are used to quickly draw characters or symbols (such as icons) on the screen. This diverges from the (incorrect) Microsoft

Windows definition that includes multicolored images, as well. OpenGL provides a single function to draw bitmaps: glBitmap. When you draw a bitmap with glBitmap, the first color

(0) is transparent. The second color (1) is drawn using the current color and lighting material attributes.

Figure 11-1 shows an OpenGL bitmap image of smiley faces. The code (Listing 11-1) to draw this window consists of the bitmap data followed by a call to glBitmap.

Page

398

OpenGL Super Bible!

Figure 11-1 Output from glBitmap example

Listing 11-1 Drawing the window of smiley faces void

RepaintWindow(RECT *rect) /* I - Client area rectangle */

{

int i; /* Looping var */

static GLubyte smiley[] = /* 16x16 smiley face */

{

0x03, 0xc0, 0, 0, /* **** */

0x0f, 0xf0, 0, 0, /* ******** */

0x1e, 0x78, 0, 0, /* **** **** */

0x39, 0x9c, 0, 0, /* *** ** *** */

0x77, 0xee, 0, 0, /* *** ****** *** */

0x6f, 0xf6, 0, 0, /* ** ******** ** */

0xff, 0xff, 0, 0, /* **************** */

0xff, 0xff, 0, 0, /* **************** */

0xff, 0xff, 0, 0, /* **************** */

0xff, 0xff, 0, 0, /* **************** */

0x73, 0xce, 0, 0, /* *** **** *** */

0x73, 0xce, 0, 0, /* *** **** *** */

0x3f, 0xfc, 0, 0, /* ************ */

0x1f, 0xf8, 0, 0, /* ********** */

0x0f, 0xf0, 0, 0, /* ******** */

0x03, 0xc0, 0, 0 /* **** */

};

glViewport(0, 0, rect ->right, rect->bottom);

glClearColor(0.0, 0.0, 0.0, 1.0);

glClear(GL_COLOR_BUFFER_BIT);

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

glOrtho(0.0, rect ->right - 1.0, 0.0, rect->bottom - 1.0, -1.0, 1.0);

OpenGL Super Bible!

/*

* This bitmap is aligned to 4 -byte boundaries…

*/

glPixelTransferi(GL_UNPACK_ALIGNMENT, 4);

glColor3f(1.0, 0.0, 0.0);

for (i = 0; i < 100; i ++)

{

glRasterPos2i(rand() % rect ->right, rand() % rect ->bottom);

glBitmap(16, 16, 8.0, 8.0, 0.0, 0.0, smiley);

};

glFinish();

}

Page

399

In this example, we have defined a 16 x 16-pixel bitmap image of a smiley face. The bitmap is an array of 32 unsigned bytes (GLubyte), with bit 7 of the first byte corresponding to the

bottom-left corner.

Some Things to Note About Bitmaps:

OpenGL bitmaps are usually defined “upside down.” That is, they are stored from bottom to top. (In fact, you can see that the happy face defined as “smiley” is upside down.) To define them from top to bottom, you must specify a negative height. Also, because of bugs in the

Microsoft OpenGL libraries, you must align each scanline (row) of bitmap data to a 4-byte boundary. With a properly functioning OpenGL library, you could use the glPixelStore function described later in this chapter to change the bitmap alignment.

After defining a bitmap image to draw, we must specify the current raster position by calling the glRasterPos function: glRasterPos2i(rand() % rect ->right, rand() % rect ->bottom);

In this example, we are positioning our smiley face randomly within the client area of our window with the bitmap offset by 8 pixels from the left and bottom. The raster position is specified in world/model coordinates, just like a glVertex position. In addition to setting the current raster position, glRasterPos also sets a raster position valid flag. This Boolean flag is

True if the raster position lies inside the current viewport, and False otherwise.

Page

400

OpenGL Super Bible!

A Note About Clipping:

Polygons and other vector-drawing primitives will still be drawn if they lie partially out of the current viewport, and clipped to the edges of the viewport. Clipping for bitmaps works a little differently. If the raster position you specify lies outside of the current viewport, the bitmap will not be drawn.

To draw the bitmap, call the glBitmap function: glBitmap(16, 16, 8.0, 8.0, 0.0, 0.0, smiley);

In this case we are drawing a 16 x 16 bitmap whose center lies at (8.0, 8.0) in the bitmap.

After the bitmap is drawn, the raster position is moved (0.0, 0.0) pixels.

The prototype for this function is as follows: glBitmap(GLsizei width, GLsizei height,

Gfloat xorig, GLfloat yorig,

GLfloat xmove, GLfloat ymo ve,

const GLubyte *bits)

The width and height parameters specify the width and height of the bitmap. The bits parameter contains the bitmap you want to draw and is 32-bit aligned. The xorig and yorig parameters contain the center location of the bitmap. After the bitmap is drawn, the current raster position is moved by (xmove,ymove) pixels, and the raster position valid flag is left unchanged. The xmove and ymove parameters are normally used for bitmap fonts (described in the upcoming section) to advance to the next character “cell.”

A Note About the Current Raster Position:

As stated earlier, bitmaps will not be drawn if the raster position is outside the bitmap.

However, since the raster position valid flag is left unchanged after a call to glBitmap, you can use glBitmap to position and draw bitmaps that are partially clipped on the edge of the current viewport. For example, here’s how to draw the smiley bitmap just to the left of the current viewport:

glRasterPos2i(0, 0);

glBitmap(0, 0, 0.0, 0.0, -4.0, 0.0, NULL);

glBitmap(16, 16, 8.0, 8.0, 0.0, 0.0, smiley);

The NULL parameter in the first call to glBitmap simply specifies that there is no bitmap to draw. After the first call to glBitmap, the current raster position will be moved 4 pixels to the left (–4.0) before the real bitmap is drawn in the second call. This solution also applies to drawing pixmaps, explained later in this chapter.

OpenGL Super Bible! Page

401

Bitmap Fonts

One very important application of bitmaps is displaying character strings. Under ordinary circumstances, you would have to define a bitmap array for each character and then draw the bitmaps as necessary to display the string. Fortunately, the Microsoft Windows Win32 libraries provide a function called wglUseFontBitmaps to generate these bitmaps from font files loaded on your system.

To use the font bitmaps, OpenGL provides three functions: glGenLists, glListBase and glCallLists (described in Chapter 10). The glGenLists function generates a contiguous series of OpenGL display list IDs that will hold the character bitmaps created by wglUseFontBitmaps.

GLuint base;

HDC hdc; base = glGenLists(96); wglUseFontBitmaps(hdc, 32, 96, base);

This creates 96 character bitmaps from the current font starting at character 32, the ASCII code for the space character. The base variable contains the first display list bitmap in the font— in this case, character 32 (ASCII space). To display a string of characters using these bitmaps, you use a combination of glListBase and glCallLists: char *s; glListBase(base - 32); glCallLists(strlen(s), GL_UNSIGNED_BYTE, s);

The glListBase function sets the base display list ID. The glCallList and glCallLists functions will add this number to the display list ID(s) passed to them, effectively selecting the font you just defined. The glCallLists function calls a series of display lists based upon the array of characters (unsigned bytes) you pass in, which draws the character string.

Building a Simple Font Library

Certainly the wglCreateFontBitmaps function simplifies font creation, but you still have to do a lot just to output a character string. You can build a usable font library fairly easily, however. To start, you’ll need a font creation function (Listing 11-2).

Listing 11-2 The beginning of the FontCreateBitmaps function

GLuint

FontCreateBitmaps(HDC hdc, /* I - Device Context */

char *typeface, /* I - Font specification */

int height, /* I - Font height/size in pixels */

i nt weight, /* I - Weight of font (bold, etc) */

DWORD italic) /* I - Text is italic */

Page

402

OpenGL Super Bible!

{

Gluint base; /* Base display list for font */

HFONT font; /* Windows font ID */

if ((base = glGenLists(96)) == 0)

return (0);

The typeface argument is simply the name of the font, such as Courier or Helvetica, and specifies the style of character that you want. The height, weight, and italic arguments are passed directly to wglUseFontBitmaps and set the size and appearance of the characters.

Before you create the font bitmaps, you need to decide on a character set. Normally you’ll use the ANSI or UNICODE character sets. The ANSI character set (ANSI_CHARSET) provides the standard 7-bit ASCII character set. To support international characters and diacritical marks, use the UNICODE character set instead (UNICODE_CHARSET). Some fonts use special character sets. The Symbol font, for example, provides Greek letters and many scientific symbols.

For this simple implementation, we will set the character set to ANSI_CHARSET for normal fonts, and SYMBOL_FONTSET for the Symbol font. See Listing 11-3.

Listing 11-3 Continuation of the FontCreateBitmaps function

if (stricmp(typeface, "symbol") == 0)

font = CreateFont(height, 0, 0, 0, weight, italic, FALSE, FALSE,

SYMBOL_CHARSET, OUT_TT_PRECIS,

CLIP_DEFAULT_PRECIS, DRAFT_QUALITY,

DEFAULT_PITCH, typeface);

else

font = CreateF ont(height, 0, 0, 0, weight, italic, FALSE, FALSE,

ANSI_CHARSET, OUT_TT_PRECIS,

CLIP_DEFAULT_PRECIS, DRAFT_QUALITY,

DEFAULT_PITCH, typeface);

SelectObject(hdc, font);

wglUseFontBitmaps(hdc, 32, 96, base);

return (base);

}

If you need to use international characters, change the “normal” character set to

UNICODE_CHARSET, and define 224 characters (256 minus 32), as shown here:

OpenGL Super Bible! Page

else

font = CreateFont(height, 0, 0, 0, wei ght, italic, FALSE, FALSE,

UNICODE_CHARSET, OUT_TT_PRECIS,

CLIP_DEFAULT_PRECIS, DRAFT_QUALITY,

DEFAULT_PITCH, typeface);

SelectObject(hdc, font);

wglUseFontBitmaps(hdc, 32, 224, base);

403

To complement FontCreateBitmaps you’ll need a font deletion function (Listing 11-4). Here the glDeleteLists function simply deletes the specified display lists, in this case our font bitmaps. As with the FontCreateBitmaps function, to make this function work with international character sets you need to change the number of display lists from 96 to 224.

Listing 11-4 FontDelete function void

FontDelete(GLuint font) /* I - Font to delete */

{

if (font == 0)

return;

glDeleteLists(font, 96);

}

Finally, to make drawing character strings easier, you can make put-string and printf-string functions. FontPuts (Listing 11-5) uses the glPushAttrib and glPopAttrib functions to save and restore the current display list base ID. If you forget to do this, you might inadvertently affect your other drawing code that uses display lists!

Listing 11-5 FontPuts function void

FontPuts(GLuint font, /* I - Font to use */

char *s) /* I - String to display */

{

if (font == 0)

return;

if (s == NULL)

return;

glPushAttrib(GL_LIST_BIT);

glListBase(font - 32);

glCallLists(strlen(s), GL_UNSIGNED_BYTE, s);

glPopAttrib();

}

Page

404

OpenGL Super Bible!

A Note About glCallLists and Strings:

It is important to remember that glCallLists and the font functions presented here do not handle control characters such as tab and newline. If you include control characters in the string you display, other display lists may be called that affect your final output. This behavior can be controlled by parsing the incoming string prior to using glCallLists. Newline and tab functionality can be simulated using the glBitmap technique outlined in the previous note, “A Note About the Current Raster Position,” along with a call to glGetIntegerv

(described in Chapter 14).

The FontPrintf function (Listing 11-6) uses the <stdarg.h> header file to manage the variable number of arguments needed for vsprintf, which formats the string to be drawn.

Listing 11-6 FontPrintf function

#define MAX_STRING 1024 void

FontPrintf(GLuint font, /* I <?> - Font to use */

char *format, /* I - printf() style format string */

…)/* I - Other arguments as necessary */

{

va_list ap; /* Argument pointer */

char s[MAX_STRING + 1]; /* Output string */

if (format == NULL)

return;

va_start(ap, format); /* Start variable argument processing */

vsprintf(s, format, ap); /* Format the text into our output string */

va_end(ap); /* End variable argument processing */

FontPuts(font, s);

}

The complete code for FontCreate, FontDelete, FontPuts, and FontPrintf can be found in the

CH11\FONT.C file. Prototypes are in the CH11\FONT.H file on the source code CD-ROM.

Pixmaps: Bitmaps with Color

Images with more than two colors are usually called pixmaps (short for pixel maps) and are used as background images or textures (covered in Chapter 12). In OpenGL, pixmaps are generally either 8-bit color index images or 24-bit RGB images.

OpenGL Super Bible! Page

405

Drawing Pixmaps

OpenGL provides a single function for drawing pixmaps called glDrawPixels. Like glBitmap, glDrawPixels uses the current raster position to define the lower-left corner of the image. You cannot specify a raster origin or movement as you can for glBitmap.

BITMAPINFO *BitmapInfo;

GLubyte *BitmapBits; glRasterPos2i(xoffset, yoffset); glDrawPixels(BitmapInfo ->bmiHeader.biWidth,

BitmapInfo ->bmiHeader.biHeight,

GL_RGB, GL_UNSIGNED_BYTE, BitmapBits);

The glDrawPixels function accepts five arguments: glDrawPixels(GLsizei width, GLsizei height,

GLenum format, GLenum type,

Glvoid *pixels)

The format parameter specifies the colorspace of the pixmap; valid formats are in Table 11-

1. The GL_COLOR_INDEX format specifies that each color value in the pixmap is an index into the current Windows logical color palette. Color index images are often used for icons.

The GL_LUMINANCE format maps each color value to a grayscale value on the screen, with the minimum value being completely black and the maximum value being completely white. The GL_RGB format specifies the exact red, green, and blue values for each pixel in the image.

Table 11-1 OpenGL Pixel Formats

Format Description

GL_COLOR_INDEX Color index pixels

GL_LUMINANCE Grayscale pixels

GL_RGB RGB pixels

The type parameter of glDrawPixels specifies the type and range of each color value or component, as listed in Table 11-2.

Page

406

Table 11-2 OpenGL Pixel Types

OpenGL Super Bible!

Type Description

GL_BYTE Signed 8-bit values (from –128 to 127)

GL_UNSIGNED_BYTE Unsigned 8-bit values (from 0 to 255)

GL_BITMAP Bitmap image (from 0 to 1)

Remapping Colors

When using GL_COLOR_INDEX colors, you can remap the colors in your pixmap or bitmap using the glPixelMap or glPixelTransfer functions. The glPixelTransfer function lets you specify scaling and offsets for color index and RGB values. For example, here is the code to brighten an RGB image by 10%: glPixelTransferf(GL_RED_SCALE, 1.1) glPixelTransferf(GL_GREEN_SCALE, 1.1); glPixelTransferf(GL_BLUE_SCALE, 1.1);

Similarly, to offset the color indices of a bitmap to the palette entries you have defined for it, use glPixelTransferi(GL_INDEX_OFFSET, bitmap_entry);

In the “smiley” bitmap example (Listing 11-7), we might use this to remap the two colors in the bitmap to difference indices:

Listing 11-7 Repaint Window function to draw smiley faces void

RepaintWindow(RECT *rect) /* I - Client area rectangle */

{

int i; /* Looping var */

static GLubyte smiley[] = /* 16x16 sm iley face */

{

0x03, 0xc0, 0, 0, /* **** */

0x0f, 0xf0, 0, 0, /* ******** */

0x1e, 0x78, 0, 0, /* **** **** */

0x39, 0x9c, 0, 0, /* *** ** *** */

0x77, 0xee, 0, 0, /* *** ****** *** */

0x6f, 0xf6, 0, 0, /* ** ******** ** */

0xff, 0xff, 0, 0, /* **************** */

OpenGL Super Bible! Page

0xff, 0xff, 0, 0, /* **************** */

0xff, 0xff, 0, 0, /* **************** */

0xff, 0xff, 0, 0, /* **************** */

0x73, 0xce, 0, 0, /* *** **** *** */

0x73, 0xce, 0, 0, /* *** **** *** */

0x3f, 0xfc, 0, 0, /* ************ */

0x1f, 0xf8, 0, 0, /* ********** */

0x0f, 0xf0, 0, 0, /* ******** */

0x03, 0xc0, 0, 0 /* **** */

};

glViewport(0, 0, rect ->right, rect->bottom);

glClearIndex(0.0);

glClear(GL_COLOR_BUFFER_BIT);

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

glOrtho(0.0, rect ->right - 1.0, 0.0, rect->bottom - 1.0, -1.0, 1.0);

/* * This bitmap is aligned to 4 -byte boundaries…

*/

glPixelTransferi(GL_UNPACK_ALIGNMENT, 4);

glPixelTransferi(GL_INDEX_OFFSET, 1);

for (i = 0; i < 100; i ++)

{

glRasterPos2i(rand() % rect ->right, rand() % rect ->bottom);

glDrawPixels(16, 16, GL_COLOR_INDEX, GL_BITMAP, smiley);

};

glFinish();

}

407

Color Mapping Tables

Sometimes it is necessary to apply color corrections that are more complicated than simple linear scale and offset. One application is gamma correction, in which the intensity of each color value is adjusted to a power curve that compensates for irregularities on your monitor or printer (see Figure 11-2). The glPixelMap function allows you to do this by specifying a lookup table, as follows:

GLfloatlut[256];

GLfloatgamma_value; int i; gamma_value = 1.7; /* For N TSC video monitors */ for (i = 0; i < 256; i ++)

lut[i] = pow(i / 255.0, 1.0 / gamma_value);

Page

408

OpenGL Super Bible!

glPixelTransferi(GL_MAP_COLOR, GL_TRUE); glPixelMap(GL_PIXEL_MAP_R_TO_R, 256, lut); glPixelMap(GL_PIXEL_MAP_G_TO_G, 256, lut); glPixelMap(GL_PIXEL_MAP_B_TO_B, 25 6, lut);

Figure 11-2 Image without gamma correction (left) and with a gamma correction of 1.7

(right)

Scaling a Pixmap

Besides adjusting the colors of a pixmap, you can adjust the size of the pixmap using the glPixelZoom function. This function accepts two floating point parameters specifying the X and Y scaling factors for the image: glPixelZoom(1.0, 1.0); /* Don’t scale the image */ glPixelZoom(-1.0, 1.0); /* Flip the image horizontally */ glPixelZoom(1.0, -2.0); /* Flip the image and double the h eight */ glPixelZoom(0.33, 0.33); /* Draw the image 1/3 size */

As you can see, glPixelZoom allows you to scale and flip an image just about any way you like. For other nonlinear effects, such as rippling water or perspective correction, you’ll need to use texture mapping (Chapter 12).

Panning a Pixmap

The glPixelStore function can be used to pan inside an image. For example, to display the center 300 x 300 pixel area of a 640 x 480 pixel image, you would use glPixelStorei(GL_UNPACK_ROW_LENGTH, 640); glPixelStorei(GL_UNPACK_SKIP_PIXELS, (640 - 300) / 2); glPixelStorei(GL_UNPACK_SKIP_ROWS, (480 - 300) / 2); glDrawPixels(300, 300, GL_RGB, GL_UNSIGNED_BYTE, BitmapBits);

OpenGL Super Bible! Page

409

In this example, the GL_UNPACK_ROW_LENGTH value specifies the width of the original image in pixels. Set this when the width specified with glDrawPixels is different from the width of the image.

GL_UNPACK_SKIP_PIXELS specifies the number of pixels to skip on the left side of the image. Here we skip the first (640 – 300) / 2, or 170 pixels on the left side of the image to show the middle.

GL_UNPACK_SKIP_ROWS is similar but specifies the number of rows or scanlines in the image to skip. Normally, this value represents the number of rows from the bottom, but you can change this by specifying a negative Y scaling with glPixelZoom.

NOTE: The GL_UNPACK_ROW_LENGTH, GL_UNPACK_SKIP_PIXELS, and

GL_UNPACK_SKIP_ROWS attributes refer to the original pixmap size in pixels, not the size after zooming!

Reading Pixmaps

OpenGL provides a function called glReadPixels that can read an image from the screen.

Beyond the obvious application of saving your created image to disk, it can also be used for cool effects with texture mapping.

Unlike glDrawPixels, glReadPixels ignores the current raster position and requires you to specify an (x,y) viewport coordinate for the lower-left corner of the image to read. Listing

11-8 demonstrates how to read the current viewport into a Windows bitmap structure suitable for saving to a file or using as a texture.

Listing 11-8 ReadDIBitmap function

/*

* 'ReadDIBitmap()' - Read the current OpenGL viewport into a

* 24 -bit RGB bitmap.

*

* Returns the bitmap pixels if successful and NULL otherwise.

*/ void *

ReadDIBitmap(BITMAPINFO **info) /* O - Bitmap information */

{

long i, j, /* Looping var */

bitsize, /* Total size of bitmap */

width; /* Aligned width of a scanline */

GLint viewport[4]; /* Current viewport */

void *bits; /* RGB bits */

GLubyte *rgb, /* RGB looping var */

Page

410

OpenGL Super Bible!

temp; /* Temporary var for swapping */

/*

* Grab the current viewport…

*/

glGetIntegerv(GL_VIEWPORT, viewport);

/*

* Allocate memor y for the header and bitmap…

*/

if ((*info = (BITMAPINFO *)malloc(sizeof(BITMAPINFOHEADER))) == NULL)

{

/*

* Couldn't allocate memory for bitmap info - return NULL…

*/

return (NULL);

};

width = viewport[2] * 3; /* Real wid th of scanline */

width = (width + 3) & ~3; /* Aligned to 4 bytes */

bitsize = width * viewport[3]; /* Size of bitmap, aligned */

if ((bits = calloc(bitsize, 1)) == NULL)

{

/*

* Couldn't allocate memory for bitmap pixels - return NULL…

*/

free(*info);

return (NULL);

};

/*

* Read pixels from the framebuffer…

*/

glFinish(); /* Finish all OpenGL commands */

glPixelStorei(GL_PACK_ALIGNMENT, 4); /* Force 4 -byte alignment */

glPixelStorei(G L_PACK_ROW_LENGTH, 0);

glPixelStorei(GL_PACK_SKIP_ROWS, 0);

glPixelStorei(GL_PACK_SKIP_PIXELS, 0);

glReadPixels(0, 0, viewport[2], viewport[3], GL_RGB, GL_UNSIGNED_BYTE,

bits);

/*

* Swap red and blue for the bitmap…

*/

for (i = 0; i < viewport[3]; i ++)

for (j = 0, rgb = ((GLubyte *)bits) + i * width;

j < viewport[2];

j ++, rgb += 3)

OpenGL Super Bible!

{

temp = rgb[0];

rgb[0] = rgb[2];

rgb[2] = temp;

};

/*

* Finally, initialize the bitmap header infor mation…

*/

(*info)->bmiHeader.biSize = sizeof(BITMAPINFOHEADER);

(*info)->bmiHeader.biWidth = viewport[2];

(*info)->bmiHeader.biHeight = viewport[3];

(*info)->bmiHeader.biPlanes = 1;

(*info)->bmiHeader.biBitCount = 24;

(*info)->bmiHeader.biCompression = BI_RGB;

(*info)->bmiHeader.biSizeImage = bitsize;

(*info)->bmiHeader.biXPelsPerMeter = 2952; /* 75 DPI */

(*info)->bmiHeader.biYPelsPerMeter = 2952; /* 75 DPI */

(*info)->bmiHeader.biClrUsed = 0;

(*info)->bmiHeader.biClrImportant = 0;

return (bits);

}

Page

411

0

1

2

3

The first thing you need to do is find out the size of the current viewport, using glGetIntegerv as shown just below. (This function is described in Chapter 14). This places the current X origin, Y origin, X size, and Y size into the viewport array, as shown in Table

11-3.

/*

* Grab the current viewport…

*/

glGetIntegerv(GL_VIEWPORT, viewport);

Table 11-3 Viewport Array Definitions

Index Description

X origin of viewport (pixels)

Y origin of viewport (pixels)

X size of viewport (pixels)

Y size of viewport (pixels)

Page

412

OpenGL Super Bible!

Once you have the size of the viewport, you then allocate memory for the pixmap. It’s important to note that Windows bitmaps (and OpenGL pixmaps by default) must have the beginning of each line at a 32-bit boundary. To accomplish this, we do the following: width = viewport[2] * 3; /* Real width of scanline * width = (width + 3) & ~3; /* Aligned to 4 bytes */

You must round the computed actual byte width of the viewport (in this case, 3 bytes for every pixel wide) up to the nearest 32-bit (or 4-byte) boundary. The total size of the pixmap then becomes bitsize = width * viewport[3]; /* Size of bitmap, aligned */

After allocating memory for the pixmap, we call glReadPixels to get the contents of the current viewport and fill in the Windows BITMAPHEADER structure with all the necessary information.

Copying Pixmaps

OpenGL also provides a function to copy an area on the screen to another location— as needed, for instance, in scrolling or “magnifying glass” views: int mousex, mousey; glReadBuffer(GL_FRONT); glDrawBuffer(GL_FRONT); glPixelZoom(2.0, 2.0); glRasterPos2i(0, 0); glCopyPixels(mousex - 8, mousey - 8, 16, 16, GL_COLOR);

Here the glCopyPixels function copies pixels from the given location to the current raster position: void glCopyPixels(GLint x, GLint y, GLsizei width, GLsizei height, GLenum type)

The x and y parameters specify the lower-left corner of the area to be copied. Width and height specify the size of the image to be copied. Pixels are copied from the specified (x,y) location to the current raster position. The type argument specifies which values are to be copied. For most applications, the pixel type is GL_COLOR to copy color indices or RGB values.

Pixel zoom is applied to the output pixels but not to the input pixels. In the example just above, a 16 x 16-pixel image will be copied to the lower-left corner of the window and scaled to 32 x 32 pixels. Offsets and sizes specified with calls to glPixelStore do not affect glCopyPixels. Changes made with glPixelTransfer and glPixelMap do, however.

OpenGL Super Bible! Page

413

A Bitmap File Viewer

Now that we’ve covered all the bitmap-related functions that are available, let’s write a

Windows .BMP file-viewing program using OpenGL. Our goals for this program are fairly straightforward:

Load any Windows .BMP file

Scale the image to the current window size

Provide simple controls to change the image brightness and gamma correction

Show a magnified view of the image underneath the mouse pointer

Save the displayed image to disk

Print the displayed image

The final code for this program can be found in CH11\OGLVIEW.C.

About Windows Bitmap Files

Before we write the code, let’s review the ubiquitous Windows bitmap format. Despite their limitations, Windows .BMP files are probably the most common and widely supported files used by PCs capable of from 2 to 16.7 million colors. With only a few exceptions, .BMP files do not utilize data compression schemes, so it’s easy to read and use these files in your

OpenGL programs.

A .BMP file is organized into three or four sections, depending on the type of colors used

(see Figure 11-3). All .BMP files start with a BITMAPFILEHEADER structure containing an identification string (“BM”) the total size of the file, and an offset to the actual image data. Here is that structure: typedef struct

{

WORD bfType; /* “BM” */

DWORD bfSize; /* Size of file in bytes */

WORD bfReserved1; /* Reserved, always 0 */

WORD bfReserved2; /* Reserved, always 0 */

DWORD bfOffBits; /* Offset to image in bytes */

} BITMAPFILEHEADER;

Figure 11-3 Organization of a .BMP file

Page

414

OpenGL Super Bible!

Following the file header is a BITMAPINFOHEADER structure that describes the contents of the image, as follows: typedef struct

{

DWORD biSize; /* Size of BITMAPINFOHEADER in bytes */

LONG biWidth; /* Width of image in pixels */

LONG biHeight; /* Height of image in pixels */

WORD biPlanes; /* # of color planes (always 1) */

WORD biBitCount; /* # of color bits */

DWORD biCompression; /* Type of compression used */

DWORD biSizeImage; /* Size of the image in bytes */

LONG biXPelsPerMeter; /* Horizontal pixels per meter */

LONG biYPelsPerMeter; /* Vertical pixels per meter */

DWORD biClrUsed; /* Number of color used */

DWORD biClrImportant; /* Number of 'important’ colors */

} BITMAPINFOHEADER;

For color index (palette) images, a color palette follows the BITMAPINFOHEADER structure for every color in the image. Image data follows immediately after.

Reading the .BMP File

Because the .BMP file format is so simple, reading a .BMP file is almost trivial. You start by opening the file and reading a BITMAPFILEHEADER structure. if ((fp = fopen(filename, "rb")) == NULL)

return (NULL); fread(&header, sizeof(BITMAPFILEHEADER), 1, fp); if (header.bfType != 'MB') /* Check f or BM reversed… */

{

/*

* Not a bitmap file - return NULL…

*/

fclose(fp);

return (NULL);

};

If the header looks good, you then read the BITMAPINFO structure along with any color palette definitions. infosize = header.bfOffBits - sizeof(BITMAPFIL EHEADER); fread(*info, 1, infosize, fp);

And finally, you read the bitmap data and close the file. if ((bitsize = (*info) ->bmiHeader.biSizeImage) == 0)

bitsize = ((*info) ->bmiHeader.biWidth *

OpenGL Super Bible!

(*info) ->bmiHeader.biBitCount + 7) / 8 *

abs((*info)->bmiHeader.biHeight); fread(bits, 1, bitsize, fp); fclose(fp);

Listing 11-9 contains the final code for LoadDIBitmap, with error checking.

Listing 11-9 LoadDIBitmap function void *

LoadDIBitmap(char *filename, /* I - File to load */

BITMAPINFO **info) /* O - Bitmap information */

{

FILE *fp; /* Open file pointer */

void *bits; /* Bitmap pixel bits */

long bitsize, /* Size of bitmap */

infosize; /* Size of header information */

BITMAPFILEHEADER header; /* File header */

/*

* Try opening the file; use "rb" mode to read this *binary* file.

*/

if ((fp = fopen(filename, "rb")) == NULL)

return (NULL);

/*

* Read the file header and any following bitmap information…

*/

if (fread(&header, sizeof(BITMAPFILEHEADER), 1, fp) < 1)

{

/*

* Couldn't read the file header - return NULL…

*/

fclose(fp);

return (NULL);

};

if (header.bfType != 'MB') /* Check for BM reversed… */

{

/*

* Not a bitmap file - return NULL…

*/

fclose(fp);

return (NULL);

};

infosize = header.bfOffBits - sizeof(BITMAPFILEHEADER);

if ((*info = (BITMAPINFO *)malloc(infosize)) == NULL)

{

/*

Page

415

Page

416

OpenGL Super Bible!

* Couldn't allocate memory for bitmap info - return NULL…

*/

fclose(fp);

return (NULL);

};

if (fread(*info, 1, infosize, fp) < infosize)

{

/*

* Couldn't read the bitmap header - return NULL…

*/

free(*info);

fclose(fp);

return (NULL);

};

/*

* Now that we have all the header info read in, allocate memory for the

* bitmap and read *it* in…

*/

if ((bitsize = (*info) ->bmiHeader.biSizeImage) == 0)

bitsize = ((*info) ->bmiHeader.biWidth *

(*info)->bmiHeader.biBitCount + 7) / 8 *

abs((*info) ->bmiHeader.biHeight);

if ((bits = malloc(bitsize)) == NULL)

{

/*

* Couldn't allocate memory - return NULL!

*/

free(*info);

fclose(fp);

return (NULL);

};

if (fread(bits, 1, bitsize, fp) < bitsize)

{

/*

* Couldn't read bitmap - free memory and return NULL!

*/

free(*info);

free(bits);

fclose(fp);

return (NULL);

};

/*

* OK, everything went fine - return the allocated bitmap…

*/

OpenGL Super Bible! Page

417

fclose(fp);

return (bits);

}

Writing the .BMP File

As they say in the car repair manuals, “Installation is the reverse of removal.” To write a

.BMP file, you simply add a BITMAPFILEHEADER structure to the bitmap in memory and write it to disk. Listing 11-10 is the SaveDIBitmap function.

Listing 11-10 SaveDIBitmap function int

SaveDIBitmap(char *filename, /* I - File to save to */

BITMAPINFO *info, /* I - Bitmap information */

void *bits) /* I - Bitmap pixel bits */

{

FILE *fp; /* Open file pointer */

long size, /* Size of file */

infosize, /* Size of bitmap info */

bitsize; /* Size of bitmap pixels */

BITMAPFILEHEADER header; /* File header */

/*

* Try opening the file; use "wb" mode to write this *binary* file.

*/

if ((fp = fopen(filename, "wb")) == NULL)

return (-1);

if (info->bmiHeader.biSizeImage == 0)/* Figure out the bitmap size */

bitsize = (info ->bmiHeader.biWidth *

info ->bmiHeader.biBitCount + 7) / 8 *

abs(info->bmiHeader.biHeight);

else

bitsize = info ->bmiHeader.biSizeImage;

infosize = sizeof(BITMAPINFOHEADER);

switch (info->bmiHeader.biCompression)

{

case BI_BITFIELDS :

infosize += 12; /* Add 3 RGB doubleword masks */

if (info->bmiHeader.biClrUsed == 0)

break;

case BI_RGB :

if (info->bmiHeader.biBitCount > 8 &&

info->bmiHeader.biClrUsed == 0)

break;

case BI_RLE8 :

case BI_RLE4 :

if (info->bmiHeader.biClrUsed == 0)

infosize += (1 << info ->bmiHeader.biBitCount) * 4;

else

Page

418

OpenGL Super Bible!

infosize += info ->bmiHeader.biClrUsed * 4;

break;

};

size = sizeof(BITMAPFILEHEADER) + infosize + bitsize;

/*

* Write the file header, bitmap information, and bitmap pixel data…

*/

header.bfType = 'MB'; /* Non -portable… sigh */

header.bfSize = size;

header.bfReserved1 = 0;

header.bfReserved2 = 0;

header.bfOffBits = sizeof(BITMAPFILEHEADER) + infosize;

if (fwrite(&header, 1, sizeof(BITMAPFILEHEADER), fp) <

sizeof(BITMAPFILEHEADER))

{

/*

* Couldn't write the file header - return…

*/

fclose(fp);

return (-1);

};

if (fwrite(info, 1, infosize, fp) < infosize)

{

/*

* Couldn't write the bitmap header - return…

*/

fclose(fp);

return (-1);

};

if (fwrite(bits, 1, bitsize, fp) < bitsize)

{

/*

* Couldn't write the b itmap - return…

*/

fclose(fp);

return (-1);

};

/*

* OK, everything went fine - return…

*/

fclose(fp);

return (0);

}

OpenGL Super Bible! Page

419

Printing the Bitmap

Because Windows provides several convenient functions for printing within an application, it only makes sense to be able to print from our bitmap viewing program. For this example program, you will be using the standard GDI printing services.

The first thing you do is display a standard Windows print dialog using PrintDlg, as shown here: memset(&pd, 0, sizeof(pd)); pd.lStructSize = sizeof(pd); pd.hwndOwner = owner; pd.Flags = PD_RETURNDC; pd.hInstance = NULL; if (!PrintDlg(&pd))

return (0);

If the PrintDlg function returns 0, the user has clicked the Cancel button. Otherwise, the

PRINTDLG structure will contain a device context (HDC) handle that we can use for printing.

Next, you need to start the print job. di.cbSize = sizeof(DOCINFO); di.lpszDocName = "OpenGL Image"; di.lpszOutput = NULL;

StartDoc(pd.hDC, &di);

After this, you draw the bitmap using the StretchBlt function and end the print job.

StretchBlt(pd.hDC, xoffset, yoffset, xsize, ysize,

hdc, 0, 0, info ->bmiHeader.biWidth,

info->bmiHeader.biHeight, SRCCOPY);

EndPage(pd.hDC);

EndDoc(pd.hDC);

We compute the first 4 parameters to StretchBlt based on the size of the output page.

Basically, we want to scale the image to the page yet keep the aspect ratio (width/height) the same. xsize = rect.right; ysize = xsize * info ->bmiHeader.biHeight / info ->bmiHeader.biWidth; if (ysize > rect.bottom)

{

ysize = rect.bottom;

xsize = ysize * info ->bmiHeader.biWidth / info ->bmiHeader.biHeight;

};

Page

420

OpenGL Super Bible!

The offsets are computed by taking half of the difference of widths and heights: xoffset = (rect.right - xsize) / 2; yoffset = (rect.bottom - ysize) / 2;

Normally you might pop up a “busy printing” dialog for the user, but in this case printing happens so fast it wouldn’t be useful.

The final code for the PrintDIBitmap function is in Listing 11-11.

Listing 11-11 PrintDIBitmap function int

PrintDIBitmap(HWND owner, /* I - Owner/parent window */

BITMAPINFO *info, /* I - Bitmap information */

void *bits) /* I - Bitmap pixel bits */

{

PRINTDLG pd; /* Print dialog infor mation */

long xsize, /* Size of printed image */

ysize,

xoffset, /* Offset from edges for image */

yoffset;

RECT rect; /* Page rectangle */

DOCINFO di; /* Document info */

HDC hdc; /* Device context for bitmap */

HBITMAP bitmap; /* Bitmap image */

HBRUSH brush; /* Background brush for page */

HCURSOR busy, /* Busy cursor */

oldcursor; /* Old cursor */

/*

* Range check…

*/

if (info == NULL || bits == NULL)

return (0);

/*

* Initialize a PRINTDLG structure before displaying a standard Windows

* print dialog…

*/

memset(&pd, 0, sizeof(pd));

pd.lStructSize = sizeof(pd);

pd.hwndOwner = owner;

pd.Flags = PD_RETURNDC;

pd.hInstance = NULL;

if (!PrintDlg(&pd))

return (0); /* User chose 'cancel'… */

/*

* OK, user wants to print, so set the cursor to 'bus y' and start the

* print job…

*/

OpenGL Super Bible! Page

421

busy = LoadCursor(NULL, IDC_WAIT);

oldcursor = SetCursor(busy);

SetMapMode(pd.hDC, MM_TEXT);

di.cbSize = sizeof(DOCINFO);

di.lpszDocName = "OpenGL Image";

di.lpszOutput = NULL;

StartDoc(pd.hDC, &di);

StartPage(pd.hDC);

/*

* Clear the background to white…

*/

rect.top = 0;

rect.left = 0;

rect.right = GetDeviceCaps(pd.hDC, HORZRES);

rect.bottom = GetDeviceCaps(pd.hDC, VERTRES);

brush = CreateSolidBrush(0x00ffffff);

FillRect(pd.hDC, &rect, brush);

/*

* Stretch the bitmap to fit the page…

*/

hdc = CreateCompatibleDC(pd.hDC);

bitmap = CreateDIBitmap(hdc, &(info ->bmiHeader), CBM_INIT, bits, info,

DIB_RGB_COLORS);

SelectObject(hdc, bitmap);

xsize = rect.right;

ysize = xsize * info ->bmiHeader.biHeight / info ->bmiHeader.biWidth;

if (ysize > rect.bottom)

{

ysize = rect.bottom;

xsize = ysize * info ->bmiHeader.biWidth / info ->bmiHeader.biHeight;

};

xoffset = (rect.right - xsize) / 2;

yoffset = (rect.bottom - ysize) / 2;

StretchBlt(pd.hDC, xoffset, yoffset, xsize, ysize,

hdc, 0, 0, info ->bmiHeader.biWidth, info ->bmiHeader.biHeight,

SRCCOPY);

/*

* That's it. End the print job and free anything we allocated…

*/

EndPage(pd.hDC);

EndDoc(pd.hDC);

DeleteDC(pd.hDC);

Page

422

OpenGL Super Bible!

DeleteObject(bitmap);

DeleteObject(brush);

DeleteObject(busy);

DeleteDC(hdc);

/*

* Restore the cursor and return…

*/

SetCursor(oldcursor);

return (1);

}

Displaying the Bitmap

The OpenGL part of our example program begins with displaying the .BMP file. Like most

OpenGL programs, this one starts out by setting the current viewport and viewing transformations. glViewport(0, 0, rect ->right, rect->bottom); glMatrixMode(GL_PROJECTION); glLoadIdentity(); glOrtho(0.0, rect ->right - 1.0, 0.0, rect->bottom - 1.0, -1.0, 1.0); glMatrixMode(GL_MODELVIEW);

After this, you draw the bitmap. Here we are scaling the image to fit the current window while maintaining a 1:1 aspect ratio. The following code should look very familiar— you used it in the PrintDIBitmap function above: xsize = rect->right; ysize = BitmapInfo ->bmiHeader.biHeight * xsize /

BitmapInfo ->bmiHeader.biWidth; if (ysize > rect->bottom)

{

ysize = rect->bottom;

xsize = BitmapInfo ->bmiHeader.biWidth * ysize /

BitmapInfo ->bmiHeader.biHeight;

}; xscale = (float)xsize / (float)BitmapInfo ->bmiHeader.biWidth; yscale = (float)ysize / (float)BitmapInfo ->bmiHeader.biHeight; xoffset = (rect->right - xsize) * 0.5; yoffset = (rect->bottom - ysize) * 0.5; glPixelStorei(GL_UNPACK_ALIGNMENT, 4); glPixelZoom(xscale, yscale); glRasterPos2i(xoffset, yoffset); glDrawPixels(BitmapInfo ->bmiHeader.biWidth,

BitmapInfo ->bmiHeader.biHeight ,

GL_RGB, GL_UNSIGNED_BYTE, BitmapBits);

OpenGL Super Bible! Page

423

Interestingly enough, the Windows StretchBlt function can display bitmap images faster than glDrawPixels. Of course, StretchBlt cannot perform the glPixelMap and glPixelTransfer functions, though.

The final code for the RepaintWindow function is in Listing 11-12.

Listing 11-12 RepaintWindow function void

RepaintWindow(RECT *rect) /* I - Client area rectangle */

{

GLint xoffset, /* X offset of image */

yoffset; /* Y offset of image */

GLint xsize, /* X size of scaled image */

ysize; /* Y size of scaled image */

GLfloat xscale, /* Scaling in X direction */

yscale; /* Scaling in Y direction */

/*

* Reset the viewport and clear the window to white…

*/

glViewport(0, 0, rect ->right, rect->bottom);

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

glOrtho(0.0, rect ->right - 1.0, 0.0, rect->bottom - 1.0, -1.0, 1.0);

glMatrixMode(GL_MODELVIEW);

glClearColor(1. 0, 1.0, 1.0, 1.0);

glClear(GL_COLOR_BUFFER_BIT);

/*

* If we have loaded a bitmap image, scale it to fit the window…

*/

if (BitmapBits != NULL)

{

xsize = rect->right;

ysize = BitmapInfo ->bmiHeader.biHeight * xsize /

BitmapIn fo->bmiHeader.biWidth;

if (ysize > rect ->bottom)

{

ysize = rect ->bottom;

xsize = BitmapInfo ->bmiHeader.biWidth * ysize /

BitmapInfo ->bmiHeader.biHeight;

};

xscale = (float)xsize / (float)BitmapInfo ->bmiHeader.biWidth;

yscale = (float)ysize / (float)BitmapInfo ->bmiHeader.biHeight;

xoffset = (rect ->right - xsize) * 0.5;

yoffset = (rect ->bottom - ysize) * 0.5;

Page

424

OpenGL Super Bible!

glPixelStorei(GL_UNPACK_ALIGNMENT, 4);

glPixelZoom(xscale, yscale);

glRasterPos2i (xoffset, yoffset);

glDrawPixels(BitmapInfo ->bmiHeader.biWidth,

BitmapInfo ->bmiHeader.biHeight,

GL_RGB, GL_UNSIGNED_BYTE, BitmapBits);

};

glFinish();

}

Summary

In this chapter you have learned about most of the OpenGL bitmap functions. Beyond the simple application of character fonts, bitmaps can be full-color images for window backgrounds or texture images (explored in the chapter coming up). OpenGL functions such as glPixelMap, glPixelTransfer, and glPixelZoom can be used for special effects, as well.

OpenGL Super Bible! Page

425

Reference Section glCopyPixels

Purpose

Copies a rectangular block of pixels in the frame buffer.

Include File

<GL/gl.h>

Syntax void glCopyPixels(GLint x, GLint y, GLsizei width, GLsizei height, GLenum type);

Description

This function copies pixel data from the indicated area in the framebuffer to the current raster position. Use glRasterPos to set the current raster position. If the current raster position is not valid, then no pixel data is copied.

Calls to glPixelMap, glPixelTransfer, and glPixelZoom affect the operation of glCopyPixels, as indicated in their pages in this Reference Section.

Parameters

x

GLint: The lower-left corner window horizontal coordinate.

y

GLint: The lower-left corner window vertical coordinate.

width

height

GLsizei: The width of the image in pixels.

GLsizei: The height of the image in pixels. If negative, the image is drawn from top to bottom. By default, images are drawn bottom to top.

type

GLenum: The type of pixel values to be copied. Valid types are as follows:

GL_COLOR Color buffer values

GL_STENCIL Stencil buffer values

GL_DEPTH Depth buffer values

Returns

None.

Example

See the example in CH11\OGLVIEW.C.

See Also glPixelMap, glPixelStore, glPixelTransfer, glPixelZoom

Page

426

OpenGL Super Bible!

glDrawPixels

Purpose

Draws a block of pixels into the frame buffer.

Include File

<GL/gl.h>

Syntax void glDrawPixels(GLsizei width, GLsizei height, GLenum format, GLenum type, const Glvoid *pixels);

Description

This function copies pixel data from memory to the current raster position. Use glRasterPos to set the current raster position. If the current raster position is not valid, then no pixel data is copied.

Besides the format and type arguments, several other parameters define the encoding of pixel data in memory and control the processing of the pixel data before it is placed in the frame buffer. See the Reference Section pages for glPixelMap, glPixelStore, glPixelTransfer, and glPixelZoom.

Parameters

width

GLsizei: The width of the image in pixels.

height

GLsizei: The height of the image in pixels. If negative, the image is drawn from top

format to bottom. By default, images are drawn bottom to top.

GLenum: The colorspace of the pixels to be drawn. Valid formats are as follows:

GL_COLOR_INDEX Color index pixels

GL_LUMINANCE Grayscale pixels

GL_LUMINANCE_ALPHA

Grayscale + alpha pixels (2 components)

GL_RGB

GL_RGBA

GL_RED

GL_GREEN

RGB pixels (3 components)

RGBA pixels (4 components)

Red pixels

Green pixels

GL_BLUE

GL_ALPHA

GL_STENCIL_INDEX

Blue pixels

Alpha pixels

Stencil buffer values

GL_DEPTH_COMPONENT Depth buffer values

type

OpenGL Super Bible! Page

427

GLenum: The data type of the pixels to be drawn. Valid types are as follows:

GL_BYTE Signed 8-bit values (–128 to 127)

GL_UNSIGNED_BYTE Unsigned 8-bit values (0 to 255)

GL_BITMAP

GL_SHORT

Bitmap image (0 to 1)

Signed 16-bit values (–32,768 to 32,767)

GL_UNSIGNED_SHORT Unsigned 16-bit values (0 to 65,535)

GL_INT Signed 32-bit values (–2,147,483,648 to

2,147,483,647)

GL_UNSIGNED_INT Unsigned 32-bit values (0 to

4,294,967,295)

GL_FLOAT 32-bit floating point values (GLfloat)

pixels

Glvoid *: A pointer to the pixel data for the image.

Returns

None.

Known Bugs

The GL_UNPACK_ALIGNMENT parameter for glPixelStore is presently ignored by glDrawPixels.

Example

See the example in CH11\OGLVIEW.C.

See Also glPixelMap, glPixelStore, glPixelTransfer, glPixelZoom

Page

428

OpenGL Super Bible!

glPixelMap

Purpose

Defines a lookup table for pixel transfers.

Include File

<GL/gl.h>

Syntax void glPixelMapfv(GLenum map, GLint mapsize, const GLfloat *values);void glPixelMapuiv(GLenum map, GLint mapsize, const GLuint *values);void glPixelMapusv(GLenum map, GLint mapsize, const GLushort *values);

Description

This function sets lookup tables for glCopyPixels, glDrawPixel, glReadPixels, glTexImage1D, and glTexImage2D. Lookup tables, or maps, are only used if the corresponding GL_MAP_COLOR or GL_MAP_STENCIL option is enabled with glPixelTransfer. Maps are applied prior to drawing and after reading values from the framebuffer.

Parameters

map

GLenum: The type of map being defined. Valid maps are as follows:

GL_PIXEL_MAP_I_TO_I Define a map for color indices.

GL_PIXEL_MAP_S_TO_S Define a map for stencil values.

GL_PIXEL_MAP_I_TO_R Define a map from color indices to red values.

GL_PIXEL_MAP_I_TO_G Define a map from color indices to green values.

GL_PIXEL_MAP_I_TO_B Define a map from color indices to blue values.

GL_PIXEL_MAP_I_TO_A Define a map from color indices to alpha values.

GL_PIXEL_MAP_R_TO_R Define a map for red values.

GL_PIXEL_MAP_G_TO_G Define a map for green values.

GL_PIXEL_MAP_B_TO_B Define a map for blue values.

GL_PIXEL_MAP_A_TO_A Define a map for alpha values.

mapsize

GLint: The size of the lookup table.

values

GLfloat *, GLuint *, GLushort *: The lookup table.

Returns

None.

OpenGL Super Bible!

Example

See the example in CH11\OGLVIEW.C.

See Also glCopyPixels, glDrawPixels, glPixelStore, glPixelTransfer, glReadPixels, glTexImage1D, glTexImage2D

Page

429

Page

430

OpenGL Super Bible!

glPixelStore

Purpose

Controls how pixels are stored or read from memory.

Include File

<GL/gl.h>

Syntax void glPixelStorei(GLenum pname, GLint param);void glPixelStoref(GLenum pname, GLfloat param);

Description

This function controls how pixels are stored with glReadPixels and read for glDrawPixels, glTexImage1D, and glTexImage2D. It does not affect the operation of glCopyPixels.

Parameters

pname

GLenum: The parameter to set. Valid names are as follows:

GL_PACK_SWAP_BYTES* GL_TRUE If True, all multibyte values have their bytes swapped when stored in memory.

GL_PACK_LSB_FIRST GL_FALSE If True, bitmaps have their leftmost pixel stored in bit 0 instead of bit 7.

GL_PACK_ROW_LENGTH 0

GL_PACK_SKIP_PIXELS 0

Set the pixel width of the image. If 0, the

width argument is used instead.

Set the number of pixels to skip horizontally in the image.

GL_PACK_SKIP_ROWS

GL_PACK_ALIGNMENT

0

4

Set the number of pixels to skip vertically in the image.

Set the alignment of each scanline in the image. See Known

Bugs section below.

OpenGL Super Bible! Page

431

GL_UNPACK_SWAP_BYTES

(GL_TRUE for little-endian,

GL_FALSE for big-endian)

GL_TRUE If True, all multibyte values have their bytes swapped when read from memory.

GL_UNPACK_LSB_FIRST GL_FALSE If True, bitmaps have their leftmost pixel read from bit 0 instead of bit 7.

GL_UNPACK_ROW_LENGTH 0 Set the pixel width of the image. If 0, the

width argument is used instead.

GL_UNPACK_SKIP_PIXELS 0

GL_UNPACK_SKIP_ROWS 0

Set the number of pixels to skip horizontally in the image.

Set the number of pixels to skip vertically in the image.

GL_UNPACK_ALIGNMENT 4 Set the alignment of each scanline in the image. See Known

Bugs section below.

param

GLint, GLfloat: The parameter value.

Returns

None.

Known Bugs

The GL_PACK_ALIGNMENT and GL_UNPACK_ALIGNMENT parameters for glPixelStore are presently ignored.

Example

See the example in CH11\BITMAP.C.

See Also glDrawPixels, glReadPixels, glTexImage1D, glTexImage2D

Page

432

OpenGL Super Bible!

glPixelTransfer

Purpose

Sets pixel transfer modes and options for glCopyPixels, glDrawPixels, glReadPixels, glTexImage1D, and glTexImage2D

Include File

<GL/gl.h>

Syntax void glPixelTransferi(GLenum pname, GLint param);void glPixelTransferf(GLenum pname, GLfloat param);

Description

This function sets pixel transfer modes and options for glCopyPixels, glDrawPixels, glReadPixels, glTexImage1D, and glTexImage2D.

Parameters

pname

GLenum: The transfer parameter to set. Valid names are as follows:

GL_MAP_COLOR When set to GL_TRUE, enables pixel maps defined with glPixelMap for color indices and

RGBA values.

GL_MAP_STENCIL When set to GL_TRUE, enables pixel maps defined with glPixelMap for stencil values.

GL_INDEX_SHIFT Specifies the amount to bitshift color indices.

Positive values shift indices to the left. Negative values shift indices to the right.

GL_INDEX_OFFSET Specifies an offset to be added to every color index.

GL_RED_SCALE Specifies a floating point scaling factor for red color values.

GL_RED_BIAS Specifies a bias that is added to every red color value.

GL_GREEN_SCALE Specifies a floating point scaling factor for green color values.

GL_GREEN_BIAS Specifies a bias that is added to every green color value.

GL_BLUE_SCALE Specifies a floating point scaling factor for blue color values.

GL_BLUE_BIAS Specifies a bias that is added to every blue color value.

OpenGL Super Bible!

GL_ALPHA_SCALE Specifies a floating point scaling factor for alpha color values.

GL_ALPHA_BIAS Specifies a bias that is added to every alpha color value.

GL_DEPTH_SCALE Specifies a floating point scaling factor for depth values.

GL_DEPTH_BIAS Specifies a bias that is added to every depth value.

param

GLint, GLfloat: The parameter value.

Returns

None.

Example

See the example in CH11\OGLVIEW.C.

See Also glCopyPixels, glDrawPixels, glPixelMap, glReadPixels, glTexImage1D, glTexImage2D

Page

433

Page

434

OpenGL Super Bible!

glPixelZoom

Purpose

Sets the scaling for pixel transfers.

Include File

<GL/gl.h>

Syntax void glPixelZoom(GLfloat xfactor, GLfloat yfactor);

Description

This function sets pixel scaling for glCopyPixels, glDrawPixels, glReadPixels, glTexImage1D, and glTexImage2D.

Pixels are scaled using the “nearest neighbor” algorithm when they are read from memory or the framebuffer. In the case of glCopyPixels and glDrawPixels, the scaled pixels are drawn in the framebuffer at the current raster position.

For glReadPixels, pixels are written to the supplied memory buffer. When reading a zoomed image, you should compute the image size as follows: int new_width, new_height; int width, height; new_width = xfactor * width + 0.5; new_height = yfactor * height + 0.5;

Parameters

xfactor

GLfloat: The horizontal scalingfactor (1.0 is no scaling).

yfactor

GLfloat: The vertical scaling factor (1.0 is no scaling).

Returns

None.

Example

See the example in CH11\OGLVIEW.C.

See Also glCopyPixels, glDrawPixels, glReadPixels, glTexImage1D, glTexImage2D

OpenGL Super Bible! Page

435

glReadPixels

Purpose

Reads a block of pixels from the framebuffer.

Include File

<GL/gl.h>

Syntax void glReadPixels(GLint x, GLint y, GLsizei width, GLsizei height, GLenum format, GLenum type, const Glvoid *pixels);

Description

This function copies pixel data from the framebuffer to memory. Besides the format and type arguments, several other parameters define the encoding of pixel data in memory and control the processing of the pixel data before it is placed in the memory buffer. See the references for glPixelMap, glPixelStore, glPixelTransfer.

Parameters

x

GLint: The lower-left corner window horizontal coordinate.

y

GLint: The lower-left corner window vertical coordinate.

width

GLsizei: The width of the image in pixels.

height

GLsizei: The height of the image in pixels.

format

GLenum: The colorspace of the pixels to be read. Valid formats are as follows:

GL_COLOR_INDEX Color index pixels

GL_LUMINANCE Grayscale pixels

GL_LUMINANCE_ALPHA Grayscale + alpha pixels (2 components)

GL_RGB RGB pixels (3 components)

GL_RGBA

GL_RED

GL_GREEN

RGBA pixels (4 components)

Red pixels

Green pixels

GL_BLUE

GL_ALPHA

Blue pixels

Alpha pixels

GL_STENCIL_INDEX Stencil buffer values

GL_DEPTH_COMPONENT Depth buffer values

type

Glenum: The data type of the pixels to be drawn. Valid types are as follows:

Page

436

OpenGL Super Bible!

GL_BYTE Signed 8-bit values (–128 to 127)

GL_UNSIGNED_BYTE Unsigned 8-bit values (0 to 255)

GL_BITMAP Bitmap image (0 to 1)

GL_SHORT Signed 16-bit values (–32768 to 32767)

GL_UNSIGNED_SHORT Unsigned 16-bit values (0 to 65535)

GL_INT Signed 32-bit values (–2147483648 to

2147483647)

GL_UNSIGNED_INT Unsigned 32-bit values (0 to 4294967295)

GL_FLOAT 32-bit floating point values (GLfloat)

pixels

Glvoid *: A pointer to the pixel data for the image.

Returns

None.

Known Bugs

The GL_PACK_ALIGNMENT parameter for glPixelStore is presently ignored by glReadPixels.

Example

See the example in CH11\BITMAP.C.

See Also glPixelMap, glPixelStore, glPixelTransfer

OpenGL Super Bible! Page

437

Chapter 12

Texture Mapping

What you’ll learn in this chapter:

How to… Functions You’ll Use

Drape images onto polygons (texture mapping) glTexImage1D/glTexImage2D

Use .BMP files as textures TextureLoadBitmap/TextureLoadMipmapy

Use automatic texture coordinate generation glTexGen

Texture mapping is probably the most significant advance in computer graphics in the last ten years. OpenGL provides texture image mapping functions that fit images onto polygons in your scene. How those images are put onto the polygons is up to you.

Texture mapping is used in games, including DOOM, for realistic images of rooms and monsters. Unlike OpenGL, these games use a texturing method called raycasting to map texture images onto polygons. Though raycasting is much faster on standard graphics cards than the texture mapping provided by OpenGL, it is also limited to flat surfaces in a 2D plane. That is, you can’t look up or down. Texture mapping in OpenGL doesn’t have this limitation, but you can expect it to work more slowly on standard graphics cards.

The good news is that some newer, affordable 3D graphics cards support OpenGL and hardware texturing. When a board supports hardware texture mapping, your CPU doesn’t have to do all the texture mapping calculations and preparation— the graphics card does it for you.

The examples in this chapter will run on any Windows-compatible graphics card. If your graphics card supports 16- or 24-bit “true color” displays, you’ll want to use them. Besides better-looking scenes, you’ll find that the 16- and 24-bit modes are actually faster.

The Basics of Texture Mapping

Texture mapping in OpenGL is fairly straightforward. To begin with, every texture is an image of some sort.

A 1D texture is an image with width but no height, or vise versa; 1D textures are a single pixel wide or high. You might think that 1D textures aren’t very useful, but in fact they can take the place of more conventional color-shading techniques and accelerate rendering in the process! Figure 12-1 shows a 1D “ROY-G-BIV” (Red, Orange, Yellow - Green - Blue,

Page

438

OpenGL Super Bible!

Indigo, Violet) texture to display a rainbow. The texture image is a line of pixels (color values) covering the color spectrum seen in a rainbow. The equivalent nontextured scene would contain seven times the polygons of the textured one and require much more rendering time.

Figure 12-1 A 1D textured rainbow

A 2D texture is an image that is more than 1 pixel wide and high and is generally loaded from a Windows .BMP file. Two-dimensional textures are commonly used to replace complex surface geometry (lots of polygons) on buildings, trees, and so forth. These 2D textures can also be used to add realistic background details, like the clouds in the sky in

Figure 12-2.

Figure 12-2 A 2D sky texture and the resulting scene

OpenGL Super Bible! Page

439

The 1D and 2D textures you’ve seen so far are composed of RGB color values. Textures can also be composed of color indices or luminance (gray) levels, and can include alpha

(transparency) values. The latter is useful for defining natural objects such as trees, because the alpha value can be used to make the tree visible but let the background show through.

You’ll learn more about this in Chapter 16.

Some hardware also supports 3D (volume) textures with OpenGL. Volume textures are used for viewing CAT, MRI, and other 3D “scans.” Unfortunately, even a small 256 x 256 x 256 grayscale texture image will need a whopping 16 MB of memory. Currently an extension to

OpenGL, 3D texturing may be included as a required feature in the OpenGL 1.1 specification.

Defining Texture Images

Naturally, you must define a texture image before you can draw textured polygons in

OpenGL. Texture images follow the same storage rules as bitmaps (discussed in Chapter

11).

A Note About Texture Images:

The OpenGL standard requires that texture images’ dimensions must be a power of 2.

Texture images can also have 1 or 2 border pixels around their edges to define the color of polygons that fall outside the texture image.

Defining 1D Textures

OpenGL provides a single function for defining 1D textures: glTexImage1D. The glTexImage1D function accepts eight arguments: void glTexImage1D(GLenum target, GLint level, GLint components,

GLsizei width, GLint border, GLenum format,

GLenum type, const GLvoid *pixels)

The target argument specifies which texture should be defined; this argument must be

GL_TEXTURE_1D. The level argument indicates the texture image’s level of detail and is usually 0. Other values are used for mipmapped textures (described later in this chapter).

The components argument specifies the number of color values used for each pixel. For color index textures, components must be 1. Values of 3 and 4 are used for RGB and RGBA texture images, respectively.

Width and border specify the size of the texture image. The border value controls the number of border pixels OpenGL should expect (and use) and may have a value of 0, 1, or 2.

Page

440

OpenGL Super Bible!

The width parameter specifies the width of the main texture image (without the border pixels) and must be a power of 2.

The format argument indicates the type of color values to expect— GL_COLOR_INDEX,

GL_LUMINANCE, GL_RGB, or GL_RGBA.

You’ll find an example of defining a 1D texture in Listing 12-1 and in the example code

CH12\TEX1D.C on the source code CD-ROM.

Listing 12-1 Defining a 1D texture image void

LoadAllTextures(void)

{

static unsigned char roygbiv_image[8][3] =

{

{ 0x3f, 0x00, 0x3f }, /* Dark Violet (fo r 8 colors…) */

{ 0x7f, 0x00, 0x7f }, /* Violet */

{ 0xbf, 0x00, 0xbf }, /* Indigo */

{ 0x00, 0x00, 0xff }, /* Blue */

{ 0x00, 0xff, 0x00 }, /* Green */

{ 0xff, 0xff, 0x00 }, /* Yellow */

{ 0xff, 0x7f, 0x00 }, /* Orange */

{ 0xff, 0x00, 0x00 } /* Red */

};

glNewList(RainbowTexture = glGenLists(1), GL_COMPILE);

glTexParameteri(GL_TEXTURE_1D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);

glTexParameteri(GL_TEXTURE_1D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);

glTexImage1D(GL_TEXTURE _1D, 0, 3, 8, 0, GL_RGB, GL_UNSIGNED_BYTE,

roygbiv_image);

glEndList();

}

The example code creates a display list containing the texture image and the desired magnification and minification filter, GL_LINEAR. The minification filter is used when the polygon to be drawn is smaller than the texture image, in this case 8 pixels. The magnification filter is used when the polygon is larger than the texture image. By designating the GL_LINEAR filter, you tell OpenGL to linearly interpolate color values in the texture image before drawing anything on the screen. The other filters you can use for

GL_TEXTURE_MIN_FILTER are listed in Table 12-1.

OpenGL Super Bible! Page

441

Table 12-1 Texture Image Filters

Filter Description

GL_NEAREST

GL_LINEAR

GL_NEAREST_MIPMAP_NEAREST

GL_NEAREST_MIPMAP_LINEAR

GL_LINEAR_MIPMAP_NEAREST

GL_LINEAR_MIPMAP_LINEAR

Nearest-neighbor filtering.

Linear interpolation.

Nearest-neighbor mipmapped filtering.

Linear interpolated mipmaps.

Linear interpolation of mipmaps.

Linear interpolation of interpolated mipmaps.

GL_NEAREST filtering takes the closest pixel in the texture image rather than interpolating between pixels. You’ll learn more about mipmap filtering later in the chapter.

Defining 2D Textures

To define a 2D texture image in OpenGL, you call glTexImage2D. The glTexImage2D function takes a height argument in addition to the ones that glTexImage1D uses, as follows: void glTexImage2D(GLenum target, GLint level, GLint components,

GLsizei width, GLsize i height, GLint border,

GLenum format, GLenum type, const GLvoid *pixels)

Like glTexImage1D, the width and height arguments must be a power of 2.

Listing 12-2 shows how to load a sky texture image complete with clouds.

Listing 12-2 Defining a 2D texure image void

LoadAllTextures(void)

{

BITMAPINFO *info; /* Bitmap information */

void *bits; /* Bitmap pixel bits */

GLubyte *rgb; /* Bitmap RGB p ixels */

/*

* Try loading the bitmap and converting it to RGB…

*/

Page

442

OpenGL Super Bible!

bits = LoadDIBitmap('textures/sky.bmp’, &info);

if (bits == NULL)

return;

rgb = ConvertRGB(info, bits);

if (rgb == NULL)

{

free(info);

free(bits);

return;

};

glNewList(SkyTexture = glGenLists(1), GL_COMPILE);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINE AR);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST);

/*

* Define the 2D texture image.

*/

glPixelStorei(GL_UNPACK_ALIGNMENT, 4); /* Force 4 -byte alignment */

glPixelStorei(GL_UNPACK_ROW_LENGTH, 0);

glPixelStorei(GL_UNPACK_SKIP_ROWS, 0);

glPixelStorei(GL_UNPACK_SKIP_PIXELS, 0);

glTexImage2D(GL_TEXTURE_2D, 0, 3, info ->bmiHeader.biWidth,

info ->bmiHeader.biHeight, 0, GL_RGB, GL_UNSIGNED_BYTE,

rgb);

glEndList();

/*

* Free the bitmap and RGB images, then return 0 (no errors).

*/

free(rgb);

free(info);

free(bits);

}

A Note About Textures:

You’ll notice that all the examples presented in this chapter use display lists to store texture images. Display lists generally speed up the drawing of static graphics commands, and texture images are no exception. In addition, the forthcoming OpenGL 1.1 API includes texture object support that optimizes texture images stored in display lists by keeping them loaded in the graphics hardware texture memory if available.

OpenGL Super Bible! Page

443

Drawing Textured Polygons

Once you have defined a texture, you still have to enable texturing. To enable 1D texturing, you’d use the following: glDisable(GL_TEXTURE_2D); glEnable(GL_TEXTURE_1D); glTexEnvi(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_DECAL);

The glEnable call enables 1D texturing. If you forget to enable texturing, none of your polygons will be textured! The glTexEnvi function sets texturing to “decal” mode, meaning that images are overlaid directly upon the polygons.

Other texturing modes are listed in Table 12-2.

Mode

GL_MODULATE

GL_DECAL

GL_BLEND

Table 12-2 Texture Modes for GL_TEXTURE_ENV_MODE

Description

Texture pixels “filter” existing pixel colors on the screen.

Texture pixels replace existing pixels on the screen.

Texture pixels “filter” existing pixels colors and are combined with a constant color.

The GL_MODULATE texture mode multiplies the current texture color (or luminance) by the color on the screen. For one-component (luminance) textures, this translates into a brightness filter that will vary the brightness of the screen image based upon the texture image. For three-component (RGB) textures, you can generate “colored lens filter” effects.

Unlike GL_MODULATE texturing, GL_BLEND texturing allows you to blend a constant color into the scene based upon the texture image. You’d use GL_BLEND texturing for things like clouds; the constant color would be off-white, and the texture image would be of a cloud.

Once you have defined the texturing mode to use, you can then proceed with the drawing of your polygons. Listing 12-3 shows how to draw the rainbow in Figure 12-1.

Page

444

OpenGL Super Bible!

Listing 12-3 Drawing a 1D textured rainbow glEnable(GL_TEXTURE_1D); glCallList(RainbowTexture); glBegin(GL_QUAD_STRIP);

for (th = 0.0; th <= M_PI; th += (0.03125 * M_PI))

{

/*

* Bottom edge of rainbow…

*/

x = cos(th) * 50.0;

y= sin(th) * 50.0;

z = -50.0;

glTexCoord1f(0.0);

glVertex3f(x, y, z);

/*

* Top edge of rainbow…

*/

x = cos(th) * 55.0;

y = sin(th) * 55.0;

z = -50.0;

glTexCoord1f(1.0);

glVertex3f(x, y, z);

}; glEnd();

To position the ROY-G-BIV texture on the rainbow, you call glTexCoord. For 1D textures, you call one of the glTexCoord1f, glTexCoord1d, glTexCoord1s, or glTexCoord1i functions. A value of 0.0 represents the leftmost pixel in the image, and 1.0 represents the rightmost pixel. Values outside this range are handled differently depending on the value of the GL_TEXTURE_WRAP_S parameter. If GL_TEXTURE_WRAP_S is set to

GL_CLAMP (the default), then texture coordinates are restricted to a range of 0.0 to 1.0, inclusive. When a polygon strays from the texture image, it is drawn using the color(s) along the texture image’s edges (see Figure 12-3) or the texture image border colors, if defined.

Texture coordinates are traditionally referred to as S and T, or (s,t) instead of X and Y.

Figure 12-3 GL_CLAMP textures

OpenGL Super Bible! Page

445

If you use GL_REPEAT instead, the texture image is tiled over the polygon. Texture coordinates are used modulo 1.0— that is, the texture image repeats at regular intervals.

GL_REPEAT texturing can be used to reduce the size of texture images on repetitive surfaces. The challenge with these kinds of textures is to make the edges of each tile blend into the next.

Automatically Generating Texture Coordinates:

Generating texture coordinates can be a tedious task. Later in this chapter you’ll learn about the glTexGen functions that can generate these coordinates automatically for you.

Mipmapped Textures

So far, we’ve dealt exclusively with single-texture images. That is, whenever we draw a textured polygon, the polygon is painted with a single 1D or 2D image. This is fine for some scenes, but animated displays often need various levels of detail depending on the distance from the viewer. For example, when walking through a virtual room, you might want a highresolution image of a picture close up, but only the outline at a distance.

OpenGL supports textures with multiple images, called mipmapped textures. Mipmapping selects the texture image closest to the screen resolution for a polygon. Loading mipmapped textures takes slightly longer than standard textures, but the visual results are impressive. In addition, mipmapped textures can improve display performance by reducing the need for

GL_LINEAR image filters.

What Does the 'Mip’ in 'Mipmapped’ Mean?:

'mip’ is latin for 'many’. 'Mipmapping’ means 'many images’.

Mipmapped textures are defined by providing a specific level parameter for each image. For the ROY-G-BIV texture in the previous example, you would use the following: static unsigned char roygbiv_image0[16][3]; static unsigned char roygbiv_image1[8][3]; static unsigned char roygbiv_image2[4][3]; static unsigned char roygbiv_image3[2][3]; static unsigned char roygbiv_image4[1][3]; glNewList(RainbowTexture = glGenLists(1), GL_COMPILE);

glTexParameteri(GL_TEXTURE_1D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);

glTexParameteri(GL_TEXTURE_1D, GL_TEXTURE_MIN_FILTER,

GL_NEAREST_MIPMAP_LINEAR);

Page

446

OpenGL Super Bible!

glTexImage1D(GL_TEXTURE_1D, 0, 3, 16, 0, GL_RGB, GL_UNSIGNED_BYTE,

roygbiv_image0);

glTexImage1D(GL_TEXTURE_1D, 1, 3, 8, 0, GL_RGB, GL_UNSIGNED_BYTE,

roygbiv_image1);

glTexImage1D(GL_TEXTURE_1D, 2, 3, 4, 0, GL_RGB, GL_UNSIGNED_BYTE,

roygbiv_image2);

glTexImage1D(GL_TEXTURE_1D, 3, 3, 2, 0, GL_RGB, GL_UNSIGNED_BYTE,

roygbiv_image3);

glTexImage1D(GL_TEXTURE_1D, 4, 3, 1, 0, GL_RGB, GL_UNSIGNED_BYTE,

roygbiv_image4); glEndList();

The image levels are specified in the first parameter to glTexImage1D(). The level 0 image is your primary, highest-resolution image for the texture. The level 1 image is half the size of the primary image, and so forth. When drawing polygons with a mipmapped texture, you need to use one of the minification filters (GL_TEXTURE_MIN_FILTER) in Table 12-3.

Filter

Table 12-3 Minification Filters

Description

GL_NEAREST_MIPMAP_NEAREST Use the image nearest to the screen (polygon) resolution. Use the GL_NEAREST filter when texturing with this image.

GL_NEAREST_MIPMAP_LINEAR Use the image nearest to the screen (polygon) resolution. Use the GL_LINEAR filter when texturing with this image.

GL_LINEAR_MIPMAP_NEAREST Linearly interpolate between the two images nearest to the screen (polygon) resolution. Use the GL_NEAREST filter when texturing with this image.

GL_LINEAR_MIPMAP_LINEAR Linearly interpolate between the two images nearest to the screen (polygon) resolution. Use the GL_LINEAR filter when texturing with this image.

The GL_LINEAR_MIPMAP_NEAREST and GL_LINEAR_MIPMAP_LINEAR filters can be very expensive in terms of display performance. GL_NEAREST_MIPMAP_NEAREST is roughly equivalent to GL_NEAREST in performance, but generally produces much better results. Mipmap images are chosen by comparing the size of the polygon as it will be drawn on the screen, to the sizes of the mipmap images.

OpenGL Super Bible! Page

447

To make your life a bit easier, the OpenGL utility library (GLU32.LIB) provides two functions that automatically generate mipmapped images based on a single, high-resolution texture. In the following code, the gluBuild1DMipmaps and gluBuild2DMipmaps functions take the place of glTexImage1D and glTexImage2D:

/* 1D texture */ glTexParameteri(GL_TEXTURE_1D, GL_TEXTURE_MAG_FILTER, GL_LINEAR); glTexParameteri(GL_TEXTURE_1D, GL_TEXTURE_MIN_FILTER,

GL_NEAREST_MIPMAP_LINEAR); gluBuild1DMipmaps(GL_TEXTURE_1D, 3, 8, 0, GL_RGB, GL_UNSIGNED_BYTE,

roygbiv_image);

/* 2D texture */ glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER,

GL_NEAREST_MIPMAP_NEAREST); gluBuild2DMipmaps(GL_TEXTURE_2D, 3, info ->bmiHeader.biWidt h,

info ->bmiHeader.biHeight, 0, GL_RGB,

GL_UNSIGNED_BYTE, rgb);

Because the gluBuild1DMipmaps and gluBuild2DMipmaps functions create images from one image, the appearance of some textured images may not be accurate. It’s like drawing text characters at different sizes— scaling the bitmaps doesn’t always generate good-looking results! When you run into this sort of problem, generate your mipmap images manually.

A Terrain Viewing Program

Our project for this chapter is a terrain viewing program that takes advantage of some of the texture-mapping features we have discussed. With this program, we’ll want to accomplish the following:

View textured terrain scenes

Edit the terrain interactively in 3D

Fly through the terrain

Print the current scene

Save the current scene to a .BMP file

The entire terrain program is listed at the end of this chapter, just before the Reference

Section. A copy of the program is in the CH12 source directory on your CD-ROM. Doubleclick on the TEXSCENE.EXE program icon to try it out!

Page

448

Defining the Terrain

OpenGL Super Bible!

To keep things simple, we’ll define our terrain as a grid of elevation points with a texture attribute such as “this is water” or “this is a mountain.” Each point in the grid will also have an associated lighting normal to add realism.

#define TERRAIN_SIZE 21 int TerrainType[TERRAIN_SIZE][TERRAIN_SIZE];

GLfloat TerrainHeight[TERRAIN_SIZE][TERRAIN_SIZE];

GLfloat TerrainNormal[TERRAIN_SIZE][TERRAIN_SIZE][3];

Here the TerrainType array contains the type of terrain at each point and is assigned one of the following control IDs from our user-interface resource file:

IDC_GRASS

IDC_WATER

IDC_TREES

IDC_ROCKS

IDC_MOUNTAINS

Grasslands

Water

Trees/woodland

Rocks/cliffs

Mountains

Drawing Terrain

Our terrain drawing controls consist of a toolbar dialog window with five buttons that select the current type of terrain. To draw the terrain, you just click and drag in the main window

(see Figure 12-4).

Figure 12-4 Textured terrain editing window

OpenGL Super Bible! Page

449

The heart of the drawing interface is in the DrawTerrain function. It uses the OpenGL

selection mechanism to determine which terrain points are under the mouse pointer. Instead of drawing the terrain to the screen, selection rendering records “hits” inside the selection area (in this case, the mouse pointer) to a buffer you provide. In DrawTerrain, we record the

(x,y) location of the terrain in the selection buffer, as in a “paint-by-numbers” book (see

Figure 12-5). OpenGL selection is covered in more detail in Chapter 19.

Figure 12-5 Picking a terrain cell

Once we have the (x,y) terrain locations, we then reset the height and type of these points in the draw_cell function (Listing 12-4).

Listing 12-4 The draw_cell function void draw_cell(int x, /* I - Terrain X location */

int y) /* I - Terrain Y location */

{

/*

* Range check the terrain location…

*/

if (x < 0 || x >= TERRAIN_SIZE ||

y < 0 || y >= TERRAIN_SIZE)

return;

if (TerrainType[y][x] == Terrain Current)

return; /* Already the right type */

TerrainType[y][x] = TerrainCurrent;

/*

* Force a redraw…

*/

InvalidateRect(SceneWindow, NULL, TRUE);

Page

450

OpenGL Super Bible!

/*

* Set the height of the terrain 'cell’. For water, the

* height is constant at WATER_HEIGHT. Other other types,

* we add a random pertubation to make the terrain more

* interesting/realistic.

*/

switch (TerrainCurrent)

{

case IDC_WATER :

TerrainHeight[y][x] = WATER_HEIGHT;

break;

case IDC_GRASS :

TerrainHeight[y][x] = GRASS_HEIGHT + 0.1 * (rand() % 5);

break;

case IDC_TREES :

TerrainHeight[y][x] = TREES_HEIGHT + 0.1 * (rand() % 5);

break;

case IDC_ROCKS :

TerrainHeight[y][x] = ROCKS_HEIGHT + 0.1 * (ran d() % 5);

break;

case IDC_MOUNTAINS :

TerrainHeight[y][x] = MOUNTAINS_HEIGHT + 0.15 * (rand() % 5);

break;

};

}

For the IDC_WATER terrain type, the point height is just set to WATER_HEIGHT (0.0).

For other types, we add a small amount of random “jitter” to make the terrain look more realistic. Once the selected cell is drawn, we recompute the lighting normals using the new height values in UpdateNormals. Each lighting normal is calculated using the points above and to the right of the current point with the following formula:

N = lighting normal

H = height of current point

Hu = height of point above

Hr = height of point to the right

Nx = (Hr - H) / |N|

Ny = 1 / |N|

Nz = (Hu - H) / |N|

This is just a simplification of the cross product of adjacent terrain grid-cells. Once all the normals are recalculated, the scene is redrawn.

Drawing the Scene

Now that we’ve taken care of the drudge work, we can concentrate on displaying the terrain.

You’ll remember that besides displaying a pretty textured image, we also want to fly through this terrain. To accomplish this, we need to draw the terrain without textures—

OpenGL Super Bible! Page

451

basically because texture mapping on a standard PC is too slow for animation. When the user isn’t flying around (or drawing, for that matter), we want to draw with the textures. We will take care of this with a little conditional code and a few lighting parameters.

Also, because drawing the textured scene will be slower than the fly-through scene, we need to provide some feedback to the user that our program is doing something. For simplicity, we’ll just draw to the front buffer (the visible one) when texturing, and to the back buffer

(the invisible one for animation) when flying or drawing. This way, when the program updates the textured scene, the user will see the image being drawn. You’ll learn more about buffers in Chapter 15.

The RepaintWindow function handles redrawing the terrain for the user. It starts off by selecting the front or back buffer (as described just above). Then it clears the color and depth bits, as follows: glViewport(0, 0, rect ->right, rect->bottom); glClearColor(0.5, 0.5, 1.0, 1.0); glEnable(GL_DEPTH_TEST); if (Moving || Drawing)

{

glDisable(GL_TEXTURE_2D);

glDrawBuffer(GL_BACK);

} else

{

glEnable(GL_TEXTURE_2D);

glTexEnvi(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_DECAL);

glDrawBuffer(GL_FRONT);

}; glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

After this, RepaintWindow draws in the sky. For performance reasons, the sky is only drawn when the user is not flying over or drawing the terrain. Since the background is cleared to a light blue, this isn’t really a problem. The sky is shaped like a pyramid and has the

SKY.BMP texture image mapped to it for a nice, cloudy blue sky.

Once the sky is drawn, RepaintWindow starts drawing the terrain. The algorithm used is quite simple and basically generates strips of quadrilaterals (squares) along the terrain points. Each strip uses a different texture or lighting material color, so we have to issue glBegin/glEnd calls for each one. See Figure 12-6 for a graphical depiction of the algorithm.

Page

452

OpenGL Super Bible!

Figure 12-6 The terrain-drawing algorithm

As you can see, this algorithm won’t track the terrain exactly, but it is fast and simple to implement. It scans the terrain from left to right and from bottom to top, and starts a new

GL_QUAD_STRIP primitive whenever the terrain type changes. Along the way it assigns lighting normals and texture coordinates for each point on the terrain.

Automatically Generating Texture Coordinates

Generating all those texture coordinates can be tedious. Fortunately, OpenGL has an answer that we can use! In the current drawing code, we issue glTexCoord2i calls glTexCoord2i(x * 2, y * 2); for each and every point in the terrain. But instead of doing this for each point, we can use the glTexGen functions to define the S and T coordinates in terms of the X and Z position in the scene (Y is used for the height). To generate coordinates for our terrain, then, we can use the following: static GLint s_vector[4] = { 2, 0, 0, 0 }; static GLint t_vector[4] = { 0, 0, 2, 0 }; glTexGeni(GL_S, GL_TEXTURE_GEN_MODE, GL_OBJECT_LINEAR); glTexGeniv(GL_S, GL_OBJECT_PLANE, s_vector); glTexGeni(GL_T, GL_TEXTURE_GEN_MODE, GL_OBJECT_LINEAR); glTexGeniv(GL_T, GL _OBJECT_PLANE, t_vector);

Here the GL_OBJECT_LINEAR mapping mode maps the texture coordinates from object coordinates: coordinate = X * vector[0] + Y * vector[1] +

Z * vector[2] + W * vector[3]

The vector array is specified with glTexGen function:

OpenGL Super Bible!

void glTexGeniv(GLenum coord, GLenum pname, GLint *params)

Page

453

where the coord parameter specifies which texture image coordinate to generate, GL_S or

GL_T, and the pname parameter specifies the vector to define; in this case

GL_OBJECT_PLANE. Finally, the params array specifies the object plane vector that is used to compute the texture coordinate.

The previous code for our terrain would generate these coordinates:

S = 2 * X

T = 2 * Z

To make OpenGL use these generated coordinates, you must enable texture coordinate generation, as follows: glEnable(GL_TEXTURE_GEN_S); glEnable(GL_TEXTURE_GEN_T);

The file TEXSCENE.C contains a version of our terrain viewing program that uses generated texture coordinates. The same techniques can be used with a 1D texture image.

For the 1D image, you’d probably generate the S coordinate from the height (Y) to color the terrain based upon the height of the terrain. Generating texture coordinates is usually faster than specifying them manually in immediate mode, but is slower when using display lists.

Flying Through the Terrain

When the user is flying through the terrain, we need to regulate the flying speed based on the update rate of our scene. Rather than trying to maintain a fixed update rate— which can vary depending on the graphics card and CPU being used— we will measure the elapsed time from the last update to the current time. The FlyTerrain function manages this by measuring the time in milliseconds between each call, and moving the viewer forward at a fixed speed relative to the elapsed time.

Page

454

Summary

OpenGL Super Bible!

In this chapter you’ve learned how to texture-map images onto polygons and other primitives using OpenGL. Texturing can provide that extra measure of realism that makes computer graphics so exciting to work with.

The OpenGL glTexParameter functions provide many ways to improve the quality of texture images when they are drawn. Mipmapped texture images provide multiple levels of detail that improve rendering quality and speed. Linear interpolation of texture images can improve certain types of textures, such as the sky texture used in the example project.

The glTexGen functions can simplify generation of texture coordinates by removing unnecessary or tedious calculations. By removing large amounts of conditional glTexCoord calls, automatic coordinate generation also simplifies programs that must display both textured and nontextured scenes

For games and other interactive, animated displays, you may want to support both textured and nontextured displays until accelerated OpenGL graphics boards become more widely available.

OpenGL Super Bible!

Now here is Listing 12-5, the complete terrain viewing program, TEXSCENE.C.

Page

455

Listing 12-5 TEXSCENE.C: The terrain viewing program

#include 'texture.h’

#include 'texscene.h’

#include <stdarg.h>

#include <math.h>

#ifndef M_PI

# define M_PI (double)3.14159265358979323846

#endif /* !M_PI */

/*

* Constants…

*/

#define TERRAIN_SIZE 21

#define TERRAIN_EDGE ((TERRAIN_SIZE - 1) / 2)

#define TERRAIN_SCALE (500.0 / TERRAIN_EDGE )

#define GRASS_HEIGHT 0.0

#define WATER_HEIGHT 0.0

#define TREES_HEIGHT 0.0

#define ROCKS_HEIGHT 0.5

#define MOUNTAINS_HEIGHT 1.0

/*

* Globals…

*/

HWND SceneWindow; /* Scen e window */

HPALETTE ScenePalette; /* Color palette (if necessary) */

HDC SceneDC; /* Drawing context */

HGLRC SceneRC; /* OpenGL rendering context */

GLuint SkyTexture, /* Sky texture image */

GrassTexture, /* Grass… */

RocksTexture, /* Rock… */

WaterTexture, /* Water… */

TreesTexture, /* Trees… */

Mountai nsTexture; /* Mountains… */

HBITMAP GrassDownBitmap, /* Grass button down image */

GrassUpBitmap, /* Grass button up image */

GrassSelectBitmap, /* Grass button selected image */

RocksDownBitmap, /* … */

RocksUpBitmap,

RocksSelectBitmap,

WaterDownBitmap,

WaterUpBitmap,

WaterSelectBitmap,

TreesDownBitmap,

TreesUpB itmap,

Page

456

OpenGL Super Bible!

TreesSelectBitmap,

MountainsDownBitmap,

MountainsUpBitmap,

MountainsSelectBitmap;

HWND TerrainWindow; /* Terrain dialog */ int TerrainCurrent = IDC_WATER ; int TerrainType[TERRAIN_SIZE][TERRAIN_SIZE];

GLfloat TerrainHeight[TERRAIN_SIZE][TERRAIN_SIZE];

GLfloat TerrainNormal[TERRAIN_SIZE][TERRAIN_SIZE][3]; double MoveTime; /* Last update time */

GLboolean Moving = GL_FALSE, /* GL_TRUE if flying */

Drawing = GL_FALSE; /* GL_TRUE if drawing */

POINT CenterMouseXY; /* Initial mouse pos */

GLfloat Position[3] = { 0.0, TERRAIN_SCALE, 0.0 };

/* Viewer position */

GLfloat Heading = 0.0, /* Viewer heading */

Pitch = 0.0, /* Viewer pitch */

Roll = 0.0; /* Viewer roll */

/*

* Local functions…

*/ void DisplayErrorMessage(char *, …); void MakePalette(int);

LRESULT CALLBACK SceneProc(HWND, UINT, WPARAM, LPARAM);

UINT CALLBACK TerrainDlgProc(HWND, UINT, WPARAM, LPARAM); void InitializeTerr ain(void); void LoadAllTextures(void); void LoadAllBitmaps(HINSTANCE); void DrawTerrain(int, int); void FlyTerrain(int, int); void RepaintWindow(RECT *); void SaveBitmapFile(void); void PrintBitmap(void); double GetClock(void);

/*

* 'WinMain()’ - Main entry…

*/ int APIENTRY

WinMain(HINSTANCE hInst, /* I - Current process instance */

HINSTANCE hPrevInstance, /* I - Parent process instance */

LPSTR lpCmdLine, /* I - Command-line arguments */

int nCmdShow) /* I - Show window at startup? */

{

MSG msg; / * Window UI event */

OpenGL Super Bible! Page

WNDCLASS wc; /* Window class */

POINT pos; /* Current mouse pos */

/*

* Initialize the terrain to all grasslands…

*/

InitializeTerrain();

/*

* Register main window…

*/

wc.style = 0;

wc.lpfnWndProc = (WNDPROC)SceneProc;

wc.cbClsExtra = 0;

wc.cbWndExtra = 0;

wc.hInstance = hInst;

wc.hIcon = NULL;

wc.hCursor = LoadCursor(NULL, IDC_ARROW);

wc.hbrBackground = 0;

wc.lpszMenuName = MAKEINTRESOURCE(IDR_MENU1);

wc.lpszClassName = 'Textured Scene’;

if (RegisterClass(&wc) == 0)

{

DisplayErrorMessage('Unable to register window class!’);

return (FALSE);

};

/*

* Then create it…

*/

SceneWindow = CreateWindo w('Textured Scene’, 'Textured Scene’,

WS_OVERLAPPEDWINDOW | WS_CLIPCHILDREN |

WS_CLIPSIBLINGS,

32, 32, 400, 300,

NULL, NULL, hInst, NULL);

if (SceneWindow == NULL)

{

DisplayErrorMessage('Unable to create window!’);

return (FALSE);

};

ShowWindow(SceneWindow, nCmdShow);

UpdateWindow(SceneWindow);

/*

* Load the bitmaps for the buttons, and then create the terrain

* editing dialog.

*/

LoadAllBitmaps(hInst);

457

Page

458

OpenGL Super Bible!

TerrainWindow = CreateDialog(hInst,

MAKEINTRESOURCE(IDD_TERRAIN_DIALOG),

SceneWindow, (DLGPROC)TerrainDlgProc);

/*

* Loop on events until the user quits this application…

*/

while (TRUE)

{

/*

* Process all messages in the queue…

*/

while (!Moving ||

PeekMessage(&msg, NULL, 0, 0, PM_NOREMOVE) == TRUE)

if (GetMessage(&msg, NULL, 0, 0))

{

TranslateMessage(&msg);

DispatchMessage(&msg);

}

else

return (1);

/*

* Handle flying as necessary…

*/

GetCursorPos(&pos);

FlyTerrain(pos.x, pos.y);

};

return (msg.wParam);

}

/*

* 'DisplayErrorMessage()’ - Display an error message dialog.

*/ void

DisplayErrorMessage(char *format, /* I - printf() style

format string */

...) /* I - Other arguments

as neces sary */

{

va_list ap; /* Argument pointer */

char s[1024]; /* Output string */

if (format == NULL)

return;

va_start(ap, format);

vsprintf(s, format, ap);

va_end(ap);

OpenGL Super Bible! Page

459

MessageBeep(MB_ICONEXCLAMATION);

MessageBox(NULL, s, 'Error’, MB_OK | MB_ICONEXCLAMATION);

}

/*

* 'MakePalette()’ - Make a color palette for RGB colors if necessary.

*/ void

MakePalette(int pf) /* I - Pixel format ID */

{

PIXELFORMATDESCRIPTOR pfd; /* Pixel format information */

LOGPALETTE *pPal; /* Pointer to logical

palette */

int nColors; /* Number of entries

in palette */

int i, /* Color index */

rmax, /* Maximum red value */

gmax, /* Maximum green va6lue */

bmax; /* Maximum blue value */

/*

* Find out if we need to define a color palette…

*/

DescribePixelFormat(SceneDC, pf, sizeof(PIXELFORMATDESCRIPTOR), &pfd);

if (!(pfd.dwFlags & PFD_NEED_PALETTE))

{

ScenePalette = NULL;

return;

};

/*

* Allocate memory for a color palette…

*/

nColors = 1 << pfd.cColorBits;

pPal = (LOGPALETTE *)malloc(sizeof(LOGPALETTE) +

nColors * sizeof(PALETTEENTRY));

pPal->palVersion = 0x 300;

pPal->palNumEntries = nColors;

/*

* Get the maximum values for red, green, and blue. Then build 'nColors’

* colors…

*/

rmax = (1 << pfd.cRedBits) - 1;

gmax = (1 << pfd.cGreenBits) - 1;

bmax = (1 << pfd.cBlueBits) - 1;

Page

460

OpenGL Super Bible!

for (i = 0; i < nColors; i ++)

{

pPal->palPalEntry[i].peRed = 255 * ((i >>

pfd.cRedShift) & rmax) / rmax;

pPal->palPalEntry[i].peGreen = 255 * ((i >>

pfd.cGreenShift) & gmax) / gmax;

pPal->palPalEntry[i].peBlue = 255 * ((i >>

pfd.cBlueShif t) & bmax) / bmax;

pPal->palPalEntry[i].peFlags = 0;

};

/*

* Create, select, and realize the palette…

*/

ScenePalette = CreatePalette(pPal);

SelectPalette(SceneDC, ScenePalette, FALSE);

RealizePalette(SceneDC);

free(pPal);

}

/*

* 'SceneProc()’ - Handle window events in the viewing window.

*/

LRESULT CALLBACK

SceneProc(HWND hWnd, /* I - Window triggering this event */

UINT uMsg, /* I - Message type */

WPARAM wParam, /* I - 'word’ parameter value */

LPARAM lParam) /* I - 'long’ parameter value */

{

int pf; /* Pixel format ID */

PIXELFORMATDESCRIPTOR pfd; /* Pixel format information */

PAINTSTRUCT ps; /* WM_PAINT message info */

RECT rect; /* Current client area rectangle */

switch (uMsg)

{

case WM_CREATE :

/*

* 'Create' message. Get device and rendering contexts, and

* setup the client area for OpenGL drawing…

*/

SceneDC = GetDC(hWnd);

pfd.nSize = sizeof(pfd);

pfd.nVersion = 1;

pfd.dwFlags = PFD_DRAW_TO_WINDOW | PFD_SUPPORT_OPENGL

| PFD_DOUBLEBUFFER;

/* Do OpenGL drawing */

pfd.dwLayerMask = PFD_MAIN_PLANE; /* Main drawing plane */

pfd.iPixelType = PFD_TYPE_RGBA; /* RGB color buffer */

OpenGL Super Bible! Page

461

pfd.cColorBits = 0; /* Bes t color buffer

please */

pfd.cDepthBits = 32; /* Need a depth buffer */

pfd.cStencilBits = 0; /* No stencil buffer */

pfd.cAccumBits = 0; /* No accumulation buffer

*/

pf = ChoosePixelFormat(SceneDC, &pfd);

if (pf == 0)

DisplayErrorMessage('texscene was unable to choose a

suitable pixel format!’);

else if (!SetPixelFormat(SceneDC, pf, &pfd))

DisplayErrorMessage('texscene was unable to set the pixel

format!’);

MakePalette(pf);

SceneRC = wglCreateContext(SceneDC);

wglMakeCurrent(SceneDC, SceneRC);

/*

* Load all the texture images int o display lists…

*/

LoadAllTextures();

break;

case WM_SIZE :

case WM_PAINT :

/*

* Repaint the client area with our bitmap…

*/

BeginPaint(hWnd, &ps);

GetClientRect(hWnd, &rect);

RepaintWindow(&rect);

EndPaint(hWnd, &ps);

break;

case WM_COMMAND :

/*

* Handle menu selections…

*/

switch (LOWORD(wParam))

{

case IDM_FILE_SAVEAS :

SaveBitmapFile();

break;

case IDM_FILE_PRINT :

PrintBitmap();

break;

case IDM_FILE_EXIT :

Page

462

OpenGL Super Bible!

DestroyWindow(SceneWindow);

break;

case IDM_WINDOW_TERRAIN :

/*

* Toggle the terrain dialog window on and off…

*/

if (GetMenuState(GetMenu(SceneWindow), IDM_WINDOW_TERRAIN,

MF_BYCOMMAND) & MF_CHECKED)

{

CheckMenuItem(GetM enu(SceneWindow), IDM_WINDOW_TERRAIN,

MF_BYCOMMAND | MF_UNCHECKED);

ShowWindow(TerrainWindow, SW_HIDE);

}

else

{

CheckMenuItem(GetMenu(SceneWindow), IDM _WINDOW_TERRAIN,

MF_BYCOMMAND | MF_CHECKED);

ShowWindow(TerrainWindow, SW_SHOW);

};

break;

};

break;

case WM_QUIT :

case WM_CLOSE :

/*

* Destroy the windows and bitmaps and exit…

*/

DestroyWindow(SceneWindow);

DestroyWindow(TerrainWindow);

DeleteObject(GrassDownBitmap);

DeleteObject(GrassSelectBitmap);

DeleteObject(GrassUpBitmap);

DeleteObject(WaterDownBitmap);

DeleteObject(WaterSelectBitmap);

DeleteObject(WaterUpBitmap);

DeleteObject(RocksDownBitmap);

DeleteObject(RocksSelectBitmap);

DeleteObject(RocksUpBitmap);

DeleteObject(TreesDownBitmap) ;

DeleteObject(TreesSelectBitmap);

DeleteObject(TreesUpBitmap);

DeleteObject(MountainsDownBitmap);

DeleteObject(MountainsSelectBitmap);

DeleteObject(MountainsUpBitmap);

exit(0);

break;

case WM_DESTROY :

/*

OpenGL Super Bible!

* Release and free the device context, rendering

* context, and color palette…

*/

if (SceneRC)

wglDeleteContext(SceneRC);

if (SceneDC)

ReleaseDC(SceneWindow, SceneDC);

if (ScenePalette)

DeleteObject(ScenePalette);

PostQuitMessage(0);

break;

case WM_QUERYNEWPALETTE :

/*

* Realize the color palette if necessary…

*/

if (ScenePalette)

{

SelectPalette(SceneDC, ScenePalette, FALSE);

RealizePalette(SceneDC);

InvalidateRect(hWnd, NULL, FALSE);

return (TRUE);

};

break;

case WM_PALETTECHANGED:

/*

* Reselect our color palette if neces sary…

*/

if (ScenePalette && (HWND)wParam != hWnd)

{

SelectPalette(SceneDC, ScenePalette, FALSE);

RealizePalette(SceneDC);

UpdateColors(SceneDC);

};

break;

case WM_LBUTTONDOWN :

/*

* The left mouse button just was pressed. If we have

* the terrain dialog window open, then this signifies

* the beginning of drawing.

*

* Otherwise, set the 'Moving’ flag to true to indicate

* flying.

*/

Page

463

Page

464

OpenGL Super Bible!

SetCapture(SceneWindow);

if (IsWindowVisible(TerrainWindow))

{

DrawTerrain(LOWORD(lParam), HIWORD(lParam));

Drawing = GL_TRUE;

}

else

{

GetCursorPos(&CenterMouse XY);

Moving = GL_TRUE;

MoveTime = GetClock();

};

break;

case WM_MOUSEMOVE :

/*

* The mouse pointer moved. If we are in the process of

* drawing some terrain, do it.

*

* Otherwise, ignore the message because we fly from the

* main loop.

*/

if (Drawing)

DrawTerrain(LOWORD(lParam), HIWORD(lParam));

break;

case WM_LBUTTONUP :

/*

* The user released the left mouse butt on. Stop drawing

* or flying…

*/

Moving = GL_FALSE;

Drawing = GL_FALSE;

ReleaseCapture();

InvalidateRect(SceneWindow, NULL, TRUE);

break;

default :

/*

* Pass all other messages through the default window

* procedure…

*/

return (DefWindowProc(hWnd, uMsg, wParam, lParam));

};

return (FALSE);

}

/*

* 'TerrainDlgProc()' - Process messages in the terrain dialog window.

OpenGL Super Bible!

*/

UINT CALLBACK

TerrainDlgProc(HWND hWnd, /* I - Source window */

UINT uMsg, /* I - Message type */

WPARAM wParam, /* I - 'word' parameter value */

LPARAM lParam) /* I - 'long' parameter value */

{

HDC hdc; / * Drawing context for buttons */

LPDRAWITEMSTRUCT lpdis; /* Button state info */

UINT idCtl; /* Button ID */

switch (uMsg)

{

case WM_DRAWITEM :

/*

* Windows wants us to draw a button. Figure out which

* button it is, and display as necessary…

*/

idCtl = (UINT)wParam;

lpdis = (LPDRAWITEMSTRUCT)lParam;

hdc = CreateCompatibleDC(lpdis ->hDC);

switch (idCtl)

{

case IDC_WATER :

if (lpdis->itemState & ODS_SELECTED)

SelectObject(hdc, WaterDownBitmap);

else if (TerrainCurrent == IDC_WATER)

SelectObject(hdc, WaterSelectBitmap);

else

SelectObject(hdc, WaterUpBitm ap);

break;

case IDC_GRASS :

if (lpdis ->itemState & ODS_SELECTED)

SelectObject(hdc, GrassDownBitmap);

else if (TerrainCurrent == IDC_GRASS)

SelectObject(hdc, GrassSelectBit map);

else

SelectObject(hdc, GrassUpBitmap);

break;

case IDC_TREES :

if (lpdis ->itemState & ODS_SELECTED)

SelectObject(hdc, TreesDownBitmap);

else if (Terrain Current == IDC_TREES)

SelectObject(hdc, TreesSelectBitmap);

else

SelectObject(hdc, TreesUpBitmap);

break;

case IDC_ROCKS :

if (lpdis ->itemState & ODS_SELECTED)

SelectObject(hdc, RocksDownBitmap);

else if (TerrainCurrent == IDC_ROCKS)

SelectObject(hdc, RocksSelectBitmap);

Page

465

Page

466

OpenGL Super Bible!

else

SelectObject(hdc, RocksUpBitmap);

break;

case IDC_M OUNTAINS :

if (lpdis ->itemState & ODS_SELECTED)

SelectObject(hdc, MountainsDownBitmap);

else if (TerrainCurrent == IDC_MOUNTAINS)

SelectObject(hdc, MountainsSelectBitmap);

else

SelectObject(hdc, MountainsUpBitmap);

break;

};

/*

* Stretch the bitmap to fit the button area…

*/

StretchBlt(lpdis ->hDC, lpdis->rcItem.left,

lpdis ->rcItem.top, lpdis ->rcItem.right,

lpdis ->rcItem.bottom,

hdc, 0, 0, 24, 24, SRCCOPY);

DeleteDC(hdc);

break;

case WM_CLOSE :

/*

* Close the window (hide it) and turn the check mark off

* in the main menu.

*/

ShowWindow(TerrainWindow, SW_HIDE);

CheckMenuItem(GetMenu(SceneWindow), IDM_WINDOW_TERRAIN,

MF_BYCOMMAND | MF_UNCHECKED);

break;

case WM_COMMAND :

/*

* A button was selecte d - choose the new current terrain

* type.

*/

switch (LOWORD(wParam))

{

case IDC_GRASS :

case IDC_TREES :

case IDC_ROCKS :

case IDC_WATER :

case IDC_MOUNTAINS :

TerrainCurrent = LOWORD(wParam);

InvalidateRect(TerrainWindow, NULL, TRUE);

UpdateWindow(TerrainWindow);

return (TRUE);

};

break;

OpenGL Super Bible! Page

467

};

return (FALSE);

}

/*

* 'LoadAllBitmaps()’ - Load bitmap images for the terrain control buttons.

*/ void

LoadAllBitmaps(HINSTANCE hInstance) /* I - Process instance */

{

GrassDownBitmap = LoadBitmap((HANDLE)hInstance,

MAKEINTRESOURCE(IDB_GRASS_DOWN));

GrassSelectBitmap = LoadBitmap((HANDLE)hInstance,

MAKEINTRESOURCE(IDB_GRASS_SELECT));

GrassUpBitmap = LoadBitmap((HANDLE)hInstance,

MAKEINTRESOURCE(IDB_GRASS_UP));

WaterDownBitmap = LoadBitm ap((HANDLE)hInstance,

MAKEINTRESOURCE(IDB_WATER_DOWN));

WaterSelectBitmap = LoadBitmap((HANDLE)hInstance,

MAKEINTRESOURCE(IDB_WATER_SELECT));

WaterUpBitmap = LoadBitmap((HANDLE)hInsta nce,

MAKEINTRESOURCE(IDB_WATER_UP));

RocksDownBitmap = LoadBitmap((HANDLE)hInstance,

MAKEINTRESOURCE(IDB_ROCKS_DOWN));

RocksSelectBitmap = LoadBitmap((HANDLE)hInstance,

MAKEINTRESOURCE(IDB_ROCKS_SELECT));

RocksUpBitmap = LoadBitmap((HANDLE)hInstance,

MAKEINTRESOURCE(IDB_ROCKS_UP));

TreesDownBitmap = LoadBitmap((HANDLE)hInstance,

MAKEINTRESOURCE(IDB_TREES_DOWN));

TreesSelectBitmap = LoadBitmap((HANDLE)hInstance,

MAKEINTRESOURCE(IDB_TREES_SELECT));

TreesUpBitmap = LoadBitmap((HANDLE)hInstance,

MAKEINTRESOURC E(IDB_TREES_UP));

MountainsDownBitmap = LoadBitmap((HANDLE)hInstance,

MAKEINTRESOURCE(IDB_MOUNTAINS_DOWN));

MountainsSelectBitmap = LoadBitmap((HANDLE)hInstance,

MAKEINTRESOUR CE(IDB_MOUNTAINS_

SELECT));

MountainsUpBitmap = LoadBitmap((HANDLE)hInstance,

MAKEINTRESOURCE(IDB_MOUNTAINS_UP));

}

/*

* 'LoadAllTextures()’ - Load texture images for the sce ne.

*/ void

Page

468

OpenGL Super Bible!

LoadAllTextures(void)

{

glNewList(SkyTexture = glGenLists(1), GL_COMPILE);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);

TextureLoadBitmap('textures/s ky.bmp’);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);

glEndList();

glNewList(RocksTexture = glGenLists(1), GL_COMPILE);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);

glTexParameteri(GL_TEXTURE_2D, GL_T EXTURE_WRAP_T, GL_REPEAT);

TextureLoadMipmap('textures/rock.bmp’);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST_

MIPMAP_LINEAR);

glEndList();

glNewList(GrassTexture = glGenLists(1), GL_COMPILE);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);

TextureLoadMipmap('textures/grass.bmp’);

glTexParameteri(GL_TEXTURE_2 D, GL_TEXTURE_MAG_FILTER, GL_NEAREST);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST_

MIPMAP_LINEAR);

glEndList();

glNewList(WaterTexture = glGenLists(1), GL_COMPILE);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL _REPEAT);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);

TextureLoadMipmap('textures/water.bmp’);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEA REST_

MIPMAP_LINEAR);

glEndList();

glNewList(TreesTexture = glGenLists(1), GL_COMPILE);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);

TextureLoadMipmap('text ures/trees.bmp’);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST_

MIPMAP_LINEAR);

glEndList();

glNewList(MountainsTexture = glGenLists(1), GL_COMPILE);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);

TextureLoadMipmap('textures/mountain.bmp’);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST_

MIPMAP_LINEAR);

glEndList();

}

OpenGL Super Bible!

/*

* 'UpdateNormals()’ - Update the lighting normals for the

* terrain…

*/ void

UpdateNormals(void)

{

int x, y; /* Terrain (x,y) location */

GLfloat (*n)[3], /* Current terrain normal */

nx, ny, nz, /* Normal components */

d, /* Normal magnitude */

*height; /* Current terrain heig ht */

/*

* Loop through the terrain arrays and regenerate the

* lighting normals based on the terrain height.

*/

n = TerrainNormal[0];

height = TerrainHeight[0];

for (y = 0; y < (TERRAIN_SIZE - 1); y ++, n ++, height ++)

{

for (x = 0; x < (TERRAIN_SIZE - 1); x ++, n ++, height ++)

{

/*

* Compute the cross product of the vectors above and to

* the right (simplified for this special case).

*/

nx = height[0] - height[1];

ny = -1.0;

nz = height[0] - height[TERRAIN_SIZE];

d = -sqrt(nx * nx + ny * ny + nz * nz);

n[0][0] = nx / d; /* Normalize the normal vector */

n[0][1] = ny / d;

n[0][2] = nz / d;

};

/*

* Compute the cross product of the vectors above an d to

* the left (simplified for this special case) for the last

* column in the grid.

*/

nx = height[0] - height[-1];

ny = -1.0;

nz = height[0] - height[TERRAIN_SIZE];

d = -sqrt(nx * nx + ny * ny + nz * nz);

n[0][0] = nx / d; /* Normalize the normal vector */

Page

469

Page

470

OpenGL Super Bible!

n[0][1] = ny / d;

n[0][2] = nz / d;

};

/*

* Set the top row of normals to be the same as the second -to-

* last row of normals.

*/

for (x = 0; x < TERRAIN_SIZE; x ++, n ++)

{

n[0][0] = n[-TERRAIN_SIZE][0];

n[0][1] = n[-TERRAIN_SIZE][1];

n[0][2] = n[-TERRAIN_SIZE][2];

};

}

/*

* 'InitializeTerrain()’ - Initialize the terrain arrays…

*/ void

InitializeTerrain(void)

{

int x, y; /* Terrain (x,y) location */

/*

* Fill the terrain array with grass…

*/

TerrainCurrent = IDC_WATER;

for (y = 0; y < TERRAIN_SIZE; y ++)

for (x = 0; x < TERRAIN_SIZE; x ++)

{

TerrainType[y][x] = IDC_GRASS;

TerrainHeight[y][x] = GRASS_HEIGHT + 0.1 * (rand() % 5);

};

/*

* Update the lighting normals…

*/

UpdateNormals();

}

/*

* 'draw_cell()’ - Draw (fill-in) a single terrain cell…

*/ void draw_cell(int x, /* I - Terrain X location */

int y) /* I - Terrain Y location */

{

/*

OpenGL Super Bible! Page

* Range check the terrain location…

*/

if (x < 0 || x >= TERRAIN_SIZE ||

y < 0 || y >= TERRAIN_SIZE)

return;

if (TerrainType[y][x] == TerrainCurrent)

return; /* Already the right type */

TerrainType[y][x] = TerrainCurrent;

/*

* Force a redraw…

*/

InvalidateRect(SceneWindow, NULL, TRUE);

/*

* Set the height of the terrain 'cell’. For water, the

* height is constant at WATER_HEIGHT. For other types,

* we add a random pertubation to make the terrain more

* interesting/realistic.

*/

switch (TerrainCurrent)

{

case IDC_WATER :

TerrainHeight[y][x] = WATER_HEIGHT;

break;

case IDC_GRASS :

TerrainHeight[y][x] = GRASS_HEIGHT + 0.1 * (rand() % 5);

break;

case IDC_TREES :

TerrainHeight[y][x] = TREES_HEIGHT + 0.1 * (rand() % 5);

break;

case IDC_ROCKS :

TerrainHeight[y][x] = ROCKS_HEIGHT + 0.1 * (rand() % 5);

break;

case IDC_MOUNTAINS :

TerrainHeight[y][x] = MOUNTAINS_HEIGHT + 0.15 * (rand() % 5);

break;

};

}

/*

* 'DrawTerrain()’ - Draw a terrain cell at the given mouse

* position.

*/ void

DrawTerrain(int mousex, /* I - Horizontal mouse position */

int mousey) /* I - Vertical mouse position */

{

int i, /* Looping var */

471

Page

472

OpenGL Super Bible!

count, /* Selection count */

x, y; /* Terrain (x,y) location */

GLfloat *height; /* Current height */

GLuint buffer [100]; /* Selection buffer */

GLint viewport[4]; /* OpenGL viewport */

/*

* Get the current OpenGL viewport and make the vertical

* mouse position start from the bottom of the viewport.

*/

glGetIntegerv(GL_VIEWPORT, viewport);

mousey = viewport[3] - 1 - mousey;

/*

* Begin selection into a 100 'hit’ buffer…

*

* Allow picks within 4 pixels of the current mouse position.

*/

glSelectBuffer(100, buffer);

glRenderMode(GL_SELECT);

glInitNames();

glMatrixMode(GL_PROJEC TION);

glLoadIdentity();

gluPickMatrix((GLdouble)mousex, (GLdouble)mousey, 4.0, 4.0,

viewport);

gluPerspective(45.0, (float)viewport[2] / (float)viewport[3],

0.1, 1000.0);

glMatrixMode(GL_MODELVIEW);

glPushMatrix();

/*

* Rotate/translate for the current viewing position and

* orientation.

*/

glRotatef(Roll, 0.0, 0.0, 1.0);

glRotatef(Pitch, -1.0, 0.0, 0.0);

glRotatef(Heading, 0.0, 1.0, 0.0);

glTranslatef( -Position[0],

-Position[1],

-Position[2]);

glScalef(TERRAIN_SCALE, TERRAIN_SCALE, TERRAIN_SCALE);

/*

* Draw the terrain into the selection buffer. This is

* done differently than the RepaintWindow() function does

* so that we can select individual cells rather than whole

* strips of one type.

*

* The select buffer has names pushed on the stack for both

* the X and Y locations in the terrain…

*/

OpenGL Super Bible!

height = TerrainHeight[0];

glPushName(0);

for (y = 0; y < (TERRAIN_SIZE - 1); y ++, height ++)

{

glLoadName(y);

glPushName(0);

for (x = 0; x < (TERRAIN_SIZE - 1); x ++, height ++)

{

glLoadName(x);

glBegin(GL_POLYGON);

glVertex3f((GLfloat)(x - TERRAIN_EDGE),

height[0],

(GLfloat)(y - TERRAIN_EDGE));

glVertex3f((GLfloat)(x - TERRAIN_EDGE),

height[TERRAIN_SIZE],

(GLfloat)(y - TERRAIN_EDGE + 1));

glVertex3f((G Lfloat)(x - TERRAIN_EDGE + 1),

height[1],

(GLfloat)(y - TERRAIN_EDGE));

glVertex3f((GLfloat)(x - TERRAIN_EDGE + 1),

height[TERRAIN_SIZE + 1],

(GLfloat)(y - TERRAIN_EDGE + 1));

glEnd();

};

glPopName();

};

glPopName();

glPopMatrix();

glFinish();

/*

* Get the 'hits’ in the selection buffer…

*/

count = glRenderMode(GL_RENDER);

for (i = 0; i < count; i += 3)

{

if (buffer[i] == 0)

continue;

/*

* Each 'hit’ will contain the following parameters:

*

* 0 - count (2)

* 1 - Z minimum value

* 2 - Z maximum value

* 3 - Y location in terrain

* 4 - X location in terrain

*/

x = buffer[i + 4];

y = buffer[i + 3];

Page

473

Page

474

OpenGL Super Bible!

i += buffer[i];

/*

* Fill-in the 4 corners of the selected cell…

*/

draw_cell(x, y);

draw_cell(x + 1, y);

draw_cell(x, y + 1);

draw_cell(x + 1, y + 1);

/*

* Update lighting normals for t he terrain.

*/

UpdateNormals();

};

}

/*

* 'FlyTerrain()’ - Fly using the given mouse position.

*/ void

FlyTerrain(int mousex, /* I - Horizontal mouse position */

int mousey) /* I - Vertical mouse position */

{

RECT rect; /* Current client rectangle */

GLfloat movex, movey; /* Scale mouse movement */

double curtime, /* Current time in seconds */

distance; /* Distance to move */

GLfloat cheading, /* Cosine of heading */

sheading, /* Sine of heading */

cpitch, /* Cosine of pitch */

spitch; /* Sine of pitch */

/*

* Get the current system time to figure out how far to move.

*/

curtime = GetClock();

distance = 10.0 * (curtime - MoveTime);

MoveTime = curtime;

/*

* See how far the mouse pointer is from the 'center’ (click)

* position.

*/

movex = 0.05 * (mousex - CenterMouseXY.x);

movey = 0.05 * (mousey - CenterMouseXY.y);

/*

* Adjust roll, pitch, and heading according to the current

* mouse inputs and orientation.

OpenGL Super Bible!

*/

Roll += movex;

Pitch += movey * cos(Roll * M_PI / 180.0);

Heading += movey * sin(Roll * M_PI / 180.0);

if (Heading < 0.0 )

Heading += 360.0;

else if (Heading >= 360.0)

Heading -= 360.0;

if (Pitch < -180.0)

Pitch += 360.0;

else if (Pitch >= 180.0)

Pitch -= 360.0;

if (Roll < -180.0)

Roll += 360.0;

else if (Roll >= 180.0)

Roll -= 360.0;

/*

* Move based upon the current orientation…

*/

cheading = cos(Heading * M_PI / 180.0);

sheading = sin(Heading * M_PI / 180.0);

cpitch = cos(Pitch * M_PI / 180.0);

spitch = sin(Pitch * M_PI / 180.0);

Position[0] += distance * sheading * c pitch;

Position[2] -= distance * cheading * cpitch;

Position[1] += distance * spitch;

/*

* Redraw the window using the new position and orientation…

*/

GetClientRect(SceneWindow, &rect);

RepaintWindow(&rect);

}

/*

* 'RepaintWindow()’ - Redraw the client area with our scene.

*/ void

RepaintWindow(RECT *rect) /* I - Client area rectangle */

{

int i; /* Looping var */

int x, y; /* Terrain (x,y) location */

int last_type; /* Previous terra in type */

int *type; /* Current terrain type */

GLfloat *height, /* Current terrain height */

(*n)[3]; /* Current terrain normal */

Page

475

Page

476

OpenGL Super Bible!

static GLfloat sky_top[4][3] =

{ /* Sky coordin ates */

{ -TERRAIN_EDGE, TERRAIN_SIZE * 0.8, -TERRAIN_EDGE },

{ TERRAIN_EDGE, TERRAIN_SIZE * 0.8, -TERRAIN_EDGE },

{ TERRAIN_EDGE, TERRAIN_SIZE * 0.8, TERRAIN_EDGE },

{ -TERRAIN_EDGE, TERRAIN_SIZE * 0.8, TERRAIN_EDGE }

};

static GLfloat sky_bottom[4][3] =

{

{ -TERRAIN_EDGE, 0.0, -TERRAIN_EDGE },

{ TERRAIN_EDGE, 0.0, -TERRAIN_EDGE },

{ TERRAIN_EDGE, 0.0, TERRAIN_EDGE },

{ -TERRAIN_EDGE, 0.0, TERRAIN_EDGE }

};

static GLfloat sunpos[4] = { 0.0, 1.0 , 0.0, 0.0 };

static GLfloat suncolor[4] = { 64.0, 64.0, 64.0, 1.0 };

static GLfloat sunambient[4] = { 0.001, 0.001, 0.001, 1.0 };

/*

* Reset the viewport and clear the window to light blue…

*/

glViewport(0, 0, rect ->right, rect->bottom);

glClearColor(0.5, 0.5, 1.0, 1.0);

glEnable(GL_DEPTH_TEST);

if (Moving || Drawing)

{

/*

* Don’t texture while flying or drawing; it’s too slow…

* Also, draw to the back buffer for smooth animation.

*/

glDisable(GL_TEXTURE_2D);

glDrawBuffer(GL_BACK);

}

else

{

/*

* Enable textures when we’ve stopped moving or drawing.

* This generates a nice scene that we can printout or

* save to a bitmap file…

*

* Because it takes longer, we dr aw to the front buffer

* so the user can see some progress…

*/

glEnable(GL_TEXTURE_2D);

glTexEnvi(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_DECAL);

glDrawBuffer(GL_FRONT);

};

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

OpenGL Super Bible!

/*

* Setup viewing transformations for the current position and

* orientation…

*/

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

gluPerspective(45.0, (float)rect ->right / (float)rect ->bottom,

0.1, 1000.0);

glMatrixMode(GL_MODE LVIEW);

glPushMatrix();

glRotatef(Roll, 0.0, 0.0, 1.0);

glRotatef(Pitch, -1.0, 0.0, 0.0);

glRotatef(Heading, 0.0, 1.0, 0.0);

glTranslatef( -Position[0],

-Position[1],

-Position[2]);

glScalef(TERRAIN_SC ALE, TERRAIN_SCALE, TERRAIN_SCALE);

if (!(Moving || Drawing))

{

/*

* Draw the sky…

*/

glDisable(GL_LIGHTING);

glCallList(SkyTexture);

glBegin(GL_QUAD_STRIP);

for (i = 0; i < 4; i ++)

{

glTexCoord2f((float)i, 0.0);

glVertex3fv(sky_bottom[i]);

glTexCoord2f((float)i, 0.8);

glVertex3fv(sky_top[i]);

};

glTexCoord2f(4.0, 0.0);

glVertex3fv(sky_bottom[0]);

glTexCoord2f(4.0, 0.8);

glVertex3fv(sky_top[0]);

glEnd();

glBegin(GL_TRIANGLE_FAN);

glTexCoord2f(0.5, 1.0);

glVertex3f(0.0, TERRAIN_SIZE, 0.0);

for (i = 0; i < 4; i ++)

{

glTexCoord2f((float)i, 0.8);

glVertex 3fv(sky_top[i]);

};

Page

477

Page

478

OpenGL Super Bible!

glTexCoord2f(4.0, 0.8);

glVertex3fv(sky_top[0]);

glEnd();

};

/*

* Setup lighting…

*/

glEnable(GL_LIGHTING);

glLightModeli(GL_LIGHT_MODEL_TWO_SIDE, GL_TRUE);

glEnable(GL_LIGHT0 );

glLightfv(GL_LIGHT0, GL_POSITION, sunpos);

glLightfv(GL_LIGHT0, GL_DIFFUSE, suncolor);

glLightfv(GL_LIGHT0, GL_AMBIENT, sunambient);

if (Moving || Drawing)

glEnable(GL_COLOR_MATERIAL);

else

glDisable(GL_COLOR_MATERIAL);

/*

* Then the terrain…

*/

type = TerrainType[0];

height = TerrainHeight[0];

n = TerrainNormal[0];

for (y = 0; y < (TERRAIN_SIZE - 1); y ++)

{

last_type = -1;

for (x = 0; x < TERRAIN_SIZE; x ++, type ++, height ++, n ++)

{

if (last_type != *type)

{

/*

* If the type of terrain changes, end any existing

* strip of quads and reset color/texture parameters…

*/

if (last_type != -1)

glEnd();

switch (*type)

{

case IDC_WATER :

if (Moving || Drawing)

glColor3f(0.0, 0.0, 0.5);

else

glCallList(WaterTexture);

break;

case IDC_GRASS :

OpenGL Super Bible!

if (Moving || Drawing)

glColor3f(0.0, 0.5, 0.0);

else

glCallList(GrassTexture);

break;

case IDC_ROCKS :

if (Moving || Drawing)

glColor3f(0.25, 0.25, 0.25);

else

glCallList(RocksTexture);

break;

case IDC_TREES :

if (Moving || Drawing)

glColor3f(0.0, 0.25, 0.0);

else

glCallList(TreesTexture);

break;

case IDC_MOUNTAINS :

if (Moving || Drawing)

glColor3f(0.2, 0.1, 0.05);

else

glCallList(MountainsTexture);

break;

};

glBegin(GL_QUAD_STRIP);

if (last_type != -1)

{

/*

* Start from the previous location to prevent

* holes…

*/

glTexCoord2i(x * 2 - 2, y * 2);

glNormal3fv(n[ -1]);

glVertex3f((GLfloat)(x - TERRAIN_EDGE - 1),

height[ -1],

(GLfloat)(y - TERRAIN_EDGE));

glTexCoord2i(x * 2 - 2, y * 2 + 2);

glNormal3fv(n[TERRAIN_SIZE - 1]);

glVertex3f((GLfloat)(x - TERRAIN_EDGE - 1),

height[TERRAIN_SIZE - 1],

(GLfloat)(y - TERRAIN_EDGE + 1));

};

last_type = *type;

};

glTexCoord2i(x * 2, y * 2);

glNormal3fv(n[0]);

glVertex3f((GLfloat)(x - TERRAIN_EDGE),

height[0],

(GLfloat)(y - TERRAIN_EDGE));

glTexCoord2i(x * 2, y * 2 + 2);

glNormal3fv(n[ TERRAIN_SIZE]);

glVertex3f((GLfloat)(x - TERRAIN_EDGE),

Page

479

Page

480

OpenGL Super Bible!

height[TERRAIN_SIZE],

(GLfloat)(y - TERRAIN_EDGE + 1));

};

glEnd();

};

glPopMatrix();

/*

* While we fly or draw we’re double -buffering. Swap buffers

* as necessary…

*/

glFinish();

if (Moving || Drawing)

SwapBuffers(SceneDC);

}

/*

* 'SaveBitmapFile()’ - Save the currently displayed scene to disk.

*/ void

SaveBitmapFile(void)

{

char title[256], /* Title of file * /

filename[256], /* Name of file */

directory[256]; /* Current directory */

OPENFILENAME ofn; /* Filename dialog structure */

void *bits; /* Screen bitmap bits */

BITMAPINFO * info; /* Screen bitmap info */

/*

* Grab the screen bitmap…

*/

bits = ReadDIBitmap(&info);

if (bits == NULL)

{

DisplayErrorMessage('Unable to get OpenGL bitmap from screen!’);

return;

};

/*

* Pop up a filename dialog…

*/

strcpy(directory, '.’);

strcpy(filename, 'untitled.bmp’);

strcpy(title, '');

memset(&ofn, 0, sizeof(ofn));

ofn.lStructSize = sizeof(ofn);

ofn.hwndOwner = SceneWindow;

OpenGL Super Bible! Page

ofn.lpstrFilter = 'Bitmaps \0*.BMP\0\0’;

ofn.nFilterIndex = 1;

ofn.lpstrFile = filename;

ofn.nMaxFile = sizeof(filename) - 1;

ofn.lpstrFileTitle = title;

ofn.nMaxFileTitle = sizeof(title) - 1;

ofn.lpstrInitialDir = directory;

ofn.lpstrTitle = 'Save Bitmap File’;

ofn.Flags = OFN_HIDEREADONLY | OFN_PATHMUSTEXIST |

OFN_NONETWORKBUTTON;

if (GetSaveFileName(&ofn))

{

/*

* Save the named bitmap to disk…

*/

if (SaveDIBitmap(filename, info, bits))

DisplayErro rMessage('Could not save to file \’%s\’ -\n%s’,

filename, strerror(errno));

};

/*

* Free memory and return…

*/

free(info);

free(bits);

}

/*

* 'PrintBitmap()’ - Print the currently displayed scene.

*/ void

PrintBitmap(void)

{

void *bits; /* Screen bitmap bits */

BITMAPINFO *info; /* Screen bitmap info */

/*

* Grab the screen bitmap…

*/

bits = ReadDIBitmap(&info);

if (bits == NULL)

{

DisplayErrorMessage('Unable to get O penGL bitmap from screen!’);

return;

};

/*

* Print the bitmap…

*/

481

Page

482

OpenGL Super Bible!

PrintDIBitmap(SceneWindow, info, bits);

/*

* Free memory and return…

*/

free(info);

free(bits);

}

/*

* 'GetClock()’ - Return an increasing clock time in milliseco nds…

*/ double

GetClock(void)

{

SYSTEMTIME curtime; /* Current system time */

GetSystemTime(&curtime);

return (curtime.wHour * 3600.0 +

curtime.wMinute * 60.0 +

curtime.wSecond +

curtime.wMilliseconds * 0.00 1);

}

OpenGL Super Bible! Page

483

Reference Section glTexCoord

Purpose

Specifies the current texture image coordinate for textured polygon rendering.

Include File

<GL/gl.h>

Syntax void glTexCoord1{dfis}(TYPE s); void glTexCoord1{dfis}v(TYPE *s); void glTexCoord2{dfis}(TYPE s, TYPE t); void glTexCoord2{dfis}v(TYPE *st); void glTexCoord3{dfis}(TYPE s, TYPE t, TYPE r); void glTexCoord3{dfis}v(TYPE *stq); void glTexCoord4{dfis}(TYPE s, TYPE t, TYPE r, TYPE q); void glTexCoord4{dfis}v(TYPE *strq);

Description

These functions set the current texture image coordinate in 1–4 dimensions. For example, the s and t parameters correspond to the horizontal and vertical image coordinates of a 2D texture image.

Parameters

s

The horizontal texture image coordinate.

t

The vertical texture image coordinate.

r

The texture image depth coordinate.

q

The texture image “time” coordinate.

Returns

None.

Example

See the example in CH12\TEXSCENE.C on the source code CD-ROM.

See Also glTexEnv, glTexGen, glTexImage1D, glTexImage2D, glTexParameter

Page

484

OpenGL Super Bible!

glTexEnv

Purpose

Sets texturing parameters.

Include File

<GL/gl.h>

Syntax void glTexEnvf(GLenum target, GLenum pname, GLfloat param); void glTexEnvfv(GLenum target, GLenum pname, GLfloat *param); void glTexEnvi(GLenum target, GLenum pname, GLint param); void glTexEnviv(GLenum target, GLenum pname, GLint *param);

Description

The glTexEnv functions set texture-mapping parameters that control how texture images are mapped to polygons. The GL_DECAL texturing mode uses a texture image directly to draw polygon. GL_BLEND and GL_MODULATE texture modes use the GL_TEXTURE_ENV_COLOR color and the current framebuffer to determine what pixels are textured.

Parameters

target

GLenum: The texture environment to define; must be GL_TEXTURE_ENV.

pname

GLenum: The parameter name to define. Valid names are as follows:

GL_TEXTURE_ENV_MODE Specifies the type of texturing to do.

GL_TEXTURE_ENV_COLOR Specifies the color to use for blending.

param

The parameter value. For GL_TEXTURE_ENV_COLOR, param is a pointer to an

RGBA color value. For GL_TEXTURE_ENV_MODE, it can be one of the following constants:

GL_DECAL Texture images are directly mapped to the framebuffer.

GL_BLEND Texture images are blended with a constant color

(GL_TEXTURE_ENV_ COLOR) before being mapped to the framebuffer.

GL_MODULATE Texture images are multiplied with the framebuffer before being mapped to it.

Returns

None.

Example

See the example in CH12\TEXSCENE.C on the source code CD-ROM.

See Also glTexCoord, glTexGen, glTexImage1D, glTexImage2D, glTexParameter

OpenGL Super Bible! Page

485

glTexGen

Purpose Defines parameters for texture coordinate generation.

Include File

<GL/gl.h>

Syntax void glTexGend(GLenum coord, GLenum pname, GLdouble param); void glTexGenf(GLenum coord, GLenum pname, GLfloat param); void glTexGeni(GLenum coord, GLenum pname, GLint param); void glTexGendv(GLenum coord, GLenum pname, GLdouble *param); void glTexGenfv(GLenum coord, GLenum pname, GLfloat *param); void glTexGeniv(GLenum coord, GLenum pname, GLint *param);

Description

This function sets parameters for texture coordinate generation when one or more of

GL_TEXTURE_GEN_S, GL_TEXTURE_GEN_T, GL_TEXTURE_GEN_R, or

GL_TEXTURE_GEN_Q is enabled with glEnable.

When GL_TEXTURE_GEN_MODE is set to GL_OBJECT_LINEAR, texture coordinates are generated by multiplying the current object (vertex) coordinates by the constant vector specified by GL_OBJECT_PLANE:

coordinate = v[0] * p[0] + v[1] * p[1] + v[2] * p[2] + v[3] * p[3]

For GL_EYE_LINEAR, the eye coordinates (object coordinate multiplied through the GL_MODELVIEWmatrix) are used.

When GL_TEXTURE_GEN_MODE is set to GL_SPHERE_MAP, coordinates are generated in a sphere about the current viewing position or origin.

Parameters

coord

GLenum: The texture coordinate to map. Must be one of GL_S, GL_T, GL_R, or

GL_Q.

pname

GLenum: The parameter to set. Must be one of GL_TEXTURE_GEN_MODE,

param

GL_OBJECT_PLANE, or GL_EYE_PLANE.

The parameter value. For GL_TEXTURE_GEN_MODE, param is one of the following:

GL_OBJECT_LINEAR Texture coordinates are calculated from object

(vertex) coordinates.

GL_EYE_LINEAR

GL_SPHERE_MAP

Texture coordinates are calculated by eye coordinates (object coordinates multiplied through the GL_MODELVIEW matrix).

Texture coordinates are generated in a sphere around the viewing position.

Page

486

OpenGL Super Bible!

For GL_OBJECT_PLANE and GL_EYE_PLANE, param is a 4-element array that is used as a multiplier for object or eye coordinates.

Returns

None.

Example

See the example in CH12\TEXSCEN2.C on the source code CD-ROM.

See Also glTexCoord, glTexEnv, glTexImage1D, glTexImage2D, glTexParameter

OpenGL Super Bible! Page

487

glTexImage1D

Purpose

Defines a one-dimensional texture image.

Include File

<GL/gl.h>

Syntax void glTexImage1D(GLenum target, GLint level, Glint components, GLsizei width,

GLint border GLenum format, GLenum type, const GLvoid *pixels);

Description

This function defines a one-dimensional texture image. The image data is subject to modes defined with glPixelMap, glPixelStore, and glPixelTransfer.

Parameters

target

GLenum: Must be GL_TEXTURE_1D.

level

GLint: The level of detail. Usually 0 unless mipmapping is used.

components

GLint: The number of color components, from 1 to 4.

width

GLsizei: The width of the texture image. This must be a power of 2 or follow the formula 2 n

+ 2*border.

border

GLint: The width of the border. Must be 0, 1, or 2.

format

GLenum: The format of the pixel data. Valid formats are as follows:

GL_COLOR_INDEX Pixel values are color indices.

GL_RED

GL_GREEN

Pixel values are red intensities.

Pixel values are green intensities.

GL_BLUE

GL_ALPHA

GL_RGB

Pixel values are blue intensities.

Pixel values are alpha intensities.

Pixel values are RGB colors.

GL_RGBA Pixel values are RGBA colors.

GL_LUMINANCE Pixel values are grayscale colors.

GL_ALPHA_LUMINANCE Pixel values are alpha and grayscale colors.

type

GLenum: The data type of each pixel value (see glDrawPixels).

pixels

GLvoid *: The pixel data.

Page

488

OpenGL Super Bible!

Returns

None.

Known Bugs

The GL_PACK_ALIGNMENT and GL_UNPACK_ALIGNMENT parameters for glPixelStore are presently ignored.

Example

See the example in CH12\TEX1D.C on the source code CD-ROM.

See Also glPixelMap, glPixelStore, glPixelTransfer, glTexImage2D

OpenGL Super Bible! Page

489

glTexImage2D

Purpose

Defines a two-dimensional texture image.

Include File

<GL/gl.h>

Syntax void glTexImage2D(GLenum target, GLint level, Glint components, GLsizei width,

GLsizei height, GLint border GLenum format, GLenum type, const GLvoid *pixels);

Description

This function defines a two-dimensional texture image. The image data is subject to modes defined with glPixelMap, glPixelStore, and glPixelTransfer.

Parameters

target

GLenum: Must be GL_TEXTURE_2D.

level

GLint: The level of detail. Usually 0 unless mipmapping is used.

components

GLint: The number of color components, from 1 to 4.

width

GLsizei: The width of the texture image. This must be a power of 2 or follow the formula 2 n

+ 2*border.

height

border

GLsizei: The height of the texture image. This must be a power of two or follow the m formula 2 +2*border.

GLint: The width of the border. Must be 0, 1, or 2.

format

GLenum: The format of the pixel data. Valid formats are as follows:

GL_COLOR_INDEX Pixel values are color indices.

GL_RED

GL_GREEN

Pixel values are red intensities.

Pixel values are green intensities.

GL_BLUE

GL_ALPHA

Pixel values are blue intensities.

Pixel values are alpha intensities.

GL_RGB

GL_RGBA

GL_LUMINANCE

Pixel values are RGB colors.

Pixel values are RGBA colors.

Pixel values are grayscale colors.

type

GL_ALPHA_LUMINANCE Pixel values are alpha and grayscale colors.

Page

490

OpenGL Super Bible!

GLenum: The data type of each pixel value (see glDrawPixels).

pixels

GLvoid *: The pixel data.

Returns

None.

Known Bugs

The GL_PACK_ALIGNMENT and GL_UNPACK_ALIGNMENT parameters for glPixelStore are presently ignored.

Example

See the example in CH12\TEX2D.C on the source code CD-ROM.

See Also glPixelMap, glPixelStore, glPixelTransfer, glTexImage1D

OpenGL Super Bible! Page

491

glTexParameter

Purpose

Sets texture image parameters.

Include File

<GL/gl.h>

Syntax void glTexParameterf(GLenum target, GLenum pname, GLfloat param); void glTexParameterfv(GLenum target, GLenum pname, GLfloat *param); void glTexParameteri(GLenum target, GLenum pname, GLint param); void glTexParameteriv(GLenum target, GLenum pname, GLint *param);

Description

This function sets filter and repetition parameters for texture images.

Parameters

target

pname

GLenum: Must be one of GL_TEXTURE_1D or GL_TEXTURE_2D.

GLenum: The texturing parameter to set. Valid names are:

Parameter Description

GL_TEXTURE_MIN_FILTER

GL_TEXTURE_MAX_FILTER

GL_TEXTURE_WRAP_S

Specifies the texture image minification

(reduction) method or filter.

Specifies the texture image magnification (enlargement) method or filter.

Specifies handling of texture S coordinates outside the range of 0.0 to

1.0.

GL_TEXTURE_WRAP_T Specifies handling of texture T coordinates outside the range of 0.0 to

1.0.

GL_BORDER_COLOR Specifies a border color for textures without borders.

param

For GL_TEXTURE_MIN_FILTER, param is one of the following:

For GL_TEXTURE_MAX_FILTER, param is either GL_NEAREST or

GL_LINEAR.GL_TEXTURE_WRAP_S and GL_TEXTURE_WRAP_T can be set to GL_REPEAT or GL_CLAMP. GL_REPEAT causes the texture image to be repeated over the polygon. GL_CLAMP uses the specified border pixels or a constant border color (see below) on areas that fall outside of the 0.0–1.0 texture coordinate range.

Page

492

OpenGL Super Bible!

For GL_BORDER_COLOR, param is an RGBA color array that is used as a constant border color when a texture image has no border pixels defined.

Returns

None.

Example

See the example in CH12\TEXSCENE.C on the source code CD-ROM.

See Also glTexCoord, glTexEnv, glTexGen, glTexImage1D, glTexImage2D

OpenGL Super Bible! Page

493

Chapter 13

Quadrics: Spheres, Cylinders, and Disks

What you’ll learn in this chapter:

How to… Functions You’ll Use

Create quadrics to draw simple geometric shapes gluNewQuadric

Control the quality of drawn shapes

Draw the shapes using different OpenGL primitives gluQuadricDrawStyle

Use lighting and texturing with quadrics gluQuadricNormals/gluQuadricTexture

We can hear you asking: “What the heck are quadrics?” Well, quadrics are a part of the

OpenGL Utility Library (GLU32.LIB) that supports the drawing of simple threedimensional geometric shapes. In particular, functions are provided to draw cones, cylinders, disks, and spheres. In this chapter we’ll explore the practical uses of these quadric functions in your programs.

Creating a Quadric

Every quadric you draw on the screen has a state (or collection of settings) associated with it. The gluNewQuadric function creates an opaque state variable that describes the current drawing style, orientation, lighting mode, texturing mode, and callback functions, as follows:

GLUquadricObj *obj; obj = gluNewQuadric();

Note that a quadric state does not include the geometric shape to be drawn. Instead, it describes how to draw geometric shapes. This allows you to reuse quadrics for many different kinds of shapes.

Changing the Way Quadrics Are Drawn

Once you have created a quadric, you can customize the drawing of shapes by changing the quadric state. The GLU functions for this are gluQuadricDrawStyle, gluQuadricNormals, gluQuadricOrientation, and gluQuadricTexture.

Page

494

OpenGL Super Bible!

void gluQuadricDrawStyle(GLUquadricObj *obj, GLenum drawStyle) void gluQuadricNormals(GLUquadricObj *obj, GLenum normals) void gluQuadricOrientation(GLUquadricObj *obj, GLenum orientation) void gluQuadricTexture(GLUquadricObj *obj, GLboolean textureCoords)

The gluQuadricDrawStyle function selects the type of OpenGL drawing primitives that are used to draw the shape. The default style is to fill shapes using polygon and strip primitives

(GLU_FILL). Table 13-1 shows the possible styles.

Table 13-1 Quadric Drawing Styles

Style

GLU_FILL

GLU_LINE

GLU_SILHOUETTE

Description

Quadrics are drawn filled in, using polygon and strip primitives.

Quadrics are drawn “wireframe,” using line primitives.

Quadrics are drawn using line primitives; only the outside edges are drawn.

Quadrics are drawn using point primitives. GLU_POINT

Lighting normals are usually generated automatically for quadrics. The gluQuadricNormals function controls calculation of normals. Table 13-2 lists the possible lighting calculations.

Table 13-2 Quadric Lighting Normal Modes

Normal Mode

GLU_NONE

GLU_FLAT

GLU_SMOOTH

Description

No lighting normals are generated.

Lighting normals are generated for each polygon to create a faceted appearance.

Lighting normals are generated for each vertex to create a smooth appearance.

OpenGL Super Bible! Page

495

To control the direction of lighting normals, the gluQuadricOrientation function is provided to make normals point outwards (GLU_OUTSIDE) or inwards (GLU_INSIDE). This has particular application with spheres (if you are inside or outside the sphere).

Finally, texture coordinates can be generated automatically for your quadrics. The gluQuadricTexture function enables (GL_TRUE) or disables (GL_FALSE) texture coordinate generation. We’ll cover exactly how texture coordinates are chosen as we start drawing quadrics on the screen.

As you may remember, texture coordinates are used for texture mapping images onto polygons (see Chapter 12).

Drawing Cylinders

Cylinders are drawn using gluCylinder. A cylinder drawn with this function is essentially a tube that runs along the z-axis (see Figure 13-1). The ends of the cylinder are never filled in!

Figure 13-1 Quadric cylinders void gluCylinder(GLUquadricObj *obj,

GLdouble baseRadius,

GLdouble topRadius,

GLdouble h eight,

GLint slices,

GLint stacks)

The baseRadius and topRadius arguments specifiy the radius of the cylinder at the bottom and top of the cylinder. The height argument specifies the actual height (or length) of the tube.

Page

496

OpenGL Super Bible!

The slices and stacks arguments control how many subdivisions (sides) are generated around and along the cylinder. Generally, you will make slices a number around 20 to give the cylinder a smooth appearance. Values below this will yield a faceted appearance; values greater than 20 may cause display jitter. When you utilize spotlighting or a lot of specular highlights, you will also want the stacks argument set high, usually the same as the height argument. Otherwise, set stacks to 2 to cover the top and bottom of the cylinder.

Cylinders can also be employed for the generation of faceted surfaces, such as a pencil or a tool socket.

Drawing Cones

While the OpenGL Utility Library does not include a special cone-drawing function, the gluCylinder function can be used to make cones simply by specifying a topRadius or bottomRadius of 0.0.

Texturing and Cylinders

When texturing a gluCylinder shape, textures are wrapped from the forward edge

(0,radius,0) of the cylinder. This means your texture images should be upside-down to display properly on the cylinder. We’ll use textures with cylinders in the pencil project in this chapter.

Drawing Disks

Disks are round, flat shapes that may contain holes. Examples of disks include coins and washers. void gluDisk(GLUquadricOb j *obj,

GLdouble innerRadius,

GLdouble outerRadius,

GLint slices,

GLint loops)

The innerRadius and outerRadius arguments control the size of the hole and disk, respectively. If the innerRadius argument is 0.0, the disk is drawn as a solid circle (see

Figure 13-2).

OpenGL Super Bible! Page

497

Figure 13-2 Quadric disks

The slices argument sets the number of sides the disk has and generally should be a number around 20 to make the disk look round. The loops argument controls the number of concentric rings that are drawn for the disk (between the inner and outer radii); this usually should be set to 1 for circles and 2 for washers. As is true for cylinders, using larger values for loops will improve specular lighting and spotlight effects.

Disks and Textures

Texture images for disks are mapped so that the texture image just touches the cylinder at the edges. The top of the texture image is mapped to the top of the disk, the left side to the left side of the disk, and so forth.

Drawing Partial Disks

The OpenGL Utility Library also provides a function to display partial disks. When drawing a partial disk, you specify a start angle and sweep angle for the disk. The startAngle argument specifies a clockwise angle in degrees from the top of the disk. The sweepAngle argument specifies the number of degrees of arc to draw. For instance, 90º would be a quarter disk, and so forth. void gluPartialDisk(GLUquadricObj *obj,

GLdouble innerRadius,

GLdouble outerRadius,

GLint slices,

GLint loops,

GLdouble startAngle,

GLdouble sweepAngle)

Drawing Spheres

Spheres are hollow balls or globes. When you draw a sphere, you specify the radius of the sphere.

Page

498

OpenGL Super Bible!

void gluSphere(GLUquadricObj *obj,

GLdouble radius,

GLint slices,

GLint stacks)

If you think of the sphere as a globe, the slices argument represents the number of lines of longitude, and the stacks argument represents the number of lines of latitude (see Figure 13-

3).

Figure 13-3 A quadric sphere

Spheres and Textures

Texture images are mapped to spheres using longitude and latitude coordinates. A world map image would wrap perfectly around the sphere.

Drawing a Pencil

To close this chapter, we’ll write a little program that rotates an image of a pencil (see

Figure 13-4). The pencil consists of three cylinders and two texture images. The first texture image has the typical symbol for a #2 pencil, and the words “OpenGL Country Club” wrapped around the pencil. For the end and the sharpened point of the pencil, we’ll use a second image of wood with exposed lead (well, carbon).

OpenGL Super Bible! Page

499

Figure 13-4 Quadric pencil window

The point of the pencil, obviously, is a cone. The end of the pencil isn’t quite as obvious.

Since it’s flat, you might expect to use a disk for the end. Unfortunately, the result of the way texture images are applied to disks doesn’t look right with our texture image (see Figure

13-5). So instead, the end is made using a cylinder with a height and topRadius of 0.0.

Figure 13-5 Pencil and lead texture images

Since quadrics are drawn from (0, 0, 0), you have to translate the coordinates of the pieces prior to drawing them. For example, to draw the body of the pencil you would do this: glPushMatrix();

glTranslatef(0.0, 0.0, -20.0);

gluCylinder(PencilObj, 5.0, 5.0, 40.0, 6, 2);

Page

500

glPopMatrix();

OpenGL Super Bible!

In the pencil drawing program, Listing 13-1, the RepaintWindow function handles drawing everything. The first thing we display is the body of the pencil, which is a six-sided cylinder. gluQuadricNormals(PencilObj, GLU_FLAT); glCallList(PencilTexture); glPushMatrix();

glTranslatef(0.0, 0.0, -20.0);

gluCylinder(PencilObj, 5.0, 5.0, 40.0, 6, 2); glPopMatrix();

Next, we display the point and end of the pencil using the “lead” texture image. Again, we’ll use six-sided cylinders to do the work we need. gluQuadricNormals(PencilObj, GLU_SMOOTH); glCallList(LeadTexture); glPushMatrix();

glTranslatef(0.0, 0.0, 20.0);

gluCylinder(PencilOb j, 5.0, 0.0, 7.5, 6, 2); glPopMatrix(); glPushMatrix();

glTranslatef(0.0, 0.0, -20.0);

gluCylinder(PencilObj, 5.0, 0.0, 0.0, 6, 2); glPopMatrix();

Summary

In this chapter we’ve covered the quadric drawing functions. OpenGL quadrics are geometric shapes that form the basic “building blocks” of many objects, both manufactured and natural. Using the quadric drawing functions is a convenient and fast way to avoid writing a lot of extra code for drawing these shapes.

OpenGL Super Bible!

Now here’s Listing 13-1, the pencil program.

Page

501

Listing 13-1 The pencil drawing program

/*

* Include necessary headers.

*/

#include "texture.h"

#include "pencil.h"

#include <stdarg.h>

/*

* Globals…

*/

HWND PencilWindow; /* Scene window */

HPALETTE PencilPalette; /* Color p alette (if necessary) */

HDC PencilDC; /* Drawing context */

HGLRC PencilRC; /* OpenGL rendering context */

GLuint PencilTexture, /* Pencil texture image */

LeadTexture; /* Lead… */

GLfloat Pencil Roll = 0.0, /* Pencil orientation */

PencilPitch = 90.0,

PencilHeading = 0.0;

GLUquadricObj *PencilObj;

/*

* Local functions…

*/ void DisplayErrorMessage(char *, …); void MakePalette(int);

LRESULT CALLBACK PencilProc(HWND, UINT, WPARAM, LPARAM); void LoadAllTextures(void); void RepaintWindow(RECT *); void PrintBitmap(void);

/*

* 'WinMain()' - Main entry…

*/ int APIENTRY

WinMain(HINSTANCE hInst, /* I - Current process instance */

HINSTANCE hPrevInstance, /* I - Parent process instance */

LPSTR lpCmdLine, /* I - Command-line arguments */

int nCmdShow) /* I - Show window at startup? */

{

MSG msg; /* Window UI event */

WNDCLASS wc; /* Window class */

RECT rect; /* Current client area rectangle

*/

/*

* Register main window…

Page

502

OpenGL Super Bible!

*/

wc.style = 0;

wc.lpfnWndProc = (WNDPROC)PencilProc;

wc.cbClsExtra = 0;

wc.cbWndExtra = 0;

wc.hInstance = hInst;

wc.hIcon = NULL;

wc.hCursor = LoadCursor(NULL, IDC_ARROW);

wc.hbrBackground = 0;

wc.lpszMenuName = MAKEI NTRESOURCE(IDR_MENU1);

wc.lpszClassName = "Textured Quadric Pencil";

if (RegisterClass(&wc) == 0)

{

DisplayErrorMessage("Unable to register window class!");

return (FALSE);

};

/*

* Then create it…

*/

PencilWindow = CreateWindow("Te xtured Quadric Pencil", "Textured

Quadric Pencil", WS_OVERLAPPEDWINDOW

| WS_CLIPCHILDREN | WS_CLIPSIBLINGS,

32, 32, 400, 300,

NULL, NULL, hI nst, NULL);

if (PencilWindow == NULL)

{

DisplayErrorMessage("Unable to create window!");

return (FALSE);

};

ShowWindow(PencilWindow, nCmdShow);

UpdateWindow(PencilWindow);

/*

* Loop on events until the user quits this application…

*/

while (TRUE)

{

/*

* Process all messages in the queue…

*/

while (PeekMessage(&msg, NULL, 0, 0, PM_NOREMOVE) == TRUE)

if (GetMessage(&msg, NULL, 0, 0))

{

TranslateMessage(&msg);

DispatchMessage(&msg);

}

else

return (1);

OpenGL Super Bible! Page

503

/*

* Spin the pencil…

*/

PencilRoll += 1.0;

PencilPitch += 2.0;

PencilHeading += 3.0;

GetClientRect(PencilWindow, &rect);

RepaintWindow(&rect);

};

return (msg.wParam);

}

/*

* 'DisplayErrorMessage()' - Display an error message dialog.

*/ void

DisplayErrorMessage(char *format, /* I - printf() style format string */

…) /* I - Other arguments as necessary */

{

va_list ap; /* Argument pointer */

char s[1024]; /* Output string */

if (format == NULL)

return;

va_start(ap, format);

vsprintf(s, format, ap);

va_end(ap);

MessageBeep(MB_ICONEXCLAMATION);

MessageBox(NULL, s, "Error", MB_OK | M B_ICONEXCLAMATION);

}

/*

* 'MakePalette()' - Make a color palette for RGB colors if necessary.

*/ void

MakePalette(int pf) /* I - Pixel format ID */

{

PIXELFORMATDESCRIPTOR pfd; /* Pixel format information */

LOGPALETTE * pPal; /* Pointer to logical palette */

int nColors; /* Number of entries in palette */

int i, /* Color index */

rmax, /* Maximum red value */

gmax , /* Maximum green value */

bmax; /* Maximum blue value */

/*

* Find out if we need to define a color palette…

*/

Page

504

OpenGL Super Bible!

DescribePixelFormat(PencilDC, pf, sizeof(PIXELFORMATDESCRIPTOR), &pfd);

if (!(pfd.dwFlags & PFD_NEED_PALETTE))

{

PencilPalette = NULL;

return;

};

/*

* Allocate memory for a color palette…

*/

nColors = 1 << pfd.cColorBits;

pPal = (LOGPALETTE *)malloc(sizeof(LOGPALETTE) +

nColors * sizeof(PAL ETTEENTRY));

pPal->palVersion = 0x300;

pPal->palNumEntries = nColors;

/*

* Get the maximum values for red, green, and blue. Then build 'nColors'

* colors…

*/

rmax = (1 << pfd.cRedBits) - 1;

gmax = (1 << pfd.cGreenBits) - 1;

bmax = (1 << pfd.cBlueBits) - 1;

for (i = 0; i < nColors; i ++)

{

pPal->palPalEntry[i].peRed = 255 *

((i >> pfd.cRedShift) & rmax) /

rmax;

pPal->palPalEntry[i].peGreen = 255 *

((i >> pfd.cGreenShift) & gma x) /

gmax;

pPal->palPalEntry[i].peBlue = 255 *

((i >> pfd.cBlueShift) & bmax) /

bmax;

pPal->palPalEntry[i].peFlags = 0;

};

/*

* Create, select, and realize the palette…

*/

PencilPalette = CreatePalette(pPal);

SelectPalette(PencilDC, PencilPalette, FALSE);

RealizePalette(PencilDC);

free(pPal);

}

OpenGL Super Bible! Page

505

/*

* 'PencilProc()' - Handle window events in the viewing window.

*/

LRESULT CALLBACK

PencilProc(CHWND hWnd, /* I - Window triggering this event */

UINT uMsg, /* I - Message type */

WPARAM wParam, /* I - 'word' parameter value */

LPARAM lParam) /* I - 'long' parameter value */

{

int pf; /* Pixel format ID */

PIXELFORMATDESCRIPTOR p fd; /* Pixel format information */

PAINTSTRUCT ps; /* WM_PAINT message info */

RECT rect; /* Current client area rectangle */

switch (uMsg)

{

case WM_CREATE :

/*

* 'Create' message. Get device and rendering contexts, and

* setup the client area for OpenGL drawing…

*/

PencilDC = GetDC(hWnd);

pfd.nSize = sizeof(pfd);

pfd.nVersion = 1;

pfd.dwFlags = PFD_DRAW_TO_WINDOW | PFD_SUPPORT_OPENGL

| PFD_DOUBLEBUFFER;

/* Do OpenGL drawing */

pfd.dwLayerMask = PFD_MAIN_PLANE; /* Main drawing plane */

pfd.iPixelType = PFD_TYPE_RGBA; / * RGB color buffer */

pfd.cColorBits = 0; /* Best color buffer

please*/

pfd.cDepthBits = 32; /* Need a depth buffer */

pfd.cStencilBits = 0; /* No stencil buffer */

pfd.cAccumBits = 0; /* No accumulation buffer

*/

pf = ChoosePixelFormat(PencilDC, &pfd);

if (pf == 0)

DisplayErrorMessage("texscene was unable to choose a suita ble

pixel format!");

else if (!SetPixelFormat(PencilDC, pf, &pfd))

DisplayErrorMessage("texscene was unable to set the pixel

format!");

MakePalette(pf);

PencilRC = wglCreateContext(Pencil DC);

wglMakeCurrent(PencilDC, PencilRC);

/*

* Load all the texture images into display lists…

*/

Page

506

OpenGL Super Bible!

LoadAllTextures();

PencilObj = gluNewQuadric();

gluQuadricTexture(PencilObj, GL_TRUE);

break; case WM_SIZE : case WM_PAINT :

/*

* Repaint the client area with our bitmap…

*/

BeginPaint(hWnd, &ps);

GetClientRect(hWnd, &rect);

RepaintWindow(&rect);

EndPaint(hWnd, &ps);

break;

case WM_COMMAND :

/*

* Handle menu selections…

*/

switch (LOWORD(wParam))

{

case IDM_FILE_PRINT :

PrintBitmap();

break;

case IDM_FILE_EXIT :

Destroy Window(PencilWindow);

break;

};

break;

case WM_QUIT :

case WM_CLOSE :

/*

* Destroy the windows and bitmaps and exit…

*/

DestroyWindow(PencilWindow);

exit(0);

break; case WM_DESTROY :

/*

* Release and free the device context, rendering

* context, and color palette…

*/

if (PencilRC)

wglDeleteContext(PencilRC);

if (PencilDC)

OpenGL Super Bible!

ReleaseDC(PencilWindow, Penci lDC);

if (PencilPalette)

DeleteObject(PencilPalette);

PostQuitMessage(0);

break;

case WM_QUERYNEWPALETTE :

/*

* Realize the color palette if necessary…

*/

if (PencilPalette)

{

SelectPalette(PencilDC, PencilPalette, FALSE);

RealizePalette(PencilDC);

InvalidateRect(hWnd, NULL, FALSE);

return (TRUE);

};

break;

case WM_PALETTECHANGED:

/*

* Reselect our col or palette if necessary…

*/

if (PencilPalette && (HWND)wParam != hWnd)

{

SelectPalette(PencilDC, PencilPalette, FALSE);

RealizePalette(PencilDC);

UpdateColors(PencilDC);

};

break; default :

/*

* Pass all other messages through the default window

* procedure…

*/

return (DefWindowProc(hWnd, uMsg, wParam, lParam));

};

return (FALSE);

}

/*

* 'LoadAllTextures()' - Load texture images for the sc ene.

*/ void

LoadAllTextures(void)

Page

507

Page

508

OpenGL Super Bible!

{

glNewList(PencilTexture = glGenLists(1), GL_COMPILE);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);

TextureLoadBitmap("textur es/pencil.bmp");

glEndList();

glNewList(LeadTexture = glGenLists(1), GL_COMPILE);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);

TextureLoadBitmap("textures/lead. bmp");

glEndList();

}

/*

* 'RepaintWindow()' - Redraw the client area with our pencil.

*/ void

RepaintWindow(RECT *rect) /* I - Client area rectangle */

{

/*

* Reset the viewport and clear the window to light blue…

*/

glViewport(0, 0, rect ->right, rect->bottom);

glClearColor(0.7, 0.7, 1.0, 1.0);

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

/*

* Setup viewing transformations for the current position and

* orientation…

*/

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

gluPerspective(45.0, (float)rect ->right / (float)rect ->bottom,

0.1, 1000.0);

glEnable(GL_LIGHTING);

glEnable(GL_LIGHT0);

glEnable(GL_DEPTH_TEST);

glEnable(GL_TEXTURE_2D);

glTexEnvi(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_DECAL) ;

glMatrixMode(GL_MODELVIEW);

glPushMatrix();

glTranslatef(0.0, 0.0, -80.0);

glRotatef(PencilHeading, 0.0, -1.0, 0.0);

glRotatef(PencilPitch, 1.0, 0.0, 0.0);

glRotatef(PencilRoll, 0.0, 0.0, -1.0);

/*

* First the pencil body - this uses a 6-sided cylinder…

*/

OpenGL Super Bible! Page

509

gluQuadricNormals(PencilObj, GLU_FLAT);

glCallList(PencilTexture);

glPushMatrix();

glTranslatef(0.0, 0.0, -20.0);

gluCylinder(PencilObj, 5.0, 5.0, 40.0, 6, 2);

glPopMatrix();

/*

* Then the ends - a cone at the tip and a flat cone at the base…

*/

gluQuadricNormals(PencilObj, GLU_SMOOTH);

glCallList(LeadTexture);

glPushMatrix();

glTranslatef(0.0, 0.0, 20.0);

gluCylinder(PencilObj, 5.0, 0.0, 7.5, 6, 2);

glPopMatrix();

glPushMatrix();

glTranslatef(0.0, 0.0, -20.0);

/*

* Normally we might use a disk shape for this, but unfortunately the

texture

* coordinates don't match up…

*/

gluCylinder(PencilObj, 5.0, 0.0, 0.0, 6, 2);

glPopMatrix();

glPopMatrix();

/*

* Swap buffers and return…

*/

glFinish();

SwapBuffers(PencilDC);

}

/*

* 'PrintBitmap()' - Print the currently displayed scene.

*/ void

PrintBitmap(void)

{

void *bits; /* Screen bitmap bits */

BITMAPINFO *info; /* Screen bitmap info */

/*

* Grab the screen bitmap…

*/

Page

510

OpenGL Super Bible!

bits = ReadDIBitmap(&info);

if (bits == NULL)

{

DisplayErrorMessage("Unable to get OpenGL bitmap from screen!");

return;

};

/*

* Print the bitmap…

*/

PrintDIBitmap(PencilWindow, info, bits);

/*

* Free memory and return…

*/

free(info);

free(bits);

}

OpenGL Super Bible! Page

511

Reference Section gluCylinder

Purpose

Draws a quadric cylinder.

Include File

<GL/glu.h>

Syntax void gluCylinder(GLUquadricObj *obj, GLdouble baseRadius, GLdouble topRadius,

GLdouble height, GLint slices, GLint stacks);

Description

This function draws a hollow cylinder with no ends along the z-axis. If topRadius or bottomRadius is 0, a cone is drawn instead. The cylinder is projected height units along the positive z-axis. The slices argument controls the number of sides along the cylinder. The stacks argument controls the number of segments along the z-axis

(across the cylinder) that are generated.

Parameters

obj

GLUquadricObj *: The quadric state information to use for rendering.

baseRadius

GLdouble: The radius of the base (Z=0) of the cylinder.

topRadius

GLdouble: The radius of the top (Z=height) of the cylinder.

height

GLdouble: The height or length of the cylinder along the z-axis.

slices

GLint: The number of sides on the cylinder.

stacks

GLint: The number of segments in the cylinder along the z-axis.

Returns

None.

Example

See the example in CH13\PENCIL.C.

See Also gluDeleteQuadric, gluNewQuadric, gluQuadricCallback, gluQuadricDrawStyle, gluQuadricNormals, gluQuadricOrientation, gluQuadricTexture

Page

512

OpenGL Super Bible!

gluDeleteQuadric

Purpose

Deletes a quadric state object.

Include File

<GL/glu.h>

Syntax void gluDeleteQuadric(GLUquadricObj *obj);

Description

This function deletes a quadric state object. Once an object has been deleted it cannot be used for drawing again.

Parameters

obj

GLUquadricObj *: The quadric state object to delete.

Returns

None.

See Also gluNewQuadric, gluQuadricCallback, gluQuadricDrawStyle, gluQuadricNormals, gluQuadricOrientation, gluQuadricTexture

OpenGL Super Bible! Page

513

gluDisk

Purpose

Draws a quadric disk.

Include File

<GL/glu.h>

Syntax void gluDisk(GLUquadricObj *obj, GLdouble innerRadius, GLdouble outerRadius,

GLint slices, GLint loops);

Description

This function draws a disk perpendicular to the z-axis. If innerRadius is 0, a solid

(filled) circle is drawn instead of a washer. The slices argument controls the number of sides on the disk. The loops argument controls the number of rings generated out from the z-axis.

Parameters

obj

GLUquadricObj *: The quadric state information to use for rendering.

innerRadius

GLdouble: The inside radius of the disk.

outerRadius

GLdouble: The outside radius of the disk.

slices

GLint: The number of sides on the cylinder.

loops

GLint: The number of rings out from the z-axis.

Returns

None.

See Also gluDeleteQuadric, gluNewQuadric, gluQuadricCallback, gluQuadricDrawStyle, gluQuadricNormals, gluQuadricOrientation, gluQuadricTexture

Page

514

OpenGL Super Bible!

gluNewQuadric

Purpose

Creates a new quadric state object.

Include File

<GL/glu.h>

Syntax

GLUquadricObj *gluNewQuadric(void);

Description

This function creates a new opaque quadric state object to be used for drawing. The quadric state object contains specifications that determine how subsequent images will be drawn.

Parameters

None.

Returns

GLUquadricObj *: NULL if no memory is available; otherwise, a valid quadric state object pointer.

Example

See the example in CH13\PENCIL.C.

See Also gluDeleteQuadric, gluQuadricCallback, gluQuadricDrawStyle, gluQuadricNormals, gluQuadricOrientation, gluQuadricTexture

OpenGL Super Bible! Page

515

gluPartialDisk

Purpose

Draws a partial quadric disk.

Include File

<GL/glu.h>

Syntax void gluPartialDisk(GLUquadricObj *obj, GLdouble innerRadius, GLdouble outerRadius, GLint slices, GLint loops, GLdouble startAngle, GLdouble sweepAngle);

Description

This function draws a partial disk perpendicular to the z-axis. If innerRadius is 0, a solid (filled) circle is drawn instead of a washer. The slices argument controls the number of sides on the disk. The loops argument controls the number of rings out from the z-axis that are generated. The startAngle argument specifies the starting angle of the disk with 0º at the top of the disk and 90º at the right of the disk. The sweepAngle argument specifies the portion of the disk in degrees.

Parameters

obj

GLUquadricObj *: The quadric state information to use for rendering.

innerRadius

GLdouble: The inside radius of the disk.

outerRadius

GLdouble: The outside radius of the disk.

slices

GLint: The number of sides on the cylinder.

loops

GLint: The number of rings out from the z-axis.

startAngle

GLdouble: The start angle of the partial disk.

sweepAngle

GLdouble: The angular size of the partial disk.

Returns

None.

See Also gluDeleteQuadric, gluNewQuadric, gluQuadricCallback, gluQuadricDrawStyle, gluQuadricNormals, gluQuadricOrientation, gluQuadricTexture

Page

516

OpenGL Super Bible!

gluQuadricCallback

Purpose

Defines a quadric callback function.

Include File

<GL/glu.h>

Syntax void gluQuadricCallback(GLUquadricObj *obj, GLenum which, void (*fn)());

Description

This function defines callback functions to be used when drawing quadric shapes. At present, the only defined callback function is GLU_ERROR, which is called whenever an OpenGL or GLU error occurs.

Parameters

obj

which

GLUquadricObj *: The quadric state information to use for rendering.

GLenum: The callback function to define. Must be GLU_ERROR.

fn void (*)(): The callback function (receives one GLenum containing the error).

Returns

None.

See Also gluDeleteQuadric, gluNewQuadric, gluQuadricDrawStyle, gluQuadricNormals, gluQuadricOrientation, gluQuadricTexture

OpenGL Super Bible! Page

517

gluQuadricDrawStyle

Purpose

Sets the drawing style of a quadric state object.

Include File

<GL/glu.h>

Syntax void gluQuadricDrawStyle(GLUquadricObj *obj, GLenum drawStyle);

Description

This function selects a drawing style for all quadric shapes.

Parameters

obj

GLUquadricObj *: The quadric state information to use for rendering.

drawStyle

GLenum: The drawing style. Valid styles are as follows:

GLU_FILL Quadrics are drawn filled, using polygon and strip primitives.

GLU_LINE Quadrics are drawn “wireframe,” using line primitives.

GLU_SILHOUETTE Quadrics are drawn using line primitives; only the outside edges are drawn.

GLU_POINT Quadrics are drawn using point primitives.

Returns

None.

See Also gluDeleteQuadric, gluNewQuadric, gluQuadricCallback, gluQuadricNormals, gluQuadricOrientation, gluQuadricTexture

Page

518

OpenGL Super Bible!

gluQuadricNormals

Purpose

Sets the type of lighting normals used for quadric objects.

Include File

<GL/glu.h>

Syntax void gluQuadricNormals(GLUquadricObj *obj, GLenum normals);

Description

This function sets the type of lighting normals that are generated when drawing shapes using the specified quadric state object.

Parameters

obj

GLUquadricObj *: The quadric state information to use for rendering.

normals

GLenum: The type of normals to generate. Valid types are as follows:

GLU_NONE No lighting normals are generated.

GLU_FLAT Lighting normals are generated for each polygon to generate a faceted appearance.

GLU_SMOOTH Lighting normals are generated for each vertex to generate a smooth appearance.

Returns

None.

Example

See the example in CH13\PENCIL.C.

See Also gluDeleteQuadric, gluNewQuadric, gluQuadricCallback, gluQuadricDrawStyle, gluQuadricOrientation, gluQuadricTexture

OpenGL Super Bible! Page

519

gluQuadricOrientation

Purpose

Sets the orientation of lighting normals for quadric objects.

Include File

<GL/glu.h>

Syntax void gluQuadricOrientation(GLUquadricObj *obj, GLenum orientation);

Description

This function sets the direction of lighting normals for hollow objects. The orientation parameter may be GLU_OUTSIDE to point lighting normals outward, or

GLU_INSIDE to point them inward.

Parameters

obj

GLUquadricObj *: The quadric state information to use for rendering.

orientation

GLenum: The orientation of lighting normals, GLU_OUTSIDE or GLU_INSIDE.

The default is GLU_OUTSIDE.

Returns

None.

See Also gluDeleteQuadric, gluNewQuadric, gluQuadricCallback, gluQuadricDrawStyle, gluQuadricNormals, gluQuadricTexture

Page

520

OpenGL Super Bible!

gluQuadricTexture

Purpose

Enables or disables texture coordinate generation for texture-mapping images onto quadrics.

Include File

<GL/glu.h>

Syntax void gluQuadricTexture(GLUquadricObj *obj, GLboolean textureCoords);

Description

This function controls whether or not texture coordinates are generated for quadric shapes.

Parameters

obj

GLUquadricObj *: The quadric state information to use for rendering.

textureCoords

GLboolean: GL_TRUE if texture coordinates should be generated; GL_FALSE otherwise.

Returns

None.

See Also gluDeleteQuadric, gluNewQuadric, gluQuadricCallback, gluQuadricDrawStyle, gluQuadricNormals, gluQuadricOrientation

OpenGL Super Bible! Page

521

gluSphere

Purpose

Draws a quadric sphere.

Include File

<GL/glu.h>

Syntax void gluSphere(GLUquadricObj *obj, GLdouble radius, GLint slices, GLint stacks);

Description

This function draws a hollow sphere centered at the origin. The slices argument controls the number of lines of longitude on the sphere. The stacks argument controls the number of lines of latitude on the sphere.

Parameters

obj

radius

GLUquadricObj *: The quadric state information to use for rendering.

GLdouble: The radius of the sphere.

slices

stacks

GLint: The number of lines of longitude on the sphere.

GLint: The number of lines of latitude on the sphere.

Returns

None.

See Also gluDeleteQuadric, gluNewQuadric, gluQuadricCallback, gluQuadricDrawStyle, gluQuadricNormals, gluQuadricOrientation, gluQuadricTexture

Page

522

OpenGL Super Bible!

Part III

Advanced Topics and Special Effects

If you’ve been reading this book from front to back as a tutorial, you are now quite well grounded in the use of OpenGL for a variety of purposes. In the third part of this book, we are going to cover a few remaining topics that will enhance your knowledge and understanding of OpenGL. We will also be covering some special effects and capabilities of the API that may take a little more time to digest than the previous material.

First, we visit the OpenGL State Machine in Chapter 14. Until now we have taken this for granted and covered some of the variables only when they have been relevant to our discussion. Now a look at the entire concept and how to take advantage of it is in order.

Then a more complete discussion of the OpenGL buffers (Chapter 15) will be in order.

Many scenes and objects can benefit by some of the visual fine-tuning that is afforded by the techniques presented in Chapter 16. Here you will see how to soften or sharpen images, and how to create some spectacular effects made possible with translucence.

Complex surface generation can be a real headache. Chapter 17 will give you some highlevel tools that can make these surfaces easier to create. Useful techniques for breaking down your polygons into smaller ones are shown in Chapter 18, and in Chapter 19 you’ll learn how to interact with your scenes and objects using the OpenGL features of selection and feedback.

Finally, we will end our coverage of the API with a closer look at just one use for OpenGL.

You’ll see how Virtual Reality over the Internet has its roots in an OpenGL C++ class library called Open Inventor.

OpenGL Super Bible!

Chapter 14

The OpenGL State Machine

What you’ll learn in this chapter:

How to…

Enable and disable rendering options

Query the state of rendering options

Save and restore some or all of the current state

Page

523

Functions You’ll Use

glEnable/glDisable glIsEnabled/glGetInteger/glGetFloat/glGetDouble glPushAttrib/glPopAttrib

The rendering state is one of the things that make OpenGL so fast and efficient at drawing

3D graphics. This state is grouped logically into different categories such as color, lighting, texturing, and so forth. Each rendering context (HRC) that you create has its own rendering state specific to a window or off-screen bitmap.

Unlike most of the other chapters, this chapter does not contain any complete example programs. Rather, you will find these state functions used in examples for every other chapter in the book.

Basic OpenGL State Functions

OpenGL’s two functions that enable and disable rendering features are called, appropriately enough, glEnable and glDisable. You pass these functions a single enumerated constant, such as GL_DEPTH_TEST, as follows: glEnable(GL_DEPTH_TEST); /* Enable depth buffer testing */ glDisable(GL_DEPTH_TEST); /* Disable depth buffer testing */

You can retrieve the current state using glIsEnabled, glIsDisabled, and glGetBooleanv, as in the following:

GLboolean state;

/*

* GL_TRUE if depth testing is enabled…

*/ state = glIsEnabled(GL_DEPTH_TEST);

/*

* GL_TRUE if depth testing is disabled…

*/

Page

524

OpenGL Super Bible!

state = glIsDisabled(GL_DEPTH_TEST);

/*

* Returns Boolean state value; GL_TRUE if depth testing is enabled…

*/ glGetBooleanv(GL_DEPTH_TEST, &state);

Most OpenGL state variables are Boolean values, on or off. Some, like the current viewport, are an array of integers, or an array of floating point numbers for the current RGBA color.

To address these types of state values, OpenGL adds glGetDoublev, glGetFloatv, and glGetInteger:

GLint istate[4];

GLfloat fstate[4];

GLdouble dstate[3]; glGetIntegerv(GL_VIEWPORT, istate); glGetFloatv(GL_CURRENT_COLOR, fstate); glGetDoublev(GL_CURRENT_NORMAL, dstate);

You’ll learn more about the various state variables further into the chapter.

Saving and Restoring States

Just as OpenGL maintains a stack of Projection, Modelview, and Texture matrices, it has a stack for the current rendering state. Unlike the matrix stack, the state stack gives you much more control over exactly what you save (push) or restore (pop) from the stack; see Figure

14-1.

Figure 14-1 OpenGL attribute stack

OpenGL Super Bible! Page

525

The OpenGL functions to save and restore rendering state attributes are glPushAttrib and glPopAttrib. The glPushAttrib function works a lot like glPushMatrix, except that you can select the state values to put on the stack! To save all of the current rendering state, you would call glPushAttrib(GL_ALL_ATTRIB_BITS);

Usually, however, you’re only interested in saving a specific set of information, such as the current color, line width, and so forth. OpenGL defines many constants for specific types of information (see Table 14-1). For example: glPushAttrib(GL_CURRENT_BIT); /* Save current drawing color, etc */ glPushAttrib(GL_LIGHTING_BIT); /* Save curr ent lighting settings */ glPushAttrib(GL_TEXTURING_BIT); /* Save current texturing settings */

Table 14-1 glPushAttrib attribute bits

Attribute Bit

GL_ACCUM_BUFFER_BIT

GL_COLOR_BUFFER_BIT

GL_CURRENT_BIT

GL_ENABLE_BIT

Description

Accumulation buffer clear value.

Alpha test state, function, and values. Blending state, function, and values. GL_DITHER state. Current drawing buffer(s). Current logical operation state and function. Current RGBA/index clear color and write masks.

Current RGBA color or color index. Current lighting normal and texture coordinate. Current raster position,

GL_CURRENT_RASTER_POSITION_VALID, and

GL_EDGE_FLAG.

GL_DEPTH_BUFFER_BITGL_DEPTH_TEST state, depth buffer function, depth buffer clear value, and

GL_DEPTH_WRITEMASK state.

GL_ALPHA_TEST, GL_AUTO_NORMAL, and

GL_BLEND state. User-defined clipping plane state.

GL_COLOR_MATERIAL, GL_CULL_FACE,

GL_DEPTH_TEST, GL_DITHER, GL_FOG,

GL_LIGHTi, GL_LIGHTING, GL_LINE_SMOOTH,

GL_LINE_STIPPLE, GL_LOGIC_OP,

GL_MAP1_x, GL_MAP2_x, GL_NORMALIZE,

GL_POINT_SMOOTH, GL_POLYGON_SMOOTH,

GL_POLYGON_STIPPLE, GL_SCISSOR_TEST,

GL_STENCIL_TEST, GL_TEXTURE_1D,

Page

526

OpenGL Super Bible!

GL_EVAL_BIT

GL_FOG_BIT

GL_HINT_BIT

GL_LIGHTING_BIT

GL_LINE_BIT

GL_TEXTURE_2D, and GL_TEXTURE_GEN_x states.

GL_MAP1_x and GL_MAP2_x state, 1D and 2D grid endpoints and divisions, GL_AUTO_NORMAL state.

GL_FOG state, fog color, fog density, linear fog start, linear fog end, fog index, GL_FOG_MODE value.

GL_PERSPECTIVE_CORRECTION_HINT,

GL_POINT_SMOOTH_HINT,

GL_LINE_SMOOTH_HINT,

GL_POLYGON_SMOOTH_HINT, and

GL_FG_HINT state.

GL_COLOR_MATERIAL state.

GL_COLOR_MATERIAL_FACE value. Color material parameters that are tracking the ambient scene color.

GL_LIGHT_MODEL_LOCAL_VIEWER and

GL_LIGHT_MODEL_TWO_SIDE values.

GL_LIGHTING and GL_LIGHTx states. All light parameters. GL_SHADE_MODEL value.

GL_LINE_SMOOTH and GL_LINE_STIPPLE states. Line stipple pattern and repeat counter. Line width.

GL_LIST_BIT

GL_PIXEL_MODE_BIT

GL_LIST_BASE value.

GL_RED_BIAS, GL_RED_SCALE,

GL_GREEN_BIAS, GL_GREEN_SCALE,

GL_BLUE_BIAS, GL_BLUE_SCALE,

GL_ALPHA_BIAS, GL_ALPHA_SCALE,

GL_DEPTH_BIAS, GL_DEPTH_SCALE,

GL_INDEX_OFFSET, GL_INDEX_SHIFT,

GL_MAP_COLOR, GL_MAP_DEPTH,

GL_ZOOM_X, GL_ZOOM_Y, and

GL_READ_BUFFER settings.

GL_POINT_SMOOTH state, point size. GL_POINT_BIT

GL_POLYGON_BIT GL_CULL_FACE, GL_CULL_FACE_MODE,

GL_FRONT_FACE, GL_POLYGON_MODE,

GL_POLYGON_SMOOTH,

GL_POLYGON_STIPPLE.

GL_POLYGON_STIPPLE_BIT Polygon stipple image.

GL_SCISSOR_BIT

GL_STENCIL_BUFFER_BIT

GL_SCISSOR_TEST state, scissor box.

GL_STENCIL_TEST state. Stencil function and reference value. Stencil value mask. Stencil fail, pass,

GL_TEXTURE_BIT

GL_TRANSFORM_BIT

OpenGL Super Bible! Page

527

and depth buffer pass action. Stencil buffer clear value and writemask.

Enable bits for all texture coordinates. Border color for each texture image. Minification filter and magnification filter. Texture coordinates and wrap modes. Color and mode for each texture environment.

GL_TEXTURE_GEN_x,

GL_TEXTURE_GEN_MODE settings. glTexGen plane equations.

Coefficients of the six clipping planes, enable bits for the clipping planes, GL_MATRIX_MODE setting,

GL_NORMALIZE state.

Depth range, viewport origin, and extent. GL_VIEWPORT_BIT

Once you have done your rendering, you restore those state bits with glPopAttrib. This function accepts no arguments and restores only what was saved with the last glPushAttrib

Drawing States

OpenGL has a large number of states associated with drawing actions for the basic glBegin/glEnd primitives. Most are saved with a call to glPushAttrib(GL_CURRENT_BIT |

GL_LINE_BIT). See Table 14-2.

Table 14-2 Drawing state variables

State Variable

GL_ALPHA_TEST

GL_BLEND

GL_CLIP_PLANEx

GL_CULL_FACE

GL_DITHER

GL_LINE_SMOOTH

GL_LINE_STIPPLE

GL_LOGIC_OP

GL_POINT_SMOOTH

Description

Do alpha value testing.

Perform pixel blending operations.

Clip drawing operations outside the specified clipping

Cull back- or front-facing polygons.

Dither color values.

Anti-alias lines.

Apply a bit pattern to lines.

Do logical operations on pixels when drawing.

Anti-alias points.

Page

528

GL_POINT_SMOOTH

GL_POLYGON_SMOOTH

GL_POLYGON_STIPPLE

GL_SCISSOR_TEST

OpenGL Super Bible!

Anti-alias points.

Anti-alias polygons.

Apply a bit pattern to polygons.

Clip drawing outside the glScissor region.

Depth Buffer States

The most common mistake made by beginning OpenGL programmers is to forget to enable depth testing with glEnable(GL_DEPTH_TEST). Without depth testing, hidden surface removal is not performed using the depth buffer (see Chapter 15). Calling glPushAttrib with

GL_DEPTH_BUFFER_BIT takes care of saving the GL_DEPTH_TEST state.

Stencil Buffer States

The stencil buffer supports many special effects, including shadows. Like the depth buffer, however, the stencil buffer is very easy to control. Save stencil buffer state information with glPushAttrib(GL_STENCIL_BUFFER_BIT). which saves the current GL_STENCIL_TEST value.

Lighting States

Of all the OpenGL features, lighting has the most OpenGL state information. The state information for lighting includes the current lighting environment (model) settings for color and lighting mode; material definitions; the color, position, and direction of light; and other parameters. Moreover, OpenGL adds even more state information with automatic lighting normal generation.

Table 14-3 lists all the available variables. At the very minimum, you’ll need to call glEnable(GL_LIGHTING) and glEnable(GL_LIGHT0). To save the current lighting state, call glPushAttrib(GL_LIGHTING_BIT | GL_EVAL_BIT).

Table 14-3 Lighting State Variables

State Variable

GL_AUTO_NORMAL

GL_COLOR_MATERIAL

Description

Automatically generate lighting normals from glMap

Assign material colors from the current drawing

GL_LIGHTING

GL_LIGHTx

GL_MAP1_NORMAL

GL_MAP2_NORMAL

OpenGL Super Bible!

color.

Enable lighting calculations.

Enable lighx.

Enable mapping of lighting normals from 1D coordinates.

Enable mapping of lighting normals from 2D coordinates.

Normalize all lighting normals prior to doing calculations.

Page

529

GL_NORMALIZE

Texturing States

In terms of complexity, texturing in OpenGL is second only to lighting. Table 14-4 lists the available variables.

Table 14-4 Texturing State Variables

State Variable

GL_MAP1_TEXTURE_COORD_1

GL_MAP1_TEXTURE_COORD_2

GL_MAP1_TEXTURE_COORD_3

GL_MAP1_TEXTURE_COORD_4

GL_MAP2_TEXTURE_COORD_1

GL_MAP2_TEXTURE_COORD_2

Description

The s texture coordinate will be generated by

The s and t texture coordinates will be

The s, t, and r texture coordinates will be

The s, t, r, and q texture coordinates will be

The s texture coordinate will be generated by

The s and t texture coordinates will be

Page

530

OpenGL Super Bible!

GL_MAP2_TEXTURE_COORD_3

GL _MAP2_TEXTURE_COORD_4

GL_TEXTURE_1D

GL_TEXTURE_2D

GL_TEXTURE_GEN_Q

GL_TEXTURE_GER

GL_TE XTURE_ GEN_S glEvalMesh2, and glEvalCoord2.

The s, t, and r texture coordinates will be generated by calls to glEvalPoint2, glEvalMesh2, and glEvalCoord2.

The s, t, r, and q texture coordinates will be generated by calls to glEvalPoint2, glEvalMesh2, and glEvalCoord2.

Enable 1D texturing unless 2D texturing is enabled.

Enable 2D texturing.

Automatically generate the q texture coordinate from calls to glVertex.

Automatically generate the r texture coordinate from calls to glVertex.

Automatically generate the s texture coordinate from calls to glVertex.

Automatically generate the t texture coordinate from calls to glVertex.

GL_TEXTURE_GEN_T

To save the current texturing parameters, call glEnable with GL_TEXTURE_BIT and

GL_EVAL_BIT. When you’re enabling texturing, make sure to enable onlone of the texturing modes— either GL_TEXTURE_1D or GL_TEXTURE_2D. The OpenGL spec states that 2D texturing overrides 1D texturing, but some implementations do not comply with this.

Pixel States

Pixel transfer, storage, and mapping modes are probably the least understood and least optimized OpenGL features. Save them with a call to glPushAttrib(GL_PIXEL_BIT). There are no glEnable states for these modes.

OpenGL Super Bible! Page

531

Reference Section glDisable, glEnable

Purpose

Disables or enables an OpenGL feature.

Include File

<GL/gl.h>

Syntax void glDisable(GLenum feature); glEnable

Description glDisable disables an OpenGL drawing feature, and glEnable enables an OpenGL drawing feature.

Parameters

feature

GLenum: The feature to disable or enable, from Table 14-5.

Returns

None.

See Also glIsEnabled, glPopAttrib, glPushAttrib

Table 14-5 Features Enabled/Disabled by glEnable/glDisable

Feature

GL_AUTO_NORMAL

GL_COLOR_MATERIAL

GL_LIGHTING

GL_LIGHTx

GL_MAP1_NORMAL

GL_MAP2_NORMAL

GL_NORMALIZE

GL_MAP1_TEXTURE_COORD_1

Description

Automatically generate lighting normals from glMap parameters.

Assign material colors from the current drawing color.

Enable lighting calculations.

Enable lightx.

Enable mapping of lighting normals from 1D coordinates.

Enable mapping of lighting normals from 2D coordinates.

Normalize all lighting normals prior to doing calculations.

The s texture coordinate will be generated by

Page

532

GL_TEXTURE_1D

GL_TEXTURE_2D

GL_TEXTURE_GEN_Q

GL_TEXTURE_GEN_R

GL_TEXTURE_GEN_S

GL_TEXTURE_GEN_T

GL_STENCIL_TEST

GL_DEPTH_TEST

GL_ALPHA_TEST

GL_BLEND

GL_CLIP_PLANEx

OpenGL Super Bible!

GL_MAP1_TEXTURE_COORD_2

GL_MAP1_TEXTURE_COORD_3

GL_MAP1_TEXTURE_COORD_4

GL_MAP2_TEXTURE_COORD_1

GL_MAP2_TEXTURE_COORD_2

GL_MAP2_TEXTURE_COORD_3

GL_MAP2_TEXTURE_COORD_4 calls to glEvalPoint1, glEvalMesh1, and glEvalCoord1.

The s and t texture coordinates will be generated by calls to glEvalPoint1, glEvalMesh1, and glEvalCoord1.

The s, t, and r texture coordinates will be generated by calls to glEvalPoint1, glEvalMesh1, and glEvalCoord1.

The s, t, r, and q texture coordinates will be generated by calls to glEvalPoint1, glEvalMesh1, and glEvalCoord1.

The s texture coordinate will be generated by calls to glEvalPoint2, glEvalMesh2, and glEvalCoord2.

The s and t texture coordinates will be generated by calls to glEvalPoint2, glEvalMesh2, and glEvalCoord2.

The s, t, and r texture coordinates will be generated by calls to glEvalPoint2, glEvalMesh2, and glEvalCoord2.

The s, t, r, and q texture coordinates will be generated by calls to glEvalPoint2, glEvalMesh2, and glEvalCoord2.

Enable 1D texturing unless 2D texturing is enabled.

Enable 2D texturing.

Automatically generate the q texture coordinate from calls to glVertex.

Automatically generate the r texture coordinate from calls to glVertex.

Automatically generate the s texture coordinate from calls to glVertex.

Automatically generate the t texture coordinate from calls to glVertex.

Enable stencil buffer comparisons.

Enable depth buffer comparisons.

Do alpha value testing.

Perform pixel blending operations.

Clip drawing operations outside the

GL_CULL_FACE

GL_DITHER

GL_LINE_SMOOTH

GL_LINE_STIPPLE

GL_LOGIC_OP

GL_POINT_SMOOTH

GL_POLYGON_SMOOTH

GL_POLYGON_STIPPLE

GL_SCISSOR_TEST

OpenGL Super Bible! Page

533

specified clipping plane.

Cull back- or front-facing polygons.

Dither color values.

Anti-alias lines.

Apply a bit pattern to lines.

Do logical operations on pixels when drawing.

Anti-alias points.

Anti-alias polygons.

Apply a bit pattern to polygons.

Clip drawing outside the glScissor region.

Page

534

glIsEnabled

OpenGL Super Bible!

Purpose

Tests if an OpenGL feature is enabled.

Include File

<GL/gl.h>

Syntax

GLboolean glIsEnabled(GLenum feature);

Description

This function returns GL_TRUE if the specified feature has been enabled and

GL_FALSE otherwise.

Parameters

feature

GLenum: The feature to test (see glEnable).

Returns

GLboolean: GL_TRUE if the feature is enabled, GL_FALSE otherwise.

See Also glDisable, glEnable, glPopAttrib, glPushAttrib

OpenGL Super Bible! Page

535

glPopAttrib

Purpose

Restores state information saved with glPushAttib.

Include File

<GL/gl.h>

Syntax void glPopAttrib(void);

Description glPopAttrib restores previously saved state information from a call to glPushAttrib.

If the attribute stack is empty, the current OpenGL error state is set and the call is ignored.

Parameters

None.

Returns

None.

See Also glDisable, glEnable, glIsEnabled, glPushAttrib

Page

536

OpenGL Super Bible!

glPushAttrib

Purpose

Saves OpenGL state information.

Include File

<GL/gl.h>

Syntax void glPushAttrib(GLuint bits);

Description

This function saves OpenGL state information specified by bits. If the attribute stack is full, the current OpenGL error state is set and the top of the stack is overwritten.

Parameters

bits

GLuint: The state information to save (see Table 14-1).

Returns

None.

See Also glDisable, glEnable, glIsEnabled, glPopAttrib

OpenGL Super Bible! Page

537

Chapter 15

Buffers: Not Just for Animation

What you’ll learn in this chapter:

How to... Functions You’ll Use

Set up buffers

Use the depth buffer

Use the stencil buffer

Use the accumulation buffer

ChoosePixelFormat/SetPixelFormat glEnable/glDepthFunc/glDepthRange glEnable/glStencilFunc glEnable/glAccum

In the previous chapters, we’ve used buffers for color and depth information. OpenGL provides several kinds of buffers that are linked by the OpenGL graphics context:

Color buffer

Depth buffer

Stencil buffer

Accumulation buffer

Each buffer has specific capabilities beyond simple double-buffering for animation and depth-buffering for hidden surface removal as described in this chapter.

What Are Buffers?

A buffer in OpenGL is essentially a two-dimensional array of values that correspond to a pixel in a window or off-screen image. Each buffer has the same number of columns and rows (width and height) as the current client area of a window but holds a different range and type of values. See Figure 15-1.

Page

538

OpenGL Super Bible!

Figure 15-1 OpenGL buffer organization

Configuring Buffers

Before using OpenGL, you must configure the window’s hardware device context (HDC) for the buffers and color mode you require. The PIXELFORMATDESCRIPTOR structure contains this information. Here’s the typical way this buffer is set up:

// This structure holds b uffer, layer, and color mode information.

PIXELFORMATDESCRIPTOR pfd;

// First initialize the pfd size and version... pfd.nSize = sizeof(pfd); pfd.nVersion = 1;

// Next, layer and buffering information... pfd.dwFlags = PFD_DRAW_TO_WINDOW | PFD_SUPPORT_OPENGL; pfd.dwLayerMask = PFD_MAIN_PLANE; pfd.iLayerType = PFD_MAIN_PLANE;

// The pixel type indicates whether we use color indices or RGBA pfd.iPixelType = PFD_TYPE_RGBA;

// Now we specify the *minimum* number of bitplanes we need for

// each buffer. Windows will choose the closest pixel format

// satisfying our minimum requirements. pfd.cColorBits = 8; pfd.cDepthBits = 16; pfd.cAccumBits = 0; pfd.cStencilBits = 0;

The dwFlags bitfield specifies that we want to draw into the window using OpenGL. It also tells Windows the number of color buffers we require. See Table 15-1.

OpenGL Super Bible!

Table 15-1 PIXELFORMATDESCRIPTOR Option Flags

Page

539

Flag Description

PFD_DRAW_TO_WINDOW

PFD_DRAW_TO_BITMAP

PFD_SUPPORT_GDI

PFD_SUPPORT_OPENGL

Draw into a window.

Draw into an off-screen bitmap.

The color buffer supports GDI drawing commands.

The buffers support OpenGL drawing commands.

The color values are double buffered.

Two sets of buffers are available (left and right).

PFD_DOUBLEBUFFER

PFD_STEREO

PFD_DOUBLE_BUFFER_DONTCARE It doesn’t matter if the color values are double buffered.

PFD_STEREO_DONTCARE It doesn’t matter if the buffers are in stereo.

The dwLayerMask and iLayerType fields specify the drawing planes that are to be used and are usually set to PFD_MAIN_PLANE. Some OpenGL graphics cards provide auxiliary buffers above and below the normal Windows color plane allowing you to draw menus or other graphical constructs without overwriting the main image. The generic implementation provided by Microsoft does not support auxiliary drawing planes.

The iPixelType field specifies how color values are represented and can be one of the two values in Table 15-2.

Table 15-2 PIXELFORMATDESCRIPTOR Pixel Types

Pixel Type Description

PFD_TYPE_RGBA Colors are composed of red, green, blue, and alpha values.

PFD_TYPE_COLORINDEX Colors are composed of an index value in the current logical palette.

Page

540

OpenGL Super Bible!

The cColorBits, cDepthBits, cAccumBits, and cStencilBits fields specify the size of each buffer for the window. Specifying 0 for a field disables that buffer, except for cColorBits. If you specify 0 for cColorBits, Windows will provide the minimum number of bits available— usually 4 or 8 bits (16 or 256 colors). When iPixelType is set to

PFD_TYPE_RGBA, the cColorBits field specifies the total number of red, green, and blue color bits. The current generic implementation of OpenGL provided by Microsoft does not support alpha color bits.

Once you have filled in all the necessary PIXELFORMATDESCRIPTOR information, you can set the pixel format for the window with a few simple calls, as shown here:

// The device context refers to the graphics driver for this window.

HDC hdc;

// This integer holds the Windows pixel format code int pf;

// Choose and select the pixel format... pf = ChoosePixelFormat(hdc, &pfd); if (pf == 0)

{

// Could not find the pixel format...

MessageBox(NULL, "ChoosePixelFormat failed!", "Error", MB_OK);

} else if (!SetPixelFormat(h dc, pf, &pfd))

{

// Could not set the pixel format...

MessageBox(NULL, "SetPixelFormat failed!", "Error", MB_OK);

}

After calling ChoosePixelFormat, the PIXELFORMATDESCRIPTOR information is filled with the actual hardware values that were chosen. On return, the dwFlags field can contain three additional flags that require your attention; they are listed in Table 15-3.

OpenGL Super Bible!

Table 15-3 PIXELFORMATDESCRIPTOR Return Values

Page

541

Return Value Description

PFD_GENERIC_FORMAT

PFD_NEED_PALETTE

The requested format is supported by the generic implementation.

The RGBA color buffer will be drawn on a palettemanaged device and requires a logical palette.

PFD_NEED_SYSTEM_PALETTE The color values require a fixed system palette to display correctly. Call SetSystemPaletteUse() to force a one-to-one mapping of the logical palette and the system palette.

If PFD_NEED_PALETTE is set, you should define a logical palette as specified by the cRedBits, cRedShift, cGreenBits, cGreenShift, cBlueBits, and cBlueShift fields. Following is an example of a defined palette.

HDC hdc;

PIXELFORMATDESCRIPTOR pfd;

HPALETTE palette;

LOGPALETTE *pal; int i,

pf,

num_colors,

red, num_reds,

blue, num_blues,

green, num_greens;

// Get the current pixel format information pf = GetPixelFormat(hdc);

DescribePixelFormat(hdc, pf, sizeof(PIXELFORMATDESCRIPTOR), &pfd);

// Check to see if we need to make a palette if (pfd.dwFlags & PFD_NEED_PALETTE)

{

// Yes, we do. First, allocate logical color palette entries...

num_colors = 1 << pfd.cColorBits;

pal = (PLOGPALETTE)LocalAlloc(LMEM_FIXED, sizeof(LOGPALETTE) +

num_colors * sizeof(PALETTEENTRY));

pal->palVersion = 0x300;

pal->palNumEntries = num_colors;

num_reds = (1 << pfd.cRedBits) - 1;

num_greens = (1 << pfd.cGreenBits) - 1;

num_blues = (1 << pfd.cBlueBits) - 1;

Page

542

OpenGL Super Bible!

for (blue = 0, i = 0; blue <= num_blues; blue ++)

for (green = 0; green <= num_greens; green ++)

for (red = 0; red <= num_reds; red ++, i ++)

{

pal->palPalEntry[i].peRed = 255 * red / num_reds;

pal->palPalEntry[i].p eGreen = 255 * green / num_greens;

pal->palPalEntry[i].peBlue = 255 * blue / num_blues;

pal->palPalEntry[i].peFlags = 0;

}

palette = CreatePalette(pal);

SelectPalette(hdc, palette, FALSE);

RealizePalette(hdc);

LocalFree(pal);

}

The Color Buffer

The color buffer holds pixel color information. Each pixel can contain a color index or red/green/blue/alpha (RGBA) values that describes the appearance of that pixel. RGBA pixels are displayed directly using the closest available color(s) on the screen. The generic

OpenGL implementation from Microsoft does not support alpha color values at this time.

The appearance of color index pixels is determined by looking up the index in an RGB color table. Under Windows these color tables are implemented using a logical color palette.

Color index mode is very useful for displaying tabular data graphically (for example, stress or force meters), as shown in the second depth buffer example in “Another Application of the Depth Buffer.”

Double Buffering

Double buffering provides an additional off-screen color buffer that is often used for animation. With double buffering you can draw a scene off screen and quickly “swap” it onto the screen, eliminating the annoying flicker that would otherwise be present.

Double buffering only affects the color buffer and does not provide a second depth, accumulation, or stencil buffer. If you choose a pixel format with double buffering, OpenGL selects the “back” buffer for drawing. You can change this using the glDrawBuffer function to specify one of the values in Table 15-4.

OpenGL Super Bible! Page

543

Table 15-4 glDrawBuffer Values

Buffer Description

GL_FRONT

GL_BACK

Draw only to the front (visible) color buffer.

Draw only to the back (hidden) color buffer.

GL_FRONT_AND_BACK Draw to both the front and back color buffers.

Stereo Buffering

Stereo buffering provides an additional color buffer in single-buffered mode and two additional color buffers in double-buffered mode, to generate a left- and right-eye screen image. (See Table 15-5.) True three-dimensional images can be generated by choosing the correct viewing positions for each eye, usually offset by a few “inches” to simulate the distance between our eyes. Stereo buffering is not available on most PC graphics cards.

Table 15-5 Stereo Buffer Values

Buffer Description

GL_LEFT_FRONT

GL_LEFT_BACK

GL_RIGHT_FRONT

GL_RIGHT_BACK

GL_FRONT

GL_BACK

Draw only to the left-front buffer.

Draw only to the left-back buffer.

Draw only to the right-front buffer.

Draw only to the right-back buffer.

Draw to both the left- and right-front buffers.

Draw to both the left- and right-back buffers.

In addition to specifying the front or back buffer for drawing, the glDrawBuffer function can select the left- or right-eye buffers.

Page

544

Swapping Buffers

OpenGL Super Bible!

Open GL does support double buffering, but there is no OpenGL function to actually swap the front and back buffers! Fortunately, every windowing system with OpenGL support has a function call to accomplish this. Under Windows, this call is

SwapBuffers(hdc); where hdc is the device context for the window in which you are drawing. If you have chosen a stereo-buffered pixel format, both the left and right eyes are swapped by the one call.

The Depth Buffer

The depth buffer holds distance values for each pixel. Each value represents the pixel’s distance from the viewer and is scaled to fill the current near/far clipping volume. The software implementation of OpenGL under Windows supports both 16- and 32-bit depth values.

The depth buffer is normally used to perform hidden surface removal. Hidden surface removal is a process that occurs naturally in the real world; when one solid (opaque) object is placed in front of another, the nearer object will hide some or all of the one behind it.

In OpenGL, the depth buffer can also be used for some interesting effects, such as cutting away the front of objects to show the inner surfaces (see Figures 15-2a and 15-2b).

Figure 15-2a Typical depth buffering with GL_LESS

OpenGL Super Bible! Page

545

Figure 15-2b Typical depth buffering with GL_GREATER

Depth Comparisons

When you draw in a window using OpenGL, the Z position of each pixel is compared with the value in the depth buffer. If the result of the comparison is True, the pixel is stored in the color buffer along with its depth. OpenGL defines eight depth-comparison functions that can be used for depth buffering (Table 15-6).

Table 15-6 Depth Comparison Functions

Name Function

GL_NEVER

GL_LESS

GL_EQUAL

GL_LEQUAL

GL_GREATER

GL_NOTEQUAL

GL_GEQUAL

GL_ALWAYS

Always False.

True if source Z < depth Z.

True if source Z = depth Z.

True if source Z <= depth Z.

True if source Z > depth Z.

True if source Z != depth Z.

True if source Z >= depth Z.

Always True.

Page

546

OpenGL Super Bible!

The default comparison function is GL_LESS. To change it, call glDepthFunc: glDepthFunc(function);

Using the GL_LESS function, pixels in a polygon are drawn if the depth value of the pixel is less than the depth value in the depth buffer.

Depth Values

When using the GL_EQUAL and GL_NOTEQUAL depth comparisons, it is sometimes necessary to alter the range of depth values used, in order to reduce the number of available values (keeping the number of values to a minimum). Use glDepth Range, as follows: glDepthRange(near, far);

The near and far parameters are floating point numbers between 0.0 and 1.0, inclusive. The defaults are 0.0 for near and 1.0 for far. Normally, near is less than far, but you may also reverse the order to achieve special effects (or use the GL_GREATER and GL_GEQUAL functions). Reducing the range of values stored in the depth buffer does not affect clipping, but it will make the depth buffer less accurate and can lead to errors in hidden surface removal in the display.

Some depth comparisons need a different initial depth value. By default, the depth buffer is cleared to 1.0 with the glClear function. To specify a different value, use the glClearDepth function: glClearDepth(depth);

The depth parameter is a floating point number between 0.0 and 1.0, inclusive, unless you have defined a smaller range with glDepthRange. In general, use a value of 0.0 for

GL_GREATER and GL_GEQUAL comparisons, and 1.0 for GL_LESS and GL_LEQUAL comparisons.

Applications of the Depth Buffer

The usual application of the depth buffer is to remove hidden surfaces. As noted earlier, the depth buffer can also be used to cut away the front parts of a scene. Listing 15-1 demonstrates this type of application. The key to this program is the use of glDepthFunc and glClearDepth: glDepthFunc(depth_fun ction);

Here we use a global variable to hold the current depth function. The depth_function variable is initialized to GL_LESS when the program starts. When the user presses the D key, the toggle_depth callback function switches this between GL_GREATER and

GL_LESS.

OpenGL Super Bible! Page

547

if (depth_function == GL_LESS)

glClearDepth(1.0); else

glClearDepth(0.0);

The glClearDepth call is needed to provide the correct initial depth value for the window, since the depth value is 1.0 by default. Nothing would be drawn when the depth function is set to GL_GREATER, because no pixel could possibly have a depth value greater than 1.0.

Listing 15-1 Depth buffer example using glDepthFunc

/*

* "depth.c" - A test program demonstrating the use of glDepthFunc().

*

* Press the 'd' key to toggle between GL_LESS and GL_GREATER depth

* tests. Press the 'ESC' key to quit.

*/

#include <GL/glaux.h>

/*

* These #define constants are provided for compatibility between MS

* Windows and the rest of the world.

*

* CALLBACK and APIENTRY are f unction modifiers under MS Windows.

*/

#ifndef WIN32

# define CALLBACK

# define APIENTRY

#endif /* !WIN32 */

GLenum depth_function = GL_LESS; /* Current depth function */

/*

* 'reshape_scene()' - Change the size of the scene...

*/ void CALLBACK reshape_scene(GLsizei width, /* I - Width of the window in pixels */

GLsizei height) /* I - Height of the window in pixels */

{

/*

* Reset the current viewport and perspective transformation...

*/

glViewport(0, 0, width, height );

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

gluPerspective(22.5, (float)width / (float)height, 0.1, 1000.0);

glMatrixMode(GL_MODELVIEW);

}

Page

548

OpenGL Super Bible!

/*

* 'draw_scene()' - Draw a scene containing a cube with a sphere in

* front of it.

*/ void CALLBACK draw_scene(void)

{

static float red_light[4] = { 1.0, 0.0, 0.0, 1.0 };

static float red_pos[4] = { 1.0, 1.0, 1.0, 0.0 };

static float blue_light[4] = { 0.0, 0.0, 1.0, 1.0 };

static float blue_pos[4] = { -1.0, -1.0, -1.0, 0.0 };

/*

* Enable drawing features that we need...

*/

glEnable(GL_DEPTH_TEST);

glEnable(GL_LIGHTING);

glEnable(GL_LIGHT0);

glEnable(GL_LIGHT1);

glShadeModel(GL_SMOOTH);

glDepthFunc(depth_function);

/*

* Clear the color and depth buffe rs...

*/

if (depth_function == GL_LESS)

glClearDepth(1.0);

else

glClearDepth(0.0);

glClearColor(0.0, 0.0, 0.0, 0.0);

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

/*

* Draw the cube and sphere in different colors...

*

* We have positioned two lights in this scene. The first is red and

* located above, to the right, and behind the viewer. The second

* is blue and located below, to the left, and in front of the viewer.

*/

glLightfv(GL_LIGHT0, GL_DIFFUSE, red_light) ;

glLightfv(GL_LIGHT0, GL_POSITION, red_pos);

glLightfv(GL_LIGHT1, GL_DIFFUSE, blue_light);

glLightfv(GL_LIGHT1, GL_POSITION, blue_pos);

glPushMatrix();

glTranslatef( -1.0, 0.0, -20.0);

auxSolidSphere(1.0);

OpenGL Super Bible!

glPopMatrix();

glPushMatrix();

glTranslatef(1.0, 0.0, -20.0);

glRotatef(15.0, 0.0, 1.0, 0.0);

glRotatef(15.0, 0.0, 0.0, 1.0);

auxSolidCube(2.0);

glPopMatrix();

glFlush();

}

/*

* 'toggle_depth()' - Toggle the depth function between GL_LESS and

* GL_GREATER.

*/ void CALLBACK toggle_depth(void)

{

if (depth_function == GL_LESS)

depth_function = GL_GREATER;

else

depth_function = GL_LESS;

}

/*

* 'main()' - Initialize the window and display the scene until the

* user pre sses the ESCape key.

*/ void main(void)

{

auxInitDisplayMode(AUX_RGB | AUX_SINGLE | AUX_DEPTH);

auxInitWindow(?Depth Function?);

auxKeyFunc(AUX_d, toggle_depth);

auxReshapeFunc(reshape_scene);

auxMainLoop(draw_scene);

}

/*

* End of "depth.c ".

*/

Page

549

Another Application of the Depth Buffer

The depth buffer can also be used to generate a contour mapping of a scene, which shows different colors for each depth. Contour maps can be generated using the glReadPixels function and by specifying the depth component as the value of interest, as follows: glReadPixels(x, y, width, height, GL_DEPTH_COMPONENT, type, pixels);

Page

550

OpenGL Super Bible!

The returned depth values can then be scaled and assigned to color values that can be displayed as a contour image, especially in color index mode, like this:

#define WIDTH 320

#define HEIGHT 200

GLfloat pixels[WIDTH * HEIGHT]; int i;

// draw the scene... glEnable(GL_DEPTH_TEST);

...

// Grab the depth buffer glReadPixels(0, 0, WIDTH, HEIGHT, GL_DEPTH_COMPONENT, GL_FLOAT,

pixels);

// Convert depth values to color indices for (i = 0; i < (WIDTH * HEIGHT); i ++)

pixels[i] = pixels[i] * 255.0; // Assume 256 color palette

// Display the new pixels on the screen glDisable(GL_DEPTH_TEST); glDrawPixels(0, 0, WIDTH, HEIGHT, GL_COL OR_INDEX, GL_FLOAT, pixels);

In a real application, you’d probably want to provide some user control over the color palette and range of values. You can also use RGBA color values to enhance a scene, using glBlendFunc to mix the “normal” image with the “depth” image.

Cutting Away Parts of a Scene

Let’s see how to cut away parts of a scene— an engine block, for instance— to show some internal operation that would not normally be visible. Listing 15-2 is an example of using the depth buffer for this purpose.

The heart of this program is the draw_scene function, which draws a picture of a cube and sphere being cut by a moving plane. To cut away parts of the scene, we first draw the cutting plane. Instead of drawing to the color buffer, we begin by disabling drawing to the color buffer with glDrawBuffer. glDrawBuffer(GL_NONE); glBegin(GL_POLYGON);

glVertex3f(-100.0, 100.0, cutting_plane);

glVertex3f(100.0, 100.0, cutting_plane);

glVertex3f(100.0, -100.0, cutting_plane);

glVertex3f(-100.0, -100.0, cutting_plane); glEnd(); glDrawBuffer(GL_BACK);

Once the cutting plane is drawn, we reenable color buffer drawing and proceed with drawing the cube and sphere. The invisible plane we drew will restrict what is drawn on the screen to polygons that lie behind it, effectively cutting away parts of the scene.

OpenGL Super Bible!

Listing 15-2 Using glDrawBuffer to cut away selected pieces of an object

Page

/*

* "depthcut.c" - A test program demonstrating the use of glDepthFunc()

* and glDrawBuffer() to cut away parts of a sc ene.

*

* Press the 'd' key to toggle between GL_LESS and GL_GREATER depth

* tests. Press the 'ESC' key to quit.

*/

#include <GL/glaux.h>

/*

* These #define constants are provided for compatibility between MS

* Windows and the rest of the world.

*

* CALLBACK and APIENTRY are function modifiers under MS Windows.

*/

#ifndef WIN32

# define CALLBACK

# define APIENTRY

#endif /* !WIN32 */

GLenum depth_function = GL_LESS; /* Current depth function */

GLfloat cutting_plane = -15.0, /* Cutting plane distance */

cutting_dir = -1.0; /* Cutting plane direction */

/*

* 'reshape_scene()' - Change the size of the scene...

*/ void CALLBACK reshape_scene(GLsizei width, /* I - Width of the window in pixels */

GLsizei height) /* I - Height of the window in pixels */

{

/*

* Reset the current viewport and perspective transformation...

*/

glViewport(0, 0, width, height);

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

gluPerspective(22.5, (fl oat)width / (float)height, 0.1, 1000.0);

glMatrixMode(GL_MODELVIEW);

}

/*

* 'draw_scene()' - Draw a scene containing a cube with a sphere in

* front of it.

*/

551

Page

552

OpenGL Super Bible!

void CALLBACK draw_scene(void)

{

static float red_light[4] = { 1.0, 0 .0, 0.0, 1.0 };

static float red_pos[4] = { 1.0, 1.0, 1.0, 0.0 };

static float blue_light[4] = { 0.0, 0.0, 1.0, 1.0 };

static float blue_pos[4] = { -1.0, -1.0, -1.0, 0.0 };

/*

* Enable drawing features that we need...

*/

glEnable(GL_DEPTH_TEST);

glEnable(GL_LIGHTING);

glEnable(GL_LIGHT0);

glEnable(GL_LIGHT1);

glShadeModel(GL_SMOOTH);

glDepthFunc(depth_function);

/*

* Clear the color and depth buffers...

*/

if (depth_function == GL_LESS)

glClearDepth(1.0);

else

glClearDepth(0.0);

glClearColor(0.0, 0.0, 0.0, 0.0);

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

/*

* Draw the cutting plane. Note that we disable drawing into the normal

* color buffer while we do this...

*/

glDrawBuffer(GL_N ONE);

glBegin(GL_POLYGON);

glVertex3f(-100.0, 100.0, cutting_plane);

glVertex3f(100.0, 100.0, cutting_plane);

glVertex3f(100.0, -100.0, cutting_plane);

glVertex3f(-100.0, -100.0, cutting_plane);

glEnd();

glDrawBuffer(GL_BACK);

/*

* Draw the cube and sphere in different colors...

*

* We have positioned two lights in this scene. The first is red and

* located above, to the right, and behind the viewer. The second

* is blue and located below, to the left, and in front of t he viewer.

*/

OpenGL Super Bible!

glLightfv(GL_LIGHT0, GL_DIFFUSE, red_light);

glLightfv(GL_LIGHT0, GL_POSITION, red_pos);

glLightfv(GL_LIGHT1, GL_DIFFUSE, blue_light);

glLightfv(GL_LIGHT1, GL_POSITION, blue_pos);

glPushMatrix();

glTranslatef( -1.0, 0.0, -20.0);

auxSolidSphere(1.0);

glPopMatrix();

glPushMatrix();

glTranslatef(1.0, 0.0, -20.0);

glRotatef(15.0, 0.0, 1.0, 0.0);

glRotatef(15.0, 0.0, 0.0, 1.0);

auxSolidCube(2.0);

glPopMatrix();

auxSwapBuffers();

}

/*

* 'toggle_depth()' - Toggle the depth function between GL_LESS and

* GL_GREATER.

*/ void CALLBACK toggle_depth(void)

{

if (depth_function == GL_LESS)

depth_function = GL_GREATER;

else

depth_function = GL_LESS;

}

/*

* 'move_plane()' - Move the cutting plane while we are idle...

*/ void CALLBACK move_plane(void)

{

cutting_plane += cutting_dir;

/*

* Reverse directions as needed...

*/

if (cutting_plane <= -30.0 ||

cutting_plane >= -15.0)

cutting_dir = -cutting_dir;

draw_scene();

}

Page

553

Page

554

OpenGL Super Bible!

/*

* 'main()' - Initialize the window and display the scene until the

* user presses the ESCape key.

*/ void main(void)

{

auxInitDisplayMode(AUX_RGB | AUX_DOUBLE | AUX_DEPTH);

auxInitWindow("Depth Function");

auxKeyFunc(AUX_d, toggle_depth);

auxReshapeFunc(reshape_scene);

auxIdleFunc(move_plane);

auxMainLoop(draw_scene);

}

/*

* End of "depthcut.c".

*/

The Stencil Buffer

The stencil buffer provides many options to restrict drawing on the screen and has many applications that the depth buffer just can’t do. At its simplest level, the stencil buffer can be used to block out certain areas on the screen. For example, a flight simulation program might use the stencil buffer to restrict drawing operations to the inside of the aircraft’s round controls such as the artificial horizon and airspeed indicators.

Perhaps the most exciting application of the stencil buffer is for shadows. Depending on your graphics hardware, you can generate hard and soft shadows from multiple light sources, making your scenes much more realistic and exciting.

Using the Stencil Buffer

To use the stencil buffer, you have to first request one. For Windows, this means setting the cStencilBits field in the Pixel Format Descriptor (PFD) for your window, as in pfd.cStencilBits = 1;

Once you have requested a stencil buffer, you must enable stenciling by calling glEnable(GL_STENCIL_TEST). Without this call, all stencil buffer operations are disabled.

Stencil Buffer Functions

There are four stenciling functions in OpenGL:

OpenGL Super Bible!

void glClearStencil(GLint s) void glStencilFunc(GLenum func, GLint ref, GLuint mask) void glStencilMask(GLuint mask) void glStencilOp(GLenum fail, GLenum zfail, GLzpass)

Page

555

The glClearStencil function is similar to glClearColor, glClearDepth, and glClearIndex; it provides the initial value that is stored in the stencil buffer when glClear(GL_STENCIL_BIT) is called. By default, a 0 stencil value is stored in the stencil buffer. Unlike the depth and color buffers, you don’t always clear the stencil buffer every time you redisplay your scene. In the flight simulator example mentioned earlier, the aircraft control area might never change position or size, so redrawing into the stencil buffer would be unnecessary.

Drawing into the Stencil Buffer

Once you have enabled the GL_STENCIL_TEST attribute with glEnable, you’ll still need to set up how the stencil buffer operates. By default, it does nothing, allowing drawing to occur anywhere on the screen without updating the stencil buffer. To make stenciling work effectively, however, we need to put values into the stencil buffer. The glStencilFunc and glStencilOp functions handle this interaction.

The glStencilFunc function defines a comparison function, reference value, and mask for all stencil buffer operations. The valid functions are in Table 15-7.

Table 15-7 Stenciling Functions

Function

GL_NEVER

GL_LESS

GL_LEQUAL

GL_GREATER

GL_GEQUAL

GL_EQUAL

GL_NOTEQUAL

GL_ALWAYS

Description

The stencil test always fails (no drawing occurs).

Passes if the reference value is less than the stencil value.

Passes if the reference value is less than or equal to the stencil value.

Passes if the reference value is greater than the stencil value.

Passes if the reference value is greater than or equal to the stencil value.

Passes if the reference value is equal to the stencil value.

Passes if the reference value is not equal to the stencil value.

The default; stencil test always passes (drawing always occurs).

Page

556

OpenGL Super Bible!

Coupled with the stencil function is the stencil operation, defined with glStencilOp. Valid operations are in Table 15-8.

Table 15-8 Stenciling Operations

Operation Description

GL_KEEP

GL_ZERO

GL_REPLACE

GL_INCR

GL_DECR

GL_INVERT

Keep the current stencil buffer contents.

Set the stencil buffer value to 0.

Set the stencil buffer value to the function reference value.

Increment the current stencil buffer value.

Decrement the current stencil buffer value.

Bitwise invert the current stencil buffer value.

Normally a mask image is used to outline the area in which drawing is to take place. Here is an example of drawing a mask image into the stencil buffer: glStencilFunc(GL_ALWAYS, 1, 1); glStencilOp(GL_REPLACE, GL_REPLACE, GL_REPLACE);

Then you would issue drawing commands that store a value of 1 in the stencil buffer. To draw using the stencil buffer mask, do the following prior to drawing the scene: glStencilFunc(GL_EQUAL, 1, 1); glStencilOp(GL_KEEP, GL_KEEP, GL_KEEP);

Because this operates with all OpenGL drawing functions including glBitmap, you can use the stencil buffer to create many special “hole” effects for animations! Listing 15-3 contains a version of DEPTHCUT.C called STENCILCT.C that uses the stencil buffer instead of the depth buffer to cut away the middle of the cube.

Following is the heart of this program, which uses the functions described above: glStencilFunc(GL_ALWAYS, 1, 1); glStencilOp(GL_REPLACE, GL_REPLACE, GL_REPLACE); glPushMatrix();

glTranslatef(-1.0, 0.0, -20.0);

auxSolidSphere(1.0); glPopMatrix();

OpenGL Super Bible! Page

Once the stencil image is drawn, we draw the cube wherever the sphere was not drawn:

557

glStencilFunc(GL_NOTEQUAL, 1, 1); /* Draw where sphere isn’t */ glStencilOp(GL_KEEP, GL_KEEP, GL_KEEP);

... glPushMatrix();

glTranslatef(1. 0, 0.0, -20.0);

glRotatef(15.0, 0.0, 1.0, 0.0);

glRotatef(15.0, 0.0, 0.0, 1.0);

auxSolidCube(2.0); glPopMatrix();

Listing 15-3 STENCILCT.C, a stencil buffer example

/*

* "stencilct.c" - A test program demonstrating the use of glStencilFunc()

* and glStencilOp() to cut away the middle of a cube.

*/

#include <GL/glaux.h>

/*

* These #define constants are provided for compatibility between MS

* Windows and the rest of the world.

*

* CALLBACK and APIENTRY are function modifiers und er MS Windows.

*/

#ifndef WIN32

# define CALLBACK

# define APIENTRY

#endif /* !WIN32 */

/*

* 'reshape_scene()' - Change the size of the scene...

*/ void CALLBACK reshape_scene(GLsizei width, /* I - Width of the window in pixels */

GLsizei height) /* I - Height of the window in pixels */

{

/*

* Reset the current viewport and perspective transformation...

*/

glViewport(0, 0, width, height);

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

gluPerspective(22.5, (float)width / (float)height, 0.1, 1000.0);

glMatrixMode(GL_MODELVIEW);

Page

558

OpenGL Super Bible!

}

/*

* 'draw_scene()' - Draw a scene containing a cube with a sphere in

* front of it.

*/ void CALLBACK draw_scene(void)

{

static float red_light[4] = { 1.0, 0.0, 0.0, 1.0 };

static float red_pos[4] = { 1.0, 1.0, 1.0, 0.0 };

static float

blue_light[4] = { 0.0, 0.0, 1.0, 1.0 };

static float blue_pos[4] = { -1.0, -1.0, -1.0, 0.0 };

/*

* Enable drawing features that we need...

*/

glEnable(GL_DEPTH_TES T);

glEnable(GL_STENCIL_TEST);

glEnable(GL_LIGHTING);

glEnable(GL_LIGHT0);

glEnable(GL_LIGHT1);

glShadeModel(GL_SMOOTH);

/*

* Clear the color, depth, and stencil buffers...

*/

glClearColor(0.0, 0.0, 0.0, 0.0);

glClear(GL_COLOR_BUFFER_ BIT | GL_DEPTH_BUFFER_BIT |

GL_STENCIL_BUFFER_BIT);

/*

* Draw the sphere that will be cutting away parts of the cube...

*/

glStencilFunc(GL_ALWAYS, 1, 1);

glStencilOp(GL_REPLACE, GL_REPLACE, GL_REPLACE);

glPushMatrix();

glTranslatef(-1.0, 0.0, -20.0);

auxSolidSphere(1.0);

glPopMatrix();

/*

* Clear the color and depth buffers once again...

*/

glClearColor(0.0, 0.0, 0.0, 0.0);

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

OpenGL Super Bible! Page

559

/*

* Draw the cube...

*

* We have positioned two lights in this scene. The first is red and

* located above, to the right, and behind the viewer. The second

* is blue and located below, to the left, and in front of the viewer.

*/

glStencilFunc(GL_NOTEQUAL, 1, 1);

glStencilOp(GL_KEEP, GL_KEEP, GL_KEEP);

glLightfv(GL_LIGHT0, GL_DIFFUSE, red_light);

glLightfv(GL_LIGHT0, GL_POSITION, red_pos);

glLightfv(GL_LIGHT1, GL_DIFFUSE, blue_light);

glLightfv(GL_LIGHT1, GL_POSITION, blue_pos);

glPushMatrix();

glTranslatef(1.0, 0.0, -20.0);

glRotatef(15.0, 0.0, 1.0, 0.0);

glRotatef(15.0, 0.0, 0.0, 1.0);

auxSolidCube(2.0);

glPopMatrix();

auxSwapBuffers();

}

/*

* 'main()' - Initialize the window and display the scene until the user

* presses th e ESCape key.

*/ int APIENTRY

WinMain(HINSTANCE hInstance,

HINSTANCE hPrev,

LPSTR lpCmdLine,

int nCmdShow)

{

auxInitDisplayMode(AUX_RGB | AUX_DOUBLE | AUX_DEPTH | AUX_STENCIL);

auxInitWindow("Stenciling");

auxReshapeFunc(reshape _scene);

auxMainLoop(draw_scene);

}

/*

* End of "stencilct.c".

*/

Page

560

OpenGL Super Bible!

The Accumulation Buffer

The accumulation buffer provides support for many special effects such as motion blur and depth of field. It also supports full-screen anti-aliasing, although other methods (such as multisampling) are better suited to this task.

The accumulation buffer is considerably less complex than the other buffers discussed so far. It has a single function, glAccum, that manages all accumulation buffer actions. The actions that can be performed are in Table 15-9.

Table 15-9 Accumulation Operations

Operation

GL_ACCUM

GL_LOAD

GL_ADD

GL_MULT

Description

Add scaled color-buffer values to the accumulation buffer.

Load scaled color-buffer values into the accumulation buffer, replacing whatever had been there before.

Add a constant color to the accumulation buffer’s values.

Multiply color values in the accumulation buffer by a constant color (filtering effects).

Copy the accumulation buffer into the main color buffer. GL_RETURN

The normal way you use the accumulation buffer is to render multiple views into it and display the final composite scene with glAccum(GL_RETURN, 1.0).

Using the Accumulation Buffer for Motion Blur

As a coworker of ours once said, “It’s easy to make any application of the accumulation buffer look like motion blur!” The problem is akin to what happens when your hands shake as you take a picture with a camera— too much jitter will blur the image.

You’ll find that rendering motion blur is a little more complicated than just drawing a sequence of frames with the camera moving between each frame. We perceive motion blur when an object moves faster than our eyes can track it. In essence, the picture changes as the brain is “processing” the image, but the focus on the moving target is never lost. In a camera, light entering the lens exposes the film for a finite amount of time. Depending on

OpenGL Super Bible! Page

561

the camera and photographer, the amount of blur seen may be small around the edges, or it could streak across the image.

When you simulate motion blur with computer graphics, it is important to remember that the current (or final) position of the object you are blurring must look more solid (or focused) than the rest of the frames. The easiest way to accomplish this is to use a larger color scaling factor when accumulating the current frame so that more of the color values from the final frame used will stand out from the rest. A typical implementation looks something like this:

/* Draw the current frame */ draw_frame(0);

/* Load the accumulation buffer with 50% of the current frame */ glAccum(GL_LOAD, 0.5);

/* Draw the last 10 frames and accumulate 5% for each */ for (i = 1; i <= 10; i ++)

{

draw_frame(-i);

glAccum(GL_ACCUM, 0.05);

};

/* Display the final scene */ glAccum(GL_RETURN, 1.0);

Notice that you don’t have to use glClear to initialize the accumulation buffer contents, as you do with the color, depth, and stencil buffers. Instead, most often you’ll use glAccum(GL_LOAD, s) on the first frame of the scene. The program in Listing 15-4 demonstrates motion blur on the cube and sphere.

Listing 15-4 MOTION.C: Motion blur using the accumulation buffer

/*

* "motion.c" - A test program demonstrating the use of glAccum() for

* motion blur.

*/

#include <GL/glaux.h>

/*

* These #define constants are provided for compatibility between MS

* Windows and the rest of the world.

*

* CALLBACK and APIENTRY are function modifiers under MS Windows.

*/

#ifndef WIN32

# define CALLBACK

# define APIENTRY

#endif /* !WIN32 */

GLfloat rotation = 0.0;

Page

562

OpenGL Super Bible!

/*

* 'reshape_scene()' - Change the size of the scene...

*/ void CALLBACK reshape_scene(GLsizei width, /* I - Width of the window in pixels */

GLsizei height) /* I - Height of the window in pixels */

{

/*

* Reset the current viewport and perspective transformation...

*/

glViewport(0, 0, width, height);

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

gluPerspective(22.5, (float)width / (float)height, 0.1, 1000.0);

glMatrixMode(GL_MODELVIEW);

}

/*

* 'draw_scene()' - Draw a scene containing a cube with a sphere in

* front of it.

*/ void CALLBACK draw_scene(void)

{

GLfloat frame;

static float red_light[4] = { 1.0, 0.0, 0.0, 1.0 };

static float red_pos[4] = { 1.0, 1.0, 1.0, 0.0 };

static float

blue_light[4] = { 0.0, 0.0, 1.0, 1.0 };

static float blue_pos[4] = { -1.0, -1.0, -1.0, 0.0 };

/*

* Enable drawing features that we need...

*/

glEnable(GL_DEPTH_TEST);

glEnable(GL_LIGHTING);

glEnable(GL_LIGHT0);

glEnable(GL_LIGHT1);

glShadeModel(GL_SMOOTH);

/*

* Clear the color and depth buffers...

*/

glClearColor(0.0, 0.0, 0.0, 0.0);

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

OpenGL Super Bible! Page

/*

* Draw the cube an d sphere in different colors...

*

* We have positioned two lights in this scene. The first is red and

* located above, to the right, and behind the viewer. The second

* is blue and located below, to the left, and in front of the viewer.

*/

glLightfv(GL_LIGHT0, GL_DIFFUSE, red_light);

glLightfv(GL_LIGHT0, GL_POSITION, red_pos);

glLightfv(GL_LIGHT1, GL_DIFFUSE, blue_light);

glLightfv(GL_LIGHT1, GL_POSITION, blue_pos);

/*

* Draw the objects 11 times starting at the current rotation...

*/

for (frame = 0.0; frame <= 11.0; frame ++)

{

glPushMatrix();

glTranslatef(0.0, 0.0, -20.0);

glRotatef(rotation - frame, 0.0, 1.0, 0.0);

glPushMatrix();

glTranslatef( -1.0, 0.0, 0.0);

auxSolidSphere(1.0);

glPopMatrix();

glPushMatrix();

glTranslatef(1.0, 0.0, 0.0);

glRotatef(15.0, 0.0, 1.0, 0.0);

glRotatef(15.0, 0.0, 0.0, 1.0);

auxSolidCube(2.0);

glPopMatrix();

glPopMatrix();

/*

* Accumulate 50% the first time, 5% every other time...

*/

if (frame == 0.0)

glAccum(GL_LOAD, 0.5);

else

glAccum(GL_ACCUM, 0.05);

};

/*

* Copy the accumulated results back to the color buffer...

*/

glAccum(GL_RETURN, 1.0);

auxSwapBuffers();

}

563

Page

564

OpenGL Super Bible!

/*

* 'rotate_objects()' - Rotate while we are idle...

*/ void CALLBACK rotate_objects(void)

{

rotation += 2.0;

if (rotation >= 360.0)

rotation -= 360.0;

draw_scene();

}

/*

* 'main()' - Initialize the window and display the scene unti l the user

* presses the ESCape key.

*/ int APIENTRY

WinMain(HINSTANCE hInstance,

HINSTANCE hPrev,

LPSTR lpCmdLine,

int nCmdShow)

{

auxInitDisplayMode(AUX_RGB | AUX_DOUBLE | AUX_DEPTH | AUX_ACCUM);

auxInitWindow("Motion Blur");

auxReshapeFunc(reshape_scene);

auxIdleFunc(rotate_objects);

auxMainLoop(draw_scene);

}

/*

* End of "motion.c".

*/

Using the Accumulation Buffer for Anti-Aliasing

Another application of the accumulation buffer is full-scene anti-aliasing. The basic strategy is to jitter the image one-half a pixel in several directions, to blur the edges of an image but not the solid areas. Accumulating as little as four of these “jittered” scenes will produce remarkably smoother images. The Microsoft Visual C++ compiler includes many OpenGL examples that use jitter for anti-aliasing. See the file OPENGL\BOOK\JITTER.H from the

Visual C++ CD-ROM for many different sets of jitter values.

Anti-aliasing with the accumulation buffer does carry a price in speed, however. If you want to do any real-time anti-aliased animation, you’ll have to look at graphics hardware that supports multisampling to do your anti-aliasing for you. The accumulation buffer is just too slow for interactive work.

OpenGL Super Bible! Page

565

If you are generating stills or stop-motion animations, the accumulation buffer will give you anti-aliasing and simulated depth-of-field that simply are not possible with multisampling.

Page

566

Reference Section

OpenGL Super Bible!

glAccum

Purpose

Operates on the accumulation buffer to establish pixel values.

Include File

<GL/gl.h>

Syntax void glAccum(GLenum func, GLfloat value);

Description

This function operates on the accumulation buffer. Except for GL_RETURN, color values are scaled by the value parameter and added or stored into the accumulation buffer. For GL_RETURN, the accumulation buffer’s color values are scaled by the

value parameter and stored in the current color buffer.

Parameters

func

GLenum: The accumulation function to apply. Valid functions are as follows:

GL_ACCUM Add scaled color-buffer values to the accumulation buffer.

GL_LOAD

GL_ADD

Load scaled color-buffer values into the accumulation buffer, replacing whatever was there before.

Add a constant color to the accumulation buffer values.

GL_MULT Multiply color values in the accumulation buffer by a constant color (filtering effects).

GL_RETURN Copy the accumulation buffer into the main color buffer.

Returns

None.

Example

See the CH15\MOTION.C example on the source code CD-ROM.

See Also

ChoosePixelFormat, SetPixelFormat

OpenGL Super Bible! Page

567

glClearColor

Purpose

Specifies a color value for the color buffer.

Include File

<GL/gl.h>

Syntax void glClearColor(GLfloat red, GLfloat green, GLfloat blue, GLfloat alpha);

Description

This function sets the color value that will be used when clearing the color buffer with glClear(GL_COLOR_BUFFER_BIT).

Parameters

red

GLfloat: The red color value for the color buffer.

green

GLfloat: The green color value for the color buffer.

blue

GLfloat: The blue color value for the color buffer.

alpha

GLfloat: The alpha color value for the color buffer.

Returns

None.

See Also

ChoosePixelFormat, SetPixelFormat

Page

568

OpenGL Super Bible!

glClearDepth

Purpose

Specifies a depth value for the depth buffer.

Include File

<GL/gl.h>

Syntax void glClearDepth(GLclampd depth);

Description

This function sets the depth value that will be used when clearing the depth buffer with glClear(GL_DEPTH_BUFFER_BIT).

Parameters

depth

GLclampd: The clear value for the depth buffer.

Returns

None.

See Also

ChoosePixelFormat, SetPixelFormat

OpenGL Super Bible! Page

569

glClearIndex

Purpose

Specifies a color index value for the color buffer.

Include File

<GL/gl.h>

Syntax void glClearIndex(GLfloat index);

Description

This function sets the color index value that will be used when clearing the color buffer with glClear(GL_COLOR_BUFFER_BIT).

Parameters

index

GLfloat: The color index value for the color buffer.

Returns

None.

See Also

ChoosePixelFormat, SetPixelFormat

Page

570

OpenGL Super Bible!

glClearStencil

Purpose

Specifies a stencil value for the stencil buffer.

Include File

<GL/gl.h>

Syntax void glClearStencil(GLint value);

Description

This function sets the stencil value that will be used when clearing the stencil buffer with glClear(GL_STENCIL_BUFFER_BIT).

Parameters

value

GLint: The clear value for the stencil buffer.

Returns

None.

See Also

ChoosePixelFormat, SetPixelFormat

OpenGL Super Bible! Page

571

glDrawBuffer

Purpose

Selects a color buffer for drawing.

Include File

<GL/gl.h>

Syntax void glDrawBuffer(GLenum mode);

Description

This function selects a color buffer for subsequent drawing operations. You will typically call it to select the front or back color-buffer in a double-buffered drawing context.

Parameters

mode

GLenum: A constant (see Table 15-10) selecting the color buffer to draw into. For example, to select the back color-buffer for drawing, you would use: glDrawBuffer(GL_BACK)

Returns

None.

Known Bugs

The generic Microsoft implementation does not support stereo drawing buffers or

mode value GL_NONE.

Example

See the CH15\DEPTHCUT.C example on the source code CD-ROM.

See Also

ChoosePixelFormat, SetPixelFormat

Table 15-10 Valid Modes for glDrawBuffer

Mode Value Meaning

GL_NONE Do not draw into any color buffer.

GL_FRONT

GL_BACK

Draw into the front color buffer.

Draw into the back color buffer (double-buffered contexts only).

GL_FRONT_AND_BACK Draw into both the front and back color buffers (doublebuffered contexts only).

GL_LEFT Draw into the left-eye color buffer (stereo contexts only;

Page

572

GL_RIGHT

GL_BACK_LEFT

GL_BACK_RIGHT

GL_FRONT_LEFT

GL_FRONT_RIGHT

OpenGL Super Bible!

selects front and back buffers when double-buffered).

Draw into the right-eye color buffer (stereo contexts only; selects front and back buffers when double-buffered).

Draw into the back color buffer for the left eye (stereo, double-buffered contexts only) .

Draw into the back color buffer for the right eye (stereo, double-buffered contexts only).

Draw into the front color buffer for the left eye (stereo, double-buffered contexts only).

Draw into the front color buffer for the right eye (stereo, double-buffered contexts only).

OpenGL Super Bible!

glDepthFunc

Purpose

Sets the depth test function.

Include File

<GL/gl.h>

Syntax void glDepthFunc(GLenum func);

Description

This function sets the depth buffer test function for hidden surface removal.

Parameters

func

GLenum: The depth buffer comparison function to use. Valid functions are as follows:

GL_NEVER Always False

GL_LESS True if source Z < depth Z

GL_EQUAL

GL_LEQUAL

True if source Z = depth Z

True if source Z <= depth Z

GL_GREATER True if source Z > depth Z

GL_NOTEQUAL True if source Z != depth Z

GL_GEQUAL True if source Z >= depth Z

GL_ALWAYS Always True

Returns

None.

Example

See the CH15\DEPTH.C example on the source code CD-ROM.

See Also

ChoosePixelFormat, SetPixelFormat

Page

573

Page

574

OpenGL Super Bible!

glDepthRange

Purpose

Sets the range of depth values in the depth buffer.

Include File

<GL/gl.h>

Syntax void glDepthRange(GLclampd near, GLclampd far);

Description

This function sets the range of depth buffer values that will be used for depth comparisons for hidden surface removal. It is legal for near to be greater than far.

Parameters

near

GLclampd: the near depth value.

far

GLclampd: the far depth value.

Returns

None.

Example

See the CH15\DEPTH.C example on the source code CD-ROM.

See Also

ChoosePixelFormat, SetPixelFormat

OpenGL Super Bible! Page

575

Chapter 16

Visual Effects: Blending and Fog

What you’ll learn in this chapter:

How to… Functions You’ll Use

Display transparent or translucent lines and polygons

Add weather haze and fog effects glBlendFunc glFog

This chapter introduces the color blending and fog functions provided by OpenGL, both of which can be used to add that last bit of realism you need.

The color blending functions support effects such as transparency that can be used to simulate windows, drink glasses, and other transparent objects. The fog functions add a variable amount of color to the polygons you draw, producing a scene that looks “hazy” or just downright dreary!

Something to remember when using these special effects is that they don’t look good on an

8-bit display. Make sure your programs contain the option of disabling these effects when running on 8-bit displays.

Blending

Blending in OpenGL provides pixel-level control of RGBA color storage in the color buffer.

Blending operations cannot be used in color index mode and are disabled in color index windows.

To enable blending in RGBA windows, you must first call glEnable(GL_BLEND). After this, you call glBlendFunc with two arguments: the source and the destination colors’ blending functions (see Tables 16-1 and 16-2). By default, these arguments are GL_ONE and GL_ZERO, respectively, which is equivalent to glDisable(GL_BLEND).

Page

576

OpenGL Super Bible!

Table 16-1 Blending Functions for Source Color

Function Blend Factor

GL_ZERO

GL_ONE

Source color = 0,0,0,0.

Uses <?> Source color.

GL_DST_COLOR Source color is multiplied by the destination pixel color.

GL_ONE_MINUS_DST_COLOR Source color is multiplied by (1,1,1,1 – destination color).

GL_SRC_ALPHA Source color multiplied by source alpha.

GL_ONE_MINUS_SRC_ALPHA Source color multiplied by (1 – source alpha).

GL_DST_ALPHA Source color multiplied by destination alpha; not supported by Microsoft OpenGL.

GL_ONE_MINUS_DST_ALPHA Source color multiplied by (1 – destination alpha); not supported by Microsoft OpenGL.

GL_SRC_ALPHA_SATURATE Source color multiplied by the minimum of the source and (1 – destination) alphas; not supported by

Microsoft OpenGL.

Table 16-2 Blending Functions for Destination Color

Function Blend Factor

GL_ZERO

GL_ONE

Destination color = 0,0,0,0.

Use <?> Destination color.

GL_SRC_COLOR Destination color is multiplied by the source pixel color.

GL_ONE_MINUS_SRC_COLOR Destination color is multiplied by (1,1,1,1 – source color).

GL_SRC_ALPHA Destination color multiplied by source alpha.

GL_ONE_MINUS_SRC_ALPHA Destination color multiplied by (1 – source alpha).

GL_DST_ALPHA Destination color multiplied by destination alpha; not supported by Microsoft OpenGL.

OpenGL Super Bible! Page

577

GL_ONE_MINUS_DST_ALPHA Destination color multiplied by (1 – destination alpha); not supported by Microsoft OpenGL.

GL_SRC_ALPHA_SATURATE Destination color multiplied by the minimum of the source and (1 – destination) alphas; not supported by

Microsoft OpenGL.

Using Blending for Transparency

Transparency is perhaps the most typical use of blending, often used for windows, bottles, and other 3D objects that you can see through. Transparency can also be used to combine multiple images, or for “soft” brushes in a paint program.

Following are the blending functions for all of these applications: glEnable(GL_BLEND); glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);

This combination takes the source color and scales it based on the alpha component, and then adds the destination pixel color scaled by 1 minus the alpha value. Stated more simply, this blending function takes a fraction of the current drawing color and overlays it on the pixel on the screen. The alpha component of the color can be from 0 (completely transparent) to 1 (completely opaque), as follows:

Rd = Rs * As + Rd * (1 - As)

Gd = Gs * As + Gd * (1 - As)

Bd = Bs * As + Bd * (1 - As)

Because only the source alpha component is used, you do not need a graphics board that supports alpha color planes in the color buffer. This is important because the standard

Microsoft OpenGL implementation does not support alpha color planes.

Something to remember with alpha-blended transparency is that the normal depth-buffer test can interfere with the effect you’re trying to achieve. To make sure that your transparent polygons and lines are drawn properly, always draw them from back to front.

Listing 16-1 shows the code that was used to draw the transparent teapot in Figure 16-1. In the draw_scene function, we draw the two teapots from back to front to ensure that the rear teapot can be seen through the front one. You’ll notice some artifacts remain visible in the front teapot where the surface polygons intersect. You can’t eliminate these completely, but you can reduce them by sorting the polygons by depth first and enabling back-face culling with glEnable(GL_CULL_FACE).

Page

578

OpenGL Super Bible!

Figure 16-1 Transparent teapot using blending

The first thing draw_scene does is set the blending function to do transparency based on the drawing (source) color’s alpha component: glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);

Next, the opaque teapot is drawn with blending disabled so that we can always see the teapot through the transparent one: glDisable(GL_BLEND); glColor3f(1.0, 1.0, 0.0); auxSolidTeapot(1.0);

Finally, blending is enabled and the transparent teapot is drawn with an alpha (transparency) value of 0.25: glEnable(GL_BLEND); glColor4f(1.0, 1.0, 1.0, 0.25); auxSolidTeapot(1.0);

Listing 16-1 BLENDPOT.C: Using glBlendFunc for transparency

/*

* "blendpot.c" - A test program demonstrating the use of glBlendFunc()

* for transparency.

*/

#include <GL/glaux.h>

/*

* These #define constants are provided for compatibility between MS

* Windows and the rest of the world.

*

OpenGL Super Bible! Page

579

* CALLBACK and APIENTRY are function modifiers under MS Windows.

*/

#ifndef WIN32

# define CALLBACK

# define APIENTRY

#endif /* !WIN32 */

GLfloat rotation = 0.0;

/*

* 'reshape_scene()' - Change the size of the scene…

*/ void CALLBACK reshape_scene(GLsizei width, /* I - Width of the window in pixels */

GLsizei height) /* I - Height of the window in pixels */

{

/*

* Reset the current viewport and perspective transformation…

*/

glViewport(0, 0, w idth, height);

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

gluPerspective(22.5, (float)width / (float)height, 0.1, 1000.0);

glMatrixMode(GL_MODELVIEW);

}

/*

* 'draw_scene()' - Draw a scene containing a cube with a sphere in front

* of it.

*/ void CALLBACK draw_scene(void)

{

GLfloat frame;

static float red_light[4] = { 1.0, 0.0, 0.0, 1.0 };

static float red_pos[4] = { 1.0, 1.0, 1.0, 0.0 };

static float blue_light[4] = { 0.0, 0.0, 1.0, 1.0 };

static float blue_pos[4] = { -1.0, -1.0, -1.0, 0.0 };

/*

* Enable drawing features that we need…

*/

glEnable(GL_DEPTH_TEST);

glEnable(GL_LIGHTING);

glEnable(GL_LIGHT0);

glEnable(GL_LIGHT1);

glShadeModel(GL_SMOOTH);

Page

580

OpenGL Super Bible!

/*

* Clear the color and d epth buffers…

*/

glClearColor(0.0, 0.0, 0.0, 0.0);

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

/*

* Draw the cube and sphere in different colors…

*

* We have positioned two lights in this scene. The first is red and

* located above, to the right, and behind the viewer. The second is

* blue and located below, to the left, and in front of the viewer.

*/

glLightfv(GL_LIGHT0, GL_DIFFUSE, red_light);

glLightfv(GL_LIGHT0, GL_POSITION, red_pos);

glLightfv(GL_LIGHT1, GL_DIFFUS E, blue_light);

glLightfv(GL_LIGHT1, GL_POSITION, blue_pos);

glEnable(GL_COLOR_MATERIAL);

glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);

glPushMatrix();

glTranslatef(0.0, 0.0, -15.0);

glRotatef(-rotation, 0.0, 1.0, 0.0);

glDisable(GL_BLEND);

glColor3f(1.0, 1.0, 0.0);

auxSolidTeapot(1.0);

glPopMatrix();

glPushMatrix();

glTranslatef(0.0, 0.0, -10.0);

glRotatef(rotation, 0.0, 1.0, 0.0);

glEnable(GL_BLEND);

glColor4f(1.0, 1.0, 1.0, 0.25);

auxSolidTeapo t(1.0);

glPopMatrix();

auxSwapBuffers();

}

/*

* 'rotate_objects()' - Rotate while we are idle…

*/ void CALLBACK rotate_objects(void)

{

rotation += 2.0;

if (rotation >= 360.0)

rotation -= 360.0;

OpenGL Super Bible! Page

581

draw_scene();

}

/*

* 'main()' - Initialize the window and display the scene until the user

* presses the ESCape key.

*/ void main(void)

{

auxInitDisplayMode(AUX_RGB | AUX_DOUBLE | AUX_DEPTH);

auxInitWindow("Blended Teapot");

auxReshapeFunc(reshape_scene);

auxIdleFunc(rotat e_objects);

auxMainLoop(draw_scene);

}

/*

* End of "blendpot.c".

*/

Using Blending with Anti-Aliasing

The appearance of anti-aliased points, lines, and polygons can be enhanced by using the same two blending functions as for transparency, GL_SRC_ALPHA and

GL_ONE_MINUS_SRC_ALPHA. On systems with hardware-assisted anti-aliasing and blending, blending will produce results similar to full-screen anti-aliased scenes made using the accumulation buffer. At the same time, blending is several times faster than accumulation because the scene needs to be drawn only once.

To draw a scene using blending and anti-aliased primitives, call the following functions: glEnable(GL_BLEND); glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA); glEnable(GL_LINE_SMOOTH); glEnable(GL_POINT_SMOOTH); glEnable(GL_POLYGON_SMOOTH);

Using Blending for a Paint Program

The same techniques used for 3D graphics can be applied to 2D graphics. In the case of paint programs, we can use blending to create soft-edged “brushes.” To start, we will define

alpha images of each brush. An alpha image contains alpha values but no RGB (color) values and will define how much color actually is drawn on the page (see Figure 16-2).

Page

582

OpenGL Super Bible!

Figure 16-2 Alpha “brush” image

To “paint” using this brush image, we’re going to use a different set of blending functions: glBlendFunc(GL_SRC_COLOR, GL_ONE_MINUS_SRC_ALPHA);

Instead of the GL_SRC_ALPHA function for the source color, we use the

GL_SRC_COLOR function, which uses the current color instead of the alpha component.

Thus, the color that will be applied is as follows:

R = Rs * Ab + Rd * (1.0 - Ab)

G = Gs * Ab + Gd * (1.0 - Ab)

B = Bs * Ab + Bd * (1.0 - Ab)

That is, the alpha values from the brush image will be used instead of the current alpha color value!

Listing 16-2 is a simple “paint” program that uses a 7 x 7 pixel brush image for painting.

The main event loop handles drawing in the window. When you hold the left mouse button down, the event loop will call the DrawXY function to paint at the current mouse position: glRasterPos2i(mousex, mousey); glDrawPixels(7, 7, GL_LUMINANCE_ALPHA, GL_UNSIGNED_BYTE, BlendBrush[0]);

The RepaintWindow function clears the client area whenever the window is resized or needs to be redrawn: glViewport(0, 0, rect ->right, rect->bottom); glOrtho(0.0, (float)rect ->right, (float)rect ->bottom, 0.0, -1.0, 1.0); glClearColor(0.0, 0.0, 0.0, 1.0); glClear(GL_COLOR_BUFFER_BIT); glEnable(GL_BLEND); glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);

OpenGL Super Bible! Page

583

Unfortunately, this means you’ll lose your painting. A real paint application could use glReadPixels to copy the drawn pixels to an off-screen buffer, which could be used to redraw the screen later using glDrawPixels.

Listing 16-2 BLENDRAW.C: Paint program using glBlendFunc

/*

* Include necessary h eaders.

*/

#include <windows.h>

#include <GL/gl.h>

#include "blendraw.h"

#include <stdarg.h>

#include <math.h>

#ifndef M_PI

# define M_PI (double)3.14159265358979323846

#endif /* !M_PI */

/*

* Globals…

*/

HWND BlendWindow; /* Ble nd window */

HPALETTE BlendPalette; /* Color palette (if necessary) */

HDC BlendDC; /* Drawing context */

HGLRC BlendRC; /* OpenGL rendering context */ unsigned char BlendBrush[7][16] =

{

{0xff,0x00,0xff,0x00,0xff,0x08,0xff,0x10,0xff,0x08,0xff,0x00,0xff,0x00},

{0xff,0x00,0xff,0x08,0xff,0x10,0xff,0x20,0xff,0x10,0xff,0x08,0xff,0x00},

{0xff,0x08,0xff,0x10,0xff,0x20,0xff,0x40,0xff,0x20,0xff,0x10,0xff,0x08},

{0xff,0x10,0xff,0x20,0xff,0x40,0xff,0x8 0,0xff,0x40,0xff,0x20,0xff,0x10},

{0xff,0x08,0xff,0x10,0xff,0x20,0xff,0x40,0xff,0x20,0xff,0x10,0xff,0x08},

{0xff,0x00,0xff,0x08,0xff,0x10,0xff,0x20,0xff,0x10,0xff,0x08,0xff,0x00},

{0xff,0x00,0xff,0x00,0xff,0x08,0xff,0x10,0xff,0x08,0xff,0x00,0xff,0x00},

};

GLboolean Drawing = GL_FALSE; /* GL_TRUE if drawing */

/*

* Local functions…

*/ void DisplayErrorMessage(char *, …); void MakePalette(int);

LRESULT CALLBACK BlendProc(HWND, UINT, WPARAM, LPARAM); void DrawXY(int, int); void RepaintWindow(RECT *);

/*

* 'WinMain()' - Main entry…

*/

Page

584

OpenGL Super Bible!

int APIENTRY

WinMain(HINSTANCE hInst, /* I - Current process instance */

HINSTANCE hPrevInstance, /* I - Parent process instance * /

LPSTR lpCmdLine, /* I - Command-line arguments */

int nCmdShow) /* I - Show window at startup? */

{

MSG msg; /* Window UI event */

WNDCLASS wc; /* Window class */

POINT pos; /* Current mouse pos */

/*

* Register main window…

*/

wc.style = 0;

wc.lpfnWndProc = (WNDPROC)BlendProc;

wc.cbClsExtra = 0;

wc.cbWndExtra = 0;

wc.hInstance = hInst;

wc.hIcon = NULL;

wc.hCursor = LoadCursor(NULL, IDC_ARROW);

wc.hbrBackground = 0;

wc.lpszMenuName = MAKEINTRESOURCE(IDR_MENU1);

wc.lpszClassName = "Blend Paint";

if (RegisterClass(&wc) == 0)

{

DisplayErrorMessage("Unable to register win dow class!");

return (FALSE);

};

/*

* Then create it…

*/

BlendWindow = CreateWindow("Blend Paint", "Blend Paint",

WS_OVERLAPPEDWINDOW | WS_CLIPCHILDREN |

WS_CLIPSIBLINGS,

32, 32, 400, 300,

NULL, NULL, hInst, NULL);

if (BlendWindow == NULL)

{

DisplayErrorMessage("Unable to create window!");

return (FALSE);

};

ShowWindow(BlendWindow, nCmdShow);

UpdateWindow(Ble ndWindow);

/*

* Loop on events until the user quits this application…

*/

OpenGL Super Bible! Page

585

while (GetMessage(&msg, NULL, 0, 0))

{

TranslateMessage(&msg);

DispatchMessage(&msg);

};

return (msg.wParam);

}

/*

* 'DisplayErrorMessage()' - Display an error message dialog.

*/ void

DisplayErrorMessage(char *format, /* I - printf() style format string */

...) /* I - Other arguments as necessary */

{

va_list ap; /* Argument pointer */

char s[102 4]; /* Output string */

if (format == NULL)

return;

va_start(ap, format);

vsprintf(s, format, ap);

va_end(ap);

MessageBeep(MB_ICONEXCLAMATION);

MessageBox(NULL, s, "Error", MB_OK | MB_ICONEXCLAMATION);

}

/*

* 'MakePalette() ' - Make a color palette for RGB colors if necessary.

*/ void

MakePalette(int pf) /* I - Pixel format ID */

{

PIXELFORMATDESCRIPTOR pfd; /* Pixel format information */

LOGPALETTE *pPal; /* Pointer to logical palett e */

int nColors; /* Number of entries in palette */

int i, /* Color index */

rmax, /* Maximum red value */

gmax, /* Maximum green value */

bmax; /* Maximum blue value */

/*

* Find out if we need to define a color palette…

*/

DescribePixelFormat(BlendDC, pf, sizeof(PIXELFORMATDESCRIPTOR), &pfd);

if (!(pfd.dwFlags & PFD_NEED_PALETTE))

{

BlendPalette = NULL ;

Page

586

OpenGL Super Bible!

return;

};

/*

* Allocate memory for a color palette…

*/

nColors = 1 << pfd.cColorBits;

pPal = (LOGPALETTE *)malloc(sizeof(LOGPALETTE) + nColors *

sizeof(PALETTEENTRY));

pPal->palVersion = 0x300;

pPal->palNumEntries = nColors;

/*

* Get the maximum values for red, green, and blue. Then build 'nColors'

* colors…

*/

rmax = (1 << pfd.cRedBits) - 1;

gmax = (1 << pfd.cGreenBits) - 1;

bmax = (1 << pfd.cBlueBits) - 1;

for (i = 0; i < nColors; i ++)

{

pPal->palPalEntry[i].peRed = 255 * ((i >> pfd.cRedShift) & rmax) /

rmax;

pPal->palPalEntry[i].peGreen = 255 * ((i >> pfd.cGreenShift) & gmax) /

gmax;

pPal->palPalEntry[i].peBlue = 255 * ((i >> pfd.cBlueShift) & bmax) /

bmax;

pPal->palPalEntry[i].peFlags = 0;

};

/*

* Create, select, and realize the palette…

*/

BlendPalette = CreatePalette(pPal);

SelectPalette(BlendDC, BlendPalette, FALSE);

RealizePalette(BlendDC);

free(pPal);

}

/*

* 'BlendProc()' - Handle window events in the viewing window.

*/

LRESULT CALLBACK

BlendProc(HWND hWnd, /* I - Window triggering this event */

UINT uMsg, /* I - Message type */

WPARAM wParam, /* I - 'word' parameter value */

OpenGL Super Bible! Page

587

LPARAM lParam) /* I - 'long' parameter value */

{

int pf; /* Pixel format ID */

PIXELFORMATDESCRIPTOR pfd; /* Pixel format information */

PAINTSTRUCT ps; /* WM_PAINT message info */

RECT rect; /* Current client area rectangle */

switch (uMsg)

{

case WM_CREATE :

/*

* 'Create' message. Get device and rendering contexts, and

* setup the client area for OpenGL drawing…

*/

BlendDC = GetDC(hWnd);

pfd.nSize = sizeof(pfd);

pfd.nVersion = 1;

pfd.dwFlags = PFD_DRAW_TO_WINDOW | PFD_SUPPORT_OPENGL;

/* Do OpenGL drawing */

pfd.dwLayerMask = PFD_MAIN_PLANE; /* Main drawing pla ne */

pfd.iPixelType = PFD_TYPE_RGBA; /* RGB color buffer */

pfd.cColorBits = 0; /* Best color buffer please */

pfd.cDepthBits = 0; /* Don't need a depth buffer

*/

pfd.cStencilBits = 0; /* No stencil buffer */

pfd.cAccumBits = 0; /* No accumulation buffer */

pf = ChoosePixelFormat(BlendDC, &pfd);

if (pf == 0)

DisplayErrorMessage("texscene was unable to choose a suitable

pixel format!");

else if (!SetPixelFormat(BlendDC, pf, &pfd))

DisplayErrorMessage("texscene was unable to set the pixel

format!");

MakePalette(pf);

BlendRC = wglCreateContext(BlendDC);

wglMakeCurren t(BlendDC, BlendRC);

break;

case WM_SIZE :

case WM_PAINT :

/*

* Repaint the client area with our bitmap…

*/

BeginPaint(hWnd, &ps);

GetClientRect(hWnd, &rect);

RepaintWindow(&rect);

Page

588

OpenGL Super Bible!

EndPaint(hWnd, &ps);

break;

case WM_COMMAND :

/*

* Handle menu selections…

*/

switch (LOWORD(wParam))

{

case IDM_FILE_EXIT :

DestroyWindow(BlendWindow);

break;

};

break;

case WM_QUIT :

case WM_CLOSE :

/*

* Destroy the windows and bitmaps and exit…

*/

DestroyWindow(BlendWindow);

exit(0);

break;

case WM_DESTROY :

/*

* Release a nd free the device context, rendering

* context, and color palette…

*/

if (BlendRC)

wglDeleteContext(BlendRC);

if (BlendDC)

ReleaseDC(BlendWindow, BlendDC);

if (BlendPalette)

DeleteOb ject(BlendPalette);

PostQuitMessage(0);

break;

case WM_QUERYNEWPALETTE :

/*

* Realize the color palette if necessary…

*/

if (BlendPalette)

{

SelectPalette(BlendDC, BlendPalette, FALSE) ;

RealizePalette(BlendDC);

OpenGL Super Bible!

InvalidateRect(hWnd, NULL, FALSE);

return (TRUE);

};

break;

case WM_PALETTECHANGED:

/*

* Reselect our color palette if necessary…

*/

if (BlendPal ette && (HWND)wParam != hWnd)

{

SelectPalette(BlendDC, BlendPalette, FALSE);

RealizePalette(BlendDC);

UpdateColors(BlendDC);

};

break;

case WM_LBUTTONDOWN : /* Left button = red */

Drawing = GL_TRUE;

glColorMask(GL_TRUE, GL_FALSE, GL_FALSE, GL_TRUE);

DrawXY(LOWORD(lParam), HIWORD(lParam));

break;

case WM_MBUTTONDOWN : /* Middle button = green */

Drawing = GL_TRUE;

glColorMask(GL_FALSE, GL_TRUE, GL_FALSE, GL_TRUE);

DrawXY(LOWORD(lParam), HIWORD(lParam));

break;

case WM_ RBUTTONDOWN : /* Right button = blue */

Drawing = GL_TRUE;

glColorMask(GL_FALSE, GL_FALSE, GL_TRUE, GL_TRUE);

DrawXY(LOWOR D(lParam), HIWORD(lParam));

break;

case WM_MOUSEMOVE :

if (Drawing)

DrawXY(LOWORD(lParam), HIWORD(lParam));

break;

case WM_LBUTTONUP :

case WM_MBUTTONUP :

case WM_RBUTTONUP :

Drawing = GL_FALSE;

break;

default :

/*

* Pass all other messages through the default window

* procedure…

*/

return (DefWindowProc(hWnd, uMsg, wParam, lParam));

Page

589

Page

590

OpenGL Super Bible!

};

return (FALSE);

}

/*

* 'DrawXY()' - Draw at the given mouse position.

*/ void

DrawXY(int mousex, /* I - Horizontal mouse position */

int mousey) /* I - Vertical mouse position */

{

glRasterPos2i(mousex, mousey);

glDrawPixels(7, 7, GL_LUMINANCE_ALPHA, GL_UNSIGNED_BYTE, Ble ndBrush[0]);

glFinish();

}

/*

* 'RepaintWindow()' - Redraw the client area.

*/ void

RepaintWindow(RECT *rect) /* I - Client area rectangle */

{

/*

* Reset the viewport and clear the window to white…

*/

glViewport(0, 0, rect ->right, rect->bottom);

glOrtho(0.0, (float)rect ->right, (float)rect ->bottom, 0.0, -1.0, 1.0);

glClearColor(0.0, 0.0, 0.0, 1.0);

glColorMask(GL_TRUE, GL_TRUE, GL_TRUE, GL_TRUE);

glClear(GL_COLOR_BUFFER_BIT);

glEnable(GL_BLEND);

glBlendFunc(GL_SRC_ALPHA, G L_ONE_MINUS_SRC_ALPHA);

glFinish();

}

Fog

OpenGL provides depth-cueing (shading based upon distance) and atmospheric effects through the glFog function. Essentially, fog provides a way of adding (mixing) a predefined color with each vertex or texture image based upon the distance from the user. Fog is often used in flight simulators and animation packages to provide the final real-world look to computer graphics.

OpenGL Super Bible! Page

591

OpenGL supports three kinds of fog: GL_LINEAR for depth-cueing, GL_EXP for heavy fog or clouds, and GL_EXP2 for smoke and weather haze. Figure 16-3 shows GL_LINEAR fog; later, in Figure 16-5, you can see the effect of GL_EXP fog.

Figure 16-3 Depth-cued teapots using glFog

You choose the type of fog (or fog mode) using glFogi: glFogi(GL_FOG_MODE, GL_LINEAR); glFogi(GL_FOG_MODE, GL_EXP); glFogi(GL_FOG_MODE, GL_EXP2);

Once you have chosen the fog type, you must choose a fog color that will be mixed with your scene using the glFogfv or glFogiv functions:

GLfloat fog_color[4] = { r, g, b, a }; glFogfv(GL_FOG_COLOR, fog_color);

GLint fog_color[4] = { r, g, b, a }; glFogiv(GL_FOG_COLOR, fog_color);

For depth-cueing, you’ll generally want to make the fog color the same as the background

(black, in Figure 16-3). This will make the depth-cueing look “correct” to the eye— that is, objects farther away will appear to fade into the background. For some applications, you might want to give the fog a bright color such as yellow, instead, so that things stand out more against the background.

Drawing Depth-Cued Teapots

Listing 16-3 draws two teapots using depth-cueing. The draw_scene function handles all graphics drawing and starts by setting the fog color to black and the fog mode to

GL_LINEAR.

Page

592

OpenGL Super Bible!

static float fog_color[4] = { 0.0, 0.0, 0.0, 0.0 }; glEnable(GL_FOG); glFogf(GL_FOG_MODE, GL_LINEAR); glFogfv(GL_FOG_COLOR, fog_color);

Finally, it draws both teapots at different distances from the viewer. The results are visibly obvious.

Listing 16-3 FOGPOT.C: Depth-cued teapots using glFog

#include <GL/glaux.h>

/*

* These #define constants are provided for compatibility between MS

* Windows and the rest of the world.

*

* CALLBACK and APIENTRY are function modifiers under MS Windows.

*/

#ifndef WIN32

# define CALLBACK

# define APIENTRY

#endif /* !WIN32 * /

GLfloat rotation = 0.0;

/*

* 'reshape_scene()' - Change the size of the scene…

*/ void CALLBACK reshape_scene(GLsizei width, /* I - Width of the window in pixels */

GLsizei height) /* I - Height of the window in pixels */

{

/*

* Reset the current viewport and perspective transformation…

*/

glViewport(0, 0, width, height);

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

gluPerspective(22.5, (float)width / (float)height, 0.1, 1000.0);

glMatrixMode(GL_MODELVIEW);

}

/*

* 'draw_scene()' - Draw a scene containing a cube with a sphere in front

* of it.

*/ void CALLBACK

OpenGL Super Bible! Page

draw_scene(void)

{

static float red_light[4] = { 1.0, 0.0, 0.0, 1.0 };

static float red_pos[4] = { 1.0, 1.0, 1.0, 0.0 };

static float blue_light[4] = { 0.0, 0.0, 1.0, 1.0 };

static float blue_pos[4] = { -1.0, -1.0, -1.0, 0.0 };

static float fog_color[4] = { 0.0, 0.0, 0.0, 0.0 };

/*

* Enable drawing features that we need…

*/

glEnable(GL_DEPTH_TEST);

glEnable(GL_LIGHTING);

glEnable(GL_LIGHT0);

glEnable(GL_LIGHT1);

glShadeModel(GL_SMOOTH);

/*

* Clear the color and depth buffers…

*/

glClearColor(0.0, 0.0, 0.0, 0.0);

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

/*

* Draw the cube and sp here in different colors…

*

* We have positioned two lights in this scene. The first is red and

* located above, to the right, and behind the viewer. The second is

* blue and located below, to the left, and in front of the viewer.

*/

glLightfv(GL_LIGHT0, GL_DIFFUSE, red_light);

glLightfv(GL_LIGHT0, GL_POSITION, red_pos);

glLightfv(GL_LIGHT1, GL_DIFFUSE, blue_light);

glLightfv(GL_LIGHT1, GL_POSITION, blue_pos);

glEnable(GL_COLOR_MATERIAL);

glEnable(GL_FOG);

glFogf(GL_FOG_MODE, G L_LINEAR);

glFogfv(GL_FOG_COLOR, fog_color);

glPushMatrix();

glTranslatef( -1.0, 0.0, -15.0);

glRotatef(-rotation, 0.0, 1.0, 0.0);

glColor3f(1.0, 1.0, 0.0);

auxSolidTeapot(1.0);

glPopMatrix();

glPushMatrix();

593

Page

594

OpenGL Super Bible!

glTranslatef(1.0, 0.0, -10.0);

glRotatef(rotation, 0.0, 1.0, 0.0);

glColor3f(0.0, 1.0, 1.0);

auxSolidTeapot(1.0);

glPopMatrix();

auxSwapBuffers();

}

/*

* 'rotate_objects()' - Rotate while we are idle…

*/ void CALLBACK rotate_objects(void)

{

rotation += 2.0;

if (rotation >= 360.0)

rotation -= 360.0;

draw_scene();

}

/*

* 'main()' - Initialize the window and display the scene until the user

* presses the ESCape key.

*/ void main(void)

{

auxInitDisplayMode(AUX_RGB | AUX_DOUBLE | AUX_DEPTH);

auxInitWindow("Fogged Teapots");

auxReshapeFunc(reshape_scene);

auxIdleFunc(rotate_objects);

auxMainLoop(draw_scene);

}

Other Types of Fog

For the other fog types, you’ll probably make the fog color white or some other light color.

In addition to the fog color, GL_EXP and GL_EXP2 fog types have an additional density parameter: glFogf(GL_FOG_DENSITY, density);

The density parameter can be any number greater than 0.0, but typically you’ll keep it less than 0.1. Figure 16-4 shows how the density of fog affects how much of the fog color is used.

OpenGL Super Bible! Page

595

Figure 16-4 Fog density over distance

Fog Distance

The fog distance is the transformed Z component of all glVertex calls. This Z coordinate lies in the range 0.0 to 1.0 and is the same number that is stored in the depth buffer. The fog distance and density determine how much fog color is mixed in, as shown here:

By default, fog is applied at all depths from 0.0 to 1.0. The GL_FOG_START and

GL_FOG_END parameters restrict the range of depth values used for fog calculations. This is typically used to more accurately model fog density when the immediate area in front of the viewer is not covered (for example, when flying through clouds, the breaks between clouds will not be as dense).

Revisiting the Terrain Viewing Program

Weather haze effects are the perfect addition to the terrain viewing program of Chapter 12.

In Figure 16-5 you can see the fantastic improvement in image quality. This was achieved by adding the following three lines of code: glFogf(GL_FOG_DENSITY, 0.0025); glFogi(GL_FOG_MODE, GL_EXP); glFogfv(GL_FOG_COLOR, fogcolor);

Page

596

OpenGL Super Bible!

Figure 16-5 Weather haze using glFog

The fog color in this case was defined as a solid white RGBA color (1.0, 1.0, 1.0, 1.0). To improve the output even more at the expense of speed, we can also call glHint(GL_FOG_HINT, GL_NICEST);

This forces fog to be evaluated at every pixel rather than every vertex. Unfortunately, for most scenes this means 100 times as many calculations must be performed!

Now here is Listing 16-4, with the updated RepaintWindow function.

Listing 16-4 FOGSCENE.C: Updated RepaintWindow function using glFog for the terrain viewing program

/*

* 'RepaintWindow()' - Redraw the client area with our scene.

*/ void

RepaintWindow(RECT *rect) /* I - Client area rectangle */

{

int i; /* Looping var */

int x, y; /* Terrain (x,y) location */

int la st_type; /* Previous terrain type */

int *type; /* Current terrain type */

GLfloat *height, /* Current terrain height */

(*n)[3]; /* Current terrain normal */

static GLfloat sky_top[4 ][3] =

{ /* Sky coordinates */

{ -TERRAIN_EDGE, TERRAIN_SIZE * 0.8, -TERRAIN_EDGE },

{ TERRAIN_EDGE, TERRAIN_SIZE * 0.8, -TERRAIN_EDGE },

OpenGL Super Bible! Page

{ TERRAIN_EDGE, TERRAIN_SIZE * 0.8, TERRAIN_EDGE },

{ -TERRAIN_EDGE, TERRA IN_SIZE * 0.8, TERRAIN_EDGE }

};

static GLfloat sky_bottom[4][3] =

{

{ -TERRAIN_EDGE, 0.0, -TERRAIN_EDGE },

{ TERRAIN_EDGE, 0.0, -TERRAIN_EDGE },

{ TERRAIN_EDGE, 0.0, TERRAIN_EDGE },

{ -TERRAIN_EDGE, 0.0, TERRAIN_EDGE }

};

static GLfloat sunpos[4] = { 0.0, 1.0, 0.0, 0.0 };

static GLfloat suncolor[4] = { 64.0, 64.0, 64.0, 1.0 };

static GLfloat sunambient[4] = { 0.001, 0.001, 0.001, 1.0 };

static GLfloat fogcolor[4] = { 1.0, 1.0, 1.0, 1.0 };

/*

* Reset the viewport and clear the window to light blue…

*/

glViewport(0, 0, rect ->right, rect->bottom);

glClearColor(0.5, 0.5, 1.0, 1.0);

glEnable(GL_DEPTH_TEST);

glEnable(GL_FOG);

glFogf(GL_FOG_DENSITY, 0.0025);

glFogi(GL_FOG_MODE, GL_EXP);

glFogfv(GL_FOG_COLOR, fogcolor);

if (Moving || Drawing)

{

/*

* Don't texture while flying or drawing; it's too slow…

* Also, draw to the back buffer for smooth animation.

*/

glDisable(GL_TEXTURE_2D);

glDrawBuffer(GL _BACK);

}

else

{

/*

* Enable textures when we've stopped moving or drawing.

* This generates a nice scene that we can print out or

* save to a bitmap file…

*

* Because it takes longer, we draw to the front buffer

* so the user can see some progress…

*/

glEnable(GL_TEXTURE_2D);

glTexEnvi(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_DECAL);

glDrawBuffer(GL_FRONT);

};

597

Page

598

OpenGL Super Bible!

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

/*

* Setup viewing transformations for the current position and

* orientation…

*/

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

gluPerspective(45.0, (float)rect ->right / (float)rect ->bottom,

0.1, 1000.0);

glMatrixMode(GL_MODELVIEW);

glPushMatrix();

glRotatef(Roll, 0.0, 0.0, 1.0);

glRotatef(Pitch, -1.0, 0.0, 0.0);

glRotatef(Heading, 0.0, 1.0, 0.0);

glTranslatef( -Position[0],

-Position[1],

-Position[2]);

glScalef(TERRAIN_SCALE, TERRAIN_SCALE, TERRAIN_SCALE);

if (!(Moving || Drawing))

{

/*

* Draw the sky…

*/

glDisable(GL_LIGHTING);

glCallList(SkyTexture);

glBegin(GL_QUAD_STRIP);

for (i = 0; i < 4; i ++)

{

glTexCoord2f((float)i, 0.0);

glVertex3fv(sky_bottom[i]);

glTexCoord2f((float)i, 0.8);

glVertex3fv(sky_top[i]);

};

glTexCoord2f(4.0, 0.0);

glVertex3fv(sky_bottom[0]);

glTexCoord2f(4.0, 0.8);

glVertex3fv(sky_top[0]);

glEnd();

glBegin(GL_TRIANGLE_FAN);

glTexCoord2f(0.5, 1.0);

glVertex3f(0.0, TERRAIN_SIZE, 0.0);

for (i = 0; i < 4; i ++)

{

glTexCoord2f((float)i, 0.8);

glVertex3fv(sky_top[i]);

OpenGL Super Bible!

};

glTexCoord2f(4.0, 0.8);

glVertex3fv(sky_top[0]);

glEnd();

};

/*

* Setup lighting…

*/

glEnable(GL_LIGHTING);

glLightModeli(GL_LIGHT_MODEL_TWO_SIDE, GL_TRUE);

glEnable(GL_LIGHT0);

glLightfv(GL_LIGHT0, GL_POSIT ION, sunpos);

glLightfv(GL_LIGHT0, GL_DIFFUSE, suncolor);

glLightfv(GL_LIGHT0, GL_AMBIENT, sunambient);

if (Moving || Drawing)

glEnable(GL_COLOR_MATERIAL);

else

glDisable(GL_COLOR_MATERIAL);

/*

* Then the terrain…

*/

type = TerrainType[0];

height = TerrainHeight[0];

n = TerrainNormal[0];

for (y = 0; y < (TERRAIN_SIZE - 1); y ++)

{

last_type = -1;

for (x = 0; x < TERRAIN_SIZE; x ++, type ++, height ++, n ++)

{

if (last_type != *type)

{

/*

* If the type of terrain changes, end any existing

* strip of quads and reset color/texture parameters…

*/

if (last_type != -1)

glEnd();

switch (*typ e)

{

case IDC_WATER :

if (Moving || Drawing)

glColor3f(0.0, 0.0, 0.5);

else

glCallList(WaterTexture);

break;

Page

599

Page

600

OpenGL Super Bible!

case IDC_GRASS :

if (Moving || Drawing)

glColor3f(0.0, 0.5, 0.0);

else

glCallList(GrassTexture);

break;

case IDC_ROCKS :

if (Moving || Drawing)

glColor3f(0 .25, 0.25, 0.25);

else

glCallList(RocksTexture);

break;

case IDC_TREES :

if (Moving || Drawing)

glColor3f(0.0, 0.25, 0.0);

else

glCallList(TreesTexture);

break;

case IDC_MOUNTAINS :

if (Moving || Drawing)

glColor3f(0.2, 0.1, 0.05);

else

glCallList(MountainsTexture);

bre ak;

};

glBegin(GL_QUAD_STRIP);

if (last_type != -1)

{

/*

* Start from the previous location to prevent

* holes…

*/

glTexCoord2i(x * 2 - 2, y * 2);

glNormal3fv(n[ -1]);

glVertex3f((GLfloat)(x - TERRAIN_EDGE - 1),

height[ -1],

(GLfloat)(y - TERRAIN_EDGE));

glTexCoord2i(x * 2 - 2, y * 2 + 2);

glNormal3fv(n[TERRAIN_SIZE - 1]);

glVertex3f((GLfloat)(x - TERRAIN_EDGE - 1),

height[TERRAIN_SIZE - 1],

(GLfloat)(y - TERRAIN_EDGE + 1));

};

last_type = *type;

};

glTexCoord2i(x * 2, y * 2);

glNormal3fv(n[0]);

glVertex3f((GLfloat)(x - TERRAIN_EDGE),

height[0],

(GLfloat)(y - TERRAIN_EDGE));

glTexCoord2i(x * 2, y * 2 + 2);

OpenGL Super Bible!

glNormal3fv(n[TERRAIN_SIZE]);

glVertex3f((GLfloat)(x - TERRAIN_EDGE),

height[TERRAIN_SIZE],

(GLflo at)(y - TERRAIN_EDGE + 1));

};

glEnd();

};

glPopMatrix();

/*

* While we fly or draw we're double -buffering. Swap buffers

* as necessary…

*/

glFinish();

if (Moving || Drawing)

SwapBuffers(SceneDC);

}

Page

601

Summary

Blending and fog complete the OpenGL library and are yet another source for making the images you generate more realistic. Blending provides transparency effects and improves anti-aliasing of points, lines, and polygons. Fog supports a variety of depth-cueing and weather effects that make images look less exact and, ironically, more like the real world.

Page

602

Reference Section

OpenGL Super Bible!

glBlendFunc

Purpose

Sets color blending functions.

Include File

<GL/gl.h>

Syntax void glBlendFunc(GLenum sfactor, GLenum dfactor);

Description

This function sets the source and destination blending factors for color blending. You must call glEnable(GL_BLEND) to enable color blending. Blending is only available in RGBA drawing contexts. The default settings for blending are glBlendFunc(GL_ONE, GL_ZERO).

Parameters

sfactor

GLenum: The source color’s blending function.

dfactor

GLenum: The destination pixel color’s blending function.

Returns

None.

Example

See the example in CH16\BLENDPOT.C on the CD.

OpenGL Super Bible!

glFog

Purpose

Specifies fog parameters.

Include File

<GL/gl.h>

Syntax void glFogf(GLenum pname, GLfloat param); void glFogfv(GLenum pname, GLfloat *params); void glFogi(GLenum pname, GLint param); void glFogiv(GLenum pname, GLint *params);

Description

The glFog functions set fog parameters. To draw using fog you must call glEnable(GL_FOG).

Parameters

pname

GLenum: The parameter to set. Valid names are as follows:

GL_FOG_COLOR The color of the fog; must be an array of 4 numbers representing the RGBA color.

GL_FOG_DENSITY The fog density; a number greater than 0.0.

The density is only used for the GL_EXP and GL_EXP2 fog modes.

GL_FOG_END

GL_FOG_MODE

The farthest distance to which the fog is applied. This is a transformed Z (depth) value from 0.0 to 1.0.

The fog type; specifies the formula used to render fog effects (GL_LINEAR, GL_EXP, or GL_EXP2).

GL_FOG_START The closest distance to which fog is applied. This is a transformed Z (depth) value from 0.0 to 1.0.

param

GLfloat, GLint: The parameter value.

params

GLfloat *, GLint *: A pointer to the parameter array.

Returns

None.

Example

See the example in CH16\FOGSCENE.C on the CD.

Page

603

Page

604

OpenGL Super Bible!

Chapter 17

Curves and Surfaces: What the #%@!&* Are NURBS?

What you’ll learn in this chapter:

How to…

Use maps to render Bázier curves and surfaces

Use evaluators to simplify surface mapping

Create NURBS surfaces

Create trimming curves

Functions You’ll Use

glMap, glEvalCoord glMapGrid, glEvalMesh gluNewNurbsRenderer, gluBeginSurface, gluNurbsSurface, gluEndSurface, gluDeleteNurbsRenderer gluBeginTrim, gluPwlCurve, gluEndTrim

For most applications that make use of 3D graphics, you’ll need smooth curves and surfaces.

Making use of the techniques discussed elsewhere in this book, you could divide such a surface into many smaller quads or triangles, then calculate the normals at the various vertices, and apply lighting— producing what appears to be a very smooth and flowing surface. Or, with little more than basic algebra you could even write code that evaluates an equation for a surface and uses something like triangle strips or quads to generate a surface with either a fine or coarse visual resolution.

Suppose, however, you want to create a curve or surface and you don’t have an algebraic equation to start with. It’s far from a trivial task to figure it out in reverse, starting from what you visualize as the end result and working down to a second- or third-order polynomial.

Taking a rigorous mathematical approach is time consuming and error prone, even with the aid of a computer. And forget about doing it in your head.

Recognizing this fundamental need in the art of computer-generated graphics, Pierre Bázier, an automobile designer for Renault in the 1970s, created a set of mathematical models that could represent curves and surfaces by specifying only a small set of control points. In addition to simplifying the representation of curved surfaces, the models facilitated interactive adjustments to the shape of the curve or surface..

Other types of curves and surfaces, and indeed a whole new vocabulary for computergenerated surfaces soon evolved. The mathematics behind this magic show are no more complex than the matrix manipulations in Chapter 7, and an intuitive understanding of these

OpenGL Super Bible! Page

605

curves is easy to grasp. As we did in Chapter 7, we will take the approach that you can do a lot with these functions without a deep understanding of their mathematics.

Curves and Surfaces

A curve has a single starting point, a length, and an endpoint. It’s really just a line that squiggles about in 3D space. A surface, on the other hand, has width and length and thus a surface area. We’ll begin by showing you how to draw some smooth curves in 3D space, and then extend this to surfaces. But first let’s establish some common vocabulary and math fundamentals.

Parametric Representation

When you think of straight lines, you may think of this famous equation:

Y = mX + b

Here m equals the slope of the line, and b is the Y intercept of the line (the place where the line crosses the y-axis). This may take you back to your eighth-grade algebra class, where you also learned about the equations for parabolas, hyperbolas, exponential curves, and so on. All of these equations expressed Y (or X) in terms of some function of X (or Y).

Another way of expressing the equation for a curve or line is as a parametric equation. A parametric equation expresses both X and Y in terms of another variable that varies across some predefined range of values, that is not explicitly a part of the geometry of the curve.

Sometimes in physics, for example, the X, Y, and Z coordinates of a particle may be in terms of some functions of time, where time is expressed in seconds. In the following, f(), g(), and h() are unique functions that vary with time (t):

X = f(t)

Y = g(t)

Z = h(t)

When we define a curve in OpenGL, we will also define it as a parametric equation. The parametric parameter of the curve, which we’ll call u, and its range of values will be the domain of that curve. Surfaces will be described using two parametric parameters: u and v.

Figure 17-1 shows both a curve and a surface defined in terms of u and v domains. The important thing to realize here is that the parametric parameters (u and v) represent the extents of the equations that describe the curve; they do not reflect actual coordinate values.

Page

606

OpenGL Super Bible!

Figure 17-1 Parametric representations of curves and surfaces

Control Points

Curves are represented by a number of control points that influence the shape of the curve.

For the Bázier curves, the first and last control points are actually part of the curve. The other control points act as magnets, pulling the curve towards them. Figure 17-2 shows some examples of this concept, with varying numbers of control points.

Figure 17-2 How control points affect curve shape

The order of the curve is represented by the number of control points used to describe its shape. The degree is one less than the order of the curve. The mathematical meaning of these terms pertains to the parametric equations that exactly describe the curve, with the order being the number of coefficients, and the degree being the highest exponent of the parametric parameter. If you want to read more about the mathematical basis of Bázier curves, see Appendix B.

The curve in Figure 17-2(b) is called a quadratic curve (degree 2), and Figure 17-2(c) is called a cubic (degree 3). Cubic curves are the most typical. Theoretically, you could define a curve of any order, but higher-order curves start to oscillate uncontrollably and can vary wildly with the slightest change to the control points.

OpenGL Super Bible! Page

607

Continuity

If two curves placed side by side share an endpoint (called the breakpoint), they together form a piecewise curve. The continuity of these curves at this breakpoint describes how smooth the transition is between them. The four categories of continuity are none (C0), positional (C1), tangential (C2), and curvature (C3).

As you can see in Figure 17-3, no continuity is when the two curves don’t meet at all.

Positional continuity is achieved when the curves at least meet and share a common endpoint. Tangential continuity occurs when the two curves have the same tangent at the breakpoint. Finally, curvature continuity means the two curves’ tangents also have the same rate of change at the breakpoint (thus an even smoother transition).

Figure 17-3 Continuity of piecewise curves

When assembling complex surfaces or curves from many pieces, you will usually strive for

C2 or C3 continuity. You’ll see later that some parameters for curve and surface generation can be chosen to produce the desired continuity.

Evaluators

OpenGL contains several functions that make it very easy to draw Bázier curves and surfaces by specifying the control points and the range for the parametric u and v parameters. Then, by calling the appropriate evaluation function (the evaluator), the points that make up the curve or surface are generated. We’ll start with a 2D example of a Bázier curve and then extend this to three dimensions to create a Bázier surface.

A 2D Curve

The best way to get started is with an example, explaining it line by line. Listing 17-1 shows some code from the example program BEZIER in this chapter’s subdirectory on the CD.

This program specifies four control points for a Bázier curve and then renders the curve using an evaluator. The output from Listing 17-1 is shown in Figure 17-4.

Page

608

OpenGL Super Bible!

Figure 17-4 Output from the BEZIER example program

Listing 17-1 Code from BEZIER that draws a Bázier curve with four control points

// The number of control points for this curve

GLint nNumPoints = 4;

GLfloat ctrlPoints[4][3]= {{ -4.0f, 0.0f, 0.0f}, // Endpoint

{ -6.0f, 4.0f, 0.0f}, // Control Point

{ 6.0f, -4.0f, 0.0f}, // Control Point

{ 4.0f, 0.0f, 0.0 f }}; // Endpoint

// This function is used to superimpose the control points over the curve void DrawPoints(void)

{

int i; // Counting variable

// Set point size larger to make more visible

glPointSize(5.0f);

// Loop through all control points for this example

glBegin(GL_POINTS);

for(i = 0; i < nNumPoints; i++)

glVertex2fv(ctrlPoints[i]);

glEnd();

}

// Change viewing volume and viewport. Called when wind ow is resized void ChangeSize(GLsizei w, GLsizei h)

OpenGL Super Bible! Page

609

{

// Prevent a divide by zero

if(h == 0)

h = 1;

// Set Viewport to window dimensions

glViewport(0, 0, w, h);

glMatrixMode(GL_PROJECTION);

glLoadIdentity();

gluOrtho2D( -10.0f, 10.0f, -10.0f, 10.0f);

// Modelview matrix reset

glMatrixMode(GL_MODELVIEW);

glLoadIdentity();

}

// Called to draw scene void RenderScene(void)

{

int i;

// Clear the window with current clearing color

glClear(GL_COLOR_BUFFER_BIT);

// Sets up the Bzier

// This actually only needs to be called once and could go in

// the setup function

glMap1f(GL_MAP1_VERTEX_ 3, // Type of data generated

0.0f, // Lower u range

100.0f, // Upper u range

3, // Distance between points in the

data

nNumPoints, // Number of control points

&ctrlPoints[0][0]); // Array of control points

// Enable the evaluator

glEnable(GL_MAP1_VERTEX_3);

// Use a line strip to "connect the dots"

glBegin(GL_LINE_STRIP);

for(i = 0; i <= 100; i++)

{

// Evaluate the curve at this point

glEvalCoord1f((GLfloat) i);

}

glEnd();

// Draw the Control Points

DrawPoints();

// Flush drawing commands

glFlush();

}

Page

610

OpenGL Super Bible!

The first thing we do in Listing 17-1 is define the control points for our curve:

// The number of control points for this curv e

GLint nNumPoints = 4;

GLfloat ctrlPoints[4][3]= {{ -4.0f, 0.0f, 0.0f}, // Endpoint

{ -6.0f, 4.0f, 0.0f}, // Control Point

{ 6.0f, -4.0f, 0.0f}, // Control Point

{ 4.0f, 0.0f, 0.0f }}; // Endpoint

We defined global variables for the number of control points and the array of control points.

To experiment, you can change these by adding more control points, or just modifying the position of these points.

The function DrawPoints() is pretty straightforward. We call this function from our rendering code to display the control points along with the curve. This also is very useful when you are experimenting with control-point placement. Our standard ChangeSize() function establishes a 2D orthographic projection that spans from –10 to +10 in the x and y directions.

Finally, we get to the rendering code. The function RenderScene() first calls glMap1f (after clearing the screen) to create a mapping for our curve:

// Called to draw scene void RenderScene(void)

{

int i;

// Clear the window with current clearing color

glClear(GL_COLOR_BUFFER_BIT);

// Sets up the Bzier

// This actually only needs to be called once and could go in

// the setup function

glMap1f(GL_MAP1_VERTEX_3, // Type of data generated

0.0f, // Lower u range

100.0f, // Upper u range

3, // Distance between points in the

data

nNumPoints, // Number of control points

&ctrlPoints[0][0]); // Array of control points

The first parameter to glMap1f, GL_MAP1_VERTEX_3, sets up the evaluator to generate vertex coordinate triplets (x, y, and z), as opposed to GL_MAP1_VERTEX_4 which would generate the coordinates and an alpha component. You can also have the evaluator generate other values, such as texture coordinates and color information. See the Reference Section for details.

OpenGL Super Bible! Page

611

The next two parameters specify the lower and upper bounds of the parametric u value for this curve. The lower value specifies the first point on the curve, and the upper value specifies the last point on the curve. All the values in between correspond to the other points along the curve. Here we set the range to 0–100.

The fourth parameter to glMap1f specifies the number of floating point values between the vertices in the array of control points. Each vertex consists of three floating point values (for x, y, and z), so we set this value to 3. This flexibility allows the control points to be placed in an arbitrary data structure, as long as they occur at regular intervals.

The last parameter is a pointer to a buffer containing the control points used to define the curve. Here, we pass a pointer to the first element of the array. Once the mapping for the curve is created, we enable the evaluator to make use of this mapping. This is maintained through a state variable, and the following function call is all that is needed to enable the evaluator to produce points along the curve:

// Enable the evaluator glEnable(GL_MAP1_VERTEX_3);

The function glEvalCoord1f takes a single argument: a parametric value along the curve.

This function then evaluates the curve at this value and calls glVertex internally for that point. By looping through the domain of the curve and calling glEvalCoord to produce vertices, we can draw the curve with a simple line strip:

// Use a line strip to "connect the dots" glBegin(GL_LINE_STRIP);

for(i = 0; i <= 100; i++)

{

// Evaluate the curve at this point

glEvalCoord1f((GLfloat) i);

} glEnd();

Finally, we wish to display the control points themselves:

// Draw the Control Points

DrawPoints();

// Flush drawing commands glFlush();

}

Evaluating a Curve

OpenGL can make things even easier than this. We set up a grid with the function glMapGrid, which tells OpenGL to create an evenly spaced grid of points over the u domain

(the parametric argument of the curve). Then we call glEvalMesh to “connect the dots” using the primitive specified (GL_LINE or GL_POINTS). The following two function calls:

Page

612

OpenGL Super Bible!

// Use higher level functions to map to a grid, then evaluate the

// entire thing.

// Map a grid of 100 points from 0 to 100 glMapGrid1d(100,0.0,100.0);

// Evaluate the grid, using lines glEvalMesh1(GL_LINE,0,100); completely replace this code:

// Use a line strip to "connect -the-dots" glBegin(GL_LINE_STRIP);

for(i = 0; i <= 100; i++)

{

// Evaluate the curve at this point

glEvalCoord1f((GLfloat) i);

} glEnd();

As you can see, this is more compact and efficient, but its real benefit comes when evaluating surfaces rather than curves.

A 3D Surface

Creating a 3D Bázier surface is much like the 2D version. In addition to defining points along the u domain, we must define them along the v domain as well.

Listing 17-2 is from our next example program, BEZ3D, and displays a wire mesh of a 3D

Bázier surface. The first change from the preceding example is that we have defined three more sets of control points for the surface along the v domain. To keep this surface simple, the control points are the same except for the Z value. This will create a uniform surface, as if we simply extruded a 2D Bázier along the Z axis.

Listing 17-2 BEZ3D code to create a Bázier surface

// The number of control points for this curve

GLint nNumPoints = 3;

GLfloat ctrlPoints[3][3][3]= {{{ -4.0f, 0.0f, 4.0f}, // V = 0

{ -2.0f, 4.0f, 4.0f},

{ 4.0f, 0.0f, 4.0f }},

{{ -4.0f, 0.0f, 0.0f}, // V = 1

{ -2.0f, 4.0f, 0.0f},

{ 4.0f, 0.0f, 0.0f }},

{{ -4.0f, 0.0f, -4.0f}, // V = 2

{ -2.0f, 4.0f, -4.0f},

{ 4.0f, 0.0f, -4.0f }}};

OpenGL Super Bible! Page

613

// Called to draw scene void RenderScene(void)

{

//int i;

// Clear the window with current clearing color

glClear(GL_COLOR_BUFFER_BIT);

// Save the modelview matrix stack

glMatrixMode(GL_MODELVIEW);

glPushMatrix();

// Rotate the mesh around to make it easier to see

glRotatef(45.0f, 0.0f, 1.0f, 0.0f);

glRotatef(60.0f, 1.0f, 0.0f, 0.0f);

// Sets up the Bzier

// This actually only needs to be called once and could go in

// the setup function

glMap2f(GL_MAP2_VERTEX_3, // Type of data generated

0.0f, // Lower u range

10.0f, // Upper u range

3, // Distance between points in the

data

3, // Dimension in u direction (order)

0.0f, // Lower v range

10.0f, // Upper v range

9, // Distance between points in the

data

3, // Dimension in v direction (order)

&ctrlPoints[0][0][0]); // array of control points

// Enable the evaluator

glEnable(GL_MAP2_VERTEX_3);

// Use higher level functions to map t o a grid, then evaluate the

// entire thing.

// Map a grid of 100 points from 0 to 100

glMapGrid2f(10,0.0f,10.0f,10,0.0f,10.0f);

// Evaluate the grid, using lines

glEvalMesh2(GL_LINE,0,10,0,10);

// Draw th e Control Points

DrawPoints();

// Restore the modelview matrix

glPopMatrix();

// Flush drawing commands

glFlush();

}

Page

614

OpenGL Super Bible!

Our rendering code is different now, too. In addition to rotating the figure for better effect, we call glMap2f instead of glMap1f. This specifies control points along two domains (u and v) instead of just one (u).

// Sets up the Bzier

// This actually only needs to be called once and could go in

// the setup function glMap2f(GL_MAP2_VERTEX_3 , // Type of data generated

0.0f, // Lower u range

10.0f, // Upper u range

3, // Distance between points in the data

3, // Dimension in u dir ection (order)

0.0f, // Lower v range

10.0f, // Upper v range

9, // Distance between points in the data

3, // Dimension in v direction (order)

&ctrlPoints[0][0][0]); // array of control points

We must still specify the lower and upper range for u; and the distance between points in the u domain is still 3. Now, however, we must also specify the lower and upper range in the v domain. The distance between points in the v domain is now 9 values, because we have a three-dimensional array of control points, with each span in the u domain being three points of three values each ( 3 × 3 = 9). Then we tell glMap2f how many points in the v direction are specified for each u division, followed by a pointer to the control points themselves.

The two-dimensional evaluator is enabled just like the one-dimensional one, and we call glMapGrid2f with the number of divisions in the u and v direction.

// Enable the evaluator glEnable(GL_MAP2_VERTEX_3);

// Use higher level functions to map to a grid, then evaluate the

// entire thing.

// Map a grid of 10 points from 0 to 10 glMapGrid2f(10,0.0f,10.0f,10,0.0f,10.0f);

After the evaluator is set up, we can call the two-dimensional (meaning u and v) version of glEvalMesh to evaluate our surface grid. Here we evaluate using lines, and specify the u and v domains values to range from 0 to 10.

// Evaluate the grid, using lines glEvalMesh2(GL_LINE,0,10,0,10);

The end result is shown in Figure 17-5.

OpenGL Super Bible! Page

615

Figure 17-5 Output from the BEZ3D program

Lighting and Normal Vectors

Another valuable features of evaluators is the automatic generation of surface normals. By simply changing this code:

// Evaluate the grid, using lines glEvalMesh2(GL_LINE,0,10,0,10); to this:

// Evaluate the grid, using lines glEvalMesh2(GL_FILL,0,10,0,10); and then calling glEnable(GL_AUTO_NORMAL); in our initialization code, we enable easy lighting of surfaces generated by evaluators. Figure

17-6 shows the same surface as Figure 17-5, but with lighting enabled and automatic normalization turned on. The code for this program is found in BEZLIT in the CD subdirectory for this chapter. The program is only slightly modiied from BEZ3D.

Page

616

OpenGL Super Bible!

Figure 17-6 Output from BEZLIT program

NURBS

You can use evaluators to your heart’s content to evaluate Bázier surfaces of any degree, but for more complex curves you will have to assemble your Bázier’s piecewise. As you add more control points, it becomes difficult to create a curve that has good continuity. A higher level of control is available through the glu library’s NURBS functions. NURBS stands for

non-uniform rational B-spline. Mathematicians out there might know immediately that this is just a more generalized form of curves and surfaces that can produce Bázier curves and surfaces, as well as some other kinds (mathematically speaking). They allow you to tweak the influence of the control points you specified for the evaluators, to produce smoother curves and surfaces with larger numbers of control points.

From Bázier to B-Splines

A Bázier curve is defined by two points that act as endpoints, and any number of other control points that influence the shape of the curve. The three Bázier curves in Figure 17-7 have 3, 4, and 5 control points specified. The curve is tangent to a line that connects the endpoints with their adjacent control points. For quadratic (3 points) and cubic (4 points) curves, the resulting Báziers are quite smooth, usually with a continuity of C3 (curvature).

For higher numbers of control points, however, the smoothness begins to break down as the additional control points pull and tug on the curve.

OpenGL Super Bible! Page

617

Figure 17-7 Bázier continuity as the order of the curve increases

B-splines (bi-cubic splines), on the other hand, work much as the Bázier curves do, but the curve is broken down into segments. The shape of any given segment is influenced only by the nearest four control points, producing a piecewise assemblage of a curve with each segment exhibiting characteristics much like a fourth-order Bázier curve. This means a long curve with many control points is inherently smoother, with the junction between each segment exhibiting C3 continuity. It also means that the curve does not necessarily have to pass through any of the control points.

Knots

The real power of NURBS is that you can tweak the influence of the four control points for any given segment of a curve to produce the smoothness needed. This control is done via a sequence of values called knots.

Two knot values are defined for every control point. The range of values for the knots matches the u or v parametric domain, and must be nondescending. This is because the knot values determine the influence of the control points that fall within that range in u/v space.

Figure 17-8 shows a curve demonstrating the influence of control points over a curve having four units in the u parametric domain. Points in the middle of the u domain have a greater pull on the curve, and only points between 0 and 3 have any effect on the shape of the curve.

Figure 17-8 Control point influence along u parameter

Page

618

OpenGL Super Bible!

The key here is that one of these influence curves exists at each control point along the u/v parametric domain. The knot sequence then defines the strength of the influence of points within this domain. If a knot value is repeated, then points near this parametric value have even greater influence. The repeating of knot values is called knot multiplicity. Higher knot multiplicity decreases the curvature of the curve or surface within that region.

Creating a NURBS Surface

The glu NURBS functions provide a useful high-level facility for rendering surfaces. You don’t have to explicitly call the evaluators or establish the mappings or grids. To render a

NURBS, you first create a NURBS object that you will reference whenever you call the

NURBS-related functions to modify the appearance of the surface or curve.

The function gluNewNurbsRenderer creates a renderer for the NURB, and gluDeleteNurbsRenderer destroys it. The following code fragments demonstrate these functions in use:

// NURBS object pointer

GLUnurbsObj *pNurb = NULL;

// Setup the NURBS object

pNurb = gluNewNurbsRenderer();

// Do your NURBS things…

// Delete the NURBS object if it was created if(pNurb)

gluDeleteNurbsRenderer(pNurb);

NURBS Properties

Once you have created a NURBS renderer, you can set various high-level NURBS properties for the NURB, like this:

// Set sampling tolerance gluNurbsProperty(pNurb, GLU_SAMPLING_TOLERANCE, 2 5.0f);

// Fill to make a solid surface (use GLU_OUTLINE_POLYGON to create a

// polygon mesh) gluNurbsProperty(pNurb, GLU_DISPLAY_MODE, (GLfloat)GLU_FILL);

You will typically call these functions in your setup routine, rather than repeatedly in your rendering code. In this example, the GLU_SAMPLING_TOLERANCE defines how fine the

OpenGL Super Bible! Page

619

mesh that defines the surface is, and GLU_FILL tells OpenGL to fill in the mesh instead of generating a wireframe.

Define the Surface

The surface definition is passed as arrays of control points and knot sequences to the gluNurbsSurface function. As shown here, this function is also bracketed by calls to gluBeginSurface and gluEndSurface:

// Render the NURB

// Begin the NURB definition gluBeginSurface(pNurb);

// Evaluate the surfa ce gluNurbsSurface(pNurb, // pointer to NURBS renderer

8, Knots, // No. of knots and knot array u direction

8, Knots, // No. of knots and knot array v direction

4 * 3, // Distance between contro l points in u dir.

3, // Distance between control points in v dir.

&ctrlPoints[0][0][0], // Control points

4, 4, // u and v order of surface

GL_MAP2_VERTEX_3); // Type of surface

// Done with surface gluEndSurface(pNurb);

You can make more calls to gluNurbsSurface to create any number of NURBS surfaces, but the properties you set for the NURBS renderer will still be in effect. Often this is desired, anyway— you rarely want two surfaces (perhaps joined) to have different fill styles (one filled, and one a wire mesh).

Using the control points and knot values shown in the next code segment, we produce the

NURBS surface shown in Figure 17-9. This NURBS program is found in this chapter’s subdirectory on the CD.

Figure 17-9 Output from the NURBS program

Page

620

OpenGL Super Bible!

// Mesh extends four units -6 to +6 along x and y axis

// Lies in Z plane

// u v (x,y,z)

GLfloat ctrlPoints[4][4][3]= {{{ -6.0f, -6.0f, 0.0f}, // u = 0, v = 0

{ -6.0f, -2.0f, 0.0f}, // v = 1

{ -6.0f, 2.0f, 0.0f}, // v = 2

{ -6.0f, 6.0f, 0.0f}}, // v = 3

{{ -2.0f, -6.0f, 0.0f}, // u = 1 v = 0

{ -2.0f, -2.0f, 8.0f}, // v = 1

{ -2.0f, 2.0f, 8.0f}, // v = 2

{ -2.0f, 6.0f, 0.0f}}, // v = 3

{{ 2.0f, -6.0f, 0.0f }, // u =2 v = 0

{ 2.0f, -2.0f, 8.0f }, // v = 1

{ 2.0f, 2 .0f, 8.0f }, // v = 2

{ 2.0f, 6.0f, 0.0f }}, // v = 3

{{ 6.0f, -6.0f, 0.0f}, // u = 3 v = 0

{ 6.0f, -2.0f, 0.0f}, // v = 1

{ 6.0f, 2.0f, 0.0f}, // v = 2

{ 6.0f, 6.0f, 0.0f}}}; // v = 3

// Knot sequence for the NURB

GLfloat Knots[8] = {0.0f, 0.0f, 0.0f, 0.0f, 1.0f, 1.0f, 1.0f, 1.0f};

Trimming

Trimming means creating cutout sections from NURBS surfaces. This is often used for literally trimming sharp edges of a NURBS surface. You can also create holes in your surface just as easily. The output from the NURBT program is shown in Figure 17-10. This is the same NURBS surface used in the preceding sample (without the control points shown), with a triangular region removed. This program, too, is on the CD

OpenGL Super Bible! Page

621

Figure 17-10 Output from the NURBT program

Listing 17-3 is the code that was added to the NURBS example program to produce this trimming effect. Within the gluBeginSurface/gluEndSurface delimiters, we call gluBeginTrim and specify a trimming curve with gluPwlCurve, and finish the trimming curve with gluEndTrim.

Listing 17-3 Modifications to NURBS to produce trimming

// Outside trimming points to include entire surface

GLfloat outsidePts[5][2] = /* counter clockwise */

{{0.0f, 0.0f}, {1.0f, 0.0f}, {1.0f, 1.0f}, {0.0f, 1.0f}, {0.0f,

0.0f}};

// Inside trimmin g points to create triangle shaped hole in surface

GLfloat insidePts[4][2] = /* clockwise */

{{0.25f, 0.25f}, {0.5f, 0.5f}, {0.75f, 0.25f}, { 0.25f, 0.25f}};

// Render the NURB

// Begin the NURB definition gluBeginSurface(pNurb);

// Evaluate the surface gluNurbsSurface(pNurb, // pointer to NURBS renderer

8, Knots, // No. of knots and knot array u direction

8, Knots, // No. of knots and knot array v direction

4 * 3, // Distance between control points in u dir.

3, // Distance between control points in v dir.

&ctrlPoints[0][0][0], // Control points

4, 4, // u and v order of surface

Page

622

OpenGL Super Bible!

GL_MAP2_VERTEX_3); // Type of surface

// Outer area, include entire curve gluBeginTrim (pNurb); gluPwlCurve (pNurb, 5, &outsidePts[0][0], 2, GLU_MAP1_TRIM_2); gluEndTrim (pNurb);

// Inner triangluar area gluBeginTrim (pNurb); gluPwlCurve (pNurb, 4, &insidePts[0][0], 2, GLU_MAP1_TRIM_2); gluEndTrim (pNurb);

// Done with surface gluEndSurface(pNurb);

Within the gluBeginTrim/gluEndTrim delimiters, you can specify any number of curves as long as they form a closed loop in a piecewise fashion. You can also use gluNurbsCurve to define a trimming region or part of a trimming region. These trimming curves must, however, be in terms of the unit parametric u and v space. This means the entire u/v domain is scaled from 0.0 to 1.0.

The gluPwlCurve defines a piecewise linear curve— nothing more than a list of points connected end to end. In this scenario, the inner trimming curve forms a triangle, but with many points you could create an approximation of any curve needed.

Trimming a curve trims away surface area that is to the right of the curve’s winding. Thus a clockwise-wound trimming curve will discard its interior. Typically an outer trimming curve is specified, which encloses the entire NURBS parameter space. Then smaller trimming regions are specified within this region with clockwise winding. Figure 17-11 illustrates this relationship.

Figure 17-11 Area inside clockwise-wound curves is trimmed away

OpenGL Super Bible! Page

623

Summary

This chapter could easily have been the most intimidating in the entire book. As you have seen, however, the concepts that lie behind these curves and surfaces are not at all difficult to understand. Appendix B suggests further reading if you want in-depth mathematical information.

The examples from this chapter give you a good starting point for experimenting with

NURBS. Try adjusting the control points and knot sequences to create warped or rumpled surfaces. Also try some quadratic surfaces and some with higher order than the cubic surfaces. Additional examples can also be found on the accompanying CD.

Watch out— one pitfall to avoid as you play with these curves is trying too hard to create one complex surface out of a single NURB. You’ll find greater power and flexibility if you compose complex surfaces out of several smaller and easy-to-handle NURBS or Bázier surfaces.

Page

624

Reference Section

OpenGL Super Bible!

glEvalCoord

Purpose

Evaluates 1D and 2D maps that have been previously enabled.

Include File

<gl.h>

Variations void glEvalCoord1d(GLdouble u); void glEvalCoord1f(GLfloat u); void glEvalCoord2d(GLdouble u, GLdouble v); void glEvalCoord2f(GLfloat u, GLfloat v); void glEvalCoord1dv(const GLdouble *u); void glEvalCoord1fv(const GLfloat *u); void glEvalCoord2dv(const GLdouble *u); void glEvalCoord2fv(const GLfloat *u);

Description

This function uses a previously enabled evaluator (set up with glMap) to produce vertex, color, normal, or texture values based on the parametric u/v values. The type of data and function calls simulated are specified by the glMap1 and glMap2 functions.

Parameters

u,v

These parameters specify the v and/or u parametric value that is to be evaluated along the curve or surface.

Returns None.

Example

The following code from the BEZIER example program produces equivalent calls to glVertex3f each time glEvalCoord1f is called. The exact vertex produced is from the equation for the curve at the parametric value i.

// Use a line strip to "connect the dots"

glBegin(GL_LINE_STRIP);

for(i = 0; i <= 100; i++)

{

// Evaluate the curve at this point

glEvalCoord1f((GLfloa t) i);

}

glEnd();

See Also glEvalMesh, glEvalPoint, glMap1, glMap2, glMapGrid

OpenGL Super Bible! Page

625

glEvalMesh

Purpose

Computes a 1D or 2D grid of points or lines.

Include File

<gl.h>

Variations void glEvalMesh1(GLenum mode, GLint i1, GLint i2); void glEvalMesh2(GLenum mode, GLint i1, GLint i2, GLint j1, GLint j2);

Description

This function is used with glMapGrid to efficiently create a mesh of evenly spaced u and v domain values. glEvalMesh actually evaluates the mesh and produces the points, line segments, or filled polygons.

Parameters

mode

GLdouble: Specifies whether the mesh should be computed as points (GL_POINT), lines (GL_LINE), or filled meshes for surfaces (GL_FILL).

i1,i2

GLint: Specifies the first and last integer values for the u domain.

j1,j2

GLint: Specifies the first and last integer values for the v domain.

Returns

None.

Example

The following code from the BEZIER example program creates a grid map from 0 to 100 with 100 partitions. The call to glEvalMesh then evaluates the grid and draws line segments between each point on the curve.

// Use higher level functions to map to a grid, then evaluate the

// entire thing.

// Map a grid of 100 points from 0 to 100

glMapGrid1d(100,0.0,100.0);

// Evaluate the grid, using lines

glEvalMesh1(GL_LINE,0,100);

See Also glBegin, glEvalCoord, glEvalPoint, glMap1, glMap2, glMapGrid

Page

626

OpenGL Super Bible!

glEvalPoint

Purpose

Generates and evaluates a single point in a mesh.

Include File

<gl.h>

Variations void glEvalPoint1(GLint i); voidglEvalPoint2(GLint i, GLint j);

Description

This function can be used in place of glEvalMesh to evaluate a domain at a single point. The evaluation produces a single primitive, GL_POINTS. The first variation

(glEvalPoint1) is used for curves, and the second (glEvalPoint2) is for surfaces.

Parameters

i,j

GLint: Specifies the u and v domain parametric values.

Returns

None.

Example

The following code renders the Bázier curve in the example program BEZIER as a series of points rather than line segments. Here we have commented out the code that is no longer needed from the previous example for glEvalCoord.

// Use a line strip to "connect the dots"

// glBegin(GL_LINE_STRIP);

for(i = 0; i <= 100; i++)

{

// Evaluate the curve at this point

//glEvalCoord1f((GLfloat) i);

glEvalPoint1(i);

}

// glEnd();

See Also glEvalCoord, glEvalMesh, glMap1, glMap2, glMapGrid

OpenGL Super Bible! Page

627

glGetMap

Purpose

Returns evaluator parameters.

Include File

<gl.h>

Variations void glGet1Mapdv(GLenum target, GLenum query, GLdouble *v); void glGetMapfv(GLenum target, GLenum query, GLfloat *v); void glGetMapiv(GLenum target, GLenum query, GLint *v);

Description

This function retrieves map settings that were set by the glMap functions. See glMap1 and glMap2 in this section for explanations of the types of maps.

Parameters

target

GLenum: The name of the map; the following maps are defined:

GL_MAP1_COLOR_4, GL_MAP1_INDEX, GL_MAP1_NORMAL,

GL_MAP1_TEXTURE_COORD_1, GL_MAP1_TEXTURE_COORD_2,

GL_MAP1_TEXTURE_COORD_3, GL_MAP1_TEXTURE_COORD_4,

GL_MAP1_VERTEX_3, GL_MAP1_VERTEX_4, GL_MAP2_COLOR_4 ,

GL_MAP2_INDEX, GL_MAP2_NORMAL, GL_MAP2_TEXTURE_COORD_1,

GL_MAP2_TEXTURE_COORD_2, GL_MAP2_TEXTURE_COORD_3,

GL_MAP2_TEXTURE_COORD_4, GL_MAP2_VERTEX_3, and

GL_MAP2_VERTEX_4. See glMap in this section for an explanation of these map types.

query

GLenum: Specifies which map parameter to return in *v. May be one of the following values:

GL_COEFF : Returns an array containing the control points for the map.

Coordinates are returned in row-major order. 1D maps return order control points, and 2D maps return u-order times the v-order control points.

GL_ORDER: Returns the order of the evaluator function. For 1D maps, this is a single value. For 2D maps, two values are returned (an array) that contain first the uorder, then the v-order.

GL_DOMAIN: Returns the linear parametric mapping parameters. For 1D evaluators, this is the lower and upper u value. For 2D maps, it’s lower and upper u followed by lower and upper v.

*v

Pointer to storage that will contain the requested parameter. The data type of this storage should match the function used (double, float, or integer).

Returns

None.

Page

628

Example

OpenGL Super Bible!

The following code shows mapping parameters being designated and later retrieved

(probably in another function). In comments we show the contents of the buffer.

glMap2f(GL_MAP2_VERTEX_3, // Type of data generated

0.0f, // Lower u range

10.0f, // Upper u range

3, // Distance between points in the data

3, // Dimension in u direction (order)

0.0f, / / Lower v range

10.0f, // Upper v range

9, // Distance between points in the data

3, // Dimension in v direction (order)

&ctrlPoints[0][0][0]); // array of control points
