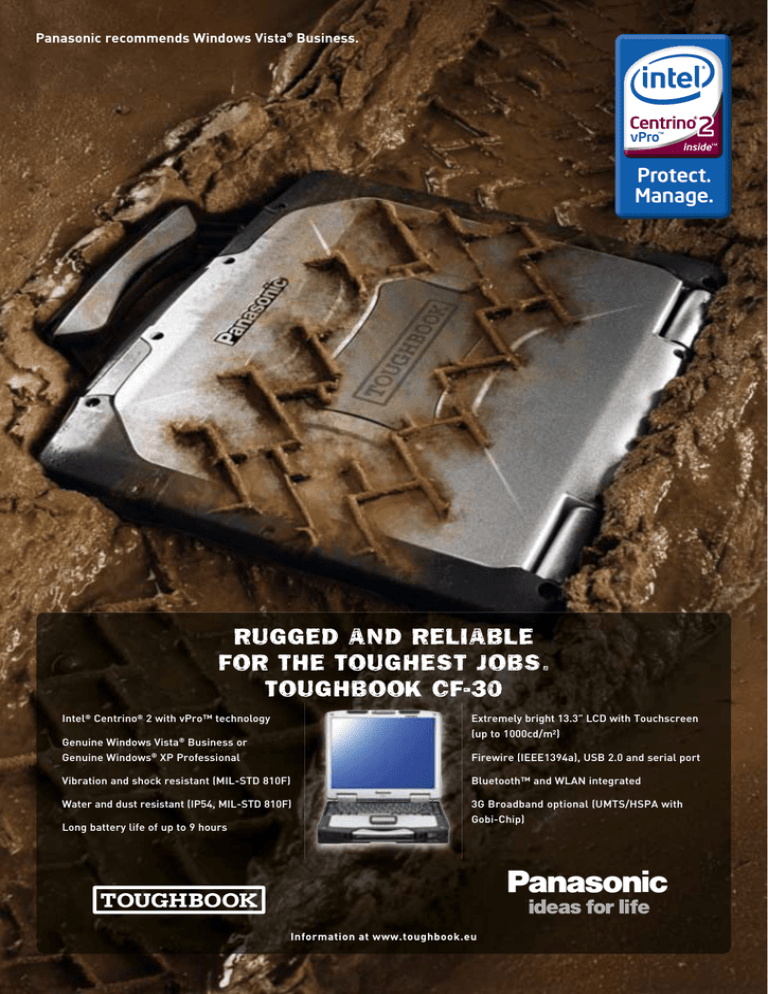

Panasonic recommends Windows Vista® Business.
RUGGED AND RELIABLE
FOR THE TOUGHEST JOBS.
TOUGHBOOK CF-30
Intel® Centrino® 2 with vPro™ technology
Extremely bright 13.3” LCD with Touchscreen
(up to 1000cd/m2)
Genuine Windows Vista® Business or
Genuine Windows® XP Professional
Firewire (IEEE1394a), USB 2.0 and serial port
Vibration and shock resistant (MIL-STD 810F)
Bluetooth™ and WLAN integrated
Water and dust resistant (IP54, MIL-STD 810F)
3G Broadband optional (UMTS/HSPA with
Long battery life of up to 9 hours
Gobi-Chip)
Information at www.toughbook.eu
Panasonic recommends Windows Vista® Business.
Business
As a fully ruggedized reference model, the CF-30 unifies a whole host of innovations and rugged features. Its 13.3” touchscreen display features an
outstanding brightness of up to 1000cd/m2 that guarantees brilliant visibility even in direct sunlight environments. Constructed using an ultra strong
magnesium alloy case, the CF-30 is vibration and shock resistant to MIL-STD 810F and comes with a shock-damping HDD casing, enabling it to
withstand drops from a height of 90cm. A special HDD-heater allows operation under extreme cold conditions while the anti-reflective silver painting
on the casing and the carry handle with integrated touchpen holder prevent heat absorption in bright outdoor conditions. All joins and external
covers are sealed, providing the unit a dust and water resistance to the IP54-standard. The multimedia pocket gives the flexibility to attach different
drives and even a secondary battery.
The Intel® Centrino® 2 with vPro™ technology and Intel® Core™ 2 Duo processor delivers high performance and efficient energy consumption.
Embedded WLAN and optional 3G Mobile Broadband capabilities enable wireless data transfer for business communication. The high-power main
battery plus an optional second battery allow for a running time of up to 12.5 hours.
Mobile Computing
Intel® Centrino® 2 with vPro™ technology
Platform
– Intel® Core™ 2 Duo processor SL9300 (1.6GHz, 6MB L2 cache, 1066MHz FSB)
– Mobile Intel® GS45 Express Chipset
– Intel® Wireless WiFi link 5100 AGN Network Connection (supporting 802.11a/b/g/n draft 2.0 compliant)
OS
Genuine Windows Vista® Business Service Pack 1 or
Genuine Windows® XP Professional Service Pack 2
RAM
2GB DDR2 SDRAM (max. 4GB)
Graphic Chip
Intel® Graphics Memory Control Hub; UMA (2GB RAM: Win XP: max. 1024MB; Win Vista: max. 797MB)
Storage
160GB HDD (SATA, easy accessible, shock resistant – withstands 90cm drop); SSD (max. 32GB – project driven)
LCD
13.3” sunlight-viewable XGA Active Matrix (TFT) colour LCD with touchscreen (up to 1000cd/m2)
1024 x 768 pixels (XGA); 16 million colours; Concealed Mode
Cabinet
Full magnesium alloy with integrated carrying handle
Bluetooth™
Version 2.0 + EDR (class 1); slide on/off switch
WLAN IEEE 802.11a/b/g/n draft 2.0 compliant (max. 54Mbps); slide on/off switch
LAN
IEEE 802.3 10 Base-T, IEEE 802.3u 100 Base-TX, IEEE 802.3ab 1000 Base-T
Modem
Data: 56kbps (V.92), FAX: 14.4kbps
Sound
Supporting Intel® High Definition Audio Subsystem
WAVE and MIDI playback, software control of sound volume (FN + F5/F6 keys), monaural speaker
Input Devices Touchscreen, Touchpad and Keyboard with 88 keys
Interfaces
Serial (16550A compatible):
D-sub, 9-pin
External display (VGA port):
Mini D-sub, 15-pin
Headphone:
Mini-jack, 3.5 DIA
Microphone:
Mini-jack, 3.5 DIA, stereo
DC In:
Jack
USB 2.0:
3x 4-pin
Modem:
RJ-11
LAN:
RJ-45
Firewire (IEEE1394a): 1x 4-pin
External Antenna:
2x (Dedicated 50Ω coaxial connector)
Port Replicator:
80-pin
Expansion Slots
PC Card:
1x Type I or 1x Type II (3.3V: 400mA, 5V: 400mA)
Express Card:
1x ExpressCard/34 or ExpressCard/54
SD/SDHC Memory Card:
1x
Optional RAM Module:
1x SO-DIMM (200-pin, 1.8V, DDR2 SDRAM, PC2-5300 Compliant)
Power
AC Adapter: Input: 100 ~ 240V AC, 50Hz/60Hz; Output: 15.6V DC, 5.0A
Battery:
Li-ion (10.65V, 8.55Ah)
Battery Life (Mobile Mark™ 2007, Approx. 12.5 hours (Main Battery + 2nd Battery),
60cd/m², Vista Model):
approx. 9 hours (Main Battery)
Charging time (main battery pack):
Power off: approx. 5 hours; Power on: approx. 8.5 hours
Power Consumption: Approx. 50W (maximum when recharging)
Power Management Standby function, Hibernation function, ACPI BIOS
Software
Adobe Reader, PC Information Viewer, Loupe Utility, Intel® PROSet/Wireless Software*7, Bluetooth™ Stack for Windows®
by TOSHIBA, Wireless Switch Utility, Hotkey Settings, Battery Recalibration Utility, Panasonic Hand Writing, Display
Rotation Tool, Infineon TPM Professional Package, Power Saving Utility, Wireless Connection Disable Utility, Concealed
Mode Utility, Setup Utility, Hard Disk Data Erase Utility, PC-Diagnostic Utility
Security Feature
TPM (Trusted Platform Module, TCG V1.2 compliant), Integrated hardware security lock slot,
Password security (supervisor password, user password, HDD lock)
Dimensions (WxHxD) 302mm x 67.5mm/69.5mm* x 282mm, 11.9” x 2.7”/2.8” x 11.5” (excluding protrusions; * front/back)
Weight
3.8kg / 8.4lb (including battery and carry handle – excluding dummy cards and dummy pack)
Integrated Options
GPS, Fingerprint Reader, Smart Card Reader, 3G Mobile Broadband (HSPA, up to 7.2Mbps),
Solid State Disk (max. 32GB – project driven)
Accessories
AC adapter:
CF-AA1653AE, CF-AA1653AG, CF-AA1653AT
CF-VZSU46U (8550mAH; 10.65V)
Battery pack:
Battery pack (second Battery): CF-VZSU1430U (for Multimedia Pocket; 3900mAH; 11.1V)
Battery charger:
CF-VCBTB1W
Car-Charger:
CF-AAV1601AW (Type A, 60W,12V/24V),
CF-LIND8024FD (EIAJ & Type A both 80W, 12-32V)
Car-Mount:
CF-WEB301W
Combo Drive Pack:
CF-VDR301U, CF-VDR302U (for Multimedia Pocket)
DVD Multi Drive Pack:
CF-VDM301U, CF-VDM302U (for Multimedia Pocket)
FDD (USB):
CF-VFDU03U
Port Replicator:
CF-VEB272A2W
RAM modules:
CF-WMBA801G (1GB), CF-WMBA802G (2GB)
Testing Standards
Water resistance test:
IEC529 (JIS C0920) IP-X4, MIL-STD 810F 506.4-III
Dust resistance test:
IEC529 (JIS C0920) IP-5X, MIL-STD 810F 510.4-Level
Gravity drop resistance test:
MIL-STD 810F 516.5 (90cm drop)
Vibration resistance test:
MIL-STD 810F 514.5 category 24
2009/01
Specification and configuration may vary depending on country. Accessories may vary depending on your notebook configuration. Consult a Panasonic sales
office near you for more details and availability of integrated options. All specifications are subject to change without notice.
As an ENERGY STAR® Partner, Panasonic Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.
Active Matrix colour display conforms to industry standards. Some displays may contain isolated illuminated or dark pixels as an artefact of the
manufacturing process (effective pixels: minimum 99.998%). RAM capacity calculated as follows: 1MB = 1,048,576 bytes. HDD capacity calculated as
follows: 1GB = 1,000,000,000 bytes.
Panasonic and Toughbook are brand names and registered trademarks of Panasonic Corporation. Acrobat® is a registered trademark of Adobe®
Systems Incorporated. Intel, the Intel logo, Centrino, Centrino Inside, Intel vPro and vPro Inside are trademarks of Intel Corporation in the U.S.
and other countries. Microsoft® and Windows® are registered trademarks of Microsoft® Corporation of the United States and/or other countries.
All other brand names shown are the registered trademarks of the relevant companies. All rights reserved. All working conditions, times and
figures quoted are optimum or ideal levels and may differ as a result of individual and local circumstances.
Panasonic Marketing Europe GmbH, Panasonic Computer Products Europe Headquarters, Hagenauer Straße 43, 65203 Wiesbaden (Germany).
