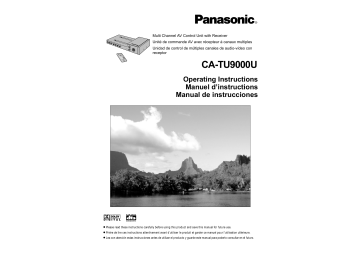

Multi Channel AV Control Unit with Receiver
Unité de commande AV avec récepteur à canaux multiples
Unidad de control de múltiples canales de audio-vídeo con
receptor
SPACE
AUDIO
CA-TU9000U
Operating Instructions
Manuel d’instructions
Manual de instrucciones
≥ Please read these instructions carefully before using this product and save this manual for future use.
≥ Prière de lire ces instructions attentivement avant d’utiliser Ie produit et garder ce manuel pour l’utilisation ultérieure.
≥ Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.
Safety Information
E
N
G
L
I
S
H
Consignes de sécurité
Radio Frequency Interference Statement (Part 15 of the FCC Rules):
Applies only in U.S.A.
This equipment has been tested and found to comply with the limits for a Class B digital, pursuant to Part
15 of the FCC Rules.
≥ These limits are designed to provide reasonable protection against harmful interference in an automobile
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to consult the dealer or an experience radio technician for
help.
FCC Warning:
Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this
device.
Información para su seguridad
AVERTISSEMENT:
POUR RÉDUIRE LES RISQUES D’INCENDIE OU
D’ÉLECTROCUTION, N’EXPOSEZ PAS CET APPAREIL À
LA PLUIE OU À L’HUMIDITÉ.
ADVERTENCIA:
PARA REDUCIR EL RIESGO DE INCENDIOS O SACUDIDAS ELÉCTRICAS, NO EXPONGA ESTE PRODUCTO A LA LLUVIA NI A LA HUMEDAD.
AFIN DE PRÉVENIR TOUT RISQUE D’INCENDIE OU
D’INTERFÉRENCES, UTILISER UNIQUEMENT LES
COMPOSANTS FOURNIS.
PARA REDUCIR EL RIESGO DE INCENDIOS O SACUDIDAS ELÉCTRICAS, Y PARA EVITAR LAS
INTERFERENCIAS MOLESTAS, UTILICE
SOLAMENTE LOS COMPONENTES INCLUIDOS.
F
R
A
N
Ç
A
I
S
§Déclaration d’interférence de fréquences radio
E
S
P
A
Ñ
O
L
(Partie 15 des Règlements FCC):
Cet appareil numérique de Classe B est conforme au
règlement ICES-003 canadien.
This device complies with Part 15 of the FCC Rules:
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
§For Canada:
This Class B digital apparatus complies with Canadian ICES-003.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
Label Indication and Location
Model No.
CA-TU9000U
N˚ De Modèle
12V
4
15A
FM75
Manufactured by Matsushita Communication
Industrial Co., Ltd.
Yokohama Japan Made in Japan
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE, USE
ONLY THE INCLUDED COMPONENTS.
Il est recommandé de noter, dans l’espace prévu cidessous, les numéros de modèle et de série inscrits soit à
l’arrière soit sur le fond de l’appareil, et de conserver ce
manuel comme mémorandum de l’achat afin de permettre
l’identification de l’appareil en cas de vol.
Encuentre el número de modelo y el número de serie en la
parte posterior o inferior de la unidad. Anótelos en el espacio de abajo y guarde este manual a modo de prueba permanente de su compra, para que pueda utilizarlo en el
caso de que le roben la unidad.
NUMÉRO DE MODÈLE
NÚMERO DE MODELO
CA-TU9000U
CA-TU9000U
NUMÉRO DE SÉRIE
NÚMERO DE SERIE
DATE DE L’ACHAT
FECHA DE ADQUISICIÓN
VENDEUR
VENDEUR
Serial No.
N˚ De Série
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
condition that this device does not cause
harmful interference.
Find the model number and serial number on either
the back or bottom of the unit. Please record them in
the spaces below and retain this booklet as a permanent record of your purchase to help with identification in case of theft.
MODEL NUMBER
CA-TU9000U
SERIAL NUMBER
DATE PURCHASED
FROM
2
CA-TU9000U
CA-TU9000U
3
E
N
G
L
I
S
H
Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical
engineering, manufactured with carefully selected components and assembled by people who take pride in
their work. Once you discover the quality, reliability, and value we have built into this product, you too will be
proud to be a member of our family.
Before Use
To use this unit, you will need the exclusively designed head unit CY-VMD9000U (Indash 7 wide color LCD monitor/DVD-video, CD player) or CY-VMC7000U (In-dash
7 wide color LCD monitor/CD player) (both sold separately).
≥ These Operating Instructions explain the operating procedures for the unit when it is
used in combination with the CY-VMD9000U.
≥ For use, be absolutely sure to connect the optical fiber cable (sold separately) to the display unit (CYVMD9000U).
≥ Operations can be performed using either the remote control unit provided with the CY-VMD9000U or the unit
(display unit).
≥ For details on such procedures as the wiring and installation, refer to these operating instructions together
with the instructions accompanying the CY-VMD9000U.
≥ Concerning the unit’s accessories
The parts used for installing and wiring the unit are provided with the unit. Refer to page 76.
Note:
≥ This book describes a connection with Panasonic car navigation system. However, Panasonic car navigation
system is not on the market at this moment (March 2001). Therefore, the descriptions with regard to
Panasonic car navigation system are marked with light gray belt (
) to distinguish them from others.
A note on screen displays:
≥ Most of the example screen displays shown in these Operating Instructions are for when the CY-VMD9000U
is being used with CA-TU9000U.
≥ If you are using the CA-TU9000U in combination with the CY-VMD9000U or CY-VMC7000U, the contents of
the menus, etc., may differ somewhat.
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only.
This product incorporates copyright protection technology that is protected by method claims of certain
U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
4
CA-TU9000U
E
N
G
L
I
S
H
When connecting to CY-VMD9000U
When connecting to CY-VMC7000U
≥ For use, be absolutely sure to connect the optical fiber cable (sold separately) to a Panasonic DVD player
(CX-DV700U).
≥ Operations can be performed using both the remote control unit provided with the CY-VMC7000U and the CATU9000U, or the display unit (CY-VMC7000U).
≥ The following functions are activated only with the remote control unit supplied to CA-TU9000U.
• SPACE • PRO LOGIC • DOWN MIX • DRC (DYNAMIC RANGE COMPRESSION) (➡ page 25)
≥ For details on such procedures as the wiring and installation, refer to these operating instructions together
with the instructions accompanying the CY-VMC7000U.
≥ Concerning the unit’s accessories
The parts used for installing and wiring the unit are provided with the unit. Refer to page 76.
CA-TU9000U
5
Contents
E
N
G
L
I
S
H
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Radio Frequency Interference Statement (Part 15 of the FCC Rules) . . . 12
E
N
G
L
I
S
H
❒ Installation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Mounting the control unit (CY-VMD9000U/CY-VMC7000U)
❒ Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
❒ Use this Product Safely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
ID code, ID code input
❒ Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Wiring diagram, connection with the display unit (CY-VMD9000U/CYVMC7000U), DVD player (CX-DV700U), CD changer (CX-DP88U)
❒ Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
❒ Components/Remote Control Unit Preparation . . . . . . . . . . . . . . . . . 19
❒ Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Where to get service help, troubleshooting tips, error display messages,
reset switch
❒ Setting up a 5.1-channel Surround System . . . . . . . . . . . . . . . . . . . . 20
❒ Name of Controls and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
❒ Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Notes on discs
❒ Discs that can be Played Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
❒ General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Power, mode, volume, mute, display open/close, monitor position
adjustment
❒ Definition of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
❒ Basic Disc Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Disc insert and playback, mode selection, stop and disc eject, selecting a
menu item, listening to DVD/video CD, listening to CD
❒ Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
❒ Language Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
❒ Selecting the Playback Mode and Setting the Sound Field. . . . . . . . 36
Producing audio that is audible at low volumes, sound field settings
❒ CD Changer Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
CD changer mode, disc selection, track selection, track search, various way
of listening
❒ Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Radio mode, band, tuning, one-touch selection of a station
FM
❒ Useful Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Private mode, rear monitor, DVD player, VCR/camcorder, rear view
camera, car navigation, aspect ratio
❒ User Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Monitor position, navigation set up, rear view camera set up, clock setting,
ID code setting, button operation sound, video control setting
❒ Display (Screen) Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Dimmer, contrast, brightness, color, tint
❒ DVD Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
DVD Menu language, subtitle language, audio language, display aspect and
DVD software mode
❒ Sound Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
VTR input level, digital input setting, setting the speaker, adjusting the
speaker level, adjusting the speaker delay time, dynamic range
compression rate adjustment, graphic equalizer
6
CA-TU9000U
CA-TU9000U
7
E
N
G
L
I
S
H
1
Use this Product Safely
WARNING:
TO AVOID RISK OF SERIOUS INJURY OR POSSIBLE VIOLATION OF LAWS, NOT FOR USE
WHERE VISIBLE TO DRIVER FOR ANY PURPOSE OTHER THAN NAVIGATION OR USE
WITH REAR VIEW CAMERA.
When Driving:
≥ The driver must not operate the color LCD monitor. Operating the color LCD monitor may lead to carelessness and cause an accident. Stop your car in a safe location when operating the unit.
≥ The driver must not watch videos while driving. It may lead to carelessness and cause an accident.
≥ Keep the unit at an appropriate sound level. Driving with the sound at a level that prevents you from hearing sounds outside and around the car may cause an accident.
When Driving
The driver must not operate the color LCD monitor. Operating the color LCD monitor may lead to distraction and
cause an accident. Stop your car in a safe location when operating the unit.
When Car Washing
Do not expose the product, including the speakers and discs, to water or excessive moisture. This could cause
electrical shorts, fire, or other damage.
This system is designed so that you cannot see picture
from VCR, and other devices while you are driving.
Use the Proper Power Supply
This product is designed to operate off a 12 V DC, negative ground battery system (the normal system in a North
American car).
Disc Mechanism
Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc mechanism and disc.
Protect the DVD Software
When you leave the car, be sure to eject the disc from this unit and bring it out.
Use Authorized Servicenters
Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list including with
this product for service assistance.
Cautions:
≥ Picture might not be displayed, or it might take more time than usual to display picture in low temperature. Also, movement of picture might become labored, or picture quality might become deteriorative in
low temperature. [Practicable temperature: 32 °F to 104 °F (0 °C to 40 °C)]
≥ Do not touch the LCD (liquid crystal display).
If you touch the LCD, your fingerprints are conspicuous because the surface of the LCD was specially
processed.
≥ In some cases, noise is generated. It depends on the position or direction of a cellular phone.
Change the position or direction of the cellular phone, or keep it away from the unit.
ID Code
Prior to operating this unit, it is a advisable to assign your 4-digit ID code for security. (Make sure to use four
digits for ID code. ID code cannot be set with two or three digits.)
Once the ID code has been set, the unit cannot be operated if the main power supply is disconnected then reconnected. It is electrically locked so that a thief could not use the stolen unit unless that person knows the code
you have set.
The ID code operation must be performed only by the person whom the unit belongs to.
Generally, it is not necessary to enter the ID code each time when using the unit if it has never been disconnected from the main power supply (car battery). For the ID code setting procedures, see pages 56, 57.
Cautions:
≥ Record your registered ID code and keep it in a secure location. If you forget it, you will be unable to use
the unit.
≥ In case that you cannot operating the unit because of forgetting the ID code, please consult your nearest
Panasonic Servicenter.
For Installation
This product should be installed in a horizontal position with the front end up at a convenient angle, but not more
than 30x.
The user should bear in mind that in some areas there may be restrictions on how and where this unit must be
installed. Consult your dealer for further details.
00
2
≥ Park your car in a safe place with pulling the side brake (parking brake)
lever before watching the monitor.
≥ Picture can be seen on the second monitor.
Note:
≥ Be sure to connect the side brake (parking brake) connection lead.
(➡ page 78 of the operating instructions for CY-VMD9000U)
When Parked
Parking in direct sunlight can produce very high temperatures inside your car. Give the interior a chance to cool
down before switching the unit on.
E
N
G
L
I
S
H
ID Code Input
Enter the ID code after turning on the power and activating the display.
Success
Note:
≥ When fail in entering ID code, a screen on the right is displayed and the unit
beeps three times.
Enter a correct ID code.
In case of failing in entering ID code three times consecutively, the power is
turned off. Turn on the power again and enter a correct ID code in this case.
16
CA-TU9000U
CA-TU9000U
17
E
N
G
L
I
S
H
Features
Components/Remote Control Unit Preparation
∫ The following is a chart that shows additional functions due to combination with CA-TU9000U.
3
Model
CY-VMD9000U only
CY-VMD9000U r CA-TU9000U
Not applicable
Applicable
CD changer control*1
Not applicable
Applicable
45 Wa4 chi35 W
power output
Not applicable
Applicable
Private mode*2
Not applicable
Applicable
Sound settings
Not applicable
Applicable
Priority to Navigation
When Navigation is “ON”, the
Navigation audio is given priority.
Fixed to Navigation
Only the Navigation audio is output.
Speaker volume
Adjusts the volume of the supplied
speaker.
Volume
Adjusts the volume of the external
speakers connected to the unit.
Not applicable
Applicable
Connect the optical fiber cable
(sold separately).
Function
Radio (AM/FM)
Output of the speaker
supplied with CY-VMD9000U
≥ Cannot be used for a
center speaker.
Volume adjustment
Optical digital
connections
*1 A CD changer is optional.
*2 A function that mutes the sound from the rear speakers connected to the front monitor (display unit of CYVMD9000U/VMC7000U) when you have different modes at the front and rear monitor after connecting the
rear monitor.
Note:
≥ This book describes a connection with Panasonic car navigation system. However, Panasonic car navigation
system is not on the market at this moment (March 2001). Therefore, the descriptions with regard to
Panasonic car navigation system are marked with light gray belt (
)to distinguish them from others.
∫ The following is a chart that shows additional functions due to combination with CY-VMD9000U or
CY-VMC7000U.
Model
CY-VMD9000U r CA-TU9000U
CY-VMC7000U r CA-TU9000U
Playback of DVD/video CD
Applicable
Not applicable
DVD settings
Applicable
Not applicable
Applicable
Operated by the remote control unit
supplied to CY-VMD9000U.
Applicable
Operated by the remote control unit
supplied to CA-TU9000U.
Function
Sound settings
≥ SPACE
≥ PRO LOGIC
≥ DOWN MIX
≥ DRC (DYNAMIC RANGE
Components
E
N
G
L
I
S
H
4
SPACE
AUDIO
≥ Multi channel AV
control unit with
receiver (1)
≥ Remote control
unit (for user of
CY-VMC7000U) (1)
≥ Battery (1)
≥ Power connector
(1)
≥ Installation
hardware (screws,
cords, etc.)
(➡ page 76)
≥ Operating instructions (1)
≥ Warranty card, etc.
Remote Control Unit Preparation (Supplied)
Battery Installation (Inserting/Replacing the Batteries)
1
2
3
Remove the battery holder.
Pull the holder by the position B while pushing position A in
the direction indicated by the arrow.
Install the battery on the battery holder.
Set a new battery properly with its (i) side facing up as
shown in the figure.
Insert the battery holder.
Push in the battery holder back into its original position.
Remote control unit
(supplied), back side
Position B
Battery Notes
Battery holder
Remove and dispose of an old battery immediately.
Position A
Battery Information:
≥ Battery type: Panasonic lithium battery (CR2025) (supplied)
≥ Battery life: Approximately 6 months with normal use (at room temperature)
Caution:
≥ Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.
Battery leakage may damage the unit.
≥ Do not disassemble or short the battery. Do not throw a battery into a fire.
≥ Keep batteries away from children to avoid the risk of accidents.
≥ Be careful to the local disposal rules when you dispose of batteries.
COMPRESSION)
18
CA-TU9000U
CA-TU9000U
19
E
N
G
L
I
S
H
5
Setting up a 5.1-channel Surround System
E
N
G
L
I
S
H
The procedure for setting up a 5.1-channel surround system in order to play DVD software
in a way that creates a “you are there” feel in a car is described below.
6
≥ Even if you are using this unit without installing a center speaker, surround speakers, or
a subwoofer, it is still necessary to make the speaker settings in order to adjust the
sound balance.
≥ Be sure to connect the optical fiber cable (sold separately) to the display unit
(CY-VMD9000U) or a Panasonic DVD player (CX-DV700U).
1
2
Installing the speakers.
∫ Front Speakers (left/right) ... FRONT L/FRONT R
Turning on the power (page 28) and
setting/adjusting the speakers (pages 68–73).
Use the left and right front speakers (such as speakers that are built into the front door).
Speaker settings
∫ Center Speaker ... CENTER
Set the size (and presence/absence) of the speakers.
Install in the middle of the dashboard, near the monitor.
≥The supplied speaker cannot be used as the center speaker.
∫ Surround Speakers (left/right) ... L·SUR/R·SUR
Use the left and right rear speakers (such as speakers that are built into the rear door or the rear
deck).
∫ Subwoofer ... SUB·WFR
Because the audio imaging is not nearly as dependent on the position where the subwoofer is
installed as it is with the other speakers, the subwoofer can be installed anywhere that is convenient. (A separate power amplifier for the subwoofer is needed.)
Speaker settings
Speaker output levels
Adjust the output balance so that the volume that is heard
from each speaker is identical.
Right front
speaker
Speaker output level
Right rear speaker (surround)
Center speaker CY-VMD9000U
(EAB-CF2, etc.)
Subwoofer (CJ-HD30, etc.)
Power amplifier
DISC/BAND
VOLUME
MUTE
MENU
MODE
NAVIGATION
ASPECT
NAVI
ASP
ENTER
TRACK/
TUNE
CA-TU9000U
POWER
Speaker delay time
Adjust the delay time so that output from the center and rear
speakers reaches the listener’s ears at the same time as the
output from the front speakers.
≥ Make this adjustment while listening to software.
Left rear speaker (surround)
Left front
speaker
This system is capable of producing a feeling of the audio image moving not only left-right, but also
front-back and diagonally, creating a powerful audio image that makes the listener feel as if they are
part of the scene when watching a movie.
Speaker delay time
This unit has a built-in 5-channel amplifier.
All that is needed to complete a 5.1-channel system is to connect the EAB-CF2 center speaker (sold separately), the CJ-HD30 subwoofer (sold separately) and power amplifier (sold separately).
For details on wiring, refer to pages 82–87.
20
CA-TU9000U
CA-TU9000U
21
E
N
G
L
I
S
H
Name of Controls and Functions
Display Unit (CY-VMD9000U/CY-VMC7000U)
Remote Control Unit (Supplied to CY-VMD9000U)
[ ] (OPEN/CLOSE)
≥ Opens/closes the monitor.
(➡ page 28)
7
[TILT]
≥ Shows the monitor position
setting menu.
≥ Tilts the monitor forward temporarily.
(➡ page 29)
Dimmer sensor
(➡ page 60)
Disc slot
Remote control
sensor
["] [#] (DISC/BAND)
≥ Selects a disc or a band.
(➡ pages 38, 40)
≥ Selects (vertically) or adjusts
an operation or item.
DISC/BAND
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
[#] ["] (VOLUME)
≥ Adjusts the sound volume.
(➡ page 28)
[MUTE]
≥ Mutes the sound temporarily.
(➡ page 28)
[MENU]
≥ Shows the menu screen.
(➡ page 50)
≥ Shows the rear monitor setting
menu. (➡ page 42)
[MODE] (POWER)
≥ Switches on/off the power.
≥ Changes the modes such as sound and
picture.
(➡ page 28)
NAVI
ASPECT
ASP
P•MODE
ENTER
E
N
G
L
I
S
H
TRACK/
TUNE
[%] [$] (TRACK/TUNE)
≥ Selects or searches a track or
a frequency. (➡ pages 38, 40)
≥ Selects
(horizontally)
or
adjusts an operation or item.
[ENTER]
≥ Searches for broadcast stations and memorizes them
automatically. (➡ page 41)
≥ Determines an operation or
item.
00
8
Aim the remote control unit at the remote control sensor of the display unit and operate it.
DISC/BAND
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
[NAVI] (NAVIGATION)
≥ Activates/inactivates the car navigation. (➡ page 46)
NAVI
ASPECT
ASP
ENTER
TRACK/
TUNE
P•MODE
[MODE]
≥ Switches on/off the power.
≥ Changes the modes such as sound and picture.
(➡ page 28)
[PWR]
≥ Switches on/off the power.
(➡ page 28)
[MENU]
≥ Shows the menu screen. (➡ page 50)
≥ Shows the rear monitor setting menu.
(➡ page 42)
[SPACE]
≥ Setting the sound field.
(➡ page 37)
["] [#] (DISC/BAND)
≥ Selects a disc or a band.
(➡ pages 38, 40)
≥ Selects (vertically) or adjusts
an operation or item.
[%] [$] (TRACK/TUNE)
≥ Selects or searches a track or a frequency. (➡ pages 35, 38, 40)
≥ Selects (horizontally) or adjusts an operation or item.
[ENTER]
≥ Searches for broadcast stations and
memorizes them automatically.
(➡ page 41)
≥ Determines an operation or item.
["] [#] (VOL)
≥ Adjusts the sound volume.
(➡ page 28)
P• MODE
[<] (EJECT)
≥ Ejects a disc. (➡ page 30)
[ASP] (ASPECT) (P•MODE)
≥ Selects the aspect ratio. (➡ page 48)
≥ Activates/inactivates the private mode.
(➡ page 42)
[NAVI] (NAVIGATION)
≥ Activates/inactivates the car navigation. (➡ page 46)
[A] (ASPECT) (P•MODE)
≥ Selects the aspect ratio. (➡ page 48)
≥ Activates/inactivates the private mode.
(➡ page 42)
[MUTE]
≥ Mutes the sound temporarily.
(➡ page 28)
[0] to [9]
≥ Sets the ID code. (➡ page 56)
≥ Memorize broadcast stations. (➡ page 41)
≥ Selects listening item for the CD changer mode. (➡ page 39)
Note:
≥ See page 83 about the name of the controls and functions of the multi channel AV control unit with receiver
(CA-TU9000U).
22
CA-TU9000U
CA-TU9000U
23
E
N
G
L
I
S
H
9
Name of Controls and Functions (Continued)
Remote Control Unit of the DVD/Video CD/CD Playback
(Operation only for the remote control)
Meaning of symbols
DVD
DVD VIDEO
VIDEO
CD
CD
Remote Control Unit (Supplied to CA-TU9000U)
For the user of CY-VMC7000U
VIDEO
CD
VIDEO
CD
[MODE]
≥ Changes the modes such as sound and picture.
(➡ page 28)
DVD V
[DVD] (DVD MENU) VIDEO
≥ Displays the DVD menu.
(Operations vary according to
the disc.) (➡ page 33)
[[ [ ] (PAUSE)
≥ Pause
[1] (PLAY)
≥ Playback
DVD
[:] [9]
≥ Go to beginning
≥ Fast forward/fast backward
≥ Slow playback [9]
(➡ page 32)
To stop the playback: CD
Change the mode or turn the
power off.
VIDEO
CD
[0] to [9]
≥ Selects listening item on the menu. (➡ page 31)
≥ Selects a track. (➡ page 31)
≥ Switches between stereo or monaural sound.
(➡ page 34)
CA-TU9000U
ASPECT
ASP
ENTER
TRACK/
TUNE
P•MODE
[DRC]
(DYNAMIC RANGE COMPRESSION)
≥ Compresses the range of the playback level.
(➡ page 37)
AUDIO
DVD
DVD
24
NAVI
[SPACE]
≥ Setting the sound field. (➡ page 37)
[0] to [9] VIDEO
≥ Selects listening item on the menu. (➡ page 31)
≥ Selects a title or chapter. (➡ page 33)
VIDEO
CD
MODE
POWER
P• MODE
[%] [$] CD
≥ Selects a track.
≥ Fast forward/fast backward
(➡ page 35)
VIDEO
CD
MENU
SPACE
[ENTER]
≥ Determines an operation or
item.
DVD
NAVIGATION
MUTE
(PRO LOGIC) (DOWN MIX)
≥ Selecting the playback mode.
(➡ page 36)
["] [#] [%] [$] VIDEO CD
≥ Selects an operation or item.
[REP] (REPEAT) VIDEO
≥ Repeats a playback.
(➡ pages 32, 35)
DISC/BAND
VOLUME
VIDEO
[RET] (RETURN) VIDEO CD
≥ Returns to the previous display.
≥ Inputs the number again.
≥ Displays the video CD’s menu.
(➡ page 31)
Playback will start automati- CD
cally when the disc is inserted.
DVD
10
Aim the remote control unit at the remote control sensor of the display unit and operate it.
Indicates the compatible types of disc.
DVD
VIDEO
CD
[∫] (STOP) VIDEO
≥ Stop playback
E
N
G
L
I
S
H
[DRC] VIDEO
(DYNAMIC RANGE COMPRESSION)
≥ Compresses the range of the playback level. (➡ page 37)
(PRO LOGIC) (DOWN MIX)
≥ Selecting the playback mode.
(➡ page 36)
DVD
[TITLE] (TITLE/CHAPTER) VIDEO
≥ Selects the title/chapter. (➡ page 33)
[SUB] (SUB TITLE)
≥ Switching the subtitle language. (➡ page 34)
[ANGLE]
≥ Switching the angle. (➡ page 34)
[AUDIO] (SPACE)
≥ Switching the audio language. (➡ page 34)
≥ Setting the sound field. (➡ page 37)
CA-TU9000U
25
E
N
G
L
I
S
H
Discs that can be Played Back
Disc
Mark (logo)
Disc size
Video format Region number
11
DVD video
NTSC
1
ALL
❒ When “
E
N
G
L
I
S
H
” is displayed
Input is not possible because a soundtrack, subtitle language or angle number which
was not recorded on the disc has been selected or because the use has attempted to
perform an operation which is not supported by the unit.
12
5q (12 cm)
Video CD
NTSC
3q (8 cm)
CD
❒ Region management information
Example:
This product is designed and manufactured to respond to the region management information that is recorded on a DVD disc. If the region number described
on the DVD disc does not correspond to the region number of this product, this
product cannot play the disc.
You can play discs with label containing the region number “1” and “ALL”.
❒ Symbols used on jackets (Examples of such symbols include)
≥ Number of subtitle languages
≥ Number of audio tracks
≥ Number of angles
The numbers indicate the number of languages, tracks, angles, etc., recorded on the
disc.
Screen size (H:V aspect ratio)
≥ 4:3 standard size 4:3
≥ Letterbox
LB
(➡ page 97)
≥ 16:9 wide size
16:9 LB : Plays back in letterbox format on a
standard screen (4:3).
16:9 PS : Plays back in “Pan & Scan” (➡
page 97) format on a standard
screen (4:3).
Note:
≥ The size of the image that is displayed on the
screen depends on the screen mode of the CYVMD9000U (“Aspect Ratio” ➡ page 48), and on
the screen size for the content on the disc.
❒ The following discs cannot be played back on this product.
≥ CD-R
≥ DVD-Audio
≥ DVD-RAM
≥ DVD+RW
≥ DVD-RW
≥ dts DVDs
≥ DVD-R
≥ DVD-ROM
≥ CVD
≥ CD-G
≥ CD-ROM
≥ CD-RW
≥ VSD
≥ SVCD
≥ dts CDs
≥ CDV
≥ photo CD
≥ SACD
≥ CD-EXTRA (audio-only playback possible)
≥ Divx video discs
≥ Discs recorded in PAL format, others
≥ DVDs with a region number other than “1” or “ALL”
≥ Playing back a CD-R disc or a photo CD disc with this unit could damage the data that is recorded on
the disc.
≥ This unit cannot play back a “dts CD” correctly.
26
CA-TU9000U
CA-TU9000U
27
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
