Solarflare® Server Adapter User Guide

Solarflare® Server Adapter User Guide
Solarflare Server Adapter
User Guide

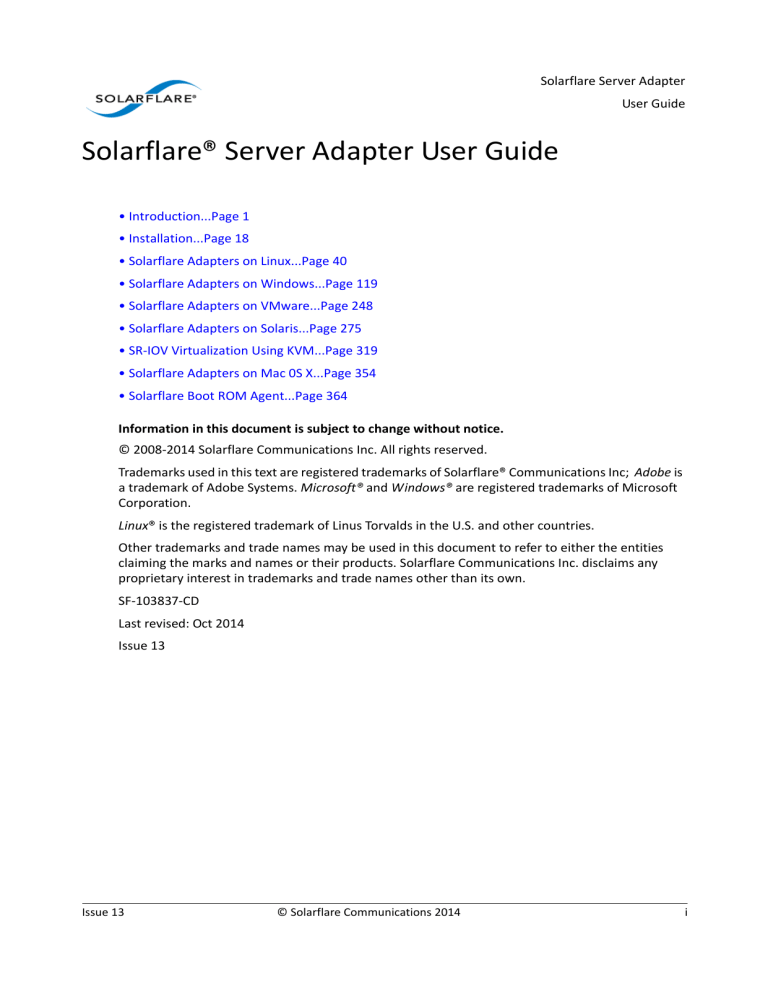

Solarflare® Server Adapter User Guide
• Introduction...Page 1
• Installation...Page 18
• Solarflare Adapters on Linux...Page 40
• Solarflare Adapters on Windows...Page 119
• Solarflare Adapters on VMware...Page 248
• Solarflare Adapters on Solaris...Page 275
• SR‐IOV Virtualization Using KVM...Page 319
• Solarflare Adapters on Mac 0S X...Page 354
• Solarflare Boot ROM Agent...Page 364
Information in this document is subject to change without notice.
© 2008‐2014 Solarflare Communications Inc. All rights reserved.
Trademarks used in this text are registered trademarks of Solarflare® Communications Inc; Adobe is a trademark of Adobe Systems. Microsoft® and Windows® are registered trademarks of Microsoft Corporation.
Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Solarflare Communications Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
SF‐103837‐CD
Last revised: Oct 2014
Issue 13
Issue 13
© Solarflare Communications 2014
i
Solarflare Server Adapter
User Guide
Table of Contents
Table of Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Virtual NIC Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 Software Driver Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.4 Solarflare AppFlex™ Technology Licensing.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.5 Open Source Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.6 Support and Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.7 Regulatory Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.8 Regulatory Approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Chapter 2: Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.1 Solarflare Network Adapter Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.2 Fitting a Full Height Bracket (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.3 Inserting the Adapter in a PCI Express (PCIe) Slot . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.4 Attaching a Cable (RJ‐45) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.5 Attaching a Cable (SFP+) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.6 Supported SFP+ Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2.7 Supported SFP+ 10G SR Optical Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2.8 Supported SFP+ 10G LR Optical Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.9 QSFP+ Transceivers and Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.10 Supported SFP 1000BASE‐T Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2.11 Supported 1G Optical Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2.12 Supported Speed and Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2.13 LED States. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
2.14 Configure QSFP+ Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2.15 Single Optical Fiber ‐ RX Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2.16 Solarflare Mezzanine Adapters: SFN5812H and SFN5814H. . . . . . . . . . . . . . . . . . 35
2.17 Solarflare Mezzanine Adapter SFN6832F‐C61 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.18 Solarflare Mezzanine Adapter SFN6832F‐C62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
2.19 Solarflare Precision Time Synchronization Adapters . . . . . . . . . . . . . . . . . . . . . . . 39
2.20 Solarflare SFA6902F ApplicationOnload™ Engine . . . . . . . . . . . . . . . . . . . . . . . . . 39
Chapter 3: Solarflare Adapters on Linux . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
3.1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
3.2 Linux Platform Feature Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
3.3 Solarflare RPMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3.4 Installing Solarflare Drivers and Utilities on Linux . . . . . . . . . . . . . . . . . . . . . . . . . . 45
3.5 Red Hat Enterprise Linux Distributions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
3.6 SUSE Linux Enterprise Server Distributions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
3.7 Unattended Installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Issue 13
© Solarflare Communications 2014
ii
Solarflare Server Adapter
User Guide
3.8 Unattended Installation ‐ Red Hat Enterprise Linux . . . . . . . . . . . . . . . . . . . . . . . . . 49
3.9 Unattended Installation ‐ SUSE Linux Enterprise Server . . . . . . . . . . . . . . . . . . . . . 50
3.10 Configuring the Solarflare Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
3.11 Setting Up VLANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
3.12 Setting Up Teams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
3.13 NIC Partitioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.14 Receive Side Scaling (RSS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
3.15 Receive Flow Steering (RFS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
3.16 Solarflare Accelerated RFS (SARFS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
3.17 Transmit Packet Steering (XPS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
3.18 Linux Utilities RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
3.19 Configuring the Boot ROM with sfboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
3.20 Upgrading Adapter Firmware with Sfupdate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
3.21 License Install with sfkey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
3.22 Performance Tuning on Linux. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
3.23 Interrupt Affinity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
3.24 Module Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
3.25 Linux ethtool Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
3.26 Driver Logging Levels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
3.27 Running Adapter Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
3.28 Running Cable Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Chapter 4: Solarflare Adapters on Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
4.1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
4.2 Windows Feature Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
4.3 Installing the Solarflare Driver Package on Windows. . . . . . . . . . . . . . . . . . . . . . . 122
4.4 Adapter Drivers Only Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
4.5 Full Solarflare Package Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
4.6 Install Drivers and Options From a Windows Command Prompt . . . . . . . . . . . . . 129
4.7 Unattended Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
4.8 Managing Adapters with SAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
4.9 Managing Adapters Remotely with SAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
4.10 Using SAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
4.11 Using SAM to Configure Adapter Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
4.12 Segmentation Offload. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
4.13 Using SAM to Configure Teams and VLANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
4.14 Using SAM to View Statistics and State Information . . . . . . . . . . . . . . . . . . . . . . 163
4.15 Using SAM to Run Adapter and Cable Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . 164
4.16 Using SAM for Boot ROM Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
4.17 Managing Firmware with SAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
4.18 Configuring Network Adapter Properties in Windows. . . . . . . . . . . . . . . . . . . . . 177
4.19 Windows Command Line Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
4.20 Sfboot: Boot ROM Configuration Tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
4.21 Sfupdate: Firmware Update Tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Issue 13
© Solarflare Communications 2014
iii
Solarflare Server Adapter
User Guide
4.22 Sfteam: Adapter Teaming and VLAN Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
4.23 Sfcable: Cable Diagnostics Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
4.24 Sfnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
4.25 Completion codes (%errorlevel%) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
4.26 Teaming and VLANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
4.27 Performance Tuning on Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
4.28 Windows Event Log Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Chapter 5: Solarflare Adapters on VMware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
5.1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
5.2 VMware Feature Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
5.3 Installing Solarflare Drivers and Utilities on VMware. . . . . . . . . . . . . . . . . . . . . . . 250
5.4 Configuring Teams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
5.5 Configuring VLANs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
5.6 Running Adapter Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
5.7 Configuring the Boot ROM with Sfboot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
5.8 Upgrading Adapter Firmware with Sfupdate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
5.9 Performance Tuning on VMware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Chapter 6: Solarflare Adapters on Solaris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
6.1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
6.2 Solaris Platform Feature Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
6.3 Installing Solarflare Drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
6.4 Unattended Installation Solaris 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
6.5 Unattended Installation Solaris 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
6.6 Configuring the Solarflare Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
6.7 Setting Up VLANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
6.8 Solaris Utilities Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
6.9 Configuring the Boot ROM with sfboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
6.10 Upgrading Adapter Firmware with Sfupdate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
6.11 Performance Tuning on Solaris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
6.12 Module Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
6.13 Kernel and Network Adapter Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
Chapter 7: SR‐IOV Virtualization Using KVM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
7.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
7.2 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
7.3 SR‐IOV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
7.4 KVM Network Architectures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327
7.5 PF‐IOV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
7.6 Feature Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352
7.7 Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Chapter 8: Solarflare Adapters on Mac 0S X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Issue 13
© Solarflare Communications 2014
iv
Solarflare Server Adapter
User Guide
8.1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
8.2 Supported Hardware Platforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
8.3 Mac 0S X Platform Feature Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
8.4 Thunderbolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
8.5 Driver Install. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
8.6 Interface Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 358
8.7 Tuning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359
8.8 Driver Properties via sysctl . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359
8.9 Firmware Update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360
8.10 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 362
Chapter 9: Solarflare Boot ROM Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 364
9.1 Configuring the Solarflare Boot ROM Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 364
9.2 PXE Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
9.3 iSCSI Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
9.4 Configuring the iSCSI Target . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
9.5 Configuring the Boot ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
9.6 DHCP Server Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
9.7 Installing an Operating System to an iSCSI target. . . . . . . . . . . . . . . . . . . . . . . . . . 378
9.8 Default Adapter Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 388
Issue 13
© Solarflare Communications 2014
v
Solarflare Server Adapter
User Guide
Chapter 1: Introduction
This is the User Guide for Solarflare® Server Adapters. This chapter covers the following topics:
• Virtual NIC Interface...Page 1
• Advanced Features and Benefits...Page 2
• Product Specifications...Page 4
• Software Driver Support on page 12
• Solarflare AppFlex™ Technology Licensing....Page 12
• Open Source Licenses...Page 13
• Support and Download...Page 14
• Regulatory Information...Page 14
• Regulatory Approval...Page 15 NOTE: Throughout this guide the term Onload refers to both OpenOnload® and EnterpriseOnload® unless otherwise stated. Users of Onload should refer to the Onload User Guide, SF‐104474‐CD, which describes procedures for download and installation of the Onload distribution, accelerating and tuning the application using Onload to achieve minimum latency and maximum throughput.
1.1 Virtual NIC Interface
Solarflare’s VNIC architecture provides the key to efficient server I/O and is flexible enough to be applied to multiple server deployment scenarios. These deployment scenarios include:
• Kernel Driver – This deployment uses an instance of a VNIC per CPU core for standard operating system drivers. This allows network processing to continue over multiple CPU cores in parallel. The virtual interface provides a performance‐optimized path for the kernel TCP/IP stack and contention‐free access from the driver, resulting in extremely low latency and reduced CPU utilization.
• Accelerated Virtual I/O – The second deployment scenario greatly improves I/O for virtualized platforms. The VNIC architecture can provide a VNIC per Virtual Machine, giving over a thousand protected interfaces to the host system, granting any virtualized (guest) operating system direct access to the network hardware. Solarflare's hybrid SR‐IOV technology, unique to Solarflare Ethernet controllers, is the only way to provide bare‐metal I/O performance to virtualized guest operating systems whilst retaining the ability to live migrate virtual machines.
• OpenOnload™ – The third deployment scenario aims to leverage the host CPU(s) to full capacity, minimizing software overheads by using a VNIC per application to provide a kernel bypass solution. Solarflare has created both an open‐source and Enterprise class high‐
performance application accelerator that delivers lower and more predictable latency and higher message rates for TCP and UDP‐based applications, all with no need to modify applications or change the network infrastructure. To learn more about the open source Issue 13
© Solarflare Communications 2014
1
Solarflare Server Adapter
User Guide
OpenOnload project or EnterpriseOnload, download the Onload user guide (SF‐104474‐CD) or contact your reseller. Advanced Features and Benefits
Virtual NIC support
The core of Solarflare technology. Protected VNIC interfaces can be instantiated for each running guest operating system or application, giving it a direct pipeline to the Ethernet network. This architecture provides the most efficient way to maximize network and CPU efficiency. The Solarflare Ethernet controller supports up to 1024 vNIC interfaces per port.
On IBM System p servers equipped with Solarflare adapters, each adapter is assigned to a single Logical Partition (LPAR) where all VNICS are available to the LPAR.
PCI Express
Implements PCI Express 3.0.
High Performance
Support for 40G Ethernet interfaces and a new internal datapath micro architecture.
Hardware Switch Fabric
Full hardware switch fabric in silicon capable of steering any flow based on Layer 2, Layer 3 or application level protocols between physical and virtual interfaces. Supporting an open software defined network control plane with full PCI‐IOV virtualization acceleration for high performance guest operating systems and virtual applications.
Improved flow processing
The addition of dedicated parsing, filtering, traffic shaping and flow steering engines which are capable of operating flexibly and with an optimal combination of a full hardware data plane with software based control plane. TX PIO
Transmit Programmed input/output is the direct transfer of data to the adapter without CPU involvement. As an alternative to the usual bus master DMA method, TX PIO improves latency and is especially useful for smaller packets.
Multicast Replication
Received multicast packets are replicated in hardware and delivered to multiple receive queues. Sideband management
NCSI RMII interface for base board management integration.
SMBus interface for legacy base board management integration.
Issue 13
© Solarflare Communications 2014
2
Solarflare Server Adapter
User Guide
PCI Single‐Root‐IOV, SR‐IOV, capable
127 Virtual functions per port.
Flexible deployment of 1024 channels between Virtual and Physical Functions.
Support Alternate Routing ID (ARI).
SR‐IOV is not supported for Solarflare adapters on IBM System p servers. 10‐gigabit Ethernet
Supports the ability to design a cost effective, high performance 10 Gigabit Ethernet solution.
Receive Side Scaling (RSS)
IPv4 and IPv6 RSS raises the utilization levels of multi‐core servers dramatically by distributing I/O load across all CPUs and cores.
Stateless offloads
Through the addition of hardware based TCP segmentation and reassembly offloads, VLAN, VxLAN and FCOE offloads.
Transmit rate pacing (per queue)
Provides a mechanism for enforcing bandwidth quotas across all guest operating systems. Software re‐programmable on the fly to allow for adjustment as congestion increases on the network.
Jumbo frame support
Support for up to 9216 byte jumbo frames.
MSI‐X support
1024 MSI‐X interrupt support enables higher levels of performance.
Can also work with MSI or legacy line based interrupts.
Ultra low latency
Cut through architecture. < 7µs end to end latency with standard kernel drivers, < 3µs with Onload drivers.
Remote boot
Support for PXE boot 2.1 and iSCSI Boot provides flexibility in cluster design and diskless servers (see Solarflare Boot ROM Agent on page 364). Network boot is not supported for Solarflare adapters on IBM System p servers. MAC address filtering
Enables the hardware to steer packets based on the MAC address to a VNIC.
Hardware timestamps
The Solarflare Flareon™ SFN7000 series adapters can support hardware timestamping for all received network packets ‐ including PTP.
The SFN5322F and SFN6322F adapters can generate hardware timestamps of PTP packets.
Issue 13
© Solarflare Communications 2014
3
Solarflare Server Adapter
User Guide
1.2 Product Specifications
Solarflare Flareon™ Network Adapters Solarflare Flareon™ Ultra SFN7142Q Dual‐Port 40GbE QSFP+ PCIe 3.0 Server I/O Adapter Part number
SFN7142Q
Controller silicon
SFC9140
Power
13W typical
PCI Express
8 lanes Gen 3 (8.0GT/s), 127 SR‐IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes (factory enabled)
PTP and hardware timestamps
Enabled by installing AppFlex license.
1PPS Optional bracket and cable assembly ‐ not factory installed.
SR‐IOV
Yes
Network ports
2 x QSFP+ (40G/10G)
Solarflare Flareon™ Ultra SFN7322F Dual‐Port 10GbE PCIe 3.0 Server I/O Adapter Issue 13
Part number
SFN7322F
Controller silicon
SFC9120
Power
5.9W typical
PCI Express
8 lanes Gen 3 (8.0GT/s), 127 SR‐IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes (factory enabled)
PTP and hardware timestamps
Yes (factory enabled)
1PPS Optional bracket and cable assembly ‐ not factory installed.
SR‐IOV
Yes
Network ports
2 x SFP+ (10G/1G)
© Solarflare Communications 2014
4
Solarflare Server Adapter
User Guide
Solarflare Flareon™ Ultra SFN7122F Dual‐Port 10GbE PCIe 3.0 Server I/O Adapter Part number
SFN7122F
Controller silicon
SFC9120
Power
5.9W typical
PCI Express
8 lanes Gen 3 (8.0GT/s), 127 SR‐IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes (factory enabled)
PTP and hardware timestamps
AppFlex™ license required
1PPS
Optional bracket and cable assembly ‐ not factory installed.
SR‐IOV
Yes
Network ports
2 x SFP+ (10G/1G)
Solarflare Flareon™ SFN7002F Dual‐Port 10GbE PCIe 3.0 Server I/O Adapter
Issue 13
Part number
SFN7002F
Controller silicon
SFC9120
Power
5.9W typical
PCI Express
8 lanes Gen 3 (8.0GT/s), 127 SR‐IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
AppFlex™ license required
PTP and hardware timestamps
AppFlex™ license required
1PPS
Optional bracket and cable assembly ‐ not factory installed.
SR‐IOV
Yes
Network ports
2 x SFP+ (10G/1G)
© Solarflare Communications 2014
5
Solarflare Server Adapter
User Guide
Solarflare Onload Network Adapters
Solarflare SFN5121T Dual‐Port 10GBASE‐T Server Adapter Part number
SFN5121T
Controller silicon
SFL9021
Power
12.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR‐IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
SR‐IOV
Yes
Network ports
2 x 10GBASE‐T (10G/1G/100M)
Solarflare SFN5122F Dual‐Port 10G SFP+ Server Adapter Part number
SFN5122F
Controller silicon
SFC9020
Power
4.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR‐IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
SR‐IOV
Yes
Network ports
2 x SFP+ (10G/1G)
Solarflare SFN6122F Dual‐Port 10GbE SFP+ Server Adapter Issue 13
Part number
SFN6122F
Controller silicon
SFC9020
Power
5.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR‐IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
SR‐IOV
Yes1 © Solarflare Communications 2014
6
Solarflare Server Adapter
User Guide
Network ports
2 x SFP+ (10G/1G)
Regulatory Product Code
S6102
1. SR‐IOV is not supported for Solarflare adapters on IBM System p servers.
Issue 13
© Solarflare Communications 2014
7
Solarflare Server Adapter
User Guide
Solarflare SFN6322F Dual‐Port 10GbE SFP+ Server Adapter Part number
SFN6122F
Controller silicon
SFC9020
Power
5.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR‐IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
SR‐IOV
Yes
Network ports
2 x SFP+ (10G/1G)
Solarflare SFA6902F Dual‐Port 10GbE SFP+ ApplicationOnload™ Engine Issue 13
Part number
SFA6902F
Controller silicon
SFC9020
Power
25W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR‐IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
SR‐IOV
Yes
Network ports
2 x SFP+ (10G/1G)
© Solarflare Communications 2014
8
Solarflare Server Adapter
User Guide
Solarflare Performant Network Adapters
Solarflare SFN5161T Dual‐Port 10GBASE‐T Server Adapter Part number
SFN5161T
Controller silicon
SFL9021
Power
12.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s) Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
No
SR‐IOV
Yes
Network ports
2 x 10GBASE‐T (10G/1G/100M)
Solarflare SFN5162F Dual‐Port 10G SFP+ Server Adapter Part number
SFN5162F
Controller silicon
SFC9020
Power
4.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s)
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
No
SR‐IOV
Yes1
Network ports
2 x SFP+ (10G/1G)
1. SR‐IOV is not supported for Solarflare adapters on IBM System p servers. Issue 13
© Solarflare Communications 2014
9
Solarflare Server Adapter
User Guide
Solarflare Mezzanine Adapters
Solarflare SFN5812H Dual‐Port 10G Ethernet Mezzanine Adapter Part number
SFN5812H
Controller silicon
SFC9020
Power
3.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR‐IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
SR‐IOV
Yes
Ports
2 x 10GBASE‐KX4 backplane transmission
Solarflare SFN5814H Quad‐Port 10G Ethernet Mezzanine Adapter Part number
SFN5814H
Controller silicon
2 x SFC9020
Power
7.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR‐IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
SR‐IOV
Yes
Ports
4 x 10GBASE‐KX4 backplane transmission
Solarflare SFN6832F Dual‐Port 10GbE SFP+ Mezzanine Adapter Part number
SFN6832F‐C61 for DELL PowerEdge C6100 series SFN6832F‐C62 for DELL PowerEdge C6200 series
Issue 13
Controller silicon
SFC9020
Power
5.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR‐IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
© Solarflare Communications 2014
10
Solarflare Server Adapter
User Guide
SR‐IOV
Yes
Ports
2 x SFP+ (10G/1G)
Regulatory Product Code
S6930
Solarflare SFN6822F Dual‐Port 10GbE SFP+ FlexibleLOM Onload Server Adapter Issue 13
Part number
SFN6822F Controller silicon
SFC9020
Power
5.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR‐IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
SR‐IOV
Yes
Ports
2 x SFP+ (10G/1G)
© Solarflare Communications 2014
11
Solarflare Server Adapter
User Guide
1.3 Software Driver Support
• Windows 7.
• Windows 8 and 8.1.
• Windows® Server 2008 R2 release.
• Windows® Server 2012 ‐ including R2 release.
• Microsoft® Hyper‐V™ Server 2008 R2.
• Linux® 2.6 and 3.x Kernels (32 bit and 64 bit) for the following distributions: RHEL 5, 6, 7 and MRG. SLES 10, 11 and SLERT.
• VMware® ESX™ 5.0 , ESXi™ 5.1 and ESXi™ 5.5, vSphere™ 4.0 and vSphere™ 4.1.
• Citrix XenServer™ 5.6, 6.0 and Direct Guest Access.
• Linux® KVM.
• Solaris™ 10 updates 8, 9 and 10 and Solaris™ 11 (GLDv3).
• Mac OS X Snow Leopard 10.6.8 (32 bit and 64 bit), OS X Lion 10.7.0 and later releases, OS X Mountain Lion 10.8.0 and later, OS X Mavericks 10.9.
Solarflare SFN5162F and SFN6122F adapters are supported on the IBM POWER architecture (PPC64) running RHEL 6.4 on IBM System p servers. The Solarflare accelerated network middleware, OpenOnload and EnterpriseOnload, is supported on all Linux variants listed above, and is available for all Solarflare Onload network adapters. Solarflare are not aware of any issues preventing OpenOnload installation on other Linux variants such as Ubuntu, Gentoo, Fedora and Debian variants.
1.4 Solarflare AppFlex™ Technology Licensing.
Solarflare AppFlex technology allows Solarflare server adapters to be selectively configured to enable on‐board applications. AppFlex licenses are required to enable selected functionality on the Solarflare Flareon™ adapters and the AOE ApplicationOnload™ Engine.
Customers can obtain access to AppFlex applications via their Solarflare sales channel by obtaining the corresponding AppFlex authorization code. The authorization code allows the customer to generate licenses at the MyAppFlex page at https://support.solarflare.com/myappflex. The sfkey utility application is used to install the generated license key file on selected adapters. For detailed instructions for sfkey and license installation refer to License Install with sfkey on page 86.
Issue 13
© Solarflare Communications 2014
12
Solarflare Server Adapter
User Guide
1.5 Open Source Licenses
1.4.1 Solarflare Boot Manager
The Solarflare Boot Manager is installed in the adapter's flash memory. This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
The latest source code for the Solarflare Boot Manager can be download from https://
support.solarflare.com/. If you require an earlier version of the source code, please e‐mail [email protected]
1.4.2 Controller Firmware
The firmware running on the SFC9xxx controller includes a modified version of libcoroutine. This software is free software published under a BSD license reproduced below:
Copyright (c) 2002, 2003 Steve Dekorte
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the author nor the names of other contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Issue 13
© Solarflare Communications 2014
13
Solarflare Server Adapter
User Guide
1.6 Support and Download
Solarflare network drivers, RPM packages and documentation are available for download from https://support.solarflare.com/.
Software and documentation for OpenOnload is available from www.openonload.org. 1.7 Regulatory Information
Warnings
Do not install the Solarflare network adapter in hazardous areas where highly combustible or explosive products are stored or used without taking additional safety precautions. Do not expose the Solarflare network adapter to rain or moisture.
The Solarflare network adapter is a Class III SELV product intended only to be powered by a certified limited power source.
The equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by Solarflare Communications, the party responsible for FCC compliance, could void the user's authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES‐003.
Cet appareil numérique de la classe B est conforme à la norme NMB‐003 du Canada.
Underwriters Laboratory Inc ('UL') has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in the UL's Standard for Safety UL 60950‐1. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product. UL makes no representations, warranties or certifications whatsoever regarding the performance or reliability of any security or signaling related functions of this product. Issue 13
© Solarflare Communications 2014
14
Solarflare Server Adapter
User Guide
Laser Devices
The laser safety of the equipment has been verified using the following certified laser device module (LDM):
Manufactuer
Model
Avago Technologies
Finisar Corporation
AFBR‐703SDZ
FTLX8571D3BCL
CDRH Accession No
9720151‐072
9210176‐094
Mark of
conformity
TUV
TUV
File No
R72071411
R72080250
When installed in a 10Gb ETHERNET NETWORK INTERFACE CARD FROM THE Solarflare SFN5000, SFN6000 or SFN7000 SERIES, the laser emission levels remain under Class I limits as specified in the FDA regulations for lasers, 21 CFR Part 1040.
The decision on what LDMs to use is made by the installer. For example, equipment may use one of a multiple of different LDMs depending on path length of the laser communication signal. This equipment is not basic consumer ITE.
The equipment is installed and maintained by qualified staff from the end user communications company or subcontractor of the end user organization. The end product user and/or installer are solely responsible for ensuring that the correct devices are utilized in the equipment and the equipment with LDMs installed complies with applicable laser safety requirements.
1.8 Regulatory Approval
The information in this section is applicable to SFN5121T, and SFN5162F Solarflare network adapters:
Category
Specification
Europe
EMC
Safety1
RoHS
US
Canada
Europe
US
Canada
CB
Europe
Details
BS EN 55022:2006
BS EN 55024:1998 +A1:2001 +A2:2003
FCC Part 15 Class B
ICES 003/NMB‐003 Class B
BS EN 60950‐1:2006 +A11:2009
UL 60950‐1 2nd Ed.
CSA C22.2 60950‐1‐07 2nd Ed.
IEC 60950‐1:2005 2nd Ed.
Complies with EU directive 2002/95/EC
1. The safety assessment has been concluded on this product as a component/sub‐assem‐
bly only.
Additional Regulatory Information for SFN5122F, SFN6122F, SFN6322F , SFA6902F, SFN7002F, SFN7122F, SFN7322F and SFN7142Q adapters.
これは情報処理装置等電波障害自主規制協議会 (VCCI)の標準に基づくクラス A 情報技
術装置です。この装置を家庭環境で使用すると電波妨害を引き起こすことがあります。
そのような障害が発生した際、使用者は適切な対応が必要となる場合があります
Issue 13
© Solarflare Communications 2014
15
Solarflare Server Adapter
User Guide
警告使用者:
這是甲類的資訊產品,在居住的環境中使用時,可能會造成射頻 干擾,在這種情況下,使
用者會被要求採取某些適當的對策
A 급 기기 ( 업무용 방송통신기기 ): 이 기기는 업무용 (A 급 ) 으로 전자파적합등록을 한
기기이오니 판매자 또는 사용자는 이 점을 주의하시기 바라며 , 가정외의 지역에서 사용하는
것을 목적으로 합니다
Category
Specification
Europe
EMC
Safety1
RoHS
US
Canada
Taiwan
Japan
South Korea
Australia
Europe
US
Canada
CB
Europe
Details
BS EN 55022:2010 + A1:2007
BS EN 55024:1998 +A1:2001 +A2:2003
FCC Part 15 Class B
ICES 003/NMB‐003 Class B
CNS 13438:2006 Class B
VCCI Regulations V‐3:2010 Class B
KCC KN‐22, KN‐24
AS/NZS CISPR 22:2009
BS EN 60950‐1:2006 +A11:2009
UL 60950‐1 2nd Ed.
CSA C22.2 60950‐1‐07 2nd Ed.
IEC 60950‐1:2005 2nd Ed.
Complies with EU directive 2011/65/EU
1. The safety assessment has been concluded on this product as a component/sub‐assem‐
bly only.
Additional Regulatory Information for SFN5812H, SFN5814H and SFN6832F adapters.
これは情報処理装置等電波障害自主規制協議会 (VCCI)の標準に基づくクラス A 情報技
術装置です。この装置を家庭環境で使用すると電波妨害を引き起こすことがあります。
そのような障害が発生した際、使用者は適切な対応が必要となる場合があります
警告使用者:
這是甲類的資訊產品,在居住的環境中使用時,可能會造成射頻 干擾,在這種情況下,使
用者會被要求採取某些適當的對策 Issue 13
© Solarflare Communications 2014
16
Solarflare Server Adapter
User Guide
Category
Specification
Europe
EMC
Safety1
RoHS
US
Canada
Taiwan
Japan
Australia
Europe
US
Canada
CB
Europe
Details
BS EN 55022:2006
BS EN 55024:1998 +A1:2001 +A2:2003
FCC Part 15 Class B
ICES 003/NMB‐003 Class B
CNS 13438:2006 Class A
VCCI Regulations V‐3:2010 Class A
AS/NZS CISPR 22:2009
BS EN 60950‐1:2006 +A11:2009
UL 60950‐1 2nd Ed.
CSA C22.2 60950‐1‐07 2nd Ed.
IEC 60950‐1:2005 2nd Ed.
Complies with EU directive 2002/95/EC
1. The safety assessment has been concluded on this product as a component/sub‐assem‐
bly only.
Issue 13
© Solarflare Communications 2014
17
Solarflare Server Adapter
User Guide
Chapter 2: Installation
This chapter covers the following topics:
• Solarflare Network Adapter Products...Page 19
• Fitting a Full Height Bracket (optional)...Page 20
• Inserting the Adapter in a PCI Express (PCIe) Slot...Page 21
• Attaching a Cable (RJ‐45)...Page 22
• Attaching a Cable (SFP+)...Page 23
• Supported SFP+ Cables...Page 25
• Supported SFP+ 10G SR Optical Transceivers...Page 26
• Supported SFP+ 10G LR Optical Transceivers on page 27
• Supported SFP 1000BASE‐T Transceivers...Page 29
• Supported 1G Optical Transceivers...Page 30
• Supported Speed and Mode...Page 30
• LED States...Page 32
• Configure QSFP+ Adapter...Page 33
• Single Optical Fiber ‐ RX Configuration...Page 34
• Solarflare Mezzanine Adapters: SFN5812H and SFN5814H...Page 35
• Solarflare Mezzanine Adapter SFN6832F‐C61...Page 36
• Solarflare Mezzanine Adapter SFN6832F‐C62...Page 38
• Solarflare Precision Time Synchronization Adapters...Page 39 • Solarflare SFA6902F ApplicationOnload™ Engine...Page 39 CAUTION: Servers contain high voltage electrical components. Before removing the server cover, disconnect the mains power supply to avoid the risk of electrocution.
Static electricity can damage computer components. Before handling computer components, discharge static electricity from yourself by touching a metal surface, or wear a correctly fitted anti‐
static wrist band.
Issue 13
© Solarflare Communications 2014
18
Solarflare Server Adapter
User Guide
2.1 Solarflare Network Adapter Products
Solarflare Flareon™ adapters
‐ Solarflare Flareon Ultra SFN7142Q Dual‐Port 40GbE PCIe 3.0 QSFP+ Server Adapter
‐ Solarflare Flareon Ultra SFN7322F Dual‐Port 10GbE PCIe 3.0 Server I/O Adapter
‐ Solarflare Flareon Ultra SFN7122F Dual‐Port 10GbE PCIe 3.0 Server I/O Adapter
‐ Solarflare Flareon SFN7002F Dual‐Port 10GbE PCIe 3.0 Server I/O Adapter
Solarflare Onload adapters ‐ Solarflare SFN6322F Dual‐Port 10GbE Precision Time Stamping Server Adapter
‐ Solarflare SFN6122F Dual‐Port 10GbE SFP+ Server Adapter
‐ Solarflare SFA6902F Dual‐Port 10GbE ApplicationOnload™ Engine
‐ Solarflare SFN5122F Dual‐Port 10G SFP+ Server Adapter
‐ Solarflare SFN5121T Dual‐Port 10GBASE‐T Server Adapter
Solarflare Performant network adapters
‐ Solarflare SFN5161T Dual‐Port 10GBASE‐T Server Adapter
‐ Solarflare SFN5162F Dual‐Port 10G SFP+ Server Adapter
Solarflare Mezzanine adapters
‐ Solarflare SFN5812H Dual‐Port 10G Ethernet Mezzanine Adapter for IBM BladeCenter
‐ Solarflare SFN5814H Quad‐Port 10G Ethernet Mezzanine Adapter for IBM BladeCenter
‐ Solarflare SFN6832F‐C61 Dual‐Port 10GbE SFP+ Mezzanine Adapter for DELL PowerEdge C6100 series servers.
‐ Solarflare SFN6832F‐C62 Dual‐Port 10GbE SFP+ Mezzanine Adapter for DELL PowerEdge C6200 series servers.
‐ Solarflare SFN6822F Dual‐Port 10GbE SFP+ FlexibleLOM Onload Server Adapter
Solarflare network adapters can be installed on Intel/AMD x86 based 32 bit or 64 bit servers. The network adapter must be inserted into a PCIe x8 OR PCIe x 16 slot for maximum performance. Refer to PCI Express Lane Configurations on page 238 for details.
Solarflare SFN5162F and SFN6122F adapters are supported on the IBM POWER architecture (PPC64) running RHEL 6.4 on IBM System p servers. Issue 13
© Solarflare Communications 2014
19
Solarflare Server Adapter
User Guide
2.2 Fitting a Full Height Bracket (optional)
Solarflare adapters are supplied with a low‐profile bracket fitted to the adapter. A full height bracket has also been supplied for PCIe slots that require this type of bracket. To fit a full height bracket to the Solarflare adapter: 1
From the back of the adapter, remove the screws securing the bracket.
2
Slide the bracket away from the adapter. 3
Taking care not the overtighten the screws, attach the full height bracket to the adapter. Issue 13
© Solarflare Communications 2014
20
Solarflare Server Adapter
User Guide
2.3 Inserting the Adapter in a PCI Express (PCIe) Slot
1
Shut down the server and unplug it from the mains. Remove the server cover to access the PCIe slots in the server. 2
Locate an 8‐lane or 16‐lane PCIe slot (refer to the server manual if necessary) and insert the Solarflare card.
3
Secure the adapter bracket in the slot. 4
Replace the cover and restart the server. 5
After restarting the server, the host operating system may prompt you to install drivers for the new hardware. Click Cancel or abort the installation and refer to the relevant chapter in this manual for how to install the Solarflare adapter drivers for your operating system.
Issue 13
© Solarflare Communications 2014
21
Solarflare Server Adapter
User Guide
2.4 Attaching a Cable (RJ‐45) Solarflare 10GBASE‐T Server Adapters connect to the Ethernet network using a copper cable fitted with an RJ‐45 connector (shown below). RJ‐45 Cable Specifications
Table 1 below lists the recommended cable specifications for various Ethernet port types. Depending on the intended use, attach a suitable cable. For example, to achieve 10 Gb/s performance, use a Category 6 cable. To achieve the desired performance, the adapter must be connected to a compliant link partner, such as an IEEE 802.3an‐compliant gigabit switch. Table 1: RJ‐45 Cable Specification
Issue 13
Port type
Connector
Media Type
Maximum Distance
10GBASE‐T RJ‐45
Category 6A
100m (328 ft.)
Category 6 unshielded twisted pairs (UTP)
55m (180 ft.) Category 5E
55m (180 ft.)
1000BASE‐T
RJ‐45
Category 5E, 6, 6A UTP
100m (328 ft.)
100BASE‐TX
RJ‐45
Category 5E, 6, 6A UTP
100m (328 ft.)
© Solarflare Communications 2014
22
Solarflare Server Adapter
User Guide
2.5 Attaching a Cable (SFP+)
Solarflare SFP+ Server Adapters can be connected to the network using either an SFP+ Direct Attach cable or a fiber optic cable.
Attaching the SFP+ Direct Attach Cable:
1
Turn the cable so that the connector retention tab and gold fingers are on the same side as the network adapter retention clip.
Push the cable connector straight in to the adapter socket until it clicks into place.
Removing the SFP+ Direct Attach Cable:
1
Pull straight back on the release ring to release the cable retention tab. Alternatively, you can lift the retention clip on the adapter to free the cable if necessary.
2
Slide the cable free from the adapter socket. Attaching a fiber optic cable:
WARNING
Do not look directly into the fiber transceiver or cables as the laser beams can damage your eyesight.
1
Remove and save the fiber optic connector cover. 2
Insert a fiber optic cable into the ports on the network adapter bracket as shown. Most connectors and ports are keyed for proper orientation. If the cable you are using is not keyed, Issue 13
© Solarflare Communications 2014
23
Solarflare Server Adapter
User Guide
check to be sure the connector is oriented properly (transmit port connected to receive port on the link partner, and vice versa). Removing a fiber optic cable:
WARNING
Do not look directly into the fiber transceiver or cables as the laser beams can damage your eyesight.
1
Remove the cable from the adapter bracket and replace the fiber optic connector cover.
2
Pull the plastic or wire tab to release the adapter bracket.
3
Hold the main body of the adapter bracket and remove it from the adapter.
Issue 13
© Solarflare Communications 2014
24
Solarflare Server Adapter
User Guide
2.6 Supported SFP+ Cables
Table 2 is a list of supported SFP+ cables that have been tested by Solarflare. Solarflare is not aware of any issues preventing the use of other brands of SFP+ cables (of up to 5m in length) with Solarflare network adapters. However, only cables in the table below have been fully verified and are therefore supported. Table 2: Supported SFP+ Direct Attach Cables
Issue 13
Manufacturer
Product Code
Cable Length
Arista
CAB‐SFP‐SFP‐1M
1m
Arista
CAB‐SFP‐SFP‐3M
3m
Cisco
SFP‐H10GB‐CU1M
1m
Cisco
SFP‐H10GB‐CU3M
3m
Cisco
SFP‐H10GB‐CU5M
5m
HP
J9283A/B Procurve
3m
Juniper
EX‐SFP‐10GE‐DAC‐1m
1m
Juniper
EX‐SFP‐10GE‐DAC‐3m
3m
Molex
74752‐1101
1m
Molex
74752‐2301
3m
Molex
74752‐3501
5m
Molex
74752‐9093
1m
37‐0960‐01 / 0K585N
Molex
74752‐9094
3m
37‐0961‐01 / 0J564N
Molex
74752‐9096
5m
37‐0962‐01 / 0H603N
Panduit
PSF1PXA1M
1m
Panduit
PSF1PXA3M
3m
Panduit
PSF1PXD5MBU
5m
Siemon
SFPP30‐01
1m
Siemon
SFPP30‐02
2m
Siemon
SFPP30‐03
3m
Siemon
SFPP24‐05
5m
Tyco
2032237‐2 D
1m
Tyco
2032237‐4
3m
© Solarflare Communications 2014
Notes
25
Solarflare Server Adapter
User Guide
The Solarflare SFA6902F adapter has been tested and certified with direct attach cables up to 3m in length. 2.7 Supported SFP+ 10G SR Optical Transceivers
Table 3 is a list of supported SFP+10G SR optical transceivers that have been tested by Solarflare. Solarflare is not aware of any issues preventing the use of other brands of 10G SR transceivers with Solarflare network adapters. However, only transceivers in the table below have been fully verified and are therefore supported.
Table 3: Supported SFP+ 10G Optical SR Transceivers
Issue 13
Manufacturer
Product Code
Notes
Avago
AFBR‐703SDZ
10G
Avago
AFBR‐703SDDZ
Dual speed 1G/10G optic. Avago
AFBR‐703SMZ
10G
Arista
SFP‐10G‐SR
10G
Finisar
FTLX8571D3BCL
10G
Finisar
FTLX8571D3BCV
Dual speed 1G/10G optic. HP
456096‐001
Also labelled as 455883‐B21 and 455885‐001
Intel
AFBR‐703SDZ
10G
JDSU
PLRXPL‐SC‐S43‐22‐N
10G
Juniper
AFBR‐700SDZ‐JU1
10G
MergeOptics
TRX10GVP2010
10G
Solarflare
SFM‐10G‐SR
10G
© Solarflare Communications 2014
26
Solarflare Server Adapter
User Guide
2.8 Supported SFP+ 10G LR Optical Transceivers
Table 4 is a list of supported SFP+10G LR optical transceivers that have been tested by Solarflare. Solarflare is not aware of any issues preventing the use of other brands of 10G LR transceivers with Solarflare network adapters. However, only transceivers in the table below have been fully verified and are therefore supported.
Table 4: Supported SFP+ 10G LR Optical Transceivers
Manufacturer
Product Code
Notes
Avago
AFCT‐701SDZ
10G single mode fiber
Finisar
FTLX1471D3BCL
10G single mode fiber
2.9 QSFP+ Transceivers and Cables
The following tables identify QSFP+ transceiver modules and cables tested by Solarflare with the SFN7000 QSP+ adapters. Solarflare are not aware of any issues preventing the use of other brands of QSFP+ 40G transceivers and cables with Solarflare SFN7000 QSFP+ adapters. However, only products listed in the tables below have been fully verified and are therefore supported
Supported QSFP+ 40GBASE‐SR4 Transceivers
The Solarflare Flareon Ultra SFN7142Q adapter has been tested with the following QSFP+ 40GBASE‐
SR4 optical transceiver modules. Table 5: Supported QSFP+ SR4 Transceivers
Issue 13
Manufacturer
Product Code
Arista
AFBR‐79E4Z
Avago
AFBR‐79EADZ
Avago
AFBR‐79EIDZ
Avago
AFBR‐79EQDZ
Avago
AFBR‐79EQPZ
Finisar
FTL410QE2C
JDSU
JQP‐04SWAA1
JDSU
JDSU‐04SRAB1
Solarflare
SFM‐40G‐SR4
Notes
Standard 100m (OM3 Multimode fiber) range.
© Solarflare Communications 2014
27
Solarflare Server Adapter
User Guide
Supported QSFP+ 40G Active Optical Cables (AOC)
The Solarflare Flareon Ultra SFN7142Q adapter has been tested with the following QSFP+ Active Optical Cables (AOC). Table 6: Supported QSFP+ Active Optical Cables
Manufacturer
Product Code
Finisar
FCBG410QB1C03
Finisar
FCBN410QB1C05
Notes
Supported QSFP+ 40G Direct Attach Cables
The Solarflare Flareon Ultra SFN7142Q adapter has been tested with the following QSFP+ Direct Attach Cables (DAC). QSFP cables may not work with all switches. Table 7: Supported QSFP+ Direct Attach Cables
Manufacturer
Product Code
Notes
Arista
CAB‐Q‐Q‐3M
3m
Arista
CAB‐Q‐Q‐5M
5m
FCI
10093084‐3030LF
3m
Molex
74757‐1101
1m QSFP cable
Molex
74757‐2301
3m QSFP cable
Siemon
QSFP30‐01
1m Siemon
QSFP30‐03
3m Siemon
QSFP26‐05
5m Supported QSFP+ to SFP+ Breakout Cables
Solarflare QSFP+ to SFP+ breakout cables enable users to connect Solarflare SFN7142Q dual‐port QSFP+ server I/O adapters to work as a quad‐port SFP+ server I/O adapters. The breakout cables offer a cost‐effective option to support connectivity flexibility in high‐speed data center applications. These high performance direct‐attach assemblies support 2 lanes of 10 Gb/s per QSFP+ port and are available in lengths of 1 meters and 3 meters. The SOLR‐QSFP2SFP‐1M, ‐3M copper DAC cables are fully tested and compatible with the Solarflare SFN7142Q server I/O adapter. These cables are compliant with the SFF‐8431, SFF‐8432, SFF‐8436, SFF‐8472 and IBTA Volume 2 Revision 1.3 specifications.
Issue 13
© Solarflare Communications 2014
28
Solarflare Server Adapter
User Guide
Table 8: Supported QSFP+ to SFP+ Breakout Cables
Manufacturer
Product Code
Solarflare
SOLR‐QSFP2SFP‐1M
Solarflare
SOLR‐QSFP2SFP‐3M
Notes
2.10 Supported SFP 1000BASE‐T Transceivers
Table 9 is a list of supported SFP 1000BASE‐T transceivers that have been tested by Solarflare. Solarflare is not aware of any issues preventing the use of other brands of 1000BASE‐T transceivers with the Solarflare network adapters. However, only transceivers in the table below have been fully verified and are therefore supported. Table 9: Supported SFP 1000BASE‐T Transceivers
Issue 13
Manufacturer
Product Code
Arista
SFP‐1G‐BT
Avago
ABCU‐5710RZ
Cisco
30‐1410‐03
Dell
FCMJ‐8521‐3‐(DL)
Finisar
FCLF‐8521‐3
Finisar
FCMJ‐8521‐3
HP
453156‐001
453154‐B21
3COM
3CSFP93
© Solarflare Communications 2014
29
Solarflare Server Adapter
User Guide
2.11 Supported 1G Optical Transceivers
Table 10 is a list of supported 1G transceivers that have been tested by Solarflare. Solarflare is not aware of any issues preventing the use of other brands of 1G transceivers with Solarflare network adapters. However, only transceivers in the table below have been fully verified and are therefore supported. Table 10: Supported 1G Transceivers
Manufacturer
Product Code
Type
Avago
AFBR‐5710PZ
1000Base‐SX
Cisco
GLC‐LH‐SM
1000Base‐LX/LH
Finisar
FTLF8519P2BCL
1000Base‐SX
Finisar
FTLF8519P3BNL
1000Base‐SX
Finisar
FTLF1318P2BCL
1000Base‐LX
Finisar
FTLF1318P3BTL
1000Base‐LX
HP
453153‐001
453151‐B21
1000Base‐SX
2.12 Supported Speed and Mode
Solarflare network adapters support either QSFP+, SFP, SFP+ or Base‐T standards.
On Base‐T adapters three speeds are supported 100Mbps, 1Gbps and 10Gbps. The adapters use auto negotiation to automatically select the highest speed supported in common with the link partner.
On SFP+ adapters the currently inserted SFP module (transceiver) determines the supported speeds, typically SFP modules only support a single speed. Some Solarflare SFP+ adapters support dual speed optical modules that can operate at either 1Gbps or 10Gbps. However, these modules do not auto‐negotiate link speed and operate at the maximum (10G) link speed unless explicitly configured to operate at a lower speed (1G).
Issue 13
© Solarflare Communications 2014
30
Solarflare Server Adapter
User Guide
The tables below summarizes the speeds supported by Solarflare network adapters. Table 11: SFN5xxx,SFN6xxx and SFN7xxx SFP+ QSFP+ Adapters
Supported Modes
Auto neg speed
Speed
Comment
QSFP+ direct attach cables
No
10G or 40G
SFN7142Q
QSFP+ optical cables
No
10G or 40G
SFN7142Q
SFP+ direct attach cable
No
10G
SFP+ optical module (10G)
No
10G
SFP optical module (1G)
No
1G
SFP+ optical module (10G/1G) No
10G or 1G
Dual speed modules run at the maximum speed (10G) unless explicitly configured to the lower speed (1G)
SFP 1000BASE‐T module
No
1G
These modules support only 1G and will not link up at 100Mbps
Table 12: SFN5121T, SFN5151T, SFN5161T 10GBASE‐T Adapters
Supported Modes
Auto neg speed
Speed
Comment
100Base‐T Yes
100Mbps
1000Base‐TX
Yes
1Gbps
10GBase‐T
Yes
10Gbps
Typically the interface is set to auto negotiation speed and automatically selects the highest speed supported in common with it’s link partner. If the link partner is set to 100Mbps, with no autoneg, the adapter will use “parallel detection” to detect and select 100Mbps speed. If needed any of the three speeds can be explicitly configured
100Base‐T in a Solarflare adapter back‐to‐back (no intervening switch) configuration will not work and is not supported.
Issue 13
© Solarflare Communications 2014
31
Solarflare Server Adapter
User Guide
2.13 LED States
There are two LEDs on the Solarflare network adapter transceiver module. LED states are as follows
Table 13: LED States
Adapter Type
LED Description
State
QSFP+, SFP/SFP+
Link
Green (solid) at all speeds Activity
Flashing green when network traffic is present
LEDs are OFF when there is no link present
BASE‐T
Speed
Green (solid) 10Gbps
Yellow (solid) 100/1000Mbps
Activity
Flashing green when network traffic is present
LEDs are OFF when there is no link present
Issue 13
© Solarflare Communications 2014
32
Solarflare Server Adapter
User Guide
2.14 Configure QSFP+ Adapter
QSFP+ adapters can operate as 2 x 10Gbps per QSFP+ port or as 1 x 40Gbps per QSFP+ port. A configuration of 1 x 40G and 2 x 10G ports is not supported. Figure 1: QSFP+ Port Configuration
The Solarflare 40G breakout cables have only 2 physical cables ‐ for details refer to Supported QSFP+ to SFP+ Breakout Cables on page 28. Breakout cables from other suppliers may have 4 physical cables. When connecting a third party breakout cable into the Solarflare 40G QSFP+ cage (in 10G mode), only cables 1 and 3 will be active. The sfboot utility from the Solarflare Linux Utilities package (SF‐107601‐LS) is used to configure the adapter for 10G or 40G operation.
# sfboot port-mode=40G
Issue 13
© Solarflare Communications 2014
33
Solarflare Server Adapter
User Guide
2.15 Single Optical Fiber ‐ RX Configuration
The Solarflare adapter will support a receive (RX) only fiber cable configuration when the adapter is required only to receive traffic, but have no transmit link. This can be used, for example, when the adapter is to receive traffic from a fiber tap device. Solarflare have successfully tested this configuration on a 10G link on SFN5000, SFN6000 and SFN7000 series adapters when the link partner is configured to be TX only (this will always be the case with a fiber tap). Some experimentation might be required when splitting the light signal to achieve a ratio that will deliver sufficient signal strength to all endpoints. Solarflare adapters do not support a receive only configuration on 1G links. Issue 13
© Solarflare Communications 2014
34
Solarflare Server Adapter
User Guide
2.16 Solarflare Mezzanine Adapters: SFN5812H and SFN5814H
The Solarflare SFN5812H Dual‐Port and SFN5814H Quad‐Port are 10G Ethernet Mezzanine Adapters for the IBM BladeCenter.
Solarflare mezzanine adapters are supported on the IBM BladeCenter E, H and S chassis, HS22, HS22V and HX5 servers. The IBM BladeCenter blade supports a single Solarflare mezzanine adapter.
1
The blade should be extracted from the BladeCenter in order to install the mezzanine adapter.
2
Remove the blade top cover and locate the two retaining posts towards the rear of the blade ‐ (Figure 2). Refer to the BladeCenter manual if necessary.
Figure 2: Installing the Mezzanine Adapter
3
Issue 13
Hinge the adapter under the retaining posts, as illustrated, and align the mezzanine port connector with the backplane connector block.
© Solarflare Communications 2014
35
Solarflare Server Adapter
User Guide
4
Lower the adapter, taking care to align the side positioning/retaining posts with the recesses in the adapter. See Figure 3. Figure 3: In position mezzanine adapter
5
Press the port connector gently into the connector block ensuring that the adapter is firmly and correctly seated in the connector block.
6
Replace the blade top cover.
7
When removing the adapter raise the release handle (shown on Figure 3) to ease the adapter upwards until it can be freed from the connector block.
2.17 Solarflare Mezzanine Adapter SFN6832F‐C61 The Solarflare SFN6832F‐C61 is a Dual‐Port SFP+ are 10GbE Mezzanine Adapters for the DELL PowerEdge C6100 series rack server. Each DELL PowerEdge node supports a single Solarflare mezzanine adapter.
1
Issue 13
The node should be extracted from the rack server in order to install the mezzanine adapter. Refer to the PowerEdge rack server manual if necessary. © Solarflare Communications 2014
36
Solarflare Server Adapter
User Guide
Figure 4: SFN6832F‐C61 ‐ Installing into the rack server node
2
Secure the side retaining bracket as shown in Figure 5 (top diagram)
3
Fit riser PCB card into the slot as shown in Figure 5 (top diagram). Note that the riser card only fits one way.
4
Offer the adapter to the node and ensure it lies underneath the chassis cover.
5
Lower the adapter into position making sure to connect the adapter slot with the to of the PCB riser card.
6
Secure the adapter using the supplied screws at the positions shown in the diagram.
Issue 13
© Solarflare Communications 2014
37
Solarflare Server Adapter
User Guide
2.18 Solarflare Mezzanine Adapter SFN6832F‐C62 The Solarflare SFN6832F‐C61 is a Dual‐Port SFP+ are 10GbE Mezzanine Adapters for the DELL PowerEdge C6200 series rack server. Each DELL PowerEdge node supports a single Solarflare mezzanine adapter.
1
The node should be extracted from the rack server in order to install the mezzanine adapter. Refer to the PowerEdge rack server manual if necessary. Figure 5: SFN6832F‐C62 ‐ Installing into the rack server node
2
Fit the PCB riser card to the underside connector on the adapter.
3
Offer the adapter to the rack server node ensuring it lies underneath the chassis cover. 4
Lower to adapter to connect the riser PCB card into the slot in the node.
5
Secure the adapter with the supplied screws at the points shown in the diagram.
Issue 13
© Solarflare Communications 2014
38
Solarflare Server Adapter
User Guide
2.19 Solarflare Precision Time Synchronization Adapters
The Solarflare SFN7142Q1, SFN7122F1, SFN7322F and SFN6322F adapters can generate hardware timestamps for PTP packets in support of a network precision time protocol deployment compliant with the IEEE 1588‐2008 specification.
Customers requiring configuration instructions for these adapters and Solarflare PTP in a PTP deployment should refer to the Solarflare Enhanced PTP User Guide SF‐109110‐CD.
1. Requires an AppFlex™ license ‐ refer to Solarflare AppFlex™ Technology Licensing. on page 12.
2.20 Solarflare SFA6902F ApplicationOnload™ Engine
The ApplicationOnload™ Engine (AOE) SFA6902F is a full length PCIe form factor adapter that combines an ultra‐low latency adapter with a tightly coupled ’bump‐in‐the‐wire’ FPGA.
For details of installation and configuring applications that run on the AOE refer to the Solarflare AOE User’s Guide (SF‐108389‐CD). For details on developing custom applications to run on the FPGA refer to the AOE Firmware Development Kit User Guide (SF‐108390‐CD).
Issue 13
© Solarflare Communications 2014
39
Solarflare Server Adapter
User Guide
Chapter 3: Solarflare Adapters on Linux
This chapter covers the following topics on the Linux® platform:
• System Requirements...Page 41
• Linux Platform Feature Set...Page 41
• Solarflare RPMs...Page 43
• Installing Solarflare Drivers and Utilities on Linux...Page 45
• Red Hat Enterprise Linux Distributions...Page 45
• SUSE Linux Enterprise Server Distributions...Page 46
• Unattended Installations...Page 47
• Unattended Installation ‐ Red Hat Enterprise Linux...Page 49
• Unattended Installation ‐ SUSE Linux Enterprise Server...Page 50
• Configuring the Solarflare Adapter...Page 51
• Setting Up VLANs...Page 53
• Setting Up Teams...Page 54
• NIC Partitioning...Page 55
• Receive Side Scaling (RSS)...Page 58
• Receive Flow Steering (RFS)...Page 60
• Solarflare Accelerated RFS (SARFS)...Page 62
• Transmit Packet Steering (XPS)...Page 62
• Linux Utilities RPM...Page 65
• Configuring the Boot ROM with sfboot...Page 66
• Upgrading Adapter Firmware with Sfupdate...Page 81
• License Install with sfkey...Page 86
• Performance Tuning on Linux...Page 90
• Interrupt Affinity...Page 97
• Module Parameters...Page 105
• Linux ethtool Statistics...Page 108
Issue 13
© Solarflare Communications 2014
40
Solarflare Server Adapter
User Guide
3.1 System Requirements
Refer to Software Driver Support on page 12 for supported Linux Distributions.
NOTE: SUSE Linux Enterprise Server 11 includes a version of the Solarflare network adapter Driver. This driver does not support the SFN512x family of adapters. To update the supplied driver, see SUSE Linux Enterprise Server Distributions on page 46
NOTE: Red Hat Enterprise Linux versions 5.5 and 6.0 include a version of the Solarflare adapter driver. This driver does not support the SFN512x family of adapters. Red Hat Enterprise Linux 5.6 and 6.1 includes a version of the Solarflare network driver for the SFN512x family of adapters. To update the supplied driver, see Installing Solarflare Drivers and Utilities on Linux on page 45
3.2 Linux Platform Feature Set
Table 14 lists the features supported by Solarflare adapters on Red Hat and SUSE Linux distributions.
Table 14: Linux Feature Set
Fault diagnostics
Support for comprehensive adapter and cable fault diagnostics and system reports.
• See Linux Utilities RPM on page 65
Firmware updates
Support for Boot ROM, Phy transceiver and adapter firmware upgrades.
• See Upgrading Adapter Firmware with Sfupdate on page 81
Hardware Timestamps
Solarflare Flareon SFN7122F1 SFN7142Q1 and SFN7322F adapters support the hardware timestamping of all received packets ‐ including PTP packets.
The Linux kernel must support the SO_TIMESTAMPING socket option (2.6.30+) to allow the driver to support hardware packet timestamping. Therefore hardware packet timestamping is not available in RHEL 5.
1. Requires an AppFlex license ‐ for details refer to Solarflare AppFlex™ Technology Licensing. on page 12.
Jumbo frames
Support for MTUs (Maximum Transmission Units) from 1500 bytes to 9216 bytes.
• See Configuring Jumbo Frames on page 53
Issue 13
© Solarflare Communications 2014
41
Solarflare Server Adapter
User Guide
Table 14: Linux Feature Set
PXE and iSCSI booting
Support for diskless booting to a target operating system via PXE or iSCSI boot.
• See Configuring the Boot ROM with sfboot on page 66
• See Solarflare Boot ROM Agent on page 364
PXE or iSCSI boot are not supported for Solarflare adapters on IBM System p servers. Receive Side Scaling (RSS)
Support for RSS multi‐core load distribution technology.
• See Receive Side Scaling (RSS) on page 58.
ARFS
Linux Accelerated Receive Flow Steering.
Improve latency and reduce jitter by steering packets to the core where a receiving application is running.
See Receive Flow Steering (RFS) on page 60.
SARFS
Solarflare Accelerated RFS.
See Solarflare Accelerated RFS (SARFS) on page 62.
Transmit Packet Steering (XPS)
Supported on Linux 2.6.38 and later kernels. Selects the transmit queue when transmitting on multi‐queue devices. See Transmit Packet Steering (XPS) on page 62.
NIC Partitioning
Each physical port on the SFN7000 series adapter can be exposed as up to 8 PCIe Physical Functions (PF).
See NIC Partitioning on page 55.
SR‐IOV
Support for Linux KVM SR‐IOV.
• See SR‐IOV Virtualization Using KVM on page 319
SR‐IOV is not supported for Solarflare adapters on IBM System p servers.
Standby and Power Management
Solarflare adapters support Wake On LAN on Linux. These settings are only available if the adapter has auxiliary power supplied by a separate cable.
Task offloads
Support for TCP Segmentation Offload (TSO), Large Receive Offload (LRO), and TCP/UDP/IP checksum offload for improved adapter performance and reduced CPU processing requirements.
• See Configuring Task Offloading on page 52
Issue 13
© Solarflare Communications 2014
42
Solarflare Server Adapter
User Guide
Table 14: Linux Feature Set
Teaming
Improve server reliability and bandwidth by combining physical ports, from one or more Solarflare adapters, into a team, having a single MAC address and which function as a single port providing redundancy against a single point of failure.
• See Setting Up Teams on page 54
Virtual LANs (VLANs)
Support for multiple VLANs per adapter.
• See Setting Up VLANs on page 53
3.3 Solarflare RPMs
Solarflare supply RPM packages in the following formats:
• DKMS
• Source RPM
DKMS RPM
Dynamic Kernel Module Support (DKMS) is a framework where device driver source can reside outside the kernel source tree. It supports an easy method to rebuild modules when kernels are upgraded.
Execute the command dkms --version to determine whether DKMS is installed.
To install the Solarflare driver DKMS package execute the following command:
rpm -i sfc-dkms-<version>.noarch.rpm Building the Source RPM
These instructions may be used to build a source RPM package for use with Linux distributions or kernel versions where DKMS packages are not suitable.
NOTE: RPMs can be installed for multiple kernel versions.
1
Kernel headers for the running kernel must be installed at /lib/modules/<kernelversion>/build. On Red Hat systems, install the appropriate kernel-smp-devel or kernel-devel package. On SUSE systems install the kernel-source package.
2
To build a source RPM for the running kernel version from the source RPM, enter the following at the command‐line: rpmbuild --rebuild <package_name>
Where package_name is the full path to the source RPM.
Issue 13
© Solarflare Communications 2014
43
Solarflare Server Adapter
User Guide
3
To build for a different kernel to the running system, enter the following command:
rpmbuild --define 'kernel <kernel version>' --rebuild <package_name>
4
Install the resulting RPM binary package, as described in Installing Solarflare Drivers and Utilities on Linux. NOTE: The location of the generated RPM is dependent on the distribution and often the version of the distribution and the RPM build tools. The RPM build process should print out the location of the RPM towards the end of the build process, but it can be hard to find amongst the other output.
Typically the RPM will be placed in /usr/src/<dir>/RPMS/<arch>/, where <dir> is distribution specific. Possible folders include Red Hat, packages or extra. The RPM file will be named using the same convention as the Solarflare provided pre‐built binary RPMs.
The command: find /usr/src -name "*sfc*.rpm” will list the locations of all Solarflare RPMs.
Issue 13
© Solarflare Communications 2014
44
Solarflare Server Adapter
User Guide
3.4 Installing Solarflare Drivers and Utilities on Linux
• Red Hat Enterprise Linux Distributions...Page 45
• SUSE Linux Enterprise Server Distributions...Page 46
Linux drivers for Solarflare are available in DKMS and source RPM packages. The source RPM can be used to build binary RPMs for a wide selection of distributions and kernel variants. This section details how to install the resultant binary RPM. Solarflare recommend using DKMS RPMs if the DKMS framework is available. See DKMS RPM on page 43 for more details. NOTE: The Solarflare adapter should be physically installed in the host computer before installing the driver. The user must have root permissions to install the adapter drivers.
3.5 Red Hat Enterprise Linux Distributions
These instructions cover installation and configuration of the Solarflare network adapter drivers on Red Hat Enterprise Linux Server. Refer to Software Driver Support on page 12 for details of supported Linux distributions.
Refer to Building the Source RPM on page 43 for directions on creating the binary RPM.
1
Install the RPMs: [[email protected]]# rpm -ivh kernel-module-sfc-RHEL6-2.6.32279.el6.x86_64-3.3.0.6262-1.x86_64.rpm
2
There are various tools that can be used for configuring the Solarflare Server Adapter:
a) The NetworkManager service and associated GUI tools. For more information about his refer to https://wiki.gnome.org/NetworkManager.
3
b) Solarflare recommend using the Network Administration Tool (NEAT) to configure the new network interface. NEAT is a GUI based application and therefore requires an X server to run.
c) Alternatively the command line program Kudzu can be used. However, you may find when kudzu is run that you are NOT presented with an option to configure the new network interface. If this occurs, carefully clear details of the Solarflare Server Adapter from the hardware database by removing all entries with “vendor id: 1924” in the /etc/
sysconfig/hwconf file. Running kudzu again should now provide an option to configure the newly added network interface.
Apply the new network settings:
a) NEAT provides an option to Activate the new interface. The new network interface can then be used immediately (there is no need to reboot or restart the network service).
b) If you are not using NEAT you will need to reboot, or alternatively restart the networking service, by typing the following before the new Solarflare interface can be used:
[[email protected]]# service network restart
Issue 13
© Solarflare Communications 2014
45
Solarflare Server Adapter
User Guide
3.6 SUSE Linux Enterprise Server Distributions
These instructions cover installation and configuration of the Solarflare Network Adapter drivers on SUSE Linux Enterprise Server. Refer to Software Driver Support...Page 12 for details of supported distributions.
Refer to Building the Source RPM on page 43 for directions on creating the binary RPM.
1
The Solarflare drivers are currently classified as 'unsupported' by SUSE Enterprise Linux 10 (SLES10). To allow unsupported drivers to load in SLES10, edit the following file:
/etc/sysconfig/hardware/config
find the line:
LOAD_UNSUPPORTED_MODULES_AUTOMATICALLY=no
and change no to yes.
For SLES 11, edit the last line in /etc/modprobe.d/unsupported-modules to:
allow_unsupported_modules 1
2
Install the RPMs:
[[email protected]]# rpm -ivh kernel-module-sfc-2.6.5-7.244-smp-2.1.01110.sf.1.SLES9.i586.rpm
3
Run YaST to configure the Solarflare Network Adapter. When you select the Ethernet Controller, the Configuration Name will take one of the following forms:
a) eth-bus-pci-dddd:dd:dd.N where N is either 0 or 1.
b) eth-id-00:0F:53:XX:XX:XX
Once configured, the Configuration Name for the correct Ethernet Controller will change to the second form, and an ethX interface will appear on the host. If the incorrect Ethernet Controller is chosen and configured, then the Configuration Name will remain as eth-buspci-dddd:dd:dd.1 after configuration by YaST, and an ethX interface will not appear on the system. In this case, you should remove the configuration for this Ethernet Controller, and configure the other Ethernet Controller of the pair.
Issue 13
© Solarflare Communications 2014
46
Solarflare Server Adapter
User Guide
3.7 Unattended Installations
Building Drivers and RPMs for Unattended Installation
Linux unattended installation requires building two drivers: • A minimal installation Solarflare driver that only provides networking support. This driver is used for network access during the installation process.
• An RPM that includes full driver support. This RPM is used to install drivers in the resultant Linux installation.
Figure 6: Unattended Installation RPM
Figure 6 shows how the unattended installation process works.
1
Build a minimal Solarflare driver needed for use in the installation kernel (Kernel A in the diagram above). This is achieved by defining “sfc_minimal” to rpmbuild. This macro disables hardware monitoring, MTD support (used for access to the adapters flash), I2C and debugfs. This results in a driver with no dependencies on other modules and allows networking support from the driver during installation.
# as normal user
$ mkdir -p /tmp/rpm/BUILD
$ rpm -i sfc-<ver>-1.src.rpm
$ rpmbuild -bc -D 'sfc_minimal=1' -D 'kernel=<installer kernel>' \
/tmp/rpm/SPECS/sfc.spec
2
The Solarflare minimal driver sfc.ko can be found in /tmp/rpm/BUILD/sfc-<ver>/
linux_net/sfc.ko. Integrate this minimal driver into your installer kernel, either by creating a driver disk incorporating this minimal driver or by integrating this minimal driver into initrd.
3
Issue 13
Build a full binary RPM for your Target kernel and integrate this RPM into your Target (Kernel B).
© Solarflare Communications 2014
47
Solarflare Server Adapter
User Guide
Driver Disks for Unattended Installations
Solarflare are preparing binary driver disks to help avoid the need to build the minimal drivers required in unattended installations. Please contact Solarflare support to obtain these driver disks
Table 15 shows the various stages of an unattended installation process:
Table 15: Installation Stages
Issue 13
In Control
Stages of Boot
Setup needed
BIOS
PXE code on the adapter runs.
Adapter must be in PXE boot mode. See PXE Support on page 365.
SF Boot ROM (PXE)
DHCP request from PXE (SF Boot ROM).
DHCP server filename and next‐
server options.
SF Boot ROM (PXE)
TFTP request for filename to next‐server, e.g. pxelinux.0
TFTP server.
pxelinux
TFTP retrieval of pxelinux configuration.
pxelinux configuration on TFTP server.
pxelinux
TFTP menu retrieval of Linux kernel image initrd.
pxelinux configuration Kernel, kernel command, initrd
Linux kernel/installer
Installer retrieves kickstart configuration, e.g. via HTTP.
Kickstart/AutoYaST configuration.
Target Linux kernel
kernel reconfigures network adapters.
DHCP server.
© Solarflare Communications 2014
48
Solarflare Server Adapter
User Guide
3.8 Unattended Installation ‐ Red Hat Enterprise Linux
Documentation for preparing for a Red Hat Enterprise Linux network installation can be found at:
http://docs.redhat.com/docs/en‐US/Red_Hat_Enterprise_Linux/5/html/Installation_Guide/s1‐
begininstall‐perform‐nfs‐x86.html
http://docs.redhat.com/docs/en‐US/Red_Hat_Enterprise_Linux/6/html/Installation_Guide/
index.html
The prerequisites for a Network Kickstart installation are:
• Red Hat Enterprise Linux installation media.
• A Web server and/or FTP Server for delivery of the RPMs that are to be installed.
• A DHCP server for IP address assignments and to launch PXE Boot.
• A TFTP server for download of PXE Boot components to the machines being kickstarted.
• The BIOS on the computers to be Kickstarted must be configured to allow a network boot.
• A Boot CD‐ROM or flash memory that contains the kickstart file or a network location where the kickstart file can be accessed.
• A Solarflare driver disk.
Unattended Red Hat Enterprise Linux installations are configured with Kickstart. The documentation for Kickstart can be found at:
http://docs.redhat.com/docs/en‐US/Red_Hat_Enterprise_Linux/5/html/Installation_Guide/ch‐
redhat‐config‐kickstart.html
http://docs.redhat.com/docs/en‐US/Red_Hat_Enterprise_Linux/6/html/Installation_Guide/ch‐
kickstart2.html
To install Red Hat Enterprise you need the following:
1
A modified initrd.img file with amended modules.alias and modules.dep which incorporates the Solarflare minimal driver for the installation kernel.
To modules.alias, add the following entries:
2
alias:
pci:v00001924d00000813sv*sd*bc*sc*i*
alias:
pci:v00001924d00000803sv*sd*bc*sc*i*
alias:
pci:v00001924d00000710sv*sd*bc*sc*i*
alias:
pci:v00001924d00000703sv*sd*bc*sc*i*
Identify the driver dependencies using the modinfo command:
modinfo ./sfc.ko | grep depends
depends:
i2c-core,mii,hwmon,hwmon-vid,i2c-algo-bit mtdcore mtdpart
All modules listed as depends must be present in the initrd file image. In addition the user should be aware of further dependencies which can be resolved by adding the following lines to the modules.dep file:
Issue 13
© Solarflare Communications 2014
49
Solarflare Server Adapter
User Guide
sfc: i2c-core mii
i2c-algo-bit:
mtdpart:
hwmon
hwmon-vid
i2c-algo-bit
mtdcore
mtdpart *
i2c-core
mtdcore
*For Red Hat Enterprise Linux from version 5.5 add mdio to this line.
3
A configured kickstart file with the Solarflare Driver RPM manually added to the %Post section. For example:
%post
/bin/mount -o ro <IP Address of Installation server>:/<path to
location directory containing Solarflare RPM> /mnt
/bin/rpm -Uvh /mnt/<filename of Solarflare RPM>
/bin/umount /mnt
3.9 Unattended Installation ‐ SUSE Linux Enterprise Server
Unattended SUSE Linux Enterprise Server installations are configured with AutoYaST. The documentation for AutoYaST can be found at:
http://www.suse.com/~ug/autoyast_doc/index.html
The prerequisites for a Network AutoYaST installation are:
• SUSE Linux Enterprise installation media.
• A DHCP server for IP address assignments and to launch PXE Boot.
• A NFS or FTP server to provide the installation source.
• A TFTP server for the download of the kernel boot images needed to PXE Boot.
• A boot server on the same Ethernet segment.
• An install server with the SUSE Linux Enterprise Server OS.
• An AutoYaST configuration server that defines rules and profiles.
• A configured AutoYast Profile (control file).
Further Reading
• SUSE Linux Enterprise Server remote installation:
http://www.novell.com/documentation/sles10/sles_admin/?page=/documentation/sles10/
sles_admin/data/cha_deployment_remoteinst.html
• SUSE install with PXE Boot:
http://en.opensuse.org/SuSE_install_with_PXE_boot
Issue 13
© Solarflare Communications 2014
50
Solarflare Server Adapter
User Guide
3.10 Configuring the Solarflare Adapter
Ethtool is a standard Linux tool that you can use to query and change Ethernet adapter settings. Ethtool can be downloaded from http://sourceforge.net/projects/gkernel/files/ethtool/.
The general command for ethtool is as follows:
ethtool <-option> <ethX>
Where X is the identifier of the interface. Root access is required to configure adapter settings. Hardware Timestamps
The Solarflare Flareon SFN7000 series adapters can support hardware timestamping for all received network packets.
The Linux kernel must support the SO_TIMESTAMPING socket option (2.6.30+) therefore hardware packet timestamping is not supported on RHEL 5.
For more information about using the kernel timestamping API, users should refer to the Linux documentation: http://lxr.linux.no/linux/Documentation/networking/timestamping.txt
Configuring Speed and Modes
Solarflare adapters by default automatically negotiate the connection speed to the maximum supported by the link partner. On the 10GBASE‐T adapters “auto” instructs the adapter to negotiate the highest speed supported in common with it’s link partner. On SFP+ adapters, “auto” instructs the adapter to use the highest link speed supported by the inserted SFP+ module. On 10GBASE‐T and SFP+ adapters, any other value specified will fix the link at that speed, regardless of the capabilities of the link partner, which may result in an inability to establish the link. Dual speed SFP+ modules operate at their maximum (10G) link speed unless explicitly configured to operate at a lower speed (1G).
The following commands demonstrate ethtool to configure the network adapter Ethernet settings.
Identify interface configuration settings:
ethtool ethX
Set link speed:
ethtool -s ethX speed 1000|100
To return the connection speed to the default auto‐negotiate, enter:
ethtool -s <ethX> autoneg on
Configure auto negotiation: ethtool -s ethX autoneg [on|off]
Set auto negotiation advertised speed 1G:
ethtool -s ethX advertise 0x20
Set autonegotiation advertised speed 10G:
ethtool -s ethX advertise 0x1000
Issue 13
© Solarflare Communications 2014
51
Solarflare Server Adapter
User Guide
Set autonegotiation advertised speeds 1G and 10G:
ethtool -s ethX advertise 0x1020
Identify interface auto negotiation pause frame setting:
ethtool -a ethX
Configure auto negotiation of pause frames:
ethtool -A ethX autoneg on [rx on|off] [tx on|off]
Configuring Task Offloading
Solarflare adapters support transmit (Tx) and receive (Rx) checksum offload, as well as TCP segmentation offload. To ensure maximum performance from the adapter, all task offloads should be enabled, which is the default setting on the adapter. For more information, see Performance Tuning on Linux on page 90.
To change offload settings for Tx and Rx, use the ethtool command: ethtool --offload <ethX> [rx on|off] [tx on|off]
Configuring Receive/Transmit Ring Buffer Size
By default receive and transmit ring buffers on the Solarflare adapter support 1024 descriptors. The user can identify and reconfigure ring buffer sizes using the ethtool command.
To identify the current ring size:
ethtool -g ethX
To set the new transmit or receive ring size to value N
ethtool -G ethX [rx N| tx N]
The ring buffer size must be a value between 128 and 4096. On the SFN7000 series adapters the maximum TX buffer size is restricted to 2048. Buffer size can also be set directly in the modprobe.conf file or add the options line to a file under the /etc/modprobe.d directory e.g.
options sfc
rx_ring=4096
Using the modprobe method sets the value for all Solarflare interfaces. Then reload the driver for the option to become effective:
modprobe -r sfc
modprobe sfc
Issue 13
© Solarflare Communications 2014
52
Solarflare Server Adapter
User Guide
Configuring Jumbo Frames
Solarflare adapters support frame sizes from 1500 bytes to 9216 bytes. For example, to set a new frame size (MTU) of 9000 bytes, enter the following command:
ifconfig <ethX> mtu 9000
To make the changes permanent, edit the network configuration file for <ethX>; for example,
/etc/sysconfig/network-scripts/ifcfg-eth1 and append the following configuration directive, which specifies the size of the frame in bytes:
MTU=9000
Standby and Power Management
Solarflare adapters support Wake on LAN and Wake on Magic Packet setting on Linux. You need to ensure that Wake on LAN has been enabled on the BIOS correctly and your adapter has auxiliary power via a separate cable before configuring Wake on LAN features.
In SUSE Linux Enterprise Server, you can use the YaST WOL module to configure Wake on LAN or you can use the ethtool wol g setting.
In Red Hat Enterprise Linux you can use the ethtool wol g setting. 3.11 Setting Up VLANs
VLANs offer a method of dividing one physical network into multiple broadcast domains. In enterprise networks, these broadcast domains usually match with IP subnet boundaries, so that each subnet has its own VLAN. The advantages of VLANs include:
• Performance
• Ease of management
• Security
• Trunks
• You don't have to configure any hardware device, when physically moving your server to another location.
To set up VLANs, consult the following documentation: • To configure VLANs on SUSE Linux Enterprise Server, see:
http://www.novell.com/support/viewContent.do?externalId=3864609
• To configure tagged VLAN traffic only on Red Hat Enterprise Linux, see:
http://kbase.redhat.com/faq/docs/DOC‐8062
• To configure mixed VLAN tagged and untagged traffic on Red Hat Enterprise Linux, see:
http://kbase.redhat.com/faq/docs/DOC‐8064
Issue 13
© Solarflare Communications 2014
53
Solarflare Server Adapter
User Guide
3.12 Setting Up Teams
Teaming network adapters (network bonding) allows a number of physical adapters to act as one, virtual adapter. Teaming network interfaces, from the same adapter or from multiple adapters, creates a single virtual interface with a single MAC address.
The virtual adapter or virtual interface can assist in load balancing and providing failover in the event of physical adapter or port failure.
Teaming configuration support provided by the Linux bonding driver includes:
• 802.3ad Dynamic link aggregation
• Static link aggregation
• Fault Tolerant
To set up an adapter team, consult the following documentation: General:
http://www.kernel.org/doc/Documentation/networking/bonding.txt
RHEL 5:
http://www.redhat.com/docs/en‐US/Red_Hat_Enterprise_Linux/5.4/html/Deployment_Guide/s2‐
modules‐bonding.html
RHEL6:
http://docs.redhat.com/docs/en‐US/Red_Hat_Enterprise_Linux/6/html/Deployment_Guide/s2‐
networkscripts‐interfaces‐chan.html
SLES:
http://www.novell.com/documentation/sles11/book_sle_admin/data/
sec_basicnet_yast.html#sec_basicnet_yast_netcard_man
Issue 13
© Solarflare Communications 2014
54
Solarflare Server Adapter
User Guide
3.13 NIC Partitioning
NIC Partitioning is a feature supported on Solarflare SFN7000 series adapters only. By partitioning the NIC, each physical network port can be exposed to the host as multiple PCIe Physical Functions (PF) with each having a unique interface name and unique MAC address. Each PF is backed by a virtual adapter connected to a virtual port. The layer 2 switch supports the transport of network traffic between virtual ports.
Partitioning is particularly useful when, for example, splitting a single 40GbE interface into multiple PFs. • On a 10GbE dual‐port adapter each physical port can be exposed as a maximum 8 PFs.
• On a 40GbE dual‐port adapter (in 2*40G mode) each physical port can be exposed as a maximum 8 PFs.
• On a 40GbE dual‐port adapter (in 4*10G mode) each physical port can be exposed as a maximum 4 PFs. Figure 7: NIC Partitioning
• Up to 16 PFs and 16 MAC addresses are supported PER ADAPTER.
• Configured without VLANs, all PFs are in the same Ethernet layer 2 broadcast domain i.e. a packet broadcast from any one PF would be received by all other PFs.
• VLAN support will be added as the Solarflare SR‐IOV project progresses. This will be hardware transparent VLAN insertion/striping configured using the sfboot pf-vlans option. • Transmitted packets go directly to the wire. Packets sent between PFs on the same adapter are routed through the local TCP/IP stack loopback interface without touching the sfc driver. • Received broadcast packets are replicated to all PFs.
Issue 13
© Solarflare Communications 2014
55
Solarflare Server Adapter
User Guide
• Received multicast packets are delivered to each subscriber.
• Received unicast packets are delivered to the PF with a matching MAC address. The user should use arp_ignore=2 to avoid ARP cache pollution by ensuring that ARP responses are only sent if the target IP address matches the interface address with both sender/receiver IP addresses in the same subnet.
• To set arp_ignore for the current session:
echo 2 >/proc/sys/net/ipv4/conf/all/arp_ignore
• To set arp_ignore permanently, add the following line to the /etc/sysctl.conf file:
net.ipv4.conf.all.arp_ignore = 2
Software Requirements
The server must have the following (minimum) net driver and firmware versions to enable NIC Partitioning:
# ethtool -i eth<N>
driver: sfc
version: 4.2.2.1016
firmware-version: 4.2.1.1014 rx0 tx0
The adapter must be using the full‐feature firmware variant which can be selected using the sfboot utility and confirmed with rx0 tx0 appearing after the version number in the output from ethtool as shown above. The firmware update utility (sfupdate) and bootROM configuration tool (sfboot) are available in the Solarflare Linux Utilities package (SF‐107601‐LS issue 26 or later). Issue 13
© Solarflare Communications 2014
56
Solarflare Server Adapter
User Guide
NIC Partitioning Configuration
1
Ensure the Solarflare adapter driver (sfc.ko) is installed on the host.
2
The sfboot utility from the Solarflare Linux Utilities package (SF‐107601‐LS) is used to partition physical interfaces to the required number of PFs.
• Up to 16 PFs and 16 MAC addresses are supported per adapter.
• The PF count setting applies to all physical ports. Ports cannot be configured individually.
3
To partition all ports (example configures 4 PFs per port):
# sfboot switch-mode=partitioning pf-count=4
Solarflare boot configuration utility [v4.3.1]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
eth5:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
Option ROM only
Negotiated automatically
5 seconds
2 seconds
5 seconds
Disabled
Physical Functions per port
4
MSI-X interrupt limit
Number of Virtual Functions
VF MSI-X interrupt limit
Firmware variant
Insecure filters
VLAN tags
32
0
8
full feature / virtualization
Disabled
None
Switch mode
Partitioning
A cold reboot of the server is required for sfboot changes to be effective. 4
Following reboot each PF will be visible using the lspci command:
# lspci -d 1924:
07:00.0
07:00.1
07:00.2
07:00.3
07:00.4
07:00.5
07:00.6
07:00.7
Issue 13
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
controller:
controller:
controller:
controller:
controller:
controller:
controller:
controller:
Solarflare
Solarflare
Solarflare
Solarflare
Solarflare
Solarflare
Solarflare
Solarflare
Communications
Communications
Communications
Communications
Communications
Communications
Communications
Communications
© Solarflare Communications 2014
Device
Device
Device
Device
Device
Device
Device
Device
0903
0903
0903
0903
0903
0903
0903
0903
(rev
(rev
(rev
(rev
(rev
(rev
(rev
(rev
01)
01)
01)
01)
01)
01)
01)
01)
57
Solarflare Server Adapter
User Guide
5
To identify which physical port a given network interface is using:
# cat /sys/class/net/eth<N>/device/physical_port
6
If the Solarflare driver is loaded, PFs will also be visible using the ifconfig command where each PF is listed with a unique MAC address.
LACP Bonding
LACP Bonding is not currently supported using the NIC Partitioning configuration mode as the LACP partner i.e. the switch will be unaware of the configured partitions.
User are advised to refer to the sfc driver release notes for current limitations when using the NIC partitioning feature. 3.14 Receive Side Scaling (RSS)
Solarflare adapters support Receive Side Scaling (RSS). RSS enables packet receive‐processing to scale with the number of available CPU cores. RSS requires a platform that supports MSI‐X interrupts. RSS is enabled by default.
When RSS is enabled the controller uses multiple receive queues to deliver incoming packets. The receive queue selected for an incoming packet is chosen to ensure that packets within a TCP stream are all sent to the same receive queue – this ensures that packet‐ordering within each stream is maintained. Each receive queue has its own dedicated MSI‐X interrupt which ideally should be tied to a dedicated CPU core. This allows the receive side TCP processing to be distributed amongst the available CPU cores, providing a considerable performance advantage over a conventional adapter architecture in which all received packets for a given interface are processed by just one CPU core. RSS can be restricted to only process receive queues on the NUMA node local to the Solarflare adapter. To configure this the driver module option rss_numa_local should be set to 1.
By default the driver enables RSS and configures one RSS Receive queue per CPU core. The number of RSS Receive queues can be controlled via the driver module parameter rss_cpus. The following table identifies rss_cpus options. Table 16: rss_cpus Options
Issue 13
Option
Description
Interrupt Affinity (MSI‐X)
<num_cpus>
Indicates the number of RSS queues to create.
A separate MSI‐X interrupt for a receive queue is affinitized to each CPU.
packages
An RSS queue will be created for each multi‐core CPU package. The first CPU in the package will be chosen.
A separate MSI‐X interrupt for a receive queue, is affinitized to each of the designated package CPUs.
© Solarflare Communications 2014
58
Solarflare Server Adapter
User Guide
Table 16: rss_cpus Options
Option
Description
Interrupt Affinity (MSI‐X)
cores
An RSS queue will be created for each CPU. The first hyperthread instance (If CPU has hyperthreading) will be chosen.
A separate MSI‐X interrupt for a receive queue, is affinitized to each of the CPUs.
The default option.
hyperthreads
An RSS queue will be created for each CPU hyperthread (hyperthreading must be enabled).
A separate MSI‐X interrupt for a receive queue, is affinitized to each of the hyperthreads.
Add the following line to /etc/modprobe.conf file or add the options line to a user created file under the /etc/modprobe.d directory. The file should have a .conf extension:
options sfc rss_cpus=<option>
To set rss_cpus equal to the number of CPU cores:
options sfc rss_cpus=cores
Sometimes, it can be desirable to disable RSS when running single stream applications, since all interface processing may benefit from taking place on a single CPU:
options sfc rss_cpus=1
The driver must be reloaded to enable option changes:
NOTE: The association of RSS receive queues to a CPU is governed by the receive queue's MSI‐X interrupt affinity. See Interrupt Affinity on page 97 for more details.
rmmod sfc
modprobe sfc
NOTE: The rss_cpus parameter controls the number of MSI‐X interrupts used by each Solarflare port. Unfortunately, some older Linux version have a bug whereby the maximum number of MSI‐X interrupts used by a PCI function is fixed at the first driver load. For instance, if the drivers are first loaded with rss_cpus=1, all subsequent driver loads will always use rss_cpus=1.
Red Hat Enterprise Linux 5 update 2 (and above), and SUSE Enterprise Linux 11 are not affected by this issue.
To workaround this issue, you must reboot the host after modifying rss_cpus.
NOTE: RSS also works for UDP packets. For UDP traffic the Solarflare adapter will select the Receive CPU based on IP source and destination addresses. Solarflare adapters support IPv4 and IPv6 RSS.
Issue 13
© Solarflare Communications 2014
59
Solarflare Server Adapter
User Guide
3.15 Receive Flow Steering (RFS)
RFS will attempt to steer packets to the core where a receiving application is running. This reduces the need to move data between processor caches and can significantly reduce latency and jitter. Modern NUMA systems, in particular, can benefit substantially from RFS where packets are delivered into memory local to the receiving thread.
Unlike RSS which selects a CPU from a CPU affinity mask set by an administrator or user, RFS will store the application's CPU core identifier when the application process calls recvmsg() or sendmsg(). • A hash is calculated from a packet’s addresses or ports (2‐tuple or 4‐tuple) and serves as the consistent hash for the flow associated with the packet.
• Each receive queue has an associated list of CPUs to which RFS may enqueue the received packets for processing.
• For each received packet, an index into the CPU list is computed from the flow hash modulo the size of the CPU list.
There are two types of RFS implementation; Soft RFS and Hardware (or Accelerated) RFS. Soft RFS is a software feature supported since Linux 2.6.35 that attempts to schedule protocol processing of incoming packets on the same processor as the user thread that will consume the packets. Accelerated RFS requires Linux kernel version 2.6.39 or later, with the Linux sfc driver or Solarflare v3.2 network adapter driver.
RFS can dynamically change the allowed CPUs that can be assigned to a packet or packet stream and this introduces the possibility of out of order packets. To prevent out of order data, two tables are created that hold state information used in the CPU selection.
• Global_flow_table: Identifies the number of simultaneous flows that are managed by RFS.
• Per_queue_table: Identifies the number of flows that can be steered to a queue. This holds state as to when a packet was last received.
The tables support the steering of incoming packets from the network adapter to a receive queue affinitized to a CPU where the application is waiting to receive them. The Solarflare accelerated RFS implementation requires configuration through the two tables and the ethtool ‐K command. The following sub‐sections identify the RFS configuration procedures:
Kernel Configuration
Before using RFS the kernel must be compiled with the kconfig symbol CONFIG_RPS enabled. Accelerated RFS is only available if the kernel is complied with the kconfig symbol CONFIG_RFS_ACCEL enabled.
Issue 13
© Solarflare Communications 2014
60
Solarflare Server Adapter
User Guide
Global Flow Count
Configure the number of simultaneous flows that will be managed by RFS. The suggested flow count will depend on the expected number of active connections at any given time and may be less than the number of open connections. The value is rounded up to the nearest power of two. # echo 32768 > /proc/sys/net/core/rps_sock_flow_entries
Per Queue Flow Count
For each adapter interface there will exist a ’queue’ directory containing one ’rx’ or ’tx’ subdirectory for each queue associated with the interface. For RFS only the receive queues are relevant. # cd /sys/class/net/eth3/queue
Within each ’rx’ subdirectory, the rps_flow_cnt file holds the number of entries in the per‐ queue flow table. If only a single queue is used then rps_flow_cnt will be the same as rps_sock_flow_entries. When multiple queues are configured the count will be equal to rps_sock_flow_entries/N where N is the number of queues, for example:
rps_sock_flow_entries = 32768 and there are 16 queues then rps_flow_cnt for each queue will be configured as 2048. # echo 2048 > /sys/class/net/eth3/queues/rx-0/rps_flow_cnt
# echo 2048 > /sys/class/net/eth3/queues/rx-1/rps_flow_cnt
Disable RFS
To turn off RFS using the following command: # ethtool -K <devname> ntuple off
Issue 13
© Solarflare Communications 2014
61
Solarflare Server Adapter
User Guide
3.16 Solarflare Accelerated RFS (SARFS)
The Solarflare Accelerated RFS feature directs TCP flows to queues processed on the same CPU core as the user process which is consuming the flow. By querying the CPU when a TCP packet is sent, the transmit queue can be selected from the interrupt associated with the correct CPU core. A hardware filter directs the receive flow to the same queue.
SARFS is provided for servers that do not support standard Linux ARFS. For details of Linux ARFS, refer to the previous section. Additional information can be found at the following link:
https://access.redhat.com/documentation/en‐US/Red_Hat_Enterprise_Linux/6/html/
Performance_Tuning_Guide/network‐acc‐rfs.html
Overall SARFS can improve bandwidth, especially for smaller packets and because core assignment is not subject to the semi‐random selection of transmit and receive queues, both bandwidth and latency become more consistent.
The SARFS feature is disabled by default and can be enabled using net driver module parameters. Driver module parameters can be specified in a user created file (e.g. sfc.conf) in the /etc/
modprobe.d directory:
sxps_enabled
sarfs_table_size
sarfs_global_holdoff_ms
sarfs_sample_rate
If the kernel supports XPS, this should be enabled when using the SARFS feature. When the kernel does not supports XPS, the sxps_enabled parameter should be enabled when using SARFS. The
NOTE: sxps_enabled is known to work on RHEL version up to and including RHEL6.5, but does not function on RHEL7 due to changes in the interrupt hint policy. Refer to Module Parameters on page 105 for a description of the SARFS driver module parameters.
3.17 Transmit Packet Steering (XPS)
Transmit Packet Steering (XPS) is supported in Linux 2.6.38 and later. XPS is a mechanism for selecting which transmit queue to use when transmitting a packet on a multi‐queue device. XPS is configured on a per transmit queue basis where a bitmap of CPUs identifies the CPUs that may use the queue to transmit.
Kernel Configuration
Before using XPS the kernel must be compiled with the kconfig symbol CONFIG_XPS enabled. Configure CPU/Hyperthreads
Within in each /sys/class/net/eth3/queues/tx-N directory there exists an ’xps_cpus’ file which contains a bitmap of CPUs that can use the queue to transmit. In the following example Issue 13
© Solarflare Communications 2014
62
Solarflare Server Adapter
User Guide
transmit queue 0 can be used by the first two CPUs and transmit queue 1 can be used by the following two CPUs: # echo 3 > /sys/class/net/eth3/queues/tx-0/xps_cpus
# echo c > /sys/class/net/eth3/queues/tx-0/xps_cpus
If hyperthreading is enabled, each hyperthread is identified as a separate CPU, for example if the system has 16 cores but 32 hyperthreads then the transmit queues should be paired with the hyperthreaded cores: # echo 30003 > /sys/class/net/eth3/queues/tx-0/xps_cpus
# echo c000c > /sys/class/net/eth3/queues/tx-0/xps_cpus
XPS ‐ Example Configuration
System Configuration: • Single Solarflare adapter
• 2 x 8 core processors with hyperthreading enabled to give a total of 32 cores
• rss_cpus=8
• Only 1 interface on the adapter is configured
• The IRQ Balance service is disabled
Identify interrupts for the configured interface:
# cat /proc/interrupts | grep ’eth3\ | CPU’
> cat /proc/irq/132/smp_affinity
00000000,00000000,00000000,00000001
> cat /proc/irq/133/smp_affinity
00000000,00000000,00000000,00000100
> cat /proc/irq/134/smp_affinity
00000000,00000000,00000000,00000002
[...snip...]
> cat /proc/irq/139/smp_affinity
00000000,00000000,00000000,00000800
The output identifies that IRQ‐132 is the first queue and is routed to CPU0. IRQ‐133 is the second queue routed to CPU8, IRQ‐134 to CPU2 and so on. Issue 13
© Solarflare Communications 2014
63
Solarflare Server Adapter
User Guide
Map TX queue to CPU
Hyperthreaded cores are included with the associated physical core: >
>
>
>
>
>
>
>
echo
echo
echo
echo
echo
echo
echo
echo
110011
11001100
220022
22002200
440044
44004400
880088
88008800
>
>
>
>
>
>
>
>
/sys/class/net/eth3/queues/tx-0/xps_cpus
/sys/class/net/eth3/queues/tx-1/xps_cpus
/sys/class/net/eth3/queues/tx-2/xps_cpus
/sys/class/net/eth3/queues/tx-3/xps_cpus
/sys/class/net/eth3/queues/tx-4/xps_cpus
/sys/class/net/eth3/queues/tx-5/xps_cpus
/sys/class/net/eth3/queues/tx-6/xps_cpus
/sys/class/net/eth3/queues/tx-7/xps_cpus
Configure Global and Per Queue Tables
• The flow count (number of active connections at any one time) = 32768
• Number of queues = 8 (rss_cpus)
• So the flow count for each queue will be 32768/8 >
>
>
>
>
>
>
>
>
Issue 13
echo
echo
echo
echo
echo
echo
echo
echo
echo
32768 > /proc/sys/net/core/rps_sock_flow_entries
4096 > /sys/class/net/eth3/queues/rx-0/rps_flow_cnt
4096 > /sys/class/net/eth3/queues/rx-1/rps_flow_cnt
4096 > /sys/class/net/eth3/queues/rx-2/rps_flow_cnt
4096 > /sys/class/net/eth3/queues/rx-3/rps_flow_cnt
4096 > /sys/class/net/eth3/queues/rx-4/rps_flow_cnt
4096 > /sys/class/net/eth3/queues/rx-5/rps_flow_cnt
4096 > /sys/class/net/eth3/queues/rx-6/rps_flow_cnt
4096 > /sys/class/net/eth3/queues/rx-7/rps_flow_cnt
© Solarflare Communications 2014
64
Solarflare Server Adapter
User Guide
3.18 Linux Utilities RPM
The Solarflare Linux Utilities RPM contains:
• A boot ROM utility.
Configuring the Boot ROM with sfboot...Page 66
• A flash firmware update utility.
Upgrading Adapter Firmware with Sfupdate...Page 81
• A license key install utility.
License Install with sfkey...Page 86
The RPM package, is supplied as 64bit and 32bit binaries compiled to be compatible with GLIBC versions for all supported distributions. The Solarflare utilities RPM file can be downloaded from the following location:
https://support.solarflare.com/
• SF‐104451‐LS is a 32bit binary RPM package.
• SF‐107601‐LS is a 64bit binary RPM package.
1
Download and copy the zipped binary RPM package to the required directory. Unzip and install (64bit package example):
2
Unzip the package:
# unzip SF‐107601‐LS‐<version>_Solarflare_Linux_Utilities_RPM_64bit.zip
3
Install the binary RPM:
# rpm ‐Uvh sfutils‐<version>.x86_64.rpm
Preparing...
1:sfutils
4
########################################### [100%]
########################################### [100%]
Check that the RPM installed correctly:
# rpm -q sfutils
sfutils-<version>.x86_64
Directions for the use of the utility programs are explained in the following sections.
Issue 13
© Solarflare Communications 2014
65
Solarflare Server Adapter
User Guide
3.19 Configuring the Boot ROM with sfboot
• Sfboot: Command Usage...Page 66
• Sfboot: Command Line Options...Page 66
• Sfboot: Examples...Page 77
Sfboot is a command line utility for configuring the Solarflare adapter Boot ROM for PXE and iSCSI booting. Using sfboot is an alternative to using Ctrl + B to access the Boot Rom agent during server startup.
See Configuring the Solarflare Boot ROM Agent on page 364 for more information on the Boot Rom agent.
PXE and iSCSI network boot is not supported for Solarflare adapters on IBM System p servers. Sfboot: SLES 11 Limitation
Due to limitations in SLES 11 using kernel versions prior to 2.6.27.54 it is necessary to reboot the server after running the sfboot utility.
Sfboot: Command Usage
The general usage for sfboot is as follows (as root): sfboot [--adapter=eth<N>] [options] [configurable parameters]
When the --adapter option is not specified, the sfboot command applies to all adapters present in the target host. The format for the parameters are: <parameters>=<value>
Sfboot: Command Line Options
Table 17 lists the options for sfboot and Table 18 lists the available options.
Table 17: Sfboot Options
Issue 13
Option
Description
-h, --help
Displays command line syntax and provides a description of each sfboot option.
-V, --version
Shows detailed version information and exits. -v, --verbose
Shows extended output information for the command entered. -y --yes
Update without prompting.
© Solarflare Communications 2014
66
Solarflare Server Adapter
User Guide
Table 17: Sfboot Options
Option
Description
-s, --quiet
Suppresses all output, except errors; no user interaction. The user should query the completion code to determine the outcome of commands when operating silently (see Performance Tuning on Windows on page 233). Aliases: --silent
Lists all available Solarflare adapters. This option shows the ifname and MAC address. -l --list
Note: this option may not be used in conjunction with the any other option. If this option is used with configuration parameters, those parameters will be silently ignored.
-i, --adapter =<ethX>
Performs the action on the identified Solarflare network adapter. The adapter identifier ethX can be the ifname or MAC address, as output by the ‐‐list option. If --adapter is not included, the action will apply to all installed Solarflare adapters.
-c --clear
Resets all adapter options except boot-image to their default values. Note that --clear can also be used with parameters, allowing you to reset to default values, and then apply the parameters specified.
The following parameters in Table 18 are used to control the configurable parameters for the Boot ROM driver when running prior to the operating system booting. Table 18: Sfboot Parameters
Issue 13
Parameter
Description
bootimage=<all|optionrom|uefi|di
sabled>
Specifies which boot firmware images are served‐up to the BIOS during start‐up. This parameter can not be used if the --adapter option has been specified. This option is not reset if --clear is used.
© Solarflare Communications 2014
67
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
linkspeed=<auto|10g|1g|100m>
Specifies the network link speed of the adapter used by the Boot ROM ‐ the default is auto. On the 10GBASE‐T adapters “auto” instructs the adapter to negotiate the highest speed supported in common with it’s link partner. On SFP+ adapters, “auto” instructs the adapter to use the highest link speed supported by the inserted SFP+ module. On 10GBASE‐T and SFP+ adapters, any other value specified will fix the link at that speed, regardless of the capabilities of the link partner, which may result in an inability to establish the link.
auto Auto‐negotiate link speed (default)
10G 10G bit/sec
1G 1G bit/sec
100M 100M bit/sec
linkup-delay=<seconds>
Specifies the delay (in seconds) the adapter defers its first connection attempt after booting, allowing time for the network to come up following a power failure or other restart. This can be used to wait for spanning tree protocol on a connected switch to unblock the switch port after the physical network link is established. The default is 5 seconds.
banner-delay=<seconds>
Specifies the wait period for Ctrl‐B to be pressed to enter adapter configuration tool. seconds = 0‐256
bootskip-delay=<seconds>
Specifies the time allowed for Esc to be pressed to skip adapter booting. seconds = 0‐256
boottype=<pxe|iscsi|disabled>
Sets the adapter boot type. pxe – PXE (Preboot eXecution Environment) booting
iscsi – iSCSI (Internet Small Computer System Interface) booting
disabled – Disable adapter booting
Issue 13
© Solarflare Communications 2014
68
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
initiatordhcp=<enabled|disabled>
Enables or disables DHCP address discovery for the adapter by the Boot ROM except for the Initiator IQN (see initiator-iqn-dhcp). This option is only valid if iSCSI booting is enabled (boottype=iscsi). If initiator‐DHCP is set to disabled, the following options will need to be specified:
initiator-ip=<ip_address>
netmask=<subnet>
The following options may also be needed: gateway=<ip_address>
primary-dns=<ip_address>
initiator-ip=<ipv4 address>
Specifies the IPv4 address (in standard “.” notation form) to be used by the adapter when initiatordhcp is disabled.
Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled initiatorip=<192.168.1.3>
netmask=<ipv4 subnet>
Specifies the IPv4 subnet mask (in standard “.” notation form) to be used by the adapter when initiator-dhcp is disabled. Note that this option is only valid if iSCSI booting is enabled (boottype=iscsi). Example: sfboot boot-type=iscsi initiatordhcp=disabled netmask=255.255.255.0
gateway=<ipv4 address>
Specifies the IPv4 subnet mask (in standard “.” notation form) to be used by the adapter when initiator-dhcp is disabled. Note that this option is only valid if iSCSI booting is enabled (boottype=iscsi). Example:
sfboot boot-type=iscsi initiatordhcp=disabled gateway=192.168.0.10
Issue 13
© Solarflare Communications 2014
69
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
primary-dns=<ipv4 address>
Specifies the IPv4 address (in standard “.” notation form) of the Primary DNS to be used by the adapter when initiator-dhcp is disabled. This option is only valid if iSCSI booting is enabled (boot-type=iscsi). Example:
sfboot boot-type=iscsi initiatordhcp=disabled primary-dns=192.168.0.3
initiator-iqndhcp=<enabled|disabled>
Enables or disables use of DHCP for the initiator IQN only.
initiator-iqn=<IQN>
Specifies the IQN (iSCSI Qualified Name) to be used by the adapter when initiator-iqn-dhcp is disabled. The IQN is a symbolic name in the “.” notation form; for example: iqn.2009.01.com.solarflare, and is a maximum of 223 characters long. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Example:
sfboot initiator-iqn-dhcp=disabled
initiatoriqn=iqn.2009.01.com.solarflare
adapter=2
lun-retry-count=<count>
Specifies the number of times the adapter attempts to access and login to the Logical Unit Number (LUN) on the iSCSI Target before failing. Note that this option is only valid if iSCSI booting is enabled (boottype=iscsi). Example: sfboot lun-retry-count=3
Issue 13
© Solarflare Communications 2014
70
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
targetdhcp=<enabled|disabled>
Enables or disables the use of DHCP to discover iSCSI target parameters on the adapter.
If target-dhcp is disabled, you must specify the following options:
target-server=<address>
target-iqn=<iqn>
target-port=<port>
target-lun=<LUN>
Example ‐ Enable the use of DHCP to configure iSCSI Target settings: sfboot boot-type=iscsi targetdhcp=enabled
target-server=<DNS name or
ipv4 address>
Specifies the iSCSI target’s DNS name or IPv4 address to be used by the adapter when target-dhcp is disabled. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Example:
sfboot boot-type=iscsi targetdhcp=disabled target-server=192.168.2.2
target-port=<port_number>
Specifies the Port number to be used by the iSCSI target when target-dhcp is disabled. The default Port number is Port 3260. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Example: sfboot boot-type=iscsi targetdhcp=disabled target-port=3262
This option should only be used if your target is using a non‐standard TCP Port.
target-lun=<LUN>
Specifies the Logical Unit Number (LUN) to be used by the iSCSI target when target-dhcp is disabled. The default LUN is 0. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Issue 13
© Solarflare Communications 2014
71
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
target-iqn=<IQN>
Specifies the IQN of the iSCSI target when targetdhcp is disabled. Maximum of 223 characters. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Note that if there are spaces contained in <IQN>, then the IQN must be wrapped in double quotes (“”).
Example: sfboot target-dhcp=disabled targetiqn=iqn.2009.01.com.solarflare
adapter=2
vendor-id=<dhcp_id>
Specifies the device vendor ID to be advertised to the DHCP server. This must match the vendor id configured at the DHCP server when using DHCP option 43 to obtain the iSCSI target.
chap=<enabled|disabled>
Enables or disables the use of Challenge Handshake Protocol (CHAP) to authenticate the iSCSI connection. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). To be valid, this option also requires the following sub‐options to be specified: username=<initiator username>
secret=<initiator password>
Example: sfboot boot-type=iscsi chap=enabled
username=initiatorusername
secret=initiatorsecret
Issue 13
© Solarflare Communications 2014
72
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
username=<username>
Specifies the CHAP initiator username (maximum 64 characters). Note that this option is required if either CHAP or Mutual CHAP is enabled (chap=enabled,
mutual-chap=enabled).
Note that if there are spaces contained in <username>, then it must be wrapped in double quotes (“”).
Example: sfboot boot-type=iscsi chap=enabled
username=username
Specifies the CHAP initiator secret (minimum 12 characters, maximum 20 characters). secret=<secret>
Note that this option is valid if either CHAP or Mutual CHAP is enabled (chap=enabled, mutualchap=enabled).
Note that if there are spaces contained in <secret>, then it must be wrapped in double quotes (“”).
Example: sfboot boot-type=iscsi chap=enabled
username=username secret=veryverysecret
mutualchap=<enabled|disabled>
Enables/disables Mutual CHAP authentication when iSCSI booting is enabled. This option also requires the following sub‐options to be specified: target-username=<username>
target-secret=<password>
username=<username>
secret=<password>
Example: sfboot boot-type=iscsi mutualchap=enabled username=username
secret=veryverysecret targetusername=targetusername targetsecret=anothersecret
Issue 13
© Solarflare Communications 2014
73
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
target-username=<username>
Specifies the username that has been configured on the iSCSI target (maximum 64 characters).
Note that this option is necessary if Mutual CHAP is enabled on the adapter (mutual-chap=enabled).
Note that if there are spaces contained in <username>, then it must be wrapped in double quotes (“”).
target-secret=<secret>
Specifies the secret that has been configured on the iSCSi target (minimum 12 characters; maximum 20 characters). Note: This option is necessary if Mutual CHAP is enabled on the adapter (mutual-chap=enabled).
Note that if there are spaces contained in <secret>, then it must be wrapped in double quotes (“”).
mpio-priority=<MPIO
priority>
Specifies the Multipath I/O (MPIO) priority for the adapter. This option is only valid for iSCSI booting over multi‐port adapters, where it can be used to establish adapter port priority. The range is 1‐ 255, with 1 being the highest priority.
mpio-attempts=<attempt
count>
Specifies the number of times MPIO will try and use each port in turn to login to the iSCSI target before failing. msix-limit=
Specifies the maximum number of MSI‐X interrupts the specified adapter will use. The default is 32.
<8|16|32|64|128|256|512|1024>
Note: Using the incorrect setting can impact the performance of the adapter. Contact Solarflare technical support before changing this setting.
Issue 13
pf-count=<pf count>
This is the number of available PCIe PFs per physical network port. This setting is applied to all ports on the adapter. MAC address assignments may change after altering this setting. pf-vlans=none | number
Comma separated list of VLAN tags for each PF in the range 0‐4094 ‐ see sfboot ‐‐help for details.
© Solarflare Communications 2014
74
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
switch-mode=<mode>
default ‐ single PF and zero VFs created.
partitioning ‐ configuer PFs and VFs using pf‐count and vf‐count.
sriov ‐ SR‐IOV enabled, single PF and configurable number of VFs created.
pfiov ‐ PFIOV enabled, PFs configured with pf‐count, VFs not supported.
sriov=<enabled|disabled>
Enable SR‐IOV support for operating systems that support this. Not required on SFN7000 series adapters.
vf-count=<vf count>
The number of virtual functions (VF) advertised to the operating system. The Solarflare SFC9000 family of controllers support a total limit of 127 virtual functions per port and a total 1024 interrupts. Depending on the values of msix‐limit and vf‐msix‐
limit, some of these virtual functions may not be configured.
Enabling all 127 VFs per port with more than one MSI‐X interrupt per VF may not be supported by the host BIOS ‐ in which case you may get 127 VFs on one port and none on others. Contact your BIOS vendor or reduce the VF count.
The sriov parameter is implied if vf‐count is greater than zero.
vf-msixlimit=<1|2|4|8|16|32|64|128|
256>
The maximum number of interrupts a virtual function may use.
port-mode=(default|10G|40G>
Configure the port mode to use. This is for SFC9140‐
family adapters only. MAC address assignments may change after altering this setting.
The default mode will select 40G mode. Issue 13
© Solarflare Communications 2014
75
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
firmware-variant=<fullfeature|ultra-lowlatency|capture-packedstream |auto>
For SFN7000 series adapters only.
The ultra‐low‐latency variant produces best latency without support for TX VLAN insertion or RX VLAN stripping (not currently used features). It is recommended that Onload customers use the ultra‐
low‐latency variant.
Default value = auto ‐ means the driver will select ultra‐low‐latency by default.
insecurefilters=<enabled|disabled>
Issue 13
If enabled bypass filter security on non‐privileged functions. This is for SFC9100‐family adapters only. This reduces security in virtualized environments. The default is disabled. When enabled a function (PF or VF) can insert filters not qualified by their own permanent MAC address. This is a requirement when using Onload or when using bonded interfaces.
© Solarflare Communications 2014
76
Solarflare Server Adapter
User Guide
Sfboot: Examples
• Show the current boot configuration for all adapters:
sfboot
# ./sfboot
Solarflare boot configuration utility [v4.3.1]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
eth4:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
Physical Functions per port
MSI-X interrupt limit
Number of Virtual Functions
VF MSI-X interrupt limit
Firmware variant
Insecure filters
VLAN tags
Switch mode
Option ROM only
Negotiated automatically
5 seconds
2 seconds
5 seconds
Disabled
1
32
0
8
full feature / virtualization
Disabled
None
Default
• List all Solarflare adapters installed on the localhost:
sfboot --list
./sfboot -l
Solarflare boot configuration utility [v4.3.1]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
Adapter list:
eth4
eth5
Issue 13
© Solarflare Communications 2014
77
Solarflare Server Adapter
User Guide
• Enable iSCSI booting on adapter eth4. Implement default iSCSI settings: sfboot --adapter=eth4 boot-type=iscsi Solarflare boot configuration utility [v4.3.1]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
eth4:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
Use DHCP for Initiator
Use DHCP for Initiator IQN
LUN busy retries
Use DHCP for Target
DHCP Vendor Class ID
CHAP authentication
MPIO priority
MPIO boot attempts
Physical Functions per port
MSI-X interrupt limit
Number of Virtual Functions
VF MSI-X interrupt limit
Firmware variant
Insecure filters
VLAN tags
Switch mode
Issue 13
Option ROM only
Negotiated automatically
5 seconds
2 seconds
5 seconds
iSCSI
Enabled
Enabled
2
Enabled
SFCgPXE
Disabled
0
3
1
32
0
8
full feature / virtualization
Disabled
None
Default
© Solarflare Communications 2014
78
Solarflare Server Adapter
User Guide
• iSCSI enable adapter eth2. Disable DHCP. Specify adapter IP address and netmask: sfboot boot-type=iscsi --adapter=eth2 initiator-dhcp=disabled initiatorip=192.168.0.1 netmask=255.255.255.0
Solarflare boot configuration utility [v4.3.1]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
eth4:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
Use DHCP for Initiator
Initiator IP address
Initiator netmask
Initiator default gateway
Initiator primary DNS
Use DHCP for Initiator IQN
LUN busy retries
Use DHCP for Target
DHCP Vendor Class ID
CHAP authentication
MPIO priority
MPIO boot attempts
Physical Functions per port
MSI-X interrupt limit
Number of Virtual Functions
VF MSI-X interrupt limit
Firmware variant
Insecure filters
VLAN tags
Switch mode
Option ROM only
Negotiated automatically
5 seconds
2 seconds
5 seconds
iSCSI
Disabled
192.168.0.1
255.255.255.0
0.0.0.0
0.0.0.0
Enabled
2
Enabled
SFCgPXE
Disabled
0
3
1
32
0
8
full feature / virtualization
Disabled
None
Default
• Enable SR‐IOV (SFN5000 SFN6000 series adapters only)
sfboot sriov=enabled vf-count=16 vf-msix-limit=1
Issue 13
© Solarflare Communications 2014
79
Solarflare Server Adapter
User Guide
• SFN7000 Series ‐ Firmware Variant
sfboot firmware-variant=full-feature
Solarflare boot configuration utility [v4.3.1]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
eth4:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
MSI-X interrupt limit
Number of Virtual Functions
VF MSI-X interrupt limit
Firmware variant
Option ROM only
Negotiated automatically
7 seconds
3 seconds
6 seconds
PXE
32
0
1
full feature / virtualization
• SFN7000 Series ‐ SR‐IOV enabled and using Virtual Functions
sfboot switch-mode=sriov vf-count=4
Solarflare boot configuration utility [v4.3.1]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
eth4:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
Physical Functions per port
MSI-X interrupt limit
Number of Virtual Functions
VF MSI-X interrupt limit
Firmware variant
Insecure filters
VLAN tags
Switch mode
Issue 13
Option ROM only
Negotiated automatically
5 seconds
2 seconds
5 seconds
Disabled
1
32
4
8
full feature / virtualization
Disabled
None
SRIOV
© Solarflare Communications 2014
80
Solarflare Server Adapter
User Guide
3.20 Upgrading Adapter Firmware with Sfupdate
• Sfupdate: Command Usage...Page 81
• Sfupdate: Command Line Options...Page 84
• Sfupdate: Examples...Page 85
Sfupdate is a command line utility to manage and upgrade the Solarflare adapter Boot ROM, Phy and adapter firmware. Embedded within the sfupdate executable are firmware images for the Solarflare adapter ‐ the exact updates available via sfupdate depend on the specific adapter type.
See Configuring the Solarflare Boot ROM Agent on page 364 for more information on the Boot Rom agent. NOTE: All Applications accelerated with OpenOnload should be terminated before updating the firmware with sfupdate.
NOTE: Solarflare PTP (sfptpd) should be terminated before updated firmware.
Sfupdate: Command Usage
The general usage for sfupdate is as follows (as root):
sfupdate [--adapter=eth<N>] [options]
where:
ethN is the interface name (ifname) of the Solarflare adapter to be upgraded.
option is one of the command options listed in Table 19.
The format for the options are: <option>=<parameter>
Running the command sfupdate with no additional parameters will show the current firmware version for all Solarflare adapters and identifies whether the firmware version within sfupdate is more up to date. To update the firmware for all Solarflare adapters run the command sfupdate -write
Solarflare recommend the following procedure:
1
Run sfupdate to check that the firmware on all adapters is up to date.
2
Run sfupdate --write to update the firmware on all adapters.
Sfupdate: Linux MTD Limitations
The driver supplied "inbox" within RedHat and Novell distributions has a limitation on the number of adapters that sfupdate can support. This limitation is removed from RHEL 6.5 onwards. The Solarflare supplied driver is no longer subject to this limitation on any distro/kernel.
Issue 13
© Solarflare Communications 2014
81
Solarflare Server Adapter
User Guide
Linux kernel versions prior to 2.6.20 support up to 16 MTD (flash) devices. Solarflare adapters are equipped with 6 flash partitions. If more than two adapters are deployed within a system a number of flash partitions will be inaccessible during upgrade. The limit was raised to 32 in Linux kernel version 2.6.20 and removed altogether in 2.6.35. If issues are encountered during sfupdate, the user should consider one of the following options when upgrading firmware on systems equipped with more than two Solarflare adapters:
• Upgrade two adapters at a time with the other adapters removed.
• Upgrade the kernel.
• Rebuild the kernel, raising the value of MAX_MTD_DEVICES in include/linux/mtd/mtd.h.
• Request bootable utilities from [email protected]
Overcome Linux MTD Limitations
An alternative method is available to upgrade the firmware without removing the adapters.
1
Unbind all interfaces from the drivers:
# for bdf in $(lspci -D -d 1924: | awk '{ print $1 }'); do echo -n ${bdf}\
> /sys/bus/pci/devices/${bdf}/driver/unbind; done
2
ifconfig -a will not discover any Solarflare interfaces.
3
Identify the bus/device/function for all Solarflare interfaces:
# lspci -D -d 1924:
4
Output similar to the following will be produced (5 NICs installed in this example):
# lspci -D -d 1924:
0000:02:00.0 Ethernet
[Solarstorm]
0000:02:00.1 Ethernet
[Solarstorm]
0000:03:00.0 Ethernet
[Solarstorm]
0000:03:00.1 Ethernet
[Solarstorm]
0000:04:00.0 Ethernet
[Solarstorm]
0000:04:00.1 Ethernet
[Solarstorm]
0000:83:00.0 Ethernet
[Solarstorm]
0000:83:00.1 Ethernet
[Solarstorm]
0000:84:00.0 Ethernet
[Solarstorm]
Issue 13
controller: Solarflare Communications SFC9020
controller: Solarflare Communications SFC9020
controller: Solarflare Communications SFC9020
controller: Solarflare Communications SFC9020
controller: Solarflare Communications SFL9021
controller: Solarflare Communications SFL9021
controller: Solarflare Communications SFC9020
controller: Solarflare Communications SFC9020
controller: Solarflare Communications SFC9020
© Solarflare Communications 2014
82
Solarflare Server Adapter
User Guide
0000:84:00.1 Ethernet controller: Solarflare Communications SFC9020
[Solarstorm]
5
#
#
#
#
There are enough resources to upgrade two NICs at a time, so re‐bind interfaces in groups of four (2x2NICs):
echo
echo
echo
echo
6
-n
-n
-n
-n
"0000:02:00.0"
"0000:02:00.1"
"0000:03:00.0"
"0000:03:00.1"
>
>
>
>
/sys/bus/pci/drivers/sfc/bind
/sys/bus/pci/drivers/sfc/bind
/sys/bus/pci/drivers/sfc/bind
/sys/bus/pci/drivers/sfc/bind
Run sfupdate to update these NICs (command options may vary):
# sfupdate --write --yes --force
7
Run the command to unbind the interfaces again, there will be failures reported because some of the interfaces aren’t bound:
# for bdf in $(lspci -D -d 1924: | awk '{ print $1 }'); do echo -n ${bdf}\
> /sys/bus/pci/devices/${bdf}/driver/unbind; done
8
Repeat the process for the other interfaces (0000:04:00.x; 0000:83:00.x and 0000:84:00.x) doing so in pairs until all the NICs have been upgraded. 9
Rebind all interfaces, doing so en‐mass and ignoring errors from those already bound:
# for bdf in $(lspci -D -d 1924: | awk '{ print $1 }'); do echo -n ${bdf}\
> /sys/bus/pci/drivers/sfc/bind; done
10 Alternatively reload the sfc driver:
# onload_tool reload
or:
# modprobe -r sfc
# modprobe sfc
11 Run ifconfig -a again to find that all the interfaces are reported and all have been firmware upgraded without having to physically touch the server or change the kernel.
Sfupdate: SLES 11 Limitation
Due to limitations in SLES 11 using kernel versions prior to 2.6.27.54 it is necessary to reboot the server after running the sfupdate utility to upgrade server firmware.
Issue 13
© Solarflare Communications 2014
83
Solarflare Server Adapter
User Guide
Sfupdate: Command Line Options
Table 19 lists the options for sfupdate.
Table 19: Sfupdate Options
Option
Description
-h, --help
Shows help for the available options and command line syntax. -i, --adapter=ethX
Specifies the target adapter when more than one adapter is installed in the localhost. ethX = Adapter ifname or MAC address (as obtained with --list). --list
Shows the adapter ID, adapter name and MAC address of each adapter installed in the localhost. --write
Re‐writes the firmware from the images embedded in the sfupdate tool. To re‐write using an external image, specify --image=<filename> in the command. --write fails if the embedded image is the same or a previous version. To force a write in this case, specify -force in the command. Issue 13
--force
Force the update of all firmware, even if the installed firmware version is the same as, or more recent then, the firmware embedded in sfupdate. --backup
Backup existing firmware image before updating. This option may be used with ‐‐write and ‐‐force.
--image=(filename)
Update the firmware using the binary image from the given file rather than from those embedded in the utility. -y, --yes
Update without prompting. This option can be used with the ‐‐write and ‐‐force options.
-v, --verbose
Verbose mode.
-s, --silent
Suppress output while the utility is running; useful when the utility is used in a script.
-V --version
Display version information and exit.
© Solarflare Communications 2014
84
Solarflare Server Adapter
User Guide
Sfupdate: Examples
• Display firmware versions for all adapters:
sfupdate
Solarstorm firmware update utility [v4.3.1]
Copyright Solarflare Communications 2006-2013, Level 5 Networks 2002-2005
eth4 - MAC: 00-0F-53-21-00-61
Controller type:
Solarflare SFC9100 family
Controller version: unknown
Boot ROM version:
unknown
This
This
-
utility contains more recent Boot ROM firmware [v4.2.1.1000]
run "sfupdate --write" to perform an update
utility contains more recent controller firmware [v4.2.1.1010]
run "sfupdate --write" to perform an update
eth5 - MAC: 00-0F-53-21-00-60
Controller type:
Solarflare SFC9100 family
Controller version: unknown
Boot ROM version:
unknown
This
This
-
Issue 13
utility contains more recent Boot ROM firmware [v4.2.1.1000]
run "sfupdate --write" to perform an update
utility contains more recent controller firmware [v4.2.1.1010]
run "sfupdate --write" to perform an update
© Solarflare Communications 2014
85
Solarflare Server Adapter
User Guide
3.21 License Install with sfkey
The sfkey utility is distributed with the Linux Utilities RPM package. This utility is used to install Solarflare AppFlex™ licenses and enable selected on‐board services for Solarflare adapters. For more information about license requirements see Solarflare AppFlex™ Technology Licensing. on page 12.
sfkey: Command Usage
# sfkey [--adapter=eth<N>] [options]
If the adapter option is not specified, operations will be applied to all installed adapters.
• To view all sfkey options:
# sfkey --help
• To list (by serial number) all adapters that support licensing:
# sfkey --inventory
• To display an adapter serial number and installed license keys:
# sfkey --adapter=eth4 --report
2-inteface adapter: eth4, eth5
Product name:
Solarflare SFN7122F SFP+ Server Adapter
Part number:
SFN7122F
Serial number:
712200205071133867100441
MAC addresses:
00-0F-53-21-9B-B0, 00-0F-53-22-8B-B1
Installed keys:
Onload, PTP, SolarCapture Pro, SolarSecure Filter
Engine,
Active keys:
Onload, PTP, SolarCapture Pro, SolarSecure Filter Engine
Blacklisted keys:
0
Invalid keys:
0
Unverifiable keys: 0
Inapplicable keys: 0
• To install a license:
Copy the license key data to a .txt file on the target server. All keys can be in the same key file and the file applied on multiple servers. The following example uses a license key file called key.txt created on the local server.
# sfkey --adapter=eth<N> --install key.txt
sfkey firmware update utility: v3.3.3.6330
Copyright Solarflare Communications 2006-2013, Level 5 Networks 2002-2005
Reading keys...
Writing keys to eth1...
Issue 13
© Solarflare Communications 2014
86
Solarflare Server Adapter
User Guide
Adapter: eth1
Product name: Solarflare SFN7122F SFP+ Adapter
Part number: SFN7122F
Serial number: 712200205071133867100591
MAC address: 00-0F-53-21-9B-B0
Installed keys: OpenOnload, PTP, SolarCapture Pro
Active keys: OpenOnload, PTP, SolarCapture Pro
Blacklisted keys: 0
Invalid keys: 0
License Inventory
Use the combined --inventory and --keys options to identify the licenses installed on an adapter.
sfkey --adapter=eth4 --inventory --keys
eth4, eth5: 712200205071133867100441 (Flareon), $ONL, PTP, SCP, SSFE, !PM,
License information is displayed in [Prefix] [Acronym] [Suffix] format.
Prefix:
(may be omitted)
Acronym:
Suffix:
Issue 13
$
!
LNA
ONL
PCAP
PM
PTP
RSE
SCL
SCP
SSFE
SCSI
An
Factory-fitted,
Not present.
Line Arbitration,
Onload,
Packet Capture,
Performance Monitor,
Precision Time Protocol,
Resilient Ethernet,
SolarCapture Live,
SolarCapture Pro,
SolarSecure Filter Engine,
SolarCapture Server Image,
Application unknown to this version of sfkey
('n' is a placeholder for the application id).
<none> Licensed,
+
Site licensed,
~
Evaluation license,
*
Inactive license,
@
Inactive site license,
No state available.
© Solarflare Communications 2014
87
Solarflare Server Adapter
User Guide
sfkey Options
Table 20 describes all sfkey options. Table 20: sfkey options
Option
Description
--backup
Output a report of the installed keys in all adapters. The report can be saved to file and later used with the ‐‐
install option.
--install <filename>
Install license keys from the given file and report the result. To read from stdin use "‐" in place of filename. Keys are installed to an adapter, so if an adapter’s ports are eth4 and eth5, both ports will be affected by the keys installed. sfc driver reload is required after sfkey installs a PTP license.
To reload the sfc driver:
# modprobe -r sfc; modprode sfc
or when Onload is installed:
# onload_tool reload
Issue 13
--inventory
List by serial number all adapters that support licensing. By default this will list adapters that support licenses. To list all adapters use the ‐‐all option. To list keys use the ‐‐
keys option.
--keys
Include keys in ‐‐inventory output ‐ see License Inventory above.
--noevaluationupdate
Do not update evaluation keys.
-a --all
Apply sfkey operation to all adapters that support licensing.
-c --clear
Delete all existing license keys from an adapter ‐ except factory installed keys.
-h, --help
Display all sfkey options.
-i --adapter
identify specific adapter to apply sfkey operation to.
© Solarflare Communications 2014
88
Solarflare Server Adapter
User Guide
Table 20: sfkey options
Option
Description
-r --report
Display an adapter serial number and current license status (see example above).
Use with ‐‐all or with ‐‐adapter.
If an installed or active key is reported as ’An’ (where n is a number), it indicates a license unknown to this version of sfkey ‐ use an updated sfkey version.
Issue 13
-s --silent
Silent mode, output errors only.
-v --verbose
Verbose mode.
-V --version
Display sfkey version and exit.
-x --xml
Report format as XML.
© Solarflare Communications 2014
89
Solarflare Server Adapter
User Guide
3.22 Performance Tuning on Linux
• Introduction...Page 90
• Tuning settings...Page 91
• Other Considerations...Page 100
Introduction
The Solarflare family of network adapters are designed for high‐performance network applications. The adapter driver is pre‐configured with default performance settings that have been chosen to give good performance across a broad class of applications. In many cases, application performance can be improved by tuning these settings to best suit the application.
There are three metrics that should be considered when tuning an adapter: • Throughput
• Latency
• CPU utilization Different applications may be more or less affected by improvements in these three metrics. For example, transactional (request‐response) network applications can be very sensitive to latency whereas bulk data transfer applications are likely to be more dependent on throughput.
The purpose of this guide is to highlight adapter driver settings that affect the performance metrics described. This guide covers the tuning of all Solarflare adapters. In addition to this guide, the user should consider other issues influencing performance such as application settings, server motherboard chipset, additional software installed on the system, such as a firewall, and the specification and configuration of the LAN. Consideration of such issues is not within the scope of this guide.
Issue 13
© Solarflare Communications 2014
90
Solarflare Server Adapter
User Guide
Tuning settings
Adapter MTU (Maximum Transmission Unit)
The default MTU of 1500 bytes ensures that the adapter is compatible with legacy 10/100Mbps Ethernet endpoints. However if a larger MTU is used, adapter throughput and CPU utilization can be improved. CPU utilization is improved because it takes fewer packets to send and receive the same amount of data. Solarflare adapters support frame sizes up to 9216 bytes (this does not include the Ethernet preamble or frame‐CRC).
Since the MTU should ideally be matched across all endpoints in the same LAN (VLAN), and since the LAN switch infrastructure must be able to forward such packets, the decision to deploy a larger than default MTU requires careful consideration. It is recommended that experimentation with MTU be done in a controlled test environment. The MTU is changed dynamically using ifconfig, where ethX is the interface name and size is the MTU size in bytes: # /sbin/ifconfig <ethX> mtu <size>
Verification of the MTU setting may be performed by running ifconfig with no options and checking the MTU value associated with the interface. The change in MTU size can be made to persist across reboots by editing the file /etc/sysconfig/network-scripts/ifcfg-ethX and adding MTU=<mtu> on a new line.
Interrupt Moderation (Interrupt Coalescing)
Interrupt moderation controls the number of interrupts generated by the adapter by adjusting the extent to which receive packet processing events are coalesced. Interrupt moderation may coalesce more than one packet‐reception or transmit‐completion event into a single interrupt. By default, adaptive moderation is enabled. Adaptive moderation means that the network driver software adapts the interrupt moderation setting according to the traffic and workload conditions. Before adjusting the interrupt interval, it is recommended to disable adaptive moderation:
ethtool -C <ethX> adaptive-rx off
Interrupt moderation can be changed using ethtool, where ethX is the interface name and interval is the moderation setting in microseconds (μs). An interval value of zero (0) will turn interrupt moderation off.
To set RX interrupt moderation:
ethtool –C <ethX> rx-usecs <interval>
or ethtool –C <ethX> rx-usecs 0
The above example also sets the transmit interrupt moderation interval unless the driver module parameter separate_tx_channels is enabled. Normally packet RX and TX completions will share interrupts so RX and TX interrupt moderation intervals must be equal, then the adapter driver automatically adjusts tx‐usecs to match rx‐usecs. Refer to Table 24: Driver Module Parameters.
Issue 13
© Solarflare Communications 2014
91
Solarflare Server Adapter
User Guide
To set TX interrupt moderation, if separate_tx_channels is enabled:
ethtool –C <ethX> tx-usecs 0
Interrupt moderation settings can be checked using ethtool –c .
The interrupt moderation interval is critical for tuning adapter latency: • Increasing the moderation value will increase latency, but reduce CPU utilization and improve peak throughput, if the CPU is fully utilized. • Decreasing the moderation value or turning it off will decrease latency at the expense of CPU utilization and peak throughput. For many transaction request‐response type network applications, the benefit of reduced latency to overall application performance can be considerable. Such benefits may outweigh the cost of increased CPU utilization. NOTE: The interrupt moderation interval dictates the minimum gap between two consecutive interrupts. It does not mandate a delay on the triggering of an interrupt on the reception of every packet. For example, an interrupt moderation setting of 30µs will not delay the reception of the first packet received, but the interrupt for any following packets will be delayed until 30µs after the reception of that first packet.
TCP/IP Checksum Offload
Checksum offload moves calculation and verification of IP Header, TCP and UDP packet checksums to the adapter. The driver by default has all checksum offload features enabled. Therefore, there is no opportunity to improve performance from the default. Checksum offload is controlled using ethtool: Receive Checksum:
# /sbin/ethtool –K <ethX> rx <on|off>
Transmit Checksum:
# /sbin/ethtool –K <ethX> tx <on|off>
Verification of the checksum settings may be performed by running ethtool with the –k option. Solarflare recommend you do not disable checksum offload.
Issue 13
© Solarflare Communications 2014
92
Solarflare Server Adapter
User Guide
TCP Segmentation Offload (TSO)
TCP Segmentation offload (TSO) offloads the splitting of outgoing TCP data into packets to the adapter. TCP segmentation offload benefits applications using TCP. Non TCP protocol applications will not benefit (but will not suffer) from TSO.
Enabling TCP segmentation offload will reduce CPU utilization on the transmit side of a TCP connection, and so improve peak throughput, if the CPU is fully utilized. Since TSO has no effect on latency, it can be enabled at all times. The driver has TSO enabled by default. Therefore, there is no opportunity to improve performance from the default. TSO is controlled using ethtool: # /sbin/ethtool –K <ethX> tso <on|off>
Verification of the TSO settings may be performed by running ethtool with the –k option. Solarflare recommend you do not disable TSO.
TCP Large Receive Offload (LRO)
TCP Large Receive Offload (LRO) is a feature whereby the adapter coalesces multiple packets received on a TCP connection into a single call to the operating system TCP Stack. This reduces CPU utilization, and so improves peak throughput when the CPU is fully utilized. LRO should not be enabled if you are using the host to forward packets from one interface to another; for example if the host is performing IP routing or acting as a layer2 bridge. The driver has LRO enabled by default.
Issue 13
© Solarflare Communications 2014
93
Solarflare Server Adapter
User Guide
. NOTE: It has been observed that as RHEL6 boots the libvirtd daemon changes the default forwarding setting such that LRO is disabled on all network interfaces. This behaviour is undesirable as it will potentially lower bandwidth and increase CPU utilization ‐ especially for high bandwidth streaming applications. To determine if LRO is enabled on an interface:
ethtool -k ethX
If IP forwarding is not required on the server, Solarflare recommends either: Disabling the libvirtd service (if this is not being used),
Or, as root before loading the Solarflare driver:
sysctl -w net.ipv4.conf.default.forwarding=0
(This command can be loaded into /etc/rc.local),
Or, after loading the Solarflare driver, turn off forwarding for only the Solarflare interfaces and re‐enable LRO:
sysctl -w net.ipv4.conf.ethX.forwarding=0
ethtool -K ethX lro on
(where X is the id of the Solarflare interface).
Disabling the libvirtd service is a permanent solution, whereas the other recommendations are temporary and will not persist over reboot.
LRO should not be enabled if IP forwarding is being used on the same interface as this could result in incorrect IP and TCP operation.
LRO can be controlled using the module parameter lro. Add the following line to /etc/
modprobe.conf or add the options line to a file under the /etc/modprobe.d directory to disable LRO:
options sfc lro=0
Then reload the driver so it picks up this option: rmmod sfc
modprobe sfc
The current value of this parameter can be found by running: cat /sys/module/sfc/parameters/lro
Issue 13
© Solarflare Communications 2014
94
Solarflare Server Adapter
User Guide
LRO can also be controlled on a per‐adapter basis by writing to this file in sysfs:
/sys/class/net/ethX/device/lro
To disable LRO:
echo 0 > /sys/class/net/ethX/device/lro
To enable LRO:
echo 1 > /sys/class/net/ethX/device/lro
To show the current value of the per‐adapter LRO state:
cat /sys/class/net/ethX/device/lro
Modifying this file instantly enables or disables LRO, no reboot or driver reload is required. This setting takes precedence over the lro module parameter
Current LRO settings can be identified with Linux ethtool .e.g.
ethtool -k ethX
TCP Protocol Tuning
TCP Performance can also be improved by tuning kernel TCP settings. Settings include adjusting send and receive buffer sizes, connection backlog, congestion control, etc.
For Linux kernel versions, including 2.6.16 and later, initial buffering settings should provide good performance. However for earlier kernel versions, and for certain applications even on later kernels, tuning buffer settings can significantly benefit throughput. To change buffer settings, adjust the tcp_rmem and tcp_wmem using the sysctl command:
Receive buffering:
sysctl net.ipv4.tcp_rmem="<min> <default> <max>"
Transmit buffering:
sysctl net.ipv4.tcp_wmem="<min> <default> <max>"
(tcp_rmem and tcp_wmem can also be adjusted for IPV6 and globally with the net.ipv6 and net.core variable prefixes respectively).
Typically it is sufficient to tune just the max buffer value. It defines the largest size the buffer can grow to. Suggested alternate values are max=500000 (1/2 Mbyte). Factors such as link latency, packet loss and CPU cache size all influence the affect of the max buffer size values. The minimum and default values can be left at their defaults minimum=4096 and default=87380. Issue 13
© Solarflare Communications 2014
95
Solarflare Server Adapter
User Guide
Buffer Allocation Method
The Solarflare driver has a single optimized buffer allocation strategy. This replaces the two different methods controlled with the rx_alloc_method driver module parameter which were available using 3.3 and previous drivers.
The net driver continues to expose the rx_alloc_method module option, but the value is ignored and it only exists to not break existing customer configurations. TX PIO
PIO (programmed input/output) describes the process where data is directly transferred by the CPU to or from an I/O device. It’s is an alternative technique to the I/O device using bus master DMA to transfer data without CPU involvement. Solarflare 7000 series adapters support TX PIO, where packet s on the transmit path can be “pushed” to the adapter directly by the CPU. This improves the latency of transmitted packets but can cause a very small increase in CPU utilisation. TX PIO is therefore especially useful for smaller packets.
The TX PIO feature is enabled by default for packets up to 256 bytes. The maximum packet size that can use PIO can be configured with the driver module option piobuf_size.
Issue 13
© Solarflare Communications 2014
96
Solarflare Server Adapter
User Guide
3.23 Interrupt Affinity
Interrupt affinity describes the set of host cpus that may service a particular interrupt. This affinity therefore dictates the CPU context where received packets will be processed and where transmit packets will be freed once sent. If the application can process the received packets in the same CPU context by being affinitized to the relevant CPU, then latency and CPU utilization can be improved. This improvement is achieved because well tuned affinities reduce inter‐CPU communication.
Tuning interrupt affinity is most relevant when MSI‐X interrupts and RSS are being used. The irqbalance service, which typically runs by default in most Linux distributions, is a service that automatically changes interrupt affinities based on CPU workload.
In many cases the irqbalance service hinders rather than enhances network performance. It is therefore necessary to disable it and then set interrupt affinities. To disable irqbalance permanently, run:
/sbin/chkconfig -level 12345 irqbalance off
To see whether irqbalance is currently running, run:
/sbin/service irqbalance status
To disable irqbalance temporarily, run:
/sbin/service irqbalance stop
Once the irqbalance service has been stopped, the Interrupt affinities can be configured manually.
NOTE: The Solarflare driver will evenly distribute interrupts across the available host CPUs (based on the rss_cpus module parameter).
To use the Solarflare driver default affinities (recommended), the irqbalance service must be disabled before the Solarflare driver is loaded (otherwise it will immediately overwrite the affinity configuration values set by the Solarflare driver).
Example 1:
How affinities should be manually set will depend on the application. For a single streamed application such as Netperf, one recommendation would be to affinitize all the Rx queues and the application on the same CPU. This can be achieved with the following steps:
1
Determine which interrupt line numbers the network interface uses. Assuming the interface is eth0, this can be done with:
# cat /proc/interrupts | grep eth0-
Issue 13
123:
13302
0
0
0
PCI-MSI-X
eth0-0
131:
0
24
0
0
PCI-MSI-X
eth0-1
139:
0
0
32
0
PCI-MSI-X
eth0-2
© Solarflare Communications 2014
97
Solarflare Server Adapter
User Guide
147:
0
0
0
21
PCI-MSI-X
eth0-3
This output shows that there are four channels (rows) set up between four cpus (columns).
2
Determine the CPUs to which these interrupts are assigned to:
# cat /proc/irq/123/smp_affinity
00000000,00000000,00000000,00000000,00000000,00000000,00000000,000000
01
# cat /proc/irq/131/smp_affinity
00000000,00000000,00000000,00000000,00000000,00000000,00000000,000000
02
# cat /proc/irq/139/smp_affinity
00000000,00000000,00000000,00000000,00000000,00000000,00000000,000000
04
# cat /proc/irq/147/smp_affinity
00000000,00000000,00000000,00000000,00000000,00000000,00000000,000000
08
This shows that RXQ[0] is affinitized to CPU[0], RXQ[1] is affinitized to CPU[1], and so on. With this configuration, the latency and cpu utilization for a particular TCP flow will be dependant on that flow’s RSS hash, and which CPU that hash resolves onto.
NOTE: Interrupt line numbers and their initial CPU affinity are not guaranteed to be the same across reboots and driver reloads. Typically, it is therefore necessary to write a script to query these values and apply the affinity accordingly.
3
Set all network interface interrupts to a single CPU (in this case CPU[0]):
#
#
#
#
echo
echo
echo
echo
1
1
1
1
>
>
>
>
/proc/irq/123/smp_affinity
/proc/irq/131/smp_affinity
/proc/irq/139/smp_affinity
/proc/irq/147/smp_affinity
NOTE: The read‐back of /proc/irq/N/smp_affinity will return the old value until a new interrupt arrives.
Set the application to run on the same CPU (in this case CPU[0]) as the network interface’s interrupts:
# taskset 1 netperf
# taskset 1 netperf
Issue 13
-H <host>
© Solarflare Communications 2014
98
Solarflare Server Adapter
User Guide
NOTE: The use of taskset is typically only suitable for affinity tuning single threaded, single traffic flow applications. For a multi threaded application, whose threads for example process a subset of receive traffic, taskset is not suitable. In such applications, it is desirable to use RSS and Interrupt affinity to spread receive traffic over more than one CPU and then have each receive thread bind to each of the respective CPUs. Thread affinities can be set inside the application with the shed_setaffinity() function (see Linux man pages). Use of this call and how a particular application can be tuned is beyond the scope of this guide.
If the settings have been correctly applied, all interrupts from eth0 are being handled on CPU[0]. This can be checked:
# cat /proc/interrupts | grep eth0123:
133302
0
0
0
PCI-MSI-X
eth0-0
131:
0
24
0
0
PCI-MSI-X
eth0-1
139:
0
0
32
0
PCI-MSI-X
eth0-2
147:
0
0
0
21
PCI-MSI-X
eth0-3
Example 2:
An example of affinitizing each interface to a CPU on the same package:
First identify which interrupt lines are servicing which CPU and IO device:
# cat /proc/interrupts | grep eth0123:
13302
0
1278131
# cat /proc/interrupts | grep eth1131:
0
24
0
0
PCI-MSI-X
eth0-0
0
PCI-MSI-X
eth1-0
Find CPUs on same package (have same ‘package‐id’):
# more /sys/devices/system/cpu/cpu*/topology/physical_package_id
::::::::::::::
/sys/devices/system/cpu/cpu0/topology/physical_package_id
::::::::::::::
1
::::::::::::::
/sys/devices/system/cpu/cpu10/topology/physical_package_id
::::::::::::::
1
::::::::::::::
/sys/devices/system/cpu/cpu11/topology/physical_package_id
::::::::::::::
0
…
Having determined that cpu0 and cpu10 are on package 1, we can assign each ethX interface’s MSI‐
X interrupt to its own CPU on the same package. In this case we choose package 1:
Issue 13
© Solarflare Communications 2014
99
Solarflare Server Adapter
User Guide
# echo 1 > /proc/irq/123/smp_affinity
# echo 400 > /proc/irq/131/smp_affinity
1hex is bit 0 = CPU0
400hex is bit 10 = CPU10
Other Considerations
PCI Express Lane Configurations
The PCI Express (PCIe) interface used to connect the adapter to the server can function at different widths. This is independent of the physical slot size used to connect the adapter. The possible widths are multiples x1, x2, x4, x8 and x16 lanes of (2.5Gbps for PCIe Gen 1, 5.0 Gbps for PCIe Gen 2 and 8.0 Gbps for PCIe Gen 3) in each direction. Solarflare Adapters are designed for x8 lane operation.
On some server motherboards, choice of PCIe slot is important. This is because some slots (including slots that are physically x8 or x16 lanes) may only electrically support x4 lanes. In x4 lane slots, Solarflare PCIe adapters will continue to operate, but not at full speed. The Solarflare driver will warn if it detects the adapter is plugged into a PCIe slot which electrically has fewer than x8 lanes. Adapters which require a PCIe Gen 2 or Gen 3 slot for optimal operation will issue a warning if they are installed in a PCIe Gen 1 slot. Warning messages can be viewed in dmesg from /var/log/
messages.
The lspci command can be used to discover the currently negotiated PCIe lane width and speed:
lspci -d 1924: -vv
02:00.1 Class 0200: Unknown device 1924:0710 (rev 01)
...
Link: Supported Speed 2.5Gb/s, Width x8, ASPM L0s, Port 1
Link: Speed 2.5Gb/s, Width x8
NOTE: The Supported speed may be returned as 'unknown', due to older lspci utilities not knowing how to determine that a slot supports PCIe Gen. 2.0/5.0 Gb/s or PCIe Gen 3.0/8,0 Gb/s.
CPU Speed Service
Most Linux distributions will have the cpuspeed service running by default. This service controls the CPU clock speed dynamically according to current processing demand. For latency sensitive applications, where the application switches between having packets to process and having periods of idle time waiting to receive a packet, dynamic clock speed control may increase packet latency. Solarflare recommend disabling the cpuspeed service if minimum latency is the main consideration.
The service can be disabled temporarily:
/sbin/service cpuspeed stop
The service can be disabled across reboots:
/sbin/chkconfig –level 12345 cpuspeed off
Memory bandwidth
Many chipsets use multiple channels to access main system memory. Maximum memory performance is only achieved when the chipset can make use of all channels simultaneously. This Issue 13
© Solarflare Communications 2014
100
Solarflare Server Adapter
User Guide
should be taken into account when selecting the number of DIMMs to populate in the server. Consult the motherboard documentation for details.
Intel® QuickData
Intel® QuickData Technology allows recent Linux distributions to data copy by the chipset instead of the CPU, to move data more efficiently through the server and provide fast, scalable, and reliable throughput. Enabling QuickData
• On some systems the hardware associated with QuickData must first be enabled (once only) in the BIOS
• Load the QuickData drivers with modprobe ioatdma
Server Motherboard, Server BIOS, Chipset Drivers
Tuning or enabling other system capabilities may further enhance adapter performance. Readers should consult their server user guide. Possible opportunities include tuning PCIe memory controller (PCIe Latency Timer setting available in some BIOS versions).
Issue 13
© Solarflare Communications 2014
101
Solarflare Server Adapter
User Guide
Tuning Recommendations
The following tables provide recommendations for tuning settings for different applications.
Throughput ‐ Table 21
Latency ‐ Table 22
Forwarding ‐ Table 23
Recommended Throughput Tuning
Table 21: Throughput Tuning Settings
Tuning Parameter
How?
MTU Size to maximum supported by network
/sbin/ifconfig <ethX> mtu <size>
Interrupt moderation
Leave at default
TCP/IP Checksum Offload
Leave at default
TCP Segmentation Offload
Leave at default
TCP Large Receive Offload
Leave at default
TCP Protocol Tuning
Leave at default for 2.6.16 and later kernels.
For earlier kernels:
sysctl net.core.tcp_rmem 4096 87380 524288
sysctl net.core.tcp_wmem 4096 87380 524288
Receive Side Scaling (RSS)
Application dependent
Interrupt affinity & irqbalance service
Interrupt affinity application dependent
Stop irq balance service:
/sbin/service irqbalance stop
Reload the drivers to use the driver default interrupt affinity.
Buffer Allocation Method
Leave at default. Some applications may benefit from specific setting.
The Solarflare driver now supports a single optimized buffer allocation strategy and any value set by the rx_alloc_method parameter is ignored.
Issue 13
PCI Express Lane Configuration
Ensure current speed (not the supported speed) reads back as “x8 and 5Gb/s” Or “x8 and Unknown”
CPU Speed Service (cpuspeed)
Leave enabled
© Solarflare Communications 2014
102
Solarflare Server Adapter
User Guide
Table 21: Throughput Tuning Settings
Tuning Parameter
How?
Memory bandwidth
Ensure Memory utilizes all memory channels on system motherboard
Intel QuickData (Intel chipsets only)
Enable in BIOS and install driver:
modprobe ioatdma
Recommended Latency Tuning
Table 22: Latency Tuning Settings
Tuning Parameter
How?
MTU Size to maximum supported by network
Leave at default
Interrupt moderation
Disable with:
ethtool -C <ethX> rx-usecs-irq 0
TCP/IP Checksum Offload
Leave at default
TCP Segmentation Offload
Leave at default
TCP Large Receive Offload
Disable using sysfs:
echo 0 > /sys/class/net/ethX/device/lro
TCP Protocol Tuning
Leave at default, but changing does not impact latency.
Receive Side Scaling
Application dependent
Interrupt affinity & irqbalance service
Stop irq balance service:
/sbin/service irqbalance stop
Interrupt affinity settings are application dependent
Buffer Allocation Method
The Solarflare driver now supports a single optimized buffer allocation strategy and any value set by the rx_alloc_method parameter is ignored. PCI Express Lane Configuration
Ensure current speed (not the supported speed) reads back as “x8 and 5Gb/s” Or “x8 and Unknown”
CPU Speed Service (cpuspeed)
Disable with:
/sbin/service cpuspeed stop
Memory bandwidth
Issue 13
Ensure Memory utilizes all memory channels on system motherboard
© Solarflare Communications 2014
103
Solarflare Server Adapter
User Guide
Table 22: Latency Tuning Settings
Tuning Parameter
How?
Intel QuickData (Intel chipsets only)
Enable in BIOS and install driver:
modprobe ioatdma
Recommended Forwarding Tuning
Table 23: Forwarding Tuning Settings
Tuning Parameter
How?
TCP Large Receive Offload
Disable using sysfs:
echo 0 > /sys/class/net/ethX/device/lro
TCP Protocol Tuning
Can leave at default for 2.6.16 and later. For earlier kernels:
sysctl net.core.tcp_rmem 4096 87380 524288
sysctl net.core.tcp_wmem 4096 87380 524288
Receive Side Scaling (RSS)
Set to 1 CPU by adding rss_cpus to following line to /etc/
modprobe.conf file or add the options line to a file under the /etc/modprobe.d directory:
options sfc rss_cpus=1
Then reload drivers to use new configuration.
/sbin/modprobe -r sfc
/sbin/modprobe sfc
Interrupt affinity & irqbalance service
Stop irqbalance service:
/sbin/service irqbalance stop
Interrupt affinity. Affinitize each ethX interface to its own CPU (if possible select CPU's on the same Package). Refer to Interrupt Affinity on page 97.
Buffer Allocation Method
Issue 13
The Solarflare driver now supports a single optimized buffer allocation strategy and any value set by the rx_alloc_method parameter is ignored.
© Solarflare Communications 2014
104
Solarflare Server Adapter
User Guide
3.24 Module Parameters
Table 24 lists the available parameters in the Solarflare Linux driver module (modinfo sfc):
Table 24: Driver Module Parameters
Parameter
Description
sxps_enabled
Enable or disable the Solarflare net driver to perform transmit flow steering. Possible Default Value
Value
0|1
0
If the kernel does support XPS, this should be enabled in the kernel before using the SARFS feature.
sarfs_table_size
The size of the table used to maintain SARFS filters. uint
256
sarfs_global_holdoff_ms
The maximum rate at which SARFS will insert or remove filters. This can be increased on heavily loaded servers or decreased to increase responsiveness.
uint
10ms
sarfs_sample_rate
The frequency at which TCP packets are inspected by the SARFS feature. This can be increased on heavily loaded servers to reduce the CPU usage by ARFS.
uint
0 packets
uint
256 bytes
uint
AVN(0) new kernels. Setting the sample rate to a non‐zero value enables the SARFS feature. See also sxps_enabled above.
The recommended sample rate is 20.
piobuf_size
Identify the largest packet size that can use PIO.
Setting this to zero effectively disables PIO
rx_alloc_method
Allocation method used for RX buffers.
The Solarflare driver now supports a single optimized buffer allocation strategy and any value set by the rx_alloc_method parameter is ignored.
PAGE(2) old kernels
See “Buffer Allocation Method” on page 96.
rx_refill_threshold
Issue 13
RX descriptor ring fast/slow fill threshold (%).
© Solarflare Communications 2014
uint
90
105
Solarflare Server Adapter
User Guide
Table 24: Driver Module Parameters
Issue 13
Possible Default Value
Value
Parameter
Description
lro_table_size1
Size of the LRO hash table. Must be a power of 2.
uint
128
lro_chain_max1
Maximum length of chains in the LRO hash table.
uint
20
lro_idle_jiffies1
Time (in jiffies) after which an idle connection's LRO state is discarded.
uint
101
lro_slow_start_packets1
Number of packets that must pass in‐
order before starting LRO.
uint
20000
lro_loss_packets1
Number of packets that must pass in‐
order following loss before restarting LRO.
uint
20
rx_desc_cache_size
Set RX descriptor cache size.
int
64
tx_desc_cache_size
Set TX descriptor cache size.
int
16
rx_xoff_thresh_bytes
RX fifo XOFF threshold.
int
‐1 (auto)
rx_xon_thresh_bytes
RX fifo XON threshold.
int
‐1 (auto)
lro
Large receive offload acceleration
int
1
separate_tx_channels
Use separate channels for TX and RX
uint
0
rss_cpus
Number of CPUs to use for Receive‐Side Scaling, or 'packages', 'cores' or 'hyperthreads'
uint or string
<empty>
irq_adapt_enable
Enable adaptive interrupt moderation
uint
1
irq_adapt_low_thresh
Threshold score for reducing IRQ moderation
uint
10000
irq_adapt_high_thresh
Threshold score for increasing IRQ moderation
uint
20000
irq_adapt_irqs
Number of IRQs per IRQ moderation adaptation
uint
1000
napi_weight
NAPI weighting
uint
64
rx_irq_mod_usec
Receive interrupt moderation (microseconds)
uint
60
tx_irq_mod_usec
Transmit interrupt moderation (microseconds)
uint
150
© Solarflare Communications 2014
106
Solarflare Server Adapter
User Guide
Table 24: Driver Module Parameters
Possible Default Value
Value
Parameter
Description
allow_load_on_failure
If set then allow driver load when online self‐tests fail
uint
0
onload_offline_selftest
Perform offline self‐test on load
uint
1
interrupt_mode
Interrupt mode (0=MSIX, 1=MSI, 2=legacy)
uint
0
falcon_force_internal_sr
am
Force internal SRAM to be used
int
0
rss_numa_local
Constrain RSS to use CPU cores on the numa node local the Solarflare adapter.
0|1
0
uint
0
Set to 1 to restrict, 0 otherwise. max_vfs
Enable VFs in the net driver. When specified as a single integer the VF count will be applied to all PFs. When specified as a comma separated list, the first VF count is assigned to the PF with the lowest index i.e. the lowest MAC address, then the PF with the next highest MAC address etc. 1. Check OS documentation for availability on SUSE and RHEL versions.
Issue 13
© Solarflare Communications 2014
107
Solarflare Server Adapter
User Guide
3.25 Linux ethtool Statistics
The Linux command ethtool will display an extensive range of statistics originated from the MAC on the Solarflare network adapter. To display statistics use the following command: ethtool -S ethX
(where X is the ID of the Solarflare interface)
Table 25 lists the complete output from the ethtool ‐S command. Note ethtool ‐S output depends on the features supported by the adapter type.
Table 25: Ethtool ‐S Output
Issue 13
Field
Description
tx_bytes
Number of bytes transmitted.
tx_good_bytes
Number of bytes transmitted with correct FCS. Does not include bytes from flow control packets. Does not include bytes from packets exceeding the maximum frame length.
tx_bad_bytes
Number of bytes transmitted with incorrect FCS.
tx_packets
Number of packets transmitted.
tx_bad
Number of packets transmitted with incorrect FCS.
tx_pause
Number of pause frames transmitted with valid pause op_code.
tx_control
Number of control frames transmitted. Does not include pause frames.
tx_unicast
Number of unicast packets transmitted. Includes packets that exceed that maximum length.
tx_multicast
Number of multicast packets transmitted. Includes flow control packets.
tx_broadcast
Number of broadcast packets transmitted.
tx_lt64
Number of frames transmitted where the length is less than 64 bytes.
tx_64
Number of frames transmitted where the length is exactly 64 bytes.
tx_65_to_127
Number of frames transmitted where the length is between 65 and 127 bytes
tx_128_to_255
Number of frames transmitted where the length is between 128 and 255 bytes
© Solarflare Communications 2014
108
Solarflare Server Adapter
User Guide
Table 25: Ethtool ‐S Output
Field
Description
tx_256_to_511
Number of frames transmitted where the length is between 256 and 511 bytes
tx_512_to_1023
Number of frames transmitted where length is between 512 and 1023 bytes
tx_1024_to_15xx
Number of frames transmitted where the length is between 1024 and 1518 bytes (1522 with VLAN tag).
tx_15xx_to_jumbo
Number of frames transmitted where length is between 1518 bytes (1522 with VLAN tag) and 9000 bytes. tx_gtjumbo
Number of frames transmitted where the length is greater than 9000 bytes.
tx_collision
Number of collisions incurred during transmission attempts. This should always be zero as Solarflare adapters operate in full duplex mode. tx_single_collision
Number of occurrences when a single collision delayed immediate transmission of a packet.
tx_multiple_collision
Number of packets successfully transmitted after being sub‐
ject to multiple collisions.
tx_excessive_collision
Number of packets not transmitted due to excessive colli‐
sions. Excessive collisions occur on network under heavy load or when too many devices contend for the collision domain. After 15 retransmission attempts + the original transmission attempt the counter is incremented and the frame is discarded.
tx_deferred
The number of packets successfully transmitted after the network adapter defers transmission at least once when the medium is busy.
tx_late_collision
A sending device may detect a collision as it attempts to transmit a frame or before it completes sending the entire frame. If a collision is detected after the device has com‐
pleted sending the entire frame, the device will assume that the collision occurred because of a different frame. Late col‐
lisions can occur if the length of the network segment is greater than the standard allowed length.
Collision occurred beyond the collision window (512 bit times).
This should always be zero as Solarflare adapters operate in full duplex mode.
Issue 13
© Solarflare Communications 2014
109
Solarflare Server Adapter
User Guide
Table 25: Ethtool ‐S Output
Issue 13
Field
Description
tx_excessive_deferred
Number of frames for which transmission is deferred for an excessive period of time.
tx_non_tcpudp
Number of packets, being neither TCP or UDP, dropped by the adapter when non_TCP/UDP drop is enabled. tx_mac_src_error
Number of packets discarded by the adapter because the source address field does not match the MAC address of the port. Counts only those packets dropped when MAC address filtering is enabled. tx_ip_src_error
Number of packets discarded by the adapter because the source IP address does not match any IP address in the filter table. Counts only those packets dropped when IP address filtering is enabled.
tx_pushes
Number of times a packet descriptor is ’pushed’ to the adapter from the network adapter driver.
tx_pio_packets
Number of packets sent using PIO.
tx_tso_bursts
Number of times when outgoing TCP data is split into pack‐
ets by the adapter driver. Refer to TCP Segmentation Offload (TSO) on page 93. tx_tso_long_headers
Number of times TSO is applied to packets with long head‐
ers.
tx_tso_packets
Number of physical packets produced by TSO.
rx_bytes
Number of bytes received. Not include collided bytes.
rx_good_bytes
Number of bytes received without errors. Excludes bytes from flow control packets.
rx_bad_bytes
Number of bytes with invalid FCS. Includes bytes from pack‐
ets that exceed the maximum frame length.
rx_packets
Number of packets received.
rx_good
Number of packets received with correct CRC value and no error codes.
rx_bad
Number of packets received with incorrect CRC value.
rx_pause
Number of pause frames received with valid pause op_code.
rx_control
Number of control frames received. Does not include pause frames.
© Solarflare Communications 2014
110
Solarflare Server Adapter
User Guide
Table 25: Ethtool ‐S Output
Issue 13
Field
Description
rx_unicast
Number of unicast packets received.
rx_multicast
Number of multicast packets received.
rx_broadcast
Number of broadcasted packets received.
rx_lt64
Number of packets received where the length is less than 64 bytes.
rx_64
Number of packets received where the length is exactly 64 bytes.
rx_65_to_127
Number of packets received where the length is between 65 and 127 bytes.
rx_128_to_255
Number of packets received where the length is between 128 and 255 bytes.
rx_256_to_511
Number of packets received where the length is between 256 and 511 bytes.
rx_512_to_1023
Number of packets received where the length is between 512 and 1023 bytes.
rx_1024_to_15xx
Number of packets received where the length is between 1024 and 1518 bytes (1522 with VLAN tag).
rx_15xx_to_jumbo
Number of packets received where the length is between 1518 bytes (1522 with VLAN tag) and 9000 bytes. rx_gtjumbo
Number of packets received where the length is greater than 9000 bytes.
rx_bad_lt64
Number of packets received with incorrect CRC value and where the length is less than 64 bytes.
rx_bad_64_to_15xx
Number of packets received with incorrect CRC value and where the length is between 64 bytes and 1518 bytes (1522 with VLAN tag).
rx_bad_15xx_to_jumbo
Number of frames received with incorrect CRC value and where the length is between 1518 bytes (1522 with VLAN tag) and 9000 bytes.
rx_bad_gtjumbo
Number of frames received with incorrect CRC value and where the length is greater than 9000 bytes.
rx_overflow
Number of packets dropped by receiver because of FIFO overrun. © Solarflare Communications 2014
111
Solarflare Server Adapter
User Guide
Table 25: Ethtool ‐S Output
Field
Description
rx_missed
Number of packets missed (not received) by the receiver. Normally due to internal error condition such as FIFO over‐
flow.
rx_false_carrier
Count of the instances of false carrier detected. False carrier is activity on the receive channel that does not result in a packet receive attempt being made.
rx_symbol_error
Count of the number of times the receiving media is non‐
idle (the time between the Start of Packet Delimiter and the End of Packet Delimiter) for a period of time equal to or greater than minimum frame size, and during which there was at least one occurrence of an event that causes the PHY to indicate Receive Error on the MII.
rx_align_error
Number of occurrences of frame alignment error. rx_length_error
Number of packets received of length 64‐1518 bytes (1522 with VLAN tag) bytes not matching the number of actual received bytes. rx_internal_error
Number of frames that could not be received due to a MAC internal error condition. e.g. frames not received by the MAC due to FIFO overflow condition. rx_nodesc_drop_cnt
Number of packets dropped by the network adapter because of a lack of RX descriptors in the RX queue. rx_nodesc_drops
Packets can be dropped by the NIC when there are insufficient RX descriptors in the RX queue to allocate to the packet. This problem occurs if the receive rate is very high and the network adapter receive cycle process has insufficient time between processing to refill the queue with new descriptors.
A number of different steps can be tried to resolve this issue:
1. Disable the irqbalance daemon in the OS
2. Distribute the traffic load across the available CPU/cores by setting rss_cpus=cores. Refer to Receive Side Scaling section
3. Increase receive queue size using ethtool. rx_pm_trunc_bb_overflow
Issue 13
Overflow of the packet memory burst buffer ‐ should not occur.
© Solarflare Communications 2014
112
Solarflare Server Adapter
User Guide
Table 25: Ethtool ‐S Output
Field
Description
rx_pm_trunc_vfifo_full
Number of packets truncated or discarded because there was not enough packet memory available to receive them. Happens when packets cannot be delivered as quickly as they arrive due to:
‐ packet rate exceeds maximum supported by the adapter.
‐ adapter is inserted into a low speed or low width PCI slot – so the PCIe bus cannot support the required bandwidth.
‐ packets are being replicated by the adapter and the resulting bandwidth cannot be handled by the PCIe bus.
‐ host memory bandwidth is being used by other devices resulting in poor performance for the adapter.
rx_pm_discard_vfifo_full
Count of the number of packets dropped because of a lack of main packet memory on the adapter to receive the packet into.
rx_pm_trunc_qbb
Not currently supported.
rx_pm_discard_qbb
Not currently supported.
rx_pm_discard_mapping
Number of packets dropped because they have an 802.1p priority level configured to be dropped
rx_dp_q_disabled_packets
Increments when the filter indicates the packet should be delivered to a specific rx queue which is currently disabled due to configuration error or error condition.
rx_dp_di_dropped_packets
Number of packets dropped because the filters indicate the packet should be dropped. Can happen because:
‐ the packet does not match any filter.
‐ the matched filter indicates the packet should be dropped.
Issue 13
rx_dp_streaming_packets
Number of packets directed to RXDP streaming bus which is used if the packet matches a filter which directs it to the MCPU. Not currently used.
rx_dp_emerg_fetch
Count the number of times the adapter descriptor cache is empty when a new packet arrives, for which the adapter must do an emergency fetch to replenish the cache with more descriptors.
© Solarflare Communications 2014
113
Solarflare Server Adapter
User Guide
Table 25: Ethtool ‐S Output
Field
Description
rx_dp_emerg_wait
Increments each time the adapter has done an emergency fetch which has not yet completed.
tx_merge_events
The number of TX completion events where more than one TX descriptor was completed.
tx_tso_bursts
The number of times a block of data (up to 64Kb) was accepted to be sent via TSO.
tx_tso_long_headers
Number of times the header in the TSO packet was >tx_‐
copybreak limit.
tx_tso_packets
The number of packets formed and sent by TSO.
tx_pushes
Number of transmit packet descriptors ’pushed’ to the adapter ‐ rather than the adapter having to fetch the descriptor before transmitting the packet.
tx_pio_packets
Number of packets sent using Programmed Input/Output (PIO).
rx_reset
0 rx_tobe_disc
Number of packets marked by the adapter to be discarded because of one of the following:
• Mismatch unicast address and unicast promiscuous mode is not enabled.
• Packet is a pause frame.
• Packet has length discrepancy.
• Due to internal FIFO overflow condition.
• Length < 60 bytes.
Issue 13
rx_ip_hdr_chksum_err
Number of packets received with IP header Checksum error. rx_tcp_udp_chksum_err
Number of packets received with TCP/UDP checksum error. rx_eth_crc_err
Number of packets received whose CRC did not match the internally generated CRC value.
rx_mcast_mismatch
Number of unsolicited multicast packets received. Unwanted multicast packets can be received because a con‐
nected switch simply broadcasts all packets to all endpoints or because the connected switch is not able or not config‐
ured for IGMP snooping ‐ a process from which it learns which endpoints are interested in which multicast streams.
© Solarflare Communications 2014
114
Solarflare Server Adapter
User Guide
Table 25: Ethtool ‐S Output
Issue 13
Field
Description
rx_frm_trunc
Number of frames truncated because an internal FIFO is full. As a packet is received it is fed by the MAC into a 128K FIFO. If for any reason the PCI interface cannot keep pace and is unable to empty the FIFO at a sufficient rate, the MAC will be unable to feed more of the packet to the FIFO. In this event the MAC will truncate the frame ‐ marking it as such and discard the remainder. The driver on seeing a 'partial' packet which has been truncated will discard it.
rx_char_error_lane0
0 rx_char_error_lane1
0 rx_char_error_lane2
0 rx_char_error_lane3
0 rx_disp_error_lane0
0
rx_disp_error_lane1
0 rx_disp_error_lane2
0 rx_disp_error_lane3
0 rx_match_fault
An internal clocking mismatch instance. This might also be accompanied by a bad link state condition and can be caused by internal or external hardware condition (i.e. link partner, cable, SFP transceiver module).
© Solarflare Communications 2014
115
Solarflare Server Adapter
User Guide
3.26 Driver Logging Levels
For the Solarflare net driver, two settings affect the verbosity of log messages appearing in dmesg output and /var/log/messages:
• The kernel console log level
• The netif message per network log level
The kernel console log level controls the overall log message verbosity and can be set with the command dmesg -n or through the /proc/sys/kernel/printk file:
echo 6 > /proc/sys/kernel/printk
Refer to ’man 2 syslog’ for log levels and Documentation/sysctl/kernel.txt for a description of the values in /proc/sys/kernel/printk.
The netif message level provides additional logging control for a specified interface. These message levels are documented in Documentation/networking/netif-msg.txt. A message will only appear on the terminal console if both the kernel console log level and netif message level requirements are met.
The current netif message level can be viewed using the following command:
ethtool <iface> | grep -A 1 'message level:'
Current message level: 0x000020f7 (8439)
drv probe link ifdown ifup rx_err tx_err hw
Changes to the netif message level can be made with ethtool. Either by name:
ethtool -s <iface> msglvl rx_status on
or by bit mask:
ethtool -s <iface> msglvl 0x7fff
The initial setting of the netif msg level for all interfaces is configured using the debug module parameter e.g.
modprobe sfc debug=0x7fff
ethtool <iface> | grep -A 1 'message level:'
Current message level: 0x00007fff (32767)
drv probe link timer ifdown ifup rx_err
tx_err tx_queued intr tx_done rx_status pktdata hw wol
Issue 13
© Solarflare Communications 2014
116
Solarflare Server Adapter
User Guide
3.27 Running Adapter Diagnostics
You can use ethtool to run adapter diagnostic tests. Tests can be run offline (default) or online. Offline runs the full set of tests, which can interrupt normal operation during testing. Online performs a limited set of tests without affecting normal adapter operation.
As root user, enter the following command:
ethtool --test ethX offline|online
The tests run by the command are as follows:
Table 26: Adapter Diagnostic Tests
Diagnostic Test
Purpose
core.nvram
Verifies the flash memory ‘board configuration’ area by parsing and examining checksums. core.registers
Verifies the adapter registers by attempting to modify the writable bits in a selection of registers. core.interrupt
Examines the available hardware interrupts by forcing the controller to generate an interrupt and verifying that the interrupt has been processed by the network driver. tx/rx.loopback Verifies that the network driver is able to pass packets to and from the network adapter using the MAC and Phy loopback layers.
core.memory
Verifies SRAM memory by writing various data patterns (incrementing bytes, all bit on and off, alternating bits on and off) to each memory location, reading back the data and comparing it to the written value. core.mdio
Verifies the MII registers by reading from PHY ID registers and checking the data is valid (not all zeros or all ones). Verifies the MMD response bits by checking each of the MMDs in the Phy is present and responding. chanX eventq.poll
Verifies the adapter’s event handling capabilities by posting a software event on each event queue created by the driver and checking it is delivered correctly. The driver utilizes multiple event queues to spread the load over multiple CPU cores (RSS).
phy.bist
Issue 13
Examines the PHY by initializing it and causing any available built‐in self tests to run. © Solarflare Communications 2014
117
Solarflare Server Adapter
User Guide
3.28 Running Cable Diagnostics
Cable diagnostic data can be gathered from the Solarflare 10GBASE‐T adapters physical interface using the ethtool -t command which runs a comprehensive set of diagnostic tests on the controller, PHY, and attached cables. To run the cable tests enter the following command:
ethtool -t ethX [online | offline]
Online tests are non‐intrusive and will not disturb live traffic.
The following is an extract from the output of the ethtool diagnostic offline tests:
phy
phy
phy
phy
phy
phy
phy
phy
cable.pairA.length
cable.pairB.length
cable.pairC.length
cable.pairD.length
cable.pairA.status
cable.pairB.status
cable.pairC.status
cable.pairD.status
9
9
9
9
1
1
1
1
Cable length is the estimated length in metres. A length value of 65535 indicates length not estimated due to pair busy or cable diagnostic routine not completed successfully.
The cable status can be one of the following values:
0 ‐ invalid, or cable diagnostic routine did not complete successfully
1 ‐ pair ok, no fault detected
2 ‐ pair open or Rt > 115 ohms
3 ‐ intra pair short or Rt < 85 ohms
4 ‐ inter pair short or Rt < 85 ohms
9 ‐ pair busy or link partner forces 100Base‐Tx or 1000Base‐T test mode.
Issue 13
© Solarflare Communications 2014
118
Solarflare Server Adapter
User Guide
Chapter 4: Solarflare Adapters on Windows
This chapter covers the following topics on the Microsoft Windows® platform:
• System Requirements...Page 119
• Windows Feature Set...Page 120
• Installing the Solarflare Driver Package on Windows...Page 122
• Adapter Drivers Only Installation...Page 123
• Full Solarflare Package Installation...Page 125
• Install Drivers and Options From a Windows Command Prompt...Page 129
• Unattended Installation...Page 133
• Managing Adapters with SAM...Page 138
• Managing Adapters Remotely with SAM...Page 139
• Using SAM...Page 140
• Configuring Network Adapter Properties in Windows...Page 177
• Windows Command Line Tools...Page 183
• Completion codes (%errorlevel%)...Page 219
• Teaming and VLANs...Page 221
• Performance Tuning on Windows...Page 233
• Windows Event Log Error Messages...Page 245
4.1 System Requirements
• Refer to Software Driver Support on page 12 for details of supported Windows versions.
• Microsoft.NET Framework 3.5 is required if installing Solarflare Adapter Manager on any platform. Issue 13
© Solarflare Communications 2014
119
Solarflare Server Adapter
User Guide
4.2 Windows Feature Set
Table 27 lists the features supported by Solarflare adapters on Windows. Users should refer to Microsoft documentation to check feature availability and support on specific Windows OS versions. Table 27: Solarflare Windows Features
Jumbo frames
Solarflare adapters support MTUs (Maximum Transmission Units) from 1500 bytes to 9216 bytes.
• See Ethernet Frame Length on page 153
• See Configuring Network Adapter Properties in Windows on page 177 Task offloads
Solarflare adapters support Large Segmentation Offload (LSO), receive Segment Coalescing (RSC), and TCP/UDP/IP checksum offload for improved adapter performance and reduced CPU processing requirements. • See Segmentation Offload on page 152
• See Configuring Network Adapter Properties in Windows on page 177
Receive Side Scaling (RSS)
Solarflare adapters support RSS multi‐core load distribution technology.
• See Using SAM to View Statistics and State Information on page 163
• See Configuring Network Adapter Properties in Windows on page 177
Interrupt Moderation
Solarflare adapters support Interrupt Moderation to reduce the number of interrupts on the host processor from packet events. • See RSS and Interrupts on page 149
• See Configuring Network Adapter Properties in Windows on page 177
Teaming and or Link Aggregation
Improve server reliability and bandwidth by bonding physical ports, from one or more Solarflare adapters, into a team, having a single MAC address and which function as a single port providing redundancy against a single point of failure.
• See Using SAM to Configure Teams and VLANs on page 155
• See Sfteam: Adapter Teaming and VLAN Tool on page 205
• See Teaming and VLANs on page 221
Issue 13
© Solarflare Communications 2014
120
Solarflare Server Adapter
User Guide
Table 27: Solarflare Windows Features
Virtual LANs (VLANs)
Support for multiple VLANs per adapter:
• See Using SAM to Configure Teams and VLANs on page 155
• See Sfteam: Adapter Teaming and VLAN Tool on page 205
• See Teaming and VLANs on page 221
PXE and iSCSI booting
Solarflare adapters support PXE and iSCSI booting, enabling diskless systems to boot from a remote target operating system. • See Using SAM for Boot ROM Configuration on page 169
• See Sfboot: Boot ROM Configuration Tool on page 185
• See Solarflare Boot ROM Agent on page 364
Fault diagnostics
Solarflare adapters provide comprehensive adapter and cable fault diagnostics and system reports.
• See Using SAM to Run Adapter and Cable Diagnostics on page 164
• See Sfcable: Cable Diagnostics Tool on page 212
Firmware updates
Solarflare adapters support adapter firmware upgrades. • See Sfupdate: Firmware Update Tool on page 201
State and statistics analysis
Solarflare adapters provide comprehensive state and statistics information for data transfer, device, MAC, PHY and other adapter features.
• See Using SAM to View Statistics and State Information
• See Sfteam: Adapter Teaming and VLAN Tool for teaming statistics.
• See Sfnet for per interface statistics.
VMQ
Solarflare drivers support static VMQ for Windows Server 2008 R2 and Dynamic VMQ on Windows Server 2012
See Virtual Machine Queue on page 154. Issue 13
© Solarflare Communications 2014
121
Solarflare Server Adapter
User Guide
4.3 Installing the Solarflare Driver Package on Windows
• Adapter Drivers Only Installation...Page 123
• Full Solarflare Package Installation...Page 125
• Repair, Remove and Change Drivers and Utilities...Page 128
NOTE: The Solarflare adapter should be physically inserted before installing the drivers. See Installation on page 18.
The user must have administrative rights to install adapter drivers and may be prompted to enter an administrator user name and password.
If Windows attempts to install the drivers automatically, cancel the Windows New Hardware Found wizard and follow the instructions below. Solarflare does not recommend installing drivers via Remote Desktop Protocol (RDP). For example via Terminal Services.
The drivers install package is named after the Solarflare document part number e.g.
SF‐107785‐LS‐2_Solarflare_Windows_x86_64‐bit_Driver_Package.exe
This can be renamed e.g. setup.exe before use.
Issue 13
© Solarflare Communications 2014
122
Solarflare Server Adapter
User Guide
4.4 Adapter Drivers Only Installation
The steps below describe how to install only the Solarflare adapter drivers in Windows. To install the drivers from the command line, see Install Drivers and Options From a Windows Command Prompt on page 129.
1
Double‐click the supplied Setup.exe. to start the Solarflare Driver Package Setup wizard. If prompted, confirm your administrator privileges to continue installing the drivers. Figure 8: Solarflare Driver Package Setup
Issue 13
© Solarflare Communications 2014
123
Solarflare Server Adapter
User Guide
2
From the Custom Setup screen, select the Install Solarflare® device drivers option only.
Figure 9: Solarflare Custom Setup
3
Issue 13
Click Finish to close the wizard. Restart Windows if prompted to do so. © Solarflare Communications 2014
124
Solarflare Server Adapter
User Guide
4.5 Full Solarflare Package Installation
This section cover the following topics:
Prerequisites...Page 125
Solarflare Package Installation Procedure...Page 126
Solarflare Package Installation Procedure...Page 126
Repair, Remove and Change Drivers and Utilities...Page 128
Prerequisites
• The Solarflare Adapter Manager Utility (SAM) requires Microsoft .NET Framework 3.5 assemblies. These are available by installing .NET version 3.5 and may also be available in version 4.x with backward compatibility for 3.5. To install the required components from Powershell prompt (Windows Server editions only):
Install-WindowsFeature NET-Framework-Core
Issue 13
© Solarflare Communications 2014
125
Solarflare Server Adapter
User Guide
Solarflare Package Installation Procedure
The steps below describe how to install the complete Solarflare installation package. To install this from the command line, see Install Drivers and Options From a Windows Command Prompt on page 129.
1
Double‐click the supplied Setup.exe. The Solarflare Driver Package Setup wizard starts. Figure 10: Solarflare Driver Package Setup
If prompted, confirm your administrator privileges to continue installing the drivers. 2
Follow the setup instructions in the wizard to complete the driver installation procedure. See Figure 11 and Table 28 for a list of setup options.
3
Click Finish to close the wizard. Restart Windows if prompted to do so. To confirm the drivers installed correctly, do either of the following:
• Open the Windows Device Manager and check the Solarflare adapter is present under Network Adapters.
• Start Solarflare Adapter Manager (Start > All Programs > Solarflare Drivers > Solarflare Adapter Manager). If the Solarflare adapter is installed and working correctly, it will be shown in the SAM main screen, along with any other adapters, as in Table 13 on page 139.
Issue 13
© Solarflare Communications 2014
126
Solarflare Server Adapter
User Guide
Figure 11: Solarflare Driver Package Custom Setup Table 28: Solarflare Custom Setup
Option
Description
Install Solarflare device drivers
Installs Solarflare NDIS drivers for Windows.
The Solarflare drivers are installed by default.
Install Solarflare command line tools
Installs the following Solarflare Windows command line tools:
sfboot.exe – Boot ROM configuration tool
sfupdate.exe – Firmware update tool
sfteam.exe – Adapter teaming tool
sfcable.exe – Cable diagnostics tool
sfnet.exe – Adapter configuration tool
See Windows Command Line Tools on page 183. These tools are installed by default. Issue 13
© Solarflare Communications 2014
127
Solarflare Server Adapter
User Guide
Table 28: Solarflare Custom Setup
Option
Description
Install Solarflare Adapter Manager
Installs Solarflare Adapter Manager (SAM) for easy access to adapter configuration options, wizards for teaming and VLAN setup, adapter statistics, and diagnostic tools. See Managing Adapters with SAM on page 138 for more details. SAM is installed by default.
Note: If this option is grayed out, you need to exit the Solarflare installer and then install Microsoft .NET Framework 3.5 before re‐running the Solarflare installer.
Install Solarflare management tools notification area icon
Installs a Solarflare notification area icon for launching Solarflare Adapter Manager (SAM) locally or for a remote computer.
The icon is not installed by default. Repair, Remove and Change Drivers and Utilities
From the Control Panel > Programs > Programs and Features, select the Solarflare Driver Package then select Uninstall, Change or Repair from the menu bar above the program list.
Issue 13
© Solarflare Communications 2014
128
Solarflare Server Adapter
User Guide
4.6 Install Drivers and Options From a Windows Command Prompt
This section covers the following subjects:
Command Line Usage...Page 129
Using ADDLOCAL...Page 131
Command Line Usage
To view command line options available, run the setup‐<release>.exe /? command to extract files using the Solarflare Setup Bootstrapper. When this has completed the Solarflare Driver Package Setup Window will be displayed. Figure 12: Command Line Install.
Installing from the Windows command line allows scripted, silent and unattended installation of the core Solarflare drivers and package utilities. The drivers install package is named after the Solarflare document part number e.g.
SF-107785-LS-2_Solarflare_Windows_x86_64-bit_Driver_Package.exe
This can be renamed e.g setup.exe before invoking from the command line.
The following example will install default package options silently with no message output:
setup.exe /Quiet /Install
Table 29 lists other command line examples. Note that command line options are case insensitive, so /install and /INSTALL are the same. Table 29: Solarflare Installation Options
Issue 13
Example
Action
setup.exe /Admininstall <path>
Allows an administrator to unpack and install the package to a network share and to specify which features of the package can be installed by users. setup.exe /Extract <path>
Extracts the contents of setup.exe to the specified path. setup.exe /ExtractDrivers <path>
Extract the adapter driver to the specified path.
© Solarflare Communications 2014
129
Solarflare Server Adapter
User Guide
Table 29: Solarflare Installation Options
Issue 13
Example
Action
setup.exe /Filename <filename>
Log all output to the specified file.
setup.exe /Force
Allow passive or quiet mode to replace an existing installation with an earlier version.
setup.exe /Help
Shows a help screen and exits. setup.exe /Install
Installs or configures the package.
setup.exe /Install /Log <filename>
Install the drivers and logs messages to the specified file. setup.exe /Install /Package
<packagefilename>
Installs the drivers and utilities specified in packagefilename.
setup.exe /Install /Passive
Performs an unattended installation of the drivers and utilities, rebooting the host to complete the installation as required. setup.exe /Install /Quiet
Performs a silent installation of the drivers and utilities. setup.exe /Reinstall
Reinstalls the drivers and utilities. setup.exe /Uninstall
Removes the drivers and utilities from the host operating system. setup.exe /Install /Verbose
Performs a verbose installation of the drivers and utilities, outputting details for each stage of the installation procedure. setup.exe /Package
<PackageFilename>
Identify the package file to use for the operation.
setup.exe /Version
Shows version information for the drivers. setup.exe /Quiet /Install
ADDLOCAL=NetworkAdapterManager
Silently installs the drivers and Solarflare Adapter Manager only (other utilities will not be installed). See, Using ADDLOCAL on page 131. <PROPERTY>=<Value>
Specify one or more install properties.
© Solarflare Communications 2014
130
Solarflare Server Adapter
User Guide
Using ADDLOCAL ADDLOCAL is a standard Windows Installer property that controls which features are installed via the command line. For Solarflare adapters, the following features can be installed from the command line: • CoreDrivers – Installs the core adapter drivers
• NetworkAdapterManager – Installs Solarflare Adapter Manager (SAM)
• CommandLineTools – Installs Solarflare command line tools: sfboot.exe, sfupdate.exe, sfcable.exe, sfteam.exe, sfnet.exe. • Launcher – Installs the Solarflare system tray icon, providing easy access to the Solarflare Adapter Manager (SAM).
Multiple features may be installed by separating each feature with a comma (spaces are not allowed). ADDLOCAL cannot prevent Launcher from being installed if either NetworkAdapterManager or CommandLineTools are not installed or are still being installed. ADDLOCAL Examples: Install the package interactively with the default installation options selected (equivalent to Setup.exe or Setup.exe /Install). Setup.exe /Install ADDLOCAL=CoreDrivers,
NetworkAdapterManager,CommandLineTools,Launcher
Install the package without any management tools. Displays a limited user interface with status and progress only. Setup.exe /Quiet /Install ADDLOCAL=CoreDrivers
Install Solarflare Adapter Manager (SAM) only. This command shows no user interface during installation and will restart the host system if required. Setup.exe /Quiet /Install ADDLOCAL=NetworkAdapterManager
Install Solarflare Adapter Manager (SAM) only but suppress the auto‐restart. Setup.exe /Quiet /Install ADDLOCAL=NetworkAdapterManager REBOOT=Suppress
Issue 13
© Solarflare Communications 2014
131
Solarflare Server Adapter
User Guide
Extract Solarflare Drivers
If it is necessary to extract the Solarflare Windows drivers, e.g. before WDS installs, this can be done from the Windows command line. 1
From the Command prompt, navigate to the directory where the installation package is located.
2
Enter the following command:
Setup.exe /Extract <DestinationDirectory>
The Destination Directory will list the following sub‐directory structure ‐ The actual folders/files displayed will depend on the Solarflare driver package installed:
Table 30 lists the drivers supplied with the Solarflare Driver installation package: Table 30: Solarflare Drivers
Issue 13
Folder
Where Used
WIN7
Driver to install Windows 7 or 2008R2 directly to an iSCSI target.
WIN8
Driver to install Windows 8/2012 directly to an iSCSI target.
WINBLUE
Driver to install Windows 8.1or 2008R2 directly to an iSCSI target.
SETUP
Launch the Solarflare Driver Package Setup window.
SETUPPKG
Package file listings.
© Solarflare Communications 2014
132
Solarflare Server Adapter
User Guide
4.7 Unattended Installation This section covers the following subjects:
• Windows Driver Locations...Page 133
• Unattended Installation using WDS...Page 133
• Adding Solarflare Drivers to the WDS Boot Image...Page 134
• Create Custom Install Image...Page 135
• Create the WDSClientUnattend.xml File...Page 136
• Create the AutoUnattend.xml File...Page 137
• Further Reading...Page 137
Windows Driver Locations
The following steps use drivers extracted from the Solarflare installation package. Refer to Table 30 for driver folder locations. Unattended Installation using WDS
Windows Deployment Services (WDS) enables the deployment of Windows over a network (from a WDS server), avoiding the need to install each operating system directly from a CD or DVD.
• This guide assumes you have installed and are familiar with WDS. For more information on WDS, see Further Reading on page 137.
• You should also be familiar with PXE booting over Solarflare adapters. See for more information.
The following steps are an example of how to set up an unattended installation using the WDS interface:
Add a Boot Image
1
From the left hand pane of the WDS MMC snap in, right‐click the Boot Images node and select Add Boot Image.
2
Specify a name for the image group and click Add Boot Image.
3
Select the boot.wim file from the Windows installation DVD (in the \Sources folder). The Boot.wim file contains the Windows PE and the Windows Deployment Services client.
4
Click Open, then click Next.
5
Follow the instructions in the wizard to add the boot image.
Issue 13
© Solarflare Communications 2014
133
Solarflare Server Adapter
User Guide
Add an Install Image
1
From the left hand pane of the WDS MMC snap in, right‐click the Install Images node and select Add Install Image.
2
Specify a name for the image group and click Add Install Image.
3
Select the install.wim file from your installation DVD (in the \Sources folder), or create your own install image. Consult the WDS documentation for details on creating custom install images.
4
Click Open, then click Next.
5
Follow the instructions in the wizard to add the image.
Adding Solarflare Drivers to the WDS Boot Image
These steps describe how to add the Solarflare drivers into the Boot Image.
Modifying the Boot Image
You next need to modify the boot image to include the Solarflare Drivers extracted from the setup package. Table 30 identifies drivers required for the target operating system. To modify the boot image Solarflare recommends using the ImageX tool supplied with the Windows Automated Installation Kit (AIK).
1
Within WDS, expand the server where the boot image is located and select the boot image you want to modify. From the right‐click menu, select Disable.
2
Create a Windows PE customization working directory (in this example c:\windowspe-x86). Within a command prompt, from:
C:\program files\windows aik\tools\petools\ and enter the following command:
copype.cmd x86 c:\windowspe-x86
3
Enter the following ImageX commands from the PE customization working directory:
imagex /info <Drive>:\remoteinstall\boot\x86\images\<boot.wim>
NOTE: <Drive> is the path where the remoteinstall folder is located. <boot.wim> is the name of your boot image. 4
Mount the boot image with the following command from your PE customization working directory:
imagex /mountrw <Drive>:\remoteinstall\boot\x86\images\<boot.wim> 2 mount 5
Issue 13
Copy the contents of the appropriate Solarflare driver folder (see Table 30) to a subdirectory within your PE customization working directory (in this example c:\windowspex86\drivers).
© Solarflare Communications 2014
134
Solarflare Server Adapter
User Guide
6
Add the Solarflare VBD driver to the image by entering the following command from your PE customization working directory:
peimg /inf=c:\windowspe-x86\drivers\netSFB*.inf mount\windows
7
Add the Solarflare NDIS driver to the image by entering the following command from your PE customization working directory:
peimg /inf=c:\windowspe-x86\drivers\netSFN6*.inf mount\windows
8
Unmount the image, using the following command from your PE customization working directory:
imagex /unmount /commit mount
9
From WDS, expand the server where the boot image is located and select the boot image you have modified. From the right‐click menu, select Enable.
Create Custom Install Image
These steps describe how to add the Solarflare drivers into the Custom Install Image. These are the same Solarflare drivers added to the boot image.
Preparing the Custom Install Image
1
From WDS, locate the install image from the Install Images folder on your server.
2
Right‐click the image and select Export Image from the menu.
3
Export the image to a location where it can be mounted. Solarflare recommend using the Windows PE customization working directory as this saves creating a second directory. In this example: c:\windowspe-x86.
Modifying the Install Image
1
Mount the install image with the following command from your PE customization working directory:
imagex /mountrw <Drive>:\<path>\<install.wim> 1 mount
NOTE: <Drive> is the path where the remoteinstall folder is located. <boot.wim> is the name of your boot image. 2
Copy the contents of the appropriate Solarflare driver folder in Table 30 to a sub‐directory in your PE customization working directory (in this example c:\windowspe-x86\drivers). If you are using the same directory as for the boot image, this directory should already be present.
3
Add the Solarflare VBD driver to the image by entering the following command from your PE customization working directory:
peimg /inf=c:\windowspe-x86\drivers\netSFB*.inf mount\windows
Issue 13
© Solarflare Communications 2014
135
Solarflare Server Adapter
User Guide
4
Add the Solarflare NDIS driver to the image by entering the following command from your PE customization working directory:
peimg /inf=c:\windowspe-x86\drivers\netSFN6*.inf mount\windows
5
Unmount the image, using the following command from your PE customization working directory:
imagex /unmount /commit mount
Import the Custom Image to WDS
1
From WDS, select the Image group you want to add the image to. Right‐click and select Import Image.
2
Browse to the location of the custom image, and click Next.
3
Follow the instructions in the wizard to import the image.
Create the WDSClientUnattend.xml File
The WDSClientUnattend.xml file is used by the Windows PE boot environment to configure settings including the language, credentials for connecting to the WDS server, the partitioning of the disk and which image to deploy.
NOTE: You can use the Windows System Image Manager (Part of the Windows Automated Installation Kit) to create the WDSClientUnattend.xml file.
To associate your WDSClientUnattend.xml file with your modified boot image:
1
Copy the WDSClientUnattend.xml file to the following folder in the RemoteInstall folder: RemoteInstall\WDSClientUnattend.
2
Open the Windows Deployment Services MMC snap‐in, right‐click the server that contains the Windows Server 2008, 2008 R2 or Windows 7 boot image with which you want to associate the file, and then select Properties.
3
On the Client tab, select Enable unattended installation, browse to the WDSClientUnattend.xml file, then click Open.
4
Click OK to close the Properties page.
Issue 13
© Solarflare Communications 2014
136
Solarflare Server Adapter
User Guide
Create the AutoUnattend.xml File
The AutoUnattend.xml file is used during the installation of Windows Server 2008, 2008 R2 and Windows 7 to automatically populate the various configuration settings.
NOTE: You can use the Windows System Image Manager (Part of the Windows Automated Installation Kit) to create the AutoUnattend.xml file.
To associate your AutoUnattend.xml file with your custom install image:
1
Copy the AutoUnattend.xml file to the following folder in the RemoteInstall folder: RemoteInstall\WDSClientUnattend.
2
Open the Windows Deployment Services MMC snap‐in, select the custom install image with which you want to associate the file, right‐click and then select Properties.
3
Select the Allow image to install in unattend mode option.
4
Click Select File and browse to your AutoUnattend.xml file.
Further Reading
• Installing and configuring Windows Deployment Services (WDS) :
http://technet.microsoft.com/en‐us/library/cc771670%28WS.10%29.aspx
• Windows PE Customization:
http://technet.microsoft.com/en‐us/library/cc721985%28WS.10%29.aspx
• Getting Started with the Windows AIK:
http://technet.microsoft.com/en‐us/library/cc749082%28WS.10%29.aspx
• Performing Unattended Installations:
http://technet.microsoft.com/en‐us/library/cc771830%28WS.10%29.aspx
• How to add network driver to WDS boot image:
http://support.microsoft.com/kb/923834
• Windows Deployment Services Getting Started Guide for Windows Server 2012
http://technet.microsoft.com/en‐us/library/jj648426.aspx
Issue 13
© Solarflare Communications 2014
137
Solarflare Server Adapter
User Guide
4.8 Managing Adapters with SAM
• Introduction...Page 138
• Managing Adapters Remotely with SAM...Page 139
• Using SAM...Page 140
• Using SAM to Configure Adapter Features...Page 145
• Using SAM to Configure Teams and VLANs...Page 155
• Using SAM to View Statistics and State Information...Page 163
• Using SAM to Run Adapter and Cable Diagnostics...Page 164
• Using SAM for Boot ROM Configuration...Page 169 NOTE: The Windows dialog boxes displayed by SAM will appear differently on different Microsoft Windows OS versions.
Introduction
The Solarflare Adapter Manager (SAM) is a Microsoft Management Console (MMC) plug‐in for managing Solarflare adapters, teams and VLANs. SAM identifies information for all adapters installed on the server, as well as the standard MMC plug‐in Actions pane. Issue 13
© Solarflare Communications 2014
138
Solarflare Server Adapter
User Guide
Using SAM, you can easily configure Ethernet and task offloading settings, set up teams and VLANs, configure the Boot ROM for PXE or iSCSI booting, and upgrade the adapter firmware. Figure 13: SAM Main Screen ‐ Windows Server 2012
SAM’s diagnostics utilities allow you to run tests on the adapter, and on 10GBASE‐T adapters, on the cable to discover any potential issues which may be affecting adapter performance. Also, SAM’s detailed statistics and state information can be used to view data transfer figures, sent and received packet types, as well as other traffic‐related details. SAM is included with the Solarflare drivers installation package. 4.9 Managing Adapters Remotely with SAM
SAM can be used to administer Solarflare adapters on your server from a remote computer. SAM can be used remotely to administer adapters on any supported Windows platform, including a Windows Server Core Installation. Remote Administration provides access to all SAM features.
Issue 13
© Solarflare Communications 2014
139
Solarflare Server Adapter
User Guide
To allow SAM to remotely administer your server, you need to add a Computer Management snap‐
in to the computer Microsoft Management Console (MMC).
4.10 Using SAM
Starting SAM
There are various ways of starting SAM.
To manage a local computer:
• If the Solarflare notification area icon is installed, right‐click the icon and select Manage network adapters on this computer.
OR
• Click Start > All Programs > Solarflare Network Adapters > Manage network adapters on this computer. OR
• Click Start > Administrative Tools > Computer Management > System Tools >Network Adapters. Figure 14: SAM Desktop Icons NOTE: You may be asked for permission to continue by the User Account Control when starting SAM. You must run SAM as an administrator to make any changes.
To manage a remote computer:
• Click Start > All Programs > Solarflare Network Adapters > Manage network adapters on a remote computer.
• If the Solarflare notification area icon is installed, you can right‐click the icon and select Manage network adapters on a remote computer.
Issue 13
© Solarflare Communications 2014
140
Solarflare Server Adapter
User Guide
Viewing Adapter Details
SAM lists all available network adapters installed in the server, regardless of manufacturer or adapter type Figure 15: Solarflare Adapter Manager (SAM)
For each adapter, SAM provides the following details:
• Name and network interface
• IP address (IPv4 and IPv6, if available)
• MAC address
• Transmit load
• Receive load
For Solarflare adapters only, SAM also lists any teams or VLANs that have been configured, along with details that allow you to quickly check performance and status.
Issue 13
© Solarflare Communications 2014
141
Solarflare Server Adapter
User Guide
Viewing Performance Graphs
To view Solarflare performance graphs, Right‐click on an adapter and select Show graphs from the menu. By default, SAM shows the load, transmitted packets and received packets graphs only. To view other available graphs, Select Graphs from the right‐click menu, or from the Actions Pane/
Action menu. For non‐Solarflare adapters only the load graph is displayed. Issue 13
© Solarflare Communications 2014
142
Solarflare Server Adapter
User Guide
Configuring Options in SAM
SAM allows you to change the units used to display data, enable separators when displaying large numbers and disable/enable warning messages. To configure SAM options: 1
Start SAM. 2
From the Actions pane, click Options, or choose Action > Options. Figure 16: SAM ‐ Actions > Options
3
Issue 13
In the Configuration window, select required options (seeTable 31). © Solarflare Communications 2014
143
Solarflare Server Adapter
User Guide
4
Click OK to save your options or Cancel to retain the existing settings.
Table 31: SAM Configuration Options
Tab
Options
Description
Values
Display values using SI units
Displays values using international standard units (K, M, G, T, P, E), for example 2.3M. Enabled by default. This can be useful when dealing with the large Tx/Rx numbers that can accumulate with 10Gb networking.
Note: The Transmit and Receive bytes columns ignore this setting. Values
Use separators in large values
Use separators with large numbers, for example 2,341,768. Enabled by default. Values
Load/bandwidth units
Use bits per second (default setting), or bytes per second when displaying data transfer figures. Warnings
Warnings displayed before a major action takes place
Warnings for the following actions can be enabled or disabled in SAM:
• Deleting a VLAN or removing a network adapter from a team
• Deleting a team
Working with Third‐Party Adapters
Third‐party adapters installed in the server are also listed in the SAM’s Network Adapters list, along with the Solarflare adapters and any teams and VLANs which have been set up on the server. SAM provides some options for working with third‐party adapters. The available actions for third party adapters are shown in the Action pane. Issue 13
© Solarflare Communications 2014
144
Solarflare Server Adapter
User Guide
4.11 Using SAM to Configure Adapter Features
SAM allows you to configure the following features on Solarflare adapters:
• Accessing Adapter Feature Settings...Page 146
• Checksum Offload...Page 148
• RSS and Interrupts...Page 149
• Segmentation Offload...Page 152
• Ethernet Link Speed...Page 152
• Ethernet flow control...Page 152
• Ethernet Frame Length...Page 153 NOTE: Changing the value of an Adapter feature can negatively impact the performance of the adapter. You are strongly advised to leave them at their default values. NOTE: Before making any changes to your Solarflare adapter features, read the Performance Tuning on Windows section on page 233 first.
Issue 13
© Solarflare Communications 2014
145
Solarflare Server Adapter
User Guide
Accessing Adapter Feature Settings
Use one of the following methods to access the Adapter Features Dialog:
From SAM, right‐click on an adapter and select Configuration > Configure Offload tasks, Ethernet and other features From SAM, select an adapter and from the Action menu, select Configure Offload tasks, Ethernet and other features. Issue 13
© Solarflare Communications 2014
146
Solarflare Server Adapter
User Guide
The Adapter Features dialog box will be displayed:
Figure 17: Solarflare Adapter Manager Adapter Features Click Apply or OK when changes to Adapter Features are modified.
Note that the Receive legend in the Segmentation Offload field differs, depending on the version of Windows that is installed:
• for Windows Server 2008 R2, it is Large Receive Offload (LRO)
• for Windows Server 2012 and later, it is Receive Segment Coalescing (RSC), as shown.
For more information see Segmentation Offload on page 152.
Issue 13
© Solarflare Communications 2014
147
Solarflare Server Adapter
User Guide
Checksum Offload
Checksum offloading is supported on IP, TCP and UDP packets. Before transmitting a packet, a checksum is generated and appended to the packet. At the receiving end, the same checksum calculation is performed against the received packet. By offloading the checksum process to the network adapter, the load is decreased on the server CPU.
By default, Solarflare adapters are set up to offload both the calculation and verification of TCP, IP and UDP checksums. The following Checksum Offload options are supported: Table 32: Checksum Offloads
Check box selected
Transmit and Receive
Transmit checksums are generated and received checksums are enabled. This is the default setting. Check selected but selection greyed out
Transmit Only or Receive Only
For either transmit or received checksum only. Check box cleared
Disabled
NOTE: The Transmit or Receive Only states can only be set from the Advanced tab of the Driver Properties. See Configuring Network Adapter Properties in Windows on page 177 for more details.
Disabled. Data will be checksummed by the host processor for both transmitted and received data. You can also configure Checksum offload settings from the network adapter properties. See Configuring Network Adapter Properties in Windows on page 177 for more details. NOTE: Changing the checksum offload settings can impact the performance of the adapter. Solarflare recommend that these remain at the default values. Disabling checksum offload disables TCP segmentation offload.
Issue 13
© Solarflare Communications 2014
148
Solarflare Server Adapter
User Guide
RSS and Interrupts
Solarflare network adapters support RSS (Receive Side Scaling) and interrupt moderation. Both are enabled by default and can significantly improve the performance of the host CPU when handling large amounts of network data. RSS attempts to dynamically distribute data processing across the available host CPUs in order to spread the workload. Interrupt moderation is a technique used to reduce the number of interrupts sent to the CPU. With interrupt moderation, the adapter will not generate interrupts closer together than the interrupt moderation interval. An initial packet will generate an interrupt immediately, but if subsequent packets arrive before the interrupt moderation interval, interrupts are delayed.
You can also configure RSS and interrupts settings from the network adapter properties. See Configuring Network Adapter Properties in Windows on page 177 for more details. NOTE: Changing the RSS and Interrupt Moderation settings can impact the performance of the adapter. You are strongly advised to leave them at their default values. Issue 13
© Solarflare Communications 2014
149
Solarflare Server Adapter
User Guide
RSS and Interrupts Options Table 33: Displayed (supported) options will differ between Windows OS versions and different Solarflare drivers.
RSS
Disabled ‐ RSS is disabled. (Enabled by default).
Closest Processor ‐ use cores from a single NUMA node ‐ (default behaviour)
Closest Processor Static ‐ Network traffic is distributed across available CPUs from a single NUMA node, but there is no dynamic load balancing.
NUMA Scaling ‐ CPUs are assigned on a round‐robin basis across every NUMA node. NUMA Scaling Static ‐ As for NUMA Scaling but without dynamic load balancing.
Conservative Scaling ‐ RSS will use as few processors as possible to sustain the current network load. This helps to reduce the number of interrupts..
Max. RSS processors
Set the number of processors to be used by RSS.
If this is greater than or equal to the number of logical processors in the system then all processors are used.
Interrupt moderation
Adaptive ‐ adjusts the interrupt rates dynamically, depending on the traffic type and network usage.
Disabled ‐ interrupt moderation is disabled.
Enabled ‐ interrupt moderation is enabled.
Issue 13
Max (microseconds)
This setting controls the value for the interrupt moderation time. The default value is 60 microseconds and can be changed for deployments requiring minimal latency.
Base RSS processor
The base processor to be used by RSS. The value is specified as a group (range 0‐9) and CPU number (range 0‐63). Max. RSS processor
The maximum processor available to RSS. The value is specified as a group (range 0‐9) and CPU number (range 0‐63).
Max. RSS processors
The maximum number of processors to be used by RSS. The value is in the range 0‐256.
Max. RSS queues
The maximum number of receive queues created per interface. The value is in the range 0‐64.
© Solarflare Communications 2014
150
Solarflare Server Adapter
User Guide
Table 33: NUMA node id
The NUMA node id drop down list box is displayed on Windows platforms that support NUMA architectures. This constrains the set of CPU cores used for RSS to the specified NUMA node. Solarflare recommend you leave this at the default setting of All. The adapter will attempt to use only processors from the specified NUMA node for RSS. If this is set to ALL or it is greater than or equal to the number of NUMA nodes in the system, all NUMA nodes are used.
Further Reading
For more information on Windows RSS profiles and options refer to http://msdn.microsoft.com/en‐
us/library/windows/hardware/ff570864%28v=vs.85%29.aspx
Issue 13
© Solarflare Communications 2014
151
Solarflare Server Adapter
User Guide
4.12 Segmentation Offload
Solarflare adapters offload the tasks of packet segmentation and reassembly to the adapter hardware, reducing the CPU processing burden and improving performance.
• Large Send Offload (LSO), when enabled, offloads to the adapter the splitting of outgoing TCP data into packets. This reduces CPU use and improves peak throughput. Since LSO has no effect on latency, it can be enabled at all times. The driver has LSO enabled by default. • Receive Segment Coalescing (RSC) is a Microsoft feature introduced in Windows Server 2012. When enabled the adapter will coalesce multiple received TCP packets on a TCP connection into a single call to the TCP/IP stack. This reduces CPU use and improves peak performance. RSC has a low impact on latency. If a host is forwarding received packets from one interface to another then Windows will autoimatically disable RSC. RSC is enabled by default. • Large Receive Offload (LRO) is a Solarflare proprietary mechanism similar to RSC. It is used when RSC is unavailable (i.e. on Windows Server 2008). When enabled the adapter will coalesce multiple received TCP packets on a TCP connection into a single call to the TCP/IP stack. This reduces CPU use and improves peak performance. However LRO can increase latency and should not be used if a host is forwarding received packets from one interface to another. LRO is disabled by default. You can also configure LSO and RSC/LRO settings from the NDIS properties. See Configuring Network Adapter Properties in Windows on page 177 for more details. Ethernet Link Speed
Generally, it is neither necessary or desirable to configure the link speed of the adapter. The adapter by default will negotiate the link speed dynamically, connecting at the maximum, supported speed. However, if the adapter is unable to connect to the link partner, you may wish to try setting a fixed link speed. For further information see ’Link Speed’ in Table 43 on page 178 Ethernet flow control
Ethernet flow control allows two communicating devices to inform each other when they are being overloaded by received data. This prevents one device from overwhelming the other device with network packets. For instance, when a switch is unable to keep up with forwarding packets between ports. Solarflare adapters allow flow control settings to be auto‐negotiated with the link partner.
You can also configure ethernet flow control from the network adapter properties. See Table 43 on page 178 for more details. Issue 13
© Solarflare Communications 2014
152
Solarflare Server Adapter
User Guide
Table 34: Ethernet Flow Control Options
Option
Description
Auto‐negotiate
Flow control is auto‐negotiated between the devices. This is the default setting preferring Generate and respond if they line partner is capable. Generate and respond
Adapter generates and responds to flow control messages. Respond only
Adapter responds to flow control messages but is unable to generate messages if it becomes overwhelmed. Generate only
Adapter generates flow control messages but is unable to respond to incoming messages and will keep sending data to the link partner. None
Ethernet flow control is disabled on the adapter. Data will continue to flow even if the adapter or link partner is overwhelmed. Ethernet Frame Length
The maximum Ethernet frame length used by the adapter to transmit data is (or should be) closely related to the MTU (maximum transmission unit) of your network. The network MTU determines the maximum frame size that your network is able to transmit across all devices in the network. NOTE: For optimum performance set the Ethernet frame length to your network MTU.
If the network uses Jumbo frames, SAM supports frames up to a maximum of 9216 bytes. Issue 13
© Solarflare Communications 2014
153
Solarflare Server Adapter
User Guide
Virtual Machine Queue
Solarflare adapters support VMQ to offload the classification and delivery of network traffic destined for Hyper‐V virtual machines to the network adapter thereby reducing the CPU load on Hyper‐V hosts. Windows Server 2008 R2 allows the administrator user to statically configure the number of CPUs available to process interrupts for VMQ. Interrupts are spread across the specified cores, however the static configuration does not provide best performance when the network load varies over time.
Dynamic VMQ, supported in Windows Server 2012 and later, will dynamically distribute received network traffic across available CPUs while adjusting for network load by, if necessary, bringing in more processors or releasing processors under light load conditions.
VMQ supports the following features:
• Classification of received network traffic in hardware by using the destination MAC address (and optionally also the VLAN identifier) to route packets to different receive queues dedicated to each virtual machine.
• Can use the network adapter to directly transfer received network traffic to a virtual machine’s shared memory avoiding a potential software‐based copy from the Hyper‐V host to the virtual machine.
• Scaling to multiple processors by processing network traffic destined for different virtual machines on different processors. Table 35: VMQ Mode Options
Issue 13
Enabled
VMQ is enabled by default.
Enabled (no VLAN filtering)
VMQ uses the VLAN identifier from the Ethernet MAC header for filtering traffic to the intended Hyper‐V virtual machine. VMQ VLAN filtering is enabled by default. When this option is disabled only the destination MAC address is used for filtering.
Enabled (MAC address filtering)
VMQ uses the Ethernet MAC header for filtering traffic to the intended Hyper‐V virtual machine. VMQ VLAN filtering is enabled by default. Disabled
VMQ is disabled.
© Solarflare Communications 2014
154
Solarflare Server Adapter
User Guide
4.13 Using SAM to Configure Teams and VLANs
• About Teaming...Page 155
• Setting Up Teams...Page 156
• Reconfiguring a Team...Page 157
• Adding Adapters to a Team...Page 159
• Deleting Teams...Page 160
• Setting up Virtual LANs (VLANs)...Page 161
• Deleting VLANs...Page 162
About Teaming
NOTE: To set up teams and VLANS in Windows using the sfteam command line tool, see Sfteam: Adapter Teaming and VLAN Tool...Page 205 Solarflare adapters support the following teaming configurations:
• IEEE 802.3ad Dynamic link aggregation
• Static link aggregation
• Fault tolerant teams
Teaming allows the user to configure teams consisting of all Solarflare adapter ports on all installed Solarflare adapters or might consist of only selected adapter ports e.g. from a dual port Solarflare adapter, the first port could be a member of team A and the second port a member of team B or both ports members of the same team.
NOTE: Adapter teaming and VLANs are not supported in Windows for iSCSI remote boot enabled Solarflare adapters. To configure load balancing and failover support on iSCSI remote boot enabled adapters, use Microsoft MultiPath I/O (MPIO), which is supported on all Solarflare adapters.
This section is only relevant to teams of Solarflare adapters. Solarflare adapters can be used in multi‐
vendor teams when teamed using the other vendor’s teaming driver. CAUTION
Windows 2012 introduced native support for teaming. Windows teaming and Solarflare team‐
ing configuration should not be mixed in the same server.
Issue 13
© Solarflare Communications 2014
155
Solarflare Server Adapter
User Guide
Setting Up Teams
SAM’s Create a Team setup wizard will guide you through setting up an adapter team, automatically assigning the active adapter, key adapter and standby adapter. To create a team: 1
Before creating a team, Solarflare strongly recommend taking the server offline to avoid disrupting existing services as the team is being configured. 2
Start SAM and select a Solarflare adapter in the Network Adapter list. 3
From the Action menu, select Create a Team. The Solarflare Create a team Wizard starts. Figure 18: Team Create Wizard
4
The wizard will guide you through the process of creating a team and optionally adding VLANs to your team (see Table 37 on page 162 for help when selecting VLAN options). 5
Bring the server back online. Issue 13
© Solarflare Communications 2014
156
Solarflare Server Adapter
User Guide
6
After creating a team, you can use the Configure this Team option from the Actions pane to change team settings, such as the Ethernet frame length, key adapter assignment, and adapter priorities within the team. CAUTION: Before physically removing an adapter from a server, first check it is not the key adapter. You must reassign the key adapter if you want to remove it from the team to avoid duplicating the MAC address on your network. See Table 36 on page 158 for details on reassigning the key adapter. Reconfiguring a Team
When setting up teams, SAM assigns the key, active and standby adapters, and specifies the Ethernet frame length for the team. To change any of these settings, use the Configure this Team option, as described below. To change team settings:
NOTE: Changing team settings can disrupt network traffic flow to and from services running on the server. Solarflare recommend only changing network settings when disruption to the services can be tolerated.
1
Start SAM and, from the Network Adapter list, select the team you want to reconfigure. 2
From the Action menu, select Configure this Team. The Configure a Team dialog box displays. Figure 19: Configure aTeam
Issue 13
© Solarflare Communications 2014
157
Solarflare Server Adapter
User Guide
By default, all teamed adapters are given an equal priority (indicated by the grouped number 1). The current active adapter is indicated by the green active symbol. The key adapter is indicated with the key symbol. Adapters in standby are indicated by the yellow standby symbol. For link aggregated teams there may be more than one active adapter. Figure 20: Prioritized Adapters
Figure 20 shows the active adapter with the highest priority, with the second adapter being second priority. :
Table 36: Configure a Team Options
To change the key adapter:
Select the new key adapter, then click the key button.
Note: Before physically removing an adapter from a server, first check it is not the key adapter. You must reassign the key adapter if you want to remove it from the team to avoid duplicating the MAC address on your network. To change adapter priority:
By default, all adapters have equal priority. Select an adapter and use the up or down buttons to promote or demote the adapter priority as required. Note: For Fault‐Tolerant Teams, the highest priority adapter in a team becomes the active adapter, passing all network traffic for the team.
To specify a new active adapter: For Fault ‐Tolerant Teams only. Set your preferred active adapter to the highest prioritized adapter in the team. The highest prioritized adapter becomes the active adapter in the team after you apply your changes. To change adapter priority, use the up and down buttons. Issue 13
© Solarflare Communications 2014
158
Solarflare Server Adapter
User Guide
Table 36: Configure a Team Options
To specify the Ethernet frame length/MTU: Specify a value between 1514 and 9216 bytes. Check your network supports the new frame length before setting the new value.
Note: This setting affects all adapters in the team, and will override any individual adapter settings made from the Configure Offload tasks, Ethernet and other features window. See Using SAM to Configure Adapter Features on page 145 for more details.
3
After making your changes, click Set and then click Close. Adding Adapters to a Team
If additional Solarflare adapters are installed in your server, you can add them to an existing team to increase the overall resilience or performance (aggregation) of the server connection. To add adapters to a team:
NOTE: Changing team settings can disrupt current services running on the server. Solarflare recommend only changing network settings when disruption to the services can be tolerated.
1
Start SAM and select a Solarflare adapter team from the Network Adapter list.
2
From the Actions list, click Add one or more adapters, or choose Actions > Add one or more adapters. The Available Network Adapters dialog box is displayed: Figure 21: Available Adapters
Issue 13
© Solarflare Communications 2014
159
Solarflare Server Adapter
User Guide
3
Select the adapter(s) to add to the team. Click OK to add the selected adapters and close the dialog box. Deleting Teams
You can delete a team by selecting Delete this team in SAM. Once a team has been deleted, all of its adapters are returned to their original configuration settings and become available on the server once again. Any VLANs set up for the team will be deleted when the team is deleted. To delete a team:
NOTE: Changing team settings can disrupt current services running on the server. Solarflare recommend only changing network settings when disruption to network services can be tolerated.
1
Start SAM and select a Solarflare adapter team from the Network Adapter list. 2
From the Action menu, select Delete this team. Alternatively, to delete all teams and VLANs on the server, select Delete all teams and VLANs. The Confirm Action Dialog box is displayed. Figure 22: Confirm Action 3
Confirm the deletion when prompted. NOTE: Delete all teams and VLANs will cause a display refresh which may take some time to complete, depending on the number of teams and VLANs being deleted. Issue 13
© Solarflare Communications 2014
160
Solarflare Server Adapter
User Guide
Setting up Virtual LANs (VLANs)
SAM allows you to add up to 64 VLANs per team or adapter. Each VLAN is a virtual network adapter, visible in the Windows Device Manager, through which the operating system is able to receive data tagged with the correct VLAN ID (VID). You may assign one VLAN to accept VLAN 0 or untagged traffic, which allows the interface to communicate with devices that do not support VLAN tagging, or that are sending traffic on VLAN 0. To create VLANs:
NOTE: Creating VLANs can disrupt current services running on the server. Solarflare recommend only changing network settings when disruption to network services can be tolerated.
1
Start SAM and select the adapter or adapter team from the Network Adapter list. 2
From the Actions list, click Add one or more VLANs, or choose Actions > Add one or more VLANs to display the VLAN Setup Wizard. Figure 23: Create VLANs
Issue 13
© Solarflare Communications 2014
161
Solarflare Server Adapter
User Guide
Table 37: VLAN Options
Option
Description
Name
An optional name for the VLAN network adapter.
This option will not be available when remotely administering the server. Supports the handling of priority traffic
Enables the handling of traffic that is tagged as priority. Supports untagged and VLAN 0 traffic
Restricts the VLAN to handling packets that are untagged or with VID 0. This option allows the interface to communicate with devices which don’t support VLAN tagging. Supports traffic solely on this VLAN
Restricts the network interface to traffic that is tagged with the specified VLAN. Deleting VLANs
VLANs can be removed from a team or single adapter when no longer required.
To delete VLANs:
NOTE: Deleting VLANs can disrupt current processes and applications running on the server. Solarflare recommend only changing network settings when disruption to network services can be tolerated.
1
Start SAM.
2
In the Network adapter list, select the VLAN to delete. If necessary, expand the team if the VLAN is attached to a team then select the VLAN. 3
From the Actions list, click Delete this VLAN, or choose Action > Delete this VLAN. 4
Confirm the deletion in the Confirm Action Dialog box.
Issue 13
© Solarflare Communications 2014
162
Solarflare Server Adapter
User Guide
4.14 Using SAM to View Statistics and State Information
SAM’s Network Adapter list provides an overview of the adapters installed in the host computer. For a more detailed view of the adapter device settings, data transfer statistics, and other features, you can use the adapter Statistics and State. Figure 24: Solarflare Adapter Statistics and State
To view Solarflare statistics and state information:
1
Start SAM and select a Solarflare adapter from the Network Adapter list. 2
From the Actions list, click Statistics and State. The Details from <adapter name> dialog box is displayed.
NOTE: The tabs displayed will differ, dependent on whether an adapter, VLAN or Team is selected.
3
Click each tab to see the various adapter statistics and state information that is available for the adapter. Note that statistics are collated from the start of the current session. To reset the statistics, see Resetting Adapter Statistics on page 164. 4
When you have finished viewing statistics, click Close. Issue 13
© Solarflare Communications 2014
163
Solarflare Server Adapter
User Guide
Resetting Adapter Statistics
Statistics for data transfer and the MAC layer are reset, either following a system restart or installing of the adapter drivers. If necessary, you can reset the adapter statistics to restart the accumulated data values at any time. 1
Start SAM and select a Solarflare adapter from the Network Adapter list. 2
From the Actions list, click Statistics and State, or choose Actions > Statistics and State. The Details from <adapter name> dialog box is displayed. 3
In the General tab, click the Reset button to reset statistics. 4
Click Close. 4.15 Using SAM to Run Adapter and Cable Diagnostics
You can verify the Solarflare adapter, driver and cable by running SAM’s built‐in diagnostic tools (Solarflare 10GBASE‐T adapter only).
The tools provide a simple way to verify that the adapter and driver are working correctly, and that the cable has the correct characteristics for high‐speed data transfer. The diagnostics tools also include an option to flash the LEDs (useful for identifying the adapter in a server room). Both options are available from Actions > Adapter Diagnostics. NOTE: Running of these tests will cause traffic to be halted on the selected adapter, and all of its VLANs, unless part of a fault‐tolerant team. Diagnostics tests are not available when the adapter is running in iSCSI boot mode. NOTE: The full system report cannot be generated when remotely administering a server.
Issue 13
© Solarflare Communications 2014
164
Solarflare Server Adapter
User Guide
Running Driver and Adapter Diagnostics
SAM’s driver diagnostics enable you to test the adapter and driver are functioning correctly, returning a simple pass or fail for each test run. Figure 25: Adapter and Driver Diagnostics Window
1
Start SAM and select a Solarflare adapter from the Network Adapter list. 2
From the Action menu, select Adapter Diagnostics. The Diagnostics for <adapter name> window is displayed.
3
Select the test you want to run (no tests are selected by default). See Table 38 for a description of the tests that are available.
4
To stop as soon as a failure is detected, select Stop on first test failure. 5
To run all the tests more than once, change the value in the Test iterations box. 6
Click Start to begin testing. The results of each test will be displayed in the Diagnostics window, along with an entry in the Completion Message column describing the reason any particular test has failed.
CAUTION: The adapter will stop functioning while the tests are being run. Solarflare recommend only running diagnostics tests when disruption to network services can be tolerated.
Issue 13
© Solarflare Communications 2014
165
Solarflare Server Adapter
User Guide
NOTE: You can click Abort to abandon running tests at any time. This may take a while to complete, dependent on the test being run at the time.
The available tests depend on the installed adapter type.
Table 38: Adapter Diagnostic Tests
Diagnostic Test
Purpose
LED
Flashes the LEDs for 5 seconds. NVRAM
Verifies the flash memory board configuration area by parsing and examining checksums. Registers
Verifies the adapter registers by attempting to modify the writable bits in a selection of registers. Interrupts
Examines the available hardware interrupts by requesting the controller to generate an interrupt and verifying that the interrupt has been processed by the network driver. MAC loopback Verifies that the network driver is able to pass packets to and from the network adapter using the MAC loopback layer.
PHY loopback
Verifies that the network driver is able to pass packets to and from the network adapter using the PHY loopback layer.
Memory
Verifies SRAM memory by writing various data patterns (incrementing bytes, all bit on and off, alternating bits on and off) to each memory location, reading back the data and comparing it to the written value.
MDIO
Verifies the MII registers by reading from PHY ID registers.
Event
Verifies the adapter’s event handling capabilities by posting a software event on each event queue created by the driver and checking it is delivered correctly. The driver creates an event queue for each CPU.
Issue 13
PHY BIST
Examines the PHY by initializing it and starting any available built‐in self tests to run.
Bootrom
Verifies the Boot ROM configuration and image checksum. Will warn if no Boot ROM is present.
© Solarflare Communications 2014
166
Solarflare Server Adapter
User Guide
Running Cable Diagnostics
With high‐speed data networking, the suitability of the cable in achieving maximum transfer rates is especially important. SAM’s cable diagnostic tool can be used to verify the attached cable, reporting its condition, measured length and electrical characteristics for each cable pairing.
NOTE: Cable diagnostics are only available on Solarflare 10GBASE‐T Adapters. For these adapters, Solarflare recommend using good quality Category 6, 6a or 7 cable up to the maximum length as determined by the cable category. Figure 26: Cable Diagnostics Window
1
Start SAM and select a Solarflare adapter from the Network Adapter list.
2
From the Action menu, click Diagnostics then Cable Diagnostics. The Cable Diagnostics for <adapter name> dialog box is displayed. 3
Click Run offline test or Run online test. Offline testing produce more detailed results, but at the expense of disrupting the connection while tests are running. CAUTION: The offline tests will cause the network link to momentarily drop and disrupt data flow. Solarflare recommend only running diagnostics tests when disruption to your services can be tolerated.
Issue 13
© Solarflare Communications 2014
167
Solarflare Server Adapter
User Guide
4
The results of the testing will be displayed in the diagnostics dialog box. For analysis of the cable pair results, see Table 39. Table 39: Cable Pair Diagnostic Results
Result
Meaning
OK
Cable is operating correctly.
Length measured = …, SNR margin = …
The range is ±13dB (approximately). The SNR should be positive.
Error
A short circuit has been detected at the indicated length. Pair short at …
The cable or the connector is faulty and must be replaced. Issue 13
Error
An open circuit has been detected. Pair is open circuit
The cable or the connector is faulty and must be replaced. © Solarflare Communications 2014
168
Solarflare Server Adapter
User Guide
4.16 Using SAM for Boot ROM Configuration
For booting of diskless systems, Solarflare adapters support Preboot Execution Environment (PXE) and iSCSI booting. When booting the server directly from an iSCSI target, you will first need to enable iSCSI booting and configure the iSCSI initiator, target and user authentication to match your network and target settings, or rely on DHCP to configure the settings dynamically when the adapter initializes (this is the default setting for all iSCSI options). Using SAM, you can access the adapter Boot ROM to configure your firmware settings for adapter booting, as described below.
Configuring the Boot ROM for PXE or iSCSI Booting
For more information on configuring the iSCSI target and DHCP settings from the Solarflare Boot Configuration Utility, and how to install an operating system that is enabled for remote iSCSI booting over a Solarflare adapter, See Solarflare Boot ROM Agent on page 364. To configure PXE or iSCSI booting on the Solarflare Boot ROM: 1
Start SAM and select a Solarflare adapter from the Network Adapter list. From the Action menu, select the Configure Boot ROM option. The Configure Boot ROM window displays with the General tab selected.
Figure 27: BootROM Configuration
Issue 13
© Solarflare Communications 2014
169
Solarflare Server Adapter
User Guide
NOTE: The PFIOV option might be unavailable and therefore be grayed out.
2
From the Boot Type panel, select either PXE or iSCSI booting as required. You can also configure the types of Boot Firmware, the maximum number of MSI‐X Interrupts supported and start‐up configuration used by the Boot ROM utility. For more details on these options see Sfboot: Boot ROM Configuration Tool on page 185.
NOTE: iSCSI booting will not be available if the adapter is a member of a team or has VLANs.
NOTE: Solarflare recommend not changing the MSI‐X Interrupts setting.
3
If necessary, from the Link tab, change the Link Speed option depending on your link requirement. Note that Auto‐negotiated is correct for most links and should not be changed unless advised. The Link Speed options will vary depending on the installed Figure 28: Link tab
4
The Link up delay specifies a wait time before the boot device will attempt to make a connection. This allows time for the network to start following power‐up. The default setting is 5 seconds, but can be set from 0–255 seconds. This can be used to wait for spanning tree protocol on a connected switch to unblock the switch port after the physical network link is established.
5
If you selected PXE as the boot type, click OK to finish the setup procedure. Issue 13
© Solarflare Communications 2014
170
Solarflare Server Adapter
User Guide
If you selected iSCSI booting as the boot type, click the iSCSI Initiator tab and continue with the following steps.
Figure 29: iSCSI Initiator tab
6
If using DHCP to configure the adapter’s network settings at boot time, ensure Use DHCP to get iSCSI Initiator settings is selected. Otherwise, clear this option and enter network details for the adapter, as described in Table 40. Table 40: iSCSI Initiator Options
Option
Description
IPv4 Address
An IPv4 address to assign to the adapter. Ensure this address is unique. Subnet mask
Subnet mask. For example 255.255.255.0
Default Gateway
IPv4 address of your network router. Primary DNS
IPv4 address of your Primary DNS server. 7
If you are not using DHCP to get the initiator name, clear Use DHCP to get the initiator name and enter a iSCSI Qualified Name (IQN) in the Initiator name field.
8
DHCP vendor Id specifies the device vendor ID to be advertised to the DHCP server. This setting is always enabled and not affected by any of the other DHCP options. See DHCP Server Setup on page 376 for more details on this and other DHCP options.
Issue 13
© Solarflare Communications 2014
171
Solarflare Server Adapter
User Guide
9
Click the iSCSI Target tab. Figure 30: iSCSI Target tab
10 If using DHCP to discover the iSCSI target details, ensure Use DHCP to get iSCSI target settings is selected. Otherwise, clear the option and enter details for the iSCSI target, as described in Table 41. Table 41: iSCSI Target Options
Issue 13
Option
Description
Target server name
Target server network address in the form of a dotted quad (i.e. 10.1.2.3) IPv4 address or fully qualified domain name (FQDN), such as mytarget.myorg.mycompany.com
TCP port ISCSI port number that has been configured on the target. Default is 3260. Target device name
The iSCSI Qualified Name (IQN) of the target server, which will look something like: iqn:2009‐01.com.solarflare. © Solarflare Communications 2014
172
Solarflare Server Adapter
User Guide
Table 41: iSCSI Target Options
Issue 13
Option
Description
Boot LUN
Logical unit number which has been set up on the server. The system will attempt to attach to this LUN on boot up and attempt to load the target operating system from it. LUN retry count
Specifies the number of times the boot device will attempt to connect to the target LUN (logical unit number) before failing. The default setting is 2 retries, but can be set from 0–255. This setting is enabled, even if using DHCP is being used.
© Solarflare Communications 2014
173
Solarflare Server Adapter
User Guide
11 Click the iSCSI Authentication tab. Figure 31: iSCSI Authentication tab
12 By default Challenge Handshake Application Protocol (CHAP) authentication is disabled. You have the following options:
‐ CHAP authentication ‐ this is target initiated or one way authentication
‐ Mutual authentication ‐ both the target and the initiator will authenticate the connection.
If CHAP authentication is configured on the iSCSI target, enter the correct settings to allow access to the target. Table 42: CHAP Options
Issue 13
Option
Description
Target user name Name of the target server, as set on the iSCSI target CHAP settings.
Target secret
Target password.
Initiator user name Name of this initiator (as set on the target). A minimum of 9 characters. Used for Mutual authentication only
Initiator secret
Password of this initiator (as set on the target). A minimum of 12 characters. Used for Mutual authentication only.
© Solarflare Communications 2014
174
Solarflare Server Adapter
User Guide
13 Select the iSCSI MPIO tab Figure 32: iSCSI MPIO tab
For iSCSI booting in multi‐adapter environments, you can set the priority of each adapter. By default, all iSCSI enabled adapters are given an equal priority. The setting is used to determine how traffic is re‐routed in case of one adapter entering a failed state. 14 When you have finished configuring the iSCSI settings, click OK or Apply to save your settings to the Boot ROM. Disabling Adapter Booting
You can stop the adapter from attempting to initiate either a PXE or iSCSI boot after a restart. 1
Start SAM and select the Solarflare adapter from the Network Adapter list. 2
From the Action menu, click the Configure Boot ROM option. The Configure Boot ROM dialog box displays with the BIOS tab selected. 3
From the Boot Type panel, select Disabled.
4
Click OK or Apply to save your settings to the Boot ROM.
Issue 13
© Solarflare Communications 2014
175
Solarflare Server Adapter
User Guide
4.17 Managing Firmware with SAM
SAM allows you to monitor the firmware (PHY, Boot ROM and Adapter) for your Solarflare adapters. Either select Manage firmware from the Actions pane, or from the Action menu. The firmware update window is displayed: Figure 33: Solarflare firmware update window
If the firmware is up to date, the window will contain the OK button. If the firmware is out of date, the OK button is replaced with an Update and Cancel button. To update the firmware, click Update.
You can also use the sfupdate command line tool to manage the firmware on your Solarflare adapters. See Sfupdate: Firmware Update Tool on page 201 for more details.
Issue 13
© Solarflare Communications 2014
176
Solarflare Server Adapter
User Guide
4.18 Configuring Network Adapter Properties in Windows
Network adapter properties for the Solarflare adapter are available through the Windows Device Manager entry for the relevant network adapter. You can also access the adapter properties using SAM. NOTE: If SAM is open, any changes made in the adapter properties will not be reflected in SAM until you close the Advanced Properties page.
To configure network adapter properties: 1
From the Control Panel, select System. 2
Select Device Manager from the left hand menu.
3
Expand the Network adapters.
4
Right‐click the on the Solarflare adapter, and then click Properties to display the properties dialog box. Figure 34: Adapter Properties Dialog
Issue 13
© Solarflare Communications 2014
177
Solarflare Server Adapter
User Guide
5
Click the Advanced tab to view and edit the NDIS properties. See Table 43 for a list of the available properties. NOTE: Changing these properties may impact the performance of your Solarflare adapter. You are strongly advised to leave them at their default values. NOTE: Before making any changes to your Solarflare adapter features, read the Performance Tuning on Windows section on 233 first.
Table 43: Solarflare Network Adapter Properties
Property Name
Values
Description
Adaptive Interrupt Moderation
Enabled
This setting is dependent on the Interrupt Moderation setting. If Interrupt Moderation is enabled, Adaptive Interrupt Moderation allows the adapter to vary it’s interrupt moderation automatically, according to network traffic demands.
Disabled
If Adaptive Interrupt Moderation is disabled, interrupt moderation interval is fixed at the setting specified in Interrupt Moderation Time.
Default setting: Enabled
Flow Control
Auto Negotiation
Disabled
Rx & Tx Enbled
Rx Enabled
Tx Enabled
Ethernet flow control (802.3x) is a way for a network device to signal to a sending device that it is overloaded, such as when a device is receiving data faster than it can process it. The adapter does this by generating a ‘pause frame’ to request the sending device to temporarily stop transmitting data. Conversely, the adapter can respond to pause frames by suspending data transmission, allowing time for the receiving device to process its data. Default setting: Auto Negotiation.
Issue 13
© Solarflare Communications 2014
178
Solarflare Server Adapter
User Guide
Table 43: Solarflare Network Adapter Properties
Property Name
Values
Description
Interrupt Moderation
Enabled
Interrupt moderation is a technique used to reduce the number of interrupts sent to the CPU. With interrupt moderation, the adapter will not generate interrupts closer together than the interrupt moderation time. An initial packet will generate an interrupt immediately, but if subsequent packets arrive before the interrupt moderation time period, interrupts are delayed. Disabled
Default setting: Enabled
Interrupt Moderation Time
1–1000 us
Specifies the interrupt moderation period when Interrupt Moderation is enabled. The default setting (60µs) has been arrived at by lengthy and detailed system analysis, balancing the needs of the operating system against the performance of the network adapter. Default setting: 60µs
IPv4 Checksum Offload
Disabled
Rx & Tx Enabled
Rx Enabled
Tx Enabled IP checksum offload is a hardware offload technology for reducing the load on a CPU by processing IP checksums in the adapter hardware. Offload IP Checksum is enabled by default for transmitted and received data. Default setting: Rx & Tx Enabled.
Large Receive Offload (IPv4 and IPv6)
Enabled
Disabled
Large Receive Offload (LRO) is an offload technology for reducing the load on a CPU by processing TCP segmentation for received packets in the adapter. This is available only on Windows Server 2008 and Windows Server 2008 R2.
Default setting: Disabled
Large Send Offload Version 2 (IPv4 and IPv6)
Enabled Disabled
Large Send Offload (LSO) is an offload technology for reducing the load on a CPU by processing TCP segmentation for transmitted packets in the adapter. Caution: Disabling LSO may reduce the performance of the Solarflare adapter. Default setting: Enabled
Issue 13
© Solarflare Communications 2014
179
Solarflare Server Adapter
User Guide
Table 43: Solarflare Network Adapter Properties
Property Name
Values
Description
Locally Administered Address
Value: (MAC address)
Assigns the specified MAC address to the adapter, overriding the permanent MAC address assigned by the adapter's manufacturer. Not Present
Addresses are entered as a block of six groups of two hexadecimal digits separated by hyphens (‐), for example: 12‐34‐56‐78‐9A‐BC Note: To be a valid address, the second most significant digit must be a 2, 6, A or E, as in the above example.
Check the System Event Log for any configuration issues after setting this value. Default setting: Not Present.
Max Frame Size
1514–9216
Specifies the maximum Ethernet frame size supported by the adapter. Note: Devices will drop frames if they are unable to support the specified frame size, so ensure the value you set here is supported by other devices on the network.
Default settings:
Solarflare adapter: 1514 bytes
Teamed adapter: 1518 bytes
Note: The setting must be a multiple of 2.
Maximum number of RSS Processors
1‐256
Maximum number of processors that can be used by RSS. Default value is 16.
Maximum number of RSS Queues
1‐64
Specify the number of RSS receive queues are created by the adapter driver. Default is 8.
Preferred Numa Node
All
The adapter attempts to use only the CPUs from the specified NUMA node for RSS. If this is set to All or is greater than or equal to the number of NUMA nodes in the system all NUMA nodes are used.
1 to 9
Default setting: All
Issue 13
© Solarflare Communications 2014
180
Solarflare Server Adapter
User Guide
Table 43: Solarflare Network Adapter Properties
Property Name
Values
Description
Receive Segment Coalescing
Enabled
Receive Segment Coalescing (RSC) is an offload technology for reducing the load on a CPU by processing TCP segmentation for received packets in the adapter. Disabled
This is available on Windows Server 2012 and later.
Default setting: Enabled
Receive Side Scaling (RSS)
Enabled
Disabled
Receive Side Scaling (RSS) is a technology that enables packet receive processing to scale with the number of available processors (CPUs), distributing the processing workload across the available resources. Default setting: Enabled
Speed & Duplex
100 Mpbs Full Duplex
Configure the adapter speed. Default is Auto Negotiation.
1.0 Gbps Full Duplex
10.0 Gbps Full Duplex
40.0 Gbps Full Duplex
Auto Negotiation
TCP Checksum Offload (IPv4 and IPv6)
Disabled
Rx & Tx Enabled
Rx Enabled
TCP checksum offload is a hardware offload technology for reducing the load on a CPU by processing TCP checksums in the adapter hardware. Default setting: Rx & Tx Enabled.
Tx Enabled
UDP Checksum Offload (IPv4 and IPv6)
Disabled
Rx & Tx Enabled
Rx Enabled
UDP checksum offload is a hardware offload technology for reducing the load on a CPU by processing UDP checksums in the adapter hardware. Default setting: Rx & Tx Enabled.
Tx Enabled
Virtual Machine Queues Enabled
Disabled
VMQ is supported in Windows Server 2008 R2 and later versions. This offloads classification and delivery of network traffic destined for Hyper‐V virtual machines to the network adapter, reducing CPU utilization on Hyper‐V hosts.
Default setting: Enabled.
Issue 13
© Solarflare Communications 2014
181
Solarflare Server Adapter
User Guide
Table 43: Solarflare Network Adapter Properties
Property Name
Values
Description
VMQ VLAN Filtering
Enabled
VLAN filtering allows the adapter to use the VLAN identifier for filtering traffic intended for Hyper‐V virtual machines. When disabled only the destination MAC address is used for filtering.
Disabled
Default setting: Enabled.
Issue 13
© Solarflare Communications 2014
182
Solarflare Server Adapter
User Guide
4.19 Windows Command Line Tools
The command line tools (see Table 44) provide an alternative method of managing Solarflare network adapters to SAM. They are especially useful on a Windows Server Core installation, where SAM cannot be run locally. As with SAM, you can run the command line tools remotely. The tools can also be scripted. The command line tools are installed as part of the drivers installation on Windows. See Installing the Solarflare Driver Package on Windows on page 122.
Table 44: List Available Command Line Utilities
Issue 13
Utility Description
sfboot.exe
A tool for configuring adapter Boot ROM options for PXE and iSCSI booting. See Sfboot: Boot ROM Configuration Tool on page 185. sfupdate.exe
A tool for updating adapter Boot ROM and PHY firmware. See Sfupdate: Firmware Update Tool on page 201. sfteam.exe
A tool for managing fault‐tolerant adapter teams and VLANs. See Sfteam: Adapter Teaming and VLAN Tool on page 205. sfcable.exe
A tool for that runs cable diagnostics for Solarflare 10GBASE‐T server adapters. See Sfcable: Cable Diagnostics Tool on page 212. sfnet.exe
Allows you to display and/or set the offload, Ethernet, RSS, interrupt moderation and VMQ features of any one adapter, VLAN or Team. See Sfnet on page 215.
© Solarflare Communications 2014
183
Solarflare Server Adapter
User Guide
To start a command line tool, open a Command Line Interface windows and enter the command tool.exe: Figure 35: Windows console to run Solarflare command line tools.
NOTE: For all the utilities, the options are documented with the forward slash (/) prefix. You can also use a single dash (--) or a double dash (‐‐) as a prefix.
NOTE: Utilities must be run as an administrator to make any changes. When run as a non administrator, an error message will be displayed. Issue 13
© Solarflare Communications 2014
184
Solarflare Server Adapter
User Guide
4.20 Sfboot: Boot ROM Configuration Tool
• Sfboot: Command Usage...Page 185
• Sfboot: Command Line Options...Page 186
• Sfboot: Examples...Page 196
Sfboot is a Windows command line utility for configuring the Solarflare adapter Boot ROM for PXE and iSCSI booting. Using sfboot is an alternative to using Ctrl+B to access the Boot Rom agent during server startup.
See Configuring the Solarflare Boot ROM Agent on page 364 for more information on the Boot Rom agent.
Sfboot: Command Usage
1
Login with an administrator account.
2
Click Start > All Programs > Solarflare Network Adapters > Command Line Interface for Network Adapters.
3
From the Command Prompt, enter the command using the following syntax:
sfboot [/Adapter <Identifier>] [options] [parameters]
where: Identifier is the name or ID of the adapter that you want to manage. Specifying the adapter is optional ‐ if it is not included the command is applied to all Solarflare adapters in the machine.
option is the option you want to apply. See Sfboot: Command Line Options for a list of available options.
If using sfboot in a configuration script, you can include the environment variable %SFTOOLS% to set the path to the Solarflare tools. For example:
SET PATH=%PATH%;%SFTOOLS%
Issue 13
© Solarflare Communications 2014
185
Solarflare Server Adapter
User Guide
Sfboot: Command Line Options Table 45 lists the options for sfboot.exe and Table 46 lists the available parameters. Note that command line options are case insensitive and may be abbreviated. NOTE: Abbreviations in scripts should be avoided, since future updates to the application may render abbreviated scripts invalid.
Table 45: Sfboot Options
Option
Description
/Help
Displays command line syntax and provides a description of each sfboot option.
/Version
Shows detailed version information and exits. /Nologo
Hide the version and copyright message at startup. /Verbose
Shows extended output information for the command entered. /Quiet
Suppresses all output, including warnings and errors; no user interaction. You should query the completion code to determine the outcome of commands when operating silently. Aliases: /Silent
/Log <Filename>
Logs output to the specified file in the current folder or an existing folder. Specify /Silent to suppress simultaneous output to screen, if required.
/Computer <ComputerName>
Performs the operation on a specified remote computer. Administrator rights on the remote computer is required. /List
Lists all available Solarflare adapters. This option shows the adapter’s ID number, ifname and MAC address. Note: this option may not be used in conjunction with the any other option. If this option is used with configuration parameters, those parameters will be silently ignored.
/Adapter =<Identifier>
Issue 13
Performs the action on the identified Solarflare network adapter. The adapter identifier can be the adapter ID number, ifname or MAC address, as output by the /List option. If /Adapter is not included, the action will apply to all installed Solarflare adapters.
© Solarflare Communications 2014
186
Solarflare Server Adapter
User Guide
Table 45: Sfboot Options
Option
Description
/Clear
Resets all adapter options except boot-image to their default values. Note that /Clear can also be used with parameters, allowing you to reset to default values, and then apply the parameters specified.
The following parameters in Table 46 are used to control the options for the Boot ROM driver when running prior to the operating system booting.
Table 46: Sfboot Parameters
Parameter
Description
bootimage=<all|optionrom|uefi|di
sabled>
Specifies which boot firmware images are served‐up to the BIOS during start‐up. This parameter can not be used if the --adapter option has been specified. This option is not reset if --clear is used.
linkspeed=<auto|10g|1g|100m>
Specifies the network link speed of the adapter used by the Boot ROM ‐ the default is auto. On the 10GBASE‐T adapters “auto” instructs the adapter to negotiate the highest speed supported in common with it’s link partner. On SFP+ adapters, “auto” instructs the adapter to use the highest link speed supported by the inserted SFP+ module. On 10GBASE‐T and SFP+ adapters, any other value specified will fix the link at that speed, regardless of the capabilities of the link partner, which may result in an inability to establish the link.
auto Auto‐negotiate link speed (default)
10G 10G bit/sec
1G 1G bit/sec
100M 100M bit/sec
linkup-delay=<seconds>
Issue 13
Specifies the delay (in seconds) the adapter defers its first connection attempt after booting, allowing time for the network to come up following a power failure or other restart. This can be used to wait for spanning tree protocol on a connected switch to unblock the switch port after the physical network link is established. The default is 5 seconds.
© Solarflare Communications 2014
187
Solarflare Server Adapter
User Guide
Table 46: Sfboot Parameters
Parameter
Description
banner-delay=<seconds>
Specifies the wait period for Ctrl‐B to be pressed to enter adapter configuration tool. seconds = 0‐256
bootskip-delay=<seconds>
Specifies the time allowed for Esc to be pressed to skip adapter booting. seconds = 0‐256
boottype=<pxe|iscsi|disabled>
Sets the adapter boot type. pxe – PXE (Preboot eXecution Environment) booting
iscsi – iSCSI (Internet Small Computer System Interface) booting
disabled – Disable adapter booting
initiatordhcp=<enabled|disabled>
Enables or disables DHCP address discovery for the adapter by the Boot ROM except for the Initiator IQN (see initiator-iqn-dhcp). This option is only valid if iSCSI booting is enabled (boottype=iscsi). If initiator‐DHCP is set to disabled, the following options will need to be specified:
initiator-ip=<ip_address>
netmask=<subnet>
The following options may also be needed: gateway=<ip_address>
primary-dns=<ip_address>
initiator-ip=<ipv4 address>
Specifies the IPv4 address (in standard “.” notation form) to be used by the adapter when initiatordhcp is disabled.
Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled initiatorip=<192.168.1.3>
Issue 13
© Solarflare Communications 2014
188
Solarflare Server Adapter
User Guide
Table 46: Sfboot Parameters
Parameter
Description
netmask=<ipv4 subnet>
Specifies the IPv4 subnet mask (in standard “.” notation form) to be used by the adapter when initiator-dhcp is disabled. Note that this option is only valid if iSCSI booting is enabled (boottype=iscsi). Example: sfboot boot-type=iscsi initiatordhcp=disabled netmask=255.255.255.0
gateway=<ipv4 address>
Specifies the IPv4 subnet mask (in standard “.” notation form) to be used by the adapter when initiator-dhcp is disabled. Note that this option is only valid if iSCSI booting is enabled (boottype=iscsi). Example:
sfboot boot-type=iscsi initiatordhcp=disabled gateway=192.168.0.10
primary-dns=<ipv4 address>
Specifies the IPv4 address (in standard “.” notation form) of the Primary DNS to be used by the adapter when initiator-dhcp is disabled. This option is only valid if iSCSI booting is enabled (boot-type=iscsi). Example:
sfboot boot-type=iscsi initiatordhcp=disabled primary-dns=192.168.0.3
initiator-iqndhcp=<enabled|disabled>
Issue 13
Enables or disables use of DHCP for the initiator IQN only.
© Solarflare Communications 2014
189
Solarflare Server Adapter
User Guide
Table 46: Sfboot Parameters
Parameter
Description
initiator-iqn=<IQN>
Specifies the IQN (iSCSI Qualified Name) to be used by the adapter when initiator-iqn-dhcp is disabled. The IQN is a symbolic name in the “.” notation form; for example: iqn.2009.01.com.solarflare, and is a maximum of 223 characters long. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Example:
sfboot initiator-iqn-dhcp=disabled
initiatoriqn=iqn.2009.01.com.solarflare
adapter=2
lun-retry-count=<count>
Specifies the number of times the adapter attempts to access and login to the Logical Unit Number (LUN) on the iSCSI Target before failing. Note that this option is only valid if iSCSI booting is enabled (boottype=iscsi). Example: sfboot lun-retry-count=3
targetdhcp=<enabled|disabled>
Enables or disables the use of DHCP to discover iSCSI target parameters on the adapter.
If target-dhcp is disabled, you must specify the following options:
target-server=<address>
target-iqn=<iqn>
target-port=<port>
target-lun=<LUN>
Example ‐ Enable the use of DHCP to configure iSCSI Target settings: sfboot boot-type=iscsi targetdhcp=enabled
Issue 13
© Solarflare Communications 2014
190
Solarflare Server Adapter
User Guide
Table 46: Sfboot Parameters
Parameter
Description
target-server=<DNS name or
ipv4 address>
Specifies the iSCSI target’s DNS name or IPv4 address to be used by the adapter when target-dhcp is disabled. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Example:
sfboot boot-type=iscsi targetdhcp=disabled target-server=192.168.2.2
target-port=<port_number>
Specifies the Port number to be used by the iSCSI target when target-dhcp is disabled. The default Port number is Port 3260. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Example: sfboot boot-type=iscsi targetdhcp=disabled target-port=3262
This option should only be used if your target is using a non‐standard TCP Port.
target-lun=<LUN>
Specifies the Logical Unit Number (LUN) to be used by the iSCSI target when target-dhcp is disabled. The default LUN is 0. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). target-iqn=<IQN>
Specifies the IQN of the iSCSI target when targetdhcp is disabled. Maximum of 223 characters. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Note that if there are spaces contained in <IQN>, then the IQN must be wrapped in double quotes (“”).
Example: sfboot target-dhcp=disabled targetiqn=iqn.2009.01.com.solarflare
adapter=2
vendor-id=<dhcp_id>
Issue 13
Specifies the device vendor ID to be advertised to the DHCP server. This must match the vendor id configured at the DHCP server when using DHCP option 43 to obtain the iSCSI target.
© Solarflare Communications 2014
191
Solarflare Server Adapter
User Guide
Table 46: Sfboot Parameters
Parameter
Description
chap=<enabled|disabled>
Enables or disables the use of Challenge Handshake Protocol (CHAP) to authenticate the iSCSI connection. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). To be valid, this option also requires the following sub‐options to be specified: username=<initiator username>
secret=<initiator password>
Example: sfboot boot-type=iscsi chap=enabled
username=initiatorusername
secret=initiatorsecret
username=<username>
Specifies the CHAP initiator username (maximum 64 characters). Note that this option is required if either CHAP or Mutual CHAP is enabled (chap=enabled,
mutual-chap=enabled).
Note that if there are spaces contained in <username>, then it must be wrapped in double quotes (“”).
Example: sfboot boot-type=iscsi chap=enabled
username=username
secret=<secret>
Specifies the CHAP initiator secret (minimum 12 characters, maximum 20 characters). Note that this option is valid if either CHAP or Mutual CHAP is enabled (chap=enabled, mutualchap=enabled).
Note that if there are spaces contained in <secret>, then it must be wrapped in double quotes (“”).
Example: sfboot boot-type=iscsi chap=enabled
username=username secret=veryverysecret
Issue 13
© Solarflare Communications 2014
192
Solarflare Server Adapter
User Guide
Table 46: Sfboot Parameters
Parameter
Description
mutualchap=<enabled|disabled>
Enables/disables Mutual CHAP authentication when iSCSI booting is enabled. This option also requires the following sub‐options to be specified: target-username=<username>
target-secret=<password>
username=<username>
secret=<password>
Example: sfboot boot-type=iscsi mutualchap=enabled username=username
secret=veryverysecret targetusername=targetusername targetsecret=anothersecret
target-username=<username>
Specifies the username that has been configured on the iSCSI target (maximum 64 characters).
Note that this option is necessary if Mutual CHAP is enabled on the adapter (mutual-chap=enabled).
Note that if there are spaces contained in <username>, then it must be wrapped in double quotes (“”).
target-secret=<secret>
Specifies the secret that has been configured on the iSCSi target (minimum 12 characters; maximum 20 characters). Note: This option is necessary if Mutual CHAP is enabled on the adapter (mutual-chap=enabled).
Note that if there are spaces contained in <secret>, then it must be wrapped in double quotes (“”).
Issue 13
mpio-priority=<MPIO
priority>
Specifies the Multipath I/O (MPIO) priority for the adapter. This option is only valid for iSCSI booting over multi‐port adapters, where it can be used to establish adapter port priority. The range is 1‐ 255, with 1 being the highest priority.
mpio-attempts=<attempt
count>
Specifies the number of times MPIO will try and use each port in turn to login to the iSCSI target before failing. © Solarflare Communications 2014
193
Solarflare Server Adapter
User Guide
Table 46: Sfboot Parameters
Parameter
Description
msix-limit=
Specifies the maximum number of MSI‐X interrupts the specified adapter will use. The default is 32.
<8|16|32|64|128|256|512|1024>
Note: Using the incorrect setting can impact the performance of the adapter. Contact Solarflare technical support before changing this setting.
pf-count=<pf count>
This is the number of available PCIe PFs per physical network port. This setting is applied to all ports on the adapter. MAC address assignments may change after altering this setting. pf-vlans=none | number
Comma separated list of VLAN tags for each PF in the range 0‐4094 ‐ see sfboot ‐‐help for details.
switch-mode=<mode>
default ‐ single PF and zero VFs created.
partitioning ‐ configuer PFs and VFs using pf‐count and vf‐count.
sriov ‐ SR‐IOV enabled, single PF and configurable number of VFs created.
pfiov ‐ PFIOV enabled, PFs configured with pf‐count, VFs not supported.
sriov=<enabled|disabled>
Enable SR‐IOV support for operating systems that support this. Not required on SFN7000 series adapters.
vf-count=<vf count>
The number of virtual functions (VF) advertised to the operating system. The Solarflare SFC9000 family of controllers support a total limit of 127 virtual functions per port and a total 1024 interrupts. Depending on the values of msix‐limit and vf‐msix‐
limit, some of these virtual functions may not be configured.
Enabling all 127 VFs per port with more than one MSI‐X interrupt per VF may not be supported by the host BIOS ‐ in which case you may get 127 VFs on one port and none on others. Contact your BIOS vendor or reduce the VF count.
The sriov parameter is implied if vf‐count is greater than zero.
vf-msixlimit=<1|2|4|8|16|32|64|128|
256>
Issue 13
The maximum number of interrupts a virtual function may use.
© Solarflare Communications 2014
194
Solarflare Server Adapter
User Guide
Table 46: Sfboot Parameters
Parameter
Description
port-mode=(default|10G|40G>
Configure the port mode to use. This is for SFC9140‐
family adapters only. MAC address assignments may change after altering this setting.
The default mode will select 40G mode. firmware-variant=<fullfeature|ultra-lowlatency|capture-packedstream |auto>
For SFN7000 series adapters only.
The ultra‐low‐latency variant produces best latency without support for TX VLAN insertion or RX VLAN stripping (not currently used features). It is recommended that Onload customers use the ultra‐
low‐latency variant.
Default value = auto ‐ means the driver will select ultra‐low‐latency by default.
insecurefilters=<enabled|disabled>
Issue 13
If enabled bypass filter security on non‐privileged functions. This is for SFC9100‐family adapters only. This reduces security in virtualized environments. The default is disabled. When enabled a function (PF or VF) can insert filters not qualified by their own permanent MAC address. This is a requirement when using Onload or when using bonded interfaces.
© Solarflare Communications 2014
195
Solarflare Server Adapter
User Guide
Sfboot: Examples
• Show the current boot configuration for all adapters:
sfboot
Solarflare boot ROM configuration utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
Solarflare SFN7122F SFP+ Server Adapter - MAC: 00:0F:53:21:9B:B1
Boot image
Option ROM only
Link speed
Negotiated automatically
Link-up delay time
5 seconds
Banner delay time
2 seconds
Boot skip delay time
5 seconds
Boot type
Disabled
PFIOV
Disabled
Number of Physical Functions
2
MSI-X interrupt limit
32
Number of Virtual Functions
0
VF MSI-X interrupt limit
8
Firmware variant
full feature / virtualization
Insecure filters
Disabled
Solarflare SFN7122F SFP+ Server Adapter #2 - MAC: 00:0F:53:21:9B:B0
Boot image
Option ROM only
Link speed
Negotiated automatically
Link-up delay time
5 seconds
Banner delay time
2 seconds
Boot skip delay time
5 seconds
Boot type
Disabled
PFIOV
Disabled
Number of Physical Functions
2
MSI-X interrupt limit
32
Number of Virtual Functions
0
VF MSI-X interrupt limit
8
Firmware variant
full feature / virtualization
Insecure filters
Disabled
Issue 13
© Solarflare Communications 2014
196
Solarflare Server Adapter
User Guide
• List all Solarflare adapters installed on the localhost:
sfboot /List
Sample console output: Solarflare boot ROM configuration utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
Network adapters in this computer:
1 : Solarflare SFN7122F SFP+ Server Adapter
MAC address: 00:0F:53:21:9B:B1
2 : Solarflare SFN7122F SFP+ Server Adapter #2
MAC address: 00:0F:53:21:9B:B0
• List adapters installed on the remote host named “Mercutio”:
sfboot /Computer Mercutio /List
• Sample console output (remote host has two adapters present):
Solarflare boot ROM configuration utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
Network adapters in Mercutio:
1 : Solarflare SFN7122F SFP+ Server Adapter
MAC address: 00:0F:53:21:9B:B1
2 : Solarflare SFN7122F SFP+ Server Adapter #2
MAC address: 00:0F:53:21:9B:B0
• Enable iSCSI booting on adapter 2. Implement default iSCSI settings: sfboot /Adapter 2 boot-type=iscsi
Issue 13
© Solarflare Communications 2014
197
Solarflare Server Adapter
User Guide
Sample console output: Solarflare boot ROM configuration utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
Solarflare SFN7122F SFP+ Server Adapter
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
Use DHCP for Initiator
Use DHCP for Initiator IQN
LUN busy retries
Use DHCP for Target
DHCP Vendor Class ID
CHAP authentication
MPIO priority
MPIO boot attempts
PFIOV
Number of Physical Functions
MSI-X interrupt limit
Number of Virtual Functions
VF MSI-X interrupt limit
Firmware variant
Insecure filters
Issue 13
- MAC: 00:0F:53:21:9B:B1
Option ROM only
Negotiated automatically
5 seconds
2 seconds
5 seconds
iSCSI
Enabled
Enabled
2
Enabled
SFCgPXE
Disabled
0
3
Disabled
2
32
0
8
full feature / virtualization
Disabled
© Solarflare Communications 2014
198
Solarflare Server Adapter
User Guide
• Enable iSCSI booting on adapter 1 with the following options: ‐ Disable DHCP for the Initiator. ‐ Specify adapter (iSCSI initiator) IP address 192.168.0.1 and netmask 255.255.255.0. sfboot /Adapter 1 boot-type=iscsi initiator-dhcp=disabled initiatorip=192.168.0.1 netmask=255.255.255.0
Sample console output: Solarflare boot ROM configuration utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
Solarflare SFN7122F SFP+ Server Adapter
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
Use DHCP for Initiator
Initiator IP address
Initiator netmask
Initiator default gateway
Initiator primary DNS
Use DHCP for Initiator IQN
LUN busy retries
Use DHCP for Target
DHCP Vendor Class ID
CHAP authentication
User name
Secret
Mutual CHAP authentication
MPIO priority
MPIO boot attempts
PFIOV
Number of Physical Functions
MSI-X interrupt limit
Number of Virtual Functions
VF MSI-X interrupt limit
Firmware variant
Insecure filters
Issue 13
- MAC: 00:0F:53:21:9B:B1
Option ROM only
Negotiated automatically
5 seconds
2 seconds
5 seconds
iSCSI
Disabled
192.168.0.1
255.255.255.0
0.0.0.0
0.0.0.0
Enabled
2
Enabled
SFCgPXE
Enabled
user1
*************
Disabled
0
3
Disabled
2
32
0
8
full feature / virtualization
Disabled
© Solarflare Communications 2014
199
Solarflare Server Adapter
User Guide
• On adapter 1, set the following CHAP options: ‐ User name “user1”
‐ Secret “password12345”
sfboot /Adapter 1 boot-type=iscsi chap=enabled username=user1
secret=password12345
Sample output:
Solarflare boot ROM configuration utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
Solarflare SFN7122F SFP+ Server Adapter
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
Use DHCP for Initiator
Use DHCP for Initiator IQN
LUN busy retries
Use DHCP for Target
DHCP Vendor Class ID
CHAP authentication
User name
Secret
Mutual CHAP authentication
MPIO priority
MPIO boot attempts
PFIOV
Number of Physical Functions
MSI-X interrupt limit
Number of Virtual Functions
VF MSI-X interrupt limit
Firmware variant
Insecure filters
Issue 13
- MAC: 00:0F:53:21:9B:B1
Option ROM only
Negotiated automatically
5 seconds
2 seconds
5 seconds
iSCSI
Enabled
Enabled
2
Enabled
SFCgPXE
Enabled
user1
*************
Disabled
0
3
Disabled
2
32
0
8
full feature / virtualization
Disabled
© Solarflare Communications 2014
200
Solarflare Server Adapter
User Guide
4.21 Sfupdate: Firmware Update Tool
• Sfupdate: Command Usage...Page 201
• Sfupdate: Command Line Options...Page 202
• Sfupdate: Examples...Page 203
Sfupdate is a Windows command line utility used to manage and upgrade the Solarflare adapter Boot ROM, PHY and adapter firmware. Embedded within the sfupdate executable are firmware images for various Solarflare adapters ‐ the exact updates available via sfupdate are therefore depend on your adapter. Sfupdate: Command Usage
1
Login with an administrator account. 2
Click Start > All Programs > Solarflare Network Adapters > Command Line Interface for network adapters. If you installed the Solarflare system tray icon, you can right‐click the icon and choose Command‐line tools instead. 3
In the Command Prompt window, enter your command using the following syntax:
sfupdate [/Adapter <Identifier>] [options]
where: Identifier is the name or ID of the adapter that you want to manage. Specifying the adapter is optional ‐ if it is not included the command is applied to all Solarflare adapters in the machine.
options is the option to apply. See Sfupdate: Command Line Options for a list of available options.
Running the command sfupdate with no additional parameters will show the current firmware version for all Solarflare adapters and whether the firmware within sfupdate is more up to date. To update the firmware for all Solarflare adapters run the command sfupdate /Write
Solarflare recommend that you use sfupdate in the following way:
1
Run sfupdate to check that the firmware on all your adapters are up to date.
2
Run sfupdate /write to update the firmware on all adapters.
Issue 13
© Solarflare Communications 2014
201
Solarflare Server Adapter
User Guide
Sfupdate: Command Line Options
Table 47 lists the command options for sfupdate. Note that command line options are case insensitive and may be abbreviated. NOTE: Abbreviations in scripts should be avoided, since future updates to the application may render your abbreviated scripts invalid.
See Sfupdate: Examples on page 203 for example output.
Table 47: Sfupdate Options
Option
Description
/Help or /H or /?
Displays command line syntax and provides a description of each sfboot option.
/Version
Shows detailed version information and exits. /Nologo
Hides the version and copyright message at startup. /Verbose
Shows extended output information for the command entered. /Quiet
Suppresses all output, including warnings and errors; no user interaction. You should query the completion code to determine the outcome of commands when operating silently. Aliases: /Silent
Issue 13
/Log <Filename>
Logs output to the specified file in the current folder or an existing folder. Specify /Silent to suppress simultaneous output to screen, if required.
/Computer <ComputerName>
Performs the operation on the identified remote computer. Administrator rights on the remote host computer is required. /Adapter <Identifier>
Performs the action on the identified Solarflare network adapter. The identifier can be the adapter ID number, name or MAC address. /Force
Forces a firmware update. Can be used to force an update to an older revision of firmware when used with /Write. © Solarflare Communications 2014
202
Solarflare Server Adapter
User Guide
Table 47: Sfupdate Options
Option
Description
/Write
Writes the updated firmware to the adapter. If the /Image option is not specified, /Write will write the embedded image from sfupdate to the hardware. The update will fail if the image on the adapter is current or newer; to force an update, specify /Force in the command line. /Yes
Update without prompting for a final confirmation. This option may be used with the /Write and /Force options, but is not required with the /Quiet option.
/Image <ImageFileName>
Sources firmware image from an external file. /NoWarning
Suppress update warnings.
Sfupdate: Examples
• Display firmware versions for all adapters: sfupdate
Sample output from a host with a single SFN5122F adapter installed: Solarflare firmware update utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
1: Solarflare SFN7122F SFP+ Server Adapter
MAC address: 00:0F:53:21:9B:B1
Firmware:
v4.1.0
- update to v4.1.4?
Boot ROM: v4.1.0.6723
- update to v4.2.0.1000?
Adapter:
v4.1.0.6732
- update to v4.1.1.1020?
2: Solarflare SFN7122F SFP+ Server Adapter #2
MAC address: 00:0F:53:21:9B:B0
Firmware:
v4.1.0
- update to v4.1.4?
Boot ROM: v4.1.0.6723
- update to v4.2.0.1000?
Adapter:
v4.1.0.6732
- update to v4.1.1.1020?
Issue 13
© Solarflare Communications 2014
203
Solarflare Server Adapter
User Guide
• Update all adapters to latest version of PHY and Boot ROM firmware: sfupdate /Write
Sample output: Solarflare firmware update utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
1: Solarflare SFN7122F SFP+ Server Adapter
MAC address: 00:0F:53:21:9B:B1
Firmware:
v4.1.0
- update to v4.1.4
Boot ROM: v4.1.0.6723
- update to v4.2.0.1000
Adapter:
v4.1.0.6732
- update to v4.1.1.1020
2: Solarflare SFN7122F SFP+ Server Adapter #2
MAC address: 00:0F:53:21:9B:B0
Firmware:
v4.1.0
- update to v4.1.4
Boot ROM: v4.1.0.6723
- update to v4.2.0.1000
Adapter:
v4.1.0.6732
- update to v4.1.1.1020
Issue 13
© Solarflare Communications 2014
204
Solarflare Server Adapter
User Guide
4.22 Sfteam: Adapter Teaming and VLAN Tool
• Sfteam: Command Usage...Page 205
• Sfteam: Command Line Options...Page 205
• Sfteam: Examples...Page 210
Sfteam is a Windows command line utility used to configure and manage the teaming and VLAN features of the Solarflare adapters. You may find it easier to create and manage teams and VLANs with SAM, Solarflare’s graphical adapter manager. As an alternative, or where SAM is not available, sfteam provides a method of creating teams and VLANs from the command line or configuration script. For general information on teaming and VLANs, see Teaming and VLANs on page 221.
Sfteam: Command Usage
1
Login with an administrator account. 2
Click Start > All Programs > Solarflare Network Adapters > Command Line Interface for network adapters. If you installed the Solarflare system tray icon, you can right‐click the icon and choose Command‐line tools instead. 3
In the Command Prompt window, enter your command using the following syntax:
sfteam [option]
where: option is the command to apply. See Table 48 for a list of available options.
If using sfteam in a configuration script, you can include the environment variable %SFTOOLS% to set the path to the Solarflare tools. For example:
SET PATH=%PATH%;%SFTOOLS%
or refer to sfteam as:
%SFTOOLS%\sfteam
Sfteam: Command Line Options
Table 48 lists the command line options sfteam. Note that command line options are case insensitive and may be abbreviated. NOTE: Abbreviations in scripts should be avoided, since future updates to the application may render your abbreviated scripts invalid.
Issue 13
© Solarflare Communications 2014
205
Solarflare Server Adapter
User Guide
Table 48: Sfteam Options
Option
Description
/Help or /? or /H
Displays command line syntax and provides a description of each sfteam option.
/Version
Shows detailed version information and exits. /Nologo
Hides the version and copyright message at startup. /Verbose
Shows extended output information for the command entered. /Quiet
Suppresses all output, including warnings and errors; no user interaction. You should query the completion code to determine the outcome of commands when operating silently. Aliases: /Silent
/Log <Filename>
Logs output to the specified file in the current folder or an existing folder. Specify /Silent to suppress simultaneous output to screen, if required.
/Computer <ComputerName>
Performs the operation on the identified remote computer. Administrator rights on the remote host computer is required. /List
Lists all available Solarflare adapters and any teams and VLANs. This options shows the adapter’s ID number, name and MAC address. /Create
Creates a team or VLAN. To be valid, this option must be used with the /Adapter option for each adapter that you want to add to the team. To specify a name for the team, include the /Name option. To add VLANs to a team, include the /Vlan option. Note that once a team has been created, sfteam does not allow you to change its adapters, VLANs or team name. Either delete the team and set it up again, or use SAM instead to configure the team. Issue 13
/Delete <team name or
vlan group>
Deletes the identified team or group. The team identity can be specified as the team name or group ID. This option cannot be used to delete VLANs.
/Clear
Deletes all teams and VLANS. © Solarflare Communications 2014
206
Solarflare Server Adapter
User Guide
Table 48: Sfteam Options
Option
Description
/Adapter <Adapter_id>
Specifies the adapter to add to the team. Repeat this option for each adapter that you want to include in the team. This option must be used when a team is first created. It cannot be applied to a team once it has been setup.
Issue 13
© Solarflare Communications 2014
207
Solarflare Server Adapter
User Guide
Table 48: Sfteam Options
Option
Description
/Vlan <VLAN
tag[,priority[,name[,DHC
P|addr,mask[,gateway]]]>
Creates a VLAN with the specified ID and sets priority traffic handling option. P – Handles priority traffic
N ‐ Does not handle priority traffic
This option must be used when a team is first created. It cannot be applied to a team once it has been setup.
If you specify an IP address, you must specify a netmask as well.
If the IP address is specified, then DHCP is assured. You can also use tag, priority,name,DHCP to be explicit.
Formats: <tag>
e.g. 2 (assumes no priority)
"<tag>,<priority>"
e.g. "2,p"
"<tag>,<priority>,<name>"
e.g. "2,p,my name"
"<tag>,<priority>,DHCP"
e.g. "2,p,my name,DHCP"
"<tag>,<priority>,<name>,<addr>,<mask>"
e.g. "2,p,my name,10.1.2.3,255.255.255.0"
"<tag>,<priority>,<name>,<addr>,<mask>,<gateway>"
e.g. "2,p,my name,10.1.2.3,255.255.255.0,10.1.2.1"
Tag: 0 to 4094
Priority: either P (priority supported) or N (no priority)
DHCP: may be omitted, and will be assumed, if it's the last field
IP Addresses: IPv4, dotted‐quad format
note that <mask> must be present if <addr> is present
Issue 13
© Solarflare Communications 2014
208
Solarflare Server Adapter
User Guide
Table 48: Sfteam Options
Option
Description
/Name <Team_name>
Specifies a name for the adapter team. This option must be used when a team is first created. It cannot be applied to a team once it has been setup. /DebugId <adapter_id>
Debug‐only. Identify an adapter id to treat as being as iSCSI boot device.
/DebugIscsi
Debug‐only. Pretend the adapter is configured for iSCSI booting.
/Type <team_type>
Defines what kind of team is being created. The options are:
• tolerant (default)
• dynamic
• static
See Teaming and VLANs on page 221 for an explanation on the different teaming types.
Specifies how the driver will select adapters to be part of the link aggregation. The option is only relevant when the /Type option is either dynamic or static. The options are:
/Mode <mode>
• auto (default)
• faulttolerant
• bandwidth
• key adapter
See Teaming and VLANs on page 221 for an explanation of the different teaming modes.
/Distribution <type>
Specify how the driver distributes conversations across dynamic or static link aggregation team members. The available types are:
• auto (default)
• activeadapter
• layer2hash
• layer3hash
• layer4hash
Issue 13
© Solarflare Communications 2014
209
Solarflare Server Adapter
User Guide
Table 48: Sfteam Options
Option
Description
/Statistics
Display adapter and link‐aggregation statistics
/Detailed
Display detailed configuration statistics
Sfteam: Examples
• Create TeamA with adapter ID 1 and adapter ID 2: sfteam /Create /Adapter 1 /Adapter 2 /Name Team_A
Sample output:
Solarflare teaming configuration utility [v4.1.4]
Copyright Solarflare Communications 2006-2014 Level 5 Networks 2002-2005
Creating team done (new id=2F)
Setting team name "Team_A" ... done
Adding adapter 1 ... done
Adding adapter 2 ... done
Creating network interface
- Using DHCP
- Waiting for the new VLAN device ..
- Waiting for the new LAN interface
- Waiting for access to the IP stack
- Using DHCP done
• Create a VLAN to adapter #2 with VLAN tag 4 and priority traffic handling enabled: sfteam /Create /Adapter 2 /Vlan 4,P
Issue 13
© Solarflare Communications 2014
210
Solarflare Server Adapter
User Guide
Sample output:
Solarflare teaming configuration utility [v4.1.4]
Copyright Solarflare Communications 2006-2014 Level 5 Networks 2002-2005
Creating VLAN group done (new id=4V)
Setting VLAN group name (using default name "Group 4V") ...
Adding adapter 2 ... done
Creating VLAN
- id=4, priority, unnamed
- Using DHCP
- Waiting for the new VLAN device ..
- Waiting for the new LAN interface
- Waiting for access to the IP stack
- Using DHCP done
Issue 13
© Solarflare Communications 2014
done
211
Solarflare Server Adapter
User Guide
4.23 Sfcable: Cable Diagnostics Tool
• Sfcable: Command Usage...Page 212
• Sfcable: Command Line Options...Page 212
• Sfcable: Sample Commands...Page 214
Sfcable is a Windows command line utility to run cable diagnostics on the Solarflare 10GBASE‐T server adapters. A warning will be given if the adapter is not a 10GBASE‐T adapter.
Sfcable: Command Usage
1
Login with an administrator account. 2
Click Start > All Programs > Solarflare Drivers > Command Line Tools. If you installed the Solarflare system tray icon, you can right‐click the icon and choose Command‐line tools instead. 3
In the Command Prompt window, enter the following command:
sfcable [/Adapter <Identifier>] [options]
where: Identifier is the name or ID of the adapter that you want to manage. Specifying the adapter is optional ‐ if it is not included the command is applied to all Solarflare adapters in the machine.
option is the option you to apply. See Table 49 for a list of available options.
Sfcable: Command Line Options
Table 49 lists the command options for sfcable. Note that command line options are case insensitive and may be abbreviated. NOTE: Abbreviations in scripts should be avoided, since future updates to the application may render your abbreviated scripts invalid.
Table 49: Sfcable Options
Issue 13
Options
Description
/Help or /? or /H
Displays command line syntax and provides a description of each sfcable option.
/Version
Shows detailed version information and exits. /Nologo
Hides the version and copyright message at startup. © Solarflare Communications 2014
212
Solarflare Server Adapter
User Guide
Table 49: Sfcable Options
Options
Description
/Verbose
Shows extended output information for the command entered. /Quiet
Suppresses all output, including warnings and errors. User should query the completion code to determine the outcome of commands when operating silently (see, Performance Tuning on Windows on page 233). Aliases: /Silent
/Log <Filename>
Logs output to the specified file in the current folder or an existing folder. Specify /Silent to suppress simultaneous output to screen, if required.
/Computer <ComputerName>
Performs the operation on the identified remote computer. Administrator rights on the remote host computer is required. /Adapter <Identifier>
Performs the action on the identified Solarflare network adapter. The identifier can be the adapter ID number, name or MAC address, as given by the /List option. /List
Lists all available Solarflare adapters. This options shows the adapter’s ID number, name and MAC address. /Offline
Stops network traffic while the diagnostic tests are running. Running tests offline will produce more detailed results. Caution: The offline tests will disrupt data flow. It is not recommended that the tests are run on a live system. /DebugId (adapter_id>
Issue 13
Debug‐only. Identify an adapter to treat as being an iSCSI boot device.
© Solarflare Communications 2014
213
Solarflare Server Adapter
User Guide
Sfcable: Sample Commands
• Run tests offline sfcable /Offline
Sample output from a computer with two Solarflare adapters installed: C: sfcable /Offline
Solarflare cable diagnostics utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
1 : Solarflare SFN5121T 10GBASE-T Server Adapter
MAC address:
00:0F:53:01:40:8C
Link state:
Up
Link speed:
10 Gbps
Pair 1:
OK, length=9m
Pair 2:
OK, length=9m
Pair 3:
OK, length=9m
Pair 4:
OK, length=9m
2 : Solarflare SFN5121T 10GBASE-T Server Adapter #2
MAC address:
00:0F:53:01:40:8D
Link state:
Up
Link speed:
10 Gbps
Pair 1:
OK, length=9m
Pair 2:
OK, length=9m
Pair 3:
OK, length=9m
Pair 4:
OK, length=9m
Issue 13
© Solarflare Communications 2014
214
Solarflare Server Adapter
User Guide
4.24 Sfnet
• Sfnet: Command Usage...Page 215
• Sfnet: Command Line Options...Page 216
• Completion codes (%errorlevel%)...Page 219
Sfnet is a Windows command line utility to configure the physical or virtual adapter settings, such as checksum offloading, RSS, VMQ and Power Management.
NOTE: Changing these settings may significantly alter the performance of the adapter. You should contact Solarflare technical support before changing any of these settings.
Sfnet: Command Usage
1
Login with an administrator account. 2
Click Start > All Programs > Solarflare Network Adapter > Command Line Interface for network adapters. If you installed the Solarflare system tray icon, you can right‐click the icon and choose Command‐line tools instead. 3
In the Command Prompt window, enter your command using the following syntax:
sfnet [/Adapter Identifier] [options]
where: Identifier is the name or ID of the adapter that you want to manage. Specifying the adapter is optional ‐ if it is not included the command is applied to all Solarflare adapters in the machine.
option is the option to apply. See Sfnet: Command Line Options for a list of available options.
To see all adapters installed on the computer and their current options and parameter settings use the sfnet /List option.
If using sfnet in a configuration script, you can include the environment variable %SFTOOLS% to set the path to the Solarflare tools. For example:
SET PATH=%PATH%;%SFNET%
or refer to sfnet as:
%SFTOOLS%\sfnet
Issue 13
© Solarflare Communications 2014
215
Solarflare Server Adapter
User Guide
Sfnet: Command Line Options
Table 50 lists the command options for sfnet. Note that command line options are case insensitive and may be abbreviated. NOTE: Abbreviations in scripts should be avoided, since future updates to the application may render your abbreviated scripts invalid.
Table 50: Sfnet Options
Options
Description
/Help or /? or /H
Displays command line syntax and provides a description of each sfnet option.
/Version
Shows detailed version information and exits.
/Nologo
Hides the version and copyright message at startup.
/Verbose
Shows extended output information for the command entered. /Quiet
Suppresses all output, including warnings and errors; no user interaction. You should query the completion code to determine the outcome of commands when operating silently. Aliases:
Issue 13
/Silent
/Log <Filename>
Logs output to the specified file in the current folder or an existing folder. Specify silent to suppress simultaneous output to screen, if required.
/Computer <ComputerName>
Performs the operation on the identified remote host. Administrator rights on the remote host computer is required.
/Adapter <Identifier>
Perform the action on the identified Solarflare physical or virtual network adapter.
/List
Lists all available Solarflare adapters, options and current parameter settings. /Id
List output is limited to one line, containing the Id and name, per adapter.
/StopOnWarning
Exit the utility if a warning is output.
/Statistics
Display adapter statistics and configuration settings for Solarflare interfaces.
© Solarflare Communications 2014
216
Solarflare Server Adapter
User Guide
Table 51: Supported Key Value Parameter
Parameter
Description
ipoffload=<enabled|disabled>
Specify whether IPv4 checksum offload is enabled.
tcpoffload=<enabled|disabled>
Specify whether TCP checksum offload is enabled. Configures TCPv4 and TCPv6 where applicable.
udpoffload=<enabled|disabled>
Specify whether UDP checksum offload is enabled. Configures UDPv4 and UDPv6 where applicable.
lso=<enabled|disabled>
Specify whether large send offload (LSO) is enabled. Configures LSOv4 and LSOv6 where applicable.
lro=<enabled|disabled>
Specify whether large receive offload (LRO) is enabled. Configures RSCv4 and RSCv6, or LROv4 and LROv6, where applicable.
Support for this option is dependent on the version of Windows operating system and and networking stack. Implements Windows Receive Segment Coalescing (RSC) if applicable.
Issue 13
flowcontrol=<auto|enabled|gene
rate|respond|disabled>
Specify Ethernet flow control. This option covers the "Flow Control" and "Flow Control Autonegotiation" device driver advanced properties.
speed=<auto|40g|10g|1g|100m>
Specify the Ethernet link speed.
mtu=<MTU length>
Specify the maximum Ethernet frame length. From 1518 to 9216 bytes (even values only).
rss=<disabled|optimized|system
|closest|closeststatic|numa|nu
mastatic|conservative>
Specify the receive side scaling (RSS) mode. rssbaseprocessor=<group>:<numb
er>
The base processor available for RSS. If a value is given it must formated as <group>:<number> where group is in the range 0‐9 and number in the range 0 to 63.
rssmaxprocessor=<group>:<numbe
r>
The maximum number of processors available for RSS. If a value is given it must formated as <group>:<number> where group is in the range 0‐9 and number in the range 0 to 63.
© Solarflare Communications 2014
217
Solarflare Server Adapter
User Guide
Table 51: Supported Key Value Parameter
Parameter
Description
maxrssprocessors=<count>
The maximum number of processors available for RSS. If count is specified it must be in the range 1‐
256. Support for this option is independent of the version of the operating system and networking stack.
rssqueuecount=<balanced|count>
Specify the maximum number of receive queues to use for RSS. If set to balanced the network adapter will choose the number of queues based on the system processor topology. If specified, count must be one of 1|2|4|8|12|16|24|32|48|64.
Support for this option is independent of the version of the operating system and networking stack.
numanode=<all|value>
The preferred NUMA node used by RSS. If a value is given, it must be in the range 0‐15. Support for this option is independent of the version of the operating system and networking stack.
moderation=<disabled|value>
Specify interrupt moderation time (in micro‐
seconds). If a value is given it must be in the range 1 to 1000. NOTE: this option covers the device driver advanced properties "interrupt moderation time" and "interrupt moderation".
adaptive=<enabled|disabled>
Allows the adapter to vary interrupt moderation automatically if interruptmoderation is enabled.
wake=<enabled|disabled>
Specify whether Wake‐on‐LAN is enabled. sleep=<enabled|disabled>
Specify whether the operating system can put the device to sleep when the physical link goes down.
vmq=<enabled|nosplit|novlan|ba
sic|disabled>
enabled = VMQ enabled.
nosplit = VMQ enabled without lookahead split.
novlan = VMQ enabled without VLAN filtering.
basic = VMQ enabled MAC address filtering only.
disabled = VMQ disabled. Issue 13
© Solarflare Communications 2014
218
Solarflare Server Adapter
User Guide
4.25 Completion codes (%errorlevel%)
Table 52 lists the completion codes returned by the command line utilities. The code may be determined by inspecting %errorlevel% Table 52: Completion Codes
Error code
Description
0
Success.
1
The application was invoked with /? or /help.
3
The application was invoked with /version.
16
Application cancelled (user probably pressed CTRL‐C).
17
Application has requested a reboot.
18
Reboot is necessary to complete the action.
19
Incomplete team creation.
Team has been created and whatever adapters that could be added have been, and the VLANs (if any) have been created. Some adapters were not able to be added.
32
Application failed initialization.
33
Access denied.
Either the remote host refused a connection on the basis of account privileges, or a file could not be opened.
34
Cannot connect.
The remote host could not be found or refused the connection because the WMI service was inaccessible (either because the service is not running or because there is a firewall or security policy preventing it being accessed remotely). 35
WMI classes exposed by the Solarflare drivers missing.
Usually this means that either the driver have not been installed, no Solarflare adapters are present, or adapters have been disabled. 36
Failed to obtain driver lock.
The application has tried to take the Solarflare driver lock because it wants to do something that must not be interrupted by another utility (or SAM) and failed to do so. 37
Adapter not found.
Cannot find the adapter specified by /adapter.
Issue 13
© Solarflare Communications 2014
219
Solarflare Server Adapter
User Guide
Table 52: Completion Codes
Error code
Description
38
Adapter not specified.
Command line is missing the /adapter option. 39
Later version already installed.
128
User entered an invalid command line.
129
Could not open log file.
130
A general WMI error occurred. Can occur when the connection is lost. 131
Missing prerequisite.
The application needs something that is not present in the system.
Issue 13
132
Not supported.
133
Platform/System not supported.
255
General exit failure.
© Solarflare Communications 2014
220
Solarflare Server Adapter
User Guide
4.26 Teaming and VLANs
About Teaming
Solarflare adapters support the following teaming configurations:
• IEEE 802.1AX (802.3ad) Dynamic link aggregation
• Static link aggregation
• Fault tolerant teams
Teaming allows the user to configure teams consisting of all Solarflare adapter ports on all installed Solarflare adapters or might consist only of selected ports e.g. from a dual port Solarflare adapter, the first port could be a member of team A and the second port a member of team B or both ports members of the same team.
This section is only relevant to teams of Solarflare adapters. Solarflare adapters can be used in multi‐
vendor teams when teamed using another vendor’s teaming driver. NOTE: Adapter teaming and VLANs are not supported in Windows for iSCSI remote boot enabled Solarflare adapters. To configure load balancing and failover support on iSCSI remote boot enabled adapters, you can use Microsoft MultiPath I/O (MPIO), which is supported on all Solarflare adapters.
NOTE: Windows Server 2012 has native Windows teaming support. The user can elect to use native windows driver of the Solarflare teaming, but the two methods should not be mixed.
Creating Teams and VLANs
To set up teams and VLANs in Windows using SAM, see Using SAM to Configure Teams and VLANs on page 155.
To set up teams and VLANs in Windows using the sfteam command line tool, see Sfteam: Adapter Teaming and VLAN Tool on page 205.
Link Aggregation
Link aggregation is a mechanism for supporting load balancing and fault tolerance across a team of network adapters and their associated switch. Link aggregation is a partner teaming mode that requires configuration at both ends of the link. Once configured, all links in the team are bonded into a single virtual link with a single MAC address.
Two or more physical links are used to increase the potential throughput available between the link partners, and also improve resilience against link failures. To be aggregated, all links in the team must be between the same two link partner and each link must be full‐duplex. Traffic is distributed evenly to all links connected to the same switch. In case of link failover, traffic on the failed link will be re‐
distributed to the remaining links.
Link aggregation offers the following functionality:
Issue 13
© Solarflare Communications 2014
221
Solarflare Server Adapter
User Guide
• Teams can be built from mixed media (i.e. UTP and Fiber).
• All protocols can be load balanced without transmit or receive modifications to frames.
• Multicast and broadcast traffic can be load balanced.
• Short recovery time in case of failover.
• Solarflare supports up to 64 link aggregation port groups per system.
• Solarflare supports up to 64 ports and VLANs in a link aggregation port group.
There are two methods of link aggregation, dynamic and static.
Dynamic Link Aggregation
Dynamic link aggregation uses the Link Aggregation Control Protocol (LACP) as defined in the IEEE 802.1AX standard (previously called 802.3ad) to negotiate the ports that will make up the team. LACP must be enabled at both ends of the link for a team to be operational.
LACP will automatically determine which physical links can be aggregated, and will then perform the aggregation.
An optional LACP marker protocol provides functionality when adding and removing physical links ensuring that no frames are lost, reordered or duplicated.
Dynamic link aggregation offers both fault tolerance and load balancing.
Standby links are supported, but are not considered part of a link aggregation until a link within the aggregation fails.
VLANs are supported within 802.1AX teams.
In the event of failover, the load on the failed link is redistributed over the remaining links.
NOTE: Your switch must support 802.1AX (802.3ad) dynamic link aggregation to use this method of teaming.
Figure 36 shows a 802.1AX Team configuration.
Issue 13
© Solarflare Communications 2014
222
Solarflare Server Adapter
User Guide
Figure 36: 802.1AX Team
Figure 37 shows a 802.1AX team with a failed link. All traffic is re‐routed and shared between the other team links.
Figure 37: 802.1AX with Failed Link
Issue 13
© Solarflare Communications 2014
223
Solarflare Server Adapter
User Guide
Static Link Aggregation
Static link aggregation is a switch assisted teaming mode that requires manual configuring of the ports at both ends of the link. Static link aggregation is protocol independent and typically inter‐
operates with common link aggregation schemes such as Intel Link Aggregation, Cisco Fast EtherChannel and Cisco Gigabit EtherChannel.
With static link aggregation, all links share the traffic load and standby links are not supported. Static link aggregation offers both fault tolerance and load balancing. In the event of failover, the load on the failed link is redistributed over the remaining links. Figure 38: Static Link Aggregation Team Figure 39: Static Link Team with Failed Link
Issue 13
© Solarflare Communications 2014
224
Solarflare Server Adapter
User Guide
Fault‐Tolerant Teams
Fault tolerant teaming can be implemented on any switch. It can also be used with each network link connected to separate switches.
A fault‐tolerant team is a set of one or more network adapters bound together by the adapter driver. A fault‐tolerant team improves network availability by providing standby adapters. At any one moment no more than one of the adapters will be active with the remainder either in standby or in a fault state. In Figure 40, Adapter 1 is active and all data to and from the switch passes through it.
NOTE: All adapters in a fault‐tolerant team must be part of the same broadcast domain. Figure 40: Fault Tolerant Team
Failover
The teaming driver monitors the state of the active adapter and, in the event that its physical link is lost (down) or that it fails in service, swaps to one of the standby adapters. In Figure 41 the previously active adapter has entered a failed state and will not be available in the standby list while the failed state persists.
Issue 13
© Solarflare Communications 2014
225
Solarflare Server Adapter
User Guide
Figure 41: Adapter 1 Failure
Note that, in this example, Adapter 3 is now active. The order in which the adapters are used is determined by a number of factors, including user‐definable rank.
VLANs
VLANs offer a method of dividing one physical network into multiple broadcast domains. Figure 42: VLANs routing through Solarflare adapter
Issue 13
© Solarflare Communications 2014
226
Solarflare Server Adapter
User Guide
VLANs and Teaming
VLANs are supported on all Solarflare adapter teaming configurations. VLANs with Fault Tolerant Teams
Figure 43 shows a fault tolerant team with two VLANs.
Figure 43: Fault Tolerant VLANs
Failover works in the same way regardless of the number of VLANs, as show in Figure 44. Issue 13
© Solarflare Communications 2014
227
Solarflare Server Adapter
User Guide
Figure 44: Failover in Fault Tolerant Team VLAN
Issue 13
© Solarflare Communications 2014
228
Solarflare Server Adapter
User Guide
VLANs with Dynamic or Static Link Aggregation Teams
VLANs work in the same way with either Dynamic or Static Link Aggregation teaming configurations.Figure 45 shows how VLANs work with these teams.
Figure 45: VLAN with Dynamic or Static Link Team
In case of link failure, all traffic is distributed over the remaining links, as in Figure 46.
Figure 46: VLAN with Failed Dynamic or Static Team Link
Issue 13
© Solarflare Communications 2014
229
Solarflare Server Adapter
User Guide
Key Adapter
Every team must have a key adapter. Figure 47 shows Adapter 1 as both the Key and the active adapter. in a Fault‐Tolerant Team. Figure 47: Key Adapter in Fault Tolerant Team
The key adapter must be a member of a team. However, it does not need to be the active adapter. It doesn't even need to be in the list of standby adapters but it must physically be within its host. The Key Adapter defines the team's RSS support (see Receive Side Scaling (RSS) on page 237) and provides the MAC Address that will be used for all traffic sent and received by the team.
When a link failure occurs in the active adapter (for example the physical link is lost) the driver will select another adapter to become active but it will not re‐assign the Key Adapter. In Figure 48, Adapter 1 has failed and the team is now using Adapter 2 for all traffic.
Issue 13
© Solarflare Communications 2014
230
Solarflare Server Adapter
User Guide
Figure 48: Failover Key Adapter
Note that although the Key Adapter (Adapter 1) has a link failure, the integrity of the team is not affected by this failure.
Dynamic and Static Link Aggregation Teams
The assignment of key adapters is supported in both dynamic and static link aggregated teams, and works in the same way for both.
Issue 13
© Solarflare Communications 2014
231
Solarflare Server Adapter
User Guide
Any link failure on the key adapter does not affect the redistribution of traffic to the other links in the team.
Issue 13
© Solarflare Communications 2014
232
Solarflare Server Adapter
User Guide
4.27 Performance Tuning on Windows
• Introduction...Page 233
• Tuning Settings...Page 234
• Other Considerations...Page 238
• Benchmarks...Page 242
Introduction
The Solarflare family of network adapters are designed for high‐performance network applications. The adapter driver is pre‐configured with default performance settings that have been designed to give good performance across a broad class of applications. Occasionally, application performance can be improved by tuning these settings to best suit the application.
There are three metrics that should be considered when tuning an adapter: • Throughput
• Latency
• CPU utilization
Different applications may be more or less affected by improvements in these three metrics. For example, transactional (request‐response) network applications can be very sensitive to latency whereas bulk data transfer applications are likely to be more dependent on throughput.
The purpose of this section is to highlight adapter driver settings that affect the performance metrics described. This guide covers the tuning of all Solarflare adapters. Latency will be affected by the type of physical medium used: 10GBase‐T, twinaxial (direct‐attach), fiber or KX4. This is because the physical media interface chip (PHY) used on the adapter can introduce additional latency.
This section is designed for performance tuning Solarflare adapters on Microsoft Windows. This should be read in conjunction with the reference design board errata documents and the following Microsoft performance tuning guides:
• Performance Tuning Guidelines for the current version of Windows Server:
http://msdn.microsoft.com/en‐us/library/windows/hardware/dn529133
• Performance Tuning Guidelines for previous versions of Windows Server:
http://msdn.microsoft.com/en‐us/library/windows/hardware/dn529134.
In addition, you may need to consider other issues influencing performance, such as application settings, server motherboard chipset, CPU speed, Cache size, RAM size, additional software installed on the system, such as a firewall, and the specification and configuration of the LAN. Consideration of such issues is not within the scope of this guide.
Issue 13
© Solarflare Communications 2014
233
Solarflare Server Adapter
User Guide
Tuning Settings
Tuning settings for the Solarflare adapter are available through the Solarflare Adapter Manager (SAM) utility, or via the Advanced tab in the Windows Device Manager (right‐click the adapter and select Properties). See Using SAM to Configure Adapter Features on page 145 and Configuring Network Adapter Properties in Windows on page 177 for more details.
Table 53 lists the available tuning settings for Solarflare adapters on Windows. Table 53: Tuning Settings
Issue 13
Setting
Supported on Windows 7/ Windows Server 2008 R2
Supported on Windows 8 / Windows Server 2012 / Windows Server 2012 R2
Adaptive Interrupt Moderation
Yes
Yes
Interrupt Moderation
Yes
Yes
Interrupt Moderation Time
Yes
Yes
Large Receive Offload (IPv4)
Yes
No
Large Receive Offload (IPv6)
Yes
No
Large Send Offload V2 (IPv4)
Yes
Yes
Large Send Offload V2 (IPv6)
Yes
Yes
Max Frame Size
Yes
Yes
Offload IPv4 Checksum
Yes
Yes
Preferred Numa Node
Yes
Yes
Receive Segment Coalescing (IPv4)
No
Yes
Receive Segment Coalescing (IPv6)
No
Yes
Receive Side Scaling
Yes
Yes
RSS Interrupt Balancing
Yes
Yes
TCP Checksum Offload (IPv4)
Yes
Yes
TCP Checksum Offload (IPv6)
Yes
Yes
UDP Checksum Offload (IPv4)
Yes
Yes
UDP Checksum Offload (IPv6)
Yes
Yes
© Solarflare Communications 2014
234
Solarflare Server Adapter
User Guide
Max Frame Size
The default maximum frame size ensures that the adapter is compatible with legacy 10/100Mbps Ethernet endpoints. However if a larger maximum frame size is used, adapter throughput and CPU utilization can be improved. CPU utilization is improved, because it takes fewer packets to send and receive the same amount of data. Solarflare adapters supports maximum frame sizes up to 9216 bytes (this does not include CRC). NOTE: The maximum frame size setting should include the Ethernet frame header. The Solarflare drivers support 802.1p. This allows Solarflare adapters on Windows to optionally transmit packets with 802.1p tags for QOS applications. It requires an Ethernet frame header size of 18bytes (6bytes source MAC address, 6bytes destination MAC. 2bytes ethertype and 4bytes priority tag. The default maximum frame size is therefore: 1518 bytes.
Since the maximum frame size should ideally be matched across all endpoints in the same LAN (VLAN) and the LAN switch infrastructure must be able to forward such packets, the decision to deploy a larger than default maximum frame size requires careful consideration. It is recommended that experimentation with maximum frame size be done in an application test environment. The maximum frame size is changed by changing the Max Frame Size setting in the Network Adapter’s Advanced Properties Page.
Interrupt Moderation (Interrupt Coalescing)
Interrupt moderation reduces the number of interrupts generated by the adapter by coalescing multiple received packet indications and/or transmit completion events together into a single interrupt. The amount of time the adapter waits after the first event until the interrupt is generated is the interrupt moderation interval. Solarflare adapters, by default, use an adaptive algorithm where the interrupt moderation delay is automatically adjusted between zero (no interrupt moderation) and 60 microseconds. The adaptive algorithm detects latency sensitive traffic patterns and adjusts the interrupt moderation interval accordingly. The adaptive algorithm can be disabled to reduce jitter and the moderation interval set higher/lower as required to suit conditions.
For lowest latency, interrupt moderation should be disabled. This will increase the number of interrupts generated by the network adapter and as such increase CPU utilization.
Interrupt moderation settings are critical for tuning adapter latency. Increasing the moderation time may increase latency, but reduce CPU utilization and improve peak throughput, if the CPU is fully utilized. Decreasing the moderation time value or turning it off will decrease latency at the expense of CPU utilization and peak throughput. However, for many transaction request‐response type network applications, the benefit of reduced latency to overall application performance can be considerable. Such benefits typically outweigh the cost of increased CPU utilization. Interrupt moderation can be disabled by setting the Interrupt Moderation setting to disabled in the Network Adapter’s Advanced Properties Page. The interrupt moderation time value can also be configured from the Network Adapter’s Advanced Properties Page.
Issue 13
© Solarflare Communications 2014
235
Solarflare Server Adapter
User Guide
Interrupt Moderation Interval
The interrupt moderation interval is measured in microseconds. When the interval expires the adapter will generate a single interrupt for all packets received since the last interrupt and/or for all transmit complete events since the last interrupt.
Increasing the interrupt moderation interval will:
• generate less interrupts
• reduce CPU utilization (because there are less interrupts to process)
• increase latency
• improve peak throughput
Decreasing the interrupt moderation interval will: • generate more interrupts
• increase CPU utilization (because there are more interrupts to process)
• decrease latency
• reduce peak throughput
TCP Checksum Offload
Checksum offload defers the calculation and verification of IP Header, TCP and UDP packet checksums to the adapter. The driver has all checksum offload features enabled by default. Therefore, there is no opportunity to improve performance from the default. Checksum offload configuration is changed by changing the Offload IP checksum, Offload UDP checksum and Offload TCP checksum settings in the Network Adapter’s Advanced Properties Page. Large Send Offload V2 (LSO)
Large Send offload (LSO; also known as TCP Segmentation Offload/TSO) offloads the splitting of outgoing TCP data into packets to the adapter. LSO benefits applications using TCP. Applications using protocols other than TCP will not be affected by LSO.
Enabling LSO will reduce CPU utilization on the transmit side of a TCP connection and improve peak throughput, if the CPU is fully utilized. Since LSO has no affect on latency, it can be enabled at all times. The driver has LSO enabled by default. LSO is changed by changing the Large Send Offload setting in the Network Adapter’s Advanced Properties Page. TCP and IP checksum offloads must be enabled for LSO to work.
NOTE: Solarflare recommend that you do not disable this setting.
Issue 13
© Solarflare Communications 2014
236
Solarflare Server Adapter
User Guide
Receive Side Coalescing (RSC) TCP Receive Side Coalescing (RSC) is a feature whereby the adapter coalesces multiple packets received on a TCP connection into a single larger packet before passing this onto the network stack for receive processing. This reduces CPU utilization and improves peak throughput when the CPU is fully utilized. The effectiveness of RSC is bounded by the interrupt moderation delay and in itself, enabling RSC does not negatively impact latency. RSC is a Microsoft feature introduced in Windows Server 2012. RSC is enabled by default. If a host is forwarding received packets from one interface to another then Windows will autoimatically disable RSC. RSC is set by changing the Receive Side Coalescing settings in the Network Adapter’s Advanced Properties Page. TCP /IP checksum offloads must be enabled for RSC to work. The Solarflare network adapter driver enables RSC by default.
Large Receive Offload (LRO) TCP Large Receive Offload (LRO) is a feature whereby the adapter coalesces multiple packets received on a TCP connection into a single larger packet before passing this onto the network stack for receive processing. This reduces CPU utilization and improves peak throughput when the CPU is fully utilized. The effectiveness of LRO is bounded by the interrupt moderation delay and in itself, enabling LRO does not negatively impact latency. LRO is a Solarflare proprietary mechanism similar to the Windows Receive Side Coalescing feature. Windows Server 2012 and newer use RSC instead of LRO, and do not support LRO. Older Windows versions that do not support RSC may use LRO instead. LRO is disabled by default and should not be enabled if the host is forwarding received packets from one interface to another. LRO is set by changing the Large Receive Offload settings in the Network Adapter’s Advanced Properties Page. TCP /IP checksum offloads must be enabled for LRO to work. The Solarflare network adapter driver disables LRO by default.
NOTE: LRO should NOT be enabled when using the host to forward packets from one interface to another. For example, if the host is performing IP routing.
Receive Side Scaling (RSS)
Receive Side Scaling (RSS) was first supported as part of the scalable networking pack for Windows Server 2003 and has been improved with each subsequent operating system release. RSS is enabled by default and will be used on network adapters that support it. Solarflare recommend that RSS is enabled for best networking performance.
For further information about using RSS on Windows platforms see the Microsoft white paper "Scalable Networking: Eliminating the Receive Processing Bottleneck—Introducing RSS" This is available from:
http://download.microsoft.com/download/5/D/6/5D6EAF2B‐7DDF‐476B‐93DC‐7CF0072878E6/
NDIS_RSS.doc
On Windows Server 2008 R2 and Windows 7, specific RSS parameters can be tuned on a per‐adapter basis. For details see the Microsoft white paper "Networking Deployment Guide: Deploying High‐
Speed Networking Features" available from: Issue 13
© Solarflare Communications 2014
237
Solarflare Server Adapter
User Guide
http://download.microsoft.com/download/8/E/D/8EDE21BC‐0E3B‐4E14‐AAEA‐9E2B03917A09/
HSN_Deployment_Guide.doc
Solarflare network adapters optimize RSS settings by default on Windows operating systems and offer a number of RSS interrupt balancing modes via the network adapter's advanced property page in Device Manager and Solarflare's adapter management tools.
Preferred NUMA Node
The adapter driver chooses a subset of the available CPU cores to handle transmit and receive processing. The Preferred NUMA Node setting can be used to constrain the set of CPU cores considered for processing to those on the given NUMA Node.
To force processing onto a particular NUMA Node, change the Preferred NUMA Node setting on the Network Adapter's Advanced Properties Page.
NOTE: Solarflare recommend that you do not change this setting.
Other Considerations
PCI Express Lane Configurations
The PCI Express (PCIe) interface used to connect the adapter to the server can function at different speeds and widths. This is independent of the physical slot size used to connect the adapter. The possible widths are multiples x1, x2, x4, x8 and x16 lanes of (2.5Gbps for PCIe Gen 1, 5.0 Gbps for PCIe Gen 2 and 8.0Gbps for PCIe Gen 3) in each direction. Solarflare adapters are designed for x8 or x16 lane operation.
On some server motherboards, choice of PCIe slot is important. This is because some slots (including those that are physically x8 or x16 lanes) may only electrically support x4 lanes. In x4 lane slots, Solarflare PCIe adapters will continue to operate, but not at full speed. The Solarflare driver will insert a warning in the Windows Event Log if it detects that the adapter is plugged into a PCIe slot which electrically has fewer than x8 lanes. For SFN5xxx and SFN6xxx Solarflare adapters, which require a PCIe Gen 2 x8 slot for optimal operation. Solarflare SFN7xxx series adapters require a PCIe Gen 3 x8 or x16 slot for optimal performance. A warning will be issued when the Solarflare adapter is placed in a sub‐optimal slot. In addition, the latency of communications between the host CPUs, system memory and the Solarflare PCIe adapter may be PCIe slot dependant. Some slots may be “closer” to the CPU, and therefore have lower latency and higher throughput. Please consult your server user guide for more information.
Memory bandwidth
Many chipsets use multiple channels to access main system memory. Maximum memory performance is only achieved when the chipset can make use of all channels simultaneously. This should be taken into account when selecting the number of memory modules (DIMMs) to populate in the server. Consult the motherboard documentation for details, however it’s likely that populating all DIMM slots will be needed for optimal memory bandwidth in the system.
Issue 13
© Solarflare Communications 2014
238
Solarflare Server Adapter
User Guide
BIOS Settings
DELL Systems
Refer to the BIOS configuration guidelines recommended by Dell's white paper "Configuring Low‐
Latency Environments on Dell PowerEdge Servers" available from:
http://i.dell.com/sites/content/business/solutions/whitepapers/en/Documents/configuring‐dell‐
poweredge‐servers‐for‐low‐latency‐12132010‐final.pdf
HP Systems
Refer to the BIOS configuration guidelines recommended by HP's white paper "Configuring the HP ProLiant Server BIOS for Low‐Latency Applications" available from:
http://h20000.www2.hp.com/bc/docs/support/SupportManual/c01804533/c01804533.pdf
Although targeted at tuning for real‐time operating systems, the recommendations equally apply to Windows Server platforms.
Other system vendors may publish similar recommendations. In general any BIOS settings guidelines that are targeted at increasing network performance whilst minimizing latency and jitter are applicable to all operating systems.
Intel® QuickData / NetDMA
On systems that support Intel I/OAT (I/O Acceleration Technology) features such as QuickData (a.k.a NetDMA), Solarflare recommend that these are enabled as they are rarely detrimental to performance. Using Intel® QuickData Technology allows data copies to be performed by the system and not the operating system. This enables data to move more efficiently through the server and provide fast, scalable, and reliable throughput.
To enable NetDMA the EnableTCPA variable must be set to 1 in the Tcpip\Parameters registry key. Locate the following key in the registry: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters
The EnableTCPA value must be created if it is not present and set to 1:
EnableTCPA = 1
Intel Hyper‐Threading Technology
On systems that support Intel Hyper‐Threading Technology users should consider benchmarking or application performance data when deciding whether to adopt hyper‐threading on a particular system and for a particular application. Solarflare have identified that hyper‐threading is generally beneficial on systems fitted with Core i5, Core i7 and Xeon (Nehalem or later) CPUs when used in conjunction with Windows Server 2008 or later.
Issue 13
© Solarflare Communications 2014
239
Solarflare Server Adapter
User Guide
TCP/IP Options
On Windows Server 2008 R2 and later platforms, TCP timestamps, window scaling and selective acknowledgments are enabled by default and include receive window tuning and congestion control algorithms that automatically adapt to 10 gigabit connections.
Server Power Saving Mode
Modern processors utilize design features that enable a CPU core to drop into low power states when instructed by the operating system that the CPU core is idle. When the OS schedules work on the idle CPU core (or when other CPU cores or devices need to access data currently in the idle CPU core’s data cache) the CPU core is signaled to return to the fully on power state. These changes in CPU core power states create additional network latency and jitter. Solarflare recommend to achieve the lowest latency and lowest jitter that the "C1E power state" or "CPU power saving mode" is disabled within the system BIOS.
In general the user should examine the system BIOS settings and identify settings that favor performance over power saving. In particular look for settings to disable:
• C states / Processor sleep/idle states • C1E • Any deeper C states (C3 through to C6) • P states / Processor throttling • Ultra Low Power State • PCIe Active State Power Management • ASPM • Processor Turbo mode • Unnecessary SMM/SMI features Issue 13
© Solarflare Communications 2014
240
Solarflare Server Adapter
User Guide
The latency can be improved by selecting the “Optimum Performance” power plan. This is configured From the Control Panel > Hardware > Power Options:
Windows Firewall
Depending on the system configuration, the built‐in Windows (or any third‐party) Firewall may have a significant impact on throughput and CPU utilization. Where high throughput is required on a particular port, the performance will be improved by disabling the firewall on that port.
NOTE: The Windows (or any third party) Firewall should be disabled with caution. The network administrator should be consulted before making any changes.
Issue 13
© Solarflare Communications 2014
241
Solarflare Server Adapter
User Guide
Benchmarks
Throughput Benchmark using Ntttcp
The following example shows results from running Microsoft’s ntttcp. On Windows Server 2008, 2008 R2 and Windows 7 it is suggested that first, Large Receive Offload (LRO) is enabled via the Network Adapter's Advanced Properties Page. 1
On client and server install drivers via the MSI installer.
2
On Windows Server 2008, 2008 R2 and Windows 7 enable “Large Receive Offload” in advanced driver properties
3
On server run ntttcpr:
ntttcpr.exe -rb 500000 -a 24 -n 100000 -l 524288 -m 1,1,<server_adapter_
IP_interface>
4
On client run ntttcps test: ntttcps.exe -rb 500000 -a 24 -n 100000 -l 524288 -m 1,1,<server_adapter_
IP_interface>
C:\ > ntttcps.exe -rb 500000 -a 24 -n 100000 -l 524288 -m 1,1,<server
adapter IP interface>
Copyright Version 2.4
Network activity progressing...
Thread Realtime(s) Throughput(KB/s) Throughput(Mbit/s)
====== =========== ================
0 44.767 1170961.007 9367.688
Total Bytes(MEG) Realtime(s) Average Frame Size Total Throughput(Mbit/s)
================ =========== ==================
52420.411392 44.767 1459.846 9367.688
Total Buffers Throughput(Buffers/s) Pkts(sent/intr) Intr(count/s) Cycles/
Byte
============= =====================
99984.000 2233.431 27 29187.48 0.8
Packets Sent Packets Received Total Retransmits Total Errors Avg. CPU %
============ ================ =================
Issue 13
© Solarflare Communications 2014
242
Solarflare Server Adapter
User Guide
Tuning Recommendations
The following tables provide recommendations for tuning settings for different application characteristics.
Throughput ‐ Table 54
Latency ‐ Table 55 Table 54: Throughput Tuning Settings
Issue 13
Tuning Parameter
How?
Adaptive Interrupt Moderation
Leave at default (Enabled).
Intel QuickData (Intel chipsets only)
Enable in BIOS and configure as described in guide.
Interrupt Moderation
Leave at default (Enabled).
Interrupt Moderation Time
Leave at default (Enabled 60µs).
Large Receive Offloads
Enable in Network Adapter Advanced Properties.
Large Send Offloads
Leave at default (Enabled).
Max Frame Size
Configure to maximum supported by network in Network Adapter's Advanced Properties.
Memory bandwidth
Ensure Memory utilizes all memory channels on system motherboard.
Offload Checksums
Leave at default.
PCI Express Lane Configuration
Ensure current speed (not the supported speed) reads back as “x8 and 5Gb/s” Or “x8 and Unknown”.
Power Saving Mode
Leave at default.
Receive Side Coalescing
Leave at default (Enabled).
Receive Side Scaling (RSS)
Leave at default.
RSS NUMA Node
Leave at default (All).
TCP Protocol Tuning
Leave at default (install with “Optimize Windows TCP/IP protocol settings for 10G networking” option selected). © Solarflare Communications 2014
243
Solarflare Server Adapter
User Guide
Table 55: Latency Tuning Settings
Issue 13
Tuning Parameter
How?
Adaptive Interrupt Moderation
Leave at default (Enabled).
Intel QuickData (Intel chipsets only)
Enable in BIOS and configure as described in guide.
Interrupt Moderation
Disable in Network Adapter’s Advanced Properties.
Interrupt Moderation Time
Set to 0uS in Network Adapter’s Advanced Properties.
Large Receive Offloads
Disable in Network Adapter’s Advanced Properties.
Large Send Offloads
Leave at default (Enabled).
Max Frame Size
Configure to maximum supported by network in Network Adapter's Advanced Properties.
Memory bandwidth
Ensure Memory utilizes all memory channels on system motherboard.
Offload Checksums
Leave at default (Enabled).
PCI Express Lane Configuration
Ensure the adapter is in x8 Gen 2 slot.
Power Saving Mode
Disable C1E and other CPU sleep modes to prevent OS from putting CPUs into lowering power modes when idle.
Receive Side Coalescing
Disable in Network Adapter’s Advanced Properties.
Receive Side Scaling
Application dependent
RSS NUMA Node
Leave at default (All).
TCP Protocol Tuning
Leave at default (install with “Optimize Windows TCP/IP protocol settings for 10G networking” option selected).
TCP/IP Checksum Offload
Leave at default
© Solarflare Communications 2014
244
Solarflare Server Adapter
User Guide
4.28 Windows Event Log Error Messages
The following tables list the various error messages that can be added to the event log, along with a description and action that should be taken.
Driver Status Codes
Table 56: Driver Status Codes
Issue 13
Value
Error Message
Description
Severity
Notes
0x60000001L
BUS_STATUS_DRIVER_VERSION
The driver version information.
Informational
No action required.
0x60000002L
BUS_STATUS_DRIVER_LOAD_
FAILURE
The driver failed to load.
Informational
0xA0000004L
BUS_STATUS_DRIVER_NOT_
ADDING_DEVICE
The driver can’t add a device due to the system being started in safe mode (SAFEMODE_
MINIMAL).
Warning
0xA0000005L
BUS_STATUS_DRIVER_NUMA_
ALLOCATION_FAILED
The driver could not allocate memory on a specific NUMA node.
Warning
© Solarflare Communications 2014
For maximum performance all NUMA nodes should be populated. Install additional memory.
245
Solarflare Server Adapter
User Guide
Device Status Codes
Table 57: Device Status Codes
Issue 13
Value
Error Message
Description
Severity
Action
0x6001000BL
BUS_STATUS_DEVICE_MTU_
CHANGE
The MTU on the device was changed.
Informational
No action required.
0x6001001BL
BUS_STATUS_DEVICE_MCDI_
VERSION
Hardware MCDI version
Informational
None required.
0xA0010004L
BUS_STATUS_DEVICE_LINK_WIDTH
The device does not have sufficient PCIe lanes to reach full bandwidth.
Warning
Move the adapter into a PCIe slot with more lanes. See PCI Express Lane Configurations on page 238.
0xA001000CL
BUS_STATUS_DEVICE_TX_
WATCHDOG
The transmit watchdog fired
Warning
0xA001000DL
BUS_STATUS_DEVICE_
UNEXPECTED_EVENT
An unexpected event was received from the device.
Warning
0xA0010010L
BUS_STATUS_DEVICE_WRONG_RX_
EVENT
A non‐contiguous RX event was received from the device.
Warning
0xA0010011L
BUS_STATUS_DEVICE_
TEMPERATURE_WARNING
The device has exceeded the maximum supported temperature limit.
Warning
0xA0010013L
BUS_STATUS_DEVICE_COOLING_
ERROR
The device cooling has failed.
Warning
0xA0010014L
BUS_STATUS_DEVICE_VOLTAGE_
WARNING
One of the device voltage supplies is outside of the supported voltage range.
Warning
The adapter or server maybe faulty.
0xA0010017L
BUS_STATUS_DEVICE_MCDI_ERR
Hardware MCDI communication suffered an error.
Warning
None required.
0xA0010019L
BUS_STATUS_DEVICE_MCDI_
BOOT_ERROR
Hardware MCDI boot from non‐
primary flash. Possible flash corruption.
Warning
Run sfupdate or update via SAM.
© Solarflare Communications 2014
No action required.
Improve the server cooling.
246
Solarflare Server Adapter
User Guide
Table 57: Device Status Codes
Issue 13
Value
Error Message
Description
Severity
Action
0xE0010002L
BUS_STATUS_DEVICE_PHY_ZOMBIE
PHY firmware has failed to start.
Error
Possible PHY firmware corruption. Run sfupdate or SAM to update.
0xE0010005L
BUS_STATUS_DEVICE_ADD_
FAILURE
The device could not be added to the system.
Error
0xE0010006L
BUS_STATUS_DEVICE_INIT_
INTERRUPTS_DISABLED_FAILURE
The device could not be initialized with interrupts disabled.
Error
0xE0010007L
BUS_STATUS_DEVICE_INIT_
INTERRUPTS_ENABLED_FAILURE
The device could not be initialized with interrupts enabled.
Error
0xE0010008L
BUS_STATUS_DEVICE_START_
FAILURE
The device could not be started.
Error
0xE0010009L
BUS_STATUS_DEVICE_RESET_
FAILURE
The device could not be reset.
Error
0xE001000AL
BUS_STATUS_DEVICE_EFX_FAILURE
There was an EFX API failure.
Error
0xE0010012L
BUS_STATUS_DEVICE_
TEMPERATURE_ERROR
The device has exceeded the critical temperature limit.
Error
Improve the server cooling.
0xE0010015L
BUS_STATUS_DEVICE_VOLTAGE_
ERROR
One of the device voltage supplies is outside of the critical voltage range.
Error
The adapter or server maybe faulty.
0xE0010016L
BUS_STATUS_DEVICE_UNKNOWN_
SENSOREVT
A non‐specified hardware monitor device has reported an error condition.
Error
0xE0010018L
BUS_STATUS_DEVICE_MCDI_
TIMEOUT
Hardware MCDI communication timed out.
Error
© Solarflare Communications 2014
None required.
247
Solarflare Server Adapter
User Guide
Chapter 5: Solarflare Adapters on VMware
This chapter covers the following topics on the VMware® platform:
• System Requirements...Page 248
• VMware Feature Set...Page 249
• Installing Solarflare Drivers and Utilities on VMware...Page 250
• Configuring Teams...Page 251
• Configuring VLANs...Page 252
• Running Adapter Diagnostics...Page 253
• Configuring the Boot ROM with Sfboot...Page 254
• Upgrading Adapter Firmware with Sfupdate...Page 264
• Performance Tuning on VMware...Page 267
5.1 System Requirements
Refer to Software Driver Support on page 12 for supported VMware host platforms.
Issue 13
© Solarflare Communications 2014
248
Solarflare Server Adapter
User Guide
5.2 VMware Feature Set
Table 58 lists the features available from the VMware host. The following options can also be configured on the guest operating system:
• Jumbo Frames
• Task Offloads
• Virtual LANs (VLANs) Table 58: VMware Host Feature Set
Jumbo frames
Support for MTUs (Maximum Transmission Units) from 1500 bytes to 9000 bytes.
• See Adapter MTU (Maximum Transmission Unit) on page 270
Task offloads
Support for TCP Segmentation Offload (TSO), Large Receive Offload (LRO), and TCP/UDP/IP checksum offload for improved adapter performance and reduced CPU processing requirements.
• See TCP/IP Checksum Offload on page 272
• See TCP Segmentation Offload (TSO) on page 272
NetQueue
Support for NetQueue, a performance technology that significantly improves performance in 10 Gigabit Ethernet virtualized environments. • See VMware ESX NetQueue on page 268
Teaming
Improve server reliability by creating teams on either the host vSwitch, Guest OS or physical switch to act as a single adapter, providing redundancy against single adapter failure.
• See Configuring Teams on page 251
Virtual LANs (VLANs)
Support for VLANs on the host, guest OS and virtual switch.
• See Configuring VLANs on page 252
PXE booting
Support for diskless booting to a target operating system via PXE boot.
• See Sfboot: Command Line Options on page 254
• See Solarflare Boot ROM Agent on page 364
Fault diagnostics
Support for comprehensive adapter and cable fault diagnostics and system reports.
• See Running Adapter Diagnostics on page 253
Issue 13
© Solarflare Communications 2014
249
Solarflare Server Adapter
User Guide
Table 58: VMware Host Feature Set
Firmware updates
Support for Boot ROM and Phy transceiver firmware upgrades for in‐field upgradable adapters.
• See Upgrading Adapter Firmware with Sfupdate on page 264
5.3 Installing Solarflare Drivers and Utilities on VMware
• Using the VMware ESX Service Console...Page 250
• Installing on VMware ESXi 5.0, ESXi 5.1 and ESXi 5.5...Page 250
• Installing on VMware vSphere 4.0 and 4.1...Page 250
• Granting access to the NIC from the Virtual Machine...Page 250
Using the VMware ESX Service Console
The service console is the VMware ESX Server command‐line interface. It provides access to the VMware ESX Server management tools, includes a command prompt for direct management of the Server, and keeps track of all the virtual machines on the server as well as their configurations.
Installing on VMware vSphere 4.0 and 4.1
The Solarflare adapter drivers are provided as an iso image file. Copy the .iso image to a CD‐ROM and refer to the VMware install instructions in the VMware NIC Device Driver Configuration Guide available from http://www.vmware.com/support/pubs/.
Installing on VMware ESXi 5.0, ESXi 5.1 and ESXi 5.5
To install or update the .VIB through the CLI:
esxcli software vib install -v <absolute PATH to the .vib>
To install or update the offline bundle
esxcli software vib install -d <absolute PATH to the .zip>
To install through the Update Manager
Import the package in to the Update Manager and add to a baseline, then follow the normal update process. To install a new package on to a host deploy the package as part of a Host Extension type baseline rather than a Host Upgrade type.
Granting access to the NIC from the Virtual Machine
To allow guest operating systems access to the Solarflare NIC, you will need to connect the device to a vSwitch to which the guest also has a connection. You can either connect to an existing vSwitch, or create a new vSwitch for this purpose. To create a new vSwitch:
Issue 13
© Solarflare Communications 2014
250
Solarflare Server Adapter
User Guide
1
Log in to the VMware Infrastructure Client.
2
Select the host from the inventory panel.
3
Select the Configuration tab.
4
Choose Networking from the Hardware box on the left of the resulting panel.
5
Click Add Networking on the top right.
6
Select Virtual Machine connection type and click Next.
7
Choose Create a Virtual Switch or Use vSwitchX as desired.
8
Follow the remaining on‐screen instructions.
5.4 Configuring Teams
A team allows two or more network adapters to be connected to a virtual switch (vSwitch). The main benefits of creating a team are:
• Increased network capacity for the virtual switch hosting the team.
• Passive failover in the event one of the adapters in the team fails.
NOTE: The VMware ESX host only supports NIC teaming on a single physical switch or stacked switches.
To create a team
1
From the host, select the Configuration tab.
2
Select Networking from the Hardware section.
3
Select Properties for the Virtual Switch you want to create the team for.
4
Select the vSwitch from the dialog box and click Edit.
5
Select NIC Teaming.
You can configure the following settings:
• Load Balancing
• Network Failover Detection
• Notify Switches
• Failover
• Failover Order
Issue 13
© Solarflare Communications 2014
251
Solarflare Server Adapter
User Guide
5.5 Configuring VLANs
There are three methods for creating VLANs on VMware ESX:
1
Virtual Switch Tagging (VST)
2
External Switch Tagging (EST)
3
Virtual Guest Tagging (VGT) For EST and VGT tagging, consult the documentation for the switch or for the guest OS.
To Configure Virtual Switch Tagging (VST)
With vSwitch tagging:
• All VLAN tagging of packets is performed by the virtual switch, before leaving the VMware ESX host.
• The host network adapters must be connected to trunk ports on the physical switch.
• The port groups connected to the virtual switch must have an appropriate VLAN ID specified. NOTE: VMware recommend that you create or amend VLAN details from the physical console of the server, not via the Infrastructure Client, to prevent potential disconnections.
1
From the host, select the Configuration tab.
2
Select Networking from the Hardware section.
3
Select Properties for the Virtual Switch you want to create the team for.
4
Select a Port Group and click Edit.
5
Enter a valid VLAN ID (0 equals no VLAN).
6
Click OK.
Further Reading
• NIC teaming in VMware ESX Server:
http://kb.vmware.com/selfservice/microsites/
search.do?cmd=displayKC&docType=kc&externalId=1004088&sliceId=1&docTypeID=DT_KB_1_1&
dialogID=40304190&stateId=0%200%2037866989
• VMware ESX Server host requirements for link aggregation:
http://kb.vmware.com/selfservice/microsites/
search.do?language=en_US&cmd=displayKC&externalId=1001938
• VLAN Configuration on Virtual Switch, Physical Switch, and virtual machines:
http://kb.vmware.com/selfservice/microsites/
search.do?language=en_US&cmd=displayKC&externalId=1003806
Issue 13
© Solarflare Communications 2014
252
Solarflare Server Adapter
User Guide
5.6 Running Adapter Diagnostics
You can use Ethtool to run adapter diagnostic tests. Tests can be run offline (default) or online. Offline runs the full set of tests, possibly causing normal operation interruption during testing. Online performs a limited set of tests without affecting normal adapter operation.
As root user, enter the following command:
ethtool --test vmnicX offline|online
The tests run by the command are as follows:
Table 59: Adapter Diagnostic Tests
Diagnostic Test
Purpose
core.nvram
Verifies the flash memory 'board configuration' area by parsing and examining checksums. core.registers
Verifies the adapter registers by attempting to modify the writable bits in a selection of registers. core.interrupt
Examines the available hardware interrupts by forcing the controller to generate an interrupt and verifying that the interrupt has been processed by the network driver. tx/rx.loopback Verifies that the network driver is able to pass packets to and from the network adapter using the MAC and Phy loopback layers.
core.memory
Verifies SRAM memory by writing various data patterns (incrementing bytes, all bit on and off, alternating bits on and off) to each memory location, reading back the data and comparing it to the written value. core.mdio
Verifies the MII registers by reading from PHY ID registers and checking the data is valid (not all zeros or all ones). Verifies the MMD response bits by checking each of the MMDs in the Phy is present and responding. chanX eventq.poll
Verifies the adapter’s event handling capabilities by posting a software event on each event queue created by the driver and checking it is delivered correctly. The driver utilizes multiple event queues to spread the load over multiple CPU cores (RSS).
phy.bist
Issue 13
Examines the PHY by initializing it and causing any available built‐in self tests to run. © Solarflare Communications 2014
253
Solarflare Server Adapter
User Guide
5.7 Configuring the Boot ROM with Sfboot
• Sfboot: Command Usage...Page 254
• Sfboot: Command Line Options...Page 254
• Sfboot: Examples...Page 262
Sfboot is a command line utility for configuring the Solarflare adapter Boot ROM for PXE and iSCSI booting. Using sfboot is an alternative to using Ctrl+B to access the Boot Rom agent during server startup.
See Configuring the Solarflare Boot ROM Agent on page 364 for more information on the Boot Rom agent.
Sfboot: Command Usage
Log in to the VMware Service Console as root, and enter the following command:
sfboot [--adapter=vmnicX] [options] [parameters]
Note that without --adapter, the sfboot command applies to all adapters that are present in the target host. The format for the parameters are: <parameter>=<value>
Sfboot: Command Line Options
Table 60 lists the options for sfboot.exe and Table 61 lists the available parameters. Table 60: Sfboot Options
Option
Description
-?-h, --help
Displays command line syntax and provides a description of each sfboot option.
-V, --version
Shows detailed version information and exits. --nologo
Hide the version and copyright message at startup. -v, --verbose
Shows extended output information for the command entered. -y --yes
Update without prompting.
-s, --quiet
Suppresses all output, including warnings and errors; no user interaction. You should query the completion code to determine the outcome of commands when operating silently (see Performance Tuning on Windows on page 233). Aliases: --silent
Issue 13
© Solarflare Communications 2014
254
Solarflare Server Adapter
User Guide
Table 60: Sfboot Options
Option
Description
--log <filename>
Logs output to the specified file in the current folder or an existing folder. Specify --silent to suppress simultaneous output to screen, if required.
--computer <computer_name>
Performs the operation on a specified remote computer. Administrator rights on the remote computer is required. --list
Lists all available Solarflare adapters. This option shows the ifname and MAC address. Note: this option may not be used in conjunction with the any other option. If this option is used with configuration parameters, those parameters will be silently ignored.
-i, --adapter =<vmnicX>
Performs the action on the identified Solarflare network adapter. The adapter identifier vmnicX can be the name or MAC address, as output by the ‐‐
list option. If --adapter is not included, the action will apply to all installed Solarflare adapters.
--clear
Resets all adapter options except boot-image to their default values. Note that --clear can also be used with parameters, allowing you to reset to default values, and then apply the parameters specified.
The following parameters in Table 61 are used to control the options for the Boot ROM driver when running prior to the operating system booting.
Table 61: Sfboot Parameters
Issue 13
Parameter
Description
bootimage=<all|optionrom|uefi|di
sabled>
Specifies which boot firmware images are served‐up to the BIOS during start‐up. This parameter can not be used if the --adapter option has been specified. This option is not reset if --clear is used.
© Solarflare Communications 2014
255
Solarflare Server Adapter
User Guide
Table 61: Sfboot Parameters
Parameter
Description
linkspeed=<auto|10g|1g|100m>
Specifies the network link speed of the adapter used by the Boot ROM the default is auto. On the 10GBASE‐T adapters “auto” instructs the adapter to negotiate the highest speed supported in common with it’s link partner . On SFP+ adapters, “auto” instructs the adapter to use the highest link speed supported by the inserted SFP+ module. On 10GBASE‐T and SFP+ adapters, any other value specified will fix the link at that speed, regardless of the capabilities of the link partner, which may result in an inability to establish the link
auto Auto‐negotiate link speed (default)
10G 10G bit/sec
1G 1G bit/sec
100M 100M bit/sec
linkup-delay=<seconds>
Specifies the delay (in seconds) the adapter defers its first connection attempt after booting, allowing time for the network to come up following a power failure or other restart. This can be used to wait for spanning tree protocol on a connected switch to unblock the switch port after the physical network link is established. The default is 5 seconds.
banner-delay=<seconds>
Specifies the wait period for Ctrl‐B to be pressed to enter adapter configuration tool. seconds = 0‐256
bootskip-delay=<seconds>
Specifies the time allowed for Esc to be pressed to skip adapter booting. seconds = 0‐256
boottype=<pxe|iscsi|disabled>
Sets the adapter boot type. pxe – PXE (Preboot eXecution Environment) booting
iscsi – iSCSI (Internet Small Computer System Interface) booting
disabled – Disable adapter booting
Issue 13
© Solarflare Communications 2014
256
Solarflare Server Adapter
User Guide
Table 61: Sfboot Parameters
Parameter
Description
initiatordhcp=<enabled|disabled>
Enables or disables DHCP address discovery for the adapter by the Boot ROM except for the Initiator IQN (see initiator-iqn-dhcp). This option is only valid if iSCSI booting is enabled (boottype=iscsi). If initiator‐DHCP is set to disabled, the following options will need to be specified:
initiator-ip=<ip_address>
netmask=<subnet>
The following options may also be needed: gateway=<ip_address>
primary-dns=<ip_address>
initiator-ip=<ipv4 address>
Specifies the IPv4 address (in standard “.” notation form) to be used by the adapter when initiatordhcp is disabled.
Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled initiatorip=<192.168.1.3>
netmask=<ipv4 subnet>
Specifies the IPv4 subnet mask (in standard “.” notation form) to be used by the adapter when initiator-dhcp is disabled. Note that this option is only valid if iSCSI booting is enabled (boottype=iscsi). Example: sfboot boot-type=iscsi initiatordhcp=disabled netmask=255.255.255.0
gateway=<ipv4 address>
Specifies the IPv4 subnet mask (in standard “.” notation form) to be used by the adapter when initiator-dhcp is disabled. Note that this option is only valid if iSCSI booting is enabled (boottype=iscsi). Example:
sfboot boot-type=iscsi initiatordhcp=disabled gateway=192.168.0.10
Issue 13
© Solarflare Communications 2014
257
Solarflare Server Adapter
User Guide
Table 61: Sfboot Parameters
Parameter
Description
primary-dns=<ipv4 address>
Specifies the IPv4 address (in standard “.” notation form) of the Primary DNS to be used by the adapter when initiator-dhcp is disabled. This option is only valid if iSCSI booting is enabled (boot-type=iscsi). Example:
sfboot boot-type=iscsi initiatordhcp=disabled primary-dns=192.168.0.3
initiator-iqndhcp=<enabled|disabled>
Enables or disables use of DHCP for the initiator IQN only.
initiator-iqn=<IQN>
Specifies the IQN (iSCSI Qualified Name) to be used by the adapter when initiator-iqn-dhcp is disabled. The IQN is a symbolic name in the “.” notation form; for example: iqn.2009.01.com.solarflare, and is a maximum of 223 characters long. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Example:
sfboot initiator-iqn-dhcp=disabled
initiatoriqn=iqn.2009.01.com.solarflare
adapter=2
lun-retry-count=<count>
Specifies the number of times the adapter attempts to access and login to the Logical Unit Number (LUN) on the iSCSI Target before failing. Note that this option is only valid if iSCSI booting is enabled (boottype=iscsi). Example: sfboot lun-retry-count=3
Issue 13
© Solarflare Communications 2014
258
Solarflare Server Adapter
User Guide
Table 61: Sfboot Parameters
Parameter
Description
targetdhcp=<enabled|disabled>
Enables or disables the use of DHCP to discover iSCSI target parameters on the adapter.
If target-dhcp is disabled, you must specify the following options:
target-server=<address>
target-iqn=<iqn>
target-port=<port>
target-lun=<LUN>
Example ‐ Enable the use of DHCP to configure iSCSI Target settings: sfboot boot-type=iscsi targetdhcp=enabled
target-server=<DNS name or
ipv4 address>
Specifies the iSCSI target’s DNS name or IPv4 address to be used by the adapter when target-dhcp is disabled. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Example:
sfboot boot-type=iscsi targetdhcp=disabled target-server=192.168.2.2
target-port=<port_number>
Specifies the Port number to be used by the iSCSI target when target-dhcp is disabled. The default Port number is Port 3260. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Example: sfboot boot-type=iscsi targetdhcp=disabled target-port=3262
This option should only be used if your target is using a non‐standard TCP Port.
target-lun=<LUN>
Specifies the Logical Unit Number (LUN) to be used by the iSCSI target when target-dhcp is disabled. The default LUN is 0. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Issue 13
© Solarflare Communications 2014
259
Solarflare Server Adapter
User Guide
Table 61: Sfboot Parameters
Parameter
Description
target-iqn=<IQN>
Specifies the IQN of the iSCSI target when targetdhcp is disabled. Maximum of 223 characters. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Note that if there are spaces contained in <IQN>, then the IQN must be wrapped in double quotes (“”).
Example: sfboot target-dhcp=disabled targetiqn=iqn.2009.01.com.solarflare
adapter=2
vendor-id=<dhcp_id>
Specifies the device vendor ID to be advertised to the DHCP server. This must match the vendor id configured at the DHCP server when using DHCP option 43 to obtain the iSCSI target .
chap=<enabled|disabled>
Enables or disables the use of Challenge Handshake Protocol (CHAP) to authenticate the iSCSI connection. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). To be valid, this option also requires the following sub‐options to be specified: username=<initiator username>
secret=<initiator password>
Example: sfboot boot-type=iscsi chap=enabled
username=initiatorusername
secret=initiatorsecret
Issue 13
© Solarflare Communications 2014
260
Solarflare Server Adapter
User Guide
Table 61: Sfboot Parameters
Parameter
Description
username=<username>
Specifies the CHAP initiator username (maximum 64 characters). Note that this option is required if either CHAP or Mutual CHAP is enabled (chap=enabled,
mutual-chap=enabled).
Note that if there are spaces contained in <username>, then it must be wrapped in double quotes (“”).
Example: sfboot boot-type=iscsi chap=enabled
username=username
Specifies the CHAP initiator secret (minimum 12 characters, maximum 20 characters). secret=<secret>
Note that this option is valid if either CHAP or Mutual CHAP is enabled (chap=enabled, mutualchap=enabled).
Note that if there are spaces contained in <secret>, then it must be wrapped in double quotes (“”).
Example: sfboot boot-type=iscsi chap=enabled
username=username secret=veryverysecret
mutualchap=<enabled|disabled>
Enables/disables Mutual CHAP authentication when iSCSI booting is enabled. This option also requires the following sub‐options to be specified: target-username=<username>
target-secret=<password>
username=<username>
secret=<password>
Example: sfboot boot-type=iscsi mutualchap=enabled username=username
secret=veryverysecret targetusername=targetusername targetsecret=anothersecret
Issue 13
© Solarflare Communications 2014
261
Solarflare Server Adapter
User Guide
Table 61: Sfboot Parameters
Parameter
Description
target-username=<username>
Specifies the username that has been configured on the iSCSI target (maximum 64 characters).
Note that this option is necessary if Mutual CHAP is enabled on the adapter (mutual-chap=enabled).
Note that if there are spaces contained in <username>, then it must be wrapped in double quotes (“”).
target-secret=<secret>
Specifies the secret that has been configured on the iSCSi target (minimum 12 characters; maximum 20 characters). Note: This option is necessary if Mutual CHAP is enabled on the adapter (mutual-chap=enabled).
Note that if there are spaces contained in <secret>, then it must be wrapped in double quotes (“”).
mpio-priority=<MPIO
priority>
Specifies the Multipath I/O (MPIO) priority for the adapter. This option is only valid for iSCSI booting over multi‐port adapters, where it can be used to establish adapter port priority. The range is 1‐ 255, with 1 being the highest priority.
mpio-attempts=<attempt
count>
Specifies the number of times MPIO will try and use each port in turn to login to the iSCSI target before failing. msix-limit=<32|1024>
Specifies the maximum number of MSI‐X interrupts the specified adapter will use. The default is 32.
Note: Using the incorrect setting can impact the performance of the adapter. Contact Solarflare technical support before changing this setting.
Sfboot: Examples
• Show the current boot configuration for all adapters:
Issue 13
© Solarflare Communications 2014
262
Solarflare Server Adapter
User Guide
Sfboot
Solarflare boot configuration utility [v3.0.3]
Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005
Issue 13
eth1:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
MSI-X interrupt limit
Option ROM and UEFI
Negotiated automatically
5 seconds
2 seconds
5 seconds
Disabled
32
eth2:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
MSI-X interrupt limit
Option ROM and UEFI
Negotiated automatically
5 seconds
2 seconds
5 seconds
Disabled
32
© Solarflare Communications 2014
263
Solarflare Server Adapter
User Guide
5.8 Upgrading Adapter Firmware with Sfupdate
• Sfupdate: Command Usage...Page 264
• Sfupdate: Command Line Options...Page 264
• Sfupdate: Examples...Page 266
Sfupdate is a command line utility used to manage and upgrade the Solarflare adapter Boot ROM, Phy and adapter firmware. Embedded within the sfupdate executable is firmware images for various Solarflare adapters ‐ the exact updates available via sfupdate are therefore depend on your adapter. Sfupdate: Command Usage
Log in to the VMware Service Console as root, and enter the following command:
sfupdate [--adapter=vmnicX] [options]
where:
vmnicX is the interface name of the Solarflare adapter you want to upgrade. Specifying the adapter is optional ‐ if it is not included the command is applied to all Solarflare adapters in the machine.
option is one of the command options listed in Table 62.
The format for the options are: <option>=<parameter>
Running the command sfupdate with no additional parameters will show the current firmware version for all Solarflare adapters and whether the firmware within sfupdate is more up to date. To update the firmware for all Solarflare adapters run the command sfupdate --write
Solarflare recommend that you use sfupdate in the following way:
1
Run sfupdate to check that the firmware on all your adapters are up to date.
2
Run sfupdate --write to update the firmware on all adapters.
Sfupdate: Command Line Options
Table 62 lists the options for sfupdate. Table 62: Sfupdate Options
Issue 13
Option
Description
-h, --help
Shows help for the available options and command line syntax. -v, --verbose
Verbose output mode.
-s, --silent
Suppress all output except errors. Useful for scripting.
-V, --version
DIsplay version number information and exit.
© Solarflare Communications 2014
264
Solarflare Server Adapter
User Guide
Table 62: Sfupdate Options
Option
Description
-i, --adapter=vmnicX
Specifies the target adapter when more than one adapter is installed in the local host. vmnicX = Adapter interface name or MAC address (as obtained with --list). --list
Shows the adapter ID, adapter name and MAC address of each adapter installed in the local host, or on the target when --computer is specified. --write
Writes the firmware from the images embedded in sfupdate. To use an external image, specify -image=<filename> in the command. --write fails if the embedded image is the same or a previous version to that in the adapter. To force a write in this case, specify --force in the command. --force
Force update of all firmware, even if the installed firmware version is the same or more recent. If required, use this option with --write.
--image=<filename>
Specifies a specific firmware image. This option is not normally required and is only necessary if you need to provide writing the sfupdate embedded image file. -y, --yes
Issue 13
Prompts for user confirmation before writing the firmware. © Solarflare Communications 2014
265
Solarflare Server Adapter
User Guide
Sfupdate: Examples
• List all Solarflare adapters installed on the host with the installed firmware:
sfupdate
Solarflare firmware update utility [v3.0.3]
Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005
eth1 - MAC: 00-0F-53-01-39-70
Firmware version:
v3.0.3
PHY type:
QT2025C
PHY version:
v2.0.2.5
Controller type:
Solarflare SFC4000
Controller version: v3.0.3.2127
BootROM version:
v3.0.3.2127
The PHY firmware is up to date
The BootROM firmware is up to date
The controller firmware is up to date
eth2 - MAC: 00-0F-53-01-39-71
Firmware version:
v3.0.2
PHY type:
QT2025C
PHY version:
v2.0.2.5
The PHY firmware is up to date
Issue 13
© Solarflare Communications 2014
266
Solarflare Server Adapter
User Guide
5.9 Performance Tuning on VMware
• Introduction...Page 267
• Tuning Settings...Page 267
• Other Considerations...Page 273
Introduction
The Solarflare family of network adapters are designed for high‐performance network applications. The adapter driver is pre‐configured with default performance settings that have been designed to give good performance across a broad class of applications. In many cases, application performance can be improved by tuning these settings to best suit the application.
There are three metrics that should be considered when tuning an adapter: • Throughput
• Latency
• CPU utilization
Different applications may be more or less affected by improvements in these three metrics. For example, transactional (request‐response) network applications can be very sensitive to latency whereas bulk data transfer applications are likely to be more dependent on throughput.
The purpose of this section is to highlight adapter driver settings that affect the performance metrics described. This guide covers the tuning of all members of the Solarflare family of adapters. Performance between adapters should be identical, with the exception of latency measurements. Latency will be affected by the type of physical medium used: CX4, XFP, 10GBase‐T or SFP+. This is because the physical media interface chip (PHY) used on the adapter can introduce additional latency.
Tuning Settings
Install VMware Tools in the Guest Platform
Installing VMware tools will give greatly improved networking performance in the guest. If VMware Tools are not installed, ESX emulates a PC‐Lance device in the guest. If VMware Tools are installed, the guest will see a virtual adapter of type vmxnet.
To check that VMware Tools are installed:
1
From the VMware Infrastructure Client, power on the virtual machine and click the Summary tab. 2
In the General panel, check the status of VMware Tools.
To install VMware Tools:
1
Power on the virtual machine
2
From the Inventory > Virtual Machine menu, select Install/Upgrade VMware Tools. Issue 13
© Solarflare Communications 2014
267
Solarflare Server Adapter
User Guide
This will mount a virtual CD‐ROM in the guest OS. If the guest OS is Windows, it can autorun the CD and install tools (if not, navigate to the CD‐ROM device and run the setup program yourself). If the guest is a Linux OS, you must mount the CD, install the tools, and configure them. For example, if the guest is Red Hat:
# mount /dev/cdrom /mnt
# rpm –i /mnt/VMwareTools*.rpm
# vmware-tools-config.pl
VMware ESX NetQueue
Solarflare adapters supports VMware’s NetQueue technology, which accelerates network performance in 10 Gigabit Ethernet virtualized environments. NetQueue is enabled by default in VMware versions. There is usually no reason not to enable NetQueue.
NOTE: VMware NetQueue accelerates both receive and transmit traffic.
Issue 13
© Solarflare Communications 2014
268
Solarflare Server Adapter
User Guide
Binding NetQueue queues and Virtual Machines to CPUs
Depending on the workload, NetQueue can show improved performance if each of the queues’ associated interrupt and the virtual machine are pinned to the same CPU. This is particularly true of workloads where sustained high bandwidth is evenly distributed across multiple virtual machines (such as you might do when benchmarking). To pin a Virtual Machine to one or more CPUs:
1
Log in to the VMware Infrastructure Client. 2
Expand the host and select the virtual machine to pin from the inventory panel.
3
Select the Summary tab for that virtual machine.
4
Click Edit Settings.
5
From the resulting dialog box select the Resources tab
6
Click Advanced CPU on the left.
7
Select the CPU(s) to which the virtual machine is to be bound (on the right hand side of the dialog box).
To bind a queue’s interrupt to a CPU, from the VMware ESX console OS enter:
# echo move $IRQVEC $CPU > /proc/vmware/intr-tracker
(Where $IRQVEC is the interrupt vector in hex, and $CPU is the CPU number in decimal.)
To determine the value for $IRQVEC enter:
# cat /proc/vmware/interrupts
Locate the interrupts associated with the Solarflare adapter (e.g. vmnic2). Interrupts are listed in order: the first interrupt will be for the default queue, the second interrupt for the queue dedicated to the first virtual machine to have been started, the third interrupt for the queue dedicated to the second virtual machine to have been started, and so on.
If there are more virtual machine’s than CPUs on the host, optimal performance is obtained by pinning each virtual machine and associated interrupt to the same CPU. If there are fewer virtual machines than CPUs, optimal results are obtained by pinning the virtual machine and associated interrupt respectively to two cores which share an L2 cache.
Issue 13
© Solarflare Communications 2014
269
Solarflare Server Adapter
User Guide
Adapter MTU (Maximum Transmission Unit)
The default MTU of 1500 bytes ensures that the adapter is compatible with legacy 10/100Mbps Ethernet endpoints. However if a larger MTU is used, adapter throughput and CPU utilization can be improved. CPU utilization is improved because it takes fewer packets to send and receive the same amount of data. Solarflare adapters support frame sizes up to 9216 bytes (this does not include the Ethernet preamble or frame‐CRC).
Since the MTU should ideally be matched across all endpoints in the same LAN (VLAN), and since the LAN switch infrastructure must be able to forward such packets, the decision to deploy a larger than default MTU requires careful consideration. It is recommended that experimentation with MTU be done in a controlled test environment. To change the MTU of the vSwitch, from the VMware Console OS enter:
# esxcfg-vswitch --mtu <size> <vSwitch>
To verify the MTU settings, as well as obtaining a list of vSwitches installed on the host, enter:
# esxcfg-vswitch --list
The change in MTU size of the vSwitch will persist across reboots of the VMware ESX host.
Issue 13
© Solarflare Communications 2014
270
Solarflare Server Adapter
User Guide
Interrupt Moderation (Interrupt Coalescing)
Interrupt moderation controls the number of interrupts generated by the adapter by adjusting the extent to which receive packet processing events are coalesced. Interrupt moderation may coalesce more than one packet‐reception or transmit‐completion event into a single interrupt.
By default, adaptive moderation is enabled. Adaptive moderation means that the network driver software adapts the interrupt moderation setting according to the traffic and workloads it sees.
Alternatively, you can set the moderation interval manually. You would normally only do this if you are interested in reducing latency. To do this you must first disable adaptive moderation with the following command, where vmnicX is the interface name.
ethtool -C <vmnicX> adaptive-rx off
NOTE: adaptive-rx may already have been disabled. Consult your VMware documentation for details.
Interrupt moderation can be changed using ethtool, where vmnicX is the interface name and interval is the moderation setting in microseconds (μs). Specifying 0 as the interval parameter will turn interrupt moderation off:
ethtool –C <vmnicX> rx-usecs-irq <interval>
Verification of the moderation settings may be performed by running ethtool –c This parameter is critical for tuning adapter latency. Increasing the moderation value will increase latency, but reduce CPU utilization and improve peak throughput, if the CPU is fully utilized. Decreasing the moderation value or turning it off will decrease latency at the expense of CPU utilization and peak throughput. However, for many transaction request‐response type network applications, the benefit of reduced latency to overall application performance can be considerable. Such benefits may outweigh the cost of increased CPU utilization. NOTE: The interrupt moderation time dictates the minimum gap between two consecutive interrupts. It does not mandate a delay on the triggering of an interrupt on the reception of every packet. For example, an interrupt moderation setting of 30µs will not delay the reception of the first packet received, but the interrupt for any following packets will be delayed until 30µs after the reception of that first packet.
Issue 13
© Solarflare Communications 2014
271
Solarflare Server Adapter
User Guide
TCP/IP Checksum Offload
Checksum offload moves calculation and verification of IP Header, TCP and UDP packet checksums to the adapter. The driver by default has all checksum offload features enabled. Therefore, there is no opportunity to improve performance from the default. Checksum offload is controlled using ethtool: Receive Checksum:
# /sbin/ethtool –K <vmnicX> rx <on|off>
Transmit Checksum:
# /sbin/ethtool –K <vmnicX> tx <on|off>
Verification of the checksum settings may be performed by running ethtool with the –k option. Solarflare recommend you do not disable checksum offload.
For advice on configuring checksum offload in the guest, consult the relevant Solarflare section for that guest, or the documentation for the guest operating system. TCP Segmentation Offload (TSO)
TCP Segmentation offload (TSO) offloads the splitting of outgoing TCP data into packets to the adapter. TCP segmentation offload benefits applications using TCP. Non TCP protocol applications will not benefit (but will not suffer) from TSO.
Enabling TCP segmentation offload will reduce CPU utilization on the transmit side of a TCP connection, and so improve peak throughput, if the CPU is fully utilized. Since TSO has no effect on latency, it can be enabled at all times. The driver has TSO enabled by default. Therefore, there is no opportunity to improve performance from the default. NOTE: TSO cannot be controlled via the host on VMware ESX. It can only be controlled via the guest Operating System.
TCP Large Receive Offload (LRO)
TCP Large Receive Offload (LRO) is a feature whereby the adapter coalesces multiple packets received on a TCP connection into a single call to the operating system TCP Stack. This reduces CPU utilization, and so improves peak throughput when the CPU is fully utilized. LRO should not be enabled if you are using the host to forward packets from one interface to another; for example if the host is performing IP routing or acting as a layer2 bridge. LRO is supported, and enabled by default, on VMware versions later than ESX 3.5.
Issue 13
© Solarflare Communications 2014
272
Solarflare Server Adapter
User Guide
TCP Protocol Tuning
TCP Performance can also be improved by tuning kernel TCP settings. Settings include adjusting send and receive buffer sizes, connection backlog, congestion control, etc. Typically it is sufficient to tune just the max buffer value. It defines the largest size the buffer can grow to. Suggested alternate values are max=500000 (1/2 Mbyte). Factors such as link latency, packet loss and CPU cache size all influence the affect of the max buffer size values. The minimum and default values can be left at their defaults minimum=4096 and default=87380.
For advice on tuning the guest TCP stack consult the documentation for the guest operating system.
Receive Side Scaling (RSS)
Solarflare adapters support Receive Side Scaling (RSS). RSS enables packet receive‐processing to scale with the number of available CPU cores. RSS requires a platform that supports MSI‐X interrupts. RSS is enabled by default.
When RSS is enabled the controller uses multiple receive queues into which to deliver incoming packets. The receive queue selected for an incoming packet is chosen in such a way as to ensure that packets within a TCP stream are all sent to the same receive queue – this ensures that packet‐
ordering within each stream is maintained. Each receive queue has its own dedicated MSI‐X interrupt which ideally should be tied to a dedicated CPU core. This allows the receive side TCP processing to be distributed amongst the available CPU cores, providing a considerable performance advantage over a conventional adapter architecture in which all received packets for a given interface are processed by just one CPU core.
RSS will be enabled whenever NetQueue is not and Solarflare recommend using NetQueue on VMware ESX hosts.
Other Considerations
PCI Express Lane Configurations
The PCI Express (PCIe) interface used to connect the adapter to the server can function at different widths. This is independent of the physical slot size used to connect the adapter. The possible widths are multiples x1, x2, x4, x8 and x16 lanes of (2.5Gbps for PCIe Gen. 1, 5.0 Gbps for PCIe Gen. 2) in each direction. Solarflare Adapters are designed for x8 lane operation.
On some server motherboards, choice of PCIe slot is important. This is because some slots (including ones that are physically x8 or x16 lanes) may only electrically support x4 lanes. In x4 lane slots, Solarflare PCIe adapters will continue to operate, but not at full speed. The Solarflare driver will warn you if it detects the adapter is plugged into a PCIe slot which electrically has fewer than x8 lanes. For SFN5xxxx adapters, which require a PCIe Gen. 2 slot for optimal operation, a warning will be given if they are installed in a PCIe Gen. 1 slot. Warning messages can be viewed in dmesg from /
var/log/messages.
Memory bandwidth
Many chipsets/CPUs use multiple channels to access main system memory. Maximum memory performance is only achieved when the server can make use of all channels simultaneously. This Issue 13
© Solarflare Communications 2014
273
Solarflare Server Adapter
User Guide
should be taken into account when selecting the number of DIMMs to populate in the server. Consult your motherboard documentation for details.
Intel® QuickData
Intel® QuickData Technology allows VMware ESX to data copy by the chipset instead of the CPU, to move data more efficiently through the server and provide fast, scalable, and reliable throughput. I/O AT can be enabled on the host and on guest operating systems. For advice on enabling I/OAT in the guest, consult the relevant Solarflare section for that guest, or the documentation for the guest operating system. I/OAT must be enabled on the host if it is to be used in the guests.
To enable I/OAT on the VMware ESX host:
On some systems the hardware associated with I/OAT must first be enabled in the BIOS
Log in to the ConsoleOS on the VMware ESX host, and enter:
# esxcfg-advcfg -s 1 /Net/TcpipUseIoat
Reboot the VMware ESX host
To verify I/OAT is enabled, from the ConsoleOS enter:
# vmkload_mod -l | grep -i ioat
NOTE: The following VMware KB article should be read when enabling I/OAT.
http://kb.vmware.com/selfservice/microsites/
search.do?language=en_US&cmd=displayKC&externalId=1003712
Server Motherboard, Server BIOS, Chipset Drivers
Tuning or enabling other system capabilities may further enhance adapter performance. Readers should consult their server user guide. Possible opportunities include tuning PCIe memory controller (PCIe Latency Timer setting available in some BIOS versions). Issue 13
© Solarflare Communications 2014
274
Solarflare Server Adapter
User Guide
Chapter 6: Solarflare Adapters on Solaris
This chapter covers the following topics on the Solaris platform:
• System Requirements...Page 275
• Solaris Platform Feature Set...Page 276
• Installing Solarflare Drivers...Page 277
• Unattended Installation Solaris 10...Page 278
• Unattended Installation Solaris 11...Page 279
• Setting Up VLANs...Page 282
• Solaris Utilities Package...Page 282
• Configuring the Boot ROM with sfboot...Page 282
• Upgrading Adapter Firmware with Sfupdate...Page 293
• Performance Tuning on Solaris...Page 296
• Module Parameters...Page 304
• Kernel and Network Adapter Statistics...Page 306
6.1 System Requirements
Refer to Software Driver Support on page 12 for details of supported Solaris distributions.
Solarflare drivers for Solaris support the GLDv3 API, but do not support the Crossbow API framework.
Issue 13
© Solarflare Communications 2014
275
Solarflare Server Adapter
User Guide
6.2 Solaris Platform Feature Set
Table 63 lists the features supported by Solarflare adapters on Solaris. Table 63: Solaris Feature Set
Jumbo frames
Support for MTUs (Maximum Transmission Units) to 9000 bytes.
• See Configuring Jumbo Frames on page 281
Task offloads
Support for TCP Segmentation Offload (TSO), Large Receive Offload (LRO), and TCP/UDP/IP checksum offload for improved adapter performance and reduced CPU processing requirements.
• See Configuring Task Offloading on page 281
Receive Side Scaling (RSS)
Support for RSS multi‐core load distribution technology.
• See Receive Side Scaling (RSS) on page 299
Virtual LANs (VLANs)
Support for multiple VLANs per adapter.
• See Setting Up VLANs on page 282
PXE and booting
Support for diskless booting to a target operating system via PXE or iSCSI boot.
• See Configuring the Boot ROM with sfboot on page 282
• See Solarflare Boot ROM Agent on page 364
Firmware updates
Support for Boot ROM, PHY transceiver and adapter firmware upgrades.
• See Upgrading Adapter Firmware with Sfupdate on page 293
Issue 13
© Solarflare Communications 2014
276
Solarflare Server Adapter
User Guide
6.3 Installing Solarflare Drivers
The Solaris drivers for Solarflare are available in a binary package for both 32 and 64 bit platforms.
• A driver package (pkg format) is available for Solaris 10.8, 10.9 and 10.10.
• A driver package (pkg format) is available for Solaris 11.0. NOTE: The Solarflare adapter should be physically installed in the host computer before you attempt to install drivers. You must have root permissions to install the adapter drivers.
1
As a root user enter: pkgadd -d SFCsfxge_sol10_i386_<version>.pkg SFCsfxge
or
pkgadd -d SFCsfxge_sol11_i386_<version>.pkg SFCsfxge
Output similar to the following will be displayed:
Solarflare 10GE NIC Driver(i386) <DRIVER VERSION>
<LICENSE INFO>
This package contains scripts which will be executed with super-user
permission during the process of installing this package.
Do you want to continue with the installation of <SFCsfxge> [y,n,?]
2
Enter 'y'. The installation will continue.
3
The following information will be displayed:
Installing Solarflare 10GE NIC Driver as <SFCsfxge>
## Installing part 1 of 1.
/kernel/drv/amd64/sfxge
/kernel/drv/sfxge
[ verifying class <none> ]
## Executing postinstall script.
Installation of <SFCsfxge> was successful. Issue 13
© Solarflare Communications 2014
277
Solarflare Server Adapter
User Guide
6.4 Unattended Installation Solaris 10
Unattended installations of Solaris 10 are done via JumpStart. For general information on JumpStart see:
http://www.oracle.com/technetwork/articles/servers‐storage‐admin/installjumpstartons11ex‐
219229.html
The process for using JumpStart is as follows:
• Create a JumpStart installation server
• Create the client configuration files
• Share the client tftpboot files
• Configure and run the DHCP Server
• Perform a hands‐off JumpStart installation
These processes are documented here:
http://docs.oracle.com/cd/E19253‐01/819‐6397/819‐6397.pdf NOTE: The Solarflare server adapter can be used to PXE boot the installer, but as there is no driver, the adapter can not be used during installation.
To install the Solarflare Solaris package as part of an unattended installation, it must be added using the package command to the JumpStart machine profile. The package can reside on a local disk or on a HTTP or NFS server. For more information, see:
http://search.oracle.com/sear ch/
search?start=1&search_p_main_operator=all&q=package+command&group=Technology+Networ
The following are example lines for a JumpStart profile:
package SFCsfxge add local_device <device> <path> <file_system_type>
package SFCsfxge add http://<server_name>[:<port>] <path> [<options>]
package SFCsfxge add nfs://<server_name>:/<path> [retry <n>]
Issue 13
© Solarflare Communications 2014
278
Solarflare Server Adapter
User Guide
Table 64 shows an example time line for an unattended installation. Table 64: Installation Stages
In Control
Stages of Boot
Setup needed
BIOS
PXE code on the adapter runs.
Adapter must be in PXE boot mode. See PXE Support on page 365.
SF Boot ROM (PXE)
DHCP request from PXE (SF Boot ROM).
Jumpstart server must be installed and configured.
SF Boot ROM (PXE)
TFTP request for filename to next‐server, e.g. pxegrub.0
pxegrub
TFTP retrieval of grub configuration.
pxegrub
TFTP menu retrieval of Solaris kernel image.
Solaris kernel/installer
Installer retrieves configuration.
Installation occurs
Machine reboots
Target Solaris kernel
kernel reconfigures network adapters.
DHCP server.
6.5 Unattended Installation Solaris 11
Please refer to the Oracle Solaris 11 documentation for details of transitioning from Solaris 10 to 11 or for details of the Automated Installer feature for Solaris 11.
https://blogs.oracle.com/unixman/entry/how_to_get_started_with
https://blogs.oracle.com/unixman/entry/migrating_from_jumpstart_to_automated
Issue 13
© Solarflare Communications 2014
279
Solarflare Server Adapter
User Guide
6.6 Configuring the Solarflare Adapter NOTE: The examples below demonstrate the Solaris 10.x configuration command. Solaris 11 users should refer to Solaris documentation for the equivalent Solaris 11 configuration commands. The drivers will be loaded as part of the as part of the installation. However the adapter will not be plumbed (implement the TCP/IP stack) or configured (adding IP address and netmask). Each Solarflare network adapter interface will be named sfxge<x> where <x> is a unique identifier. There will be one interface per physical port on the Solarflare adapter.
To plumb an interface enter the following:
ifconfig sfxge<x> plumb
You then need to configure the interface and bring it up to allow data to pass. Enter the following:
ifconfig sfxge<x> <IPv4 address> netmask <netmask> up
This configures the interface and initializes it with the up command.
NOTE: This method of plumbing and configuring is temporary. If you reboot your computer the settings will be lost. To make these settings permanent, create the configuration files as described below.
Using IPv6
To plumb and configure using IPv6, enter the following:
ifconfig sfxge<x> inet6 plumb
ifconfig sfxge<x> inet6 up
Then create an IPv6 interface sfxge<x> interface with a link local IPv6 address by entering:
ifconfig sfxge<x> inet6 addif <IPv6 address>/<ipv6 prefix length> up
This will give an IPv6 interface name of sfxge<x>:1
Using Configuration Files with IPv4
There are three options when using a configuration file with IPv4:
1
Using a static IPv4 address. To use this option, add <IPv4 address> <netmask> to:
/etc/hostname.sfxge<x>
2
Using a static IPv4 hostname. To use this option, add <hostname> to:
/etc/hostname.sfxge<x>
And modify /etc/hosts and /etc/netmasks
3
Using DHCP. To use this option, enter:
touch /etc/hostname.sfxge<4> and
Issue 13
© Solarflare Communications 2014
280
Solarflare Server Adapter
User Guide
touch /etc/dhcp.sfxge<4>
Using Configuration files with IPv6
To make the interface settings permanent, you need to create the following file per interface:
/etc/hostname6.sfxge<x> This enables the interface to be plumbed and configured when the computer is booted. For example:
touch /hostname6.sfxge<x>
For a static IP address, add your IPv6 address to /etc/hostname6.sfxge<x>.
Or add your hostname to /etc/hostname6.sfxge<x> and edit the following:
/etc/hosts
DHCP and IPv6
Unlike for IPv4, no file is required for DHCP in. The DHCP Daemons are automatically started. Consult the man dhcp pages for more details.
Configuring Task Offloading
Solarflare adapters support IPv4 TCP and UDP transmit (Tx) and receive (Rx) checksum offload, as well as TCP segmentation offload. To ensure maximum performance from the adapter, all task offloads should be enabled, which is the default setting on the adapter. For more information, see Performance Tuning on Solaris on page 296.
Configuring Jumbo Frames
The maximum driver MTU size can be set in sfxge.conf. This setting is applied across all Solarflare adapters. The default setting in sfxge.conf is 1500.
Solarflare adapters support frame sizes from 1500 bytes to 9000 bytes. For example, to set a new frame size (MTU) of 9000 bytes, enter the following command:
$ ifconfig sfxge<x> mtu 9000
To view the current MTU, enter:
$ ifconfig sfxge<x>
sfxge0: flags=1001000843<UP,BROADCAST,RUNNING,MULTICAST,IPv4> mtu 9000
If you want to have an MTU configure when the interface is brought up add mtu to the single line of configuration data in /etc/hostname.sfxge<X>. For example:
[<IP address>] mtu <size>
Issue 13
© Solarflare Communications 2014
281
Solarflare Server Adapter
User Guide
6.7 Setting Up VLANs
VLANs offer a method of dividing one physical network into multiple broadcast domains. In enterprise networks, these broadcast domains usually match with IP subnet boundaries, so that each subnet has its own VLAN. The advantages of VLANs include:
• Performance
• Ease of management
• Security
• Trunks
• You don't have to configure any hardware device, when physically moving your server to another location.
To have a single interface exist on multiple VLANs (if the port on the connected switch is set to “trunked” mode) see the “How to Configure a VLAN” section in the following documentation:
http://docs.oracle.com/cd/E19253‐01/816‐4554/fpdga/index.html
6.8 Solaris Utilities Package
The Solarflare Solaris Utilities package, supplied as a 32 bit SVR package and available from https://
support.solarflare.com/ contains the following utilities: Table 65: Utilities Package
Utility File
Description
sfupdate
A command line utility that contains an adapter firmware version which can update Solarflare adapter firmware.
sfboot
A command line utility to configure the Solarflare adapter Boot ROM for PXE and iSCSI booting.
sfreport
A command line utility that generates a diagnostic log file providing diagnostic data about the server and Solarflare adapters.
Once installed (pkgadd -d SFCutils_i386_v<version>.pkg), by default, utility files are located in the /opt/SFCutils/bin directory.
6.9 Configuring the Boot ROM with sfboot
• Sfboot: Command Usage...Page 283
• Sfboot: Command Line Options...Page 284
• Sfboot: Examples...Page 292
Issue 13
© Solarflare Communications 2014
282
Solarflare Server Adapter
User Guide
Sfboot is a command line utility for configuring the Solarflare adapter Boot ROM for PXE and iSCSI booting. Using sfboot is an alternative to using Ctrl + B to access the Boot Rom agent during server startup.
See Configuring the Solarflare Boot ROM Agent on page 364 for more information on the Boot Rom agent.
Sfboot: Command Usage
The general usage for sfboot is as follows (as root): sfboot [--adapter=sfxge<x>] [options] [parameters]
Note that without --adapter, the sfboot command applies to all adapters that are present in the target host. The format for the parameters are: <parameter>=<value>
Issue 13
© Solarflare Communications 2014
283
Solarflare Server Adapter
User Guide
Sfboot: Command Line Options
Table 66 lists the options for sfboot and Table 67 lists the available parameters.
Table 66: Sfboot Options
Option
Description
-h, --help
Displays command line syntax and provides a description of each sfboot option.
-V, --version
Shows detailed version information and exits. -v, --verbose
Shows extended output information for the command entered. -s, --silent
Suppresses all output, including warnings and errors; no user interaction. You should query the completion code to determine the outcome of commands when operating silently (see Performance Tuning on Windows on page 233). --log <filename>
Logs output to the specified file in the current folder or an existing folder. Specify --silent to suppress simultaneous output to screen, if required.
--computer <computer_name>
Performs the operation on a specified remote computer. Administrator rights on the remote computer is required. --list
Lists all available Solarflare adapters. This option shows the adapter’s ID number, ifname and MAC address. Note: this option may not be used in conjunction with the any other option. If this option is used with configuration parameters, those parameters will be silently ignored.
Issue 13
-d, --adapter =<sfxge<N>>
Performs the action on the identified Solarflare network adapter. The adapter identifier sfxge can be the adapter ID number, ifname or MAC address, as output by the ‐‐list option. If --adapter is not included, the action will apply to all installed Solarstorm adapters.
--clear
Resets all adapter options except boot-image to their default values. Note that --clear can also be used with parameters, allowing you to reset to default values, and then apply the parameters specified.
© Solarflare Communications 2014
284
Solarflare Server Adapter
User Guide
The following parameters in Table 67 are used to control the options for the Boot ROM driver when running prior to the operating system booting. Table 67: Sfboot Parameters
Parameter
Description
boot-image
=<all|optionrom|uefi|disable
d>
Specifies which boot firmware images are served‐up to the BIOS during start‐up. This parameter can not be used if the --adapter option has been specified. This option is not reset if --clear is used.
link-speed=
Specifies the network link speed of the adapter used by the Boot ROM the default is auto. On the 10GBASE‐T adapters “auto” instructs the adapter to negotiate the highest speed supported in common with it’s link partner . On SFP+ adapters, “auto” instructs the adapter to use the highest link speed supported by the inserted SFP+ module. On 10GBASE‐T and SFP+ adapters, any other value specified will fix the link at that speed, regardless of the capabilities of the link partner, which may result in an inability to establish the link
<auto|10g|1g|100m>
auto Auto‐negotiate link speed (default)
10G 10G bit/sec
1G 1G bit/sec
100M 100M bit/sec
linkup-delay=<seconds>
Specifies the delay (in seconds) the adapter defers its first connection attempt after booting, allowing time for the network to come up following a power failure or other restart. This can be used to wait for spanning tree protocol on a connected switch to unblock the switch port after the physical network link is established. The default is 5 seconds.
banner-delay=<seconds>
Specifies the wait period for Ctrl‐B to be pressed to enter adapter configuration tool. seconds = 0‐256
bootskip-delay=<seconds>
Specifies the time allowed for Esc to be pressed to skip adapter booting. seconds = 0‐256
Issue 13
© Solarflare Communications 2014
285
Solarflare Server Adapter
User Guide
Table 67: Sfboot Parameters
Parameter
Description
boottype=<pxe|iscsi|disabled>
Sets the adapter boot type. pxe – PXE (Preboot eXecution Environment) booting
iscsi – iSCSI (Internet Small Computer System Interface) booting
disabled – Disable adapter booting
initiatordhcp=<enabled|disabled>
Enables or disables DHCP address discovery for the adapter by the Boot ROM except for the Initiator IQN (see initiator-iqn-dhcp). This option is only valid if iSCSI booting is enabled (boottype=iscsi). If initiator‐DHCP is set to disabled, the following options will need to be specified:
initiator-ip=<ip_address>
netmask=<subnet>
The following options may also be needed: gateway=<ip_address>
primary-dns=<ip_address>
initiator-ip=<ipv4 address>
Specifies the IPv4 address (in standard “.” notation form) to be used by the adapter when initiatordhcp is disabled.
Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled initiatorip=<192.168.1.3>
netmask=<ipv4 subnet>
Specifies the IPv4 subnet mask (in standard “.” notation form) to be used by the adapter when initiator-dhcp is disabled. Note that this option is only valid if iSCSI booting is enabled (boottype=iscsi). Example: sfboot boot-type=iscsi initiatordhcp=disabled netmask=255.255.255.0
Issue 13
© Solarflare Communications 2014
286
Solarflare Server Adapter
User Guide
Table 67: Sfboot Parameters
Parameter
Description
gateway=<ipv4 address>
Specifies the IPv4 subnet mask (in standard “.” notation form) to be used by the adapter when initiator-dhcp is disabled. Note that this option is only valid if iSCSI booting is enabled (boottype=iscsi). Example:
sfboot boot-type=iscsi initiatordhcp=disabled gateway=192.168.0.10
primary-dns=<ipv4 address>
Specifies the IPv4 address (in standard “.” notation form) of the Primary DNS to be used by the adapter when initiator-dhcp is disabled. This option is only valid if iSCSI booting is enabled (boot-type=iscsi). Example:
sfboot boot-type=iscsi initiatordhcp=disabled primary-dns=192.168.0.3
initiator-iqndhcp=<enabled|disabled>
Enables or disables use of DHCP for the initiator IQN only.
initiator-iqn=<IQN>
Specifies the IQN (iSCSI Qualified Name) to be used by the adapter when initiator-iqn-dhcp is disabled. The IQN is a symbolic name in the “.” notation form; for example: iqn.2009.01.com.solarflare, and is a maximum of 223 characters long. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Example:
sfboot initiator-iqn-dhcp=disabled
initiatoriqn=iqn.2009.01.com.solarflare
adapter=2
lun-retry-count=<count>
Specifies the number of times the adapter attempts to access and login to the Logical Unit Number (LUN) on the iSCSI Target before failing. Note that this option is only valid if iSCSI booting is enabled (boottype=iscsi). Example: sfboot lun-retry-count=3
Issue 13
© Solarflare Communications 2014
287
Solarflare Server Adapter
User Guide
Table 67: Sfboot Parameters
Parameter
Description
targetdhcp=<enabled|disabled>
Enables or disables the use of DHCP to discover iSCSI target parameters on the adapter.
If target-dhcp is disabled, you must specify the following options:
target-server=<address>
target-iqn=<iqn>
target-port=<port>
target-lun=<LUN>
Example ‐ Enable the use of DHCP to configure iSCSI Target settings: sfboot boot-type=iscsi targetdhcp=enabled
target-server=<DNS name or
ipv4 address>
Specifies the iSCSI target’s DNS name or IPv4 address to be used by the adapter when target-dhcp is disabled. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Example:
sfboot boot-type=iscsi targetdhcp=disabled target-server=192.168.2.2
target-port=<port_number>
Specifies the Port number to be used by the iSCSI target when target-dhcp is disabled. The default Port number is Port 3260. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Example: sfboot boot-type=iscsi targetdhcp=disabled target-port=3262
This option should only be used if your target is using a non‐standard TCP Port.
target-lun=<LUN>
Specifies the Logical Unit Number (LUN) to be used by the iSCSI target when target-dhcp is disabled. The default LUN is 0. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Issue 13
© Solarflare Communications 2014
288
Solarflare Server Adapter
User Guide
Table 67: Sfboot Parameters
Parameter
Description
target-iqn=<IQN>
Specifies the IQN of the iSCSI target when targetdhcp is disabled. Maximum of 223 characters. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). Note that if there are spaces contained in <IQN>, then the IQN must be wrapped in double quotes (“”).
Example: sfboot target-dhcp=disabled targetiqn=iqn.2009.01.com.solarflare
adapter=2
vendor-id=<dhcp_id>
Specifies the device vendor ID to be advertised to the DHCP server. This must match the vendor id configured at the DHCP server when using DHCP option 43 to obtain the iSCSI target .
chap=<enabled|disabled>
Enables or disables the use of Challenge Handshake Protocol (CHAP) to authenticate the iSCSI connection. Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi). To be valid, this option also requires the following sub‐options to be specified: username=<initiator username>
secret=<initiator password>
Example: sfboot boot-type=iscsi chap=enabled
username=initiatorusername
secret=initiatorsecret
Issue 13
© Solarflare Communications 2014
289
Solarflare Server Adapter
User Guide
Table 67: Sfboot Parameters
Parameter
Description
username=<username>
Specifies the CHAP initiator username (maximum 64 characters). Note that this option is required if either CHAP or Mutual CHAP is enabled (chap=enabled,
mutual-chap=enabled).
Note that if there are spaces contained in <username>, then it must be wrapped in double quotes (“”).
Example: sfboot boot-type=iscsi chap=enabled
username=username
Specifies the CHAP initiator secret (minimum 12 characters, maximum 20 characters). secret=<secret>
Note that this option is valid if either CHAP or Mutual CHAP is enabled (chap=enabled, mutualchap=enabled).
Note that if there are spaces contained in <secret>, then it must be wrapped in double quotes (“”).
Example: sfboot boot-type=iscsi chap=enabled
username=username secret=veryverysecret
mutualchap=<enabled|disabled>
Enables/disables Mutual CHAP authentication when iSCSI booting is enabled. This option also requires the following sub‐options to be specified: target-username=<username>
target-secret=<password>
username=<username>
secret=<password>
Example: sfboot boot-type=iscsi mutualchap=enabled username=username
secret=veryverysecret targetusername=targetusername targetsecret=anothersecret
Issue 13
© Solarflare Communications 2014
290
Solarflare Server Adapter
User Guide
Table 67: Sfboot Parameters
Parameter
Description
target-username=<username>
Specifies the username that has been configured on the iSCSI target (maximum 64 characters).
Note that this option is necessary if Mutual CHAP is enabled on the adapter (mutual-chap=enabled).
Note that if there are spaces contained in <username>, then it must be wrapped in double quotes (“”).
target-secret=<secret>
Specifies the secret that has been configured on the iSCSi target (minimum 12 characters; maximum 20 characters). Note: This option is necessary if Mutual CHAP is enabled on the adapter (mutual-chap=enabled).
Note that if there are spaces contained in <secret>, then it must be wrapped in double quotes (“”).
Issue 13
mpio-priority=<MPIO
priority>
Specifies the Multipath I/O (MPIO) priority for the adapter. This option is only valid for iSCSI booting over multi‐port adapters, where it can be used to establish adapter port priority. The range is 1‐ 255, with 1 being the highest priority.
mpio-attempts=<attempt
count>
Specifies the number of times MPIO will tryand use each port in turn to login to the iSCSI target before failing. msixlimit=<8|16|32|64|128|256|51
2|1024>
Specifies the maximum number of MSI‐X interrupts the specified adapter will use. The default is 32.
Note: Using the incorrect setting can impact the performance of the adapter. Contact Solarflare technical support before changing this setting.
sriov=<enabled|disabled>
Enable SR‐IOV support for OS system that support it.
vf-count=<vf_count>
Number of Virtual Functions advertised to the OS. Solarflare adapters support 1024 interrupts. Depending on the value of msix‐limit and vf‐msic‐
limit, some of these Virtual Functions may not be useable.
vf-msix-limit=<1|2|4|8>
Maximum number of MSI‐X interrupts a Virtual Function can have.
© Solarflare Communications 2014
291
Solarflare Server Adapter
User Guide
Sfboot: Examples
• Show the current boot configuration for all adapters:
sfboot
Solarflare boot configuration utility [v3.0.5]
Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005
sfxge0:
Boot image
MSI-X interrupt limit
Disabled
32
sfxge1:
Boot image
MSI-X interrupt limit
Disabled
32
• List all Solarflare adapters installed on the localhost:
sfboot --list
Solarflare boot configuration utility [v3.0.5]
Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005
sfxge0 - 00-0F-53-01-38-40
sfxge1 - 00-0F-53-01-38-41
Issue 13
© Solarflare Communications 2014
292
Solarflare Server Adapter
User Guide
6.10 Upgrading Adapter Firmware with Sfupdate
To Update Adapter Firmware
As a root user enter: pkgadd -d SFCutils_i386_v<version>.pkg
Once installed, by default, utility tools are located in the /opt/SFCutils/bin directory.
Sfupdate: Command Usage
The general usage for sfupdate is as follows (as root):
sfupdate [--adapter=sfxge<x>] [options]
where:
sfgxe<x> is the interface name of the Solarflare adapter you want to upgrade.
option is one of the command options listed in Table 68.
The format for the options are: --<option>=<parameter>
Running the command sfupdate with no additional parameters will show the current firmware version for all Solarflare adapters and whether the firmware within sfupdate is more up to date. To update the firmware for all Solarflare adapters run the command sfupdate --write
Solarflare recommend that you use sfupdate in the following way:
1
Run sfupdate to check that the firmware on all your adapters are up to date.
2
Run sfupdate --write to update the firmware on all adapters.
Sfupdate: Command Line Options
Table 68 lists the options for sfupdate.
Table 68: Sfupdate Options
Issue 13
Option
Description
-h, --help
Shows help for the available options and command line syntax. -v, --verbose
Enable verbose output mode.
-s, --silent
Suppress all output except for errors. Useful for scripts.
-V, --version
Display version information and exit.
© Solarflare Communications 2014
293
Solarflare Server Adapter
User Guide
Table 68: Sfupdate Options
Option
Description
-i, --adapter=sfxge<x>
Specifies the target adapter when more than one adapter is installed in the machine. sfxge<x> = Adapter ifname or MAC address (as obtained with --list). --list
Shows the adapter ID, adapter name and MAC address of each adapter installed in the machine. --write
Re‐writes the firmware from the images embedded in the sfupdate tool. To re‐write using an external image, specify
--image=<filename> in the command. --write fails if the embedded image is the same or a previous version. To force a write in this case, specify the option --force. Issue 13
--force
Force update of all firmware, even if the installed firmware version is the same or more recent than the images embedded in the utility.
--image=(filename)
Update the firmware using the image contained in the specified file, rather than the image embedded in the utility. Use with the --write and, if needed, --force options.
-y, --yes
Prompts for user confirmation before re‐writing the firmware. © Solarflare Communications 2014
294
Solarflare Server Adapter
User Guide
Sfupdate: Examples
• Display firmware versions for all adapters:
sfupdate
sfupdate: Solarflare Firmware Update Utility [v3.0.5.2164]
Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005
Network adapter driver version: v3.0.5.2163
sfxge0 - MAC: 00:0F:53:01:38:90
Firmware
version: v3.0.5
Boot ROM
version: v3.0.5.2163
PHY
version: v2.0.2.5
Controller version: v3.0.5.2161
The Boot ROM firmware is up to date
The PHY firmware is up to date
The image contains a more recent version of the Controller [v3.0.5.2163]
vs [v3.0.5.2161]
Use the -w|--write option to perform an update
sfxge1 - MAC: 00:0F:53:01:38:91
Firmware
version: v3.0.5
Boot ROM
version: v3.0.5.2163
PHY
version: v2.0.2.5
Controller version: v3.0.5.2161
The Boot ROM firmware is up to date
The PHY firmware is up to date
The image contains a more recent version of the Controller [v3.0.5.2163]
vs [v3.0.5.2161]
Use the -w|--write option to perform an update
Issue 13
© Solarflare Communications 2014
295
Solarflare Server Adapter
User Guide
6.11 Performance Tuning on Solaris
• Introduction...Page 296
• Tuning settings...Page 297
• Other Considerations...Page 300
Introduction
The Solarflare family of network adapters are designed for high‐performance network applications. The adapter driver is pre‐configured with default performance settings that have been chosen to give good performance across a broad class of applications. In many cases, application performance can be improved by tuning these settings to best suit the application.
There are three metrics that should be considered when tuning an adapter: • Throughput
• Latency
• CPU utilization Different applications may be more or less affected by improvements in these three metrics. For example, transactional (request‐response) network applications can be very sensitive to latency whereas bulk data transfer applications are likely to be more dependent on throughput.
The purpose of this guide is to highlight adapter driver settings that affect the performance metrics described. This guide covers the tuning of all of the Solarflare family of adapters. In addition to this guide, you may need to consider other issues influencing performance such as application settings, server motherboard chipset, additional software installed on the system, such as a firewall, and the specification and configuration of the LAN. Consideration of such issues is not within the scope of this guide.
Issue 13
© Solarflare Communications 2014
296
Solarflare Server Adapter
User Guide
Tuning settings
Adapter MTU (Maximum Transmission Unit)
The default MTU of 1500 bytes ensures that the adapter is compatible with legacy 10/100Mbps Ethernet endpoints. However if a larger MTU is used, adapter throughput and CPU utilization can be improved. CPU utilization is improved because it takes fewer packets to send and receive the same amount of data. Solarflare adapters support frame sizes up to 9000 bytes (this does not include the Ethernet preamble or frame‐CRC).
Since the MTU should ideally be matched across all endpoints in the same LAN (VLAN), and since the LAN switch infrastructure must be able to forward such packets, the decision to deploy a larger than default MTU requires careful consideration. It is recommended that experimentation with MTU be done in a controlled test environment. The MTU can be changed dynamically using ifconfig if the maximum MTU size has been set in the sxfge_conf file (see Configuring Jumbo Frames on page 281 ), where sfxge<X> is the interface name and size is the MTU size in bytes: $ ifconfig sfxge<X> mtu <size>
Verification of the MTU setting may be performed by running $ ifconfig sfxge<X> with no options and checking the MTU value associated with the interface. If you want to have an MTU configure when the interface is brought up, add mtu to the single line of configuration data in: /etc/hostname.sfxge<X> For example:
[<IP address>] mtu <size>
Interrupt Moderation (Interrupt Coalescing)
Interrupt moderation controls the number of interrupts generated by the adapter by adjusting the extent to which receive packet processing events are coalesced. Interrupt moderation may coalesce more than one packet‐reception or transmit‐completion event into a single interrupt.
This parameter is critical for tuning adapter latency. Increasing the moderation value will increase latency, but reduce CPU utilization and improve peak throughput, if the CPU is fully utilized. Decreasing the moderation value or turning it off will decrease latency at the expense of CPU utilization and peak throughput. However, for many transaction request‐response type network applications, the benefit of reduced latency to overall application performance can be considerable. Such benefits may outweigh the cost of increased CPU utilization. NOTE: The interrupt moderation time dictates the minimum gap between two consecutive interrupts. It does not mandate a delay on the triggering of an interrupt on the reception of every packet. For example, an interrupt moderation setting of 30µs will not delay the reception of the first packet received, but the interrupt for any following packets will be delayed until 30µs after the reception of that first packet.
Issue 13
© Solarflare Communications 2014
297
Solarflare Server Adapter
User Guide
TCP/IP Checksum Offload
Checksum offload moves calculation and verification of IP Header, TCP and UDP packet checksums to the adapter. The driver by default has all checksum offload features enabled. Therefore, there is no opportunity to improve performance from the default.
TCP Segmentation Offload (TSO)
TCP Segmentation offload (TSO) offloads the splitting of outgoing TCP data into packets to the adapter. TCP segmentation offload benefits applications using TCP. Non TCP protocol applications will not benefit (but will not suffer) from TSO.
The Solaris TCP/IP stack provides a large TCP segment to the driver, which splits the data into MSS size, each with adjusted sequence space and a hardware calculated checksum.
TCP Large Receive Offload (LRO) / RX Coalescing
LRO (called rx coalescing on Solaris) is a feature whereby the adapter coalesces multiple packets received on a TCP connection into a single call to the operating system TCP Stack. This reduces CPU utilization, and so improves peak throughput when the CPU is fully utilized. LRO should not be enabled if you are using the host to forward packets from one interface to another; for example if the host is performing IP routing or acting as a layer2 bridge. The driver has LRO disabled by default. TCP Protocol Tuning
TCP Performance can also be improved by tuning kernel TCP settings. Settings include adjusting send and receive buffer sizes, connection backlog, congestion control, etc.
The transmit and receive buffer sizes may already be explicitly controlled by an application calling setsockopt() to set SO_SNDBUF or SO_RCVBUF.
ndd -set /dev/tcp tcp_xmit_hiwat 524288
ndd -set /dev/tcp tcp_recv_hiwat 524288
The following settings may help if there are a large number of connections being made:
ndd -set /dev/tcp tcp_time_wait_interval 1000 # 1 sec for time-wait (min)
ndd -set /dev/tcp tcp_conn_req_max_q 4096 # increase accept queue
ndd -set /dev/tcp tcp_conn_req_max_q0 4096 # increase accept queue
ndd -set /dev/tcp tcp_conn_req_min 1024 # increase minimum accept queue
ndd -set /dev/tcp tcp_rst_sent_rate_enabled 0 # disable rst rate limiting
See the Internet Protocol Suite Tunable Parameters chapter of the Tunable Parameters Reference Guide for more details:
http://docs.oracle.com/cd/E19082‐01/819‐2724/6n50b07lr/index.html NOTE: You can also add these settings to /etc/system
Issue 13
© Solarflare Communications 2014
298
Solarflare Server Adapter
User Guide
Receive Side Scaling (RSS)
Solarflare adapters support Receive Side Scaling (RSS). RSS enables packet receive‐processing to scale with the number of available CPU cores. RSS requires a platform that supports MSI‐X interrupts.
When RSS is enabled the controller uses multiple receive queues into which to deliver incoming packets. The receive queue selected for an incoming packet is chosen in such a way as to ensure that packets within a TCP stream are all sent to the same receive queue – this ensures that packet‐
ordering within each stream is maintained. Each receive queue has its own dedicated MSI‐X interrupt which ideally should be tied to a dedicated CPU core. This allows the receive side TCP processing to be distributed amongst the available CPU cores, providing a considerable performance advantage over a conventional adapter architecture in which all received packets for a given interface are processed by just one CPU core.
RSS is enabled by default in the sfxge driver. To limit or disable RSS:
Uncomment the following line in: /kernel/drv/sfxge.conf
rx_scale_count=<number of MSI-X interrupts requested>
Limitations of Solaris MSI‐X interrupt allocation are:
1
All network drivers share 32 MSI‐X interrupts.
2
A single NIC can only use 2 MSI‐X interrupts (this restriction can be lifted with the ddi_msix_alloc_limit setting below).
To lift the restriction of 2 MSI‐X interrupts, add the following line to /etc/system and reboot.
set ddi_msix_alloc_limit=8
If no MSI/MSI‐X interrupts are available then the driver will fall‐back to use a single legacy interrupt. RSS will be unavailable for that port.
Other RSS Settings
You should add the following lines to /etc/system:
set pcplusmp:apic_intr_policy=1
This sets the interrupt distribution method to round robin.
set ip:ip_squeue_fanout=1
This determines the mode for associating TCP/IP connections with queues. For details refer to the following:
http://docs.oracle.com/cd/E19082‐01/819‐2724/chapter4‐7/index.html NOTE: RSS also works for UDP packets. For UDP traffic the Solarflare adapter will select the Receive CPU based on IP source and destination addresses. SFN5xxx adapters support IPv4 and IPv6 RSS, while SFN4xxx adapters support just IPv4 RSS.
Issue 13
© Solarflare Communications 2014
299
Solarflare Server Adapter
User Guide
Other Considerations
PCI Express Lane Configurations
The PCI Express (PCIe) interface used to connect the adapter to the server can function at different widths. This is independent of the physical slot size used to connect the adapter. The possible widths are multiples x1, x2, x4, x8 and x16 lanes of (2.5Gbps for PCIe Gen 1, 5.0 Gbps for PCIe Gen 2) in each direction. Solarflare Adapters are designed for x8 lane operation.
On some server motherboards, choice of PCIe slot is important. This is because some slots (including ones that are physically x8 or x16 lanes) may only electrically support x4 lanes. In x4 lane slots, Solarflare PCIe adapters will continue to operate, but not at full speed. The Solarflare driver will warn you if it detects the adapter is plugged into a PCIe slot which electrically has fewer than x8 lanes. For SFN5xxxx adapters, which require a PCIe Gen 2 slot for optimal operation, a warning will be given if they are installed in a PCIe Gen 1 slot.
CPU Power Management
This feature monitors CPU utilization and lowers the CPU frequency when utilization is low. This reduces the power consumption of the CPU. For latency sensitive applications, where the application switches between having packets to process and having periods of idle time waiting to receive a packet, dynamic clock speed control may increase packet latencies. There therefore can be a benefit to disabling the service.
The service can be disabled temporarily with the configuration in /etc/power.conf file and restarting the service. For example:
cpupm disable
system-threshold always-on
cpu-threshold always-on
cpu_deep_idle disable
The service can be disabled across reboots with:
svcadm disable
svc:/system/power:default
See http://docs.oracle.com/cd/E19253‐01/817‐0547/gfgmu/index.html
Memory bandwidth
Many chipsets use multiple channels to access main system memory. Maximum memory performance is only achieved when the chipset can make use of all channels simultaneously. This should be taken into account when selecting the number of DIMMs to populate in the server. Consult the motherboard documentation for details.
Server Motherboard, Server BIOS, Chipset Drivers
Tuning or enabling other system capabilities may further enhance adapter performance. Readers should consult their server user guide. Possible opportunities include tuning PCIe memory controller (PCIe Latency Timer setting available in some BIOS versions).
Issue 13
© Solarflare Communications 2014
300
Solarflare Server Adapter
User Guide
Tuning Recommendations
The following tables provide recommendations for tuning settings for different applications.
Throughput ‐ Table 69
Latency ‐ Table 70
Forwarding ‐ Table 71
Recommended Throughput Tuning
Table 69: Throughput Tuning Settings
Issue 13
Tuning Parameter
How?
MTU Size to maximum supported by network
ifconfig sfxge<x> mtu <size>
Interrupt moderation
Leave at default
TCP/IP Checksum Offload
Leave at default
TCP Segmentation Offload
Leave at default
TCP Large Receive Offload
Leave at default
TCP Protocol Tuning
Leave at default
Receive Side Scaling (RSS)
Application dependent
Buffer Allocation Method
Leave at default. Some applications may benefit from specific setting.
PCI Express Lane Configuration
Ensure current speed (not the supported speed) reads back as “x8 and 5Gb/s” Or “x8 and Unknown”
CPU Power Management
Leave enabled
Memory bandwidth
Ensure Memory utilizes all memory channels on system motherboard
© Solarflare Communications 2014
301
Solarflare Server Adapter
User Guide
Recommended Latency Tuning
Table 70: Latency Tuning Settings
Tuning Parameter
How?
MTU Size to maximum supported by network
Leave at default
Interrupt moderation
Disable with:
sfxge.conf
TCP/IP Checksum Offload
Leave at default
TCP Segmentation Offload
Leave at default
TCP Large Receive Offload
Leave at default
TCP Protocol Tuning
Leave at default, but changing does not impact latency
Receive Side Scaling
Application dependent
Buffer Allocation Method
Leave at default
PCI Express Lane Configuration
Ensure current speed (not the supported speed) reads back as “x8 and 5Gb/s” Or “x8 and Unknown”
CPU Power Management
Disable with:
/etc/power.conf
Memory bandwidth
Ensure Memory utilizes all memory channels on system motherboard
Recommended Forwarding Tuning
Table 71: Forwarding Tuning Settings
Issue 13
Tuning Parameter
How?
MTU Size to maximum supported by network
ifconfig sfxge<X> mtu <size>
Interrupt moderation
Leave at default
TCP/IP Checksum Offload
Leave at default
TCP Segmentation Offload
Leave at default
TCP Large Receive Offload
Leave at default
TCP Protocol Tuning
Can leave at default
Receive Side Scaling (RSS)
sfxge.conf
Buffer Allocation Method
Leave at default
© Solarflare Communications 2014
302
Solarflare Server Adapter
User Guide
Table 71: Forwarding Tuning Settings
Issue 13
Tuning Parameter
How?
PCI Express Lane Configuration
Ensure current speed (not the supported speed) reads back as “x8 and 5Gb/s” Or “x8 and Unknown”
CPU Speed service (cpuspeed)
Leave enabled
Memory bandwidth
Ensure Memory utilizes all memory channels on system motherboard
© Solarflare Communications 2014
303
Solarflare Server Adapter
User Guide
6.12 Module Parameters
The normal syntax when using parameters is param=<value>.
Table 72 lists the available parameters in the Solarflare Solaris driver module (sfxge.conf):
Table 72: Driver Module Parameters
Parameter
Description
rx_scale_count
Maximum number of RSS channels to use per port. The actual number may be lower due to availability of MSI‐X interrupts. There is a maximum of 32 MSI‐X interrupts across all network devices. To use more than 2 MSI‐X interrupts you need to add e.g.
Values
Default 128
set ddi_msix_alloc_limit=8 in
/etc/system.
rx_coalesce_mod
e
Coalesce RX packets (Large Receive Offload).
0 = off 0
1 = on
2 = on, respecting TCP PSH boundaries.
intr_moderation
Interrupt moderation in µs. Decreasing this reduces latency but increases interrupt rate and therefore CPU usage.
mtu
Maximum MTU of an sfxge interface in bytes (excludes ethernet framing)
1500 ‐ 9000
1500
rxq_size
Number of descriptors in the receive queue descriptor ring
512 ‐ 4096
1024
rx_pkt_mem_max
Issue 13
Per port memory limit for receive packet buffers
© Solarflare Communications 2014
30
must be a power of 2 value
64Mb
304
Solarflare Server Adapter
User Guide
Table 72: Driver Module Parameters
Parameter
Description
Values
Default action_on_hw_er
r
Controls the action taken on hardware error.
0 ‐ recover adapter to a working state.
0
1‐ do not advertise to the kernel that the link is down during the reset.
2. reset the hardware, but do not use it again ‐ useful for failover mechanisms to ensure this adapter does not become the active link again.
rx_prealloc_pkt
_buffers
Issue 13
Number of pkt buffers to allocate at start of a receive queue and maintain a free pkt pool of at least this many buffers.
© Solarflare Communications 2014
limited by available system memory.
512
305
Solarflare Server Adapter
User Guide
6.13 Kernel and Network Adapter Statistics
Statisitical data originating from the MAC on Solarflare network adapters can be gathered using the Solaris Kernel Statistics command (kstat). The following tables identify kernel and adapter statistics returned from the kstat command: # kstat -m sfxge
To read individual classes use the ‐c option or by name use the ‐n option, for example:
# kstat -m sfxge -c net
# kstat -m sfxge -n mac
The kstats statistics are listed by ’names’ in the following tables
• Name mac...Page 306
• Name sfxge_cfg on page 311
• Name sfxge_mac...Page 311
• Name sfxge_ndd...Page 315
• Name sfxge_rss...Page 316
• Name sfxge_rxq0000...Page 317
• Name sfxge_txq0000...Page 317
• Name sfxge_vpd...Page 317
Table 73: Name mac
Parameter
Description
adv_cap_1000fdx
Advertise 1000 Mbps full duplex capacity 1 = true, 0 = false.
adv_cap_1000hdx
Advertise 1000 Mbps half duplex capacity 1 = true, 0 = false.
adv_cap_100fdx
Advertise 100 Mbps full duplex capacity 1 = true, 0 = false.
adv_cap_100hdx
Advertise 100 Mbps half duplex capacity 1 = true, 0 = false.
adv_cap_10fdx
Advertise 10 Mbps full duplex capacity 1 = true, 0 = false.
adv_cap_10hdx
Advertise 10 Mbps half duplex capacity 1 = true, 0 = false.
adv_cap_asmpause
Advertise asymmetric pause capability 1 = true, 0 = false.
adv_cap_autoneg
Advertise auto‐negotiation capability when auto‐
negotiation is enabled.
When set to zero, the highest priority speed and duplex mode is used for forced mode.
Issue 13
© Solarflare Communications 2014
306
Solarflare Server Adapter
User Guide
Table 73: Name mac
Parameter
Description
adv_cap_pause
Depends on the value of adv_cap_asmpause.
If adv_cap_asmpause = 1 then:
1 = send pause frames when there is receive congestion.
0 = pause transmission when a pause frame is received.
If adv_cap_asmpause = 0 then:
1 = send pause frames when there is receive congestion and pause transmission when a pause frame is received.
0 = pause capability is not available in either direction.
align_errors
Number of occurrences of frame alignment error.
brdcstrcv
Number of broadcast packets received.
brdcstxmt
Number of broadcast packets transmitted.
cap_1000fdx
Capable of 1000 Mbps full duplex 1 = true, 0 = false.
cap_1000hdx
Capable of 1000 Mbps half duplex 1 = true, 0 = false.
cap_100fdx
Capable of 100 Mbps full duplex 1 = true, 0 = false.
cap_100hdx
Capable of 100 Mbps half duplex 1 = true, 0 = false.
cap_10fdx
Capable of 10 Mbps full duplex 1 = true, 0 = false.
cap_10hdx
Capable of 10 Mbps half duplex 1 = true, 0 = false.
cap_asmpause
Asymmetric pause capability 1 = true, 0 = false. This determines action taken by the cap_pause parameter ‐ see below.
cap_autoneg
Capable of auto negotiation 1= true, 0 = false.
cap_pause
Direction depends on value of cap_asmpause. If cap_asmpause = 1 then:
0 = pause transmission when a pause frame is received.
1 = send pause frames when there is receive congestion.
If cap_asmpause = 0 then:
0 = pause capability is not available in either direction.
1 = send pause frames when there is receive congestion and pause transmission when a pause frame is received.
Issue 13
collisions
Number of collisions detected when attempting to send.
crtime
Timestamp when samples were taken.
© Solarflare Communications 2014
307
Solarflare Server Adapter
User Guide
Table 73: Name mac
Parameter
Description
defer_xmts
Number of packets successfully transmitted after the network adapter defers transmission at least once when the medium is busy.
ex_collsions
Number of packets not transmitted due to excessive collisions which can occur on networks under heavy load or when too many devices contend for the collision domain. After 15 retransmission attempts plus the original transmission attempt the counter is incremented and the packet is dropped.
fcs_errors
Number of frames received which FCS errors.
first_collisions
0
ierrors
0
ifspeed
Adapter interface speed.
ipackets
Number of packets received (32 bit counter).
ipackets64
Number of packets received (64 bit counter).
link_asmpause
When adv_*pause_cap and lp_*pause_cap are compared following auto‐negotiation, the flow control mechanism for the link depends on what is most meaningful:
0 = flow control in both directions when link_pause is set to one.
1 = flow control in one direction.
link_autoneg
Auto‐negotiation, 0 = not enabled, 1 = enabled.
link_duplex
0 = down, 1 = half duplex, 2 = full duplex.
link_pause
Depends on link_asmpause.
If link_asmpause = 1 then:
1 = flow control in both directions is available.
0 = no flow control on the link.
If link_asmpause = 0 then:
1 = the local host will honour received pause frames by temporarily suspending transmission of further frames.
0 = in the event of receive congestion, the local host will transmit pause frames to the peer.
Issue 13
link_state
link status 0 = link down, 1 = link up. link_up
1 =link is up, 0 = link is down.
© Solarflare Communications 2014
308
Solarflare Server Adapter
User Guide
Table 73: Name mac
Parameter
Description
lp_cap_1000fdx
Link partner advertises 1000 Mbps full duplex capability.
lp_cap_1000hdx
Link partner advertises 1000 Mbps half duplex capability.
lp_cap_100fdx
Link partner advertises 100 Mbps full duplex capability.
lp_cap_100hdx
Link partner advertises 100 Mbps half duplex capability.
lp_cap_10fdx
Link partner advertises 10 Mbps full duplex capability.
lp_cap_10hdx
Link partner advertises 10 Mbps half duplex capability.
lp_cap_asmpause
Asymmetric pause capability. 1 = true, 0 = false. This determines action taken by the lp_cap_pause parameter ‐ see below.
lp_cap_autoneg
Link partner advertises auto‐negotiation capability.
lp_cap_pause
Depends on value of lp_cap_asmpause.
If lp_cap_asmpause = 1 then:
1 = send pause frames when there is receive congestion.
0 = pause transmission when a pause frame is received.
If lp_cap_asmpause = 0 then:
1 = send pause frames when there is receive congestion and pause transmission when a pause frame is received.
0 = pause capability is not available in either direction.
Issue 13
macrcv_errors
Count the number of frames for which reception on a particular interface fails due to internal MAC error. Does not include too long frames, alignment error frames or FCS errors.
macxmt_errors
Count the number of frames for which transmission fails due to internal MAC error. Does not include failures due to late collisions, excessive collisions or carrier sense errors.
multi_collisions
Count the number of frames for which transmission fails due to multiple collisions.
multircv
Number of multicast packets received.
multixmt
Number of multicast packets transmitted.
norcvbuf
0
noxmtbuf
0
obytes
Number of bytes output (32 bit counter).
© Solarflare Communications 2014
309
Solarflare Server Adapter
User Guide
Table 73: Name mac
Parameter
Description
obytes64
Number of bytes output (64 bit counter).
oerrors
Number of outbound packets not transmitted due to error.
opackets
Number of outbound packets (32 bit counter).
opackets64
Number of outbound packets (64 bit counter)
promisc
Promiscuous Mode, 0 = not enabled, 1 = enabled
rbytes
Number of bytes received (32 bit counter)
rbytes64
Number of bytes received (64 bit counter)
snaptime
178761.398854604
sqe_errors
Count of number of times the SQE_TEST_ERROR message is generated for an interface.
toolong_errors
Count the number of frames received that exceed the maximum permitted frame size.
tx_late_collsions
A sending device may detect a collision as it attempts to transmit a frame or before it completes sending the entire frame. If a collision is detected after the device has com‐
pleted sending the entire frame, the device will assume that the collision occurred because of a different frame. Late collisions can occur if the length of the network seg‐
ment is greater than the standard allowed length.
Collision occurred beyond the collision window (512 bit times).
This should always be zero as Solarflare adapters operate in full duplex mode.
Issue 13
unknowns
0
xcvr_addr
MII address in the 0‐31 range of the physical layer device in use for a given Ethernet device.
xcvr_id
MII transceiver manufacturer and device ID.
© Solarflare Communications 2014
310
Solarflare Server Adapter
User Guide
Table 73: Name mac
Parameter
Description
xcvr_inuse
MII transceiver type:
0 = undefined
1 = none, MII present but nothing connected
2 = 10 Mbps Manchester encoding
3 = 100BaseT4, 100 Mbps 8B/6T
4 = 100BaseX, 100 Mbps 4B/5B
5 = 100BaseT2 100 Mbps PAM5X5
6 = 1000BaseT, 1000 Mbps 4D‐PAM5
Table 74: Name sfxge_cfg
Parameter
Description
crtime
Timestamp when samples were taken.
mac
Adapter hardware address.
version
Solarflare sfxge driver version
Table 75: Name sfxge_mac
Issue 13
Parameter
Description
crtime
Timestamp when samples were taken.
link_duplex
0 = down, 1 = half duplex, 2 = full duplex.
link_speed
10000 (Mbps).
link_up
1 = link is up, 0 = link is down.
rx_1024_to_15xx_pkts
Number of packets received where the length is between 1024 and 15xx bytes. 1518(non VLAN), 1522(VLAN).
rx_128_to_255_pkts
Number of packets received where the length is between 128 and 255 bytes.
rx_256_to_511_pkts
Number of packets received where the length is between 256 and 511 bytes.
rx_512_to_1023_pkts
Number of packets received where the length is between 512 and 1023 bytes.
rx_65_to_127_pkts
Number of packets received where the length is between 65 and 127 bytes.
© Solarflare Communications 2014
311
Solarflare Server Adapter
User Guide
Table 75: Name sfxge_mac
Issue 13
Parameter
Description
rx_align_errors
Number of occurrences of frame alignment error.
rx_brdcst_pkts
Number of broadcast packets received.
rx_drop_events
Number of packets dropped by adapter driver.
rx_errors
Number of packet received with bad FCS.
rx_false_carrier_errors
Count of the instances of false carrier detected. False carrier is activity on the receive channel that does not result in a packet receive attempt being made.
rx_fcs_errors
Number of packets received with FCS errors ‐ these are dropped by the Solarflare driver.
rx_ge_15xx_pkts
Number of packets received with payload size greater than 1518 bytes (1522 bytes VLAN).
rx_internal_errors
Number of frames that could not be received due to a MAC internal error condition. e.g. frames not received by the MAC due to FIFO overflow condition. rx_lane0_char_err
0
rx_lane0_disp_err
0
rx_lane1_char_err
0
rx_lane1_disp_err
0
rx_lane2_char_err
0
rx_lane2_disp_err
0
rx_lane3_char_err
0
rx_lane3_disp_err
0
rx_le_64_pkts
Number of packets received where the length is exactly 64 bytes.
rx_match_fault
Number of packets received which did not match a filter.
rx_multicst_pkts
Number of multicast packets received.
© Solarflare Communications 2014
312
Solarflare Server Adapter
User Guide
Table 75: Name sfxge_mac
Parameter
Description
rx_nodesc_drop_cnt
Number of packets dropped by the network adapter because of a lack of RX descriptors in the RX queue. Packets can be dropped by the NIC when there are insufficient RX descriptors in the RX queue to allocate to the packet. This problem can occur if the receive rate is very high and the network adapter is not able to allocate memory and refill the RX descriptor ring quickly enough to keep up with the incoming packet rate.
A number of different steps can be tried to resolve this issue:
1. Disable the irqbalance daemon in the OS.
2. Distribute the traffic load across the available CPU/cores by setting rss_cpus=cores. Refer to Receive Side Scaling section.
3. Increase receive queue size using ethtool.
Issue 13
rx_octets
Total number of octets received.
rx_pause_pkts
Number of pause packets received with valid pause op_code.
rx_pkts
Total number of packets received.
rx_symbol_errors
Count of the number of times the receiving media is non‐
idle (the time between the Start of Packet Delimiter and the End of Packet Delimiter) for a period of time equal to or greater than minimum frame size, and during which there was at least one occurrence of an event that causes the PHY to indicate Receive Error on the MII.
rx_unicst_pkts
Number of unicast packets received.
tx_1024_to_15xx_pkts
Number of packets transmitted where the length is between 1024 and 15xx bytes. 1518(non VLAN), 1522(VLAN).
tx_128_to_255_pkts
Number of packets transmitted where the length is between 128 and 255 bytes.
tx_256_to_511_pkts
Number of packets transmitted where the length is between 256 and 511 bytes.
tx_512_to_1023_pkts
Number of packets transmitted where the length is between 512 and 1023 bytes.
© Solarflare Communications 2014
313
Solarflare Server Adapter
User Guide
Table 75: Name sfxge_mac
Parameter
Description
tx_65_to_127_pkts
Number of packets transmitted where the length is between 65 and 127 bytes.
tx_brdcst_pkts
Number of broadcast packets transmitted.
tx_def_pkts
The number of packets successfully transmitted after the network adapter defers transmission at least once when the medium is busy.
tx_errors
Number of packets transmitted with incorrect FCS.
tx_ex_col_pkts
Number of packets not transmitted due to excessive collisions. Excessive collisions occur on a network under heavy load or when too many devices contend for the collision domain. After 15 retransmission attempts + the original transmission attempt the counter is incremented and the packet is discarded.
tx_ex_def_pkts
Number of packets for which transmission is deferred for an excessive period of time.
tx_ge_15xx_pkts
Number of packets transmitted where length is between 15xx and 9000 bytes. 1518(non VLAN), 1522(VLAN).
tx_late_col_pkts
A sending device may detect a collision as it attempts to transmit a frame or before it completes sending the entire frame. If a collision is detected after the device has com‐
pleted sending the entire frame, the device will assume that the collision occurred because of a different frame. Late collisions can occur if the length of the network seg‐
ment is greater than the standard allowed length.
Collision occurred beyond the collision window (512 bit times).
This should always be zero as Solarflare adapters operate in full duplex mode.
Issue 13
tx_le_64_pkts
Number of frames transmitted where the length is less than 64 bytes.
tx_mult_col_pkts
Number of packets transmitted after being subject to multiple collisions.
tx_multicst_pkts
Number of multicast packets transmitted. Includes flow control packets.
tx_octets
Number of octets transmitted.
tx_pause_pkts
Number of pause packets transmitted.
© Solarflare Communications 2014
314
Solarflare Server Adapter
User Guide
Table 75: Name sfxge_mac
Parameter
Description
tx_pkts
Number of packets transmitted.
tx_sgl_col_pkts
Number of occurrences when a single collision delayed immediate transmission of a packet.
tx_unicst_pkts
Number of unicast packets transmitted. Includes packets that exceed that maximum length.
Table 76: Name sfxge_ndd
Parameter
Description
adv_cap_1000fdx
adv_cap_1000hdx
adv_cap_100fdx
adv_cap_100hdx
adv_cap_10fdx
adv_cap_10gfdx
adv_cap_10hdx
adv_cap_asm_pause
adv_cap_autoneg
adv_cap_pause
cap_1000fdx
cap_1000hdx
cap_100fdx
cap_100hdx
Refer to the corresponding field in the MAC statistics in Table 73 above. The adv_cap_* parameters represent a mirror image of the mac adv_*_cap parameter list for an Ethernet device. The parameters are also a subset of the cap_* statistics. If the cap_* value is 0, the corresponding adv_cap_* must also be 0, except for adv_cap_asmpause and adv_cap_pause parameters. cap_10fdx
cap_10gfdx
cap_10hdx
cap_asm_pause
cap_autoneg
cap_pause
Issue 13
© Solarflare Communications 2014
315
Solarflare Server Adapter
User Guide
Table 76: Name sfxge_ndd
Parameter
Description
crtime
Timestamp when samples were taken.
fcntl_generate
Flow control. When 1 generate pause frames.
fcntl_respond
Flow control ‐When 1 ‐ pause transmission on receipt of pause frames.
intr_moderation
Interrupt moderation interval (microseconds) maximum value 20000 µs
lp_cap_1000fdx
lp_cap_1000hdx
lp_cap_100fdx
lp_cap_100hdx
lp_cap_10fdx
lp_cap_10gfdx
lp_cap_10hdx
Refer to the corresponding link partner field in the MAC statistics in Table 73 above. The adv_cap_* parameters represent a mirror image of the mac adv_*_cap parameter list for an Ethernet device. The parameters are also a subset of the cap_* statistics. If the cap_* value is 0, the corresponding adv_cap_* must also be 0, except for adv_cap_asmpause and adv_cap_pause parameters.0
lp_cap_asm_pause
lp_cap_autoneg
lp_cap_pause
rx_coalesce_mode
Large Receive Offload. 0 = disabled (default), 1 = enabled, 2 = enabled ‐ respecting TCP PSH boundaries.
rx_scale_count
Number of RSS channels to use per port. Default is 128, Minimum is 1. Table 77: Name sfxge_rss
Issue 13
Parameter
Description
crtime
Timestamp when samples were taken.
evq0000_count
Number of RSS table entries for this event queue.
scale
Actual number of MSI‐X interrupts.
© Solarflare Communications 2014
316
Solarflare Server Adapter
User Guide
Table 78: Name sfxge_rxq0000
Parameter
Description
crtime
Timestamp when samples were taken.
dma_alloc_fail
Memory allocation failure.
dma_alloc_nomem
Memory allocation failure.
dma_bind_fail
Memory allocation failure.
dma_bind_nomem
Memory allocation failure.
kcache_alloc_nomem
Memory allocation failure.
rx_pkt_mem_limit
Per interface memory limit for RX packet buffers.
rxq_empty_discard
Number of times the RX descriptor ring was empty causing a received packet to be discarded.
Table 79: Name sfxge_txq0000
Parameter
Description
crtime
Timestamp when samples were taken.
post
Number of packets posted to the transmit queue. dpl_get_full_count
Number of times the Deferred Packet List limit was reached.
dpl_get_pkt_limit
Deferred Packet max packet limit
dpl_put_full_count
Number of times the Deferred Packet List limit was reached
dpl_put_pkt_limit
Deferred Packet max packet limit.
unaligned_split
Always 0.
Table 80: Name sfxge_vpd
Issue 13
Parameter
Description
crtime
Timestamp when samples were taken.
EC
Engineering change data.
ID
Solarflare adapter type.
PN
Solarflare adapter part number.
© Solarflare Communications 2014
317
Solarflare Server Adapter
User Guide
Table 80: Name sfxge_vpd
Issue 13
Parameter
Description
SN
Solarflare adapter serial number.
VD
Adapter firmware version.
© Solarflare Communications 2014
318
Solarflare Server Adapter
User Guide
Chapter 7: SR‐IOV Virtualization Using KVM
7.1 Introduction
This chapter describes SR‐IOV Virtualization using Linux KVM and the Solarflare SFN7000 series adapters. SR‐IOV enabled on Solarflare adapters provides accelerated cut‐through performance and is fully compatible with hypervisor based services and management tools. The advanced design of the Solarflare SFN7000 series adapter incorporates a number of features to support SR‐IOV. These features can be summarized as follows:
Multiple PCIe Physical Functions (PF).
Each physical port on the dual‐port 10G or 40G adapter can be exposed to the OS as multiple physical functions. A total of 16 PFs are supported per adapter with each having a unique MAC address. Refer to NIC Partitioning on page 55 for more details.
PCIe Virtual Functions (VF).
A PF can support a configurable number of PCIe virtual functions. In total 240 VFs can be allocated between the PFs. The adapter can also support a total of 2048 MSI‐X interrupts. Layer 2 Switching Capability.
A layer 2 switch configured in firmware supports the transport of network packets between PCI physical functions (PF) and Virtual functions (VF). This allows received packets to be replicated across multiple PFs/VFs and allows packets transmitted from one PF to be received on another PF or VF. Figure 49: Per Adapter ‐ Configuration Options
• On a 10GbE dual‐port adapter each physical port can be exposed as a maximum 8 PFs.
• On a 40GbE dual‐port adapter (in 2*40G mode) each physical port can be exposed as a maximum 8 PFs.
• On a 40GbE dual‐port adapter (in 4*10G mode) each physical port can be exposed as a maximum 4 PFs.
Issue 13
© Solarflare Communications 2014
319
Solarflare Server Adapter
User Guide
Supported Platforms
Host
• Red Hat Enterprise Linux 6.3 ‐ 7.0 KVM
Guest VM
• Red Hat Enterprise Linux 5.x, 6.x and 7.x
Acceleration of guest Virtual Machines (VM) running other (non‐Linux) operating systems is not currently supported. Other guest operating systems, including acceleration of Windows guests is planned to be supported in the future.
Platform support ‐ SR‐IOV
BIOS
To use SR‐IOV modes, platform support for hardware virtualization must be enabled. SR‐IOV must be enabled in the platform BIOS where the actual BIOS setting can differ between machines, but may be identified as SR‐IOV, IOMMU or VT‐d and VT‐x on an Intel platform. The following links identify Linux Red Hat documentation for SR‐IOV BIOS settings.
https://access.redhat.com/documentation/en‐US/Red_Hat_Enterprise_Linux/6/html/
Virtualization_Administration_Guide/sect‐Virtualization‐Troubleshooting‐
Enabling_Intel_VT_and_AMD_V_virtualization_hardware_extensions_in_BIOS.html
https://access.redhat.com/documentation/en‐US/Red_Hat_Enterprise_Linux/5/html/
Virtualization/sect‐Virtualization‐Tips_and_tricks‐Verifying_virtualization_extensions.html
There may be other BIOS options which should be enabled to support SR‐IOV, for example on DELL servers the following BIOS option must also be enabled:
Integrated Devices, SR-IOV Global Enable
Users are advised to consult the server vendor BIOS options documentation. Kernel Configuration
On an Intel platform, the IOMMU must be explicitly enabled by appending iommu=on and intel_iommu=on to the kernel line in the /boot/grub/grub.conf file. The equivalent settings on an AMD system are iommu=on and amd_iommu=on. Users should also enable the pci=realloc kernel parameter in the /boot/grub/grub.conf
file. This allows the kernel to reassign addresses to PCIe apertures (i.e. bridges/ports) in the system. KVM ‐ Interrupt Re‐Mapping
To use PCIe VF passthrough, the server must support interrupt re‐mapping. If the target server does not support interrupt re‐mapping it is necessary to set the following option in a user created file e.g. kvm_iommu_map_guest.conf in the /etc/modprobe.d directory:
options kvm allow_unsafe_assigned_interrupts=1
Issue 13
© Solarflare Communications 2014
320
Solarflare Server Adapter
User Guide
Alternative Routing‐ID Interpretation (ARI) The ARI extension to the PCI Express Base Specification extends the capacity of a PCIe endpoint by increasing the number of accessible functions (PF+VF) from, typically 8, up to 256. Without ARI support ‐ which is a feature of the server hardware and BIOS, a server hosting a virtualized environment will be limited in the number of functions which are accessible. The Solarflare SFN7000 series adapter can expose up to 16 PFs and 240 VFs per adapter. Users should consult the appropriate server vendor documentation to ensure that the host server supports ARI.
Supported Adapters
All Solarflare SFN7000 series adapters support SR‐IOV. Features described in this chapter are not supported by Solarflare SFN5000 or SFN6000 series adapters.
The hardware allows the user to configure:
• The number of PFs exposed to host and/or Virtual Machine (VM). • The number VFs exposed to host and/or Virtual Machine (VM).
• The number of MSI‐X interrupts assigned to each PF or VF. Options are configured with the sfboot utility. The Solarflare implementation uses a single adapter driver (sfc.ko) to expose PFs and VFs. Software Minimum Requirements
To configure these features the adapter must have the following (minimum) driver and firmware versions.
# ethtool -i eth4
driver: sfc
version: 4.2.2.1016
firmware-version: 4.2.1.1014 rx0 tx0
The adapter must be using the full‐feature firmware variant which can be selected using the sfboot utility and confirmed with rx0 tx0 appearing after the version number in the output from ethtool as shown above. Issue 13
© Solarflare Communications 2014
321
Solarflare Server Adapter
User Guide
The firmware update utility (sfupdate) and bootROM configuration tool (sfboot) are available in the Solarflare Linux Utilities package (SF‐107601‐LS issue 26 or later). # sfupdate
Solarstorm firmware update utility [v4.3.1]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
eth4 - MAC: 00-0F-53-21-00-61
Firmware version:
v4.2.1
Controller type:
Solarflare SFC9100 family
Controller version: v4.2.1.1014
Boot ROM version:
v4.3.1.1000
7.2 Configuration
sfboot ‐ Configuration Options
Adapter configuration options are set using the sfboot utility v4.3.1 or later from the Solarflare Linux Utilities package (SF‐107601‐LS issue 26 or later). To check the current adapter configuration run the sfboot command:
# sfboot
Solarflare boot configuration utility [v4.3.1]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
eth5:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
Physical Functions per port
MSI-X interrupt limit
Number of Virtual Functions
VF MSI-X interrupt limit
Firmware variant
Insecure filters
VLAN tags
Switch mode
Option ROM only
Negotiated automatically
5 seconds
2 seconds
5 seconds
Disabled
1
32
2
8
full feature / virtualization
Disabled
None
SRIOV
For some configuration option changes using sfboot, the server must be power cycled (power off/
power on) before the changes are effective. sfboot will display a warning when this is required.
Issue 13
© Solarflare Communications 2014
322
Solarflare Server Adapter
User Guide
Table 81 identifies sfboot SR‐IOV configurable options. Table 81: sfboot ‐ SR‐IOV options
Option
Default Value
Description
insecure_filters=<enabled|
disabled>
disabled
When enabled, a function (PF or VF) can insert filters not qualified by its own permanent MAC address. This is required when using Onload1 or when using bonded interfaces.
pf‐count=<n>
1
Number of PCIe PFs per physical port.
MAC address assignments may change following changes with this option.
pf‐vlans
None
A comma separated list of VLAN tags for each PF. This option is not currently supported but will be available as the Solarflare SR‐IOV implementation progresses. See sfboot ‐‐help for further details. msix‐limit=<n>
32
Number of MSI‐X interrupts assigned to each PF. The adapter supports a maximum 2048 interrupts. The specified value for a PF must be a power of 2 number. switch‐mode=<mode>
default
default ‐ PFIOV disabled, single PF and zero VFs created.
partitioning ‐ PFIOV disabled, configure PF and VF using pf‐count, vf‐count. See NIC Partitioning on page 55 for detais.
sriov ‐ PFIOV disabled, SR‐IOV enabled, single PF created and configurable number of VFs.
pfiov ‐ PFIOV enabled, configure PFs using pf‐
count, VFs are not supported.
vf‐count=<n>
240
Number of virtual functions per port.
vf‐msix‐limit=<n>
8
Number of MSI‐X interrupts per VF. The adapter supports a maximum 2048 interrupts. The specified value for a PF must be a power of 2 number.
1. Support for Onload with SR‐IOV is not currently available, however, the ability to run Onload and other Solarflare software products such as SolarCapture over PF/VF interfaces will become available as the SR‐IOV implementation progresses.
Issue 13
© Solarflare Communications 2014
323
Solarflare Server Adapter
User Guide
7.3 SR‐IOV
In the simplest of SR‐IOV supported configurations each physical port is exposed as a single PF (default) and up to 240 VFs.
The Solarflare net driver (sfc.ko) will detect that PF/VFs are present and automatically configure the virtual adapters and virtual ports as required. Adapter firmware will also configure the Layer 2 switch allowing packets to pass between PF and VFs or from VF to VF. Figure 50: SR‐IOV ‐ Single PF, Multiple VFs
• The PFs and VFs are in the same Ethernet layer 2 broadcast domain i.e. a packet broadcast from the PF would be received by all VFs.
• The L2 switch supports replication of received/transmitted broadcast packets to all functions.
• The L2 switch supports replication of received/transmitted multicast packets to all functions that have subscribed.
In the example above there are no virtual machines (VM) created. Network interfaces for the PF and each VF will appear in the host. An sfc NIC driver loaded in the host will identify the PF and each VF as individual network interfaces. Issue 13
© Solarflare Communications 2014
324
Solarflare Server Adapter
User Guide
SR‐IOV Configuration
Ensure SR‐IOV and the IOMMU are enabled on the host server kernel command line ‐ Refer to Platform support ‐ SR‐IOV on page 320.
1
The example configures 1 PF per port (default), 2 VFs per PF):
sfboot switch-mode=sriov vf-count=2
Solarflare boot configuration utility [v4.3.1]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
eth8:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
Physical Functions per port
1
MSI-X interrupt limit
32
Number of Virtual Functions
2
Option ROM only
Negotiated automatically
5 seconds
2 seconds
5 seconds
Disabled
2
VF MSI-X interrupt limit
Firmware variant
Insecure filters
VLAN tags
8
full feature / virtualization
Disabled
None
Switch mode
SRIOV
On RHEL6.5 and later versions, VF creation is controlled through sysfs. Use the following commands (example) to create and view created VFs.
echo 2 > /sys/class/net/eth8/device/sriov_numvfs
cat /sys/class/net/eth8/device/sriov_totalvfs
On kernels not having this control via sysfs the Solarflare net driver module max_vfs can be used to enable VFs. The max_vfs value applies to all adapters and can apply to a single integer i.e. all adapter physical functions will have the same number of VFs, or can be set to a comma separated list to have different numbers of VFs per PF.
The module parameter should be set in a user created file (e.g. sfc.conf) in the /etc/modprobe.d directory and the sfc driver must be reloaded following changes.
options sfc max_vfs=4
options sfc max_vfs=2,4,8
When specified as a comma separated list, the first VF count is assigned to the PF with the lowest index i.e. the lowest MAC address, then the PF with the next highest MAC address etc. If the sfc driver option is used to create VFs, reload the driver:
# rmmod sfc
# modprobe sfc
Issue 13
© Solarflare Communications 2014
325
Solarflare Server Adapter
User Guide
3
The server should be cold rebooted following changes using sfboot. Following the reboot, The PFs and VFs will be visible in the host using the ifconfig command and lspci (VFs shown in bold text):
# lspci
03:00.0
03:00.1
03:00.2
03:00.3
03:00.4
03:00.5
4
-d1924:
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
controller: Solarflare Communications SFC9120 (rev 01)
controller: Solarflare Communications SFC9120 (rev 01)
controller: Solarflare Communications Device 1903 (rev 01)
controller: Solarflare Communications Device 1903 (rev 01)
controller: Solarflare Communications Device 1903 (rev 01)
controller: Solarflare Communications Device 1903 (rev 01)
To identify which physical port a given network interface is using:
# cat /sys/class/net/eth<N>/device/physical_port
5
To identify which PF a given VF is associated with use the following command (in this example there are 4 VFs assigned to PF eth4):
# ip link show
19: eth4: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
link/ether 00:0f:53:21:00:61 brd ff:ff:ff:ff:ff:ff
vf 0 MAC 76:c1:36:0a:be:2b
vf 1 MAC 1e:b8:a8:ea:c7:fb
vf 2 MAC 52:6e:32:3d:50:85
vf 3 MAC b6:ad:a0:56:39:94
20: eth34: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc
link/ether 76:c1:36:0a:be:2b brd ff:ff:ff:ff:ff:ff
21: eth36: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc
link/ether 1e:b8:a8:ea:c7:fb brd ff:ff:ff:ff:ff:ff
22: eth37: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc
link/ether 52:6e:32:3d:50:85 brd ff:ff:ff:ff:ff:ff
23: eth35: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc
link/ether b6:ad:a0:56:39:94 brd ff:ff:ff:ff:ff:ff
Issue 13
© Solarflare Communications 2014
mq state DOWN qlen
mq state DOWN qlen
mq state DOWN qlen
mq state DOWN qlen
326
Solarflare Server Adapter
User Guide
7.4 KVM Network Architectures
This section identifies SR‐IOV and the Linux KVM virtualization infrastruture configurations to consume adapter port Physical Functions (PF) and Virtual Functions (VF).
• KVM libvirt Bridged...Page 327
• KVM Direct Bridged...Page 335
• KVM Libvirt Direct PassThrough...Page 341
• KVM Libvirt Network Hostdev...Page 346
KVM libvirt Bridged
The traditional method of configuring networking in KVM virtualized environments uses the para‐
virtualized (PV) driver i.e virtio-net, and the standard Linux bridge.
The bridge emulates a layer 2 learning switch to replicate multicast and broadcast packets in software and supports the transport of network traffic between VMs. This configuration uses standard linux tools for configuration and needs only a virtualized environment and guest operating system. Performance (latency/throughput) will not be as good as a network‐hostdev configuration because network traffic must pass via the host kernel. Switching is software based as traffic does not pass through the host TCP/IP stack. Figure 51: KVM ‐ libvirt bridged
Issue 13
© Solarflare Communications 2014
327
Solarflare Server Adapter
User Guide
KVM libvirt bridged ‐ GUI Configuration
1
Ensure the Solarflare adapter driver (sfc.ko) is installed on the host.
2
In the host, configure the PF.
sfboot switch-mode=default pf-count=1
The sfboot settings shown above are the default (shipping state) settings for the SFN7000 series adapter. A cold reboot of the server is only required when changes are made using sfboot.
3
Create an Ethernet bridge and add the PF interface to it using the bridge administration command brctl:
# brctl addbr <label>
# brctl addif <label> <device>
e.g:
# brctl addbr br_l
# brctl addif br_l eth8
# brctl show
bridge name
br_l
4
bridge id
8000.000f53219bb0
STP enabled
no
interfaces
eth8
Bring the bridge up:
# ifconfig br_l up
Configuration can also be achieved through the Linux libvirt API. For details/instructions, refer to Red Hat Bridged networking with libvirt documentation.
5
Create virtual machines
VMs can be created from the standard Linux virt-manager GUI interface or the equivalent virsh command line tool. As root run the command virt-manager from a terminal to start the GUI interface. Issue 13
© Solarflare Communications 2014
328
Solarflare Server Adapter
User Guide
6
Create a new virtual machine from the Virtual Machine Manager window ‐ Name the virtual machine and install the guest OS from the required source: Figure 52: Create a Virtual Machine
Click the Forward button to complete the VM setup procedures and install the VM. 7
Select the required VM from the Virtual Machine Manager window: Figure 53: List all Virtual Machines
Issue 13
© Solarflare Communications 2014
329
Solarflare Server Adapter
User Guide
8
Click the icon in the Virtual Machine Manager window to open the selected Virtual Machine configuration window: Figure 54: Virtual Machine Configuration
9
Click the Show virtual hardware details icon
to reveal the hardware list: Figure 55: Virtual Machine Configuration ‐ List Hardware
10 Click the Add Hardware button to open the Add New Virtual Hardware window then select Network from the hardware pane. Issue 13
© Solarflare Communications 2014
330
Solarflare Server Adapter
User Guide
11 From the Host device drop down list, select Specify shared device name: Figure 56: Specify Device Name
12 Name the bridge as it was created in the host and select Device model as virtio: Figure 57: Bridge Configuration
Issue 13
© Solarflare Communications 2014
331
Solarflare Server Adapter
User Guide
13 Click Finish to close the window to return to the Virtual Machine window.
14 The newly created hardware will be visible in the Virtual Machine window ‐ identify this by the MAC address assigned in the previous steps: Figure 58: Newly Added Hardware
15 Select the Show Graphical Console icon
and run the ifconfig command to identify the added interface ‐ again match the assigned MAC address: Issue 13
© Solarflare Communications 2014
332
Solarflare Server Adapter
User Guide
KVM libvirt bridged ‐ XML Configuration
1
Create the bridge and VM following steps 1‐6 from the previous GUI Configuration section or create the VM using the virsh command line. The example below uses a VM named evm1.
2
Shutdown the guest before editing the XML file:
# virsh shutdown evm1
3
On the host machine, edit the virtual machine XML file:
# virsh edit evm1
4
For each required VF add the following to the file (specify the correct MAC address and PCIe address):
<interface type='bridge'>
<mac address='52:54:00:8f:f4:25'/>
<source bridge='br_l'/>
</interface>
5
Restart the VM:
# virsh start emv1
Issue 13
© Solarflare Communications 2014
333
Solarflare Server Adapter
User Guide
The following extract is from the VM XML file KVM libvirt bridged configuration using the procedure above (line numbers have been added for ease of description):
1. <interface type='bridge'>
2.
<mac address='52:54:00:8f:f4:25'/>
3.
<source bridge='br_l'/>
4.
<target dev='vnet0'/>
5.
<model type='virtio'/>
6.
<alias name='net1'/>
7.
<address type='pci' domain='0x0000' bus='0x00' slot='0x07'
function='0x0'/>
</interface>
XML Description
1
Interface type must be specified by the user as ’bridge’ . 2
The MAC address. If not specified by the user this will be automatically assigned a random MAC address by the guest OS. The user can specify a MAC address when editing the XML file. This should not be the same as the MAC address of the VF interface in the host.
3
The source bridge is the bridge as configured using the brctl commands. This should be specified by the user.
4
The target dev will automatically assigned by the guest OS.
5
If not specified by the user, the model type will be automatically assigned by the hypervisor when the guest is started.
6
If not specified by the user, the alias name will be automatically assigned by the hypervisor when the guest is started.
7
The VF PCIe address (as known by the guest) will be added automatically by the guest OS.
For further information about the direct passthrough configuration and XML formats, refer to the following link:
http://libvirt.org/formatdomain.html#elementsNICSBridge
Issue 13
© Solarflare Communications 2014
334
Solarflare Server Adapter
User Guide
KVM Direct Bridged
In this configuration multiple macvtap drivers are bound over the same PF. For each VM created, libvirt will automatically instantiate a macvtap driver instance and the macvtap interface will be visible on the host.
Where the KVM libvirt bridged configuration uses the standard Linux bridge, a direct bridged configuration bypasses this by using the macvtap interface to connect directly with the Solarflare net driver. The macvtap interface also acts as an implicit bridge supporting the transport of traffic between VMs.
On the down side, using macvtap there is no link state propagation to the guest which is unable to identify if a link is up or down. Macvtap does not currently forward multicast joins from the guests to the underlying network driver with the result that all multicast traffic received by the physical port is forwarded to all guests. Due to this limitation this configuration is not recommended for deployments that use a non‐trivial amount of multicast traffic. Figure 59: KVM ‐ direct bridged
KVM direct Bridged ‐ Configuration
1
Create a virtual machine ‐ see previous section for configuration details.
When the virtual machine has been created the next step is to add the PF to guest.
Issue 13
© Solarflare Communications 2014
335
Solarflare Server Adapter
User Guide
2
From the Add New Virtual Hardware window, select the required PF from the Host device drop down list: Figure 60: Select PF Interface
Issue 13
© Solarflare Communications 2014
336
Solarflare Server Adapter
User Guide
3
Select virtio from the Device model drop down list: 4
Click the Finish button to return to the Virtual Machine window where the new PF will be listed in the hardware pane: Figure 61: List Added Hardware
Issue 13
© Solarflare Communications 2014
337
Solarflare Server Adapter
User Guide
5
Select Bridge from the Source mode drop down list then click the Apply button: Figure 62: Applying Virtual Hardware settings
6
The Virtual machine must be shutdown and restarted from the changes to be effective. Return to the Virtual Machine Manager window to shutdown/restart the VM. When the VM has restarted the added PF will be visible in the guest using the ifconfig command: Figure 63: Added Hardware ‐ visible in the VM
Issue 13
© Solarflare Communications 2014
338
Solarflare Server Adapter
User Guide
A macvtap interface will also be visible when ifconfig is run on the host: Figure 64: Added Hardware ‐ macvtap interface visible on the host
KVM direct bridged ‐ XML Configuration
1
Create the virtual machine ‐ see previous sections for configuration details. The example below uses a VM named evm1.
2
Shutdown the guest before editing the XML file:
# virsh shutdown evm1
3
On the host machine, edit the virtual machine XML file:
# virsh edit evm1
4
Add the following to the file (supply the correct MAC address and PCIe address):
<interface type='direct'>
<mac address='52:54:00:db:ab:ca'/>
<source dev='eth8' mode='bridge'/>
</interface>
5
Restart the VM:
# virsh start emv1
Issue 13
© Solarflare Communications 2014
339
Solarflare Server Adapter
User Guide
The following extract is from the VM XML file KVM direct bridge configuration using the procedure above (line numbers have been added for ease of description):
1. <interface type='direct'>
2.
<mac address='52:54:00:db:ab:ca'/>
3.
<source dev='eth8' mode='bridge'/>
4.
<target dev='macvtap1'/>
5.
<model type='virtio'/>
6.
<alias name='net1'/>
7.
<address type='pci' domain='0x0000' bus='0x00' slot='0x07'
function='0x0'/>
</interface>
XML Description
1
Interface type must be specified by the user as ’direct’ . 2
The MAC address. If not specified by the user this will be automatically assigned a random MAC address by the guest OS. The user can specify a MAC address when editing the XML file. This should not be the same as the MAC address of the VF interface in the host.
3
The source dev is the interface identifier from the host ‐ added by the user. The user should also specify the mode which must be ’bridge’.
4
The target dev will automatically assigned by the guest OS.
5
If not specified by the user, the model type will be automatically assigned by the hypervisor when the guest is started.
6
If not specified by the user, the alias name will be automatically assigned by the hypervisor when the guest is started.
7
The VF PCIe address (as known by the guest) will be added automatically by the guest OS.
For further information about the direct passthrough configuration and XML formats, refer to the following link:
http://libvirt.org/formatdomain.html#elementsNICSBridge
Issue 13
© Solarflare Communications 2014
340
Solarflare Server Adapter
User Guide
KVM Libvirt Direct PassThrough
Using a libvirt direct‐passthrough configuration, VFs are used in the host OS to provide network acceleration for guest VMs. The guest continues to use a paravirtualized driver and is unaware this is backed with a VF from the network adapter. Figure 65: SR‐IOV VFs used in the host OS
• Macvtap uses the Solarflare net driver bound over the top of each VF.
• Each macvtap interface is implicitly created by libvirt over a single VF network interface and is not visible to the host OS.
• Each macvtap is on a different network interface ‐ so there is no implicit macvtap bridge.
• Macvtap does not currently forward multicast joins from the guests to the underlying network driver with the result that all multicast traffic received by the physical port is forwarded to all guests. Due to this limitation this configuration is not recommended for deployments that use a non‐trivial amount of multicast traffic.
• Guest migration is fully supported as there is no physical hardware state in the VM guests. A guest can be reconfigured to a host using a different VF or a host without an SR‐IOV capable adapter.
• The MAC address from the VF is passed through to the para‐virtualized driver.
• Because there is no VF present in a VM, Onload and other Solarflare applications such as SolarCapture cannot be used in the VM.
Issue 13
© Solarflare Communications 2014
341
Solarflare Server Adapter
User Guide
KVM Libvirt Direct PassThrough ‐ Configuration
1
Create the Virtual Machine and VFs (see previous sections for details).
2
Select Add Hardware from the Virtual Machine window: Figure 66: Add Hardware.
Issue 13
© Solarflare Communications 2014
342
Solarflare Server Adapter
User Guide
Select Network from the hardware pane, then identify and select the interface from the Host device list and select virtio from the Device model list: Figure 67: Interface Configuration
3
Issue 13
Click the Finish button to return the Virtual Machine window.
© Solarflare Communications 2014
343
Solarflare Server Adapter
User Guide
4
Select the interface (identify this from the MAC address) from the Virtual Machine window and change Source mode to Passthrough: 5
Click the Apply button before returning to the Virtual Machine Manager window to shutdown/restart the guest.
Once the guest has restarted, the interface will be visible in both host and guest.
KVM Libvirt Direct PassThrough ‐ XML Configuration
1
Create the Virtual Machine.See previous sections for details. The example below uses a VM named evm1.
2
Shutdown the VM:
# virsh shutdown evm1
3
On the host machine, edit the virtual machine XML file:
# virsh edit evm1
Issue 13
© Solarflare Communications 2014
344
Solarflare Server Adapter
User Guide
4
For each required VF add the following to the file:
<interface type='direct'>
<mac address='52:54:00:54:9d:36'/>
<source dev='eth10' mode='passthrough'/>
<model type='virtio'/>
</interface>
5
Restart the VM:
# virsh start evm1
The following extract is from the VM XML file after a VF has been passed through to the guest using the procedure above (line numbers have been added for ease of description):
1. <interface type='direct'>
2.
<mac address='52:54:00:54:9d:36'/>
3.
<source dev='eth10' mode='passthrough'/>
4.
<target dev='macvtap0'/>
5.
<model type='virtio'/>
6.
<alias name='net1'/>
7.
<address type='pci' domain='0x0000' bus='0x00' slot='0x07'
function='0x0'/>
</interface>
XML Description
1
A description of how the VF interface is managed ‐ added by the user. 2
The MAC address. If not specified by the user this will be automatically assigned a random MAC address by the guest OS. The user can specify a MAC address when editing the XML file. This should not be the same as the MAC address of the VF interface in the host.
3
The source dev is the interface identifier from the host ‐ added by the user. The user should also specify the mode which must be ’passthrough’.
4
The target dev will automatically assigned by the guest OS.
5
If not specified by the user, the model type will be automatically assigned by the hypervisor when the guest is started.
6
If not specified by the user, the alias name will be automatically assigned by the hypervisor when the guest is started.
7
The VF PCIe address (as known by the guest) will be added automatically by the guest OS.
For further information about the direct passthrough configuration and XML formats, refer to the following link:
http://libvirt.org/formatdomain.html#elementsNICSDirect
Issue 13
© Solarflare Communications 2014
345
Solarflare Server Adapter
User Guide
KVM Libvirt Network Hostdev
Network Hostdev exposes VFs directly into guest VMs allowing the data path to fully bypass the host OS and therefore provides maximum acceleration for network traffic.
Figure 68: SR‐IOV VFs passed to guests
• The hostdev configuration delivers the highest throughput and latency performance. Because the guest is directly linked to the virtual function therefore directly connected to the underlying hardware. • Migration is not supported in this configuration because the VM has knowledge of the network adapter hardware (VF) present in the server.
• The VF is visible in the guest. As the Solarflare SR‐IOV implementation progresses, this will allow applications using the VF interface to be accelerated using OpenOnload or to use other Solarflare applications such as SolarCapture. • The Solarflare net driver (sfc.ko) needs to be installed in the guest.
Issue 13
© Solarflare Communications 2014
346
Solarflare Server Adapter
User Guide
KVM Libvirt network hostdev ‐ Configuration
1
Create the Virtual Machine (see previous configuration sections for details). The example commands below use a VM named evm1.
2
Install Solarflare network driver (sfc.ko) in the guest and host.
3
Create the required number of VFs:
# sfboot switch-mode=sriov vf-count=4
A cold reboot of the server is required for this to be effective.
4
For the selected PF ‐ configure the required number of VFs e.g:
# echo 4 > /sys/class/net/eth8/device/sriov_numvfs
5
VFs will now be visible in the host ‐ use ifconfig and the lscpi command to identify the Ethernet interfaces and PCIe addresses (VFs shown below in bold text):
# lspci -D -d1924:
0000:03:00.0 Ethernet
0000:03:00.1 Ethernet
0000:03:00.2 Ethernet
0000:03:00.3 Ethernet
0000:03:00.4 Ethernet
0000:03:00.5 Ethernet
6
controller:
controller:
controller:
controller:
controller:
controller:
Solarflare
Solarflare
Solarflare
Solarflare
Solarflare
Solarflare
Communications
Communications
Communications
Communications
Communications
Communications
SFC9120 (rev 01)
SFC9120 (rev 01)
Device 1903 (rev
Device 1903 (rev
Device 1903 (rev
Device 1903 (rev
01)
01)
01)
01)
Using the PCIe address, unbind the VFs to be passed through to the guest from the host sfc driver e.g.:
# echo 0000:03:00.5 > /sys/bus/pci/devices/0000\:03\:00.5/driver/unbind
7
Check that the required VF interface is no longer visible in the host using ifconfig.
8
On the host, stop the virtual machine:
# virsh shutdown emv1
9
On the host, edit the virtual machine XML file:
# virsh edit evm1
Issue 13
© Solarflare Communications 2014
347
Solarflare Server Adapter
User Guide
10 For each VF that is to be passed to the guest, add the following <interface type> section to the file identifying the VF PCIe address (use lscpi to identify PCIe address):
<interface type='hostdev' managed='yes'>
<source>
<address type='pci' domain='0x0000' bus='0x03' slot='0x00'
</source>
</interface>
function='0x5'/>
11 Restart the virtual machine in the host:
# virsh start emv1
The VF interface will now be visible in the guest. Using the virt-manager GUI interface the VF is present in the hardware pane (selected in the example below): Figure 69: VF Interface in the Guest
Issue 13
© Solarflare Communications 2014
348
Solarflare Server Adapter
User Guide
The following extract is from the VM XML file after a VF has been passed through to the guest using the procedure above (line numbers have been added for ease of description):
1. <interface type='hostdev' managed='yes'>
2. <mac address='52:54:00:d1:ec:85'/>
<source>
3.
<address type='pci' domain='0x0000' bus='0x03' slot='0x00'
function='0x5'/>
</source>
4. <alias name='hostdev0'/>
5.
<address type='pci' domain='0x0000' bus='0x00' slot='0x07'
function='0x0'/>
</interface>
XML Description
1
A description of how the VF interface is managed ‐ added by user. When managed=yes, the VF is detached from the host before being passed to the guest and the VF will be automatically reattached to the host after the guest exits. If managed=no, the user must call virNodeDeviceDetach (or use the command virsh
nodedev-detach) before starting the guest or hot‐plugging the device and call virNodeDeviceReAttach (or use command virsh nodedev-reattach) after hot‐unplug or after stopping the guest. 2
The VF MAC address. If not specified by the user this will be automatically assigned a random MAC address by the guest OS. The user can specify a MAC address when editing the XML file. This should not be the same as the MAC address of the VF interface in the host.
3
The VF PCIe address, this is the address of the VF interface as it is identified in the host. This should be entered by the user when editing the XML file. 4
If not specified by the user the alias name will be automatically assigned by the guest OS. The user can supply an alias when editing the XML file.
5
The VF PCIe address (as known by the guest) will be added automatically by the guest OS.
For further information about the hostdev configuration and XML formats, refer to the following link:
http://libvirt.org/formatdomain.html#elementsNICSHostdev
Issue 13
© Solarflare Communications 2014
349
Solarflare Server Adapter
User Guide
7.5 PF‐IOV
Physical Function I/O Virtualization allows PFs to be passed to a VM. Although this configuration is not widely used, it is included here for completeness. This mode provides no advantage over “Network Hostdev” and therefore Solarflare recommends that customers deploy “Network hostdev instead of PF‐IOV.
Each physical port is partitioned into a number of PFs with each PF passed to a different Virtual Machine (VM). Each VM supports a TCP/IP stack and Solarflare adapter driver (sfc.ko). This mode allows switching between PFs via the Layer 2 switch configured in firmware. PF‐IOV does not use SR‐IOV and does not require SR‐IOV hardware support. Figure 70: PFIOV
• Up to 16 PFs and 16 MAC addresses are supported PER ADAPTER.
• With no VLAN configuration, all PFs are in the same Ethernet layer 2 broadcast domain i.e. a packet broadcast from any one PF would be received by all other PFs.
• The layer 2 switch supports replication of received/transmitted broadcast packets to all PFs.
• The layer 2 switch supports replication of received/transmitted multicast packets to all subscribers.
• VFs are not supported in this mode.
Issue 13
© Solarflare Communications 2014
350
Solarflare Server Adapter
User Guide
PF‐IOV Configuration
The sfboot utility from the Solarflare Linux Utilities package (SF‐107601‐LS) is used to partition physical interfaces to the required number of PFs.
• Up to 16 PFs and 16 MAC addresses are supported per adapter.
• The PF setting applies to all physical ports. Ports cannot be configured individually.
• vf‐count must be zero.
1
To partition all ports (example configures 4 PFs per port):
# sfboot switch-mode=pfiov pf-count=4
Solarflare boot configuration utility [v4.3.1]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
eth5:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
Option ROM only
Negotiated automatically
5 seconds
2 seconds
5 seconds
Disabled
Physical Functions per port
4
MSI-X interrupt limit
32
Number of Virtual Functions
0
VF MSI-X interrupt limit
Firmware variant
Insecure filters
VLAN tags
8
full feature / virtualization
Disabled
None
Switch mode
PFIOV
2
A reboot of the server is required for the changes to be effective. 3
Following reboot the PFs will be visible using the ifconfig command ‐ each PF will have a unique MAC address. The lspci command will also identify the PFs:
# lspci -d 1924:
07:00.0
07:00.1
07:00.2
07:00.3
07:00.4
07:00.5
07:00.6
07:00.7
Issue 13
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
controller:
controller:
controller:
controller:
controller:
controller:
controller:
controller:
Solarflare
Solarflare
Solarflare
Solarflare
Solarflare
Solarflare
Solarflare
Solarflare
Communications
Communications
Communications
Communications
Communications
Communications
Communications
Communications
© Solarflare Communications 2014
Device
Device
Device
Device
Device
Device
Device
Device
0903
0903
0903
0903
0903
0903
0903
0903
(rev
(rev
(rev
(rev
(rev
(rev
(rev
(rev
01)
01)
01)
01)
01)
01)
01)
01)
351
Solarflare Server Adapter
User Guide
7.6 Feature Summary
Table 82: Feature Summary
Issue 13
Default
Partition
SRIOV
PFIOV
Number of PFs (per adapter)
num ports
>=num ports <=16
num ports
>=num ports <=16
All PFs (per port) must be on unique VLANs
N/A
N/A
N/A
No
Num VFs (per adapter)
0
0
>0 <=240
0
Num L2 broadcast domains
1
1
1
1
Mode suitable for PF PCIe passthrough No
No
No
Yes
Mode suitable for VF PCIe passthrough No
N/A
Yes
N/A
Firmware insert/remove VLAN
None
No
None
None
sfboot settings
switch‐
mode=default
switch‐
mode=partition
switch‐
mode=sriov
switch‐
mode=pfiov
pf‐count=1
pf‐count>1
pf‐count=1
pf‐count>1
vf‐count=0
vf‐count=0
vf‐count>0
vf‐count=0
Multicast + Broadcast replicated to all functions in the same VLAN
N/A
N/A
Yes
Yes
L2 switching between PF and associated VFs
N/A
N/A
Yes
N/A
L2 switching between PFs on the same physical port
N/A
No
N/A
Yes
© Solarflare Communications 2014
352
Solarflare Server Adapter
User Guide
7.7 Limitations
Users are advised to refer to the Solarflare net driver release notes for details of all limitations.
Per Port Configuration
For initial releases, all PFs have the same expansion ROM where PXE/iSCSI settings are stored. This means that all functions will PXE boot or none will attempt to PXE boot as each PF has a unique MAC address and requires a unique DHCP request.
The PF configuration is a global setting and applies to all physical ports on an adapter. It is not currently possible to configure ports individually.
VLANS
VLAN configuration is not currently supported in SR‐IOV or PF‐IOV configuration models. This feature will closely follow the initial SR‐IOV project release.
PTP
PTP can only run on the primary physical function of each physical port and is not supported on VF interfaces.
Issue 13
© Solarflare Communications 2014
353
Solarflare Server Adapter
User Guide
Chapter 8: Solarflare Adapters on Mac 0S X
This chapter covers the following topics on the Mac 0S X® platform:
• System Requirements...Page 354
• Supported Hardware Platforms...Page 354
• Mac 0S X Platform Feature Set...Page 355
• Thunderbolt...Page 355
• Driver Install...Page 355
• Interface Configuration...Page 358
• Tuning...Page 359
• Driver Properties via sysctl...Page 359
• Firmware Update...Page 360
• Performance...Page 362
8.1 System Requirements
• Refer to Software Driver Support on page 12 for supported Mac OS X Distributions.
• Solarflare Mac OS X drivers are supported for all Solarflare SFN5xxx AND SFN6xxx series adapters.
• Driver package SF‐107120‐LS supports OS X 10.8 and earlier versions. • Driver package SF‐111621‐LS supports OSX 10.9 and later versions. 8.2 Supported Hardware Platforms
The following Apple hardware platforms are supported:
• Mac Pro
• Mac Pro Server
• X‐Serve (supported but not routinely tested by Solarflare)
Issue 13
© Solarflare Communications 2014
354
Solarflare Server Adapter
User Guide
8.3 Mac 0S X Platform Feature Set
The following table lists the features supported by Solarflare adapters on Mac OS X distributions. Table 83: Mac OS X Feature Set
Large Receive Offload
TCP receive frame coalescing to reduce CPU utilization and improve TCP throughput
TCP Segmentation Offload
TCP transmit segmentation to reduce CPU utilization and improve TCP throughput
RMON
Statistics counters
Checksum offloads IPv4, TCP and UDP
MSI Interrupts
MTU
Standard 1500 byte and jumbo 9000 byte MTU
8.4 Thunderbolt
The Solarflare adapter driver provides basic support for Thunderbolt. When a network adapter is connected to a Thunderbolt‐capable system e.g. via a Thunderbolt‐to‐PCIe chassis, the interfaces can be configured in the usual way.
Due to limitations in the Thunderbolt connection performance may be worse compared to using the Solarflare adapter in a PCIe slot.
Full support for Thunderbolt, including plugging and unplugging the Thunderbolt cable is planned for a future release. 8.5 Driver Install
Uninstall Previous Driver
An installed Solarflare network adapter driver MUST BE UNINSTALLED before upgrading to a new driver release.
1
Open System Preferences > Network.
2
Disable the service for all ports of the driver:
‐ choose an active driver service in the list
Issue 13
© Solarflare Communications 2014
355
Solarflare Server Adapter
User Guide
‐ click on the gear icon and choose ’Make Service Inactive’’
Figure 71: Disable Driver Services
3
Repeat above steps for all ports of the driver.
4
Double‐click SF‐107120‐LS.dmg in Finder to mount the disk image. Invoke the Solarflare driver uninstall script in Terminal as root (replacing <version> with the version number of the install package that is being used)
/Volumes/Solarflare10GbE-<version>/uninstall.sh
Issue 13
© Solarflare Communications 2014
356
Solarflare Server Adapter
User Guide
Download and Install the Mac OS X Driver
1
Download SF‐107120‐LS.dmg into a convenient working directory. 2
Double click SF‐107120‐LS.dmg in Finder to mount the disk image. 3
Run the Solarflare10GbE.pkg install package and follow the install instructions. Figure 72: Install Solarflare Driver Window
Issue 13
© Solarflare Communications 2014
357
Solarflare Server Adapter
User Guide
8.6 Interface Configuration
With the adapter driver installed, the network interface can be configured using the network interface settings menu: Figure 73: Solarflare Adapter Interface Configuration
Issue 13
© Solarflare Communications 2014
358
Solarflare Server Adapter
User Guide
8.7 Tuning
System Tuning
For many applications (including file serving) tuning the Mac OS X network stack for 10G operation can improve network performance. Therefore, for such applications it is possible to tune the Mac OS X kernel and network stack by applying the following settings in the /etc/sysctl.conf file. Settings added to /etc/sysctl.conf are effective following a machine reboot.
kern.ipc.maxsockbuf=4194304
net.inet.tcp.sendspace=2097152
net.inet.tcp.recvspace=2097152
net.inet.tcp.delayed_ack=2
Settings can also be updated using the following method ‐ but these are non‐persistent and will return to default values following a reboot:
sudo sysctl -w <name>=<value>
Optional Driver Tuning
The driver's default configuration has been chosen to provide optimal performance over a wide range of applications. It is recommended to only change the driver settings if advised to do so by Solarflare support.
8.8 Driver Properties via sysctl
Driver properties are also made visible via the sysctl program. Changes made via sysctl calls are applied immediately, and are not persistent (i.e. the changes are lost when the driver is unloaded or after a reboot). To make persistent changes to sysctl values, edit the file /etc/sysctl.conf.
Changes made via sysctl apply to a single driver interface, using the BSD name of the network interface. The BSD name of a network interface is shown by the ifconfig command line tool, and in the Network Utility application. For Ethernet interfaces, the BSD name starts with en followed by a number.
Table 84 identifies currently supported driver sysctl values. Table 84: Mac OS X sysctl driver values
Issue 13
sysctl name
R/W
Value
net.sfxge.version
RO
Driver version string
net.sfxge.<enX>.mac
RO
MAC address
net.sfxge.<enX>.moderation
RW
0
> 0
© Solarflare Communications 2014
Description
Disable interrupt moderation
interrupt moderation (microsecs)
359
Solarflare Server Adapter
User Guide
Table 84: Mac OS X sysctl driver values
sysctl name
R/W
Value
Description
net.sfxge.<enX>.rx_ring_size
RW
512
1024
2048
4096
Hardware receive ring entries
net.sfxge.<enX>.tx_ring_size
RW
512
1024
2048
4096
Hardware transmit ring entries
net.sfxge.<enX>.ipv4lro
RW
0
1
IPv4 LRO disabled
IPv4 LRO enabled
net.sfxge.<enX>.ipv6lro
RW
0
1
IPv6 LRO disabled
IPv6 LRO enabled
net.sfxge.<enX>.ipv4tso
RO
0
1
IPv4 TSO disabled
IPv4 TSO enabled
net.sfxge.<enX>.ipv6tso
RO
0
1
IPv6 TSO disabled
IPv6 TSO enabled
8.9 Firmware Update
The Solarflare driver package for Apple Mac OS X also includes the firmware update utility program sfupdate. When the driver package is installed the sfupdate binary is installed into /Library/Application
Support/Solarflare10GbE directory and a symbolic link placed in /usr/local/bin/
sfupdate.
When upgrading or installing the network adapter driver it is recommended to upgrade the adapter firmware. sfupdate: Command Usage
The general usage for sfupdate is as follows (as root):
sfupdate [--adapter=enX] [options]
where:
enX is the interface name of the Solarflare adapter to be upgraded.
option is one of the command options listed in Sfupdate Options on page 361.
The format for the options are <option>=<parameter>
Issue 13
© Solarflare Communications 2014
360
Solarflare Server Adapter
User Guide
Running the command sfupdate with no additional parameters will display the current firmware version for all Solarflare adapters and identifies whether the firmware within sfupdate is more up to date. sfupdate: All Solarflare adapters
1
Run sfupdate to check that the firmware on all adapters is up to date.
2
Run sfupdate --write to update the firmware on all adapters.
sfupdate: Command Line Options
Table 85 lists the options for sfupdate.
Table 85: Sfupdate Options
Option
Description
-h, --help
Display help for the available options and command line syntax. -i, --adapter=enX
Specifies the target adapter when more than one adapter is installed in the localhost. enX = Adapter ifname or MAC address (as obtained with --list). --list
Shows the adapter ID, adapter name and MAC address of each adapter installed in the localhost. --write
Re‐writes the firmware from the images embedded in the sfupdate tool. To re‐write using an external image, specify --image=<filename> in the command. --write fails if the embedded image is the same or a previous version. To force a write in this case, specify -force in the command. Issue 13
--force
Force the update of all firmware, even if the installed firmware version is the same as, or more recent then, the firmware embedded in sfupdate. --image=(filename)
Update the firmware using the binary image from the given file rather than from those embedded in the utility. -y, --yes
Prompts for user confirmation before writing the firmware to the adapter.
-v, --verbose
Verbose mode.
-s, --silent
Suppress output while the utility is running; useful when the utility is used in a script.
© Solarflare Communications 2014
361
Solarflare Server Adapter
User Guide
Table 85: Sfupdate Options
Option
Description
-V --version
Display version information and exit.
8.10 Performance
The following section is an overview of benchmark tests results measured by Solarflare to provide an indication of expected performance with current drivers.
Performance tests were conducted on Mac OS X 10.7.2 on a pair of Mac Pro servers configured back‐
to‐back. The Mac OS X network stack was tuned for 10G operation as described in Tuning on page 359.
Reference System Specification
• MacPro5,1, 3GB memory (all channels populated)
• Processor: Single Quad‐Core Intel Xeon @ 2.8 GHz L2 Cache (per core): 256 KB, L3 Cache: 8 MB
Throughput (Netperf TCP_STREAM)
Results using Netperf IPv4 TCP_STREAM at 1500 MTU:
Table 86: Throughput Results
Message size
No. of streams
Bandwidth
64Kbyte
1
9.26 Gb/s
64Kbyte
1 bidirectional
17.8 Gb/s
Latency (Netperf TCP_RR)
Latency measured using Netperf IPv4 TCP_RR will depend on the interrupt moderation settings and the type of SFN5xxx adaptor used (10GBaseT cards have higher latency). Latency as measured on SFN5122F at the standard 1500 MTU is as follows:
• Interrupt moderation at 40µs : 45.7 µs RTT/2
• Interrupt moderation disabled: 18.2 µs RTT/2
File System Benchmarks (AJA System Test)
The AJA System Test benchmark provides some indication of likely network file system performance for video applications.
Issue 13
© Solarflare Communications 2014
362
Solarflare Server Adapter
User Guide
System Setup:
• 2.25GB ramdisk on file‐system ‘target’ server. The test consisted of writing and then reading a 1.0GB file to and from this ramdisk
• SFN5122F SFP+ back‐to‐back configuration
• To configure a ramdisk for the test (of size 4500000 x 512k sectors):
$ sudo diskutil eraseVolume HFS+ "ramdisk" `hdiutil attach -nomount
ram://4500000`
Table 87: File System Benchmark Test Results
Protocol
AFP
SMB
Issue 13
1500 MTU
9000 MTU Jumbo
Frame size
Read MB/s
Write MB/s
Read MB/s
Write MB/s
720 X 468, 8 bit
439.5
547.6
433.0
574.4
1920 x 1080, 10 bit
509.3
728.3
502.3
770.1
4096 x 2160, 10 bit‐RGB
521.3
807.0
516.0
849.5
1920 X 1080, 10 bit
312.7
255.7
370.0
291.3
© Solarflare Communications 2014
363
Solarflare Server Adapter
User Guide
Chapter 9: Solarflare Boot ROM Agent
Solarflare adapters support PXE and iSCSI booting, enabling diskless systems to boot from a remote target operating system. Solarflare adapters comply with PXE 2.1. This chapter covers the following topics:
Solarflare adapters are shipped with boot Rom support ’exposed’, that is the Boot ROM Agent runs during the machine bootup stage allowing the user to enter the setup screens (via Ctrl+B) and enable PXE support when this is required. The Boot ROM Agent can also be invoked using the Solarflare supplied sfboot utility ‐ For instructions on the sfboot method refer to the sfboot commands in the relevant OS section of this user guide. PXE boot is supported on all Solarflare adapters.
Some Solarflare distributors are able to ship Solarflare adapters with PXE boot enabled. Customers should contact their distributor for further information.
PXE and iSCSI network boot is not supported for Solarflare adapters on IBM System p servers. • Configuring the Solarflare Boot ROM Agent...Page 364
• PXE Support...Page 365
• iSCSI Boot...Page 369
• Configuring the iSCSI Target...Page 369
• Configuring the Boot ROM...Page 369
• DHCP Server Setup...Page 376
• Installing an Operating System to an iSCSI target...Page 378
• Default Adapter Settings...Page 387
9.1 Configuring the Solarflare Boot ROM Agent
Updating Firmware
Before configuring the Boot ROM Agent, Solarflare recommend that servers are running the latest adapter firmware which can be updated as follows: • From a Windows environment you can use the supplied Command Line Tool sfupdate.exe. See Sfupdate: Firmware Update Tool on page 201 for more details.
• From a Linux environment, you can update the firmware via sfupdate. See Upgrading Adapter Firmware with Sfupdate on page 81.
• From a VMware environment, you can update the firmware via sfupdate. See Upgrading Adapter Firmware with Sfupdate on page 264.
NOTE: The Solarflare firmware supports both PXE and iSCSI.
Issue 13
© Solarflare Communications 2014
364
Solarflare Server Adapter
User Guide
Configuring the Boot ROM Agent
The Boot ROM Agent can be configured in the following ways:
• On server startup, press Ctrl+B when prompted during the boot sequence.
• From a Windows Environment, via SAM. See Using SAM for Boot ROM Configuration on page 169. Alternatively you can use the supplied Command Line Tool sfboot. See Sfboot: Boot ROM Configuration Tool on page 185.
• From a Linux environment, via sfboot. See Configuring the Boot ROM with sfboot on page 66.
• From a VMware environment, via sfboot. See Configuring the Boot ROM with Sfboot on page 254.
9.2 PXE Support
Solarflare Boot ROM agent supports the PXE 2.1 specification. PXE requires DHCP and TFTP Servers, the configuration of these servers depends on the deployment service used.
Linux
For Red Hat Enterprise and SUSE Linux Enterprise Server, please consult your Linux documentation.
See Unattended Installation ‐ Red Hat Enterprise Linux on page 49 and Unattended Installation ‐ SUSE Linux Enterprise Server on page 50 for more details of unattended installation on Linux
Configuring the Boot ROM Agent for PXE
This section describes configuring the adapter via the Ctrl+B option during server startup. For alternative methods of configuring PXE see Configuring the Boot ROM Agent on page 365.
NOTE: If the BIOS supports console redirection, and you enable it, then Solarflare recommends that you enable ANSI terminal emulation on both the BIOS and your terminal. Some BIOSs are known to not render the Solarflare Boot Manager properly when using vt100 terminal emulation.
Issue 13
© Solarflare Communications 2014
365
Solarflare Server Adapter
User Guide
1
Issue 13
On starting or re‐starting the server, press Ctrl+B when prompted. The Solarflare Boot Configuration Utility is displayed.
© Solarflare Communications 2014
366
Solarflare Server Adapter
User Guide
2
Issue 13
Use the arrow keys to highlight the adapter you want to boot via PXE and press Enter. The Adapter Menu is displayed. © Solarflare Communications 2014
367
Solarflare Server Adapter
User Guide
3
From the Boot Mode option, press the arrow keys to change the Boot Image and/or the Boot Type.
4
From the Boot Type, press Space until PXE is selected.
5
Solarflare recommend leaving the Adapter Options and BIOS Options at their default values. For details on the default values for the various adapter settings, see Table 89 on page 387.
Issue 13
© Solarflare Communications 2014
368
Solarflare Server Adapter
User Guide
9.3 iSCSI Boot
Introduction
Solarflare adapters support diskless booting to a target operating system over Internet Small Computer System Interface (iSCSI). iSCSI is a fast, efficient method of implementing storage area network solutions.
The Boot ROM in the Solarflare adapter contains an iSCSI initiator allowing the booting of an operating system directly from an iSCSI target.
NOTE: Adapter teaming and VLANs are not supported in Windows for iSCSi remote boot enabled Solarflare adapters. To configure load balancing and failover support on iSCSI remote boot enabled adapters, you can use Microsoft MultiPath I/O (MPIO), which is supported on all Solarflare adapters.
9.4 Configuring the iSCSI Target
To the server (iSCSI initiator), the iSCSI target represents the hard disk from where the operating system is booted from. To enable connections from the server, you will need to allocate and configure a logical unit number (LUN) on an iSCSI target. The server (iSCSI initiator) will see the LUN as a logical iSCSI device and will attempt to establish a connection with it. You may need to enter details of the Solarflare adapter ID (MAC address) and other details to validate the connection. Refer to the iSCSI target documentation for details on how to configure your target. 9.5 Configuring the Boot ROM
The server (iSCSI initiator) needs to contain at least one Solarflare network adapter. To enable the adapter for iSCSI booting, you will need to configure the Boot ROM with the correct initiator, target and authentication details. This can also be configured via the sfboot command line tool on all platforms, and through SAM on Windows. For Windows, see Sfboot: Boot ROM Configuration Tool on page 185
For Linux, see Configuring the Boot ROM with sfboot on page 66
For VMware, see Configuring the Boot ROM with Sfboot on page 254
For SAM, see Using SAM for Boot ROM Configuration on page 169
Issue 13
© Solarflare Communications 2014
369
Solarflare Server Adapter
User Guide
1
Start or re‐start the iSCSI initiator server and when prompted, press Ctrl+B. The Solarflare Boot Configuration Utility will display.
NOTE: If the BIOS supports console redirection, and you enable it, then Solarflare recommends that you enable ANSI terminal emulation on both the BIOS and your terminal. Some BIOSs are known to not render the Solarflare Boot Manager properly when using vt100 terminal emulation.
2
Issue 13
Highlight the adapter to configure and Press Enter. The Adapter Menu is displayed.
© Solarflare Communications 2014
370
Solarflare Server Adapter
User Guide
Issue 13
© Solarflare Communications 2014
371
Solarflare Server Adapter
User Guide
3
Issue 13
From the BootROM Mode option, press the space bar to change the Boot Image and or the Boot Type.
© Solarflare Communications 2014
372
Solarflare Server Adapter
User Guide
From the Boot Type, press Space until iSCSI is selected.
Press Enter. The iSCSI Initiator options are displayed.
Issue 13
© Solarflare Communications 2014
373
Solarflare Server Adapter
User Guide
Use DHCP for Initiator is selected as default. This instructs the adapter to use a DHCP server to obtain the relevant details to configure the Solarflare Boot ROM iSCSI initiator. See DHCP Server Setup on page 376. If you are not using DHCP, press enter and add the following details: IP address: IP address of the Solarflare adapter to use at boot time. Netmask: IP address subnet mask. Gateway: Network gateway address. A gateway address may be required if the iSCSI target is on a different subnet from the initiator.
Primary DNS: Address of a primary DNS server. Use DHCP initiator IQN is selected as default. This instructs the adapter to obtain the iSCSI initator IQN from the DHCP server via option 43.203 or if this is not available to construct an iSCSI initator IQN from option 12. See DHCP Server Setup on page 376 for more details
Initiator IQN: The iSCSI initiator IQN of the Solarflare adapter if you are not using DHCP to obtain the iSCSI initiator IQN.
DHCP Vendor Class ID: If you are using DHCP to obtain the iSCSI initiator IQN, the adapter will use DHCP option 43 to try and obtain this information from the DHCP server. DHCP option 43 is described as “vendor specific information” and requires that the vendor id (DHCP option 60) configured at the DHCP server matches the vendor id configured in the Boot ROM. See DHCP Option 60, Vendor ID on page 377 for more details. Solarflare strongly recommend leaving this setting as “SFCgPXE”.
Press Esc to return to the Adapter Menu.
4
Highlight iSCSI Target and press Enter.
By default, the adapter uses DHCP to obtain details about the iSCSI target. See DHCP Server Setup on page 376 for details of how to enter this information into your DHCP server. If you are not using DHCP, press Enter and enter the following details:
Target IQN: Name of the iSCSI Target. The format of this is usually IQN or EUI: refer to your iSCSI Target documentation for details of how to configure this setting. Target Server: IP address or DNS name of the target server. Issue 13
© Solarflare Communications 2014
374
Solarflare Server Adapter
User Guide
TCP port: The TCP Connection port number to connect to on the iSCSI target (required). Default: 3260.
Boot LUN: Logical unit number (LUN) of the iSCSI Target (required). Default: 0. Values: 0‐255.
The following settings can also be configured:
LUN busy retry count: Number of times the initiator will attempt to connect to the iSCSI target. Default: 2. Range: 0‐255.
Press Esc to return to the Adapter Menu.
5
If CHAP authentication is required, highlight iSCSI CHAP and press Enter.
Enter User Name and Secret information.
If Mutual CHAP is required as well as CHAP, hIghlight this option and press Enter.
Enter Target user name and Target secret information.
Press Esc to return to the Adapter Menu.
6
MPIO can be configured to provide alternative paths to the iSCSI target to increase the resilience to network outages. The MPIO priority defines the order the configured adapters are used to attempt to connect to the iSCSI target.
You can use the MPIO option to configure the MPIO rank for all adapters. Ensure all adapters to be used for MPIO are correctly configured for iSCSI boot. Highlight iSCSI MPIO and press Enter. Issue 13
© Solarflare Communications 2014
375
Solarflare Server Adapter
User Guide
Note that you can set the MPIO rank for all Solarflare adapters from the configuration menus of any of the available adapters.
Press Esc to return to the Adapter menu.
7
When you have finished, select Save and exit. 9.6 DHCP Server Setup
If your network has a DHCP server, the adapter Boot ROM can be configured so the adapter is able to dynamically retrieve iSCSI initiator and target configurations from it on startup.
DHCP Option 17, Root Path
The root path option can be used to describe the location of the iSCSI target. This information is used in Step 4 on page 374.
The iSCSI root path option configuration strings uses the following format:
”iscsi:“<server name or IP
address>”:“<protocol>”:“<port>:<LUN>”:“<targetname>
• Server name: FQDN or IP address of the iSCSI target.
• Protocol: Network protocol used by iSCSI. Default is TCP (6). • Port: Port number for iSCSI. Default is 3260. • LUN: LUN ID configured on the ISCSI target. Default is zero.
• Target name: iSCSI target name to uniquely identify the iSCSI target in IQN format. Example: iqn.2009-01.com.solarflare. Issue 13
© Solarflare Communications 2014
376
Solarflare Server Adapter
User Guide
DHCP Option 12, Host Name If the adapter is configured to obtain its iSCSI initiator IQN via DHCP and option 43.203 is not configured on your DHCP server, then the adapter will use the DHCP host name option to construct an iSCSI initiator IQN.
DHCP Option 3, Router List If the iSCSI initiator and iSCSI target are on different subnets, configure option 3 with the default gateway or router IP address.
DHCP Option 43, Vendor Specific Information
Option 43 provides sub‐options that can be used to specify the iSCSI initiator IQN and the iSCSI target IQN.
• Option 43.201 provides an alternative to option 17 to describe the location of the iSCSI target. The format for the iSCSI target IQN is the same as described for DHCP option 17
• Option 43.203 provides a method of completely defining the iSCSI initiator IQN via DHCP.
Table 88: DHCP Option 43 Sub‐Options
Sub‐Option
Description
201
First iSCSI target information in the standard root path format
“iscsi:”<servername>”:”<protocol>”:”<port>”:”<LUN>”:”<targetname>
202
Secondary target IQN. This is Not supported.
203
iSCSI initiator IQN
NOTE: If using Option 43, you will also need to configure Option 60.
DHCP Option 60, Vendor ID
When using DHCP option 43 you must also configure option 60 (Vendor id). DHCP option 43 is described as “vendor specific information” and requires that the vendor id (DHCP option 60) configured at the DHCP server matches the vendor id configured in the Boot ROM. By default the Boot ROM uses the vendor id SFCgPXE.
Issue 13
© Solarflare Communications 2014
377
Solarflare Server Adapter
User Guide
9.7 Installing an Operating System to an iSCSI target
Introduction
This section contains information on setting up the following operating systems for iSCSI booting: • Installing Windows Server 2008 R2...Page 378
• Installing SUSE Linux Enterprise Server...Page 379
• Installing Red Hat Enterprise Linux...Page 383
Installing Windows Server 2008 R2
To install Windows Server 2008 R2 (with or without a local drive present): Prerequisites
• Configure the iSCSI target and Solarflare adapter Boot ROM, as described in Configuring the iSCSI Target on page 369 and Configuring the Boot ROM on page 369. • Copy the correct Solarflare driver files to a floppy disk or USB flash drive. Refer to Steps to Install
1
Insert the Windows Server 2008 R2 DVD and restart the server. The Windows Server setup program will start. 2
Click Load Driver and browse to Solarflare drivers folder on the floppy or USB driver. Load the Solarflare VBD driver (if needed locate the INF file netSFB*.inf).
3
Click Load Driver a second time and browse to Solarflare drivers folder on the floppy or USB driver. Load the Solarflare NDIS driver (if needed locate the INF file netSFN*.inf).
4
After loading the drivers, click Refresh to refresh the list of available partitions. 5
Select the target partition that is located on the iSCSI target and continue installing Windows on the target.
6
Remove the Solarflare drivers disk.
Issue 13
© Solarflare Communications 2014
378
Solarflare Server Adapter
User Guide
Installing SUSE Linux Enterprise Server
For complete installation instructions, consult the relevant Novell documentation:
http://www.novell.com/documentation/
Prerequisites
• Ensure you have all your iSCSI configuration information for the iSCSI target and iSCSI initiator. You will need to enter these details during the installation process.
• Ensure that the Solarflare Boot ROM is configured for iSCSI boot and can login to the selected iSCSI target.
• You will need the appropriate Solarflare driver disk. See Driver Disks for Unattended Installations on page 48 for more details.
Installation Process
1
Boot from your DVD.
2
From the first installation screen, press F5 Driver and select Yes. Press Return.
3
Highlight Installation and enter the following Boot Option: withiscsi=1
Issue 13
© Solarflare Communications 2014
379
Solarflare Server Adapter
User Guide
4
If you see a Driver Updates added screen for a Solarflare driver disk, click OK.
5
When prompted for further driver updates, click Back to return to the installer.
6
Select the network device. To check which is the Solarflare network adapter, press Ctrl+Alt+F4. To return to the Installation screen, press Ctrl+Alt+F1.
7
Select Yes from the Automatic configuration via DHCP? option.
8
Follow the install steps until you reach the Disk Activation stage.
9
From the Disk Activation > iSCSI Initiator Overview stage, click the Service tab.
Issue 13
© Solarflare Communications 2014
380
Solarflare Server Adapter
User Guide
10 Note the SUSE auto generated Initiator Name, or replace this with your own.
11 Click the Connected Targets tab. The target should be listed.
12 Ensure the Start‐Up mode is correct for your installation. For SUSE Enterprise Linux Server 10, it should be automatic. For SUSE Enterprise Linux Server 11, it should be onboot. Click Next to continue.
13 From the Installation Settings screen, select the Expert tab, then click the Booting hyperlink. Select the Boot Loader installation tab.
Issue 13
© Solarflare Communications 2014
381
Solarflare Server Adapter
User Guide
14 Select Boot from Master Boot Record as well as Boot from Boot Partition. Click Finish.
15 When you reach the Installation Summary screen, select Partitioning to verify the installation device. Ensure that the desired iSCSI target is selected for the installation target. Click Next.
16 When the first stage of the install is complete, the system will reboot. Continue to the Configure Boot Device Order to add the iSCSI target and continue the installation process.
Following the server reboot, check that the iSCSI disk is in an appropriate place in the BIOS boot order. It may be displayed as 'Solarflare Boot Manager' or 'Hard drive C:', as there is no physical hard disk in the system.
If you don’t see either of the above options, check the messages output from the Solarflare Boot ROM during the boot process for DHCP or iSCSI login failures indicating a Boot ROM or DHCP configuration issue.
Issue 13
© Solarflare Communications 2014
382
Solarflare Server Adapter
User Guide
Installing Red Hat Enterprise Linux For complete installation instructions, consult the relevant Red Hat documentation:
http://www.redhat.com/docs/manuals/enterprise/
Prerequisites
• Ensure you have all your iSCSI configuration information for the iSCSI target and iSCSI initiator. You will need to enter these details during the installation process.
• Ensure that Solarflare Boot ROM is configured for iSCSI boot and can login to the selected iSCSI target.
• You will need the appropriate Solarflare driver disk. See Driver Disks for Unattended Installations on page 48 for more details.
Installation Process
1
Boot from your DVD.
2
From the first installation screen, enter linux dd. Press Return.
3
When asked if you have a driver disk, select Yes.
4
A Driver Disk Source window is displayed. Select the source and select Yes.
Issue 13
© Solarflare Communications 2014
383
Solarflare Server Adapter
User Guide
5
You will then be prompted to Insert your driver disk into the source specified in step 4.
6
You will be prompted to load more driver disks. Select No.
7
A CD Found screen will prompt you to test the CD before installation. Select Skip.
8
When an Enable network interface screen displays, select the Solarflare adapter interface. Ensure that Use dynamic IP configuration (DHCP) is selected.
9
Follow the standard Red Hat installation steps until you reach the Disk Partitioning Setup menu.
Issue 13
© Solarflare Communications 2014
384
Solarflare Server Adapter
User Guide
10 From the Disk Partitioning menu, select Advanced storage configuration to add the iSCSI target.
11 In the Advanced Storage Options window, select iSCSI and click Add iSCSI target.
12 In the Configure iSCSI Parameters dialog box, enter your Target IP Address.
13 Click Add target to continue.
Issue 13
© Solarflare Communications 2014
385
Solarflare Server Adapter
User Guide
14 Click Next from the screen in step 10. A warning is displayed regarding the removal of all partitions. As the assumption is made that this is a clean install, click Yes.
If the drive(s) used for installation is displaying the correct device for the iSCSI LUN you configured, proceed with the rest of the installation. If the device configuration displayed is incorrect, check your details.
Following the server reboot, check that the iSCSI disk is in an appropriate place in the BIOS boot order. It may be displayed as 'Solarflare Boot Manager' or as 'Hard drive C:', as there is no physical hard disk in the system.
If you don’t see either of the above options, check the messages output from the Solarflare Boot ROM the boot process for DHCP or iSCSI login failures indicating a Boot ROM or DHCP configuration issue. Issue 13
© Solarflare Communications 2014
386
Solarflare Server Adapter
User Guide
9.8 Default Adapter Settings
Table 89 lists the various adapter settings and their default values. These are the values used if you select Reset to Defaults from the Boot Configuration Utility, or click Default from SAM.
Table 89: Default Adapter Settings
Issue 13
Setting
Default Value
Boot Image
Disabled
Link speed
Auto
Link up delay
5 seconds
Banner delay
2 seconds
Boot skip delay
5 seconds
Boot Type
PXE
Initiator DHCP
Enabled
Initiator‐IQN‐DHCP
Enabled
LUN busy retry count
2 seconds
Target‐DHCP
Enabled
TCP port
3260
Boot LUN
0
DHCP Vendor
SFCgPXE
MPIO attempts
3
MSIX Limit
32
© Solarflare Communications 2014
387
Solarflare Server Adapter
User Guide
Index
Configure segmentation offload 92
Configuring adapter 50
Configuring checksum offload 92
Running adapter diagnostics on Linux 54
Running adapter diagnostics on VMware 252
A
Accelerated Virtual I/O 1
Extract Solarflare Drivers 132
B
F
Boot Firmware
Configuring 169
Fault tolerant teams
see also Teaming 224
Failover 225
Boot ROM Agent
Default adapter settings 386
iSCSI Boot ROM 368
PXE boot ROM 365
Fiber Optic Cable
Attaching 22
Buffer Allocation Method
Tuning on Linux 99
I
Inserting the adapter 20
C
Intel QuickData
On Linux 101
On VMware 274
Checksum offload
Configure on Linux 92
Configure on Solaris 297
Configure on VMware 271
Configure with SAM 147
Interrupt Affinity 97
Interrupt and Irqbalance
Tuning on Linux 59
Completion codes 232
Interrupt Moderation
Configure with SAM 148
Tuning on Windows 235
Configure MTU
Solaris 297
Configure QSFP+ Adapter 33
iSCSI
Installing Red Hat Enterprise Linux 382
Installing Windows Server 2008 378
CPU Speed Service
Tuning on Linux 100
Tuning on Solaris 300
J
D
Jumbo Frames
Configuring on Linux 52
DHCP Setup for Boot ROM 376
Dynamic link aggregation
see also Teaming 222
K
Kernel Driver 1
E
Kernel Module Packages (KMP) 43
Ethernet Link Speed
Configure with SAM 152
KVM Direct Bridged 335
Ethtool
Configure Interrupt moderation on Linux 91,
KVM Libvirt Direct PassThrough 341
KVM libvirt Bridged 327
KVM Network Architectures 327
297
Configure Interrupt moderation on VMware
270
Issue 13
© Solarflare Communications 2014
388
Solarflare Server Adapter
User Guide
L
R
Large Receive Offload (LRO)
Configure on Linux 93
Configure on Solaris 298
Configure on VMware 272
Configure on Windows Server 2008 236
Large Send Offload (LSO)
Configure on Windows 236
Receive Flow Steering (RFS) 60
Receive Side Scaling (RSS) 58
Configure with SAM 148
Tuning on VMware 273
Red Hat
Installing on 45
RJ‐45 cable
Attaching 21
Specifications 22
LED 30
License 86
Link aggregation 221
S
Linux 53
Configure MTU 91, 102
SAM
see also Configure via Boot ROM agent 365
Boot ROM BIOS settings 169
Boot ROM configuration 168
Boot ROM iSCSI Authentication settings 174
Boot ROM iSCSI Initiator settings 171
Boot ROM iSCSI MPIO settings 175
Boot ROM Link settings 170
Disable adapter booting 175
Driver and cable diagnostics 164
Viewing adapter statistics 162
M
Maximum Frame Size
Tuning on Windows 234
Memory bandwidth
On VMware 273
On Windows 238
Tuning on Linux 100
N
Segmentation offload
Configure on Linux 92
Configure on Solaris 298
Configure on VMware 272
Network Adapter Properties
Configuration 176
NIC Partitioning 55
Server Power Saving Mode
On Windows 239
O
sfboot
On VMware 253
On Windows 184
OpenOnload 1
P
sfcable 211
PCI Express Lane Configuration
On Linux 100
On Solaris 300
On VMware 273
On Windows 238
sfnet 214
sfteam
On Windows 204
PF‐IOV 350
PXE
Configure with the Boot ROM agent 365
sfupdate
On Linux 292
On VMware 263
On Windows 200
Single Optical Fibre ‐ RX Configuration 34
Solarflare Alternative RFS (SARFS) 62
Issue 13
© Solarflare Communications 2014
389
Solarflare Server Adapter
User Guide
Deleting from SAM 162
Setting up on Linux 53
Setting up with SAM 160
Solarflare AppFlex™ Technology Licensing 12
SR‐IOV 324
Standby and power management 53
Configure with SAM 153
Static link aggregation
see also Teaming 223
SUSE
Installing on 45
VMware
Access to NIC from virtual machine 250
Configure MTU 269
ESX Service Console 250
NetQueue 268
VMware Tools 267
System Requirements
Linux 40
Solaris 275
VMware 248
Windows 119
W
Windows
Installing from the Command Prompt 128
Installing on 120
Repairing and modifying installation 127
Using ADDLOCAL 129
T
TCP Protocol Tuning
On Linux 95
On VMware 272
On Windows 237
Windows Command Line Utilities 178
Windows event log error messages 244
Teaming
see also sfteam on Windows 204
Adding adapters to with SAM 159
Configure on VMware 251
Deleting from SAM 160
Key adapter 229
Reconfiguring with SAM 157
Setting up on Linux 53
VLANs 226
Transmit Packet Steering (XPS) 62
Tuning Recommendations
On Linux 101, 300
On Windows 242
U
Unattended Installation
Driver disks 47
SUSE 50
Windows 131
Unattended Installation Solaris 11 279
V
Virtual NIC support 2
VLAN
Issue 13
© Solarflare Communications 2014
390
