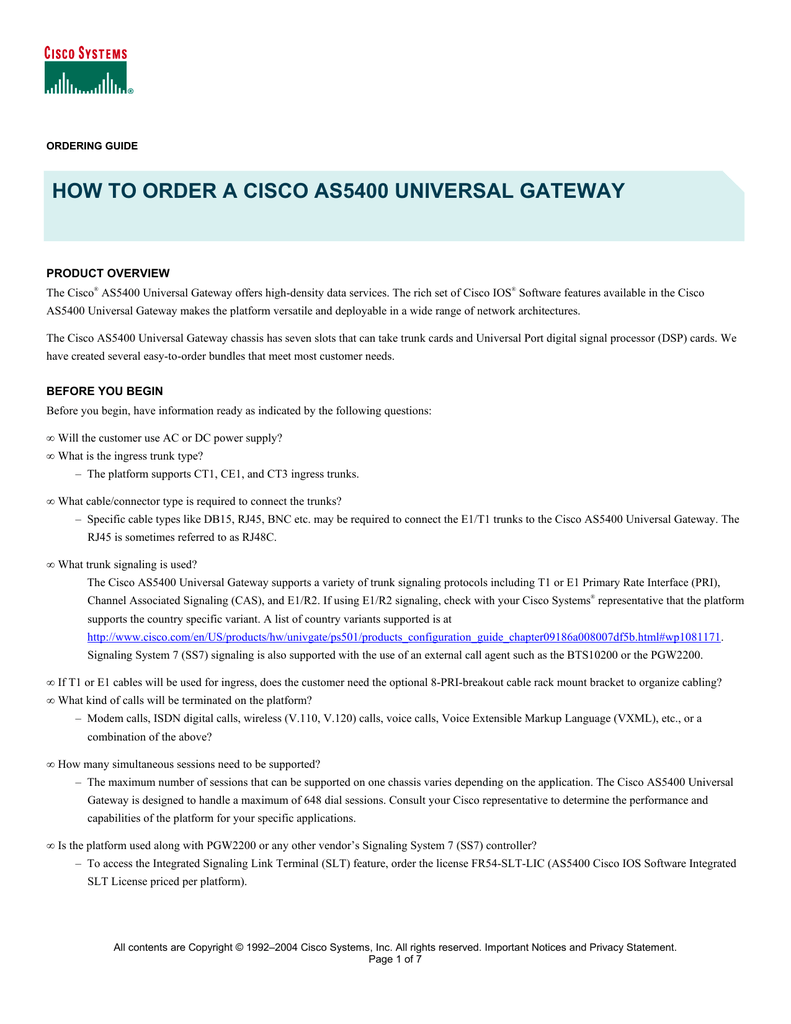

ORDERING GUIDE
HOW TO ORDER A CISCO AS5400 UNIVERSAL GATEWAY
PRODUCT OVERVIEW
The Cisco
®
AS5400 Universal Gateway offers high-density data services. The rich set of Cisco IOS
®
Software features available in the Cisco
AS5400 Universal Gateway makes the platform versatile and deployable in a wide range of network architectures.
The Cisco AS5400 Universal Gateway chassis has seven slots that can take trunk cards and Universal Port digital signal processor (DSP) cards. We have created several easy-to-order bundles that meet most customer needs.
BEFORE YOU BEGIN
Before you begin, have information ready as indicated by the following questions:
•
Will the customer use AC or DC power supply?
•
What is the ingress trunk type?
– The platform supports CT1, CE1, and CT3 ingress trunks.
•
What cable/connector type is required to connect the trunks?
– Specific cable types like DB15, RJ45, BNC etc. may be required to connect the E1/T1 trunks to the Cisco AS5400 Universal Gateway. The
RJ45 is sometimes referred to as RJ48C.
•
What trunk signaling is used?
The Cisco AS5400 Universal Gateway supports a variety of trunk signaling protocols including T1 or E1 Primary Rate Interface (PRI),
Channel Associated Signaling (CAS), and E1/R2. If using E1/R2 signaling, check with your Cisco Systems
®
representative that the platform supports the country specific variant. A list of country variants supported is at http://www.cisco.com/en/US/products/hw/univgate/ps501/products_configuration_guide_chapter09186a008007df5b.html#wp1081171 .
Signaling System 7 (SS7) signaling is also supported with the use of an external call agent such as the BTS10200 or the PGW2200.
•
If T1 or E1 cables will be used for ingress, does the customer need the optional 8-PRI-breakout cable rack mount bracket to organize cabling?
•
What kind of calls will be terminated on the platform?
– Modem calls, ISDN digital calls, wireless (V.110, V.120) calls, voice calls, Voice Extensible Markup Language (VXML), etc., or a combination of the above?
•
How many simultaneous sessions need to be supported?
– The maximum number of sessions that can be supported on one chassis varies depending on the application. The Cisco AS5400 Universal
Gateway is designed to handle a maximum of 648 dial sessions. Consult your Cisco representative to determine the performance and capabilities of the platform for your specific applications.
•
Is the platform used along with PGW2200 or any other vendor’s Signaling System 7 (SS7) controller?
– To access the Integrated Signaling Link Terminal (SLT) feature, order the license FR54-SLT-LIC (AS5400 Cisco IOS Software Integrated
SLT License priced per platform).
All contents are Copyright © 1992–2004 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 1 of 7
•
What Cisco IOS Software features are required?
– Basic Cisco IOS Software features are present in the IP PLUS feature set
– Applications requiring Triple Data Encryption Standard (3DES) encryption, such as SSHv2 need the IP PLUS 3DES feature set
– Lawful Intercept is supported in IP PLUS 3DES LAWFUL INTERCEPT feature set
– X.25, Appletalk, and other non-IP protocols are supported on the ENTERPRISE PLUS feature set
– Enterprise applications requiring 3DES encryption need the ENTERPRISE PLUS 3DES feature set
•
How much memory is required?
– Refer to the section on memory for defaults and maximums in this document.
Feature Licenses
This product can be ordered with the data license FR54-DATA-LIC. For running voice applications, we recommend that you order the AS5400HPX system.
FR54-DATA-LIC
The Data-Only license covers all Cisco IOS Software features required for remote access and dial services. This license includes support for access
VPN, ISDN remote access, and TDM switching. This license does not cover the Cisco IOS Software features required for voice services.
Consult Appendix 1 for the number of licenses that need to be ordered for various CT1, CE1, and CT3 configurations.
Optional Feature Licenses
FR54-SLT-LIC
FR54-SLT-LIC is the feature license for the integrated SLT functions on the Cisco AS5400 Universal Gateway. The Integrated SLT feature pulls existing Cisco distributed Message Transfer Part (MTP) SS7 signaling architecture functions—previously available only on Cisco 26xx-based
SLTs—directly onto a Cisco AS5400 Universal Gateway. Like the Cisco 26xx-based SLT, the Integrated SLT on a Cisco AS5400 Universal
Gateway backhauls upper-layer SS7 protocols across an IP network using Cisco Reliable User Datagram Protocol (RUDP), terminating the MTP1 and MTP2 layers of the SS7 protocol stack at the Media Gateway Controller (MGC).
Performance and Capacity
The performance and capacity of AS5400 varies for different applications. Consult your Cisco representative for performance characteristics for the specific applications that you will be running on the gateway.
The AS5400 platform occupies two Rack Units (RUs) = 3.5 inches of rack space. The maximum power consumption of one AS5400 is 345W in the
CT3 configuration with 648 active calls. The heat dissipation is 106 W/feet 2/vert. feet, 683-1177 BTU/hour.
ORDERING A SYSTEM
We have created easy-to-order bundle options for the most commonly used configurations.
Ordering Bundles
Pick the appropriate bundle based on the requirements (refer to the previous sections).
© 2004 Cisco Systems, Inc. All right reserved.
Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com
Page 2 of 8
Each easy-order bundle contains the following (the quantities of each vary based on the configuration):
•
IP Plus Cisco IOS Software
•
Universal Port DSP card(s) (NP60s and/or NP108s)
•
Trunk feature cards (8CT1/8CE1/CT3)
•
Data licenses (the number of licenses depends upon the configuration)
•
Dual AC Power Supply
•
Power cord
•
2 meter Octal cable included when configuration uses 8PRI feature cards
•
Cisco AS5400 Universal Gateway chassis with default memory for boot flash, system flash, shared I/O memory, and main memory
You will have to choose
•
The Cisco IOS software containing the features required
•
The appropriate AC power cable, T1/E1 cables, and octal cables
•
Optionally upgrade to a Dual DC Power supply
•
Optionally upgrade the main synchronous dynamic RAM (SDRAM)
Appendix 2 contains a list of all the available bundles with a description of the included components.
Ordering Spares
Memory
The Cisco AS5400 Universal Gateway chassis comes with the default memory sizes shown in Table 1. You can order spare memory to your order, as required.
Table 1. AS5400 Memory Spares Use this template for one-column Documents.
Memory Type
System Flash
Spare Memory Sizes
32 MB, 64 MB
Default Size
64 MB
Boot Flash
Main SDRAM
Shared SDRAM
8 MB, 16 MB
256 MB, 512 MB
64MB,128MB
Part Numbers
MEM-32F-AS54=
MEM-64F-AS54=
MEM-8BF-AS54=
MEM-16BF-AS54=
MEM-256M-AS54=
MEM-512M-AS54=
MEM-64S-AS54=
MEM-128S-AS54=
16 MB
256 MB
128MB
© 2004 Cisco Systems, Inc. All right reserved.
Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com
Page 3 of 8
Chassis and Feature Cards
Order spare chassis and feature cards as required (Table 2).
Table 2. AS5400 chassis and feature card spares
Spare
Chassis
Trunk Cards
Universal Port DSP Cards
Description
Cisco AS5400 Spare chassis; AC/DC power;
Default Memory
Spare CE1/CT1/CT3 trunk cards for Cisco
AS5400
60, 108 Universal port DSP cards
Part Numbers
AS5400-AC=
AS5400-DC=
AS54-DFC-2CT1=
AS54-DFC-2CE1=
AS54-DFC-4CT1=
AS54-DFC-4CE1=
AS54-DFC-8CT1=
AS54-DFC-8CE1=
AS54-DFC-CT3=
AS54-DFC-60NP=
AS54-DFC-108NP=
Miscellaneous Spares
You can order optional 19 or 24-inch rack mount kits (AS5400RM-19/AS5400RM-24), cables, and cable shelves.
For a complete list of all orderable parts, spares, and bundles for the Cisco AS5400 Universal Gateway, search for the Cisco AS5400 product family on the Pricing Tool at https://tools.cisco.com/qtc/pricing/MainServlet .
EXAMPLE CONFIGURATIONS
This section provides a typical order that you can use as a reference
Large Indonesia ISP—Data Only
A large ISP in Indonesia wants to add capacity to existing dialup network by adding a network access server to terminate up to 16CE1s terminating at their central office.
You have determined that a single Cisco AS5400 with two octal CE1 trunk cards and five NP108 DSP cards, memory upgrade to 512 M of main memory, and a DC power supply are required. The customer will need a 1RU Octal cable patch panel. The signaling used is E1/R2 and you have verified that R2 country variant for Indonesia is supported. The ENTERPRISE PLUS IPSEC 3DES feature set is required.
The complete system configuration with the AS54-16E1-480-AC and upgrades for memory, DC power, Cisco IOS Software, and cables/shelves is shown in Table 3.
© 2004 Cisco Systems, Inc. All right reserved.
Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com
Page 4 of 8
Table 3. System Configuration
1
1
2
1
1
4
1
1
480
1
Quantity
1
1
2
Part Number
AS5400
AS54-DC-RPS
AS54-DFC-8CE1
AS54-DFC-108NP
AS54-DFC-60NP
S54AK9-12302T
FR54H-DATA-LIC
DFC-CABLE-SHELVE
CAB-DFC-OCTAL-2MF
MEM-16BF-AS54
MEM-512M-AS54
MEM-128S-AS54
MEM-64F-AS54
Description
Cisco AS5400 Base Chassis
Cisco AS5400 Dual DC Power Supply
Cisco AS5400 Octal E1/PRI DFC cards
Cisco AS5400 108 Universal Port Cards
Cisco AS5400 60 Universal Port Card
Cisco AS5400 Series Cisco IOS Software Enterprise Plus 3DES Feature Set
Cisco AS5400 Cisco IOS Software Data Licenses Per Port
DFC Octal Cable Patch Panel Shelf 1 RU
2 Meter 8 PRI DFC Cables—Female RJ45
Cisco AS5400 16 MB Boot Flash Upgrade
Cisco AS5400 512 MB Main SDRAM Upgrade
Cisco AS5400 128 MB Shared I/O Upgrade
Cisco AS5400 64 MB System Flash Upgrade
APPENDIX 1—MANDATORY LICENSES
Ordering bundles automatically include the required licenses with your order. The rules in Tables 4, 5, and 6 help you to with nonstandard configurations.
Table 4. CT1 Licensing Rules
Configuration Number of Trunk Cards
2T1 with 48 ports
4T1 with 96 ports
7T1 with 168 ports
8T1 with 192 ports
11T1 with 264 ports
12T1 with 288 ports
16T1 with 384 ports
Greater than 16T1
1 2PRI
1 4PRI
1 8PRI
1 8PRI
1 8PRI and 1 4PRI
1 8PRI and 1 4PRI
2 8PRI
More than 2 8PRI
Number of Universal Port
Cards
1 NP60
1 NP108
1 NP108 and 1 NP60
2 NP108
2 NP108 and 1 NP60
3 NP108
3 NP108 and 1 NP60
Fewer than 4 NP108/NP60
(incomplete DSP coverage)
Minimum Number of Base
Licenses
48
96
168
192
264
288
384
Num T1s *24
© 2004 Cisco Systems, Inc. All right reserved.
Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com
Page 5 of 8
Table 5. CE1 Licensing Rules
Configuration Number of Trunk Cards
2E1 with 60 ports
4E1 with 120 ports
7E1 with 210 ports
8E1 with 240 ports
10E1 with 300 ports
12E1 with 360 ports
14E1 with 420 ports
16E1 with 480 ports
Greater than 16E1s
1 2PRI
1 4PRI
1 8PRI
1 8PRI
1 8PRI and 1 2PRI
1 8PRI and 1 4PRI
2 8PRI
2 8PRI
More than 2 8PRI
Table 6. CT3 Licensing Rules
Configuration
CT3 with 60 ports
CT3 with 108 ports
CT3 with 168 ports
CT3 with 192 ports
CT3 with 264 ports
CT3 with 288 ports
CT3 with 384 ports
CT3 with 432 ports
CT3 with 480 ports
CT3 with 648 ports
Number of Universal Port Cards
1 NP60
1 NP108
1 NP108 and 1 NP60
2 NP108
2 NP108 and 1 NP60
3 NP108
3 NP108 and 1 NP60
4 NP108
4 NP108 and 1 NP60
6NP108
Number of Universal Port
Cards
1 NP60
1 NP108 and 1 NP60
2 NP108
2 NP108 and 1 NP60
3 NP108
3 NP108 and 1 NP60
4 NP108
4 NP108 and 1 NP60
Fewer than 4 NP108/NP60
(incomplete DSP coverage)
Minimum Number of Base
Licenses
60
120
210
240
300
360
420
480
Num E1s *30
264
288
384
432
Minimum Number of Base Licenses
60
108
168
192
480
648
© 2004 Cisco Systems, Inc. All right reserved.
Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com
Page 6 of 8
APPENDIX 2—EASY-TO-ORDER BUNDLES
Tables 7 and 8 list currently available easy-to-order bundles for commonly used data-only configurations
Table 7. Low-Density Bundles
Number of PRI Cards
1 8T1
Part Number
AS54-8T1-192-AC
AS54-8E1-240-AC
Description
Cisco AS5400;8T1,216 ports,Dual AC,IP+
Cisco IOS Software, 192 Data Licenses
Cisco AS5400;8E1, 276 ports,Dual AC,IP+
Cisco IOS Software,240 Data Licenses
Table 8. High-Density Bundles
1 8E1
Number of Universal Port Cards
2 NP108
2 NP108 and 1NP60
Part Number
AS54-16T1-384-AC
AS54-16E1-480-AC
AS54-CT3-648-AC
Description
Cisco AS5400;16T1,384 ports,Dual AC,IP+
Cisco IOS Software,384 Data Licenses
Cisco AS5400;16E1,492 ports,Dual AC,IP+
Cisco IOS Software,480 Data Licenses
AS5400;1CT3,648 ports, Dual AC, IP+ Cisco
IOS Software, 648 Data Licenses
Number of PRI Cards
2 8T1
2 8E1
1 CT3
Number of Universal Port Cards
3 NP108 and 1 NP60
4 NP108 and 1 NP60
6 NP108
