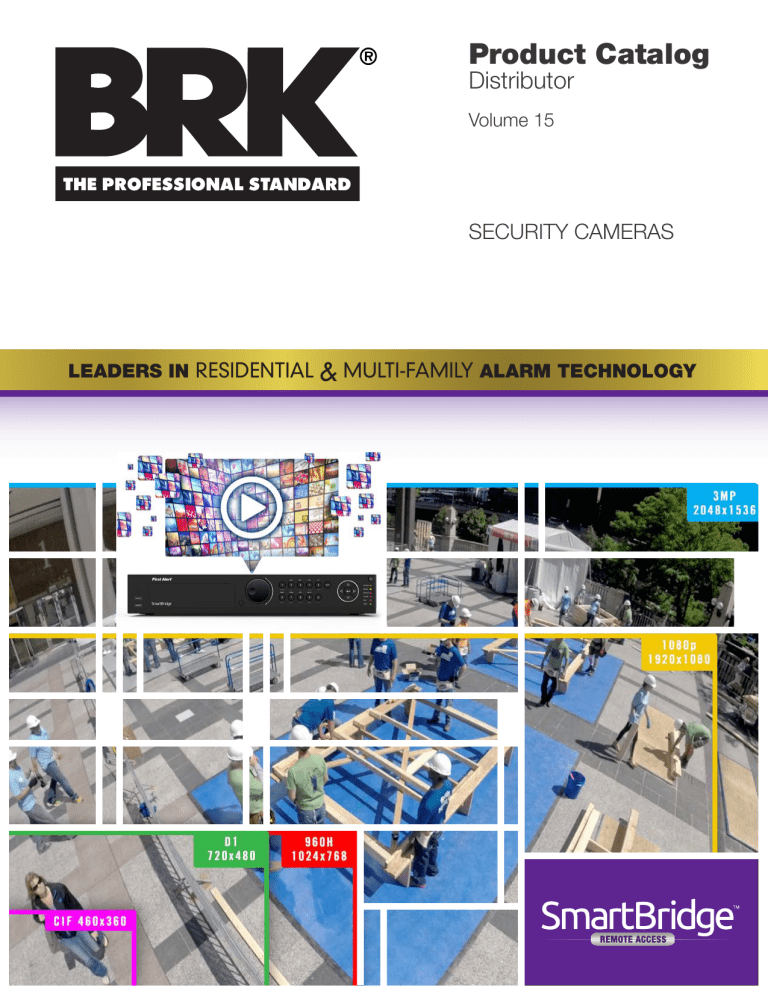

Product Catalog
Distributor
Volume 15
SECURITY CAMERAS
LEADERS IN RESIDENTIAL & MULTI-FAMILY ALARM TECHNOLOGY
WIRED RECORDING KITS
PoE HD VIDEO SECURITY SYSTEM
16 CHANNEL NVR PoE IP CAMERA KITS
HIGH DEFINITION
PoE HD NVR
•
•
•
•
•
•
•
•
RECORDING
FLEXIBILITY
MOBILE PHONE/
WEB READY
DVR OPTIMIZED
SATA HDD
POWER OVER
ETHERNET
5 MINUTE
SETUP
16 Channel PoE IP NVR Systems
SmartBridge Remote Access - 5 minute setup
Web-ready & mobile phone compatible
Advanced H.264 video compression for maximum storage
efficiency
Large 4TB Hard Drive installed for extended data storage
Power over Ethernet (PoE) - eliminates need for individual
camera power supplies
HDMI, VGA and BNC simultaneous video out connections
Alarm and PTZ Inputs for added flexibility and control
16
CHANNELS
6
CAMERAS
4TB
1080p
4TB
1080p
HARD DRIVE
NC1642F4-360 Kit Contains:
1 High Definition PoE IP NVR with 4TB HDD
2 3MP PoE HD IP , 360 Panoramic View, Virtual PTZ Cameras
4 2MP PoE HD IP Color Cameras
NC1641F4-360 Kit Contains:
1 High Definition PoE IP NVR with 4TB HDD
1 3MP PoE HD IP , 360 Panoramic View, Virtual PTZ Camera
4 2MP PoE HD IP Color Cameras
16
CHANNELS
5
CAMERAS
HARD DRIVE
PoE IP CAMERAS
Power Over Ethernet High Definition Megapixel IP Camera
HIGH DEFINITION
PoE HD CAMERA
POWER OVER
ETHERNET
INDOOR/
OUTDOOR
NIGHT
VISION
AUTO IR
CUT FILTER
CM360MP3-H-1:
COLD TEMP
PERFORMANCE
Add-On Camera for First Alert HD PoE IP NVR
3MP PoE HD IP , 360 Panoramic View, Virtual PTZ
1/3” Progressive Scan CMOS Color Indoor/Outdoor Camera with
Auto IR Cut Filter and Cold Temperature Performance
CM1080P-H2PK-1:
Add-On Camera for First Alert HD PoE IP NVR
2-Pack - 2MP PoE HD IP 1/3” Progressive Scan CMOS
Color Indoor/Outdoor Camera with Auto IR Cut Filter and
Cold Temperature Performance
2
WIRED RECORDING KITS
HDTVI VIDEO SECURITY DVR
O
N
REWIRING
O
Y
RECORDING
FLEXIBILITY
MOBILE PHONE/
WEB READY
BACKWARDS
COMPATIBLE
5 MINUTE
SETUP
U
R
A
E
HIGH DEFINITION
HD-TVI DVR
BL
US
ES
HD-TVI DVR'S
EXISTIN G
C
•
•
•
•
8 or 16 Channel HD-TVI DVR's
SmartBridge Remote Access - 5 minute setup
Web-ready & mobile phone compatible
Advanced H.264 video compression for
maximum storage efficiency
• Easy power connections with DVR/Camera splitter eliminates need for individual camera power supplies
• HDMI and VGA simultaneous video out connections
• PTZ Inputs for added flexibility and control
DVRAHD-1620:
High Definition Hybrid Technology supports HD-TVI, Analog and IP*
Cameras. H.264 2TB HDD DVR HD-TVI System with HDMI Output,
Remote and USB Mouse
16
CHANNELS
DVRAHD-0810:
2TB
1080p
1TB
1080p
HARD DRIVE
High Definition Hybrid Technology supports HD-TVI, Analog and IP*
Cameras. H.264 1TB HDD DVR HD-TVI System with HDMI Output,
Remote and USB Mouse
*Note: IP cameras do not connect directly to DVR. They must be connected to your router with
their own power supply. The IP address will be available to select in the DVR software. Only two IP
cameras can be connected and they will replace two analog channels.
8
CHANNELS
HARD DRIVE
HD-TVI CAMERAS
High Definition Clarity Over Existing Analog Coaxial Cable
HIGH DEFINITION
HD-TVI CAMERA
INDOOR/
OUTDOOR
NIGHT
VISION
AUTO IR
CUT FILTER
COLD TEMP
PERFORMANCE
CM1080P-AH (Barrel) and CMD1080P-AH (Dome):
Add-On Camera for First Alert HD-TVI DVR's
1080P HD-TVI 1/3” Progressive Scan CMOS Color Indoor/Outdoor
Camera with Auto IR Cut Filter and Cold Temperature Performance
CM720P-AH (Barrel) and CMD720P-AH (Dome):
Add-On Camera for First Alert HD-TVI DVR's
720P HD-TVI 1/3” Progressive Scan CMOS Color Indoor/Outdoor
Camera with Auto IR Cut Filter and Cold Temperature Performance
CM1080P-AH-EXIR:
Add-On Camera for First Alert HD-TVI DVR's
1080P HD-TVI with EXIR Technology 1/3” Progressive Scan CMOS
Color Indoor/Outdoor Camera with Auto IR Cut Filter and Cold
Temperature Performance
3
WIRED CAMERAS
STANDARD DEFINITION (SD) CAMERAS
INDOOR/
OUTDOOR
•
•
•
•
•
•
NIGHT
VISION
AUTO IR
CUT FILTER
COLD TEMP
PERFORMANCE
Indoor/outdoor color camera (IP66 rating)
36 IR LED’s for a minimum of 80’ Night Vision distance
Metal Housing
Auto IR Cut Filter for truer daytime colors
Cable Safe Bracket – Protects cable from vandalism
Cold temp performance: -22°F to 122°F temp range
CM700
700TVL 1/3” CMOS Color Indoor/Outdoor Camera with Auto
IR Cut Filter and Cold Temperature Performance
PRO-CM600
600TVL 1/3” CMOS Color Indoor/Outdoor Camera with Auto
IR Cut Filter and Cold Temperature Performance
INDOOR
CAMERA
•
•
•
•
NIGHT
VISION
AUTO IR
CUT FILTER
Indoor color dome camera
24 IR LED’s for a minimum of 80’+ Night Vision distance
Plastic Housing
14°F to 122°F temp range
CMD700
700TVL 1/3” CMOS Color Indoor Camera with Auto IR Cut Filter
PRO-CMD600
600TVL 1/3” CMOS Color Indoor Camera with Auto IR Cut Filter
VIDEO/DC POWER CABLES
BNC-50, BNC-100, BNC-300:
RG59 CCTV COAX VIDEO & DC POWER CABLES
• Combined video and DC power in one cable
• Solid copper conductor for less voltage drop and better signal over longer
distances - easier to handle
• Double shielded with copper clad aluminum braiding
• BNC Male connections on video cable and 1 jack male, 1 plug female on
DC power cable (2.1mm I.D./5.5mm O.D.)
• Two adaptor plugs provided to extend lengths
• 50’ (BNC-50), 100’ (BNC-100) and 300’ (BNC-300) lengths
4
Cable Safe Bracket
DECOY CAMERAS
DECOY CAMERAS
INDOOR/
OUTDOOR
PRO-DC2
Aluminum Box Decoy Camera
•
•
•
•
•
Battery operated flashing LED light
Indoor/outdoor (IP44 rating)
Non-functioning decoy camera
Requires 2 AA batteries (not included)
Aluminum and ABS plastic (12.875”D x 4.25”W x 12.75”H)
INDOOR/
OUTDOOR
LOW LIGHT
ACTIVATED
PRO-DC3
Dome Decoy Camera
•
•
•
•
•
Low light activated flashing LED light
Indoor/outdoor
Non-functioning decoy camera
Requires 2 AA batteries (not included)
ABS plastic (4.63”Dia. x 2.88”H)
INDOOR/
OUTDOOR
PRO-DC4
Mini Dome Decoy Camera
•
•
•
•
•
Battery operated flashing LED light
Indoor/outdoor
Non-functioning decoy camera
Requires 2 AA batteries (not included)
ABS plastic (3.74”Dia. x 2.75”H)
INDOOR/
OUTDOOR
LOW LIGHT
ACTIVATED
PRO-DC5
Barrel Decoy Camera
•
•
•
•
•
Low light activated flashing LED light
Indoor/outdoor (IP44 rating)
Non-functioning decoy camera
Requires 2 AAA batteries (not included)
Aluminum (5.64”D x 2.28”W x 3.22”H)
5
WIRELESS RECORDING KITS
INTERNET ACCESS WIRELESS DVR KITS
RECORDING
FLEXIBILITY
7" LCD
SCREEN
4GB
SD CARD
MOBILE PHONE/
WEB READY
DWH-Series DVR (DWH-471, DWH-472):
2.4 GHz Digital Wireless Color DVR with 7” LCD Touch
Screen & Internet Access via Smart Phone
• 4 channel H.264 recording system
• Internet access via Smart Phone
• 2.4 GHz secure digital signal using frequency hopping
spread spectrum (FHSS) technology
• Indoor/outdoor night vision
color camera (IP66 rating)
• Auto IR Cut Filter for truer daytime colors
• Audio surveillance with Mute
• Wireless transmission up to
500 ft. line of sight
• 4GB SD card included, up to
32GB SD/SDHC compatible
• Expandable up to a total
of four DWH-400 cameras
TOUCH
SCREEN
TOUCH
SCREEN
TÁCTI PORTÁTIL
Includes:
DWH-471: 1 camera, DWH-472: 2 Cameras, 2.4 GHz wireless DVR recording system with 7”
LED Touch Screen, Docking Cradle, 4GB SD card, RJ-45 Ethernet cable (6’), power supplies,
camera stand & mounting hardware, 2 Window Warning Decals, English Manual, CD with
English and Spanish manuals (pdf).
AUTO IR
CUT FILTER
INDOOR/
OUTDOOR
NIGHT
VISION
AUDIO
SURVEILLANCE
DWH-400:
Add-on Camera for DWH-Series DVR
•
•
•
•
•
•
•
•
Add-on Camera for DWH-Series DVR
2.4 GHz secure digital signal using frequency hopping spread spectrum (FHSS) technology
Indoor/outdoor color camera (IP66 rating)
Auto IR Cut Filter for truer daytime colors
25 IR LED’s for 60’ night vision distance
Audio surveillance
Wireless transmission up to 500 ft. line of sight
Dimensions: 8.0”H x 2.8”W x 4.8”D
Includes:
2.4 GHz wireless Color Camera, power supply, camera stand & mounting hardware, English Manual, CD with English and
Spanish manuals (pdf).
6
Internet access via Smart Phone
WIRELESS RECORDING KITS
STAND ALONE WIRELESS DVR KITS
RECORDING
FLEXIBILITY
7" LCD
SCREEN
4GB MICRO
SD CARD
DWS-Series DVR (DWS-401, DWS-471
& DWS-472):
DWS-471 and DWS-472
2.4 GHz Digital Wireless Color DVR. Includes
7” LCD Screen (DWS-471 & DWS-472 only)
• 4 channel MPEG-4
recording system
• 2.4 GHz secure digital signal using
frequency hopping spread spectrum (FHSS)
technology
• Indoor/outdoor night vision color camera
(IP66 rating)
• Auto IR Cut Filter for truer
daytime colors
• Audio surveillance with Mute
• Wireless transmission up to
500 ft. line of sight
• 4GB SD card included, up to 32GB SD/SDHC compatible
• Expandable up to a total of four DWC-400 cameras
DWS-401
DWS-401
Includes:
DWS-401: 1 DWC-400 camera, 2.4 GHz wireless DVR recording system (no LED display), 1 BNC to RCA connector:
DWS-471: 1 DWC-400 camera, 2.4 GHz wireless DVR recording system with 7” LED display
DWS-472: 2 DWC-400 cameras, 2.4 GHz wireless DVR recording system with 7” LED display:
and 4GB SD card, AV cable, power supplies, camera stand & mounting hardware, 2 Window Warning Decals, English Manual, CD with
English and Spanish manuals (pdf).
AUTO IR
CUT FILTER
INDOOR/
OUTDOOR
NIGHT
VISION
AUDIO
SURVEILLANCE
DWC-400:
Add-on Camera for DWS-Series DVR
• Add-on Camera for DWS-Series DVR
• 2.4 GHz secure digital signal using frequency hopping spread spectrum (FHSS)
technology
• Indoor/outdoor color camera (IP66 rating)
• Auto IR Cut Filter for truer daytime colors
• 25 IR LED’s for 60’ night vision distance
• Audio surveillance
• Wireless transmission up to 500 ft. line of sight
• Dimensions: 8.5”H x 2.75”W x 6.2”
Includes:
2.4 GHz wireless Color Camera, power supply, camera stand & mounting hardware, English Manual, CD
with English and Spanish manuals (pdf).
7
LEADERS IN RESIDENTIAL & MULTI-FAMILY ALARM TECHNOLOGY
©2016 BRK Brands Inc.
a Jarden Corporation Company (NYSE: JAH)
3901 Liberty Street Road, Aurora, IL 60504-8122
Customer Service: 800-275-2576 Tech Services: 800-323-9005
All rights reserved
First Alert is a registered trademark of the First Alert Trust
BRK is a registered trademark of BRK Brands, Inc.
www.brkelectronics.com
