QuickSpecs
HP xw6200 Workstation

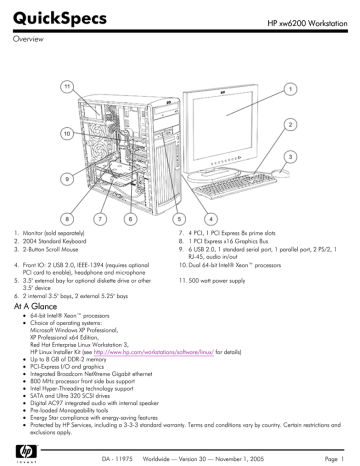

Overview
1. Monitor (sold separately)
2. 2004 Standard Keyboard
3. 2-Button Scroll Mouse
4. Front IO: 2 USB 2.0, IEEE-1394 (requires optional
PCI card to enable), headphone and microphone
5. 3.5" external bay for optional diskette drive or other
3.5" device
6. 2 internal 3.5" bays, 2 external 5.25" bays
7. 4 PCI, 1 PCI Express 8x prime slots
8. 1 PCI Express x16 Graphics Bus
9. 6 USB 2.0, 1 standard serial port, 1 parallel port, 2 PS/2, 1
RJ-45, audio in/out
10. Dual 64-bit Intel® Xeon™ processors
11. 500 watt power supply
At A Glance
64-bit Intel® Xeon™ processors
Choice of operating systems:
Microsoft Windows XP Professional,
XP Professional x64 Edition,
Red Hat Enterprise Linux Workstation 3,
HP Linux Installer Kit (see http://www.hp.com/workstations/software/linux/ for details)
Up to 8 GB of DDR-2 memory
PCI-Express I/O and graphics
Integrated Broadcom NetXtreme Gigabit ethernet
800 MHz processor front side bus support
Intel Hyper-Threading technology support
SATA and Ultra 320 SCSI drives
Digital AC97 integrated audio with internal speaker
Pre-loaded Manageability tools
Energy Star compliance with energy-saving features
Protected by HP Services, including a 3-3-3 standard warranty. Terms and conditions vary by country. Certain restrictions and
exclusions apply.
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 1
QuickSpecs
HP xw6200 Workstation
Standard Features - Custom Components
Processor and Speed –
One of the following
64-bit Intel Xeon Processor with 800 MHz Front Side Bus
2.8 GHz (1 MB L2 cache)
2.8 GHz (2 MB L2 cache)
3.0 GHz (1 MB L2 cache)
3.0 GHz (2 MB L2 cache)
3.2 GHz (1 MB L2 cache)
3.2 GHz (2 MB L2 cache)
3.4 GHz (1 MB L2 cache)
3.4 GHz (2 MB L2 cache)
3.6 GHz (1 MB L2 cache)
3.6 GHz (2 MB L2 cache)
3.8 GHz (2 MB L2 cache)
2nd 64-bit Intel Xeon Processor with 800 MHz Front Side Bus (optional – speed must match processor
1)
2.8 GHz (1 MB L2 cache)
2.8 GHz (2 MB L2 cache)
3.0 GHz (1 MB L2 cache)
3.0 GHz (2 MB L2 cache)
3.2 GHz (1 MB L2 cache)
3.2 GHz (2 MB L2 cache)
3.4 GHz (1 MB L2 cache)
3.4 GHz (2 MB L2 cache)
3.6 GHz (1 MB L2 cache)
3.6 GHz (2 MB L2 cache)
3.8 GHz (2 MB L2 cache)
Operating System –
One of the following
Microsoft Windows XP Professional
Microsoft Windows XP Professional x64 Edition (http://www.hp.com/workstations/pws/windowsxp64/)
Red Hat Enterprise Linux Workstation 3 64-bit version (Update 2 in 32- and 64-bit available as
aftermarket option)
HP Installer Kit for Linux (includes drivers for both 32-bit & 64-bit OS versions)
NOTE: Although HP Personal Workstations can be ordered with the HP Installer Kit for Linux and an
IEEE 1394 card, HP cannot provide customer support for this configuration. Please refer to the Linux
Hardware Support Matrix (http://www.hp.com/support/linux_hardware_matrix) for details, and to the
Linux User Manual (http://www.hp.com/support/linux_user_manual) for tips on user-enablement of the
IEEE 1394 Card.
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 2
QuickSpecs
HP xw6200 Workstation
Standard Features - Custom Components
1st Hard Disk Drive –
One of the following
2nd Hard Disk Drive –
One of the following
Serial ATA 3.0-Gb/s Hard Drives
(Currently supported only at 1.5-Gb/s. To get 3Gb/s performance,
a SATA 3.0-Gb/s controller must be added
80 GB 7200 rpm Serial ATA drive (8 MB cache)
160 GB 7200 rpm Serial ATA NCQ drive (8 MB cache)
250 GB 7200 rpm Serial ATA drive (8 MB cache)
500 GB 7200 rpm Serial ATA NCQ drive (8 MB cache)
Serial ATA 1.5Gb/s Hard Drives
250 GB 7200 rpm Serial ATA drive (8 MB cache)
400 GB 7200 rpm Serial ATA drive (8 MB cache)
74 GB 10K rpm Serial ATA drive (8 MB cache)
Ultra320 SCSI Hard Drives
73 GB 10K Ultra320 SCSI drive
Windows XP
Red Hat Linux
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
WS3, WS4
WS3, WS4
WS3, WS4
WS3, WS4
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
WS3, WS4
WS3, WS4
WS3, WS4
32-Bit, 64-Bit
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
146 GB 10K Ultra320 SCSI drive
32-Bit, 64-Bit
300 GB 10K Ultra320 SCSI drive
32-Bit, 64-Bit
36 GB 15K Ultra320 SCSI drive
32-Bit, 64-Bit
73 GB 15K Ultra320 SCSI drive
32-Bit, 64-Bit
Serial ATA 3Gb/s Hard Drives
2nd hard drive, 80 GB 7200 rpm Serial ATA drive (8 MB cache)
2nd hard drive, 160 GB 7200 rpm Serial ATA NCQ drive (8 MB
cache)
2nd hard drive, 250 GB 7200 rpm Serial ATA drive (8 MB cache)
2nd hard drive, 500 GB 7200 rpm Serial ATA NCQ drive (8 MB
cache)
Serial ATA 1.5Gb/s Hard Drives
2nd hard drive, 250 GB 7200 rpm Serial ATA drive (8 MB cache)
2nd hard drive, 400 GB 7200 rpm Serial ATA drive (8 MB cache)
2nd hard drive, 74 GB 10K rpm Serial ATA drive (8 MB cache)
Ultra320 SCSI Hard Drives
2nd hard drive, 73 GB 10K Ultra320 SCSI drive
32-Bit, 64-Bit
32-Bit, 64-Bit
WS3, WS4
WS3, WS4
32-Bit, 64-Bit
32-Bit, 64-Bit
WS3, WS4
WS3, WS4
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
WS3, WS4
WS3, WS4
WS3, WS4
32-Bit, 64-Bit
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
2nd hard drive, 146 GB 10K Ultra320 SCSI drive
32-Bit, 64-Bit
2nd hard drive, 300 GB 10K Ultra320 SCSI drive
32-Bit, 64-Bit
2nd hard drive, 36 GB 15K Ultra320 SCSI drive
32-Bit, 64-Bit
2nd hard drive, 73 GB 15K Ultra320 SCSI drive
32-Bit, 64-Bit
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 3
QuickSpecs
HP xw6200 Workstation
Standard Features - Custom Components
3rd Hard Disk Drive –
One of the following
Factory Integrated
RAID
Drive controllers
Serial ATA 3Gb/s Hard Drives
3rd hard drive, 80 GB 7200 rpm Serial ATA drive (8 MB cache)
3rd hard drive, 160 GB 7200 rpm Serial ATA NCQ drive (8 MB
cache)
3rd hard drive, 250 GB 7200 rpm Serial ATA drive (8 MB cache)
3rd hard drive, 500 GB 7200 rpm Serial ATA NCQ drive (8 MB
cache)
3rd hard drive, 73 GB 10K Ultra320 SCSI drive
32-Bit, 64-Bit
32-Bit, 64-Bit
WS3, WS4
WS3, WS4
32-Bit, 64-Bit
32-Bit, 64-Bit
WS3, WS4
WS3, WS4
32-Bit, 64-Bit
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
3rd hard drive, 146 GB 10K Ultra320 SCSI drive
32-Bit, 64-Bit
3rd hard drive, 300 GB 10K Ultra320 SCSI drive
32-Bit, 64-Bit
3rd hard drive, 36 GB 15K Ultra320 SCSI drive
32-Bit, 64-Bit
3rd hard drive, 73 GB 15K Ultra320 SCSI drive
32-Bit, 64-Bit
RAID 0 Configuration – Striped Array
RAID 1 Configuration – Mirrored Array
Adaptec 1420 4Prt 3Gb PCI SATA RAID Card
NOTE: Requires 2 identical hard drives (speeds, capacity,
interface)
32-Bit
32-Bit
32-Bit, 64-Bit
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
WS3, WS4
Integrated serial ATA controller
Optional Ultra 320 SCSI controller (required if HDs are SCSI) basic
Optional Ultra 320 SCSI controller (required if HDs are SCSI) advanced, with RAID support and external connector
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 4
QuickSpecs
HP xw6200 Workstation
Standard Features - Custom Components
Memory One of the following
256 MB DDR-2 PC2-3200 (400 MHz) ECC Registered (1 x 256
MB)
512 MB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 256
MB)
1 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 512 MB)
Windows XP
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
2 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 1 GB)
32-Bit, 64-Bit
2 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (4 x 512 MB)
32-Bit, 64-Bit
3 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 1 GB + 2
x 512 MB)
4 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 2 GB)
32-Bit, 64-Bit
4 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (4 x 1 GB)
32-Bit, 64-Bit
32-Bit, 64-Bit
6 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 2 GB + 2
x 1 GB)
8 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (4 x 2 GB)
Removable Storage
64-Bit
64-Bit
Windows XP
32-Bit, 64-Bit
1.44-MB Diskette Drive
48X CD-ROM Drive
32-Bit, 64-Bit
48X/32X/48X CD-RW Drive
32-Bit, 64-Bit
16X/40X DVD-ROM Drive
32-Bit, 64-Bit
48X/32X/48X/16X Combo CD-RW/DVD-ROM Drive
32-Bit, 64-Bit
16X DVD+/-RW, Dual-Layer LightScribe
2nd Removable Storage
Red Hat Linux
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
32-Bit
48X/32X/48X CD-RW Drive
32-Bit, 64-Bit
16X/40X DVD-ROM Drive
32-Bit, 64-Bit
48X/32X/48X/16X Combo CD-RW/DVD-ROM Drive
32-Bit, 64-Bit
16X DVD+/-RW, Dual-Layer LightScribe
DA - 11975
Red Hat Linux
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
Worldwide — Version 30 — November 1, 2005
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
32-Bit
Page 5
QuickSpecs
HP xw6200 Workstation
Standard Features - Custom Components
Keyboard One of the following
Mouse One of the following
Audio
NIC
PS/2 Standard Keyboard
Windows XP
32-Bit, 64-Bit
USB Standard Keyboard
32-Bit, 64-Bit
PS/2 2-Button Scroll Mouse
32-Bit, 64-Bit
PS/2 3-Button Mouse
32-Bit, 64-Bit
USB 2-Button Optical Scroll Mouse
32-Bit, 64-Bit
USB 3-Button Optical Mouse
32-Bit, 64-Bit
Integrated Digital AC97 audio with internal speaker
Sound Blaster Audigy 2 ZS PCI
Sound Blaster® X-Fi™ XtremeMusic PCI
HP Optical Drive Internal Audio Cable
32-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
Broadcom BCM5751 NetXtreme™ Gigabit Ethernet Controller
(PCI-E)
Graphics
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI - up to 2 of
these two cards can be integrated in the factory)
NVIDIA Quadro NVS 285 PCI Express (128 MB, VGA & DVI)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
NVIDIA Quadro NVS 280 PCI Express (64 MB, VGA & DVI)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 540 PCI Express (128 MB)
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit
7.2, 7.3, WS3,
WS4
Windows XP
32-Bit, 64-Bit
Red Hat Linux
7.2, 7.3, WS3,
WS4
WS3, WS4
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
NVIDIA Quadro FX 1400 PCI Express (128 MB)
32-Bit, 64-Bit
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3450 PCI Express (256 MB)
32-Bit, 64-Bit
32-Bit, 64-Bit
DA - 11975
Red Hat Linux
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
Worldwide — Version 30 — November 1, 2005
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
7.2, 7.3, WS3,
WS4
Page 6
QuickSpecs
HP xw6200 Workstation
Standard Features - Custom Components
Miscellaneous
Software
Solenoid lock and hood sensor
32-Bit, 64-Bit
IEEE 1394 PCI Card
Trusted Platform Module
HP 64-bit Transition Tool Kit
32-Bit, 64-Bit
32-Bit
32-Bit, 64-Bit
Symantec Norton AntiVirus (optional)*
HP Performance Tuning Framework*
Altiris Recovery*
HP Client Manager Software v6.0*
* Not available with Linux Operating System
32-Bit
32-Bit, 64-Bit
32-Bit
32-Bit
DA - 11975
Worldwide — Version 30 — November 1, 2005
7.2, 7.3, WS3,
WS4
Page 7
QuickSpecs
HP xw6200 Workstation
Standard Features - Specs
Operating System (choice) Microsoft Windows XP Professional
Windows XP Professional x64 Edition (http://www.hp.com/workstations/pws/windowsxp64/)
OR Red Hat Enterprise Linux Workstation 3 Update 5 (64-bit only)
OR HP Installer Kit for Linux (includes drivers for both 32-bit & 64-bit OS versions on HP xw8200,
xw6200 and xw4200)
Form factor
Minitower
Color
Carbonite/Alloy metallic
System Board Form Factor Non-standard ATX
Processor
Single or dual 64-bit Intel Xeon processors (Nocona) with Hyper-Threading Technology
CPU Bus Speed Supported 800 MHz FSB
Standard L2 Cache
1 MB or 2 MB L2 cache
Chipset
Intel E7525
Memory Expansion Slots 4 DIMM's
Memory Type Supported DDR-2 (ECC registered)
Memory Speed Supported DDR-2 Synch DRAM PC2-3200 (400 MHz) Registered ECC
Maximum Memory
8 GB (4 DIMMs slots, 2 GB DIMMs required to meet maximum configurations)
Network controller
Integrated Broadcom 5751 10/100/1000 for HP
Audio
Integrated AC'97 digital audio with S/PDif 6-channel pass-through, stereo microphone, and Yamaha XG
Lite Softsynth support
PCI slots
4 PCI slots (full-height)
1 PCI Express (x8 mechanically, x4 electrically)
1 PCI Express x16 graphics
AGP slot
none
Bays
Total Bays = 5
Internal Bays
Two 3.5 inch bays with acoustic dampening rail assemblies
External Bays
Two 5.25 inch full length 2003 mm maximum device depth (top bay is limited to 198 mm depth
when optional smart cover solenoid lock is installed). Bottom bay can be converted to an internal
3.5 inch 3rd Hard Drive bay using optional bracket
One 3.5 inch bay for optional floppy drive
Parallel Port
1
Serial Port
1
Front I/O
2 USB 2.0, Headphone, Microphone, optional IEEE 1394
NOTE: Although HP Personal Workstations can be ordered with the HP Installer Kit for Linux and an IEEE
1394 card, HP cannot provide customer support for this configuration. Please refer to the Linux
Hardware Support Matrix (http://www.hp.com/support/linux_hardware_matrix) for details, and to the
Linux User Manual (http://www.hp.com/support/linux_user_manual) for tips on user-enablement of the
IEEE 1394 Card.
Rear I/O
6 USB 2.0, 1 standard serial port, 1 parallel port, PS/2 keyboard and mouse, 1 RJ-45 to integrated
Gigabit LAN, Audio In, Audio Out, Mic In
USB Keyboard
Optional
USB Mouse
Optional
PS/2 Keyboard
1
PS/2 Mouse
1
Chassis Dimensions
17.3 x 6.5 X 17.3 in (44.1 x 16.5 x 44.0 cm)
(H x W x D)
System weight
Standard config – 35 lb
Shipping weight
Varies by region
Temperature
Operating
40° to 95° F (5° to 35° C)
Non-operating
-40° to 140° F (-40° to 60° C)
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 8
QuickSpecs
HP xw6200 Workstation
Standard Features - Specs
Humidity
Operating
8% to 85%
Non-operating
8% to 90%
Maximum Altitude
Operating
10,000 ft (3,000 m)
(nonpressurized)
Non-operating
30,000 ft (9,100 m)
Power Supply
500W wide-ranging, active Power Factor Correction
Interfaces Supported
1 SATA interface (2 serial-ATA connectors), 1 EIDE interface (2 EIDE connectors) for optical drives,
optional multi-bay interface
Hard Drive Controller (PCI) Ultra160 or Ultra320, or SATA RAID, or Ultra320 RAID
Supported
Preinstalled Software
HP Client Manager Software v6.0*
Altiris Local Recovery*
Alert Standard Format specification*
Norton AntiVirus 2004 (optional preinstall)*
CD/DVD software dependent on optical drive choices
* Not available on Linux
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 9
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XE2.8/B80/
H1.0/285/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
HDD Controller
Floppy Drive
Graphics
Mouse
Keyboard
Other Integrated
64-bit Intel Xeon processor 2.80 GHz 2 MB/800
Microsoft Windows XP Professional
2 MB L2
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
80 GB SATA 3.0-Gb/s 7200 rpm (1st)
Serial ATA controller
1.44MB 3.5" Floppy Drive
NVIDIA Quadro NVS 285 PCI Express included in base configuration.
HP scroll mouse (PS/2)
Standard PS/2 Keyboard
Broadcom 10/100/1000 GBIT LOM, and AC97 audio
xw6200X/XE2.8/B80/H1.0/285/dF/s Country Code Key
EN557AW#ABA
N. America
EN557AW#ABC
Fr. Canadian
EN557AW#ABM
L. America
EN557AW#ACF
Japan (English)
EN557AW#ABJ
Japan (Japanese)
EN557AW#ABU
UK
EN557AW#ABD
Germany
EN557AW#ABF
France
EN557AW#ABZ
Italy
EN557AW#ABE
Spain
EN557AW#AK6
Europe
EN557AW#ACB
Russia
xw6200X/XE3.2+/B80/
H1.0/285/dF/s
Processor
2nd Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
HDD Controller
Floppy Drive
Graphics
Mouse
Keyboard
Other Integrated
DA - 11975
Switzerland (German/French)
Switzerland (Italian/English)
Dutch
Denmark
Asia/Pacific (English)
Korea
China
Taiwan
India
Australia
Thailand
EN557AW#AR8
EN557AW#ACN
EN557AW#ABH
EN557AW#ACE
EN557AW#AB4
EN557AW#AB1
EN557AW#AB2
EN557AW#AB0
EN557AW#ACJ
EN557AW#ABG
EN557AW#AKL
64-bit Intel Xeon processor 3.2 GHz 2 MB/800
64-bit Intel Xeon processor 3.2 GHz 2 MB/800
Microsoft Windows XP Professional
2 MB L2
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
80 GB SATA 3.0-Gb/s 7200 rpm (1st)
Serial ATA controller
1.44MB 3.5" Floppy Drive
NVIDIA Quadro NVS 285 PCI Express included in base configuration.
HP scroll mouse (PS/2)
Standard PS/2 Keyboard
Broadcom 10/100/1000 GBIT LOM, and AC97 audio
Worldwide — Version 30 — November 1, 2005
Page 10
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XE3.2+/B80/H1.0/285/dF/s Country Code Key
EN558AW#ABA
Switzerland (German/French)
N. America
EN558AW#ABC
Fr. Canadian
Switzerland (Italian/English)
EN558AW#ABM
L. America
Dutch
EN558AW#ACF
Japan (English)
Denmark
EN558AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
EN558AW#ABU
UK
Korea
EN558AW#ABD
Germany
China
EN558AW#ABF
France
Taiwan
EN558AW#ABZ
Italy
India
EN558AW#ABE
Spain
Australia
EN558AW#AK6
Europe
Thailand
EN558AW#ACB
Russia
xw6200X/XE3.2+/S73b/
H1.0/285/dF/p
Processor
2nd Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
HDD Controller
Floppy Drive
Graphics
Mouse
Keyboard
Other Integrated
64-bit Intel Xeon processor 3.2 GHz 2 MB/800
64-bit Intel Xeon processor 3.2 GHz 2 MB/800
Microsoft Windows XP Professional
2 MB L2
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
73 GB SCSI 10k rpm (1st)
U320 SCSI Controller (No RAID)
1.44MB 3.5" Floppy Drive
NVIDIA Quadro NVS 285 PCI Express included in base configuration.
HP optical scroll mouse (USB)
Standard PS/2 Keyboard
Broadcom 10/100/1000 GBIT LOM, and AC97 audio
xw6200X/XE3.2+/S73b/H1.0/285/dF/p Country Code Key
EN559AW#ABA
Switzerland (German/French)
N. America
EN559AW#ABC
Fr. Canadian
Switzerland (Italian/English)
EN559AW#ABM
L. America
Dutch
EN559AW#ACF
Japan (English)
Denmark
EN559AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
EN559AW#ABU
UK
Korea
EN559AW#ABD
Germany
China
EN559AW#ABF
France
Taiwan
EN559AW#ABZ
Italy
India
EN559AW#ABE
Spain
Australia
EN559AW#AK6
Europe
Thailand
EN559AW#ACB
Russia
DA - 11975
EN558AW#AR8
EN558AW#ACN
EN558AW#ABH
EN558AW#ACE
EN558AW#AB4
EN558AW#AB1
EN558AW#AB2
EN558AW#AB0
EN558AW#ACJ
EN558AW#ABG
EN558AW#AKL
EN559AW#AR8
EN559AW#ACN
EN559AW#ABH
EN559AW#ACE
EN559AW#AB4
EN559AW#AB1
EN559AW#AB2
EN559AW#AB0
EN559AW#ACJ
EN559AW#ABG
EN559AW#AKL
Worldwide — Version 30 — November 1, 2005
Page 11
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XE3.2+/D80/
H2.0/285/d/s
Processor
2nd Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
HDD Controller
Floppy Drive
Graphics
Mouse
Keyboard
Other Integrated
64-bit Intel Xeon processor 3.2 GHz 2 MB/800
64-bit Intel Xeon processor 3.2 GHz 2 MB/800
Microsoft Windows XP Professional
2 MB L2
2 GB (2x1) DDR2-400 ECC Registered
16X DVD-ROM
80 GB SATA 3.0-Gb/s 7200 rpm (1st)
Serial ATA controller
None
NVIDIA Quadro NVS 285 PCI Express included in base configuration.
HP scroll mouse (PS/2)
Standard PS/2 Keyboard
Broadcom 10/100/1000 GBIT LOM, and AC97 audio
xw6200X/XE3.2+/D80/H2.0/285/d/s Country Code Key
EQ644AW#ABA
Switzerland (German/French)
N. America
EQ644AW#ABC
Fr. Canadian
Switzerland (Italian/English)
EQ644AW#ABM
L. America
Dutch
EQ644AW#ACF
Japan (English)
Denmark
EQ644AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
EQ644AW#ABU
UK
Korea
EQ644AW#ABD
Germany
China
EQ644AW#ABF
France
Taiwan
EQ644AW#ABZ
Italy
India
EQ644AW#ABE
Spain
Australia
EQ644AW#AK6
Europe
Thailand
EQ644AW#ACB
Russia
xw6200X/XE3.4+/C74/
H2.0/285/dF/s
Processor
2nd Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
HDD Controller
Floppy Drive
Graphics
Mouse
Keyboard
Other Integrated
DA - 11975
EQ644AW#AR8
EQ644AW#ACN
EQ644AW#ABH
EQ644AW#ACE
EQ644AW#AB4
EQ644AW#AB1
EQ644AW#AB2
EQ644AW#AB0
EQ644AW#ACJ
EQ644AW#ABG
EQ644AW#AKL
64-bit Intel Xeon processor 3.4 GHz 2 MB/800
64-bit Intel Xeon processor 3.4 GHz 2 MB/800
Microsoft Windows XP Professional
2 MB L2
2 GB (2x1) DDR2-400 ECC Registered
16X DVD-ROM
74 GB SATA 1.5-GB/S 10k rpm (1st)
Serial ATA controller
1.44MB 3.5" Floppy Drive
NVIDIA Quadro NVS 285 PCI Express included in base configuration.
HP scroll mouse (PS/2)
Standard PS/2 Keyboard
Broadcom 10/100/1000 GBIT LOM, and AC97 audio
Worldwide — Version 30 — November 1, 2005
Page 12
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XE3.4+/C74/H2.0/285/dF/s Country Code Key
EN560AW#ABA
Switzerland (German/French)
N. America
EN560AW#ABC
Fr. Canadian
Switzerland (Italian/English)
EN560AW#ABM
L. America
Dutch
EN560AW#ACF
Japan (English)
Denmark
EN560AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
EN560AW#ABU
UK
Korea
EN560AW#ABD
Germany
China
EN560AW#ABF
France
Taiwan
EN560AW#ABZ
Italy
India
EN560AW#ABE
Spain
Australia
EN560AW#AK6
Europe
Thailand
EN560AW#ACB
Russia
xw6200X/XE3.6+/C74/
H2.0/285/d/p
Processor
2nd Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Keyboard
Other Integrated
64-bit Intel Xeon processor 3.6 GHz 2 MB/800
64-bit Intel Xeon processor 3.6 GHz 2 MB/800
Microsoft Windows XP Professional
2 MB L2
2 GB (2x1) DDR2-400 ECC Registered
16X DVD-ROM
74 GB SATA 1.5-GB/S 10k rpm (1st)
NVIDIA Quadro NVS 285 PCI Express included in base configuration.
HP optical scroll mouse (USB)
Standard PS/2 Keyboard
Broadcom 10/100/1000 GBIT LOM, AC97 audio, and Serial ATA
controller
xw6200X/XE3.6+/C74/H2.0/285/d/p Country Code Key
EQ648AW#ABA
Switzerland (German/French)
N. America
EQ648AW#ABC
Fr. Canadian
Switzerland (Italian/English)
EQ648AW#ABM
L. America
Dutch
EQ648AW#ACF
Japan (English)
Denmark
EQ648AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
EQ648AW#ABU
UK
Korea
EQ648AW#ABD
Germany
China
EQ648AW#ABF
France
Taiwan
EQ648AW#ABZ
Italy
India
EQ648AW#ABE
Spain
Australia
EQ648AW#AK6
Europe
Thailand
EQ648AW#ACB
Russia
DA - 11975
EN560AW#AR8
EN560AW#ACN
EN560AW#ABH
EN560AW#ACE
EN560AW#AB4
EN560AW#AB1
EN560AW#AB2
EN560AW#AB0
EN560AW#ACJ
EN560AW#ABG
EN560AW#AKL
EQ648AW#AR8
EQ648AW#ACN
EQ648AW#ABH
EQ648AW#ACE
EQ648AW#AB4
EQ648AW#AB1
EQ648AW#AB2
EQ648AW#AB0
EQ648AW#ACJ
EQ648AW#ABG
EQ648AW#AKL
Worldwide — Version 30 — November 1, 2005
Page 13
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XD2.8/B80/
H1.0/280E/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
64-bit Intel Xeon processor 2.80 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
80 GB SATA 1.5-GB/S 7200 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD2.8/B80/H1.0/280E/dF/s Country Code Key
PD896AW#ABA
Switzerland (German/French)
N. America
PD896AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PD896AW#ABM
L. America
Dutch
PD896AW#ACF
Japan (English)
Denmark
PD896AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PD896AW#ABU
UK
Korea
PD896AW#ABD
Germany
China
PD896AW#ABF
France
Taiwan
PD896AW#ABZ
Italy
India
PD896AW#ABE
Spain
Australia
PD896AW#AK6
Europe
Thailand
xw6200X/XD3.2/C74/
H1.0/280E/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
DA - 11975
PD896AW#AR8
PD896AW#ACN
PD896AW#ABH
PD896AW#ACE
PD896AW#AB4
PD896AW#AB1
PD896AW#AB2
PD896AW#AB0
PD896AW#ACJ
PD896AW#ABG
PD896AW#AKL
64-bit Intel Xeon processor 3.20 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
74 GB SATA 1.5-GB/S 10,000 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
Worldwide — Version 30 — November 1, 2005
Page 14
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XD3.2/C74/H1.0/280E/dF/s Country Code Key
PM199AW#ABA
Switzerland (German/French)
N. America
PM199AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PM199AW#ABM
L. America
Dutch
PM199AW#ACF
Japan (English)
Denmark
PM199AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PM199AW#ABU
UK
Korea
PM199AW#ABD
Germany
China
PM199AW#ABF
France
Taiwan
PM199AW#ABZ
Italy
India
PM199AW#ABE
Spain
Australia
PM199AW#AK6
Europe
Thailand
xw6200X/XD3.2+/B80/
H1.0/280E/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
Dual 64-bit Intel Xeon processors 3.20 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2 per processor
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
80 GB SATA 1.5-GB/S 7200 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.2+/B80/H1.0/280E/dF/s Country Code Key
PD898AW#ABA
Switzerland (German/French)
N. America
PD898AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PD898AW#ABM
L. America
Dutch
PD898AW#ACF
Japan (English)
Denmark
PD898AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PD898AW#ABU
UK
Korea
PD898AW#ABD
Germany
China
PD898AW#ABF
France
Taiwan
PD898AW#ABZ
Italy
India
PD898AW#ABE
Spain
Australia
PD898AW#AK6
Europe
Thailand
DA - 11975
PM199AW#AR8
PM199AW#ACN
PM199AW#ABH
PM199AW#ACE
PM199AW#AB4
PM199AW#AB1
PM199AW#AB2
PM199AW#AB0
PM199AW#ACJ
PM199AW#ABG
PM199AW#AKL
PD898AW#AR8
PD898AW#ACN
PD898AW#ABH
PD898AW#ACE
PD898AW#AB4
PD898AW#AB1
PD898AW#AB2
PD898AW#AB0
PD898AW#ACJ
PD898AW#ABG
PD898AW#AKL
Worldwide — Version 30 — November 1, 2005
Page 15
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XD3.4/C74/
H1.0/280E/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
64-bit Intel Xeon processor 3.40 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
74 GB SATA 1.5-GB/S 10,000 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.4/C74/H1.0/280E/dF/s Country Code Key
PM200AW#ABA
Switzerland (German/French)
N. America
PM200AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PM200AW#ABM
L. America
Dutch
PM200AW#ACF
Japan (English)
Denmark
PM200AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PM200AW#ABU
UK
Korea
PM200AW#ABD
Germany
China
PM200AW#ABF
France
Taiwan
PM200AW#ABZ
Italy
India
PM200AW#ABE
Spain
Australia
PM200AW#AK6
Europe
Thailand
xw6200X/XD3.4+/B80/
H1.0/280E/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
DA - 11975
PM200AW#AR8
PM200AW#ACN
PM200AW#ABH
PM200AW#ACE
PM200AW#AB4
PM200AW#AB1
PM200AW#AB2
PM200AW#AB0
PM200AW#ACJ
PM200AW#ABG
PM200AW#AKL
Dual 64-bit Intel Xeon processors 3.40 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2 per processor
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
80 GB SATA 1.5-GB/S 7200 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
Worldwide — Version 30 — November 1, 2005
Page 16
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XD3.4+/B80/H1.0/280E/dF/s Country Code Key
PD900AW#ABA
Switzerland (German/French)
N. America
PD900AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PD900AW#ABM
L. America
Dutch
PD900AW#ACF
Japan (English)
Denmark
PD900AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PD900AW#ABU
UK
Korea
PD900AW#ABD
Germany
China
PD900AW#ABF
France
Taiwan
PD900AW#ABZ
Italy
India
PD900AW#ABE
Spain
Australia
PD900AW#AK6
Europe
Thailand
xw6200X/XD3.4+/C74/
H2/280E/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
Dual 64-bit Intel Xeon processors 3.40 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2 per processor
2 GB (2x1GB) DDR2-400 ECC Registered
16X DVD-ROM
74 GB SATA 1.5-GB/S 7200 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.4+/B80/H1.0/280E/dF/s Country Code Key
PR845AW#ABA
Switzerland (German/French)
N. America
PR845AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PR845AW#ABM
L. America
Dutch
PR845AW#ACF
Japan (English)
Denmark
PR845AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PR845AW#ABU
UK
Korea
PR845AW#ABD
Germany
China
PR845AW#ABF
France
Taiwan
PR845AW#ABZ
Italy
India
PR845AW#ABE
Spain
Australia
PR845AW#AK6
Europe
Thailand
DA - 11975
PD900AW#AR8
PD900AW#ACN
PD900AW#ABH
PD900AW#ACE
PD900AW#AB4
PD900AW#AB1
PD900AW#AB2
PD900AW#AB0
PD900AW#ACJ
PD900AW#ABG
PD900AW#AKL
PR845AW#AR8
PR845AW#ACN
PR845AW#ABH
PR845AW#ACE
PR845AW#AB4
PR845AW#AB1
PR845AW#AB2
PR845AW#AB0
PR845AW#ACJ
PR845AW#ABG
PR845AW#AKL
Worldwide — Version 30 — November 1, 2005
Page 17
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XD3.6/C74/
H1.0/280E/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
64-bit Intel Xeon processor 3.60 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
74 GB SATA 1.5-GB/S 10,000 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.6/C74/H1.0/280E/dF/s Country Code Key
PM201AW#ABA
Switzerland (German/French)
N. America
PM201AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PM201AW#ABM
L. America
Dutch
PM201AW#ACF
Japan (English)
Denmark
PM201AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PM201AW#ABU
UK
Korea
PM201AW#ABD
Germany
China
PM201AW#ABF
France
Taiwan
PM201AW#ABZ
Italy
India
PM201AW#ABE
Spain
Australia
PM201AW#AK6
Europe
Thailand
xw6200X/XD3.6+/B80/
H1.0/280E/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
DA - 11975
PM201AW#AR8
PM201AW#ACN
PM201AW#ABH
PM201AW#ACE
PM201AW#AB4
PM201AW#AB1
PM201AW#AB2
PM201AW#AB0
PM201AW#ACJ
PM201AW#ABG
PM201AW#AKL
Dual 64-bit Intel Xeon processors 3.60 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2 per processor
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
80 GB SATA 1.5-GB/S 7200 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
Worldwide — Version 30 — November 1, 2005
Page 18
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XD3.6+/B80/H1.0/280E/dF/s Country Code Key
PD902AW#ABA
Switzerland (German/French)
N. America
PD902AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PD902AW#ABM
L. America
Dutch
PD902AW#ACF
Japan (English)
Denmark
PD902AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PD902AW#ABU
UK
Korea
PD902AW#ABD
Germany
China
PD902AW#ABF
France
Taiwan
PD902AW#ABZ
Italy
India
PD902AW#ABE
Spain
Australia
PD902AW#AK6
Europe
Thailand
xw6200X/XD3.6+/C74/
H2/280E+/dF/s
– Trader station
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
Dual 64-bit Intel Xeon processors 3.60 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2 per processor
2 GB (2x1) DDR2-400 ECC Registered
16X DVD-ROM
74 GB SATA 1.5-GB/S 10,000 rpm (1st)
Both the NVIDIA Quadro NVS 280 PCI Express and NVIDIA Quadro
NVS 280 PCI graphics cards are included in base configuration.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.6+/C74/H2/280E+/dF/s Country Code Key
PM202AW#ABA
Switzerland (German/French)
N. America
PM202AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PM202AW#ABM
L. America
Dutch
PM202AW#ACF
Japan (English)
Denmark
PM202AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PM202AW#ABU
UK
Korea
PM202AW#ABD
Germany
China
PM202AW#ABF
France
Taiwan
PM202AW#ABZ
Italy
India
PM202AW#ABE
Spain
Australia
PM202AW#AK6
Europe
Thailand
DA - 11975
PD902AW#AR8
PD902AW#ACN
PD902AW#ABH
PD902AW#ACE
PD902AW#AB4
PD902AW#AB1
PD902AW#AB2
PD902AW#AB0
PD902AW#ACJ
PD902AW#ABG
PD902AW#AKL
PM202AW#AR8
PM202AW#ACN
PM202AW#ABH
PM202AW#ACE
PM202AW#AB4
PM202AW#AB1
PM202AW#AB2
PM202AW#AB0
PM202AW#ACJ
PM202AW#ABG
PM202AW#AKL
Worldwide — Version 30 — November 1, 2005
Page 19
QuickSpecs
HP xw6200 Workstation
After-Market Options
Processors
2nd 64-bit Intel Xeon™ processor with Hyper-Threading
64-bit Intel Xeon processor at 2.8 GHz with 800 MHz FSB & 1 MB of L2 cache
64-bit Intel Xeon processor at 2.8 GHz with 800 MHz FSB & 2 MB of L2 cache
64-bit Intel Xeon processor at 3.0 GHz with 800 MHz FSB & 1 MB of L2 cache
64-bit Intel Xeon processor at 3.0 GHz with 800 MHz FSB & 2 MB of L2 cache
64-bit Intel Xeon processor at 3.2 GHz with 800 MHz FSB & 1 MB of L2 cache
64-bit Intel Xeon processor at 3.2 GHz with 800 MHz FSB & 2 MB of L2 cache
64-bit Intel Xeon processor at 3.4 GHz with 800 MHz FSB & 1 MB of L2 cache
64-bit Intel Xeon processor at 3.4 GHz with 800 MHz FSB & 2 MB of L2 cache
64-bit Intel Xeon processor at 3.6 GHz with 800 MHz FSB & 1 MB of L2 cache
64-bit Intel Xeon processor at 3.6 GHz with 800 MHz FSB & 2 MB of L2 cache
64-bit Intel Xeon processor at 3.8 GHz with 800 MHz FSB & 2 MB of L2 cache
Part Number
DY665A
EC421AA
DY666A
PQ903A
DY667A
PQ904A
DY668A
PQ905A
DY669A
PQ906A
PH202A
Graphics
Multi display solutions
Red Hat Linux
Part Number
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit
AA932A
32-Bit, 64-Bit
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit
AA606A
DY650A
PCI
NVIDIA Quadro NVS 280 (64 MB,
VGA & DVI)
NVIDIA Quadro NVS 400 (64 MB,
quad head, VGA & DVI)
Quadro NVS 400 DVI cables
NVIDIA Quadro NVS 280 PCI
Express (64 MB, VGA & DVI)
NVIDIA Quadro NVS 285 PCI
Express (128 MB)
NVIDIA DVI Dual-head Connector
Cablefor NVS cards
NVIDIA Quadro FX 330 (64 MB)
PCIExpress
X
X
NA
X
X
X
X
X
ATI FireGL V3100 (128 MB)
NVIDIA Quadro FX 540 (128 MB)
X
X
NVIDIA Quadro FX 1400 (128 MB)
X
ATI FireGL V5100 (128 MB)
NVIDIA Quadro FX 3450 PCI
Express (256 MB)
X
X
DA - 11975
Windows XP
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
Worldwide — Version 30 — November 1, 2005
AA605A
EE061AA
DL139A
PB332A
PE949A
PH791A
PM979A
PB330A
PY640AA
Page 20
QuickSpecs
HP xw6200 Workstation
After-Market Options
Hard Drives
Serial ATA 3.0-Gb/s Hard Drives
(Currently supported only at 1.5Gb/s. To get 3Gb/s
performance, a SATA 3.0-Gb/s controller must be
added)
80 GB SATA 3.0-Gb/s Hard Drive (7200 rpm)
160 GB SATA 3.0-Gb/s NCQ Hard Drive (7200 rpm)
250 GB SATA 3.0-Gb/s Hard Drive (7200 rpm)
500 GB SATA 3.0-Gb/s NCQ Hard Drive (7200 rpm)
Serial ATA1.5-Gb/s Hard Drives
250 GB SATA 1.5-GB/S Hard Drive (7200 rpm)
400 GB SATA 1.5-GB/S Hard Drive (7200 rpm)
74 GB SATA 1.5-GB/S Hard Drive (10,000 rpm)
SCSI Hard Drives
73 GB Ultra320 SCSI Hard Drive (10,000 rpm)
146 GB Ultra320 SCSI Hard Drive (10,000 rpm)
300 GB Ultra320 SCSI Hard Drive (10,000 rpm)
36 GB Ultra320 SCSI Hard Drive (15,000 rpm)
73 GB Ultra320 SCSI Hard Drive (15,000 rpm)
146 GB Ultra320 SCSI Hard Drive (15,000 rpm)
Windows XP Red Hat Linux
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
WS3, WS4
WS3, WS4
WS3, WS4
WS3, WS4
PY276AA
PV944A
PY278AA
PV943A
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
WS3, WS4
WS3, WS4
WS3, WS4
DS702A
PM254A
DX760A
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
Bracket HDD 3.5to5.25 xw6200
Cable, 3 port SCSI xw4200/6200
Controllers
SCSI Controllers
DA - 11975
AA613A
AA614A
DY672A
AA616A
AA617A
DY671A
DY659A
DY661A
PCI
Adaptec Serial ATA 3Gb/s RAID
1420SA card
U320 SCSI Controller RAID 0,1 &
external connector
Ultra320 SCSI RAID Adaptec
2120S (Windows only, includes
external connector)
Part Number
X
X
PCIWindows XP Red Hat Linux
Express
X
32-Bit, 64-Bit
WS3
Part Number
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit
DZ554A
Worldwide — Version 30 — November 1, 2005
ED090AA
AA850A
Page 21
QuickSpecs
HP xw6200 Workstation
After-Market Options
Input Devices
Keyboards
HP PS/2 Standard Keyboard (Carbonite/Silver)
HP USB Standard Keyboard (Carbonite/Silver)
HP USB Smart Card Keyboard
Smartcard adapter for modular keyboard
Pointing Devices
HP PS/2 2-Button Scroll Mouse (Carbonite)
HP USB Optical 3-button mouse
USB Spaceball 5000
USB SpaceMouse
HP SpacePilot 3D USB Intelligent Controller
Memory (DIMMs)
NICs
PCI
Intel Pro 1000 MT PCI Gigabit NIC
X
Broadcom NetXtreme Gigabit
Ethernet PCI Adapter
(BCM5782)
Broadcom NetXtreme Gigabit
Ethernet PCIe Adapter
X
Part Number
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit
DT527A
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
HP USB 2-Button Optical Scroll Mouse
(Carbonite/Silver)
HP PS/2 3-Button Mouse
Networking
Windows XP Red Hat Linux
PCIWindows XP Red Hat Linux
Express
32-Bit, 647.2, 7.3,
Bit
WS3, WS4
32-Bit, 647.2, 7.3,
Bit
WS3, WS4
X
32-Bit, 64Bit
WS3, WS4
400 MHz DDR-2 PC2-3200 ECC Registered DIMMs Windows XP Red Hat Linux
256 MB DDR-2 PC2-3200 (400 MHz) ECC
32-Bit, 64-Bit 7.2, 7.3, WS3,
Registered
WS4
512 MB DDR-2 PC2-3200 (400 MHz) ECC
32-Bit, 64-Bit 7.2, 7.3, WS3,
Registered
WS4
1 GB DDR-2 PC2-3200 (400 MHz) ECC Registered
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
2 GB DDR-2 PC2-3200 (400 MHz) ECC Registered
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
DA - 11975
Worldwide — Version 30 — November 1, 2005
DT528A
ED707AA
DT531A
DD440B
DC172B
AA778A
DY651A
DV675A
DZ203A
EF390AA
Part Number
DC193A
DC194A
EA833AA
Part Number
DY656A
DY658A
DY655A
DY657A
Page 22
QuickSpecs
HP xw6200 Workstation
After-Market Options
Monitors (Supported by all TFTs
Operating Systems offered HP TFT L2335 (23-inch)
by HP)
HP TFT L2035 (20.1-inch)
HP TFT L1955 2T Top (19.1-inch)
HP TFT L1755 (17-inch)
Multimedia
P9615W#
P9614W#
PH466AT
PL777AA
PCI
PCIExpress
Adaptec Fireconnect 2100 Firewire (1394) PCI Card (Windows
X
PA997A
only)
NOTE: Although HP Personal Workstations can be ordered with the HP Installer Kit for Linux and an
IEEE 1394 card, HP cannot provide customer support for this configuration. Please refer to the Linux
Hardware Support Matrix (http://www.hp.com/support/linux_hardware_matrix) for details, and to the
Linux User Manual (http://www.hp.com/support/linux_user_manual) for tips on user-enablement of the
IEEE 1394 Card.
Audio
Part Number
DV440A
EA326AA
ZD929AA
Sound Blaster Audigy 2 ZS PCI Audio Card
SoundBlaster X-Fi XtremeMusic Audio Card
HP Satellite Speakers (available January 2006)
Optical Drives
DVD-ROM Drive
16X/48X DVD-ROM w/ +R read
CD-ROM Drive
48X Max CD-ROM Drive
CD-RW Drive
48X/32X/48X CD-RW Drive
Combo Drive
48X/32X Combo DVD-ROM/CD-RW Drive
DVD+/-RW Drive
16X DVD+/-RW, Dual-Layer LightScribe (LightScribe
labeling functionality not supported on Linux)
DA - 11975
Windows XP Red Hat Linux
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
Part Number
AA620B
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
DC143B
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
DE205B
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
DE206B
32-Bit, 64-Bit 7.2, 7.3, WS3,
WS4
DZ555B
Worldwide — Version 30 — November 1, 2005
Page 23
QuickSpecs
HP xw6200 Workstation
After-Market Options
Removable Storage
Windows XP Red Hat Linux
Part Number
HP 256-MB Drive Key II Flash Drive
32-Bit, 64-Bit WS3, WS4
PH657A
1.44 MB Internal Floppy Drive
32-Bit, 64-Bit
WS3
DY670A
HP DAT24i Internal DDS3 tape drive
32-Bit
C1555D
HP DAT24e External DDS3 tape drive
32-Bit
C1556D
HP DAT40i Internal DDS4 tape drive
32-Bit
C5686B
HP DAT40e External DDS4 tape drive
32-Bit
C5687C
HP DAT72i Internal DAT72 tape drive
32-Bit
Q1522A
HP DAT72e External DAT72 tape drive
32-Bit
Q1523A
The following Removable Drive Enclosure products are available from and supported by 3rd party:
StorCase Rhino Jr. SATA 1.5Gb/s Removable Disk Enclosure
(For NA, use: HP P/N A466720, for WW, use: vendor P/N S21J111)
Security
Chassis clamp lock, universal, no cable
Chassis clamp lock, universal, with cable
DE817A
DE818A
Brackets/Stands
HP xw6200 sliding rack kit
DY663A
Exclusively designed for the xw6200
Standard-width, ball bearing sliding rails
Includes hardware to work with IT racks only (not broadcast)
Depth Adjustable Rails (stationary)
Sliding Shelf kit
Fixed shelf kit
Other Devices
IDE Cable Kit for HP xw6200 and xw8200 (2nd)
Front Card Guide and Fan Kit
Operating Systems
Red Hat Enterprise Linux Workstation 3 Update 5 (32-bit version)
Red Hat Enterprise Linux Workstation 3 Update 5 (64-bit version)
Red Hat Enterprise Linux Workstation 4 Update 1 (32/64-bit version)
DA - 11975
Worldwide — Version 30 — November 1, 2005
332558-B21
234672-B21
253449-B21
DY660A
DY648A
EA698AA
EA699AA
EA700AA
Page 24
QuickSpecs
HP xw6200 Workstation
After-Market Options
Software
HP Remote Graphics V2 LTU for HP WS
HP Remote Graphics V3LTU for HP WS
HP Remote Graphics V2 Receiver LTU
HP Remote Graphics V3 Receiver LTU
HP Remote Graphics V2 software media
HP Remote Graphics V3 software media
HP Remote SW for HP 1 year Update Subscription
HP Remote SW Receiver 1 year Update Subscription
DA - 11975
Windows XP Red Hat Linux
32-Bit
7.2, 7.3, WS3,
WS4
32-Bit
7.2, 7.3, WS3,
WS4
32-Bit
7.2, 7.3, WS3,
WS4
32-Bit
7.2, 7.3, WS3,
WS4
32-Bit
7.2, 7.3, WS3,
WS4
32-Bit
7.2, 7.3, WS3,
WS4
32-Bit
7.2, 7.3, WS3,
WS4
32-Bit
7.2, 7.3, WS3,
WS4
Worldwide — Version 30 — November 1, 2005
Part Number
PE672A
PY682AA
PE674A
PY684AA
PE675A
PY685AA
PN681A
PN680A
Page 25
QuickSpecs
HP xw6200 Workstation
Memory
E7525 chipset
DDR-2 SDRAM ECC REGISTERED MEMORY
If only using one DIMM, install it in socket 1. For more than one DIMM, install memory in pairs (a pair would be considered to be
the DIMMs in sockets 1 & 2, 3 & 4) and do not mix speeds. It is always best to load the memory in pairs rather than a single DIMM
(two 512 MB DIMMs will have better performance than a single 1 GB DIMM). Each pair of DIMMs must be the same size and same
DRAM technology. The Intel E7525 chipset supports ECC Registered 400 MHz (PC2-3200) DDR-2 memory only.
MAXIMUM MEMORY
Supports up to 8 GB of DDR SDRAM
POSSIBLE MEMORY CONFIGURATIONS
Not all memory configurations possible are represented below.
DIMM Size
256 MB
512 MB
512 MB
1 GB
1 GB
2 GB
2 GB
4 GB
8 GB
Slot
1
256 MB
512 MB
256 MB
1 GB
256 MB
1 GB
512 MB
1 GB
2 GB
DA - 11975
2
3
4
256 MB
256 MB
512 MB
1 GB
2 GB
512 MB
1 GB
2 GB
256 MB
256 MB
1 GB
512 MB
1 GB
2 GB
Worldwide — Version 30 — November 1, 2005
Page 26
QuickSpecs
HP xw6200 Workstation
Storage
Tower configuration
Quantity Supported
Position Supported
Controller
Convertible Minitower
Optional Diskette Drive
1
3
Diskette
5.25" Storage Drive Bays
2
1, 2
IDE
(position 1 drive bay is limited to
198 mm depth when optional
smart cover solenoid lock is
installed; position 2 drive bay
can be converted to an internal
3.5" 3rd hard drive bay with
optional bracket)
3.5" Storage Drive Bays with
2 (3)
4, 5 (and 2, for 3rd drive using
SATA or optional SCSI
acoustic dampening rail
optical bay)
Factory Integrated RAID*
assemblies
NOTE: Factory Integrated RAID 0 Configuration (Striped Array) and RAID 1 Configuration (Mirrored Array) requires 2 hard drives
* NOTE
with identical speeds, capacity and interface.
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 27
QuickSpecs
HP xw6200 Workstation
Additional Technical Specifications
System Board
Architecture
Chipset
Super I/O Controller
System Board Form Factor
Processor Socket
DIMM Connectors (DDR2,
1.8V)
AGP Connector (1.5V)
Integrated Graphics
PCI Connectors (5.0V)
PCI Express Connectors
PCI card guide
Flash ROM
AC97 integrated audio
CD ROM IN (Audio)
AUX IN (Audio)
Clear CMOS Button
CPU Fan Header
Chassis Fan Header
Chassis Speaker Header
CMOS Battery Holder –
Lithium
Hood Lock Header
Hood Sensor Header
Multibay Header
Hard drive acoustic
dampening rails
Integrated SATA RAID
Xeon 64-bit/PCI-E
Intel E7525/ICH5R Chipset
SMSC LPC47B397
ATX (slightly larger than standard ATX)
Dual 604 Pin ZIF
4
None
None
4 full length 33 MHz 32-bit
1 x16
1 x8 (with x4 electricals)
Optional, tool-free support for all full-length cards with PCI extender
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Standard in 2 internal 3.5" bays, tool-free
RAID 0 and RAID 1
Supports one RAID array on 2 ports
Creation of 2 drive HDD array
RAID 0 Configuration - Striped Array
RAID 1 Configuration - Mirrored Array
Integrated Broadcom
NetXtreme Gigabit
Ethernet for HP
Wake-On-Lan®
ASF 1.0 (Alert Standard
Format)
Power Supply Header
Power Switch, Power LED
& Hard Drive LED Header
Password Clear Header
Riser Connector
Yes
Yes
Yes
Yes
Yes
Yes
Yes
None
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 28
QuickSpecs
HP xw6200 Workstation
Additional Technical Specifications
HDD activity LED Header
PCI extender that connects
to System Board
Yes, 2 & 4 pin
None
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 29
QuickSpecs
HP xw6200 Workstation
Technical Specifications
Cooling
Cooling Solutions
Supported
Power Supply Fan (Variable
Speed)
Processor Fan-Heatsink
(Variable Speed)
Chassis Fan (front)
Chassis Fan (rear)
Internal Speaker
Yes
92 x 25 mm
70 x 15 mm
One 92 x 25 mm (optional)
Two 92 x 25 mm (standard)
Standard
Power Supply
Full Ranging Input
Active Power Factor
Correction (APFC) (Input
Current is nearly 1/2 a
non-APFC PS)
Passive Power Factor
Correction (PFC)
Operating Voltage Range
Rated Voltage Range
Rated Line Frequency
Operating Line Frequency
Range
Rated Input Current
Maximum Rated Power
Heat Dissipation
PS Size (wide x high x deep)
Energy Star Compliant
FEMP Standby Power
Compliant (<2W in S5 Power Off)
Surge Tolerant Full
Ranging Power Supply
Typical configuration
power consumption
ROM Features
Instantly Available PC
Yes
Yes
No
90 - 264 VAC/118 VAC
100 – 240 VAC
50-60 Hz/400Hz
47 – 66 Hz/393 – 407Hz
9A/9A
500 W
Typical 1228.9 btu/hr
Maximum 1706 btu/hr
150 mm x 98 mm x 168 mm
Yes
No
Withstands power surges up to 2000V
2 processors (2x3.6GHz Xeon), 1 GB memory (2x512 MB)
Two hard drives (2xSATA 40 GB), DVD-ROM drive
PCI-Express Graphics Card (FX 1300)
Floppy, Monitor
Input Power consumption
@ 120Vac/60Hz
Typical operating mode
360 W
= 1228.9 btu/hr
(system busy)
Windows XP Idle
201 W
= 685.9 btu/hr
Hibernate mode (S4)
6.4 W
= 21.84 btu/hr
Power Off (S5)
6.4 W
= 21.84 btu/hr
Description
Allows for very low power consumption with quick resume time
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 30
QuickSpecs
HP xw6200 Workstation
Technical Specifications
ROM Based F10 Setup
Review and customize BIOS settings
and diagnostics
Remote System Installation Allows a new or existing system to boot over the network and download software, including the operating
via F12 (PXE) (Remote Boot system
from Server)
System/Emergency ROM Recovers corrupted system BIOS
Flash Recovery with Video
ROM revision levels
Identifies system ROM revision levels and reports in ROM-based F10 setup
Version is stored in an industry standard memory location (SMBIOS) so that management SW
applications can use and report this information
System board revision level
Allows management SW to read the revision level of the system board
Revision level is digitally encoded into the hardware and cannot be modified
Auto Setup when New
System automatically detects addition of new hardware
Hardware Installed
Serial, Parallel, USB,
Enable or disables serial, parallel, USB, audio, and network ports
Audio, Network,
Enable/Disable Port
Control
Removable Media Write/ Prevents ability to boot from removable media on supported devices (and can disable writes to media)
Boot Control
Power-On Password
Prevents an unauthorized person from booting up the computer
Setup Password
Prevents an unauthorized person from changing the system configuration
Replicated Setup
Saves BIOS settings to diskette or USB disk-on-key in human readable file. Repset.exe utility can then
replicate these settings on machines being deployed without entering ROM-based F10 setup
Memory Change Alert
Alerts management console if memory is removed or changed
(Requires HP Client
Manager Software)
Thermal Alert (Requires HP Monitors the temperature state within the chassis. Three modes:
Client Manager Software)
NORMAL – normal temperature ranges
ALERTED – excessive temperatures are detected. Raises a flag so action can be taken to avoid
shutdown or provide for a smoother system shutdown
SHUTDOWN – excessive temperatures are encountered. Automatically shuts down the computer
without warning before hardware component damage occurs
Master Boot Record
Detects changes to MBR and optional restoration, useful in protecting from viruses
Security
Remote ROM Flash
Provides secure, fail-safe ROM image management from a central network console
Remote Wakeup/shutdown
System administrators can power on, restart, and power off a client computer from a remote
location.
Enables cost-effective power consumption when the administrator needs to distribute software,
perform security management, or update the ROM
ACPI (Advanced
Allows the system to wake from a low power mode
Configuration and Power
Controls system power consumption, making it possible to place individual cards and peripherals
Management Interface)
in a low-power or powered-off state without affecting other elements of the system
Supports ACPI 2.0 for full compatibility with 64-bit operating systems
Keyboard-less Operation The system can be operated without a keyboard
SMBIOS
System Management BIOS 2.3.5, previously known as DMI BIOS, for system management information
Localized ROM Setup
Common BIOS image supports configuration (Setup) in 11 languages, with local keyboard mappings
Asset tag
Allows user or MIS to set unique tag string in ROM
Ownership tag
Allows user or MIS to set unique tag string in ROM
Memory Scrubbing
Allows memory controller to transparently correct transient ECC errors in the background
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 31
QuickSpecs
HP xw6200 Workstation
Technical Specifications
Memory Remapping
Per-slot control
Adaptive cooling
Pre-boot diagnostics
Other deployment &
management features
HP Client Management
Solutions
Allows system memory lost to PCI devices to be reclaimed above 4 GB, for use with operating systems
that support more than 4 GB (Windows XP 64-bit edition, Linux)
Allows individual slot configuration (option ROM., latency)
Fan control parameters are set according to detected hardware configuration for optimal acoustics
Early (pre-video) critical errors are reported via beeps and blinks on the power LED
HP Client Management Solutions help simplify management of Workstations and significantly reduce
total ownership costs. These solutions share a common design and are highly integrated due to the
extensive work between HP and its partner Altiris.
HP Client Manager Software is included free with all HP business PCs and Workstations. It enables
central tracking, monitoring, and management of the hardware aspects of HP client systems:
Get valuable hardware information such as CPU, memory, video, and security settings
Monitor system health to fix problems before they occur
Install drivers and BIOS updates without visiting each PC
Remotely configure BIOS and security settings
Automate processes to quickly resolve hardware problems
Additional Altiris solutions (fee-based) are available to address Workstation management challenges
through the entire IT lifecycle including:
Inventory assessment
Software license compliance
Personality migration
Software image deployment
Software distribution
Asset management
Client backup and recovery
Problem resolution
Visit http://www.hp.com/go/easydeploy for more information, to download HP Client Manager Software,
and to evaluate the Altiris solutions.
System Software Manager A free utility that detects and updates BIOS, device drivers, and management agent versions on your
(free)
networked PCs and workstations
Altiris Local Recovery
Provides data and system file protection for HP business PCs to enable fast recovery of information that is
accidentally deleted or if the system becomes corrupted. Designed for disconnected or seldomconnected users, Local Recovery protects your HP computer's data and system state by taking scheduled
snapshots, which are then stored in a protected area on the local hard disk. System backup and disaster
recovery is now simple and fast for all users, regardless of connectivity
Replicated Setup
Saves BIOS settings to diskette or USB disk-on-key in human readable file. Repset.exe utility can then
replicate these settings on machines being deployed without entering ROM-based F10 setup
Software Restore CD
Restores computer to its original factory shipping image
Asset Tag
Repository for storing company-specific property asset numbers for easy tracking
Initially set equal to the system serial number
Stored in a protected section of non-volatile memory that can be accessed and modified with the
F10 Setup program
DIMM Serial Presence
Detects whether or not memory DIMMs are present and their type
Detect
Hard drive serial number, Hard drive manufacturer, model, and serial number is stored in the hard drive firmware and reported in
model, and manufacturer ROM-based F10 setup
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 32
QuickSpecs
HP xw6200 Workstation
Technical Specifications
System serial number,
model, & manufacturer
ROM revision levels
Memory Change Alert
(Requires HP Client
Manager Software)
Ownership Tag
Hard drive interface
Integrity Monitoring
(CRC Checking)
Drive Self Tests (DPS)
System serial number, model, & manufacturer stored in a non-volatile memory and can be retrieved with
management SW or viewed in ROM-based F10 setup
Identifies system ROM revision levels and reports in ROM-based F10 setup
Version is stored in an industry standard memory location (SMBIOS) so that management SW
applications can use and report this information
Alerts management console if memory is removed or changed
A user-defined string stored in non-volatile memory that is displayed in the BIOS splash screen
A feature of SATA and SCSI, Cyclic Redundancy Checking provides data transfer verification and
proactive notification of hard drive data transmission problems with recommendations for enhancing
system performance. It detects all the following errors' types:
single bit errors
double bit errors
an odd number of errors
error bursts up to 32-bits long
Drive Protection System (Adaptec and LSI SCSI controllers do not offer DPS)
A diagnostic hard drive self test. It scans critical physical components and every sector of the hard
drive for physical faults and then reports any faults to the user.
Running independently of the operating system, it can be accessed through the computer's setup
procedure. It produces an evaluation on whether the hard drive is the source of the problem and
needs to be replaced.
The system expands on the Self-Monitoring, Analysis, and Reporting Technology (SMART), a continuously
running systems diagnostic that alerts the user to certain types of failures
DPS Access through F10 Setup during Boot (F10 diagnostic access not available with SCSI drives)
SMART Technology
Allows hard drives to monitor their own health and to raise flags if imminent failures were predicted
(Self-Monitoring, Analysis Predicts failures before they occur. Tracks fault prediction and failure indication parameters such as reand Reporting Technology) allocated sector count, spin retry count, calibration retry count
By avoiding actual hard drive failures, SMART hard drives act as "insurance" against unplanned user
downtime and potential data loss from hard drive failure
SMART I – Drive Failure Prediction
SMART II – Off-Line Data Collection
SMART III – Off-Line Read Scanning with Defect Reallocation
Security Features
Access panel key lock
Prevents removal of the access panel and all internal components including optical and floppy drives
(standard)
Smart Cover solenoid lock Prevents removal of the access panel and all internal components including optical and floppy drives.
(optional)
Eliminates the need for a physical key by enabling password-protected locking & unlocking by a local or
remote user.
Padlock (optional)
Prevents entire system theft and discourages access panel removal. 7mm diameter padlock loop at rear
of system.
Kensington Cable Lock
Prevents entire system theft only. 3mm x 7mm slot at rear of system.
(optional)
Universal chassis clamp
The version without a cable discourages access panel removal and prevents theft of IO devices. The
lock (optional)
version with a cable additionally prevents entire system theft and allows multiple systems to be secured
with a single cable.
Intrusion Sensor (optional) Notifies a local or remote user when the chassis access panel has been opened.
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 33
QuickSpecs
HP xw6200 Workstation
Technical Specifications
Serviceability Features of
System
Access panel
Optical drives
Floppy drive
Hard drives
Expansion cards
Chassis fan removal
Green user touch points
Color-coordinated cables
and connectors
Memory
CPUs
Power supply diagnostic
LED
Power Button
Power LED
Hard drive activity LED
Internal speaker
Dual Color Power and HD
LED on Front of Computer
(Indicates Normal
Operations and Fault
Conditions)
System/Emergency ROM
Flash Recovery
with Video
Configuration Record SW
Over-Temp Warning on
Screen (Requires IM
Agents)
OS CD (Restore OS CD)
Restore CD
Flash ROM
3.3V Aux Power LED on
System PCA
Dual Function 5V Aux
Power LED (ON)/PS_ON
LED (OFF) on System PCA
Diagnostic Power Switch
LED on board
Clear Password Jumper
Clear CMOS Button
CMOS Battery Holder for
easy Replacement
Processor ZIF Socket for
easy Upgrade
DIMM Connectors for easy
Upgrade
Tool-less, one-handed
Tool-less
Tool-less
Tool-less
Tool-less
Tool-less
Yes, on tool-free internal chassis mechanisms
Yes
Tool-less, can be upgraded without removing any internal components
Tool-less, can be upgraded without removing any internal components
Yes, dual function: AC OK & power OK
Yes, ACPI multi-function
Yes, dual color LED indicates normal operation and faults.
Yes
Yes, used for pre-boot diagnostic beep codes
green – normal
red – fault
Recovers corrupted system BIOS.
Yes
Yes
Restores computer to its original factory shipping image
Restores the computer to its original factory shipping image
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 34
QuickSpecs
HP xw6200 Workstation
Technical Specifications
NIC LEDs (integrated)
Used to determine NIC status
(Green & Amber)
ASF 1.0 support (Alert
Industry-standard specification for network alerting in operating system-absent environments
Standard Format)
Dual function front power Also acts as a reset switch when held for 4 seconds
switch
Service and Support
On-site Warranty and Service (Note 1): This three-year, limited warranty and service offering delivers
three years of on-site, next business-day (Note 2) service for parts and labor and includes free telephone
support (Note 3) 24 x 7. Global coverage (Note 2) ensures that any product purchased in one country
and transferred to another, non-restricted country will remain fully covered under the original warranty
and service offering.
NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply.
NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized
HP third-party provider, and is not available in certain countries. Global service response times are
based on commercially reasonable best effort and may vary by country.
NOTE 3:
3 Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party
hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 35
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Audio
AC97 Integrated ADI
1981B Audio
Type
AC ‘97 Stereo Codec
FM Synthesis Support
OPL3 FM Synthesis
Support
Sound Blaster
Compatibility
Audio Jacks
Integrated
Yes
Yes – Yamaha XG Lite
Yes
Yes
Microphone-In (20-K ohm Input Impedance); rear stereo and front analog
microphone ports
Line-In (12-K ohm Input Impedance)
Line-Out * (less than 800 ohms Output Impedance, expects at least a 10-K
ohm load)
Headphone-Out (2.5 Ohms Output Impedance, expects at least a 32 ohm
load)
NOTE: *Internal Speaker Amplifier is for Internal Speaker only. External Speakers need to be powered
externally.
7 kHz – 48 kHz
Sampling
Yes – GM and FM Midi Support, Direct Music and Down Loadable Soundset
Wavetable Syntheses
(software)
(4 Meg DLS Level 1 and 2 Support)
No
3D Positional Sound
Yes
Digital Audio
Yes
Analog Audio
Number of Channels on Stereo (Left & Right channels)
Line-Out
(mono/stereo)
3W
Internal Audio Speaker
Power Rating
Yes
Internal Speaker
Fixed 7 Band ParametricEQ
Hardware Equalizer for
Internal Speaker
Yes
External Speaker Jack
(Line-Out)
Sound Blaster X-Fi
Audio Quality
XtremeMusic Audio Card
Signal to Noise Ratio
(SNR)
Total Harmonic Distortion + Noise at 1kHz (20kHz Low-pass filter) =
0.004%
Signal-to-Noise Ratio (20kHz Low-pass filter, A-Weighted)
Stereo Output: 109dB
Front and Rear Channels: 109dB
Center, Subwoofer and Side Channels: 109dB
Sound Conversion
24-bit Analog-to-Digital conversion of analog inputs at 96kHz sample rate
24-bit Digital-to-Analog conversion of digital sources at 96kHz to analog
7.1 speaker output
24-bit Digital-to-Analog conversion of stereo digital sources at 192kHz to
stereo output
Recording/Sampling Rate 44.1, 48 and 96kHz
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 36
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Audio
ASIO 2.0 support
Enhanced SoundFont
support
16-bit/44.1kHz, 16-bit/48kHz, 24-bit/44.1kHz 24-bit/48kHz and 24bit/96kHz with direct monitoring
up to 24-bit resolution
24-bit/96kHz
24-bit/192kHz
128 voices
7.1
DACs
Voice Support
Max. Channels in 3D
Positional Audio
EAX® ADVANCED HD™ Yes including EAX® MacroFX™, EAX® PurePath™ and Environment
5.0 support
FlexiFX™
FlexiJack (Performing a 3-in-1 function, Digital In / Line In / Microphone) via
Connectors
3.50 mm minijack
Dimensions
Additional product
features
DA - 11975
Line level out (Front / Rear / Center / Subwoofer / Rear Center) via 3.50 mm
minijacks
AUX_IN line-level analog input via 4-pin Molex connector on card
One AD_Link (26 pin) connector for linking to the X-Fi I/O Console
(upgrade option)
7.25" x5" x .9" ( x x )
THX Certification
Movies
Dolby Digital EX 6.1 Playback
DTS-ES 6.1 Playback
X-Fi 24-bit Crystalizer
Music
CMSS-3D
SuperRip
Pristine audio playback quality with a near
Audio Creation
transparent SRC engine
Up to eight 24 bit hardware effects
ASIO recording with latency as low as one
millisecond
24-bit SoundFont® sampling
3D MIDI
EAX ADVANCED HD 5.0
Gaming
Doom 3 Sound Blaster EAX patch
Software Bundle
Entertainment Mode
Audio Creation Mode
Game Mode
Mode Switcher
Audio Console
Creative MediaSource
Creative MediaSource DVD-Audio Player
DTS Neo:6 Settings
Karaoke Player
Entertainment Center
Smart Recorder
SoundFont Bank Manager
Speaker Connection Wizard
THX Setup Console
Vienna SoundFont Studio
Volume Panel
WaveStudio
Worldwide — Version 30 — November 1, 2005
Page 37
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Audio
Minimum system
requirements
System RAM
Hard disk
Operating System
DA - 11975
Console Launcher
Creative Media Toolbox
Creative Diagnostics
256MB
600MB free space
Available PCI 2.1 slot for the audio card
CD-ROM/CD-RW or CD/DVD-ROM required
for software installation
Microsoft® Windows® XP Service Pack 2 (SP2)
Worldwide — Version 30 — November 1, 2005
Page 38
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Communications
Broadcom BCM5751
Connector
NetXtreme Gigabit
Controller
Ethernet Controller (PCI-E)
Memory
Data rates supported
Compliance
Bus architecture
Data path width
Data path speed
Data transfer mode
Hardware certifications
RJ-45
Broadcom 5751 PCI-E 1.0a LAN Controller
Integrated 96Kb frame buffer memory
10/100/1000 Mbps
IEEE 802.3, 802.3AB and 802.3u compliant, 802.3x flow control
PCI-E 1.0a
X1
2.5Gbit per sec per direction transfer rate
Bus-master DMA
FCC class B, NRTL Mark Canada and United States, C-Tick for Australia,
BSMI for Taiwan, VCCI for Japan, MIC for Korea, GOST for Russia
Power requirement
3.1 watts @ +3.3V AUX supply
Boot ROM support
Yes
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T, 1000 Mbps
Environmental
32° to 131° F (0° to 55° C)
Operating temperature
85% at 131° F (55° C)
Operating humidity
Dimensions
4.4 x 2.2 x 0.08 in (11.2 x 5.5 x .2 cm)
Operating system driver Microsoft Windows 2000 and XP, Red Hat Linux 7.2, 7.3 and Red Hat
support
Enterprise Linux 3
Management capabilities WOL, PXE , Remote cable management
Alerting
ASF 2.0
Kit contents
Broadcom 5751, CD, Broadcom NetXtreme Gigabit Ethernet PCI NIC,
drivers, quick install guide, product warranty statement
Intel Pro 1000 MT
Gigabit NIC
Connector
Controller
Memory
Data rates supported
Compliance
Bus architecture
Data path width
Data transfer mode
Hardware certifications
Power requirement
Boot ROM support
DA - 11975
RJ-45
Intel 82540EM Gigabit Controller
Integrated 96Kb frame buffer memory
10/100/1000 Mbps
IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and
802.3u compliant, 802.3x flow control
PCI 2.2
32-bit, 33/66 MHz bus interface
Bus-master DMA
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark
for European Union
1.48 watts @ +3.3V AUX supply with 5V tolerance
Yes
Worldwide — Version 30 — November 1, 2005
Page 39
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Communications
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T, 1000 Mbps
Environmental
32° to 131° F (0° to 55° C)
Operating temperature
85% at 131° F (55° C)
Operating humidity
Dimensions
6.4 x 4.8 x 0.8 in (16.3 x 12.1 x 1.9 cm)
Operating system driver Microsoft Windows XP Professional, Microsoft Windows XP Professional x64
support
Edition, Red Hat Enterprise Linux
Management capabilities ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Intel PROset II utility
Kit contents
The Intel Pro 1000 MT NIC, CD containing Intel PROset II NIC drivers, quick
install guide, product warranty statement
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 40
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Controllers
LSI Logic LSI 20320
Ultra320 SCSI single
channel host adapter
Bus architecture
Number of supported
devices
Interface protocol
Host bus transfer rate
SCSI data transfer rate
SCSI Bus
Internal connector
External connector
Total connectors
Plug and Play Support
Dimensions (H x L)
Approvals
Operating system support
Kit contents
Adaptec SCSI RAID
2120S Card
Dimensions (H x D)
RAID level
Data Transfer Rate
Cache Memory
Device Support
Bus Type
Internal Connectors
External Connectors
System Requirements
Operating Temperature
Power Requirements
Operating System
Support
Other
Kit Contents
DA - 11975
PCI-X (backward compatible with PCI)
Up to 15 SCSI devices
64 bit, 133MHz PCI-X
Up to 1MB/s
Up to 320MB/s per channel
Wide Ultra320, Low Voltage Differential, and Ultra Wide Single-Ended
68-pin HD
68 pin
2
No
6.6 x 2.5 in (16.9 x 6.4 cm)
CE, VCCI, Canada, C-Tick, FCC class B, UL 94VO
Microsoft Windows XP Professional
Windows XP Professional x64 Edition
Controller card, driver CD, LED cables, user documentation and warranty
card.
2.5 x 6.6 in (6.4 x 16.8 cm) Low profile card
0, 1, 10, 5, 50, JBOD
Up to 320 MB/s
64 MB (onboard)
Up to 15 SCSI devices
64-bit/66 MHz PCI
(Also support 32-bit/33 MHz PCI)
One 68-pin high-density
One 68-pin VHDCI
Intel PC or equivalent with available PCI slot
32° to 131° F (0° to 55° C)
4 amps @ +5V
Windows 2000 Professional, Windows XP Professional,
Windows XP Professional x64 Edition
Optimized disk utilization
Online RAID Level Migration
Online capacity expansion
Immediate RAID availability (background initialization)
S.M.A.R.T. support
Controller card, driver CD, LED cables, user documentation and warranty
card.
Worldwide — Version 30 — November 1, 2005
Page 41
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Controllers
Adaptec Serial ATA
Dimensions (H x D)
3Gb/s RAID 1420SA card RAID level
(model ED090AA)
Data Transfer Rate
Device Support
Bus Type
BIOS
2.5 x 6.6 in (6.4 x 16.8 cm)
RAID 0, 1, 10 (available this fall), and JBOD
Up to 3.0GB/s
Up to (4) Serial ATA 3.0 Drives
PCI-X/133 MHz (compatible to PCI 32/64-bit)
Managed using Adaptec Storage Manager, enabling remote management,
monitoring and configuration through encrypted remote communications.
48-bit LBA Support
Recognizes drive capacities exceeding 137 GB each
Data Protection Features Mirrors data to second drive or drive pair for RAID 1 and RAID 10; offers hot
spare support for instant rebuild of failed drive in 2-drive RAID 1
ACPI Support
S1, S3, & S4
Internal Connectors
4 standard 7-pin SATA connectors
External Connectors
None
System Requirements
PC with available PCI slot
Operating Temperature 32° to 131° F (0° to 55° C)
Power Requirements
0.3 amps @ +5V
Operating System
Microsoft® DOS, Windows® XP Professional, Windows XP x64
Support
Red Hat Enterprise Linux WS3
SLES 9.0
Novell Linux Desktop 9
Kit Contents
Controller card, driver CD, 4 SATA cables, standard full-size and Low-profile
brackets, user documentation and warranty card
Other
RAID 0, 1 and JBOD
Flash BIOS allows easy upgrades
Background initialization
Supports bootable arrays
48-bit LBA supports large capacity drives
S.M.A.R.T. and SNMP support
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 42
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Hard Drives
Serial ATA 3.0-Gb/s Hard 500 GB
Drives
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
250 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 11975
500,107,862,016 bytes
1.0 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s), Native Command Queuing enabled
Up to 3 Gb/s
16 MB
Single Track
1.3 ms
Average
20.0 ms
Full-Stroke
30 ms
7,200 rpm
976,773,168
41° to 131° F (5° to 55° C)
250,059,350,016 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
8 Mbytes
Single Track
1.0 ms
Average
8.5 ms
Full-Stroke
18 ms
7,200 rpm
488,397,168
41° to 131° F (5° to 55° C)
Worldwide — Version 30 — November 1, 2005
Page 43
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Hard Drives
160 GB
80 GB
Capacity
Height
Width
163,928,604,672 bytes
1.0 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
8 Mbytes
Single Track
0.9 ms
Average
9.3 ms
Full-Stroke
18 ms
Rotational Speed
Logical Blocks
Operating Temperature
7,200 rpm
320,173,056
41° to 131° F (5° to 55° C)
Capacity
Height
Width
80,026,361,856 bytes
1.0 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 11975
8 MB
Single Track
2 ms
Average
9.3 ms
Full-Stroke
21 ms
7,200 rpm
156,301,488
41° to 131° F (5° to 55° C)
Worldwide — Version 30 — November 1, 2005
Page 44
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Hard Drives
Serial ATA 1.5-Gb/s Hard 250 GB
Drives (7200 rpm)
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
400 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 11975
250,059,350,016 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9 cm)
Physical size: 4 in (10.2 cm)
Serial ATA
150 MB/s
8 MB
Single Track
0.8 ms
Average
<9.0 ms
Full-Stroke
<17 ms
7,200 rpm
488,397,168
41° to 131°F (5° to 55°C)
400,088,457,216 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9.x cm)
Physical size: 4 in (10.2 cm)
Serial ATA
150 MB/s
8 MB
Single Track
0.8 ms
Average
<11.0 ms
Full-Stroke
<15 ms
7,200 rpm
781,422,768
41° to 131°F (5° to 55°C)
Worldwide — Version 30 — November 1, 2005
Page 45
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Hard Drives
Serial ATA 1.5-Gb/s Hard 74 GB
Drives (10,000 rpm)
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Ultra320 SCSI Hard
Drives (10,000 rpm)
73 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 11975
74,355,769,344 bytes
1.0 in (2.54 mm)
Media diameter: 3.3 in (84mm)
Physical size: 4 in (10.2 cm)
Serial ATA
150 MB/s
8 MB
Single Track
0.3 ms
Average
4.5 ms
Full-Stroke
10.2 ms
10,000 rpm
145,226,112
41° to 140° F (5 to 60° C)
73,407,865,856 bytes
1.0 in (2.54 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
10,000 rpm
143,374,738
40° to 130° F (5° to 55° C)
Worldwide — Version 30 — November 1, 2005
Page 46
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Hard Drives
146 GB
300 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 11975
146,815,737,856 bytes
1.0 in (2.54 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
10,000 rpm
286,749,488
40° to 130° F (5° to 55° C)
300,000,000,000 bytes
1.0 in (2.54 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
10,000 rpm
585,937,500
40° to 130° F (5° to 55° C)
Worldwide — Version 30 — November 1, 2005
Page 47
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Hard Drives
Ultra320 SCSI Hard
Drives (15,000 rpm)
36 GB
73 GB
146 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 11975
36,420,075,520 bytes
1.0 in (2.54 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
15,000 rpm
71,132,960
40° to 130°F (5° to 55°C)
73,407,865,856 bytes
1.0 in (2.54 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
15,000 rpm
143,374,738
40° to 130°F (5° to 55° C)
146,815,737,856 bytes
1.0 in (2.5 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
15,000 rpm
143,374,738
40° to 130°F (5° to 55°C)
Worldwide — Version 30 — November 1, 2005
Page 48
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Removable Storage
USB Disk on Key
Dimensions (HxWxD)
Weight
USB Specification
Transfer Rate
Storage Media
Power Supply
Capacity
DA - 11975
0.9 x 0.7 x 3.9 in (2.3 x 1.8 x 9.8 cm)
0.05 lb (0.02 kg)
2.0
Read-1023 KB/Sec; Write-850 KB/Sec
Solid state flash memory, no moving parts
USB Bus-powered, no external power required
256 MB
Worldwide — Version 30 — November 1, 2005
Page 49
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Input/Output Devices
PS/2 OR USB '04
Standard Keyboard
Physical
characteristics
Keys
104, 105, 106, 107, 109 layout (depending
upon country)
Dimensions (L x W x H)
18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
Weight
2 lb (0.9 kg) minimum
Electrical
Operating voltage
+ 5VDC ± 5%
Power consumption
50-mA maximum (with three LEDs ON)
ESD
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing
device
MicrosoftPC
Functionally compliant
MicrosoftPC 99 - 2001
Mechanical
Languages
38 available
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Environmental
50° to 122° F (10° to 50° C)
Operating temperature
Non-operating
-22° to 140° F (-30° to 60° C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
80 g, six surfaces
Non-operating shock
2-g peak acceleration
Operating vibration
Non-operating vibration 4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
Drop (out of box)
42 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
Operating system support Microsoft Windows XP Professional, Microsoft Windows XP Professional x64
Edition, Red Hat Enterprise Linux Workstation 3 and 4
Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
Kit contents
Keyboard, keyboard software media, installation guide, warranty card, safety
and comfort
HP USB Smart Card
Keyboard
(ED707AA)
Physical
characteristics
Keys
Form factor
Colors
Dimensions (L x W x H)
DA - 11975
104, 105, 106, 107, 109 layout (depending
upon country
USB basic Smart Card keyboard
Carbonite/Silver
18.2 x 6.3 x 1.3 in (46.3 x 16.1 x 3.3 cm)
Worldwide — Version 30 — November 1, 2005
Page 50
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Input/Output Devices
Electrical
Mechanical
Environmental
SMARTCARD function
DA - 11975
Weight
Operating voltage
Power consumption
System interface
ESD
EMI - RFI
2 lb (0.9 kg) minimum
+ 5VDC ± 5%
100-mA maximum (with four LEDs ON)
USB Type A plug connector
CE level 4, 15-kV air discharge
Conforms to FCC rules for a Class B computing
device
MicrosoftPC
Functionally compliant
MicrosoftPC 99 - 2001
Languages
30+ available
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
50° to 122° F (10° to 50° C)
Operating temperature
Non-operating
-22° to 140° F (-30° to 60° C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
80 g, six surfaces
Non-operating shock
2-g peak acceleration
Operating vibration
Non-operating vibration 4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
Drop (out of box)
42 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
All ISO 7816 smart cards
Support
Reads from and writes to all ISO7816-1, 2, 3, 4
Interface
memory and microprocessor smart cards (T=0,
T=1)
SCM STCII
Chipset
Standard APIs supported PC/SC, EMV2000, SET
USB Port
Power
Short circuit detection (protects smart card and
reader)
Power supply compliant with ISO7816 and EMV
(5V, 60 mA)
Supports 3-V and 5-V cards
250-mA maximum draw (50 mA for the
Power consumption
keyboard with three LEDs ON and 200-mA
maximum startup current using a high-current,
60-mA smart card)
Worldwide — Version 30 — November 1, 2005
Page 51
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Input/Output Devices
Communication
Landing mechanism
Interface modes
Reader performance
interface
Electro-magnetic
standards
From card
Programmable from
9,600 baud to
115,200 baud
From computer
Up to 38,400 baud
Contact device
Friction contact
Card insertions rating Up to 100,000
insertion cycles
USB communications through USB port
SCM protocol
Automatic card insertion/removal detection
USB connection
Europe
89/336/CEE guideline
USA
USAFCC part 15
Operating system support Microsoft® Windows® 2000, Windows XP Home, Windows XP Professional,
xpe, ce.net, Linux, XP-64
Approvals
CE-Mark, UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick,
MIC, JITC, EMV2000, USB-IF
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, TUVGS
Kit contents
Keyboard, I/O Security and Documentation CD, , warranty card
Smart card compatibility HP
HP ProtectTools Smart Card
Amex Blue
American Express
Cryptoflex 8K
Axalto (Schlumberger)
Cryptoflex 16K
Cryptoflex 32K
Cryptoflex 32K e-gate
Cyberflex Access 64K
Cyberflex Access 32K
Cyberflex 32K e-gate
Cyberflex 64K
Cyberflex Palmera
Payflex-S
Payflex 1K
Payflex 2K
Payflex 4K
Payflex 8K
Prismera
US DoD CAC
CLXSU004KK4
Cardlogix
CLXSU008KK5
Model 300
Datakey
Model 330
VisaCash
De La Rue
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 52
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Input/Output Devices
Gemplus
Infineon
SafLink (Litronic)
Sharp
Oberthur
Memory Cards
Atmel
Axalto (Schlumberger)
nfineon
ISSI
ST
Telefonkarte
XICOR
DA - 11975
Gem Expresso
GKK32K
Gemclub Memo
GemClub Micro
GemXplore
GemSafe
SLE66C322P
Forte
Java Card
CosmopollIC v4
CosmopollIC v4.1
Cosmo ID-One
GalatIIC v2.1
US DoD CAC
AT24C01ASC
AT24C02SC
AT24C04SC
AT24C08SC
AT24C16SC
AT24C32SC
AT24C64SC
AT24C128SC
AT24C256SC
AT24C512SC
AT88SC153
AT88SC1608
PrimeFlex Store 8K
PrimeFlex Store 2K
SLE4406
SLE4406E
SLE4406E SE
SLE4418
SLE4428
SLE4432
SLE4436E
SLE4442
SLE5536
IS23SC4418
IS23SC4428
14C02
SLE4406
SLE4436
SLE5536
X24026
Worldwide — Version 30 — November 1, 2005
Page 53
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Input/Output Devices
HP PS/2 Scroll Mouse
Dimensions
Weight
Environmental
Electrical
Mechanical
Scroll wheel
Regulatory approvals
Compatibility
DA - 11975
3.8 x 6.3 x 11.6 cm (1.5 x 2.5 x 4.6 in)
4.44 oz (126 g)
50° to 122° F (10° to 50° C)
Operating temperature
-22° to 140° F (-30° to 60° C)
Non-operating
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, 6 surfaces
Operating shock
80 g, 6 surfaces
Non-operating shock
2 g peak acceleration
Operating vibration
Non-operating vibration 4 g peak acceleration
26 in (66 cm) on carpet, 6-drop sequence
Drop (out-of-box)
1 m on asphalt tile over concrete, 6-drop
Drop (out-of-box)
sequence
5 VDC ± 10%
Operating voltage
15 mA
Power consumption
PS/2 mini-din connector
System consumption
CE level 4, 15 kV air discharge
ESD
Conforms to FCC rules for a Class B computing
EMI-RFI
device
Functionally compliant
Microsoft
PC99 - 2001
400 ± 20% DPI
Resolution
10 in/s maximum
Tracking speed
100 in/s
Acceleration
65 g nominal peak force
Switch actuation
1,000,000 operations (using Hasco modified
Switch life
tester)
Low force micro-switches
Switch type
Tracking mechanism life 155 mi (250 km) at average speed of 10 in/s
6 ft (1.8 m)
Cable length
Microsoft PC99 - 2001 Mechanically compliant
8 mm
Width
0.99 in (25.2 mm)
Diameter
Maximum rotation speed 30 mm/s
Light force micro-switch
Switch type
1 million operations
Switch life
Minimum 200,000 revolutions
Mechanical life
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI,
Compliant
BSMI, C-Tick, MIC
Operating system support Microsoft Windows XP Professional, Microsoft
Windows XP Professional x64 Edition, Red Hat
Enterprise Linux Workstation 3 and 4
Worldwide — Version 30 — November 1, 2005
Page 54
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Input/Output Devices
HP 2-button Optical
Scroll Mouse (USB)
Dimensions (H x L x W)
Weight
Cable length
System requirements
HP 3-Button Mouse (PS/2) Dimensions/Weight
1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)
0.27 lb (0.12 kg)
72.8 in (185 cm)
Microsoft Windows XP Professional, Microsoft Windows XP Professional x64
Edition, Red Hat Enterprise Linux Workstation 3 and 4
Height
Length
Width
Weight
Operating temperature
Non-operating
temperature
Operating humidity
Resolution
Tracking speed
Switch life
Environmental
Mechanical
Switch type
Tracking mechanism life
Cable length
PC98-99
SpaceBall 5000 (USB)
Physical characteristics
Environmental
Dimensions (H x W x D)
Ball Diameter
Weight
Features
Operating temperature
Non-operating
temperature
Operating humidity
Non-operating humidity
Mechanical
Buttons
Ball Force Range
Ball Torque Range
Resolution
Serial Specifications
Connector
Cable Length
Data Rate
Flow Control
Software Drivers Available USB model
System Requirements
Disk Space
DA - 11975
1.42 in (3.6 cm)
4.17 in (10.7 cm)
2.87 in (7.4 cm)
5.20 oz (150 g)
32° to 104° F (0° to 40° C)
-4° to 140° F (-20° to 60° C)
10% to 90% (non-condensing at ambient)
400 20% DPI
10 in/s Maximum
1,000,000 operations (using Hasco modified
tester)
Micro-switches
155 miles (250 km) at average speed of 10 in/s
6 ft (1.8 m)
Mechanically compliant
3.0 x 6.0 x 8.4 in (7.6 x 15.2 x 21.3 cm)
2.2 in (5.6 cm)
2.1 lb (9.94 kg)
Six degrees of freedom motion control through
the X, Y, Z axis (pitch, roll, yaw)
Certified for leading CAD and DCC applications
50° to 104° F (10° to 40° C)
43° to 140° F (6° to 60° C)
8% to 80% (non-condensing at ambient)
5% to 80% (non-condensing at ambient)
12 programmable (unshifted)
0.5 - 8.2N/1.8 - 29.5 oz
0.085 – 0.33 oz-in. (6.91 Nmm)
10 bits
USB 1.1 or greater
12.8 ft. (3.9 m)
USB model – 16 msec
Xon/Xoff (on PS/2 model only)
Microsoft Windows XP Professional
10 MB free disk space
Worldwide — Version 30 — November 1, 2005
Page 55
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Input/Output Devices
Regulatory Approvals
UL, cUL, EN 950, EN 60950, CSA, FCC, CE Mark, TUV, CISPR 22, EN
50082, IEC 1000 4-2, IEC 1000-4-3, AS/NZS, VCCI, BSMI, C-Tick
HP SpaceMouse Plus USB Physical characteristics
Environmental
Dimensions (H x W x D)
Cap Diameter
Weight
Features
7.4 x 4.72 x 1.73 in (18.8 x 12.0 x 4.4 cm)
2 x 6.5 x 6.6 mm
1.5 lb (0.68 kg)
Six degrees of freedom motion control through
the X, Y, Z axis (pitch, roll, yaw)
Certified for leading CAD and DCC applications
41° to 140° F (5° to 60° C)
-13° to 158° F (-25° to 70° C)
Operating temperature
Non-operating
temperature
10 to 98 % RH (non-condensing)
Operating humidity
Non-operating humidity 10 to 98 % RH (non-condensing)
Mechanical
11 programmable (unshifted)
Buttons
0.2 N – 4.5 N
Cap Force Range
4 Nmm to 100 Nmm
Cap Torque Range
8 bit
Resolution
USB Specifications
USB 1.1 or greater
Connector
6.56 ft (2 m)
Cable Length
16 msec
Data Rate
Software Drivers Available Microsoft Windows XP Professional
System Requirements
10 MB free disk space
Disk Space
UL, cUL, EN 950, EN 60950, CSA, FCC, CE Mark, TUV, CISPR 22, EN
Regulatory Approvals
50082, IEC 1000 4-2, IEC 1000-4-3, AS/NZS, VCCI, BSMI, C-Tick
1394 FireWire PCI
card
Device Interface Protocol
Data Rate
Devices Supported
Bus Interface
Physical
Environmental
Minimum System
Requirements
DA - 11975
IEEE-1394a
400 Mbps
IEEE-1394 compliant devices
PCI
Low profile PCI card with a full height bracket
41° to 95° F (5° to 35° C)
Operating temperature
158° F (70° C) and above
Non-operating
temperature
10% to 90%
Relative humidity
2 rear and 2 front (depends on model of PC)
Ports
Windows XP Professional, Windows XP Professional x64 Edition, Linux
support with the HP Installer Kit for Linux
Pentium II 266 or faster
32-MB RAM
1-GB Hard Drive
CD-ROM drive
Built in sound system
Worldwide — Version 30 — November 1, 2005
Page 56
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Input/Output Devices
HP SpacePilot 3D USB
Intelligent Controller
(model EF390AA)
Physical Characteristics
Mechanical
System Requirements
Operating System
Supported
Regulatory Approvals
DA - 11975
Dimensions (L x W x H)
Weight
Palmrest
Buttons
9.3 x 5.6 x 2.0 in (236 x 143 x 53 mm)
1.875 lb (0.85 kg)
Sculpted
21+ programmable speed keys
15 reprogrammable
LCD Viewing Area
(W x H) 4.1 x 1.2 in (102 x 30 mm)
Active Area
(W x H) 3.9 x 1.0 in (98 x 26 mm)
Display Format
240 x 64
Motion Controller
Six degrees of freedom motion control through
the X, Y, Z axis (pitch, roll, yaw)
Device Sensitivity
Adjustable to preference
Intel Pentium 4 or AMD Athlon processor based system
20 megabytes free disk space for driver and plug-in installation (CD-ROM
device required)
USB 1.1 or 2.0
Microsoft Windows 2000 and XP
FCC, CE
Worldwide — Version 30 — November 1, 2005
Page 57
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
48X CD-ROM Drive
Form Factor
Mounting Orientation
Interface
Dimensions (HxWxD)
Weight
Data Transfer Rates Read
Media and Formats Read
Access Times
(typical reads, including
settling)
Power
Audio Output
5.25-in, half-height, tray load
Horizontal or vertical
ATAPI/EIDE
1.63 x 5.83 x 7.27 in (4.13 x 14.6 x 18.5 cm)
1.76 lb (0.8 kg)
Digital audio extraction (minimum) – 1,200 KB/s (8X)
CD read – up to 7,200 KB/s (48X)
stamped, CD-R, CD-RW (LS, HS, US)
CD Media
180 MB (mode 2, 8 cm); 540 MB (mode 1, 12
CD Capacities
cm); 650 MB (mode 2, 12 cm); 700 MB (Mode
2, 12 cm, 80-minute)
CD-DA, CD-ROM (Mode 1 and 2), CD-XA
CD Formats
(Mode 2, Form 1 and 2), Photo CD (Single and
Multi-session), Mixed Mode (Audio and Data
combined), CD-I (Mode 2, Form 1 and 2, and
CD-I Ready), CD-Extra, CD-Bridge, Video CD
< 125 ms
CD-ROM Mode 1
< 210 ms
Full Stroke CD
< 7 s (single session), < 30 s (multi-session)
Start-up Time (typical)
<4s
Stop Time (typical)
128 KB (minimum)
Write Buffer Size
PIO Mode 4 (16.6 MB/s); Multi-word DMA
Data Transfer Modes
mode 2 (16.6 MB/s); UltraDMA Mode 0 (16.7
MB/s); UltraDMA Mode 2 (33.3 MB/s)
Four-pin, DC power receptacle
Source
5 VDC ± 5% - 100 mV ripple p-p
DC Power Requirement
12 VDC ± 5% - 200 mV ripple p-p
5 VDC - <1000 mA typical,
DC Current
< 1600 mA maximum
12 VDC - < 600 mA typical,
<1400 mA maximum
< 2.5 Watt
Total Drive Power
(standby mode)
0.7 VRMS
Line-Out
74 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
Master, slave, and cable select modes
Configuration Jumper
Block
41° to 122° F (5° to 50° C)
Operating Conditions
Temperature
(all conditions nonHumidity
10% to 80%
condensing)
Certifications, Approvals MMC-3 support, multi-read compliant, Microsoft WHQL certification, ACA
AS/NZS 3548 class B, BSMI CNS 13438, CE Mark, C.I.S.P.R. Pub 22, TUV
or VDE EN60950, EN 55022, EN55024, EMKO EN60950, EN 60825-1,
UL 60950, CSA C22.2 60950-2000, CFR 21 part 1040 class 1, CFR 47
C.I.S.P.R. Pub 22 Class B, DHHS/FDA, ANSI C63.4-1992 (FCC Class B)
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 58
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Operating Systems
Supported
Supplied Software
Microsoft Windows XP Professional, Microsoft Windows XP Professional x64
Edition, Red Hat Enterprise Linux Workstation 3
None
16X/48X DVD-ROM Drive Height
with +R Read Support
Interface Type
Dimensions (W x H x D)
Disc Formats
Disc Capacity
Access Times
(typical reads, including
settling)
Maximum Data Transfer
Rates
Power
Audio Output
5.25-in, half-height, tray load
ATAPI/EIDE
5.88 x 1.71 x 7.87 [max] in (149.5 x 43.25 x 200.0 [max] mm) (external,
excluding bezel)
DVD-ROM (single and dual layer); DVD-video; DVD-R version 1.0 and 2.0;
DVD-RW version 1.0 and 1.1; DVD-R multi-border; DVD+RW; DVD+R ;
CD-ROM Mode 1 and 2; CD-DA; CD-ROM XA Mode 2, Form 1 and 2;
CD-extra; CD-text; CD-I Mode 2, Form 1 and 2; CD-I ready; video CD,
CD-bridge; PhotoCD (single and multi-session); CD-R; CD-RW
4.7 GB (DVD-5), 8.54 GB (DVD-9), 9.4 GB
DVD-ROM
(DVD-10), 3.95 GB (DVD-R version 1.0), 4.7 GB
(DVD-R version 2.0), 4.7 GB (DVD-RW version
1.0 and 1.1), 4.7 GB (DVD+RW), 4.7G
(DVD+R)
540 MB (Mode 1, 12 cm), 640 MB (Mode 2, 12
CD-ROM
cm), 700 MB (80 minimum CD-R and CD-RW),
180 MB (8 cm)
DVD-ROM Single Layer 120 ms
90 ms
CD-ROM Mode 1
240 ms (seek)
Full Stroke DVD
160 ms (seek)
Full Stroke CD
< 10 seconds (typical)
Startup Time
< 4 seconds
Stop Time
PIO Mode 4 (16.6 MB/s); Multi-word DMA
Data Transfer Modes
mode 2 (16.6 MB/s); UltraDMA Mode 3 (44.4
MB/s)
6000 KB/s (40X) Max
CD-ROM Read
21,600 KB/s (16X) Max
DVD-ROM Read
Digital Audio Extraction 6000 KB/s (40X) Max
Four-pin, DC power receptacle
Source
5 VDC ± 5% – 100 mV ripple p-p
DC Power Requirement
12 VDC ± 5% – 200 mV ripple p-p
5 VDC – <800 mA typical,
DC Current
< 1000 mA maximum
12 VDC – < 870 mA typical,
<1800 mA maximum
0.7 VRMS
Line-Out
85 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
Master, slave, and cable select modes
Configuration Jumper
Block
Data Interface Connector 40-pin, shrouded and keyed, flat ribbon
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 59
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Operating Environmental Temperature (operating) 41° to 122° F (5° to 50° C)
(all conditions nonRelative Humidity
10% to 85%
condensing)
(operating)
86° F (30° C)
Maximum Wet Bulb
Temperature (operating)
Certifications, Approvals MMC II support, multi-read certification, Microsoft WHQL certification, ACA
AS/NZS 3548 class B, CNS 13438, C.I.S.P.R. Pub 22, TUV or VDE
EN60950, EN 55022, EN55024, EMKO EN60950, EN 60825-1, UL
60950, CSA C22.2 60950-2000, CFR 21 part 1040 class 1, CFR 47
C.I.S.P.R. Pub 22 Class B, DHHS/FDA, ANSI C63.4-1992
Windows 2000, XP Professional, and XP Professional x64 Edition
Operating Systems
Supported
Red Hat Linux 7.2, 7.3 WS3 and WS4 Versions
16X/40X DVD-ROM Drive, InterVideo WinDVD MPEG Movie Playback
Kit Contents
software, audio cable, and installation guide.
HP 48X CD-RW
Form Factor
Mounting Orientation
Interface
Dimensions (HxWxD)
Weight (max)
Read Only Disc
Parameters
DA - 11975
5.25-inch, half-height, tray-load
Horizontal or vertical
ATAPI/EIDE
1.63 x 5.75 x 7.27 [max] in (4.13 x 14.6 x 18.5 [max] cm) (external,
excluding bezel)
2.0 lb (0.9 kg)
Data Transfer Rates Digital audio extraction (minimum) - 1,800 KB/s
Read
(12X)
CD read - up to 7,200 KB/s (48X)
Media and Formats CD Media: stamped; CD-R; CD-RW (LS, HS, US)
Read
CD Capacities: 180 MB (mode 2, 8 cm); 540
MB (mode 1, 12 cm); 650 MB (mode 2, 12 cm);
700 MB (Mode 2, 12 cm, 80-minute)
CD Formats: CD-DA, CD-ROM (Mode 1 and
2), CD-XA (Mode 2, Form 1 and 2), Photo CD
(Single and Multi-session), Mixed Mode (Audio
and Data combined), CD-I (Mode 2, Form 1 and
2, and CD-I Ready), CD-Extra, CD-Bridge, Video
CD
Worldwide — Version 30 — November 1, 2005
Page 60
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Writeable Disc
Parameters
Data Transfer Rates Write
Media and Formats Write
Write Methods
Access Times
(typical reads, including
settling)
CD-ROM Mode 1
Full Stroke CD
Start-up Time (typical)
Stop Time (typical)
Write Buffer Size
Data Transfer Modes
Power
Source
DC Power Requirement
DC Current
Audio Output
Configuration Jumper
Block
Operating Conditions
DA - 11975
CD-R write - 2100 KB/s (14X) to 7200 KB/s
(48X)
CD-RW write - 600 KB/s (4X)
CD-RW write (high speed) - 1500 KB/s (10X) to
1800 KB/s (12X)
CD-RW write (ultra high speed) - 2400 KB/s
(16X) to 4800 KB/s (32X)
CD Media: CD-R; CD-RW (LS, HS, US)
CD Capacities: 180 MB (mode 2, 8 cm); 540
MB (mode 1, 12 cm); 650 MB (mode 2, 12 cm);
700 MB (Mode 2, 12 cm, 80-minute)
CD Formats: CD-DA, CD-ROM (Mode 1 and
2), CD-XA (Mode 2, Form 1 and 2), Photo CD
(Single and Multi-session), Mixed Mode (Audio
and Data combined), CD-I (Mode 2, Form 1 and
2, and CD-I Ready), CD-Extra, CD-Bridge, Video
CD
Disc-at-once, session-at-once, track-at-once,
incremental fixed and variable packet, multisession
< 125 ms
< 210 ms
< 7 s (single session), < 30 s (multi-session)
<4s
2 MB
PIO Mode 4 (16.6 MB/s); Multi-word DMA
mode 2 (16.6 MB/s); UltraDMA Mode 2 (33.3
MB/s)
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, < 1600 mA
maximum)
12 VDC (< 600 mA typical, < 1400 mA
maximum)
< 2.5 Watt
Total Drive Power
(standby mode)
0.7 VRMS
Line-Out
74 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
Master, slave, and cable select modes
Temperature
Humidity
41° to 122° F (5° to 50° C)
10% to 90%10% to 90%
Worldwide — Version 30 — November 1, 2005
Page 61
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Certifications, Approvals MMC-3 support, multi-read compliant, Microsoft WHQL certification, ACA
AS/NZS 3548 class B, BSMI CNS 13438, CE Mark, C.I.S.P.R. Pub 22, TUV
or VDE EN60950, EN 55022, EN55024, EMKO EN60950, EN 60825-1,
UL 60950, CSA C22.2 60950-2000, CFR 21 part 1040 class 1, CFR 47
C.I.S.P.R. Pub 22 Class B, DHHS/FDA, ANSI C63.4-1992 (FCC Class B)
Microsoft Windows XP Professional, Microsoft Windows XP Professional x64
Operating Systems
Supported
Edition, Red Hat Enterprise Linux Workstation 3
Roxio Digital Media Plus: Create or copy CDs and DVDs, including music
Supplied Software (for
Windows XP)
and data CDs, and data DVDs
Dantz Retrospect Express: Back up systems to CD, DVD, or tape media.
48X Combo CDRW/DVD-ROM
Form Factor
Mounting Orientation
5.25-inch, half-height, tray-load
Horizontal or vertical
Interface
Dimensions (HxWxD)
ATAPI/EIDE
5.77 x 1.71 x 7.87 [max] in (14.66 x 4.34 x 20.0 [max] cm) (external,
excluding bezel)
2.6 lb (1.2 kg)
Data Transfer Rates CD read - 7200 KB/s (48X) Max
Read
Digital audio extraction (minimum) - 1,800 KB/s
(12X)
DVD ROM read - 21,632 KB/s (16X ) Max
Media: stamped; CD-R; CD-RW (LS, HS, US)
Media and Formats CD Media
Read
CD Capacities: 180 MB (mode 2, 8 cm); 540
MB (mode 1, 12 cm); 650 MB (mode 2, 12 cm);
700 MB (Mode 2, 12 cm, 80-minute)
CD Formats: CD-DA, CD-ROM (Mode 1 and
2), CD-XA (Mode 2, Form 1 and 2), Photo CD
(Single and Multi-session), Mixed Mode (Audio
and Data combined), CD-I (Mode 2, Form 1 and
2, and CD-I Ready), CD-Extra, CD-Bridge, Video
CD
DVD Media: stamped (single and double layer);
DVD+R; DVD+RW; DVD+R DL; DVD-R; DVDRW
DVD Capacities: 4.7 GB (DVD-5), 8.54 GB
(DVD-9), 9.4 GB (DVD-10), 3.95 GB (DVD-R
version 1.0), 4.7 GB (DVD-R version 2.0), 4.7
GB (DVD-RW version 1.0 and 1.1), 4.7 GB
(DVD+RW), 4.7G (DVD+R)
DVD Formats: DVD-ROM (single and dual
layer); DVD-video; DVD-R version 1.0 and 2.0;
DVD-RW version 1.0 and 1.1; DVD-R multiborder ; DVD+R version 1.2 (including multisession); DVD+R DL version 1.0; DVD+RW
version 1.2
Weight (max)
Read Only Disc
Parameters
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 62
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Writeable Disc
Parameters
Data Transfer Rates Write
Media and Formats Write
Write Methods
Access Times
(typical reads, including
settling)
Power
Random DVD
Random CD
Full Stroke DVD
Full Stroke CD
Startup Time (single)
Startup Time (multisession)
Stop Time (typical)
Cache Buffer
Data Transfer Modes
Source
DC Power Requirement
DC Current
Audio Output
CD-R write - 2100 KB/s (14X) to 7200 KB/s
(48X)
CD-RW write - 600 KB/s (4X)
CD-RW write (high speed) - 1500 KB/s (10X) to
1800 KB/s (12X)
CD-RW write (ultra high speed) - 2400 KB/s
(16X) to 4800 KB/s (32X)
CD Media: CD-R; CD-RW (LS, HS, US)
CD Capacities: 180 MB (mode 2, 8 cm); 540
MB (mode 1, 12 cm); 650 MB (mode 2, 12 cm);
700 MB (Mode 2, 12 cm, 80-minute)
CD Formats: CD-DA, CD-ROM (Mode 1 and
2), CD-XA (Mode 2, Form 1 and 2), Photo CD
(Single and Multi-session), Mixed Mode (Audio
and Data combined), CD-I (Mode 2, Form 1 and
2, and CD-I Ready), CD-Extra, CD-Bridge, Video
CD
Disc-at-once, session-at-once, track-at-once,
incremental fixed and variable packet, multisession
< 140 ms
< 125 ms, (typical)
< 250 ms
< 210 ms
< 7 seconds (typical)
< 30 seconds (typical)
<4s
2 MB (minimum)
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44 Mbytes/s)
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, < 1600 mA
maximum)
12 VDC (< 600 mA typical, < 1400 mA
maximum)
< 2.5 Watt
Total Drive Power
(standby mode)
0.7 VRMS
Line-Out
74 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
Master, slave, and cable select modes
Configuration Jumper
Block
Data Interface Connector 40-pin, shrouded and keyed, flat ribbon
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 63
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Operating Conditions
(all conditions noncondensing)
Temperature
41° to 122° F (5° to 50° C)
10% to 90%
Relative humidity
86° F (30° C)
Maximum wet bulb
temperature
Certifications, Approvals MMC-3 support, multi-read compliant, Microsoft WHQL certification, ACA
AS/NZS 3548 class B, BSMI CNS 13438, CE Mark, C.I.S.P.R. Pub 22, TUV
or VDE EN60950, EN 55022, EN55024, EMKO EN60950, EN 60825-1,
UL 60950, CSA C22.2 60950-2000, CFR 21 part 1040 class 1, CFR 47
C.I.S.P.R. Pub 22 Class B, DHHS/FDA, ANSI C63.4-1992 (FCC Class B)
Operating Systems
Microsoft Windows XP Professional, Microsoft Windows XP Professional x64
Supported
Edition, Red Hat WS3 and WS4 Versions
Supplied Software (for
Roxio Cineplayer Movie Playback
Windows XP)
Roxio Digital Media Plus: Create or copy CDs and DVDs, including music
and data CDs, and data DVDs
Dantz Retrospect Express: Back up systems to CD, DVD, or tape media.
16X DVD+/-RW, DualLayer (Win and RHWS3)
Height
Orientation
Interface Type
Disc Recording Capacity
Dimensions (W x H x D)
Weight (maximum)
Recording Method
Write Support
Read Support
Write Speed (maximum)
Read Speed (maximum)
Access Time (typical
reads, including settling)
DA - 11975
5.25-inch, half-height, tray-load
Either horizontal or vertical
ATAPI/EIDE
4.7 GB (single-layer), 8.5 GB (double-layer)
5.9 x 1.7 x 7.9 in (15.0 x 4.4 x 20.0 cm)
2.6 lb (1.2 kg)
Disc-at-once, Track-at-once, and Session-at-once; Variable Packet and Fixed
Packet
DVD+R (1.3), DVD+R DL (1.0), DVD+RW (1.2), DVD-R (2.0), DVD-RW
(1.1), CD-R (OBII Vol2.0 Rev 1.2), CD-RW (LS, HS, US)
DVD-ROM (single- and dual-layer), DVD-Video, DVD+R (include
multisession), DVD+RW, DVD-R (incl. multiborder), DVD-RW, DVD-MRW;
CD-ROM Mode 1, CD-ROM XA (Mode 2, forms 1 and 2), CD-TEXT, Photo
CD single- and multi-session), CD-DA (Audio CD), CD-Extra, CD-R, CD-RW
(supports AM2), VCD, CD-I, UDF (1.02 and 1.50), CD-MRW
16X CAV (21,600 KB/s), 8x ZCLV (10,800
DVD+R
KB/s), 2.4-8x CLV (3250-10,800 KB/s)
2.4-4X CLV (3250-5400 KB/s)
DVD+RW
DVD-R
2-4X CLV (2700-5400 KB/s), 8X ZCLV (10,800
DVD-RW
KB/s)
2-4X CLV (2700-5400 KB/s)
16-40X CAV (2400-6000 KB/s)
CD-R
4-24X CLV (600-3600 KB/s)
CD-RW (US)
5-16X CAV (6750 - 21,600 KB/s)
DVD-ROM
4-8X CAV (5400 - 10,800 KB/s)
DVD+R, DVD+RW,
DVD-R, DVD-RW
16-40X CAV (2400 to 6000 KB/s)
CD-ROM, CD-R,
CD-RW, CD-Audio
Random DVD
Random CD
Full Stroke DVD
< 130 ms (typical)
< 120 ms, (typical)
< 240 ms (seek)
Worldwide — Version 30 — November 1, 2005
Page 64
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Full Stroke CD
Startup Time (single)
Startup Time (multisession)
Stop Timex
Cache Buffer
Data Transfer Modes
Power
Source
DC Power Requirement
DC Current
< 200 ms (seek)
< 7 seconds (typical)
< 30 seconds (typical)
< 4 seconds
2 MB (minimum)
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s) (default on most HP xw
workstations)
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 10%-200 mV ripple p-p
5 VDC (< 2000 mA typical, < 2500 mA
maximum)
12 VDC (< 700 mA typical, < 2000 mA
maximum)
< 2.5 Watt
Total Drive Power
(standby mode)
Audio Output
0.7 VRMS
Line-Out
74 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
Operating Environmental Temperature
41° to 122° F (5° to 50° C)
(all conditions non10% to 90%
Relative humidity
condensing)
86° F (30° C)
Maximum wet bulb
temperature
System Configuration
Intel Pentium IV Processor or later with 128 MB of memory (required); 256
MB recommended 2-D or 3-D graphics cards on primary disk drive for
operating system and application software; second disk drive for audio and
video data
Windows 2000, XP Professional, and XP Professional x64 Edition
Operating Systems
Support
Red Hat Linux 7.2, 7.3 WS3 and WS4 Versions (Red Hat Linux 7.2, 7.3, 8,
9.0 may require additional third party software to make full use of this
device)
Regulatory Approvals
MPC-3 and MMC-4 compliant, multi-read certified, ATA Spec X3T9.2,
ATAPI Spec T13.1153D, ANSI C63.4-1992, UL 60950, ACA AS/NZS
3548, CB Bulletin No. 96A, CSA C22.2 No. 60950, CFR 47 C.I.S.P.R. Pub
22 Class B, DHHS/FDA, EMKO-TSE 07/94, TUV EN60950, EN60825-1,
MIC Class B, BSMI-CNS 13438, CE EN60950, EN55022:1998 and
EN55024, Microsoft Logo for Windows XP, relevant parts of IEC 61000-4.
Option Kit contents
16X DVD±R/±RW Drive, InterVideo WinDVD, InterVideo WinDVD Creator,
Roxio Easy Media Creator, Dantz Retrospect Express Backup Software,
installation guide, and DVD+R media.
NOTE: This DVD writer kit does not include any software for burning DVDs
on Linux. DVD burning is supported with the 'growisofs' command. CD
burning is supported with the 'cdrecord' command. Red Hat Enterprise Linux
WS 3 distribution includes both 'cdrecord' and 'growisofs'. Red Hat Linux 7.2,
7.3, 8, 9.0 distributions only include 'cdrecord'. Therefore DVD burning is
only supported on WS 3.
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 65
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
16X DVD+/-RW, DualLayer, with LightScribe
Direct Disc Labeling
Form Factor
Orientation
Interface
Dimensions (HxWxD)
Weight (maximum)
Read Only Disc
Parameters
5.25-inch, half-height, tray-load
Horizontal or vertical
ATAPI/EIDE
5.9 x 1.7 x 7.9 in (15.0 x 4.4 x 20.0 cm)
2.6 lb (1.2 kg)
Data Transfer Rates DVD-ROM, DVD-video read - 5-16X (6750 Read
21,600 KB/s CAV)
DVD-video playback, DVD+R, DVD+RW,
DVD-R, DVD-RW - 4-8X (5400 - 10,800 KB/s
CAV)
CD-audio playback - 8x (1200 KB/s CLV)
Media and Formats Read
DA - 11975
Digital audio extraction (minimum) - 12X (1,800
KB/s CAV)
CD-ROM, CD-R, CD-RW, CD-Audio read - 1640X (2400 to 6000 KB/s CAV)
CD Media: stamped; CD-R; CD-RW (supports
AM2) (LS, HS, US)
CD Capacities: 180 MB (mode 2, 8 cm); 540
MB (mode 1, 12 cm); 650 MB (mode 2, 12 cm);
700 MB (Mode 2, 12 cm, 80-minute)
CD Formats: CD-DA, CD-ROM (Mode 1 and
2), CD-XA (Mode 2, Form 1 and 2), Photo CD
(Single and Multi-session), Mixed Mode (Audio
and Data combined), CD-I (Mode 2, Form 1 and
2, and CD-I Ready), CD-Extra, CD-Bridge, Video
CD, UDF (1.02 and 1.50)
DVD Media: stamped (single and double layer);
DVD+R; DVD+RW; DVD+R DL; DVD-R; DVDRW
DVD Capacities: 4.7 GB (DVD-5), 8.54 GB
(DVD-9), 9.4 GB (DVD-10), 14.1 GB (DVD-14),
17.0 GB (DVD-18), 3.95 GB (DVD-R version
1.0), 4.7 GB (DVD-R version 2.0), 4.7 GB (DVDRW version 1.0 and 1.1), 4.7 GB (DVD+RW),
4.7G (DVD+R), 1.46 GB (DVD+R, 8cm), 1.46
GB (DVD+RW, 8cm)
DVD Formats: DVD-ROM (single and dual
layer); DVD-video; DVD-R version 1.0 and 2.0
(including multi-border); DVD-RW version 1.0
and 1.1; DVD+R version 1.3 (including multisession); DVD+R DL version 1.0; DVD+RW
version 1.2
Worldwide — Version 30 — November 1, 2005
Page 66
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Writeable Disc
Parameters
Data Transfer Rates Write
Media and Formats Write
Write Methods
LightScribe Direct Disc
Labeling Parameters
Media Supported
Resolution
Labeling Times
DA - 11975
CD-R write - 16-40X (2400-6000 KB/s CAV)
CD-RW write - 4X (600 KB/s CLV)
CD-RW write (high speed) - 10X (1500 KB/s
CLV)
CD-RW write (ultra high speed) - 16-24X (24003600 KB/s ZCLV)
DVD+R - 6-16X (8100-21,600 KB/s CAV), 8x
(10,800 KB/s ZCLV), 2.4-4x (3250-5400 KB/s
CLV)
DVD+R DL - 2.4 (3250 KB/s CLV)
DVD+RW - 2.4-4X (3250-5400 KB/s CLV)
DVD-R - 2-4X (2700-5400 KB/s CLV), 8X
(10,800 KB/s ZCLV)
DVD-RW - 2-4X (2700-5400 KB/s CLV)
CD Media: CD-R (OBII Vol2.0 Rev 1.2), CD-RW
(LS, HS, US)
CD Capacities: 180 MB (mode 1, 8 cm); 540
MB (mode 1, 12 cm); 650 MB (mode 2, 12 cm);
700 MB (Mode 2, 12 cm, 80-minute)
CD Formats: CD-DA, CD-ROM (Mode 1 and
2), CD-XA (Mode 2, Form 1 and 2), Photo CD
(Single and Multi-session), Mixed Mode (Audio
and Data combined), CD-I (Mode 2, Form 1 and
2, and CD-I Ready), CD-Extra, CD-Bridge, Video
CD, UDF (1.02 and 1.50)
DVD Media: DVD+R, DVD+R DL, DVD+RW,
DVD-R, DVD-RW
DVD Capacities: 4.7 GB (DVD-5), 8.54 GB
(DVD-9), 4.7 GB (DVD-R version 2.0), 4.7 GB
(DVD-RW version 1.1), 4.7 GB (DVD+RW
version 1.3), 4.7G (DVD+R version 1.2) ), 1.46
GB (DVD+R, 8cm), 1.46 GB (DVD+RW, 8cm)
Formats: DVD-R version 1.0 and 2.0
DVD Formats
(including multi-border); DVD-RW version 1.0
and 1.1; DVD+R version 1.3 (including multisession); DVD+R DL version 1.0; DVD+RW
version 1.2
Disc-at-once, session-at-once, track-at-once,
incremental fixed and variable packet, multisession
CD-R: LightScribe Version 1.0
DVD+R: LightScribe Version 1.0
Dots per inch: 600
Tracks per inch: 500-1600 (mode dependent)
Draft quality: < 20 min
Normal quality: < 28 min
Best quality: < 36 min
Worldwide — Version 30 — November 1, 2005
Page 67
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Access Times
(typical reads, including
settling)
Power
Random DVD
Random CD
Full Stroke DVD
Full Stroke CD
Startup Time (single)
Startup Time (multisession)
Stop Time (typical)
Cache Buffer
Data Transfer Modes
Source
DC Power Requirement
DC Current
< 130 ms (typical)
< 120 ms (typical)
< 240 ms
< 200 ms
< 7 seconds (typical)
< 30 seconds (typical)
<4s
2 MB
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s) (default on most HP xw series
workstations)
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, < 1600 mA
maximum)
12 VDC (< 600 mA typical, < 1400 mA
maximum)
< 2.5 Watt
Total Drive Power
(standby mode)
Audio Output
0.7 VRMS
Line-Out
74 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
Operating Conditions
41° to 122° F (5° to 50° C)
Temperature
(all conditions non10% to 90%
Relative humidity
condensing)
86° F (30° C)
Maximum wet bulb
temperature
Certifications, Approvals MMC-4 compliant, multi-read compliant, Microsoft WHQL certification,
ACA AS/NZS 3548 class B, BSMI CNS 13438, CE Mark, C.I.S.P.R. Pub 22,
TUV or VDE EN60950, EN 55022, EN55024, EMKO EN60950, EN
60825-1, UL 60950, CSA C22.2 60950-2000, CFR 21 part 1040 class 1,
CFR 47 C.I.S.P.R. Pub 22 Class B, DHHS/FDA, ANSI C63.4-1992 (FCC
Class B), relevant parts of IEC 61000-4.
Operating Systems
Microsoft Windows XP Professional,
Supported
Microsoft Windows XP Professional x64 Edition
Red Hat Linux 7.3 WS3 and WS4 Versions (LightScribe labeling functionality
not supported on Linux)
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 68
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Supplied Software (for
Windows XP)
Roxio Cineplayer Movie Playback
Roxio Digital Media Plus: Create or copy CDs and DVDs, including music
and data CDs, and data DVDs
Roxio MyDVD for DVD authoring
Dantz Retrospect Express: Back up systems to CD, DVD, or tape media
NOTE: LightScribe Direct Disc Labeling is supported only on 32-bit Windows
XP in the launch timeframe for the xw4300. Support for Windows XP
Professional x64 Edition is anticipated to be available some time after the
launch, and will require software updates. There is no support for LightScribe
labeling under Linux. The drive will operate as a DVD writer under these
other operating systems, but will not be available in software applications as
a LightScribe "printer".
NOTE: This DVD writer kit does not include any software for burning DVDs on Linux. DVD burning is
supported with the 'growisofs' command. CD burning is supported with the 'cdrecord' command. Red Hat
Enterprise Linux WS 3 distribution includes both 'cdrecord' and 'growisofs'. Red Hat Linux 8, 9.0
distributions only include 'cdrecord'. Therefore DVD burning is only supported on WS 3.
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 69
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro NVS 280 Form Factor
(PCI)
Graphic Controller
VGA controller
Bus type
RAMDAC
Memory
Connector
Dimensions
Controller clock speed
Color planes
Overlay planes
Maximum vertical refresh
rate
Maximum pixel clock
Multi-monitor support
Single DVI Support
Dual DVI Support
High-definition Video
Processor (HDVP)
ATX
Integrated Quadro 280 2-D graphics processor unit (GPU)
Integrated into the Quadro GPU
PCI
Dual 350 MHz
64 MB DDR with frame buffer and Texture storage
Single High-density Flex Connector
Low-profile, 2.586 x 6.6 in (6.57 x 16.76 cm)
275 MHz
32-bit color buffer
1 16-bit Video overlay plane
120 Hz
350 MHz
Dual analog or digital monitors
Yes
Yes
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Available graphics drivers Microsoft Windows 2000 and Microsoft Windows XP (Provides full native
Dual View mode, Span or Big Desktop mode, and Clone mode)
Red Hat Linux
HP qualified drivers may be preloaded or available from the HP support web
site: http://welcome.hp.com/country/us/eng/software_drivers.html.
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 70
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro NVS 280 Form Factor
Graphics Card (PCIGraphics Controller
Express)
VGA controller
Bus Type
RAMDAC
Memory
ATX
Integrated Quadro 280 2-D graphics processor unit (GPU)
Integrated into the Quadro GPU
PCI-Express x16 or PCI
Dual 350 MHz integrated
64 MB 000 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture
storage
Connectors
Single High-density Flex Connector
Multi-monitor support
Dual integrated analog display controllers supporting up to two analog
displays at 1920 x1200 @ 85Hz or two digital displays at 1600x1200 @
60Hz
Additional product
250 MHz
Controller clock speed
features
32-bit color buffer
Color planes
1 16-bit Video overlay plane
Overlay planes
Maximum vertical refresh 120 Hz
rate
350 MHz
Maximum pixel clock
Yes
Single DVI Support
Yes
Dual DVI Support
Full-screen, full-frame video playback of HDTV
High-definition Video
Processor (HDVP)
and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video
overlay
Hardware color-space conversion (YUV 4:2:2
and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
PCI-Express
Supports X16 PCI-E
Available graphics drivers Microsoft Windows® XP or Windows 2000 (Provides full native Dual View
mode, Span or Big Desktop mode, and Clone mode)
HP qualified drivers may be preloaded or available from the HP support
Web site: http://welcome.hp.com/country/us/eng/software_drivers.html.
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 71
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro NVS 285 Form Factor
PCIe Graphics with TC
Technology
Graphics Controller
Bus Type
Memory
Nvidia Quadro NVS 285 128MB PCIe Dual Head
Low profile, both ATX and low profile brackets included
Integrated Quadro 285 2D graphics processor unit (GPU)
PCI-Express
128 MB DDR (64 MB local frame buffer plus 64 MB of shared system
memory via TurboCache technology)
NOTE: The graphics card uses part of the total system memory (RAM) for
graphics performance. System memory dedicated to graphics performance is
not available for other use by other programs.
Connectors
DMS-59 to dual-DVI Y-cable or dual-VGA Y-cable
Dimensions
Low-profile, 2.586 x 6.6 in (6.57 x 16.76 cm)
Overlay planes
One 16-bit Video overlay plane
Multi-monitor support
Dual analog or digital monitors
Maximum pixel clock
350 MHz
RAMDAC
Dual 350 MHz (integrated)
High-definition Video
Full screen, full frame video playback of HDTV and DVD content
Processor (HDVP)
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Available graphics drivers Microsoft Windows 2000 and Microsoft Windows XP (Provides full native
Dual View mode, Span or Big Desktop mode, and Clone mode)
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://www.hp.com/country/us/en/support.html?pageDisplay=drivers
NVIDIA Quadro4 NVS
400 Graphics Card
Form Factor
Graphics Controller
Bus Type
RAMDAC
Memory
Connectors
Dimensions
Multi-monitor support
nView Hardware
Architecture
DA - 11975
ATX
Integrated Quadro4 2D/3D 128-bit graphics processor unit (GPU)
PCI
Dual 350 MHz
64 MB 220 MHz, 4mx 32 DDR per GPU, 32-MB per GPU unified frame
buffer
Dual LFH-60
Low-profile form factor
1 to 4 displays with nView – with two cards (1 PCI per card), up to 8
monitors can be driven
32-bit color
2048x1536 @ 75Hz maximum resolution
Dual 350 MHz RAMDACs
Integrated TMDS
Digital Vibrance Control (DVC)
High-performance 2D rendering engine
Optimized for 32-, 24-, 16-, 15- and 8-bpp modes
Worldwide — Version 30 — November 1, 2005
Page 72
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
High-definition video
processor (HDVP)
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT Motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Supported graphics APIs Fully compliant with OpenGL 1.3 and DirectX 8.1
Available graphics drivers Microsoft Windows XP and Microsoft Windows 2000, Linux
See: http://www.hp.com/support/workstation_drivers/
NVIDIA Quadro FX 330
Graphics Card
Form Factor
Graphics Controller
ATX
NVIDIA Nv37GL
Bus Type
Memory
PCI-Express x16
64 MB 000 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture
storage
Connectors
DMS-59 output supporting up to two analog or digital (with optional cable)
displays
Multi-monitor support
Dual integrated analog display controllers supporting up to two analog
displays at 2048 x1536 @ 60Hz or two digital displays at 1600x1200 @
60Hz
RAMDAC
Dual 350 MHz integrated
Architecture features
64-bit memory interface
128-bit IEEE floating-point precision graphics pipeline
128-bit color precision
12-bit sub-pixel precision
4x FSAA at 1024x768
Hardware accelerated antialiased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
Hardware accelerated occlusion culling
3D volumetric texture support
Shading architecture
Fully programmable GPU
Optimized compilers for Cg, OpenGL shading language, and Microsoft
HLSL
Supported graphics APIs OpenGL 1.5
DirectX 9.0
Available graphics drivers HP-tested: Microsoft Windows® XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site: http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
Dual DVI-I output with optional cable – drives dual digital displays at
resolutions up to 1600x1200 @ 60Hz
Internal 350MHz RAMDACs – drives dual analog displays up to 2048x1536
@ 60Hz each
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 73
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
ATI FireGL V3100
Graphics Card (PCI
Express)
Form factor
Graphics controller
Bus type
Memory
Connectors
Multi-monitor support
ATX
RV370
PCI-Express x16
128MB 200MHz DDR unified frame buffer, Z-buffer and Texture storage
1 DVI-I analog/digital and 1 VGA analog monitor output
Dual integrated display controllers supporting up to 2048x1536 @ 85Hz on
both displays
RAMDAC
Dual 400 MHz integrated
Architecture features
128-bit memory interface
128-bit IEEE floating-point precision
24-bits per RGBA color precision
4-bit sub-pixel precision
2 parallel geometry engines
4 parallel pixel pipelines
2x/4x/6x FSAA
Hardware accelerated antialiased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
Hardware accelerated occlusion culling
Hardware accelerated clip planes
Shading architecture
Smartshader™ technology
Programmable pixel and vertex shaders
16 textures per pass
Pixel shaders up to 160 instructinos with 32-bit floating point precision for
each RGBA component
Multiple render target support
Shadow volume rendering acceleration
High precision 10-bit per channel frame buffer support
Supported graphics APIs OpenGL 1.5
DirectX 9.0
Available graphics drivers Windows XP Professional, Windows XP Professional x64 Edition, Linux
Xfree86HP qualified drivers may be preloaded or available from the HP
support Web site:
http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum resolution
DVI-I output – drives digital display at resolutions up to 1600x1200
Internal 400MHz RAMDACs – drives dual analog displays up to 2048x1536
@ 85Hz each
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 74
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro FX 540
PCI-Express Graphics
Card
Form Factor
ATX, 4.376" x 7.0"
Single slot
Graphics Controller
NVIDIA NV43GL
Bus Type
PCI-Express x16, <75W power consumption
RAMDAC
Dual 400 MHz integrated
Memory
128 MB 275 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture
storage
8.8 GB/sec graphics memory bandwidth
Connectors
DVI-I + VGA + 10-pin HDTV Out (HD cable purchased separately)
Multi-monitor support
Integrated analog display controller supporting a single analog display at
2048x1536 @ 75Hz, one digital display at 1600x1200 @ 60Hz.
Additional product
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
features
Hardware accelerated Overlay Planes
Hardware accelerated two-sided lighting
Hardware accelerated antialiased points and lines
3D Volumetric Texture support
Hardware accelerated Occlusion Culling
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0
specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
Shading architecture
Fully programmable GPU (OpenGL1.5/DirectX 9.0c class)
Long fragment programs (up to 65,536 instructions)
Long vertex programs (up to 65,536 instructions)
Looping and subroutines (up to 256 loops per vertex program)
Dynamic flow control
Conditional execution
Optimized compilers for Cg, OpenGL shading language, and Microsoft
HLSL
Supported graphics APIs OpenGL 1.5 ICD with immediate mode support for all OGL primitive types
DirectX 9.0c
Available graphics drivers HP-tested: Microsoft Windows XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
DVI-I output - drives digital display at resolutions up to 1600x1200 @ 60Hz
Internal 400MHz RAMDACs – drives dual analog display up to 2048x1536
@ 75Hz each
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 75
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro FX 1400 Form Factor
PCI-Express Graphics
Controller
Graphics Controller
Bus Type
RAMDAC
Memory
ATX, 4.376" x 8.5"
Single slot
NVIDIA NV41GL
PCI-Express x16, <75W power consumption
Dual 400 MHz integrated
128 MB 300 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture
storage
19.2 GB/s graphics memory bandwidth
Connectors
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Multi-monitor support
Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 85Hz on both displays.
Additional product
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
features
Hardware accelerated Overlay Planes
Hardware accelerated two-sided lighting
Hardware accelerated antialiased points and lines
Quad-buffered Stereo
3D Volumetric Texture support
Hardware accelerated Occlusion Culling
Scalable Link Interface (SLI) technology
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0
specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
Shading architecture
Fully programmable GPU (OpenGL1.5/DirectX 9.0c class)
Long fragment programs (up to 65,536 instructions)
Long vertex programs (up to 65,536 instructions)
Looping and subroutines (up to 256 loops per vertex program)
Dynamic flow control
Conditional execution
Optimized compilers for Cg, OpenGL shading language, and Microsoft
HLSL
Supported graphics APIs OpenGL 1.5 ICD with immediate mode support for all OGL primitive types
DirectX 9.0c
Available graphics drivers HP-tested: Microsoft Windows XP, Windows 2000 and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
Dual DVI-I output – drives dual digital displays at resolutions up to
1900x1200 @ 60Hz
Internal 400MHz RAMDACs – drives dual analog displays up to 2048x1536
@ 85Hz each
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 76
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro FX 3400 Form Factor
Graphics Card
Graphics Controller
Bus Type
Memory
ATX
NVIDIA NV45GL
PCI-Express x16
256 MB 450 MHz GDDR3 SDRAM unified frame buffer, Z-buffer and
Texture storage
Connectors
2 DVI-I (one dual-link/one single-link) analog/digital monitor outputs,
1 3-pin Mini DIN stereo output
Multi-monitor support
Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 85Hz on both displays or dual digital displays at
1600x1200 (single-link) and 3840x2400 (dual-link).
NVIEW advanced multi-display desktop and application management
seamlessly integrated into Microsoft Windows
RAMDAC
Dual 400 MHz integrated
Architecture features
256-bit memory interface
128-bit IEEE floating-point precision graphics pipeline
128-bit color precision
12-bit sub-pixel precision
8x FSAA at 1920x1200, 4x at 2048x1536, rotated grid FSAA sampling
algorithm
Hardware accelerated antialiased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
3rd generation occlusion culling
3D volumetric texture support
Quad-buffered stereo
Dual Link DVI enabling driving digital displays up to 3840x2400 (24Hz)
Shading architecture
Fully programmable GPU
Long fragment programs (up to 65,536 instructions)
Long vertex programs (up to 65,536 instructions)
Looping and subroutines (up to 256 loops per vertex program)
Dynamic flow control
Conditional execution
Supported graphics APIs OpenGL 1.5
DirectX 9.0
Available graphics drivers HP-tested: Microsoft Windows® XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site: http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
Dual DVI-I output – drives dual digital displays at resolutions up to
1600x1200 @ 60Hz (single-link) and 3840x2400 @ 24Hz (dual-link).
Internal 400MHz RAMDACs – drives dual analog displays up to 2048x1536
@ 75Hz each
NVIDIA Quadro FX 3450 Form Factor
Graphics Controller
Graphics Controller
Bus Type
Memory
Connectors
DA - 11975
ATX
NVIDIA Quadro FX 3450 Workstation GPU
PCI-Express x16
256 MB 450 MHz GDDR3 SDRAM unified graphics memory
2 DVI-I (one dual-link/one single-link) analog/digital monitor outputs, 1 3pin Mini DIN stereo output, DVI-I to VGA adapters included
Worldwide — Version 30 — November 1, 2005
Page 77
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
Multi-Monitor Support
Dual integrated display controllers supporting up to two analog displays at
2048 x 1536 @ 75 Hz on both displays or dual digital displays at 1920 x
1200 (single-link) and 3840 x 2400 (dual-link).
NVIEW advanced multi-display desktop and application management
seamlessly integrated into Microsoft Windows
Architecture Features
256-bit memory interface
128-bit IEEE floating-point color precision
12-bit sub-pixel precision
65,536 fragment instruction
65,536 vertex instruction
3D volumetric textures
Single-system powerwall
12 pixels per clock rendering engine
Hardware accelerated antialiased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
3rd generation occlusion culling
16 textures per pixel in fragment programs
Window ID clipping functionality
Hardware accelerated line stippling
OpenGL Quad-buffered stereo
Shading Architecture
Fully programmable GPU (OpenGL 2.0/DirectX
9.0c class)
Long fragment programs (up to 65,536 instructions)
Long vertex programs (up to 65,536 instructions)
Looping and subroutines (up to 256 loops per vertex program)
Dynamic flow control
Conditional execution
High Level Shader
Optimized compiler for Cg and Microsoft® HLSL
Languages
OpenGL 2.0 and DirectX 9.0c support
Open source compiler
High-Resolution
12-bit subpixel sampling precision enhances AA quality
Antialiasing
Rotated-grid full-scene antialiasing (RG FSAA)
8x FSAA dramatically reduces visual aliasing artifacts or "jaggies" at
resolution up to 1920x1200
Display Resolution
Dual Link DVI- I output-drives digital displays at resolutions up to 3840 x
Support
2400 @ 24 Hz
Single Link DVI-I output drives digital displays at resolutions up to 1920 x
1200 @ 75 Hz
Internal 400 MHz DACs - Two analog displays up to 2048 x 1536 @ 75 Hz
each
nView Architecture
Advanced multi-display desktop & application management seamlessly
integrated into Microsoft Windows.
Supported Graphics APIs OpenGL 2.0 ICD with immediate mode support for all OGL primitive types
DirectX 9.0c
Available Graphics
Microsoft Windows XP, Linux - Full Open GL implementation, complete with
Drivers
NVIDIA and ARB extensions.
HP qualified drivers may be preloaded or available from the HP support web
site:
http://welcome.hp.com/country/us/eng/software_drivers.html.
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 78
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
ATI FireGL V5100
PCI-Express Graphics
Controller
Form Factor
Graphics Controller
Bus Type
Memory
Connectors
Multi-monitor support
ATX
RV423
PCI-Express x16
128 MB 350MHz DDR unified frame buffer, Z-buffer and Texture storage
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Dual integrated display controllers supporting up to two analog displays at
2048x1536 @ 85Hz on both displays.
RAMDAC
Dual 400 MHz integrated
Architecture features
256-bit memory interface
128-bit IEEE floating-point precision
24-bits per RGBA color precision
8-bit sub-pixel precision
6 parallel geometry engines
12 parallel pixel pipelines
2x/4x/6x FSAA
Hardware accelerated antialiased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
Hardware accelerated occlusion culling
Hardware accelerated clip planes
Quad-buffered stereo
Shading architecture
Smartshader™ technology
Programmable pixel and vertex shaders
16 textures per pass
Pixel shaders up to 160 instructions with 32-bit floating point precision for
each RGBA component
Multiple render target support
Shadow volume rendering acceleration
High precision 10-bit per channel frame buffer support
Supported graphics APIs OpenGL 1.5
DirectX 9.0
Available graphics drivers HP-tested: Microsoft Windows XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site: http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
DVI-I output – drives digital displays at resolutions up to 1600x1200
Internal 400MHz RAMDAC – drives dual analog displays up to 2048x1536
@ 85Hz each
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 79
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
HP L1755 Flat Panel
Monitor
Panel
Type
Viewable Image Area
(diagonal)
Screen Opening (WxH)
Viewing Angle (typical)
Video/Other Inputs
Brightness (typical)
Contrast Ratio (typical)
Response Rate (typical)
Pixel Pitch
Color Depth Support
Plug and Play
Self Powered USB 2.0
Hub
Input Signal
Input Impedance
Sync Input
Signal Interface/
Performance
Video Cable
Video Cable Length
Horizontal Frequency
Vertical Frequency
Native Resolution
Maximum Resolution
(Analog)
Maximum Resolution
(Digital)
Preset VESA Graphic
Modes (non-interlaced)
Preset MAC Mode
Preset VGA Mode
Preset SUN Mode
Fail Safe Mode
Maximum Pixel Clock
Speed
User Programmable
Modes
Anti-Glare
DA - 11975
Active matrix, thin film transistor (TFT)
17 in (43.2 cm) maximum viewable
13.4 x 10.7 in (33.9 x 27.2 cm)
176 degrees horizontal/176 degrees vertical
(10:1 minimum contrast ratio)
Up to 250 nits (cd/m2)
Up to 1000:1 (typical)
25 ms (typical rise + fall)
0.264 mm
16.7 million colors
Yes (supports VESA DDC2B; PC2001 compliant)
One upstream, four downstream ports (cable
included)
Two connectors: one 15-pin mini D-sub analog
VGA; and one DVI-I (VGA analog or digital)
75 ohms ± 2%
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green (activated through on-screen
display)
VGA to VGA, DVI-D to DVI-D, and DVI-I to VGA
78 in (2.0 m)
30 to 82 kHz
56 to 75 Hz
1280 x 1024 @ 60 Hz analog
1280 x 1024 @ 60 Hz digital
1280 x 1024 @ 75 Hz analog
1280 x 1024 @ 75 Hz digital
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
720 x 400 @ 70 Hz
800 x 600 @ 60 Hz, 72 Hz, 75 Hz
1024 x 768 @ 60 Hz, 70 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
832 x 624 @ 75 Hz
1152 x 870 @75 Hz
640 x 480 @ 60 Hz, 72 Hz
1152 x 900 @ 76 Hz
Yes (limits out of range signal messages)
140 MHz
Yes, 15
Yes
Worldwide — Version 30 — November 1, 2005
Page 80
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Anti-Static
AssetControl
Default Color
Temperature
On Screen Display (OSD) Buttons or Switches
Controls
Languages
User Controls
Power
Power Supply
Input Power
Nominal Current
Frequency
Average
Typical Power
Consumption
Maximum
Power Saving
Off Mode
Mechanical
Power Cable Length
Dimensions
(H x W x D)
Weight
Bezel Width
Tilt Range
Swivel Range
Height Adjustable
DA - 11975
Yes
Yes (accessible on HP Compaq Business
Desktops featuring Intelligent Manageability)
Yes (6500k, 9300k, SRGB, Custom User)
Power on/off; 3-button OSD; second level OSD
buttons include dual-input switch, dedicated auto
adjust switch
English, Spanish, French, German, Italian,
Japanese, Simplified Chinese
Size and positioning, contrast, brightness, clock,
clock phase, selectable color temperature, serial
number, mode displayed, sleep timer, input
selection, factory reset, individual color contrast,
full-screen resolution
Auto-ranging, 90 to 265 VAC; internal power
supply
100 ~ 240 VAC
1.5 A maximum
50 ~ 60 Hz
33 watts when displaying standard office
software
< 40 watts
< 60 watts
<2W
0 watts (when master power switch is in the off
position)
70 in (1.8 m); non-captive
Unpacked with stand 16.1 (minimum) to 21.2
(maximum) x 14.4 x 8.3
in (40.9 (minimum) to
42.2 (maximum) x 36.5
x 21.1 cm)
8.3 x 12.2 in
Base Area
(Footprint D x W)
(21.1 x 30.9 cm)
11.8 x 14.4 x 2.9 in
Panel only (without
stand) (H x W x D)
(30.1 x 40.9 x 7.3 cm)
Unpacked with stand 14.7 lb (6.7 kg)
8.1 lb (3.7 kg)
Unpacked without
stand
20.2 lb (9.2 kg)
Packaged
13 mm left and right, 14 mm top, and 15 mm
bottom
-5° to +35°
± 50° horizontal swivel
Yes (5.1 in/13 cm adjustment range)
Worldwide — Version 30 — November 1, 2005
Page 81
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Pivot Rotation
Base
Environmental
Options
Other
DA - 11975
Yes, 90 °
Ships detached and is removable after
installation
Temperature – Operating 41° to 95° F (5° to 35° C)
Temperature – Non-4° to 140° F (-20° to 60° C)
operating
20% to 80%
Humidity – Operating
5% to 95%
Humidity – Nonoperating
0 to 13,000 ft (0 to 4,000 m)
Altitude – Operating
Altitude – Non-operating 0 to 40,000 ft (0 to 12,192 m)
Features integrated microphone/headset jacks,
HP Desktop Access
Center – Part number:
dual function headset for phone/PC support, a
DK985A
MultiBay slot for adding an optical drive (sold
separately), and four USB ports for easy
integration of third-party digital solutions. Sold
separately. For more information, refer to the HP
Desktop Access Center QuickSpec document.
Powered directly by the monitor, seamlessly
HP Flat Panel Speaker
Bar – Part number:
attaches to the monitor's bezel to bring full
PF804AA
multimedia support to select HP flat panel
monitors. Features dual speakers with full sound
range and external jack for headphones. Sold
separately. For more information, refer to the HP
Flat Panel Speaker Bar QuickSpec document.
HP Compaq 7000 Series Allows mounting of a 15-, 17- or 19-inch HP flat
Ultra-slim Desktop
panel monitor and an HP Compaq dc7100
Integrated Work Center Ultra-slim Desktop PC on a single stand for the
Stand – Part number:
convenience of an "all-in-one" form factor. Sold
DL641B
separately. For more information, refer to this
product's QuickSpec document
VGA to VGA cable, DVI-D to DVI-D cable, DVI-I
Accessories Included
to VGA cable, USB cable, user CD-ROM with
Pivot Pro software
Pivot Pro software from Portrait Displays, Inc.
Software
interacts with your PC's native graphics driver to
enable seamless portrait screen redraws with a
simple mouse-click or keyboard command. Pivot
Pro supports 90-degree portrait and landscape
views. Language support is available in English,
Japanese, French, German, Spanish, Italian, and
Traditional and Simplified Chinese.
HP Display LiteSaver feature lets you schedule
Software
Sleep mode at preset times to help protect the
display against image retention, drastically lower
power consumption and energy costs, and
extend the lifespan of the monitor.
Worldwide — Version 30 — November 1, 2005
Page 82
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
User Guide Languages
Certification and
Compliance
Compatibility
Service and Warranty
HP L1955 Flat Panel
Monitor
Panel
English, Latin America Spanish, Brazilian
Portuguese, Danish, Dutch, Finnish, French,
German, Italian, Norwegian, Swedish, Greek,
Polish, Russian, Slovenian, Turkish, Simplified
Chinese, Traditional Chinese, Korean, and
Japanese
Warranty Languages
English, Canadian French, Latin America
Spanish, Brazilian Portuguese, Danish, Dutch,
Finnish, French, German, Italian, Norwegian,
Spanish, Swedish, Bahasa Indonesian, Simplified
Chinese, Traditional Chinese, and Korean
Color
Carbonite, two-tone carbonite and silver (EMEA
only)
VESA Mounting
Yes (swing arm/wall mount not included); base
must be removed for mounting options)
VESA External Mounting Yes (standard 4 hole pattern, 100 mm)
Kensington Lock-ready
Yes
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCC Approval, CISPR Requirements, Eastern European Approvals, Energy
Star Compliant, FCC Approval, German Ergonomic (TUV and GS Mark),
ISO 13406-2 Compliant (Pixel Defect Guidelines), Mexican NOM Approval,
MPR-II Compliant, PC2001 Compliant, PC99 Certified, S. Korean MIC
Approval, Taiwan BSMI Approval, TCO 99 or 03 depending on region
(emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals,
Microsoft Windows Certification
VESA Video Signal Standard (VSIS) Compliant video cards have been tested
and proven compatible for use with the HP L1755 Flat Panel Monitor.
Recommended for use with HP products.
Limited three-year parts and repair labor, service provider labor, and on-site
service. Next business day advanced exchange direct replacement service
available during warranty period. Certain restrictions and exclusions apply.
For details, contact HP Customer Support.
Type
Viewable Image Area
(diagonal)
Screen Opening (WxH)
Viewing Angle (typical)
Brightness (typical)
Contrast Ratio (typical)
Response Rate (typical)
Pixel Pitch
Color Depth Support
DA - 11975
Active matrix, thin film transistor (TFT)
19 in (48.25 cm) maximum viewable
14.9 x 12.0 in (38.0 x 30.5 cm)
176 degrees horizontal/176 degrees vertical
(10:1 minimum contrast ratio)
Up to 250 nits (cd/m2)
Up to 1000:1 (typical)
<16 ms (typical rise + fall)
0.294 mm
16.7 million colors
Worldwide — Version 30 — November 1, 2005
Page 83
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Video/Other Inputs
Plug and Play
Self Powered USB 2.0
Hub
Input Signal
Input Impedance
Sync Input
Signal Interface/
Performance
Video Cable
Video Cable Length
Horizontal Frequency
Vertical Frequency
Native Resolution
Maximum Resolution
(Analog)
Maximum Resolution
(Digital)
Preset VESA Graphic
Modes (non-interlaced)
Preset MAC Mode
Preset VGA Mode
Preset SUN Mode
Fail Safe Mode
Maximum Pixel Clock
Speed
User Programmable
Modes
Anti-Glare
Anti-Static
AssetControl
Default Color
Temperature
On Screen Display (OSD) Buttons or Switches
Controls
Languages
User Controls
DA - 11975
Yes (supports VESA DDC2B; PC2001 compliant)
One upstream, four downstream ports (cable
included)
Two connectors: one 15-pin mini D-sub analog
VGA; and one DVI-I (VGA analog or digital)
75 ohms ± 2%
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green (activated through on-screen
display)
VGA to VGA, DVI-D to DVI-D, and DVI-I to VGA
78 in (2.0 m)
30 to 82 kHz
56 to 75 Hz
1280 x 1024 @ 75 Hz analog
1280 x 1024 @ 60 Hz digital
1280 x 1024 @ 75 Hz analog
1280 x 1024 @ 75 Hz digital
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
720 x 400 @ 70 Hz
800 x 600 @ 60 Hz, 72 Hz, 75 Hz
1024 x 768 @ 60 Hz, 70 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
832 x 624 @ 75 Hz
1152 x 870 @75 Hz
640 x 480 @ 60 Hz, 72 Hz
1152 x 900 @ 76 Hz
Yes (limits out of range signal messages)
140 MHz
Yes, 15
Yes
Yes
Yes (accessible on HP Compaq Business
Desktops featuring Intelligent Manageability)
Yes (6500k, 9300k, SRGB, Custom User)
Power on/off; 3-button OSD; second level OSD
buttons include dual-input switch, dedicated auto
adjust switch
English, Spanish, French, German, Italian,
Japanese, Simplified Chinese
Size and Positioning
Contrast
Worldwide — Version 30 — November 1, 2005
Page 84
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Power
Power Supply
Input Power
Nominal Current
Frequency
Average
Typical Power
Consumption
Maximum
Power Saving
Off Mode
Mechanical
Power Cable Length
Dimensions
(H x W x D)
Weight
Bezel Width
Tilt Range
Swivel Range
Height Adjustable
Pivot Rotation
Base
DA - 11975
Brightness
Clock, Clock Phase
Selectable Color Temperature
Serial Number
Mode Displayed
Sleep Timer
Input Selection
Factory Reset
Individual Color Contrast
Full-screen Resolution
Auto-ranging, 90 to 265 VAC; internal power
supply
100 ~ 240 VAC
1.5 A maximum
50 ~ 60 Hz
33 watts when displaying standard office
software
< 40 watts
< 60 watts
< 2 watts
0 watts (when master power switch is in the off
position)
70 in (1.8 m); non-captive
Unpacked with stand 16.8 (minimum) to 22.3
(maximum) x 15.9 x 8.3
in (42.7 (minimum) to
56.6 (maximum) x 40.4
x 21.1 cm)
8.3 x 12.2 in
Base Area
(Footprint D x W)
(21.1 x 30.9 cm)
13.2 x 15.9 x 3.1 in
Panel only (without
stand) (H x W x D)
(33.5 x 40.4 x 7.9 cm)
Unpacked with stand 16.5 lb (7.5 kg)
10.5 lb (4.75 kg)
Unpacked without
stand
23.5 lb (10.7 kg)
Packaged
13 mm left and right, 14 mm top, and 15 mm
bottom
-5° to +35°
± 50° horizontal swivel
Yes (5.1 in/13 cm adjustment range)
Yes, 90 °
Ships detached and is removable after
installation
Worldwide — Version 30 — November 1, 2005
Page 85
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Environmental
Options
Temperature – Operating
Temperature – Nonoperating
Humidity – Operating
Humidity – Nonoperating
Altitude – Operating
Altitude – Non-operating
Desktop Access Center
HP Flat Panel Speaker
Bar
Other
Accessories Included
Software
Software
User Guide Languages
Warranty Languages
Color
VESA Mounting
VESA External Mounting
Kensington Lock-ready
DA - 11975
41° to 95° F (5° to 35° C)
-4° to 140° F (-20° to 60° C)
20% to 80%
5% to 95%
0 to 13,000 ft (0 to 4,000 m)
0 to 40,000 ft (0 to 12,192 m)
Features integrated microphone/headset jacks,
dual function headset for phone/PC support, a
MultiBay slot for adding an optical drive (sold
separately), and four USB ports for easy
integration of third-party digital solutions. Sold
separately; part number DK985A. For more
information, refer to the HP Desktop Access
Center QuickSpecs.
Powered directly by the monitor, seamlessly
attaches to the monitor's bezel to bring full
multimedia support to select HP flat panel
monitors. Features dual speakers with full sound
range and external jack for headphones. Sold
separately, part number PF804AA. For more
information, refer to the HP Flat Panel Speaker
Bar QuickSpecs.
VGA to VGA cable, DVI-D to DVI-D cable, DVI-I
to VGA cable, USB cable, user CD-ROM with
Pivot Pro software
Pivot Pro software from Portrait Displays, Inc.
interacts with your PC's native graphics driver to
enable seamless portrait screen redraws with a
simple mouse-click or keyboard command. Pivot
Pro supports 90-degree portrait and landscape
views. Language support is available in English,
Japanese, French, German, Spanish, Italian, and
Traditional and Simplified Chinese.
HP Display LiteSaver feature lets you schedule
Sleep mode at preset times to help protect the
display against image retention, drastically lower
power consumption and energy costs, and
extend the lifespan of the monitor.
English
English
Carbonite, two-tone carbonite and silver (EMEA
only)
Yes (swing arm/wall mount not included); base
must be removed for mounting options)
Yes (standard 4 hole pattern, 100 mm)
Yes
Worldwide — Version 30 — November 1, 2005
Page 86
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Certification and
Compliance
Compatibility
Service and Warranty
HP Flat Panel Monitor
L2035
Panel
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals,
Energy Star Compliant, FCC Approval, German Ergonomic (TUV and GS
Mark), ISO 13406-2 Compliant (Pixel Defect Guidelines), Mexican NOM
Approval, MPR-II Compliant, PC2001 Compliant, PC99 Certified, S. Korean
MIC Approval, Taiwan BSMI Approval, TCO 99 or 03 depending on region
(emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals,
Microsoft® Windows® Certification
VESA Video Signal Standard (VSIS) Compliant video cards have been tested
and proven compatible for use with the HP L1955 Flat Panel Monitor.
Recommended for use with HP products.
Limited three-year parts and repair labor, service provider labor, and on-site
service. Next Business Day advanced exchange direct replacement service
available during warranty period. Certain restrictions and exclusions apply.
For details, contact HP Customer Support.
Type
Viewable Image Area
(diagonal)
Screen Opening
(W x H)
Viewing Angle (typical)*
On Screen Display
(OSD) Controls
DA - 11975
20-inch Active Matrix TFT (thin film transistor)
20.1 in (51 cm)
16.2 x 12.17 in (41.1 x 30.9 cm)
Up to 170° H/170° V (10:1 minimum contrast
ratio)
Brightness (typical*
Up to 250 nits (cd/m2)
Contrast Ratio (typical)* Up to 400:1
Response Rate (typical)* 16 ms (typical, rise + fall)
Pixel Pitch
0.255 mm
Color Depth Support
16.7 million colors
*All specifications are provided by the component manufacturers.
Performance specifications represent the highest specification of all HP's
component manufacturers' typical level specifications for performance.
Actual performance may vary either higher or lower.
PiP (Picture in Picture), Input select, auto adjust,
Buttons or Switches
OSD up, OSD down, OSD menu select, power
English, French, German, Spanish, Italian
Languages
Brightness, contrast, positioning, color
User Controls
temperature, individual color control, serial
number display, full screen resolutions, clock,
clock phase, video picture-in-picture (size and
position), input selection (includes separate direct
access key for dedicated swap between inputs 1
and 2), factory reset
Worldwide — Version 30 — November 1, 2005
Page 87
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Signal Interface/
Performance
Horizontal Frequency
Vertical Frequency
Graphics Controller
Native Resolution
Preset VESA Graphic
Modes (non-interlaced)
Video Input
Text Mode
Mac Mode
Sun Mode
Maximum Pixel Clock
Speed
User Programmable
Modes
Anti-Glare
Anti-Static
Default Color
Temperature
Plug and Play
Input Signal
Input Impedance
Sync Input
Video Cable
Video Cable Length
Input Power
Power
Frequency
Maximum
Power Saving
Power Cable Length
DA - 11975
30 to 94 kHz (VGA input); 30 to 92 KHz (DVI
input) (for modes with pixel clock less than 157
MHz)
48 to 85 Hz (VGA input); 30 to 92 KHz (DVI
input) (for modes with pixel clock less than 157
MHz)
Pixelworks PW171
1600 x 1200 @ 60 Hz (recommended)
1600 x 1200 @ 60 Hz, 75 Hz (VGA input)
1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 85 Hz
640 x 480 @ 60 Hz, 75 Hz, 85 Hz
720 x 400 @ 70 Hz
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
1152 x 900 @ 66 Hz
202 MHz (VGA input); 162 MHz (DVI input)
Yes, 10
Yes
Yes
6500 K
Yes
Four connectors, including one 15-pin mini Dsub VGA, one DVI-I (VGA analog and digital
input), one composite video, and one s-video
75 ohms ± 10%
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
VGA to VGA; VGA to DVI-I; DVI-D to DVI-I
5.9 ft (1.8 m)
Auto-Ranging, 90 to 132 VAC and 195 to 265
VAC; internal power supply, 50 Hz/60 Hz
47.5 to 63 Hz
< 75 W
<5W
5.9 ft (1.8 m)
Worldwide — Version 30 — November 1, 2005
Page 88
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Mechanical
Dimensions (H x W x D)
Unpacked with stand
Unpacked without
stand (head only)
Packaged
Weight
Environmental
Options
DA - 11975
Tilt Range
Swivel Range
Height Adjustable
Pivot Rotation
Base
Temperature – Operating
Temperature – Nonoperating
Humidity – Operating
Humidity – Nonoperating
Altitude – Operating
Altitude – Non-operating
HP Desktop Access
Center
Unpacked
17.36 to 20.9 x 17.8 x
8.27 in
(44.1 to 53.1 x 45.2 x
21.0 cm)
14.29 x 17.8 x 3.19 in
(36.3 x 45.2 x 8.1 cm)
11.5 x 21.9 x 23.9 in
(29.2 x 55.6 x 60.6 cm)
With stand: 20.28 lb
(9.2 kg);
Without stand: 12.35 lb
(5.6 kg)
26.9 lb (12.2 kg)
Packaged
-5° to + 25° vertical
-35° to + 35°
Yes, range 3.54 in (9.0 cm)
Yes
Attached
46° to 95° F (10° to 35° C)
6° to 140° F (-10° to 60° C)
20% to 80% non-condensing
5% to 85%
+12,000 ft (+3,657.6 m)
+40,000 ft (+12,192 m)
Sold separately, the HP Desktop Access Center
features integrated microphone/headset jacks,
dual function headset for phone/PC support, a
MultiBay slot for adding an optical drive (sold
separately), and four USB ports for easy
integration of third-party digital solutions; part
number DK985A. For more information, refer to
the HP Desktop Access Center QuickSpecs.
Worldwide — Version 30 — November 1, 2005
Page 89
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Other
Accessories Included
User Guide Languages
VGA to VGA cable – connects the graphic card's
VGA analog connector to the monitor's input #1
(VGA analog) connector
VGA to DVI-I cable – connects the graphic card's
VGA connector to the monitor's input #2 (DVI-I
analog) connector
DVI-D to DVI-I cable – connects the graphic
card's DVI-D digital connector to the monitor's
input #2 (DVI-I digital) connector
English, B. Portuguese, French, LA Spanish,
Korean, S. Chinese, T. Chinese, Bahasa,
Japanese, Danish, Finnish, German, Norwegian,
Spanish, Swedish, Greek, Polish, Russian,
Slovenian, Turkish
Warranty Languages
Certification and
Compliance
Compatibility
Service and Warranty
HP Flat Panel Monitor
L2335
Panel
English, Canadian French, LA Spanish, Brazilian
Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish,
Swedish, Bahasa Indonesian, Korean, T.
Chinese, S. Chinese
Color
Carbonite/Silver
VESA External Mounting Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-Ready
Yes
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals,
*Energy Star Compliant, FCC Approval, German Ergonomic (TUV and GS
Mark), ISO 9241-3,7,8 VDT Guidelines, ISO 13406-2 Pixel Defect
Guidelines, Mexican NOM Approval, MIC Requirements (New Zealand),
MPR-II Compliant, Nordic Approvals (Nemko, Fimko, Demko, Semko),
PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan BSMI
Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL
Listed, VCCI Approvals, Windows Certification (Microsoft® Windows® 98,
Microsoft Windows 2000, and Microsoft Windows XP)
* Energy Star Compliant available summer 2004.
Compatible with platforms using the VESA standard video modes and HP
Compaq Business Desktops d500, d300, and d200 Series, Compaq Evo
Desktops, and HP Workstations
Limited three years parts, labor, and on-site service, including backlight.
Availability varies by region. Certain restrictions and exclusions apply.
Consult HP Customer Service for details.
Type
Viewable Image Area
(diagonal)
Screen Opening
(W x H)
Viewing Angle (typical)*
Brightness (typical)*
Contrast Ratio (typical)*
DA - 11975
23-inch Active Matrix TFT (thin film transistor)
23 in (58.4 cm)
19.53 x 12.24 in (49.6 x 31.1 cm)
Up to 170° H/170° V (10:1 minimum contrast
ratio)
Up to 250 nits (cd/m2)
Up to 500:1
Worldwide — Version 30 — November 1, 2005
Page 90
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Response Rate (typical)* 16 ms (typical, rise + fall)
0.258 mm
Pixel Pitch
16.7 million colors
Color Depth Support
* All specifications are provided by the component manufacturers.
Performance specifications represent the highest specification of all HP's
component manufacturers' typical level specifications for performance.
Actual performance may vary either higher or lower.
On Screen Display (OSD) Buttons or Switches
PiP (Picture in Picture), Input Select, Auto Adjust,
Controls
OSD Up, OSD Down, OSD Menu Select, Power
English, French, German, Spanish, Italian
Languages
Brightness, contrast, positioning, color
User Controls
temperature, individual color control, serial
number display, full screen resolutions, clock,
clock phase, video picture-in-picture (size and
position), input selection (includes separate direct
access key for dedicated swap between inputs 1
and 2), factory reset
Signal Interface/
30 to 94 kHz (VGA input); 30 to 92 KHz (DVI
Horizontal Frequency
Performance
input) (for modes with pixel clock less than 157
MHz)
48 to 85 Hz (VGA and DVI input)
Vertical Frequency
Pixelworks PW172
Graphics Controller
1920 x 1200 @ 60 Hz (recommended)
Native Resolution
1920 x 1200 @ 60Hz
Preset VESA Graphic
Modes (non-interlaced)
1600 x 1200 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 75Hz
640 x 480 @ 60 Hz, 75 Hz
720 x 400 @ 70 Hz
Text Mode
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
Mac Mode
1152 x 900 @ 66 Hz
Sun Mode
202 MHz (VGA input); 162 MHz (DVI input)
Maximum Pixel Clock
Speed
Yes, 10
User Programmable
Modes
Yes
Anti-Glare
Yes
Anti-Static
6500 K
Default Color
Temperature
Video Input
DA - 11975
Plug and Play
Input Signal
Yes
Five connectors, including one 15-pin mini Dsub VGA, one DVI-I (VGA analog and digital
input), one composite video, one s-video,
component video
Worldwide — Version 30 — November 1, 2005
Page 91
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Input Impedance
Sync Input
Power
Video Cable
Video Cable Length
Input Power
Mechanical
Frequency
Maximum
Power Saving
Power Cable Length
Dimensions (H x W x D)
Weight
Environmental
Options
DA - 11975
Tilt Range
Swivel Range
Height Adjustable
Pivot Rotation
Base
Temperature –
Operating
Temperature –
Non-operating
Humidity – Operating
Humidity –
Non-operating
Altitude – Operating
Altitude –
Non-operating
HP Desktop Access
Center
75 ohms ± 10%
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
VGA to VGA; VGA to DVI-I; DVI-D to DVI-I
5.9 ft (1.8 m)
Auto-Ranging, 90 to 132 VAC and 195 to 265
VAC; internal power supply, 50 Hz/60 Hz
47.5 to 63 Hz
< 100 W
<5W
5.9 ft (1.8 m)
17.36 (min) to 20.9
Unpacked
(max) x 21.46 x 8.27 in
(44.1 (min) to 53.1
(max) x 54.5 x 21.0 cm)
Unpacked withou stand 14.57 x 21.46 x 3.35
(head only)
in (37.0 x 54.5 x 8.5
cm)
11.5 x 25.75 x 23.86
Packaged
in (29. 2 x 65.4 x 60.6
cm)
22.27 lb (10.1 kg)
Unpacked
30.87 lb (14.0 kg)
Packaged
-5° to + 25° vertical
-35° to + 35°
Yes, range 3.54 in (9.0 cm)
Yes
Attached
46° to 95° F (10° to 35° C)
6° to 140° F (-10° to 60° C)
20% to 80% non-condensing
5% to 85%
+12,000 ft (+3,657.6 m)
+40,000 ft (+12,192 m)
Sold separately, the HP Desktop Access Center
Features integrated microphone/headset jacks,
dual function headset for phone/PC support, a
MultiBay slot for adding an optical drive (sold
separately), and four USB ports for easy
integration of third-party digital solutions; part
number DK985A. For more information, refer to
the HP Desktop Access Center QuickSpecs.
Worldwide — Version 30 — November 1, 2005
Page 92
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Other
Accessories Included
Certification and
Compliance
Compatibility
Service and Warranty
VGA to VGA cable – connects the graphic card's
VGA analog connector to the monitor's input #1
(VGA analog) connector
VGA to DVI-I cable – connects the graphic card's
VGA connector to the monitor's input #2 (DVI-I
analog) connector
DVI-D to DVI-I cable – connects the graphic
card's DVI-D digital connector to the monitor's
input #2 (DVI-I digital) connector
User Guide Languages
English, B. Portuguese, French, LA Spanish,
Korean, S. Chinese, T. Chinese, Bahasa,
Japanese, Danish, Finnish, German, Norwegian,
Spanish, Swedish, Greek, Polish, Russian,
Slovenian, Turkish
Warranty Languages
English, Canadian French, LA Spanish, Brazilian
Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish,
Swedish, Bahasa Indonesian, Korean, T.
Chinese, S. Chinese
Color
Carbonite/silver
VESA External Mounting Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-Ready
Yes
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals,
*Energy Star Compliant, FCC Approval, German Ergonomic (TUV and GS
Mark), ISO 9241-3,7,8 VDT Guidelines, ISO 13406-2 Pixel Defect
Guidelines, Mexican NOM Approval, MIC Requirements (New Zealand),
MPR-II Compliant, Nordic Approvals (Nemko, Fimko, Demko, Semko),
PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan BSMI
Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL
Listed, VCCI Approvals, Windows Certification (Microsoft® Windows® 98,
Microsoft Windows 2000, and Microsoft Windows XP).
* Energy Star Compliant available summer 2004.
Compatible with platforms using the VESA standard video modes and HP
Compaq Business Desktops d500, d300, and d200 Series, Compaq Evo
Desktops, and HP Business Desktops d300 series.
Limited three years parts, labor, and on-site service, including backlight.
Availability varies by region. Certain restrictions and exclusions apply.
Consult HP Customer Service for details.
© Copyright 2005 Hewlett-Packard Development Company, L.P.
All rights reserved. HP and the HP logo are trademarks of the Hewlett Packard Company in the U.S. and/or other countries.
Microsoft and Windows are trademarks of Microsoft Corporation in the U.S. and/or other countries. NVIDIA and Quadro are
trademarks of NVIDIA Corporation. All other product names mentioned herein may be trademarks of their respective companies.
HP shall not be liable for technical or editorial errors or omissions contained herein. The information is provided as is without
warranty of any kind and is subject to change without notice. The warranties for HP products are set forth in the express limited
warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty
DA - 11975
Worldwide — Version 30 — November 1, 2005
Page 93
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
