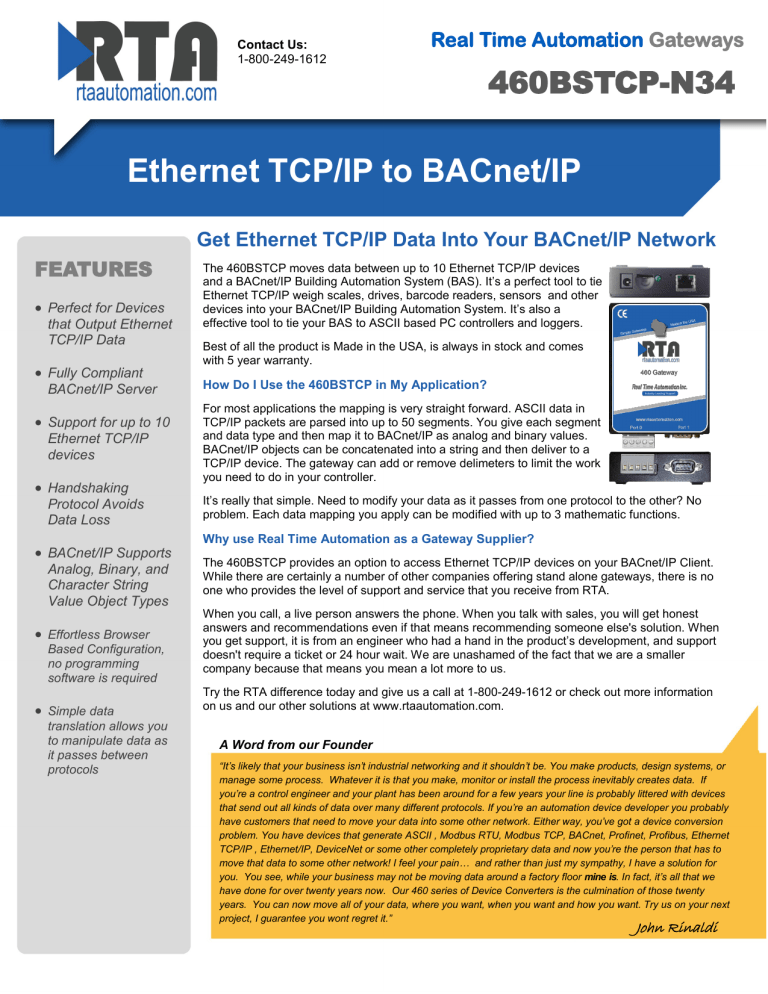

Real Time Automation Gateways
460BSTCP-N34
Ethernet TCP/IP to BACnet/IP
Get Ethernet TCP/IP Data Into Your BACnet/IP Network
FEATURES
 Perfect for Devices
that Output Ethernet
TCP/IP Data
 Fully Compliant
BACnet/IP Server
 Support for up to 10
Ethernet TCP/IP
devices
 Handshaking
Protocol Avoids
Data Loss
 BACnet/IP Supports
Analog, Binary, and
Character String
Value Object Types
 Effortless Browser
Based Configuration,
no programming
software is required
 Simple data
translation allows you
to manipulate data as
it passes between
protocols
The 460BSTCP moves data between up to 10 Ethernet TCP/IP devices
and a BACnet/IP Building Automation System (BAS). It’s a perfect tool to tie
Ethernet TCP/IP weigh scales, drives, barcode readers, sensors and other
devices into your BACnet/IP Building Automation System. It’s also a
effective tool to tie your BAS to ASCII based PC controllers and loggers.
Best of all the product is Made in the USA, is always in stock and comes
with 5 year warranty.
How Do I Use the 460BSTCP in My Application?
For most applications the mapping is very straight forward. ASCII data in
TCP/IP packets are parsed into up to 50 segments. You give each segment
and data type and then map it to BACnet/IP as analog and binary values.
BACnet/IP objects can be concatenated into a string and then deliver to a
TCP/IP device. The gateway can add or remove delimeters to limit the work
you need to do in your controller.
It’s really that simple. Need to modify your data as it passes from one protocol to the other? No
problem. Each data mapping you apply can be modified with up to 3 mathematic functions.
Why use Real Time Automation as a Gateway Supplier?
The 460BSTCP provides an option to access Ethernet TCP/IP devices on your BACnet/IP Client.
While there are certainly a number of other companies offering stand alone gateways, there is no
one who provides the level of support and service that you receive from RTA.
When you call, a live person answers the phone. When you talk with sales, you will get honest
answers and recommendations even if that means recommending someone else's solution. When
you get support, it is from an engineer who had a hand in the product’s development, and support
doesn't require a ticket or 24 hour wait. We are unashamed of the fact that we are a smaller
company because that means you mean a lot more to us.
Try the RTA difference today and give us a call at 1-800-249-1612 or check out more information
on us and our other solutions at www.rtaautomation.com.
A Word from our Founder
“It’s likely that your business isn’t industrial networking and it shouldn’t be. You make products, design systems, or
manage some process. Whatever it is that you make, monitor or install the process inevitably creates data. If
you’re a control engineer and your plant has been around for a few years your line is probably littered with devices
that send out all kinds of data over many different protocols. If you’re an automation device developer you probably
have customers that need to move your data into some other network. Either way, you’ve got a device conversion
problem. You have devices that generate ASCII , Modbus RTU, Modbus TCP, BACnet, Profinet, Profibus, Ethernet
TCP/IP , Ethernet/IP, DeviceNet or some other completely proprietary data and now you’re the person that has to
move that data to some other network! I feel your pain… and rather than just my sympathy, I have a solution for
you. You see, while your business may not be moving data around a factory floor mine is. In fact, it’s all that we
have done for over twenty years now. Our 460 series of Device Converters is the culmination of those twenty
years. You can now move all of your data, where you want, when you want and how you want. Try us on your next
project, I guarantee you wont regret it.”
John Rinaldi
Specifications
www.rtaautomation.com
BACnet/IP SERVER FEATURES
BACnet/IP Operation Modes
BACnet/IP Server
Supported Object Types
Device, Binary I/O, Analog I/O, Character String Value
Supported Service Codes
Read & Read Multiple-B, Write & Write Multiple-B, COV & COV unsolicited-B, Device Dynamic Binding-B, Dynamic Object Binding-B
Maximum Connections
1
Analog Objects Supported
1200 Input and 1200 Output
Binary Objects Supported
1600 Input and 1600 Output
Character String Objects Supported
50 Input and 50 Output
ETHERNET TCP/IP DEVICE FEATURES
Operation Modes
Client or Server
Maximum Number of Devices Supported
10
Maximum Number of Characters Transferred
1024
Delimiter Processing
Incoming delimiters can be automatically removed; Outgoing delimiters automatically added if configured
Parsing
Parse String of ASCII Data in up to 50 Segments by Delimiter or Offset
Concatenation
Concatenate up to 50 segments/strings of ASCII data with optional delimiter
INCLUDED WITH GATEWAY
120 volt AC wall wart power supply
Manual
6’ power cable with flying leads
5 year hardware warranty
IPSetup software — automatically locates RTA gateway on the network
Unlimited firmware feature upgrades for life
CAT5 crossover cable for direct connection to PC during programming
Complete, unlimited access to our industry leading support staff
ELECTRICAL/ENVIRONMENTAL
DIMENSIONS
DC Input Voltage
8 VDC @ 230 mA to 28 VDC @ 80 mA
Maximum Baud Rate
115K baud
Operating Temperature
-40 C to 85 C
Certification
RoHS-Compliant, UL, CUL, CE Approvals, Class I Div 2
ENCLOSURE / HARDWARE
Size
4.2” x 3.25” x 1”
Weight
5 oz.
Enclosure Type
Anodized aluminum
Mounting
Din rail or panel mount
LEDs
Ethernet link/data LED, Ethernet speed LED, power LED, &
2 general purpose LEDS on side
GATWAY FEATURES & FUNCTIONS
Gateway Security
You can configure up to 9 different users access to
diagnostic and configuration screens.
Alarming
Set <, <=, >=, >, ==, !=, and change-of-state rules on
any data moving through the gateway. If alarm rule is
triggered an email notification can be sent.
Translation Table
Allows for data manipulation during protocol translation. Scaling and other data format changes can occur
in the gateway.
Status and
Counters
Protocol specific status, counters and error messages
are accessible within the gateways diagnostics page.
They can also be delivered to a connected device.
Diagnostic Logging
Page
Allows users to see and log start up sequences, protocol specific messages & error messages.
NOT EXACTLY WHAT YOU WERE LOOKING FOR?
Real Time Automation offers a full line of gateway products. If this isn’t the one
you were looking Give us a call at 1-800-249-1612 or check out a listing at
www.rtaautomation.com/products. We also offer custom gateways to help customers dealing with unique needs or proprietary protocols.
CATALOG #
DESCRIPTION
460BSTCP-N34
BACnet/IP Client to Ethernet TCP/IP Device Gateway
Allen-Bradley, ControlLogix, CompactLogix, PLC-5 are registered trademarks of Rockwell Automation, Inc.
Real Time Automation, Inc. - www.rtaautomation.com - 1-800-249-1612
