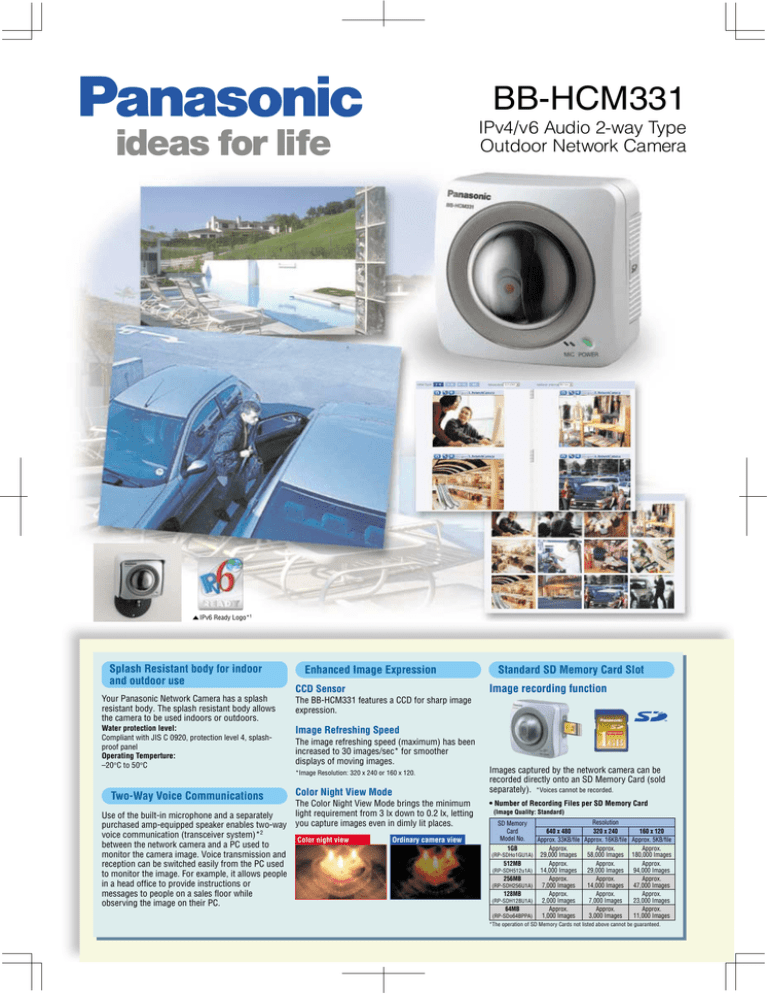

BB-HCM331
IPv4/v6 Audio 2-way Type
Outdoor Network Camera
IPv6 Ready Logo*1
Splash Resistant body for indoor
and outdoor use
Enhanced Image Expression
CCD Sensor
Your Panasonic Network Camera has a splash
resistant body. The splash resistant body allows
the camera to be used indoors or outdoors.
The BB-HCM331 features a CCD for sharp image
expression.
Water protection level:
Compliant with JIS C 0920, protection level 4, splashproof panel
Operating Temperture:
–20°C to 50°C
Image Refreshing Speed
Image recording function
The image refreshing speed (maximum) has been
increased to 30 images/sec* for smoother
displays of moving images.
*Image Resolution: 320 x 240 or 160 x 120.
Two-Way Voice Communications
Standard SD Memory Card Slot
Color Night View Mode
The Color Night View Mode brings the minimum
light requirement from 3 lx down to 0.2 lx, letting
Use of the built-in microphone and a separately
purchased amp-equipped speaker enables two-way you capture images even in dimly lit places.
voice communication (transceiver system)*2
Color night view
Ordinary camera view
between the network camera and a PC used to
monitor the camera image. Voice transmission and
reception can be switched easily from the PC used
to monitor the image. For example, it allows people
in a head office to provide instructions or
messages to people on a sales floor while
observing the image on their PC.
Images captured by the network camera can be
recorded directly onto an SD Memory Card (sold
separately). *Voices cannot be recorded.
• Number of Recording Files per SD Memory Card
(Image Quality: Standard)
SD Memory
Card
Model No.
1GB
(RP-SDHo1GU1A)
512MB
(RP-SDH512u1A)
256MB
(RP-SDH256U1A)
128MB
(RP-SDH128U1A)
64MB
(RP-SDo64BPPA)
Resolution
640 x 480
320 x 240
Approx. 33KB/file Approx. 16KB/file
Approx.
Approx.
29,000 Images
58,000 Images
Approx.
Approx.
14,000 Images
29,000 Images
Approx.
Approx.
7,000 Images
14,000 Images
Approx.
Approx.
2,000 Images
7,000 Images
Approx.
Approx.
1,000 Images
3,000 Images
160 x 120
Approx. 5KB/file
Approx.
180,000 Images
Approx.
94,000 Images
Approx.
47,000 Images
Approx.
23,000 Images
Approx.
11,000 Images
*The operation of SD Memory Cards not listed above cannot be guaranteed.
BB-HCM331
Network Camera
Multi-Camera Setup Supported
IPsec*4 Supported
IPv6-Ready
Alarm-Controlled and Timer-Controlled
Image Transfer Functions
The Alarm-Controlled Image Transfer function uses a
commercially available external Sensor or switch and
sends the image only when there is an action such as
turning on the light or opening the door. The TimerControlled Image Transfer function automatically
transmits images according to the set time zone and
the day of the week. These convenient functions
eliminate your need to constantly check the image.
*When e-mail function is used to transfer images or messages, e-mail
transmission may not be possible in some cases due to the mail server
authentication system (SMTP authentication, etc.) used by your
Internet service provider.
*The image transfer functions can be used only with a PC. With a cell
phone, only the e-mail transmission function can be used.
Our new network cameras allow the use of a virtually
unlimited number of IP addresses*3 by supporting
IPv6, a next-generation protocol. The IPv4/IPv6 dualstack feature enables you to use IPv4 at the present
and switch over to IPv6 in the future.
Specifications of BB-HCM331 Network Camera
User access limit
Buffered images*4
Network Camera
Viewing Angle
When the mouse button is clicked at a location on the
image, the camera moves so that the image is shown
with the selected location at the center.
Audio
A Wide Range of Camera Control Functions
• Click & Center
Model No.
Product type
Image data compression system
Video Resolution
Image quality
Frame rate*1
Security
Encryption algorithm
IPsec function*3
Supported protocol
Supporting Viewnetcam.com service
Viewnetcam.com service allows you to access the
camera over the Internet with your favorite domain
name (e.g. bob.viewnetcam.com) instead of a global
IP address. For more information on Viewnetcam.com
service, Please access www.viewnetcam.com for more
information.
Pan
Tilt
Revolving speed
Number of pixels
Lens focal point
Lens brightness
Required light intensity
Voice direction
Voice data compression system
Voice band
Audio input
Audio output*5
Network
I/O connector for sensor
Terminal
• Preset
This function lets you preset the camera direction.
You can use it to view the image captured from the
preset camera position with one-touch operation.
General
• External Output Control
This provides ON/OFF operation of an externally
connected device. For example, it can be used to turn
on a light when the surrounding area becomes dark or
to turn on a buzzer in case of an emergency.
IPsec is a technology used to encrypt data packets in
order to prevent eavesdropping by third parties. When
combined with a conventional authentication function
based on user names and passwords, IPsec offers
enhanced security.
*1 This logo mark is issued by the IPv6 Ready Logo Program Committee, an IPv6 promotion group established mainly by the IPv6 Forum.
*2 This function can be used with a PC only. It cannot be used with a cell phone. To hear the voice transmitted from the PC, a commercially available
speaker with a built-in amp must be installed. The transceiver system does not allow simultaneous transmission and reception of voices.
The BB-HCM331 may require a version upgrade to operate in the IPv6 environment.
For the latest information, visit Panasonic's support Web site (http://panasonic.co.jp/pcc/products/en/netwkcam/).
*3 An IP address is a unique number assigned to each user so that the user can be identified on the Internet.
*4 IPsec is an IP security protocol for data encryption standardized by IETF, an international community devoted to the standardization of Internet
specifications.
Server
Simultaneous monitoring of images using up to four
network cameras. Images from up to four camera units
can be assigned as a group, and the monitor display can
be switched to any of three image groups. This enables
simultaneous display of the images from up to 12
camera units, with no audio.
• Pan and Tilt Movement
SD Memory Card slot
Operating temperature
Operating humidity
External dimensions (WxHxD)
Weight
Power Supply
Consumption
BB-HCM331
Outdoor type and voice function
JPEG (Motion JPEG for moving image display)
640 x 480, 320 x 240, 160 x 120
3 modes (Favor Clarity, Standard, Favor Motion)
Max. 30 frames/sec (320 x 240, 160 x 120), Max. 12 frames/sec (640 x 480)*2
User ID, password, IPsec
DES-CBC, 3DES-CBC, AES-CBC
ESP encryption, EPS authentication, transport mode (main mode only)/tunnel mode
IKE (Internet Key Exchange)
IPv4/IPv6 dual stack
IPv4: TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, POP3, NTP, IPsec, UPnP
IPv6: TCP, UDP, IP, HTTP, FTP, SMTP, DNS, ICMPv6, POP3, NDP, NTP, IPsec
Max. 30 accesses (max. 10 accesses with voice reception)
Approx. 125 images: (320 x 240), standard image quality
(approx. 16 KB per image) (without using SD Memory Card)
53° horizontal (total 173°)
40° vertical (total 105°)
–60° up to +60°
–45° up to +20°
Pan: Max. 80°/sec, Tilt: Max. 80°/sec
1/4 inch, approx. 320,000 pixels, CCD sensor
Fixed (focal range: 0.5 m to ∞)
F3.5
3 to 100,000 lx (in Color Night View mode: 0.2 to 100,000 lx)
Half-duplex two-way communication (transceiver system)
ADPCM 32 kbps
300 Hz ~ 3.4 kHz
Built-in microphone or external microphone (sold separately), external microphone input
terminal (3.5-mm dia. mini-jack)
Audio line output terminal for external speaker
(3.5-mm dia. stereo mini-jack, monaural output)
Ethernet (10Base-T/100Base-TX)
G GND
1 External Senser Input
G GND
2 External Senser Input
3 External Device Control Output
4 DC Power Output Terminal (10.5–13.5 V DC)
Full size (operation guaranteed for 1GB, 512MB, 256MB, 128MB and 64MB SD Memory Cards)
–20°C to 50°C
20% to 90% (No condensation)
Approx. 100 x 100 x 73 mm (Only the unit)
300 g (Only the unit)
AC adaptor: Input 120V AC, Output 12V DC
6W
*1 This varies depending on the subject, image quality, network environment, PC performance, etc.
*2 The image update speed may decrease when favor-motion mode is set, when images are recorded onto an SD Memory Card, and when IPsec is
used, as well as due to the network environment and PC performance.
*3 Transport mode (mode for IPsec communication between terminals, for IPv4 only) operating environment: Microsoft® Windows® XP Service Pack 1
or later only, tunnel mode (mode for IPsec between VPN routers, IPv4/IPv6)
*4 The number of images that can be stored varies depending on the subject. *5 Install an amp or use a speaker with a built-in amp.
Pan
(173° maximum)
Tilt
(105° maximum)
Specifications for Compatible PC
Lens cover
Lens
AC adaptor connector
RESET
button
Microphone
Indicator
SD Memory
Card slot
Factory
Default
Button
I/O connector
Stand mounting section
OS
External
microphone
input terminal
CPU
Audio output
terminal
Protocol
Ethernet connector
(10/100Base-T(X))
Stand/tripod mounting section
*The photo shows the camera unit without the cover.
Interface
Web browser
Audio
For IPv4
For IPv6
®
®
Microsoft® Windows XP, Windows 2000,
Microsoft® Windows®XP, Service Pack 1
®
®
Windows Me, Windows 98SE
or later
• For monitoring of image from one camera unit: Pentium RIII (800 MHz or greater)
• For monitoring of images from multiple camera units: Pentium R4 (1.8 GHz or greater)
TCP/IP (HTTP, TCP, UDP, IP, DNS, ICMPv6,
TCP/IP (HTTP, TCP, UDP, IP, DNS, ARP,
NDP) protocol must be installed.
ICMP) protocol must be installed.
10/100-Mbps LAN card must be installed.
Internet Explorer 6.0 or later
Audio input/output function (microphone, speaker, etc.)
http://panasonic.co.jp/pcc/products/en/netwkcam/
Design and specifications are subject to change without notice. 10M0105SK-HCM331-LT.X Printed in Japan
