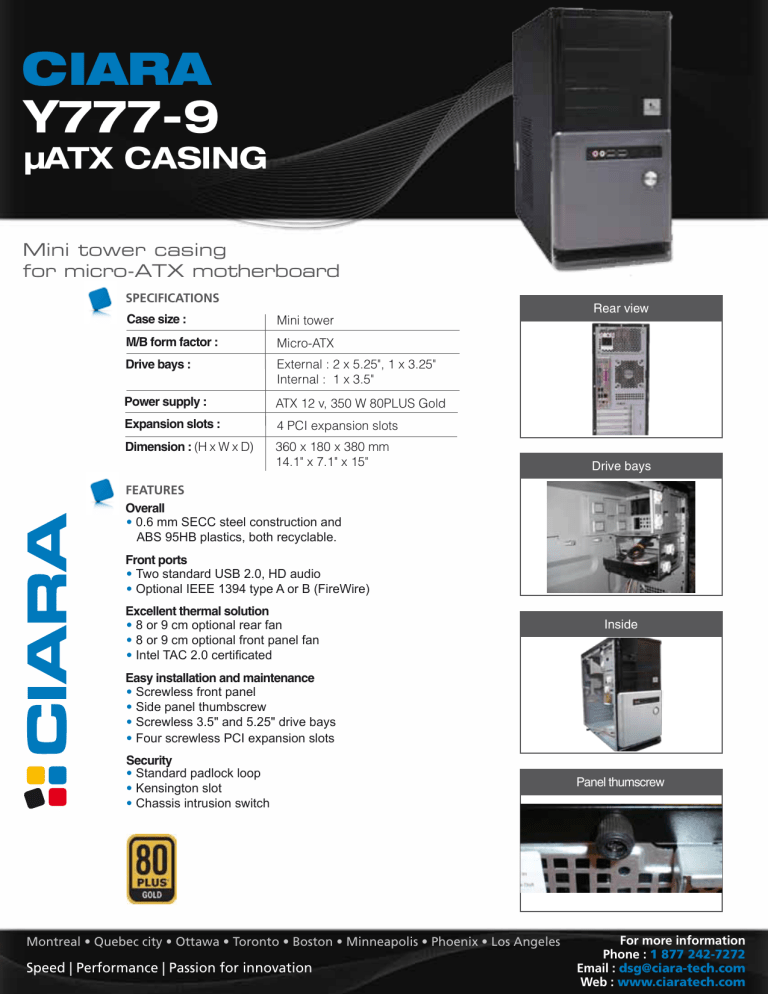

Y777-9 CIARA

CIARA
Y777-9
µATX CASING
Mini tower casing
for micro-ATX motherboard
SPECIFICATIONS
Case size :
Mini tower
M/B form factor :
Micro-ATX
Drive bays :
External : 2 x 5.25", 1 x 3.25"
Internal : 1 x 3.5"
Power supply :
ATX 12 v, 350 W 80PLUS Gold
Expansion slots :
4 PCI expansion slots
Dimension : (H x W x D)
360 x 180 x 380 mm
14.1" x 7.1" x 15"
Rear view
Drive bays
FEATURES
Overall
• 0.6 mm SECC steel construction and
ABS 95HB plastics, both recyclable.
Front ports
• Two standard USB 2.0, HD audio
• Optional IEEE 1394 type A or B (FireWire)
Excellent thermal solution
• 8 or 9 cm optional rear fan
• 8 or 9 cm optional front panel fan
• Intel TAC 2.0 certificated
Inside
Easy installation and maintenance
• Screwless front panel
• Side panel thumbscrew
• Screwless 3.5" and 5.25" drive bays
• Four screwless PCI expansion slots
Security
• Standard padlock loop
• Kensington slot
• Chassis intrusion switch
Montreal • Quebec city • Ottawa • Toronto • Boston • Minneapolis • Phoenix • Los Angeles
Speed | Performance | Passion for innovation
Panel thumscrew
For more information
Phone : 1 877 242-7272
Email : [email protected]
Web : www.ciaratech.com
