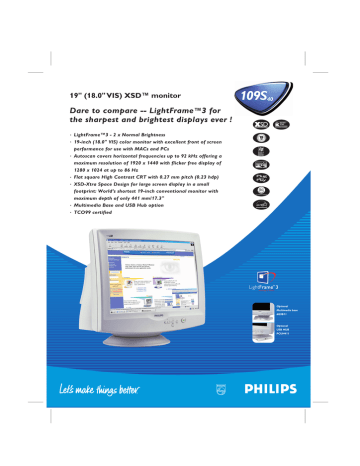

19" (18.0" VIS) XSD™ monitor
109S40
Dare to compare -- LightFrame™3 for
the sharpest and brightest displays ever !
. LightFrame™3 - 2 x Normal Brightness
. 19-inch (18.0" VIS) color monitor with excellent front of screen
performance for use with MACs and PCs
. Autoscan covers horizontal frequencies up to 92 kHz offering a
maximum resolution of 1920 x 1440 with flicker free display of
1280 x 1024 at up to 86 Hz
. Flat square High Contrast CRT with 0.27 mm pitch (0.23 hdp)
. XSD-Xtra Space Design for large screen display in a small
footprint: World’s shortest 19-inch conventional monitor with
maximum depth of only 441 mm/17.3"
. Multimedia Base and USB Hub option
. TCO99 certified
Optional
Multimedia base
6G3B11
Optional
USB HUB
PCUH411
109S40
19" (18.0" VIS) XSD™ monitor
Technical Specifications
CRT
•
•
•
•
Size (inch/cm)
Deflection angle (degrees)
Dot pitch
Horizontal pitch
-Tube type
•
•
•
•
•
Phosphor
Recom. display area(mm)
Recom. display area(inch)
Max. display area(mm)
Max. display area(inch)
Scanning
• Horizontal scanning
• Vertical scanning
Video
• Video dot rate
• Input impedance
-Video
-Sync
• Input signal levels
• Sync input signal
• Sync polarities
19"/ 46 cm
90°
0.27 mm
0.23 mm
Shadow mask, Flat Square, High Contrast,
Anti Glare, Anti Static, Anti reflection,
Light Transmission 46%
P22
355 x 265 mm
14" x 10.4"
360 x 270 mm
14.4" x 10.8"
Plug and play compatibility
• Display Data Channel DDC 2B (VESA)
• Microsoft® Windows® 95/98/ME & 2000/NT/XP compatible
• sRGB
Power management
Complies with EPA Energy Star and NUTEK specifications
• Operation
83 W (typical)
• Suspend/Stand By mode
< 2W
• Off mode/Deep Sleep
< 2W
Low-emission characteristics
• Complies with MPR-II and TCO ’99 specifications
30 - 92 kHz
50 - 160 Hz
158 MHz
75 Ohm
2.2k Ohm
0.7 Vpp
Separate sync
Composite sync
Positive and negative
Monitor controls and functions
• Main
• On Screen Display
• LightFrameTM3
White color temperature
Chromaticity CIE coordinates:
• at 9300 K:
• at 6500 K:
x=0.283, y=0.297
x=0.313, y=0.329
Resolution and preset modes
•
•
•
•
Max. resolution
Recom. resolution
16 user definable modes
31 factory preset modes:
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
720 x 400
720 x 400
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1152 x 864
1152 x 870
1152 x 900
1280 x 960
1280 x 960
1280 x 1024
1280 x 1024
1280 x 1024
1600 x 1200
1600 x 1200
1600 x 1200
1792 x 1344
1856 x 1392
1920 x 1440
1920 x 1440
1280 x 1024
H.freq (kHz)/ V.freq (Hz)
31.5K/60
37.9K/72
37.5K/75
43.3K/85
50.6K/100
31.5K/70
37.9K/85
37.9K/60
48.1K/72
46.9K/75
53.7K/85
63.9K/100
49.7K/75
48.4K/60
56.5K/70
60.0K/75
68.7K/85
67.5K/75
68.7K/75
71.8K/76
60.0K/60
85.9K/85
64.0K/60
80.0K/75
91.1K/85
75.0K/60
81.3K/65
87.5K/70
83.6K/60
86.3K/60
90.0K/60
5-button OSD
Brightness +/- direct access
Contrast+/- direct access
Language (English, Spanish, French, German,
Italian, Chinese, Portuguese, Korean), zoom,
horizontal, vertical, pincushion,
balanced, trapezoid, parallelogram, color,
reset, degauss, moire, serial number,
resolution, frequency, sRGB
For improving the picture display of multi
media content such as photos, videos and
games. Will boost brightness and sharpness
performance on user selected areas/
windows on the screen. With automatic
detection of graphical content in Internet
Explorer for the web browsing. Can process
up to 16 area simultaneously. One-button
full screen mode. Advanced user
adjustments via Windows control panel.
Easy to use control software for Windows
98,Me. XP and 2000. Software in English,
French, German, Spanish, Italian, Portuguese,
Dutch, Chinese and Korean (for Windows
version) and English, French, German,
Spanish (for MacOS). Functionality for the
MacOS version differs from the Windows
version.
Connections and Cables
• Connections
-Video
• Cables
15-pin D-Shell
D-Sub Video cable(fixed), power cord
Regulatory approvals
•
•
•
•
•
•
•
TCO ‘99
MPR-II Low Emission
TÜV/GS,TÜV-Ergo,TÜV/9241-3
FCC-B, UL, CSA, DHHS
SEMKO, Poland-B sign, C-Tick
CE, BCIQ, PSB
NUTEK, Energy Star
Physical specifications
•
•
•
•
•
•
•
•
•
•
Dim. incl. base (WxHxD)(mm)
Dim. incl. base (WxHxD)(inch)
Dim. excl. base (WxHxD)(mm)
Dim. excl. base (WxHxD)(inch)
Weight (kg)
Power supply
Temperature (operational)
Temperature (storage)
Relative humidity
MTBF (EXCL. CRT)
440 x 447 x 441
17.3" x 17.6" x 17.3"
440 x 399 x 441
17.3" x 15.7" x 17.3"
19.4 kg
90 - 264 VAC, 50/60Hz
0°C to 40°C/ 32°F to 104°F
-25°C to 65°C/ -13°F to 149°F
5% to 95%
> 75,000 H
Other
• USB Hub option type: PCUH411
• Multimedia Base option type: 6G3B11
As an Energy Star partner, Philips has determined that this product meets the Energy Star
guidelines for energy efficiency.
Microsoft and Windows are registered trademarks of Microsoft Corporation
MacOS is a registered trademark of Apple Computer, Inc.
All trademark acknowledged. Copyright 2001 Koninklijke Philips Electronics N.V.
All data subject to change without notice
Release date: August 2002
www.pcstuff.philips.com
