www.ithaier.com

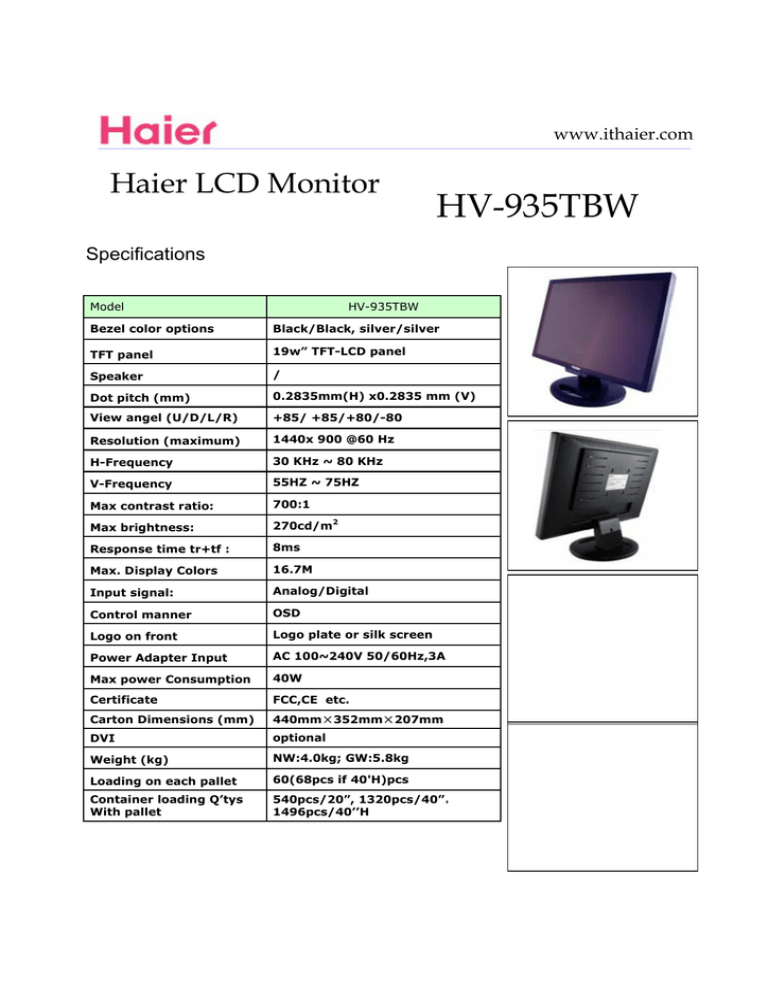

Haier LCD Monitor
HV-935TBW
Specifications
Model
HV-935TBW
Bezel color options
Black/Black, silver/silver
TFT panel
19w” TFT-LCD panel
Speaker
/
Dot pitch (mm)
0.2835mm(H) x0.2835 mm (V)
View angel (U/D/L/R)
+85/ +85/+80/-80
Resolution (maximum)
1440x 900 @60 Hz
H-Frequency
30 KHz ~ 80 KHz
V-Frequency
55HZ ~ 75HZ
Max contrast ratio:
700:1
Max brightness:
270cd/m2
Response time tr+tf :
8ms
Max. Display Colors
16.7M
Input signal:
Analog/Digital
Control manner
OSD
Logo on front
Logo plate or silk screen
Power Adapter Input
AC 100~240V 50/60Hz,3A
Max power Consumption
40W
Certificate
FCC,CE etc.
Carton Dimensions (mm)
440mm×352mm×207mm
DVI
optional
Weight (kg)
NW:4.0kg; GW:5.8kg
Loading on each pallet
60(68pcs if 40'H)pcs
Container loading Q’tys
With pallet
540pcs/20”, 1320pcs/40”,
1496pcs/40’’H
