Haier JC0670E0100 Datasheet

Haier JC0670E0100 Datasheet
www.ithaier.com

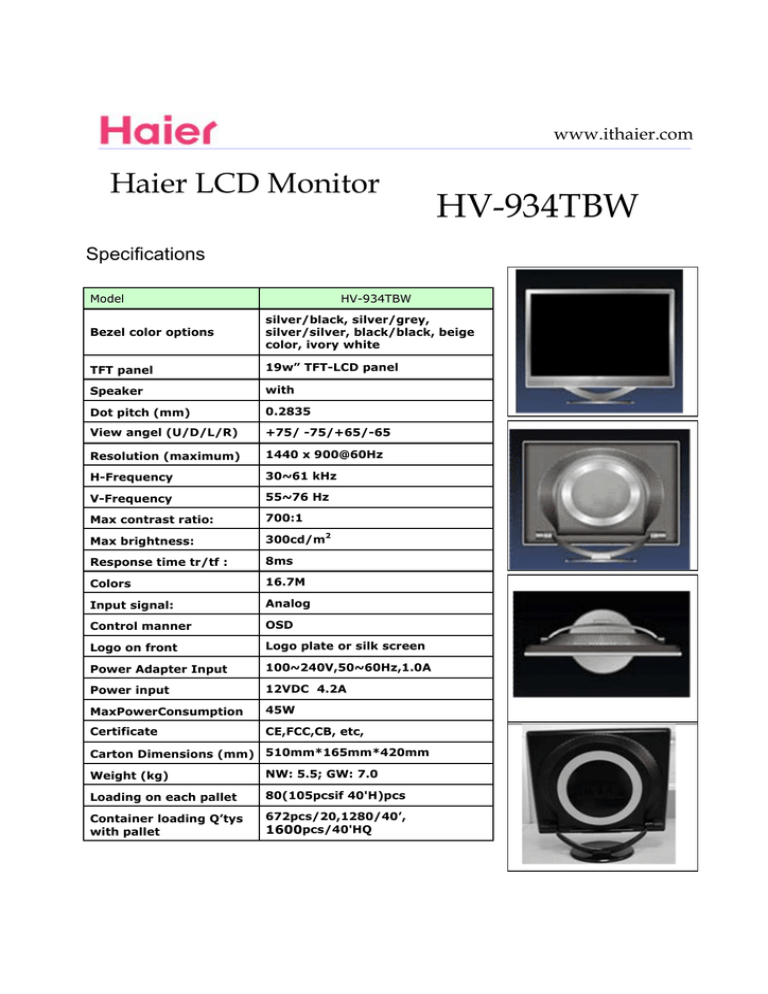

Haier LCD Monitor
HV-934TBW
Specifications
Model
HV-934TBW
Bezel color options
silver/black, silver/grey,
silver/silver, black/black, beige
color, ivory white
TFT panel
19w” TFT-LCD panel
Speaker
with
Dot pitch (mm)
0.2835
View angel (U/D/L/R)
+75/ -75/+65/-65
Resolution (maximum)
1440 x [email protected]
H-Frequency
30~61 kHz
V-Frequency
55~76 Hz
Max contrast ratio:
700:1
Max brightness:
300cd/m2
Response time tr/tf :
8ms
Colors
16.7M
Input signal:
Analog
Control manner
OSD
Logo on front
Logo plate or silk screen
Power Adapter Input
100~240V,50~60Hz,1.0A
Power input
12VDC 4.2A
MaxPowerConsumption
45W
Certificate
CE,FCC,CB, etc,
Carton Dimensions (mm) 510mm*165mm*420mm
Weight (kg)
NW: 5.5; GW: 7.0
Loading on each pallet
80(105pcsif 40'H)pcs
Container loading Q’tys
with pallet
1600pcs/40'HQ
672pcs/20,1280/40’,
