1 1 itstd-60 0 communications patch panel numbering two

1 1 itstd-60 0 communications patch panel numbering two
26.0"
26.0"
R1
R2
5U
UTP PATCH PANEL P19
FIBRE OPTIC CABLE
TERMINATION/PATCH
PANEL P1
UTP PATCH PANEL P20
UTP PATCH PANEL P21
UTP PATCH PANEL P1
UTP PATCH PANEL P22
UTP PATCH PANEL P23
UTP PATCH PANEL P2
UTP PATCH PANEL P3
UTP PATCH PANEL P24
UTP PATCH PANEL P25
UTP PATCH PANEL P8
UTP PATCH PANEL P9
UTP PATCH PANEL P10
UTP PATCH PANEL P11
UTP PATCH PANEL P12
UTP PATCH PANEL P13
UTP PATCH PANEL P14
UTP PATCH PANEL P15
UTP PATCH PANEL P16
UTP PATCH PANEL P17
UTP PATCH PANEL P26
UTP PATCH PANEL P27
UTP PATCH PANEL P28
UTP PATCH PANEL P29
UTP PATCH PANEL P30
UTP PATCH PANEL P31
UTP PATCH PANEL P32
UTP PATCH PANEL P33
UTP PATCH PANEL P34
UTP PATCH PANEL P35
UTP PATCH PANEL P36
VERTICAL CABLE MANAGEMENT
UTP PATCH PANEL P6
UTP PATCH PANEL P7
VERTICAL CABLE MANAGEMENT
VERTICAL CABLE MANAGEMENT
86.0"
UTP PATCH PANEL P4
UTP PATCH PANEL P5
UTP PATCH PANEL P18
THIS SPACE
RESERVED
FOR
UPS
THIS SPACE
RESERVED
FOR
UPS
FLOOR
NOTES:
1. WHEN MORE THAN ONE FIBER PATCH PANEL IN A RACK, THE NUMBER OF COPPER PATCH PANEL SHALL BE
REDUCED ACCORDINGLY.
2. THE FIRST FIBRE PATCH PANEL WILL ALWAYS BE 'P1' IN EACH RACK.
3. THE TOP COPPER PATCH PANEL WILL BE 'P1, CONTINUING CONSECUTIVELY ACROSS ALL RACKS.
4. CONFIRM WITH UBC IT FOR EQUIPMENT CONFIGURATION OF THE SPECIFIC COMMUNICATION ROOM.
5. ONLY 24 PORT PATCH PANELS WILL USED, MAXIMUM OF 24 PANELS IF NO UPS IN SAME RACK,
MAXIMUM 18 PANELS IF UPS IS IN SAME RACK.
6. ADJACENT RACKS WILL BE BOLTED TO EACH OTHER WITH THE APPROPRIATE VERTICAL CABLE MANAGEMENT
PANELS IN BETWEEN THEM.
Building/Facility Name
No. BY
Scale
DATE
REVISIONS
NONE
Sheet No.
UBC Project No.
1 of 1
BY
Drawn
MET
Check'd
TZ
App'd
DATE
05 MAR 04
5 FEB 14
Design'd
Approv'd
B. MACDONALD-RCDD
15 FEB 14

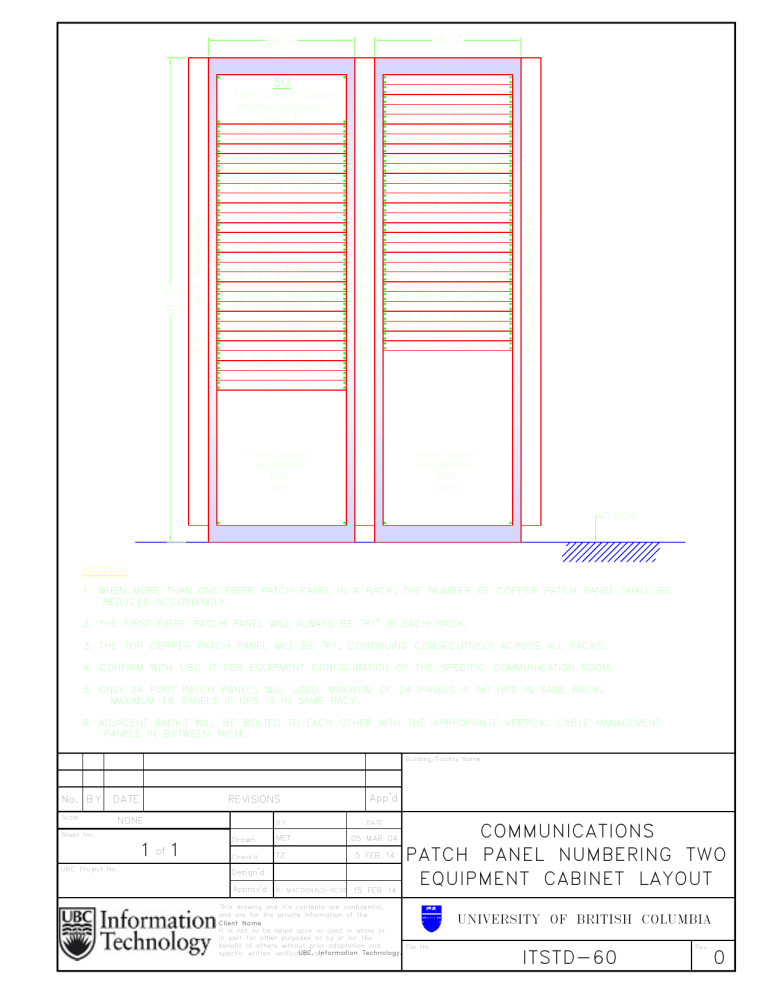

COMMUNICATIONS
PATCH PANEL NUMBERING TWO
EQUIPMENT CABINET LAYOUT
Tuum est
This drawing and it's contents are confidential,
and are for the private information of the
Client Name
It is not to be relied upon or used in whole or
in part for other purposes or by or for the
benefit of others without prior adaptation and
File No.
UBC, by
Information Technology.
specific written verification
UNIVERSITY OF BRITISH COLUMBIA
ITSTD-60
Rev.
0
