LG L1918S-SN, L1918S, 1918S-SN Datasheet

LG L1918S-SN, L1918S, 1918S-SN Datasheet

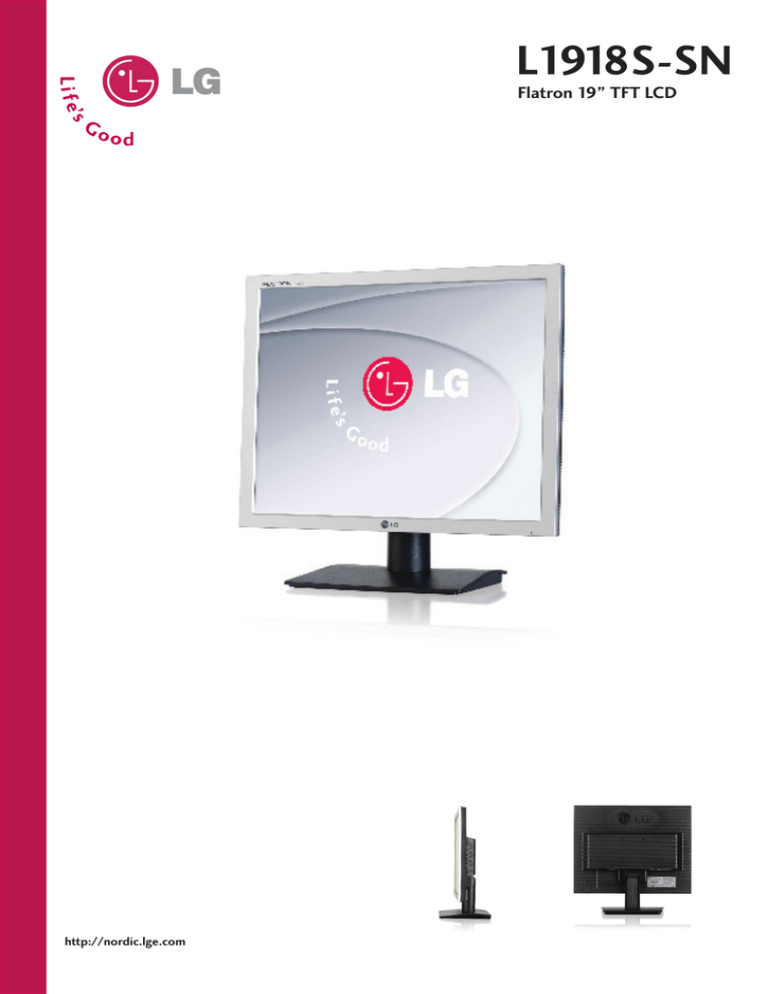

L1918S-SN
Flatron 19” TFT LCD
http://nordic.lge.com
Display type
Active Display Area
Pixel Pitch
Viewing Angle
Brightness
Contrast Ratio
Responsetime
Number of Colours
Optimum Resolution
Other Resolutions
Horizontal Frequency
Vertical Frequency
Sync
Interface
Vesa interface
Stand
Dimensions (WxHxD)
Weight
Power Supply
Power Consumption
Safety / Ergonomics
Warranty
19" TFT
376 x 301 mm
0.294 x 0.294 mm
160º/160º Horizontal / Vertical
300 cd/m²
700:1
5 ms
16.2 million
1280 x 1024 @ 75Hz
1280 x 1024, 1152 x 900, 1152 x 870,
1024 x 768, 832 x 624, 800 x 600, 640 x 480,
720 x 400, 640 x 350
30 – 83kHz
56 – 75Hz
Separate, Composite, SOG
Analog: 15-pin Mini D-Sub
Yes, 75x75 mm
Tilt, Detachable
416 x 420 x 180 mm
4 kg
90-264V Integrated power supply
33W Max On Mode, 1W Stand By Mode,
TCO-99, EPA, Energy Star, GOST, C-TICK, UL,
UL-CUL, SEMKO, FCC-B, CE, VCCI-2, TUV-GS
3 years exchange warranty
http://nordic.lge.com
Design and specifications are subject to change without notice
