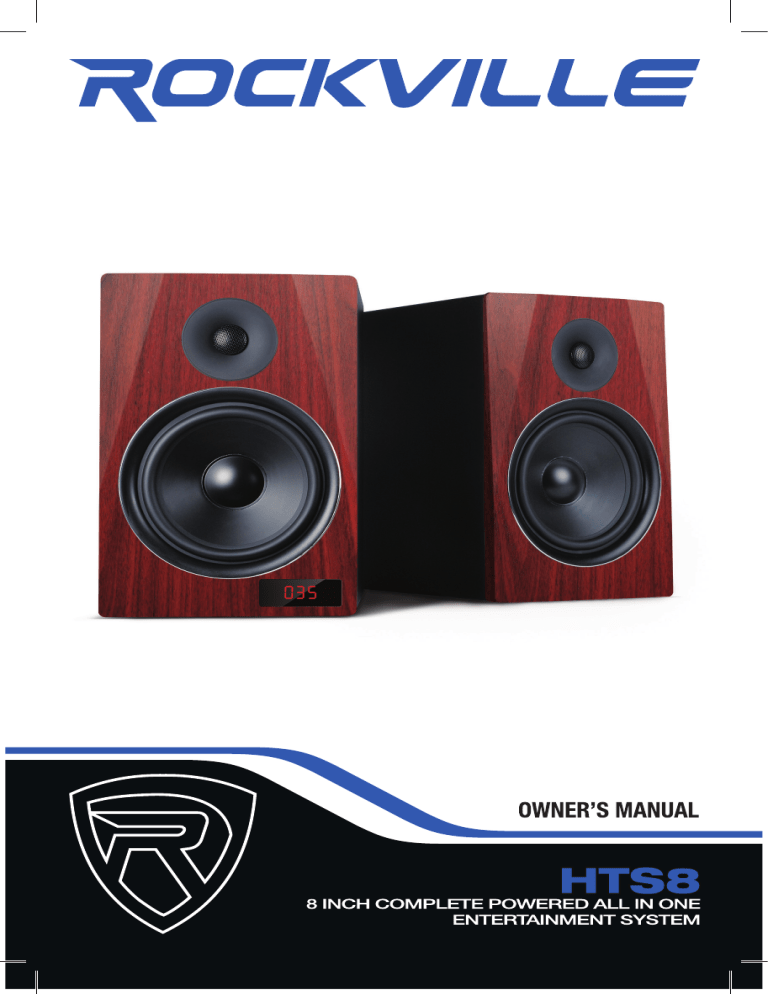

ROCKVILLE
OWNER’S MANUAL
8 INCH COMPLETE POWERED ALL IN ONE
ENTERTAINMENT SYSTEM
ROCKVILLE
Thank you for purchasing this Rockville HTS8 complete powered all in one entertainment
system.
The Rockville HTS8 is a complete all in one home theater system! You will not need to
purchase anything else. This has everything built in! Each speaker has a powerful 8°
woofer for incredible bass and a 1.5" neodymium silk dome tweeter for incredible highs.
These speakers have Bluetooth, USB, SD, FM radio, and all of the inputs and outputs
you will ever need. We also added a 4’ mic input so this system can be used for karaoke.
Unlike a lot of home theater systems, the Rockville HTS8 features a Bi-Amplifier design.
The woofer, as well as the tweeter, has an individual Frequency Optimized Amplifier
(FOA). These amps guarantee that there is no wasted energy in the amplfication stage
and an absolute minimum of harmonic dsitortion. The effciency of our class D design is in
excess of 90% with zero discernible hiss or white noise. We are one of the leading speak-
er manufacturers in the USA, and we have a state of the art manufacturing process.
Please read this installation guide carefully for proper use of your Rockville HTS8 home
theater speaker system. Should you need technical assistance please call our technical
help line at 1-646-758-0144, Monday through Friday, 9am to 5pm EST.
IMPORTANT SAFETY INSTRUCTIONS
RISK OF ELECTRIC SHOC
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE AMPLFIER
PLATE. NO USER SERVICEABLE PARTS INSIDE. WE RECOMMEND TAKING THE
UNIT TO A QUALIFIED SERVICE TECHNICIAN FOR ANY REPAIRS.
e Do not place these speakers on an unstable surface. The speaker may fall over, causing
serious injury to a child or adult and serious damage to the unit.
e Do not use these speakers near water; for example, near a bathtub, sink, in a wet base-
ment, or near a swimming pool.
e The speakers should be situated away from heat sources such as radiators, heat regis-
ters, stoves, or other devices that produce heat.
(
e These speakers should be connected to a power supply outlet of the same voltage as |
that which is specified on the amp plate of the unit. Protect the power cord from being |
walked on or pinched, particularly at plugs, convenience receptacles, and the point |
where it exits from the unit.
e Clean only with a soft damp cloth. Unplug this product from the wall outlet before |
cleaning. |
* Upon any servicing or repairs, request the service center/shop uses factory authorized
replacement parts. Replacement with unauthorized parts may result in fire, electrical
shock, or other hazards.
HTSS8
FEATURES
HTS8
* Dual 8 complete multi application speaker system
* 1000 watt powered bi-amped speakers (pair)
* RMS Power: 250 watt
* TWo-way speaker design
* Full range class “D” amplifier circuitry with auto-switching
power supply
* Quad Amp Design: Each driver features frequency specific
Independent Amplifiers
o Built-in Bluetooth with 150 foot range and perfect interference-free
sound quality
o Built-in USB playback
o Built-in SD card playback
* Supports WAV, FLAC, MP3, WMA file types
o Built-in FM radio with crystal clear reception
e Full function remote included
e Ferro fluid enhanced 1” neodymium silk dome tweeter with
metal grill protection
e Tweeter has 1” voice coil diameter
e Curved front bezel design eliminates standing wave distortion
¢ |njection molded polypropylene cone woofer
¢ Rubber woofer surrounds increases sound quality and eliminates
unwanted distortions
* Computer optimized electronic crossover network supplies
amazing sounding highs, lows, and mids
* Specially wound voice coils produce accurate response along
entire frequency spectrum
* 110 volt compatible
* One complete pair with master/slave output connection
* Includes a noise rejection cable to connect the 2 speakers together
SPECIFICATIONS
Amplifier: Class D Mono Block
Quad Amp Design: Each Driver Features Frequency Specific Independent Amplifier.
Low-Mid Frequency: 8” Polypropylene Cone with Rubber Sourround
High-Frequency: 1 Neodymium Silk Dome Tweeter
Frequency Response: 30Hz - 20kHz
SPL Peak: 106dB @1w/1m
Speaker Power Output (per pair): 250 Watts RMS/1000 Watts Peak
Power Output (per speaker): 125 Watts RMS/500 watts Peak
Tweeter Power Output: 30 Watts RMS
Speaker Impedance: 4 Ohm
Tweeter Impedance: 6 Ohm
ROCKVILLE
Low Frequency Equalization Adjustment: -4dB - +4dB
High Frequency Equalization Adjustment: -4dB - +4dB
Input Connectors: Unbalanced RCA, Balanced 1/4", Optical, 3.5mm, USB 2.0, SD
Ouput Connectors: unbalanced RCA
AC Power Input: 120V (60HZz)
Dimensions (H x W x D): 15.35” (390mm) x 9.92” (252mm) x 12.2 (310mm)
Weight: Active unit: 26 Ibs (11.8kg) Slave unit: 9 Ibs (4kg)
REAR PANEL (MASTER UNIT
© Q rockvLe
(3 HTS8
NA С N ©
= + |
-4dB e. Cs OC
\ )
0
О а
Y ce RoHS
OEI — — @
«de ©
AC IN 120V 60HZ
ОТ
© © m Pp
DESIGNED AND ENGINEERED IN THE USA
OUT TO LEFT ASSEMBLED IN CHINA
SPEAKER
© ©
о —
O —
© —
© —
© —
© —
©
. Master volume
. SD input
. USB input
. Bass level adjustment
. MP3/FM radioj controls
. Treble level adjustment
. FM antenna
. Balanced 1/4” input
. 3.5mm line input
© © NO Ov bh WN =
10. Power switch
11. Optical input
12. Unbalanced RCA input
13. Fuse compartment
14. IEC AC power socket
15. Unbalanced RCA output
16. Output to left speaker
17. LCD display
REMOTE CONTROL FUNCTIONS
(1) : power/standby
USB: select USB input
SD: select SD input
FM: enter FM radio mode
AUX: select AUX input
BT: enter Bluetooth mode
OPT: select optical input
|<< / PP : previous track/next track,
CH+ CH- Use to navigate FM stations
P|: play/pause in USB/SD/BT modes
VOL +/-: master volume control
MIC PRIORITY: microphone priority mode
REPEAT: repeat one song/repeat all songs/shuffle
MIC +/-: adjust microphone volume
ECHO +/-: adjust reverb volume
TUNE +/-: manually tune FM stations
O — 9: number pad used to direct select tracks
when in USB/SD mode
RESET: Restore factory settings
MUTE: cancel unit sound
СО
со
Q roce
\_
HTSS8
ROCKVILLE
SET UP
Place speakers in desired position. Using the included proprietary noise rejecting cable,
connect the master speaker to slave unit. Now plug the master unit to the nearest AC
outlet.
e
1
BLUETOOTH
To connect your iPod, iPhone, MP3 player, Android phone or any other Bluetooth capable
device follow the steps listed below.
=
1. Make sure the unit is plugged in and the power switch is in the ON position.
2. Press the BT button on the remote control until the digital read out shows “BT”.
3. Turn on the Bluetooth feature on your device and ensure that it is in “discoverable”
mode. Search for “Rockville” on your list of available devices and select it.
4. Listen for for the beep which indicates the devices are succesfully paired.
5. Press and hold Next/Previous track buttons on the unit's playback panel to raise or
lower the volume. You can also adjust the volume using the unit's Master volume knob
or the volume controls on your Bluetooth device. All three can be maxed out for
maximum performance without any distortion.
уния = BLUETOOTH ON
Device name
_ DEVICE
DISCOVERABLE
HTSS8
USB/SD
For USB/SD playback follow the steps listed below. Please note, the USB does not supp-
port charging. The following formats are supported: WAV/FLAC/MP3/WMA.
1. Make sure the unit is plugged in and the power switch is in the ÓN position.
2. Press the USB or SD button on the remote control to enter USB or SD mode.
3. Plug in your SD card or USB flash drive. The unit will automatically read the files and
begin playing music.
4. Use the buttons on the unit or on the remote to control music playback.
5. Press and hold Next/Previous track buttons on the unit's playback panel to raise or
lower the volume. You can also adjust the volume using the unit's Master volume knob
or the volume buttons on the remote control (please note: remote control volume
buttons control the Master volume). Both can be maxed out for maximum performance
without any distortion.
CAUTION
RISKOF ELECTRIC SHOCIO
DO NOT OPENI
ATTENTION
RCA
For playback via RCA inputs follow the steps listed below.
1. Make sure the unit is plugged in and the power switch is in the ÓN position.
2. Press the AUX button on the remote control. The digital read out should read “AUX”.
3. If multiple sources are connected, use the remote button to switch between the sources.
The RCA inputs can be used to connect stereo signal sources such as TVs, Digital set-
top boxes, game consoles, DVD players, CD, players, etc.
ROCKVILLE
LINE IN
Use the 3.5mm Line jack to connect computers, cellphones, or any other external sound
source with a 3.5mm output.
1. Make sure the unit is plugged in and the power switch is in the ON position.
2. Press the AUX button on the remote control. The digital read out should read “AUX”.
O CED
| POWER |
ON [- o OFF
AC IN 120V 60HZ
UU
DESIGNED AND ENGINEERED IN THE USA
ASSEMBLED IN CHI INA
OPTICAL
Many TVs, Digital set-top boxes, game consoles, and DVD players have optical (fiber
optic) outputs. To connect via Optical input, follow the steps listed below.
1. Make sure the unit is plugged in and the power switch is in the ON position.
2. Use a digital optical audio cable to connect the speakers to the source.
D
EE
on [- ejor
AC IN 120V 60HZ
©
Ss
zZ
Oo
CS
DESIGNED AND ENGINEERED IN THE USA
OUT TO LEFT ASSEMBLED IN GHINA
SPEAKER
(9)
FM RADIO
For FM radio follow the steps listed below.
1. Make sure the unit is plugged in and the power switch is in the ON position. Be sure to
connect the included FM antenna.
HTSS8
2. Press the FM button on the remote control. The digital read out should show numbers
(see image below).
3. While in FM mode, press the AUTO button to activate automatic station search. Use
the CH+/- buttons to manually search through stations.
ОУ
on OFF
AC IN 120V 60HZ
MIC INPUT
To use the system for karaoke connect any microphone via the 1/4” input.
O emu
| POWER |
on [Jor
AC IN 120V 60HZ
RCA OUTPUT
Use these RCA ouputs to connect a subwoofer or a second set of speakers.
XK ce me
O com
| POWER |
[er
AC IN 120V 60HZ
ROCKVILLE
TROUBLESHOOTING
PROBLEM SOLUTION
No power Make sure the unit is plugged in and the
power switch is in the ON position.
No sound 1. Make sure you've selected the proper
source.
2. For USB/SD audio make sure that
both volume controls are set properly (see
USB/SD section for volume settings).
3. For Bluetooth audio make sure that
all 3 volume controls are set proper-
ly (see Bluetooth section for volume
settings).
Bluetooth pairing fails
1. Check to see that both devices are
turned on and that your Bluetooth
device is discoverable.
2. Turn both devices off and then on
again.
3. Make sure you've selected the proper
source.
4. Make sure that the Bluetooth device
is within 5 feet of the unit.
5. Move both devices away from other
Bluetooth devices, microwaves, wireless
routers, and other electronics.
6. Make sure that all 3 volume controls
are set properly (see Bluetooth section
for volume settings).
7. Make sure that the unit is not paired
to a previously paired device.
Files on SD or USB memory device will
not play back
1. Make sure you've selected the proper
source.
2. Make sure that the audio files are
in the specified format (see Features
section).
No sound when receiving TV input
1. Select proper audio option from TV.
2. If using RCA cables, make sure that
they are plugged into the output jacks
of the TV and the input jacks of the
speaker.
HTSS8
FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION
Responsible party name: Rockville
Address: 600 Bayview Ave,
Entrance A,
Inwood, NY 11096
Hereby declares that the product Rockville HTS8 complete powered all in one entertain-
ment system complies with FCC rules as mentioned in the following paragraph:
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against hamful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
e Reorient or relocate the receiving antenna.
e Increase the separation between the equipment and receiver.
e Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
e Consult the dealer or an experienced radio/TV technician for help.
ROCKVILLE
RockvilleAudio.com
O 2017 ROCKVILLE // Features and specifications are subject to change and or improvement without notice.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
