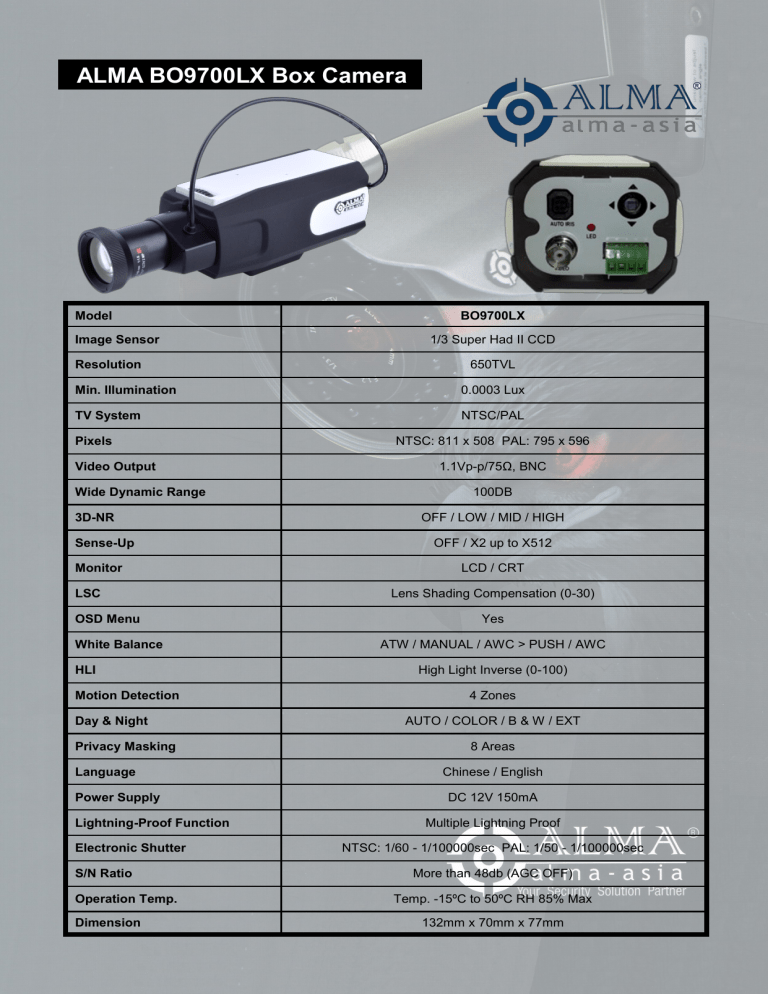

ALMA BO9700LX Box Camera

ALMA BO9700LX Box Camera
ALMA BO9700LX Box Camera
Model
Image Sensor
Resolution
BO9700LX
1/3 Super Had II CCD
650TVL
Min. Illumination
0.0003 Lux
TV System
NTSC/PAL
Pixels
Video Output
Wide Dynamic Range
3D-NR
Sense-Up
Monitor
LSC
OSD Menu
White Balance
HLI
Motion Detection
Day & Night
Privacy Masking
Language
Power Supply
Lightning-Proof Function
Electronic Shutter
S/N Ratio
Operation Temp.
Dimension
NTSC: 811 x 508 PAL: 795 x 596
1.1Vp-p/75Ω, BNC
100DB
OFF / LOW / MID / HIGH
OFF / X2 up to X512
LCD / CRT
Lens Shading Compensation (0-30)
Yes
ATW / MANUAL / AWC > PUSH / AWC
High Light Inverse (0-100)
4 Zones
AUTO / COLOR / B & W / EXT
8 Areas
Chinese / English
DC 12V 150mA
Multiple Lightning Proof
NTSC: 1/60 - 1/100000sec PAL: 1/50 - 1/100000sec
More than 48db (AGC OFF)
Temp. -15ºC to 50ºC RH 85% Max
132mm x 70mm x 77mm
