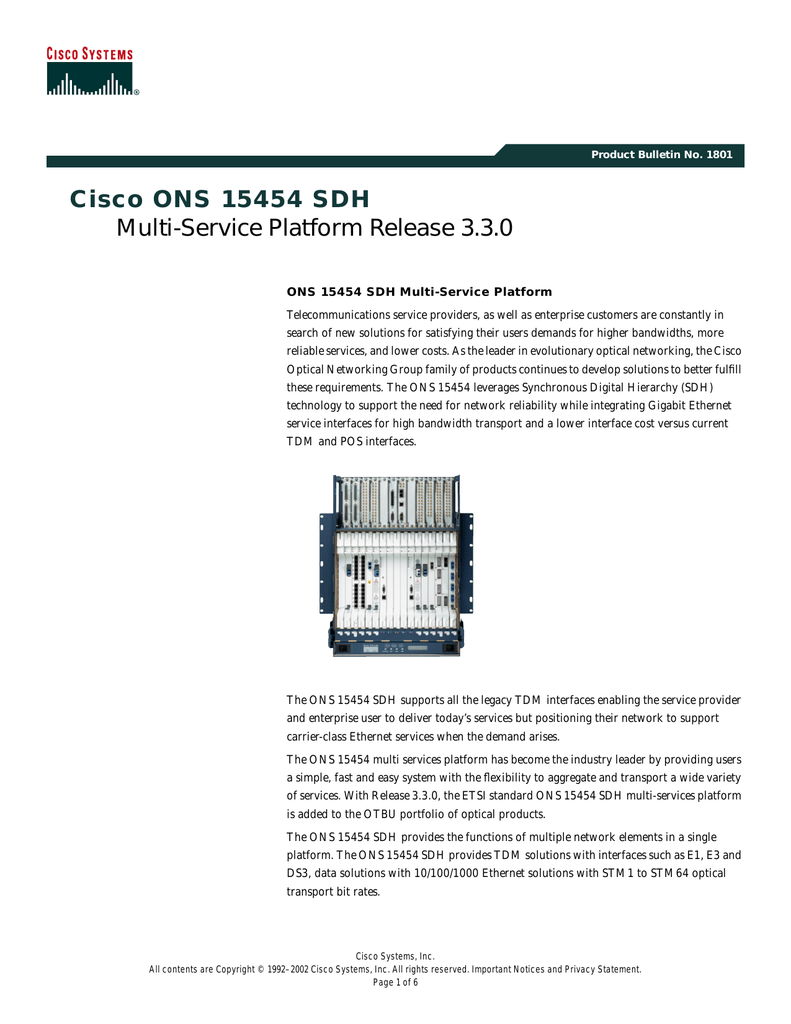

Cisco ONS 15454 SDH
Multi-Service Platform Release 3.3.0
ONS 15454 SDH Multi-Service Platform
Telecommunications service providers, as well as enterprise customers are constantly in
search of new solutions for satisfying their users demands for higher bandwidths, more
reliable services, and lower costs. As the leader in evolutionary optical networking, the Cisco
Optical Networking Group family of products continues to develop solutions to better fulfill
these requirements. The ONS 15454 leverages Synchronous Digital Hierarchy (SDH)
technology to support the need for network reliability while integrating Gigabit Ethernet
service interfaces for high bandwidth transport and a lower interface cost versus current
TDM and POS interfaces.
The ONS 15454 SDH supports all the legacy TDM interfaces enabling the service provider
and enterprise user to deliver today’s services but positioning their network to support
carrier-class Ethernet services when the demand arises.
The ONS 15454 multi services platform has become the industry leader by providing users
a simple, fast and easy system with the flexibility to aggregate and transport a wide variety
of services. With Release 3.3.0, the ETSI standard ONS 15454 SDH multi-services platform
is added to the OTBU portfolio of optical products.
The ONS 15454 SDH provides the functions of multiple network elements in a single
platform. The ONS 15454 SDH provides TDM solutions with interfaces such as E1, E3 and
DS3, data solutions with 10/100/1000 Ethernet solutions with STM1 to STM64 optical
transport bit rates.
Cisco Systems, Inc.
All contents are Copyright © 1992–2002 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 1 of 6
The ONS 15454 SDH supports the following industry leading capabilities:
• Aggregation and transport of services from E1 to STM64
• Switched 10/100/1000Mbps Ethernet for improved bandwidth utilization
• Flexible networking support including rings, linear point-to point, linear add/drop, star, and hybrid topologies
• Restoration choices: SNCP, 2-fiber and 4-fiber MS SPR, 1+1 APS, unprotected span, and Cisco’s Path Protected Mesh Networking
(PPMN)
• Compact footprint for deployment flexibility (3 can fit in a 2000mm ETSI rack/cabinet).
• Carrier Class Reliability
The ONS 15454 SDH continues to extend its capabilities to enable customers to build efficient networks. As well, Cisco continues to deliver
carrier class equipment through high quality engineering methodologies and our continued compliance to standards.
Gigabit Ethernet
Gigabit Ethernet is becoming widely deployed in the enterprise market space, as Ethernet LANs to the desktop have scaled in bandwidth
from 10Mbps to 100Mbps. Enterprise customers are looking to extend Gigabit Ethernet to interconnect their facilities across town or across
the nation. As well, Service Providers want to leverage the cost effectiveness of the Gigabit Ethernet interfaces to interconnect their core and
edge routers. The E10/100-12 and E1000-2 modules address this requirement.
The G1000-4 Gigabit Ethernet transport card opens up new applications and network architectures for enterprise users for interconnecting
data facilities and revenue opportunities for Service Providers. Service Providers looking to offer new service tariffs leveraging the ubiquitous
Gigabit Ethernet interface adds the capability to transport full line-rate Gigabit Ethernet services, with carrier-class survivability and the
reliability of SDH.
Figure 1
ONS 15454 SDH Multi-Service Platform Applications Overview
Cisco 12000
Voice
Switch
Cisco MGX/BPX
M
Cisco
ONS 15800
V
Cisco ONS 15454
All Services
One Network!
E-1
E-3
DS-3
STM-1 to 64
DWDM
10/100 Ethernet
Gigabit Ethernet
STM1/4/16/64 Rings
Cisco ONS 15454
Hub
STM1/4/16/64 Rings
STM16ELR DWDM
with 15216
Cisco Systems, Inc.
All contents are Copyright © 1992–2002 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 2 of 6
ONS 15454 SDH Release 3.3.0 New Equipment
The new hardware and software being introduced in Release 3.3.0 is outlined in the following table:
Software and Documentation
15454E-R3.3.0SWCD
ONS 15454 AU4 Release Feature Package 3.3.0 CD
15454E-DOC3.3.0CD
ONS 15454 AU4 System Doc Rel. 3.3.0, CD, English
15454E-DOC3.3.0PP
ONS 15454 AU4 System Doc Rel. 3.3.0, Paper, English
SF15454E-R3.3.0
Release 3.3.0 Software, Pre-loaded on each TCCI
CISCO15454E
Assemble to Order (ATO) MODEL—required options include: Shelf Chassis Assembly, 48VDC Fan
Tray Assembly w/Fan Filter, Power/Alarm MIC and Craft MIC and Ship Kit. Other items are
configurable options as required.
Common Control
15454E-XC-10G
SDH AU4 Cross-connect Module: High-Order VC4
15454E-TCC-I
Intl E1/2.048Kbps/T1 timing, common controller
Shelf Assemblies and Accessories
15454E-SA-ETSI
ONS 15454 SDH ETSI Chassis and Ship Kit
15454E-FTA-48V
ONS 15454 SDH 48V Fan Tray with filter for ETSI Chassis
15454E-ETSI-FTF
ONS 15454 SDH Fan Tray Filter
15454E-AIR-RAMP
ONS 15454 SDH Air Ramp/Baffle for the ETSI Chassis
15454E-CTP-MIC48V
ONS15454SDH Craft, Timing, 48V Power, Timing and Management interface connectors
15454E-AP-MIC48V
ONS15454SDH Alarm,48V Power and Alarm interface connectors
15454E-ETSI-SHPKT
ONS 15454 SDH ETSI Chassis Ship Kit
15454E-FIBER-BOOT
ONS 15454 SDH ETSI Chassis Fiber Boots
15454E-BLANK
15454 ETSI Blank Module (Slot Filler)
15454E-BLANK-FMEC
15454 ETSI Blank Module for FMEC (Slot Filler)
15454E-19MNT-KIT
15454 ETSI Shelf Mounting Adapter Kit for 19 inch ANSI Racks
Optical Interfaces
15454E-S1.1-4
4 port STM-1 SH 1310nm
15454E-S4.1-1
1 port STM-4 SH 1310nm
15454E-L4.1-1
1 port STM-4 LH 1310nm
15454E-L4.2-1
1 port STM-4 LH 1550nm
15454E-S16.1-1
1 port STM-16 SH (Any Slot) 1310nm
15454E-L16.2-1
1 port STM-16 LH (Any Slot) 1550nm
15454E-L64.2-1-HS
1 port STM-64 LH (High Speed Slot) 1550nm
ITU Grid Optical Interfaces
15454E-EL16HS4772
1 port STM-16 Extended LH (High Speed Slot) 1547.72nm
15454E-EL16HS4932
1 port STM-16 Extended LH (High Speed Slot) 1549.32nm
15454E-EL16HS5092
1 port STM-16 Extended LH (High Speed Slot) 1550.92nm
Cisco Systems, Inc.
All contents are Copyright © 1992–2002 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 3 of 6
15454E-EL16HS5252
1 port STM-16 Extended LH (High Speed Slot) 1552.52nm
15454E-EL16HS5413
1 port STM-16 Extended LH (High Speed Slot) 1554.13nm
15454E-EL16HS5575
1 port STM-16 Extended LH (High Speed Slot) 1555.75nm
15454E-EL16HS5736
1 port STM-16 Extended LH (High Speed Slot) 1557.36nm
15454E-EL16HS5898
1 port STM-16 Extended LH (High Speed Slot) 1558.98nm
15454E-EL16HS6061
1 port STM-16 Extended LH (High Speed Slot) 1560.61nm
15454E-EL16HS3033
1 port STM-16 Extended LH (High Speed Slot) 1530.33nm
15454E-EL16HS3190
1 port STM-16 Extended LH (High Speed Slot) 1531.90nm
15454E-EL16HS3347
1 port STM-16 Extended LH (High Speed Slot) 1533.47nm
15454E-EL16HS3504
1 port STM-16 Extended LH (High Speed Slot) 1535.04nm
15454E-EL16HS3661
1 port STM-16 Extended LH (High Speed Slot) 1536.61nm
15454E-EL16HS3819
1 port STM-16 Extended LH (High Speed Slot) 1538.19nm
15454E-EL16HS3977
1 port STM-16 Extended LH (High Speed Slot) 1539.77nm
15454E-EL16HS4135
1 port STM-16 Extended LH (High Speed Slot) 1541.35nm
15454E-EL16HS4294
1 port STM-16 Extended LH (High Speed Slot) 1542.94nm
Electrical Interfaces
15454E-E1N-14
14 port E1 Module (1:N<=4)—need FMEC
15454E-75E1-FMEC
14 port E1 75 ohm FMEC (T54)
15454E-120E1-FMEC
14 port E1 120 ohm FMEC (DBx)
15454E-DS3IN-12
12 port DS3 Module (1:N<=4)—need FMEC
15454E-E3-12
12 port E3 Module (1:1 only)—need FMEC
15454E-E3DS3-FMEC
12 port E3/DS3 75 ohm FMEC (T54)
15454E-GBIC-SX
1000-Base-SX GBIC
15454E-GBIC-LX
1000-Base-LX GBIC
15454E-GBIC-ZX
1000-Base ZX GBIC for G1000 only, –5 to +50 degC
Data Equipment
15454E-G1000-4
4 port Gigabit Ethernet Module—need GBICs
15454E-E100T-12
12 port 10/100BT Ethernet Module
15454E-E1000-2
2 port Gigabit Ethernet Module—need GBICs
Cable Assemblies
15454E-T54CBL-010
10 Meter 75 Ohm T54 Cable, Single Ended
15454E-T54CBL-020
20 Meter 75 Ohm T54 Cable, Single Ended
15454E-T54CBL-035
35 Meter 75 Ohm T54 Cable, Single Ended
15454E-DBCBL-010
10Meter 120Ohm Twisted Pr Cable,DB37-Male, Single End
15454E-DBCBL-020
20Meter 120Ohm Twisted Pr Cable,DB37-Male, Single End
15454E-DBCBL-035
35Meter 120Ohm Twisted Pr Cable,DB37-Male, Single End
Cisco Systems, Inc.
All contents are Copyright © 1992–2002 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 4 of 6
15454E-120TMGCBL
75ohm to 120ohm converter cable for Timing
15454E-PWRCBL-010
10Meter, 8 AWG, 3 Conductor, Single Ended Power Cable
15454E-PWRCBL-020
20Meter, 8 AWG, 3 Conductor, Single Ended Power Cable
15454E-PWRCBL-035
35Meter, 8 AWG, 3 Conductor, Single Ended Power Cable
15454E-ALMCBL-010
10Meter Twisted Pair Alarm Cable, HDB-64Male,Single End
15454E-ALMCBL-020
20Meter Twisted Pair Alarm Cable, HDB-64Male,Single End
15454E-ALMCBL-035
35Meter Twisted Pair Alarm Cable, HDB-64Male,Single End
Availability
The ONS 15454 SDH is presently orderable and it is anticipated that First Customer Shipment (FCS) will be in late May 2002.
Demonstrations
Cisco welcomes you to come see the ONS 15454 SDH metro optical transport platform, including the R3.3.0 capabilities at our Telecom
Valley Visitor Center (TVVC) in Petaluma, California or at a Worldwide Executive Briefing Center (EBC) located in Mexico City Mexico,
Monza Italy, Sydney Australia and Beijing China. To arrange a visit, please contact your account representative.
Summary
The ONS 15454 SDH multi service platform is a flexible system, enabling a single network element to be deployed in a wide variety of
applications. The platform’s features and functionality continues to make it simple to engineer, with a minimal set of configuration rules.
Questions regarding advanced features, functionality and capabilities of the ONS 15454 SDH system should be directed to your Cisco
account representative.
The ONS 15454 SDH platform delivers integrated optical networking, unprecedented multi-service interfaces along with radical economics.
The ONS 15454 platform is widely adopted and is deployed by over 700 customers representing >30,000 network elements. Continued
product developments and enhancements, such as the line-rate G1000-4 card, have enabled the ONS 15454 SDH to increase its lead in the
metro optical transport space. Providing an evolutionary platform, the ONS 15454 SDH meets both enterprise and service provider metro
transport equipment needs by providing support for their present multi-service interface demands along with efficient data transport plus
low life cycle costs. These capabilities help reduce networking costs and improve service provider profitability through compatibility with
their existing, embedded transport and management infrastructures while positioning them to seamlessly offer enhanced data and higher
bandwidth services over a common infrastructure.
Additional Information
For additional information see: http://www.cisco.com
Or contact your Cisco account representative.
