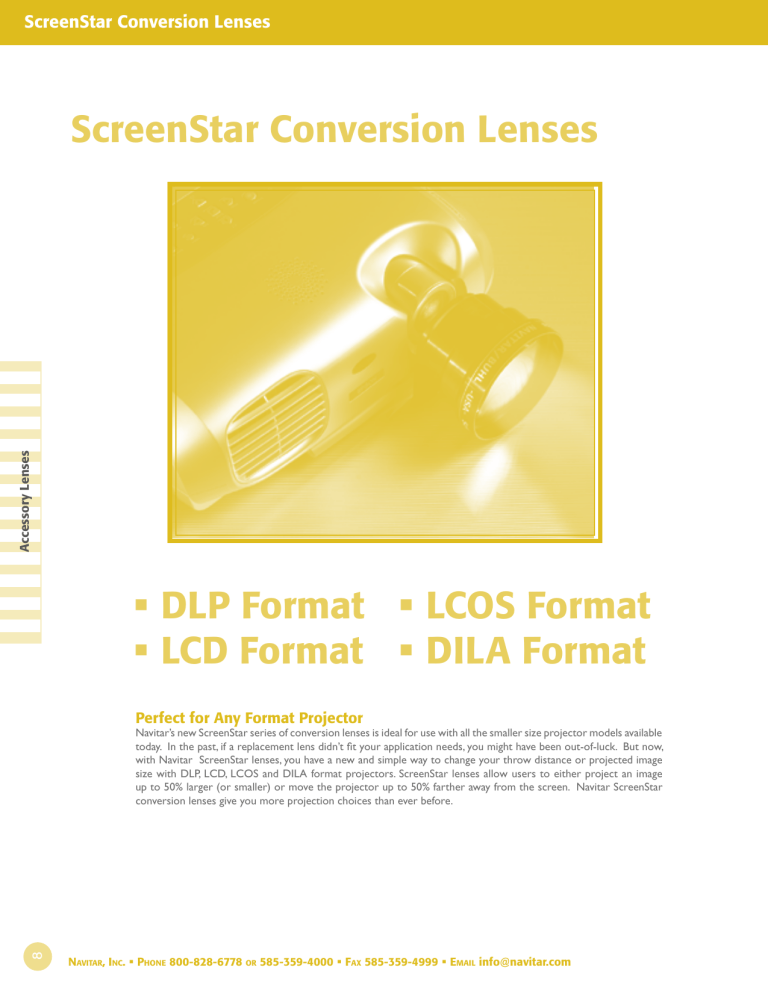

ScreenStar Conversion Lenses
Accessory Lenses
ScreenStar Conversion Lenses
 DLP Format  LCOS Format
 LCD Format  DILA Format
Perfect for Any Format Projector
8
Navitar’s new ScreenStar series of conversion lenses is ideal for use with all the smaller size projector models available
today. In the past, if a replacement lens didn’t fit your application needs, you might have been out-of-luck. But now,
with Navitar ScreenStar lenses, you have a new and simple way to change your throw distance or projected image
size with DLP, LCD, LCOS and DILA format projectors. ScreenStar lenses allow users to either project an image
up to 50% larger (or smaller) or move the projector up to 50% farther away from the screen. Navitar ScreenStar
conversion lenses give you more projection choices than ever before.
NAVITAR, INC.  PHONE 800-828-6778 OR 585-359-4000  FAX 585-359-4999  EMAIL [email protected]
ScreenStar Conversion Lenses
Navitar’s New ScreenStar Wide-angle and
Long-throw Conversion Lenses
Navitar is proud to offer our latest advance in DLP and LCD video
projector accessory lenses.The new 0.65X and 0.8X wide-angle and
1.2X and 1.5X telephoto conversion lenses allow users to easily
change the picture size (up to 50% larger or smaller) or throw
distance (50% farther away) for almost any size format projector.
Accessory Lenses
Left: 0.5” LCD format projector. Right: 0.70” DLP format projector.
For Example:
The ScreenStar wide-angle 0.8X conversion lens fits easily in front
of the standard lens and allows the user to achieve up to a 20%
wider picture on the screen without having to move the projector.
Or, the user could move the projector 20% closer and get the same
image size. Consider that the typical DLP format projector user
could get a 96” diagonal picture at the same distance where they
might have only been able to achieve an 80” diagonal picture in a
front projection, ceiling mount or rear projection application.
Our ScreenStar telephoto 1.2X conversion lens also fits easily
in front of the standard lens. It allows the user to project a 20%
smaller image or move the projector up to 20% farther away from
the screen and still achieve the desired picture size. Home theater
interior designers often prefer to locate the projector at the back
of the room rather than placing it overhead in the middle of the
room. For example, a DLP projector user can achieve a 120” diagonal picture from a distance of 18-24’ as opposed to a distance
of 15-20’ with the projector’s standard lens.
NAVITAR, INC.  PHONE 800-828-6778 OR 585-359-4000  FAX 585-359-4999  EMAIL [email protected]
9
These lenses are available for projector brands such as InFocus,
Sharp, Epson, Sony, Panasonic, Hitachi, Optoma, JVC, Mitsubishi,
Sanyo, Eiki and more.
Quick Reference Guide - Replacement Lenses
Replacement Lenses
Focal Length in Inches
Focal Length in Millimeters
0.9" Panel
LCD Projector
0.7" Panel
DLP Projector
1.0"
25.4
2.0-2.75" 2.75-5.0"
70-125
50-70
Quick Reference Guide
0.7"
18
1"
25.4
1.2"
30
2.0-2.75" 2.75-5.0"
70-125
50-70
Wide-Angle
5.2-8.7"
132-220
1"
25.4
1.2" Panel
LCD Projector
1.35" Panel
LCD Projector
(16:9 Wide Screen Format)
Wide-Angle
1"
25
1.2"
30
Zoom
2.75-5.0" 5.2-8.7"
70-125 132-220
1.2"
30
2.4"
60
Zoom
2.0-2.75" 2.75-5.0" 5.2-8.7"
50-70
70-125 132-220
6.0-9.0"
150-230
1.3" Panel
LCD Projector
Zoom
4.49-7.72"
114-196
10
Zoom
Wide-Angle
Zoom
Wide-Angle
0.99" Panel
LCD Projector
7.38-12.36"
184-314
Wide-Angle
Zoom
1" 1.2"
25.4 30
1.28-1.8" 2.75-5.0" 4.56-7.29" 5.2-8.7" 6.0-9.0" 7.38-12.3"
32.5-45.7 70-125 115-185 132-220 150-230 187-312
1.8" Panel
LCD Projector
1.4" Panel
LCD Projector
Zoom
Wide-Angle
Zoom
4.49-7.72" 5.2-8.7" 7.38-12.3"
114-196 132-220 187-312
1.5"
38
4.56-7.29" 6.0-9.0" 7.38-12.3"
115-185 150-230 187-312
NAVITAR, INC.  PHONE 800-828-6778 OR 585-359-4000  FAX 585-359-4999  EMAIL [email protected]
1.8" Panel
Large Venue
Zoom
4.49-7.72" 7.25-12.38"
184-314
114-196
Quick Reference Guide - Conversion Lenses
ScreenStar Conversion Lenses
NAVITAR, INC.  PHONE 800-828-6778 OR 585-359-4000  FAX 585-359-4999  EMAIL [email protected]
11
Quick Reference Guide
ScreenStar Conversion Lenses: Perfect for any format projector!
