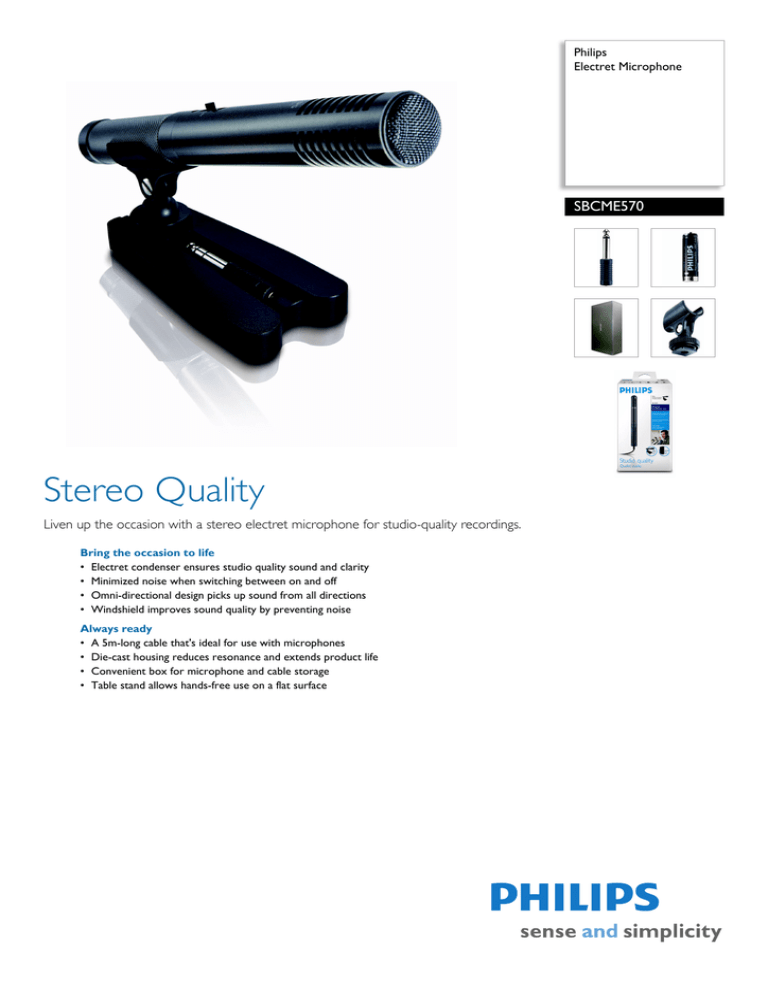

Philips SBCME570/00 Datasheet

Philips SBCME570/00 Datasheet
Electret Microphone
Stereo Quality
Liven up the occasion with a stereo electret microphone for studio-quality recordings.
Bring the occasion to life
• Electret condenser ensures studio quality sound and clarity
• Minimized noise when switching between on and off
• Omni-directional design picks up sound from all directions
• Windshield improves sound quality by preventing noise
Always ready
• A 5m-long cable that's ideal for use with microphones
• Die-cast housing reduces resonance and extends product life
• Convenient box for microphone and cable storage
• Table stand allows hands-free use on a flat surface
Electret Microphone
Product highlights
Frequency response: 50 - 18 000 Hz
Impedance: 600
Polar pattern: Omni directional
Sensitivity microphone: -45 dB +/- 3 dB
Type: Electret
14.3 x 28.9 x 7.4 cm
• Nett weight: .29 kg
• Gross weight: .59 kg
• Tare weight: .3 kg
Outer Carton
• Cable length: 3 m
• Connector: 3.5 - 6.3 mm mono
Inner Carton
• Battery type: AA
• Battery voltage: 1.5 V
• Number of batteries: 1
Packaging dimensions
Outer carton (L x W x H): 55.5 x 47.5 x 39 cm
Nett weight: 5.1 kg
Gross weight: 14 kg
Tare weight: 8.9 kg
Inner carton (L x W x H): 46 x 27 x 9.2 cm
Nett weight: .65 kg
Gross weight: 1.9 kg
Tare weight: 1.25 kg
• Packaging dimensions (W x H x D):
Electret condenser
The sensitive electret condenser picks up every acoustic
details for perfect sound reproduction and studio quality.
Low noise switch
You'll not hear any annoying 'clicks' when switching this
microphone on and off.
Omni-directional design
This microphone's sensor is equally sensitive to sound
from all directions.
The integrated windshield prevents disturbing noises from
wind gusts or breathing too close to the microphone.
5m microphone cable
Give yourself extra freedom of movement when using
your microphone.
Die-cast metal alloy body
The tough metal body not only withstands rough
handling, but also reduces resonance. The benefit is a
longer operational life and a better reproduction.
Microphone storage box
The safe and convenient way to store your microphone
and cable after use.
Table stand
This sturdy stand securely holds the microphone in place
on any flat surface.
Issue date 2009-02-12
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 2.0.4
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 9082 100 00525
EAN: 87 10101 67951 8
