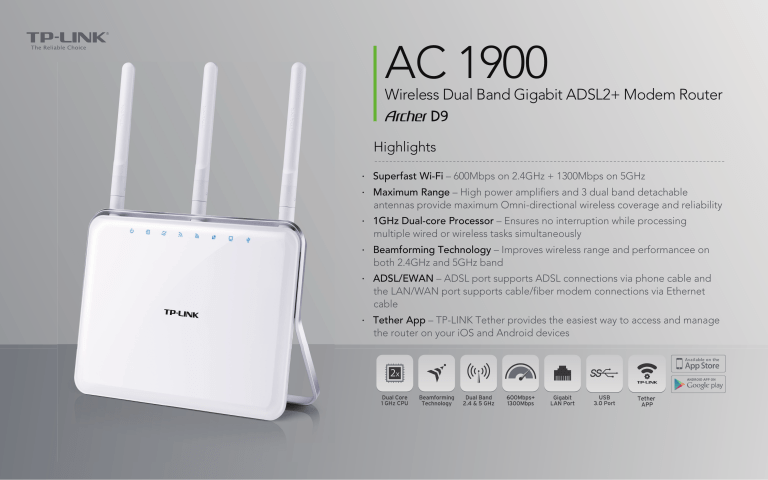

AC 1900
Wireless Dual Band Gigabit ADSL2+ Modem Router
Highlights
· Superfast Wi-Fi – 600Mbps on 2.4GHz + 1300Mbps on 5GHz
· Maximum Range – High power amplifiers and 3 dual band detachable
antennas provide maximum Omni-directional wireless coverage and reliability
· 1GHz Dual-core Processor – Ensures no interruption while processing
multiple wired or wireless tasks simultaneously
· Beamforming Technology – Improves wireless range and performancee on
both 2.4GHz and 5GHz band
· ADSL/EWAN – ADSL port supports ADSL connections via phone cable and
the LAN/WAN port supports cable/fiber modem connections via Ethernet
cable
· Tether App – TP-LINK Tether provides the easiest way to access and manage
the router on your iOS and Android devices
Features
Speed
· Blazing Fast Wireless Speed – Combined wireless
speeds up to 1.9Gbps at 2.4GHz & 5GHz band
concurrently
· Support 802.11 ac – Offering 3 times faster data
rate than 802.11n in a single stream
· Dual-core Processor – 1GHz dual-core processor
boosts data transfer rate
· Gigabit Wired Speed – Full shielded gigabit ports
ensure ultrafast data transfer speeds
Wi-Fi Range
Reliability
· Ultimate Range & Reliable Wi-Fi –
High-powered amplifiers ensure continuous
Wi-Fi signal to all your devices while boosting
widespread converage throughout your very
large home
· Simultaneous Dual Band – Reduces interference
for more stable connections
· QoS – Advanced QoS automatically recognizes &
prioritizes streaming & gaming applications
· 3 Dual Band Antennas – 3 dual band detachable
antennas provide maximum Omni-directional
wireless coverage
· Beamforming Technology – Archer D9’s
beamforming technology extends wireless
coverage by boosting signal strength
AC1900 Wireless Dual Band Gigabit ADSL2+ Modem Router
Features
Easy Sharing
· Dual USB Ports for Fast Sharing – With one
ultra-fast USB 3.0 port and one USB 2.0 port, you
can access and share a printer as well as your files
and media locally. Via the router’s FTP server, you
can also have access to your files & media with
networked devices remotely
· 10x Faster Transfer Speed – The USB 3.0 port
provides up to 10x faster USB hard drive access
than earlier USB 2.0 connections
· Built-in Print Server – Supports wireless printing
from multiple computers (works in conjunction
with a USB Printer)
Ease of Use
Security
· Hassle-free Management with Tether App –
Tether App allows easy network management at
your fingertips
· 3-Step Quick Installation – Easy Setup Assistant
supporting multiple languages provides a quick &
hassle free installation
· Built-in Intelligent Auto-detection – Automatically
figuring out which connection type to use in a
flash, saving the trouble of searching for
connection information
· Fast Encryption – Easy one-touch WPA wireless
security encryption with the WPS button
· Guest Network Access – Guest Network Access
provides secure Wi-Fi access for guests
· Parental Control – Establish restricted access
policies for all connected devices
· Easy Bandwidth Management – IP-based
Bandwidth Control makes it easier for you to
manage the bandwidth of connected devices
· VPN Support – Secure access to your home or
office network from remote devices
· SPI and NAT Firewall – Protects end-user devices
from potential attacks from the Internet
· Built-in Media Server – Allows users to play music,
video and view photos
AC1900 Wireless Dual Band Gigabit ADSL2+ Modem Router
Beamforming Technology
For Laser-Focused Wi-Fi
Tether App
Easy Network Management at Your Fingertips
Beamforming concentrates the Wi-Fi signal towards your devices,
focusing the data transmission toward the most-needed directions.
Superior Wi-Fi bandwidth utilization increases Wi-Fi range, delivering
highly targeted and efficient Wi-Fi connections.
TP-LINK Tether provides the easiest way to access and manage the
router on your iOS and Android devices. From Setup to Parental
Control, Tether provides a simple, intuitive user interface to see
what the status of your router is, who’s online and what their
privileges are. TP-LINK Tether is going to be adaptable to more
router models.
Archer D9
Beamforming
Other AC1900 Router
AC1900 Wireless Dual Band Gigabit ADSL2+ Modem Router
Specifications
Hardware
Wireless
· Ethernet Ports: 3 10/100/1000Mbps RJ45 LAN Ports, 1 10/100/1000Mbps
RJ45 WAN/LAN Port, 1 RJ11 Port
· USB Ports: 1 USB 3.0 Port + 1 USB 2.0 Port
· Button: WPS Button, Reset Button, Wireless On/Off Button, Power On/Off Button
· External Power Supply: 12V/3.3A
· Dimensions (W x D x H): 8.7 x 3.4 x 6.6 in. (221 x 86 x 168.5mm)
· IEEE Standards: IEEE 802.3, 802.3u, 802.3ab
· ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT),
TU-TG.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1
· ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis)
· ADSL2+ Standards: ITU-T G.992.5
· Antenna Type: 3 external detachable dual band antennas (RP-SMA)
· Antenna Gain: 3 x 2dBi for 2.4GHz and 3 x 3dBi for 5GHz
ADSL Wi-Fi On/Off
USB 2.0 Port
Reset
Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency: 2.4GHz and 5GHz
Signal Rate: 1300Mbps at 5GHz, 600Mbps at 2.4GHz
Transmit Power: <20dBm(EIRP)
Wireless Function: Enable/Disable Wireless Radio, WDS Bridge, WMM,
Wireless Statistics
· Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, Wireless MAC Filtering
· Wireless Schedule: Support 2.4GHz and 5GHz Wireless Schedule
·
·
·
·
·
Power On/Off Power
WPS USB 3.0 Port Gigabit Ethernet
Connect to computers, TVs
and game consoles
AC1900 Wireless Dual Band Gigabit ADSL2+ Modem Router
Specifications
Software
Others
· Operation Modes: ADSL Modem Router, Wireless Router
· DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
· Quality of Service: ATM QoS, Traffic Control(IP QoS)
· Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
· Dynamic DNS: DynDns, NO-IP
· VPN Passthrough: PPTP, L2TP, IPSec Passthrough
· ATM/PPP Protocols: ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483
Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
· Security: NAT Firewall, Access Control, MAC / IP / URL Filtering, Denial of
Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
· Advanced Functions: Parental Control, Network Address Translation(NAT),
Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,
DDNS, IGMP V1/V2/V3
· USB Sharing: Support Samba(Storage)/FTP Server/Media Server/Printer
Server
· Management: Web Based Configuration(HTTP), Remote management,
command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based
Firmware Upgrade, Diagnostic Tools
· Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1
· IPSec VPN: Supports up to 10 IPSec VPN tunnels
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
Package Contents
AC 1900 Wireless Dual Band Gigabit ADSL2+ Modem Router Archer D9
External Splitter
RJ-11 Telephone Cable
RJ-45 Ethernet Cable
Resource CD
Power Adapter
Quick Installation Guide
Certification
CE, FCC, RCM, RoHS
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an Internet Service Provider (for Internet access)
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
· Protocols: Supports IPv4 and IPv6
AC1900 Wireless Dual Band Gigabit ADSL2+ Modem Router
Others
Ideal to use with
AC1200 Wireless Dual Band
USB Adapter
Archer T4U
Similar Products
AC1200 High Gain Wireless
Dual Band USB Adapter
Archer T4UH
AC1750 Wireless Dual Band
Gigabit ADSL2+ Modem Router
Archer D7
AC1200 Wireless Dual Band
Gigabit ADSL2+ Modem Router
Archer D5
For more information, please visit
http://www.tp-link.com/en/products/details/?categoryid=&model=Archer+D9
or scan the QR code left
Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK Technologies CO., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK Technologies CO., Ltd.
Maximum wireless speed of up to 1900Mbps is the theoretical data rate derived from IEEE standard 802.11 specifications. Actual data throughput and wireless coverage will vary due to network conditions and environmental factors including volume of network traffic, building materials and construction, network overhead.
TP-LINK makes no express or implied representations or warranties about this product’s compatibility with any future standards. 802.11ac 1300Mbps is approximately 3 times faster than 802.11n 450Mbps. 2.4GHz Performance Mode requires 256 QAM support on Wi-Fi client.
