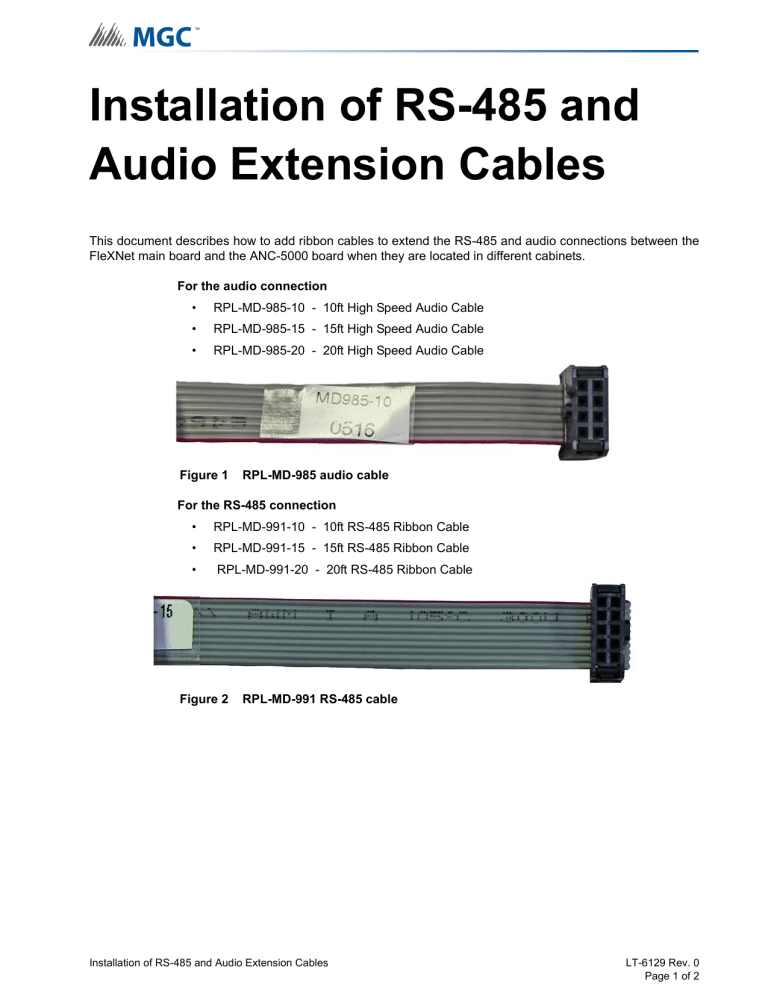

Installation of RS-485 and
Audio Extension Cables
This document describes how to add ribbon cables to extend the RS-485 and audio connections between the
FleXNet main board and the ANC-5000 board when they are located in different cabinets.
For the audio connection
•
RPL-MD-985-10 - 10ft High Speed Audio Cable
•
RPL-MD-985-15 - 15ft High Speed Audio Cable
•
RPL-MD-985-20 - 20ft High Speed Audio Cable
Figure 1
RPL-MD-985 audio cable
For the RS-485 connection
•
RPL-MD-991-10 - 10ft RS-485 Ribbon Cable
•
RPL-MD-991-15 - 15ft RS-485 Ribbon Cable
•
RPL-MD-991-20 - 20ft RS-485 Ribbon Cable
Figure 2
RPL-MD-991 RS-485 cable
Installation of RS-485 and Audio Extension Cables
LT-6129 Rev. 0
Page 1 of 2
Connect RPL-MD-985
audio cable to
H_Speed Audio
Connect RPL-MD-991
RS-485 cable to
RS-485 IN
Figure 3
Connections on ANC-5000
Connect RPL-MD-991
1
RS-485 cable to P3
Connect RPL-MD-985
audio cable to P16
Figure 4
Connections on FX-2000 main board
Installation of RS-485 and Audio Extension Cables
LT-6129 Rev. 0
Page 2 of 2
