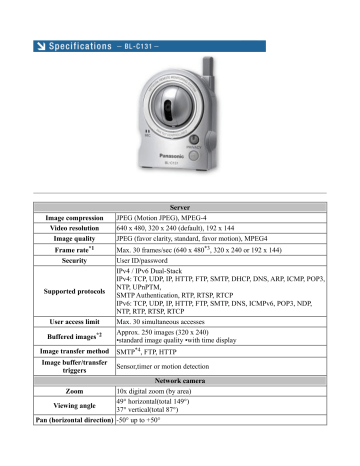

MPEG-4 Video resolution 640 x 480, 320 x 240 (default), 192 x 144

MPEG-4 Video resolution 640 x 480, 320 x 240 (default), 192 x 144
Image compression
Video resolution
Image quality
Frame rate*1
Security
Supported protocols
User access limit
Buffered images*2
Server
JPEG (Motion JPEG), MPEG-4
640 x 480, 320 x 240 (default), 192 x 144
JPEG (favor clarity, standard, favor motion), MPEG4
Max. 30 frames/sec (640 x 480*3, 320 x 240 or 192 x 144)
User ID/password
IPv4 / IPv6 Dual-Stack
IPv4: TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, POP3,
NTP, UPnPTM,
SMTP Authentication, RTP, RTSP, RTCP
IPv6: TCP, UDP, IP, HTTP, FTP, SMTP, DNS, ICMPv6, POP3, NDP,
NTP, RTP, RTSP, RTCP
Max. 30 simultaneous accesses
Approx. 250 images (320 x 240)
•standard image quality •with time display
Image transfer method
SMTP*4, FTP, HTTP
Image buffer/transfer
triggers
Sensor,timer or motion detection
Network camera
Zoom
10x digital zoom (by area)
49° horizontal(total 149°)
Viewing angle
37° vertical(total 87°)
Pan (horizontal direction) -50° up to +50°
Tilt (vertical direction)
-40° up to +10°
Pan: max. 50°/sec
Tilt: max. 50°/sec
Sensor type
1/6 inch CMOS sensor, approx. 320,000 pixels
Lens focal point
Fixed (focal range: 0.3 m to ∞)
Lens brightness
F2.8
Required light intensity 10 to 10,000 lux (in color night view mode: 3 to 10,000 lux)
Audio
Audio communication One-way communication
Audio compression
ADPCM 32 kbps
Audio bandwidth
300 Hz - 3.4 kHz
Audio input
Built-in microphone
Wireless
Standards
IEEE 802.11 b/g
Antenna
Diversity
Number of channel
11ch. (USA), 13ch. (Others)
Transmission speed
Up to 54 Mbps.
Security
SSID, WEP (64/128/152 bit), WPA-PSK (TKIP), WPA2-PSK (AES)
Terminal
Network interface
Ethernet (10Base-T/100Base-TX)
General
Operating temperature +5°C to +40°C (+41°F to +104°F)
Operating humidity
20% to 80% (no condensation)
98 x 74 x 73 mm
Dimensions (H x W x D)
(3 7/8 x 2 15/16 x 2 7/8 inches)
Weight (only the unit) 210 g (0.46 lb)
Input: 220 - 240 V AC
Power supply (E)
output: 9 V DC
Input: 100 - 240 V AC
Power supply (CE)
output: 9 V DC
Input: 120 V AC
Power supply (US)
output: 9 V DC
Consumption
6.0 W
*1 The frame rate may slow down depending on the network environment, PC
performance, image quality, SD memory recording, when color night view
mode is activated, etc.
*2 The maximum number of frames changes depending on the resolution and
image quality.
*3 30 frames/second is not possible when viewing MJPEG images at 640 ×
480 resolution.
Revolving speed
Your PC and network must meet the following technical specifications in order
for the camera to function properly.
Item
Requirement
For IPv4 Connection
Microsoft® Windows® XP
Operating
Microsoft® Windows® 2000
system
For IPv6 Connection
Microsoft® Windows® XP Service Pack 1 or later
CPU
Celeron 2.0 GHz or faster is recommended.
For IPv4 Connection
TCP/IP protocol (HTTP, TCP, UDP, IP, DNS, ARP, ICMP)
Protocol
For IPv6 Connection
TCP/IP protocol (HTTP, TCP, UDP, IP, DNS, ICMPv6, NDP)
Interface 10/100 Mbps network card
Wireless
IEEE 802.11b/g (Embedded)
interface
Web browser Internet Explorer® 6.0 or later (not included)
PC speaker or headphones (required to use the
Audio
listen feature)
For Windows® XP
Windows Media® Player 9 or later (not included;
required to view camera images buffered in MPEG-4
Additional
format)
software
For Windows® 2000
Windows Media® Player 9 (not included; required to
view camera images buffered in MPEG-4 format)
