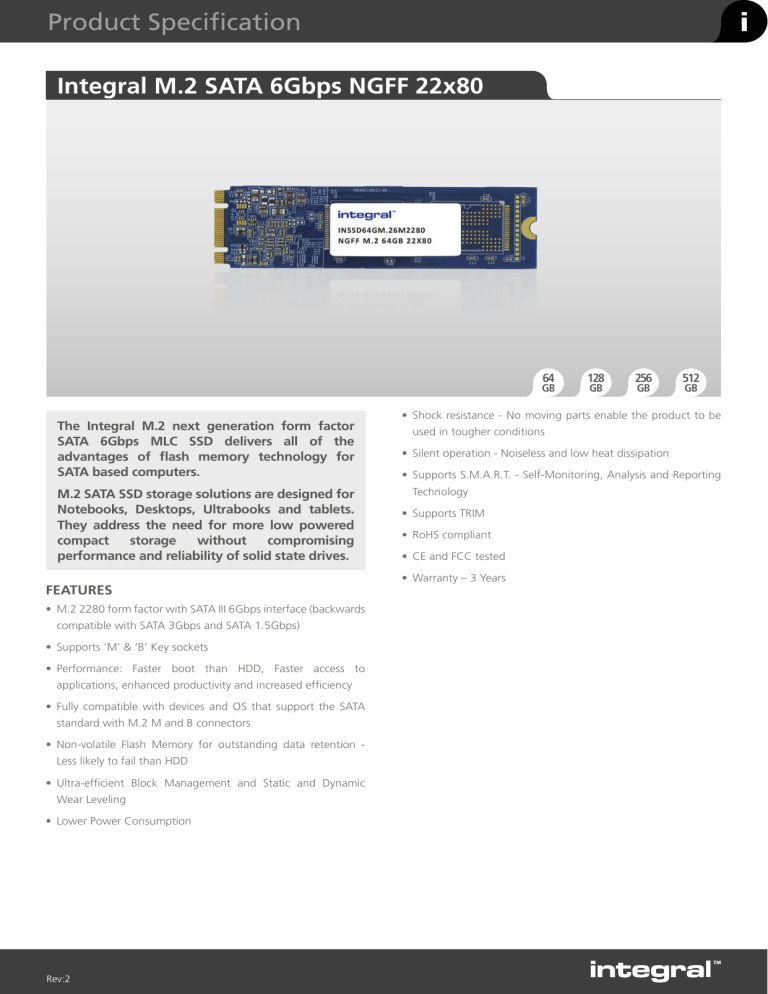

Product Specification
Product Specification
i
i
Integral M.2 SATA 6Gbps NGFF 22x80
64
GB
The Integral M.2 next generation form factor
SATA 6Gbps MLC SSD delivers all of the
advantages of flash memory technology for
SATA based computers.
M.2 SATA SSD storage solutions are designed for
Notebooks, Desktops, Ultrabooks and tablets.
They address the need for more low powered
compact
storage
without
compromising
performance and reliability of solid state drives.
FEATURES
• M.2 2280 form factor with SATA III 6Gbps interface (backwards
compatible with SATA 3Gbps and SATA 1.5Gbps)
• Supports ‘M’ & ‘B’ Key sockets
• Performance: Faster boot than HDD, Faster access to
applications, enhanced productivity and increased efficiency
• Fully compatible with devices and OS that support the SATA
standard with M.2 M and B connectors
• Non-volatile Flash Memory for outstanding data retention Less likely to fail than HDD
• Ultra-efficient Block Management and Static and Dynamic
Wear Leveling
• Lower Power Consumption
Rev:2
128
GB
256
GB
512
GB
• Shock resistance - No moving parts enable the product to be
used in tougher conditions
• Silent operation - Noiseless and low heat dissipation
• Supports S.M.A.R.T. - Self-Monitoring, Analysis and Reporting
Technology
• Supports TRIM
• RoHS compliant
• CE and FCC tested
• Warranty – 3 Years
Product Specification
i
i
PERFORMANCE Sequential Speed (up to)
64GB
128GB
256GB
512GB
PERFORMANCE Sequential Speed (up to)
Read
530MB/s (up to)*
3 years
Write
430MB/s (up to)*
*Based on internal testing
Read
530MB/s (up to)*
Write
430MB/s (up to)*
Read
530MB/s (up to)*
Write
430MB/s (up to)*
Read
560MB/s (up to)*
Write
530MB/s (up to)*
CAPACITY
INTERFACE
Interface
NAND
Form Factor
Standard
Power Consumption (mW)
5055288427419
128GB
INSSD128GM.26M2280
5055288427402
256GB
INSSD256GM.26M2280
5055288427587
512GB
INSSD512GM.26M2280
5055288429369
1GB = 1,000,000,000 bytes. Formatted capacity is less.
SATA III 6Gbps
II
Also Compatible with SATA
3Gbps and SATA 1.5Gbps
MLC
This device should not be used as your sole backup.
Product design and specification subject to change or modification without notice. E&OE.
All trademarks acknowledged.
For warranty information please visit www.integralmemory.com/warranty
M.2 22x80 ‘M’ & ‘B’ Key
connector
M.2 (previously known as Next
Generation Form Factor (NGFF))
3.3V
Read: 64GB = 1465 / 128GB =
1760 / 256GB = 1960 / 512GB =
2023
Write: 64GB = 1260 / 128GB =
1410 / 256GB = 1730 / 512GB
= 3357
Idle = 285
ECC algorithm
Can correct up to 120 bits error
in 2 kByte
MTBF
>2 Million Hours
ENVIRONMENTAL
Operating Temp
0° to +70°C
Non - Operating Temp
-40° to +85°C
Humidity
RH 90% under 40C in operation
Supports SMART Software
Yes
Supports TRIM
Yes (OS support required)
Compliancy
CE, FCC, RoHS
PHYSICAL
Length
80mm
Width
22mm
Height
3.8mm
Weight
6g
Length (Packed)
11.5mm
Width (Packed)
13.2mm
Height (Packed)
5.7mm
Weight (Packed)
56g
WARRANTY
Rev:2
BARCODE (EAN)
INSSD64GM.26M2280
POWER CONSUMPTION
Supply Voltage
PART CODE
64GB
