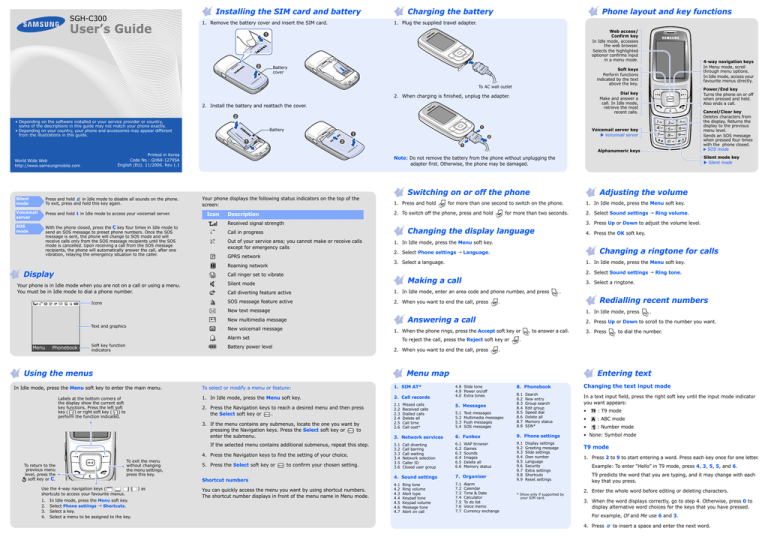

Installing the SIM card and battery SGH-C300 User’s Guide 1. Remove the battery cover and insert the SIM card. Charging the battery Phone layout and key functions 1. Plug the supplied travel adapter. Web access/ Confirm key In Idle mode, accesses the web browser. Selects the highlighted optionor confirms input in a menu mode. Battery cover To AC wall outlet 2. Install the battery and reattach the cover. Battery Silent mode Press and hold in Idle mode to disable all sounds on the phone. To exit, press and hold this key again. Voicemail server Press and hold 1 in Idle mode to access your voicemail server. SOS mode With the phone closed, press the C key four times in Idle mode to send an SOS message to preset phone numbers. Once the SOS message is sent, the phone will change to SOS mode and will receive calls only from the SOS message recipients until the SOS mode is cancelled. Upon receiving a call from the SOS message recipients, the phone will automatically answer the call, after one vibration, relaying the emergency situation to the caller. Alphanumeric keys Note: Do not remove the battery from the phone without unplugging the adapter first. Otherwise, the phone may be damaged. Your phone displays the following status indicators on the top of the screen: Icon 1. Press and hold Icons Adjusting the volume for more than one second to switch on the phone. for more than two seconds. Changing the display language Call in progress Out of your service area; you cannot make or receive calls except for emergency calls GPRS network 4. Press the OK soft key. Changing a ringtone for calls 2. Select Phone settings → Language. 3. Select a language. 1. In Idle mode, press the Menu soft key. 2. Select Sound settings → Ring tone. Making a call Silent mode 3. Select a ringtone. Call diverting feature active 1. In Idle mode, enter an area code and phone number, and press SOS message feature active 2. When you want to end the call, press . Redialling recent numbers . 1. In Idle mode, press Answering a call New multimedia message New voicemail message Phonebook Soft key function indicators To reject the call, press the Reject soft key or Battery power level 2. When you want to end the call, press Using the menus To select or modify a menu or feature: 1. In Idle mode, press the Menu soft key. Labels at the bottom corners of the display show the current soft key functions. Press the left soft key ( ) or right soft key ( ) to perform the function indicated. 2. Press the Navigation keys to reach a desired menu and then press the Select soft key or . 3. If the menu contains any submenus, locate the one you want by to pressing the Navigation keys. Press the Select soft key or enter the submenu. If the selected menu contains additional submenus, repeat this step. 4. Press the Navigation keys to find the setting of your choice. To return to the previous menu level, press the soft key or C. To exit the menu without changing the menu settings, press this key. Use the 4-way navigation keys ( shortcuts to access your favourite menus. 1. 2. 3. 4. to answer a call. 3. Press In Idle mode, press the Menu soft key. Select Phone settings → Shortcuts. Select a key. Select a menu to be assigned to the key. ) as 5. Press the Select soft key or to confirm your chosen setting. Shortcut numbers You can quickly access the menu you want by using shortcut numbers. The shortcut number displays in front of the menu name in Menu mode. 1. SIM AT* 2. Call records 2.1 2.2 2.3 2.4 2.5 2.6 Missed calls Received calls Dialled calls Delete all Call time Call cost* . Entering text 4.8 Slide tone 4.9 Power on/off 4.0 Extra tones 5. Messages 5.1 5.2 5.3 5.4 Text messages Multimedia messages Push messages SOS messages 8. Phonebook Changing the text input mode 8.1 8.2 8.3 8.4 8.5 8.6 8.7 8.8 In a text input field, press the right soft key until the input mode indicator you want appears: Search New entry Group search Edit group Speed dial Delete all Memory status SDN* 3. Network services 6. Funbox 9. Phone settings 3.1 3.2 3.3 3.4 3.5 3.6 6.1 6.2 6.3 6.4 6.5 6.6 9.1 9.2 9.3 9.4 9.5 9.6 9.7 9.8 9.9 Call diverting Call barring Call waiting Network selection Caller ID Closed user group WAP browser Games Sounds Images Delete all Memory status 4. Sound settings 7. Organiser 4.1 4.2 4.3 4.4 4.5 4.6 4.7 7.1 7.2 7.3 7.4 7.5 7.6 7.7 Ring tone Ring volume Alert type Keypad tone Keypad volume Message tone Alert on call to dial the number. . Menu map In Idle mode, press the Menu soft key to enter the main menu. . 2. Press Up or Down to scroll to the number you want. 1. When the phone rings, press the Accept soft key or Alarm set Menu 2. Select Sound settings → Ring volume. 1. In Idle mode, press the Menu soft key. New text message Text and graphics 1. In Idle mode, press the Menu soft key. 3. Press Up or Down to adjust the volume level. Received signal strength Call ringer set to vibrate Your phone is in Idle mode when you are not on a call or using a menu. You must be in Idle mode to dial a phone number. Silent mode key X Silent mode Switching on or off the phone 2. To switch off the phone, press and hold Description Roaming network Display Cancel/Clear key Deletes characters from the display. Returns the display to the previous menu level. Sends an SOS message when pressed four times with the phone closed. X SOS mode Voicemail server key X Voicemail server Printed in Korea Code No.: GH68-12795A English (EU). 11/2006. Rev.1.1 World Wide Web http://www.samsungmobile.com Power/End key Turns the phone on or off when pressed and held. Also ends a call. Dial key Make and answer a call. In Idle mode, retrieve the most recent calls. 2. When charging is finished, unplug the adapter. • Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly. • Depending on your country, your phone and accessories may appear different from the illustrations in this guide. 4-way navigation keys In Menu mode, scroll through menu options. In Idle mode, access your favourite menus directly. Soft keys Perform functions indicated by the text above the key. Alarm Calendar Time & Date Calculator To do list Voice memo Currency exchange Display settings Greeting message Slide settings Own number Language Security Extra settings Shortcuts Reset settings * Show only if supported by your SIM card. • : T9 mode • : ABC mode • : Number mode • None: Symbol mode T9 mode 1. Press 2 to 9 to start entering a word. Press each key once for one letter. Example: To enter “Hello” in T9 mode, press 4, 3, 5, 5, and 6. T9 predicts the word that you are typing, and it may change with each key that you press. 2. Enter the whole word before editing or deleting characters. 3. When the word displays correctly, go to step 4. Otherwise, press 0 to display alternative word choices for the keys that you have pressed. For example, Of and Me use 6 and 3. 4. Press to insert a space and enter the next word. Sending an SMS message ABC mode Press the keys labelled with the character you want: Quick feature reference 1. In Idle mode, press the Menu soft key. - once for the first character This section provides brief explanations of features on your phone. 2. Select Messages → Text messages → Write new. Feature Description Select - and so on. 3. Enter the message text. Use the SIM service Menu > SIM AT For example, press 2 three times to enter “C” and 5 two times to enter “K.” 4. Press the Options soft key and add items using the following options: Use a variety of additional services offered by your service provider. View recent calls View the most recent calls you have dialled, received, or missed. Menu > Call records > Missed calls, Received calls, Dialled calls Delete recent calls Delete the call logs in each call type, or all logs at once. Menu > Call records > Delete all Call time display Menu > Call records > Call time 5. Press the Options and select Send only, Save and send, or Save only. View the duration of recent calls you have dialled and received. Also reset the time counter. Call cost display View the cost of your calls. Menu > Call records > Call cost Tips for entering text 6. If you select Save and send or Save only, select a memory location. • To move the cursor, press the Navigation keys. Network services Access network services offered by your service provider. Menu > Network services 7. Enter destination numbers. Select ringtone and volume Select a ringtone for incoming calls, or a volume level. Menu > Sound settings > Ring tone or Ring volume Alert type Select an alert type for the call ringer. - twice for the second character • Add objects: add sounds, images, or animated images. Number mode • Add templates: add text templates. Press the keys corresponding to the digits you want. • Add emoticon: add emoticons. • Add phonebook: add Phonebook contacts. Symbol mode • Add bookmark: add bookmark items. Press the number keys corresponding to the symbol you want and press the OK soft key. You can press Up or Down to display more symbols. • To delete characters one by one, press C. To clear the display, press and hold C. • To insert a space between characters, press . • To change case in T9 mode or ABC mode, press 8. Press the Options soft key and select Send message to send the message. . Menu > Sound settings > Alert type Feature Description Select Select key tone Select a tone which the phone sounds when you press a key. Menu > Sound settings > Keypad tone Select key volume Adjust the keypad volume. Menu> Sound settings > Keypad volume Select message tone Select the alert ringtone for incoming SMS, MMS, and broadcast messages, or set how often you are informed of a new message. Menu > Sound settings > Message tone Alert on call Set the phone to alert you when you receive a new message or when the time for an alarm comes during a call. Menu > Sound settings > Alert on call Slide tone Select the tone that the phone sounds when you open or close the phone. Menu > Sound settings > Slide tone Power on/ off tone Select the melody that the phone sounds when it is switched on or off. Menu > Sound settings > Power on/off Extra tones Set additional tones for the phone. Menu > Sound settings > Extra tones Read SMS or MMS messages Read received, sent, or saved messages. Menu > Messages > Text messages or Multimedia messages > Inbox, Outbox, or Draft • To enter punctuation marks in T9 mode or ABC mode, press 1. Feature Description Select Feature Description Select Feature Description Select Feature Description Select Send SMS or MMS messages Create and send messages to other mobile phones. Menu > Messages > Text messages or Multimedia messages > Write new MMS profile Select or configure a connection profile to be used for MMS. Menu > Messages > Multimedia messages > MMS profile Time and date Set the current time and date manually. Menu > Organiser > Time & Date Speed dial Menu > Phonebook > Speed dial Message templates Preset templates of frequently used messages or emoticons. Menu > Messages > Text messages or Multimedia messages > Templates or Emoticon templates Push messages Change the settings for the service, and access or delete push messages. Menu > Messages > Push messages Automatic time update Menu > Organiser > Time & Date > Auto update Delete Phonebook contacts Delete all Phonebook contacts stored in the phone’s memory, on the SIM card, or both. Menu > Phonebook > Delete all SOS messages Activate the SOS messages feature. Enter recipients and select the repeat mode. Menu > Messages > SOS messages Set your phone to update the current time automatically when you travel abroad. Time information may not be updated when you move to one time zone to another within a country. Assign speed dial numbers (2 to 9) for eight of your most frequently dialled numbers. Calculator Perform basic arithmetic functions. Menu > Organiser > Calculator Phonebook memory status View the total number of Phonebook contacts in the phone’s memory or on the SIM card. Menu > Phonebook > Memory status Web browser Launch and configure the web browser. Menu > Funbox > WAP browser Task list Create a list of tasks and assign a deadline to each task. Menu > Organiser > To do list Access games, sounds, images in your phone’s memory. Menu > Funbox > Games, Sounds, Images, Voice memo Record voice memos and listen them. Menu > Organiser > Voice memo Access the list of service numbers assigned by your service provider. (Shows only if supported by your SIM card.) Menu > Phonebook > SDN Access media files SDN(Service Dialling Numbers) Delete all media files Delete games, sounds, images in each media box, or all media files at once. Menu > Funbox > Delete all Currency converter Do currency conversions. Menu > Organiser > Currency exchange Display settings Change settings for the display and backlight. Search for contacts in Phonebook. Funbox memory status Check the amount of memory in use for games, sounds and images. Menu > Funbox > Memory status Find a contact Menu > Phonebook > Search Menu > Phone settings > Display settings Add a new contact Add a new contact to Phonebook. Menu > Phonebook > New entry Greeting message Enter the greeting message to be displayed when the phone is switched on. Menu > Phone settings > Greeting message Alarm Set an alarm to sound at a specific time. Menu > Organiser > Alarm Search group Search for Phonebook contacts in caller groups. Menu > Phonebook > Group search Slide settings Menu > Phone settings > Slide settings Calendar Keep track of daily or monthly schedules. Menu > Organiser > Calendar Change properties of a caller group Select a ringtone for incoming calls and messages from members of a group. Also change the group name. Menu > Phonebook > Edit group Use this menu to set how the phone reacts when you open it for an incoming call, and when you close it while using a function. Check your own phone numbers Check your phone numbers or assign a name to them. Menu > Phone settings > Own number Messaging options Set options for using messaging services. Menu > Messages > Text messages or Multimedia messages > Settings or Setup Delete messages Delete messages in each message box, or all messages at once. Menu > Messages > Text messages or Multimedia messages > Delete all Message memory status Check memory information for messages. Menu > Messages > Text messages or Multimedia messages > Memory status Voicemail Access your voicemail server and listen to messages on the network. Menu > Messages > Text messages > Voice mail Broadcast message Change settings for the service and access broadcast messages. Menu > Messages > Text messages > Broadcast Feature Description Select Display language Select a language to be used for the display text. Menu > Phone settings > Language Security Protect the phone against unauthorised use. Menu > Phone settings > Security Mobile Tracker Track your phone when it is stolen or lost. When someone tries to use your phone with other SIM card, the phone will automatically send the preset tracking message to your family or friends. Menu > Phone settings > Security > Mobile tracker Extra settings Set the automatic redialling feature or the answering method. Menu > Phone settings > Extra settings Switching off near all medical equipment Hospitals and health care facilities may be using equipment that could be sensitive to external RF energy. Follow any regulations or rules in force. Menu shortcuts Set the Navigation keys as shortcuts to access your favourite menus directly. Menu > Phone settings > Shortcuts Interference All wireless phones may be subject to interference, which could affect their performance. Reset the phone Reset the phone to the factory default settings. Menu > Phone settings > Reset settings Special regulations Follow any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it. Important safety precautions Small children and your phone Keep the phone and all its parts including accessories out of reach of small children. Read these guidelines before using your wireless phone. Failure to comply with them may be dangerous or illegal. Drive safely at all times Do not use a hand-held phone while driving; park the vehicle first. Switching off when refuelling Do not use the phone at a refuelling point (service station) or near fuels or chemicals. Switching off in an aircraft Wireless phones can cause interference. Using them in an aircraft is both illegal and dangerous. Water resistance Your phone is not water-resistant. Keep it dry. Sensible use Use only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on. Emergency calls Key in the emergency number for your present location, then press the call until given permission to do so. . Do not end Accessories and batteries Use only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage your phone and may be dangerous. CAUTION Risk of explosion if a battery is replaced by an incorrect type. Dispose used batteries according to the instructions. At very high volume, prolonged listening to a headset can damage your hearing. Qualified service Only qualified service personnel may repair your phone. SAR information Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the European Union (EU) Council. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety standards that were developed by independent scientific organisations through periodic and through evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless phones employs a unit of measurement known as Specific Absorption Rate (SAR). The SAR limit set by the EU Council is 2.0W/kg. The highest SAR value for this model phone was 0.476 W/kg. Declaration of Conformity (R&TTE) Model description: Portable Cellular Telephone (GSM 900/1800) Model name: SGH-C300 Manufactured at: Samsung Electronics Co., Ltd, 94-1, Imsoo-Dong, Gumi City, Kyung-Buk, Korea, 730-350* to which this declaration relates, is in conformity with the following standards and/or other normative documents. Safety : EN 60950-1:2001 EMC : EN 301 489-01 v1.4.1 (08-2002) : EN 301 489-07 v1.2.1 (08-2002) SAR : EN 50360:2001 : EN 50361:2001 Network : EN 301 511 v9.0.2 (03-2003) We hereby declare that [all essential radio test suites have been carried out and that] the above named product is in conformity to all the essential requirements of Directive 1999/5/ EC. The conformity assessment procedure referred to in Article 10 and detailed in Annex[IV] of Directive 1999/5/EC has been followed with the involvement of the following Notified Body(ies): BABT, Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD, UK Identification mark: 0168 The technical documentation kept at: Samsung Electronics Euro QA Lab. which will be made available upon request. (Representative in the EU) Place and date of issue: Samsung Electronics Euro QA Lab. Blackbushe Business Park,Saxony Way, Yateley, Hampshire,GU46 6GG, UK 2006.10.24 Yong-Sang Park/S.Manager * It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your phone.
