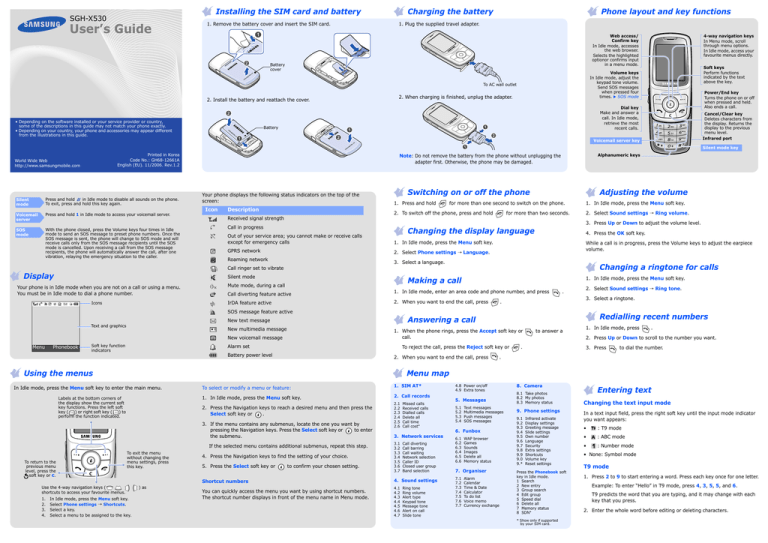

Installing the SIM card and battery
SGH-X530
User’s Guide
1. Remove the battery cover and insert the SIM card.
Charging the battery
Phone layout and key functions
1. Plug the supplied travel adapter.
Battery
cover
2. Install the battery and reattach the cover.
Soft keys
Perform functions
indicated by the text
above the key.
Volume keys
In Idle mode, adjust the
keypad tone volume.
Send SOS messages
when pressed four
times. X SOS mode
To AC wall outlet
• Depending on the software installed or your service provider or country,
some of the descriptions in this guide may not match your phone exactly.
• Depending on your country, your phone and accessories may appear different
from the illustrations in this guide.
4-way navigation keys
In Menu mode, scroll
through menu options.
In Idle mode, access your
favourite menus directly.
Web access/
Confirm key
In Idle mode, accesses
the web browser.
Selects the highlighted
optionor confirms input
in a menu mode.
2. When charging is finished, unplug the adapter.
Power/End key
Turns the phone on or off
when pressed and held.
Also ends a call.
Dial key
Make and answer a
call. In Idle mode,
retrieve the most
recent calls.
Battery
Cancel/Clear key
Deletes characters from
the display. Returns the
display to the previous
menu level.
Infrared port
Voicemail server key
Silent mode key
Printed in Korea
Code No.: GH68-12661A
English (EU). 11/2006. Rev.1.2
World Wide Web
http://www.samsungmobile.com
Silent
mode
Press and hold
in Idle mode to disable all sounds on the phone.
To exit, press and hold this key again.
Voicemail
server
Press and hold 1 in Idle mode to access your voicemail server.
SOS
mode
With the phone closed, press the Volume keys four times in Idle
mode to send an SOS message to preset phone numbers. Once the
SOS message is sent, the phone will change to SOS mode and will
receive calls only from the SOS message recipients until the SOS
mode is cancelled. Upon receiving a call from the SOS message
recipients, the phone will automatically answer the call, after one
vibration, relaying the emergency situation to the caller.
Note: Do not remove the battery from the phone without unplugging the
adapter first. Otherwise, the phone may be damaged.
Your phone displays the following status indicators on the top of the
screen:
Icon
Description
Switching on or off the phone
1. Press and hold
Changing the display language
Out of your service area; you cannot make or receive calls
except for emergency calls
1. In Idle mode, press the Menu soft key.
GPRS network
2. Select Phone settings → Language.
Roaming network
2. Select Sound settings → Ring volume.
4. Press the OK soft key.
While a call is in progress, press the Volume keys to adjust the earpiece
volume.
3. Select a language.
Changing a ringtone for calls
Making a call
Mute mode, during a call
Call diverting feature active
1. In Idle mode, press the Menu soft key.
1. In Idle mode, enter an area code and phone number, and press
2. When you want to end the call, press
IrDA feature active
Icons
for more than two seconds.
1. In Idle mode, press the Menu soft key.
3. Press Up or Down to adjust the volume level.
Call in progress
Silent mode
Your phone is in Idle mode when you are not on a call or using a menu.
You must be in Idle mode to dial a phone number.
Adjusting the volume
for more than one second to switch on the phone.
2. To switch off the phone, press and hold
Received signal strength
Call ringer set to vibrate
Display
Alphanumeric keys
.
2. Select Sound settings → Ring tone.
3. Select a ringtone.
.
SOS message feature active
Text and graphics
New multimedia message
1. When the phone rings, press the Accept soft key or
call.
New voicemail message
Menu
Phonebook
Soft key function
indicators
Alarm set
To reject the call, press the Reject soft key or
Battery power level
2. When you want to end the call, press
Using the menus
Labels at the bottom corners of
the display show the current soft
key functions. Press the left soft
key (
) or right soft key (
) to
perform the function indicated.
To select or modify a menu or feature:
1. SIM AT*
1. In Idle mode, press the Menu soft key.
2. Call records
2. Press the Navigation keys to reach a desired menu and then press the
Select soft key or
.
3. If the menu contains any submenus, locate the one you want by
to enter
pressing the Navigation keys. Press the Select soft key or
the submenu.
If the selected menu contains additional submenus, repeat this step.
To exit the menu
without changing the
menu settings, press
this key.
4. Press the Navigation keys to find the setting of your choice.
5. Press the Select soft key or
to confirm your chosen setting.
Shortcut numbers
Use the 4-way navigation keys (
shortcuts to access your favourite menus.
1.
2.
3.
4.
to answer a
1. In Idle mode, press
.
2. Press Up or Down to scroll to the number you want.
.
3. Press
to dial the number.
.
Menu map
In Idle mode, press the Menu soft key to enter the main menu.
To return to the
previous menu
level, press the
soft key or c.
Redialling recent numbers
Answering a call
New text message
In Idle mode, press the Menu soft key.
Select Phone settings → Shortcuts.
Select a key.
Select a menu to be assigned to the key.
) as
You can quickly access the menu you want by using shortcut numbers.
The shortcut number displays in front of the menu name in Menu mode.
2.1
2.2
2.3
2.4
2.5
2.6
Missed calls
Received calls
Dialled calls
Delete all
Call time
Call cost*
3. Network services
3.1
3.2
3.3
3.4
3.5
3.6
3.7
Call diverting
Call barring
Call waiting
Network selection
Caller ID
Closed user group
Band selection
4. Sound settings
4.1
4.2
4.3
4.4
4.5
4.6
4.7
Ring tone
Ring volume
Alert type
Keypad tone
Message tone
Alert on call
Slide tone
4.8 Power on/off
4.9 Extra tones
5. Messages
5.1
5.2
5.3
5.4
Text messages
Multimedia messages
Push messages
SOS messages
6. Funbox
6.1
6.2
6.3
6.4
6.5
6.6
WAP browser
Games
Sounds
Images
Delete all
Memory status
7. Organiser
7.1
7.2
7.3
7.4
7.5
7.6
7.7
Alarm
Calendar
Time & Date
Calculator
To do list
Voice memo
Currency exchange
8. Camera
8.1 Take photos
8.2 My photos
8.3 Memory status
9. Phone settings
9.1
9.2
9.3
9.4
9.5
9.6
9.7
9.8
9.9
9.0
9.*
Infrared activate
Display settings
Greeting message
Slide settings
Own number
Language
Security
Extra settings
Shortcuts
Volume key
Reset settings
Press the Phonebook soft
key in Idle mode.
1 Search
2 New entry
3 Group search
4 Edit group
5 Speed dial
6 Delete all
7 Memory status
8 SDN*
* Show only if supported
by your SIM card.
Entering text
Changing the text input mode
In a text input field, press the right soft key until the input mode indicator
you want appears:
•
: T9 mode
•
: ABC mode
•
: Number mode
• None: Symbol mode
T9 mode
1. Press 2 to 9 to start entering a word. Press each key once for one letter.
Example: To enter “Hello” in T9 mode, press 4, 3, 5, 5, and 6.
T9 predicts the word that you are typing, and it may change with each
key that you press.
2. Enter the whole word before editing or deleting characters.
3. When the word displays correctly, go to step 4. Otherwise, press 0 to
display alternative word choices for the keys that you have pressed.
• To insert a space between characters, press
For example, Of and Me use 6 and 3.
4. Press
• To delete characters one by one, press C. To clear the display, press and
hold C.
to insert a space and enter the next word.
.
• To change case in T9 mode or ABC mode, press
.
• To enter punctuation marks in T9 mode or ABC mode, press 1.
ABC mode
Sending an SMS message
Press the keys labelled with the character you want:
- once for the first character
7. Enter destination numbers.
8. Press the Options soft key and select Send message to send the
message.
1. In Idle mode, press the Menu soft key.
2. Select Camera → Take photos.
- and so on.
2. Select Messages → Text messages → Write new.
3. Aim the lens at the subject and make any desired adjustments.
For example, press 2 three times to enter “C” and 5 two times to enter
“K.”
3. Enter the message text.
4. Press
4. Press the Options soft key and add items using the following options:
5. Press the Save soft key to save the photo, or press the Cancel soft key
to delete the photo.
• Add objects: add sounds, melodies, images, or animated images.
Number mode
• Add templates: add text templates.
Press the keys corresponding to the digits you want.
• Add emoticon: add emoticons.
Symbol mode
• Add bookmark: add bookmark items.
5. Press the Options and select Send only, Save and send, or Save
only.
• To move the cursor, press the Navigation keys.
6. If you select Save and send or Save only, select a memory location.
Call cost
display
Network
services
Select
ringtone and
volume
Alert type
Select
key tone
Select
message tone
Alert on call
Slide tone
Power on/ off
tone
Extra tones
Feature
Slide
settings
Check your
own phone
numbers
Display
language
Security
Mobile Tracker
Extra settings
Menu
shortcuts
Volume key
Reset the
phone
Description
View the duration of recent calls you
have dialled and received. Also reset
the time counter.
View the cost of your calls.
Access network services offered by
your service provider.
Select a ringtone for incoming calls,
or a volume level.
Select an alert type for the call
ringer.
Select a tone which the phone
sounds when you press a key.
Select the alert ringtone for
incoming SMS, MMS, and broadcast
messages, or set how open you are
informed of a new message.
Set the phone to alert you when you
receive a new message or when the
time for an alarm comes during a
call.
Select the tone that the phone
sounds when you open or close the
phone.
Select the melody that the phone
sounds when it is switched on or off.
Set additional tones for the phone.
Select
Menu > Call records
> Call time
Menu > Call records
> Call cost
Menu
> Network services
Menu > Sound settings
> Ring tone or Ring
volume
Menu > Sound settings
> Alert type
Menu > Sound settings
> Keypad tone
Menu > Sound settings
> Message tone
Menu > Sound settings
> Alert on call
Menu > Sound settings
> Slide tone
Menu > Sound settings
> Power on/off
Menu > Sound settings
> Extra tones
Description
Use this menu to set how the phone
reacts when you open it for an
incoming call, and when you close it
while using a function.
Check your phone numbers or
assign a name to them.
Select
Menu > Phone settings
> Slide settings
Select a language to be used for the
display text.
Protect the phone against
unauthorised use.
Track your phone when it is stolen or
lost. When someone tries to use
your phone with other SIM card, the
phone will automatically send the
preset tracking message to your
family or friends.
Set the automatic redialling feature
or the answering method.
Set the Navigation keys as shortcuts
to access your favourite menus
directly.
Set whether the phone mutes the
call ringer or rejects a call if you
press and hold the Volume keys
when a call comes in
Reset the phone to the factory
default settings.
Menu > Phone settings
> Language
Menu > Phone settings
> Security
Menu > Phone settings
> Security
> Mobile tracker
Menu > Phone settings
> Own number
Feature
Read SMS or
MMS
messages
Description
Read received, sent, or saved
messages.
Send SMS or
MMS
messages
Create and send messages to other
mobile phones.
Message
templates
Preset templates of frequently used
messages or emoticons.
Messaging
options
Set options for using messaging
services.
Delete
messages
Delete messages in each message
box, or all messages at once.
Message
memory
status
Check memory information for
messages.
Voicemail
Access your voicemail server and
listen to messages on the network.
Select
Menu > Messages
> Text messages or
Multimedia messages >
Inbox, Outbox, or Draft
Menu > Messages
> Text messages or
Multimedia messages >
Write new
Menu > Messages
> Text messages or
Multimedia messages >
Templates or Emoticon
templates
Menu > Messages
> Text messages or
Multimedia messages
> Settings or Setup
Menu > Messages
> Text messages or
Multimedia messages
> Delete all
Menu > Messages
> Text messages or
Multimedia messages >
Memory status
Menu > Messages
> Text messages
> Voice mail
Important safety precautions
Read these guidelines before using your wireless phone. Failure to comply with them
may be dangerous or illegal.
Drive safely at all times
Do not use a hand-held phone while driving; park the vehicle first.
Switching off when refuelling
Do not use the phone at a refuelling point (service station) or near fuels or chemicals.
Switching off in an aircraft
Wireless phones can cause interference. Using them in an aircraft is both illegal and
dangerous.
Switching off near all medical equipment
Hospitals and health care facilities may be using equipment that could be sensitive to
external RF energy. Follow any regulations or rules in force.
Interference
All wireless phones may be subject to interference, which could affect their
performance.
Special regulations
Follow any special regulations in force in any area and always switch off your phone
whenever it is forbidden to use it.
Menu > Phone settings
> Volume key
Sensible use
Use only in the normal position (held to the ear). Avoid unnecessary contact with the
antenna when the phone is switched on.
Water resistance
Your phone is not water-resistant. Keep it dry.
Emergency calls
Key in the emergency number for your present location, then press
the call until given permission to do so.
Feature
Find a contact
Description
Search for contacts in Phonebook.
Select
Phonebook
> Search
Feature
Broadcast
message
Description
Change settings for the service and
access broadcast messages.
MMS profile
Select or configure a connection
profile to be used for MMS.
Push message
Change the settings for the service,
and access or delete push
messages.
Activate the SOS message feature.
Enter recipients and select the
repeat mode.
Launch and configure the web
browser.
Access games, sounds, images in
your phone’s memory.
Select
Menu > Messages
> Text messages
> Broadcast
Menu > Messages
> Multimedia messages
> MMS profile
Menu > Messages
> Push messages
SOS
messages
Web browser
Access media
files
Delete all
media files
Delete games, sounds, images in
each media box, or all media files at
once.
Check the amount of memory in use
for games, sounds and images.
Funbox
memory
status
Alarm
Set an alarm to sound at a specific
time.
Keep track of daily or monthly
schedules.
Calendar
Menu > Messages
> SOS messages
. Do not end
Delete recent
calls
Delete the call logs in each call type,
or all logs at once.
Feature
Time and date
Description
Set the current time and date
manually.
Set your phone to update the
current time automatically when you
travel abroad. Time information may
not be updated when you move to
one time zone to another within a
country.
Perform basic arithmetic functions.
Automatic
time update
Calculator
Task list
Currency
converter
Camera
Menu > Funbox
> Memory status
IrDA
Menu > Organiser
> Alarm
Menu > Organiser
> Calendar
Display
settings
Greeting
message
Accessories and batteries
Use only Samsung-approved batteries and accessories, such as headsets and PC data
cables. Use of any unauthorised accessories could damage your phone and may be
dangerous.
CAUTION
Use the SIM
service
View recent
calls
Delete
Phonebook
contacts
Phonebook
memory
status
SDN(Service
Dialling
Numbers)
Menu > Funbox
> WAP browser
Menu > Funbox
> Games, Sounds,
Images,
Menu > Funbox
> Delete all
Small children and your phone
Keep the phone and all its parts including accessories out of reach of small children.
Menu > Phone settings
> Extra settings
Menu > Phone settings
> Shortcuts
Menu > Phone settings
> Reset settings
soft key to take another photo.
This section provides brief explanations of features on your phone.
Tips for entering text
Feature
Call time
display
6. After saving the photo, press the
Quick feature reference
• Add phonebook: add Phonebook contacts.
Press the number keys corresponding to the symbol you want and press
the OK soft key. You can press Up or Down to display more symbols.
to take a photo.
Risk of explosion if a battery is replaced by an incorrect type.
Dispose used batteries according to the instructions.
At very high volume, prolonged listening to a headset can damage
your hearing.
Qualified service
Only qualified service personnel may repair your phone.
SAR information
Your wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to radio frequency (RF)
energy set by the European Union (EU) Council. These limits are part of
comprehensive guidelines and establish permitted levels of RF energy for the general
population. The guidelines are based on the safety standards that were developed by
independent scientific organisations through periodic and through evaluation of
scientific studies.
The standards include a substantial safety margin designed to assure the safety of all
persons, regardless of age and health.
The exposure standard for wireless phones employs a unit of measurement known as
Specific Absorption Rate (SAR). The SAR limit set by the EU Council is 2.0W/kg. The
highest SAR value for this model phone was 0.371 W/kg.
Description
Add a new contact to Phonebook.
Search for Phonebook contacts in
caller groups.
Select a ringtone for incoming calls
and messages from members of a
group. Also change the group name.
Assign speed dial numbers (2 to 9)
for eight of your most frequently
dialled numbers.
Delete all Phonebook contacts stored
in the phone’s memory, on the SIM
card, or both.
View the total number of Phonebook
contacts in the phone’s memory or
on the SIM card.
Access the list of service numbers
assigned by your service provider.
(Shows only if supported by your
SIM card.)
Use a variety of additional services
offered by your service provider.
View the most recent calls you have
dialled, received, or missed.
Change
properties of
a caller group
Speed dial
Taking a photo
1. In Idle mode, press the Menu soft key.
- twice for the second character
Feature
Add a new
contact
Search group
Voice memo
Create a list of tasks and assign a
deadline to each task.
Record voice memos and listen
them.
Do currency conversions.
Take photos in various modes, and
access saved photos in jpeg format.
You can also check memory
information for the photos.
Send and receive data to or from
IrDA-compatible computers or
phones through the infrared port.
Change settings for the display and
backlight.
Enter the greeting message to be
displayed when the phone is
switched on.
Select
Phonebook
> New entry
Phonebook
> Group search
Phonebook
> Edit group
Phonebook
> Speed dial
Phonebook
> Delete all
Phonebook
> Memory status
Phonebook
> SDN
Menu > SIM AT
Menu > Call records
> Missed calls,
Received calls,
Dialled calls
Menu > Call records
> Delete all
Select
Menu > Organiser
> Time & Date
Menu > Organiser
> Time & Date
> Auto update
Menu > Organiser
> Calculator
Menu > Organiser
> To do list
Menu > Organiser
> Voice memo
Menu > Organiser
> Currency exchange
Menu > Camera
Menu > Phone settings
> Infrared activate
Menu > Phone settings
> Display settings
Menu > Phone settings
> Greeting message
Declaration of Conformity (R&TTE)
Model description: Portable Cellular Telephone (GSM 900/1800/1900)
Model name: SGH-X530
Manufactured at: Samsung Electronics Co., Ltd, 94-1, Imsoo-Dong, Gumi City, Kyung-Buk,
Korea, 730-350*
to which this declaration relates, is in conformity with the following standards and/or other
normative documents.
Safety : EN 60950-1:2001
EMC
: EN 301 489-01 v1.4.1 (08-2002)
: EN 301 489-07 v1.2.1 (08-2002)
SAR
: EN 50360:2001
: EN 50361:2001
Network : EN 301 511 v9.0.2 (03-2003)
We hereby declare that [all essential radio test suites have been carried out and that] the
above named product is in conformity to all the essential requirements of Directive 1999/5/
EC.
The conformity assessment procedure referred to in Article 10 and detailed in Annex[IV] of
Directive 1999/5/EC has been followed with the involvement of the following Notified
Body(ies):
BABT, Balfour House, Churchfield Road,
Walton-on-Thames, Surrey, KT12 2TD, UK
Identification mark: 0168
The technical documentation kept at:
Samsung Electronics Euro QA Lab.
which will be made available upon request.
(Representative in the EU)
Place and date of issue:
Samsung Electronics Euro QA Lab.
Blackbushe Business Park, Saxony Way,
Yong-Sang Park/S.Manager
Yateley, Hampshire,GU46 6GG UK
2006.10.25
* It is not the address of Samsung Service Centre. For the address or the phone number of
Samsung Service Centre, see the warranty card or contact the retailer where you purchased
your phone.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
