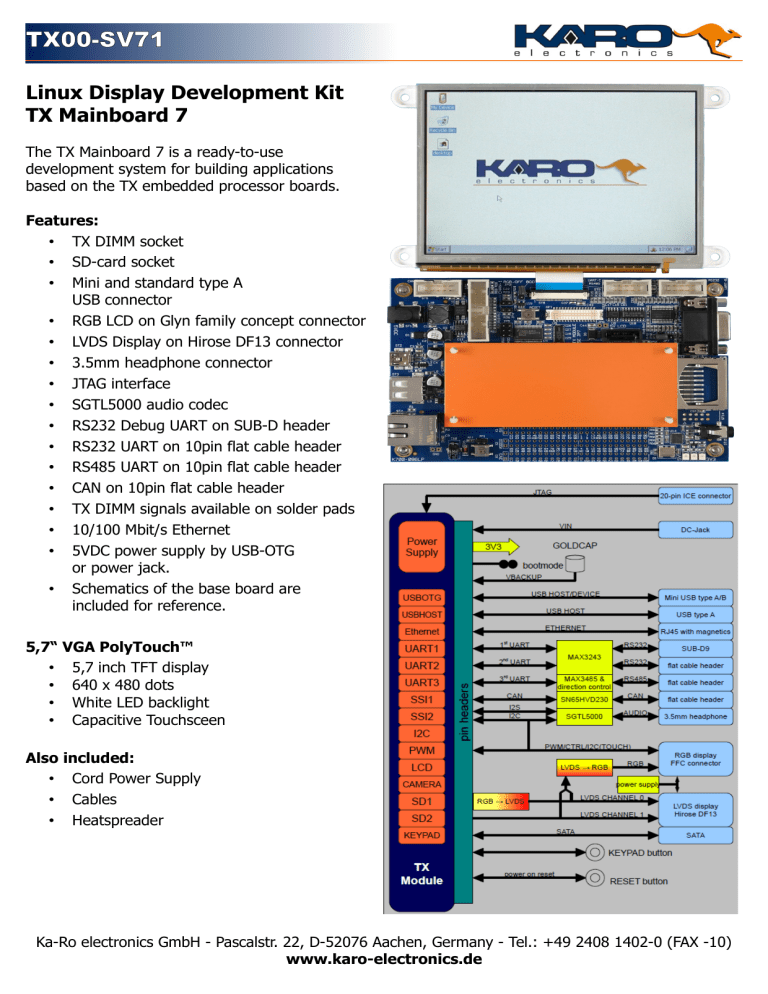

TX00-SV71
Linux Display Development Kit
TX Mainboard 7
The TX Mainboard 7 is a ready-to-use
development system for building applications
based on the TX embedded processor boards.
Features:
• TX DIMM socket
• SD-card socket
• Mini and standard type A
USB connector
• RGB LCD on Glyn family concept connector
• LVDS Display on Hirose DF13 connector
• 3.5mm headphone connector
• JTAG interface
• SGTL5000 audio codec
• RS232 Debug UART on SUB-D header
• RS232 UART on 10pin flat cable header
• RS485 UART on 10pin flat cable header
• CAN on 10pin flat cable header
• TX DIMM signals available on solder pads
• 10/100 Mbit/s Ethernet
• 5VDC power supply by USB-OTG
or power jack.
• Schematics of the base board are
included for reference.
5,7“
•
•
•
•
VGA PolyTouch™
5,7 inch TFT display
640 x 480 dots
White LED backlight
Capacitive Touchsceen
Also included:
• Cord Power Supply
• Cables
• Heatspreader
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
