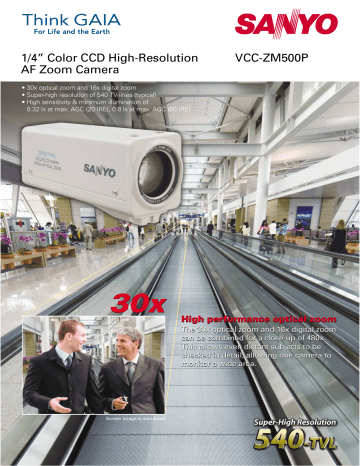

1/4” Color CCD High-Resolution
AF Zoom Camera
VCC-ZM500P
• 30x optical zoom and 16x digital zoom
• Super-high resolution of 540 TV lines (typical)
• High sensitivity & minimum illumination of
0.32 lx at max. AGC (20 IRE), 0.8 lx at max. AGC (50 IRE)
30x
High performance optical zoom
The 30x optical zoom and 16x digital zoom
can be combined for a close-up of 480x.
This allows even distant subjects to be
checked in detail, allowing one camera to
monitor a wide area.
Screen image is simulated.
VCC-ZM500P
Main Features
High Resolution of 540 TV Lines
(typical)
Registering a view setting file
(CAMERA VIEW)
SANYO has improved the horizontal
resolution to 540 TV lines (typical) by
developing the full capability of CCD and
using an IR cut filter with enhanced
performance. The result is better picture
quality, which even a conventional highresolution camera cannot match.
To support shooting in various surveillance
conditions like when the surveillance
location is bright (or dark), the CAMERA
VIEW screen allows you to register up to
2 patterns of shooting settings as camera
view setting files. Of course, camera view
switching in connection with external
alarms or motion sensors is also possible.
32X Sensitivity Boost for Minimum
Illumination of 0.025 Lx (50 IRE)
While achieving 0.8 lx minimum subject
illumination at maximum gain, sensitivity
can be further heightened to 32X for 0.025
lx minimum illumination when the
sensitivity boost function is activated at 50
IRE (F1.4).
Built-in Intelligent Digital Motion
Detector and Zoom Detector
The Intelligent Digital Motion Detector
enables reliable and accurate motion
detection by analyzing the “magnitude of
movement” and the “size of object” from
changes in picture brightness. When a
moving object is detected, VCC-ZM500P
can send an alarm signal to external units
and/or automatically switch to the optical
zoom mode, according to the user's
preference. Furthermore, an external
alarm input terminal makes it possible,
when an alarm signal is received, to
automatically zoom in to the site of
activity, according to a preset zooming
operation.
Other useful features
• 3 Methods of intelligent backlight compensation
• 13 electronic shutter speed modes
• Privacy masking
• Adjustable gamma correction and aperture
settings
• Display of assignable camera ID and titles
(16 characters max.)
• Mirror function
Specifications
Model No.
VCC-ZM500P
PAL standard 625 lines, 50 fields/sec.
1/4" (approx. 3.6 mm x 2.7 mm) interline transfer method CCD
Total: 795(H) x 596(V), Effective: 752(H) x 582(V)
540 TV lines (Typical)
Minimum illumination 20IRE 0.32 lx (F1.4) at max. AGC gain, 0.01 lx (F1.4) at 32x electronic sensitivity boost
(approx.)
50IRE 0.8 lx (F1.4) at max. AGC gain, 0.025 lx (F1.4) at 32x electronic sensitivity boost
AUTO (interlocked with auto iris), up to 32x / OFF
Electronic sensitivity boost
1.0 V (p-p) (75 Ω, composite)
Video output level
More than 50 dB (AGC OFF)
Video S/N ratio
Multi-spot evaluative metering (MULT), Centre-weighted average metering (CENT),
Backlight compensation
and Masking for backlight compensation (MASK)
ATW / AWC / Manual / Outdoor / Indoor / Fluorescent / R/B adjustment possible when using MWB
White balance
LOW, NORMAL, MIDDLE, HIGH, and OFF (Gain adjustable)
Gain control
ON (individual setting possible) / OFF, Motion zoom function (individual setting possible)
Motion detector
ON / OFF, max. of 4 masked locations (Wide view screen)
Privacy masking
High-speed mode:1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec. Low-speed
Electronic shutter
mode: 1/25, 1/12, 1/6, 1/3, 1/1.5
f = 3.5 to 105mm F1.4 to 3.7 auto focus
Lens
Internal sync. / Line lock
Synchronizing system
56 to 2.0°
Aperture Horizontal
43 to 1.5°
Vertical
68 to 2.5°
Diagonal
LINE PHASE
V phase adjustment
30x
Optical zoom
16x
Electronic zoom
System connection terminals (RS485/Coaxial), support of camera control unit (VAC-70))
Communication method
External inputs: 2, NO / NC switch, Day/night switch
Alarm input
External outputs: 1, NO / NC switch, open corrector
Alarm output
OFF / HV / H / V
Mirroring function
Temperature: -10°C to 50°C [+14°F to 122°F], Humidity: within 35 to 90% RH
Environmental conditions
24 V AC ± 10%, 50 Hz or 12 V to 15 V DC
Power requirement
Power consumption (approx.) 4.5 W
56(W) x 64(H) x 150(D) mm [2.2(W) x 2.5(H) x 5.9(D) in.]
Dimensions (approx.)
540 g (19.0 oz.)
Weight (approx.)
Scanning system
Image sensor
Picture elements
Horizontal resolution
NOTE: Appearance and specifications are subject to change without notice.
Communication protocol:
Coaxial control: SSP / H-SSP / PELCO-C
RS485: SSP / H-SSP / PELCO-D
Rear panel
Dimensions
56 (2.2)
3
(0.1)
147 (5.8)
10
(0.4)
1
1
64 (2.5)
Coaxial control or RS-485
4
2
3
2
4
5
11
3
1/4"-20UNC
5
Power indicator (POWER)
Video output connector
(BNC connector: VIDEO OUT)
Control terminals
System connection terminals
(RS485)
Power connection terminals
(AC 24V, DC 12V, GND)
Unit: mm (inch)
