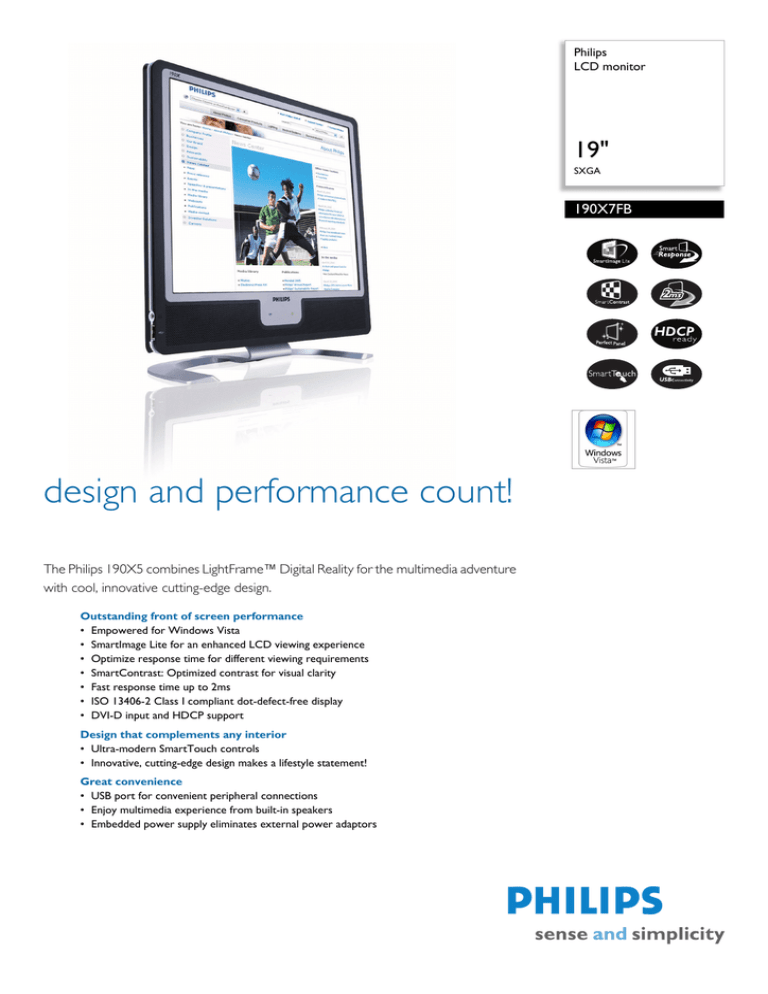

Philips
LCD monitor
19"
SXGA
190X7FB
design and performance count!
The Philips 190X5 combines LightFrame™ Digital Reality for the multimedia adventure
with cool, innovative cutting-edge design.
Outstanding front of screen performance
• Empowered for Windows Vista
• SmartImage Lite for an enhanced LCD viewing experience
• Optimize response time for different viewing requirements
• SmartContrast: Optimized contrast for visual clarity
• Fast response time up to 2ms
• ISO 13406-2 Class I compliant dot-defect-free display
• DVI-D input and HDCP support
Design that complements any interior
• Ultra-modern SmartTouch controls
• Innovative, cutting-edge design makes a lifestyle statement!
Great convenience
• USB port for convenient peripheral connections
• Enjoy multimedia experience from built-in speakers
• Embedded power supply eliminates external power adaptors
190X7FB/00
LCD monitor
19" SXGA
Specifications
Product highlights
Picture / Display
• LCD panel type: 1280 x 1024 pixels, Anti glare
polarizer, RGB vertical stripe
• Panel size: 19"/ 48 cm
• Effective viewing area: 376.3 x 301.1 mm
• Pixel pitch: 0.294 x 0.294 mm
• Brightness (nits): 300 nit
• Contrast ratio (typical): 800:1
• SmartContrast ratio (dynamic): 3500:1
• Display colours: 16.7 M
• Viewing angle: 160º (H) / 160º (V), @ C/R > 10
• Response time (typical): Grey to Grey 2 ms
• Maximum resolution: 1280 x 1024 @ 75 Hz
• Recommended resolution: 1280 x 1024 @ 60
Hz
• Video dot rate: 140 MHz
• Horizontal scanning frequency: 30 - 83 kHz
• Vertical scanning frequency: 56 - 76 Hz
• Picture enhancement: SmartImage Lite
• sRGB
Connectivity
• Audio output: Stereo Audio (3.5 mm jack) 1x
• Signal input: Analogue (VGA), DVI-D, PC audio
in
• USB: 1 x USB 2.0
• Video sync input signal: Composite Sync,
Separate sync, Sync on green
Convenience
• Built-in audio: 3 W RMS x 2 stereo speakers
• Convenience enhancements: On screen display,
SmartControl, Stand-alone audio
• Monitor controls: Auto, Brightness Control
(Up/Down), Menu (OK), Power on / off,
SmartImage Lite, Volume control (Left/Right)
• OSD languages: English, French, German, Italian,
Russian, Spanish
• Other convenience: Kensington lock compatible
• Plug & Play compatibility: DDC/CI, sRGB,
Windows 98/ME/2000/XP
• Regulatory approvals: CE Mark, EMC, Energy
Star, FCC Class B, SEMKO, MPRII, TÜV/GS,
TÜV Ergo, UL/cUL
• Tilt: -5° to 25°
Accessories
• Included accessories: AC power cord, Audio
cable, DVI-D cable, USB cable, VGA cable
• User manual
Dimensions
• Box dimensions (W x H x D):
477 x 150 x 498 mm
• Box dimensions in inch (W x H x D):
18.8 x 5.9 x 19.6 inch
• Set dimensions with stand (W x H x D):
444 x 436 x 181 mm
• Set dimensions with stand in inch (W x H x D):
17.5 x 17.2 x 7.1 inch
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80 %
• Temperature range (operation): 0°C to 35°C
• Temperature range (storage): -20°C to 60° C
• Product weight (+stand): 7.2 kg
• Product weight (+stand) (lbs): 15:9 lb
• Weight incl. packaging: 8.5 kg
• Weight incl. packaging (lbs): 18.7
Power
•
•
•
•
Complies with: Energy Star
Consumption: 36 W (Typical)
Off Mode: < 1 W
Power LED indicator: Operation - Green,
Standby / sleep - Amber
• Power supply: Built in, 100-240VAC, 50/60Hz
•
Windows Vista ready
Philips Vista-ready monitors are empowered for vibrant,
exciting display of this new, visually sophisticated and
demanding Windows operating system, designed to
enhance your entertainment experience, make you
more productive and help you control your computing
experience at home and in the office. Viewing, finding
and organizing information for work or play is made
quick, efficient and easy.
SmartImage Lite
SmartImage Lite is an exclusive, leading edge Philips
technology that analyzes the content displayed on your
screen. Based on a scenario you select, SmartImage Lite
dynamically enhances the contrast, colour saturation
and sharpness of images and videos for ultimate display
performance - all in real time with the press on a single
button.
SmartResponse
SmartResponse is exclusive Philips technology that
adjusts response time to application requirements,
delivering faster response times for gaming and videos
or better colour saturation for viewing photos and static
images.
SmartContrast
SmartContrast is Philips technology that analyzes the
contents you are displaying, automatically adjusting
colours and controlling backlight intensity to dynamically
enhance contrast for the best digital images and
optimum contrast for more entertainment fun when
viewing videos or playing games where dark hues are
displayed. When you select the Economy mode,
contrast is adjusted and backlighting fine-tuned for justright display of everyday office applications and lower
power consumption. SmartContrast monitors can
deliver a contrast ration of up to 3000:1, the highest
available today.
2ms GtG response time
GtG response time is the average time that it takes for
a pixel to go from one arbitrary position to another,
which is the average time of transition between several
sets of random colour levels. Faster is better: Lower
response time means faster transitions and, therefore,
results in fewer visible image artefacts in the display of
fast moving images. GtG response time is an important
way to measure display quality of multimedia content
like movies, videos and games.
PerfectPanel™
Bright dots and dark dots are defects in a LCD panel.
While some manufacturers still consider bright and
dark defects in a LCD panel an inevitable part of the
manufacturing process, Philips doesn't. Philips monitors,
compliant with ISO 13406-2 Class I standard, are
produced with zero tolerance for LCD panel defects and
backed by Philips PerfectPanel™ globally valid warranty
providing repair or replacement of any LCD monitors
that display even a single defective bright or dark dot.
HDCP ready
High-Bandwidth Digital Content Protection (HDCP) is a
copyright protection system that is incorporated into the
DVI connector. It helps stop unauthorized duplication of
copyrighted content. HDCP allows you to play protected
content media such as movies and concerts. It checks
the signal to prevent piracy, allowing only legal copies of
content to display.
Date of issue 2007-03-14
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 6.0
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8639 000 17126
EAN: 87 10895 97815 6
www.philips.com
