LVDS-Adapter

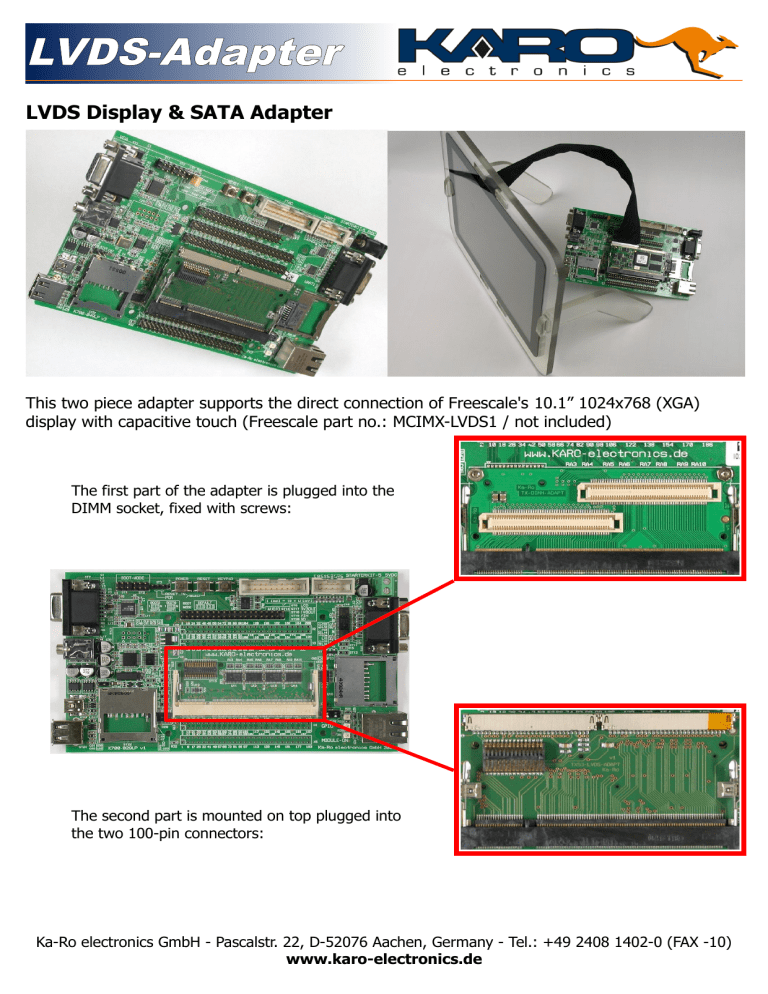

LVDS Display & SATA Adapter
This two piece adapter supports the direct connection of Freescale's 10.1” 1024x768 (XGA)
display with capacitive touch (Freescale part no.: MCIMX-LVDS1 / not included)
The first part of the adapter is plugged into the
DIMM socket, fixed with screws:
The second part is mounted on top plugged into
the two 100-pin connectors:
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
LVDS-Adapter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
151
72
121
123
122
124
118
120
117
119
125
127
75
80
166
backlight on/off control (10K pull-up)
3.3V
3.3V
3.3V
backlight dimming
TX3_N
TX3_P
TX0_N
TX0_P
GND
TX1_N
TX1_P
GND
TX2_N
TX2_P
GND
CLK_N
CLK_P
GND
5V
5V
GND
GND
5V
5V
5V
I2C CLK (10K pull-up)
I2C SDA (10K pull-up)
TOUCH_INT (10K pull-up)
not connected
LVDS0
TX-DIMM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
150
42
128
126
137
135
136
134
133
131
132
130
41
40
165
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
2012-02-15
LVDS connector used: Hirose DF19G-30P-1H
LVDS1
TX-DIMM
Remark
LVDS-Adapter
Package contents
Item
Description
3.0mm self retaining M2 screw spacer
4.0mm self retaining M2 screw spacer
Nut M2
Screw M2 x 14mm
Quantity
2
2
2
2
Bottom adapter
1
Top adapter
1
Cord power supply 5V/2A
1
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
LVDS-Adapter
Assembly
Step
Detail
Step
1. Insert the screw from the bottom
side and mount the 3mm spacer as
shown.
2. Move back the screw, the spacer
will retain.
3. Insert the bottom adapter into the
DIMM socket.
4. Lock the adapter correctly and
push the screws completely through
the hole.
5. Mount the 4mm spacer on top.
6. Put the 2nd adapter part on top,
but don't fix the screws!
7. Step by step pull out a screw on
the bottom side and insert it from
the top side.
The nuts must be mounted on the
bottom side!
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
