Bulletin No. ENC5/6-D
Drawing No. LP0143
Released 8/05
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

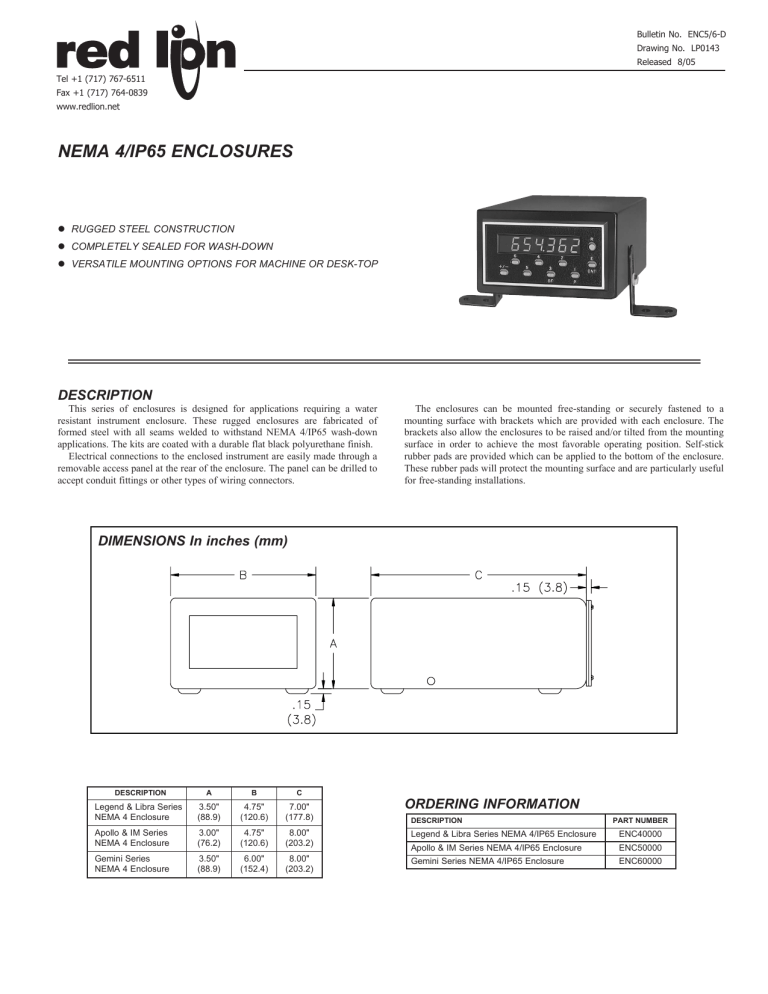

NEMA 4/IP65 ENCLOSURES
z RUGGED STEEL CONSTRUCTION
z COMPLETELY SEALED FOR WASH-DOWN
z VERSATILE MOUNTING OPTIONS FOR MACHINE OR DESK-TOP
DESCRIPTION
This series of enclosures is designed for applications requiring a water
resistant instrument enclosure. These rugged enclosures are fabricated of
formed steel with all seams welded to withstand NEMA 4/IP65 wash-down
applications. The kits are coated with a durable flat black polyurethane finish.
Electrical connections to the enclosed instrument are easily made through a
removable access panel at the rear of the enclosure. The panel can be drilled to
accept conduit fittings or other types of wiring connectors.
The enclosures can be mounted free-standing or securely fastened to a
mounting surface with brackets which are provided with each enclosure. The
brackets also allow the enclosures to be raised and/or tilted from the mounting
surface in order to achieve the most favorable operating position. Self-stick
rubber pads are provided which can be applied to the bottom of the enclosure.
These rubber pads will protect the mounting surface and are particularly useful
for free-standing installations.
DIMENSIONS In inches (mm)
DESCRIPTION
A
B
C
Legend & Libra Series
NEMA 4 Enclosure
3.50"
(88.9)
4.75"
(120.6)
7.00"
(177.8)
Apollo & IM Series
NEMA 4 Enclosure
3.00"
(76.2)
4.75"
(120.6)
8.00"
(203.2)
Legend & Libra Series NEMA 4/IP65 Enclosure
ENC40000
Apollo & IM Series NEMA 4/IP65 Enclosure
ENC50000
Gemini Series
NEMA 4 Enclosure
3.50"
(88.9)
6.00"
(152.4)
8.00"
(203.2)
Gemini Series NEMA 4/IP65 Enclosure
ENC60000
ORDERING INFORMATION
DESCRIPTION
PART NUMBER
Installation
The RLC ASTRO LINE products (GEMINI, LIBRA, APOLLO) have side
openings in the case for panel mounting latches, special latches are supplied
with each enclosure to engage the latch openings and securely retain the
instrument. The installation procedure is as follows:
1. Verify that the enclosure brackets are installed into the enclosure with the
bracket screws backed out more than half way from the brackets but keeping
the screw head flush against the enclosure rear.
2. Slide the panel gasket over the rear of the unit until it is against the back of
the bezel.
3. Hold the unit on its side so that a side bracket opening is facing up and insert
the unit into the enclosure front opening.
4. The bracket hook should fall into the unit bracket opening. Keeping the meter
and enclosure on their side, turn the bracket screw tight.
5. Flip the meter and enclosure to the other side.
6. The other bracket hook should fall into the unit bracket opening. Keeping the
meter and enclosure on their side, turn the other bracket screw tight.
7. Verify that both screws are tight enough so that the front panel gasket is
compressed to at least 50% of it original thickness.
8. Install any connectors or conduit fittings to the rear access panel. Make the
desired wiring connections to the enclosed unit.
9. Install the rear panel gasket with the adhesive side against the enclosure and
the screw clearance holes aligned with the threaded holes in the enclosure.
10. After all electrical connections have been made, attach the rear access panel
to the rear of the enclosure with the four screws and washers provided.
Installation
Mounting Bracket Installation
Mounting Options
