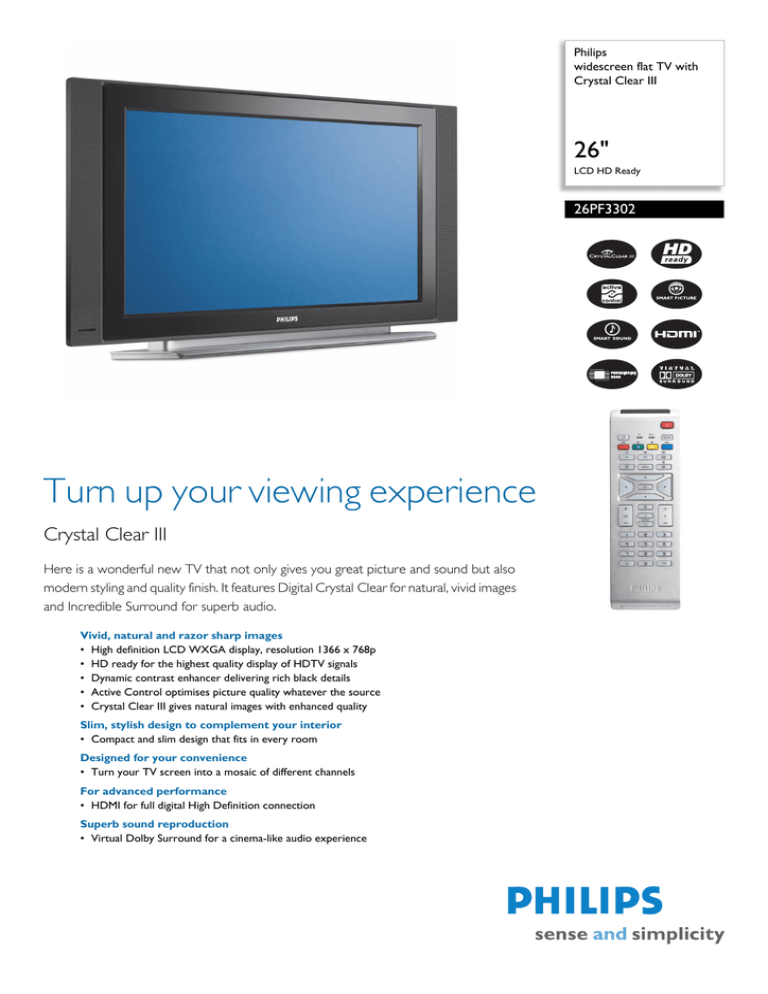

Philips
widescreen flat TV with
Crystal Clear III
26"
LCD HD Ready
26PF3302
Turn up your viewing experience
Crystal Clear III
Here is a wonderful new TV that not only gives you great picture and sound but also
modern styling and quality finish. It features Digital Crystal Clear for natural, vivid images
and Incredible Surround for superb audio.
Vivid, natural and razor sharp images
• High definition LCD WXGA display, resolution 1366 x 768p
• HD ready for the highest quality display of HDTV signals
• Dynamic contrast enhancer delivering rich black details
• Active Control optimises picture quality whatever the source
• Crystal Clear III gives natural images with enhanced quality
Slim, stylish design to complement your interior
• Compact and slim design that fits in every room
Designed for your convenience
• Turn your TV screen into a mosaic of different channels
For advanced performance
• HDMI for full digital High Definition connection
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
26PF3302/10
widescreen flat TV with Crystal Clear III
26" LCD HD Ready
Specifications
Product highlights
Picture / Display
• Screen format adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen
• Clock: Sleep timer, Wake up clock
• Teletext: 10 page Smart Text
•
Tuner / Reception / Transmission
•
•
•
•
•
•
•
•
•
•
Aspect ratio: 16:9, Widescreen
Brightness: 500 cd/m²
Diagonal screen size: 26 inch / 66 cm
Display screen type: LCD WXGA Active Matrix
TFT
Picture enhancement: Progressive scan, 3/2 - 2/2
motion pull down, Digital noise reduction,
Jagged line suppression, Active Control,
Contrast plus, 2D combfilter, Crystal Clear III
Screen enhancement: Anti reflection coated
screen
Viewing Angle (H / V): 140 / 120 degree
Panel resolution: 1366 x 768p
Response time (typical): 8 ms
Dynamic screen contrast: 1200:1
Contrast ratio (typical): 600:1
Supported Display Resolution
• Computer formats
Resolution
Refresh rate
640 x 480
60, 67, 72, 75Hz
800 x 600
56, 60, 72, 75Hz
1024 x 768
60, 70, 75Hz
• Video formats
Resolution
Refresh rate
640 x 480p
2Fh
720 x 576p
2Fh
1280 x 720p
3Fh
1920 x 1080i
2Fh
• Tuner bands: Hyper band, S channel, UHF, VHF
• TV system: PAL B/G, PAL D/K, SECAM B/G,
SECAM D/K, SECAM L/L'
• Video playback: NTSC, PAL, SECAM
• Aerial input: 75 ohm coaxial (IEC75)
• Tuner display: PLL
• Number of preset channels: 100
Connectivity
•
•
•
•
•
Ext 1 Scart: Audio L/R, CVBS in/out, RGB
Ext 2 Scart: Audio L/R, CVBS in/out, S video in
Ext 4: YPbPr
Ext 5: HDMI
Front / Side connections: CVBS in, Headphone
out, S video in, Audio L/R in
• Number of scarts: 2
Power
• Power consumption: 100 W Normal
Operation W
• Standby power consumption: < 1 W
• Ambient temperature: 5 °C to 40 °C
• Mains power: 110 - 240V, 50/60Hz
Dimensions
Sound
• Sound enhancement: Dynamic bass
enhancement, Auto volume leveller
• Sound system: Virtual dolby surround
• Output power (RMS): 2 x 5 W
• Equaliser: 5-bands
Convenience
• Ease of installation: Auto programme naming,
Automatic Channel Install (ACI), Automatic
Tuning System (ATS), Auto store, Fine tuning,
Plug & Play, Program name, Sorting
• Ease of Use: Auto volume leveller (AVL),
Program list, Smart picture control, Smart sound
control, Side Control
• Remote control type: RCFE06SPS00
• Teletext enhancements: 4 favourite pages,
Program information line
• Picture in Picture: Twin page text
• Remote control: DVD, TV, Multi functional
• Colour cabinet: Black
• Box dimensions (W x H x D):
876 x 209 x 601 mm
• Set dimensions (W x H x D):
804.5 x 483 x 114 mm
• Dimensions (with base) (W x H x D):
804.5 x 477 x 222 mm
• Product weight: 13.3 kg
• Weight incl. packaging: 17 kg
• VESA wall mount compatible: 200 x 100 mm
Accessories
• Included accessories: Power cord, Registration
card, Remote control, User manual, Batteries
for remote control, Table top stand, Warranty
certificate
• Optional accessories: Floor stand
Loudspeakers
• Built-in speakers: 2
•
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD screen
technology gives you widescreen HD resolution of 1366
x 768p pixels. It produces brilliant flicker-free
progressive scan pictures with optimum brightness and
superb colours. This vibrant and sharp image will
provide you with an enhanced viewing experience.
HD Ready
Enjoy the exceptional picture quality of a true High
Definition TV signal and be fully prepared for HD
sources like HDTV broadcast, Blu-ray DVD or HDVD.
HD ready is a protected label that offers picture quality
beyond that of progressive scan. It conforms to strict
standards laid out by EICTA to offer an HD screen that
displays the benefits of resolution and picture quality of
a High Definition TV signal. It has a universal connection
for both analogue YPbPr and uncompressed Digital
connection of DVI or HDMI, supporting HDCP. It can
display 720p, and 1080i signals at 50 and 60Hz.
Dynamic contrast enhancer
You want the LCD flat display with the highest contrast
and most vibrant images even at wide viewing angle.
The Philips dynamic contrast enhancer uses video
processing and unique dimming backlight technology.
This delivers deep rich black levels with increased detail.
The dimming backlight increases the contrast up to 5
times*, and at the same time improves the viewing
angle. It gives a bright, lifelike picture with high contrast
and vibrant colours, (* factor between 2 and 5, screen
type and picture content dependant).
Active Control
Active Control ensures that noise and sharpness
improvements are continuously made at a rate of 60
times per second. By continually adjusting picture
settings over 3,000 times per minute, Active Control
Plus ensures that the viewing experience is optimised.
Multiple PiP Modes
Multiple Picture-in-Picture modes allow you to
simultaneously watch two video sources either picturein-picture, side by side, or in a mosaic-view with still
images.
HDMI input
HDMI makes an uncompressed digital RGB connection
from the source to the screen. By eliminating any
conversion to an analogue signal, it delivers an
unblemished image. The non-degraded signal delivers
reduced flicker and leads to a clearer picture. HDMI will
intelligently communicate the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources but includes
digital audio. HDMI uses HDCP copy protection.
Crystal Clear III
Crystal Clear III combines a whole range of
enhancements to provide a better picture. They include
a 2D Comb filter, Dynamic contrast, Blue stretch and
Green enhancement so that you always get the most
natural looking colours.
Virtual dolby surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It will create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed
in your television experience.
Date of issue 2007-06-01
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 1.0
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 30699
EAN: 87 12581 33959 3
www.philips.com
