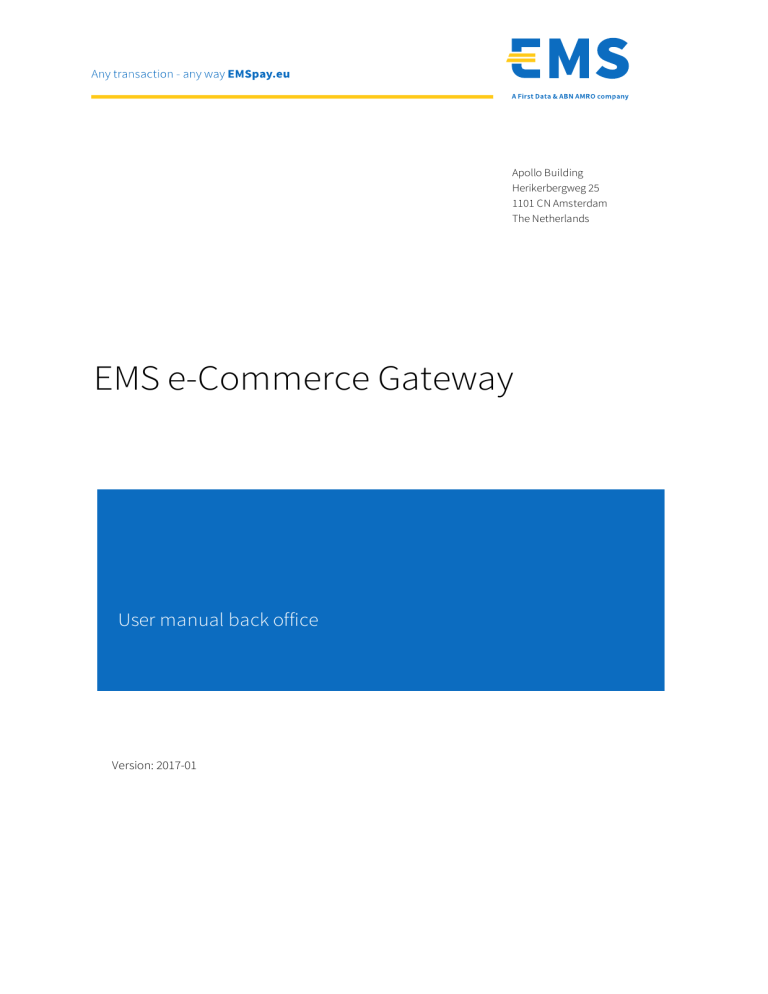

EMS e-Commerce Gateway
User manual back office
Version: 2017-01
User manual EMS e-Commerce Gateway back office
Version 2017-01
Intended use
This manual provides instructions for the use of the EMS e-Commerce back office which
provides the following main functionalities:
- MOTO transactions via the e-Terminal Processing Transactions
- Reporting on transactions Reports
- Customization of hosted payment pages Customising the payment page design
-
Customization of (alternative) payment methods Alternative payment method configuration
Setup of anti-fraud settings Fraud Prevention Tools
Getting Support
There are different manuals available for EMS’ e-Commerce solutions. This User Guide will be
the most helpful for processing transactions with the e-Terminal, using the integrated
Reports, setting configuration options and administrating users.
If you have read the documentation and cannot find the answer to your question, please
contact your local support team.
Contents
Intended use .............................................................................................................................................. 2
Getting Support ......................................................................................................................................... 2
1.
Introduction ............................................................................................................................................. 5
2.
Processing Transactions ...................................................................................................................... 6
2.1.
2.2.
2.3.
2.4.
2.5.
2.6.
2.7.
2.8.
2.9.
2.10.
2.11.
2.12.
2.13.
Transaction Terminology................................................................................................................................................... 6
Using Your Web Browser as a Virtual Point of Sale Machine ...................................................................................... 6
Processing Sale transactions ............................................................................................................................................ 7
Selecting Products from your Product Catalogue ....................................................................................................... 7
Order Information................................................................................................................................................................ 8
Enter payment data for card transactions ..................................................................................................................... 9
Pre-validation of Card Type.............................................................................................................................................11
Generate a Payment URL .................................................................................................................................................12
Shipping ...............................................................................................................................................................................14
Recurring Payments ..........................................................................................................................................................14
Comments ...........................................................................................................................................................................14
Complete the Transaction ...............................................................................................................................................14
Processing subsequent transactions ............................................................................................................................15
Completion (Ticket Only) ....................................................................................................................... 15
Processing Returns ................................................................................................................................. 16
Crediting a customer’s account ............................................................................................................ 16
Voiding Orders ......................................................................................................................................... 17
3.
Reports .................................................................................................................................................... 17
3.1.
3.2.
3.3.
3.4.
3.5.
Viewing the Dashboard ....................................................................................................................................................18
Viewing Transaction Charts .............................................................................................................................................18
View Orders Report............................................................................................................................................................20
Order Detail Report ...........................................................................................................................................................21
Transactions Summary Report .......................................................................................................................................22
4.
Transaction notifications by email .................................................................................................. 23
4.1.
Language Selection for Email Notification ..................................................................................................................23
5.
Customisation ....................................................................................................................................... 24
5.1.
5.2.
5.3.
5.4.
5.5.
Customising e-Terminal Content ...................................................................................................................................24
Customising Your Receipts ..............................................................................................................................................24
Settings for your online store integration ....................................................................................................................25
Customising the payment page design ........................................................................................................................26
Alternative payment method configuration ................................................................................................................27
PayPal ....................................................................................................................................................... 27
SOFORT Banking ..................................................................................................................................... 28
iDEAL ......................................................................................................................................................... 28
Klarna........................................................................................................................................................ 28
6.
Fraud Prevention Tools ...................................................................................................................... 30
6.1.
6.2.
6.3.
6.4.
Blocking Credit Card Numbers .......................................................................................................................................31
Blocking Names .................................................................................................................................................................32
Blocking Domain Names..................................................................................................................................................32
Blocking IP and Class C Addresses.................................................................................................................................33
6.5.
6.6.
6.7.
6.8.
Setting Maximum Purchase Limit ..................................................................................................................................34
Setting Auto Lockout and Duplicate .............................................................................................................................35
Setting a Country Profile ..................................................................................................................................................35
Card Security Code information.....................................................................................................................................35
7.
Inventory Management....................................................................................................................... 37
8.
User Administration ............................................................................................................................. 37
8.1.
8.2.
Changing your own Password ........................................................................................................................................37
Managing Users ..................................................................................................................................................................38
1. Introduction
The back office provides access to a central, secure location where you can manage everything related to
transaction processing:




Run secure transactions yourself
Set up your web site to run transactions for you
Prevent fraud
Review transaction reports
Because it runs via the Internet, you can log on from anywhere you can get Internet access, giving you instant
access to process orders from wherever you are.
Process Transactions the Way You Want - From Anywhere
The e-Terminal section is where you process payment transactions via the Internet by turning any Personal
Computer (PC) into a Point of Sale (POS) terminal. It offers functions in a similar way to terminals commonly used
at retail stores. You simply enter the data needed for the transaction and go. It can even take care of recurring
transactions (if you sell subscription services, for example).
The Reports section is where you view your transaction reports, charts and graphs, helpful for business
visualisation and presentations. You can even view consolidated reports for multiple stores by setting up a multistore reporting structure. (A separate multi-store administrative account login is required for multi-store reports.
Contact support to get your initial multi-store admin login ID and password.)
Access Administration and Customisation Functions
The back office also allows you to access functions you need to set up and customise the integration of your web
shop with our Connect solution (for more information see the Connect Integration Guide). You can access these
functions via the Customisation section.
The Administration section is where you turn to change your password, set your fraud settings, manage your users
or set up your multi-store reporting structure. (A separate multi-store administrative account login is required for
multi-store reports. Contact support to get your initial multi-store admin login ID and password.)
To protect your account, we encourage you to log out of the Back office by clicking on the Logout link at the right
top of the page when leaving your computer. You will also be logged out automatically after a period of inactivity.
The Back office is available in the following languages:







English
Dutch
French
German
Italian
Portuguese
Spanish
2. Processing Transactions
2.1. Transaction Terminology
It is important to understand the terminology for processing transactions so that you use the appropriate
transaction type for your orders and returns.






Sale - this is the most common transaction type which immediately charges a customer’s card or bank
account.
Authorise Only (Pre Auth) - a pre authorisation transaction which reserves funds on a customer's credit
card. Authorise Only does not charge the card until you perform a Completion (Ticket Only) transaction
and/or confirm shipment of the order (using an option available in Reports). Note that authorisation
reserves funds for varying periods, depending on the issuing card company's policy. We strongly suggest
that you confirm shipment as soon as possible after authorisation.
Account authorization (Zero Value Auth) – a transaction with a zero amount used to validate a Visa or
MasterCard card
Completion (Ticket Only) – a post authorisation transaction which captures the funds from an Authorise
Only transaction, reserving funds on the customer’s card for the amount specified. Funds are transferred
when your batch of transactions is settled. If you enter a larger total in the post authorisation transaction
than was specified for the Authorise Only transaction, the post authorisation transaction may be
declined. If you enter a smaller amount than was authorised, an adjustment is made to the authorisation
to reserve only the smaller amount of funds on the customer’s card for the transaction.
Return - returns funds to a customer’s card against an existing order on the payment gateway. To perform
a return, you need the order number (which you can find in your Reports). If you perform a Return of the
full order amount, the order will appear in your Reports with a transaction amount of 0.00. To perform a
Return transaction, use the Return page.
Void – Transaction checks can be voided before the batch of transactions is settled.
No funds are transferred during any of these transactions. Funds are transferred only after your batch of
transactions is settled (this is set up to occur automatically once a day).
2.2. Using Your Web Browser as a Virtual Point of Sale Machine
The e-Terminal is the main page which you will use for all your Sale and Authorise Only as well as Forced Ticket
transactions.
Since some of the other types of card transactions such as Completion and Return, need to look in the database
to get order information, they have their own pages. Credit is a special transaction that not all users have access
to, so it also has its own page.
A hide/reveal function is available for all sections of the page, which can expand to provide additional options or
fields - such items are identified by a right-arrow graphic. When clicked upon, the arrow changes to point
downward and the expanded choices are revealed. Clicking again reverses the process.
2.3. Processing Sale transactions
To do a Sale transaction, you will need to complete all the required fields from the following sections. Then, fill in
additional fields as appropriate for your transaction. Follow these steps to perform a Sale transaction.
1.
2.
3.
4.
5.
6.
7.
8.
9.
If using the product catalogue feature, select items from the Product Catalogue
Enter Order Information
Select Credit Card as the Payment Method
Enter Credit Card Information, select Transaction Type Sale
If needed, enter further optional fields
Click on the Continue button
If there are data entry errors or any required fields are missing, the same page will reappear with an error
message at the top, and all incorrect/missing fields flagged with a warning graphic. Make any necessary
corrections, then click the Continue button again. Once your page is error free, a Please Confirm page will
appear.
Review the data, make corrections if needed by clicking on the Back button, then click the Submit button.
A Transaction Result page will appear.
Review the Results.
2.4. Selecting Products from your Product Catalogue
The back office offers you the timesaving ability to choose items from your product catalogue every time you
process an order. To enable this feature, you first need to enter your product catalogue using the Manage your
Product Catalogue function in the Customisation section. For every product you have entered, you can click on Edit
to add options (e. g. colour, size etc.). Once you've done that, simply go to the back office main page and click on
the Select Products button to select products for this order. The Product Catalogue page will appear.
Adding Products to the Order
The top half of the page is the Product Summary table, which lists all the products in your product catalogue. To
add products to the order in progress, simply enter the desired quantity of a particular product in the Qty (quantity)
column. If there are any options for this product, they will appear in the Options column of this table. Select the
appropriate choices by choosing one of the choices available in the dropdown box (e.g., colour: red, size: 5), then
click on the Add Item(s) button below the table.
The correct quantity, choices, product description, price, and total should appear in the Selected Products table
on the bottom half of the page.
Removing Products from the Order
If you have made an error in entering any of the product quantities or options, you can delete the product(s) from
the order very easily by checking the checkbox for that line item in the Selected Products table, then clicking on
the Delete Item(s) button located just below the table. To delete all the products in the order, click on the checkbox
at the top left corner of the Selected Products table (this selects all the items in the order), then click on the Delete
Item(s) button.
Completing the Order Process
Once you've completed your product selections, click on the POS Main button to return to the back office main
page,
where
you
can
enter
payment
and
contact
information
for
this
order.
A table should appear at the top of the page showing all the products selected for this order along with the subtotal
of the order.
Back office: Products selected from Product Catalogue
If any of the product selections should change before you've submitted the order, you can return to change your
product selections by clicking on the Select Products button again.
2.5. Order Information
The Order Information section has only one required field: the total amount of the order (including all taxes and
shipping). Other fields in the section are optional and can be used at your discretion.
You must fill out all required fields. To enter Order Information, follow the steps below.
Order Number (optional)
For regular credit card transactions, this field is optional. If you wish to assign an order number to this order, enter
one in the text box provided.
Each order number must be unique, so if you are going to use this field on a regular basis, you should adopt an
order number generation procedure. If you choose not to assign an order number, the EMS system will
automatically generate one for you.
Purchase Order Number (optional)
If there is a purchase order number associated with this order, enter it here. Because you may have several
transactions against the same purchase order, you may use the same purchase order number for several
transactions, if needed. For regular credit card transactions, this field is optional.
Shipping Amount (optional)
If there are shipping charges associated with this order and if you wish to track your shipping charges, enter a real
or integer number equalling the charge for shipping this order.
VAT (if applicable)
There may be cases where you are doing international business where you need to charge a Value Added Tax
(VAT), either in addition to or in lieu of the regular sales tax. If the Value Added Tax applies to your order and if you
need to charge the customer the VAT now, enter the amount of the VAT in the VAT field. In some cases, you may
not need to charge the VAT; it will be taken care of when the goods are imported.
Total Amount (required)
As you enter Subtotal, Tax and VAT, the back office will automatically calculate the total amount for you. If you
need to, you can replace this value with any real or integer number representing the total amount of the
transaction. The total amount should include tax, VAT (if applicable), and shipping charges, and should reflect the
sum of all charges for this transaction. The total amount should always equal the sum of the product subtotal, tax,
shipping, and VAT.
This is a required field for ALL transactions.
Currency (required)
If you want to use another currency for this transaction then the displayed default currency, you can change it
using the drop-down box.
2.6. Enter payment data for card transactions
The Payment Details section shows fields required for a Sale, Authorise Only, Forced Ticket or Account
authorization transaction.
A graphic for each card type that has been setup for your store is shown.
e-Terminal: Card data input fields
To enter card information, follow the steps below:
Step 1: Select the Card Type (optional)
First, select the card type from the Select card type dropdown box or click on one of the brand logos.
Step 2: Select the Transaction Origin
Select the transaction origin from the Transaction Origin dropdown box.
 Select Retail (face to face) if the customer and the card are in your presence.
 Select Electronic Commerce (internet) if the order came to you over the Internet or
via e-mail.
 If you received the order over the phone or through the mail, select Mail Order/Telephone Order.
Transaction Origin is always a required field therefore you must make a selection.
Step 3: Select the Transaction Type
Once you've selected the transaction origin, select the appropriate transaction type for your card transaction in
the Transaction Type dropdown box.
 Select Sale to charge the customer's card immediately (upon batch settlement)
 Authorise Only to reserve funds on the customer's card, but not complete the transaction yet

Account authorization to only validate a card (Visa or MasterCard) with a zero value amount
If you need to do any other type of transaction, you'll need to visit another page. To complete an Authorise Only
transaction, go to the Completion page. To do a Return, go to the Return or the Credits page.
Transaction Type is always a required field, but if you do not make a selection, it defaults to Sale.
Step 4: Enter the Card Number or Swipe the Card
Enter the card number in the Card Number field. You may include spaces or dashes if you wish.
If the card is present and you have the appropriate reader (configured correctly), place your cursor in the Card
Number field, and then swipe the card through the reader. The Card Number field should be automatically filled
in for you. If it is, there is no need to enter any other data.
All other required fields (except Transaction origin and Transaction type) become optional because the entire
customer's data is passed to us from this one entry.
If something should go wrong and this field does not fill in when you swipe the card, check your reader to make
sure it's configured correctly. If the reader is configured correctly and you are still unable to swipe the card, the
card may be unreadable. Go to the previous field (Are you swiping the card?), uncheck the Yes checkbox, and enter
the card data manually.
Note: If your store has been activated for GlobalChoice™ please refer to the GlobalChoice™ chapter in this
document in order to obtain more detailed information.
Step 6: Enter the Expiry Date
Select the card's Expiry Date from the dropdown boxes. Select the month first, then the year that the card expires.
Step 7: Enter the Card Security Code
The Card Security Code is a 3 or 4-digit number usually found on the back of the customer’s credit card, on the
same line as the customer’s signature, following the last four digits of the credit card number. There are many
different names for this code: Visa calls this code CVV2, MasterCard calls it CVC2, American Express 4DBC.
Step 8: Enter the Reference Number (required only for Forced Ticket transactions)
If you are performing a Forced Ticket transaction, enter the reference number associated with this transaction
(typically given to you over the phone with the authorisation) in the Reference Number box. The Reference Number
field will not appear unless you have chosen Forced Ticket as the transaction type.
Step 9: Enter the Number of Instalments (optional, if merchant is configured for instalments)
If your store has been enabled for instalments, you can enter the number of instalments to complete the payment.
You must include a numeric field.
Step 10: Continue to the Customer Contact Information section
Click on Customer Contact Information to expand the text, and then enter the appropriate fields. The Customer ID
is a unique identification number you can choose for the customer.
2.7. Pre-validation of Card Type
If the functionality is activated for your store and a card number is entered, the field Debit / Credit will automatically
populate with whether the card number belongs to a credit or debit card based on a BIN file lookup in the
background.
In case of dual functionality cards the field will be enabled to let merchants choose the card function for the
transaction (drop-down).
e-Terminal: Card type pre-validation
The card type is also shown on the Confirmation Page, the Order Details and the Receipt.
2.8. Generate a Payment URL
The Payment URL functionality allows you to provide a link to your customers (e.g. in an email invoice, WhatsApp
message, SMS, QR code, etc.) which then takes the customer to a webpage where they can securely make the
payment with their preferred payment method, whenever convenient for them.
This is especially useful in scenarios where goods get paid after delivery, where no goods get shipped at all (e.g.
final payment for trips that have been booked months ago) or for the payment of monthly bills.
If you have the Payment URL functionality enabled for your store, you will find an option to select Generate
Payment URL under the Order Information:
e-Terminal: Dedicated checkbox for Payment URL generation
If the checkbox is selected, the Card section (Credit Card, Direct Debit) and Recurring sections will be hidden. You
can then complete the required information for the payment URL and continue the transaction as usual.
The generated URL will be shown on the Transaction Result page where it can be selected (copied) to provide it
to the customer. The URL can also be copied from the Order Details page at a later point.
e-Terminal: Generated Payment URL to be copied by clicking Select button
Please note that a created Payment URL is shown in the Reports with an approval code ‘?:Payment URL created’.
Once the consumer has accessed the URL and made the payment, the Reports will show the result of the payment
transaction.
Back office: Overview of a Payment URL transaction completed by the customer
2.9. Shipping
The entire Shipping section is optional by default. You do not have to enter any shipping information to perform a
transaction.
If desired, enter the type of shipping you will use for this order. Up to 36 alphanumeric characters are allowed in
this field. Examples are Federal Express, UPS, etc.
2.10. Recurring Payments
The Recurring Payments section allows you to make a credit card (Sale) transaction recurring. To make a
transaction recurring, click on the Make recurring? the Yes checkbox.
Next enter how often you wish to charge the customer. In the Bill the customer fields, enter a number from 1 to 999
with no decimal point and select day, week, month, or year in the dropdown box. For example, if you wish to
charge the customer once a year, enter the number 1 and select "year" in the dropdown box. To charge the
customer twice a year (once every 6 months), you would enter the number 6 and select month in the dropdown
box.
Select the month / day / year to start charging the customer in the Start on dropdown boxes.
Enter the number of times to charge the customer in the End After textbox.
e-Terminal: Recurring Payments input fields
Please see the Reports chapter in this document for details about how to modify or cancel Recurring Payments.
2.11. Comments
The expandable Comments section is not required by default. There is only one field in the Comments section:
Comments. It is intended to let you enter optional notes about the transaction. Comments are visible in your
Reports, so they can help you with your transaction management if you use them effectively.
2.12. Complete the Transaction
When you click the Continue button, all your entries are validated. If pieces of information are missing or incorrect,
the back office main page will reappear with an error message at the top and the incorrect or missing fields flagged
with an error graphic. If this should occur, make the appropriate corrections to the fields, then click the Continue
button again.
If there are no apparent invalid entries, a review of all the information you entered with a request for confirmation
will appear. Review the information and, if necessary, click on Back and make any corrections. Otherwise, click on
Submit.
The Transaction Result screen will appear. The result screen will contain all the information you entered, plus an
extra section at the top called Transaction Information.
For retail merchants who need a receipt for the customer to sign, there is a print receipt function. Simply click on
the Show Receipt button at the bottom of the Transaction Result page. A new browser window will open with a
transaction receipt. Click on the Print Receipt button at the bottom of the Receipt page to print the receipt. Once
you have printed all the receipts you need, close the receipt window by clicking on the Close button at the bottom
or on the X in the top right hand corner of the Receipt window.
The Transaction Information section is where you will see whether the transaction was approved or declined. If the
transaction was approved, the Transaction Status line will say Approved. The Date and Time of transaction, a
Transaction reference number, an Approval Code, and a Reference number will follow.
A typical Approval Code for a successful transaction contains four alphabetic characters in the middle of the code,
e. g. PPXM. The first three letters indicate Address Verification Service results:
Value
PPX, XXU
YYY
YNA
NYZ
NNN
YPX
PYX
NPX
PNX
Meaning
No address data provided or not checked by the Card Issuer
Card Issuer confirmed that street and postcode match with
their records
Card Issuer confirmed that street matches with their records
but postcode does not match
Card Issuer confirmed that postcode matches with their
records but street does not match
Both street and postcode do not match with the Card Issuer’s
records
Card Issuer confirmed that street matches with their records.
The Issuer did not check the postcode.
Card Issuer confirmed that postcode matches with their
records. The Issuer did not check the street.
Street did not match with the Card Issuer’s records. The Issuer
did not check the postcode.
Postcode did not match with the Card Issuer’s records. The
Issuer did not check the street.
The last alphabetic character in the middle is a code indicating whether the card security code matched the cardissuing bank's code. An "M" indicates that the code matched. See further details in section Card Security Code
below. If the transaction was declined, a reason for the decline will show on the Approval Code line.
2.13. Processing subsequent transactions
Completion (Ticket Only)
After you run an Authorise Only transaction, you need to complete it. A Completion transaction is sometimes
referred to as a post authorisation.
1. To perform a Completion transaction, go to the Completion page.
2. The first Completion page simply asks for the order number. This is the order number associated with your
Authorise Only transaction. (If you don’t know your order number, you can find it in your Reports.) Enter the order
number then click on the Retrieve Order button.
3. A new page will appear with several pre-filled input fields related to the order. Review these fields to ensure you
have selected the correct order. (You may have to expand some of the sections at the bottom of the page to see
all the fields you need to see.) If this isn’t the right order, click on the Back button on your browser and enter the
correct order number to retrieve. If it is the right order, make any changes you need to make to the input fields,
then click on the Continue button.
4. Once you click the Continue button, if all entries in the form were valid, another page will appear asking you to
confirm the information. If everything is okay, click on the Submit button; otherwise, click on the Back button to
make the appropriate changes. (If any fields are missing or incorrect, the Completion page will reappear with an
error message at the top and the incorrect/missing fields flagged with a warning graphic. Make the appropriate
changes then click the Continue button again. A Please Confirm page should appear.
5. Review the information, then click the Submit button. A final Transaction Results page will appear, indicating
whether the transaction was approved or declined and reiterating all the transaction information.
Processing Returns
Should a customer return something associated with an order, you can credit their account for the amount of the
return using a Return transaction.
1. To do a Return, first go to the Return page. A page will appear, with a field for the order number. If you don’t
know your order number, you can find it in your Reports.
2. Once you’ve located the order number, enter it in the input box, then click on the Retrieve Order button. A page
will appear showing all the existing information from that order.
3. Review these fields to ensure you have selected the correct order. (You may have to expand some of the sections
at the bottom of the page to see all the fields you need to see.) If this isn’t the right order, click on your browser's
Back button to return to the previous page and retrieve an alternate order.
4. If this is the correct order, enter the amount to return in the appropriate fields. By default, the fields will be pre filled with the total amount available to be returned. It is possible to return a lower amount than the order total,
to do so make corrections as appropriate ensuring the sum of the subtotal, tax and shipping amount must equal
the Total amount; if it doesn’t, you will get an error when you click the Continue button
5. Once you’ve finished with the Order fields, change any other fields related to Customer Contact Information,
Payment Information, or Comments, then click the Continue button.
6. Once you click the Continue button, if all entries in the form were valid, another page will appear asking you to
confirm the information.
7. If everything is okay, click on the Submit button; otherwise, click on the Back button to make the appropriate
changes. (If any fields are missing or incorrect, the Return page will reappear with an error message at the top and
the incorrect/missing fields flagged with an error graphic. Make the appropriate changes then click the Continue
button again. A confirmation page should appear. Review the information, then click the Submit button.
8. A final Transaction Results page will appear, indicating whether the transaction was approved or declined and
reiterating all the transaction information. As you enter values in the Return subtotal, Return Tax or VAT, and Return
Shipping Amount fields, the Total amount to Return field will automatically change to the sum of the three fields.
You are allowed to change the total, but the sum of the subtotal, tax and shipping amount must equal the Total
amount; if it doesn’t, you will get an error when you click the Continue button.
Crediting a customer’s account
Sometimes you need to credit a customer’s account for an order that occurred outside the payment gateway.
Because there is some inherent risk of fraud with a credit, not every merchant has permission to perform credit
transactions. If you do not see the Credit function listed in the Side Menu Box of your e-Terminal section, you do
not currently have permission to perform a credit. Contact your processor’s merchant services department to
enable the function if you need it and do not have it.
If you indeed need to do a credit against an order received elsewhere, click on Credit to bring up the Credit page
with several entry fields. Fill the appropriate and required fields for your credit, then click on the Continue button.
Once you click the Continue button, if all entries in the form were valid, another page will appear asking you to
confirm the information. If everything is okay, click on the Submit button; otherwise, click on the Back button to
make the appropriate changes. (If any fields are missing or incorrect, the Credit page will reappear with an error
message at the top and the incorrect/missing fields flagged with a warning graphic. Make the appropriate changes
then click the Continue button again. A confirmation page should appear. Review the information, then click the
Submit button.
A final Transaction Results page will appear, indicating whether the transaction was approved or declined and
reiterating all the transaction information.
For merchants with MCC 7995 (Gambling) the credit function is used for the payment of winnings. The
combination of the credit request with the merchant MCC 7995 ensures we send the correct detail through for the
merchant to qualify for payment transaction rates.
Voiding Orders
If an order has not yet been settled, you have the capability to void the order. The process for voiding orders is as
follows:
1. Click on the Reports button on the Main Menu Bar.
2. If you wish to void credit card orders, click on the View Credit Card Batches link in the Side Menu Box.
3. Specify Time Period:—Select any of the named time periods or enter a specific range of dates.
4. Click on the Submit Query button. The batch report will appear.
5. Click on the words Current Batch to bring up the Current Batch report.
6. Select the orders you wish to void by clicking on the corresponding checkboxes in the left-most column.
7. Click on the Void Selected Orders button at the bottom of the page.
8. A page showing the results will appear. Each order you chose to void should show on the list.
You can only void orders which have not yet settled. If you should notice any orders in the Current Batch list with
a transaction approval code of YTEST, we recommend you void them before your batch is submitted for
processing.
3. Reports
Use Reports to view your store's transactions from several different perspectives and to perform some
administrative tasks.
To view the reports, click on the Reports button on the Main Menu Bar. The Reports Main Menu for your store is
displayed in the Side Menu Box and in the main content portion of the screen. The reports available are listed
below.




Dashboard—shows information on card sales made including a table with the last 6 months transactions.
Transaction Charts—shows transactions in bar, pie, or line charts.
Orders—shows all successful orders by specific time period, by credit card number and time, by order
number, or by user ID and time. You also have the option to show only unshipped orders.
Transactions—shows all transactions by time period, by credit card number and time, order number, User
ID and time or by transaction type and time.



Transactions Summary—shows a summary of approved and declined AUTH and SALE transactions and a
summary of approved AUTH and SALE transactions by card type.
Credit Card Batches Report—lets you view credit card batches processed during a specified time period.
Active Periodic Bills—shows information about recurring transactions and allows you to modify them.
Credit Card Numbers
As a security feature, only the first four and last four digits of credit card numbers are displayed in the reports.
These Credit Card Identification (CCID) numbers are often active links that can be selected to display information
about all transactions involving the selected card number.
Downloading Report Data
To download the data from any of the reports for use with your own accounting tool, follow the steps below:
1. Bring up the report which contains the data you wish to download.
2. Locate the Export All Data button located at the bottom of the page.
3. Select your desired format from the dropdown list. Choose either CSV (Comma delimited) or XML format. CSV
lists are suitable for importing into most common spreadsheets or databases. XML format is helpful for
applications that allow you to import XML.
4. Click on the Export All Data button to download the data. Depending on your browser, a File Download dialogue
box will most likely appear, asking what you would like to do to the file (Open, Save, or Cancel). If you choose Open,
the file will open in the application that is assigned to that type of file. Choosing Save will ask you to choose a
location where you wish to save the file.
Regardless of the number of pages in the report, all report data will be included in the downloaded file.
3.1. Viewing the Dashboard
To view the Dashboard click on the Reports button in the Main Menu Bar then click on Dashboard.
The Dashboard offers a graph showing the past weeks Processed Sales Volumes, a chart showing the past 3 months
of Transactions by status (approved versus declined) and a transaction overview table offering details of the last 6
months transactions.
The transaction overview table can be sorted by clicking on any of the headers and there is a search option to
search for a specific transaction if required.
The details of each transaction can be viewed by clicking on the transaction’s Order reference. A new window will
then provide you with the Order Detail Report. Please see 3.4 Order Detail Report for what can be viewed and
managed from this report.
There is also an option to select to make the Dashboard your start page.
3.2. Viewing Transaction Charts
The integrated reports offer four graphical chart types, which are helpful for visualising orders and sales, and for
when you need charts for a presentation. To view your orders in chart format, follow the steps below.
1. Click on the Reports button in the Main Menu Bar.
2. Click on the Transaction Charts link in the Side Menu Box or the main content area. The View Transaction Charts
screen appears.
3. Select Chart Type: select an option. You can view your transactions in a bar chart, a pie chart, a line chart, or you
can view a bar chart summary report.
4. Select Transaction Types: select any of the listed transaction types or click on the All checkbox in the separator
bar if you would like to view all the transaction types.
5. Specify Time Period: select any of the named time periods or enter a specific range of dates you wish to view.
6. Select Hierarchy: choose whether you wish to view all stores below you in the hierarchy or a subset by choosing
an option in the dropdown menu. (This option only appears if you are logged in as a multi-store administrator.)
7. Click on the Submit button to view the report. If you want to re-enter the information, click on the Reset button
to clear the information.
Chart Types
Depending on which type of chart you chose, the chart which appears will look different. The chart types available
are listed below:

Detailed Bar Chart
The Detailed Bar Chart report shows the transaction totals by type in a bar chart format. Each transaction
type is shown in a different colour. For each month in the specified timeframe, there is a row of coloured
bars showing transaction totals for that month. At the bottom of the chart, a table shows summary
statistics for each type of transaction. Hold your mouse over any coloured bar to see the total exact
amount of transactions of that type. Clicking on the bar will bring up a detailed Transactions Processed
report for that transaction type. (For more information on viewing detailed transaction reports, see
Viewing Transactions.) Click on the coloured boxes in the legend on the right to see individual bar chart
reports for the selected transaction type. Right click on any of the charts to save that chart as a graphic
in jpeg format. You can then import the graphic into your presentations or documents as needed.

Summary Bar Chart
The Summary Bar Chart report shows the transaction totals by type in a bar chart format. Each
transaction type is shown in a different colour. Each coloured bar represents the total amount of all
transactions of that type over the entire timeframe specified. At the bottom of the chart, a table shows
summary statistics for each type of transaction. Hold your mouse over any coloured bar to see the total
exact amount of transactions of that type. Clicking on a coloured bar will bring up a detailed Transactions
Processed report for that transaction type. (For more information on viewing detailed transaction reports,
see Viewing Transactions.) Right click on any of the charts to save that chart as a graphic in jpeg format.
You can then import the graphic into your presentations or documents as needed.

Pie Chart
The Pie Chart report shows the transaction totals by type in a pie chart format. Each transaction type is
shown in a different colour. At the bottom of the chart, a table shows summary statistics for each type of
transaction. Hold your mouse over any coloured pie piece to see the total exact currency amount of
transactions of that type. Clicking on a pie piece will bring up a detailed Transactions Processed report
for that transaction type. Right click on any of the charts to save that chart as a graphic in jpeg format.
You can then import the graphic into your presentations or documents as needed.

Line Chart
The Line Chart report shows the transaction totals by type in a line chart format. Each transaction type is
shown in a different colour. Each coloured line represents the total amount of all transactions of that
type. At the bottom of the chart, a table shows summary statistics for each type of transaction. Click on
any of the legend boxes to see a line chart for that transaction type alone. Right click on any of the charts
to save that chart as a graphic in jpeg format. You can then import the graphic into your presentations or
documents as needed.
3.3. View Orders Report
To view your orders, you need to use the Orders Received report. Generate an orders report by following the steps
below.
1. Click on the Reports button in the Main Menu Bar.
2. Click on the Orders link in the Side Menu Box or the main content area. The View Orders screen appears.
3. Display Orders: select an option. You can view orders sorted by time period, by credit card number and time, by
User ID and time, or by order number.
4. Specify Time Period: select any of the named time periods or enter a specific range of dates you wish to view.
5. Options: click on a box if you want the report to show only unshipped orders or to show only approved orders.
By default, the Only Show Unshipped Orders box is unchecked and the Only Show Approved Orders box is checked,
so the report will show approved orders only (both shipped and unshipped). If the Only Show Unshipped Orders
box is checked, the report will show all unshipped orders. If both boxes are unchecked, the report will display all
orders (both shipped and unshipped), including declined and recurring transactions with future start dates. If both
boxes are checked, the report will show only all approved, unshipped orders.
6. Display Preference: this option allows you to choose how many orders will appear on each page of the report.
Choose a number from the dropdown list.
7. Select Hierarchy: choose whether you wish to view all stores below you in the hierarchy or a subset by choosing
an option in the dropdown menu. (This option only appears if you are logged in as a multi-store administrator.)
8. Click on the Submit Query button to view the report. If you want to re-enter the information, click on the Reset
button to clear the information.
The Orders Received report shows the following information about each order.
 Select—click on the associated Select checkbox to select one or more orders.
 Shipped—shows Y if the order has been shipped, or N if the order has not yet been marked as shipped.
 Retail—shows Y if the order was a retail order, or N if the order was not retail.
 Order #—the number associated with this order. Click on the order number to view order details.
 User ID—if there is a user ID number associated with the order, it will be listed in this column. The number
is also a link to view all the orders placed by a particular customer.
 Date—the date that the order was placed. Shows the most recent order first. The time period you selected
for the report will be shown under the report title.
 Name—the name of the person who placed the order. Click on the name to send email to this customer.
 Amount—shows the amount and currency of the order. The total amount of the orders listed on the page
and the total amount of all orders in this report is also shown at the bottom of the page, along with the
total tax and shipping charges collected.
Confirming Shipment or Crediting Orders
To confirm shipment or credit the entire amount of the order(s), follow the steps below:
1. First select order(s) by clicking on the associated checkbox(es) in the left-most column.
2. Click on the Work with Selected Orders button. The Selected Order Menu screen appears.
3. Select an action by clicking on the appropriate radio button. 4. Click on the Submit Query button to complete
the task. A screen listing the results will appear.
Viewing details
View the details of any order by clicking on the associated Order #. Details will be shown in the Order Detail Report.
View all orders placed by a specific customer by clicking on the User ID link. This column will only be filled in if you
have entered a unique Customer ID Number for each customer when entering orders.
If there are more orders in the report than will fit on the current page (according to the number of orders you've
chosen to show on each page), a set of numbers will appear at the bottom of the page, reflecting page numbers
for the report. The current page number will be larger than the others and will not be underlined. To view any
page, click on the associated underlined page number.
3.4. Order Detail Report
To view this report, click on the Reports button on the Main Menu Bar, then click on the Orders link in the Side
Menu.
Select the appropriate parameters for your query, then click the Submit Query button.
Once the Orders Report appears, you can view an order's detailed report by clicking on the associated Order # link.
The Order Detail report allows you to:
 View the details associated with that order.
 E-mail the customer by clicking on the Name or E-mail link.
 Perform a return against this order.
 View all the orders associated with the credit card number by clicking on the Card Number link.
 View and print the full receipt details, including the full DCC details if applicable, by selecting the Print
Receipt button.
The Order Detail report has several sections which show the following information:
 The Order ID Number and Order Date/Time are shown at the top of the report.
 Billing Address section—gives the User ID, shipping status, and the customer's company, name and
address. If the customer's name and e-mail address were supplied, you can click on the customer's name
to send an e-mail to the customer.
 Shipping Address section—shows the name, address to which the order was shipped.
 Contact Information section—shows the customer's telephone number, e-mail address, fax number and
IP address. If an e-mail address was supplied, you can click on the customer's e-mail address to send an
e-mail to the customer.
 The next part of the report includes subtotal, shipping, tax, return (if applicable) and total amounts.
 The last portion of the report is a transaction history which shows all transactions related to this order
(including authorisations, sales, returns, tickets, etc.) The summary information shown here includes
date, user ID, type of transaction, the card number, the expiration date, approval code, the amount of the
transaction, and comments.
 The Return Order button at the bottom of the report allows you to do a return against this order. Enter
the amount to refund to the customer in the box next to the Return Order button at the bottom of the
page. The amount you enter must be equal to the total amount of the order. To process the return, click
on the Return Order button. To return to the Reports Main Menu, click on the Reports Main button on the
bottom of this report.
Viewing Transactions
To view all your transactions, use the Transactions Processed report. Follow the steps outlined below to see this
report.
1. Click on the Reports button on the Main Menu Bar.
2. Click on Transactions in the Side Menu Box. The View Transactions page will appear.
3. Display Transactions—select an option. You can view transactions sorted by time period, by credit card number
and time, by User ID and time, by transaction type and time, or by order number.
4. Specify Time Period—select any of the named time periods or enter a specific range of dates you wish to view.
5. Select Hierarchy — choose whether you wish to view all stores below you in the hierarchy or a subset by choosing
an option in the dropdown menu. (This option only appears if you are logged in as a multi-store administrator.)
6. Submit Query—click to view the report.
To re-enter the information, click on the Reset button to clear the information.
The Transactions Processed report shows the following information about each transaction. The time period you
selected for the report will be shown just under the report title.
 Order number—shows the number associated with each order.
 Date—shows the date and time of each transaction, from the most recent order to the oldest order.
 User ID—if there is a user ID number associated with the order, it will be listed in this column. The number
is also a link to view all the orders placed by a particular customer.
 Type—shows the type of transaction.
 PayerAuth—shows details about authentication (3DSecure/real-time bank transfers).
 Invoice Number #—shows the Invoice ID that has been assigned when entering the transaction.
 Card/Account Number—shows a link to view all transactions processed with that card or account number.
 Exp. Date—lists the expiry date of the card.
 Approval—shows the approval code of the transaction. If a specific transaction was declined, the reason
it was declined is shown here.
 Amount—shows the amount and currency of the transaction.
Viewing Details
View the details of any order by clicking on the associated Order #.
View a list of all the numbers associated with any credit card number or routing number by clicking on the
associated Card/Route Number.
View all orders placed by a specific customer by clicking on the User ID link. This column will only be filled in if you
have entered a unique Customer ID Number for each customer when entering orders.
Viewing the Rest of the Data
If there are more transactions than will fit on the current page (according to the number of transactions you've
chosen to show on each page), a set of numbers will appear at the bottom of the page, reflecting page numbers
for the report. The current page number will be larger than the others and will not be underlined. To view any
page, click on the associated underlined page number.
3.5. Transactions Summary Report
To view this report, click on the Reports button on the Main Menu Bar, then click on Transactions Summary in the
Side Menu Box.
Choose from the following options to view your report:
1. Display Transactions Summary—select options. You can enter a specific User ID or select specific transaction
types and/or card types to include in the report.
2. Specify Time Period—select any of the named time periods or enter a specific range of dates you wish to view.
3. Display Preference—choose the number of things you wish to display on one page by clicking on the dropdown
box and selecting the number desired. The default is 25.
4. Select Hierarchy— choose whether you wish to view all stores below you in the hierarchy or a subset by choosing
an option in the dropdown menu. (This option only appears if you are logged in as a multi-store administrator.)
5. Submit Query—click to view the report.
If you want to re-enter the information, click on the Reset button to clear the information.
Authorisation Summary table
The first table that appears in the Transactions Summary report shows the following summary information for
each selected transaction type over the time period specified.
 #—shows the total number of approved transactions for that payment type.
 Approved—shows the total number of approved transactions of that type and the total amount for all
approved transactions of that type.
 Declined—shows the total number of declined transactions of that type and the total amount for all
declined transactions of that type.
 Total—shows the total number of transactions of that type and the total amount for all transactions of
that type.
The totals for each column are listed at the bottom of the table.
Approved Summary table
The second table that appears in the Transactions Summary report shows the following summary information for
each selected payment type over the time period specified.
 #—shows the total number of approved transactions for that payment type.
 Amount—shows the total amount for approved transactions of that payment type.
 Total—shows the total number of transactions of that type and the total amount for all transactions of
that type.
The totals for each column are listed at the bottom of the table.
4. Transaction notifications by email
The payment gateway can automatically send out confirmations for each payment transaction by email. These
notifications can be sent to you as well as to your customer.
1.
2.
3.
4.
To activate this feature, click on the Administration link on the Main Menu Bar, then click on Set options
for transaction notifications via email and select Enable Notifications.
Address settings – enter your email address that shall receive notifications and the one that shall be used
as sender address for notifications to your customer. You also need to state a merchant name that will
be used in the email to your customers. Click on the Save Changes button at the bottom of the page.
If you wish to insert additional text for the notifications to your customer, click on View/modify individual
text to be displayed in the email to your customer. To save your changes, click on the Save Changes button
at the bottom of the page.
Click on View/configure the events where you want to send/receive a notification to select transaction
types and transaction results. To save your changes, click on the Save Changes button at the bottom of
the page.
4.1. Language Selection for Email Notification
You have the possibility to select a language that shall be used for the email notification for e-Terminal
transactions, especially in countries where multiple languages are common and therefore your default language
doesn’t always fit.
You can select Notification Language within the Customer Details section for each transaction. The default value
in the drop-down menu is your Store’s default language.
5. Customisation
5.1. Customising e-Terminal Content
The back office main page has many possible input fields that you can use, but very few of them are really required.
Most of the fields available are there to help you gather information about your transactions. Since we don't know
which ones are helpful for you, we let you choose which ones you want to use.
To simplify your ordering process, you can take the ones you don't use off your entry pages. You make these
choices by clicking on Customisation in the Main Menu Bar, then on Customise your back office page content. A
page will appear which contains a table, listing all the fields you may choose from. Some of the fields cannot be
removed from the page; if this is the case, they either do not appear in the listing, or they may appear in the listing
with a checked graphic in front of them, rather than a checkbox which you can check or uncheck.
You might notice that not all the input fields appear on this page. Some fields are always required to process a
transaction (for example, the credit card number is always required for a credit card purchase). Since these fields
must always appear on your entry pages and they are always required, they are not customisable.
Once you've finished your selections, click on the Submit button on the bottom of the page. To put back any of the
fields you removed, simply recheck the box preceding the field names (to select them) and click the Submit button
again. You should see a confirmation message at the top of the page if the change was successful.
If you wish to restore the default settings, click on the Get Defaults button at the bottom of the page, then click on
the Submit button to submit these settings to our server. Again, a confirmation message should appear.
If you uncheck all the boxes within a particular section, the entire section will disappear from your back office main
page.
This same page also allows you to change which fields are required. If, for example, you require an e-mail address
for all your customers, you can make e-mail address a required field by checking the appropriate box in the
Required column. Make your selections, then click on the Submit button at the bottom of the page. There are a
few fields which cannot be made required: all fields related to Items and Recurring Payments. The Total Amount of
the order is always required, so you are not allowed to change this either.
Another timesaving feature you might want to use is setting a default value for your fields. For example, if you
consistently have sales of the same amount, you might want to set the default value of Total Amount to that
specific amount. When you process an order with the back office , then, the Total Amount will already be pre-filled
with your usual total.
If you commonly have the same transaction origin (for example, all mail orders), it's handy to enter a default for
Transaction Origin as well. To set a default value for one of the fields, simply enter the value you would like it to be
in the appropriate textbox in the Default column, then click the Submit button. A confirmation message should
appear.
5.2. Customising Your Receipts
When you enter orders into the back office , you have the option to show and print a receipt from the final
transaction screen. You can print this receipt and give it to your customers as a sales receipt.
To customise your receipt, follow the steps outlined below:
1. Click on Customisation on the Main Menu Bar.
2. Click on Customise your Receipts.
3. Enter up to 24 characters in the Receipt Header textbox. This text will appear towards the top of your receipt.
4. Enter up to 24 characters in the Receipt Footer textbox. This text will appear at the bottom of your receipt.
5. Click on the Submit button.
Whenever you return to this screen, your current customised text should appear in the Receipt Header and Receipt
Footer text boxes.
5.3. Settings for your online store integration
The information contained in this section is applicable only if you are using the Connect solution.
To view this form:
1. Logon to back office .
2. Click on Customisation in the Main Menu Bar.
3. Click on Define the URLs for the integration with your online store.
Below is an explanation of each of the form fields for the Settings form.
Confirmation Page URL ("Thank You")
This is where you tell us the page on your web site where to send your customers after a successful transaction.
Alternatively, you can submit this URL with every transaction request (see Integration Guide for the Connect
solution).
If you want us to display this URL automatically after the receipt page, check the box that says Automatically
display specified URL after the payment process.
Failure Page URL ("Sorry")
You may want to link non-approved customers (customers whose payment transactions were declined) to a
specific page on your web site where they will find information on how to get in contact with you by e-mail or by
phone. In this section of the screen, you may want to supply the URL for a Sorry page where you can invite the
customer to contact you to make other payment arrangements.
Alternatively, you can submit this URL with every transaction request (see Integration Guide for the Connect
solution).
If you want us to display this URL automatically after the receipt page, check the box that says Automatically
display specified URL after the payment process.
Transaction Notification (URL to receive notification when a transaction is complete)
One of the notification options for the results of your payment transactions is that we send the results to a URL
that you can define here.
Alternatively, you can submit this URL with every transaction request (see Integration Guide for the Connect
solution).
Overwrite Store URLs
If you want to be able to overwrite these URLs with different URLs that you submit with the transaction request,
check the box that says Allow URLs to be overwritten by those in the transaction request.
MasterPass Order Review URL
If your Store is activated for MasterPass you can set a static URL in order to show a final confirmation page with
the final amount towards your customers when they return from the wallet (instead of sending this URL as an
additional parameter ‘reviewURL’ along with your request).
Recurring Transaction Notification URL
If you use the IPG’s scheduler to automatically trigger Recurring Payments, you can set or modify your URL in order
to receive Server-to-Server notifications every time these transactions will get processed.
5.4. Customising the payment page design
If you use the hosted payment forms of the Connect solution, you can customise the design of these pages to align
it with your shop or corporate design.
Choose the Customise the design of your hosted payment forms link from the Customisation section to individually
define the following elements:








Background colours of different page areas
Font type, size, colour and weight for headlines
Font type, size, colour and weight for field tags
Font type, size, colour and weight for normal text
Colour and background colour for buttons
Font type, size, colour and weight for button text
Font type, size, colour and weight for hyperlinks
Font type, size, colour and weight for system messages
Customising the payment page design
The Preview Style button and the Mobile Preview Style button at the bottom of the page allow you to check the
design changes you made before saving (preview is in English language).
Furthermore, the link Add static text to your hosted payment forms allows you to enter a text that will then be shown
to the cardholder on the right side of the payment pages.
Also, it is possible to display your individual company logo on these pages. If required, please contact our technical
support team.
5.5. Alternative payment method configuration
If your payment gateway store has been enabled for one or more alternative payment methods, you should logon
to the back office and proceed to Customisation / Payment method configuration section. In this section you can
view and define if required, the settings for the chosen alternative payment method.
PayPal
The information contained in this section is applicable only if you are using the Connect solution and have already
set up your Business Account with PayPal.
Choose the PayPal Setup link to set up your account details for processing PayPal transactions with the payment
gateway.
PayPal environment
Shows if you are logged in to your payment gateway live account to configure your PayPal LIVE account or if you
are logged in to our test environment in order to configure your account for test transactions in PayPal’s SANDBOX
environment.
Allow guest checkout
Deactivate this checkbox if you do not want to allow your customers to use the PayPal payment method without
a registered PayPal account.
PayPal header image (optional)
Use this text field to determine the URL of an image (e. g. your logo) that shall be displayed on the PayPal site.
Custom colour (optional)
Use this text field to determine the border colour (hex format) of the shopping cart box on the PayPal site.
Brand name (optional)
Use this text field to determine the brand name that shall be shown on the PayPal site.
Account name (required)
Use this text field to enter your PayPal account name.
Permissions (required)
Use the checkboxes to grant permissions for specific PayPal functionality that allow us to submit your transactions
to PayPal on your behalf. Click the Grant Permissions button after you selected the appropriate features. You can
change these settings at any time.
SOFORT Banking
The information contained in this section is applicable only if you are using the Connect solution and have already
registered and opened your Project with SOFORT.
Choose the SOFORT Banking Setup link in order to access a new page where you can define the settings for
processing SOFORT Banking transactions with the payment gateway.
Configuration key
Use this text field to determine the specific Configuration key (also known as Merchant key) which will be stored
and linked to your payment gateway account. The Configuration key is a single, long value which is separated with
colon and consists of: customerId:projectId:apiKey.
In case you will ever generate a new API-Key (apiKey) on the SOFORT side, you should always update the
Configuration key stored in the payment gateway. To do so, you should simply copy a new Configuration key on
the SOFORT’s side and enter it directly to the text field provided in the SOFORT Banking Setup page, and then save
the data.
iDEAL
The information contained in this section is applicable only if you are using the Connect solution and have already
signed a contract with the iDEAL Acquiring Bank.
Choose the iDEAL Setup link in order to access a new page where you can view the specific data: Merchant_ID and
Sub_ID which is stored and linked to your payment gateway account. There is no possibility to edit the given data
via the iDEAL Setup page.
Klarna
The information contained in this section is applicable only if you are using the Connect solution or the Web
Service API and have already signed a contract with Klarna.
Choose the Klarna Setup link in order to access a new page where you can define the settings for processing Klarna
transactions with the payment gateway in accordance with the contract signed with Klarna.
Select country
Use the checkbox(s) available on the left side of the Klarna payment method portfolio table to select a country
suitable for you (or more countries if applicable). Note that different Klarna payment methods i.e.: Invoice and
Part Payments (Flexible or Fixed) are available to your customers in different countries.
Enter credentials
Use this text field to enter your Merchant EID and Shared Secret provided to you by Klarna, per each country if
required. Note that Klarna credentials differ from each other depending on the country.
Define invoice delivery method
Use the drop down list to define the invoice delivery method most suitable for you by choosing:


Email - After Completion Klarna will automatically send out an e-mail directly to your customer with an
invoice PDF file attached to it. The Email option is set up in the drop down list by default but you can
always change it to Print, if desired.
Print - after Completion you will be able to print out an invoice and add it to a postal delivery in order to
send it over to your customer. You can access the invoice PDF file via the Order Details view by clicking on
Invoice button. But note that it will be available only for 14 days from the Completion date. After that time
you could always resend an invoice to your customer via e-mail (as a PDF file attached) by clicking on
Resend Invoice button in the Order Details view.
Define additional charge fee
The Invoice fee is applicable only for Klarna Invoice payment method and by default it is set to ‘0.00’. If required,
use this text field to enter a new charge fee per each country as described in your contract with Klarna.
Review payment methods
By default you will see all the checkboxes pre-selected. Please review them and if required uncheck those which
are not relevant for your country selection. Note that Klarna offers the following payment methods:


Invoice – Pay in 14 days – a simple invoice solution where the customer receives the goods first and pays
later, within two weeks from the date of purchase, which makes shopping safe for him. Available for:
Austria, Denmark, Finland, Germany, Netherlands, Norway and Sweden.
Part payment – Flexible or Fixed – an universal part payment solution where the customer can either
gather all purchases made during one month on one invoice (account) and pay by flexible instalments
(pay at your own pace) or decide how much of the total amount of the purchase he wants to pay each
month by fixed installments (pay X per month for Y months). Available for: Denmark, Finland, Germany,
Netherlands, Norway and Sweden.
For more information please refer to https://developers.klarna.com/en/de+php/kpm/invoice-part-payment.
Save settings
Save the settings provided in the Klarna payment method portfolio table by clicking on Save Changes button.
Fetch pclasses values
If all the settings are saved successfully, you can proceed to the Klarna cost calculation values (pclasses) table,
where you will not see any values at the beginning. First of all you have to fetch the pclasses values from Klarna by
clicking on Refresh values (pclasses) button. After that the specific values will appear in the table.
Note that if you will ever change the settings (e.g.: by selecting a new country) or Klarna will inform that you should
update the pclasses values then you should click on Refresh values (pclasses) button again. The specific pclasses
values in the table will be updated accordingly.
When all the settings are correctly saved and the pclasses values are successfully fetched, the Klarna payment
methods selected by you will be activated in your payment getaway store.
If you would like to deactivate Klarna as a payment method in your store, you should simply unselect (uncheck)
the checkbox(s) available on the left side of the Klarna payment method portfolio table, next to the country you
have selected.
Klarna requires a test certification prior to providing you with the needed production details. Klarna will ask you
to perform some transactions on the test environment and once done, the production details will be shared with
you by Klarna. You will have to use your test credentials to add the test data in the back office and once you
receive the confirmation from Klarna, do the same on your production environment for the back office.
Activate Klarna for your test store




Make sure your payment gateway test Store ID has been enabled for Klarna
Activate Klarna as a payment method in your test store, via the Klarna Setup page in the Gateway
Portal’s Customisation section.
Use the following test credentials
o EID = 7773
o Shared Secret: 5q7PFydUAFcq3BW
Here you can find information to do test transactions: https://developers.klarna.com/en/de/kpm/testcredentials
6. Fraud Prevention Tools
There are several ways that the payment gateway helps you prevent fraud from interfering with your business
success. If certain individuals are continuously hurting your business with costly charge-backs, you can block them
from purchasing at your store.
We can provide you with the capability to block credit card numbers, names, domain names, and IP or Class C
addresses from purchasing at your store. In addition, two further capabilities are available, and these are the
power to set a limit on the maximum purchase that can be made at your store, and the ability to set auto lockout
and duplicate lockout times.
To change your fraud settings, select Administration in the Main Menu Bar and then click on one of the links in the
Fraud Settings section.
Fraud settings are sequentially ordered, so once you’ve finished with one, you can proceed to the next fraud
setting. There is also a quick navigation bar at the right of each Fraud Setting page, which allows you to jump
immediately to any Fraud Setting.
Here is a list of all the fraud settings that the back office gives you control over:








Blocking Credit Card Numbers
Blocking Names
Blocking Domain Names
Blocking Class C and IP Addresses
Setting a Maximum Purchase Limit
Setting Auto lockout times
Setting Duplicate lockout times
Setting a Country Profile
Another way to prevent fraud is by paying close attention to the address verification response.
If the address and/or post-code do not match the card-issuing bank's address on record, there is a higher
probability of fraud.
Furthermore, for your protection, we urge you to regularly use the card code field.
6.1. Blocking Credit Card Numbers
The first setting you will encounter when you bring up Fraud Settings is Block Card. Here you can enter the credit
card numbers that you do not wish to allow to purchase at your store.
Fraud prevention Blocking card numbers
If you have any credit card numbers already on your blocked credit cards list, they will automatically appear in the
select box on the right side of the screen when you enter this page.
Adding a card number
To add a card number to your blocked card number list:
1. Enter the card number you wish to block in the Card # input box on the left-hand side of the screen. If you do
not know the credit card number you can use the Order Number of the transaction where the card has been used
instead.
2. Then click the Add >> button. When you click the Add >> button, the change is submitted to the payment
gateway, we add the card number to your list of blocked card numbers, then we regenerate the page with the new
card number in the select box at the right side of the page.
If this blocked card should be used to attempt to purchase anything at your store, the transaction will be declined
because of fraud.
Add as many card numbers as you like by repeating the same process.
Removing a blocked card number
To remove a blocked card from your list, select the card number in the select box on the right side of the screen,
then click the << Delete button.
Upon removal from your blocked card list, the card number will again be allowed to be used to purchase at your
store. Delete as many card numbers as you need by repeating the same process.
Once you have finished adding and deleting card numbers, click on the Next button if you wish to go to the next
fraud setting page - this will take you to the Block Names page.
If you wish to see all your fraud settings, click on the View All Fraud Settings button.
6.2. Blocking Names
Take care when blocking names from purchasing at your store. For the name to be blocked, it must match exactly,
character for character, space for space. So, for example, if you block the name "John Redenbacher" from your
store, "Johnny Redenbacher", "John Samuel Redenbacher" or "John S. Redenbacher" would not be blocked.
Also, because the integrated fraud prevention system cannot distinguish between one "John Smith" and another,
you will block all persons with the same name as the person you wish to block.
However, with all that said, you may still wish to block particular names from purchasing at your store. To do so,
navigate to the Block Names page (select Administration on the Main Menu Bar, then on Add/change names to
block).
If you have any names already on your blocked names list, they will automatically appear in the select box on the
right side of the screen when you enter this page.
Adding a Name
To add a name to your blocked name list, follow these steps:
1. Enter the name in the Name input box on the left-hand side of the screen. You can also use the Order Number
of the transaction with the customer to be blocked instead.
2. Click the Add >> button.
3. When you click the Add >> button, the change is submitted to the payment gateway, we add the name to your
list of blocked names, then we regenerate the page with the new name in the select box at the right side of the
page.
If any person with this blocked name should attempt to purchase anything at your store, the transaction will be
declined because of fraud.
Add as many names as you like by repeating the same process. You may want to enter several different versions
of the particular name you wish to block.
Removing a blocked name
To remove a blocked name from your list, select the name in the select box on the right side of the screen, then
click the << Delete button.
Upon removal from your blocked name list, anyone with that name will again be allowed to purchase at your
store. Delete as many names as you need by repeating the same process.
Once you have finished adding and deleting names, click on the Next button if you wish to go to the next fraud
setting page - this will take you to the Block Domain Names page. If you wish to see all your fraud settings, click on
the View All Fraud Settings button.
6.3. Blocking Domain Names
Once you’ve finished blocking names and clicked on the Next button, you will find yourself at the Block Domain
Names page. (Alternatively you can reach this page by selecting Administration on the Main Menu Bar, then clicking
on Add/change domain names to block.)
Here you can enter the domain names for individuals from domains that you do not wish to allow to purchase at
your store.
If you have any domain names already on your blocked domains list, they will automatically appear in the select
box on the right side of the screen when you enter this page.
Adding a domain name
To add a domain name to your blocked domains list, follow the steps below:
1. Enter the domain name in the Domain name input box on the left-hand side of the screen, then click the Add >>
button. You must enter a domain in valid domain name format (e. g., here.com, there.net, savetheworld.org,
universityX.edu)
2. Click the Add >> button.
3. When you click the Add >> button, the change is submitted to the payment gateway, we add the domain to your
list of blocked domains, then we regenerate the page with the new domain name in the select box at the right side
of the page.
If an individual from this domain attempts to purchase anything at your store, the transaction will be declined
because of fraud.
Add as many domain names as you like by repeating the same process.
Removing a blocked domain name
To remove a blocked domain from your list, select the domain name in the select box on the right side of the
screen, then click the << Delete button.
Upon removal from your blocked domains list, individuals from that domain will again be allowed to purchase at
your store.
Delete as many domains as you need by repeating the same process.
Once you have finished adding and deleting domain names, click on the Next button if you wish to go to the next
fraud setting page - this will take you to the Block IP/Class C Address page. If you wish to see all your fraud settings,
click on the View All Fraud Settings button.
6.4. Blocking IP and Class C Addresses
Once you’ve finished blocking domain names and clicked on the Next button, you will find yourself at the Block
IP/Class C page. (Alternatively you can reach this page by selecting Administration on the Main Menu Bar, then
clicking on Add/change IP/Class C addresses to block)
Here you can enter the IP and Class C addresses for people or organisations that you do not wish to allow
purchasing at your store.
If you have any IP or Class C addresses already on your blocked IP or Class C list, they will automatically appear in
the select box on the right side of the screen when you enter this page.
Adding an IP or Class C address
To add an IP or Class C address to your blocked IP or Class C list, follow these steps:
1. Enter the address in the IP/Class C input box on the left-hand side of the screen. You must enter IP addresses in
the standard format, which is four numbers separated by 3 decimal points (e. g., 123.123.123.123). To enter Class
C addresses, enter the first 3 numbers separated by decimal points with a decimal point at the end (e. g.,
123.123.123.)
If you do not know the address you can use the Order Number of the transaction where the IP/Class C address has
been used instead
2. Click the Add >> button
3. When you click the Add >> button, the change is submitted to the payment gateway, we add the name to your
list of blocked IPs/Class Cs, then we regenerate the page with the new name in the select box at the right side of
the page.
Removing an IP or Class C address
To remove a blocked IP or Class C address from your list, select the address in the select box on the right side of
the screen, then click the << Delete button.
Upon removal from your blocked IP or Class C address list, persons visiting from that address will again be allowed
to purchase at your store.
Delete as many addresses as you need by repeating the same process.
Once you have finished adding and deleting IP and Class C addresses, click on the Next button if you wish to go to
the next fraud setting page - this will take you to the Set Maximum page. If you wish to see all your fraud settings,
click on the View All Fraud Settings button.
6.5. Setting Maximum Purchase Limit
Once you’ve finished blocking IP and Class C addresses and clicked on the Next button, you will find yourself at
the Set Maximum page. (Alternatively you can reach this page by selecting Administration on the Main Menu Bar,
then clicking on Set Maximum Purchase Amount.)
Fraud prevention: Setting maximum purchase limit
Any transactions for your store above this amount will be declined because of fraud. This field will be pre-filled
with the current maximum purchase limit for your store, if you have one.
If you wish to change this limit, simply enter the number in the Maximum Purchase Limit input box with the limit
you wish to enforce, then click on the Submit button.
If you do not wish to change your maximum purchase limit, you can click on the Next button to go to the next
Fraud Setting: Auto Lockout. If you wish to see all your fraud settings, click on the View All Fraud Settings button.
6.6. Setting Auto Lockout and Duplicate
Once you’ve finished with the Maximum Purchase Limit and clicked on the Next button, you will find yourself at the
Set Lockout Times page. (Alternatively you can reach this page by selecting Administration on the Main Menu Bar,
then clicking on Set lock out times.)
There are two things you can set on this page: the auto lockout time and the duplicate lockout time.
Auto lockout time is the amount of time that automatically blocked transactions are prohibited from trying
transactions at your store again.
Duplicate lockout time is the length of time that duplicate transactions are restricted from your store. That is, if
two transactions are identical and they both occur within a length of time less than the specified duplicate lockout
time, they will be automatically blocked as duplicate transactions.
To change your auto lockout or duplicate lockout time, simply replace the value in the appropriate input box with
the new value and then click on the Submit button.
If you don’t wish to change your lockout times, you can click on the Next button to go to the next Fraud Setting:
Country Profile. If you wish to see all your fraud settings, click on the View All Fraud Settings button.
6.7. Setting a Country Profile
Once you’ve finished with the lockout times and clicked on the Next button, you will find yourself at the Country
Profile page. (Alternatively you can reach this page by selecting Administration on the Main Menu Bar, then clicking
on Set country profile.)
The Country Profile page allows you to constrain credit card acceptance to cards from specific countries. Simply
chose one of the five profiles that vary from accepting cards from all countries (default) to accepting only cards
from one specific country. Then click on the Submit button.
If you don’t wish to change your country profile, you can click on the View All Fraud Settings button to see all your
fraud settings.
Please note that if you have no specific reason you should not exclude potential buyers from the possibility of a
purchase just because they come from a particular country or the credit card used by them was issued in a
particular country.
6.8. Card Security Code information
Mail order and telephone order (MO/TO) and other card-not-present transactions have higher fraud rates than
face-to-face transactions. To help reduce fraud in the card-not-present environment, credit card companies have
introduced a card code programme.
Visa® calls this code Card Verification Value (CVV); MasterCard® calls it Card Validation Code (CVC); American Express
calls it 4DBC.
The card security code is a three- or four- digit security code that is printed on the back of cards (American Express:
front of the card). The number typically appears at the end of the signature panel. This program helps validate
that a genuine card is being used during a transaction.
Card Security Code information
You enter the card code on the Point-of-Sale screen when processing an order. EMS then compares the card code
against the code on file with the card-issuing bank. Results of this comparison show in the transaction approval
code.
e-Terminal: Card Security Code field
To help combat fraud, card-not-present merchants (those who receive orders via mail order, telephone order, or
the Internet) should always enter a card security code (if on the card) when processing an authorisation. For retail
transactions, you may wish to enter the card security code printed on the card to ensure that the card was not
fraudulently reproduced.
A typical transaction result code might look like this. The card security code result is highlighted.
0097820000019564:YNAM:12345678901234567890123:
The last alphabetic character in the middle (M) is a code indicating whether the card security code matched the
card-issuing bank's code. An "M" indicates that the code matched.
This code may or may not be present, depending on whether the card security code was passed and the service
was available for the type of card used. Below is a table showing all the possible return codes and their meanings.
Value
M
N
P
S
U
X
Meaning
Card Security Code Match
Card Security Code does not match
Not processed
Merchant has indicated that the card security code is not
present on the card
Issuer is not certified and/or has not provided encryption
keys
No response from the credit card association was
received
A blank response should indicate that no code was sent
and that there was no indication that the code was not
present on the card.
7. Inventory Management
If you are using the Web Service API to manage stock information for your products, you can view and manually
modify the quantities in the back office . Select Customisation on the Main Menu Bar, then click on Manage your
Inventory to access the Inventory Management page.
For increasing the stock, you need to enter a positive number in the Update Stocks text box e.g. if your current
stock is ‘0’, and you want to update it to ‘5’, then you need to enter ‘5’ into the Update Stocks text box and save the
changes to reflect it.
For reducing the stock, you need to enter a negative number into the Update Stocks text box e.g. if your current
stock is ‘5’, and you want to reduce it to ‘2’, then you need to enter ‘-3’ into the Update Stocks text box and save
changes to reflect it.
Please note that this feature does not automatically update the stock information for orders that have been
processed via the back office .
8. User Administration
8.1. Changing your own Password
To change your password in the back office , select Administration on the Main Menu Bar, then click on Change
password. This will bring up the Manage users page.
When you first sign up for an account with the back office , you are provided with a temporary password. The
Change Password feature allows you to change that password and it is a necessary step that everyone must
undertake. The same rule applies when your password has been reset.
The password needs to consist of at least one (1) digit, one (1) alphabetic letter, one (1) special character, and no
more than two (2) repeating characters. In addition, the password needs to have at least eight (8) alphanumeric
characters in length.
To change your password, type your old password into the Enter Old password box first. What you see in the box
are asterisks instead of the letters and numbers that you type, for security reasons—anyone looking over your
shoulder cannot easily see what you have typed. Type your new password into the Enter New password box and
afterwards type it again into the following box entitled Enter password again. This is a commonly employed
precaution against accidentally mistyping it the first time.
Changing your password
Click on the Submit button. If you did accidentally mistype your new password you will be advised that there is an
error, and asked to re-enter the information. For added security, the error message will not specify which entry is
at fault. Furthermore, the system keeps track of your password history, thus you will not be allowed to reuse a
password that you had used recently. If you successfully changed your password, you will receive feedback to that
effect.
8.2. Managing Users
You can have multiple users for one store, which allows multiple employees to process orders and/or view reports,
each of them logging on with their own user ID, password, and permissions. All users of one store can share the
same client certificate.
To add or delete users, you must be logged in on the store's original user account. The primary user for the store -the user ID and password that was provided when the store account was set up--is the only user who can
add/delete users and assign permissions. No other users are allowed to add or remove users or assign user
permissions. Users who do not have permissions to manage users will not see the Manage Users option on the
Administration page.
Adding and Deleting Users
To manage users, you first need to get to the Account Manager:
1. Click on Administration on the Main Menu Bar.
2. Then click on Add/remove/modify user.
3. The Current Users page will appear.
Now that you are on the current users page, you can add or delete users, reset password, and/or define
permissions for each user.
To add a user
1. Click on the Add link located at the bottom of the page.
2. The Add User screen will appear.
3. Enter a unique User-ID for the new user in the Username text box, then enter a Password for your new user twice.
4. Click on the Continue button to create the new user.
5. The Current Users list will reappear, showing the new user on the list.
The user can change their own password when they log in by using the Change Password utility.
To delete a user
1. Click on the delete link located next to the user you wish to delete.
2. A dialogue box will appear, stating that this operation will delete the selected user.
3. Click the OK button to delete the user or Cancel if you do not wish to delete the user.
4. Once the user is deleted, the Current Users screen will refresh, with the deleted user omitted from the list.
Resetting User Passwords
If a user should forget their password and you need to reset it:
1. Click on the reset password link for the appropriate user.
2. Enter a new password for the user twice, then click the Submit button.
The user can change their temporary password when they log in by using the Change Password function.
Setting User Permissions
To set permissions for a user:
1. Click on the permissions link associated with the desired user.
2. The Set User Permissions page will appear.
3. In the Permissions portion of the table, click on the appropriate checkboxes to turn on or off permissions for this
user. You can control the user's access to View Reports, Process Transactions, and/or Issue Credits.
4. Click on the Continue button at the bottom of the page.
5. You will be returned to the Current Users listing. The words updated successfully should appear at the top of the
page if the change was successful
Download PDF
