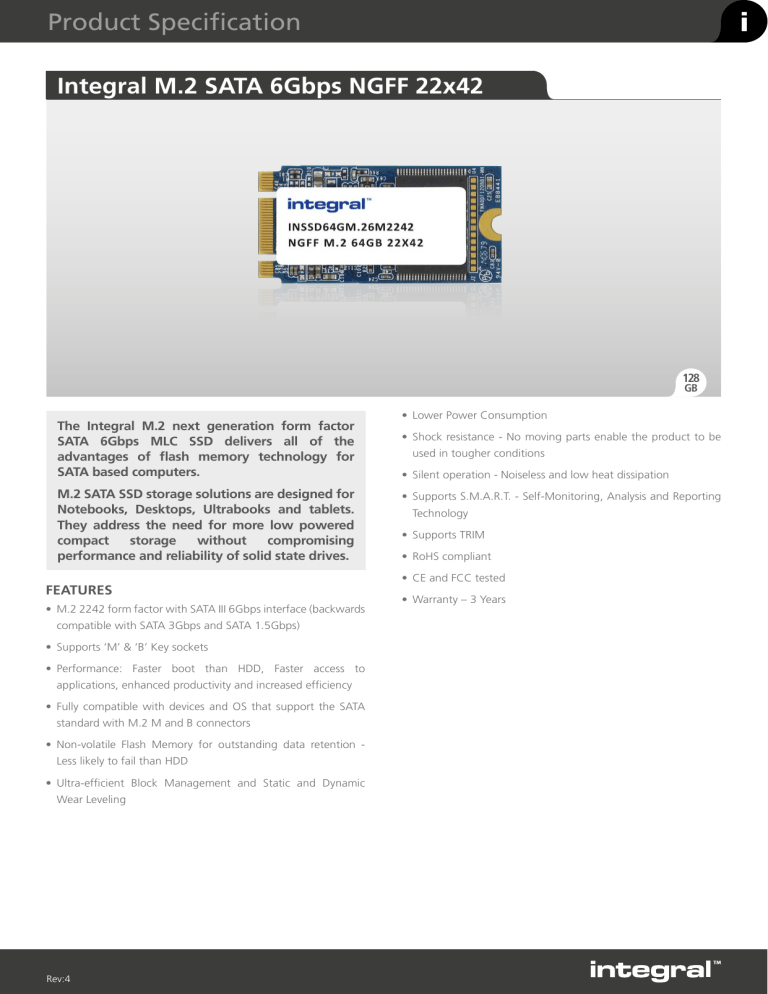

Product Specification
i
i
Integral M.2 SATA 6Gbps NGFF 22x42
128
GB
The Integral M.2 next generation form factor
SATA 6Gbps MLC SSD delivers all of the
advantages of flash memory technology for
SATA based computers.
M.2 SATA SSD storage solutions are designed for
Notebooks, Desktops, Ultrabooks and tablets.
They address the need for more low powered
compact
storage
without
compromising
performance and reliability of solid state drives.
FEATURES
• M.2 2242 form factor with SATA III 6Gbps interface (backwards
compatible with SATA 3Gbps and SATA 1.5Gbps)
• Supports ‘M’ & ‘B’ Key sockets
• Performance: Faster boot than HDD, Faster access to
applications, enhanced productivity and increased efficiency
• Fully compatible with devices and OS that support the SATA
standard with M.2 M and B connectors
• Non-volatile Flash Memory for outstanding data retention Less likely to fail than HDD
• Ultra-efficient Block Management and Static and Dynamic
Wear Leveling
Rev:4
• Lower Power Consumption
• Shock resistance - No moving parts enable the product to be
used in tougher conditions
• Silent operation - Noiseless and low heat dissipation
• Supports S.M.A.R.T. - Self-Monitoring, Analysis and Reporting
Technology
• Supports TRIM
• RoHS compliant
• CE and FCC tested
• Warranty – 3 Years
Product Specification
i
i
PERFORMANCE
128GB
CAPACITY
Read
530MB/s (up to)*
Write
430MB/s (up to)*
128GB
Interface
NAND
MLC
Product design and specification subject to change or modification without notice. E&OE.
All trademarks acknowledged.
For warranty information please visit www.integralmemory.com/warranty
M.2 22x42 ‘M’ & ‘B’ Key
connector
M.2 (Previously known as Next
Generation Form Factor (NGFF)
POWER CONSUMPTION
Supply Voltage
3.3V
Read: 128GB = 1705
Power Consumption (mW)
Write: 128GB = 1640
Idle = 275
(256G = 295)
ECC algorithm
Supports 72bit ECC correct per
1K Byte
MTBF
>2 Million Hours
ENVIRONMENTAL
Operating Temp
0° to +70°C
Non - Operating Temp
-40° to +85°C
Humidity
RH 90% under 40C in operation
Supports SMART Software
Yes
Supports TRIM
Yes (OS support required)
Compliancy
CE, FCC, RoHS
DIMENSIONS
Length
42mm
Width
22mm
Height
3.75mm
Weight
4g
Length (Packed)
120mm
Width (Packed)
64mm
Height (Packed)
8mm
Weight (Packed)
12g
WARRANTY
3 years
*Based on internal testing
Rev:4
5055288427327
This device should not be used as your sole backup.
SATA III 6Gbps
Also Compatible with SATA II
3Gbps and SATA 1.5Gbps
Standard
INSSD128GM.26M2242
BARCODE (EAN)
1GB = 1,000,000,000 bytes. Formatted capacity is less.
INTERFACE
Form Factor
PART CODE
