Philips SDW1420GN/17 Datasheet

Philips SDW1420GN/17 Datasheet

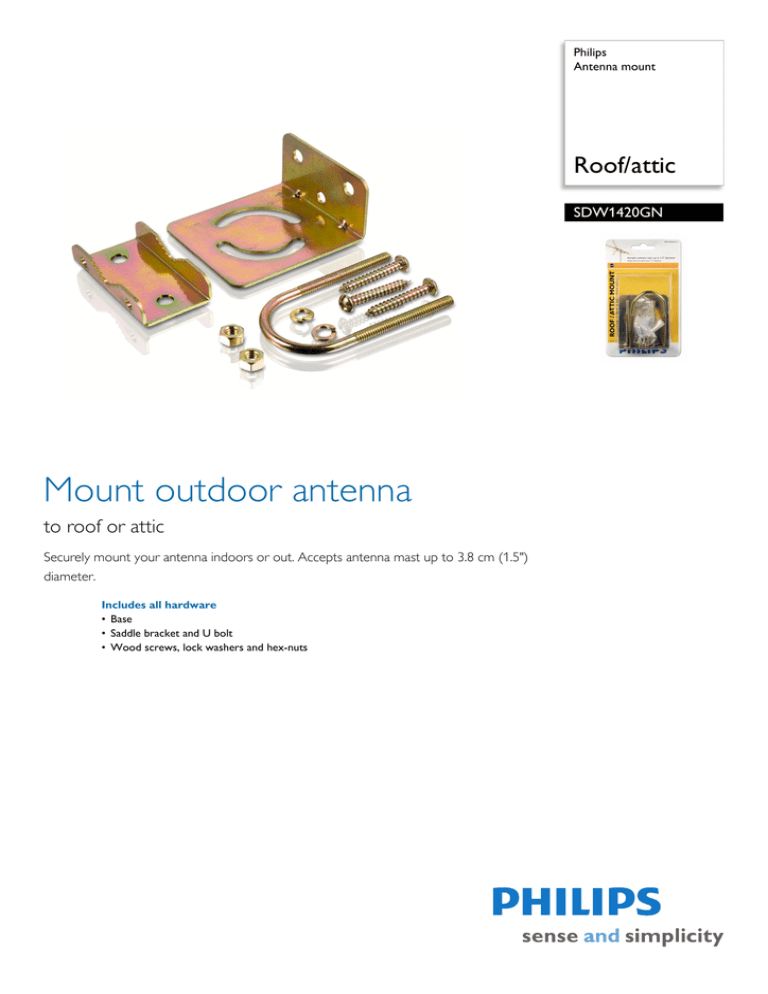

Philips
Antenna mount
Roof/attic
SDW1420GN
Mount outdoor antenna
to roof or attic
Securely mount your antenna indoors or out. Accepts antenna mast up to 3.8 cm (1.5")
diameter.
Includes all hardware
• Base
• Saddle bracket and U bolt
• Wood screws, lock washers and hex-nuts
SDW1420GN/17
Antenna mount
Roof/attic
Specifications
Inner Carton
•
•
•
•
Gross weight: 1.134 kg
Inner carton (L x W x H): 24.4 x 19.6 x 12 cm
Nett weight: .908 kg
Tare weight: .226 kg
Outer Carton
• Gross weight: 7.421 kg
• Outer carton (L x W x H): 46 x 40.9 x 30.4 cm
Highlights
• Nett weight: 5.448 kg
• Tare weight: 1.973 kg
Packaging dimensions
• Packaging dimensions (W x H x D):
10.7 x 19.6 x 4.4 cm
• Gross weight: .249 kg
• Nett weight: .227 kg
• Tare weight: .022 kg
•
Issue date 2011-06-07
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 4.0.12
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 29415
UPC: 6 09585 13158 3
www.philips.com
Base
The base bolts to the roof or attic to keep the
antenna mast in place.
Saddle bracket and U bolt
Two pieces of hardware screw into the base bracket
to secure the antenna.
